SUAPE EXPRESS
9332858 | 5LFL8 | 9332858 by ********* Last update: Fri Aug 16 2024

General Info

Ship Name:SUAPE EXPRESS
IMO Code:9332858
Call Sign:5LFL8
Line Operator:9332858
Class Name for Sister Ships:MSL
Year Built:2008
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):276.00
LOA (Length Overall):293.20
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:067
Max ISO Row:16
Center Line Row:No
Max Above ISO Tier:96
Min Above ISO Tier:82
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:6,582

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

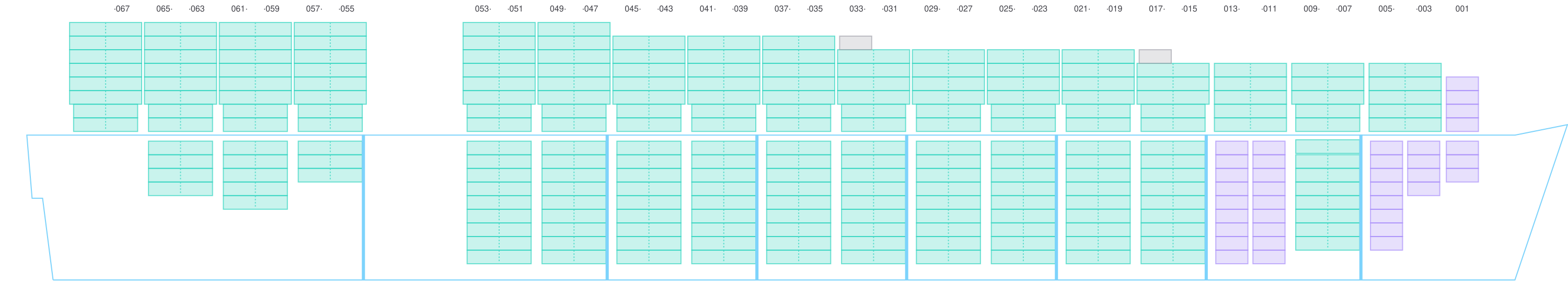

Side View

Side view of SUAPE EXPRESS

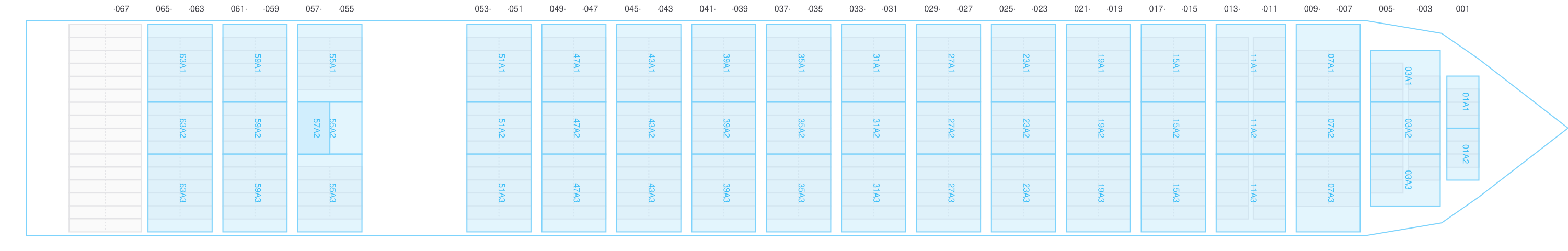

Hatch-Covers View

Deck view of SUAPE EXPRESS

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001

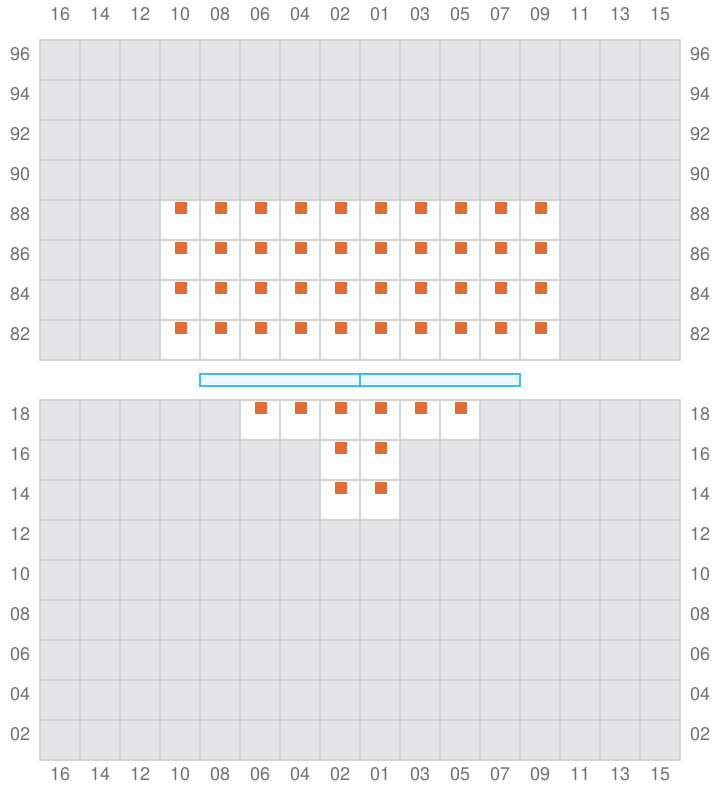

Bay 001 view and slots of SUAPE EXPRESS

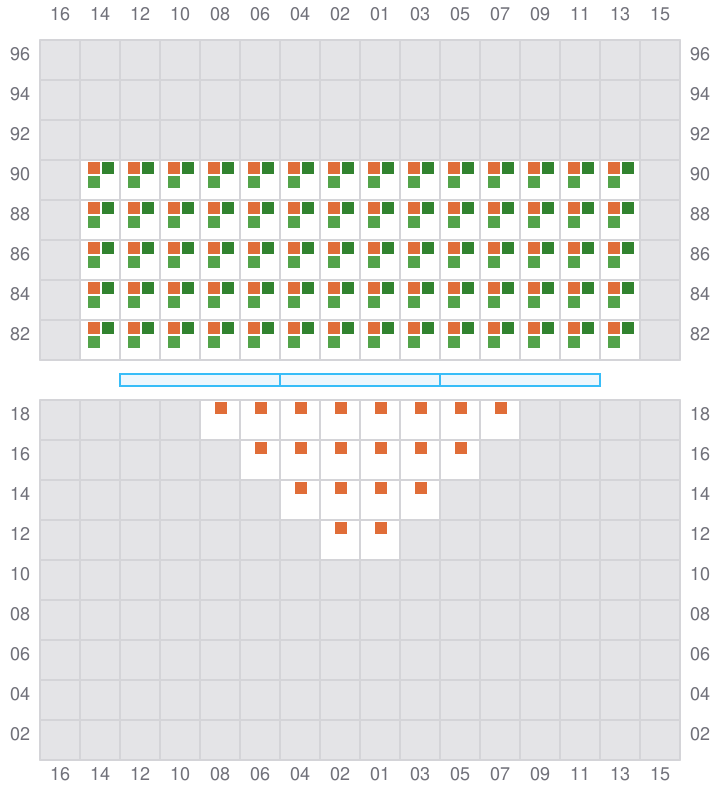

003 (004)

  • → / ?
Bay 003 view and slots of SUAPE EXPRESS

005

  • ← / ?
  • → / ?

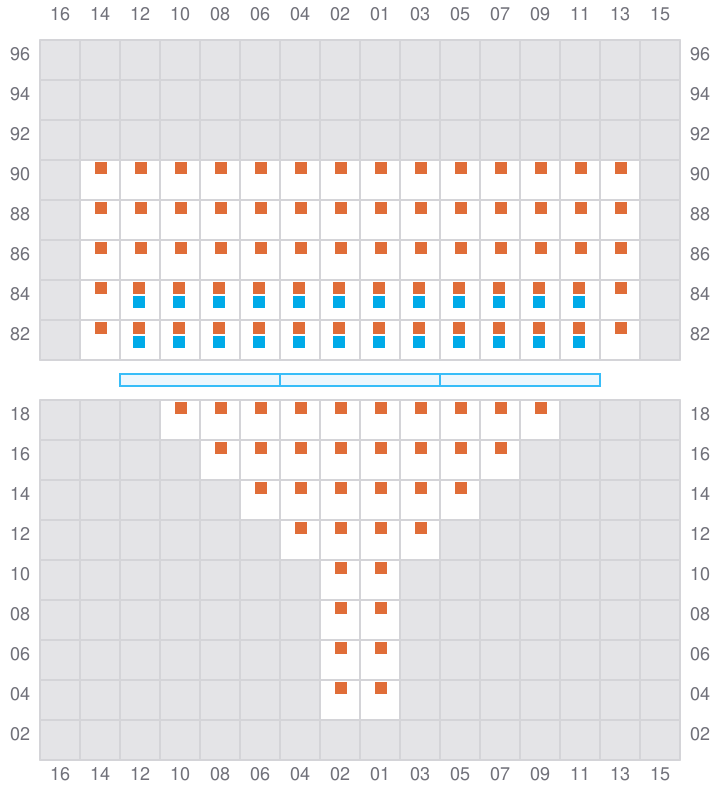

Bay 005 view and slots of SUAPE EXPRESS

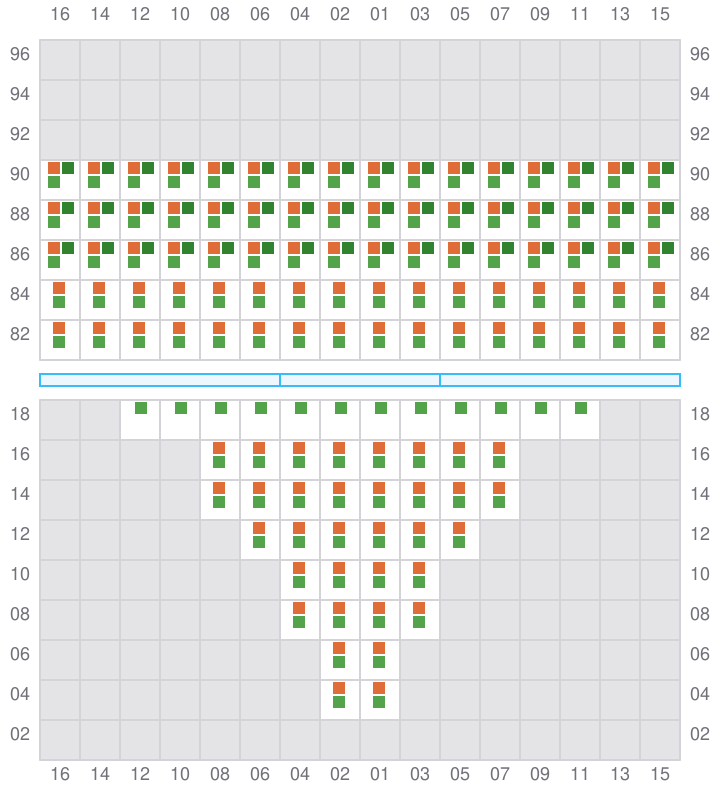

007 (008)

  • →
Bay 007 view and slots of SUAPE EXPRESS

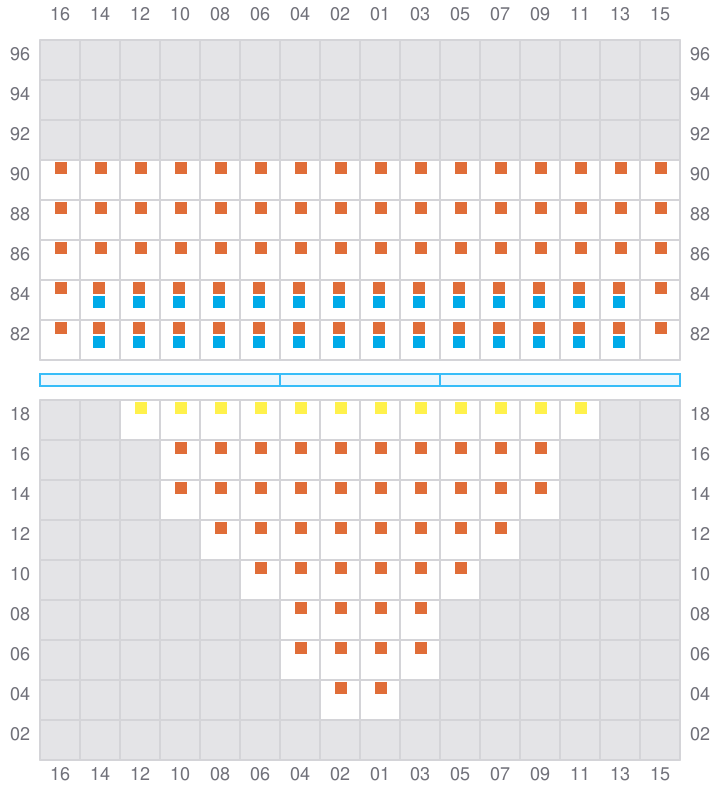

009

  • ←
  • → / ?
Bay 009 view and slots of SUAPE EXPRESS

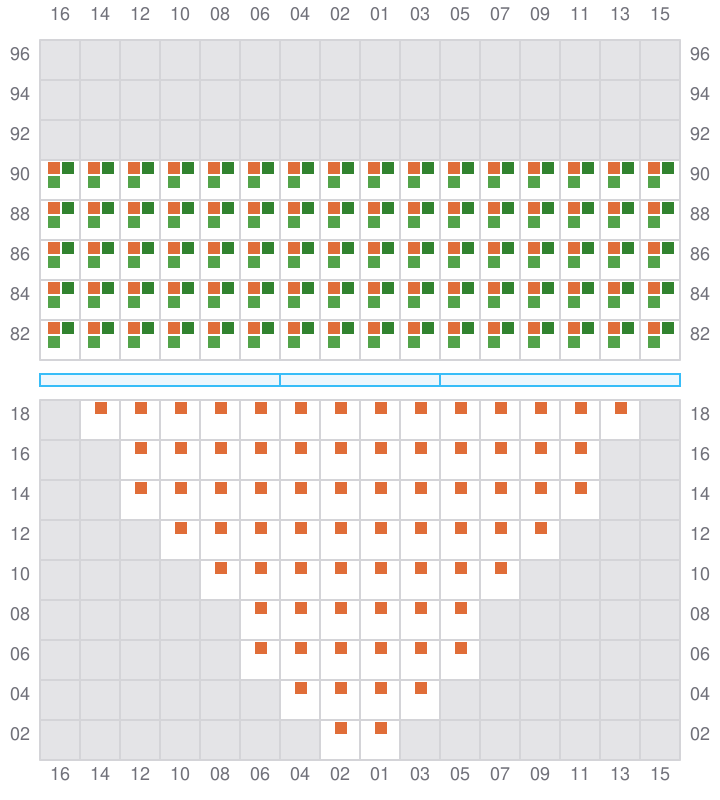

011 (012)

  • → / ?
Bay 011 view and slots of SUAPE EXPRESS

013

  • ← / ?
  • → / ?

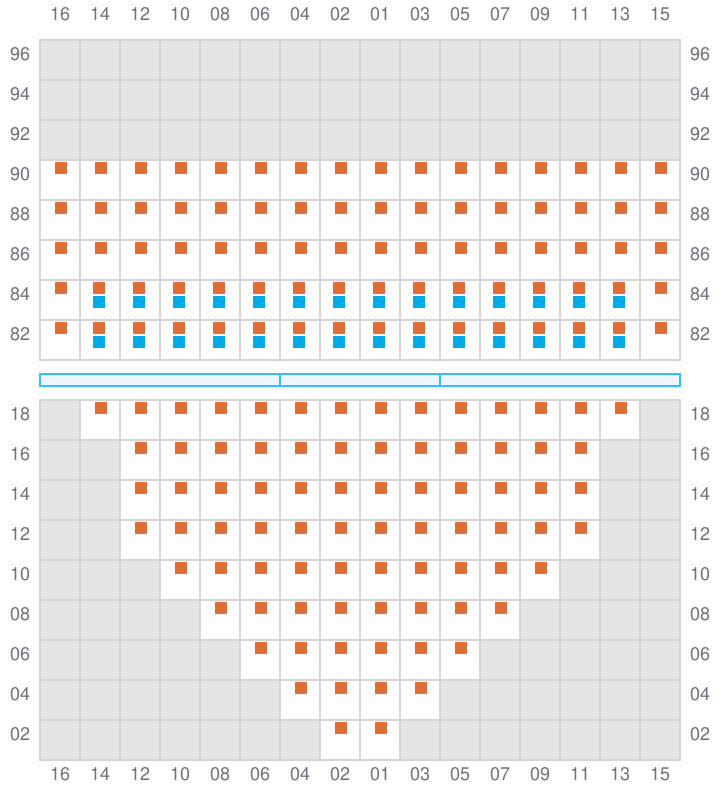

Bay 013 view and slots of SUAPE EXPRESS

015 (016)

  • →

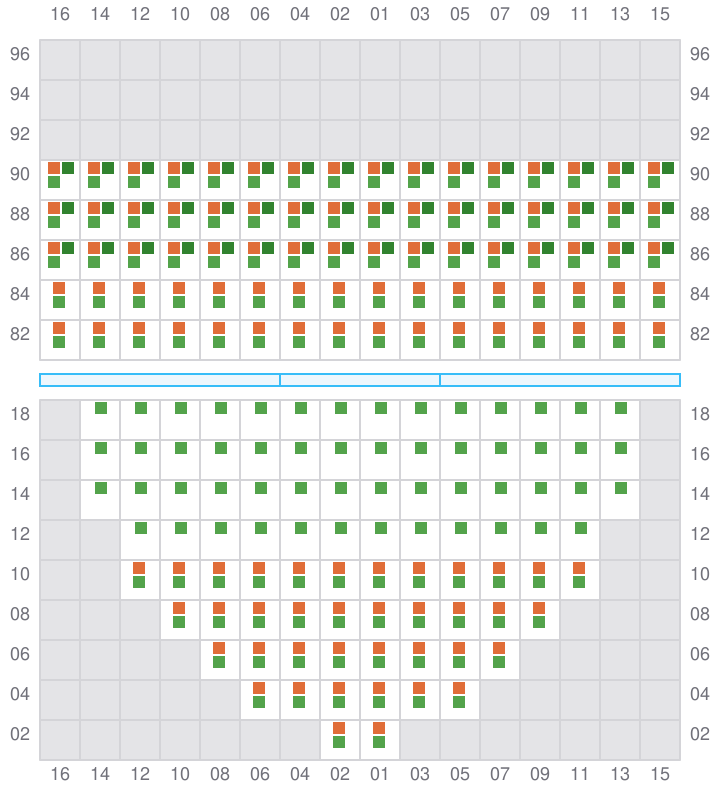

Bay 015 view and slots of SUAPE EXPRESS

017

  • ←
  • → / ?
Bay 017 view and slots of SUAPE EXPRESS

019 (020)

  • →

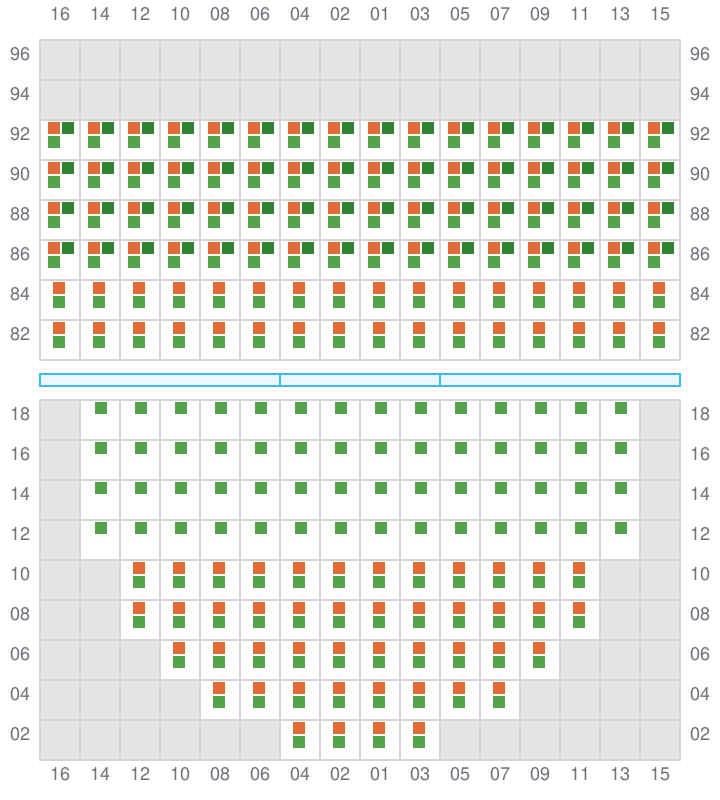

Bay 019 view and slots of SUAPE EXPRESS

021

  • ←
  • → / ?

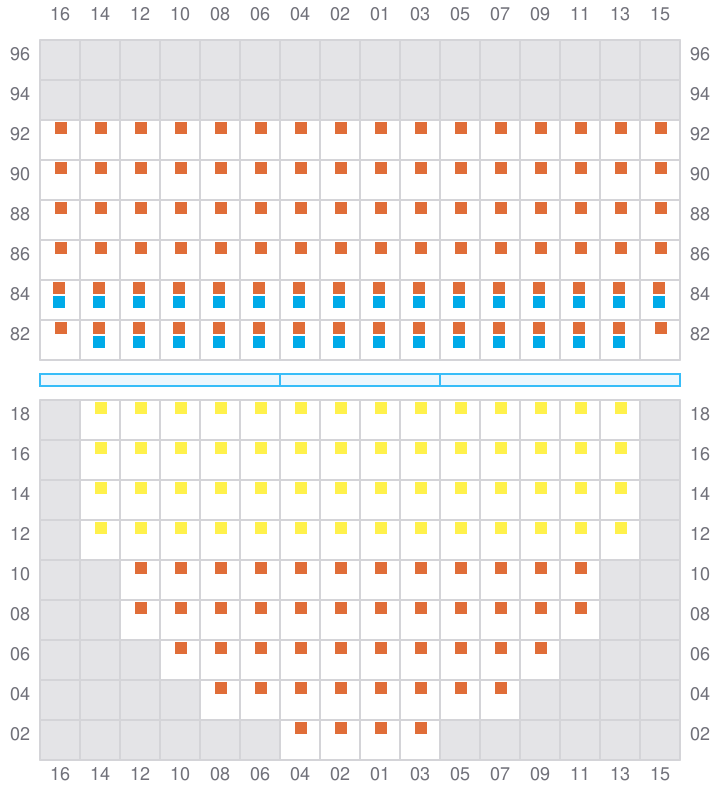

Bay 021 view and slots of SUAPE EXPRESS

023 (024)

  • →

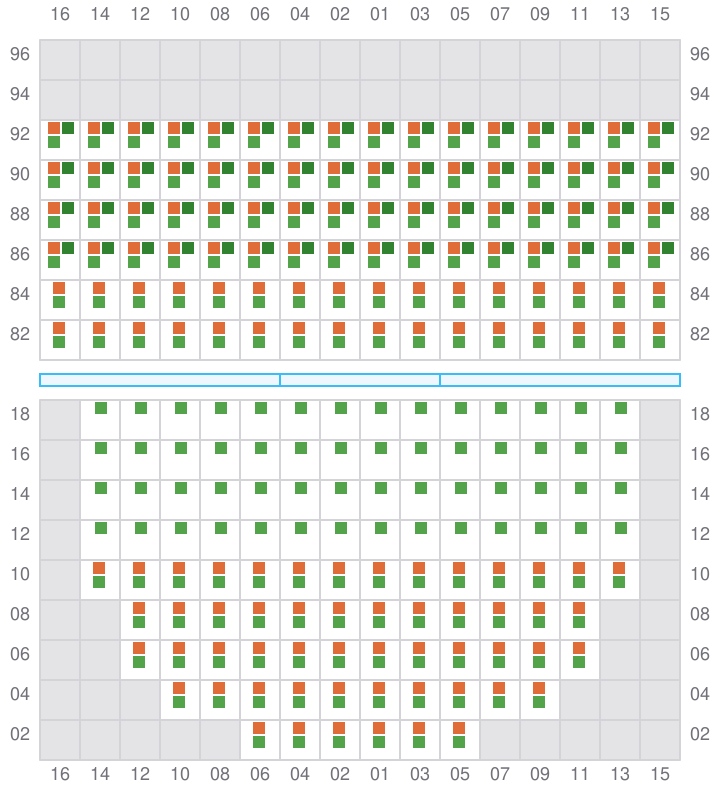

Bay 023 view and slots of SUAPE EXPRESS

025

  • ←
  • → / ?

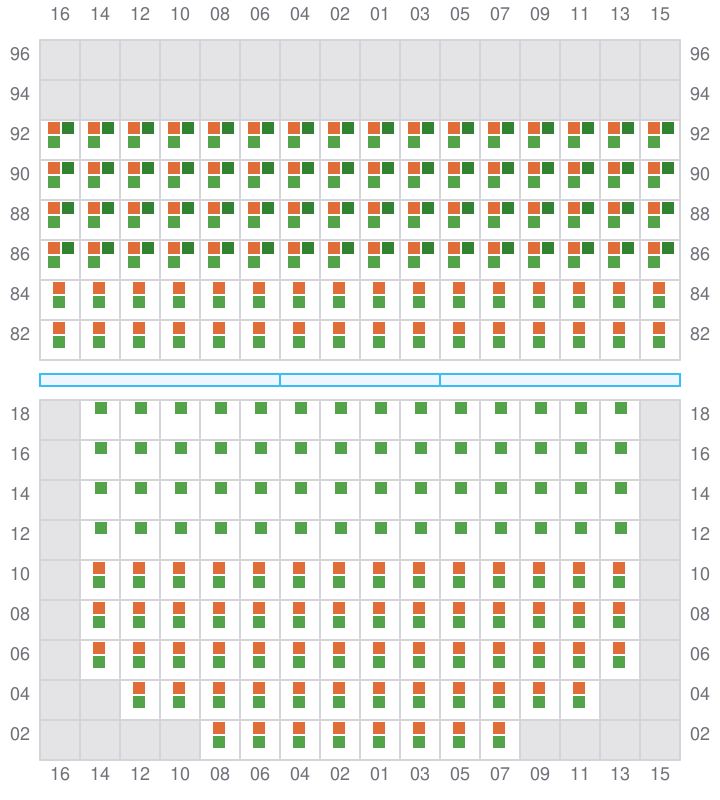

Bay 025 view and slots of SUAPE EXPRESS

027 (028)

  • →
Bay 027 view and slots of SUAPE EXPRESS

029

  • ←
  • → / ?
Bay 029 view and slots of SUAPE EXPRESS

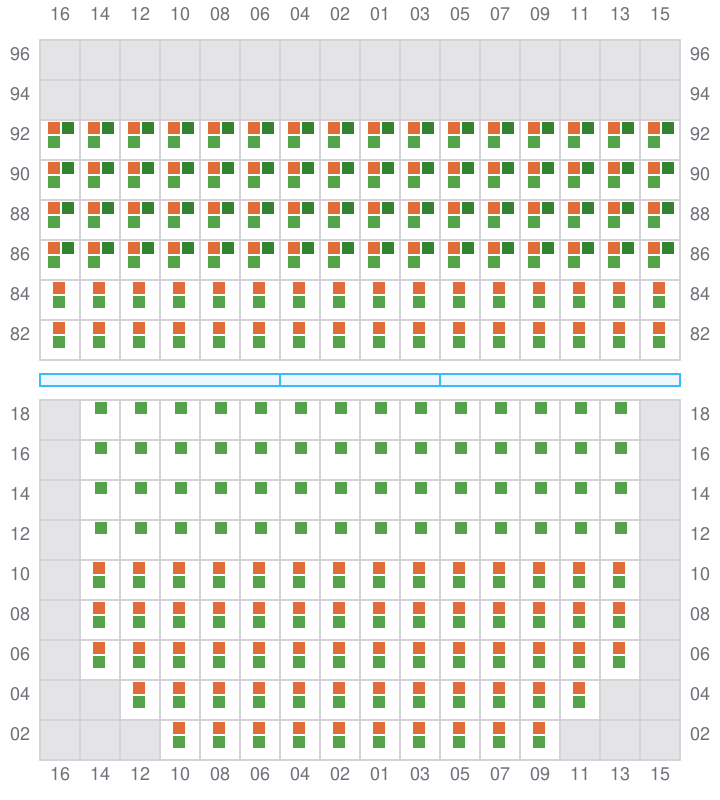

031 (032)

  • →
Bay 031 view and slots of SUAPE EXPRESS

033

  • ←
  • → / ?

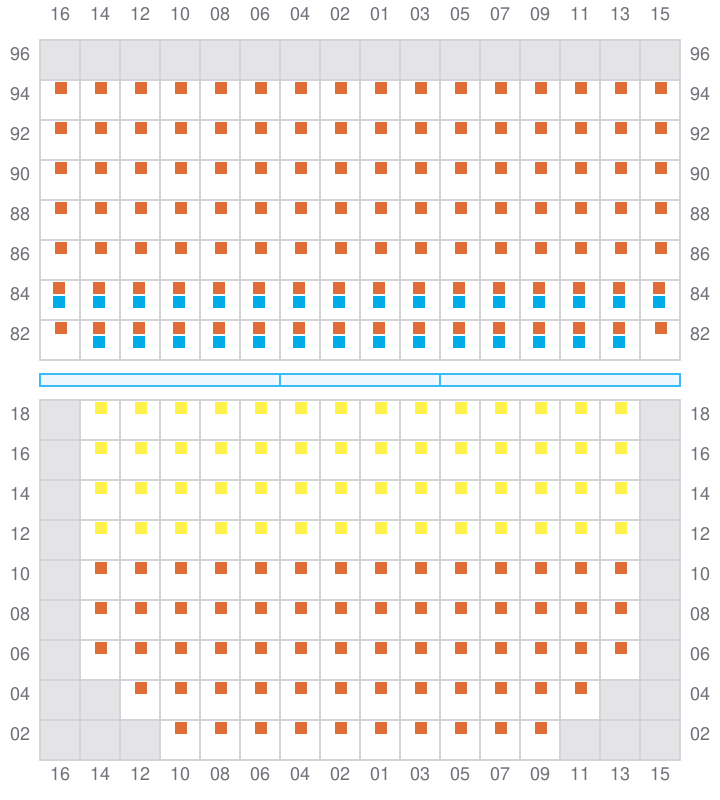

Bay 033 view and slots of SUAPE EXPRESS

035 (036)

  • →
Bay 035 view and slots of SUAPE EXPRESS

037

  • ←
  • → / ?
Bay 037 view and slots of SUAPE EXPRESS

039 (040)

  • →
Bay 039 view and slots of SUAPE EXPRESS

041

  • ←
  • → / ?
Bay 041 view and slots of SUAPE EXPRESS

043 (044)

  • →

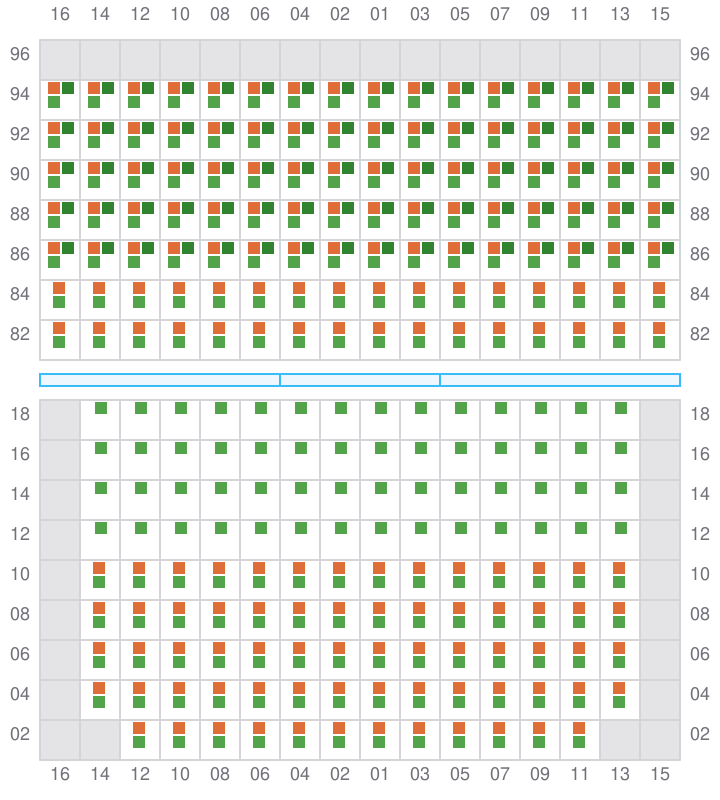

Bay 043 view and slots of SUAPE EXPRESS

045

  • ←
  • → / ?

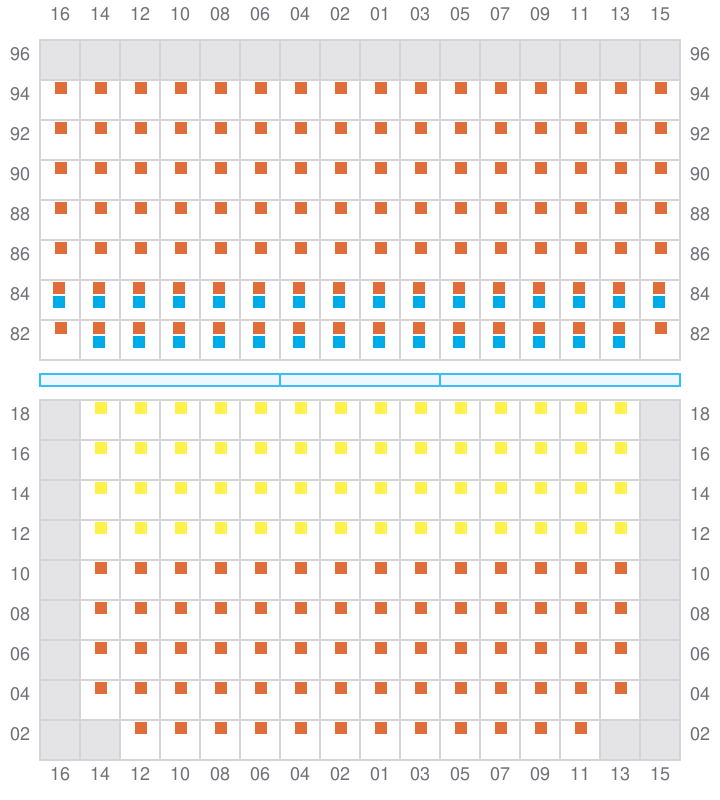

Bay 045 view and slots of SUAPE EXPRESS

047 (048)

  • →
Bay 047 view and slots of SUAPE EXPRESS

049

  • ←
  • → / ?
Bay 049 view and slots of SUAPE EXPRESS

051 (052)

  • →

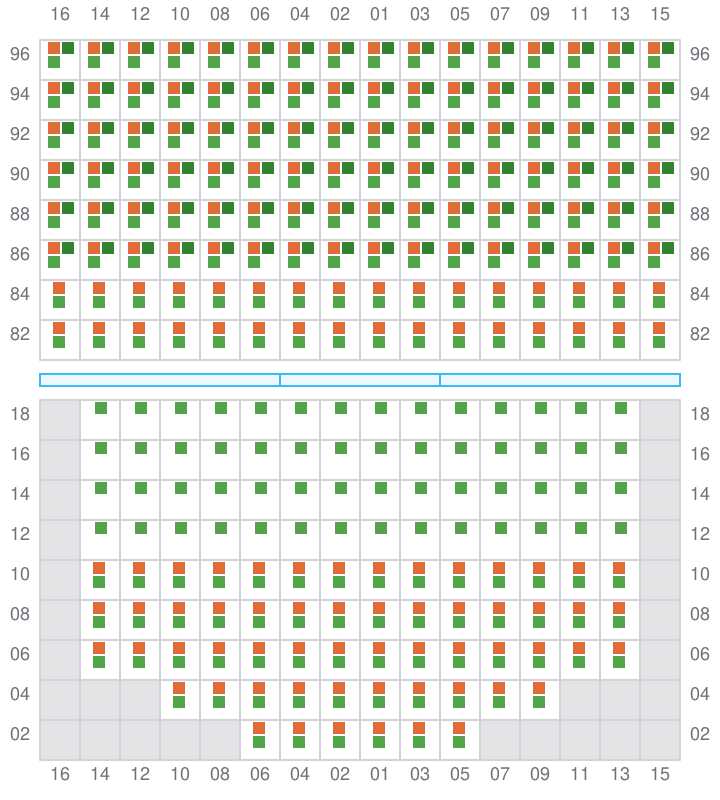

Bay 051 view and slots of SUAPE EXPRESS

053

  • ←
  • → / ?

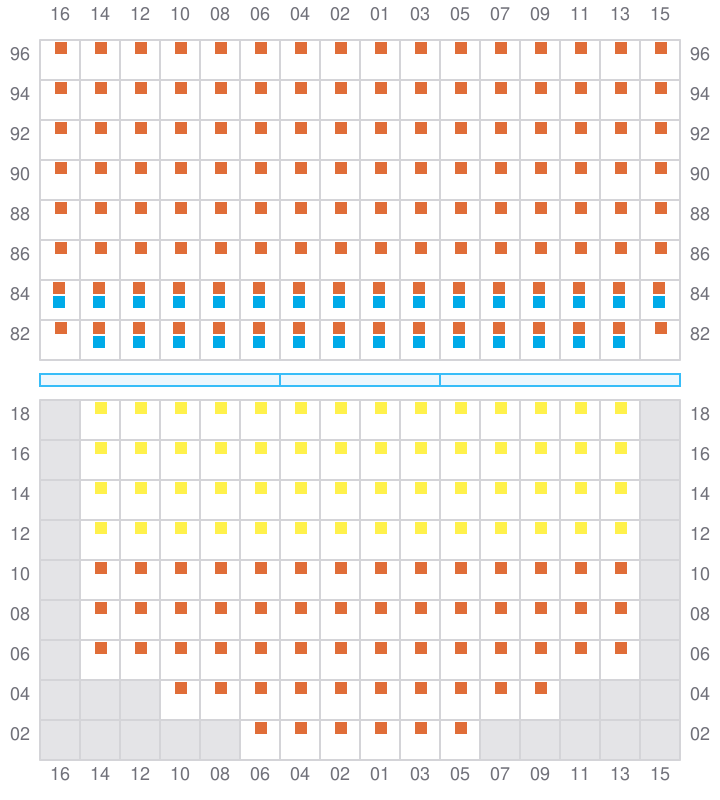

Bay 053 view and slots of SUAPE EXPRESS

055 (056)

  • →
  • ← / ?
Bay 055 view and slots of SUAPE EXPRESS

057

  • ←
Bay 057 view and slots of SUAPE EXPRESS

059 (060)

  • →
  • ← / ?

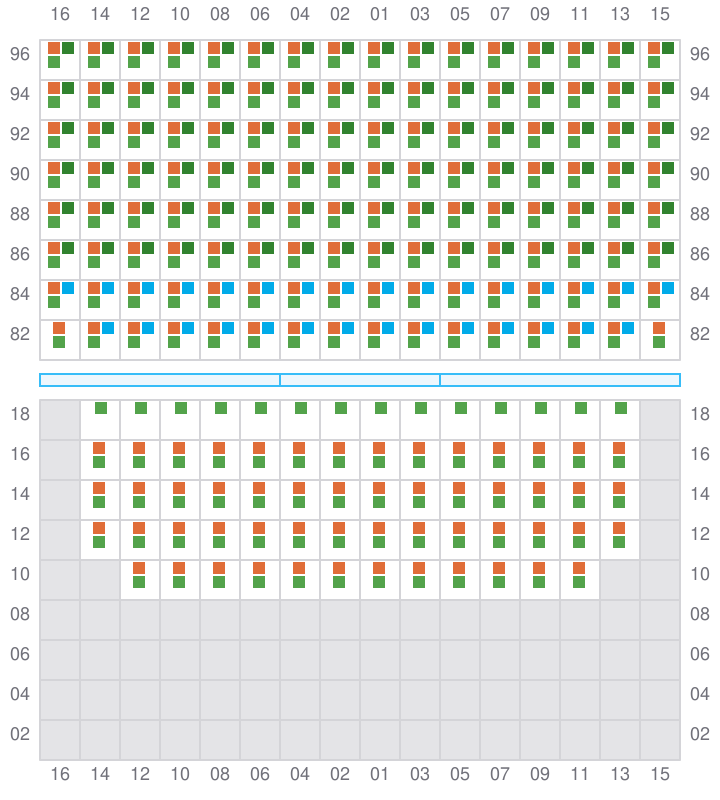

Bay 059 view and slots of SUAPE EXPRESS

061

  • ←
Bay 061 view and slots of SUAPE EXPRESS

063 (064)

  • →
  • ← / ?
Bay 063 view and slots of SUAPE EXPRESS

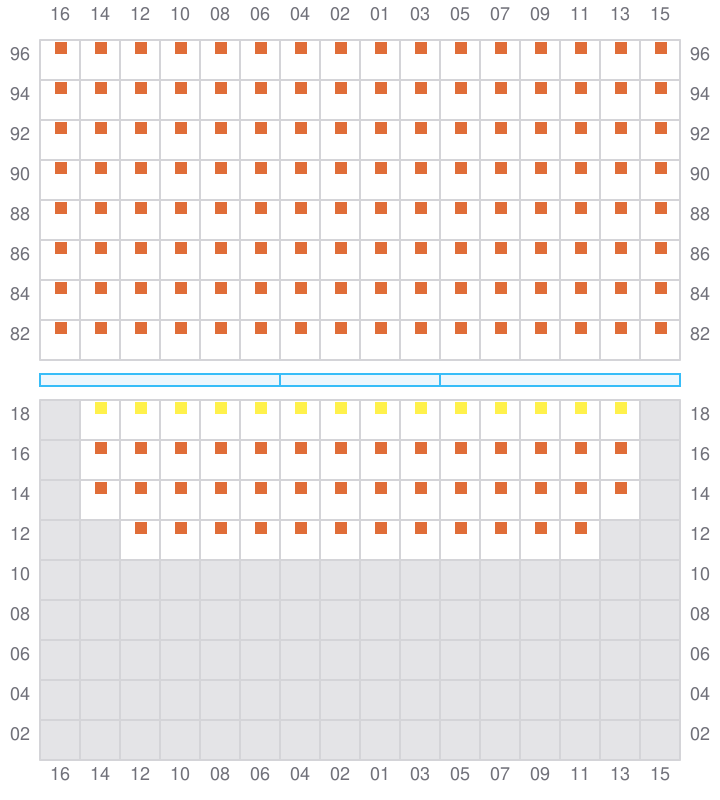

065

  • ←

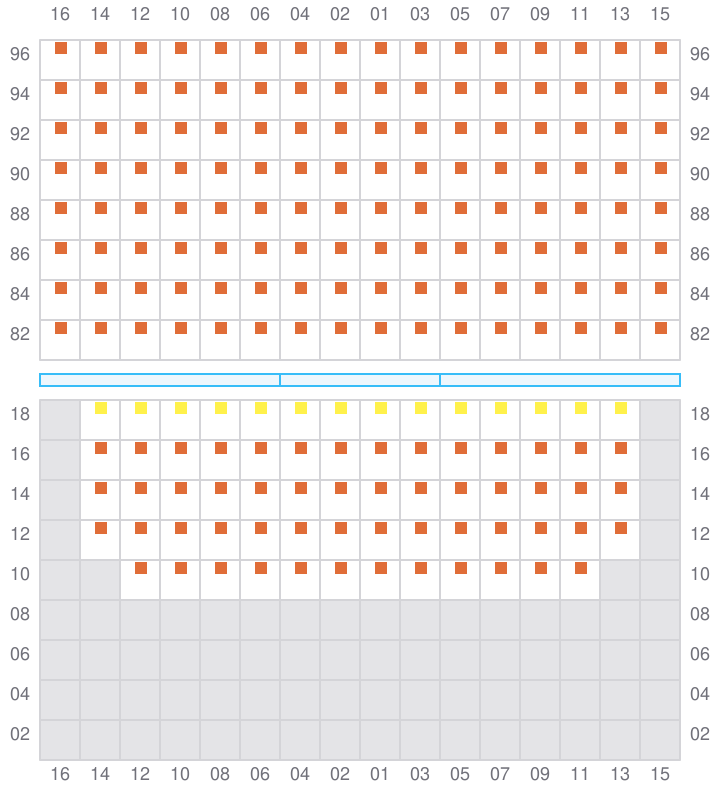

Bay 065 view and slots of SUAPE EXPRESS

067 (068)

  • → / ?
  • ← / ?

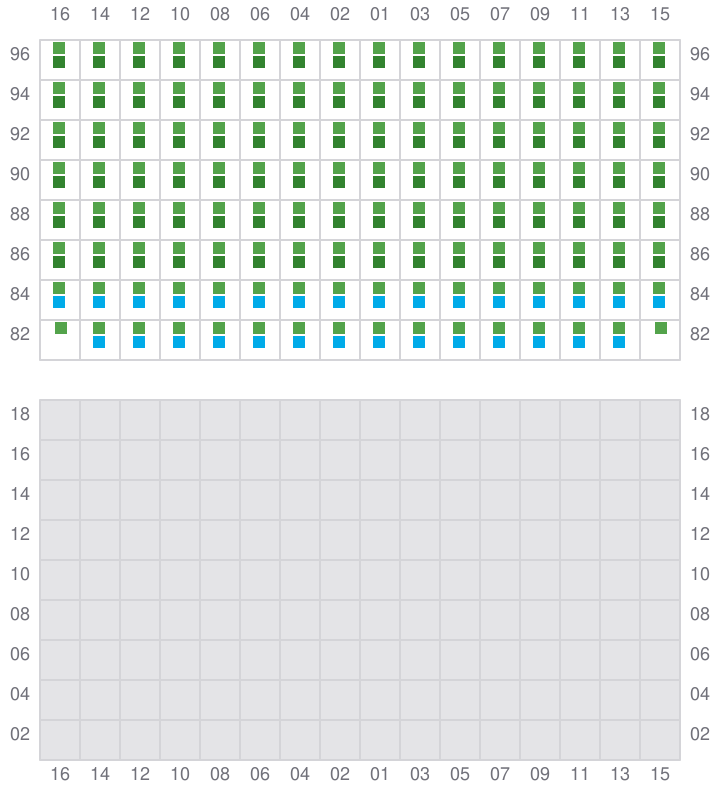

Bay 067 view and slots of SUAPE EXPRESS
