SURYA PELANGI
9015670 | PONM | 9015670 by *********** Last update: Sun Mar 03 2024
General Info
Ship Name:SURYA PELANGI
IMO Code:9015670
Call Sign:PONM
Line Operator:9015670
Class Name for Sister Ships:33A
Year Built:1993
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:019
Max ISO Row:06
Center Line Row:Yes
Max Above ISO Tier:88
Min Above ISO Tier:82
Max Below ISO Tier:06
Min Below ISO Tier:02
Total TEU:249
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%
Side View
Hatch-Covers View
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

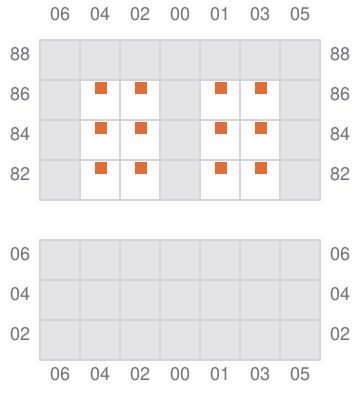

001

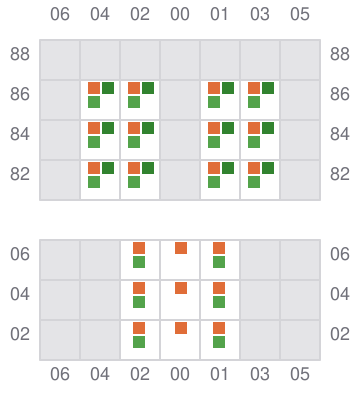

003 (004)
- →
005
- ←
007 (008)
- →
009
- ←

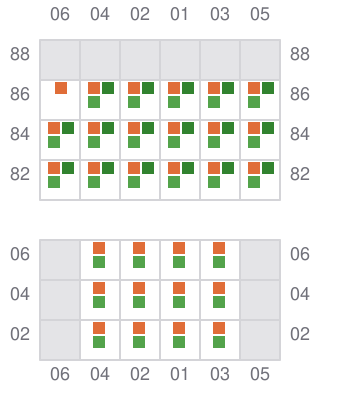

011 (012)
- →
013
- ←
015 (016)
- →
017
- ←

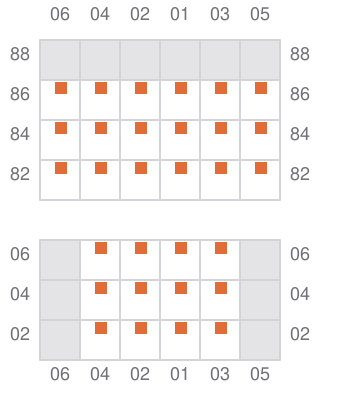

019
