SURYA PIONEER
9046148 | JZAC | 9046148 by *********** Last update: Sun Mar 03 2024
General Info
Ship Name:SURYA PIONEER
IMO Code:9046148
Call Sign:JZAC
Line Operator:9046148
Class Name for Sister Ships:03D
Year Built:1994
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):97.40
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:021
Max ISO Row:06
Center Line Row:Yes
Max Above ISO Tier:90
Min Above ISO Tier:82
Max Below ISO Tier:06
Min Below ISO Tier:02
Total TEU:364
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Estimated
VCG Data:0%
TCG Values:Known
TCG Data:100%

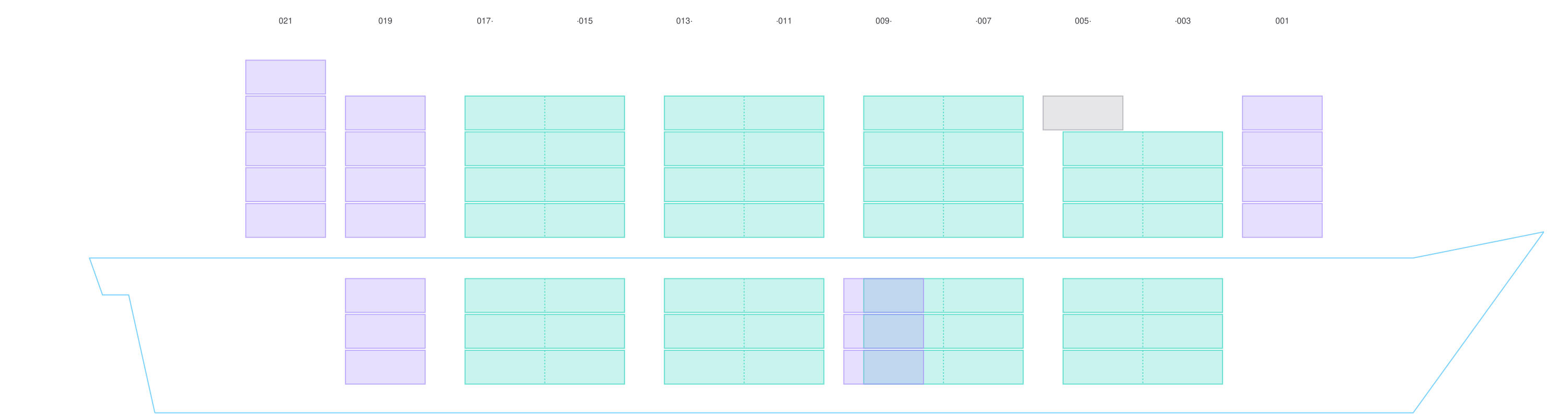

Side View
Hatch-Covers View

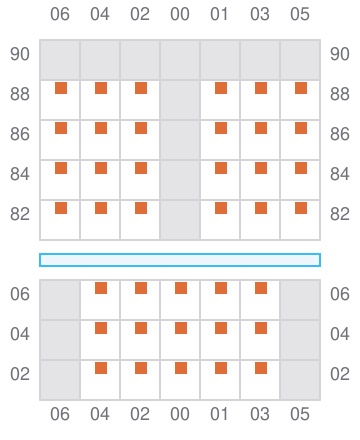

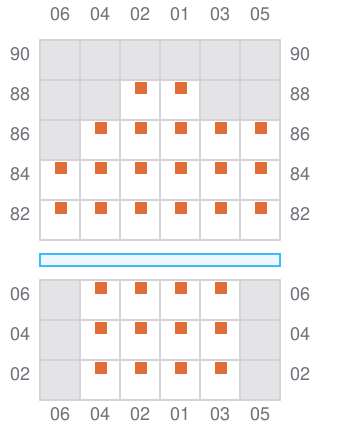

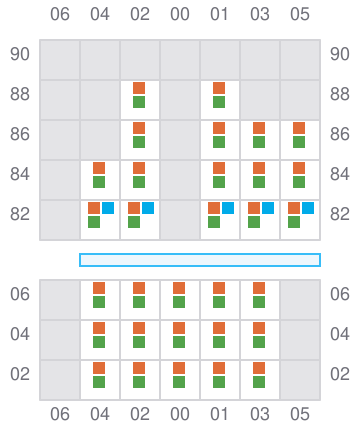

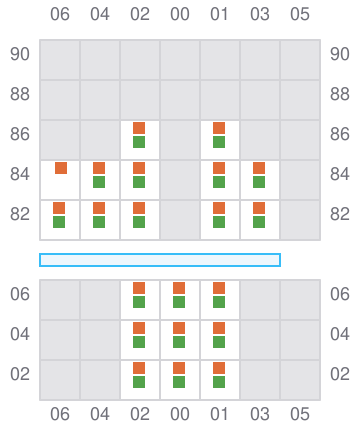

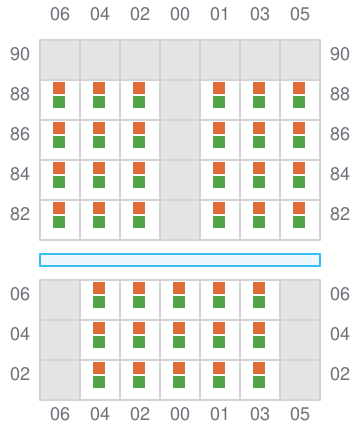

ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot
001
003 (004)
- →
005
- ←
007 (008)
- →
009
- ← / ?
011 (012)
- →
013
- ←
015 (016)
- →
017
- ←
019
021
