SWIMMER
9033713 | 3EDQ9 | 9033713 by *********** Last update: Sun Mar 03 2024
General Info
Ship Name:SWIMMER
IMO Code:9033713
Call Sign:3EDQ9
Line Operator:9033713
Class Name for Sister Ships:15L
Year Built:1991
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:023
Max ISO Row:06
Center Line Row:Yes
Max Above ISO Tier:86
Min Above ISO Tier:82
Max Below ISO Tier:06
Min Below ISO Tier:02
Total TEU:325
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%
Side View
Hatch-Covers View
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot ×

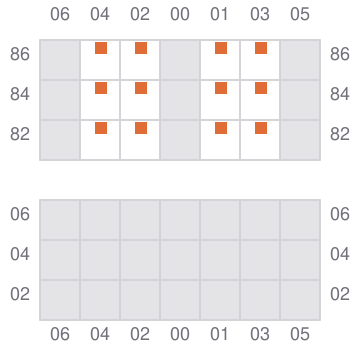

001

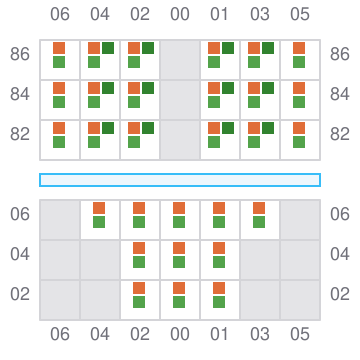

003 (004)
- →

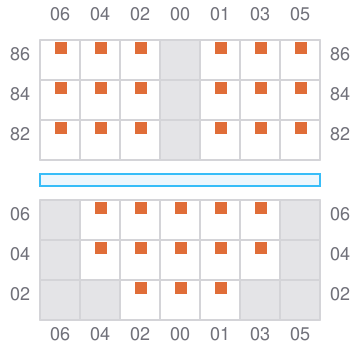

005
- ←

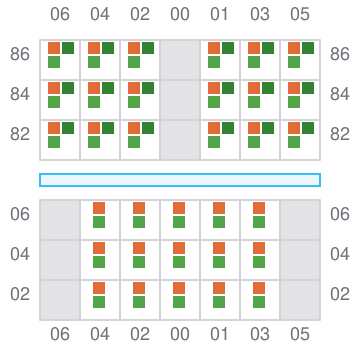

007 (008)
- →

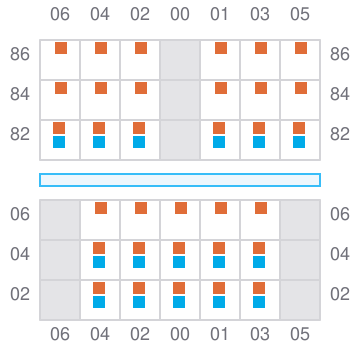

009
- ←
- →

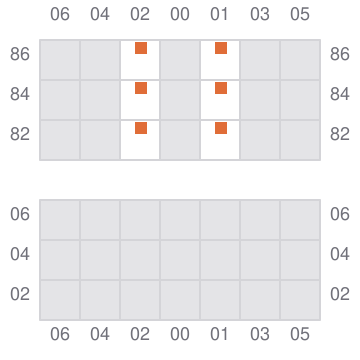

011

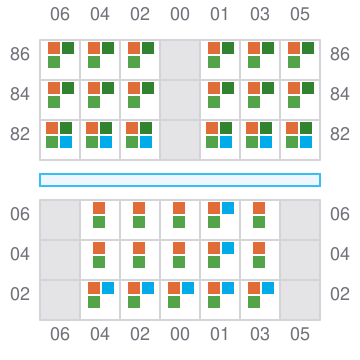

013 (014)
- →
- ←
015
- ←
017 (018)
- →

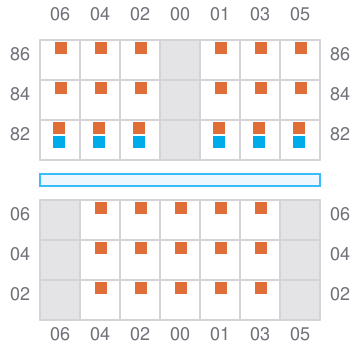

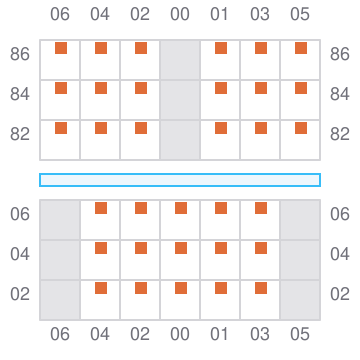

019
- ←
- → / ?

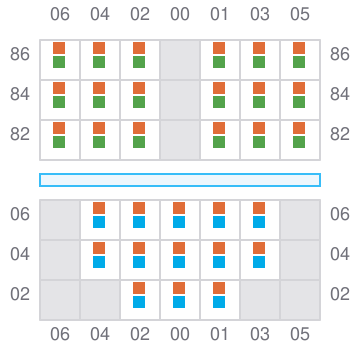

021 (022)
- → / ?
023
- ← / ?
- → / ?
