T MARE
9007001 | 3E3959 | 9007001 by *********** Last update: Sun Mar 03 2024
General Info
Ship Name:T MARE
IMO Code:9007001
Call Sign:3E3959
Line Operator:9007001
Class Name for Sister Ships:55Q
Year Built:1994
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:023
Max ISO Row:06
Center Line Row:Yes
Max Above ISO Tier:88
Min Above ISO Tier:80
Max Below ISO Tier:08
Min Below ISO Tier:02
Total TEU:365
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

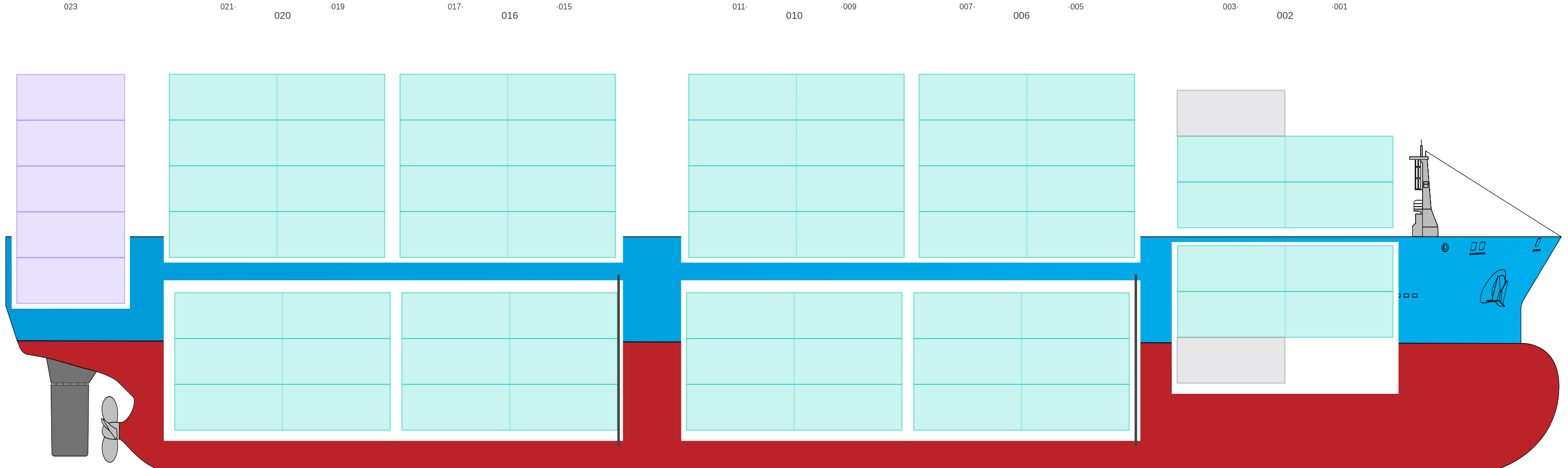

Side View

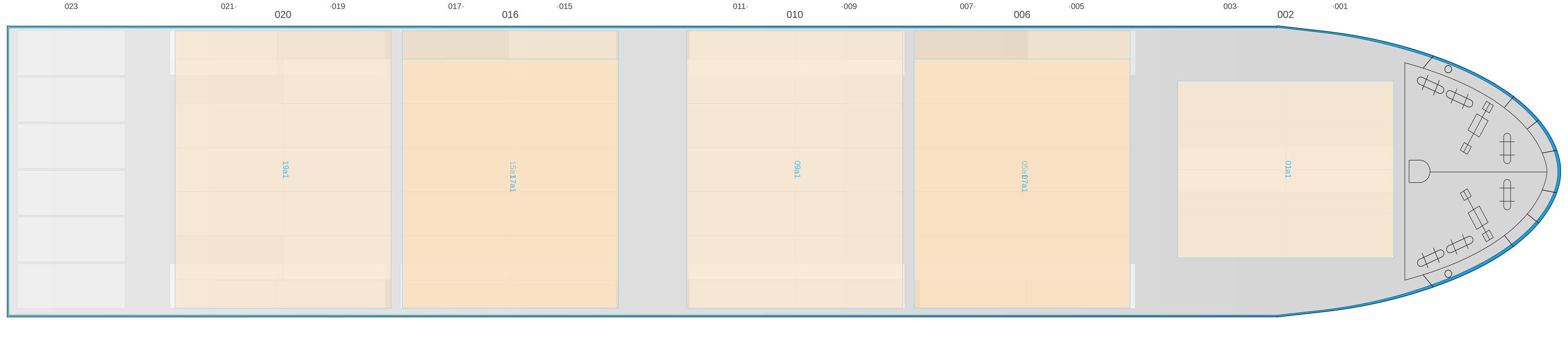

Hatch-Covers View
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

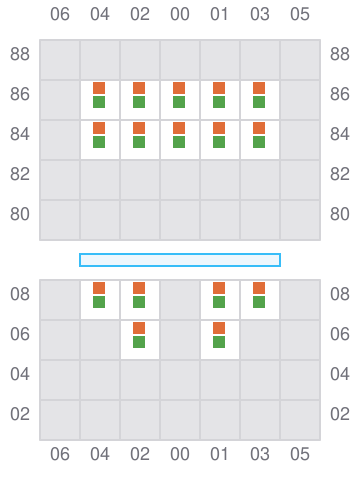

001 (002)
- →

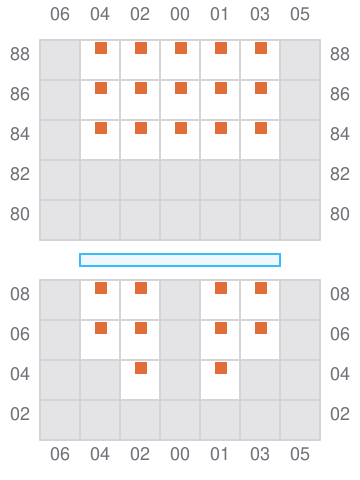

003
- ←

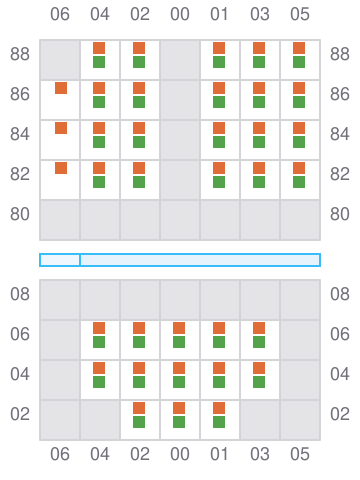

005 (006)
- →

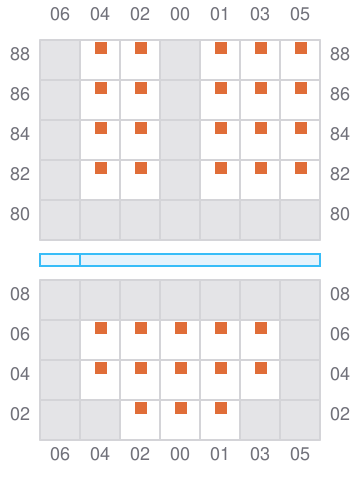

007
- ←

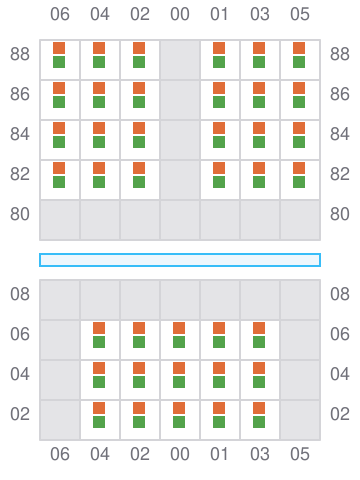

009 (010)
- →
011
- ←
- →

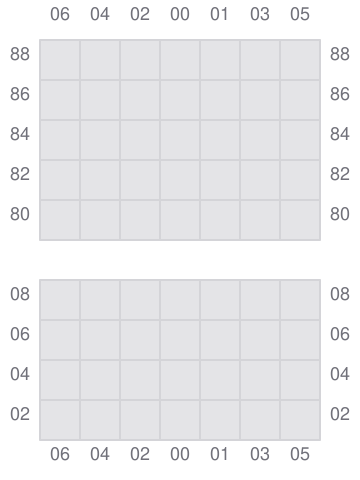

013

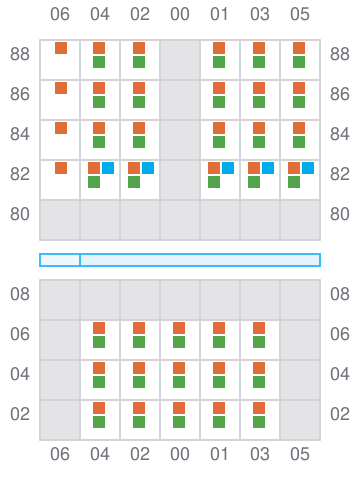

015 (016)
- →
- ← / ?

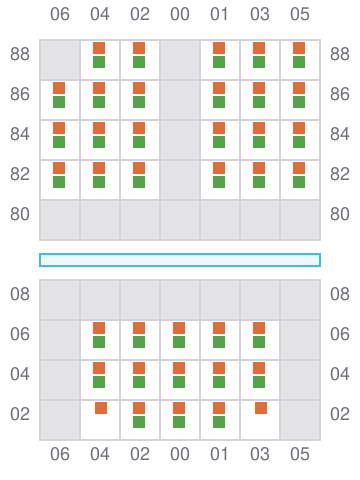

017
- ←
019 (020)
- →

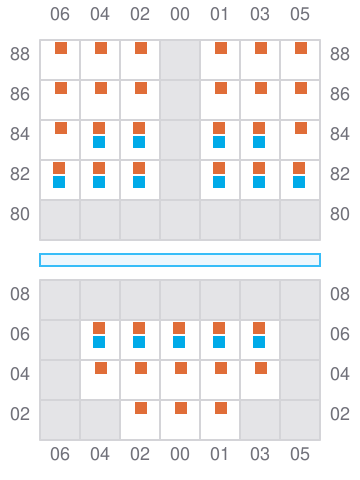

021
- ←
- →

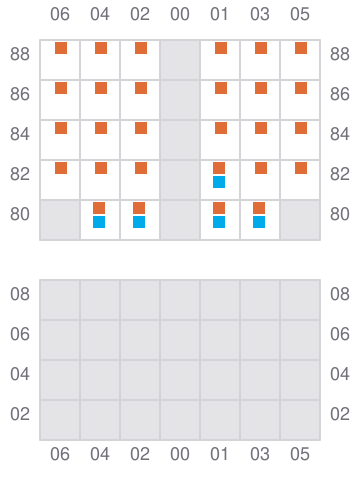

023
- ← / ?
