TABEA
9294812 | CQDB | 9294812 by ********* Last update: Mon May 20 2024
General Info
Ship Name:TABEA
IMO Code:9294812
Call Sign:CQDB
Line Operator:9294812
Class Name for Sister Ships:MSC TURCHIA
Year Built:2008
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):263.80
LOA (Length Overall):275.80
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:063
Max ISO Row:16
Center Line Row:No
Max Above ISO Tier:92
Min Above ISO Tier:82
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:5,532
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

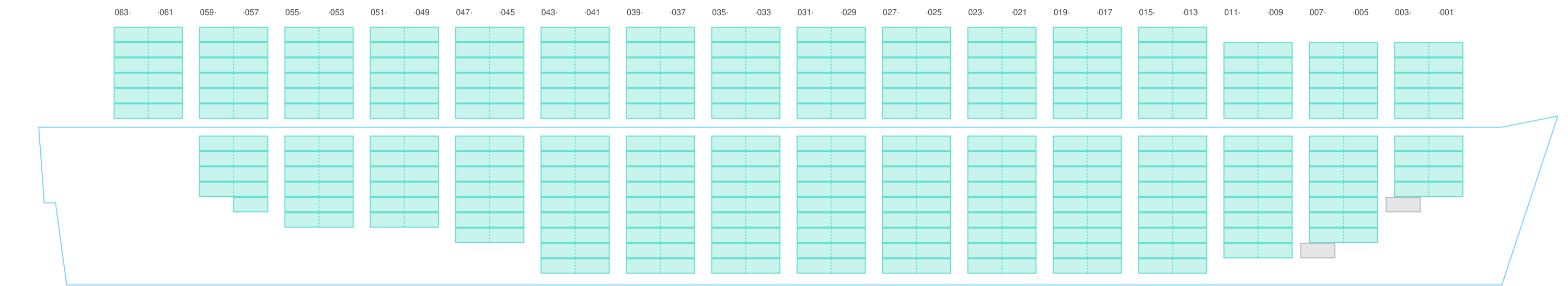

Side View
Hatch-Covers View

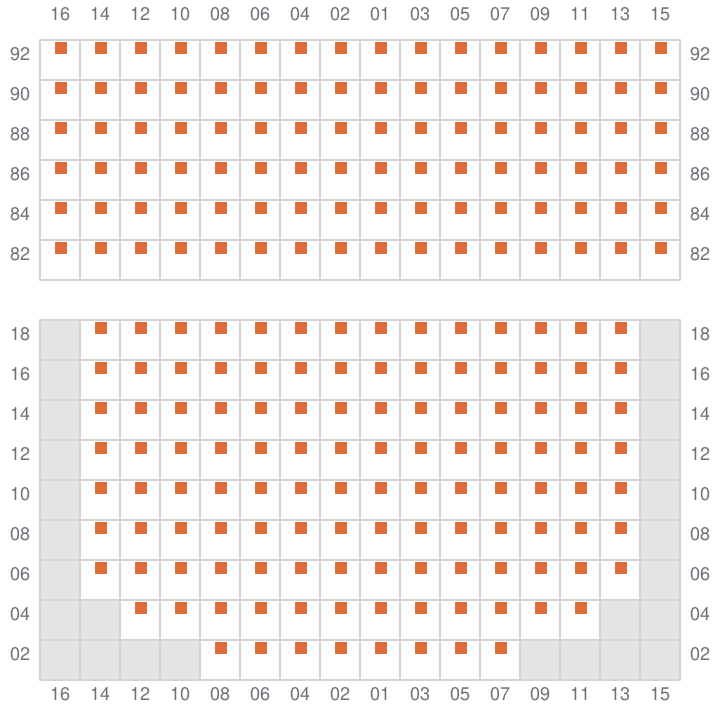

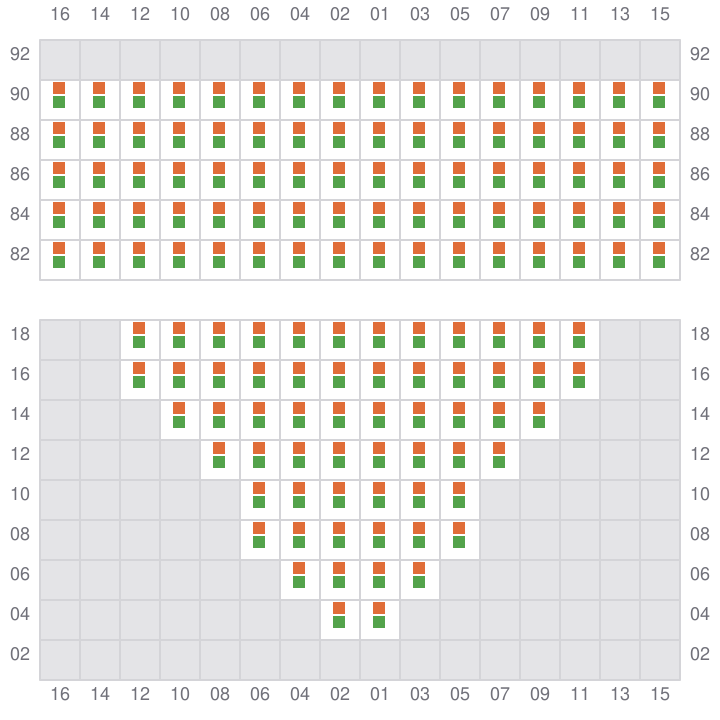

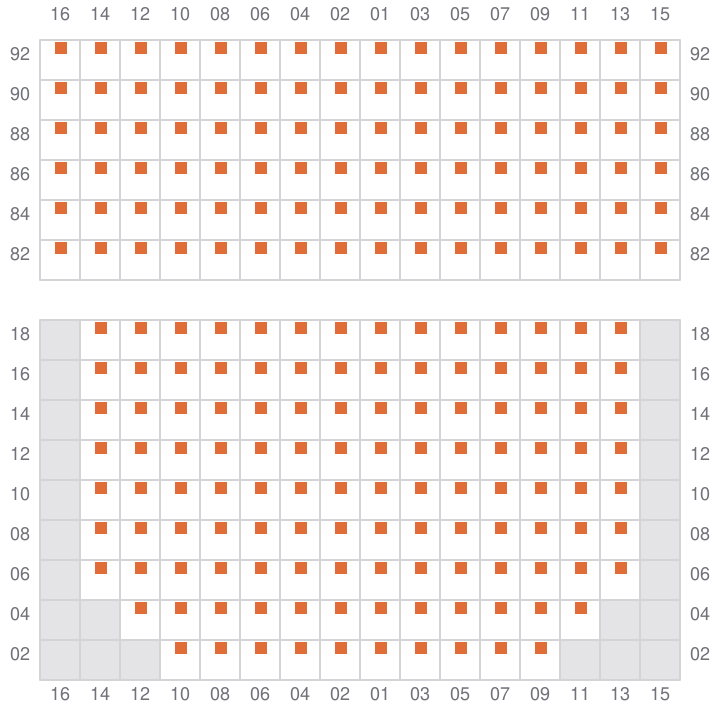

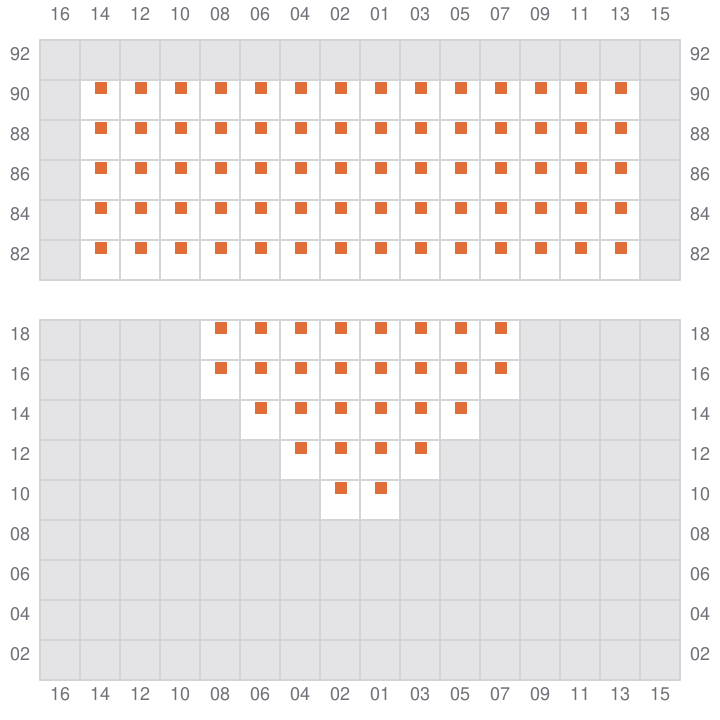

ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

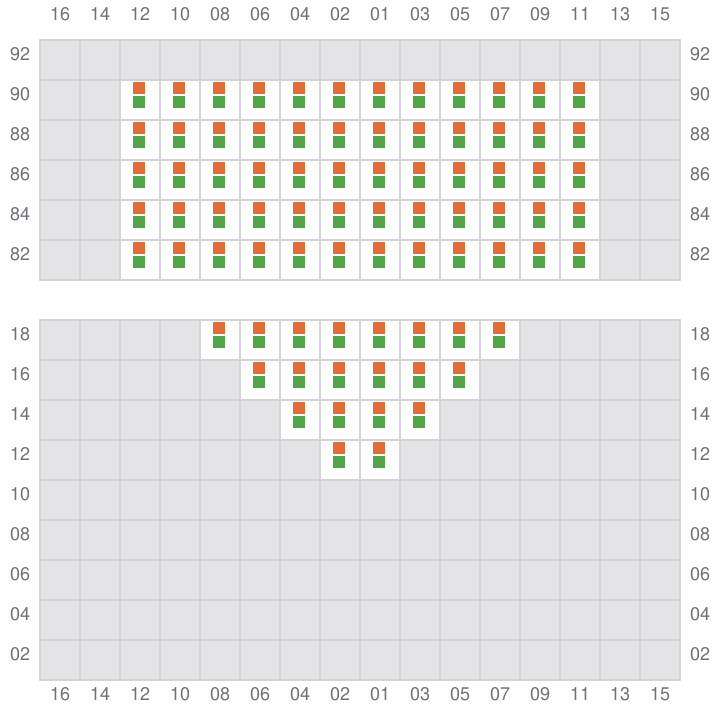

001 (002)
- →
003
- ←

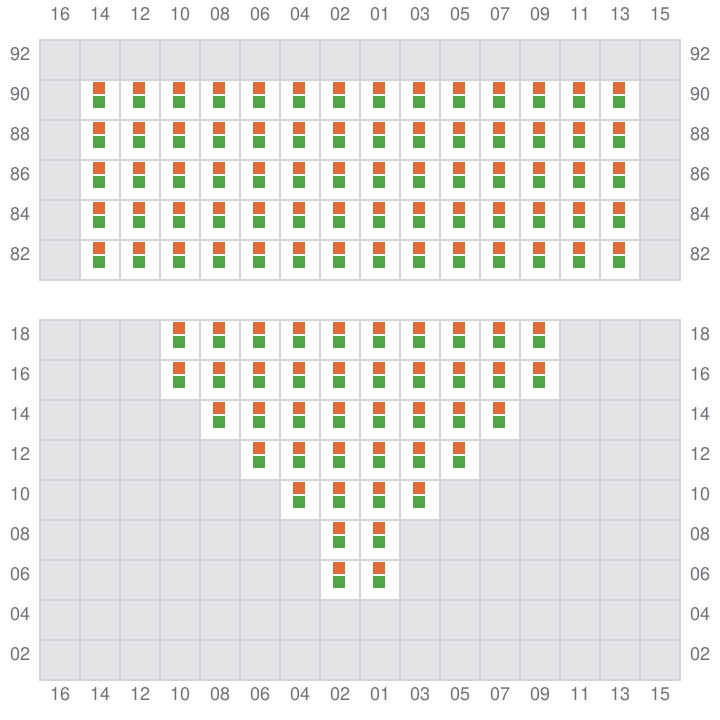

005 (006)
- →
007
- ←
009 (010)
- →
011
- ←
013 (014)
- →

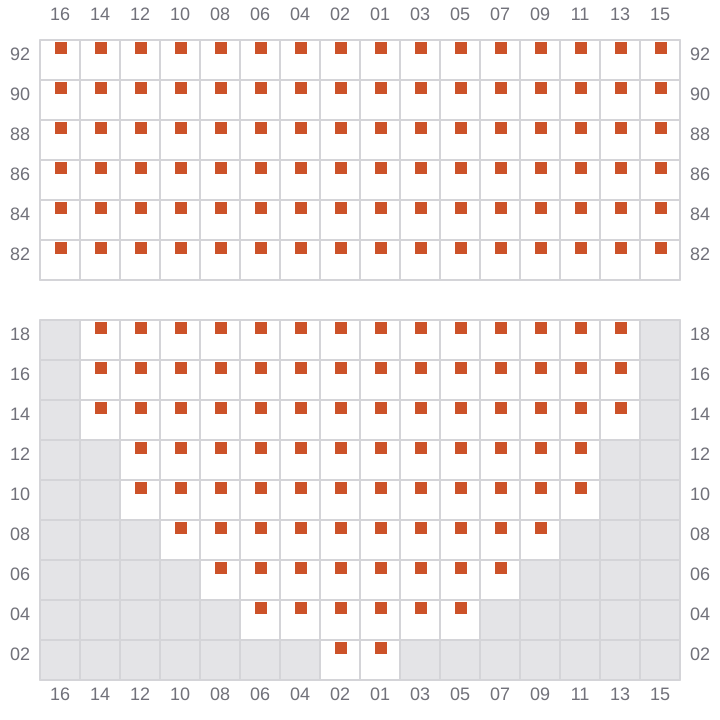

015
- ←

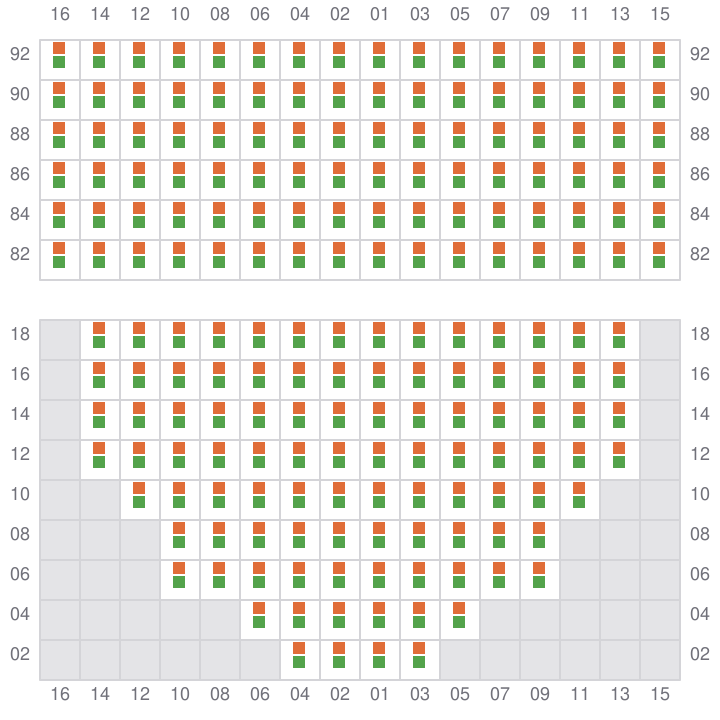

017 (018)
- →

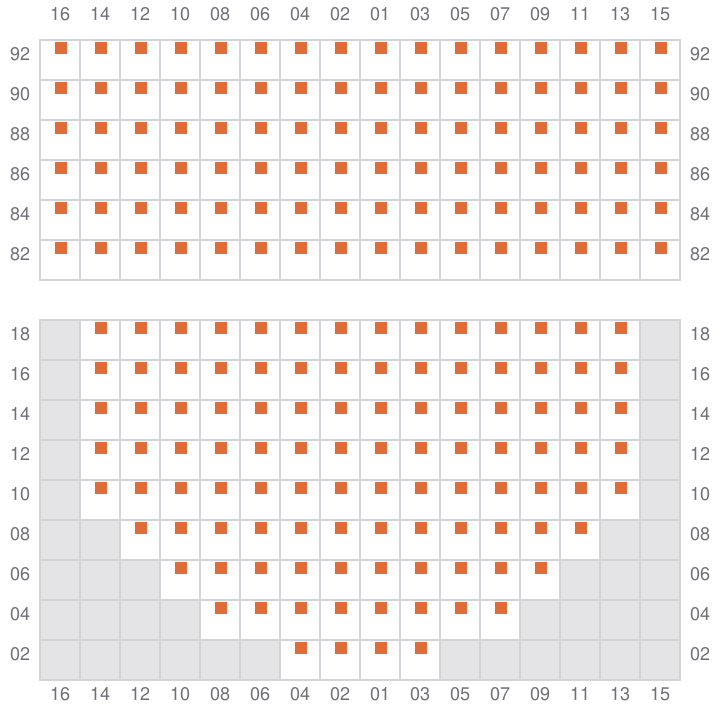

019
- ←
021 (022)
- →

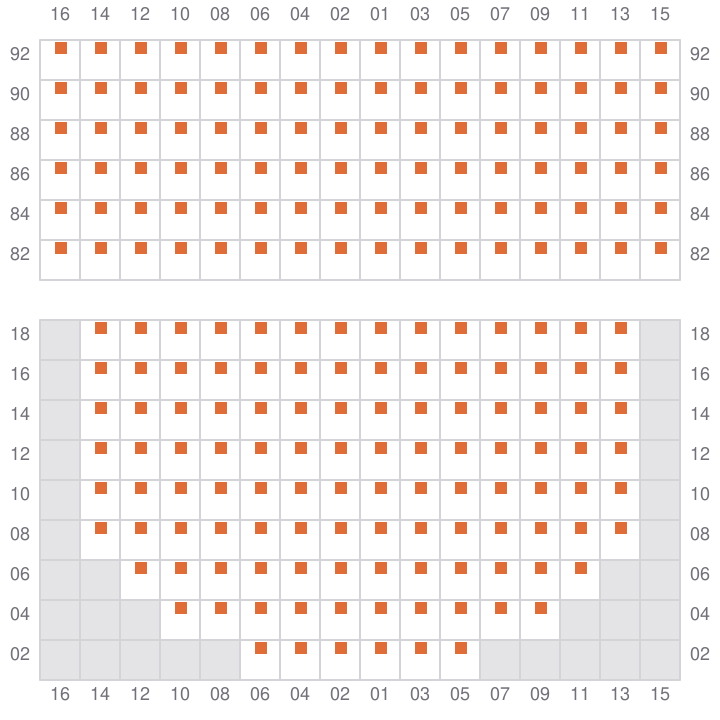

023
- ←
025 (026)
- →
027
- ←
029 (030)
- →
031
- ←

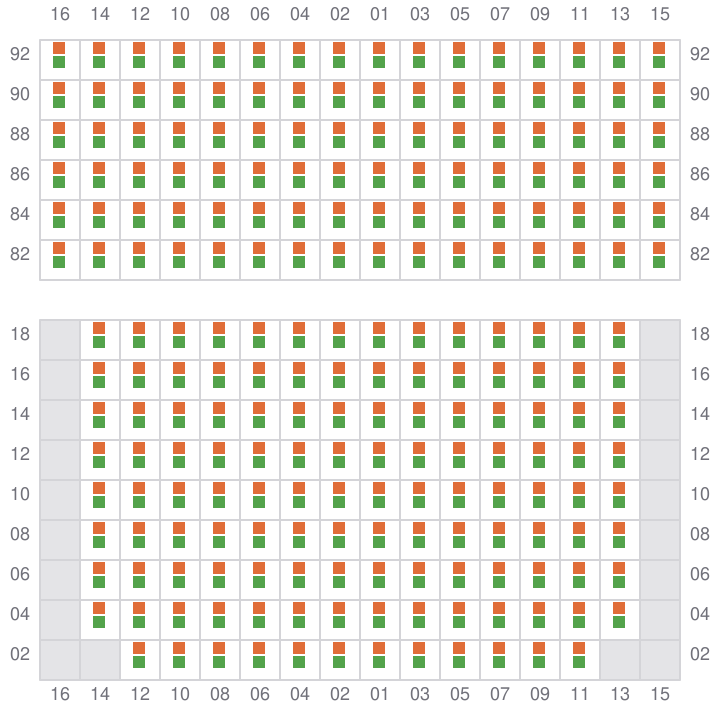

033 (034)
- →

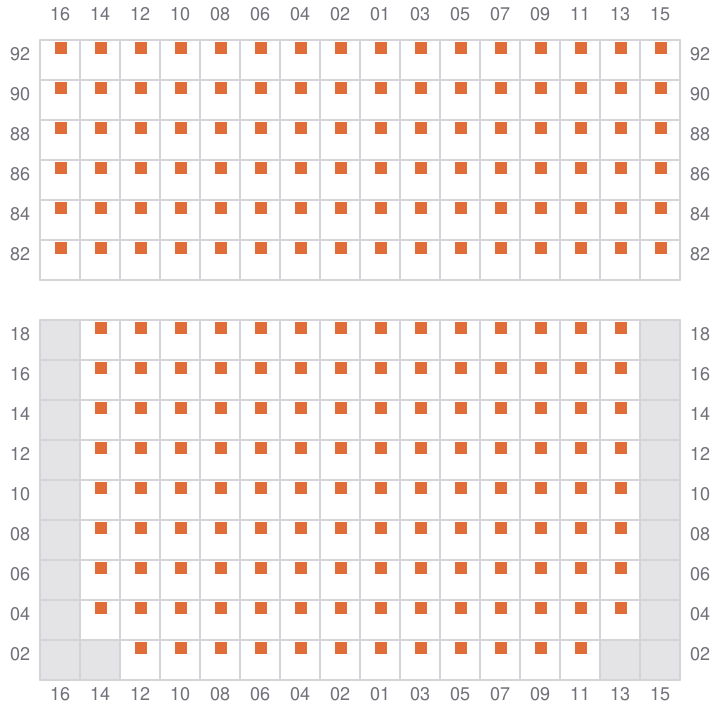

035
- ←

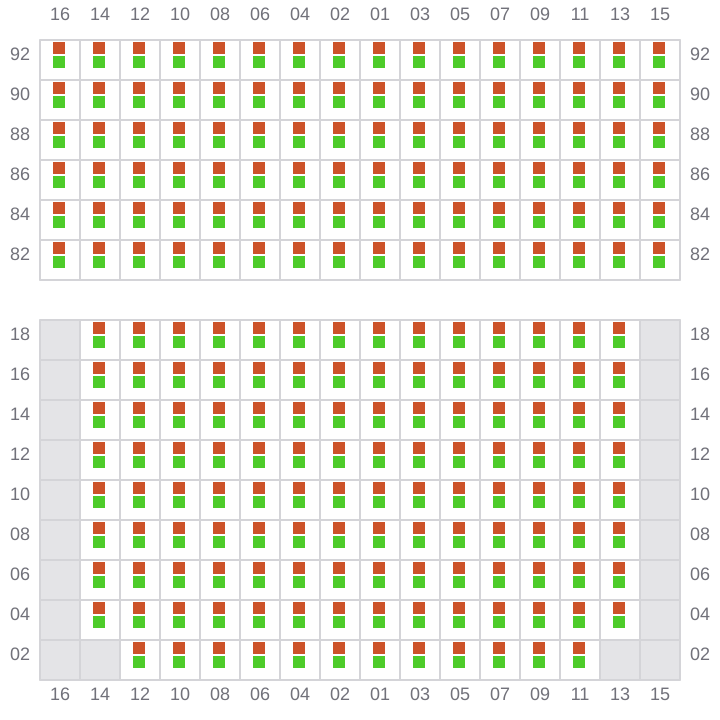

037 (038)
- →

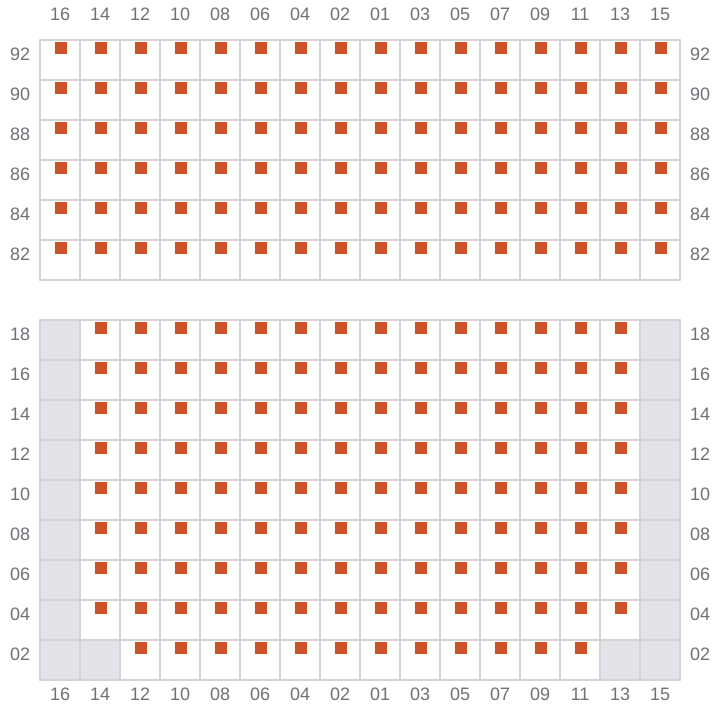

039
- ←
041 (042)
- →
043
- ←
045 (046)
- →

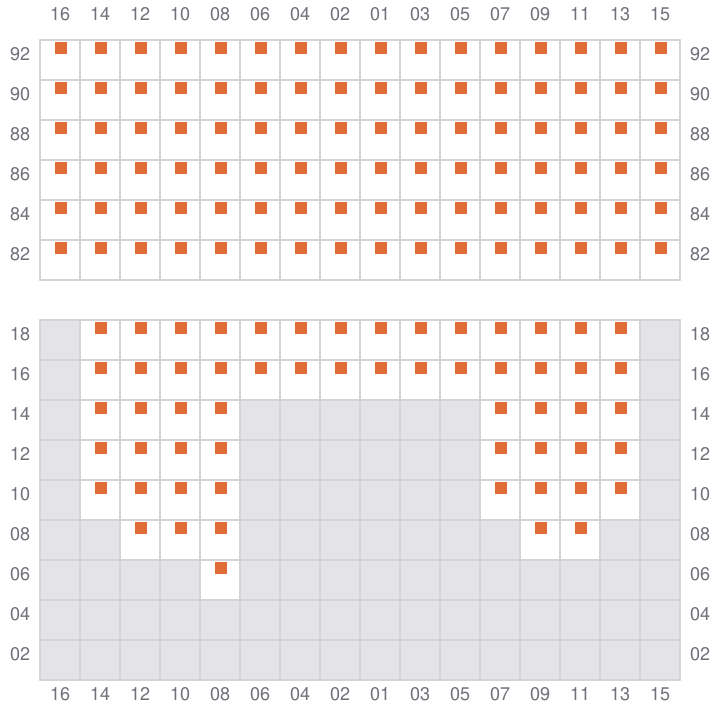

047
- ←
049 (050)
- →

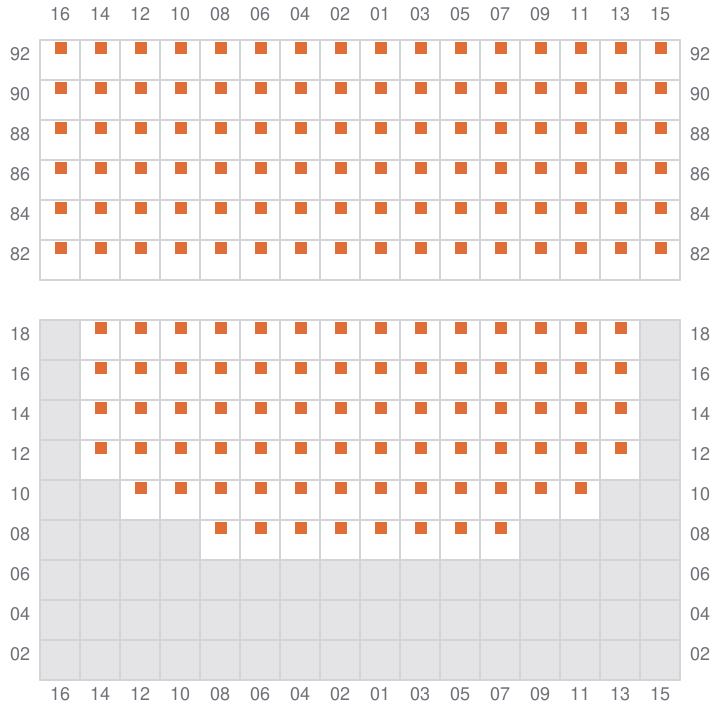

051
- ←
053 (054)
- →

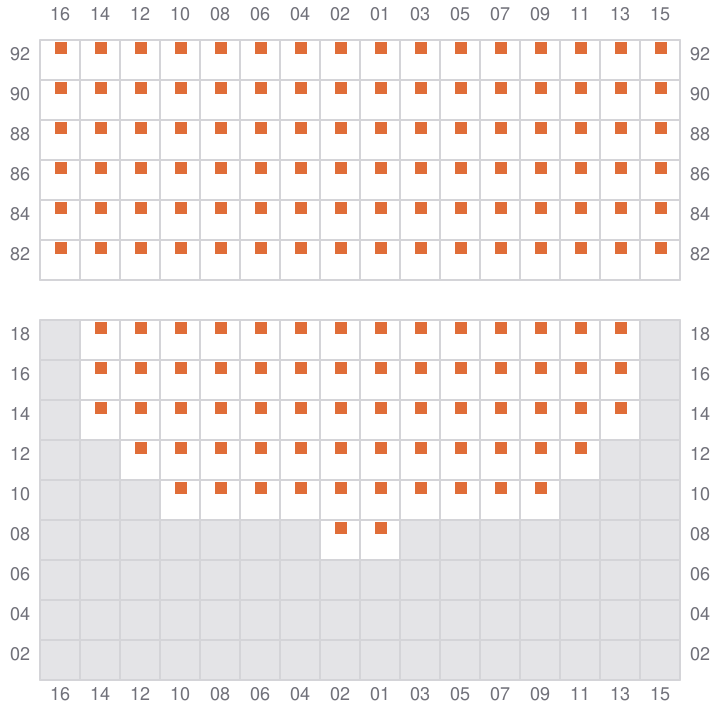

055
- ←
057 (058)
- →

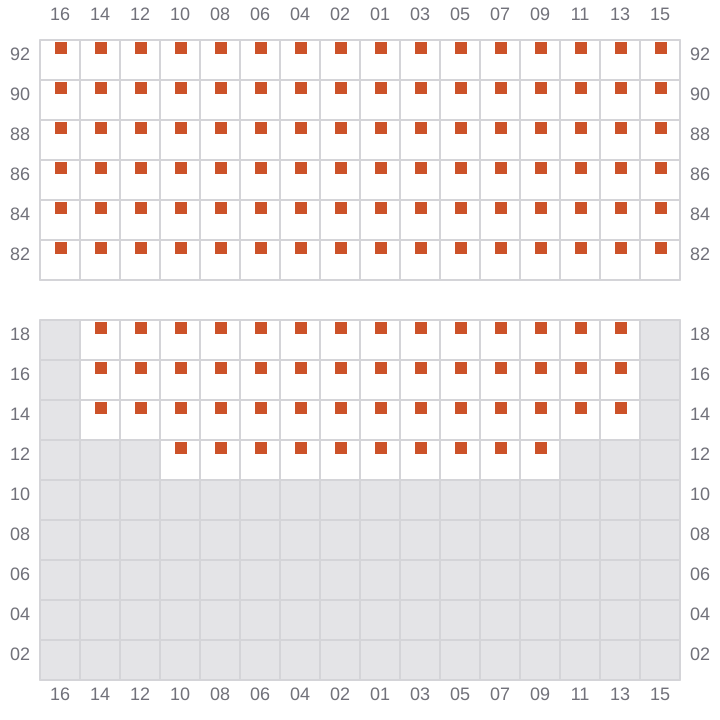

059
- ←

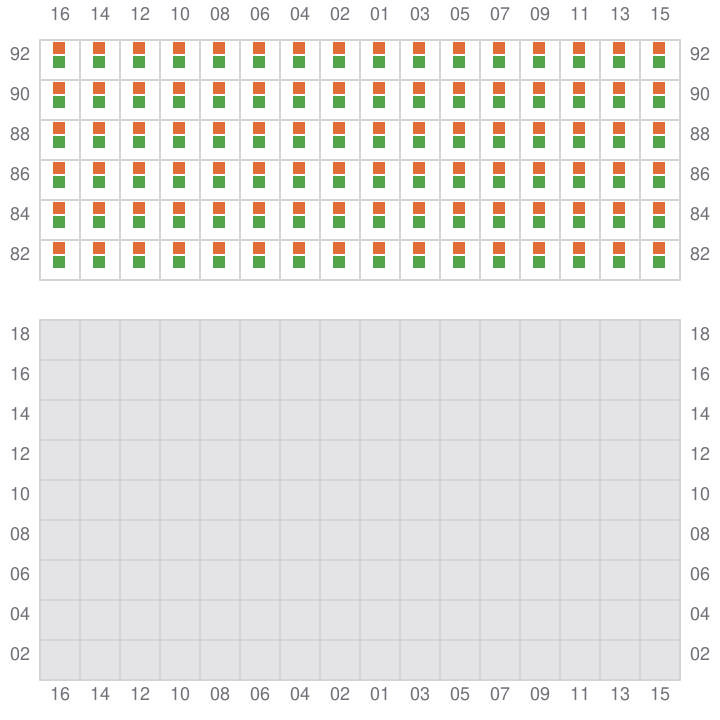

061 (062)
- → / ?

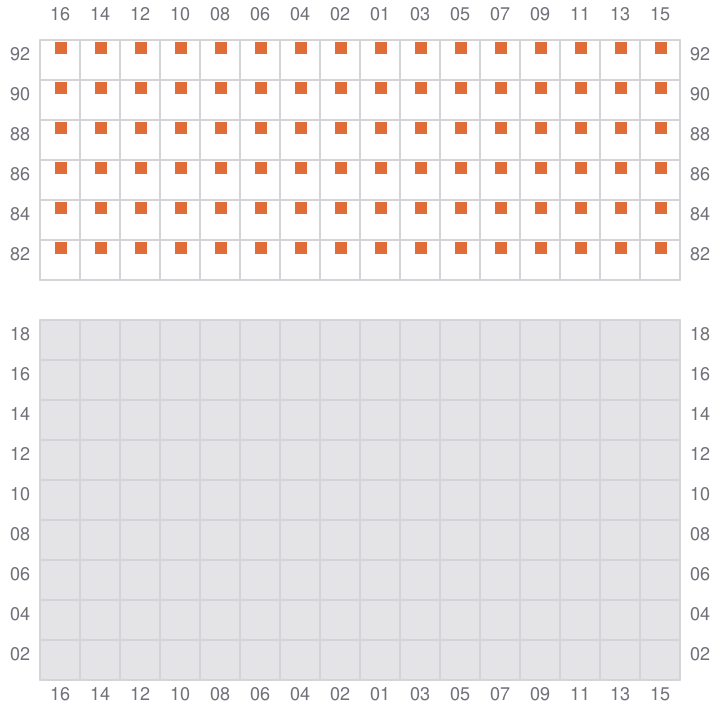

063
- ← / ?
