TAICHUNG
9194505 | 3EHI | 9194505 by ********* Last update: Fri May 17 2024
General Info
Ship Name:TAICHUNG
IMO Code:9194505
Call Sign:3EHI
Line Operator:9194505
Class Name for Sister Ships:OOCL TAICHUNG
Year Built:1999
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:041
Max ISO Row:10
Center Line Row:Yes
Max Above ISO Tier:90
Min Above ISO Tier:82
Max Below ISO Tier:10
Min Below ISO Tier:02
Total TEU:1,586
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

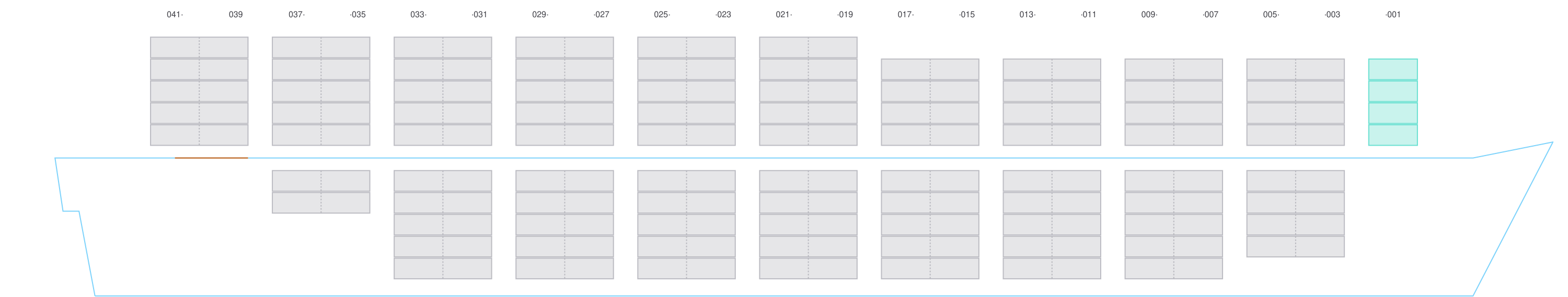

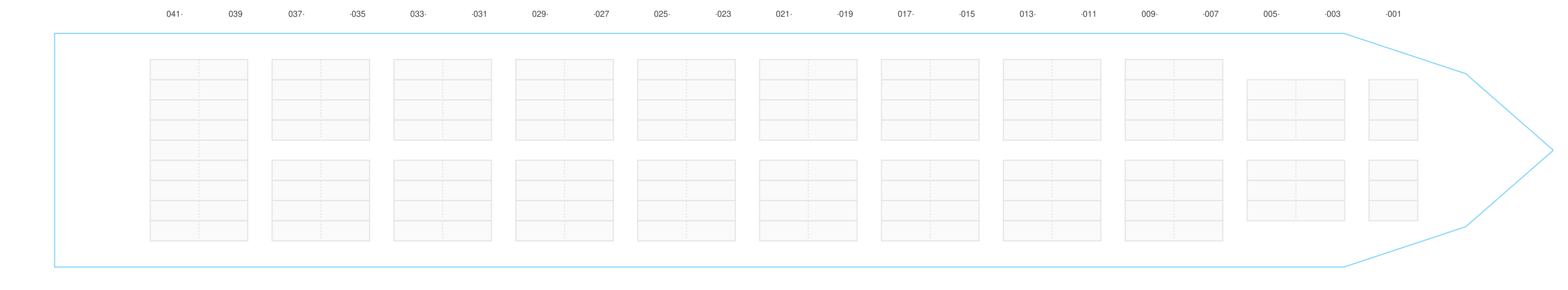

Side View
Hatch-Covers View

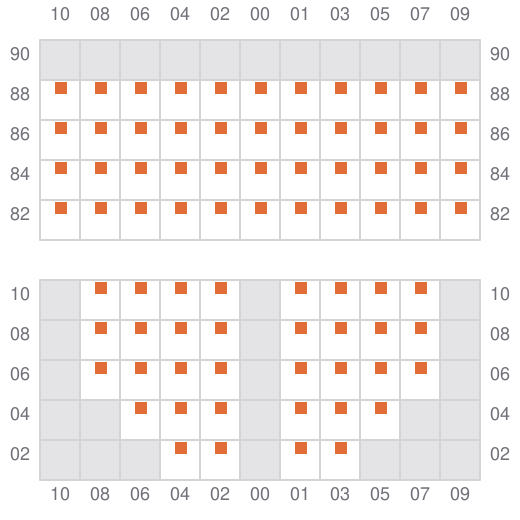

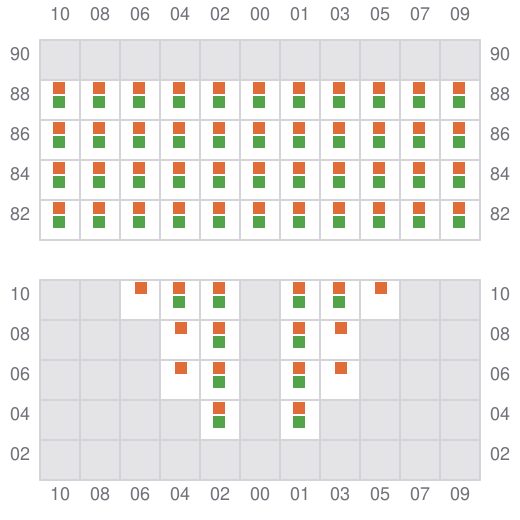

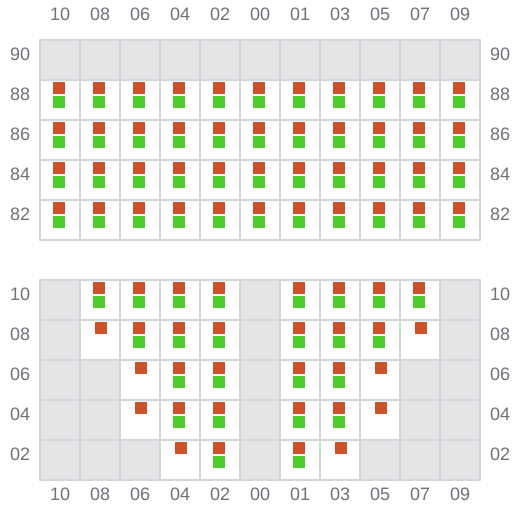

ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

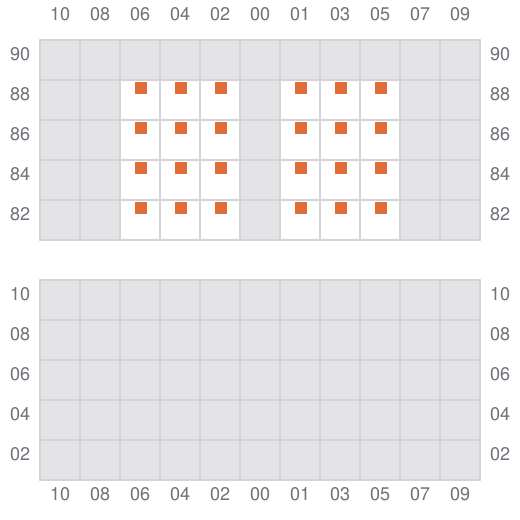

001
- → / ?

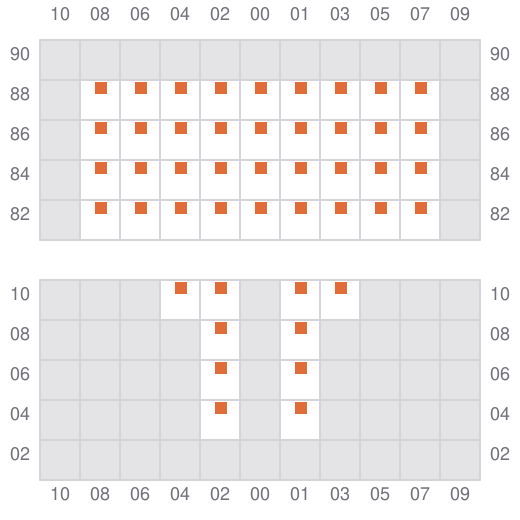

003
- →
005 (004)
- ←

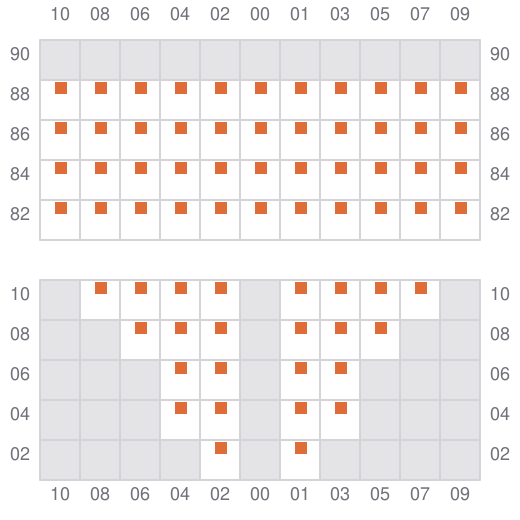

007
- →
009 (008)
- ←
011
- →

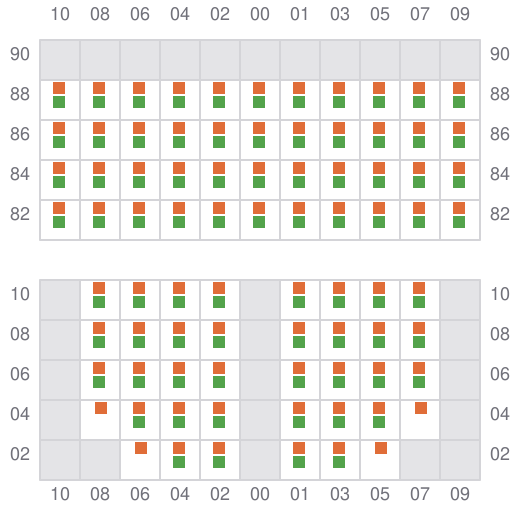

013 (012)
- ←

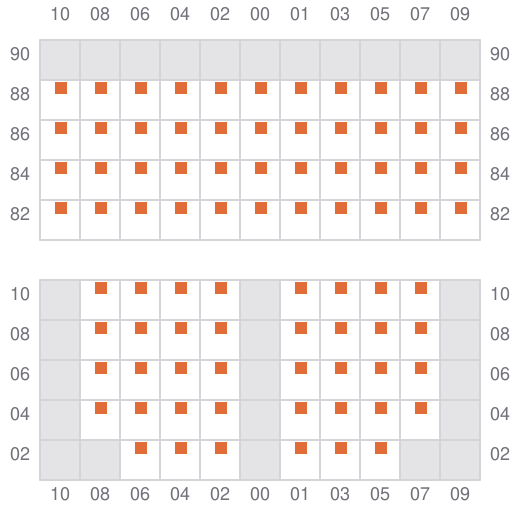

015
- →
017 (016)
- ←
019
- →
021 (020)
- ←

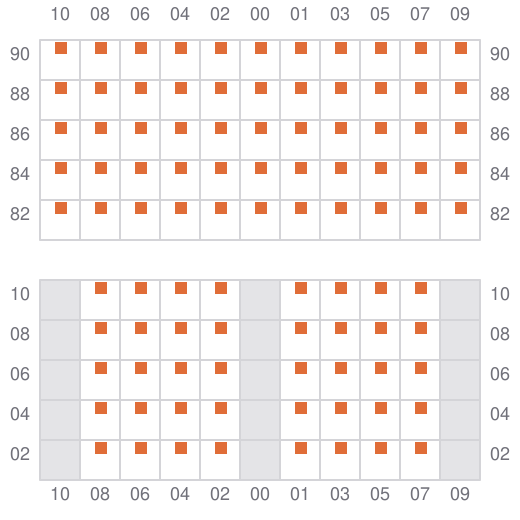

023
- →

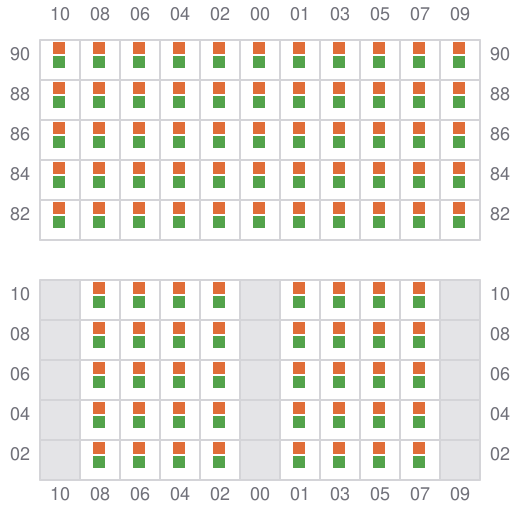

025 (024)
- ←
027
- →

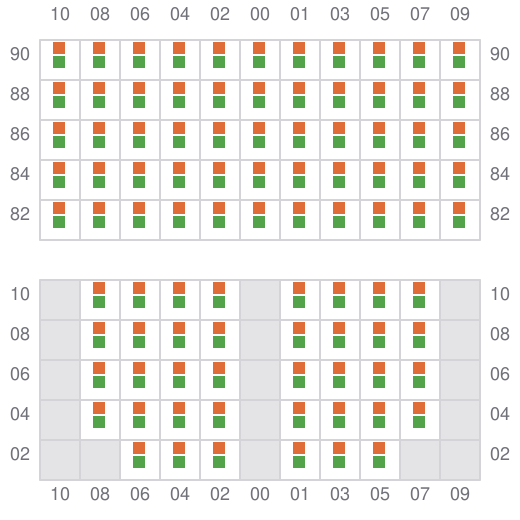

029 (028)
- ←

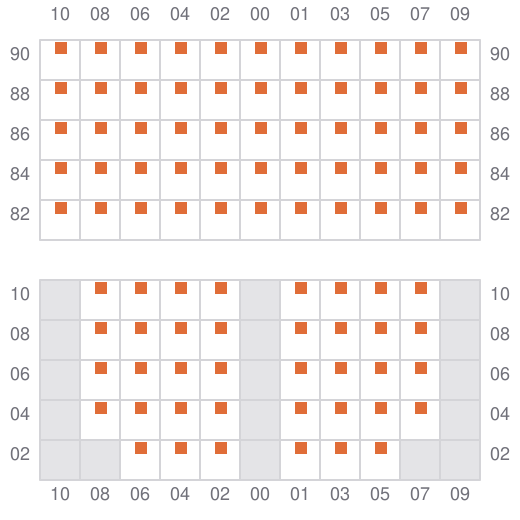

031
- →

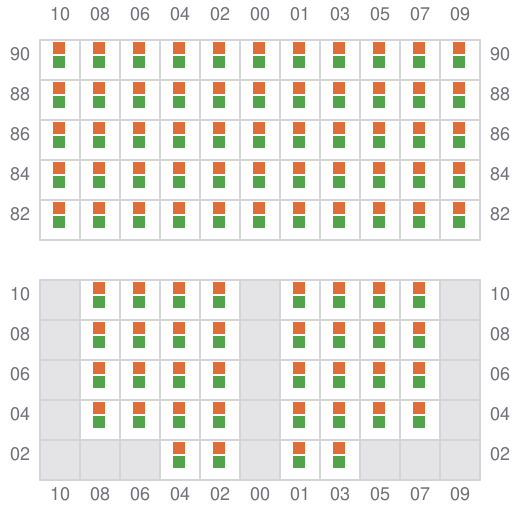

033 (032)
- ←

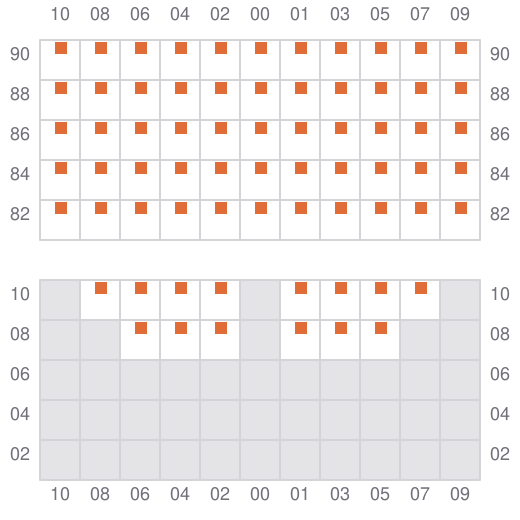

035
- →

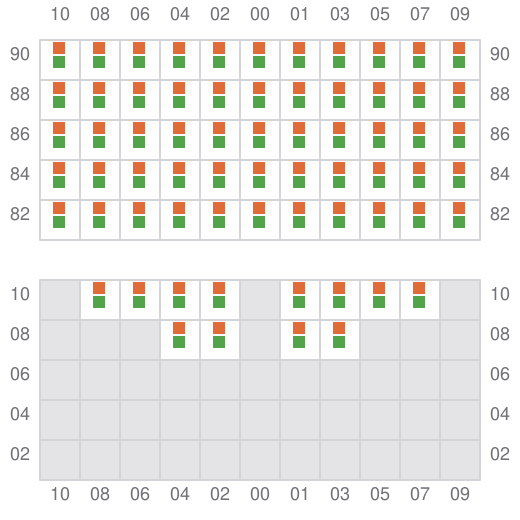

037 (036)
- ←

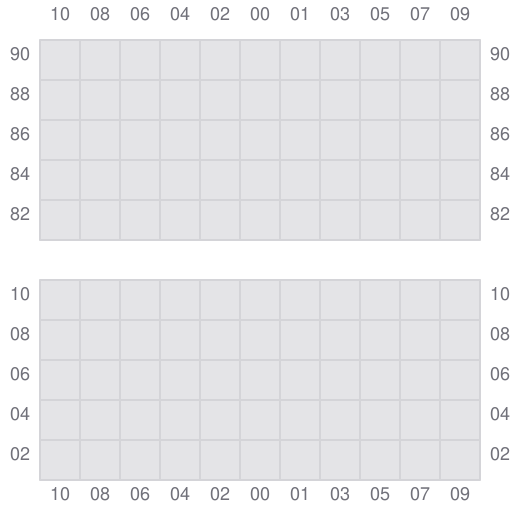

039

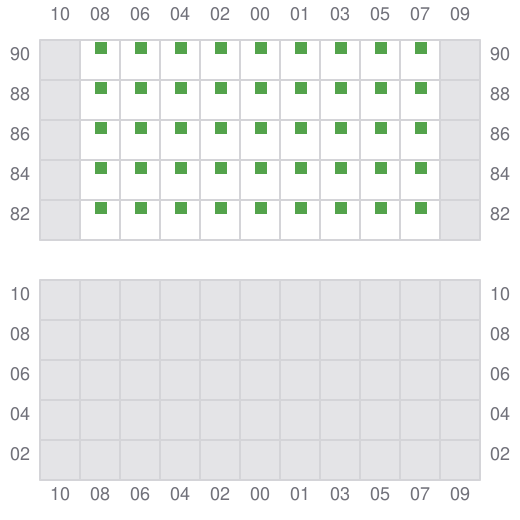

041 (040)
- ← / ?
