TAIPEI TRIUMPH
9737498 | 9V3478 | EIS by ************************** Last update: Thu Jun 08 2023
General Info
Ship Name:TAIPEI TRIUMPH
IMO Code:9737498
Call Sign:9V3478
Line Operator:EIS
Class Name for Sister Ships:TAI
Year Built:2017
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:
Also Known As (old names):-
Size Summary
ISO Bays:087
Max ISO Row:20
Center Line Row:No
Max Above ISO Tier:98
Min Above ISO Tier:80
Max Below ISO Tier:22
Min Below ISO Tier:02
Total TEU:13,672
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

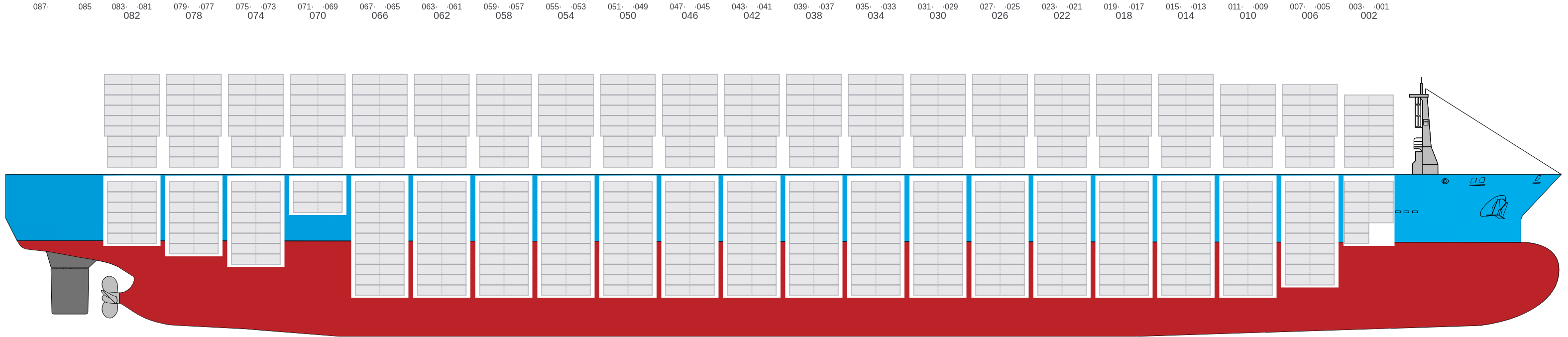

Side View
![Side view of TAIPEI TRIUMPH](/vessel-images/614e07d0-5922-48cf-add0-17a77e747b9a-sideView.png?v=1686266148843)
Hatch-Covers View
![Deck view of TAIPEI TRIUMPH](/vessel-images/614e07d0-5922-48cf-add0-17a77e747b9a-deckView.png?v=1686266148843)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

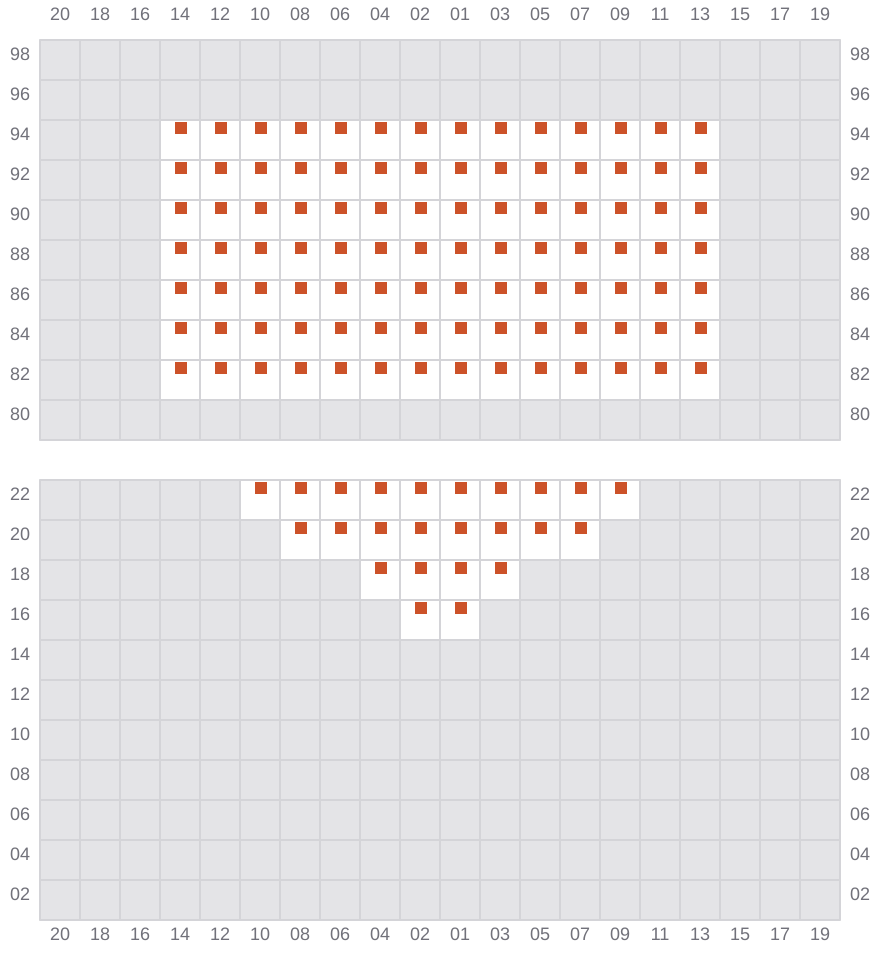

001
- →
![Bay 001 view and slots of TAIPEI TRIUMPH](/vessel-images/614e07d0-5922-48cf-add0-17a77e747b9a-b001.png?v=1686266148843)

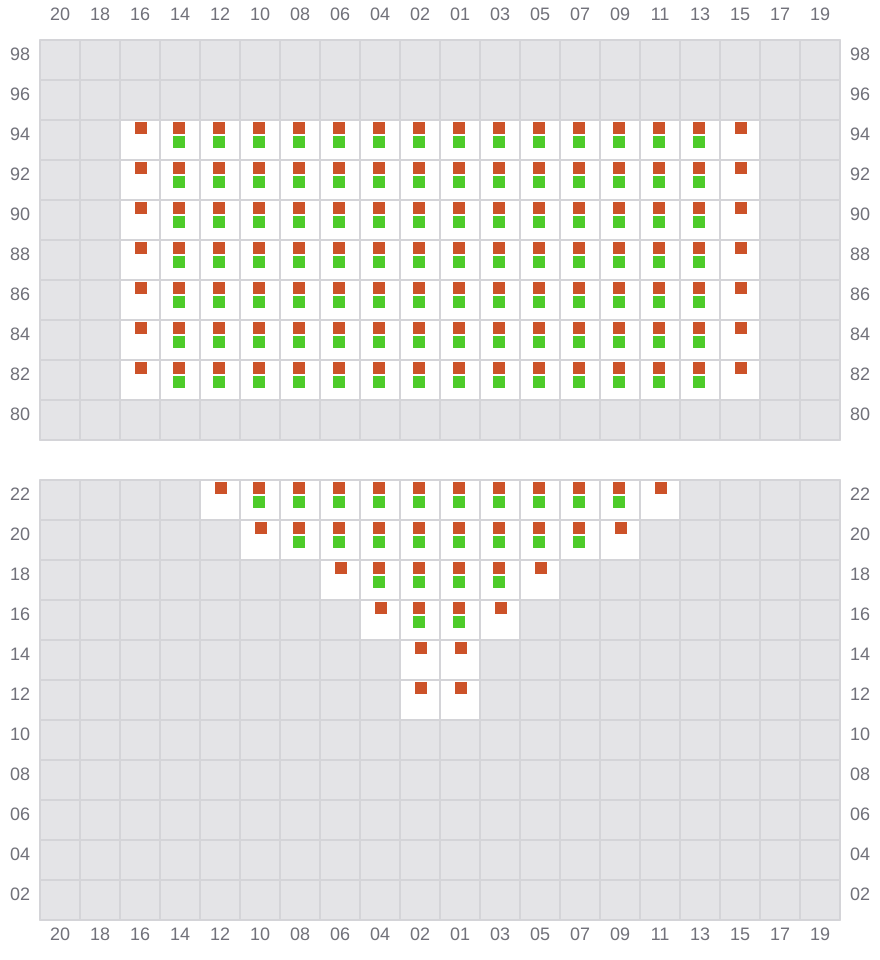

003 (002)
- ←
![Bay 003 view and slots of TAIPEI TRIUMPH](/vessel-images/614e07d0-5922-48cf-add0-17a77e747b9a-b003.png?v=1686266148843)

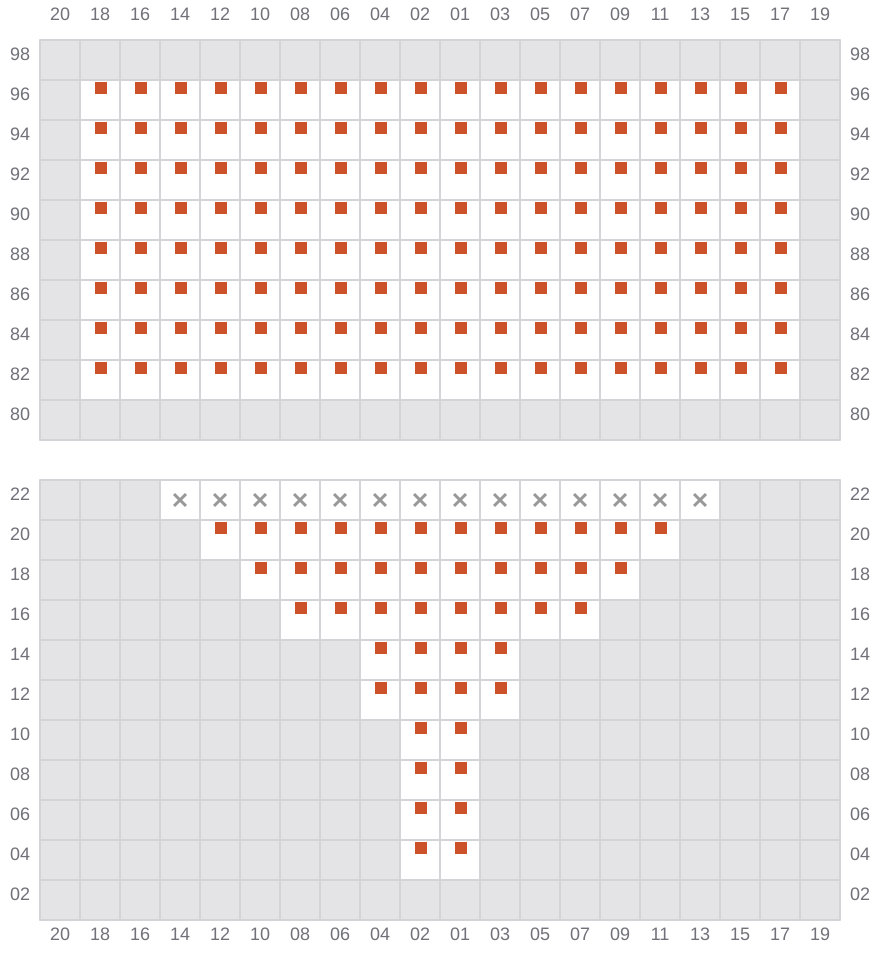

005
- →
![Bay 005 view and slots of TAIPEI TRIUMPH](/vessel-images/614e07d0-5922-48cf-add0-17a77e747b9a-b005.png?v=1686266148843)

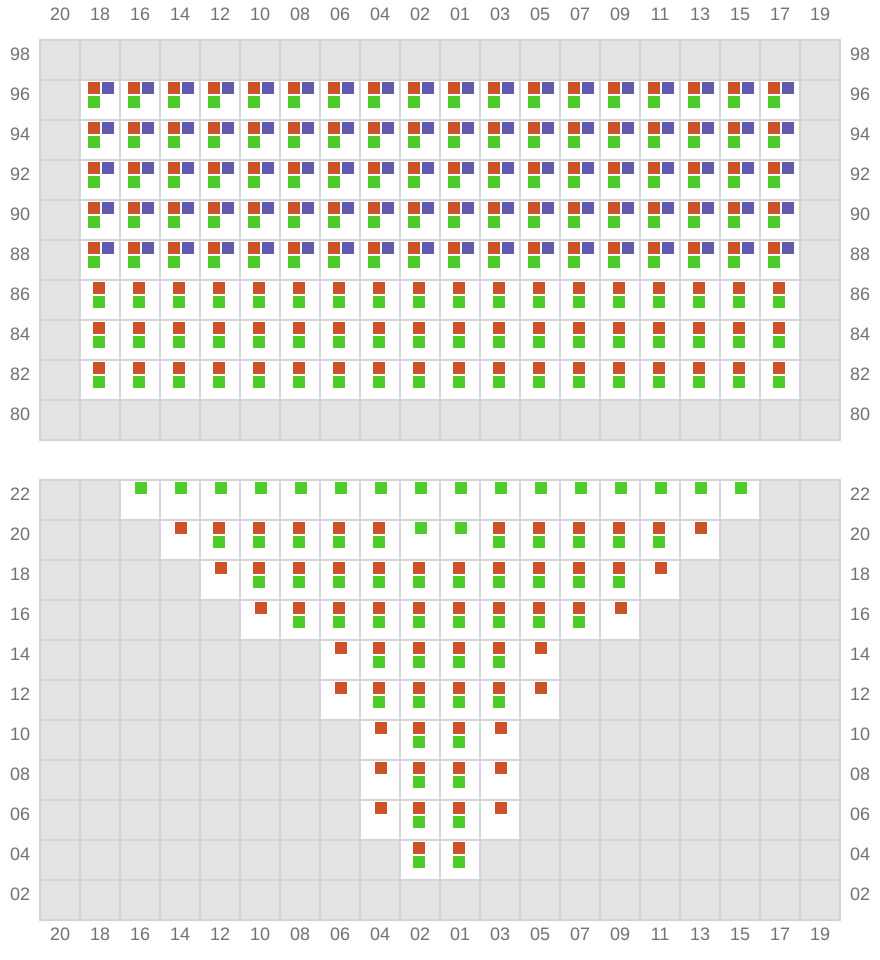

007 (006)
- ←
![Bay 007 view and slots of TAIPEI TRIUMPH](/vessel-images/614e07d0-5922-48cf-add0-17a77e747b9a-b007.png?v=1686266148843)

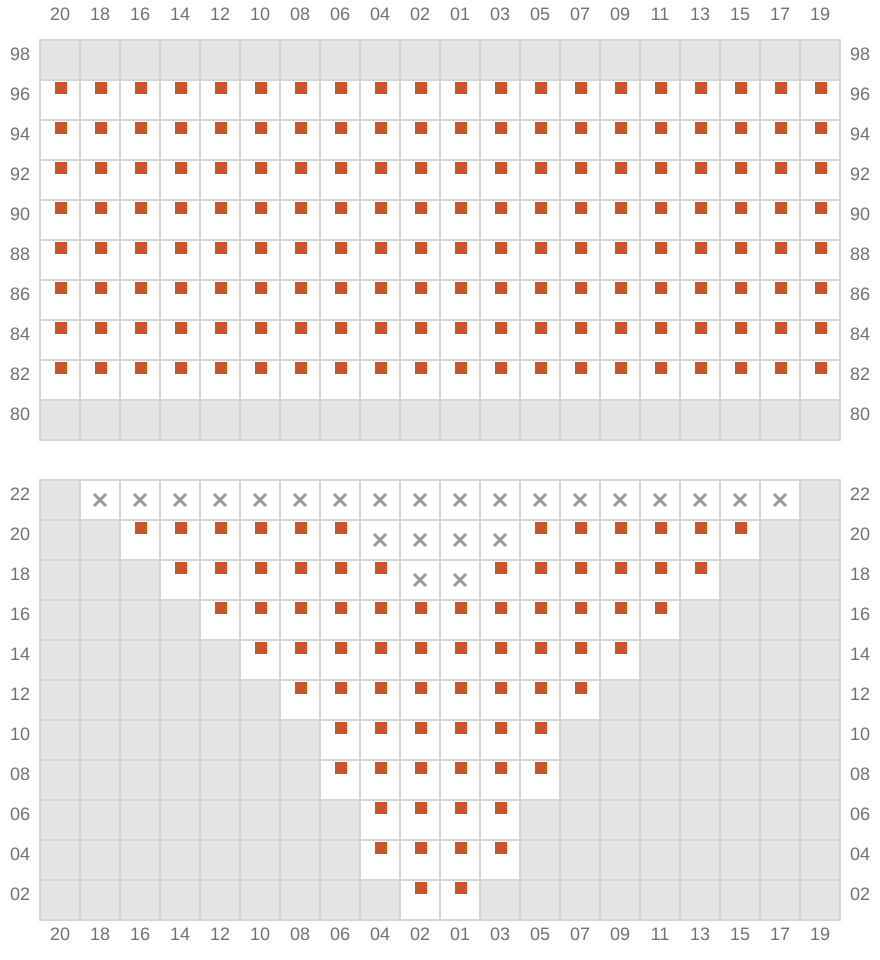

009
- →
![Bay 009 view and slots of TAIPEI TRIUMPH](/vessel-images/614e07d0-5922-48cf-add0-17a77e747b9a-b009.png?v=1686266148843)

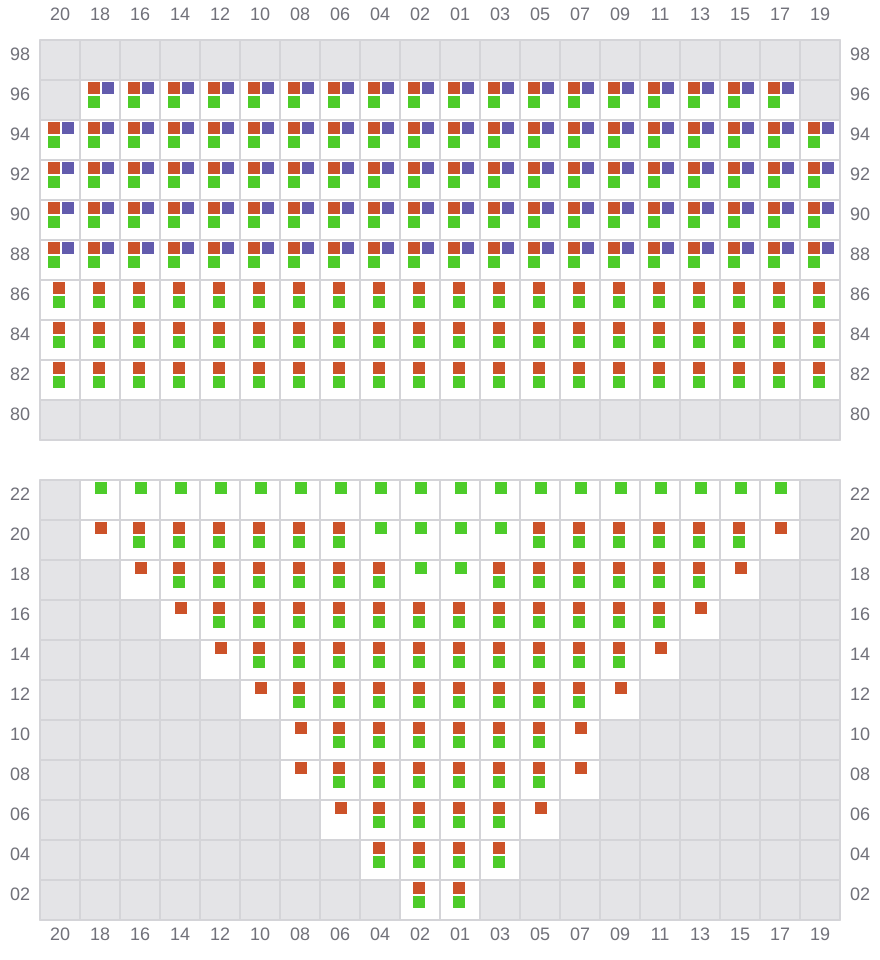

011 (010)
- ←
![Bay 011 view and slots of TAIPEI TRIUMPH](/vessel-images/614e07d0-5922-48cf-add0-17a77e747b9a-b011.png?v=1686266148843)

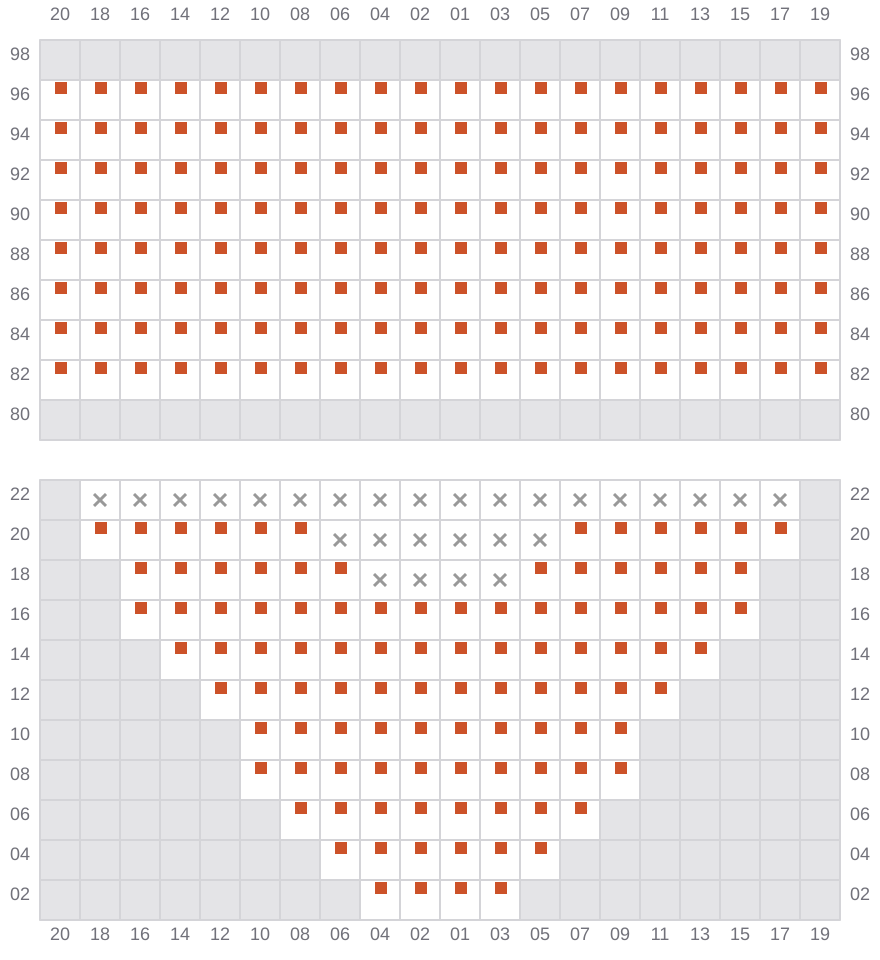

013
- →
![Bay 013 view and slots of TAIPEI TRIUMPH](/vessel-images/614e07d0-5922-48cf-add0-17a77e747b9a-b013.png?v=1686266148843)

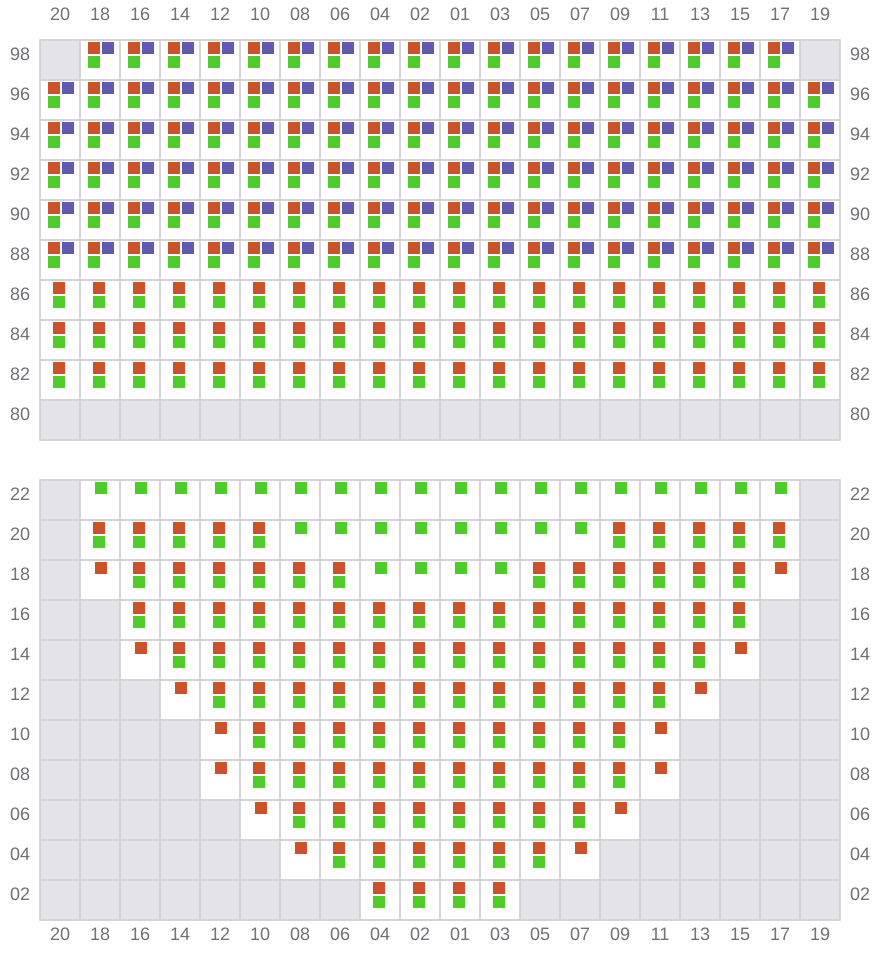

015 (014)
- ←
![Bay 015 view and slots of TAIPEI TRIUMPH](/vessel-images/614e07d0-5922-48cf-add0-17a77e747b9a-b015.png?v=1686266148843)

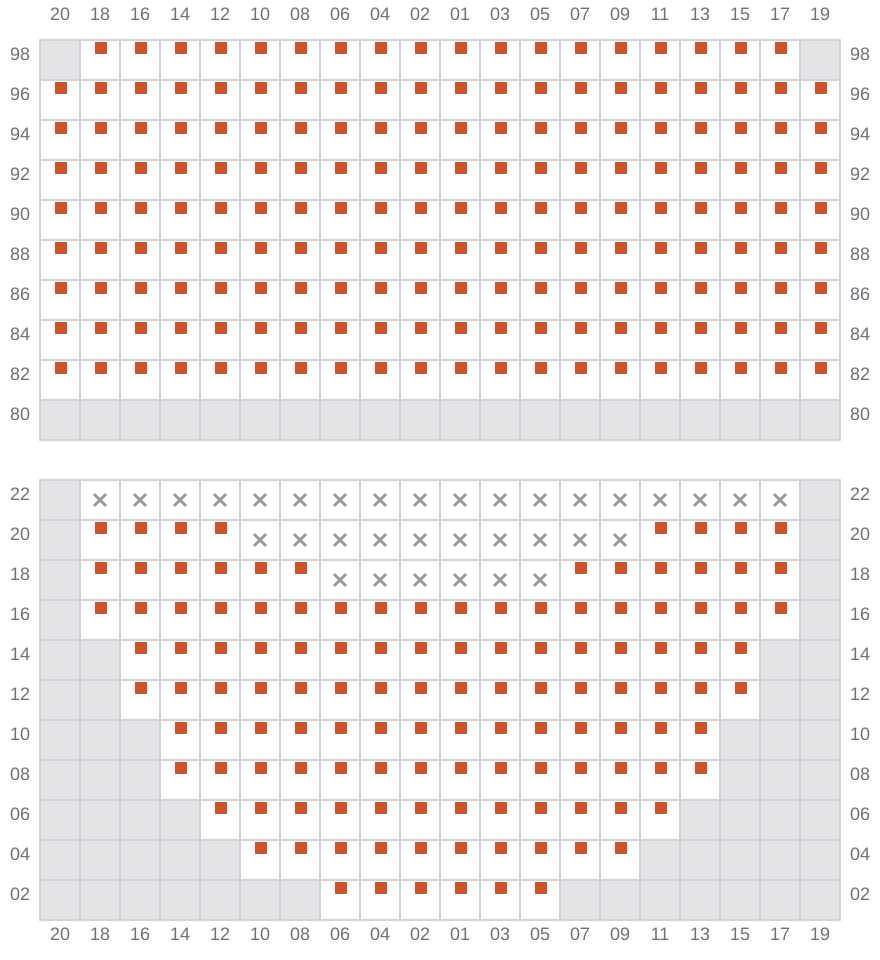

017
- →
![Bay 017 view and slots of TAIPEI TRIUMPH](/vessel-images/614e07d0-5922-48cf-add0-17a77e747b9a-b017.png?v=1686266148843)

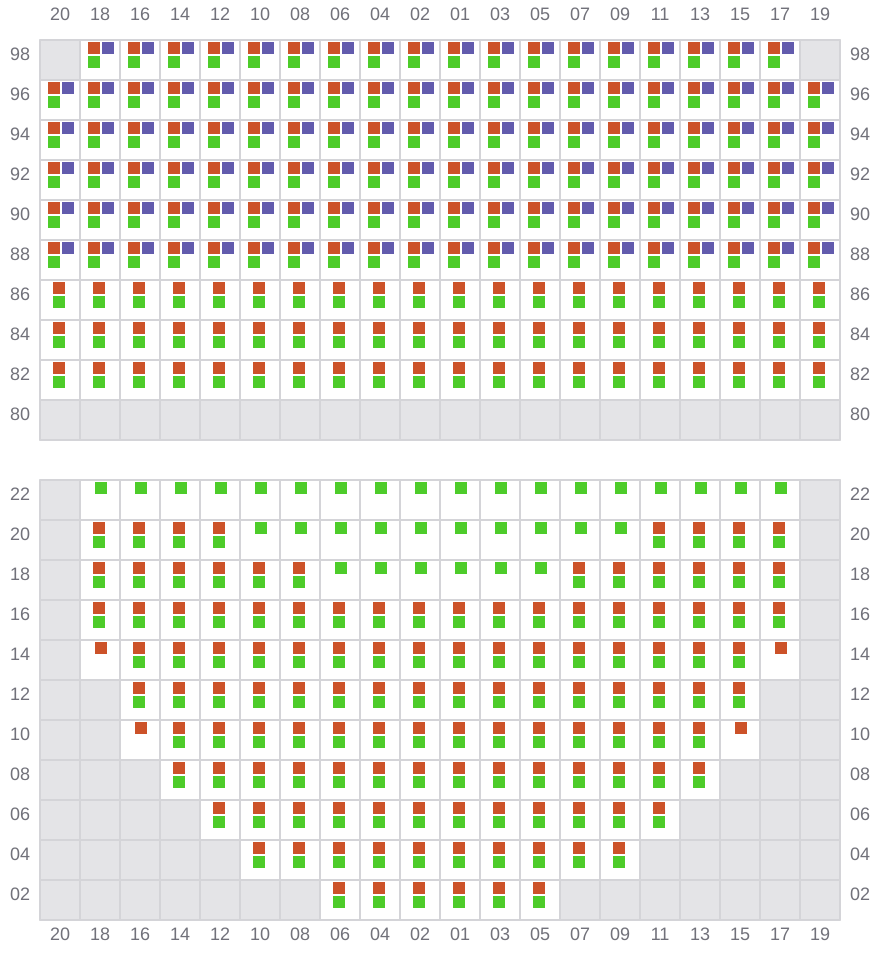

019 (018)
- ←
![Bay 019 view and slots of TAIPEI TRIUMPH](/vessel-images/614e07d0-5922-48cf-add0-17a77e747b9a-b019.png?v=1686266148843)

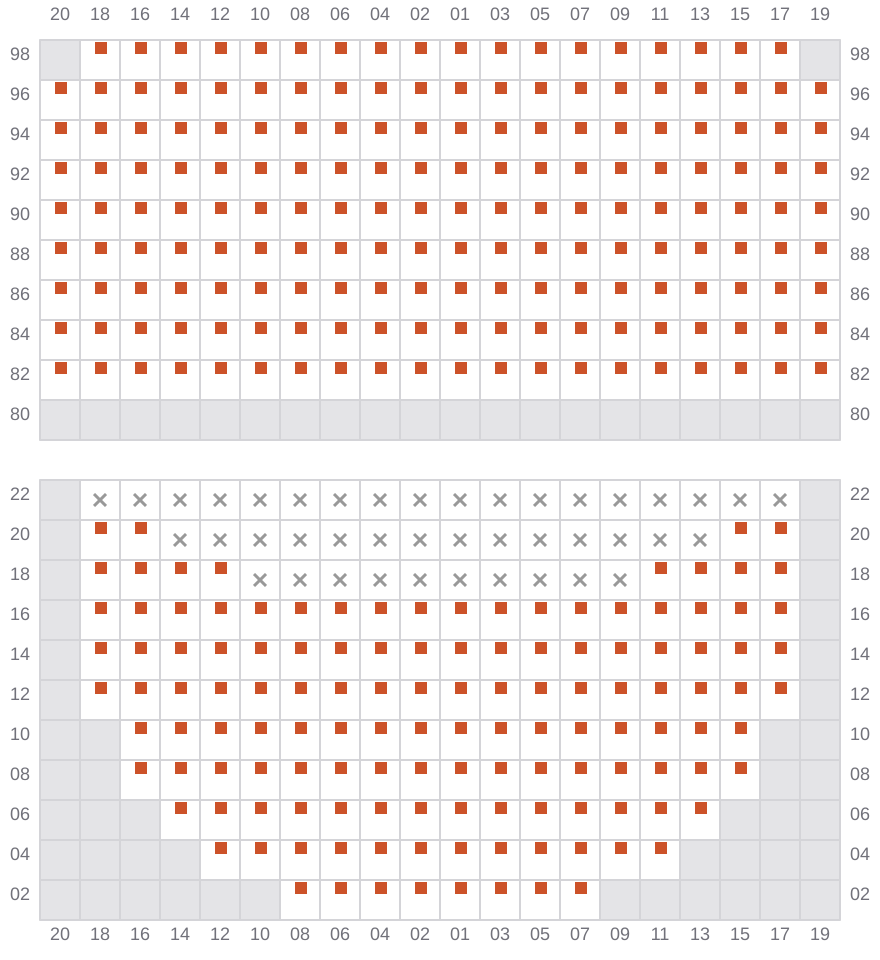

021
- →
![Bay 021 view and slots of TAIPEI TRIUMPH](/vessel-images/614e07d0-5922-48cf-add0-17a77e747b9a-b021.png?v=1686266148843)

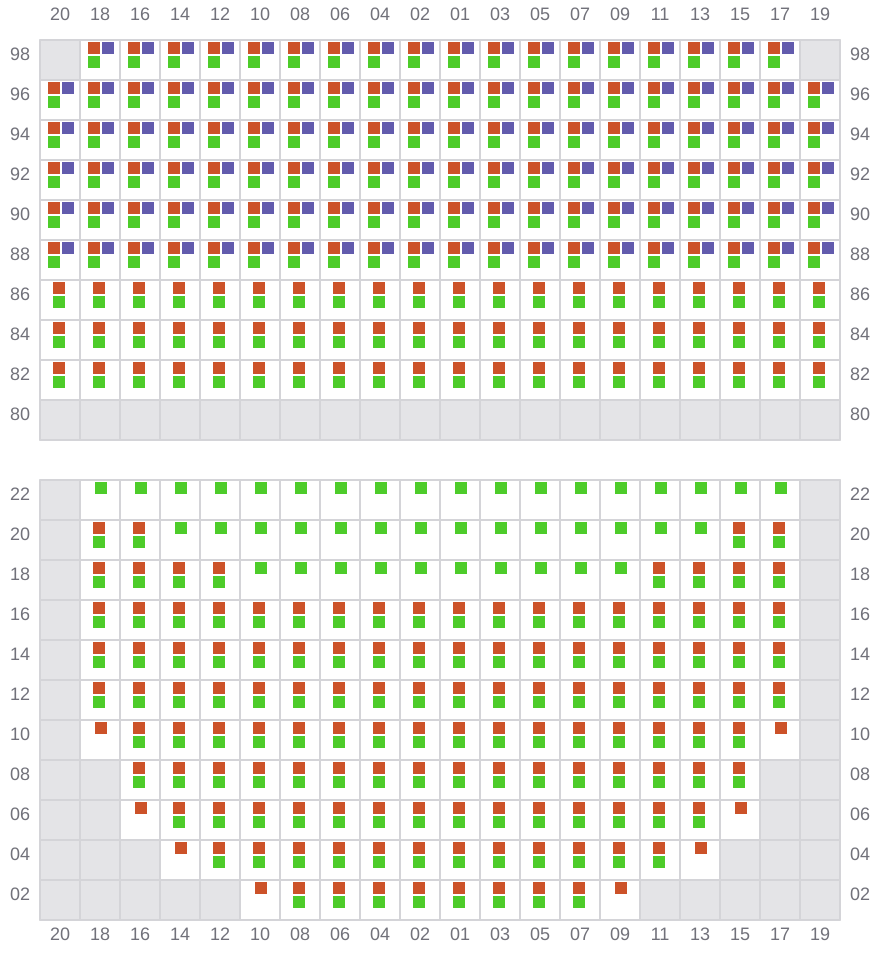

023 (022)
- ←
![Bay 023 view and slots of TAIPEI TRIUMPH](/vessel-images/614e07d0-5922-48cf-add0-17a77e747b9a-b023.png?v=1686266148843)

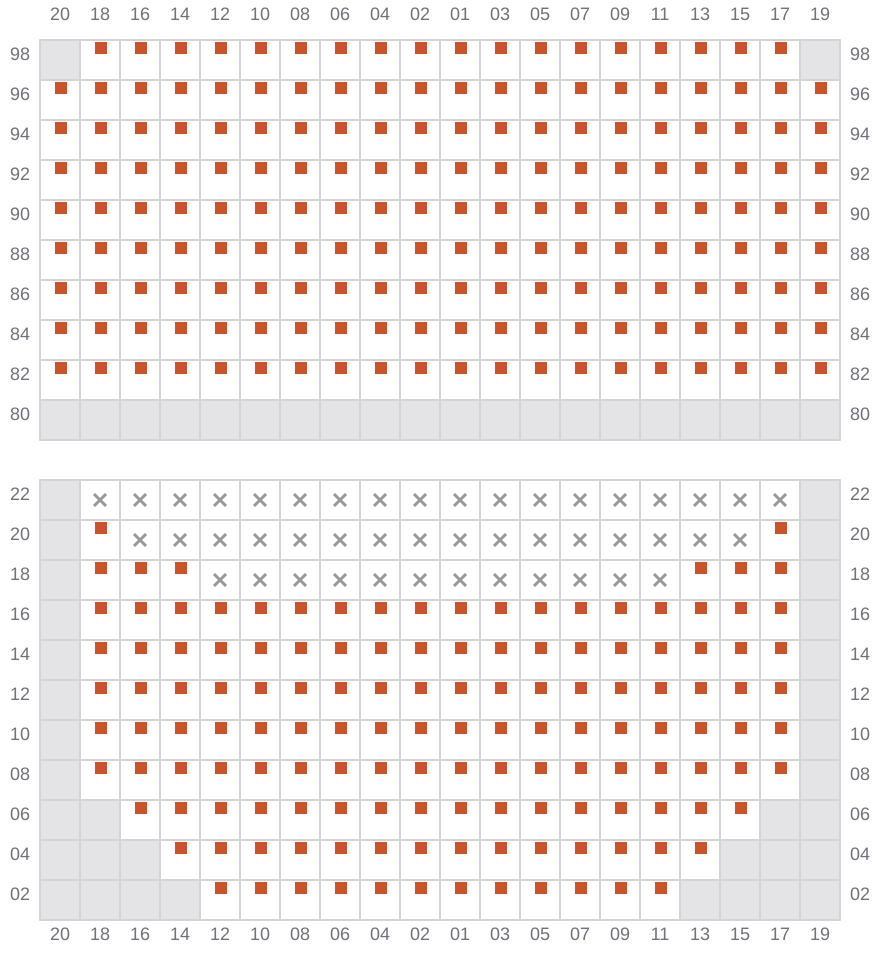

025
- →
![Bay 025 view and slots of TAIPEI TRIUMPH](/vessel-images/614e07d0-5922-48cf-add0-17a77e747b9a-b025.png?v=1686266148843)

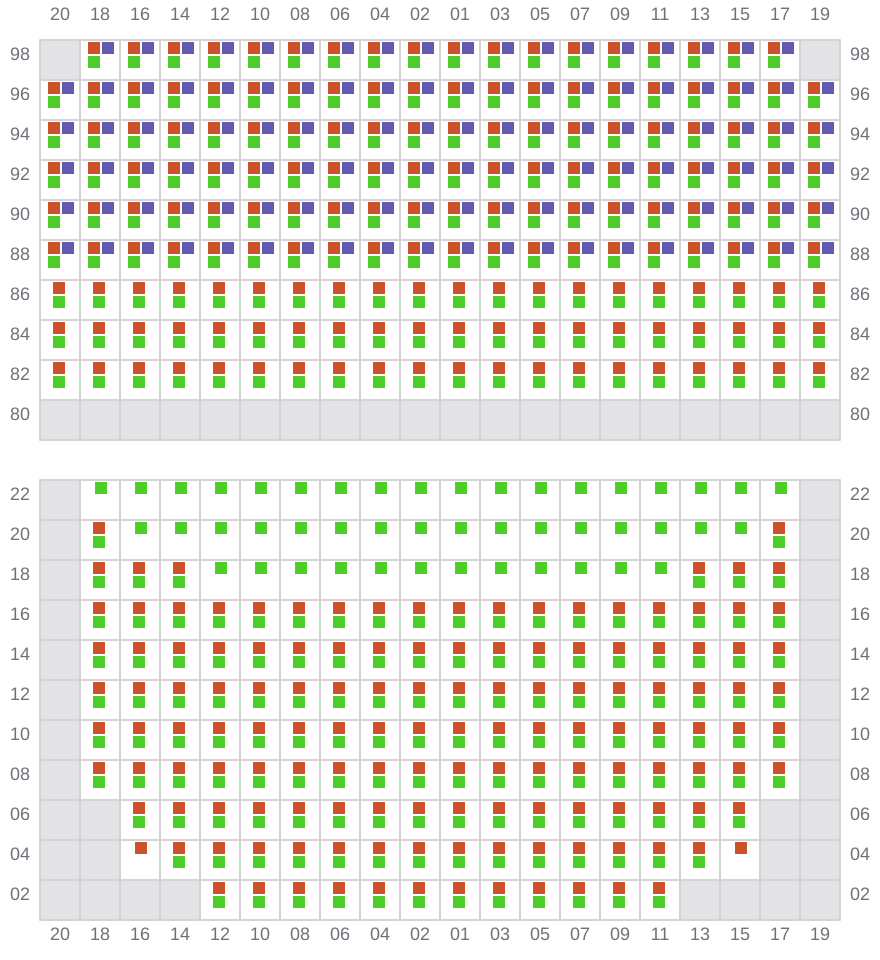

027 (026)
- ←
![Bay 027 view and slots of TAIPEI TRIUMPH](/vessel-images/614e07d0-5922-48cf-add0-17a77e747b9a-b027.png?v=1686266148843)

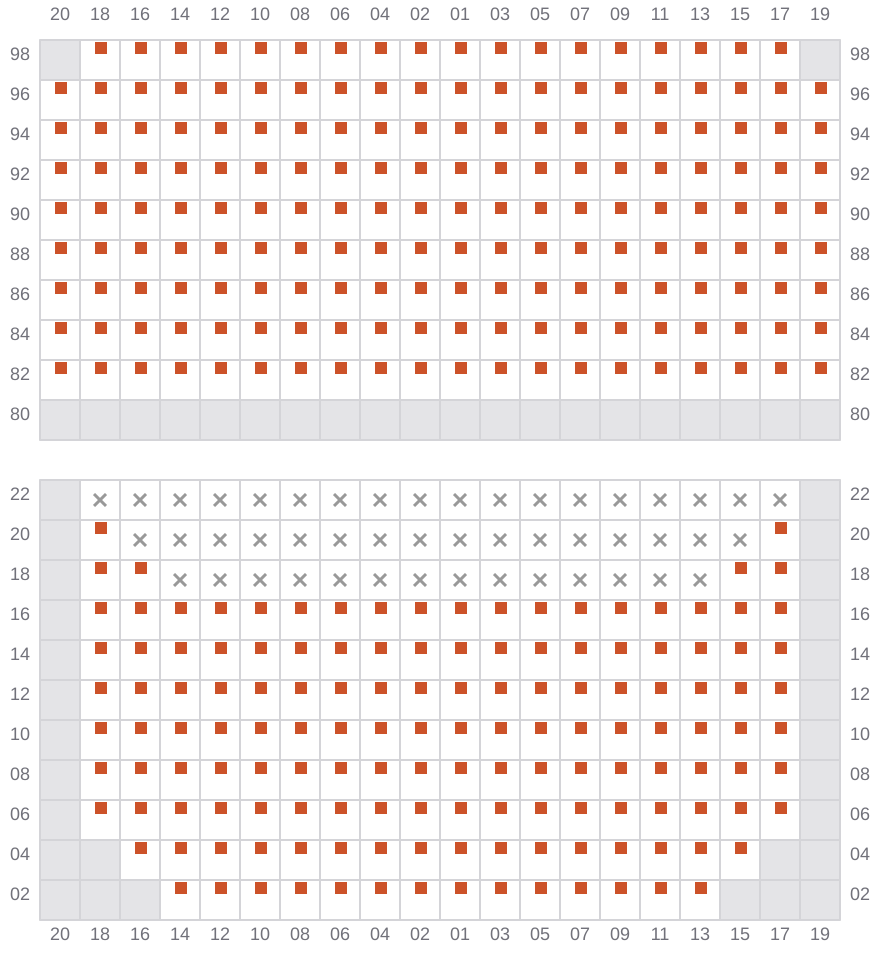

029
- →
![Bay 029 view and slots of TAIPEI TRIUMPH](/vessel-images/614e07d0-5922-48cf-add0-17a77e747b9a-b029.png?v=1686266148843)

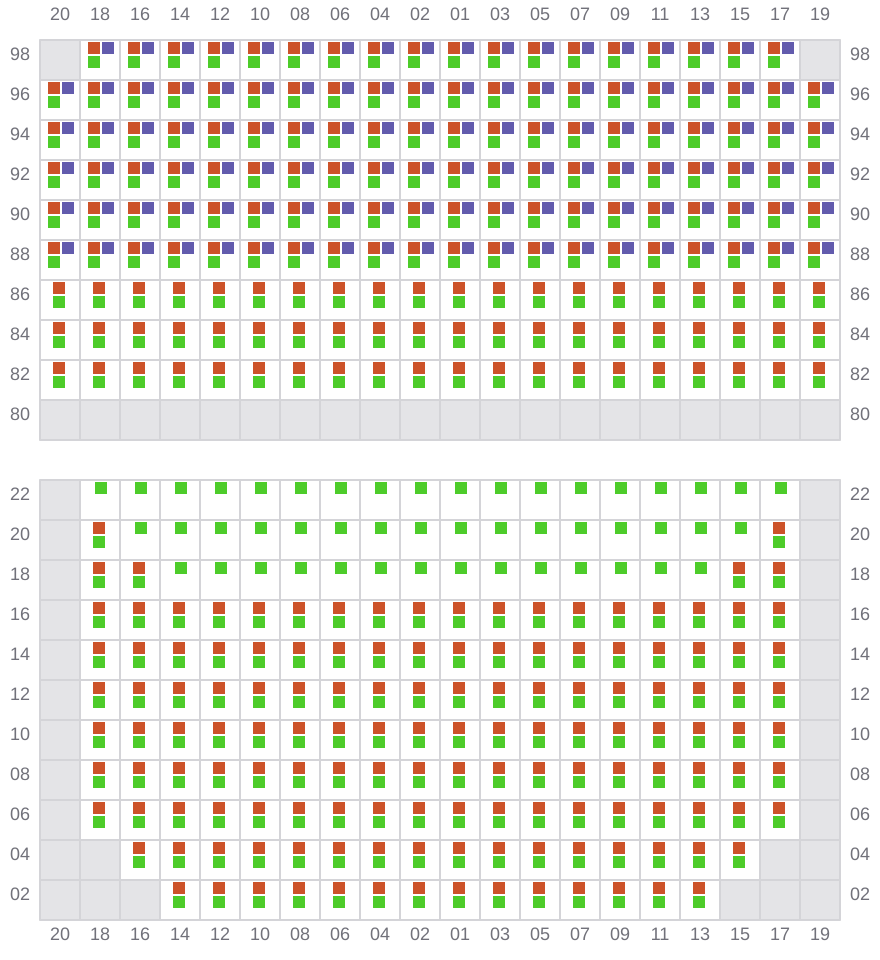

031 (030)
- ←
![Bay 031 view and slots of TAIPEI TRIUMPH](/vessel-images/614e07d0-5922-48cf-add0-17a77e747b9a-b031.png?v=1686266148843)
033
- →
![Bay 033 view and slots of TAIPEI TRIUMPH](/vessel-images/614e07d0-5922-48cf-add0-17a77e747b9a-b033.png?v=1686266148843)
035 (034)
- ←
![Bay 035 view and slots of TAIPEI TRIUMPH](/vessel-images/614e07d0-5922-48cf-add0-17a77e747b9a-b035.png?v=1686266148843)
037
- →
![Bay 037 view and slots of TAIPEI TRIUMPH](/vessel-images/614e07d0-5922-48cf-add0-17a77e747b9a-b037.png?v=1686266148843)
039 (038)
- ←
![Bay 039 view and slots of TAIPEI TRIUMPH](/vessel-images/614e07d0-5922-48cf-add0-17a77e747b9a-b039.png?v=1686266148843)

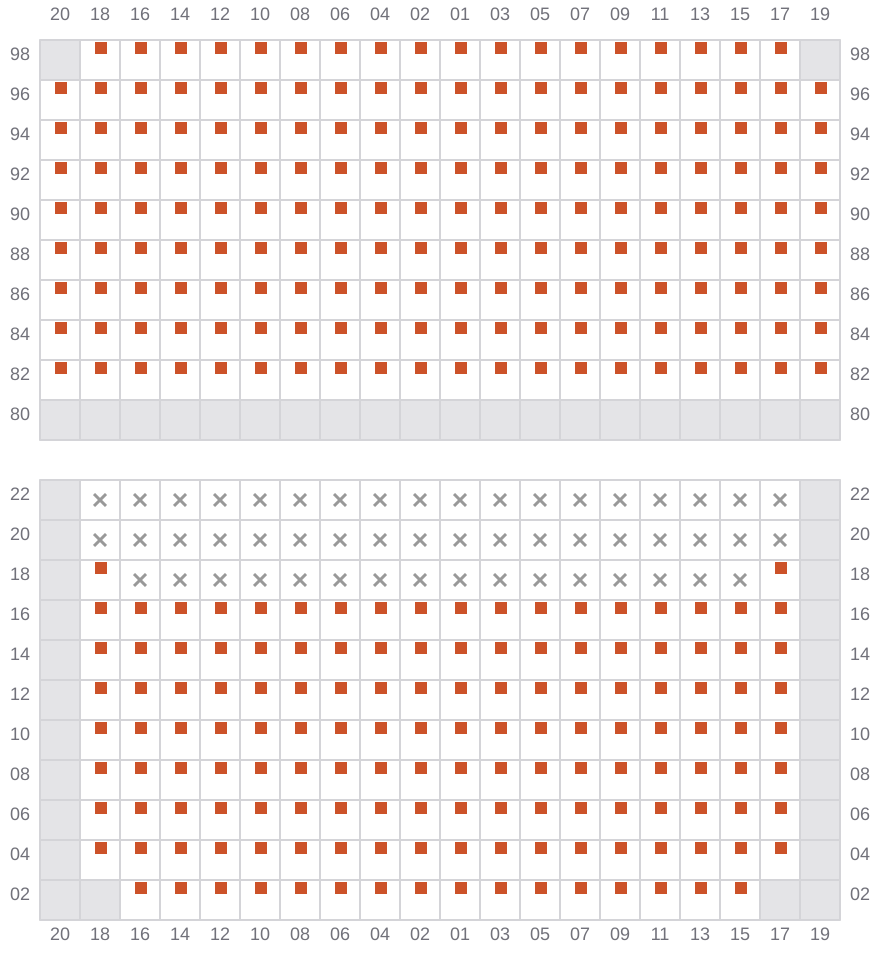

041
- →
![Bay 041 view and slots of TAIPEI TRIUMPH](/vessel-images/614e07d0-5922-48cf-add0-17a77e747b9a-b041.png?v=1686266148843)

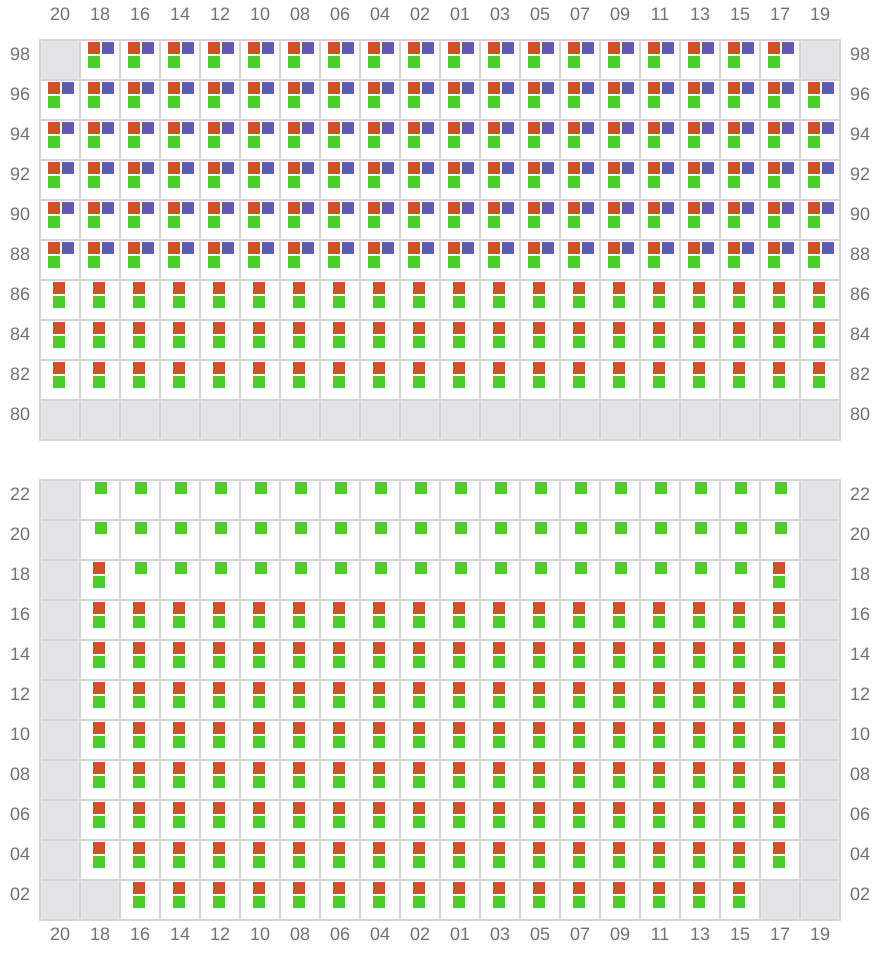

043 (042)
- ←
![Bay 043 view and slots of TAIPEI TRIUMPH](/vessel-images/614e07d0-5922-48cf-add0-17a77e747b9a-b043.png?v=1686266148843)
045
- →
![Bay 045 view and slots of TAIPEI TRIUMPH](/vessel-images/614e07d0-5922-48cf-add0-17a77e747b9a-b045.png?v=1686266148843)
047 (046)
- ←
![Bay 047 view and slots of TAIPEI TRIUMPH](/vessel-images/614e07d0-5922-48cf-add0-17a77e747b9a-b047.png?v=1686266148843)
049
- →
![Bay 049 view and slots of TAIPEI TRIUMPH](/vessel-images/614e07d0-5922-48cf-add0-17a77e747b9a-b049.png?v=1686266148843)
051 (050)
- ←
![Bay 051 view and slots of TAIPEI TRIUMPH](/vessel-images/614e07d0-5922-48cf-add0-17a77e747b9a-b051.png?v=1686266148843)
053
- →
![Bay 053 view and slots of TAIPEI TRIUMPH](/vessel-images/614e07d0-5922-48cf-add0-17a77e747b9a-b053.png?v=1686266148843)
055 (054)
- ←
![Bay 055 view and slots of TAIPEI TRIUMPH](/vessel-images/614e07d0-5922-48cf-add0-17a77e747b9a-b055.png?v=1686266148843)
057
- →
![Bay 057 view and slots of TAIPEI TRIUMPH](/vessel-images/614e07d0-5922-48cf-add0-17a77e747b9a-b057.png?v=1686266148843)

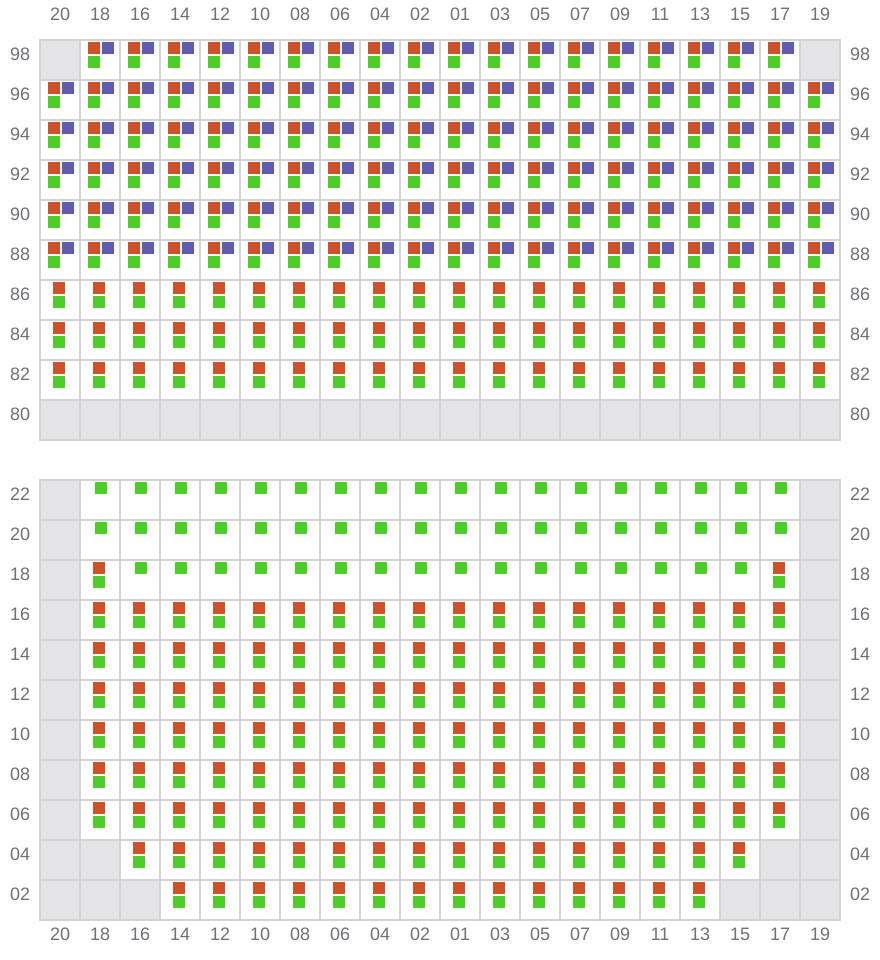

059 (058)
- ←
![Bay 059 view and slots of TAIPEI TRIUMPH](/vessel-images/614e07d0-5922-48cf-add0-17a77e747b9a-b059.png?v=1686266148843)

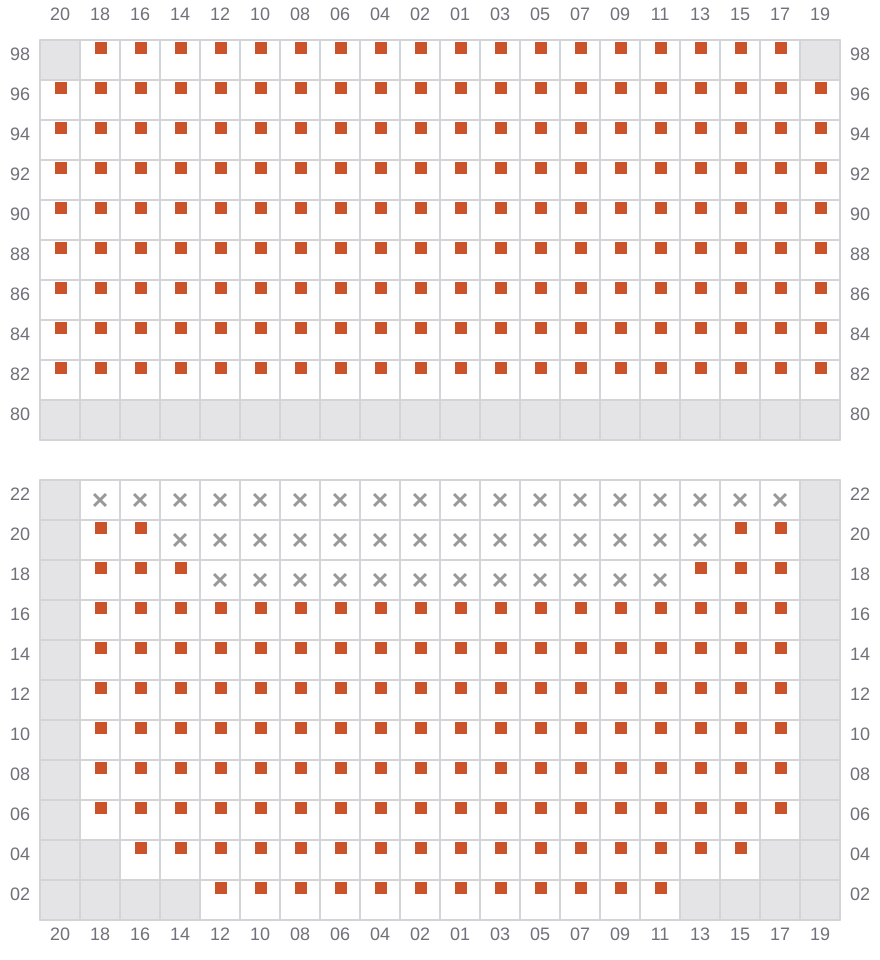

061
- →
![Bay 061 view and slots of TAIPEI TRIUMPH](/vessel-images/614e07d0-5922-48cf-add0-17a77e747b9a-b061.png?v=1686266148843)

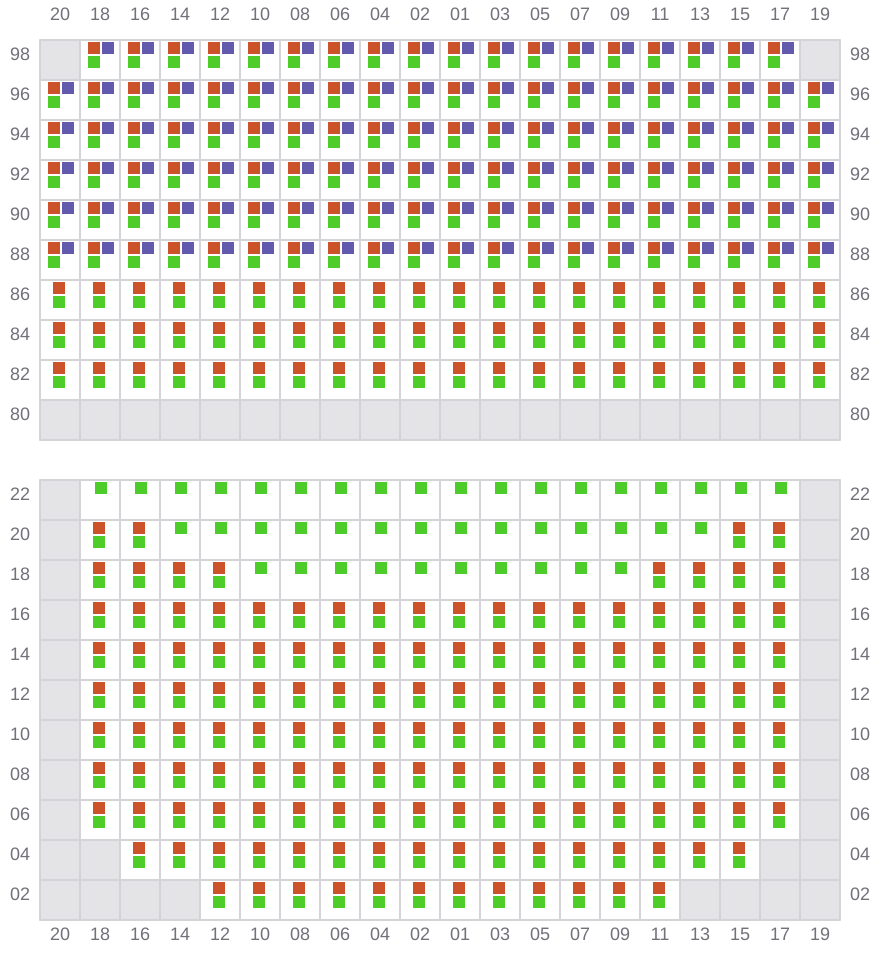

063 (062)
- ←
![Bay 063 view and slots of TAIPEI TRIUMPH](/vessel-images/614e07d0-5922-48cf-add0-17a77e747b9a-b063.png?v=1686266148843)

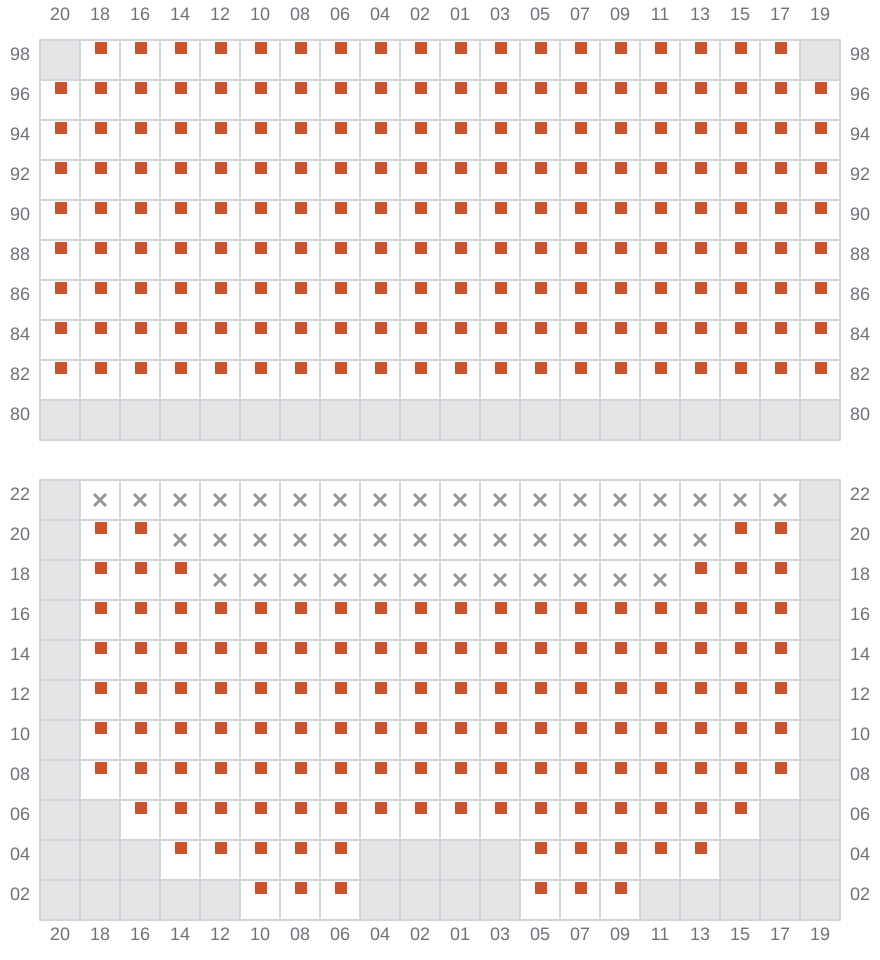

065
- →
![Bay 065 view and slots of TAIPEI TRIUMPH](/vessel-images/614e07d0-5922-48cf-add0-17a77e747b9a-b065.png?v=1686266148843)
067 (066)
- ←
![Bay 067 view and slots of TAIPEI TRIUMPH](/vessel-images/614e07d0-5922-48cf-add0-17a77e747b9a-b067.png?v=1686266148843)

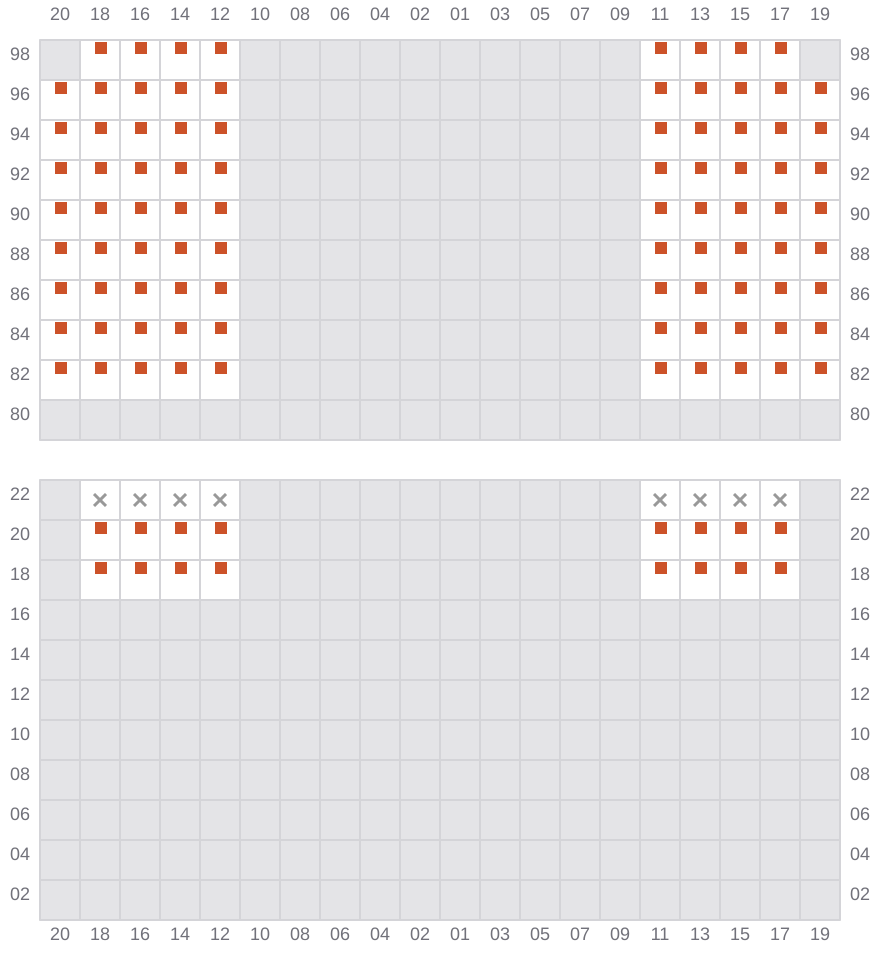

069
- →
![Bay 069 view and slots of TAIPEI TRIUMPH](/vessel-images/614e07d0-5922-48cf-add0-17a77e747b9a-b069.png?v=1686266148843)

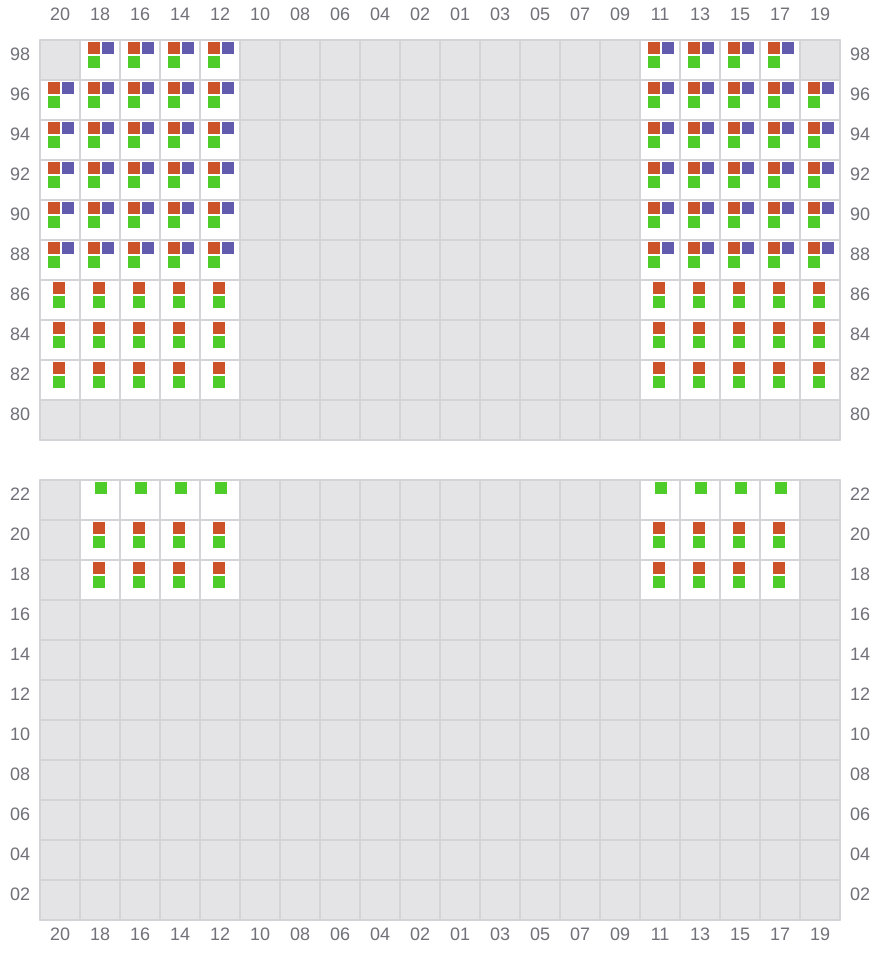

071 (070)
- ←
![Bay 071 view and slots of TAIPEI TRIUMPH](/vessel-images/614e07d0-5922-48cf-add0-17a77e747b9a-b071.png?v=1686266148843)

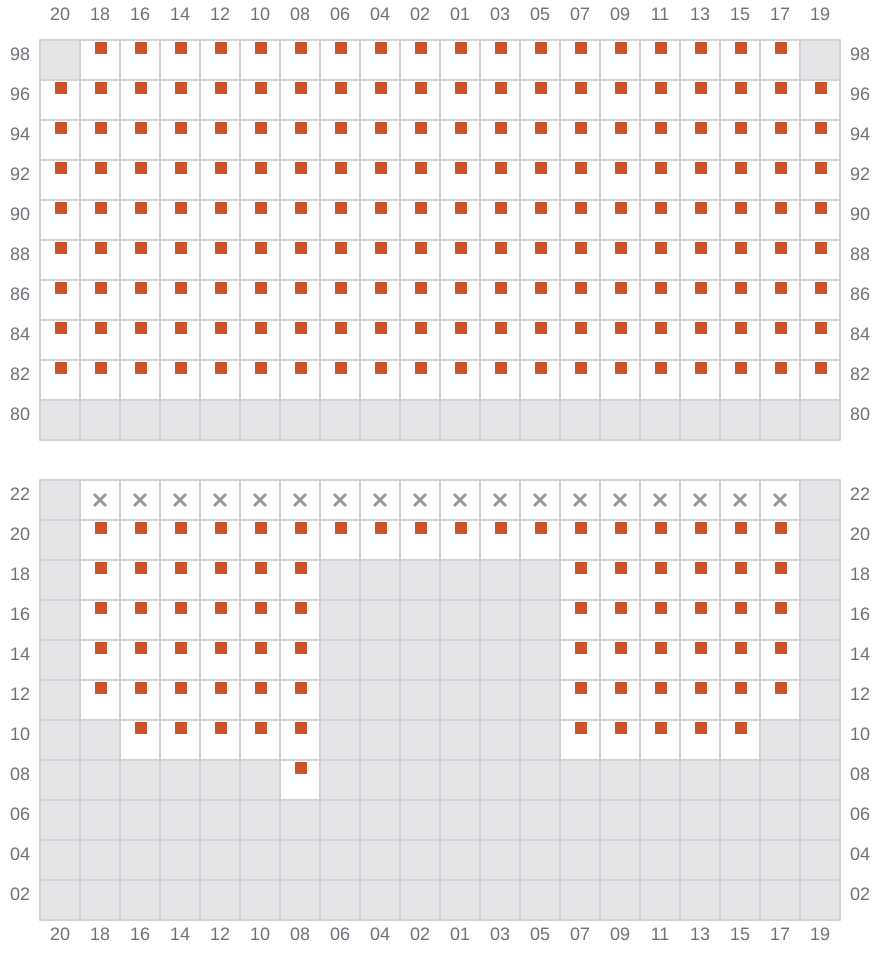

073
- →
![Bay 073 view and slots of TAIPEI TRIUMPH](/vessel-images/614e07d0-5922-48cf-add0-17a77e747b9a-b073.png?v=1686266148843)

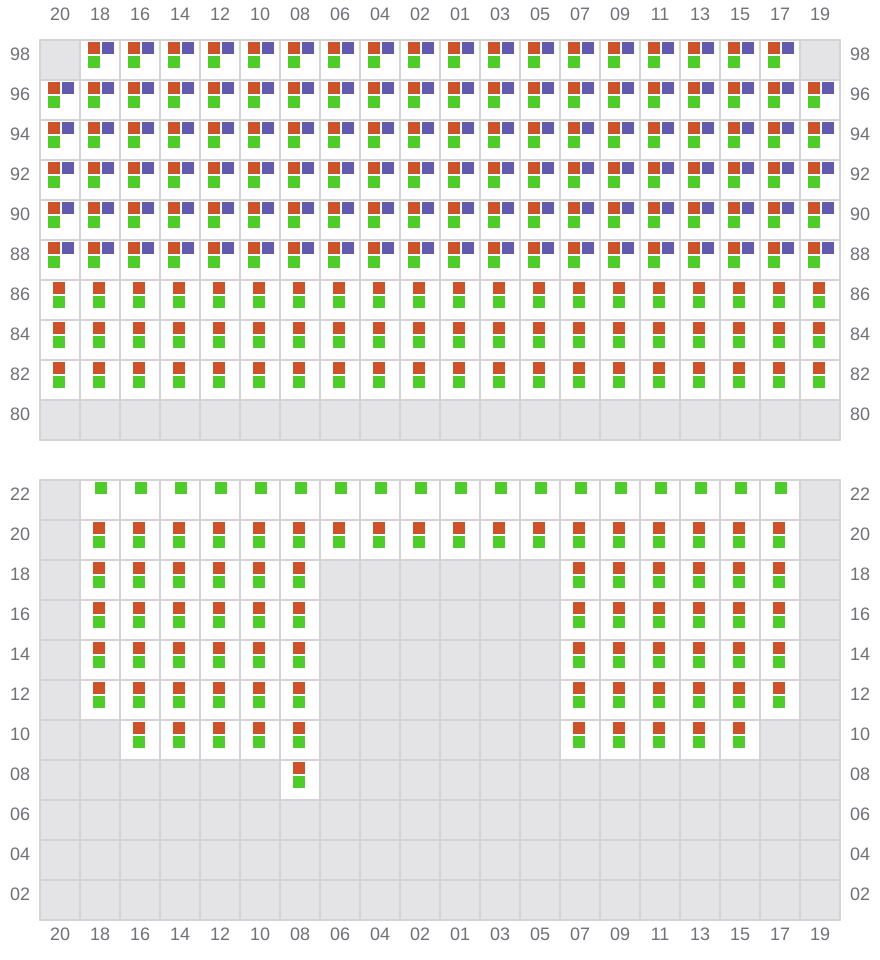

075 (074)
- ←
![Bay 075 view and slots of TAIPEI TRIUMPH](/vessel-images/614e07d0-5922-48cf-add0-17a77e747b9a-b075.png?v=1686266148843)

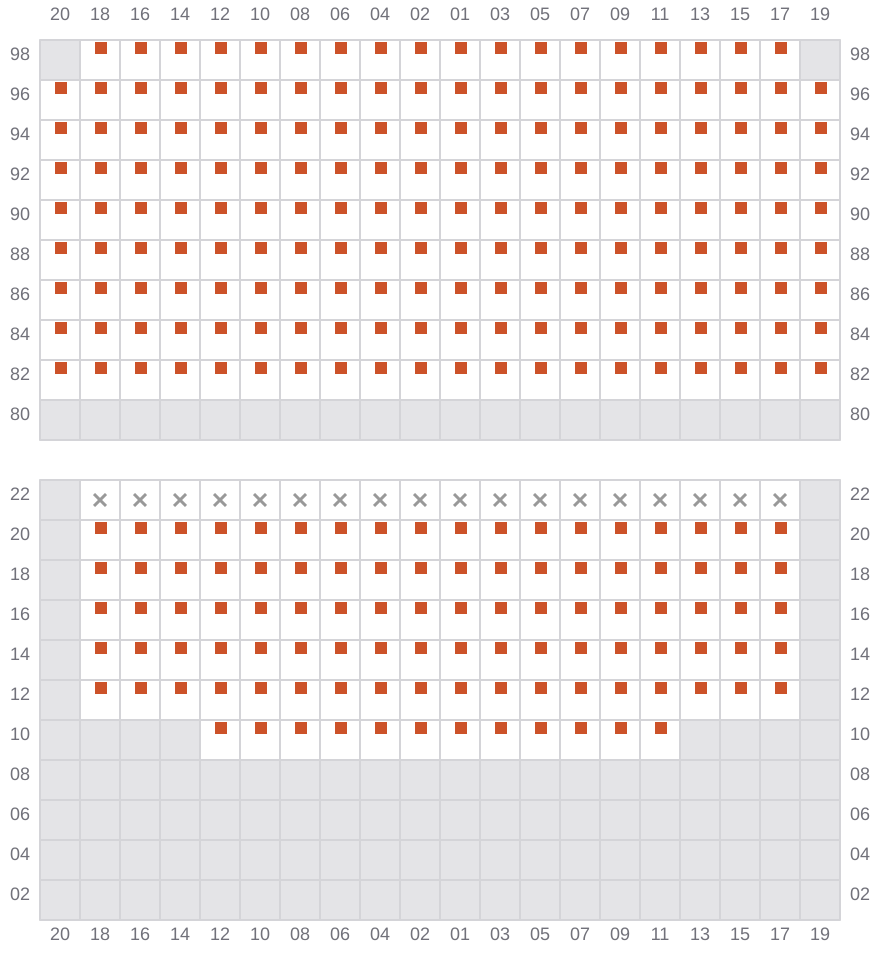

077
- →
![Bay 077 view and slots of TAIPEI TRIUMPH](/vessel-images/614e07d0-5922-48cf-add0-17a77e747b9a-b077.png?v=1686266148843)

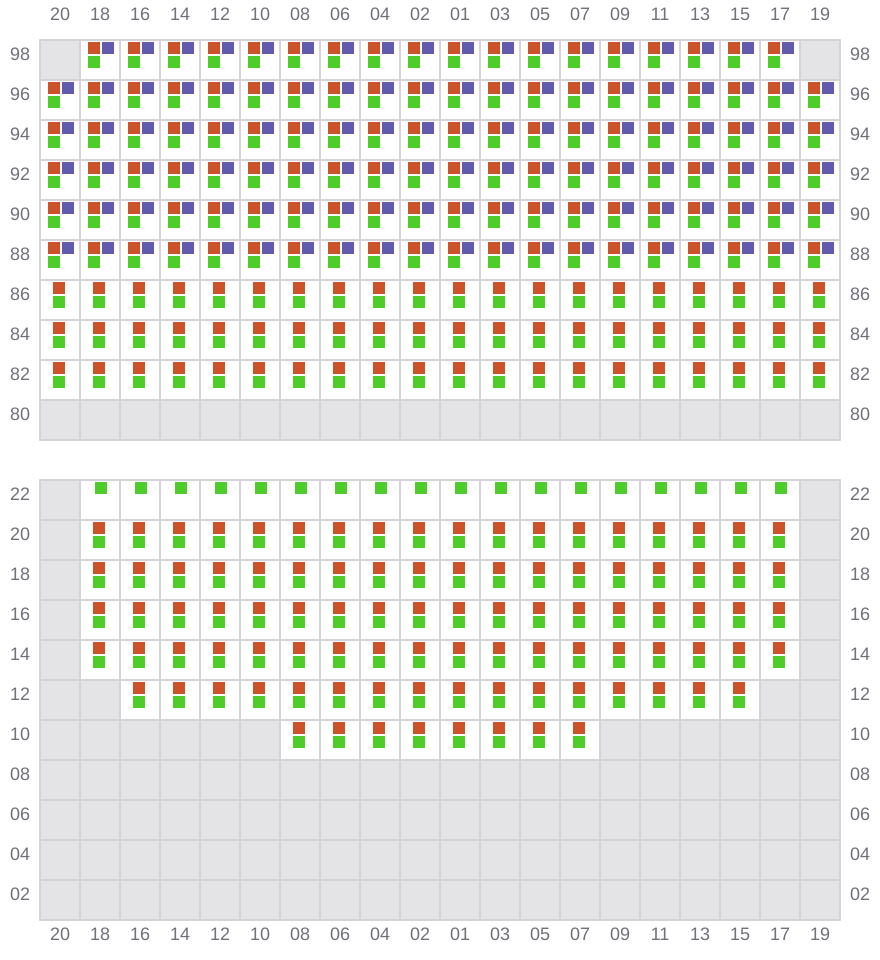

079 (078)
- ←
![Bay 079 view and slots of TAIPEI TRIUMPH](/vessel-images/614e07d0-5922-48cf-add0-17a77e747b9a-b079.png?v=1686266148843)

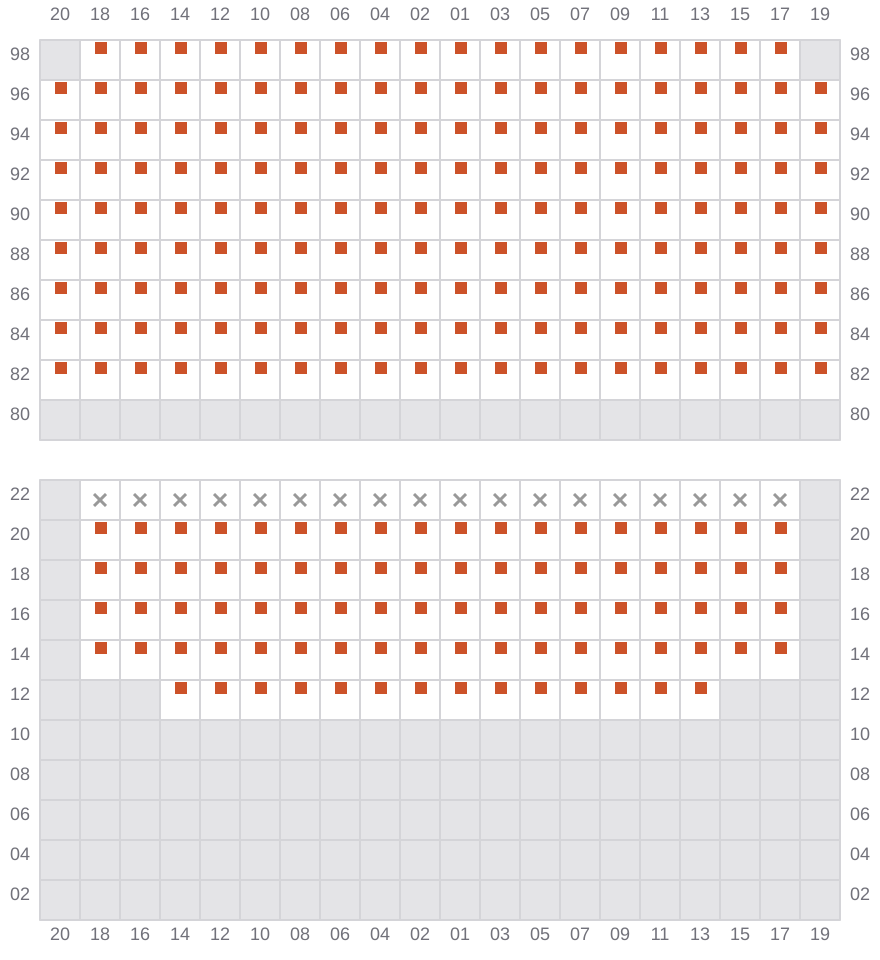

081
- →
![Bay 081 view and slots of TAIPEI TRIUMPH](/vessel-images/614e07d0-5922-48cf-add0-17a77e747b9a-b081.png?v=1686266148843)

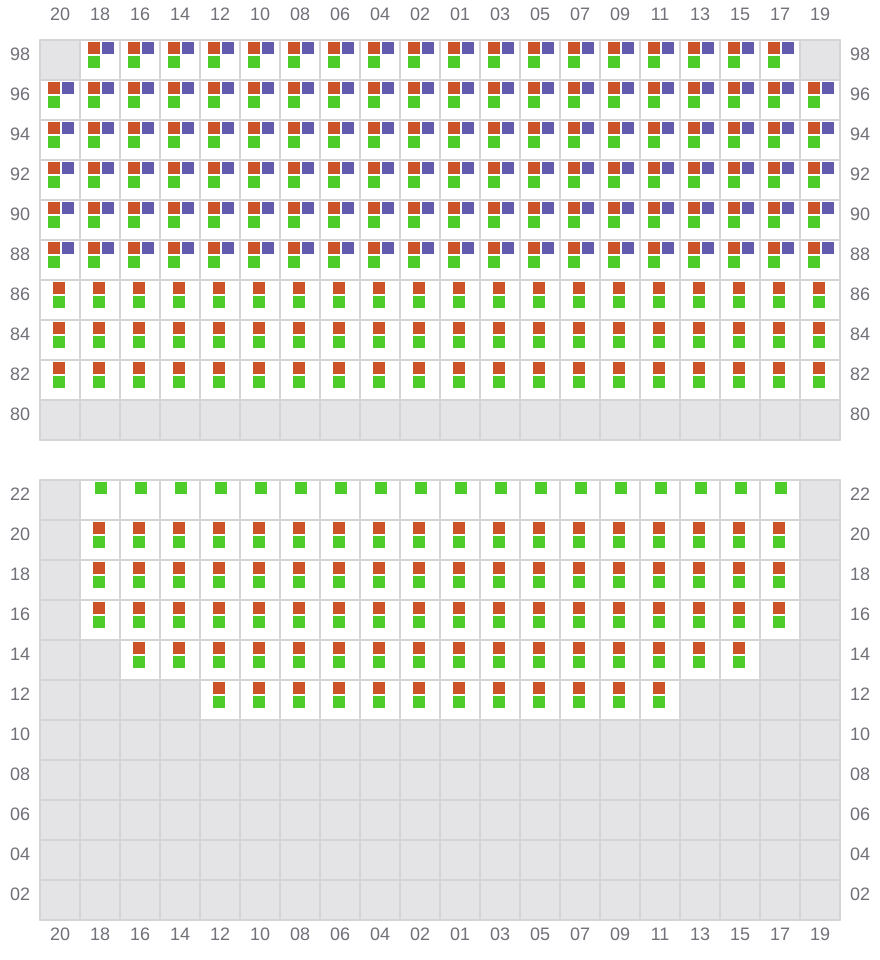

083 (082)
- ←
![Bay 083 view and slots of TAIPEI TRIUMPH](/vessel-images/614e07d0-5922-48cf-add0-17a77e747b9a-b083.png?v=1686266148843)

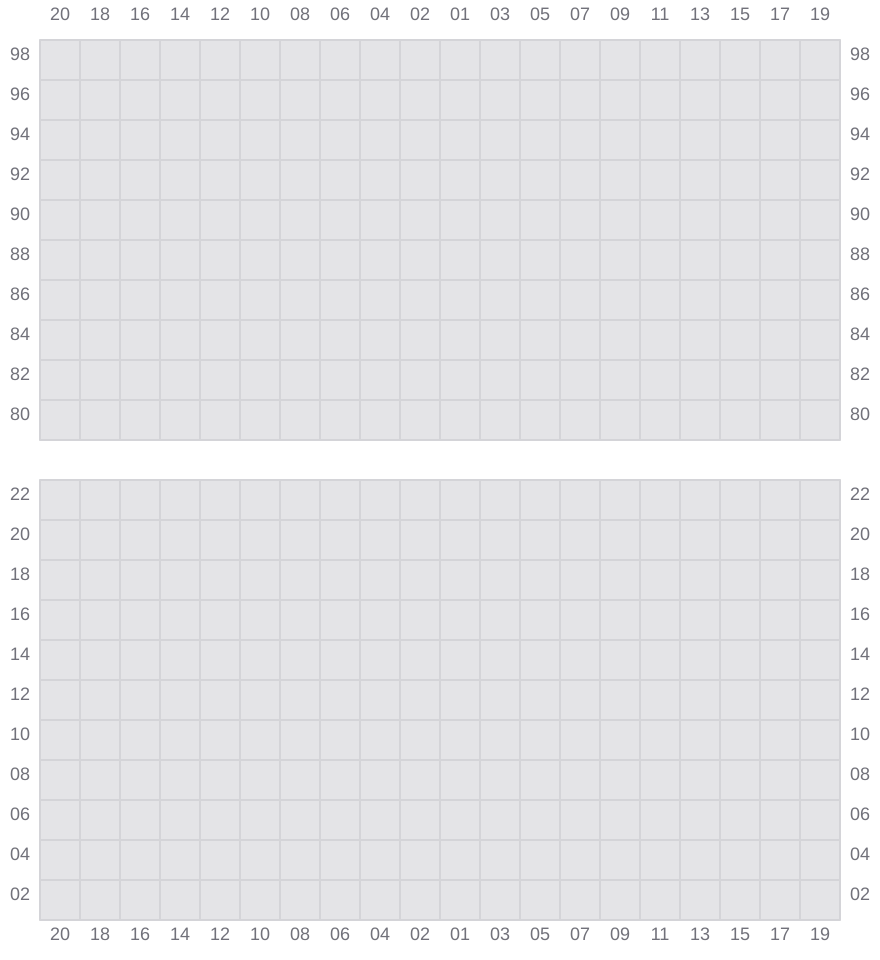

085
![Bay 085 view and slots of TAIPEI TRIUMPH](/vessel-images/614e07d0-5922-48cf-add0-17a77e747b9a-b085.png?v=1686266148843)

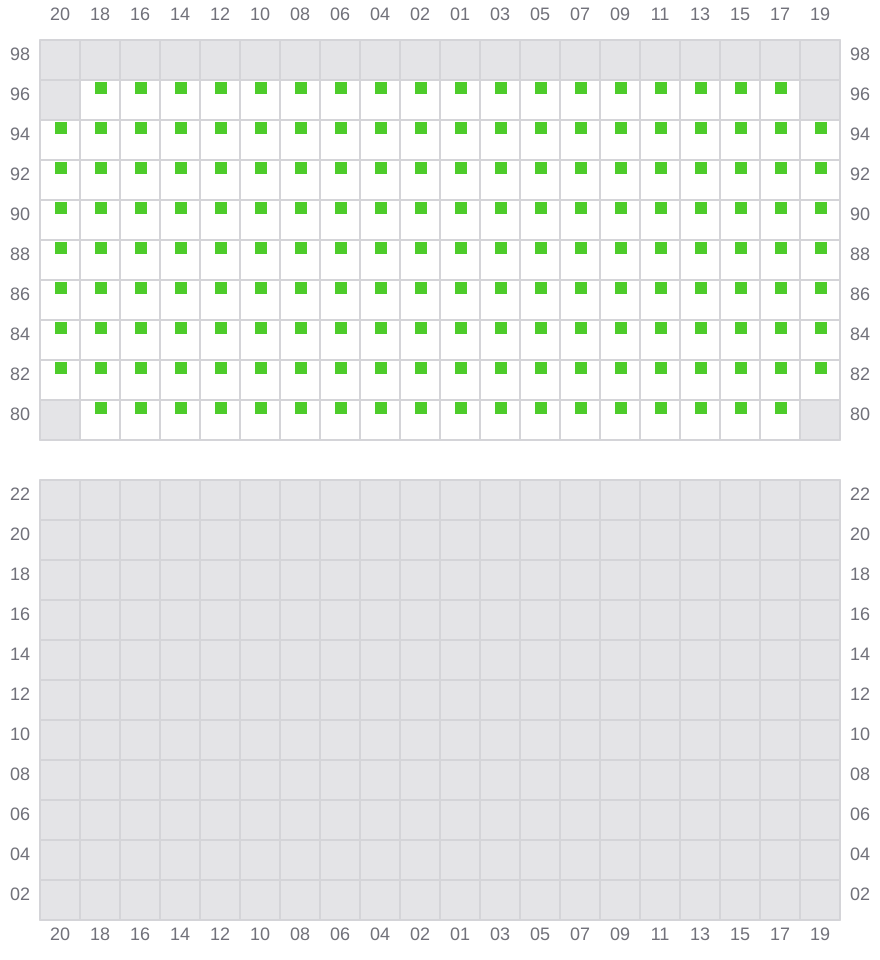

087 (086)
- ← / ?
![Bay 087 view and slots of TAIPEI TRIUMPH](/vessel-images/614e07d0-5922-48cf-add0-17a77e747b9a-b087.png?v=1686266148843)
