TANTO SEMANGAT
9168570 | POSY | 9168570 by ********* Last update: Sat Mar 09 2024

General Info

Ship Name:TANTO SEMANGAT
IMO Code:9168570
Call Sign:POSY
Line Operator:9168570
Class Name for Sister Ships:2GP
Year Built:1999
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:029
Max ISO Row:08
Center Line Row:Yes
Max Above ISO Tier:88
Min Above ISO Tier:82
Max Below ISO Tier:08
Min Below ISO Tier:02
Total TEU:710

Centers of Gravity

LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

Side View

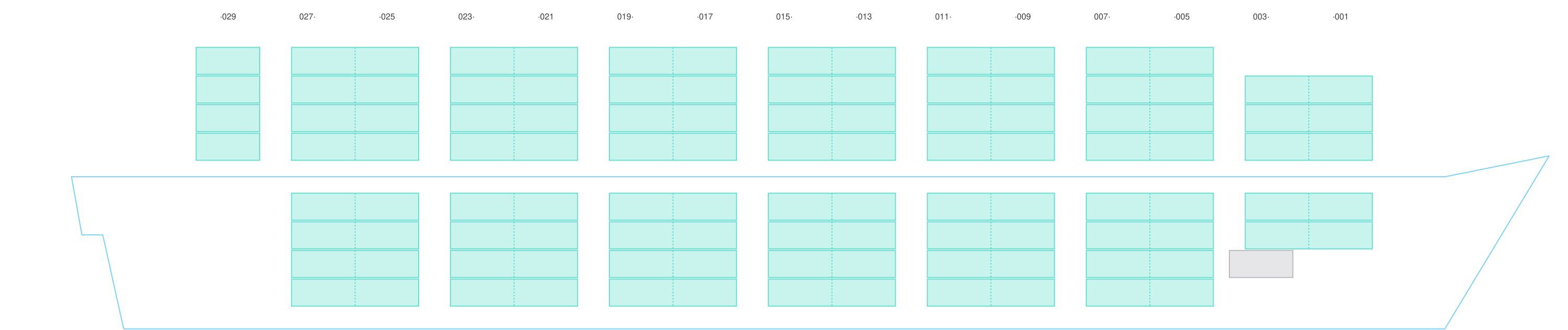

Side view of TANTO SEMANGAT

Hatch-Covers View

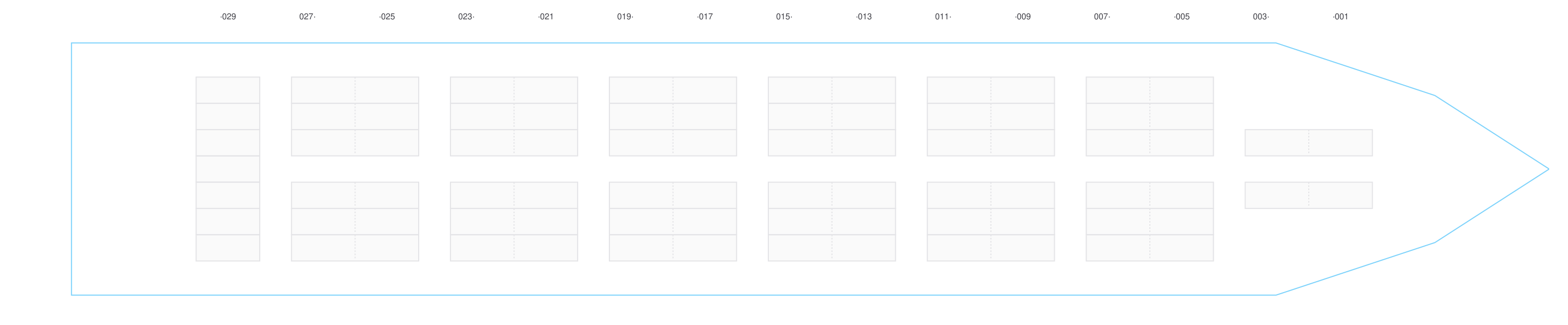

Deck view of TANTO SEMANGAT

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001 (002)

  • →

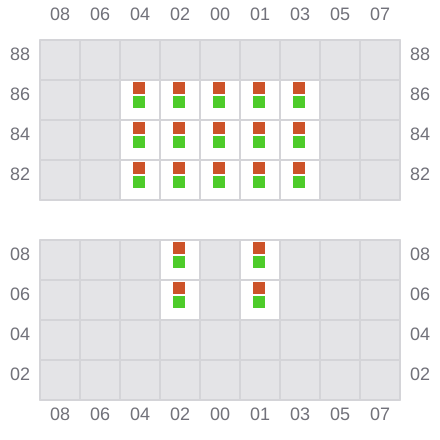

Bay 001 view and slots of TANTO SEMANGAT

003

  • ←

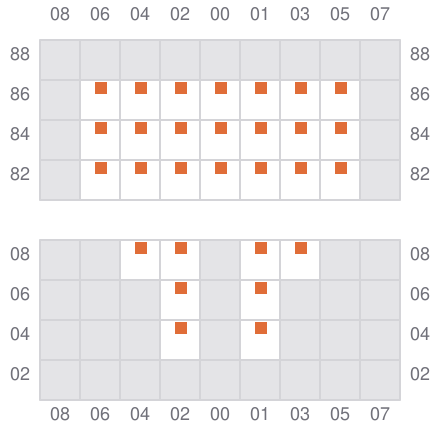

Bay 003 view and slots of TANTO SEMANGAT

005 (006)

  • →

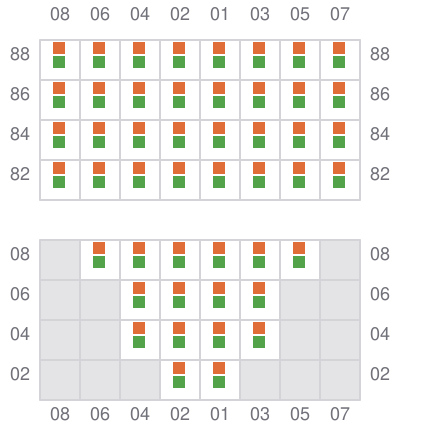

Bay 005 view and slots of TANTO SEMANGAT

007

  • ←

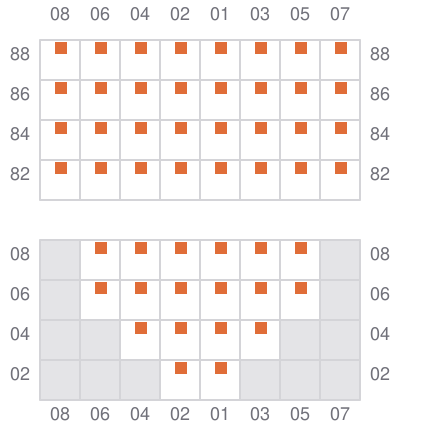

Bay 007 view and slots of TANTO SEMANGAT

009 (010)

  • →
Bay 009 view and slots of TANTO SEMANGAT

011

  • ←
  • → / ?

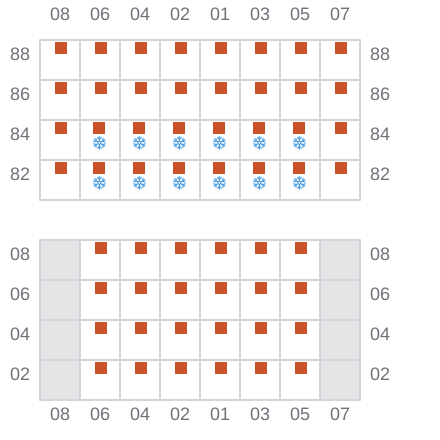

Bay 011 view and slots of TANTO SEMANGAT

013 (014)

  • →

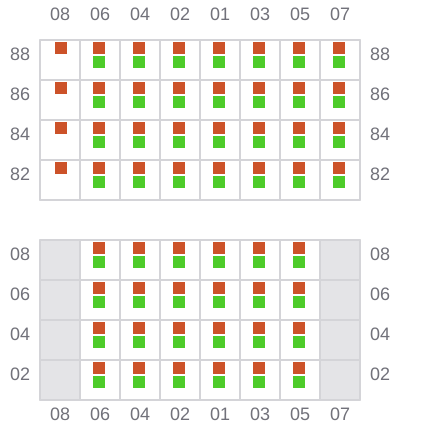

Bay 013 view and slots of TANTO SEMANGAT

015

  • ←
  • → / ?

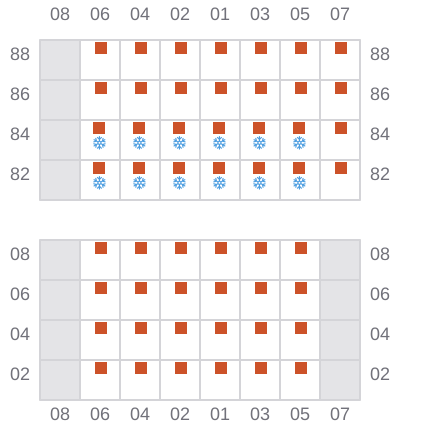

Bay 015 view and slots of TANTO SEMANGAT

017 (018)

  • →

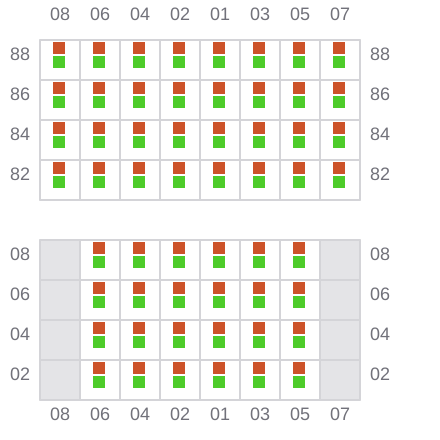

Bay 017 view and slots of TANTO SEMANGAT

019

  • ←
  • → / ?

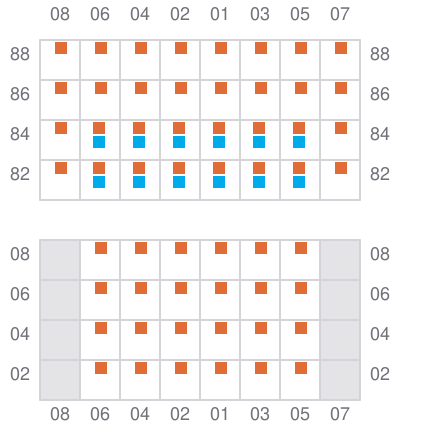

Bay 019 view and slots of TANTO SEMANGAT

021 (022)

  • →

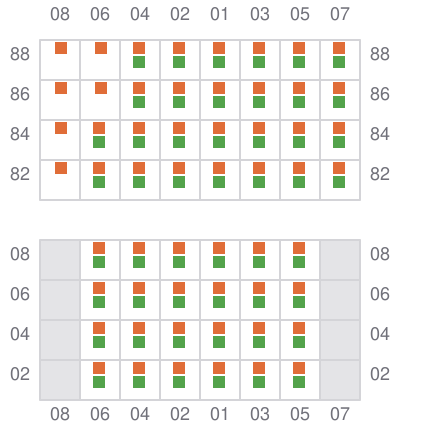

Bay 021 view and slots of TANTO SEMANGAT

023

  • ←
  • → / ?

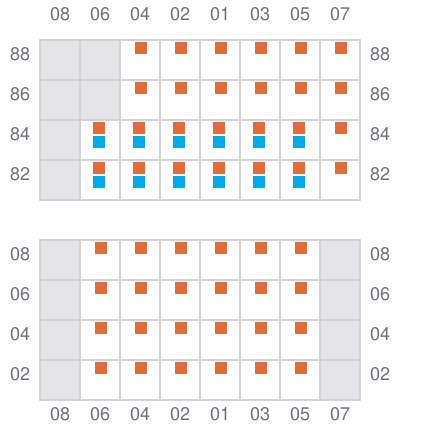

Bay 023 view and slots of TANTO SEMANGAT

025 (026)

  • →

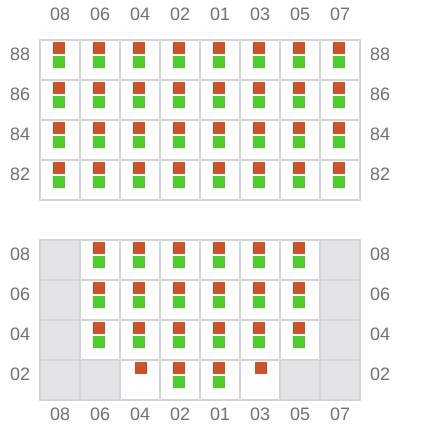

Bay 025 view and slots of TANTO SEMANGAT

027

  • ←
  • → / ?

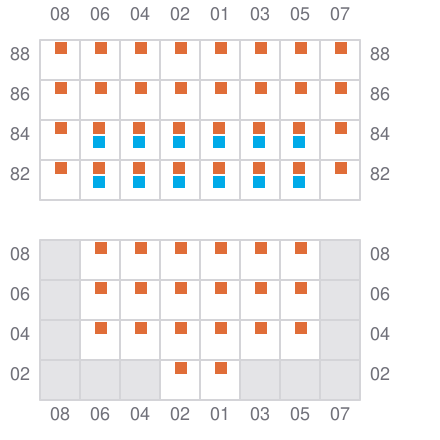

Bay 027 view and slots of TANTO SEMANGAT

029

  • → / ?

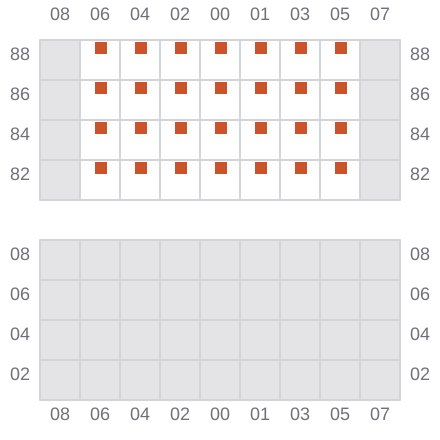

Bay 029 view and slots of TANTO SEMANGAT
