TASMAN
9189342 | V7FQ3 | 9189342 by ********* Last update: Sat Mar 09 2024
General Info
Ship Name:TASMAN
IMO Code:9189342
Call Sign:V7FQ3
Line Operator:9189342
Class Name for Sister Ships:8BF
Year Built:2000
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:061
Max ISO Row:16
Center Line Row:No
Max Above ISO Tier:96
Min Above ISO Tier:82
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:5,814
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%
Side View
Hatch-Covers View

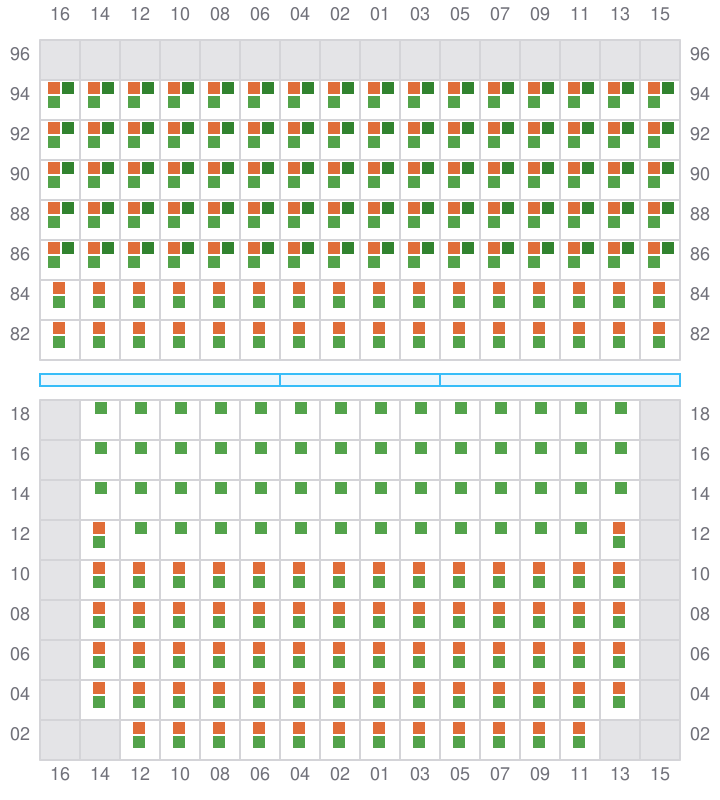

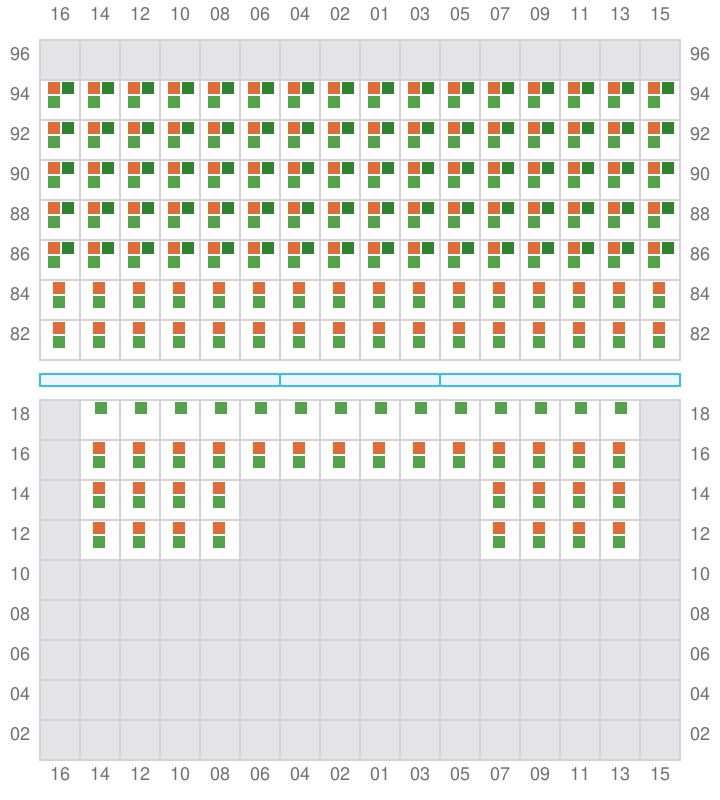

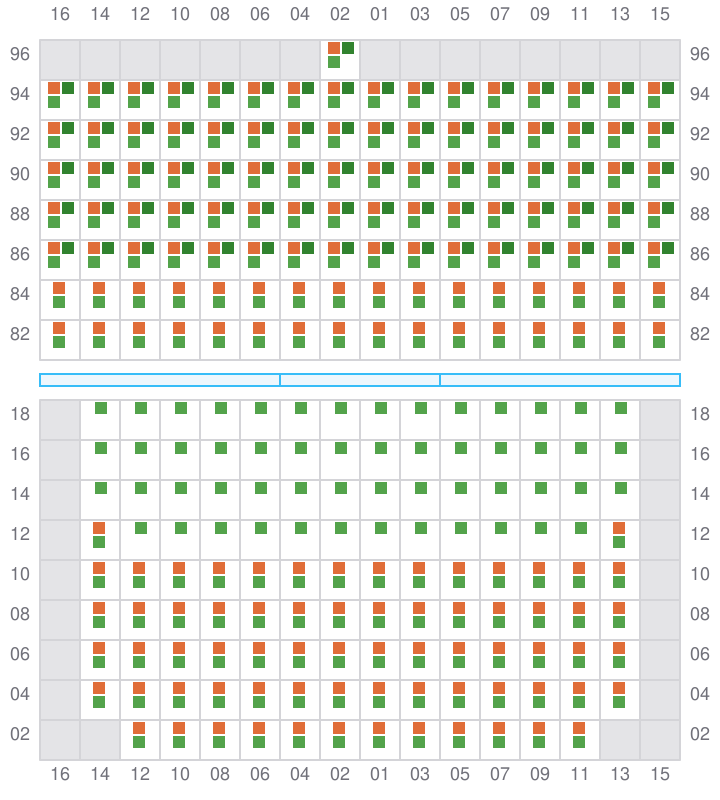

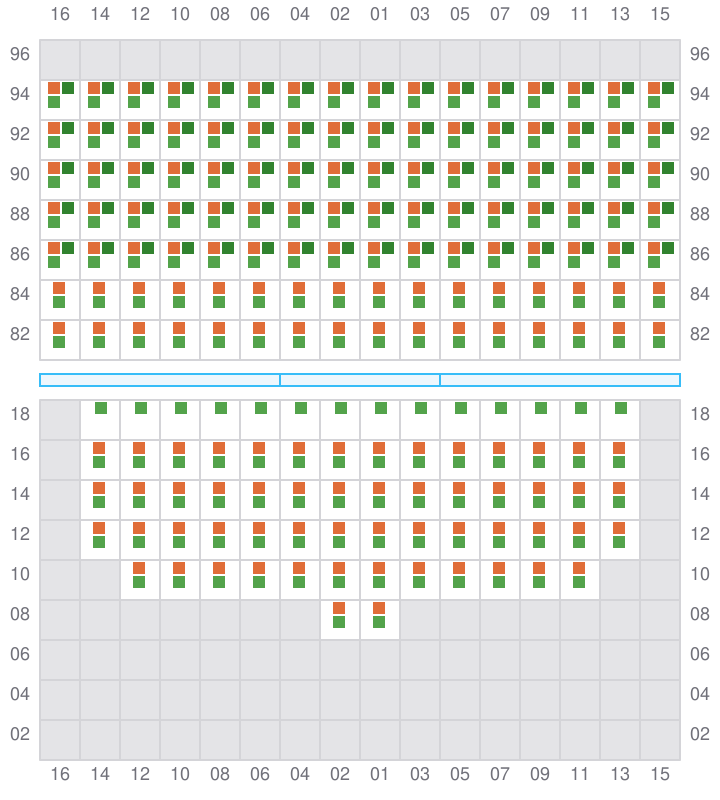

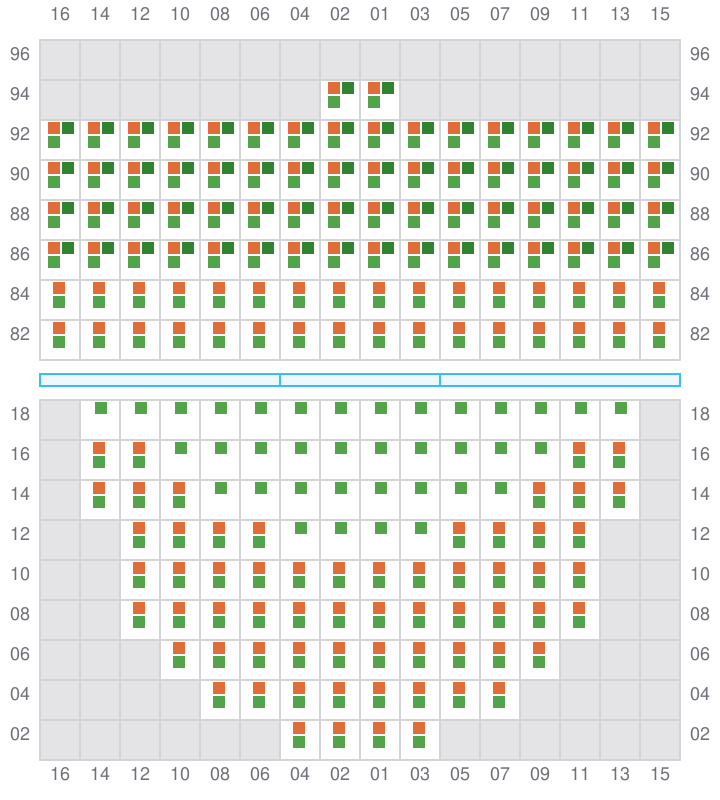

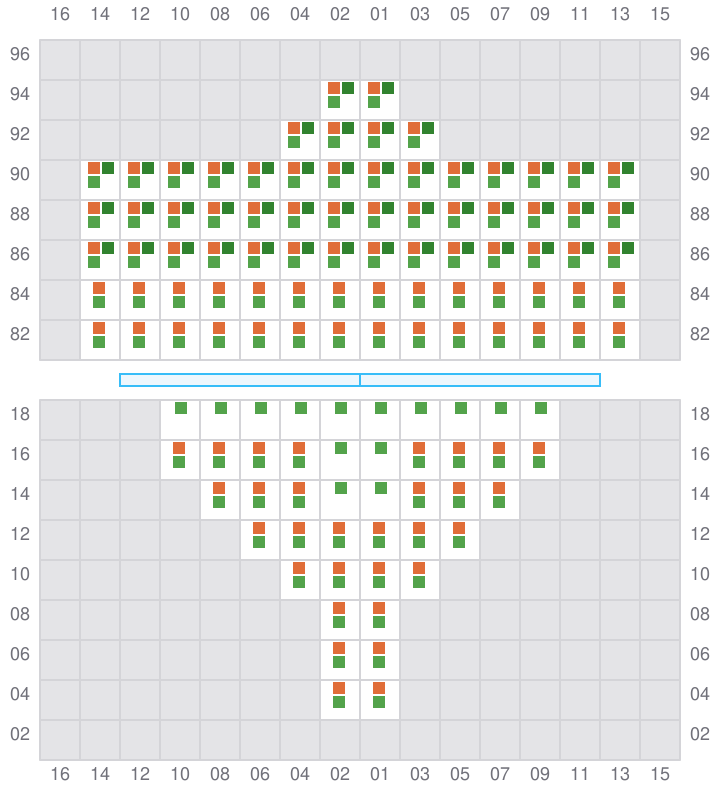

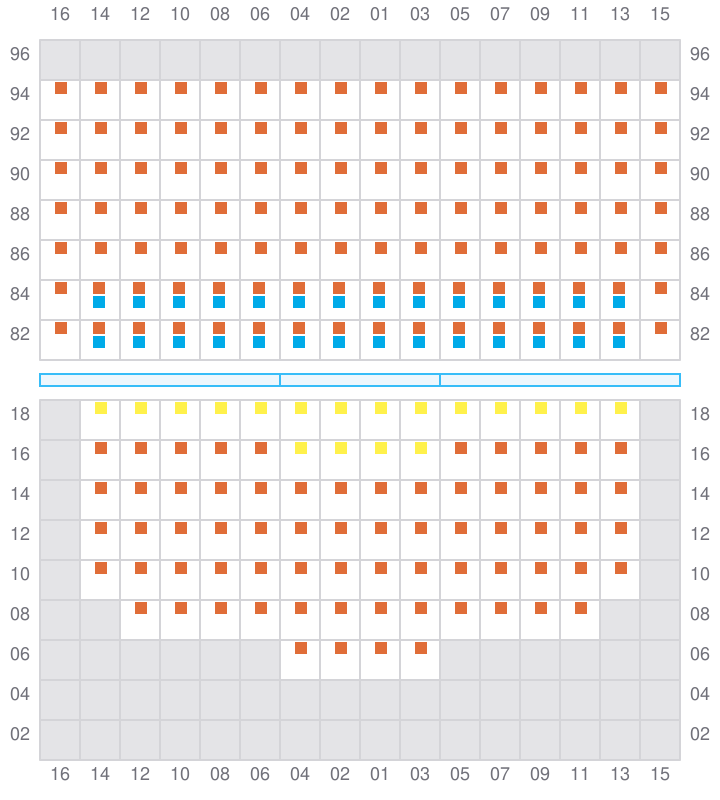

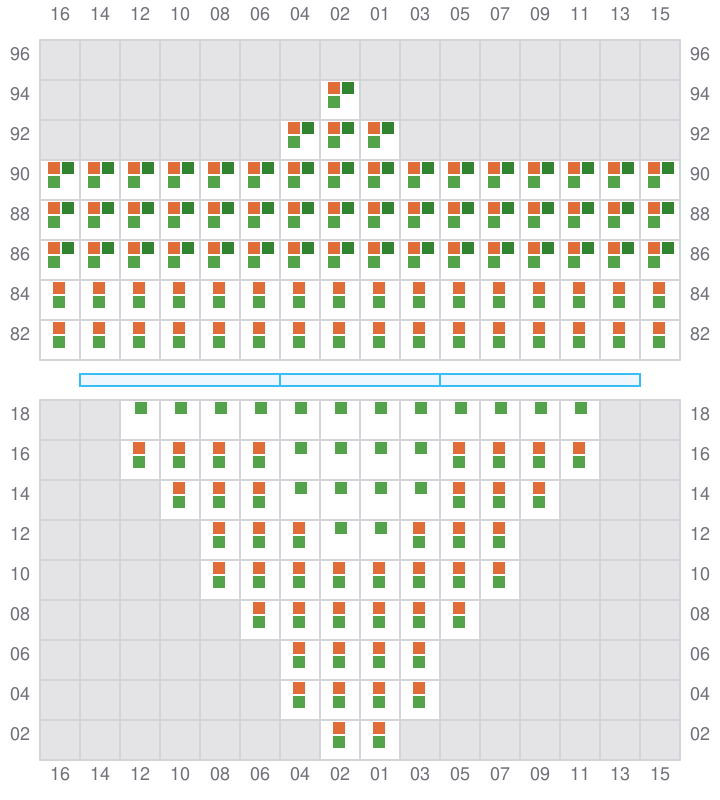

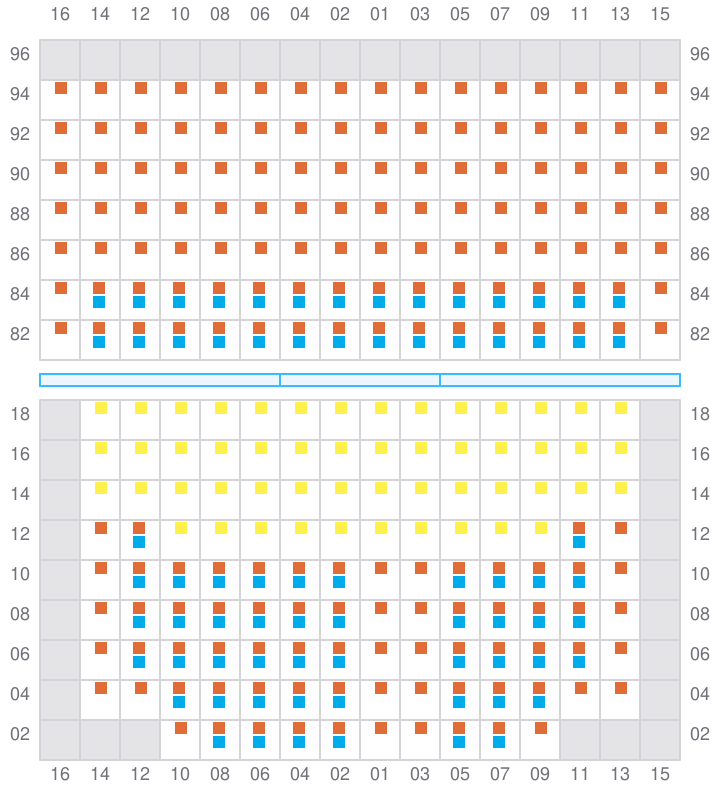

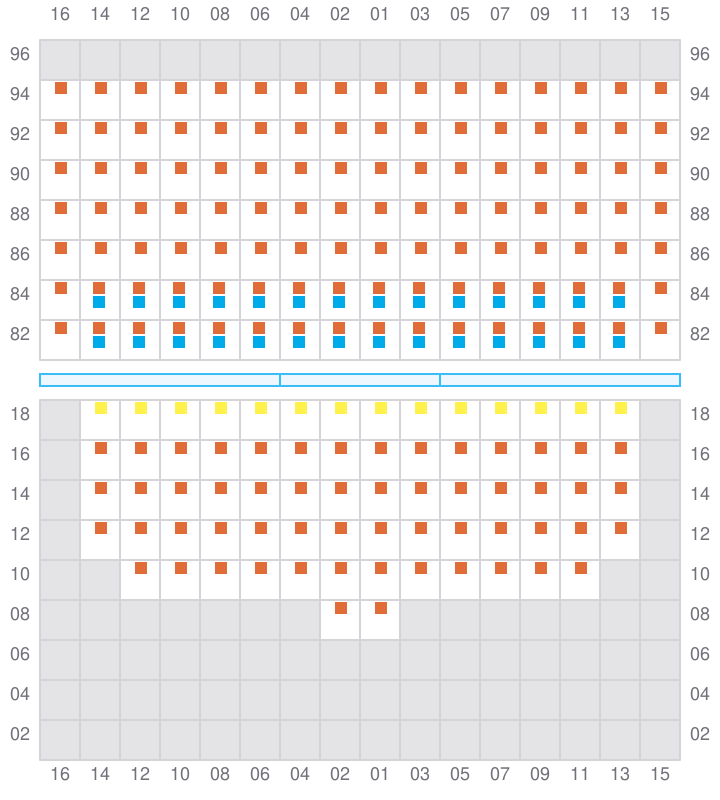

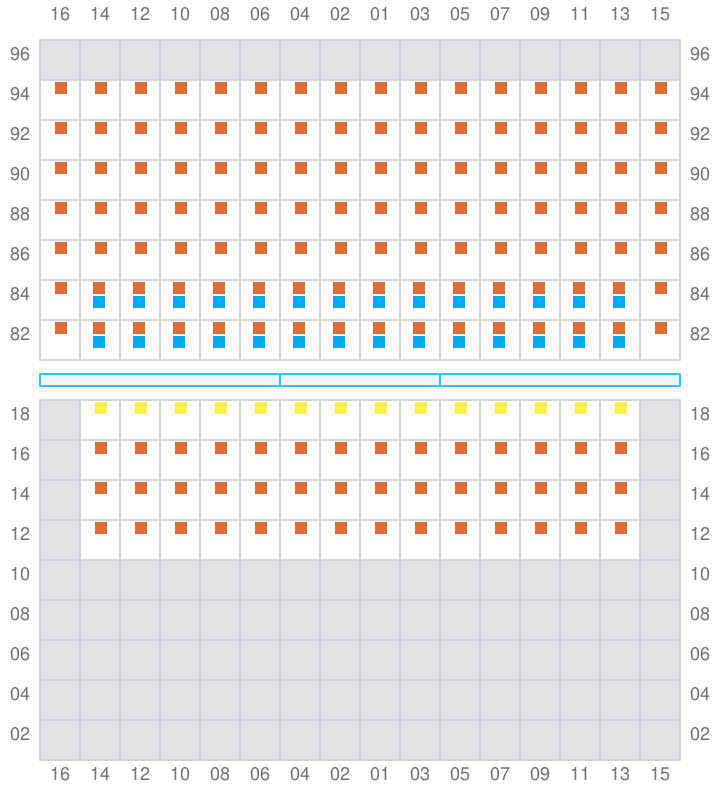

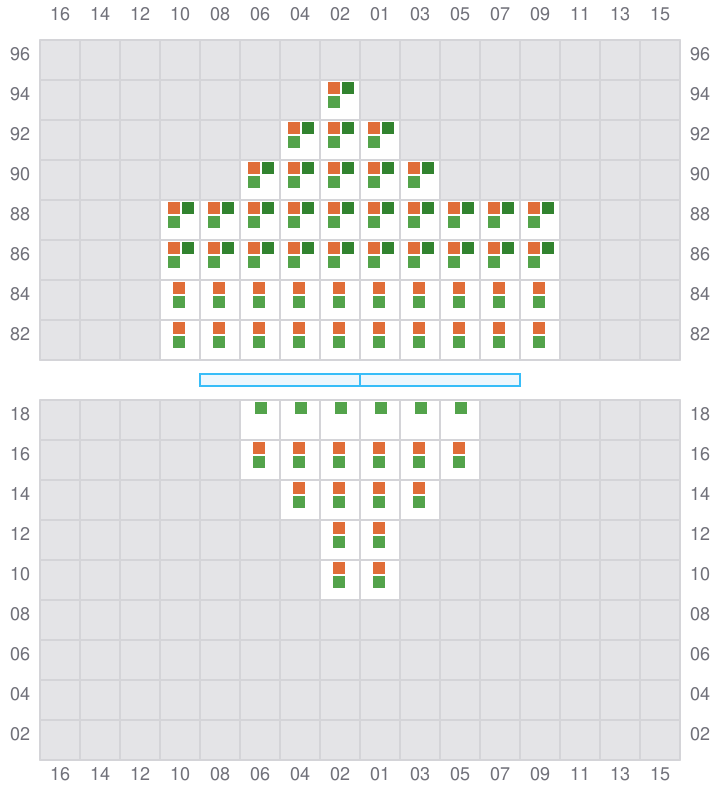

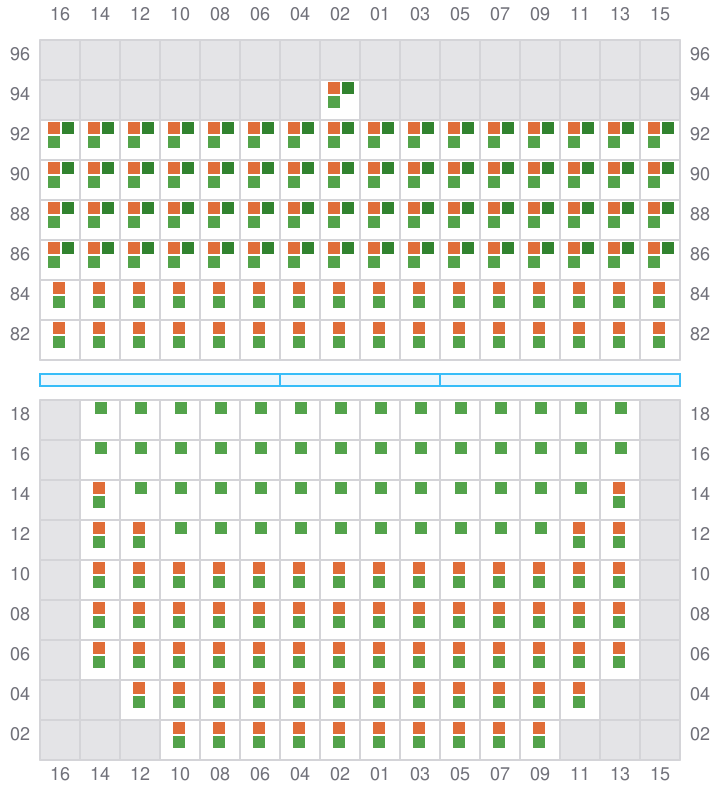

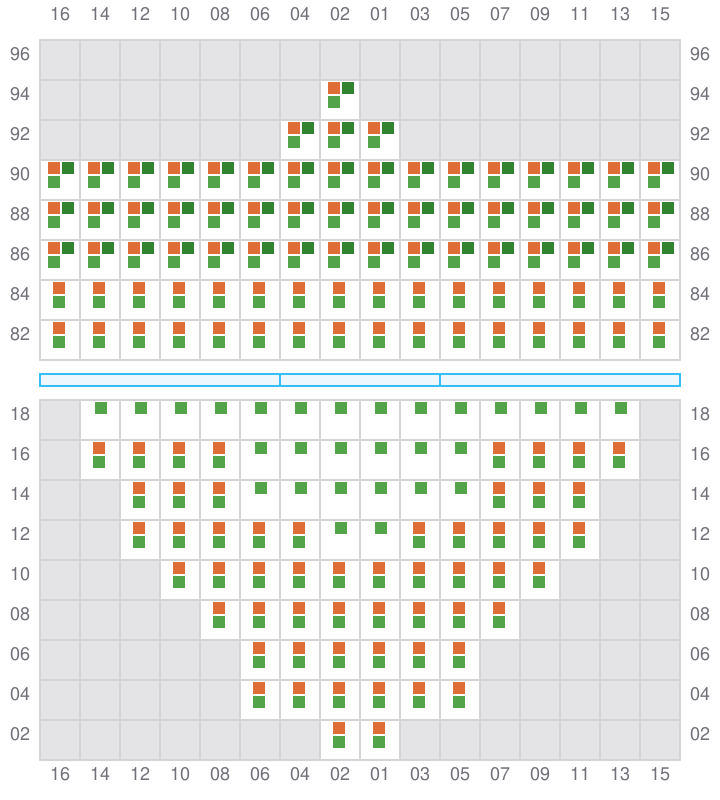

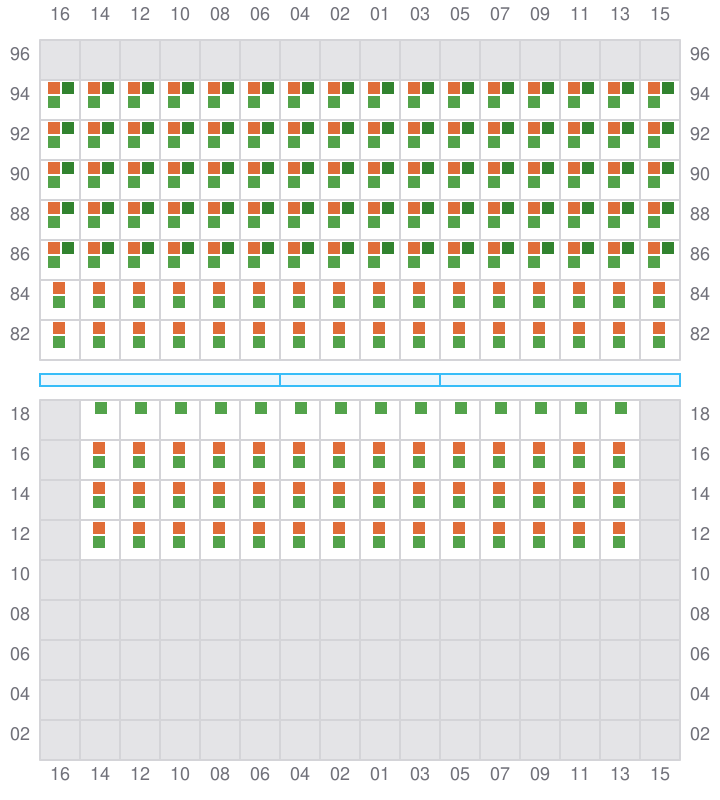

ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot
001 (002)
- →

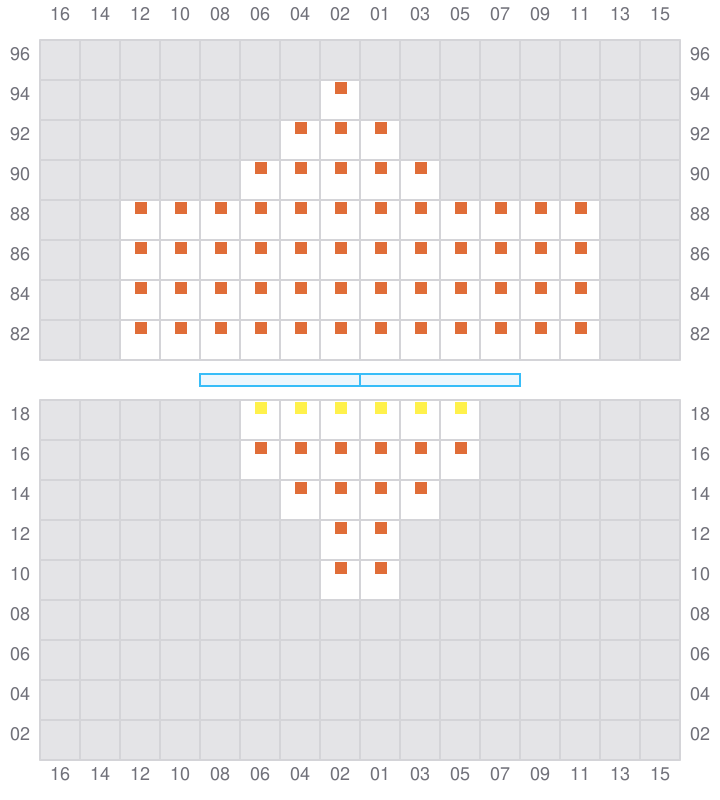

003
- ←
005 (006)
- →
007
- ←
009 (010)
- →

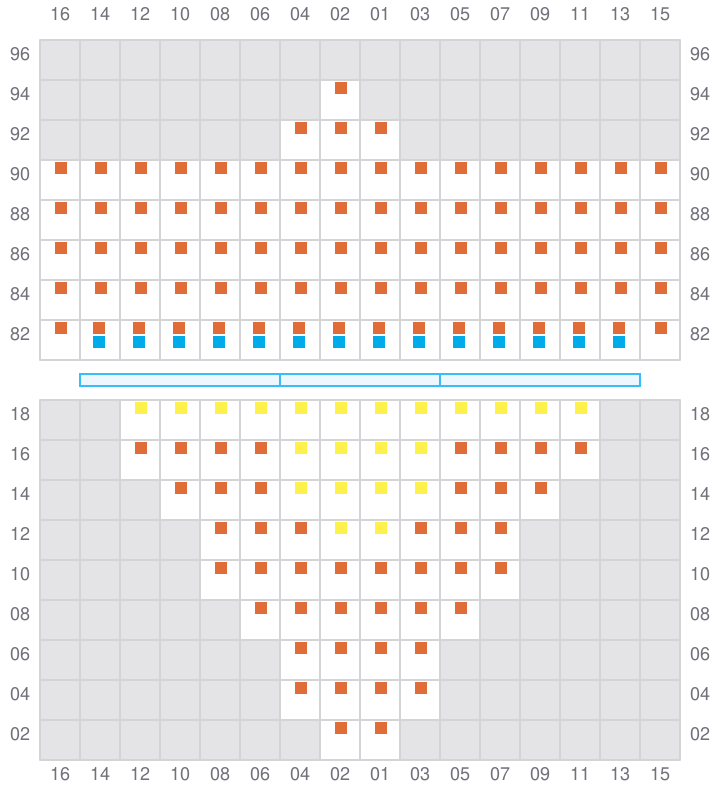

011
- ←
- → / ?
013 (014)
- →
015
- ←
- → / ?
017 (018)
- →
019
- ←
- → / ?

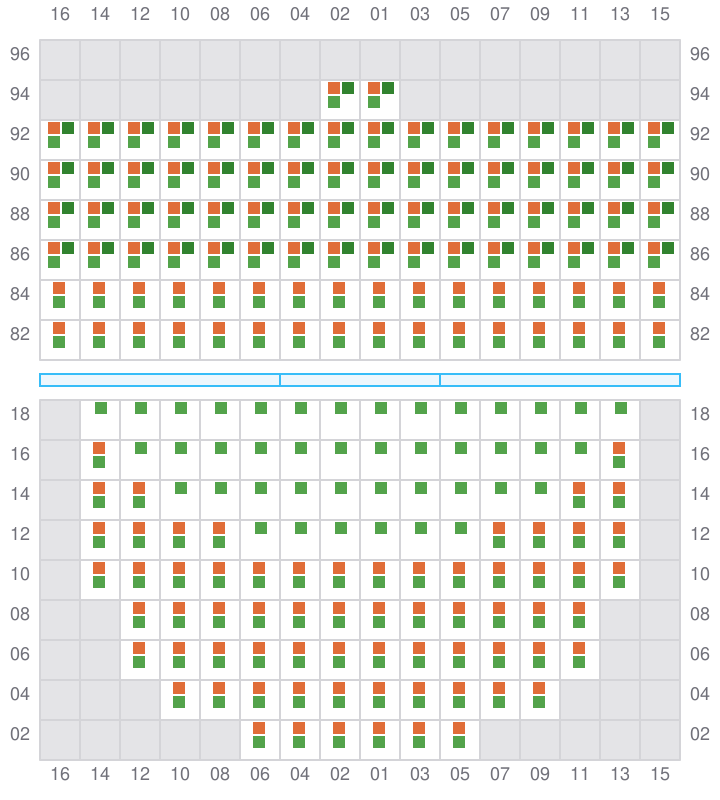

021 (022)
- →
023
- ←
- → / ?
025 (026)
- →
- → / ?
027
- ←
- →
029 (030)
- →
031
- ←
- → / ?

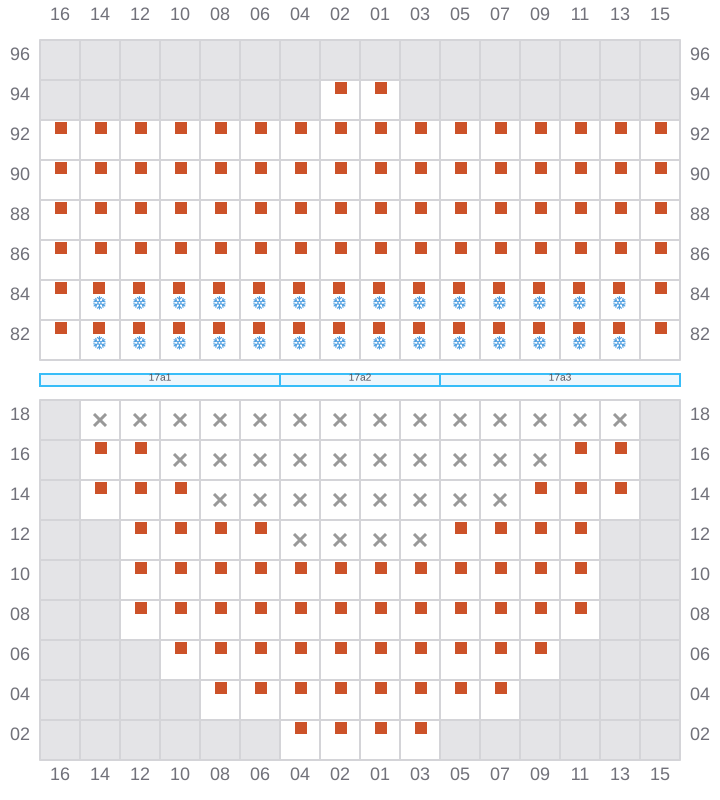

033 (034)
- →
035
- ←
- →
037 (038)
- →

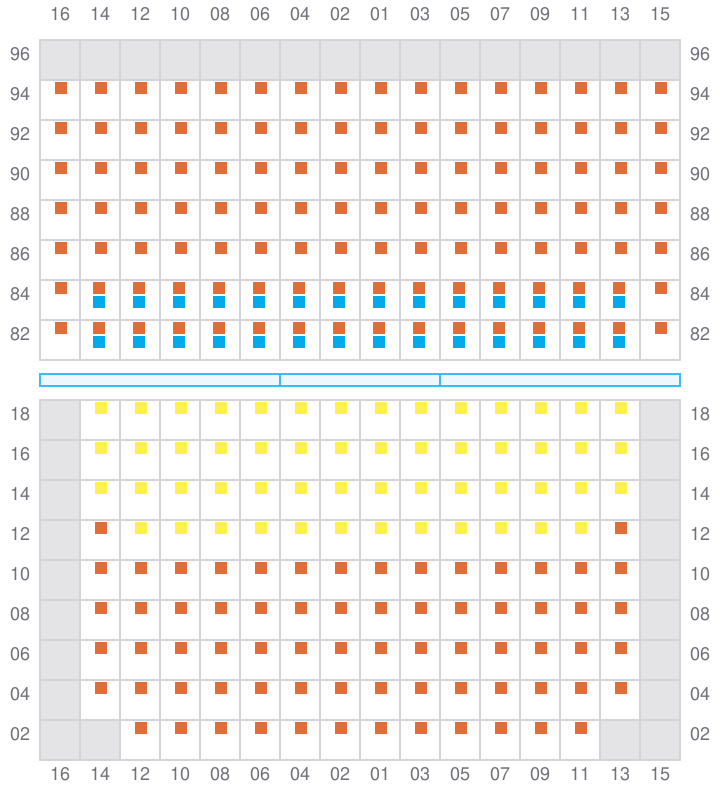

039
- ←
- → / ?

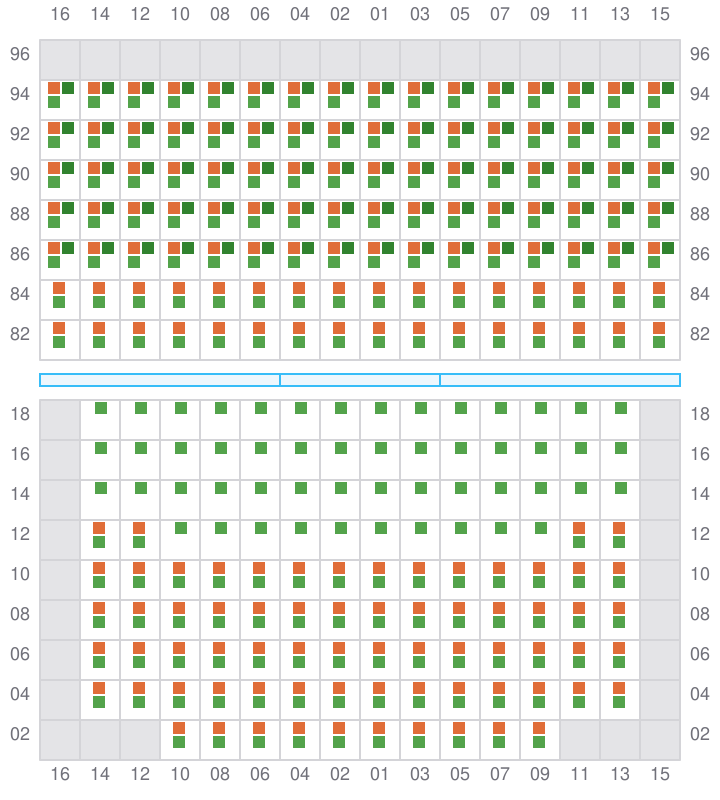

041 (042)
- →
043
- ←
- → / ?

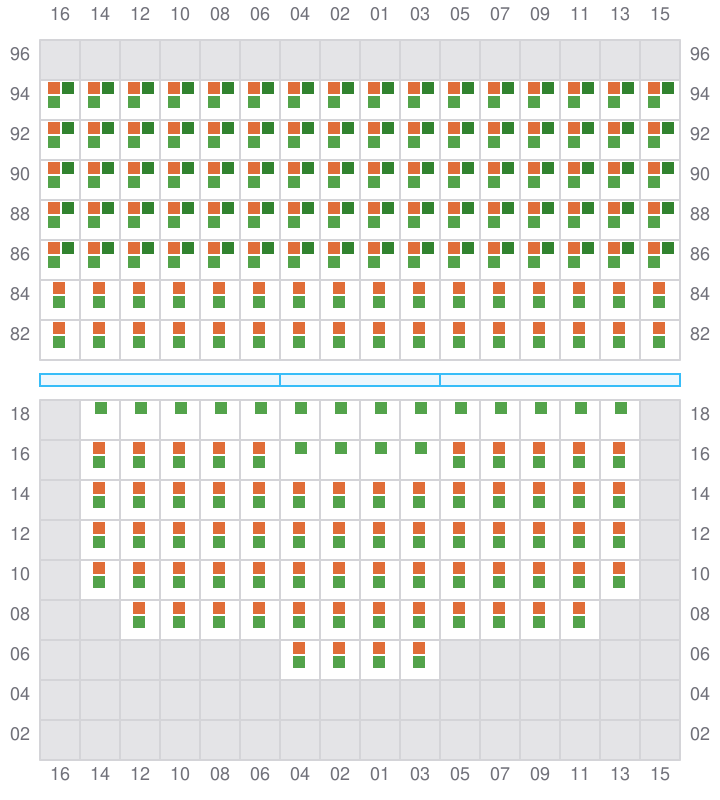

045 (046)
- →
047
- ←
049 (050)
- →
051
- ←
- → / ?
053 (054)
- →
055
- ←
- → / ?
057 (058)
- →
059
- ←
- → / ?

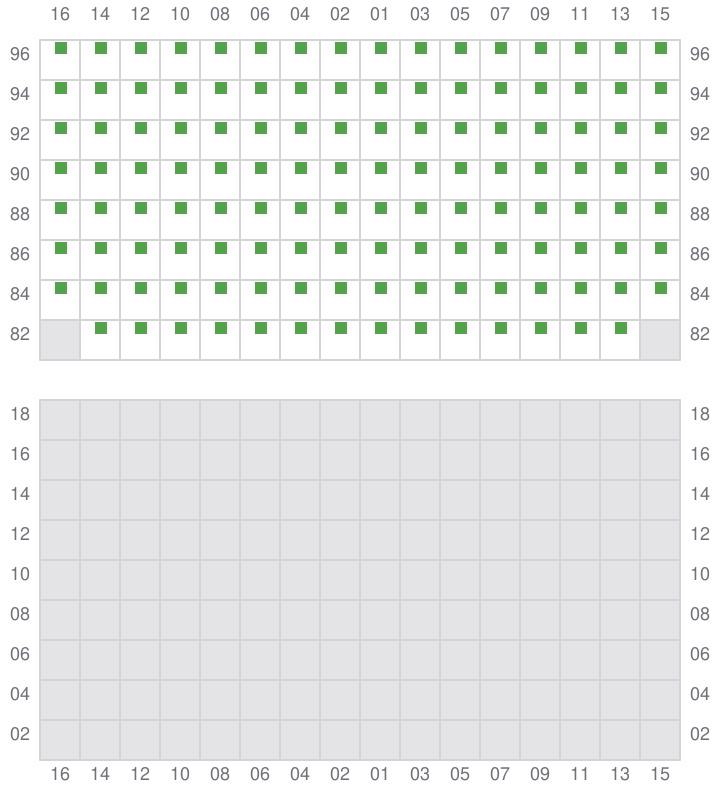

061 (062)
- → / ?
