TB BRIGHT CITY
9168192 | D5YK3 | 9168192 by ********* Last update: Fri Mar 08 2024

General Info

Ship Name:TB BRIGHT CITY
IMO Code:9168192
Call Sign:D5YK3
Line Operator:9168192
Class Name for Sister Ships:6DF
Year Built:1998
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:047
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:98
Min Above ISO Tier:82
Max Below ISO Tier:16
Min Below ISO Tier:02
Total TEU:3,160

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

Side View

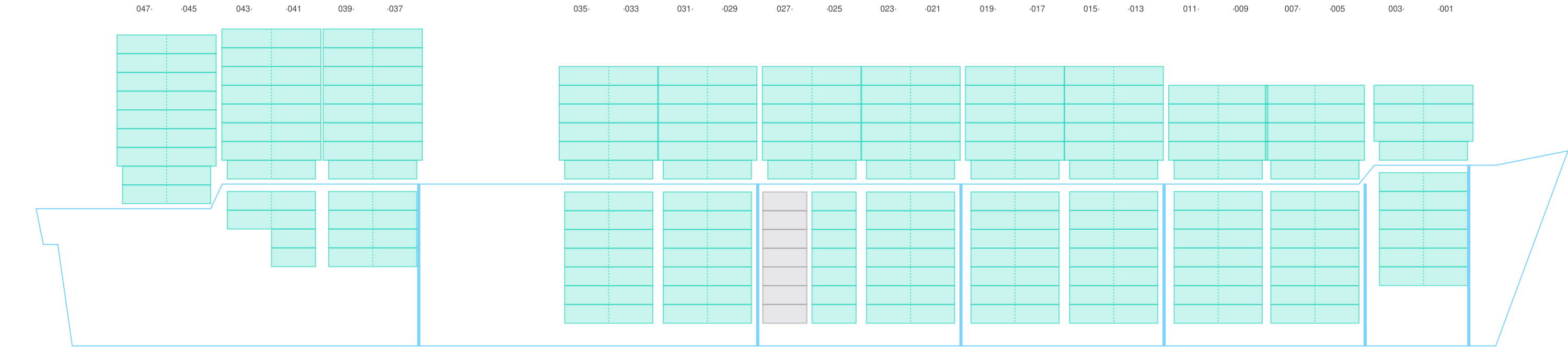

Side view of TB BRIGHT CITY

Hatch-Covers View

Deck view of TB BRIGHT CITY

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001 (002)

  • →

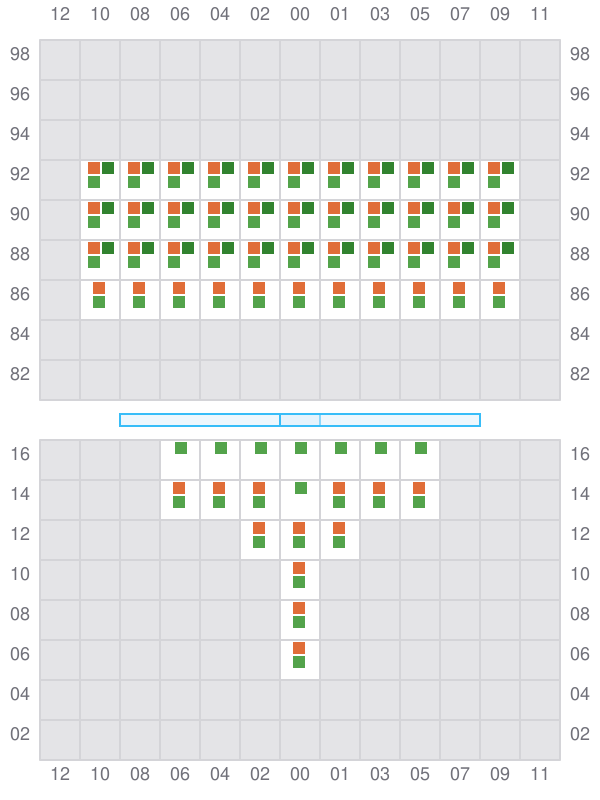

Bay 001 view and slots of TB BRIGHT CITY

003

  • ←
  • → / ?

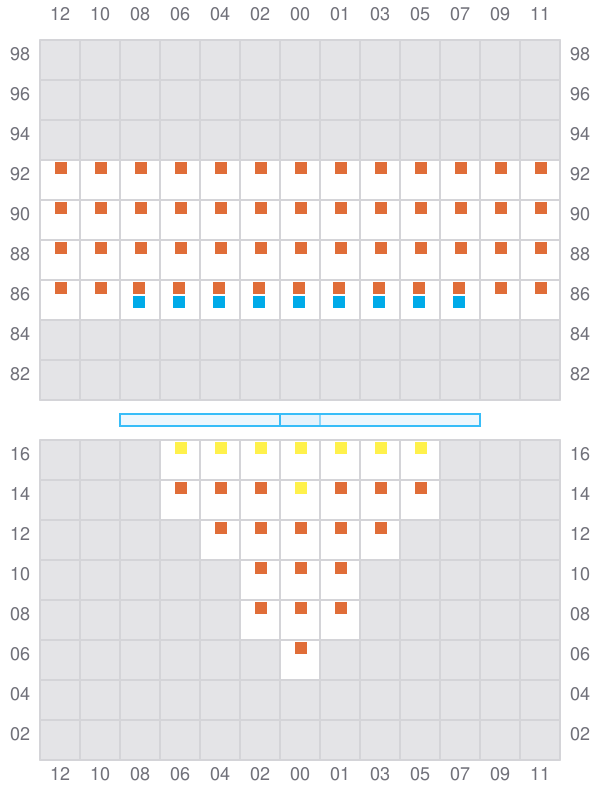

Bay 003 view and slots of TB BRIGHT CITY

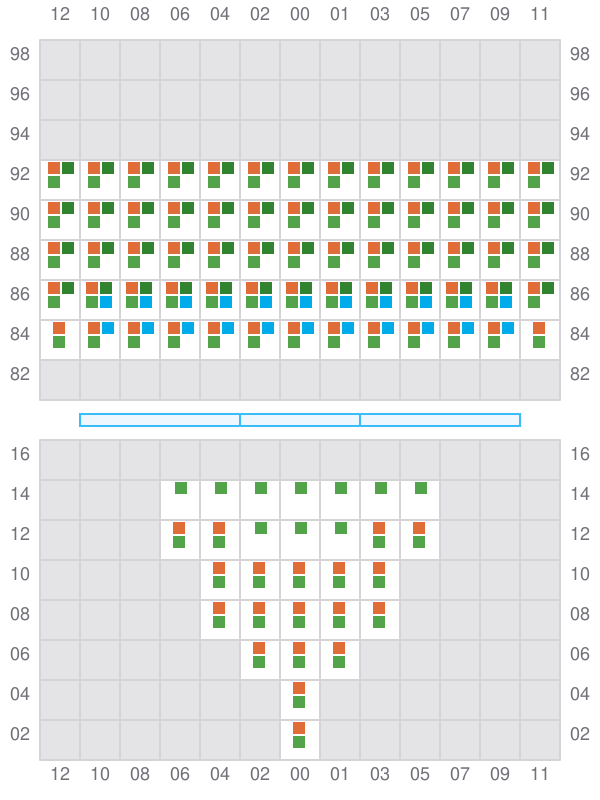

005 (006)

  • →
  • ← / ?
Bay 005 view and slots of TB BRIGHT CITY

007

  • ←

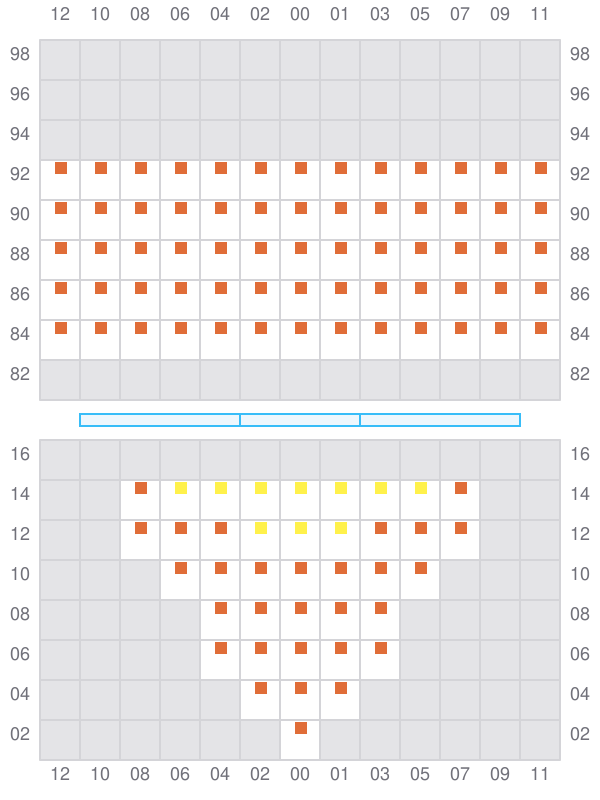

Bay 007 view and slots of TB BRIGHT CITY

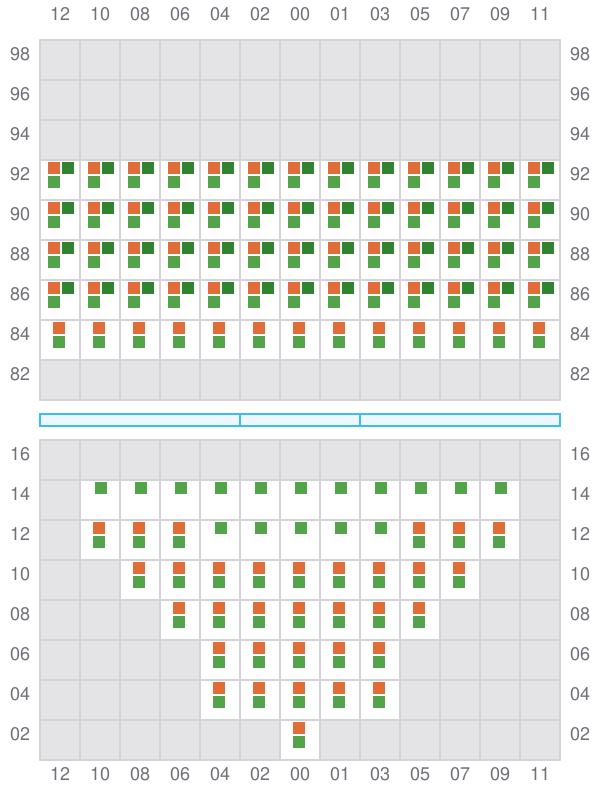

009 (010)

  • →
Bay 009 view and slots of TB BRIGHT CITY

011

  • ←
  • → / ?
Bay 011 view and slots of TB BRIGHT CITY

013 (014)

  • →
  • ← / ?

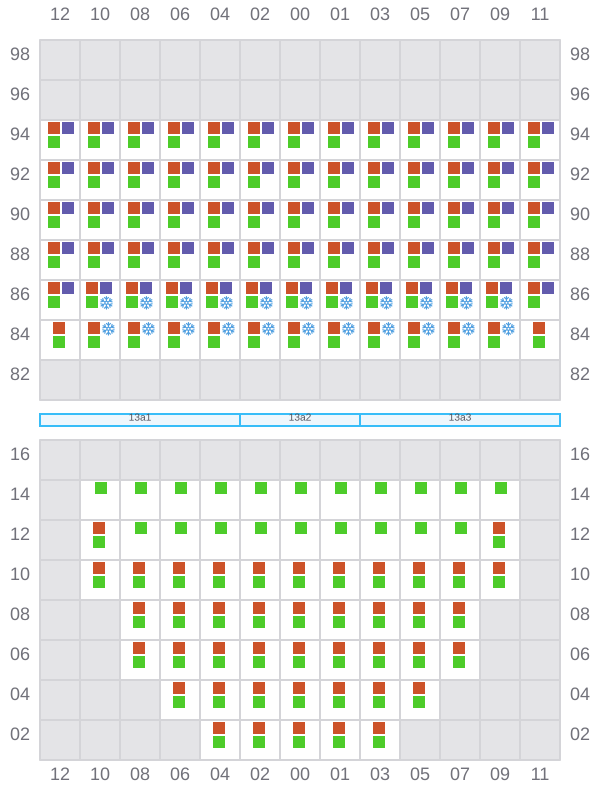

Bay 013 view and slots of TB BRIGHT CITY

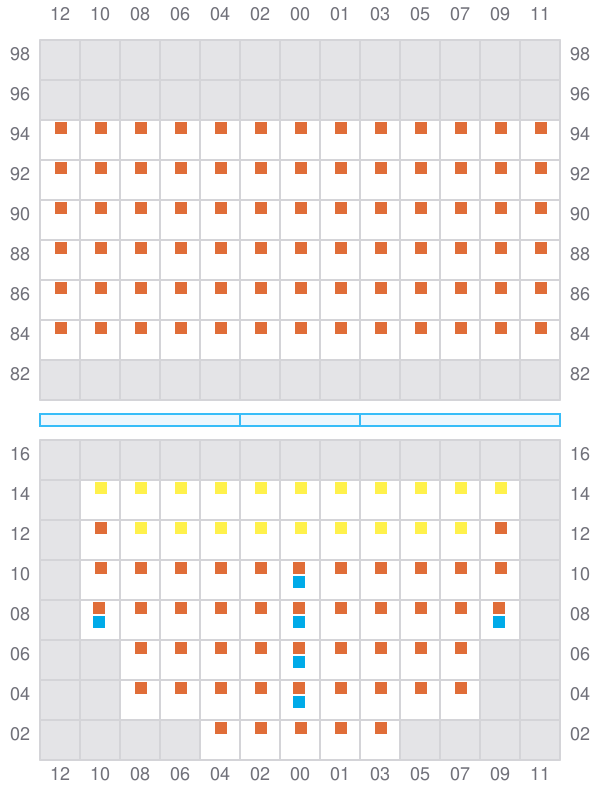

015

  • ←
  • ? / →
Bay 015 view and slots of TB BRIGHT CITY

017 (018)

  • →
  • ? / ←

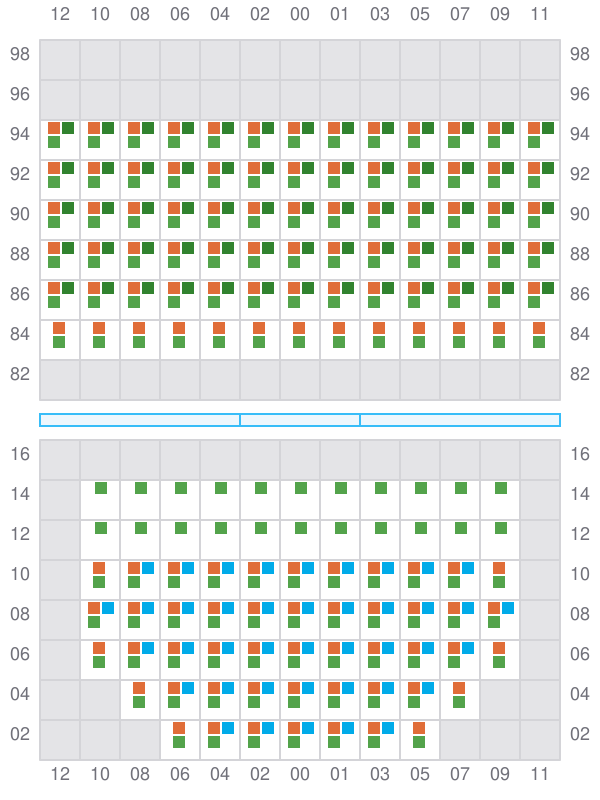

Bay 017 view and slots of TB BRIGHT CITY

019

  • ←
  • → / ?
Bay 019 view and slots of TB BRIGHT CITY

021 (022)

  • →
  • ←

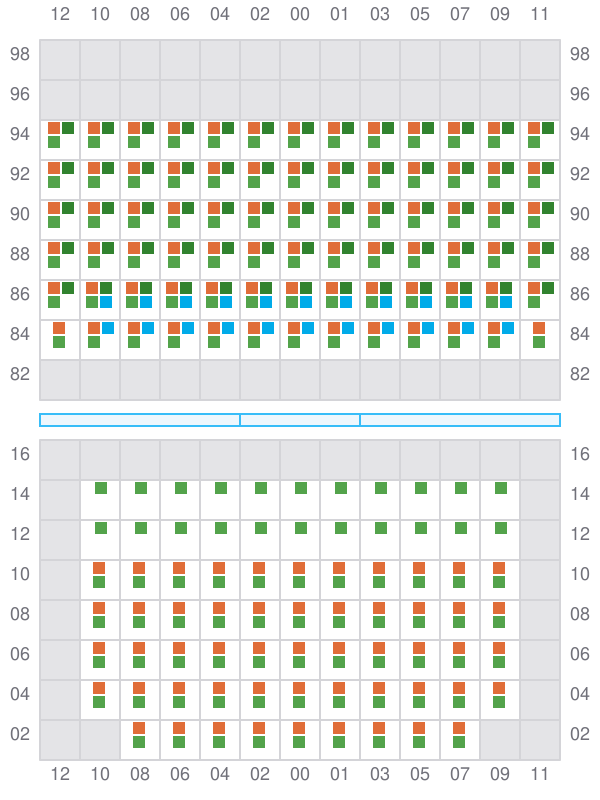

Bay 021 view and slots of TB BRIGHT CITY

023

  • ←
  • ? / →
Bay 023 view and slots of TB BRIGHT CITY

025 (026)

  • →
  • ? / ←
Bay 025 view and slots of TB BRIGHT CITY

027

  • ←
  • → / ?

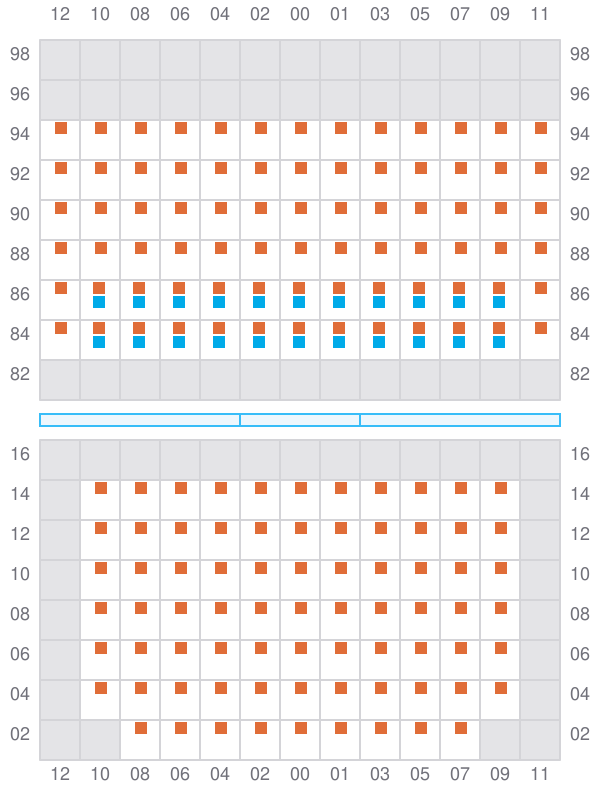

Bay 027 view and slots of TB BRIGHT CITY

029 (030)

  • →
  • ← / ?
Bay 029 view and slots of TB BRIGHT CITY

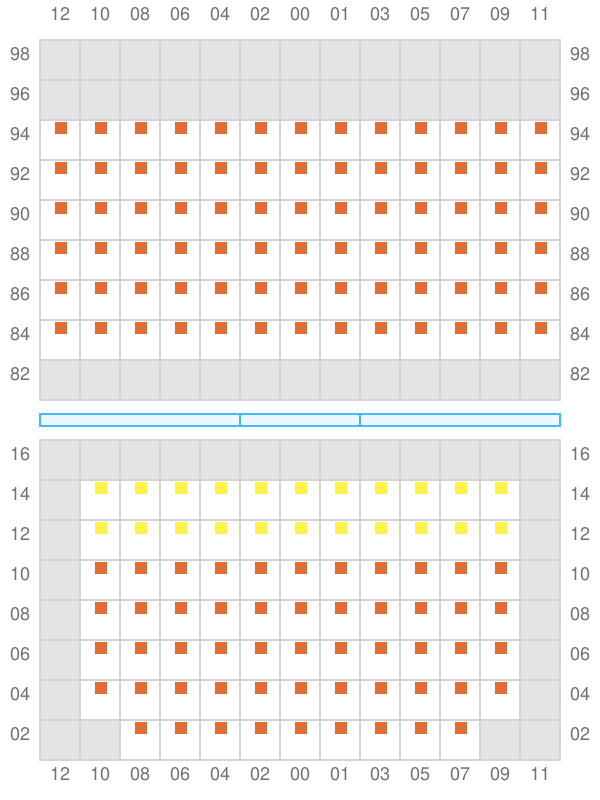

031

  • ←
Bay 031 view and slots of TB BRIGHT CITY

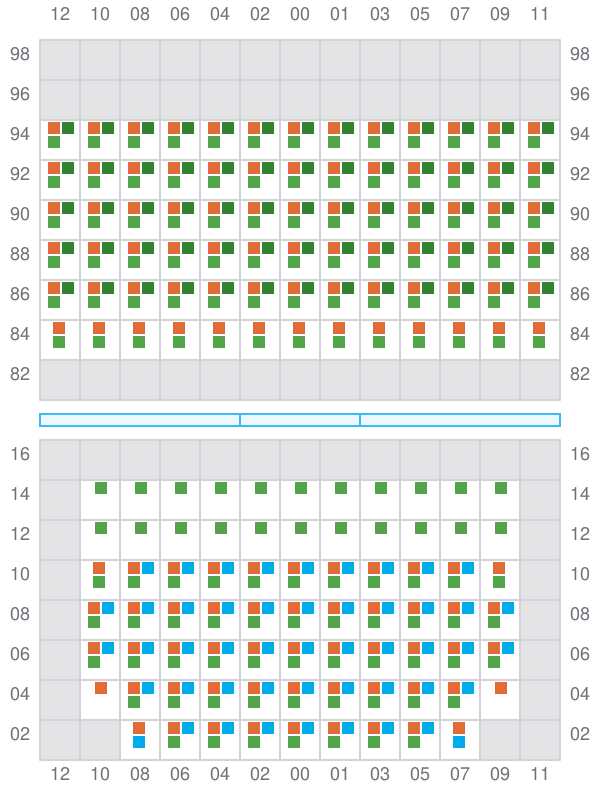

033 (034)

  • →
  • ? / ←
Bay 033 view and slots of TB BRIGHT CITY

035

  • ←
  • → / ?

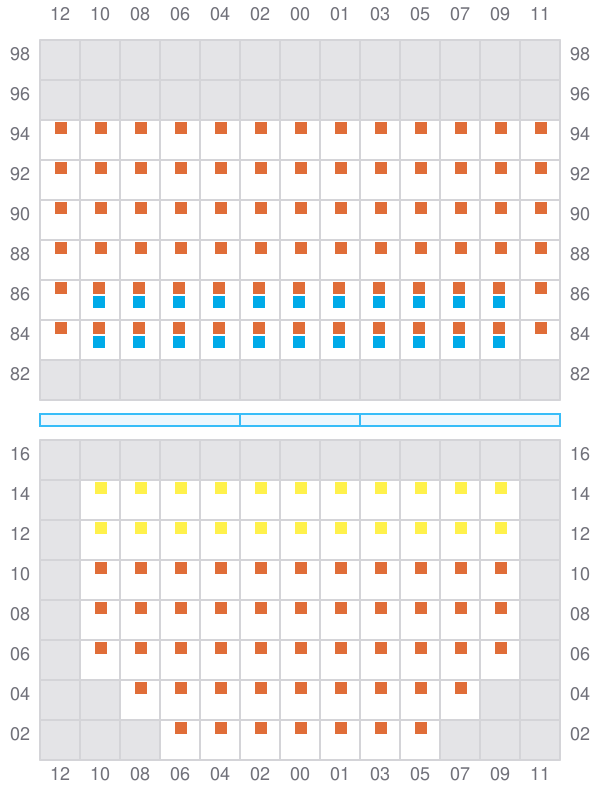

Bay 035 view and slots of TB BRIGHT CITY

037 (038)

  • →
  • ? / ←
Bay 037 view and slots of TB BRIGHT CITY

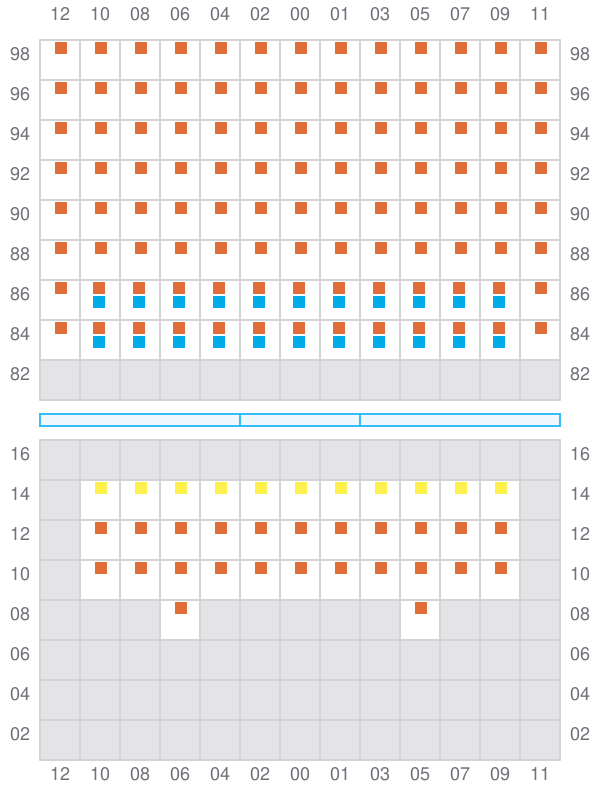

039

  • ←
  • → / ?
Bay 039 view and slots of TB BRIGHT CITY

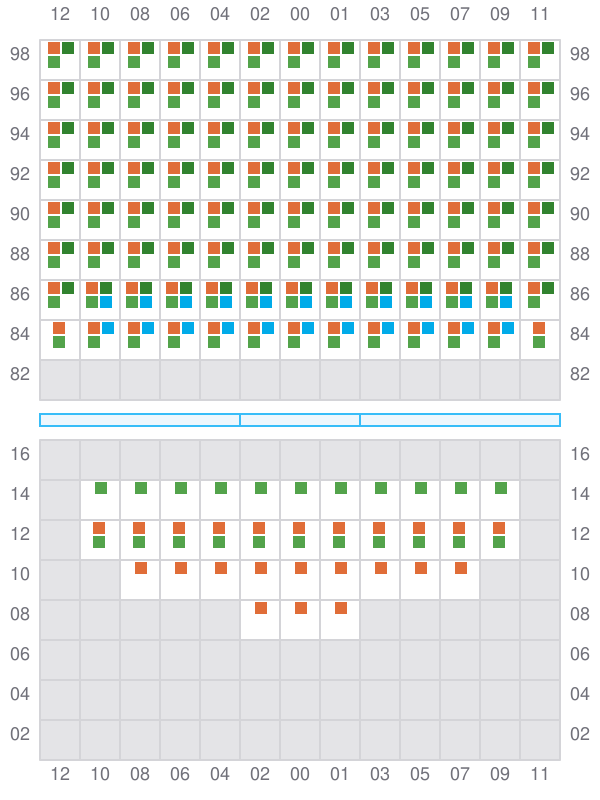

041 (042)

  • →
  • ← / ?
Bay 041 view and slots of TB BRIGHT CITY

043

  • ←
Bay 043 view and slots of TB BRIGHT CITY

045 (046)

  • → / ?

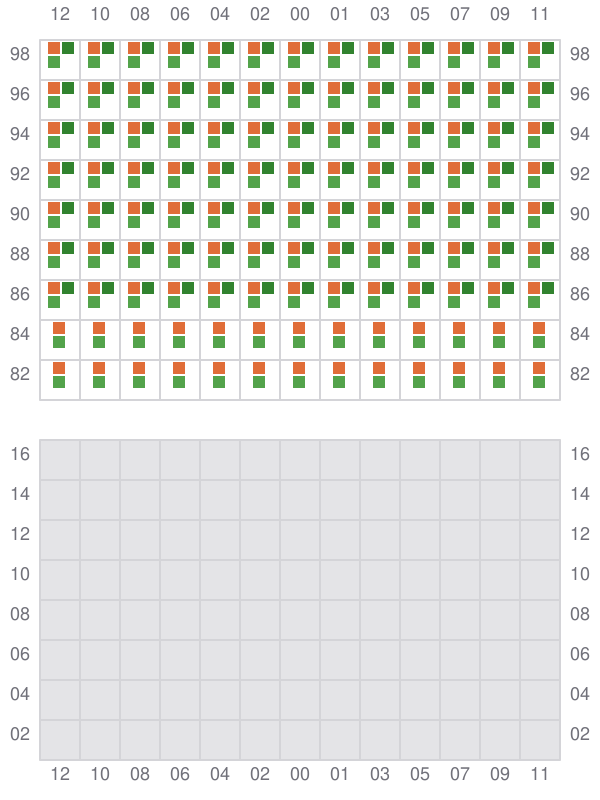

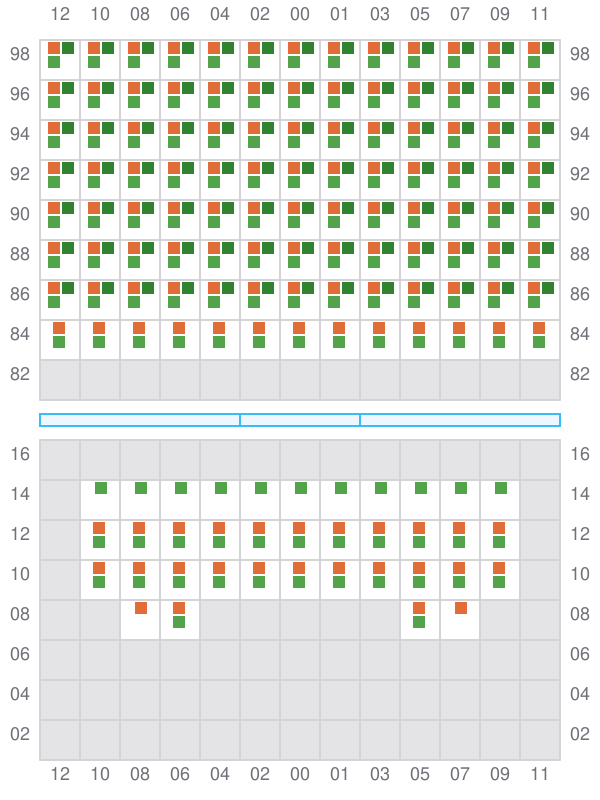

Bay 045 view and slots of TB BRIGHT CITY

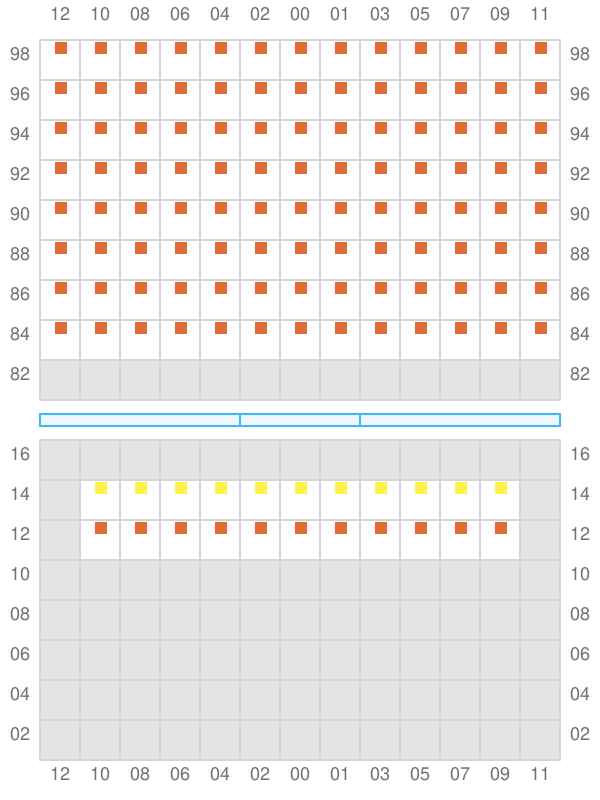

047

  • ← / ?
  • → / ?

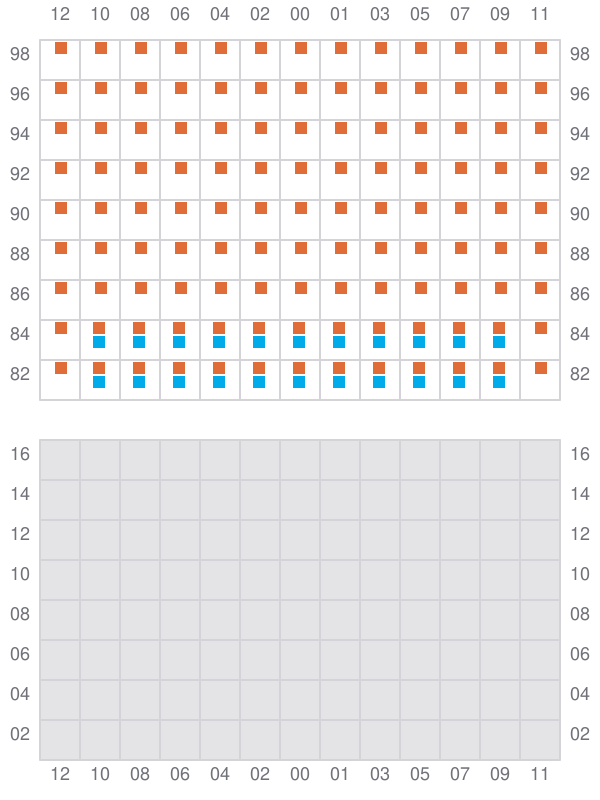

Bay 047 view and slots of TB BRIGHT CITY
