TC SYMPHONY
9318242 | XVBP7 | 9318242 by ********* Last update: Fri Jul 19 2024
General Info
Ship Name:TC SYMPHONY
IMO Code:9318242
Call Sign:XVBP7
Line Operator:9318242
Class Name for Sister Ships:QC
Year Built:2005
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:031
Max ISO Row:08
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:80
Max Below ISO Tier:08
Min Below ISO Tier:02
Total TEU:1,134
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%
Side View
Hatch-Covers View
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

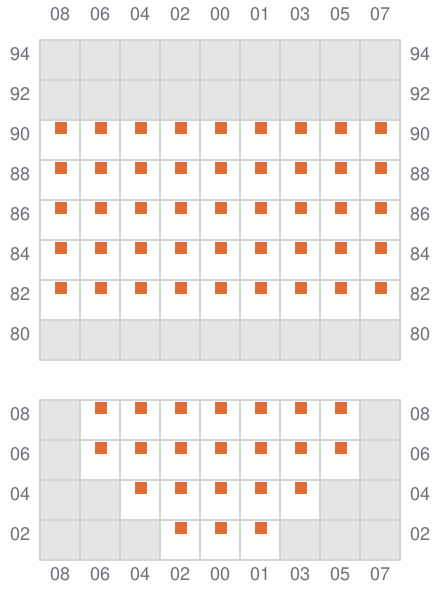

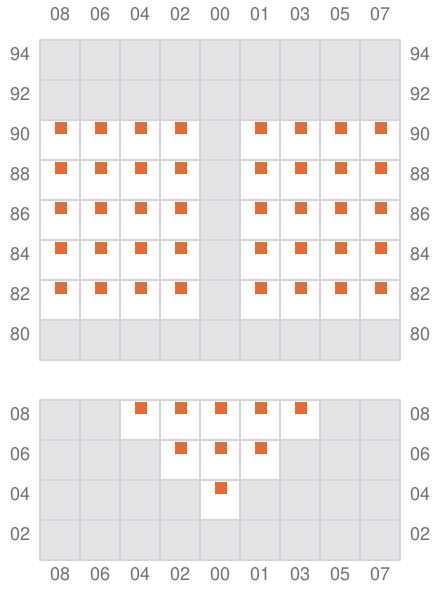

001
- →

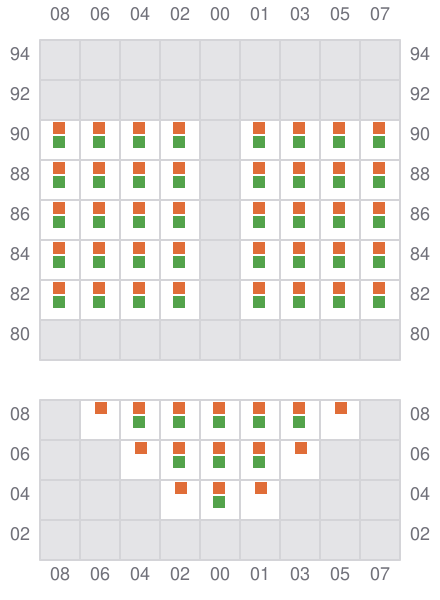

003 (002)
- ←
005
- →

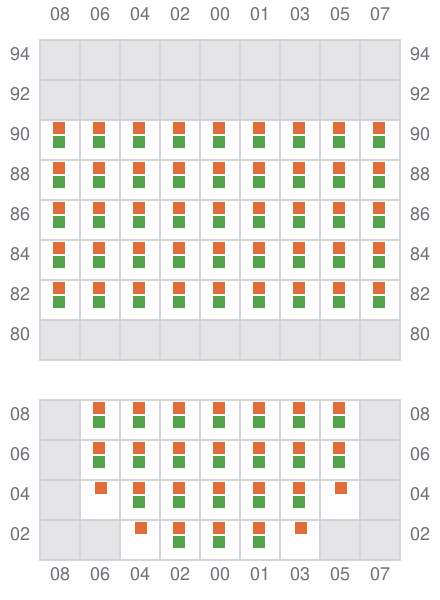

007 (006)
- ←

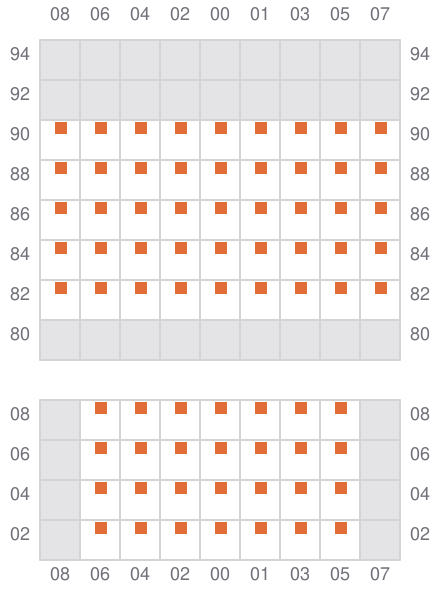

009
- →

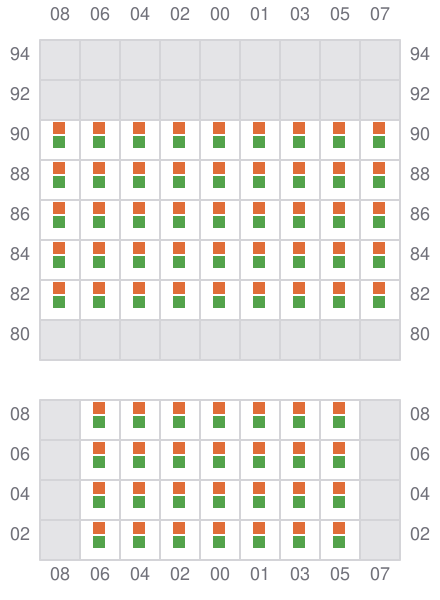

011 (010)
- ←
013
- →
015 (014)
- ←
017
- →

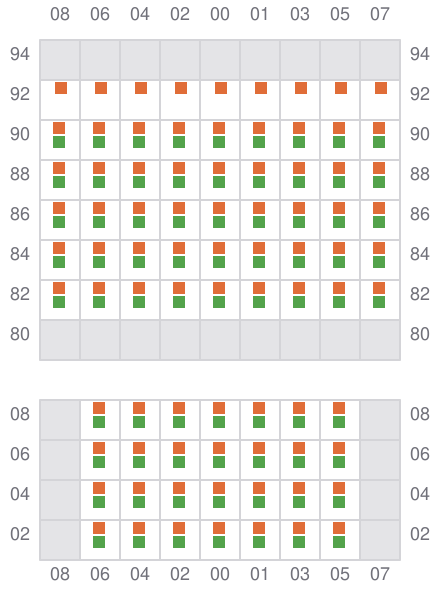

019 (018)
- ←
021
- →

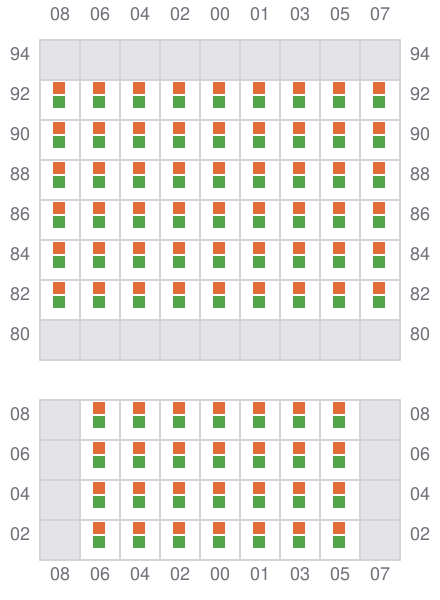

023 (022)
- ←

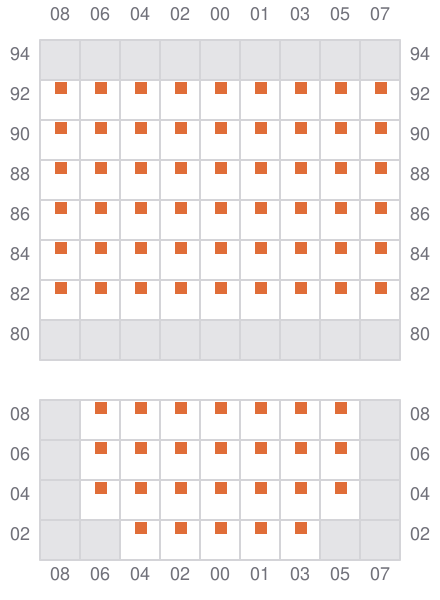

025
- →

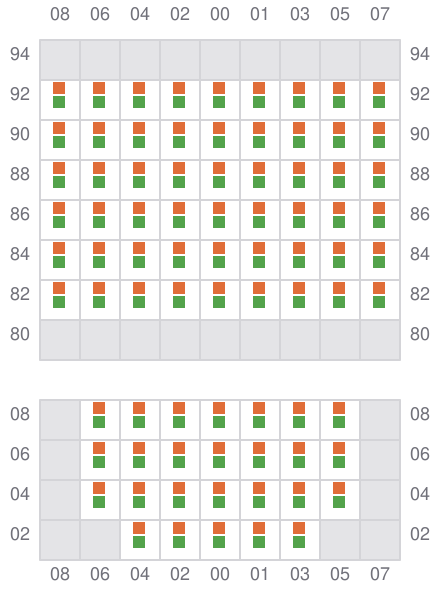

027 (026)
- ←

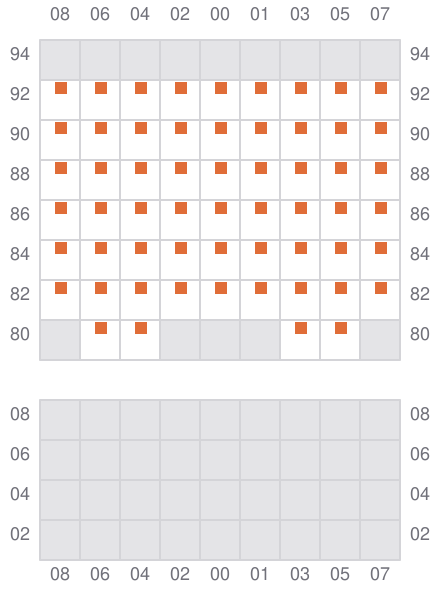

029
- → / ?

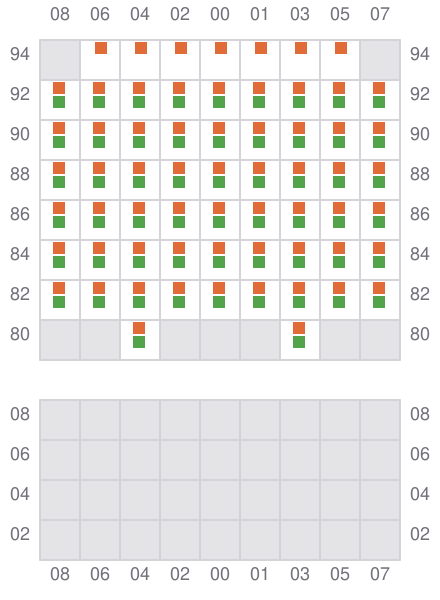

031 (030)
- ← / ?
