TENDER SOUL
9963516 | V7A5640 | MAERSK by ************************** Last update: Thu Feb 29 2024

General Info

Ship Name:TENDER SOUL
IMO Code:9963516
Call Sign:V7A5640
Line Operator:MAERSK
Class Name for Sister Ships:SOUL
Year Built:2024
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):35.00
LOA (Length Overall):-
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:039
Max ISO Row:14
Center Line Row:No
Max Above ISO Tier:96
Min Above ISO Tier:82
Max Below ISO Tier:12
Min Below ISO Tier:02
Total TEU:2,784

Centers of Gravity

LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

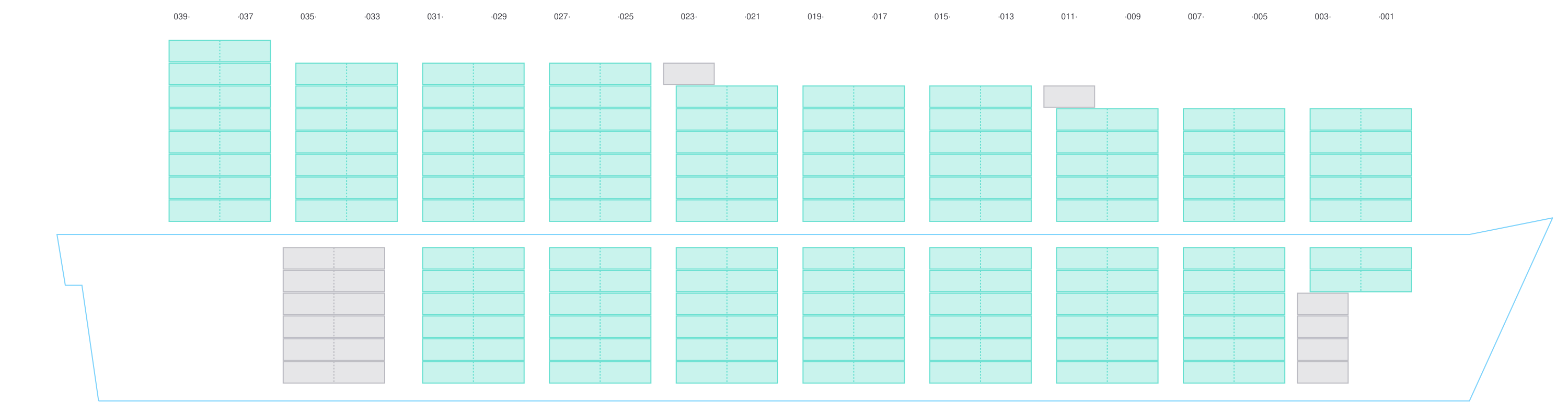

Side View

Side view of TENDER SOUL

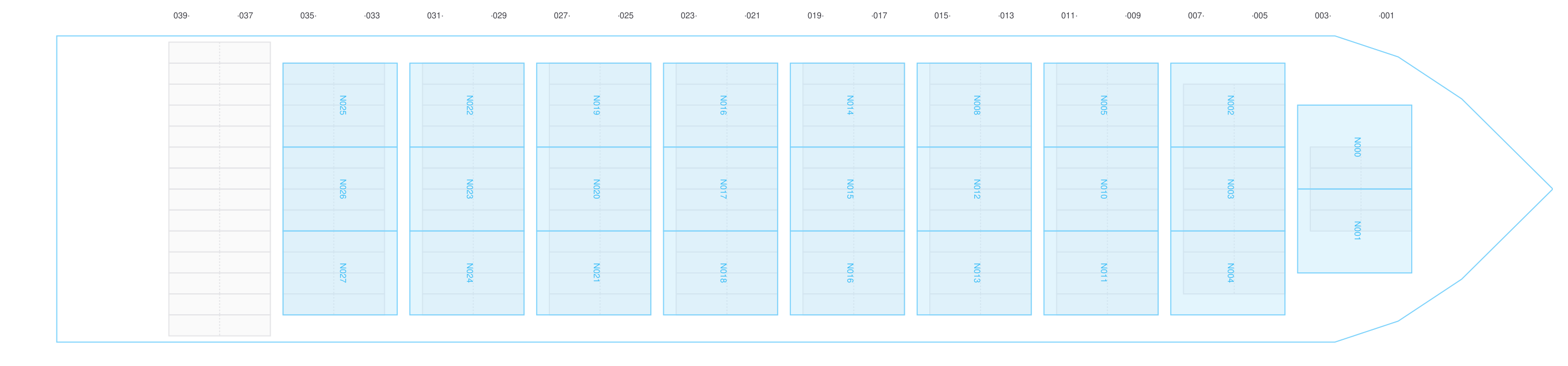

Hatch-Covers View

Deck view of TENDER SOUL

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001 (002)

  • →
  • ✓

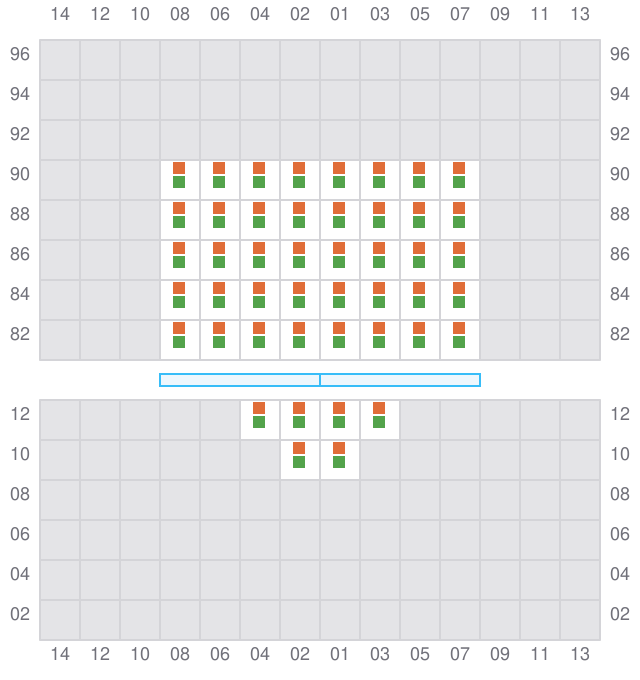

Bay 001 view and slots of TENDER SOUL

003

  • ←
  • ✓

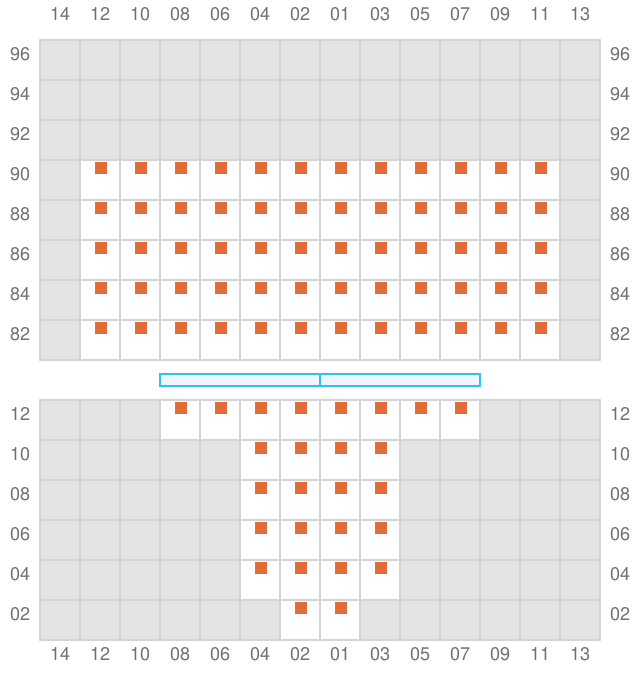

Bay 003 view and slots of TENDER SOUL

005 (006)

  • →
  • ✓

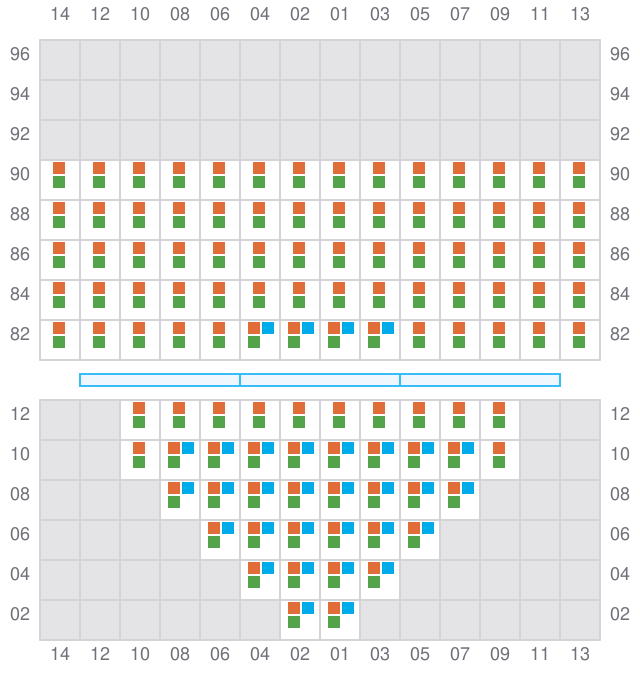

Bay 005 view and slots of TENDER SOUL

007

  • ←
  • ✓
Bay 007 view and slots of TENDER SOUL

009 (010)

  • →
  • ✓

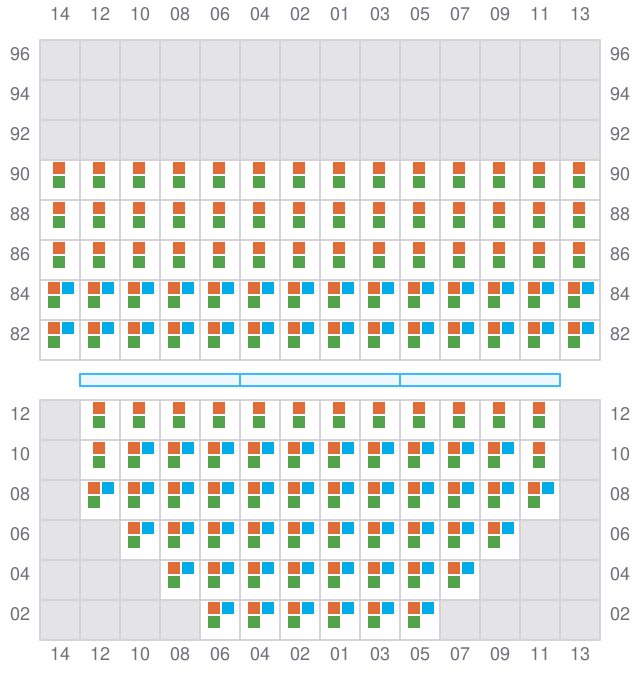

Bay 009 view and slots of TENDER SOUL

011

  • ←
  • ✓

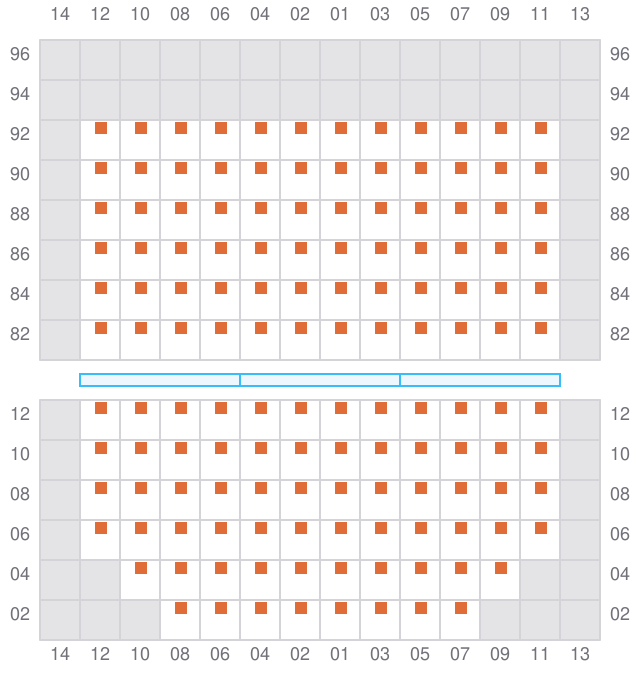

Bay 011 view and slots of TENDER SOUL

013 (014)

  • →
  • ✓

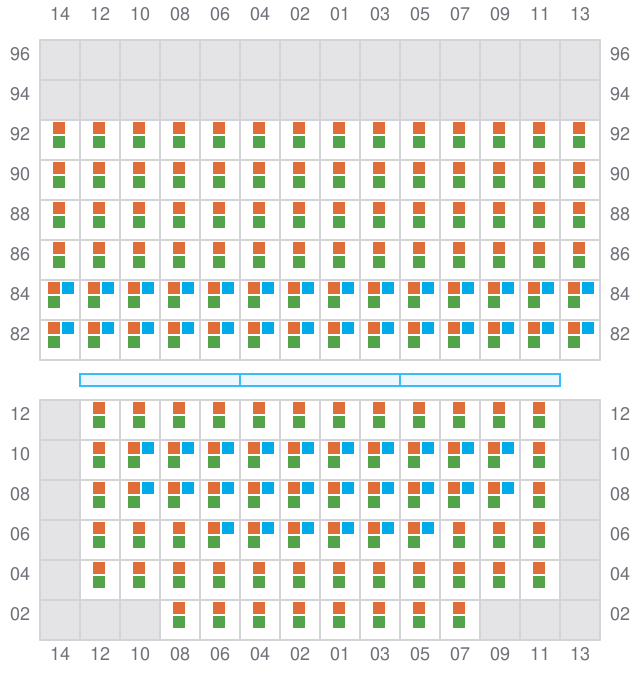

Bay 013 view and slots of TENDER SOUL

015

  • ←
  • ✓

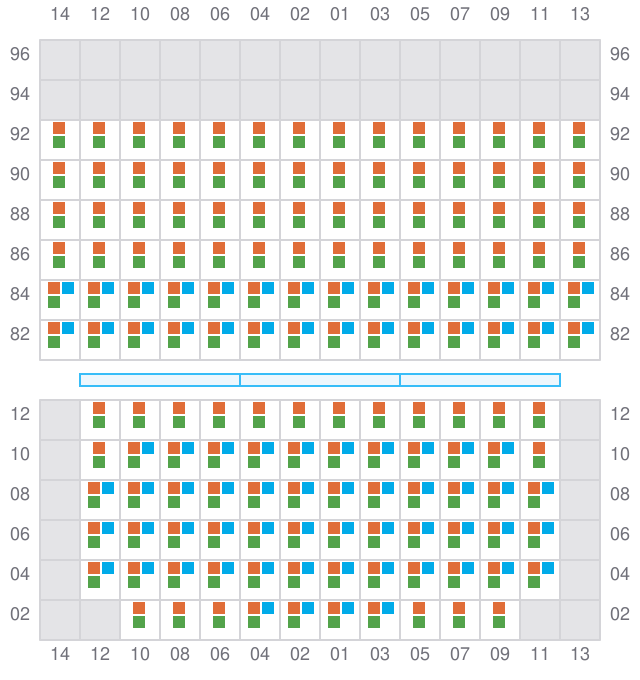

Bay 015 view and slots of TENDER SOUL

017 (018)

  • →
  • ✓
Bay 017 view and slots of TENDER SOUL

019

  • ←
  • ✓
Bay 019 view and slots of TENDER SOUL

021 (022)

  • →
  • ✓
Bay 021 view and slots of TENDER SOUL

023

  • ←
  • ✓

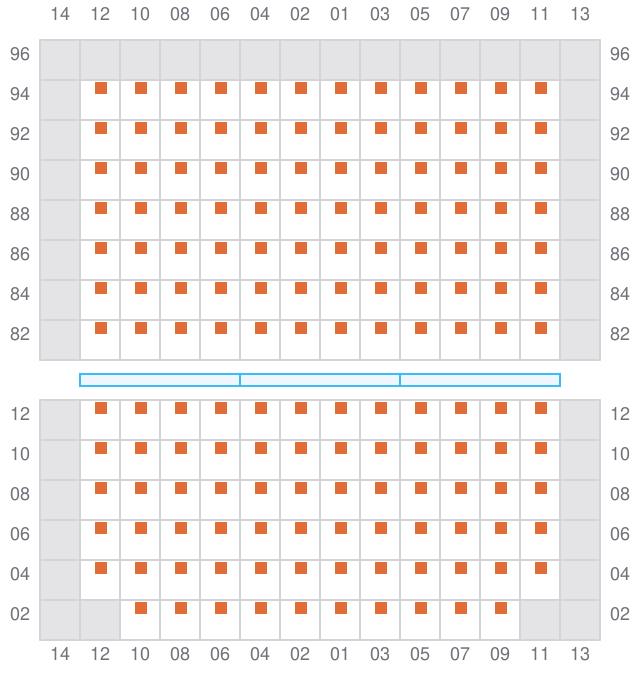

Bay 023 view and slots of TENDER SOUL

025 (026)

  • →
  • ✓

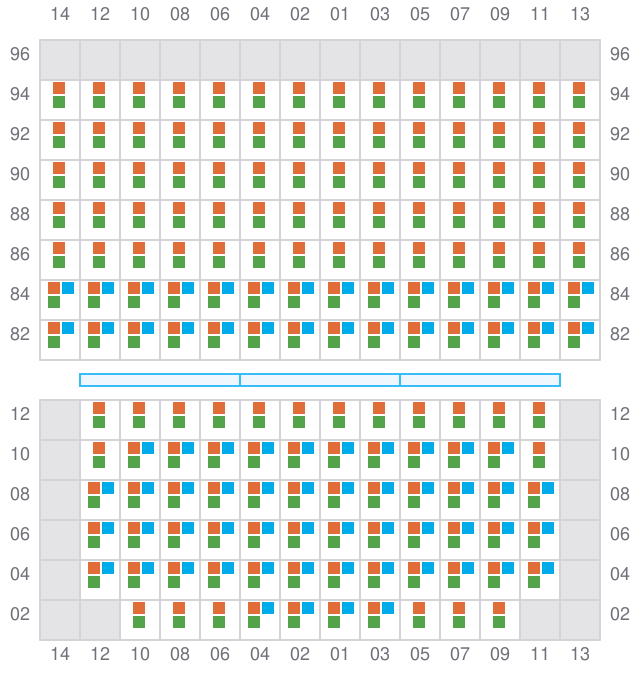

Bay 025 view and slots of TENDER SOUL

027

  • ←
  • ✓
Bay 027 view and slots of TENDER SOUL

029 (030)

  • →
  • ✓
Bay 029 view and slots of TENDER SOUL

031

  • ←
  • ✓

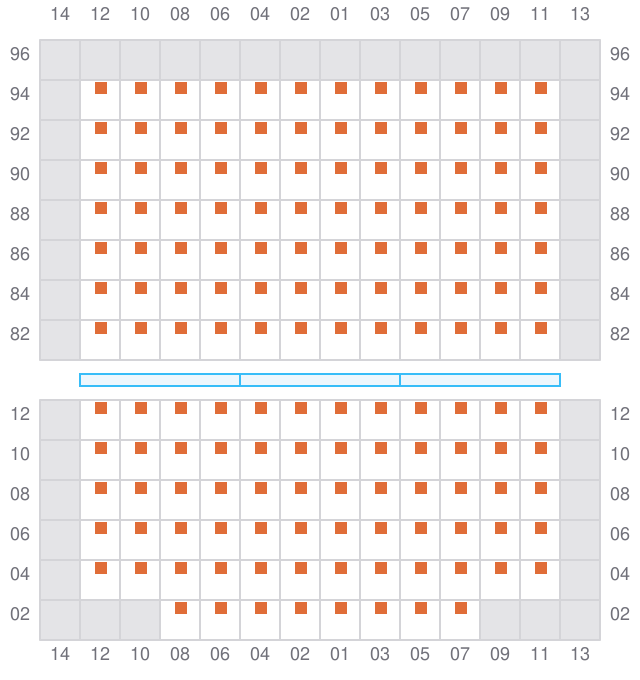

Bay 031 view and slots of TENDER SOUL

033 (034)

  • →
  • ✓

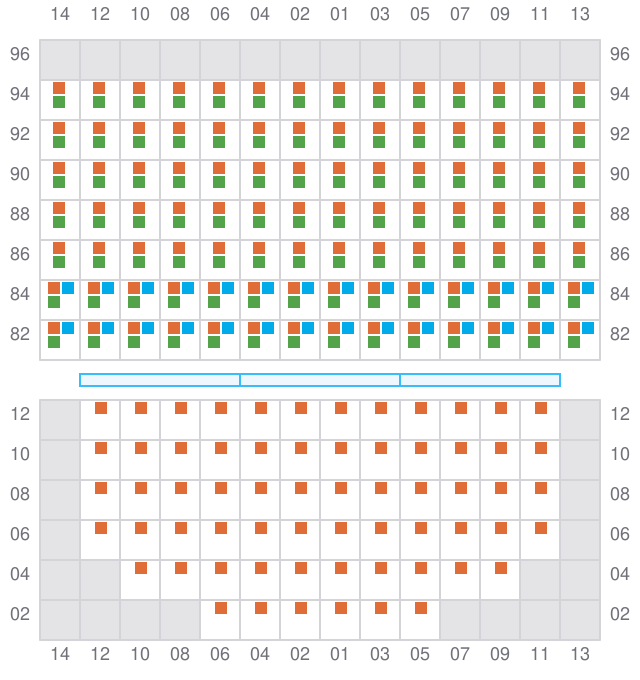

Bay 033 view and slots of TENDER SOUL

035 (034)

  • ←
  • ✓

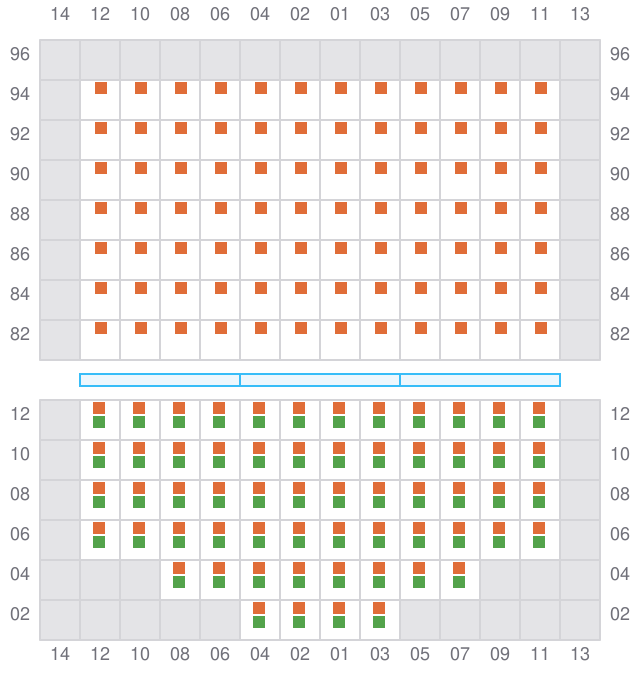

Bay 035 view and slots of TENDER SOUL

037 (038)

  • →
  • ? / ?
  • ? / ?
  • ✓

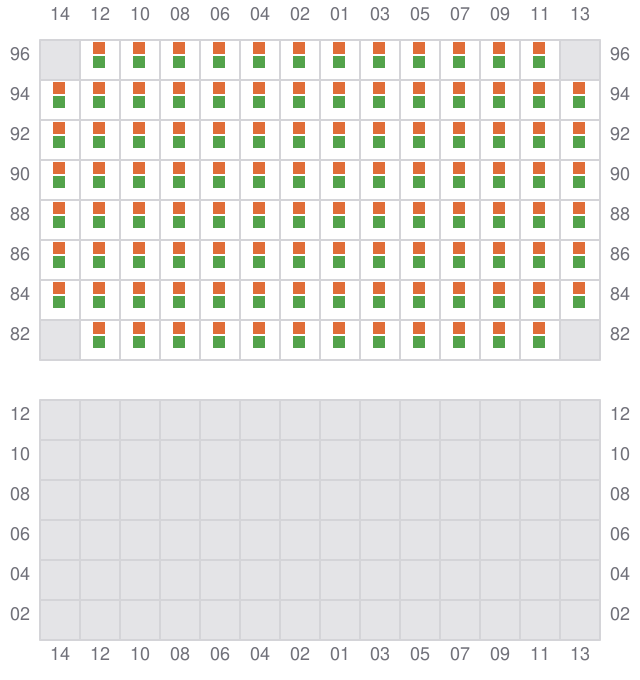

Bay 037 view and slots of TENDER SOUL

039

  • ←
  • ? / ?
  • ? / ?
  • ✓
Bay 039 view and slots of TENDER SOUL
