TESSA
9290799 | CQAR5 | 9290799 by ********* Last update: Tue Jun 25 2024
General Info
Ship Name:TESSA
IMO Code:9290799
Call Sign:CQAR5
Line Operator:9290799
Class Name for Sister Ships:MSC
Year Built:2005
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:063
Max ISO Row:16
Center Line Row:No
Max Above ISO Tier:92
Min Above ISO Tier:82
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:5,535
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

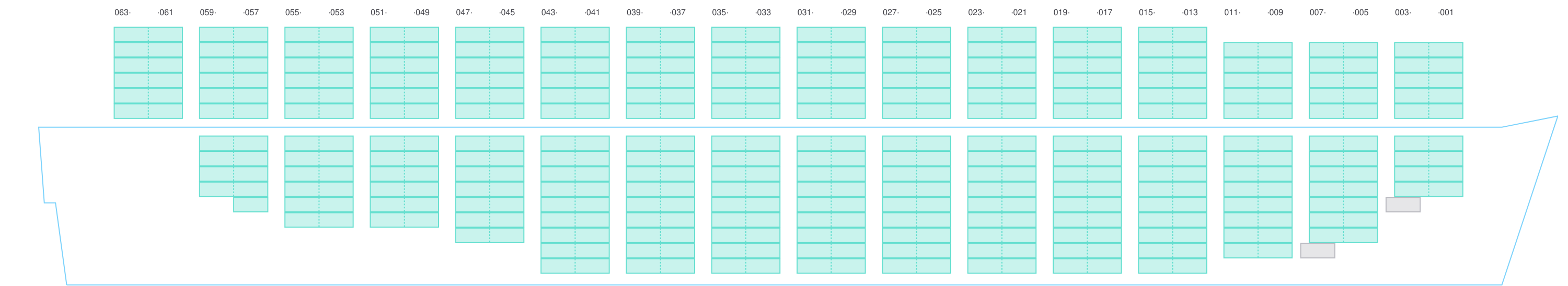

Side View
![Side view of TESSA](/vessel-images/51b1030e-4041-44af-9b62-aac5487d4e2b-sideView.png?v=1719342472815)

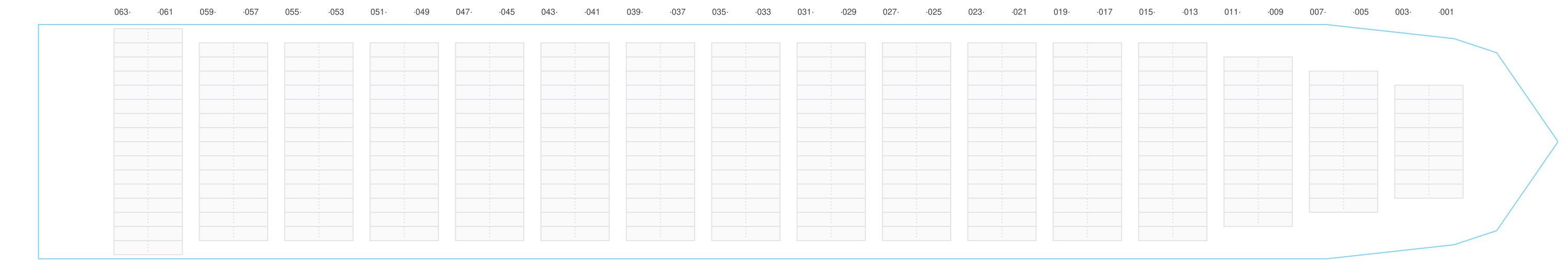

Hatch-Covers View
![Deck view of TESSA](/vessel-images/51b1030e-4041-44af-9b62-aac5487d4e2b-deckView.png?v=1719342472815)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

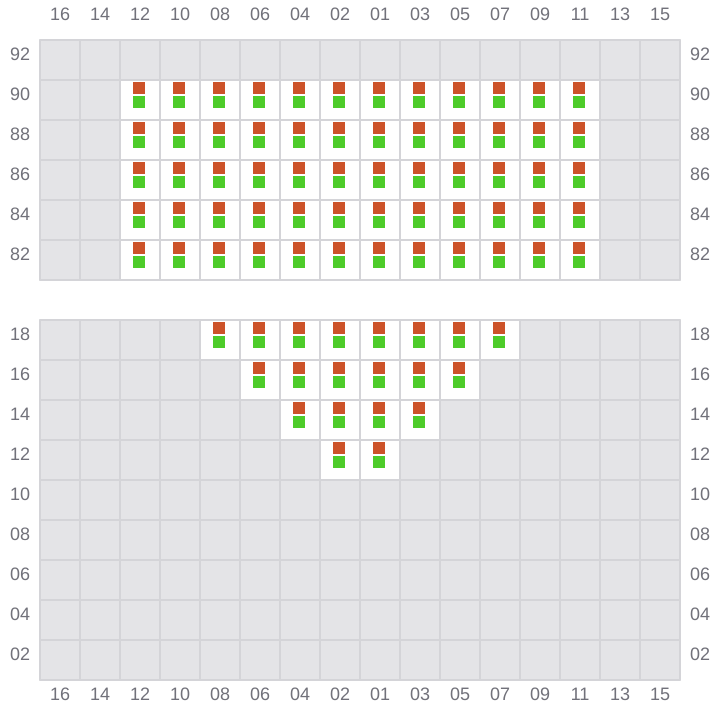

001 (002)
- →
![Bay 001 view and slots of TESSA](/vessel-images/51b1030e-4041-44af-9b62-aac5487d4e2b-b001.png?v=1719342472815)

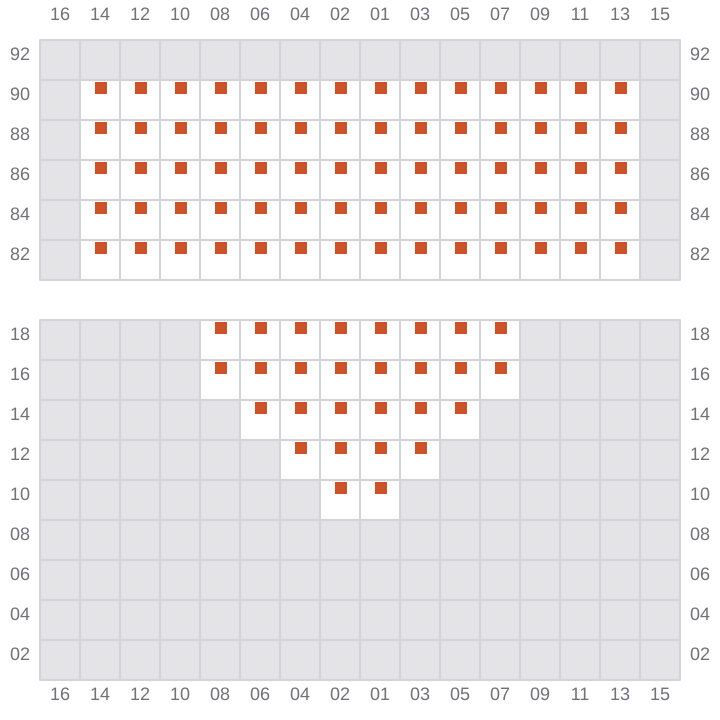

003
- ←
![Bay 003 view and slots of TESSA](/vessel-images/51b1030e-4041-44af-9b62-aac5487d4e2b-b003.png?v=1719342472815)

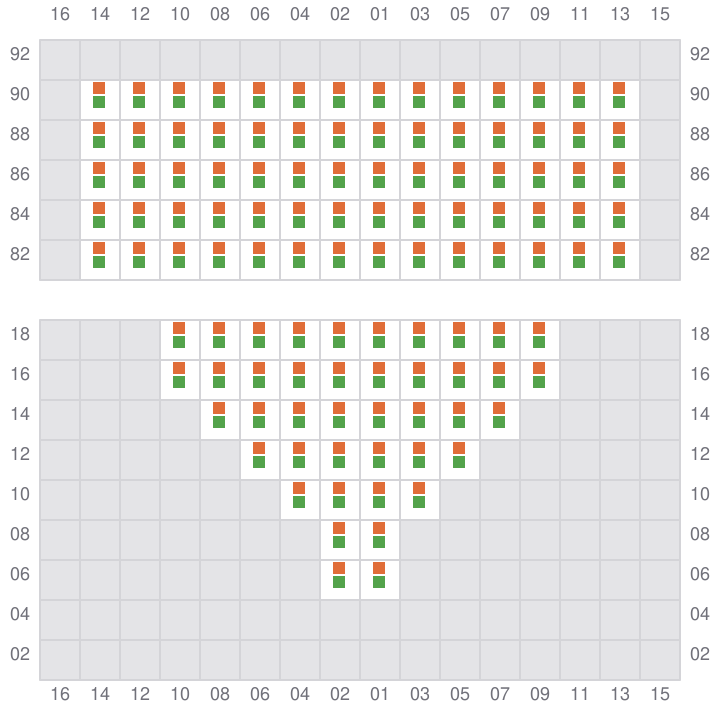

005 (006)
- →
![Bay 005 view and slots of TESSA](/vessel-images/51b1030e-4041-44af-9b62-aac5487d4e2b-b005.png?v=1719342472815)

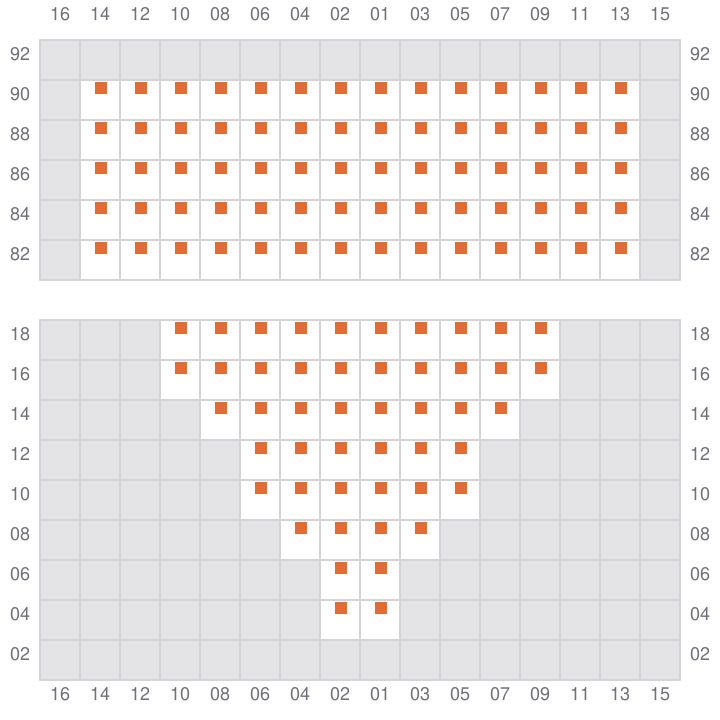

007
- ←
![Bay 007 view and slots of TESSA](/vessel-images/51b1030e-4041-44af-9b62-aac5487d4e2b-b007.png?v=1719342472815)
009 (010)
- →
![Bay 009 view and slots of TESSA](/vessel-images/51b1030e-4041-44af-9b62-aac5487d4e2b-b009.png?v=1719342472815)

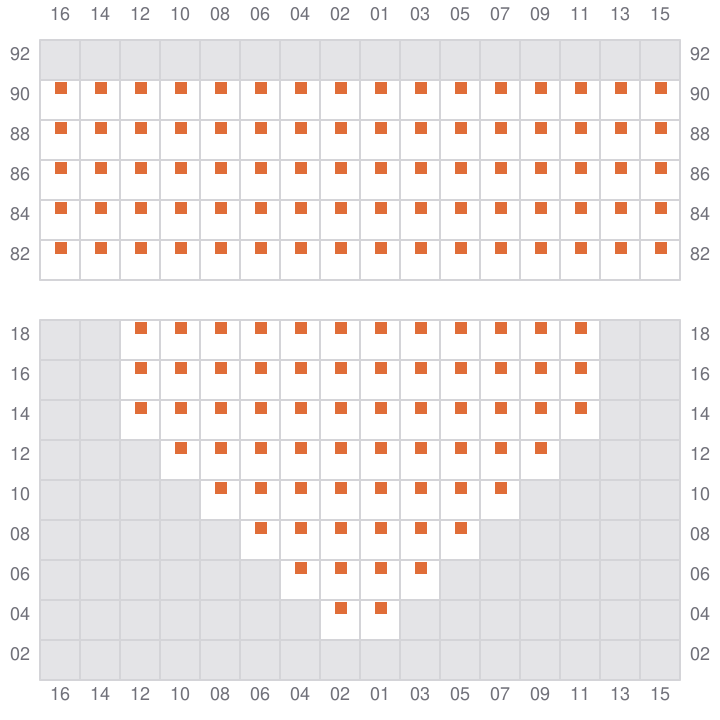

011
- ←
![Bay 011 view and slots of TESSA](/vessel-images/51b1030e-4041-44af-9b62-aac5487d4e2b-b011.png?v=1719342472815)

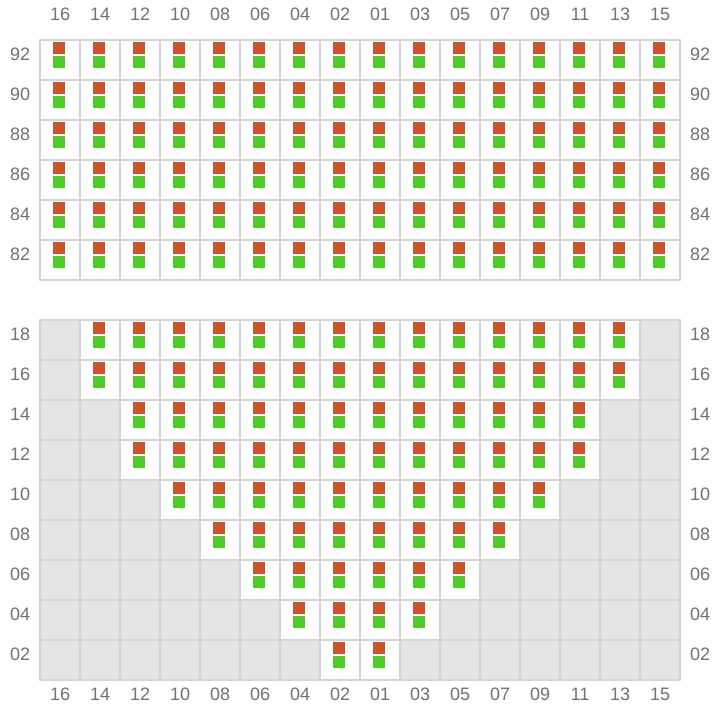

013 (014)
- →
![Bay 013 view and slots of TESSA](/vessel-images/51b1030e-4041-44af-9b62-aac5487d4e2b-b013.png?v=1719342472815)

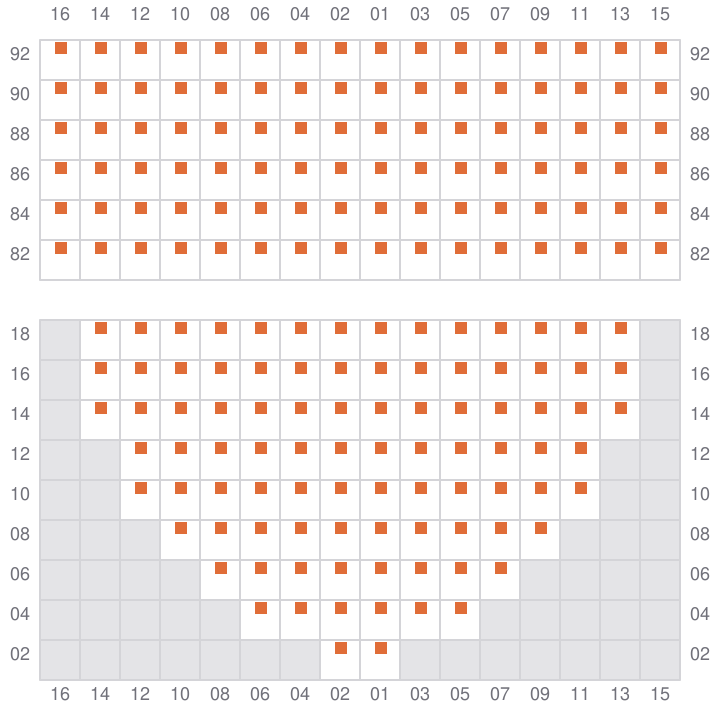

015
- ←
![Bay 015 view and slots of TESSA](/vessel-images/51b1030e-4041-44af-9b62-aac5487d4e2b-b015.png?v=1719342472815)

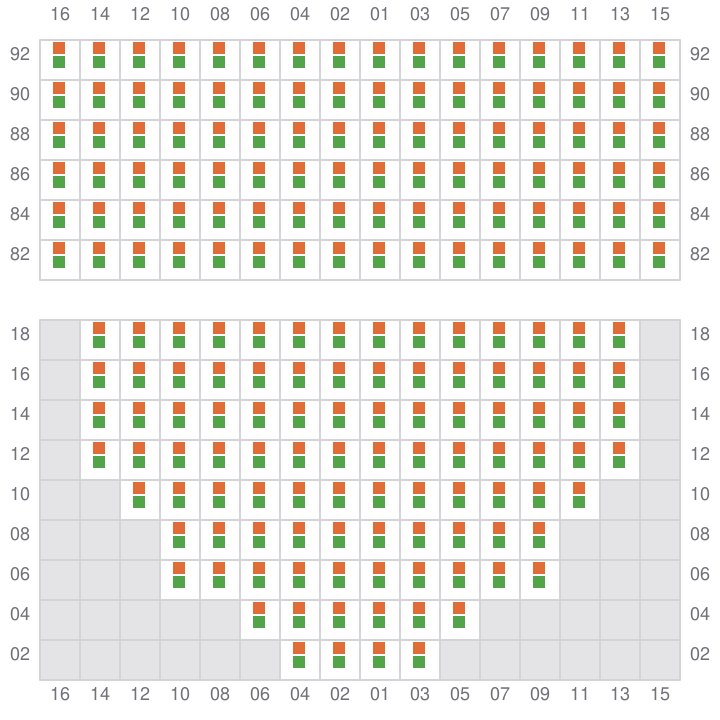

017 (018)
- →
![Bay 017 view and slots of TESSA](/vessel-images/51b1030e-4041-44af-9b62-aac5487d4e2b-b017.png?v=1719342472815)

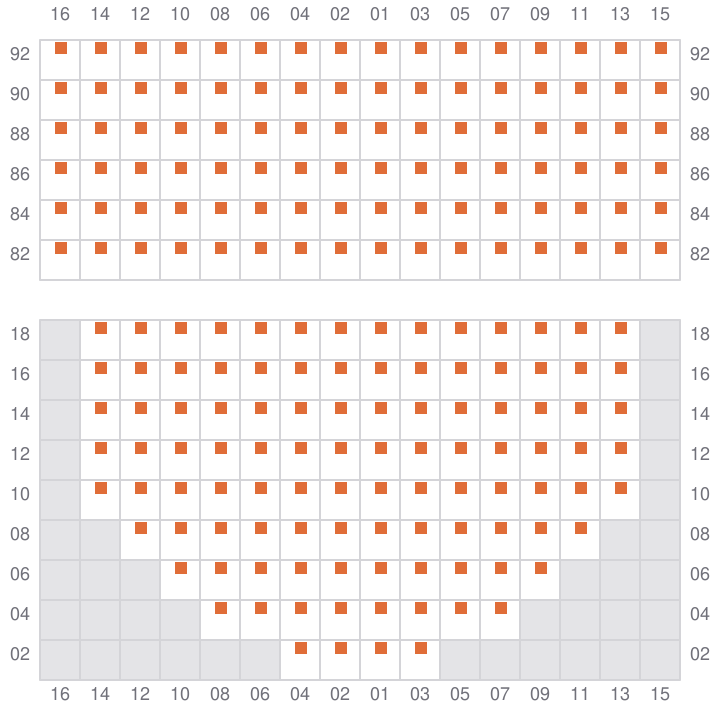

019
- ←
![Bay 019 view and slots of TESSA](/vessel-images/51b1030e-4041-44af-9b62-aac5487d4e2b-b019.png?v=1719342472815)

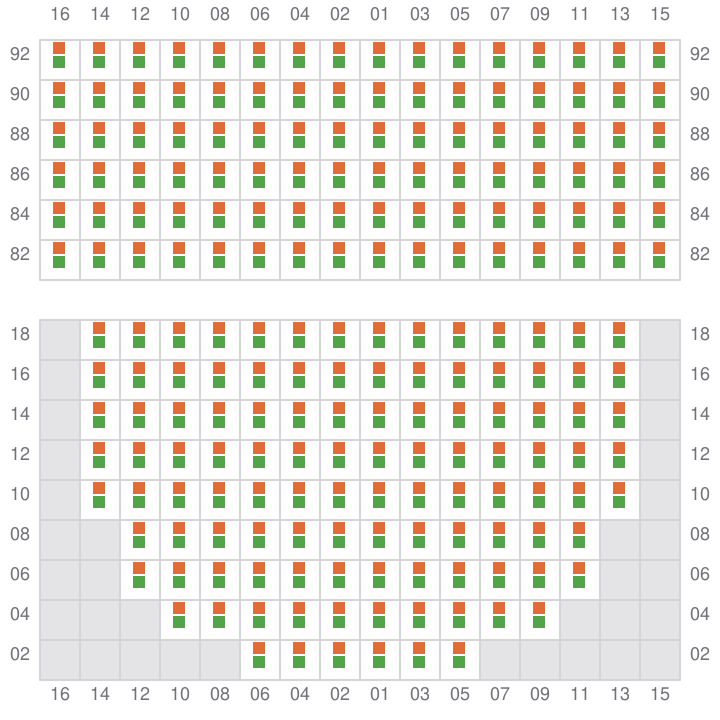

021 (022)
- →
![Bay 021 view and slots of TESSA](/vessel-images/51b1030e-4041-44af-9b62-aac5487d4e2b-b021.png?v=1719342472815)
023
- ←
![Bay 023 view and slots of TESSA](/vessel-images/51b1030e-4041-44af-9b62-aac5487d4e2b-b023.png?v=1719342472815)
025 (026)
- →
![Bay 025 view and slots of TESSA](/vessel-images/51b1030e-4041-44af-9b62-aac5487d4e2b-b025.png?v=1719342472815)

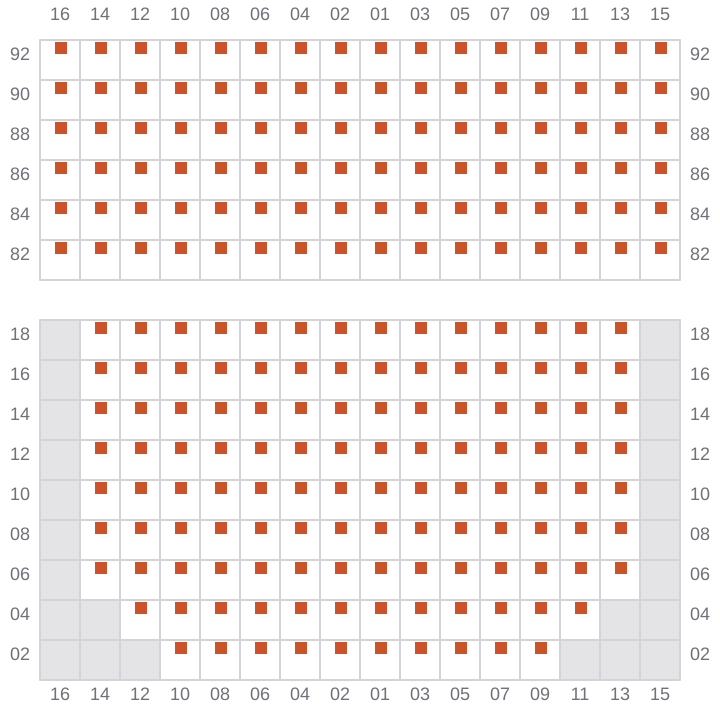

027
- ←
![Bay 027 view and slots of TESSA](/vessel-images/51b1030e-4041-44af-9b62-aac5487d4e2b-b027.png?v=1719342472815)
029 (030)
- →
![Bay 029 view and slots of TESSA](/vessel-images/51b1030e-4041-44af-9b62-aac5487d4e2b-b029.png?v=1719342472815)
031
- ←
![Bay 031 view and slots of TESSA](/vessel-images/51b1030e-4041-44af-9b62-aac5487d4e2b-b031.png?v=1719342472815)
033 (034)
- →
![Bay 033 view and slots of TESSA](/vessel-images/51b1030e-4041-44af-9b62-aac5487d4e2b-b033.png?v=1719342472815)
035
- ←
![Bay 035 view and slots of TESSA](/vessel-images/51b1030e-4041-44af-9b62-aac5487d4e2b-b035.png?v=1719342472815)
037 (038)
- →
![Bay 037 view and slots of TESSA](/vessel-images/51b1030e-4041-44af-9b62-aac5487d4e2b-b037.png?v=1719342472815)

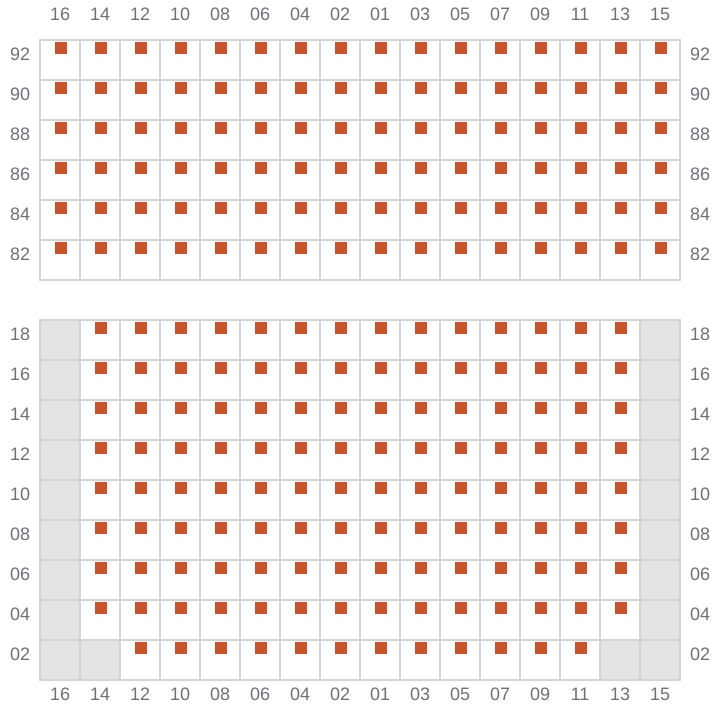

039
- ←
![Bay 039 view and slots of TESSA](/vessel-images/51b1030e-4041-44af-9b62-aac5487d4e2b-b039.png?v=1719342472815)

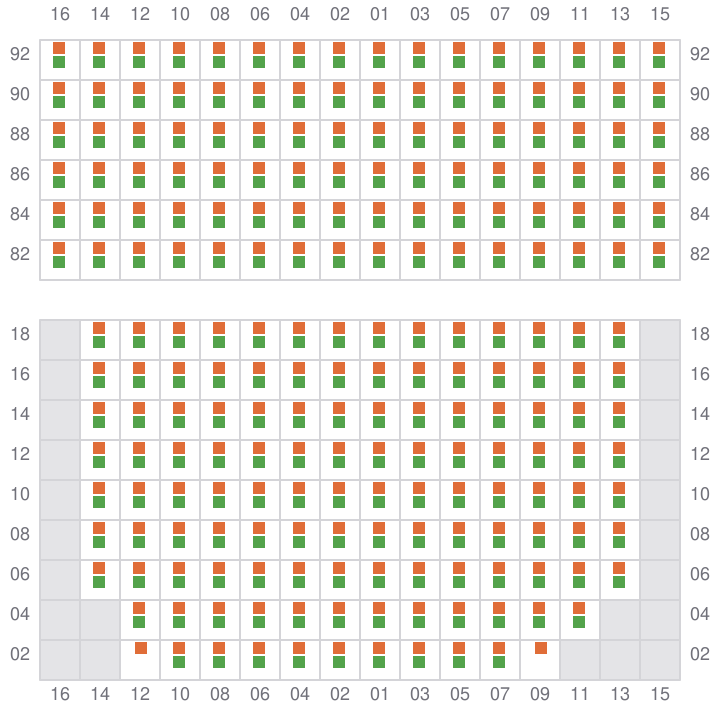

041 (042)
- →
![Bay 041 view and slots of TESSA](/vessel-images/51b1030e-4041-44af-9b62-aac5487d4e2b-b041.png?v=1719342472815)

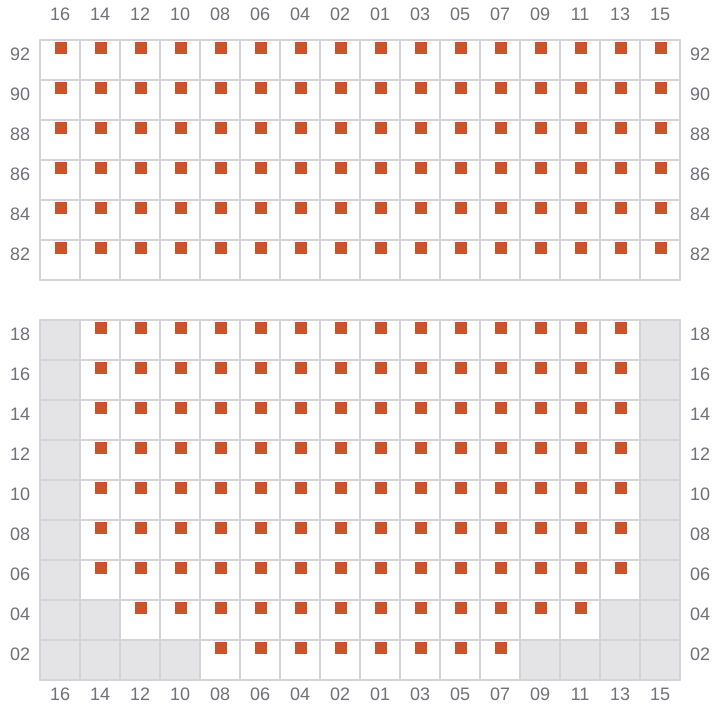

043
- ←
![Bay 043 view and slots of TESSA](/vessel-images/51b1030e-4041-44af-9b62-aac5487d4e2b-b043.png?v=1719342472815)

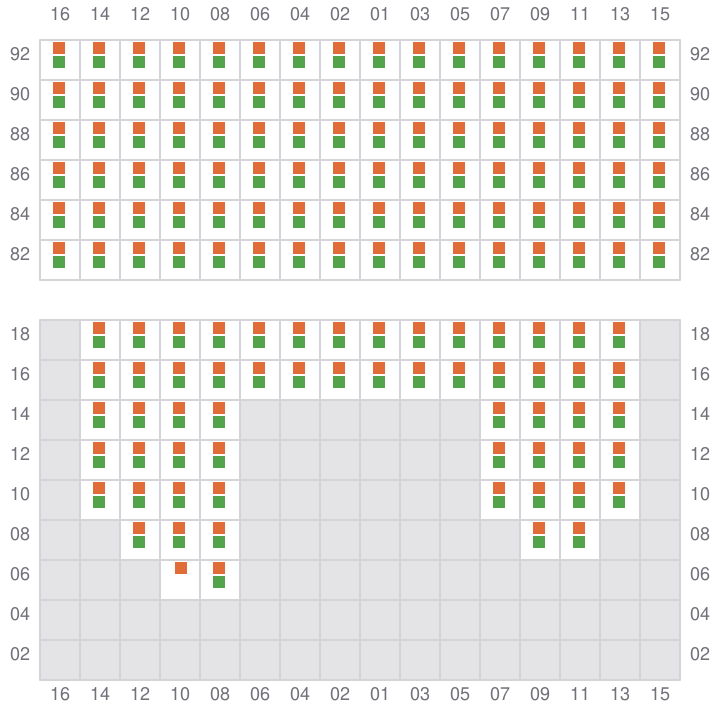

045 (046)
- →
![Bay 045 view and slots of TESSA](/vessel-images/51b1030e-4041-44af-9b62-aac5487d4e2b-b045.png?v=1719342472815)

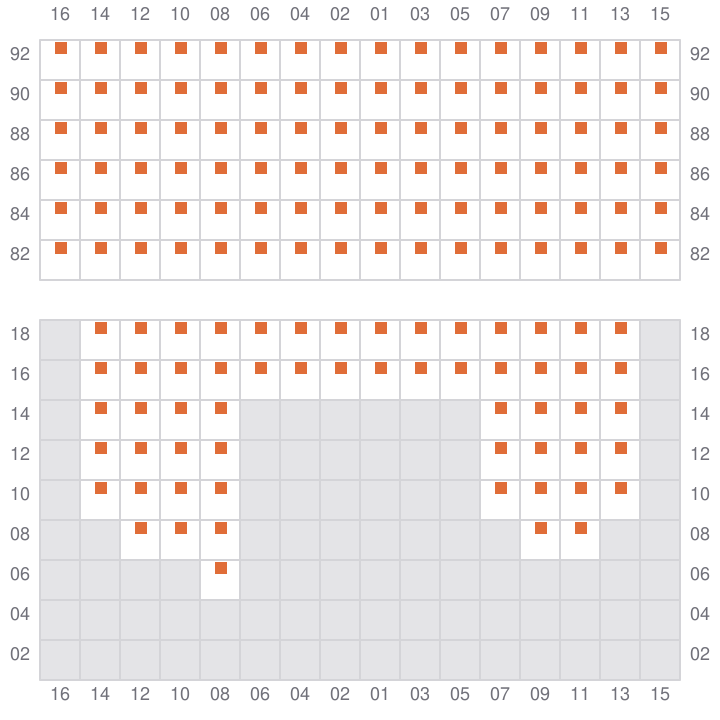

047
- ←
![Bay 047 view and slots of TESSA](/vessel-images/51b1030e-4041-44af-9b62-aac5487d4e2b-b047.png?v=1719342472815)

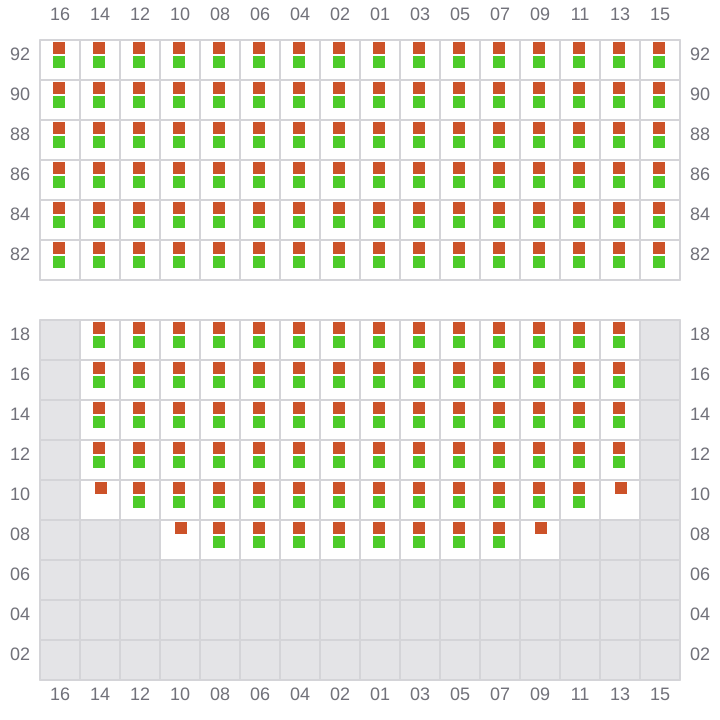

049 (050)
- →
![Bay 049 view and slots of TESSA](/vessel-images/51b1030e-4041-44af-9b62-aac5487d4e2b-b049.png?v=1719342472815)

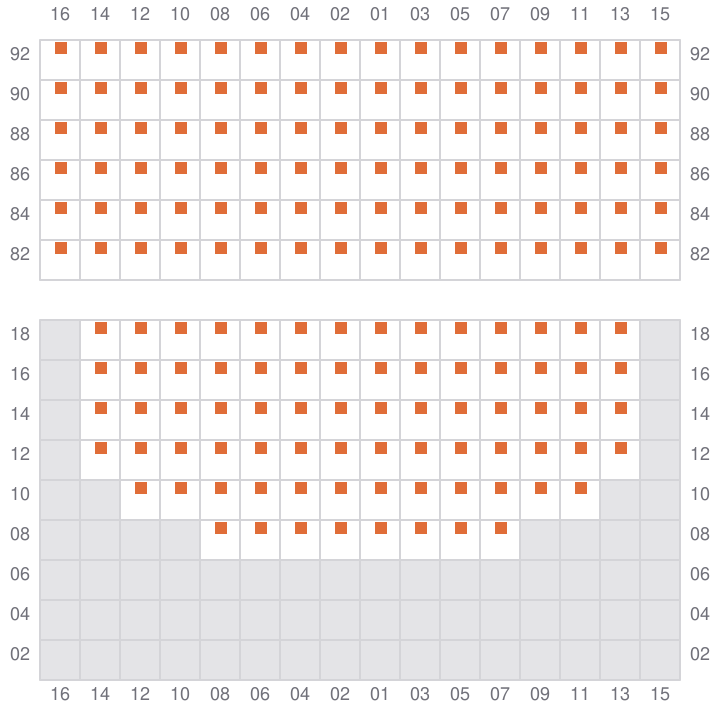

051
- ←
![Bay 051 view and slots of TESSA](/vessel-images/51b1030e-4041-44af-9b62-aac5487d4e2b-b051.png?v=1719342472815)

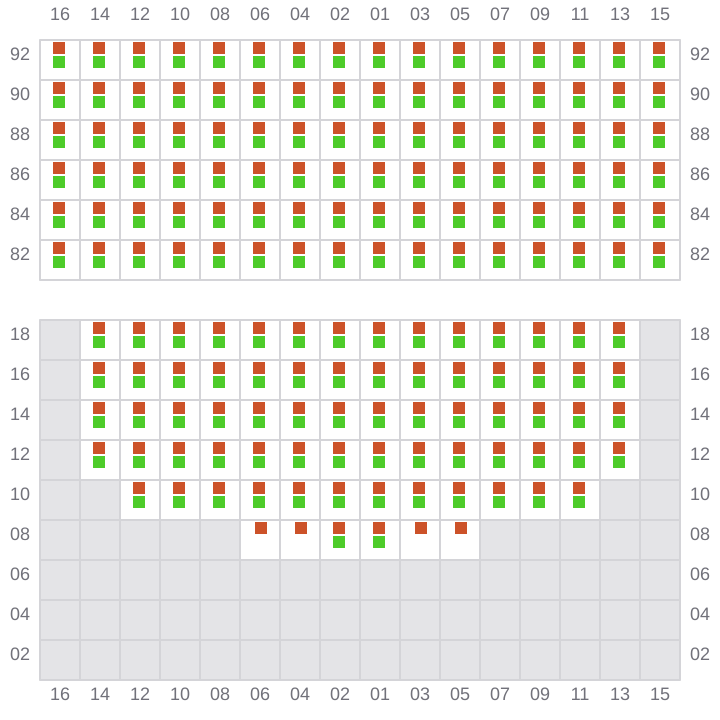

053 (054)
- →
![Bay 053 view and slots of TESSA](/vessel-images/51b1030e-4041-44af-9b62-aac5487d4e2b-b053.png?v=1719342472815)

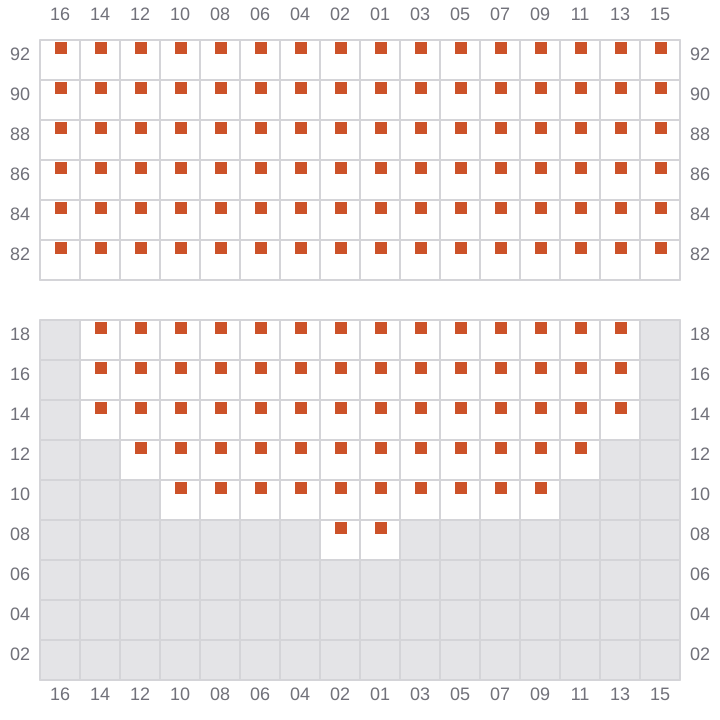

055
- ←
![Bay 055 view and slots of TESSA](/vessel-images/51b1030e-4041-44af-9b62-aac5487d4e2b-b055.png?v=1719342472815)

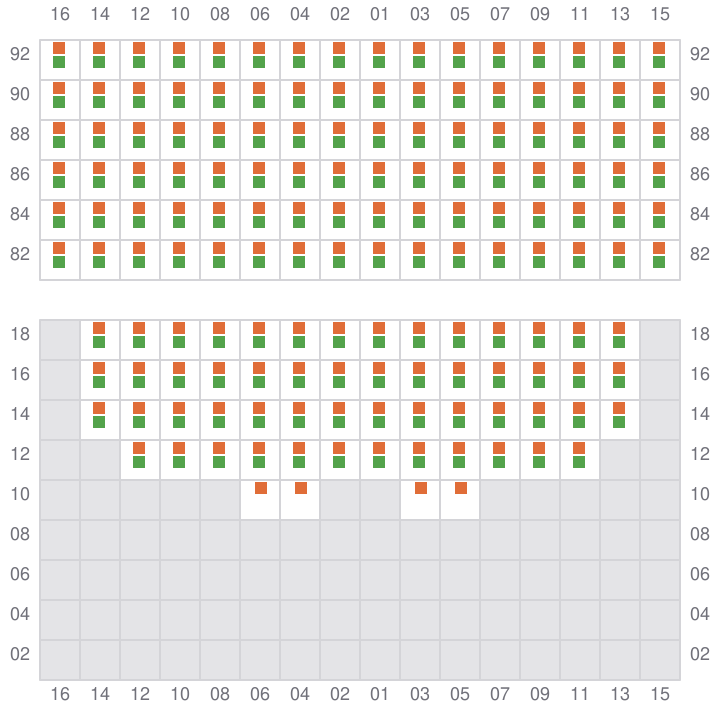

057 (058)
- →
![Bay 057 view and slots of TESSA](/vessel-images/51b1030e-4041-44af-9b62-aac5487d4e2b-b057.png?v=1719342472815)

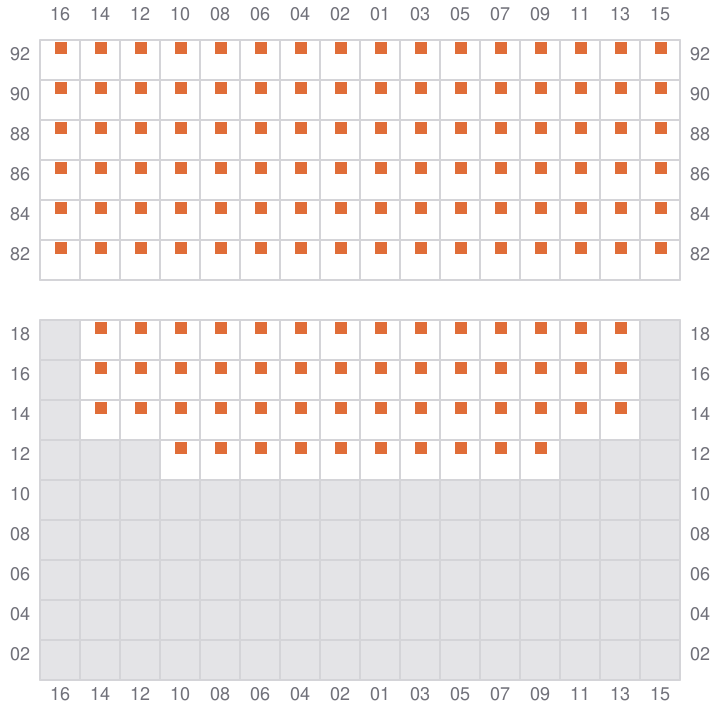

059
- ←
![Bay 059 view and slots of TESSA](/vessel-images/51b1030e-4041-44af-9b62-aac5487d4e2b-b059.png?v=1719342472815)

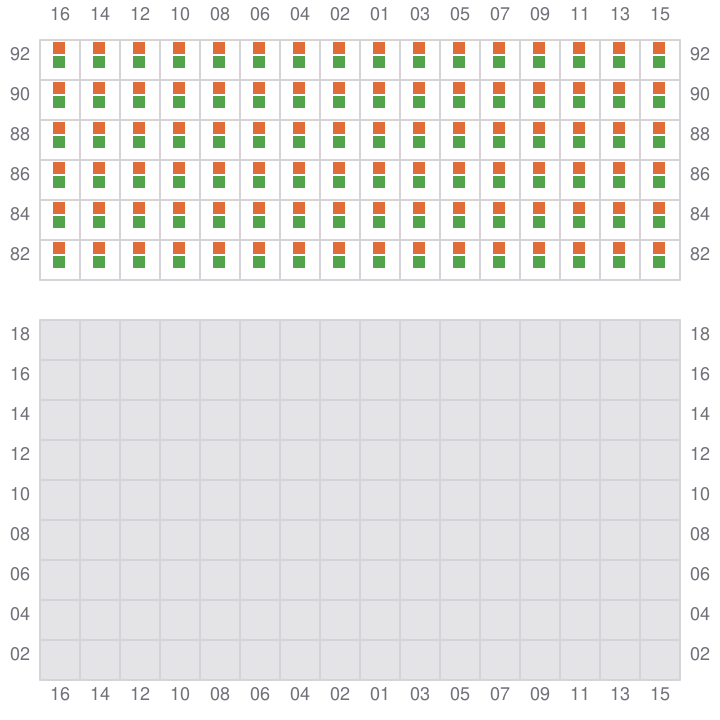

061 (062)
- → / ?
![Bay 061 view and slots of TESSA](/vessel-images/51b1030e-4041-44af-9b62-aac5487d4e2b-b061.png?v=1719342472815)

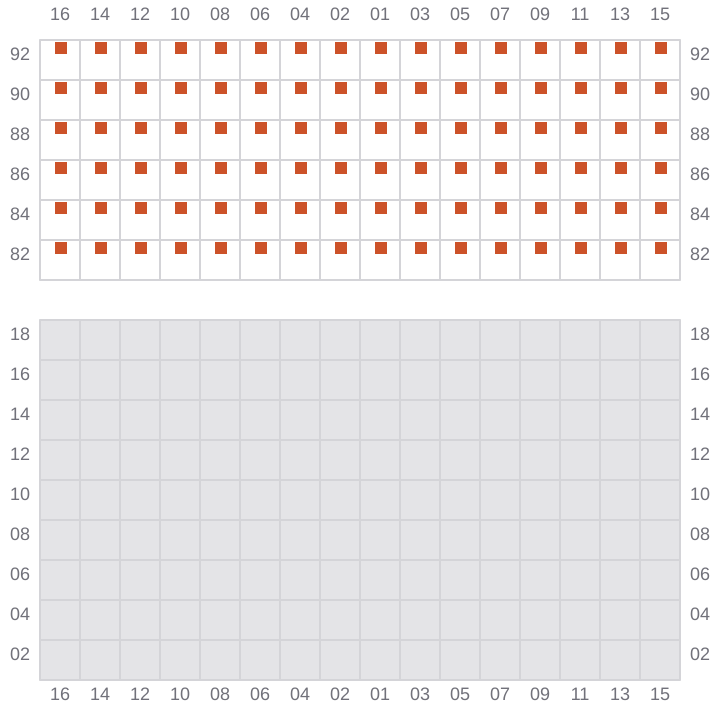

063
- ← / ?
![Bay 063 view and slots of TESSA](/vessel-images/51b1030e-4041-44af-9b62-aac5487d4e2b-b063.png?v=1719342472815)
