THALASSA MANA
9667150 | D5QY9 | EVG by ************************** Last update: Fri Jun 09 2023
General Info
Ship Name:THALASSA MANA
IMO Code:9667150
Call Sign:D5QY9
Line Operator:EVG
Class Name for Sister Ships:ETM
Year Built:2014
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:
Also Known As (old names):-
Size Summary
ISO Bays:087
Max ISO Row:20
Center Line Row:No
Max Above ISO Tier:98
Min Above ISO Tier:82
Max Below ISO Tier:22
Min Below ISO Tier:02
Total TEU:13,808
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%
Side View
Hatch-Covers View
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

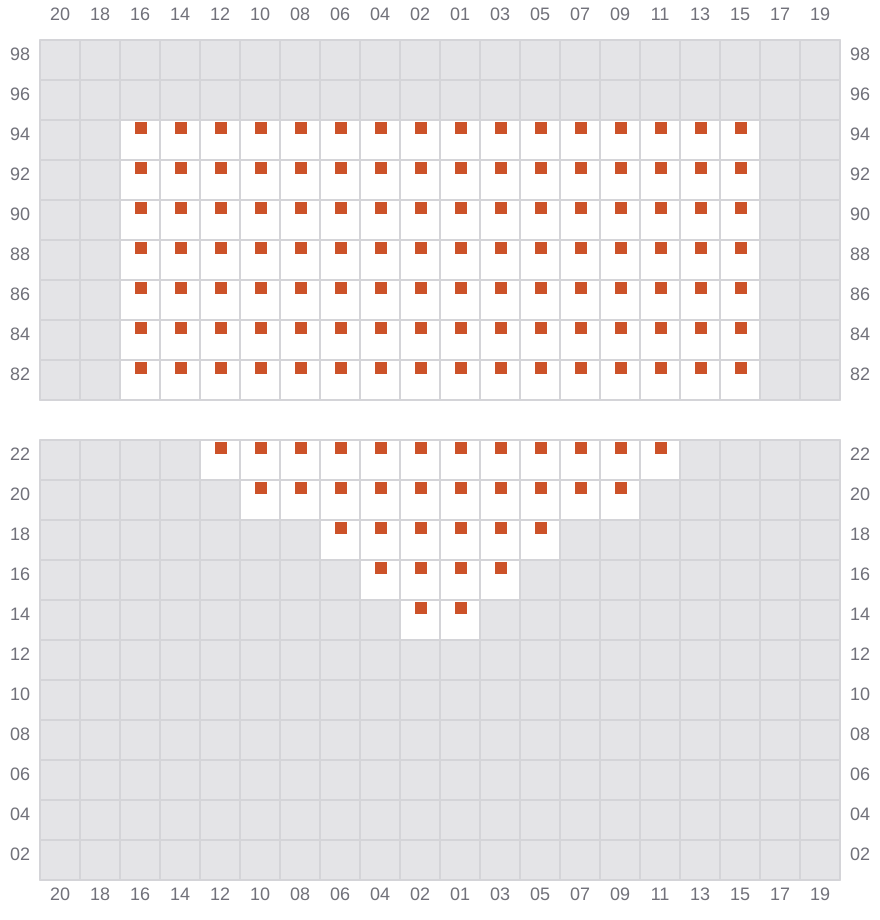

001
- →

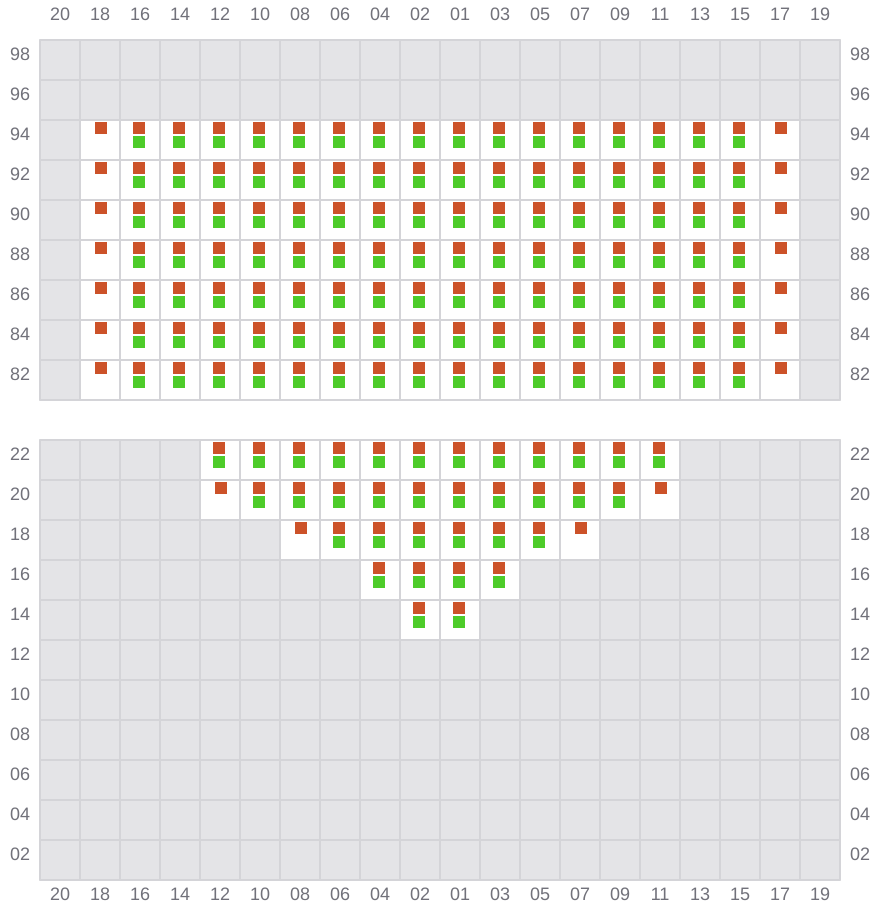

003 (002)
- ←

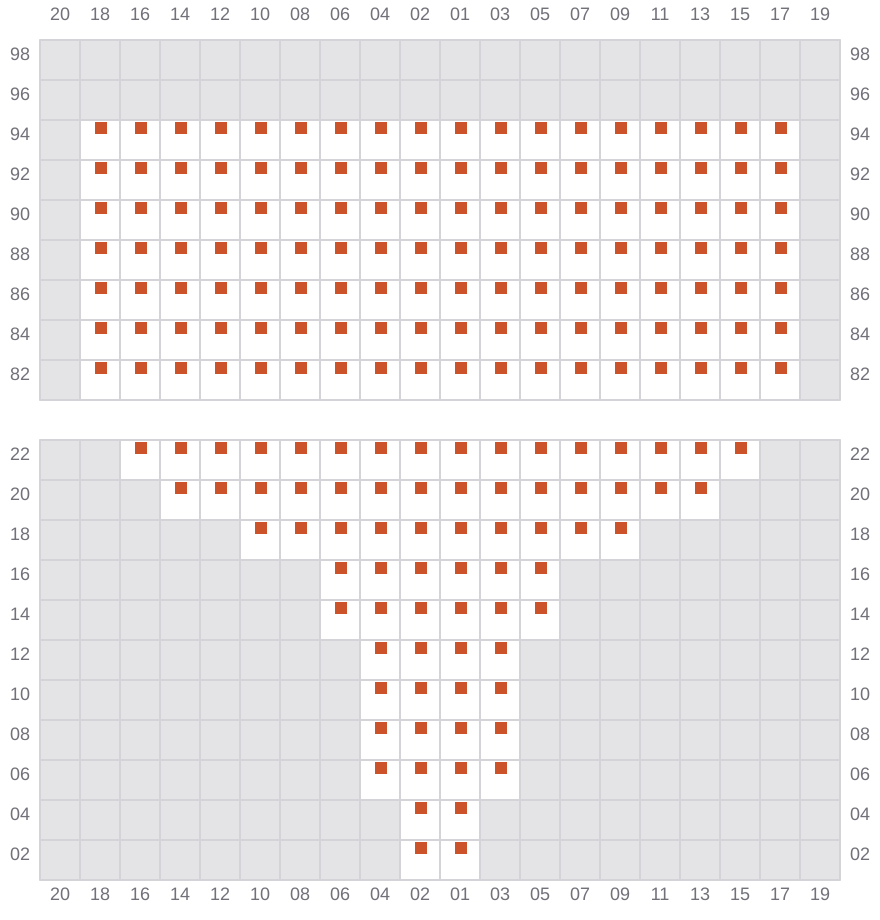

005
- →

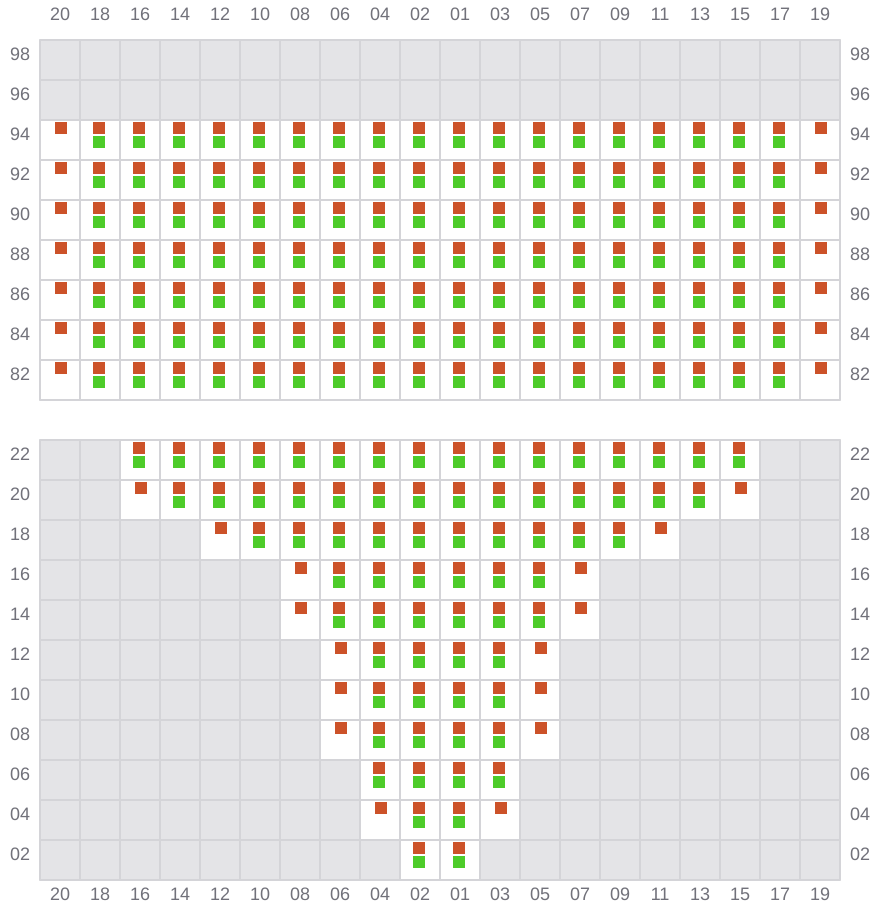

007 (006)
- ←
009
- →

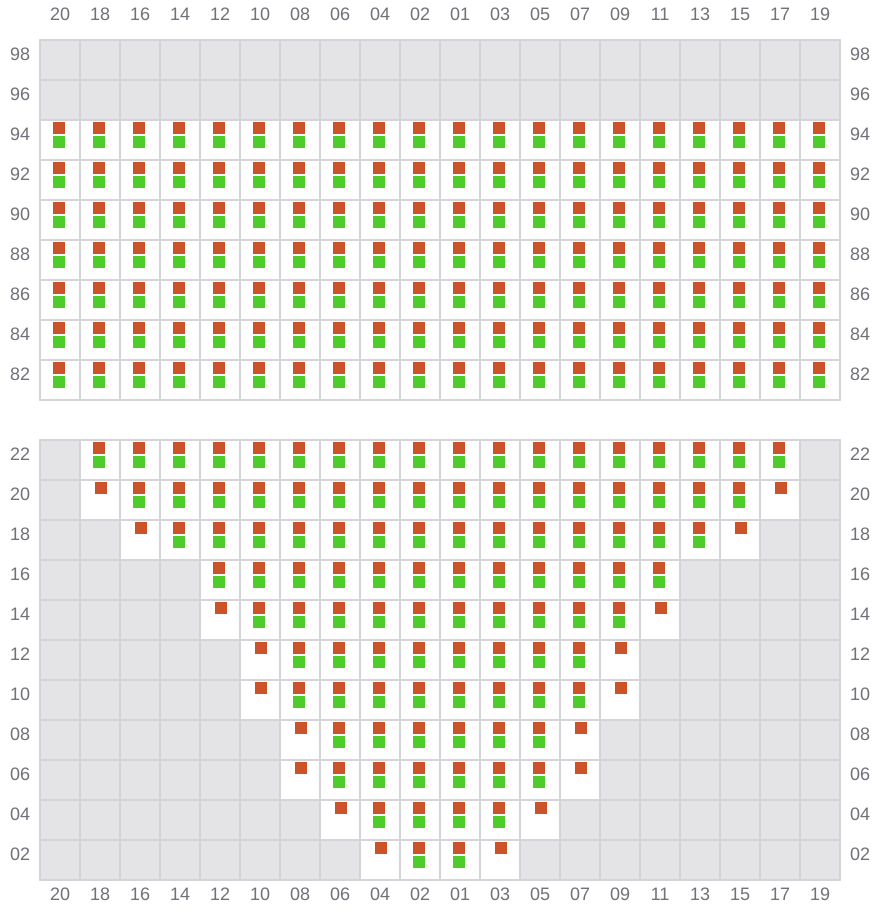

011 (010)
- ←

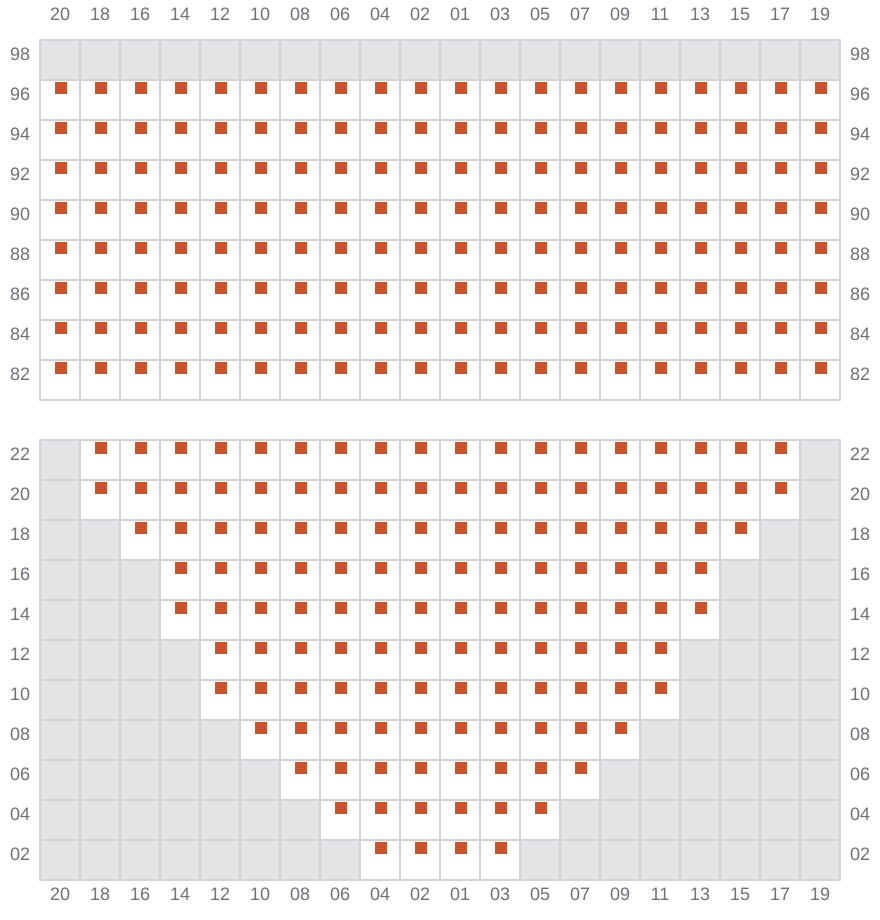

013
- →
015 (014)
- ←

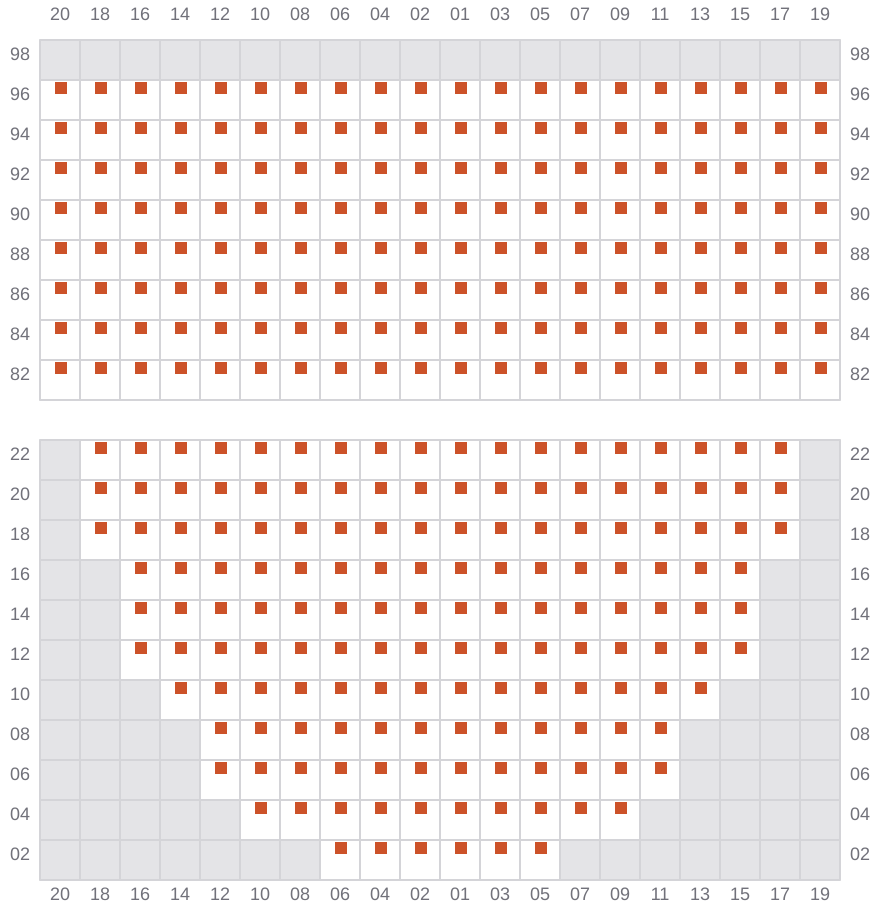

017
- →

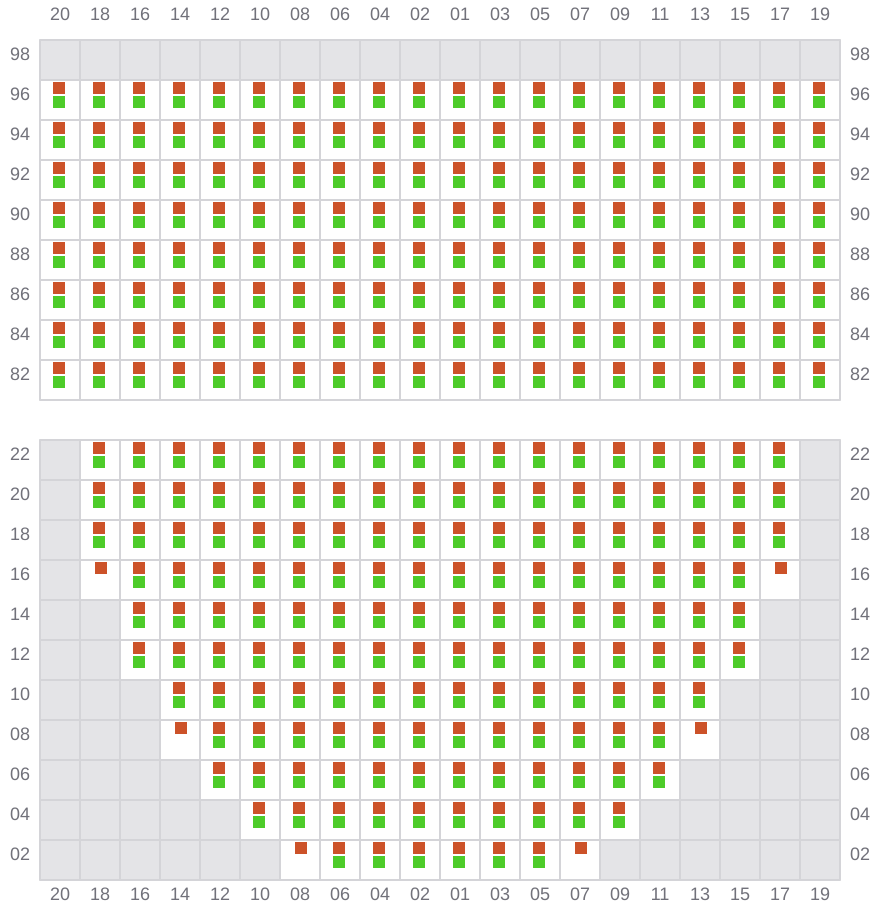

019 (018)
- ←
021
- →

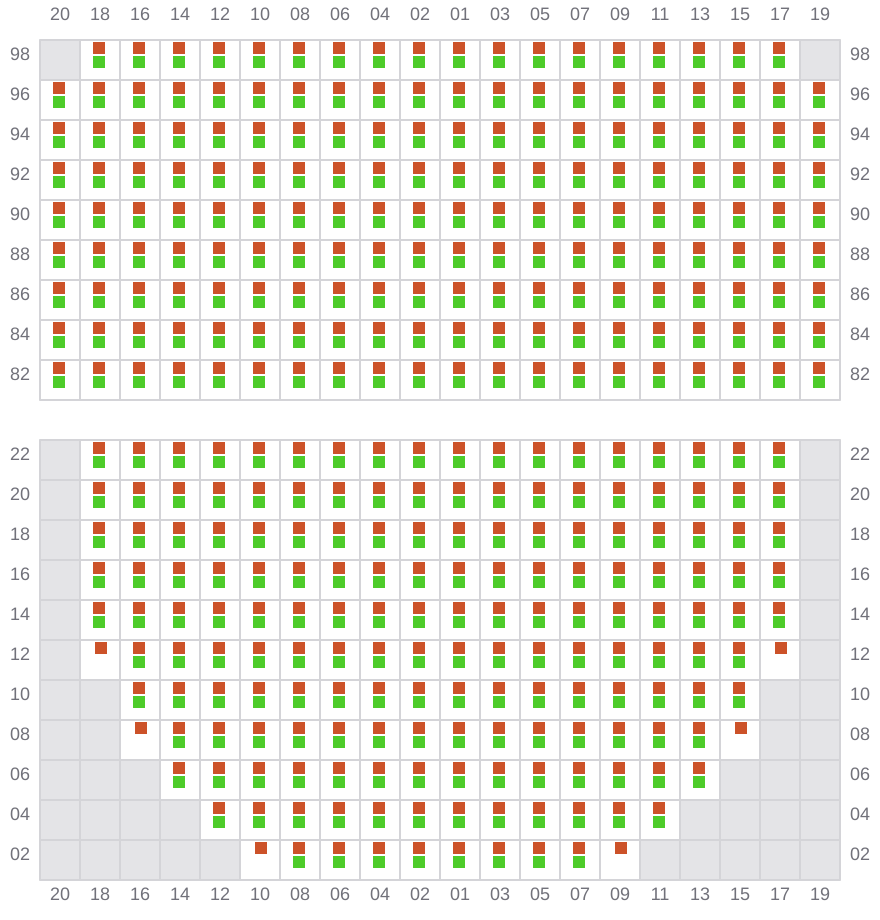

023 (022)
- ←
025
- →
027 (026)
- ←
029
- →

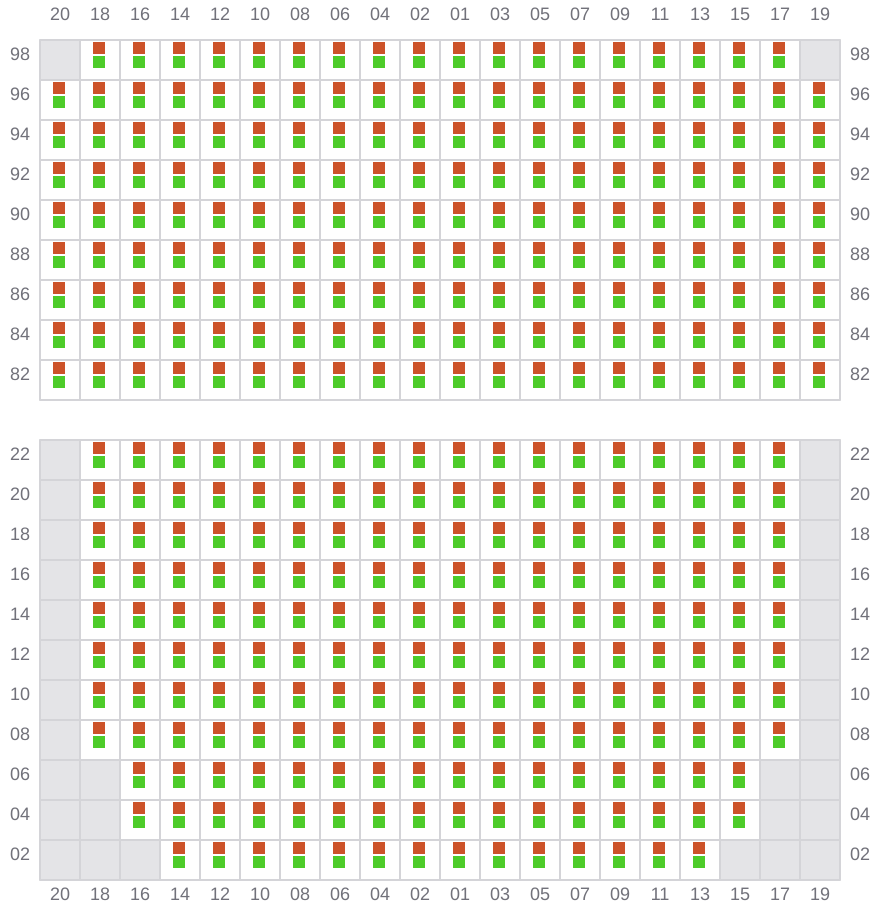

031 (030)
- ←
033
- →
035 (034)
- ←
037
- →
039 (038)
- ←

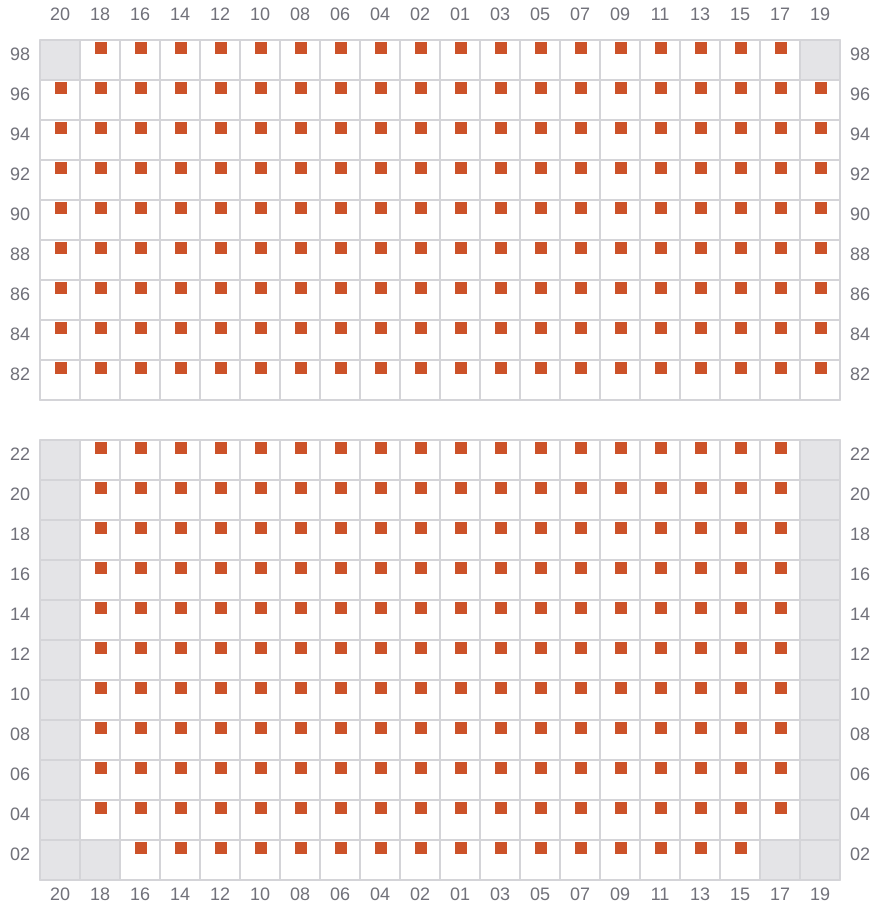

041
- →
043 (042)
- ←
045
- →

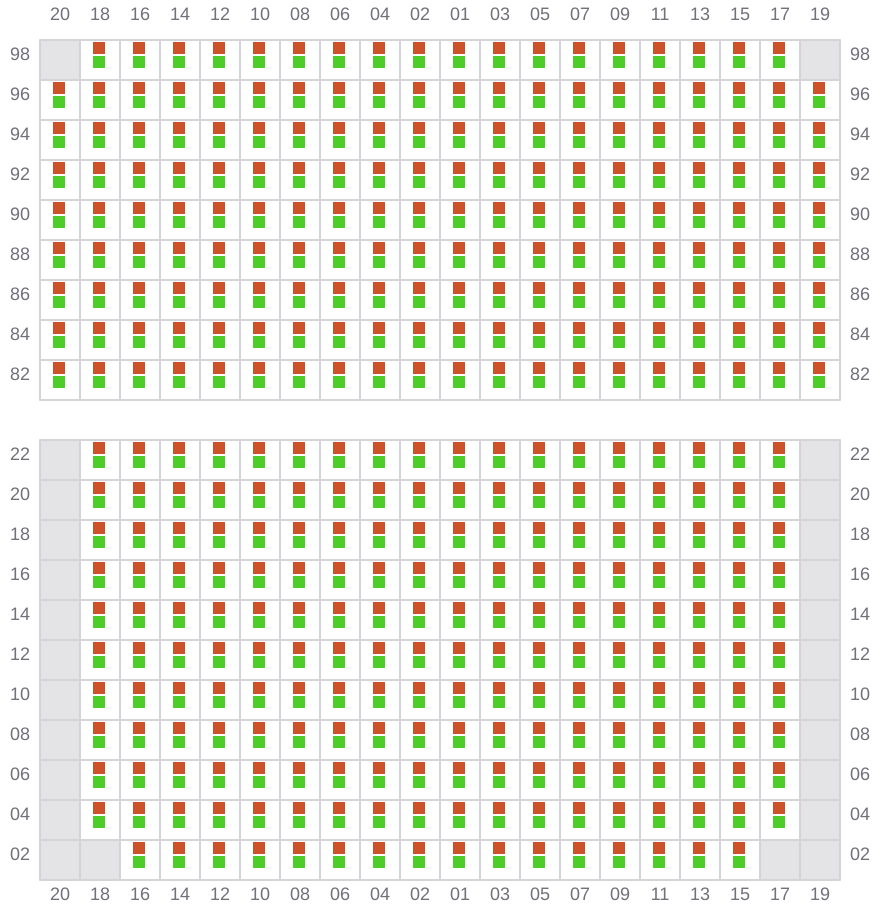

047 (046)
- ←
049
- →
051 (050)
- ←
053
- →
055 (054)
- ←
057
- →
059 (058)
- ←

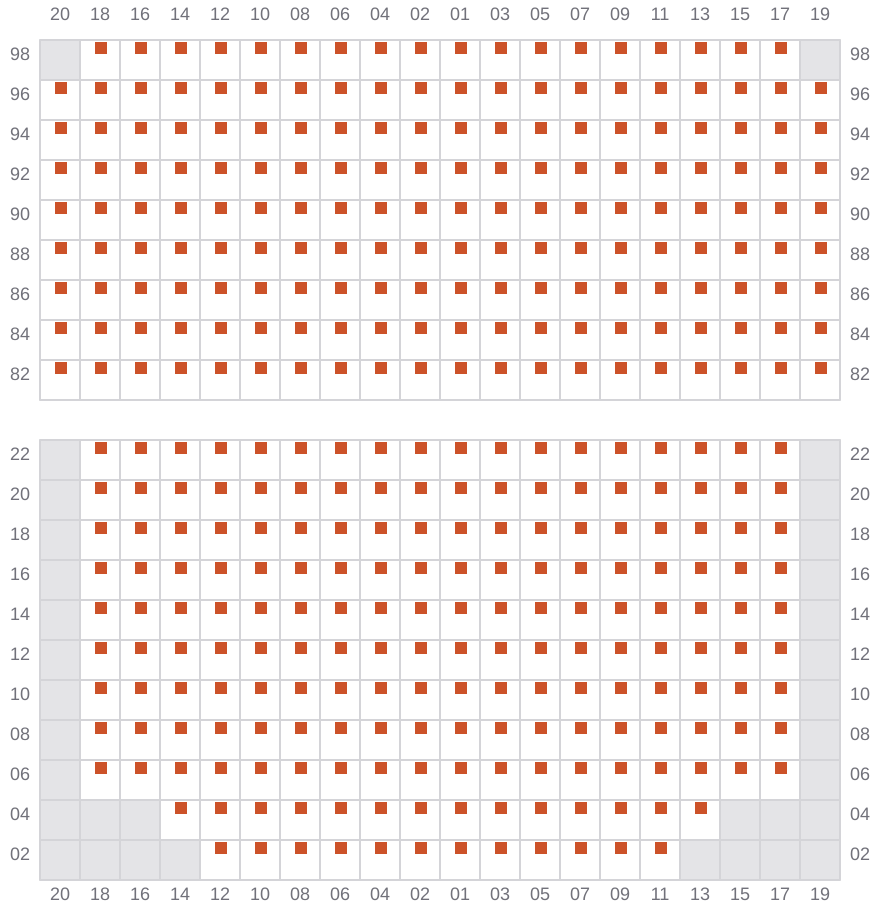

061
- →
063 (062)
- ←

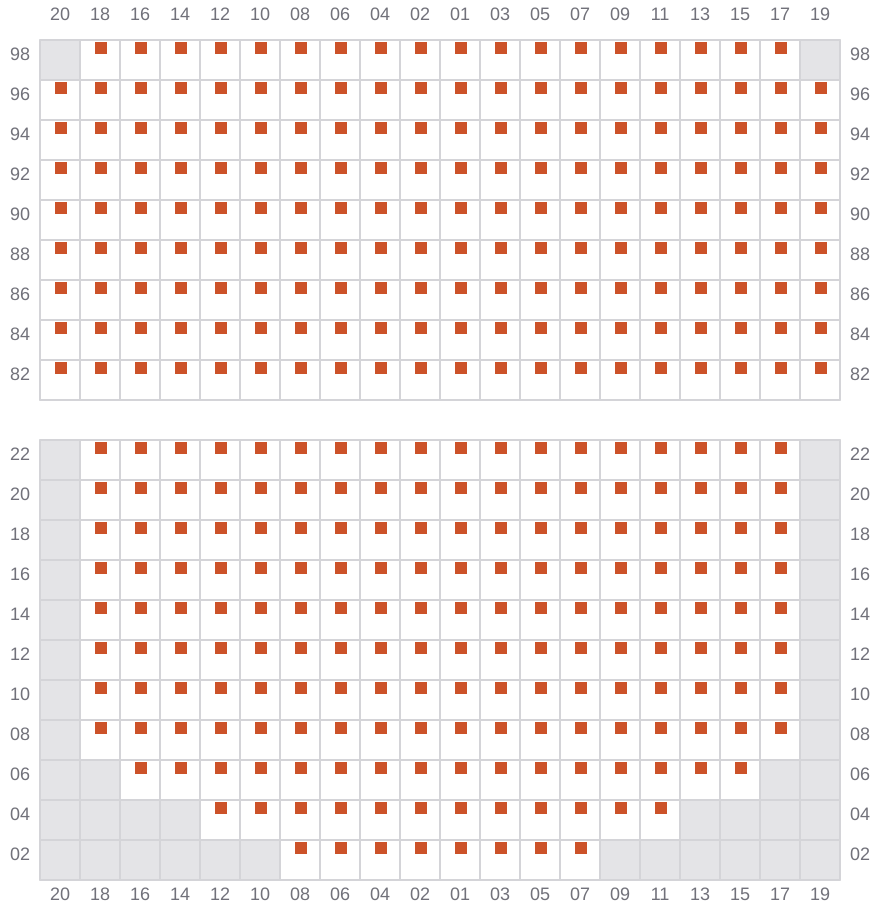

065
- →
067 (066)
- ←
069
- →

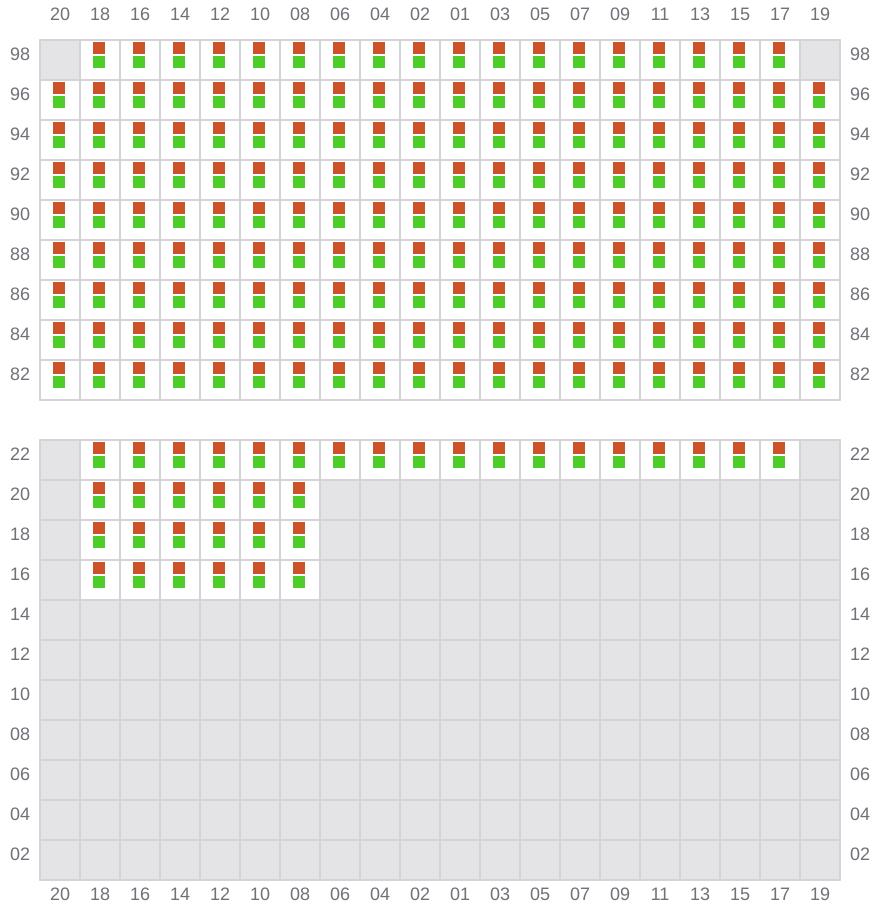

071 (070)
- ←

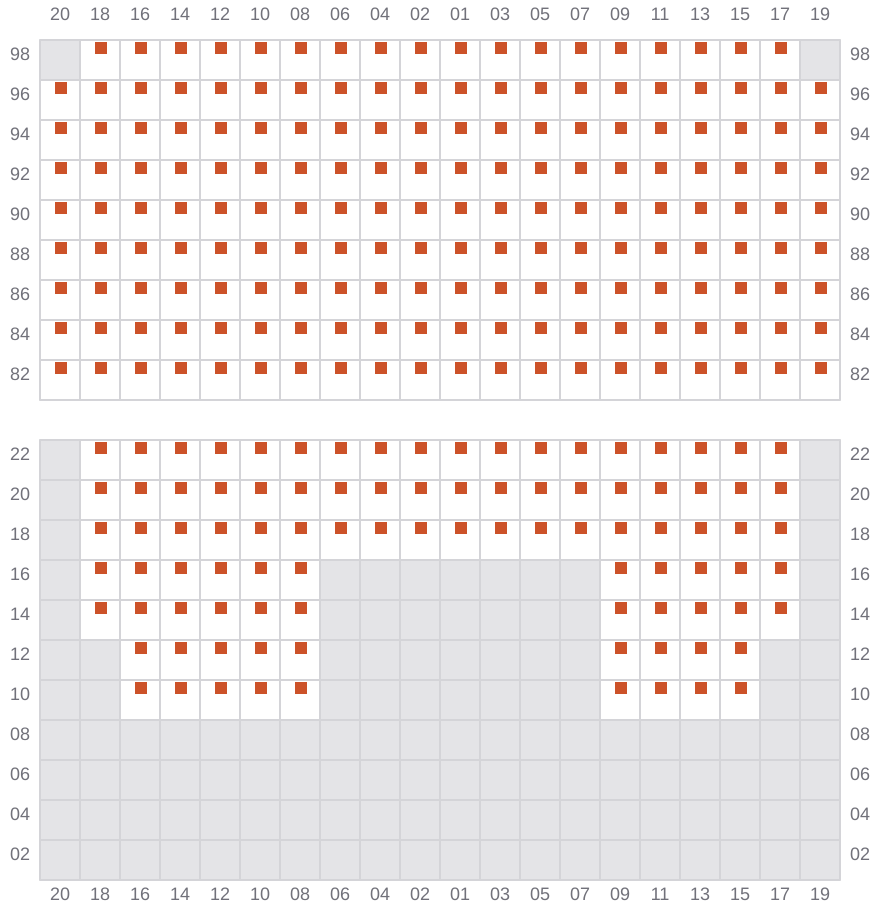

073
- →

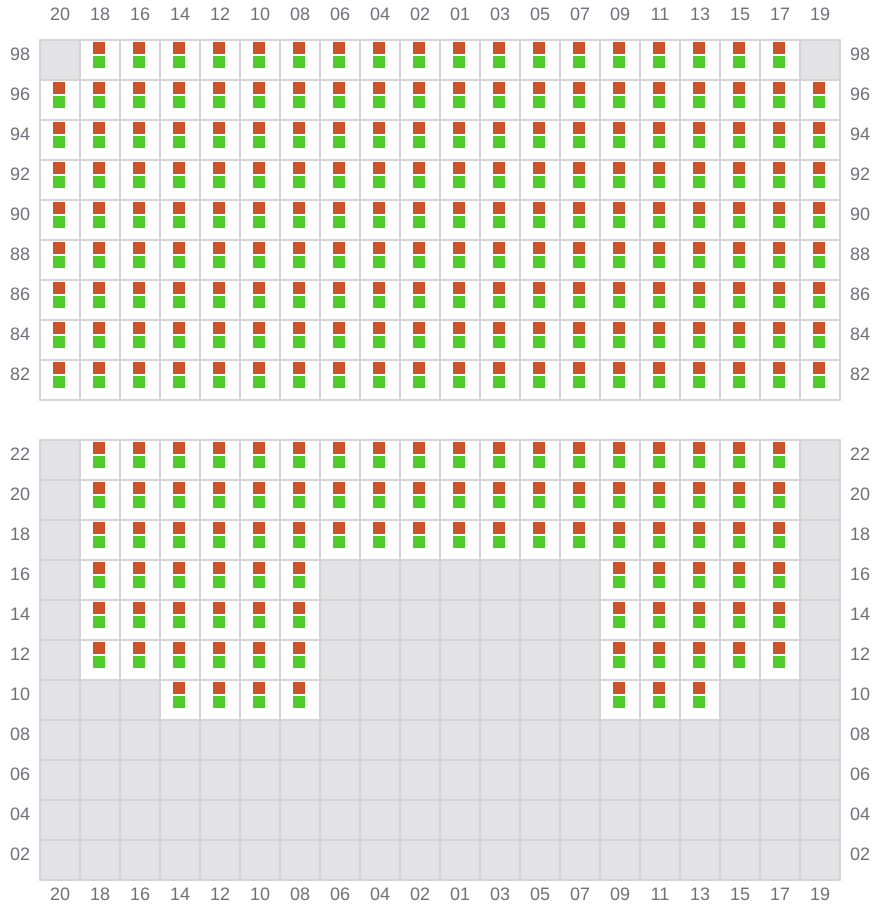

075 (074)
- ←

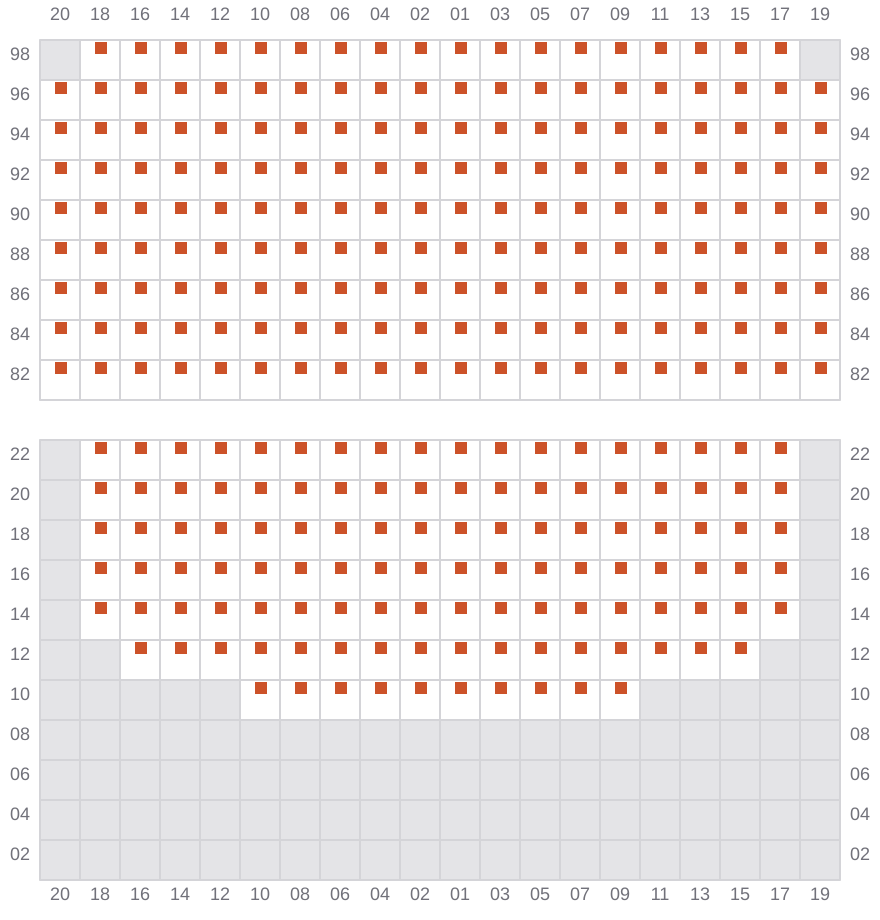

077
- →
079 (078)
- ←

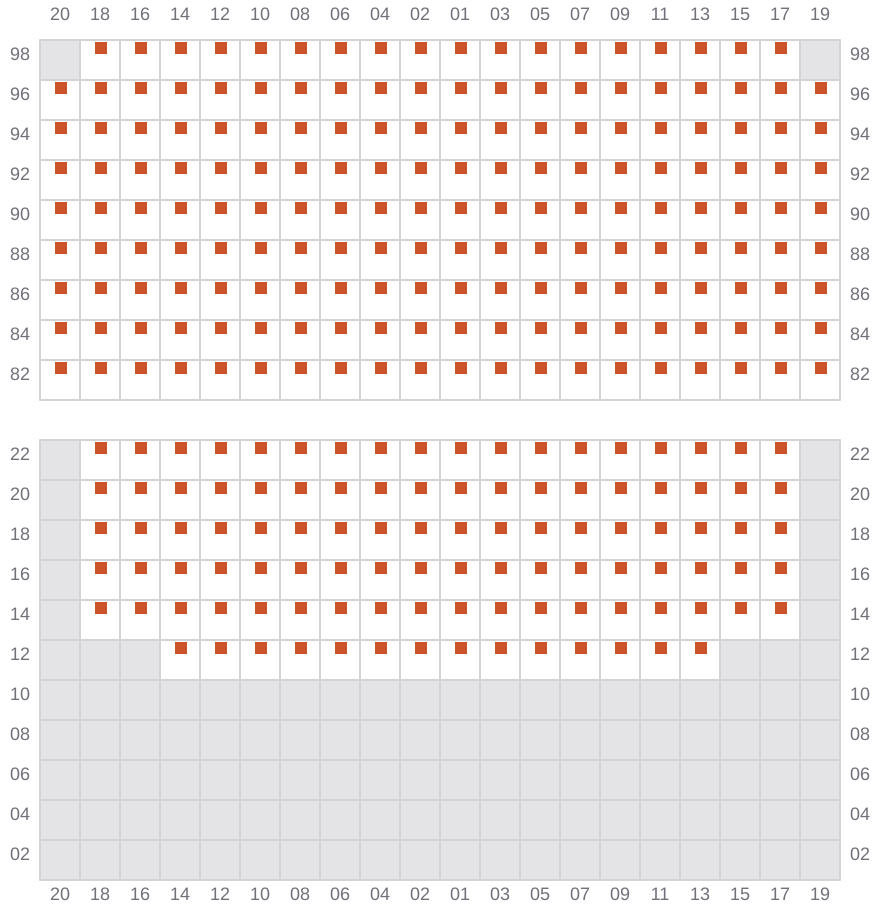

081
- →

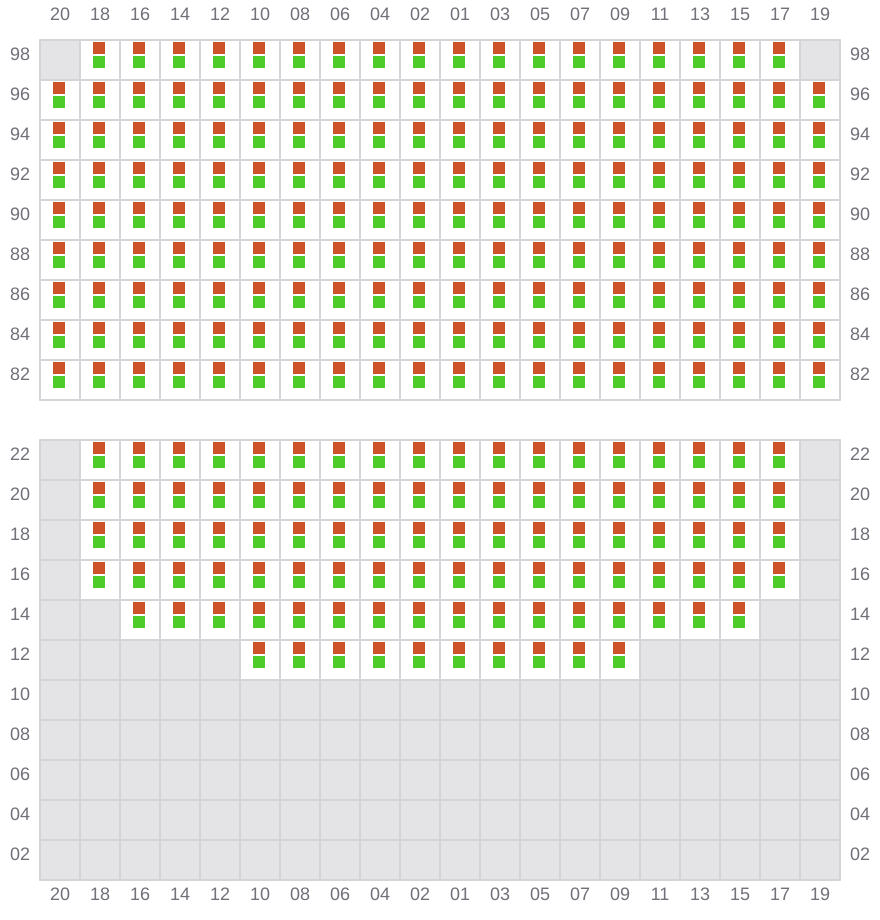

083 (082)
- ←

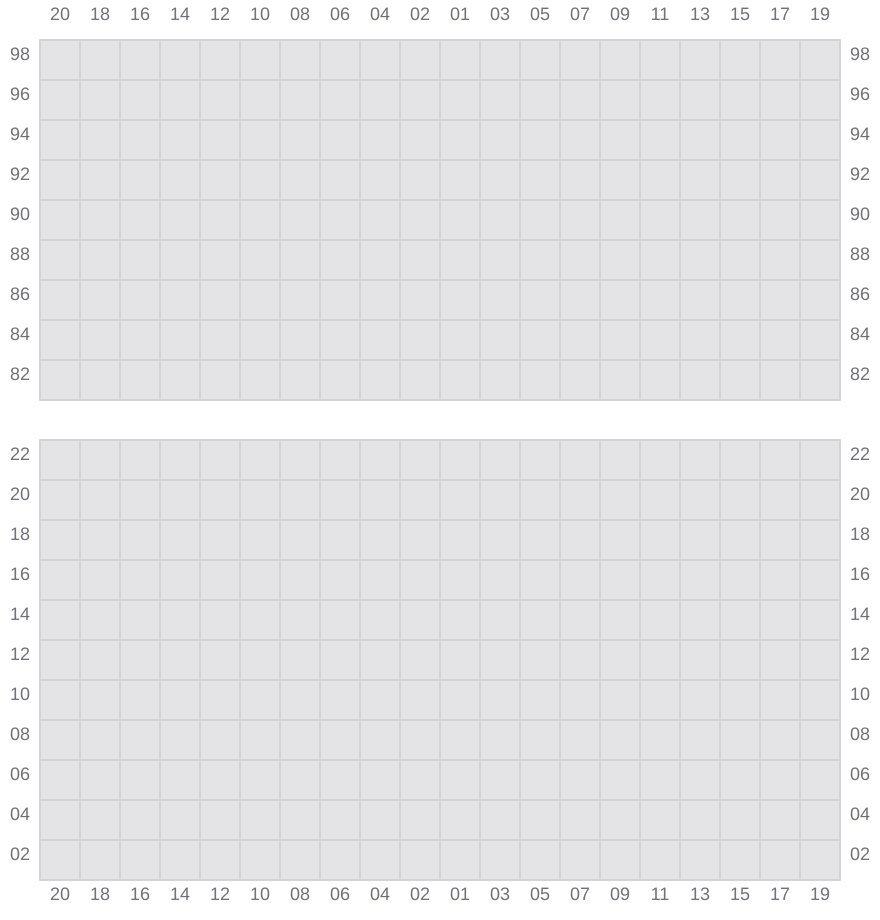

085

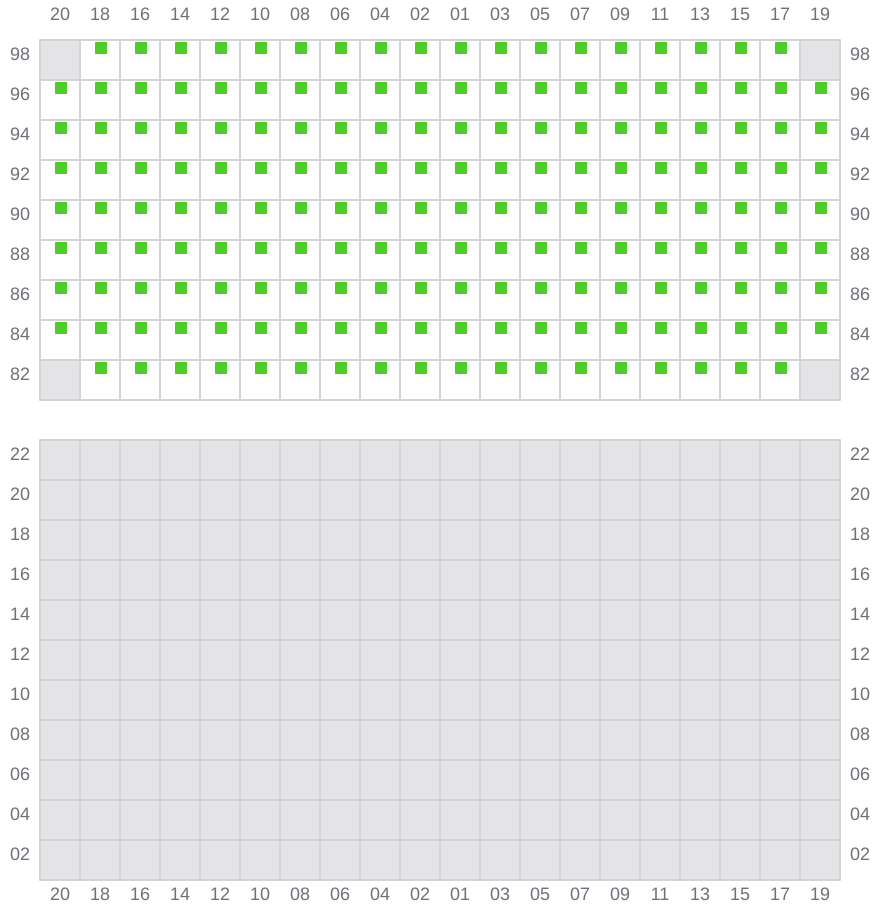

087 (086)
- ← / ?
