The TEDIVO Vessel Designer allows you to create and download your own vessel
definitions.
THALASSA MANA
9667150 | D5QY9 | 9667150 by ********* Last update: Thu Jun 06 2024
General Info
Ship Name:THALASSA MANA
IMO Code:9667150
Call Sign:D5QY9
Line Operator:9667150
Class Name for Sister Ships:THALASSA MANA
Year Built:2014
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):351.98
LOA (Length Overall):368.42
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:085
Max ISO Row:20
Center Line Row:No
Max Above ISO Tier:98
Min Above ISO Tier:82
Max Below ISO Tier:22
Min Below ISO Tier:02
Total TEU:13,812
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

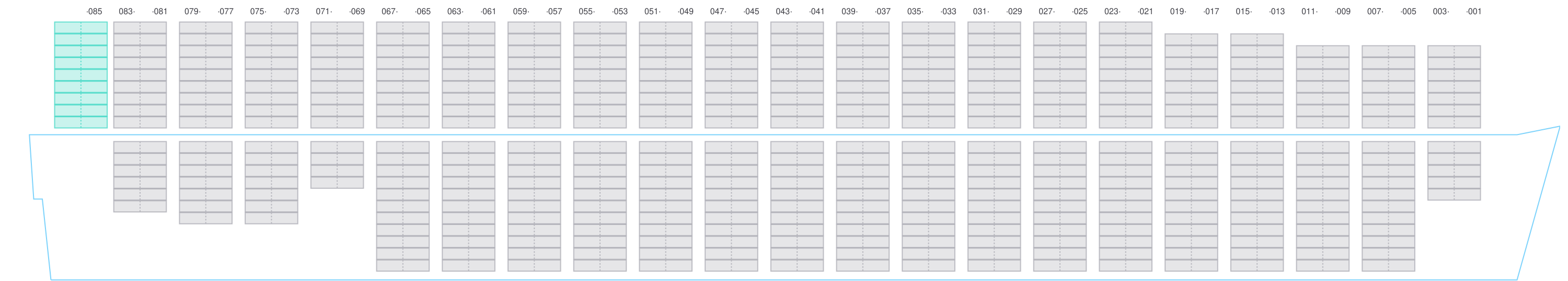

Side View

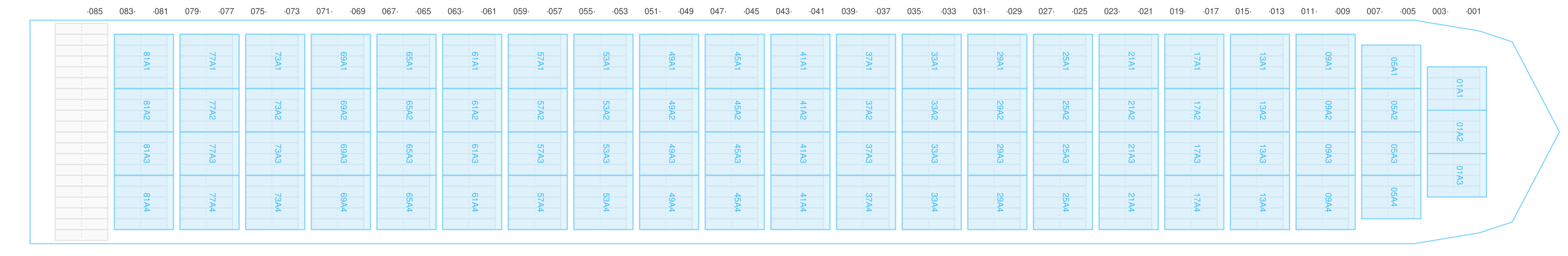

Hatch-Covers View

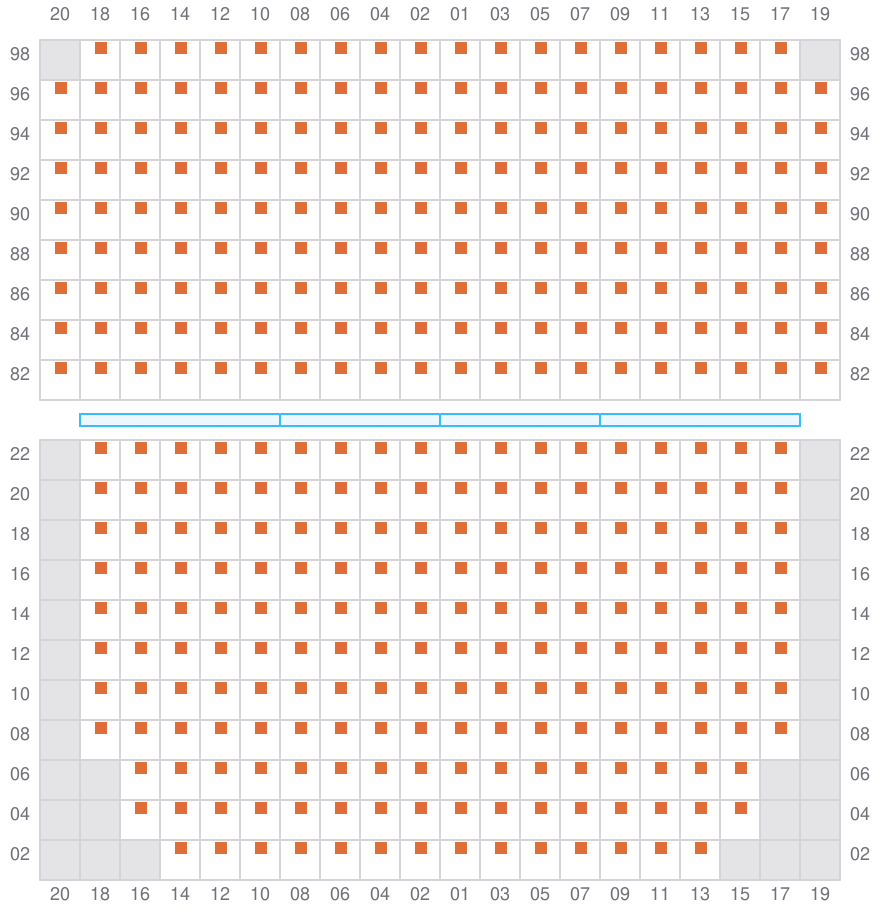

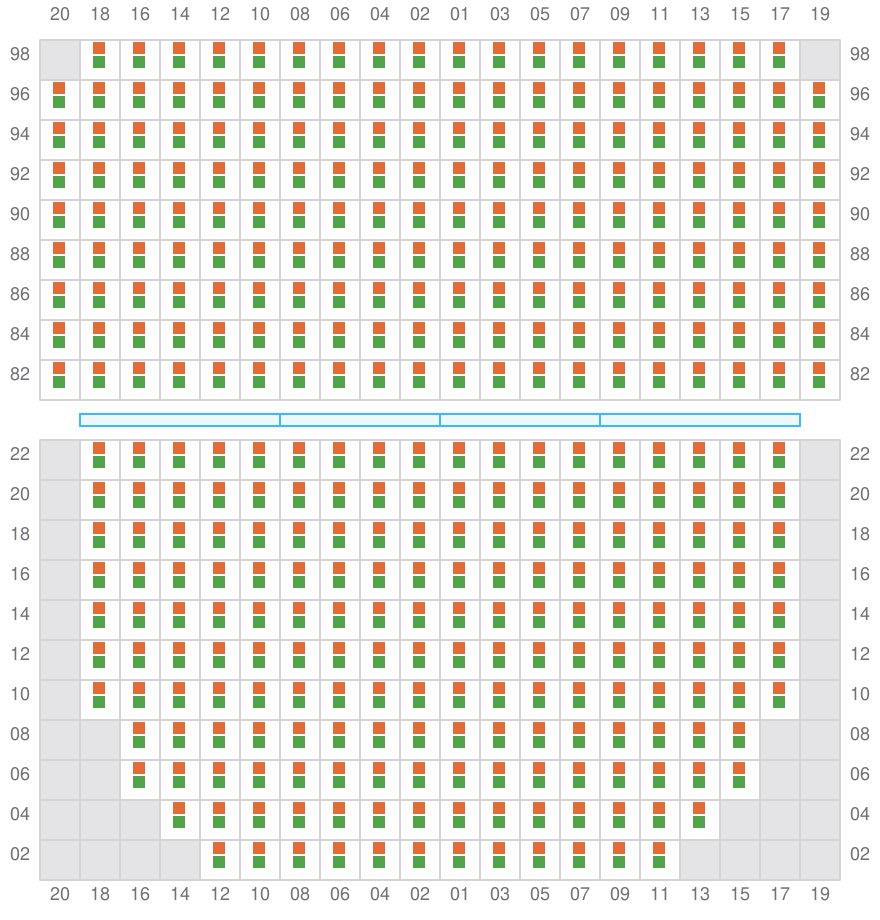

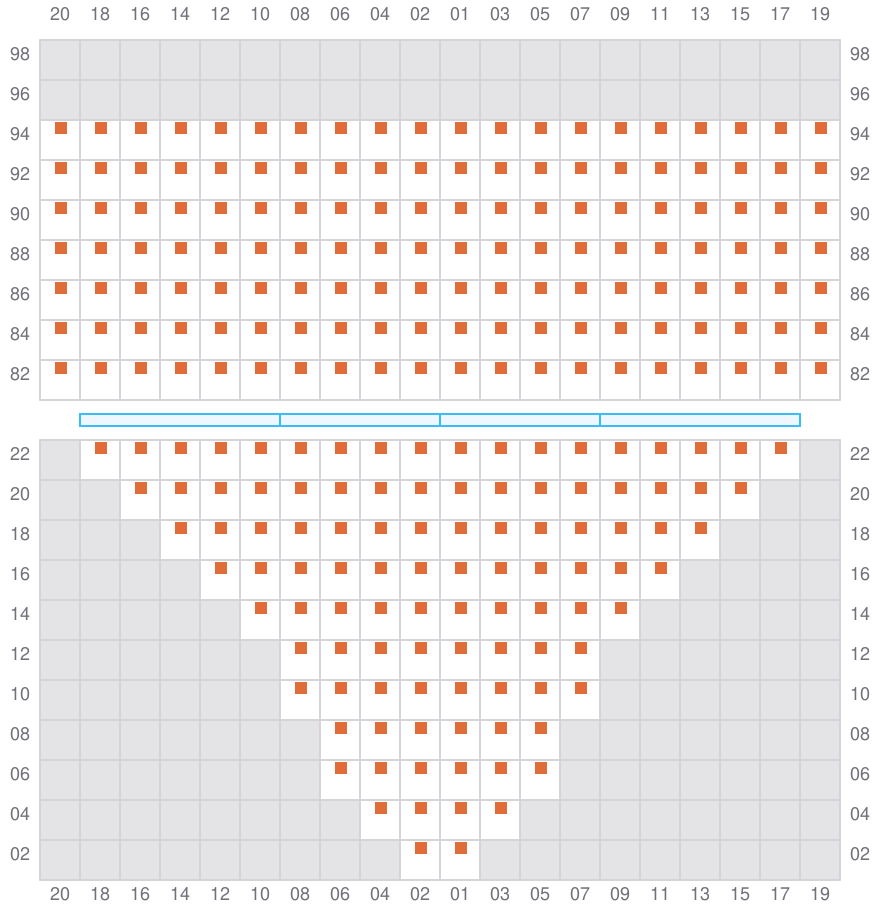

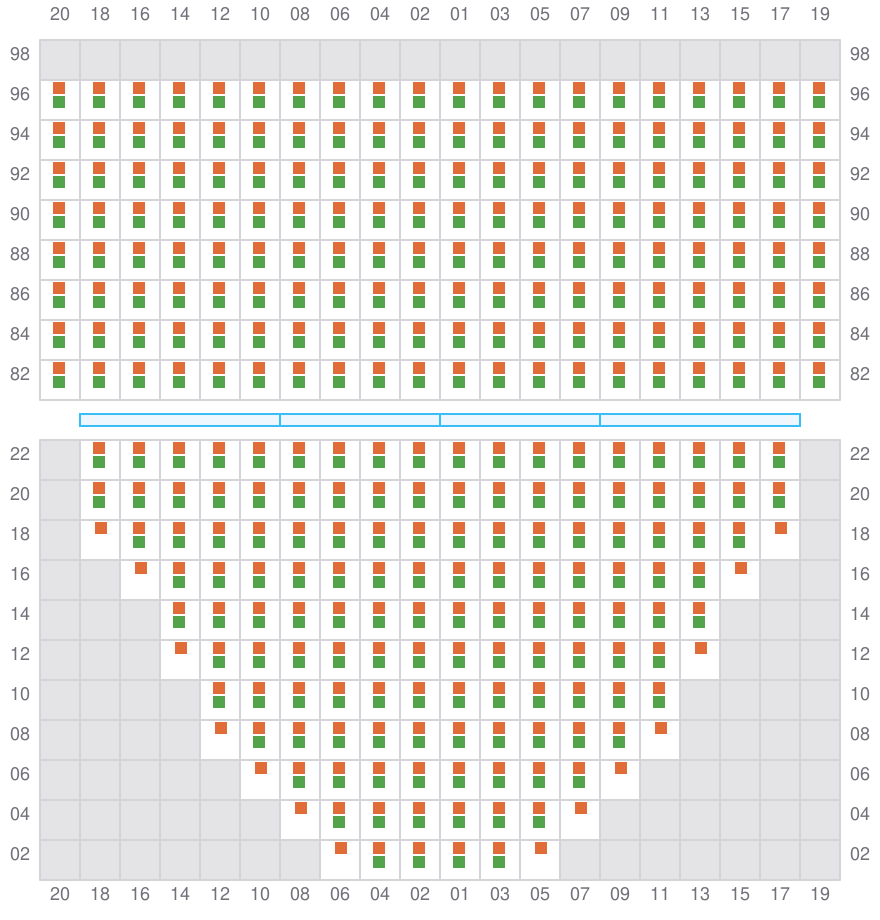

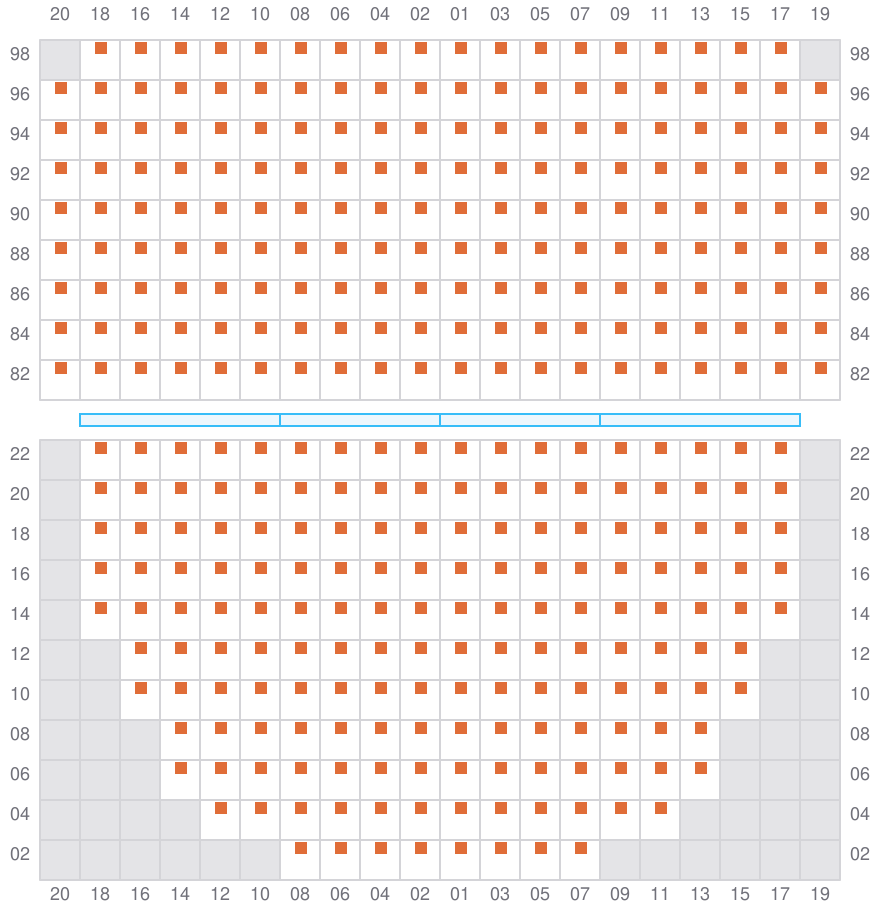

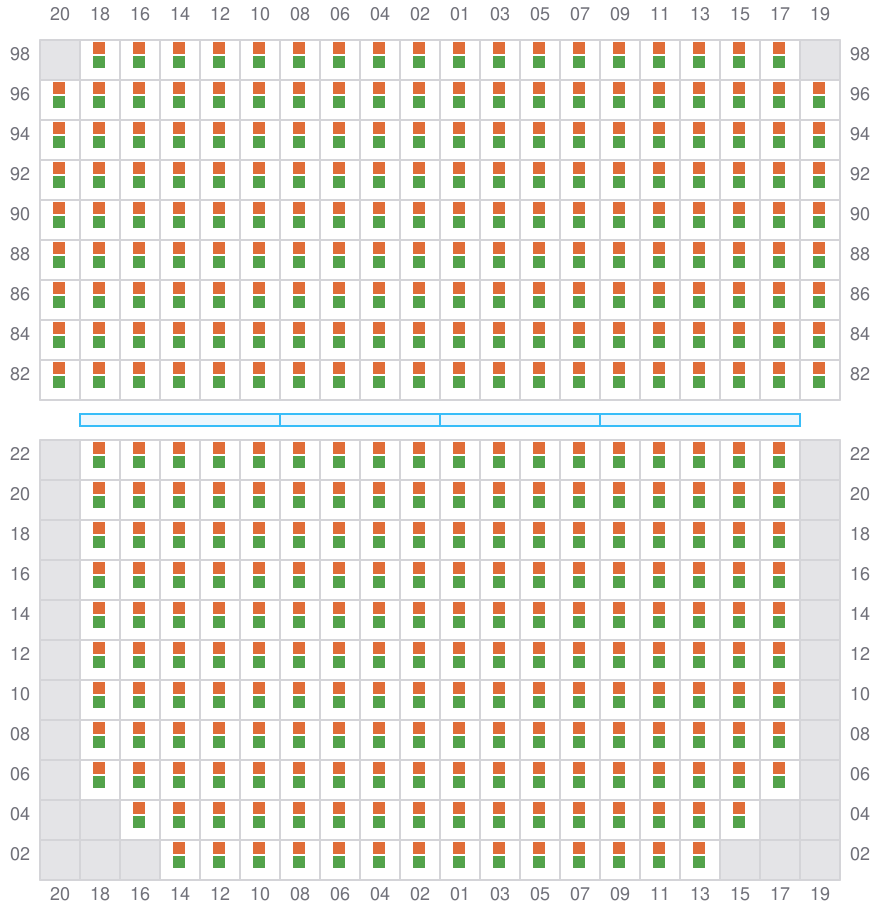

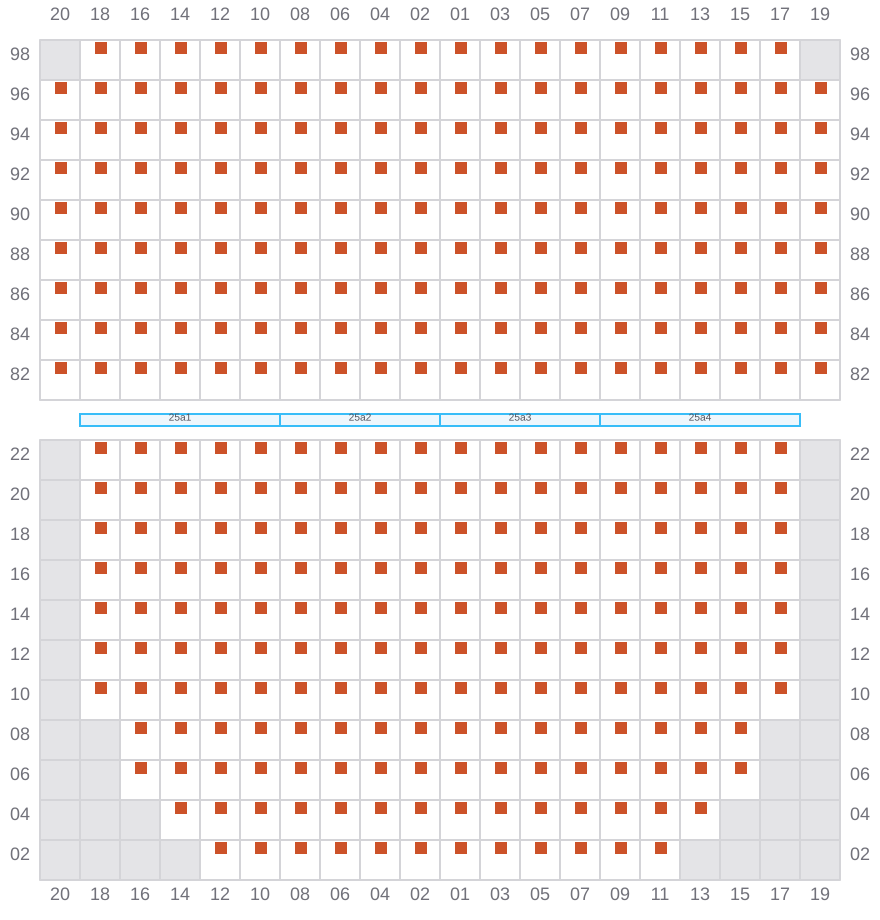

ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

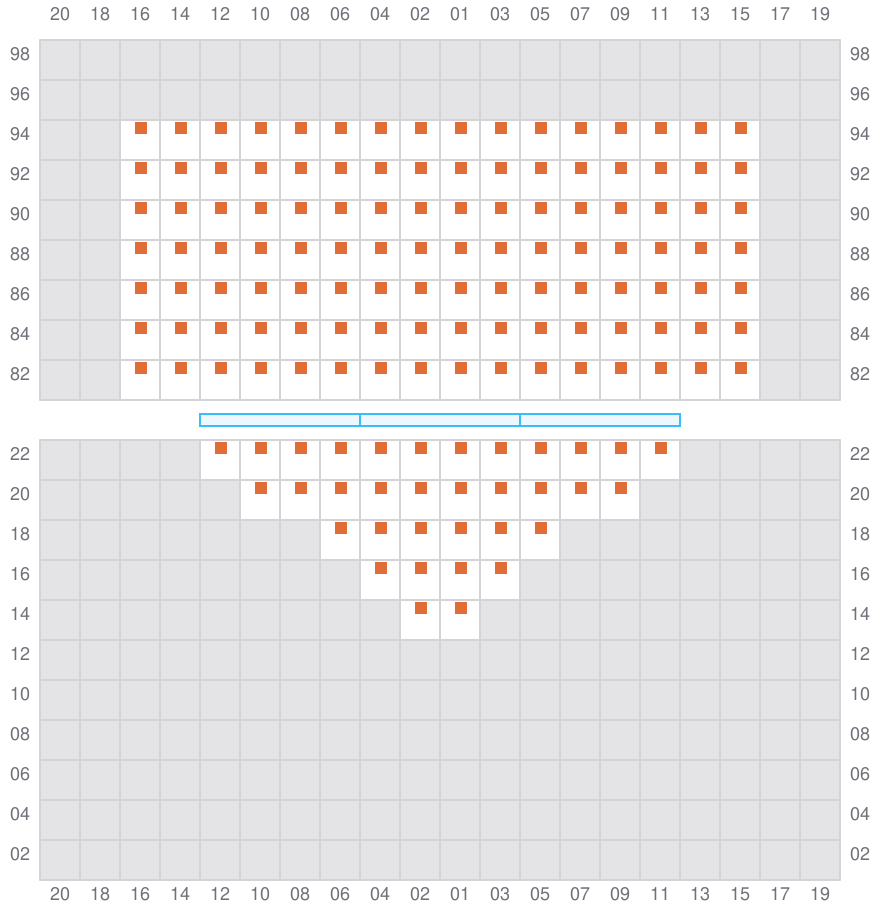

001
- →
003 (002)
- ←

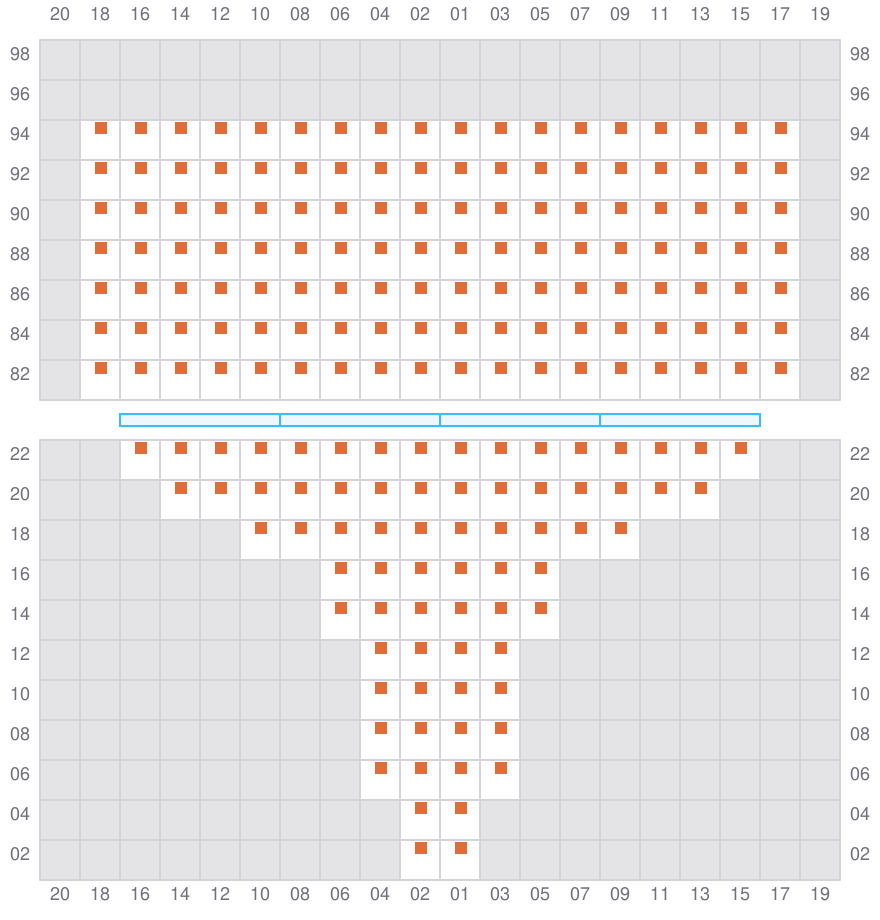

005
- →
007 (006)
- ←
009
- →
011 (010)
- ←
013
- →

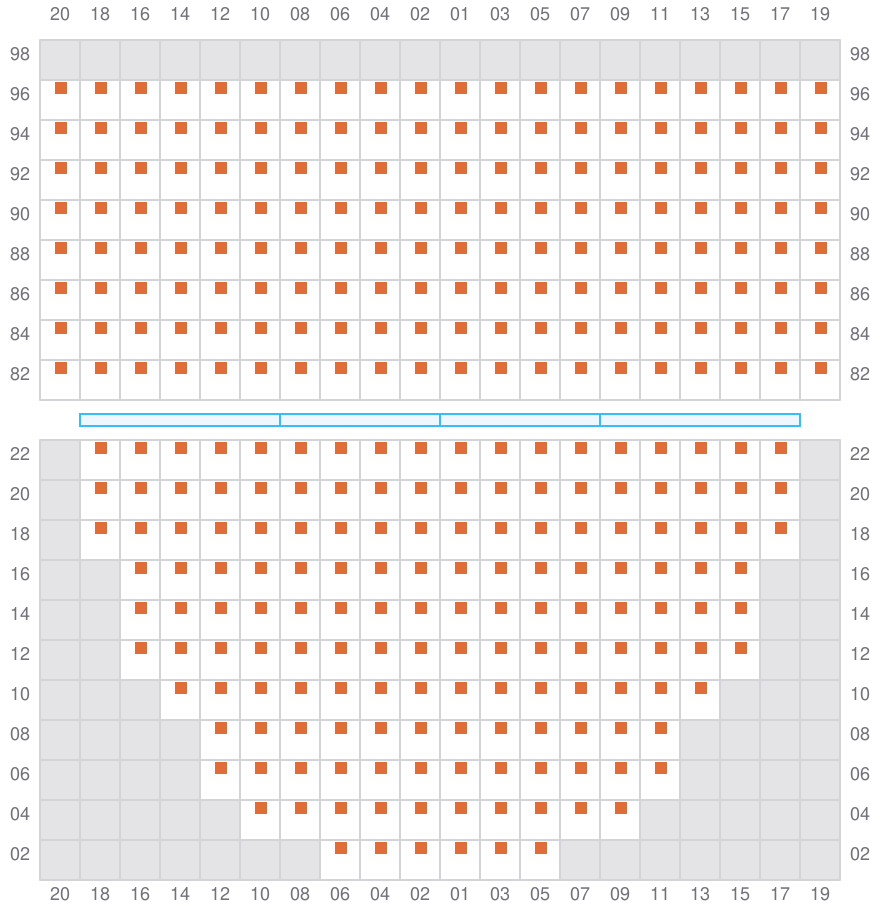

015 (014)
- ←
017
- →
019 (018)
- ←

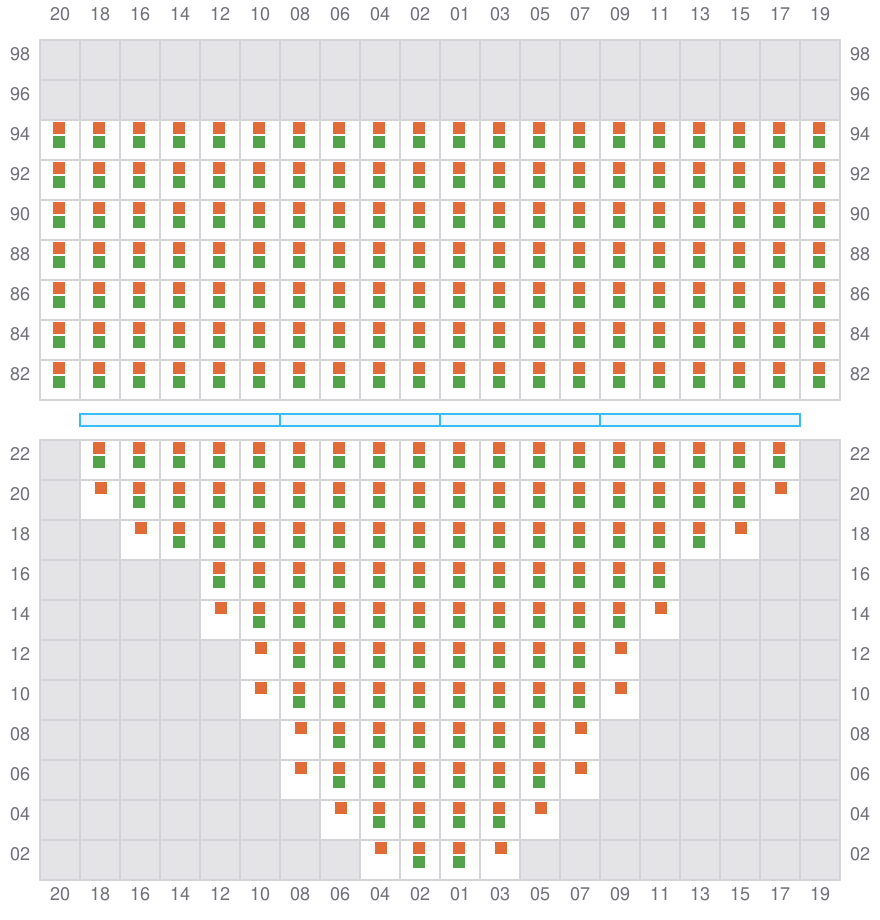

021
- →

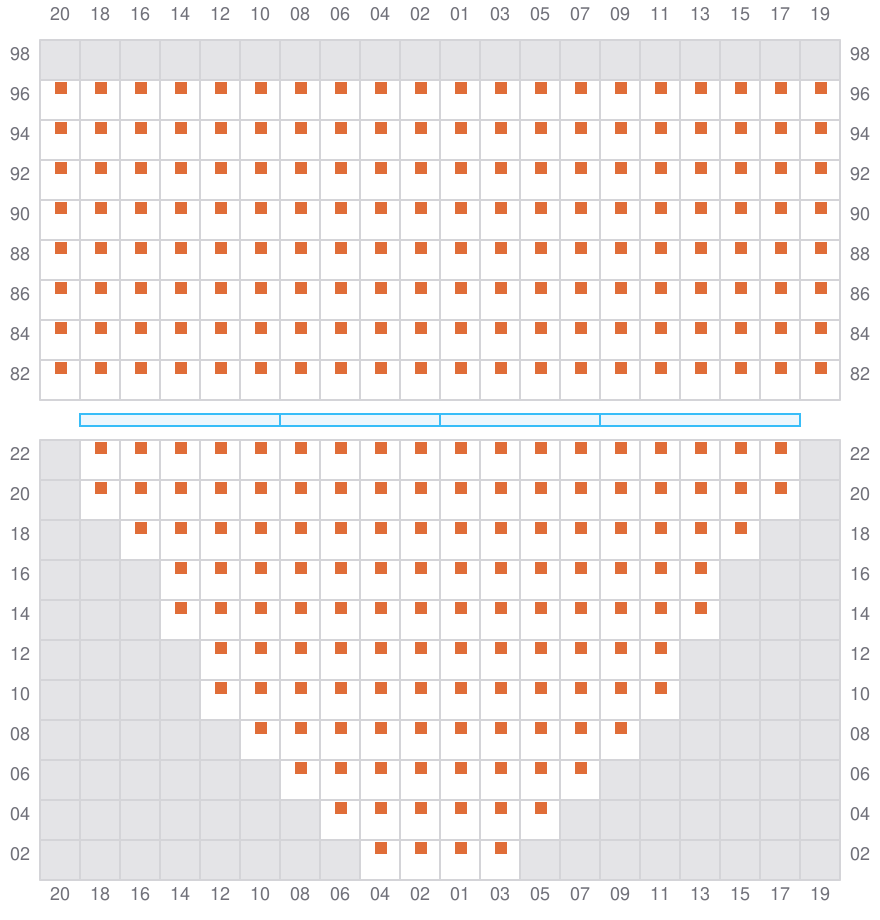

023 (022)
- ←
025
- →
027 (026)
- ←
029
- →

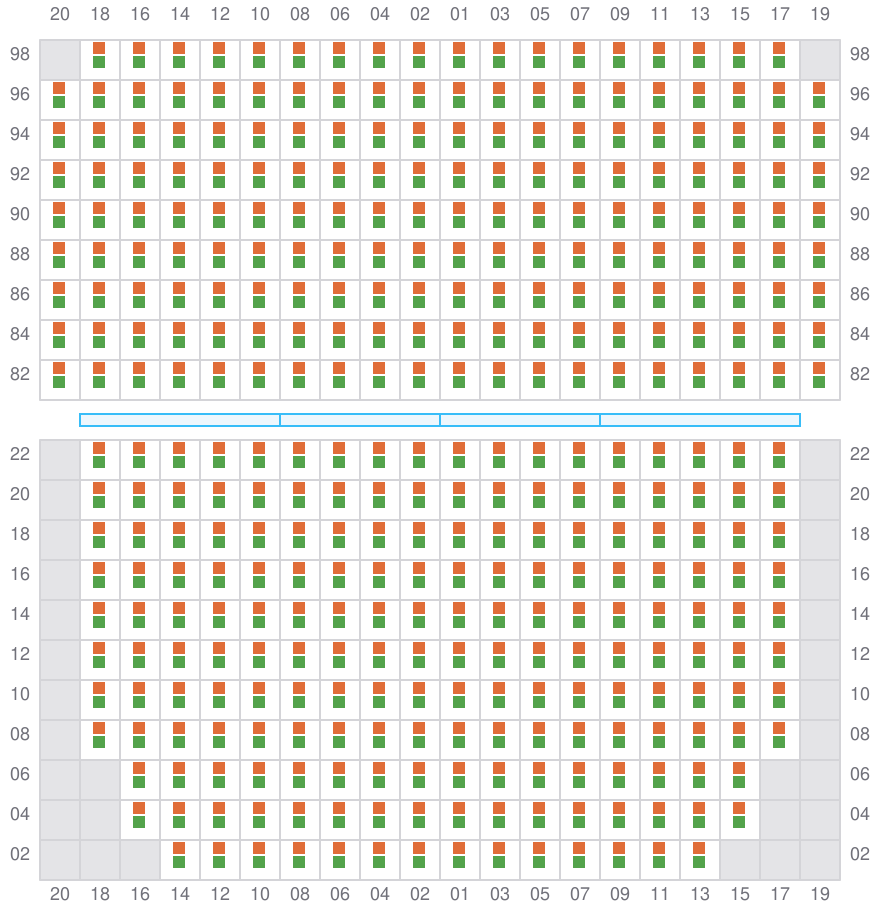

031 (030)
- ←
033
- →
035 (034)
- ←
037
- →

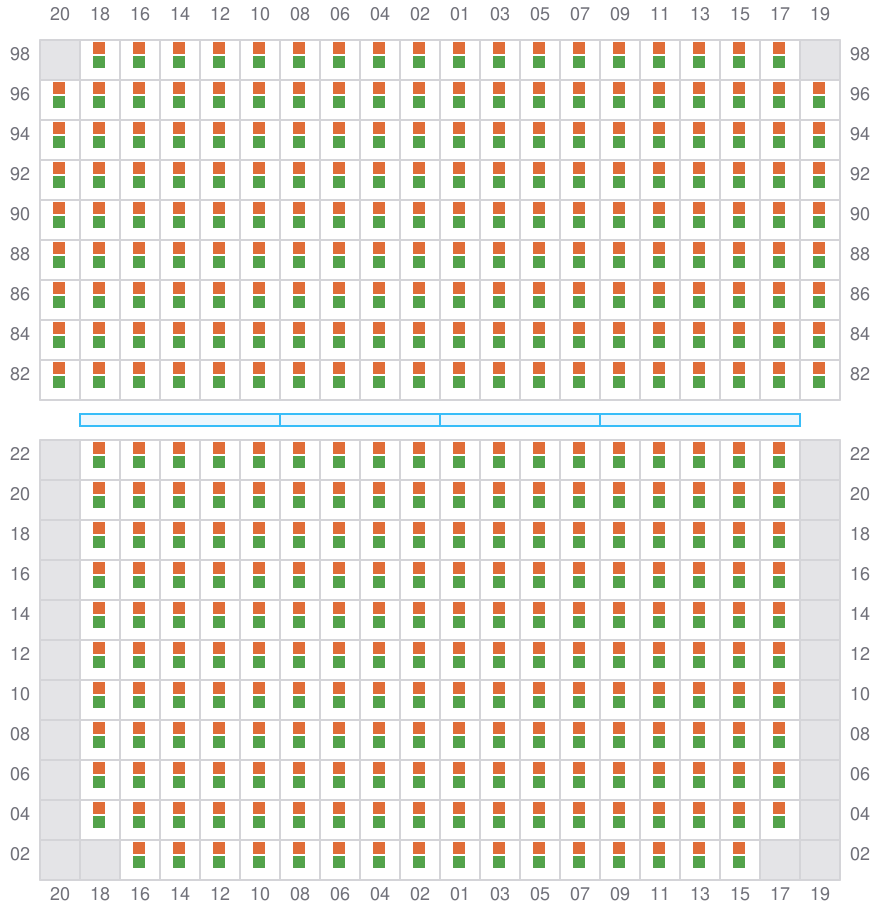

039 (038)
- ←
041
- →
043 (042)
- ←
045
- →
047 (046)
- ←
049
- →
051 (050)
- ←

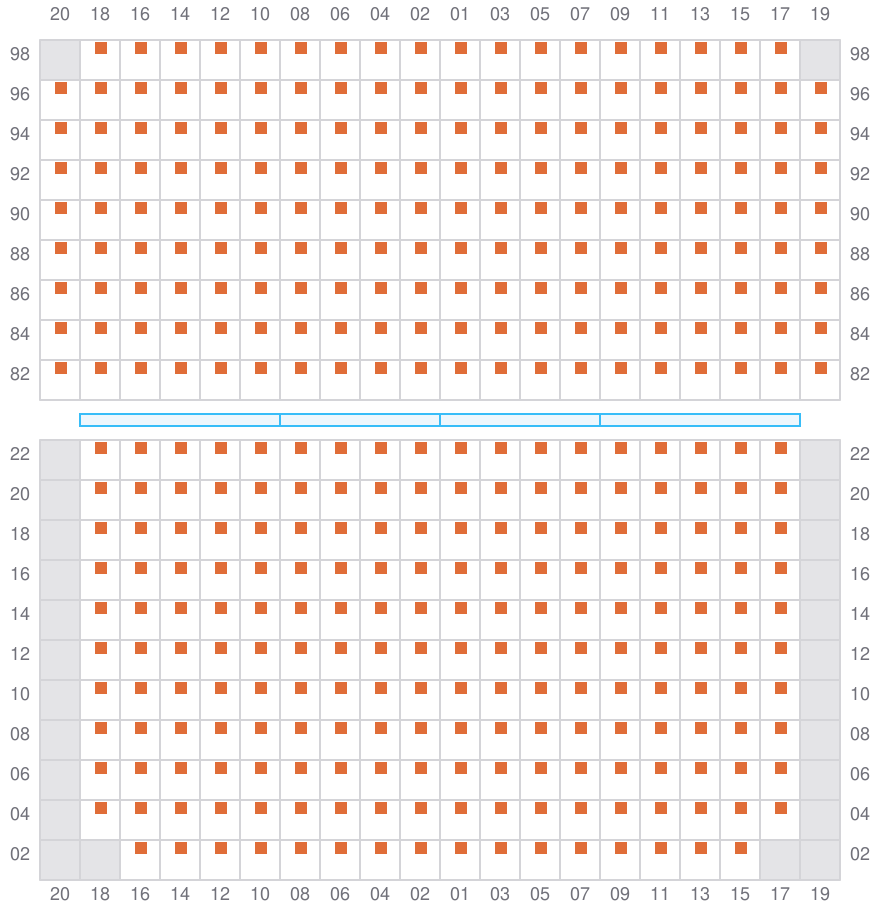

053
- →
055 (054)
- ←
057
- →

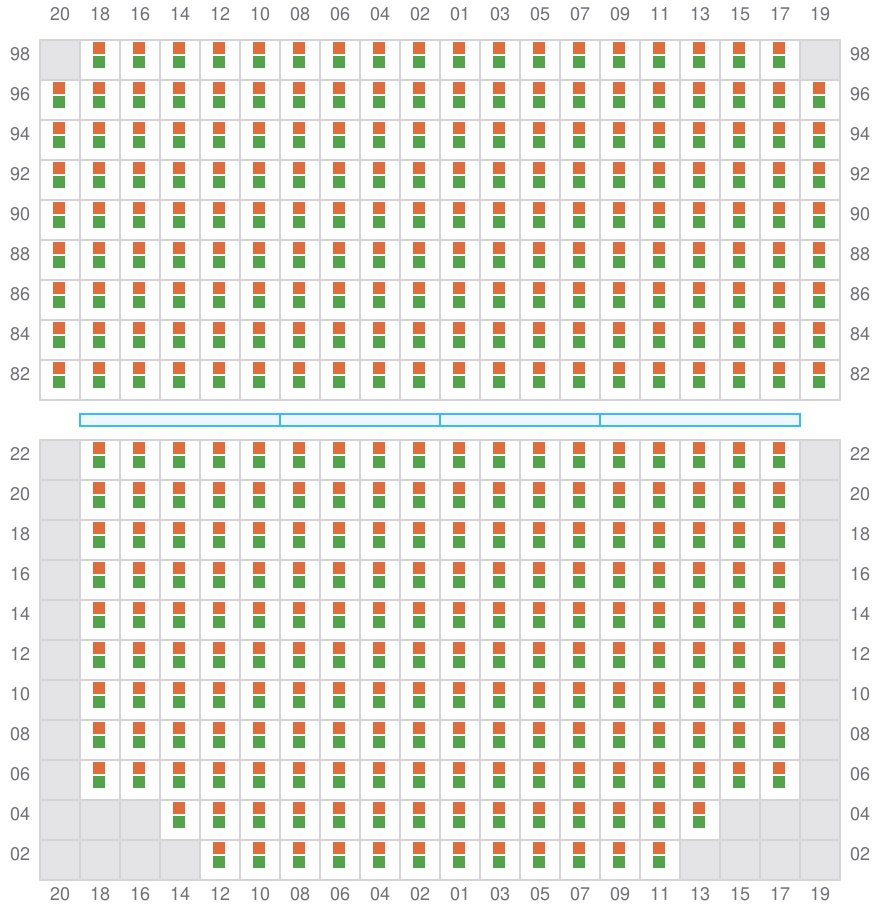

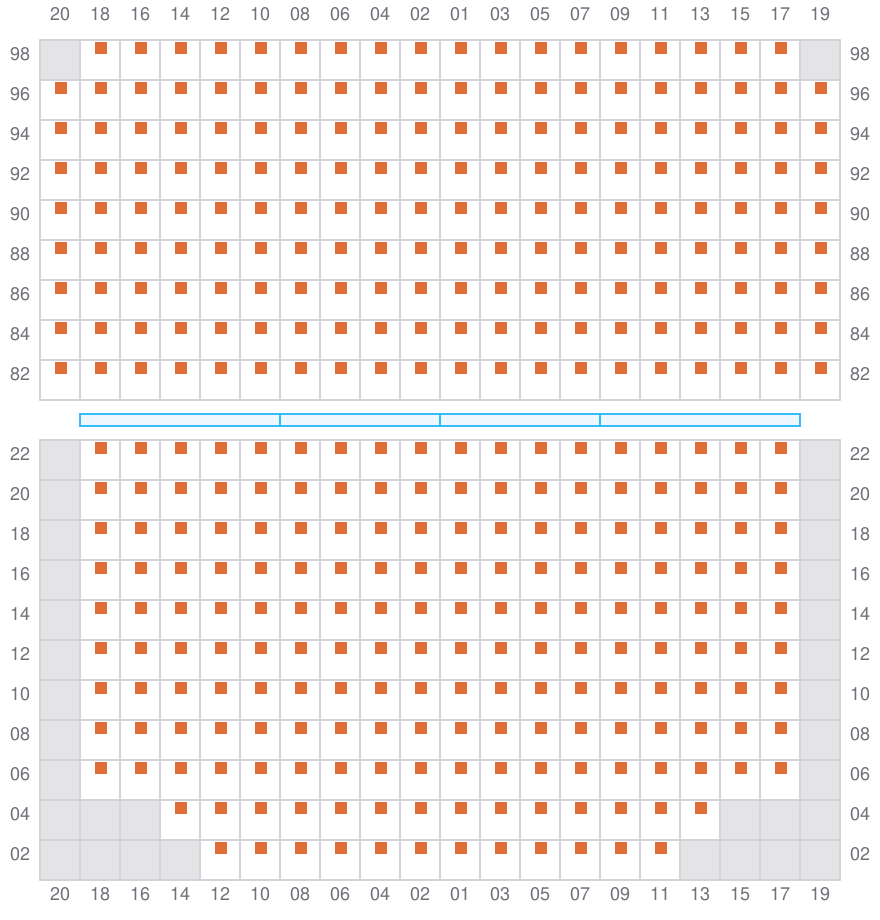

059 (058)
- ←
061
- →
063 (062)
- ←
065
- →

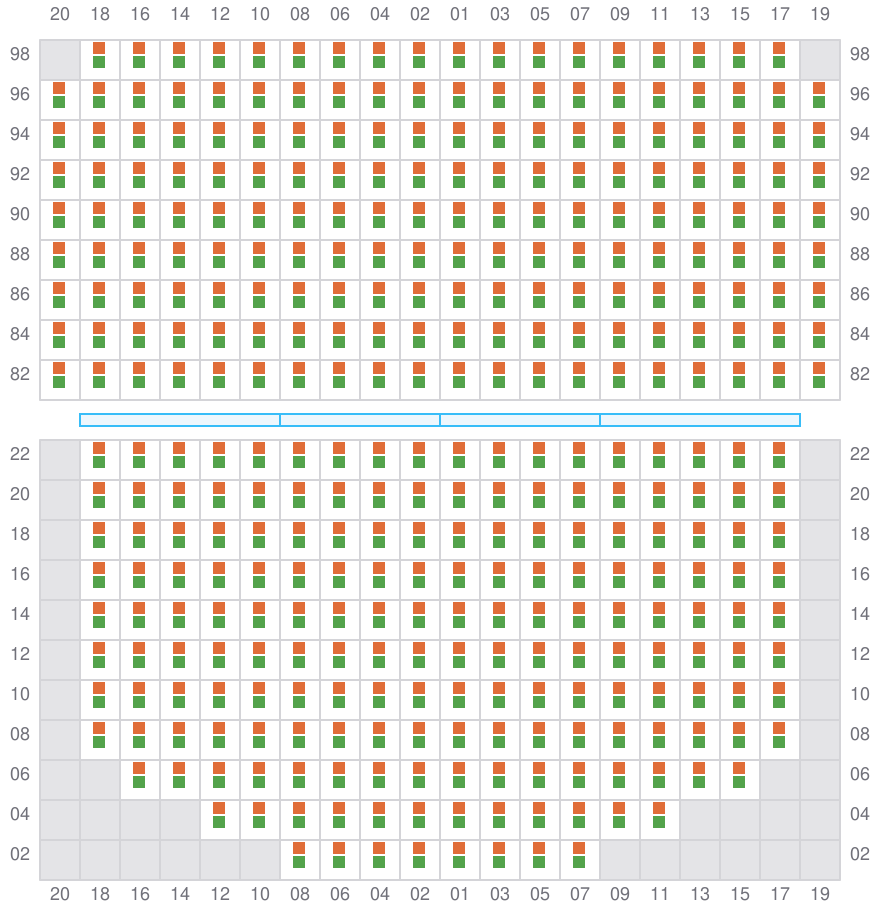

067 (066)
- ←
069
- →
071 (070)
- ←
073
- →

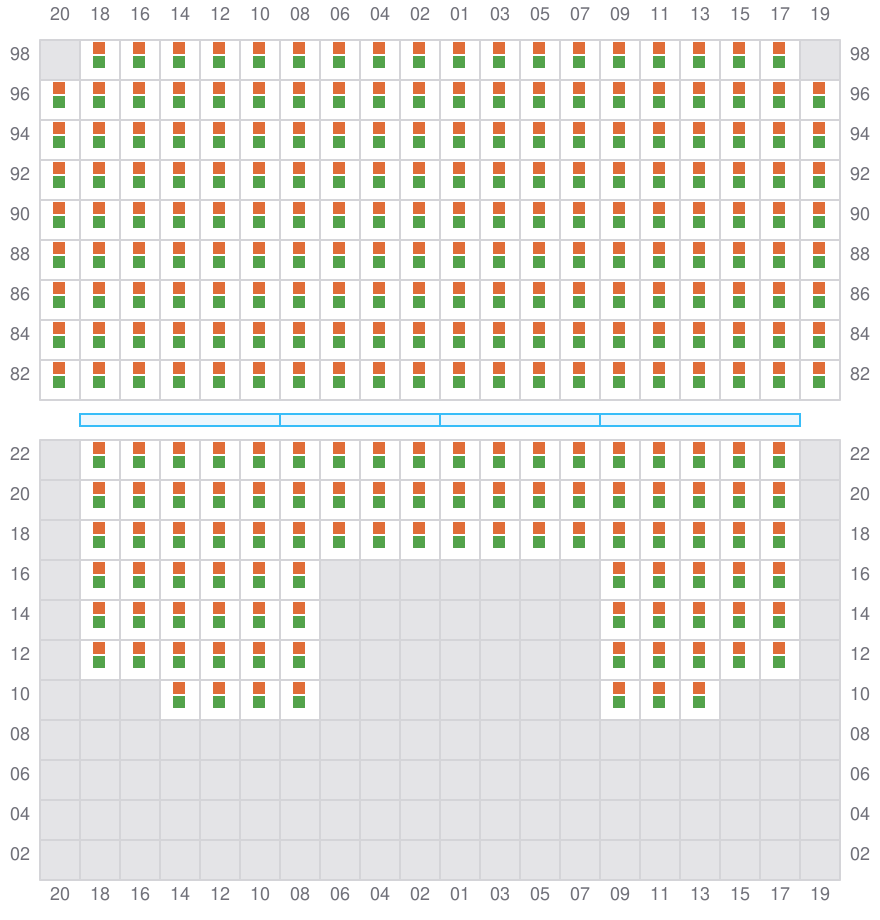

075 (074)
- ←
077
- →
079 (078)
- ←

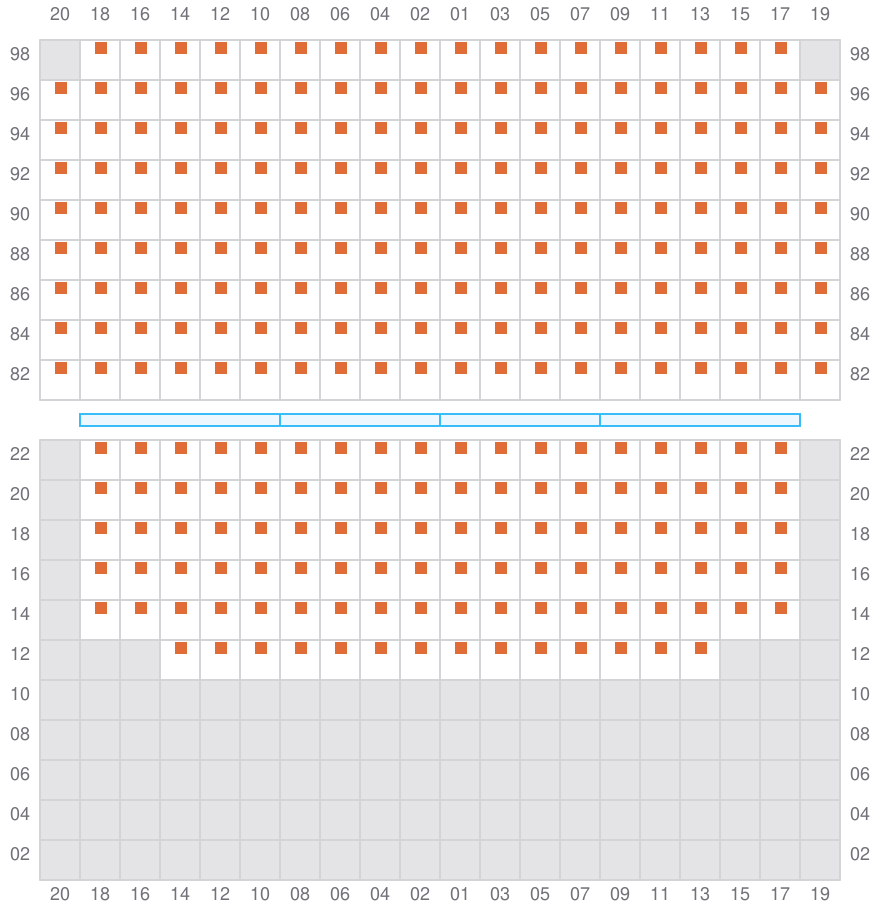

081
- →

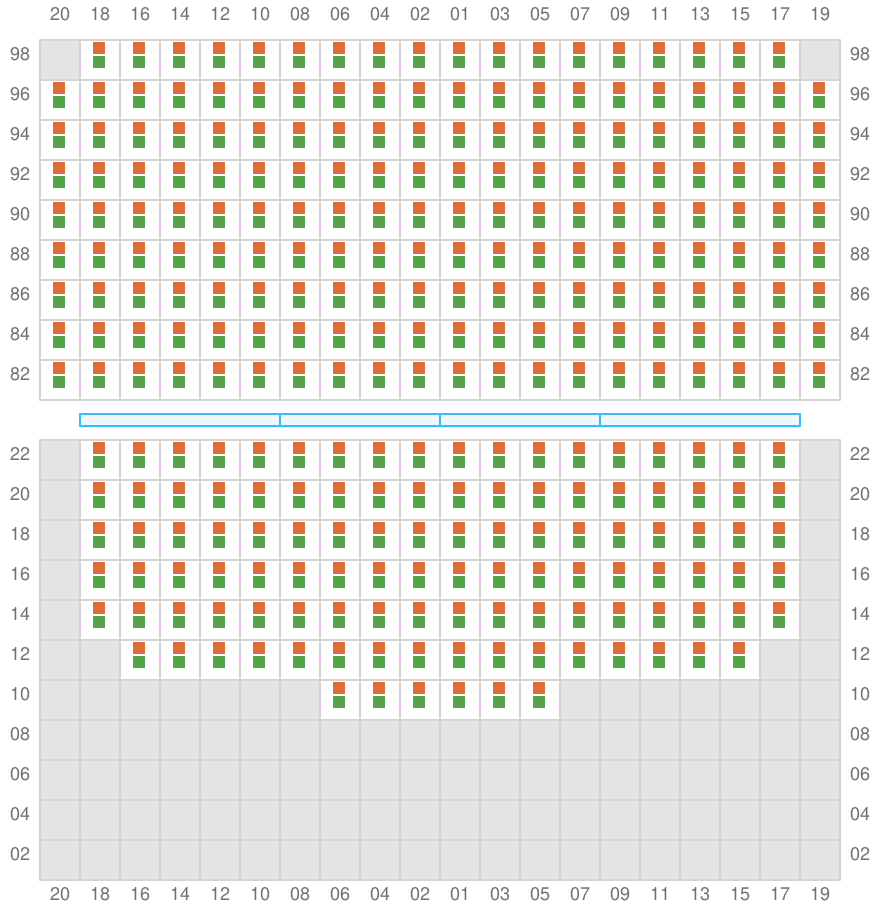

083 (082)
- ←

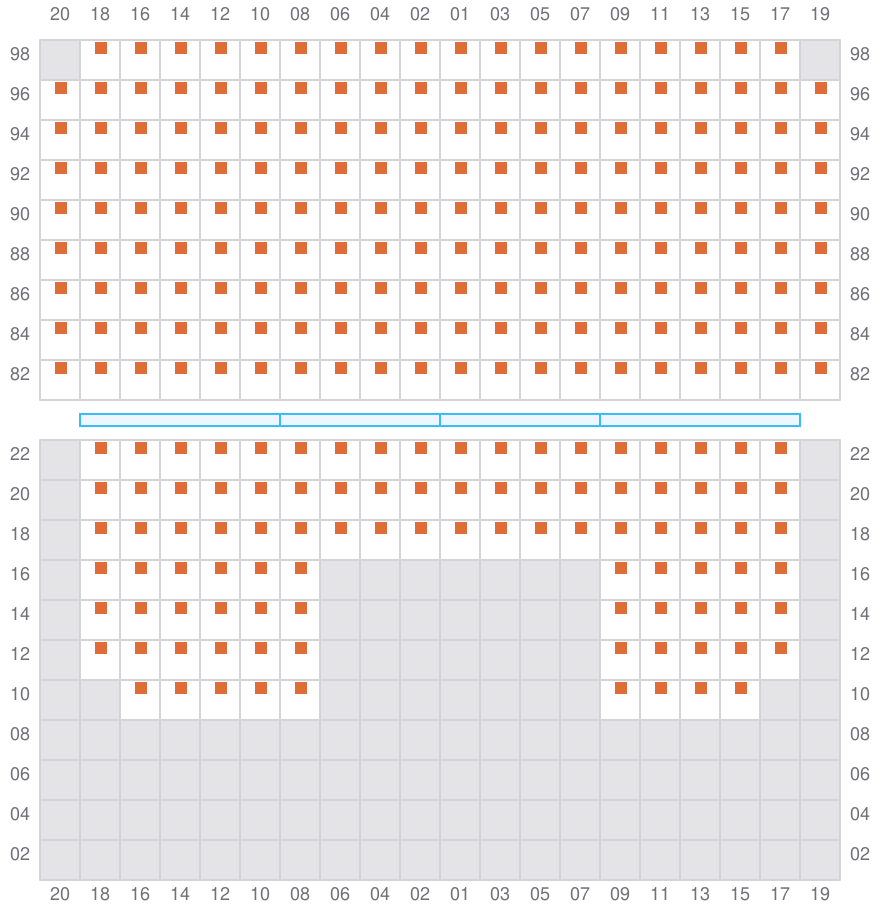

085 (086)
- → / ?
