THALASSA PATRIS
9665607 | 5LBX9 | EVG by ************************** Last update: Wed Jun 07 2023
General Info
Ship Name:THALASSA PATRIS
IMO Code:9665607
Call Sign:5LBX9
Line Operator:EVG
Class Name for Sister Ships:EPT
Year Built:2013
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:
Also Known As...:-
Size Summary
ISO Bays:087
Max ISO Row:20
Center Line Row:No
Max Above ISO Tier:98
Min Above ISO Tier:82
Max Below ISO Tier:22
Min Below ISO Tier:02
Total TEU:13,808
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

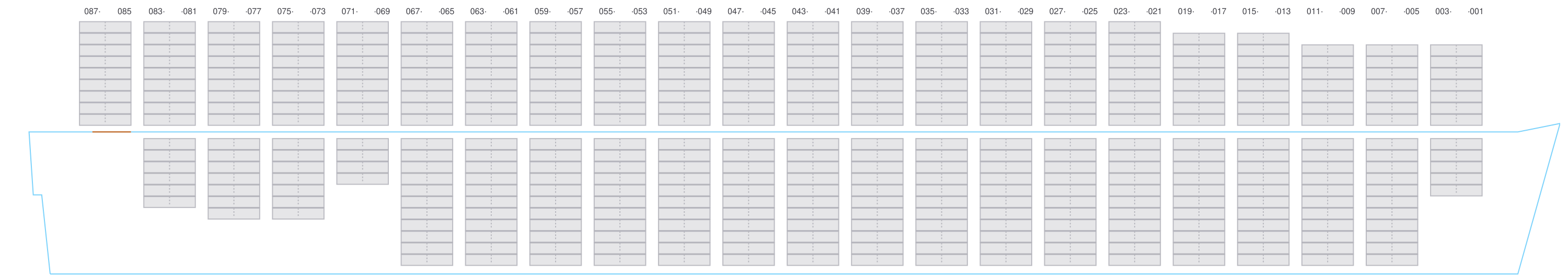

Side View
Hatch-Covers View

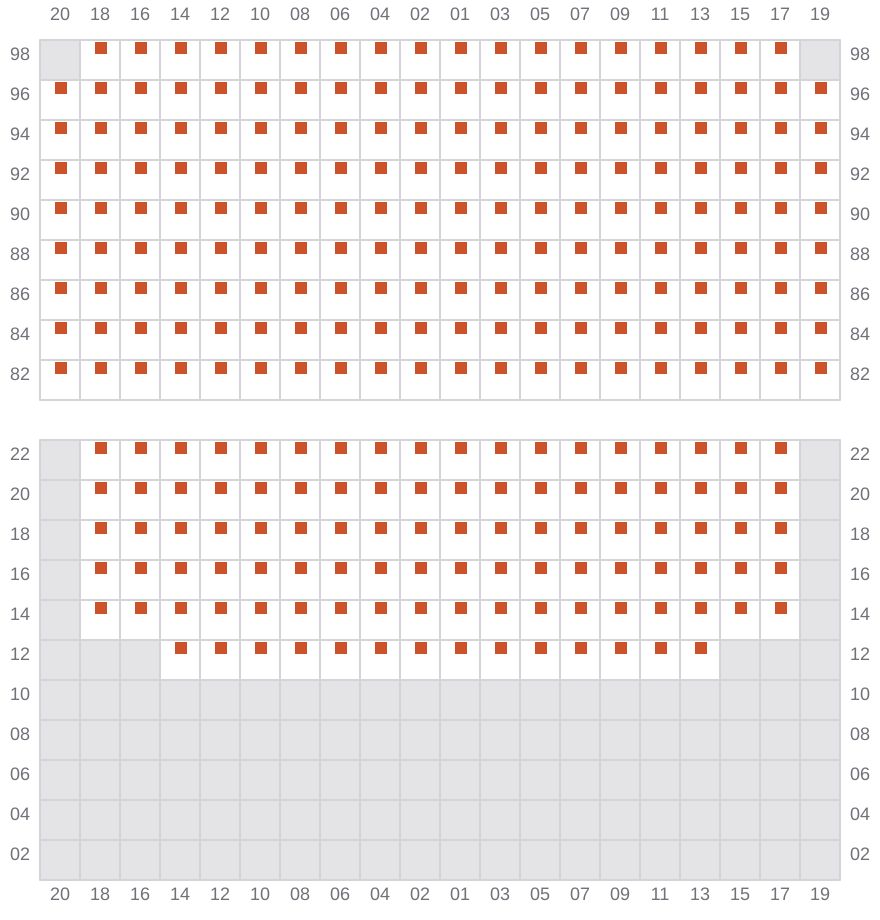

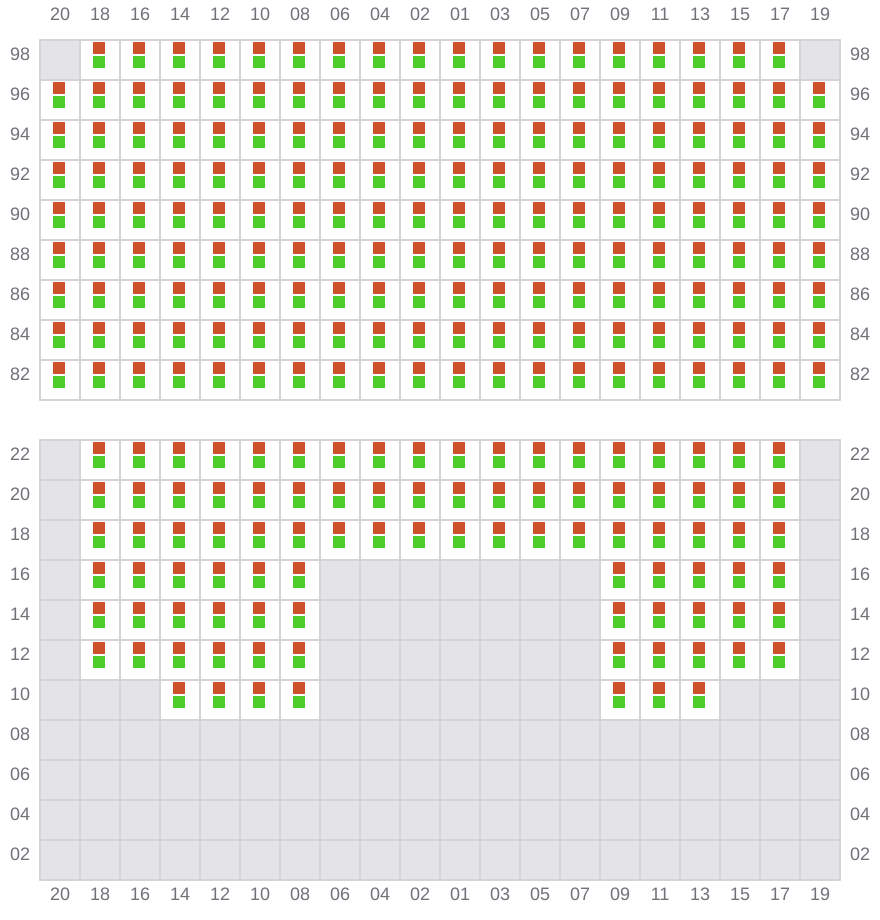

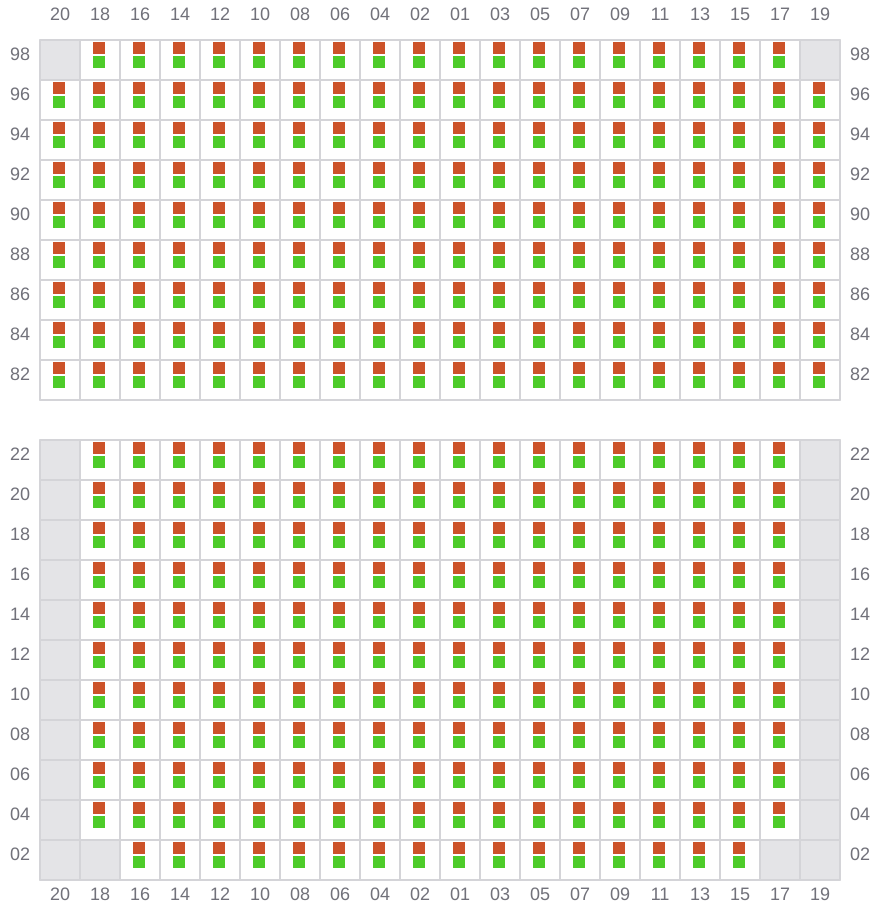

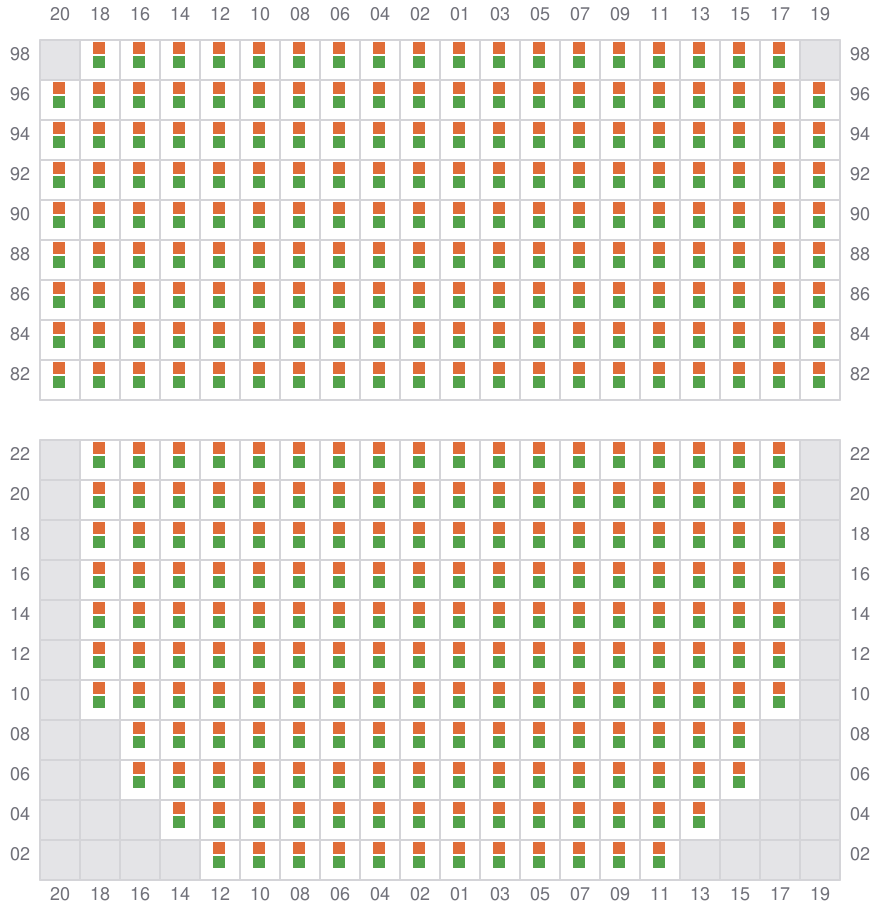

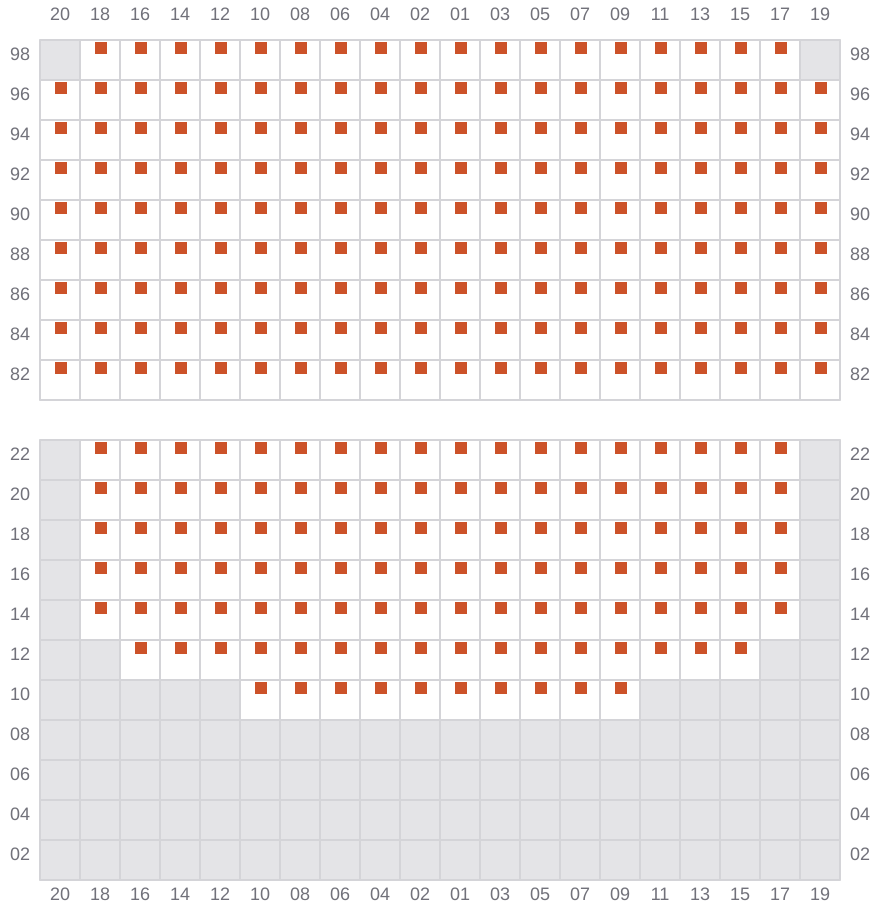

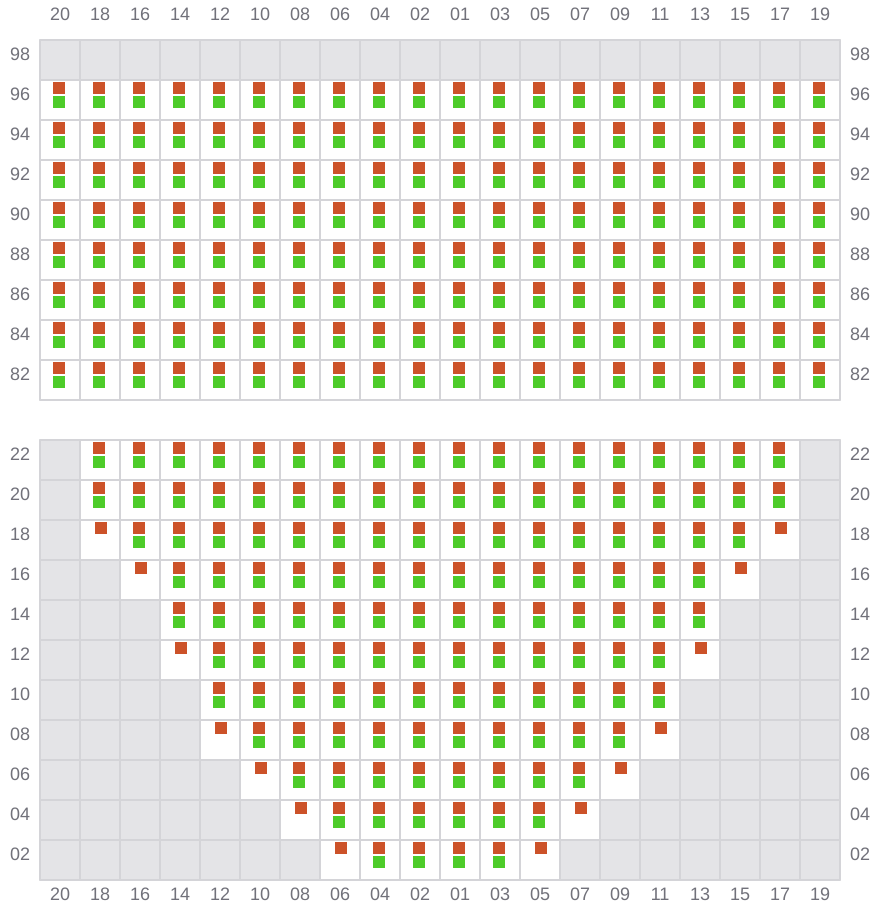

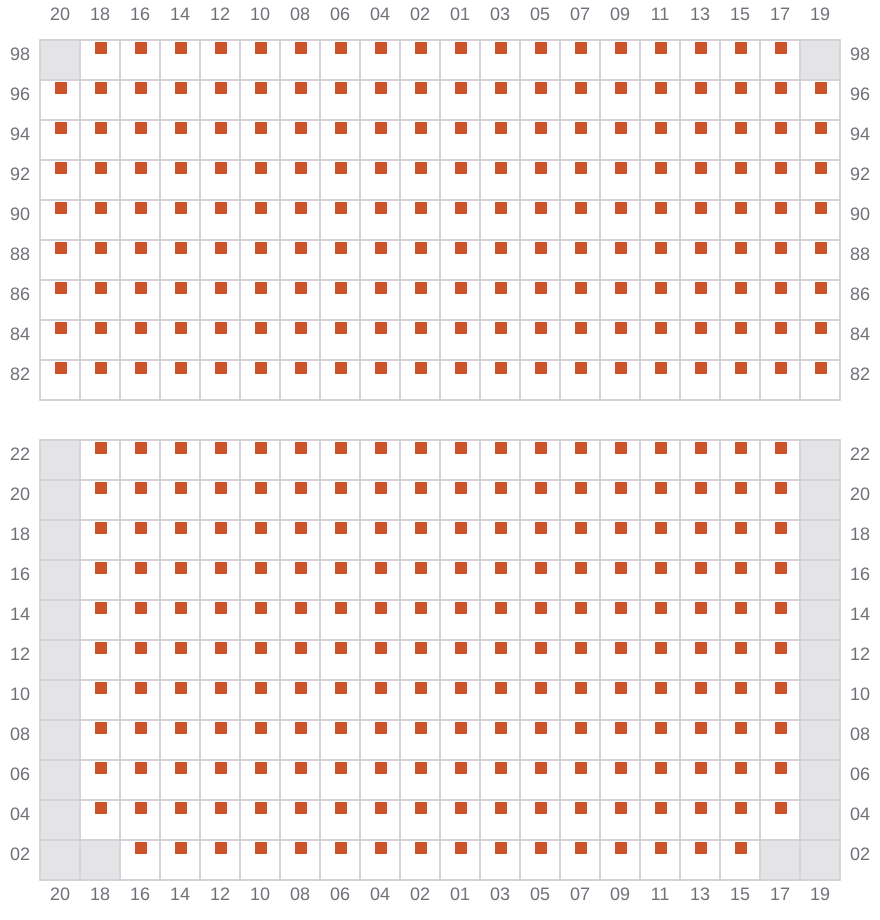

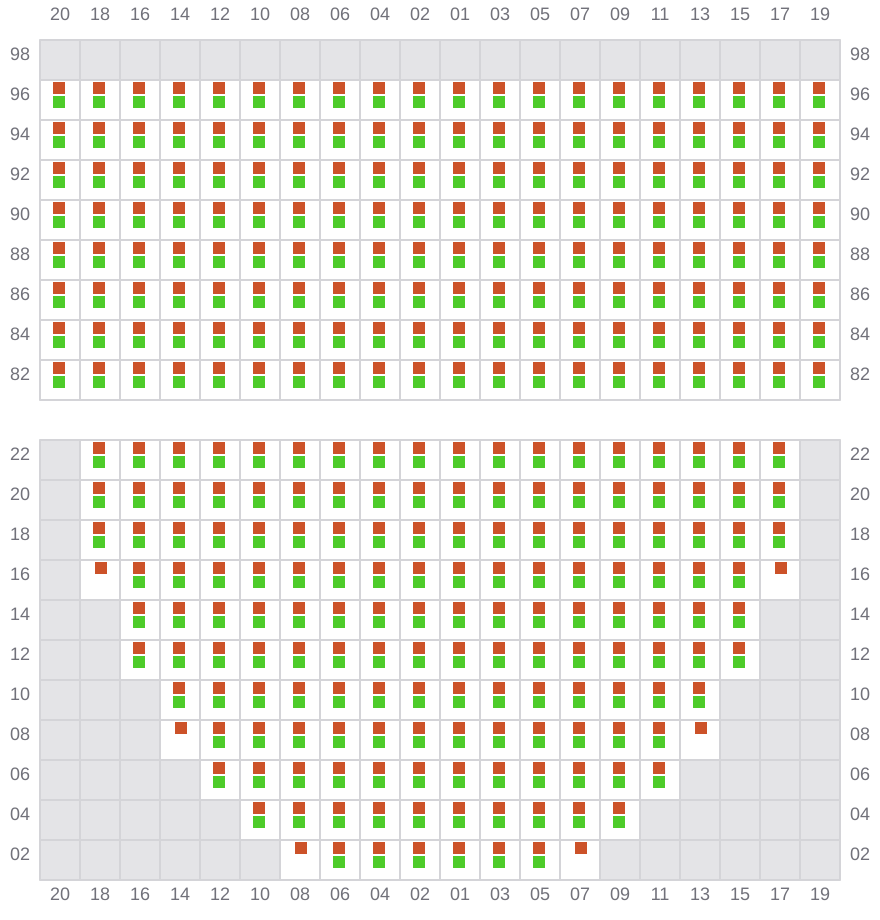

ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

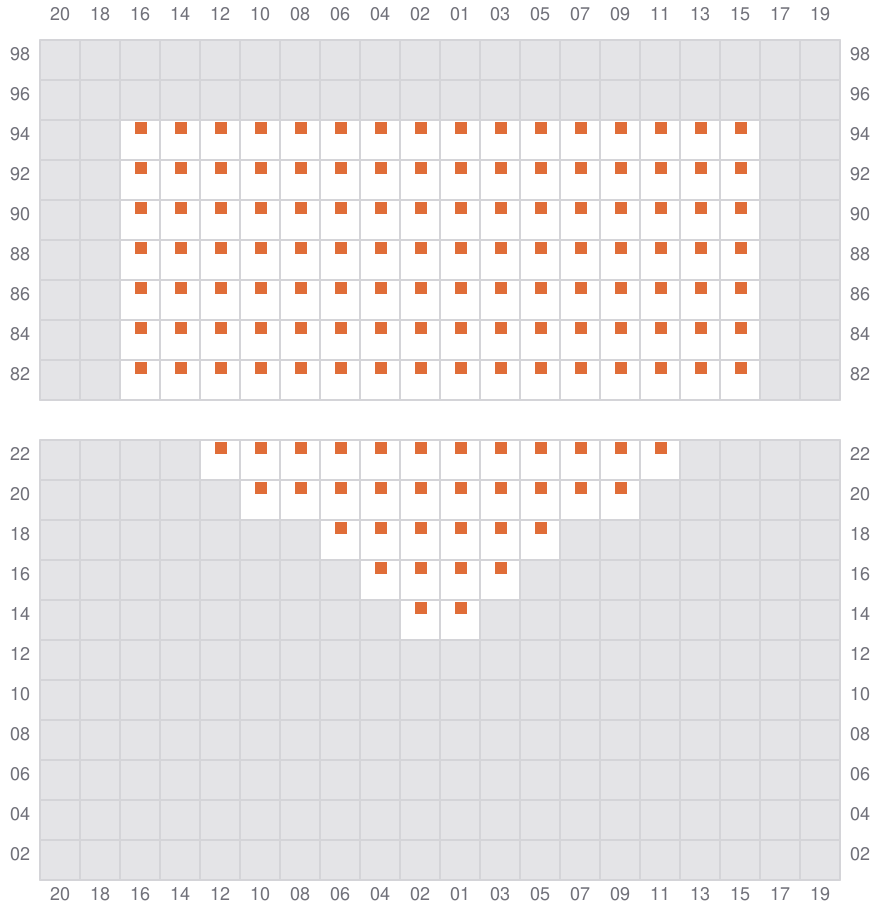

001
- →

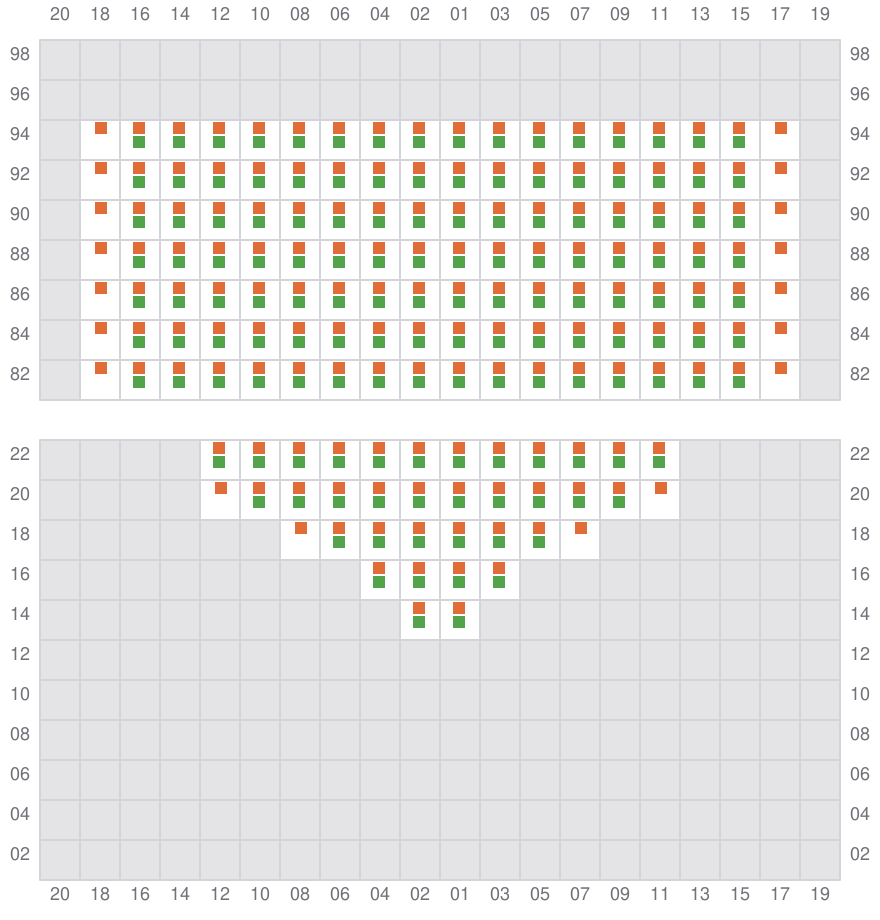

003 (002)
- ←

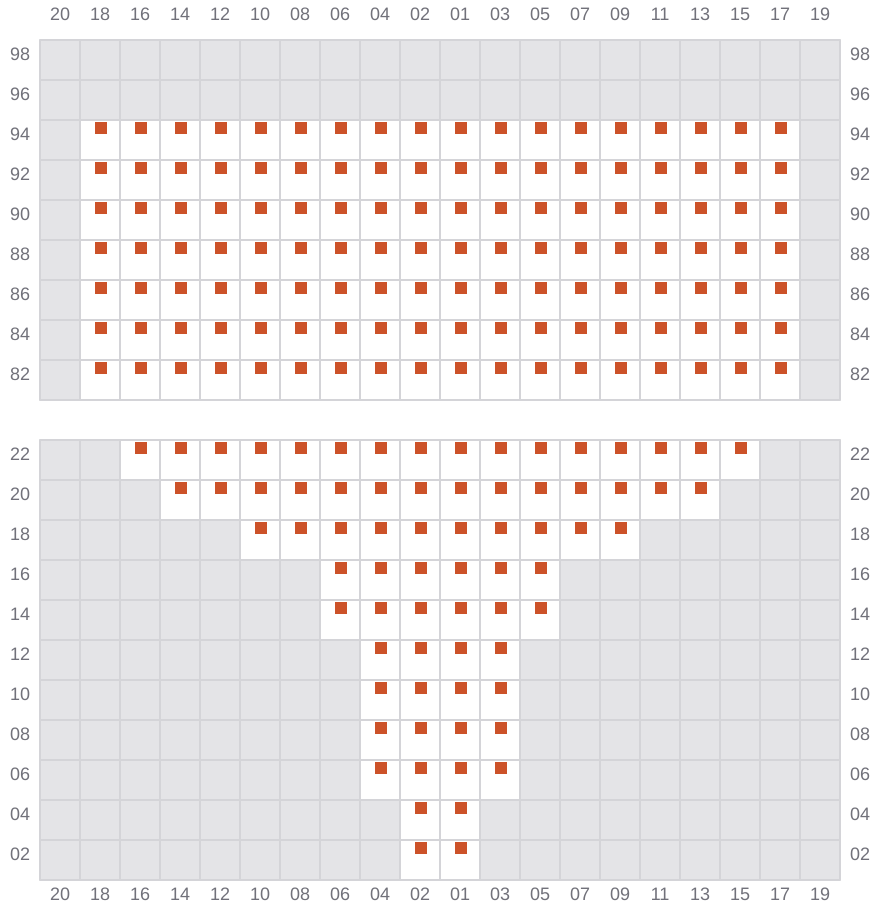

005
- →
007 (006)
- ←

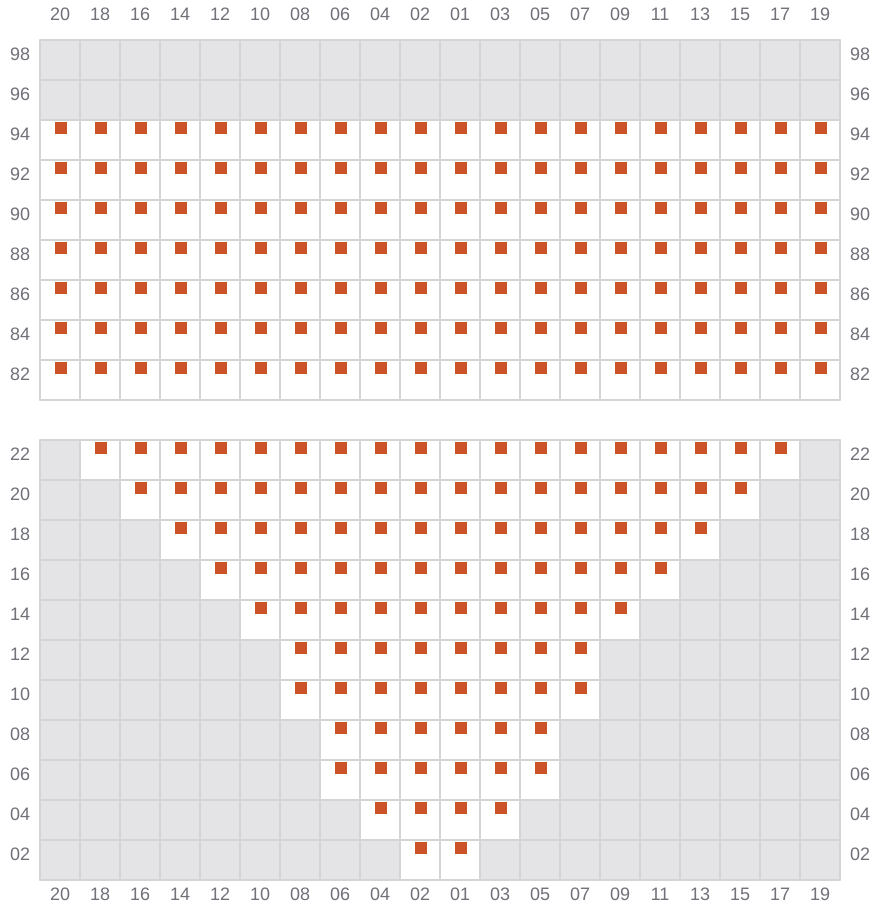

009
- →
011 (010)
- ←

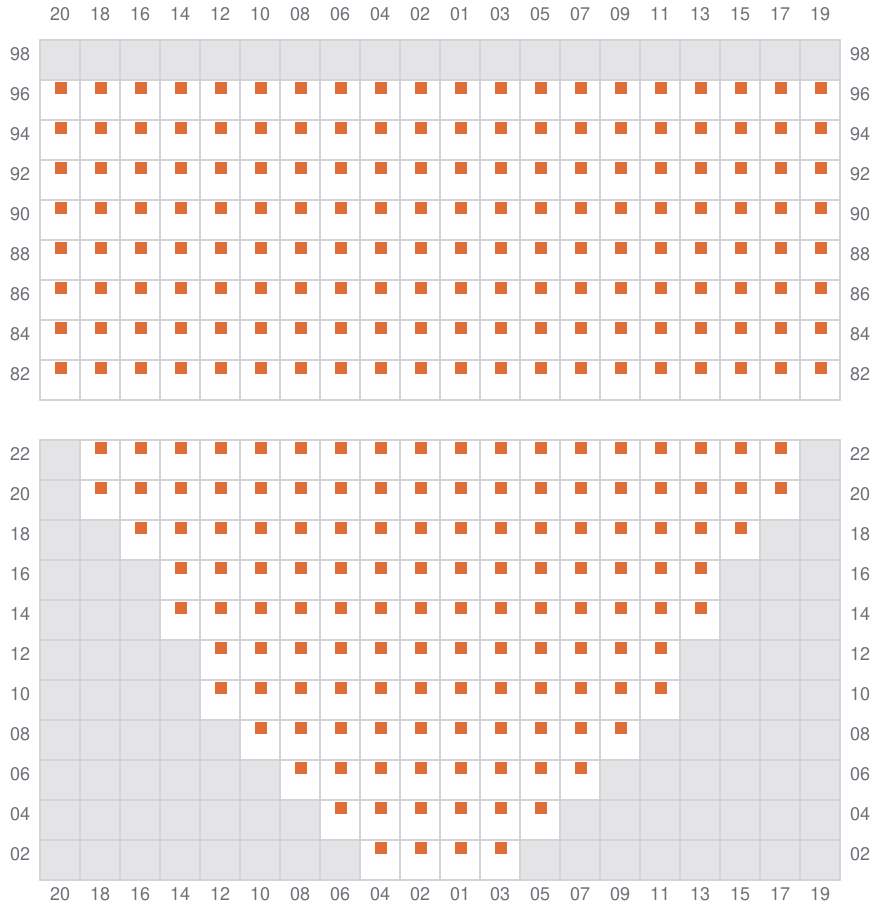

013
- →
015 (014)
- ←
017
- →
019 (018)
- ←

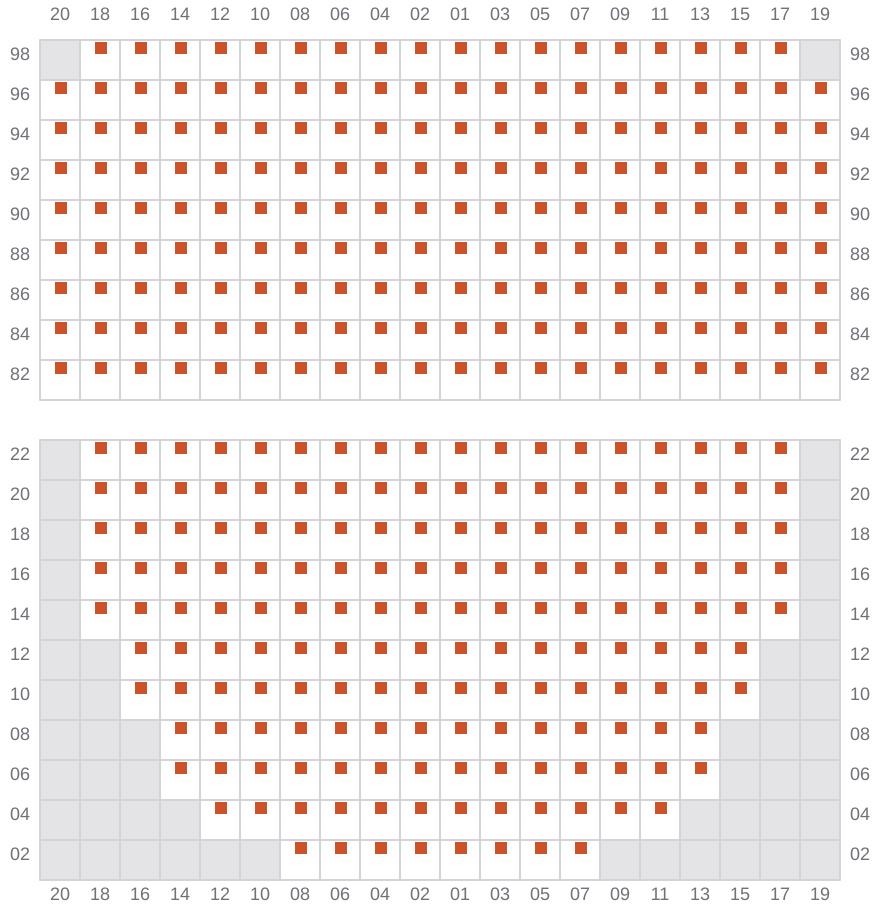

021
- →

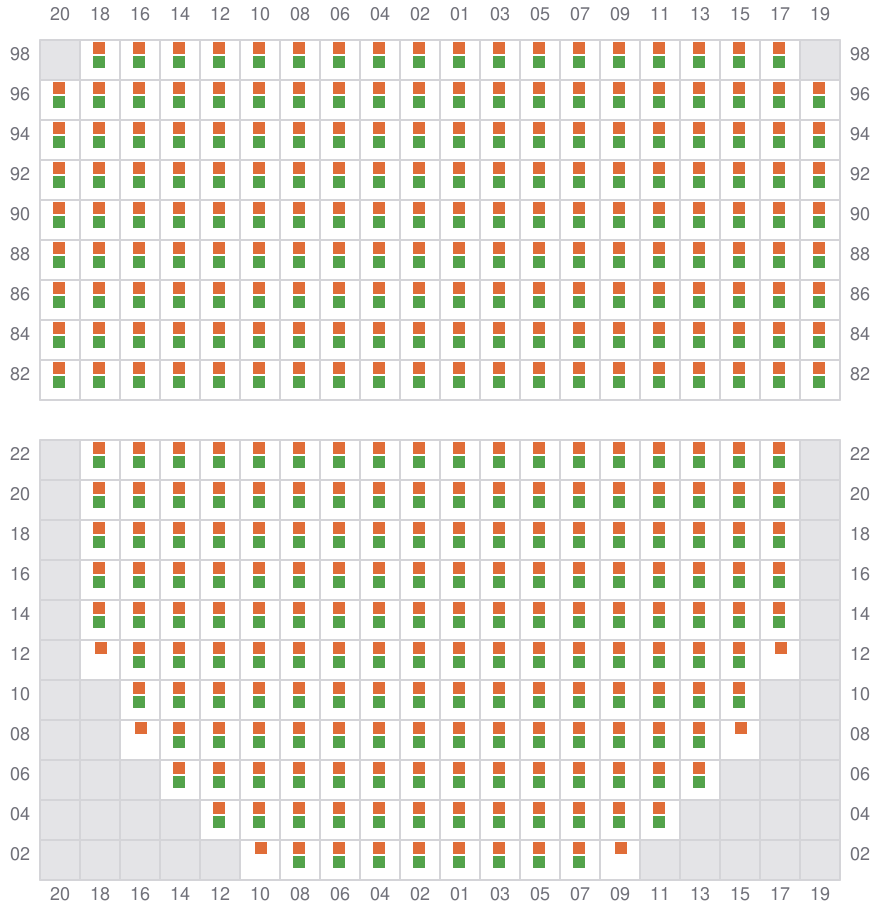

023 (022)
- ←

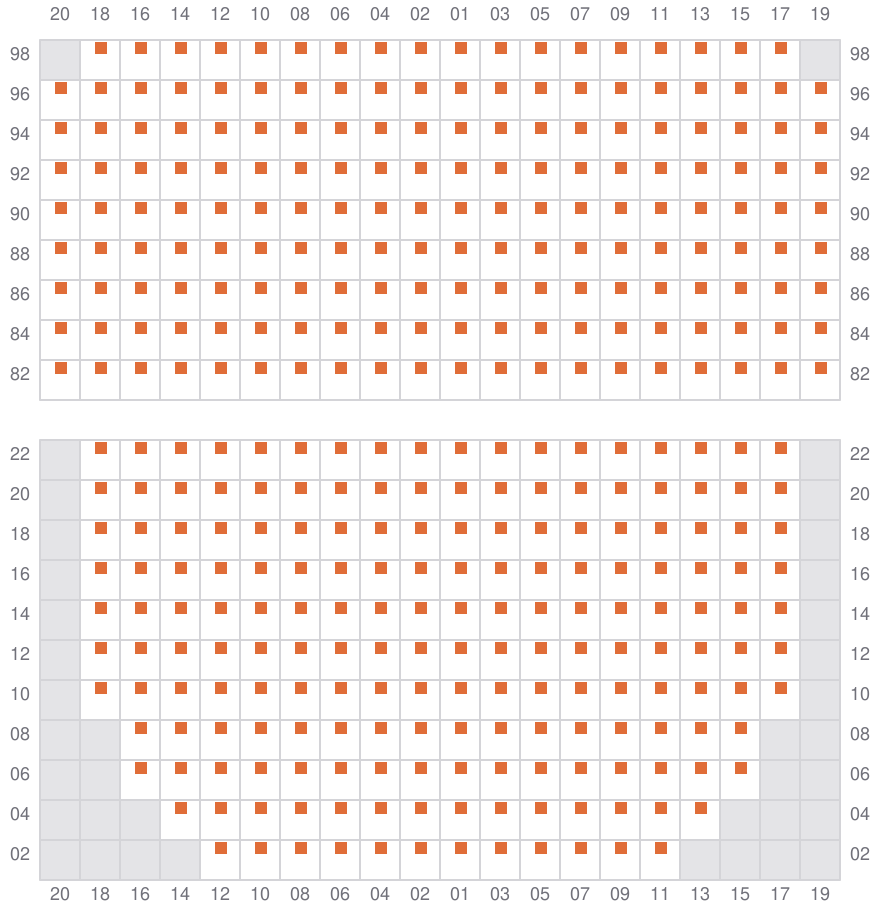

025
- →
027 (026)
- ←

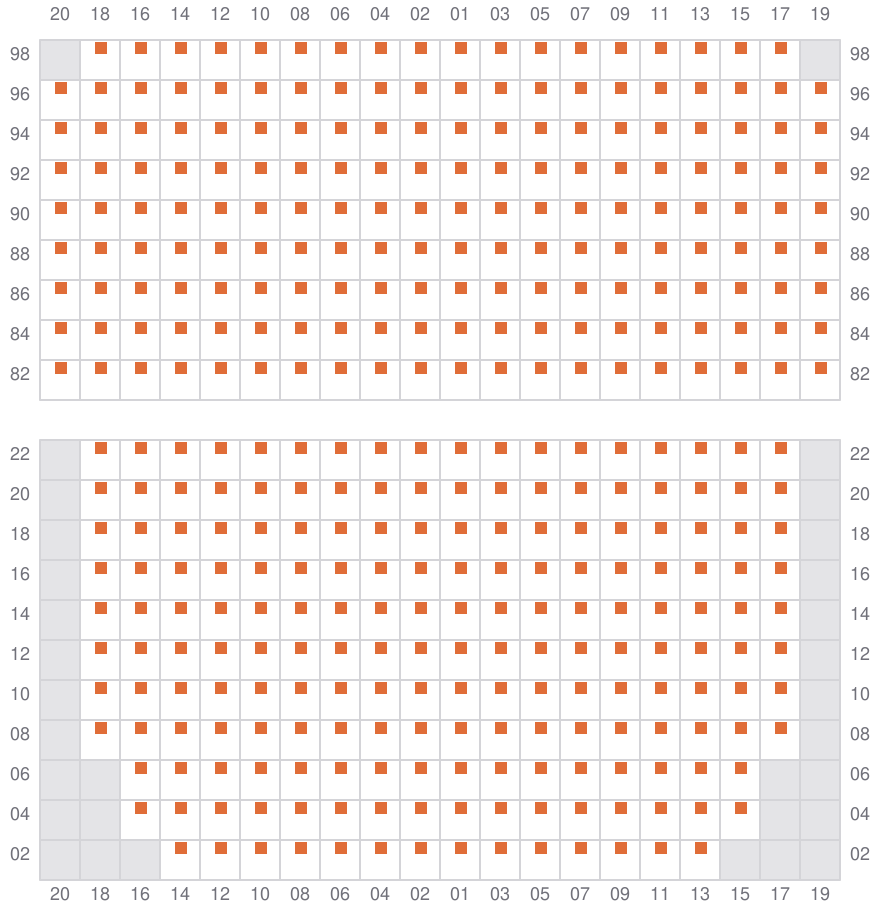

029
- →
031 (030)
- ←
033
- →
035 (034)
- ←
037
- →
039 (038)
- ←
041
- →
043 (042)
- ←

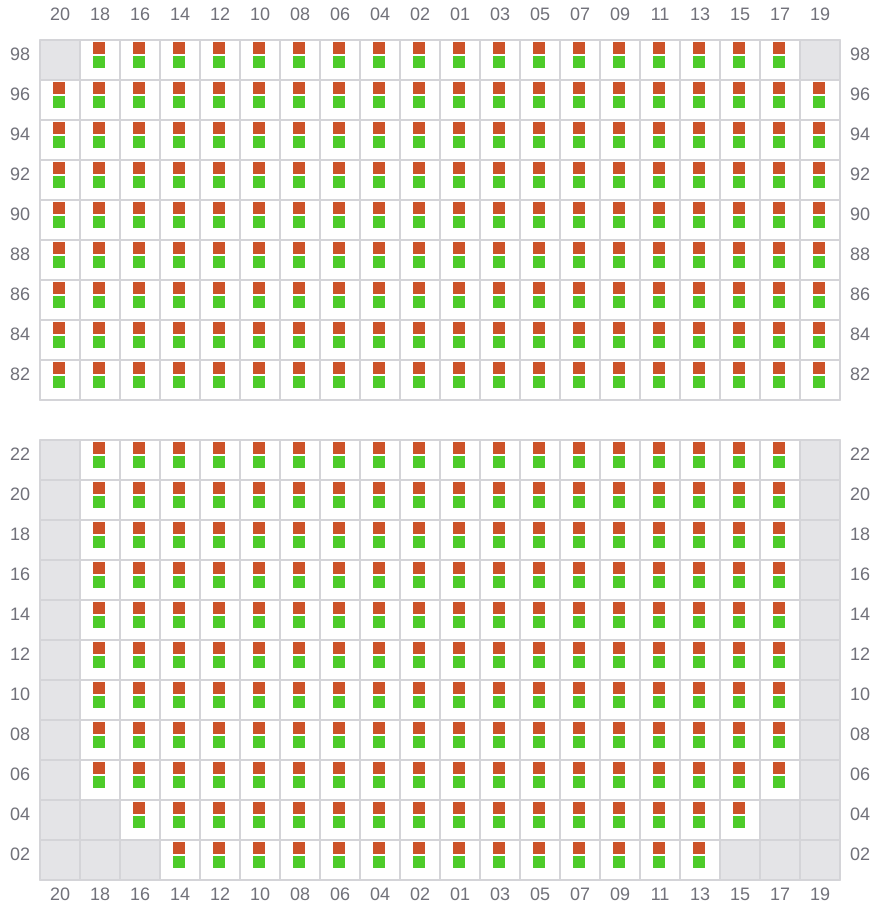

045
- →
047 (046)
- ←
049
- →
051 (050)
- ←
053
- →

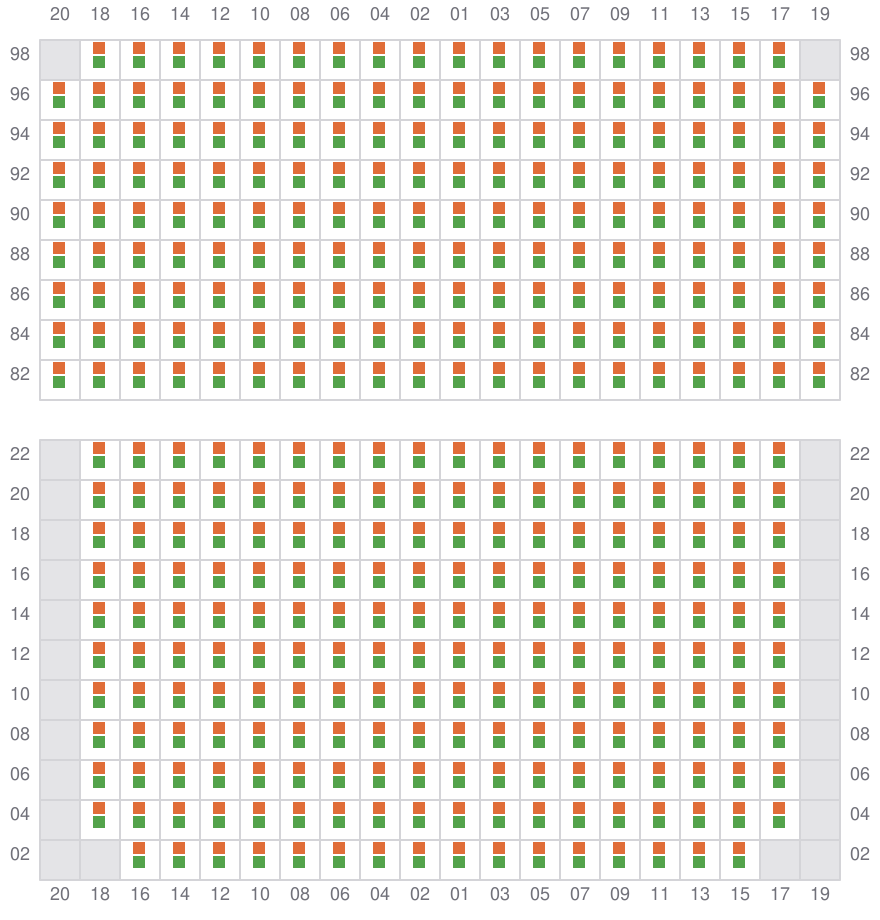

055 (054)
- ←
057
- →
059 (058)
- ←
061
- →

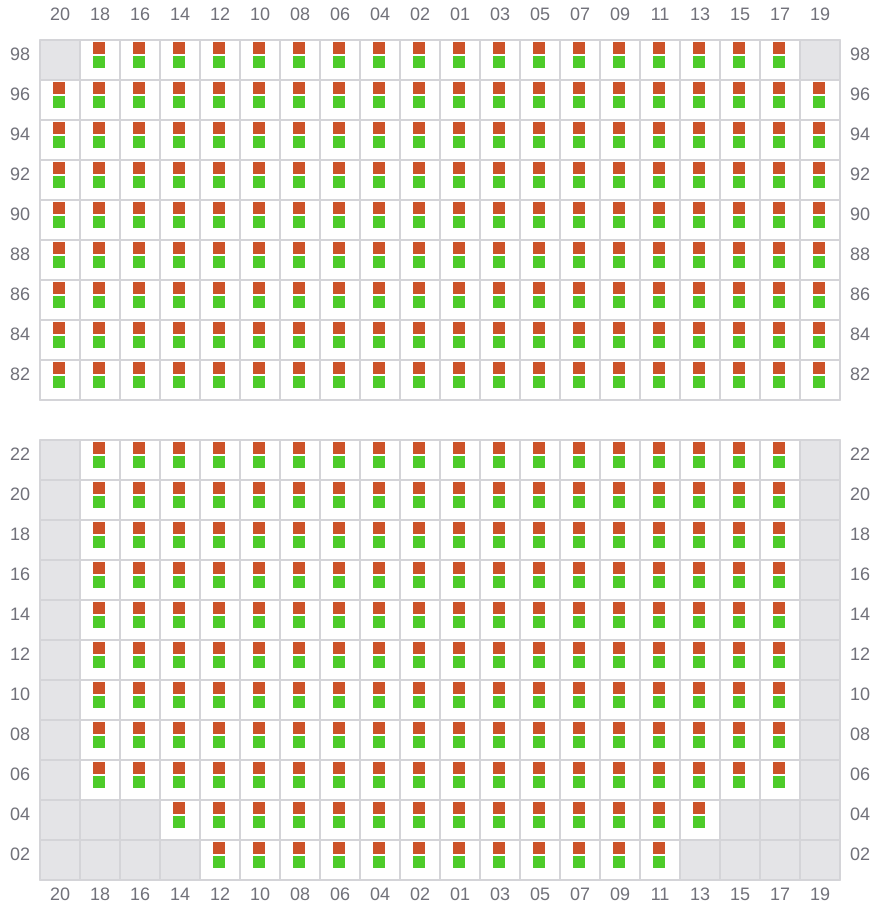

063 (062)
- ←
065
- →
067 (066)
- ←
069
- →

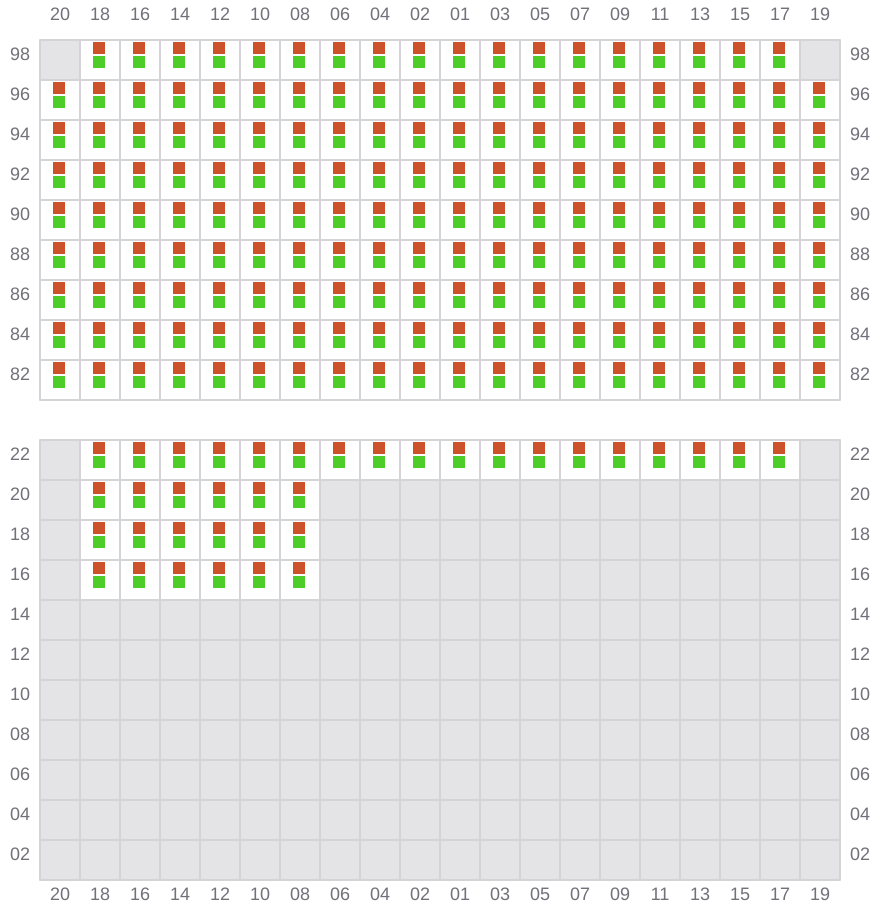

071 (070)
- ←

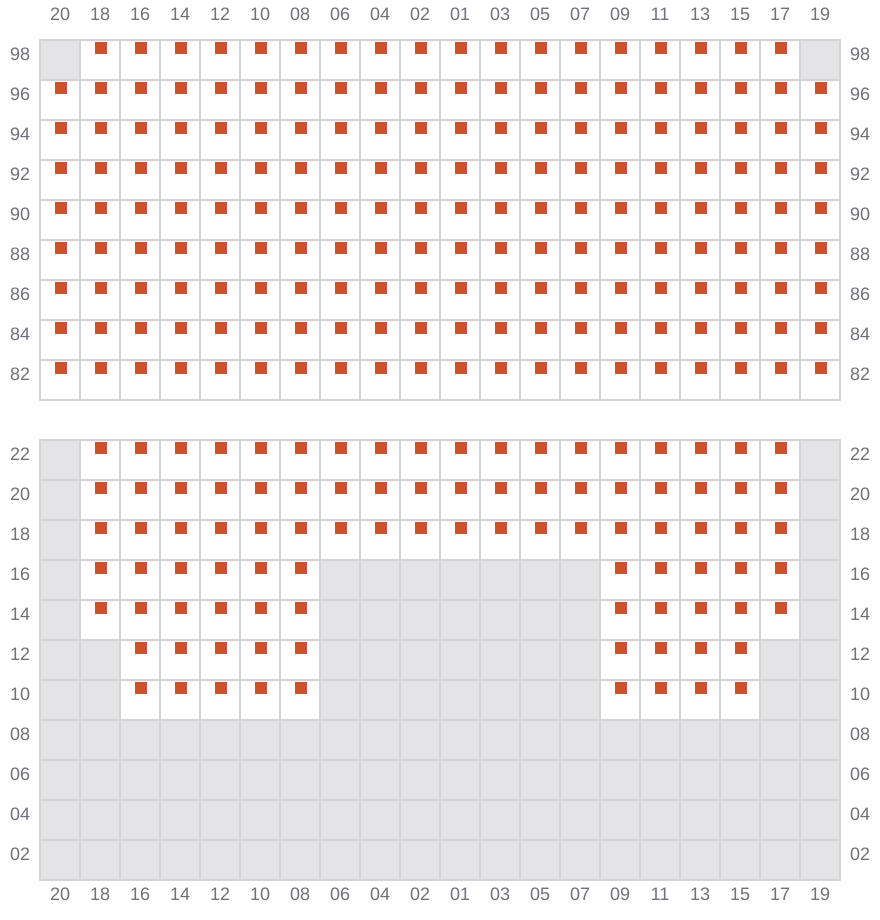

073
- →
075 (074)
- ←
077
- →
079 (078)
- ←
081
- →
083 (082)
- ←
085

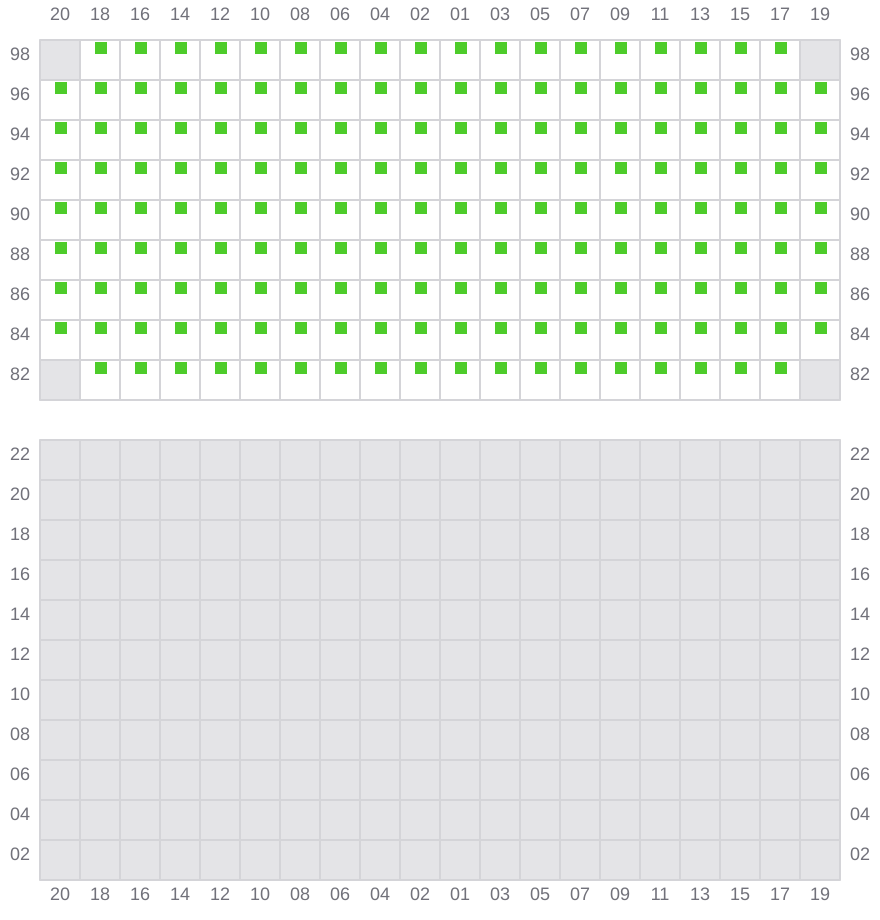

087 (086)
- ← / ?
