TIAN LONG HE
9400538 | BQBH | 9400538 by ********* Last update: Tue Jul 16 2024
General Info
Ship Name:TIAN LONG HE
IMO Code:9400538
Call Sign:BQBH
Line Operator:9400538
Class Name for Sister Ships:COS
Year Built:2010
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:069
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:80
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:5,089
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

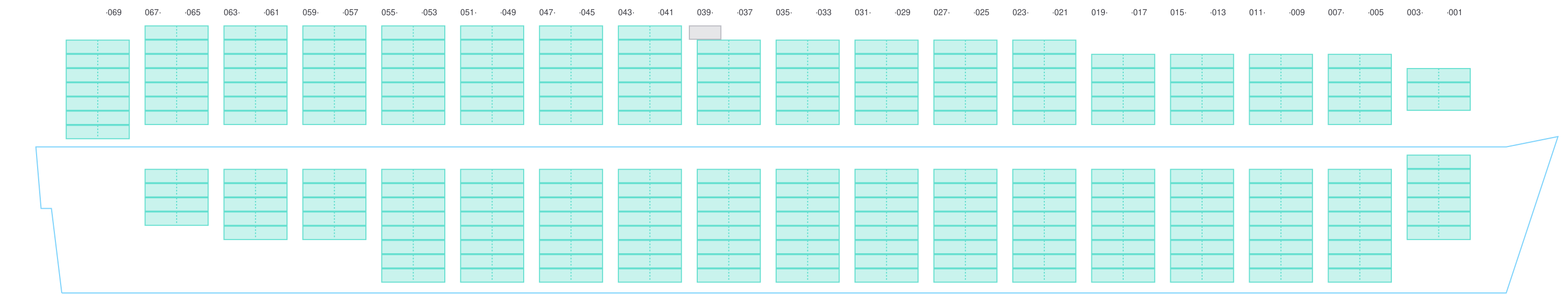

Side View

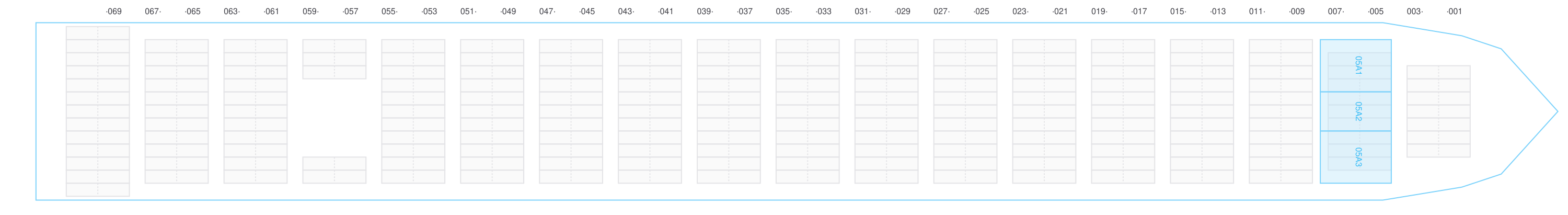

Hatch-Covers View
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

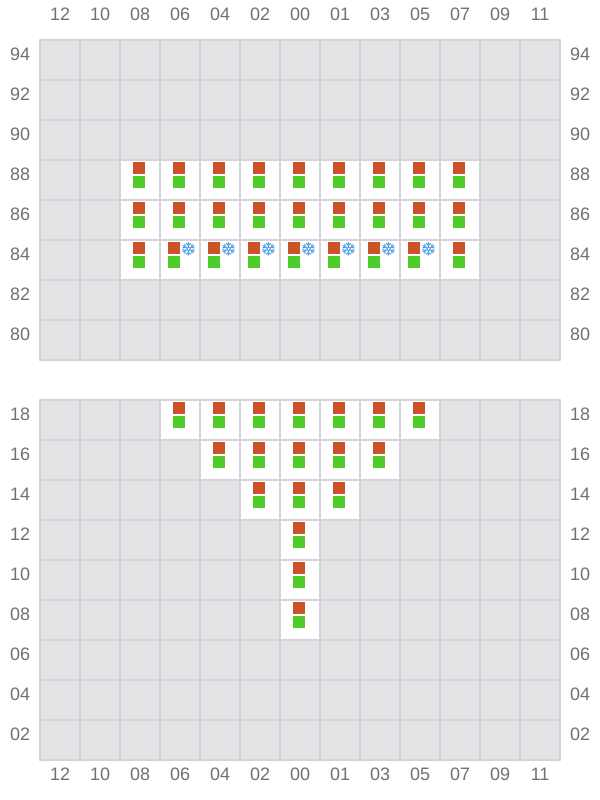

001 (002)
- →

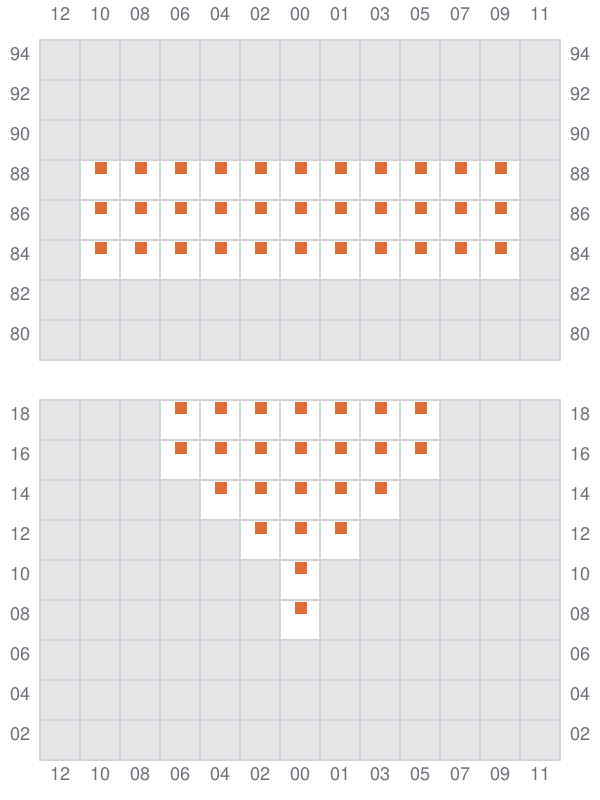

003
- ←

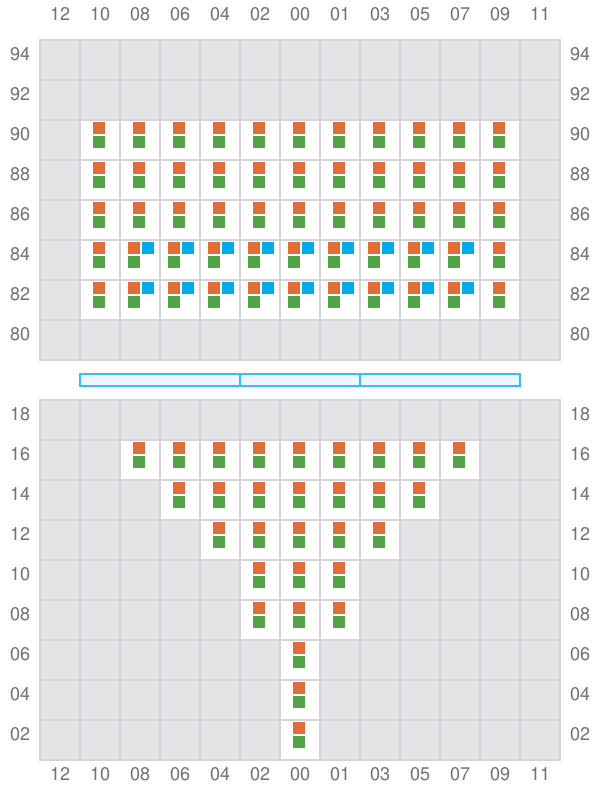

005 (006)
- →

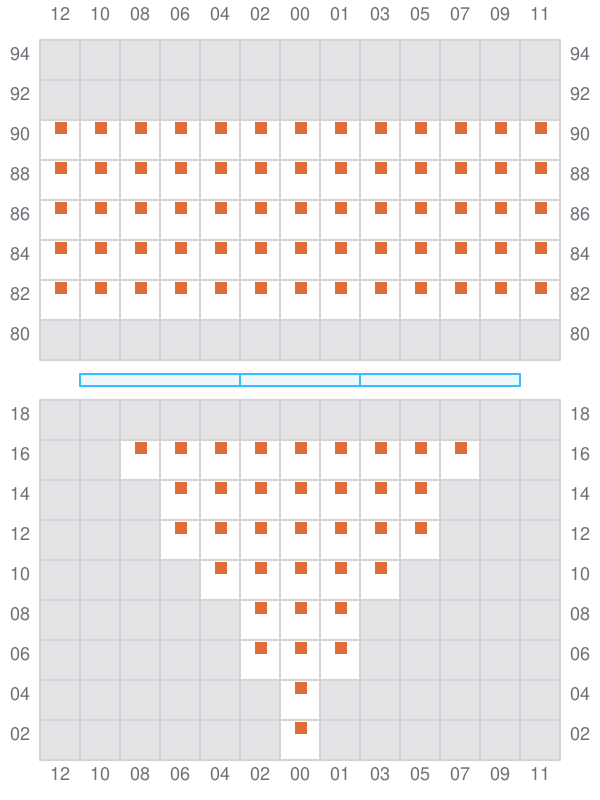

007
- ←
009 (010)
- →
011
- ←
013 (014)
- →

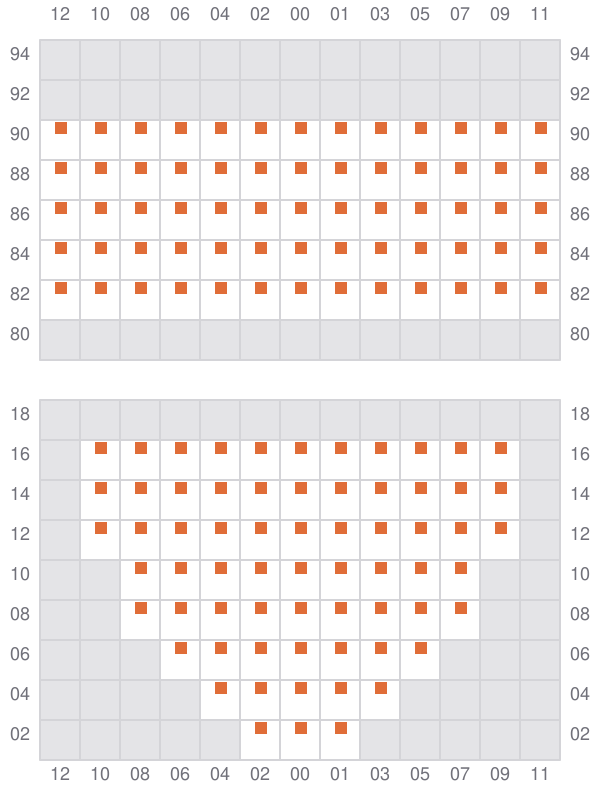

015
- ←

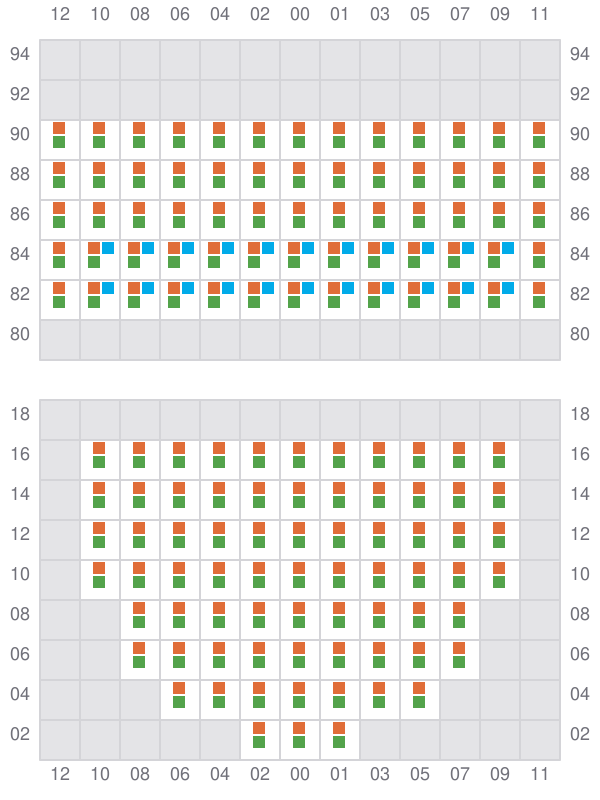

017 (018)
- →
019
- ←
021 (022)
- →

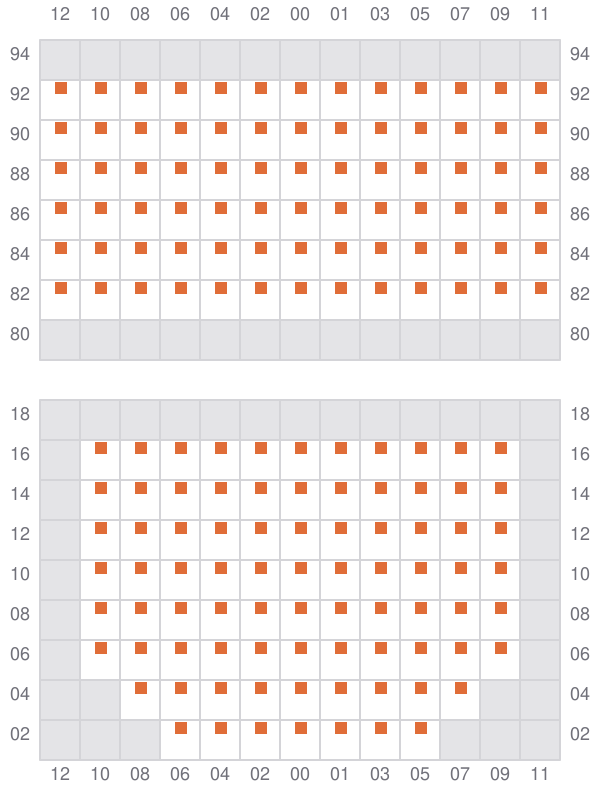

023
- ←
025 (026)
- →

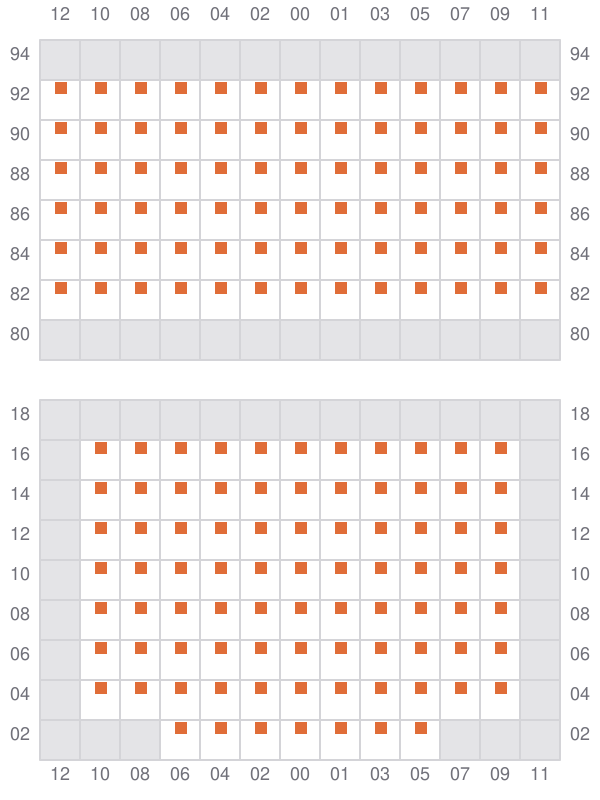

027
- ←

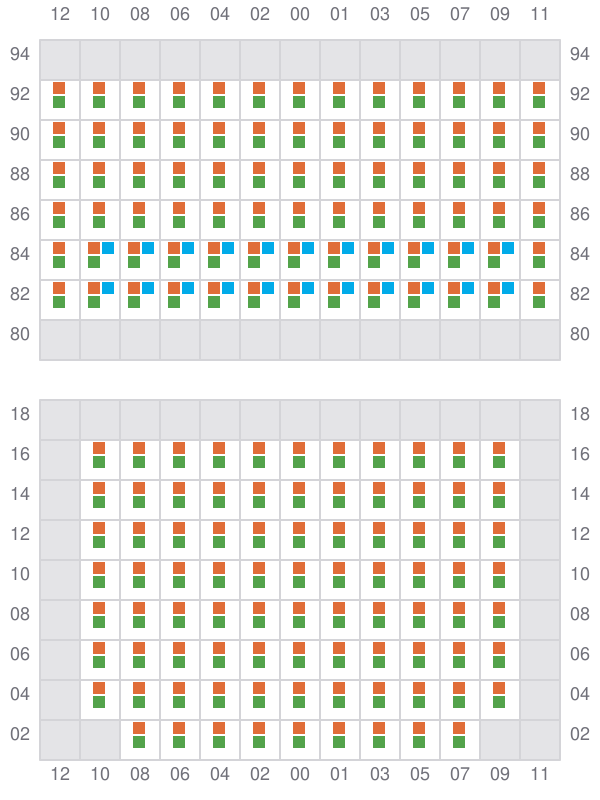

029 (030)
- →
031
- ←

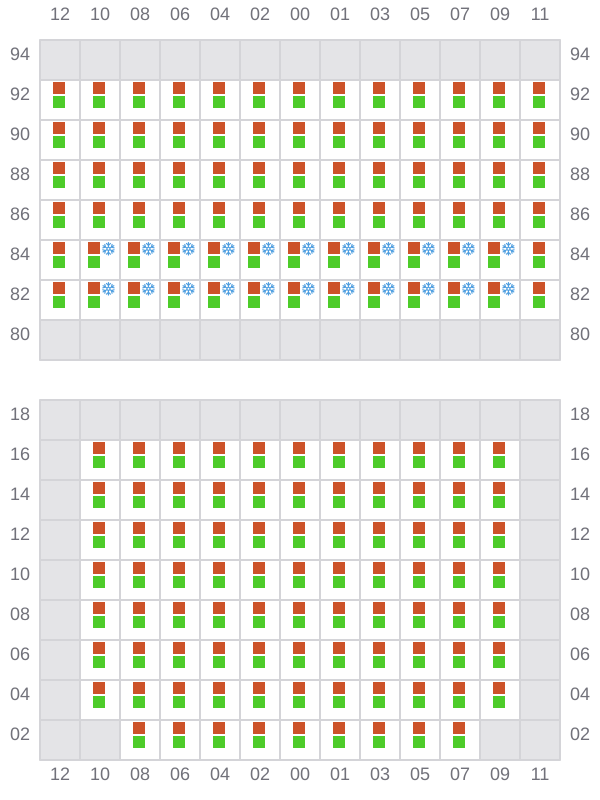

033 (034)
- →
035
- ←
037 (038)
- →
039
- ←
041 (042)
- →

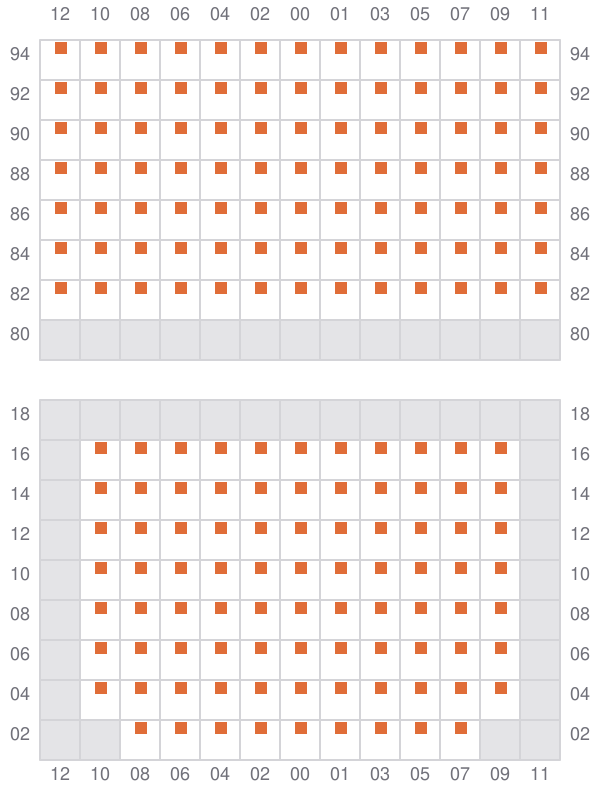

043
- ←
045 (046)
- →
047
- ←
049 (050)
- →
051
- ←

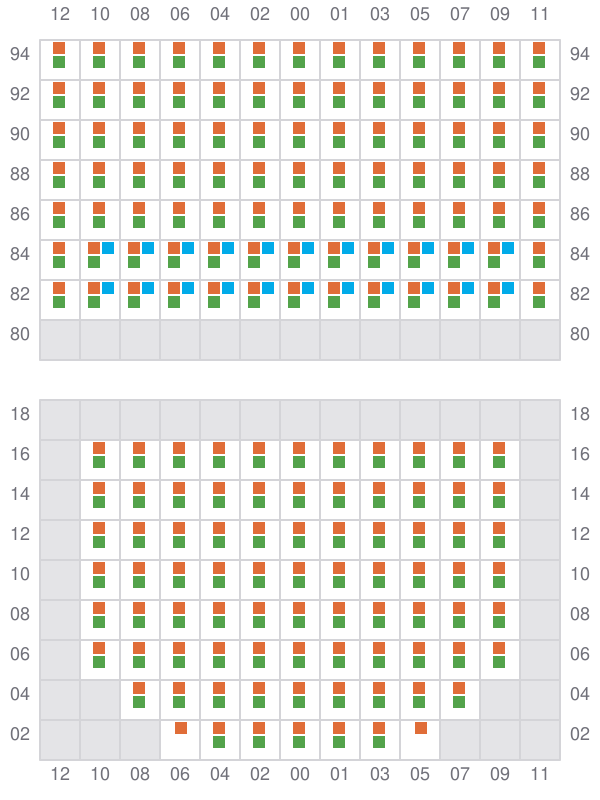

053 (054)
- →
055
- ←

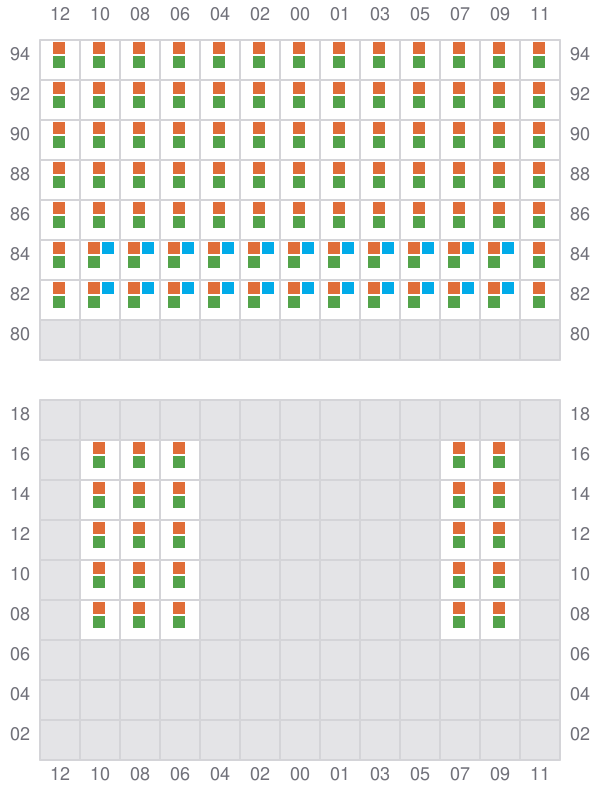

057 (058)
- →

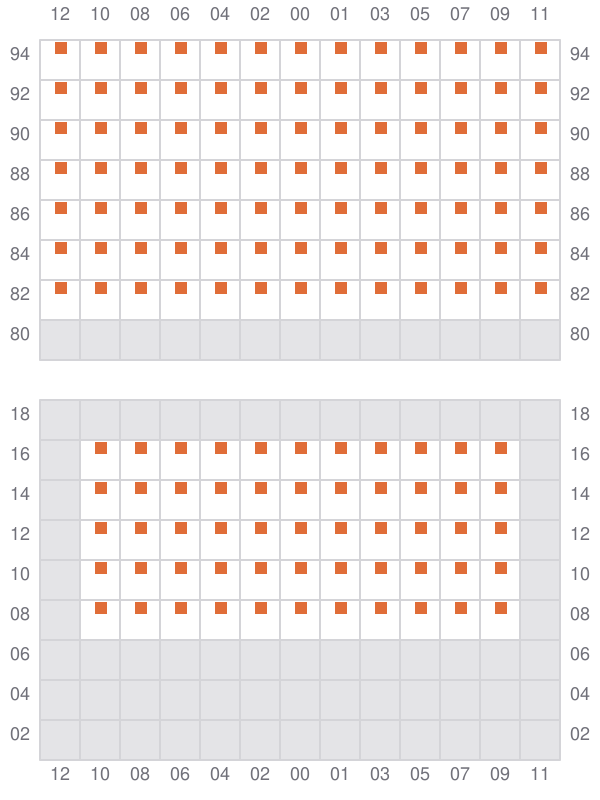

059
- ←
061 (062)
- →

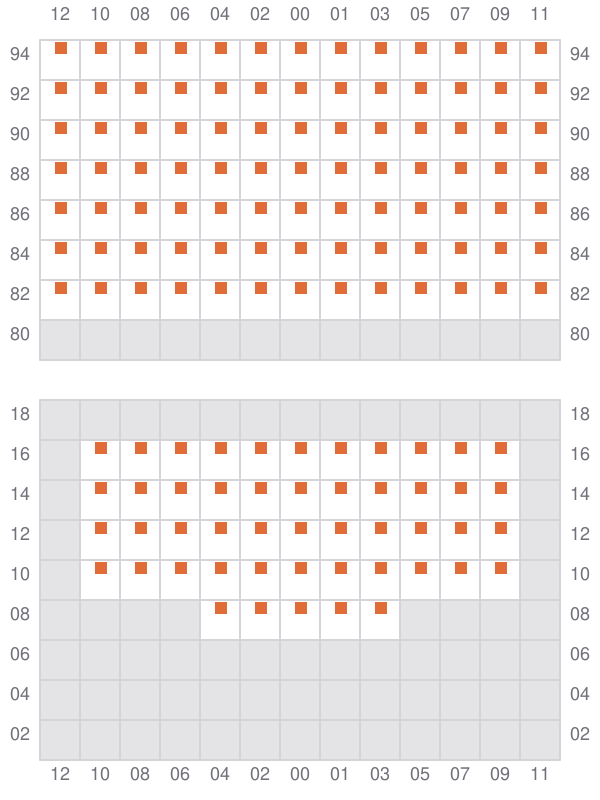

063
- ←

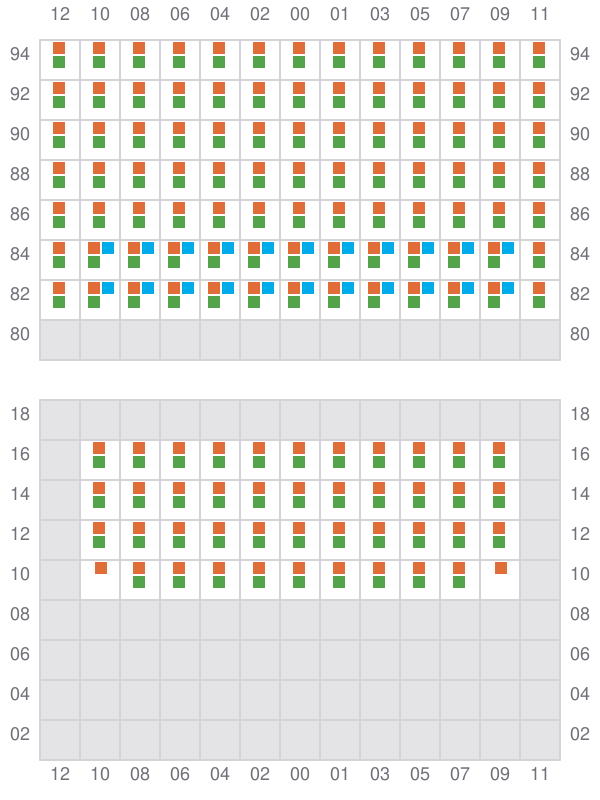

065 (066)
- →

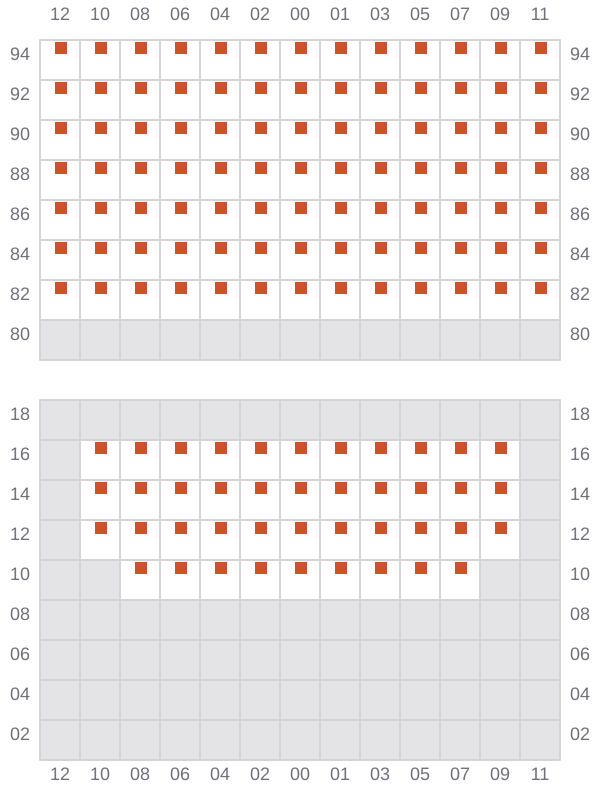

067
- ←

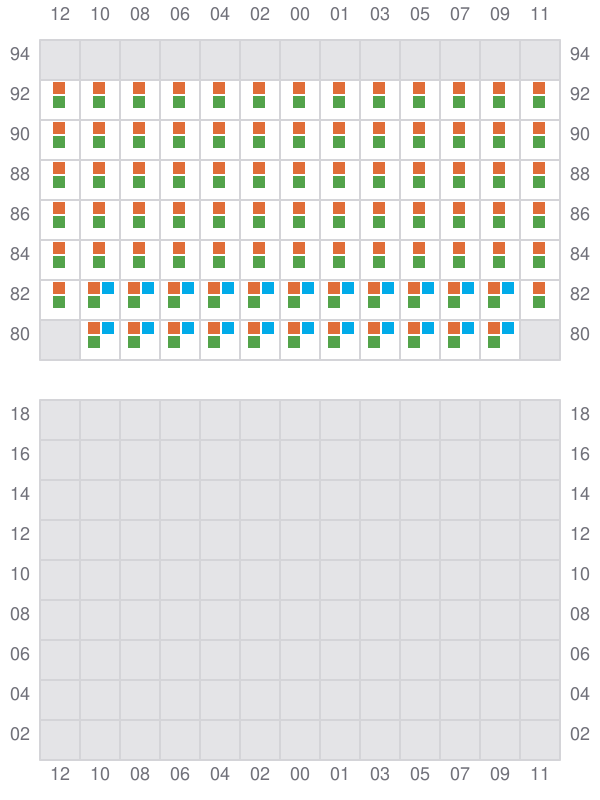

069 (070)
- → / ?
