TIAN SHENG HE
9437543 | BOPH | 9437543 by ********* Last update: Tue Jul 16 2024
General Info
Ship Name:TIAN SHENG HE
IMO Code:9437543
Call Sign:BOPH
Line Operator:9437543
Class Name for Sister Ships:COS
Year Built:2010
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:071
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:80
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:5,076
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

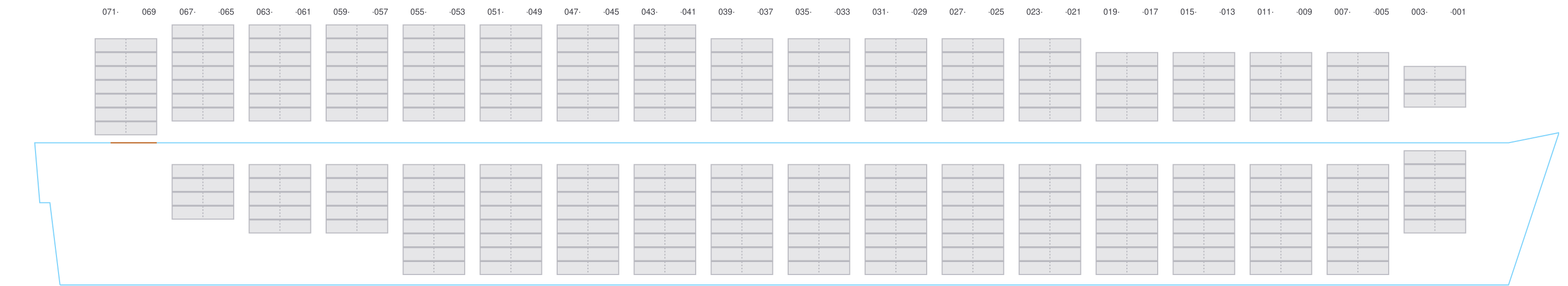

Side View

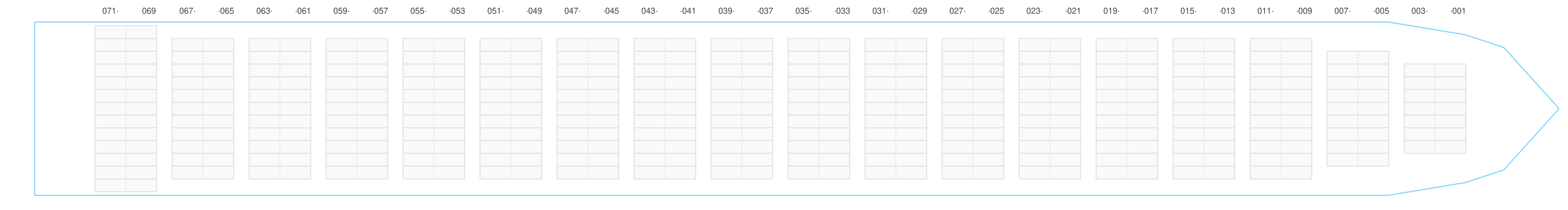

Hatch-Covers View

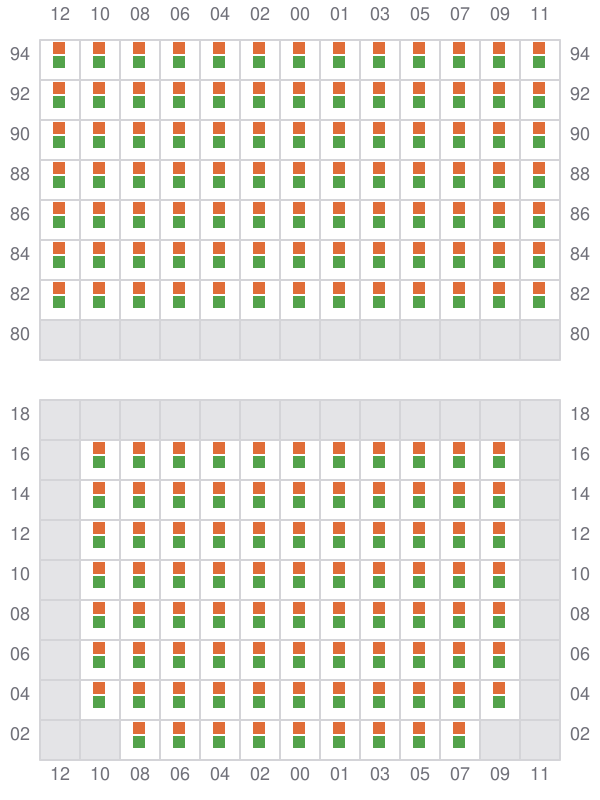

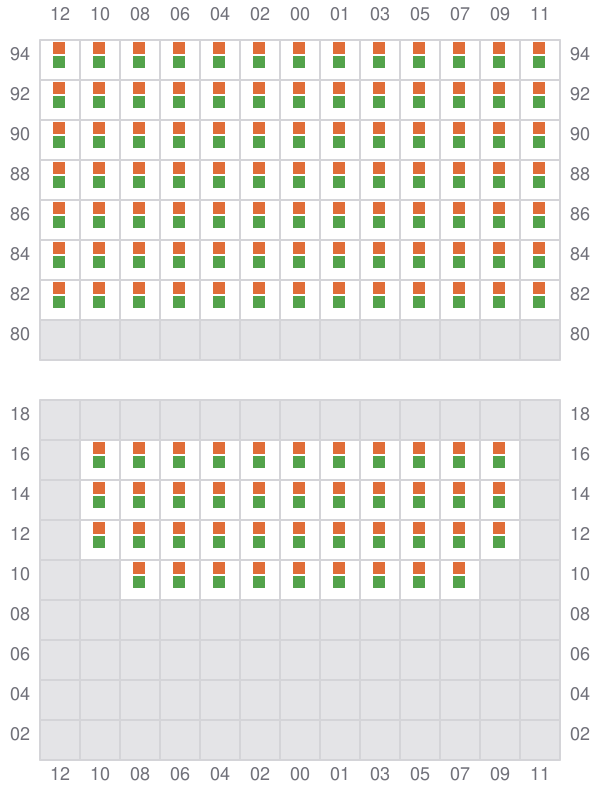

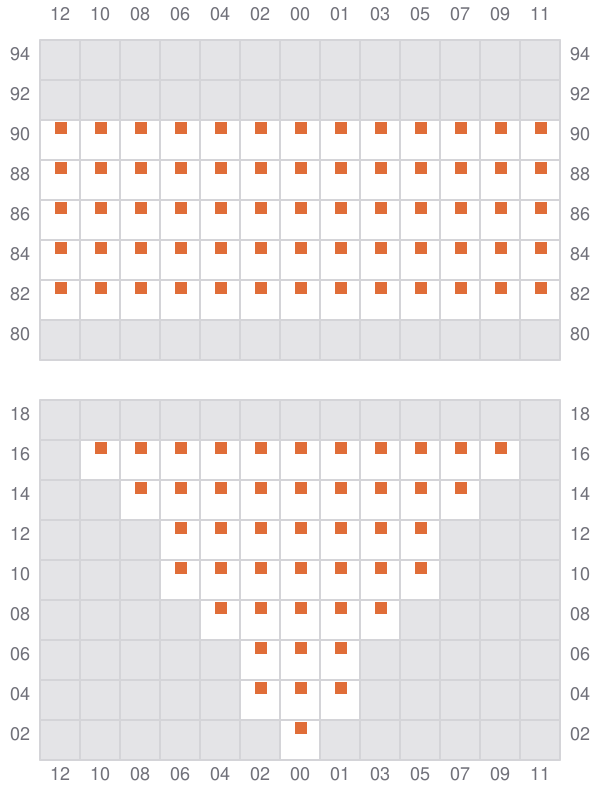

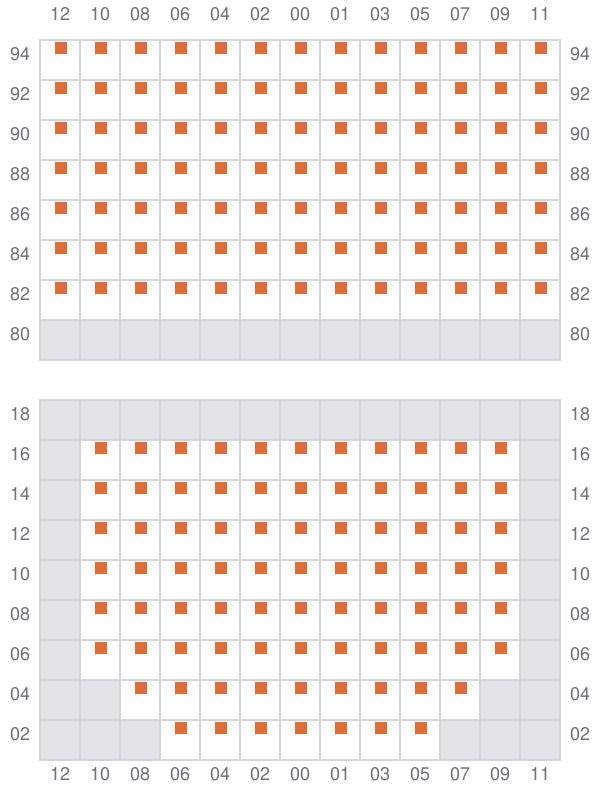

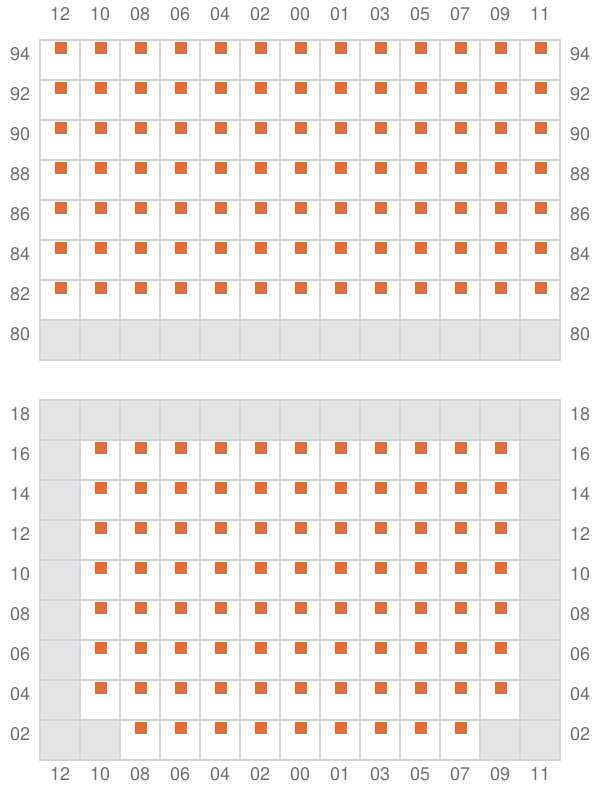

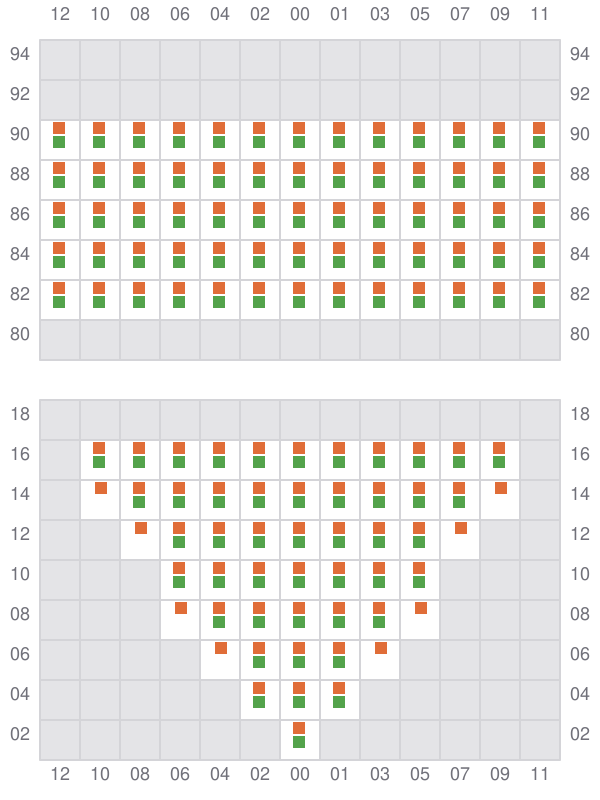

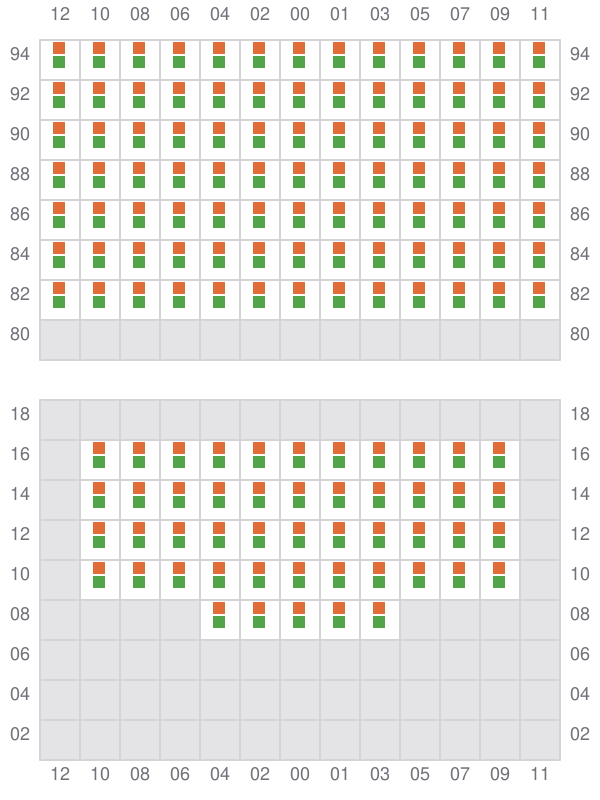

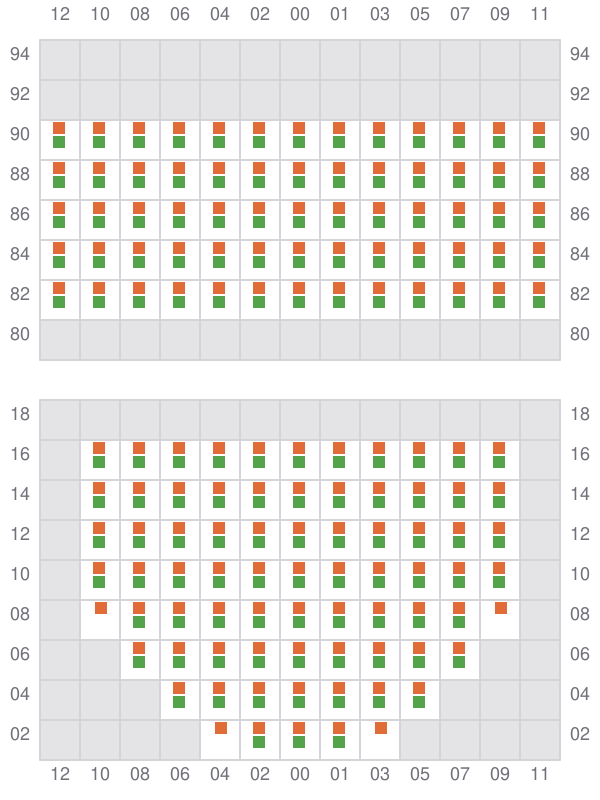

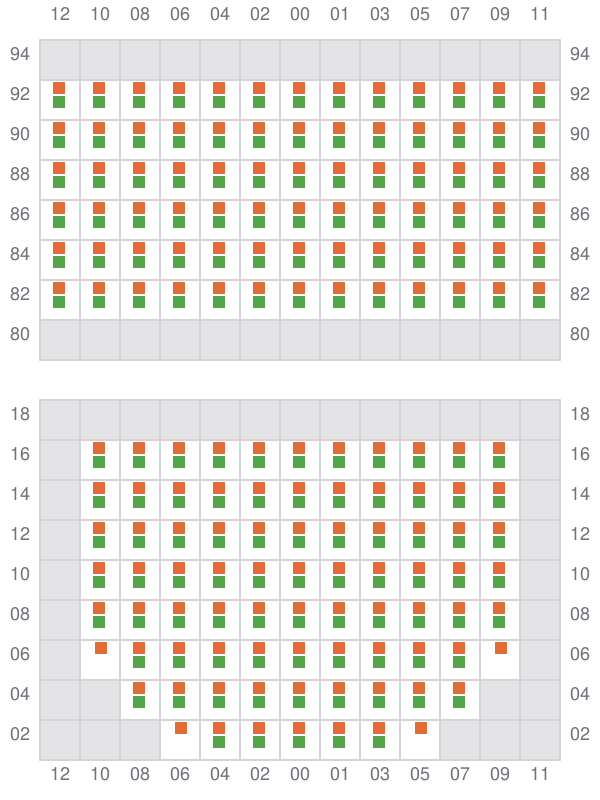

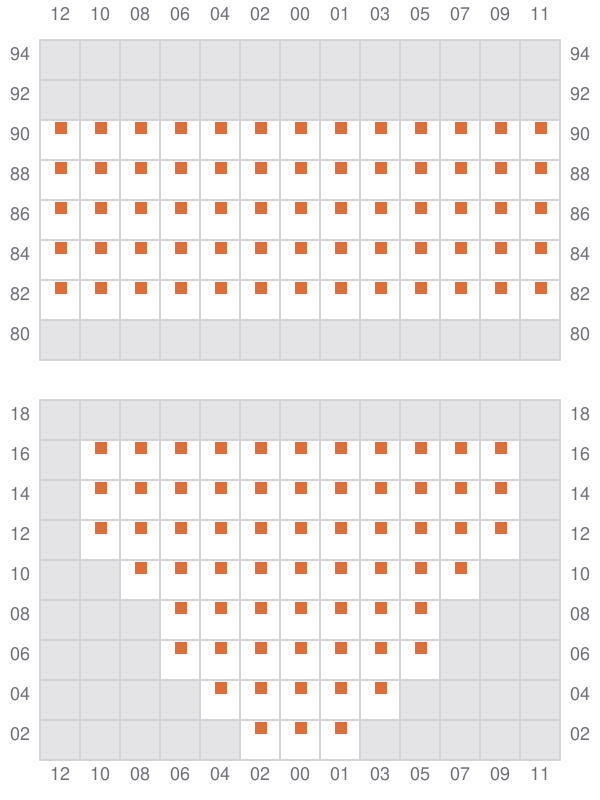

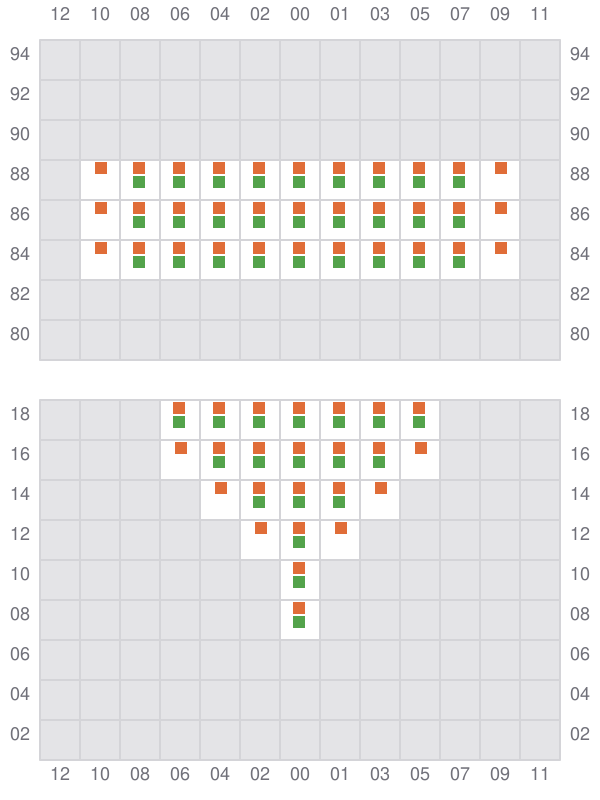

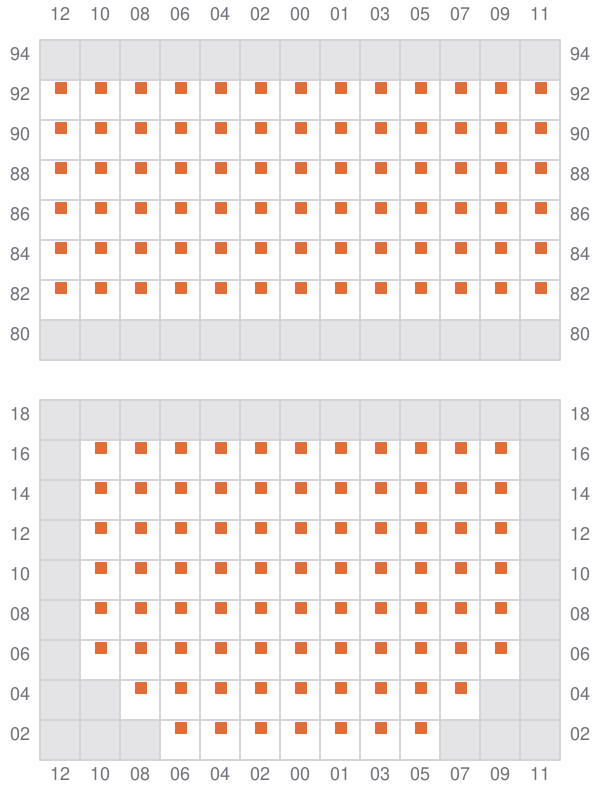

ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

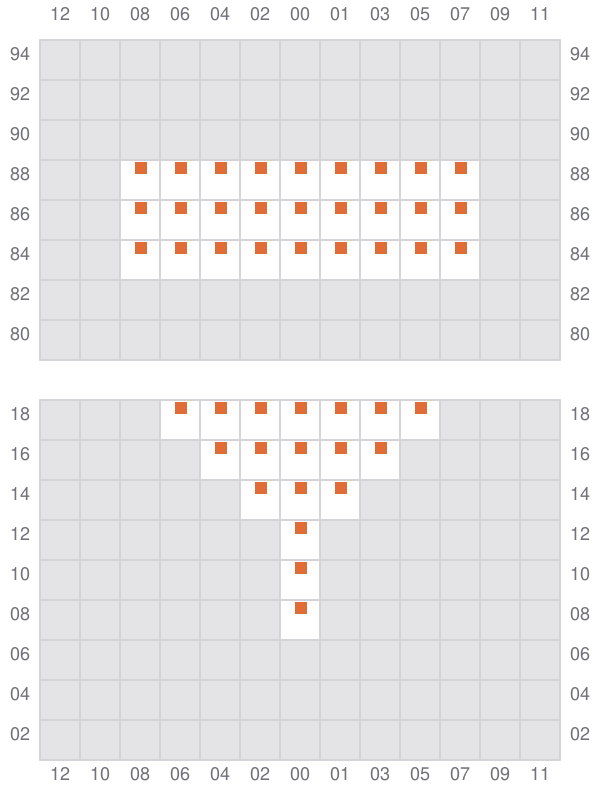

001
- →
003 (002)
- ←

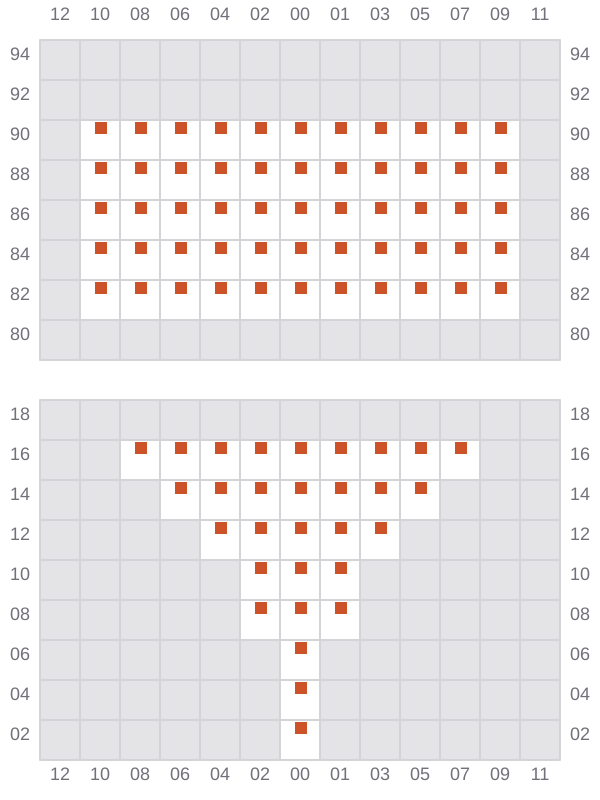

005
- →

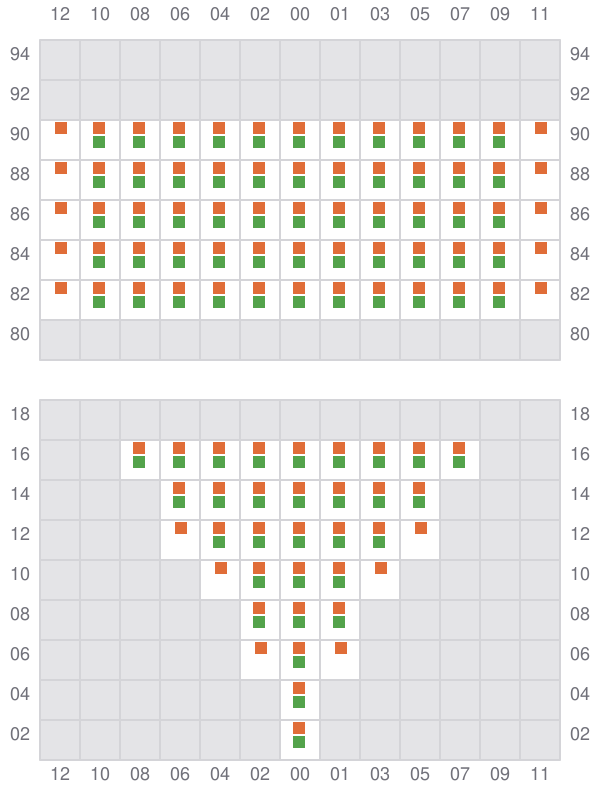

007 (006)
- ←
009
- →
011 (010)
- ←
013
- →

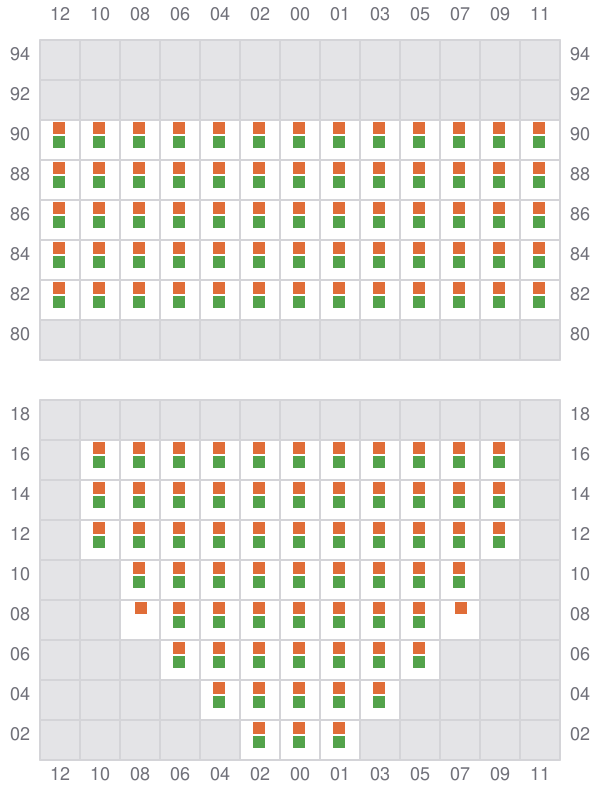

015 (014)
- ←

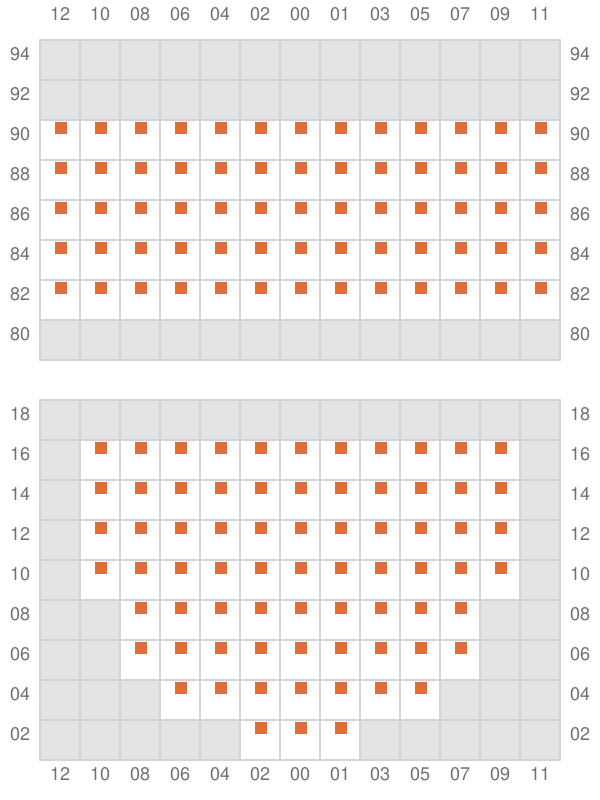

017
- →
019 (018)
- ←

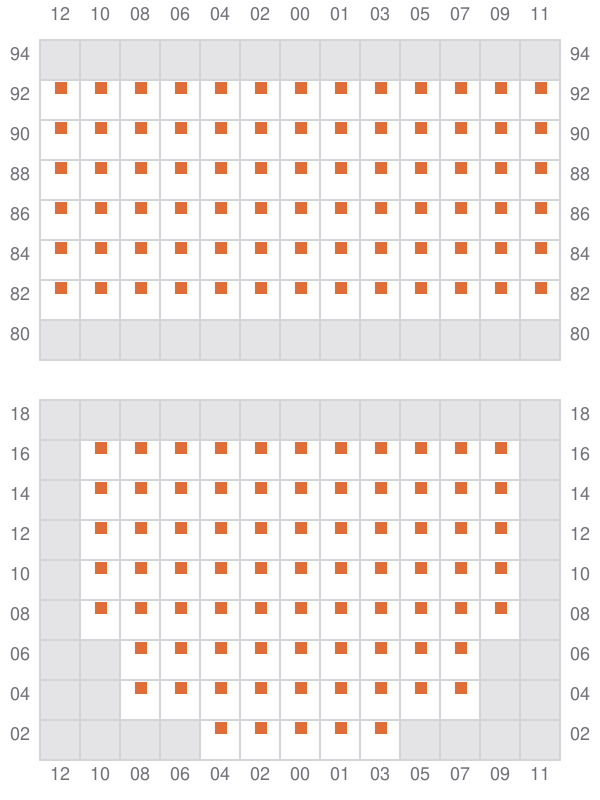

021
- →
023 (022)
- ←
025
- →

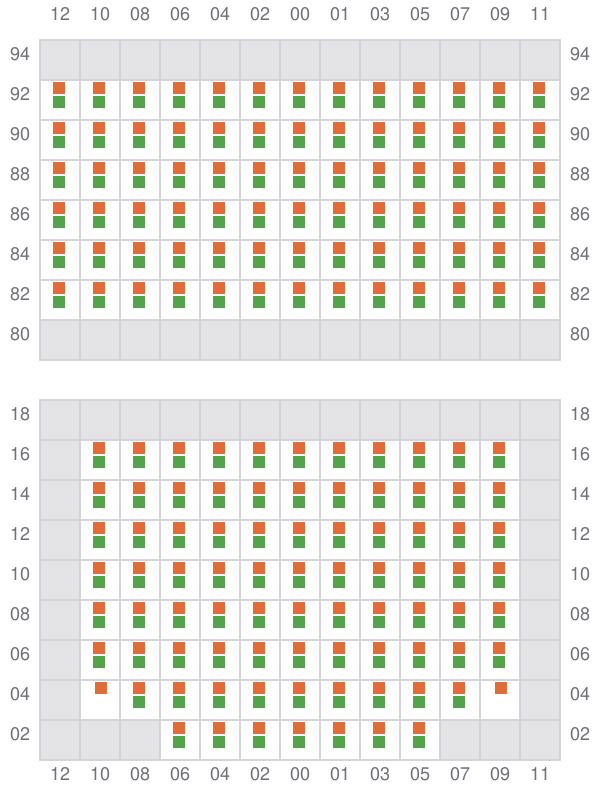

027 (026)
- ←

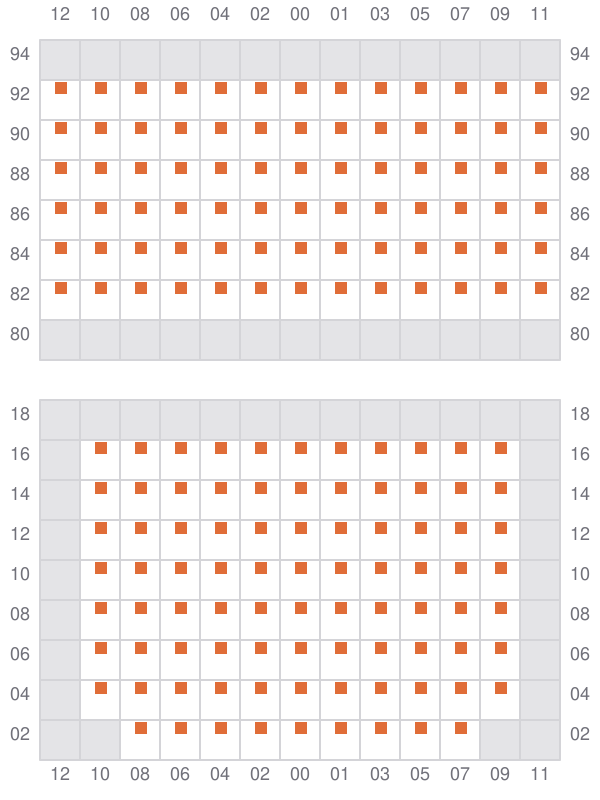

029
- →

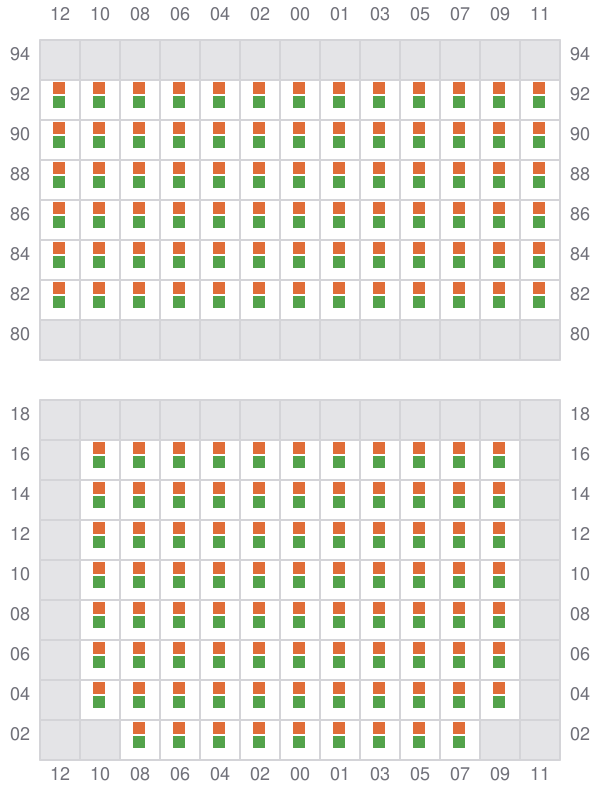

031 (030)
- ←
033
- →
035 (034)
- ←
037
- →
039 (038)
- ←
041
- →
043 (042)
- ←

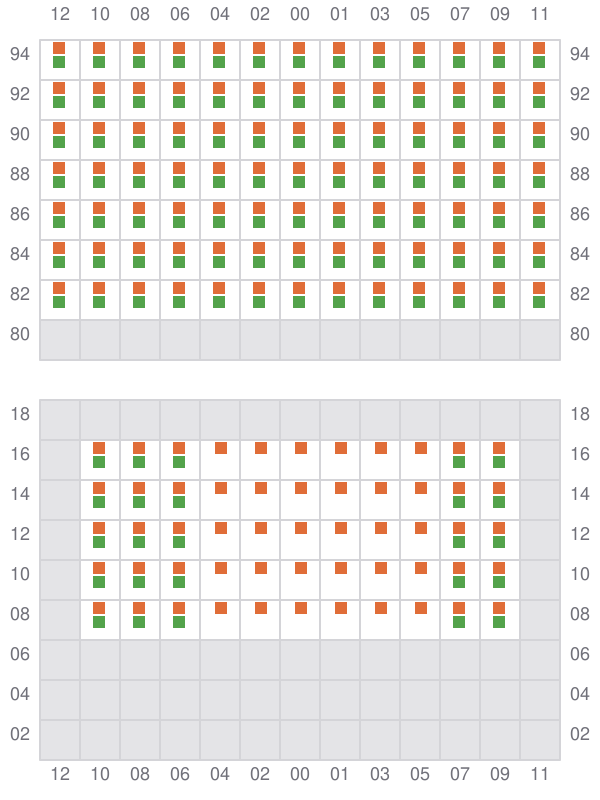

045
- →
047 (046)
- ←
049
- →
051 (050)
- ←
053
- →
055 (054)
- ←

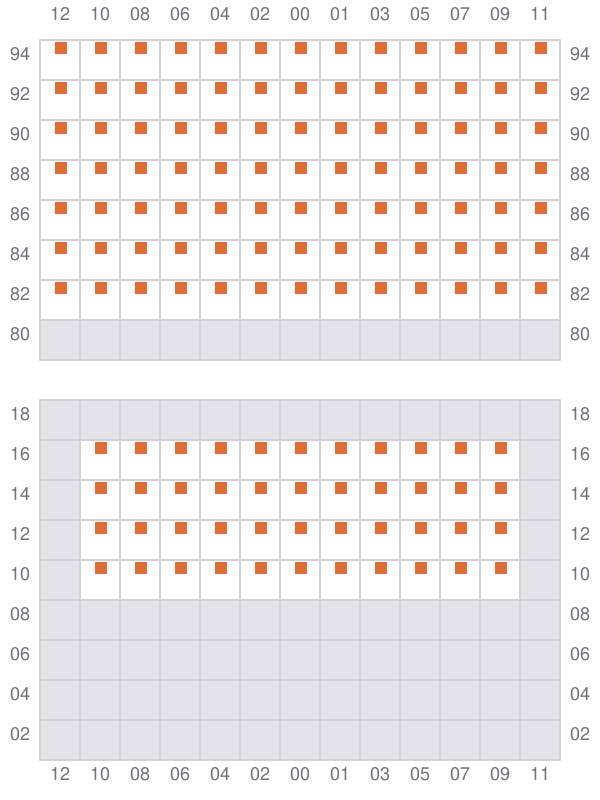

057
- →
059 (058)
- ←
061
- →
063 (062)
- ←
065
- →
067 (066)
- ←

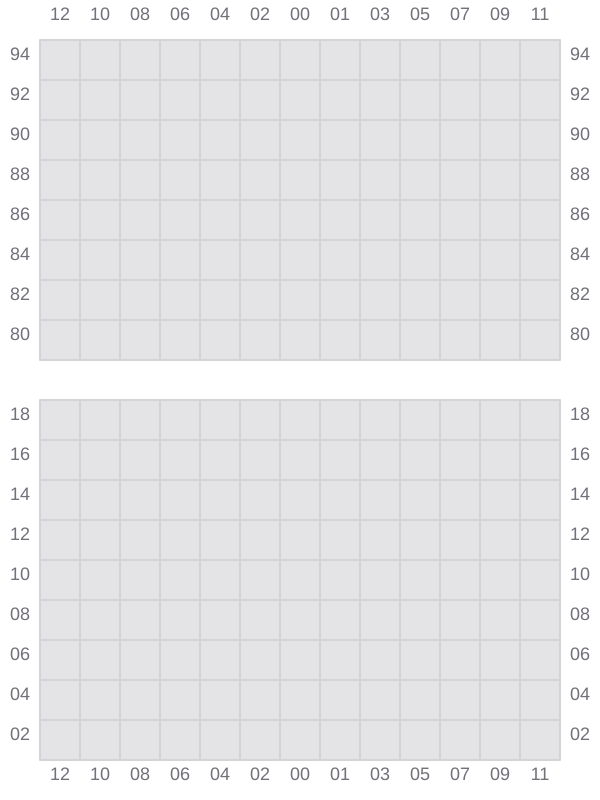

069

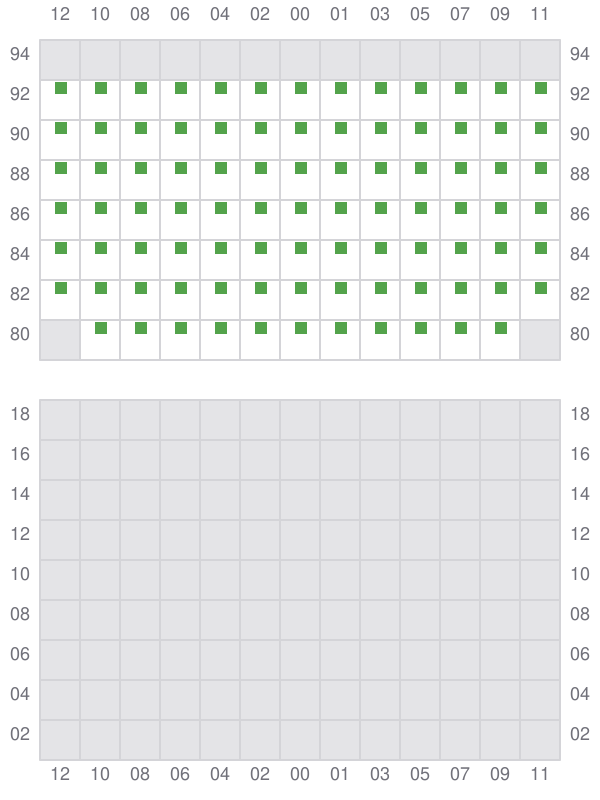

071 (070)
- ← / ?
