TIAN SHUN HE
9300312 | BOTP | 930031 by ********* Last update: Mon Jul 22 2024
General Info
Ship Name:TIAN SHUN HE
IMO Code:9300312
Call Sign:BOTP
Line Operator:930031
Class Name for Sister Ships:COS
Year Built:2005
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:065
Max ISO Row:16
Center Line Row:No
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:5,832
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

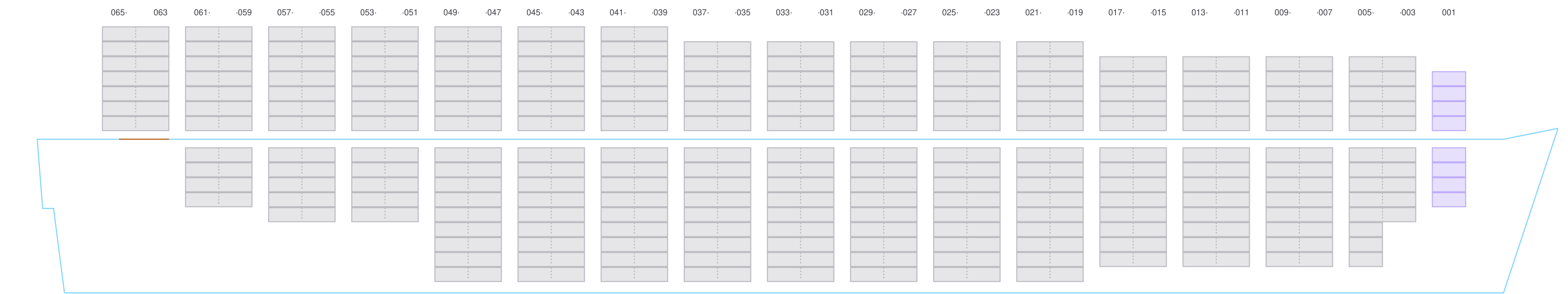

Side View

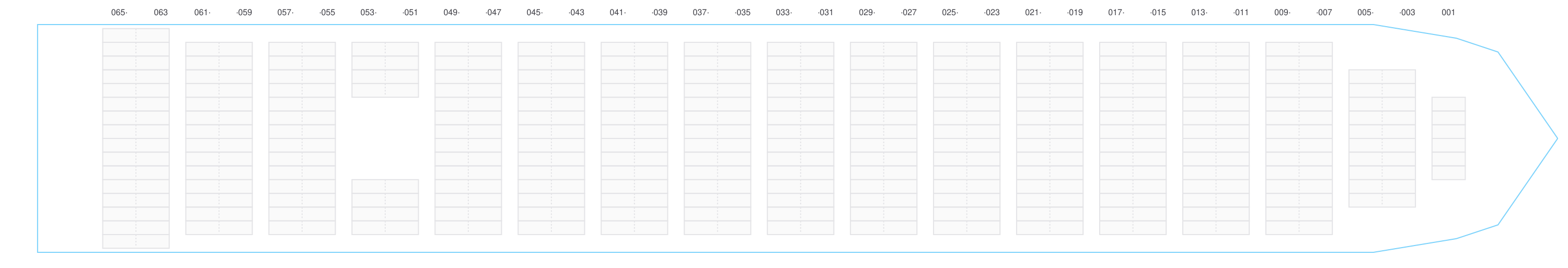

Hatch-Covers View

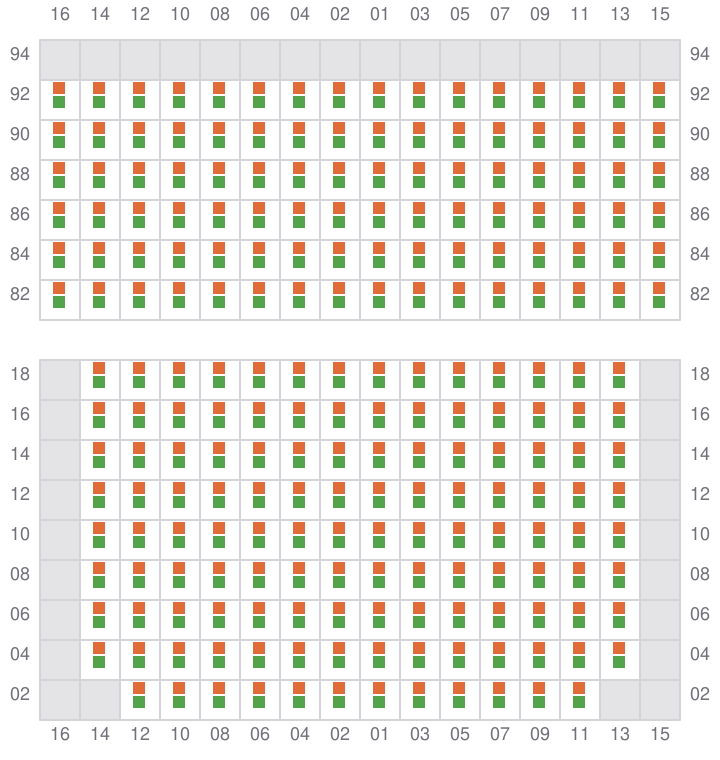

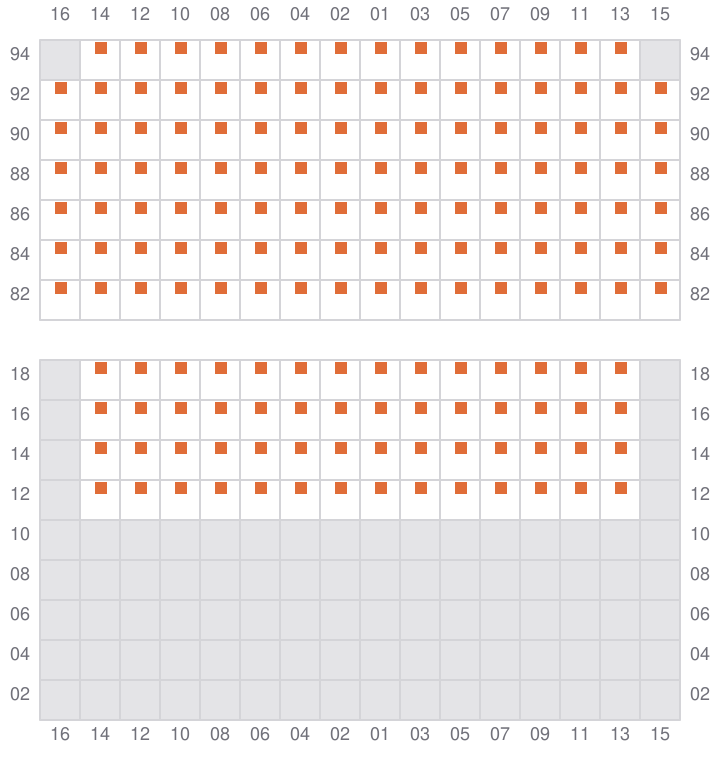

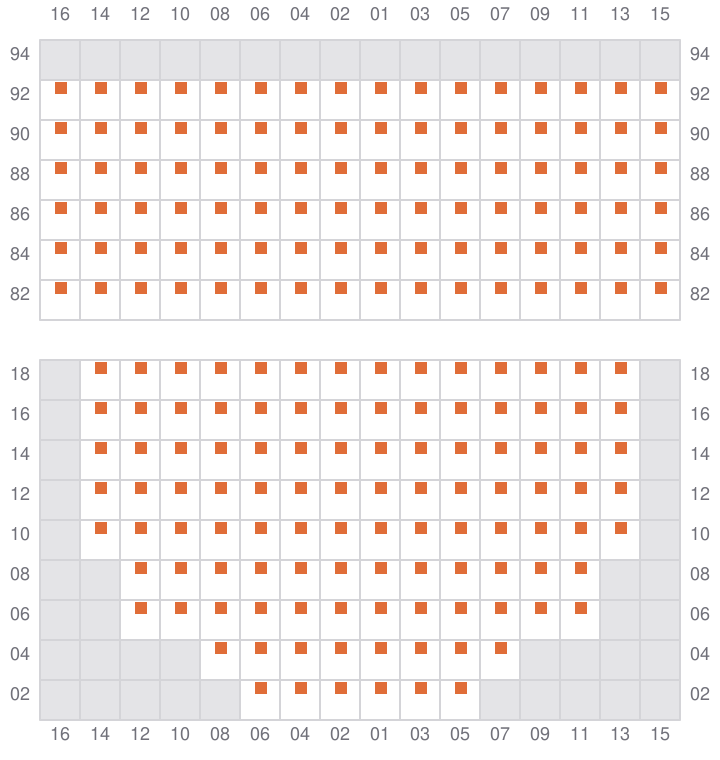

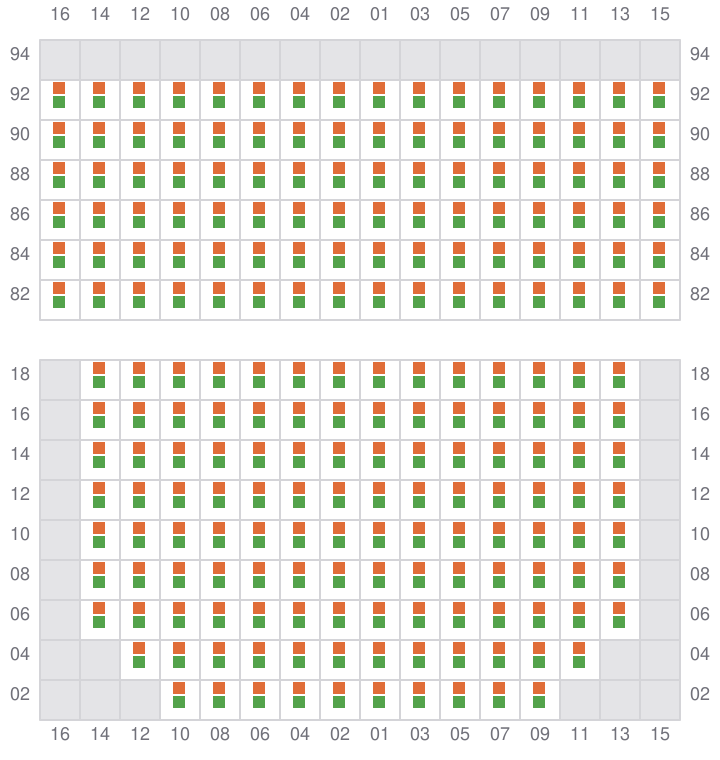

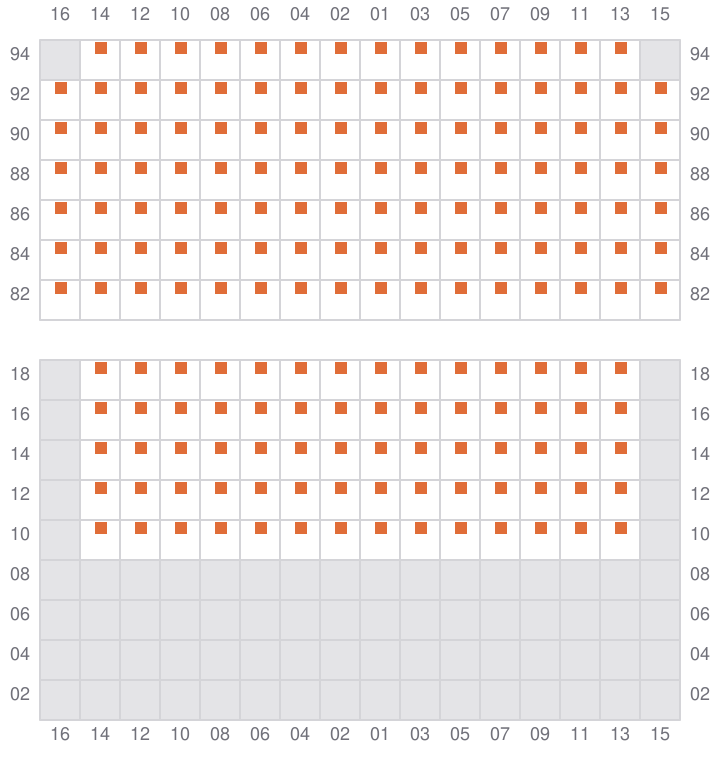

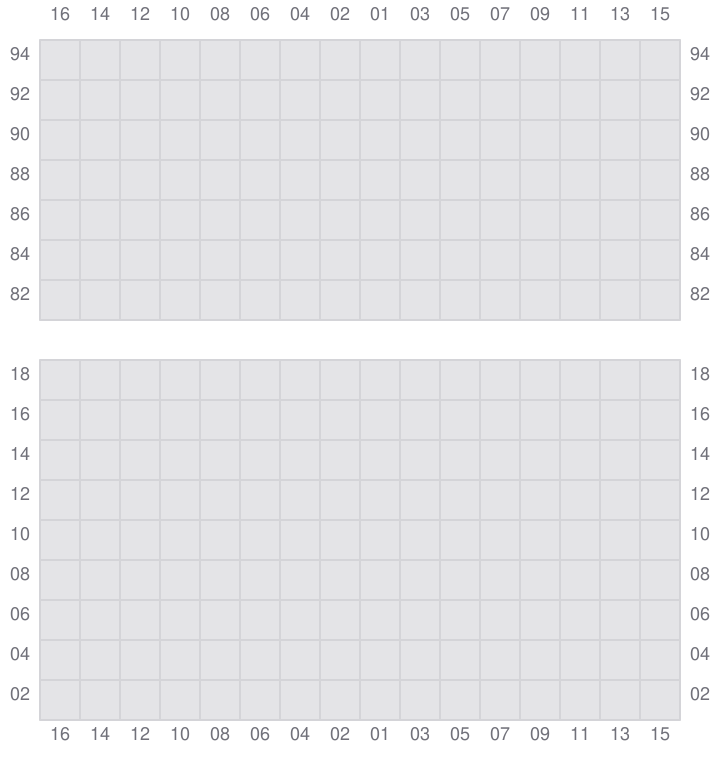

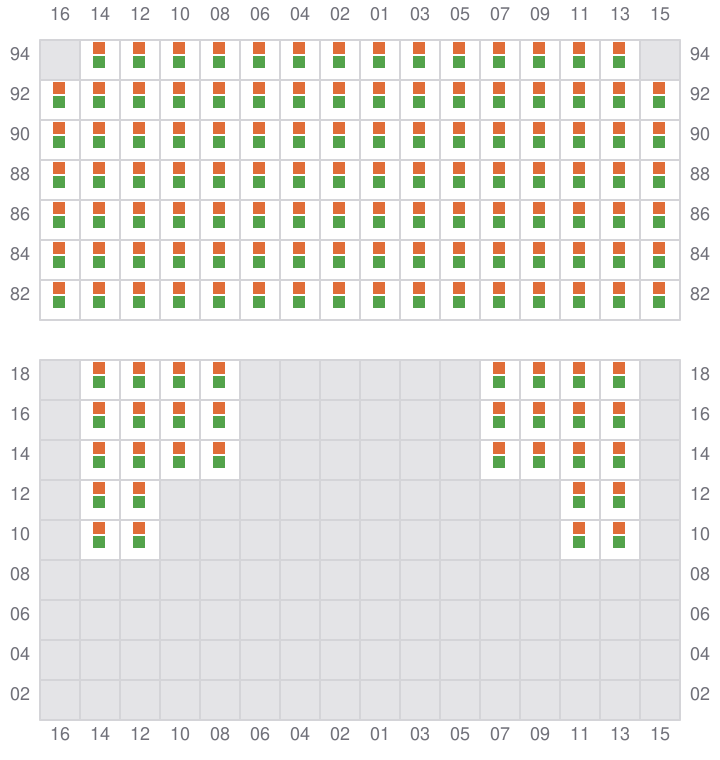

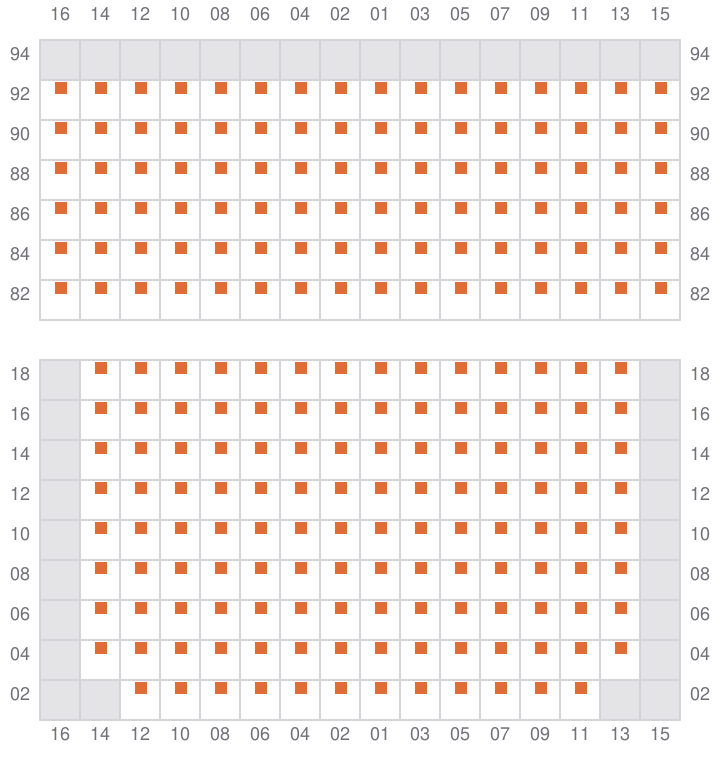

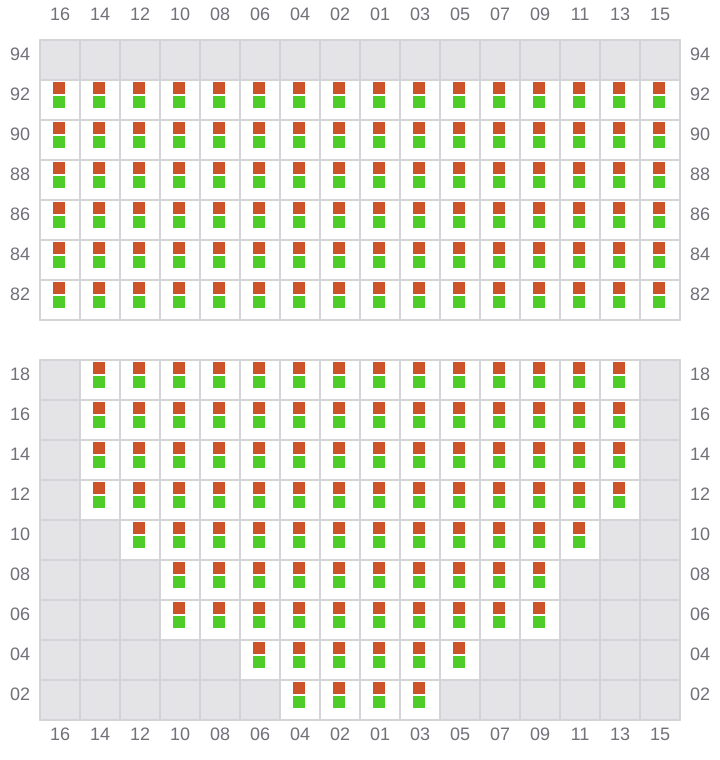

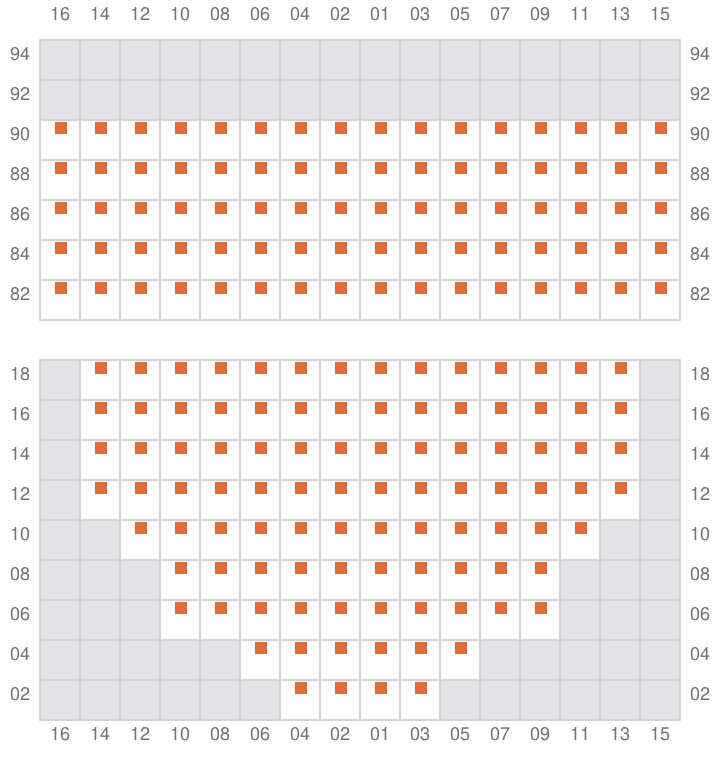

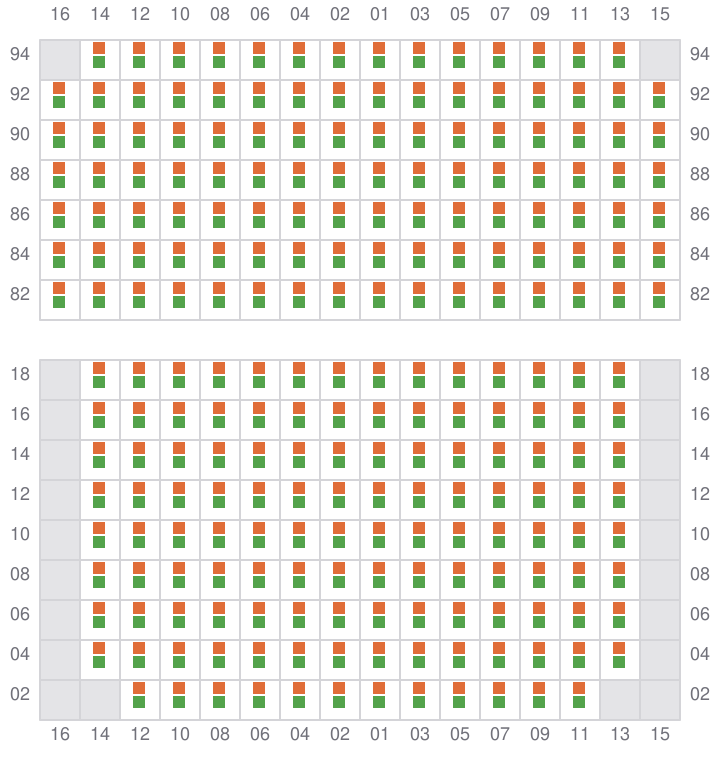

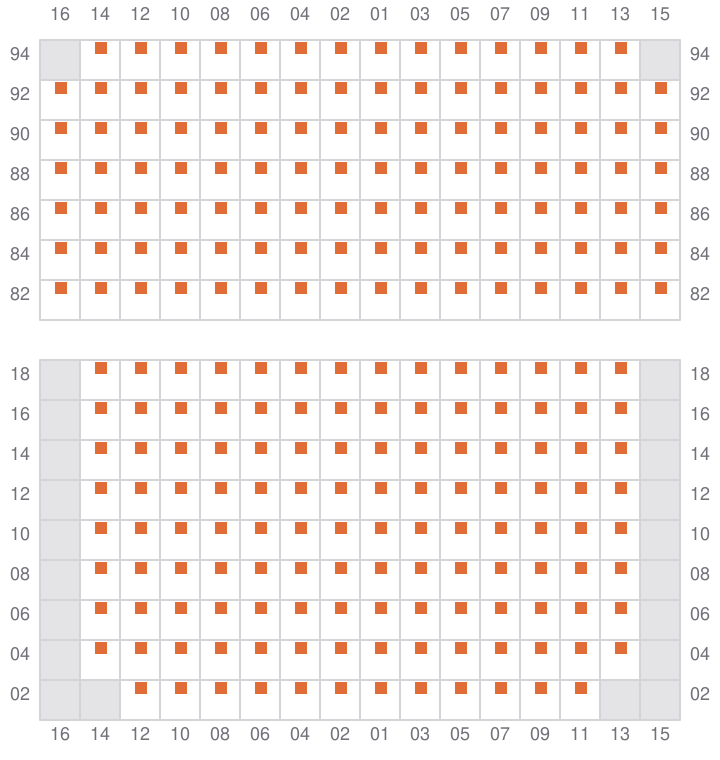

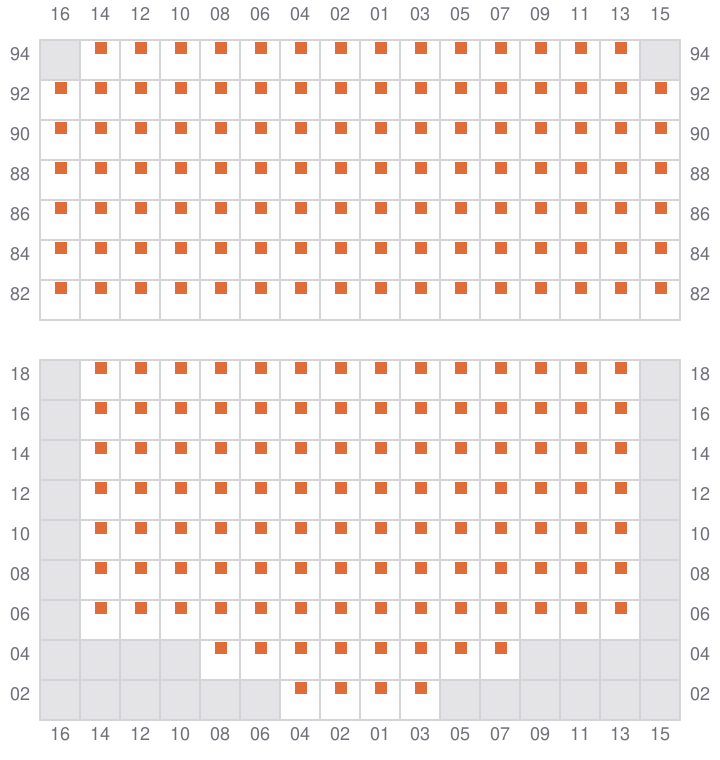

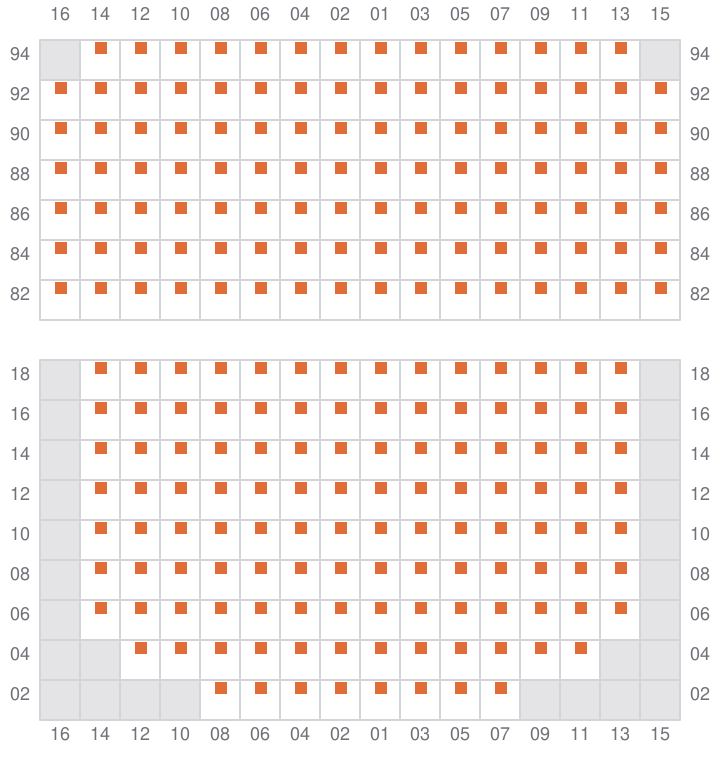

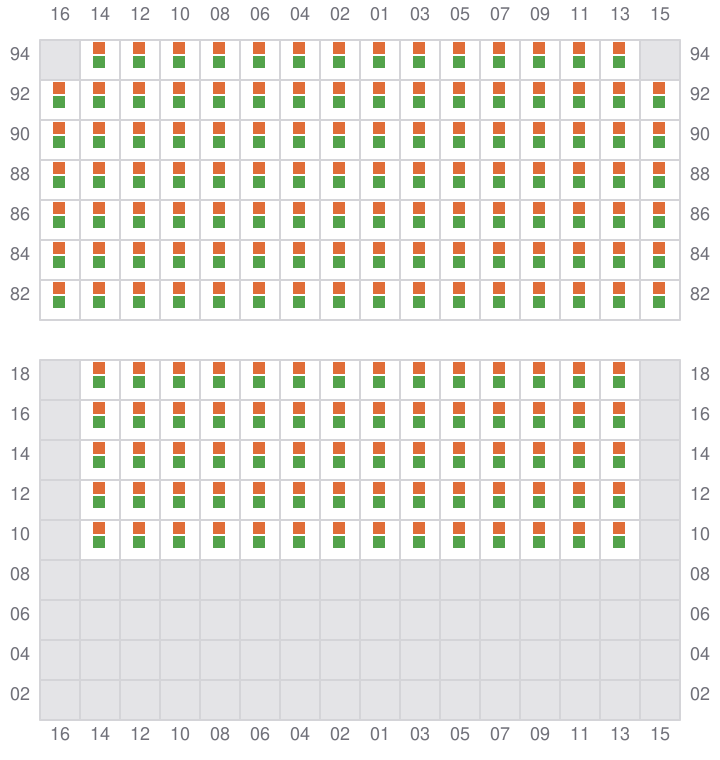

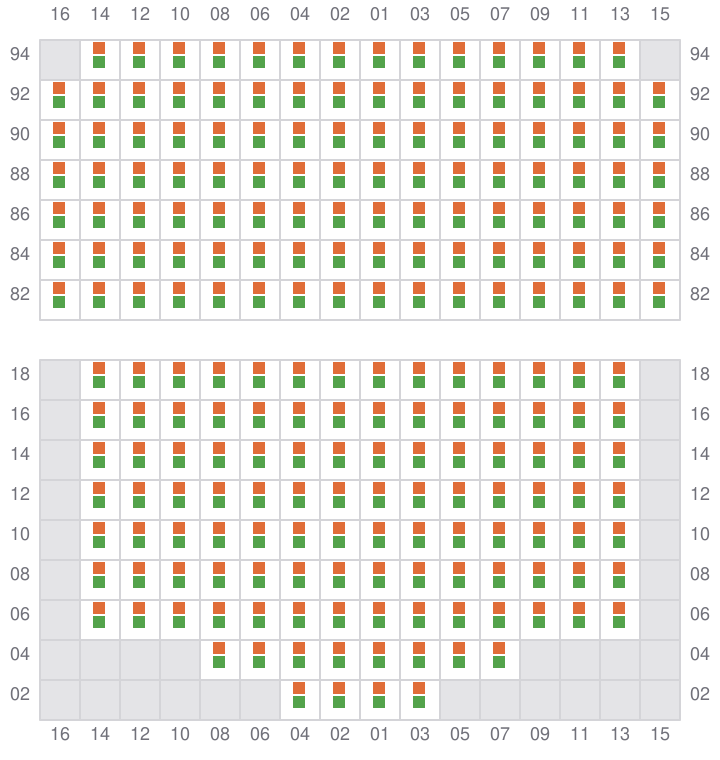

ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot ×

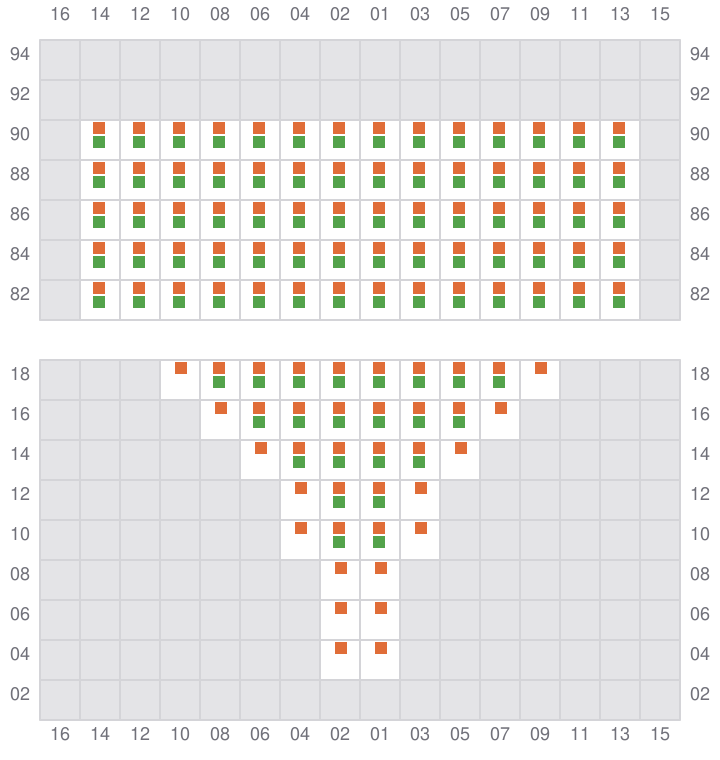

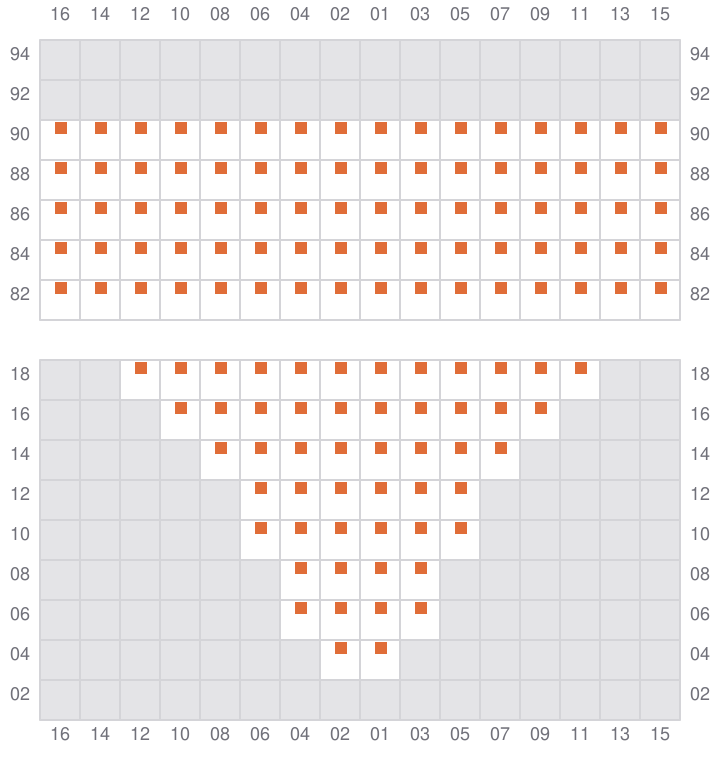

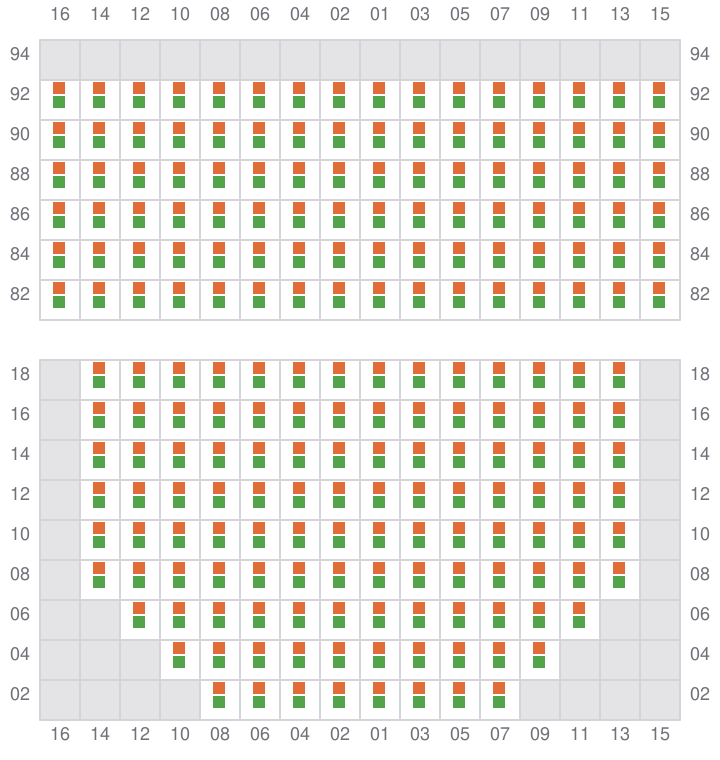

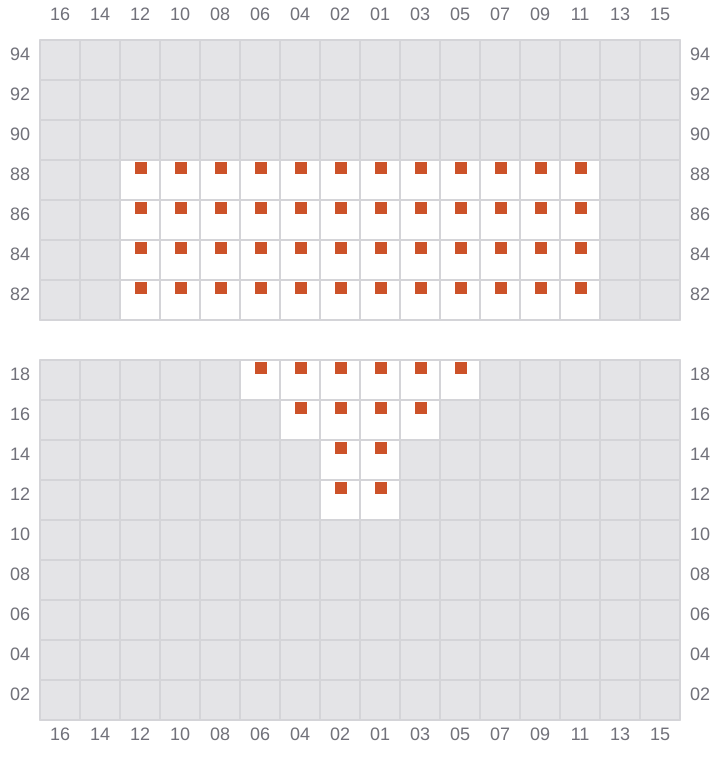

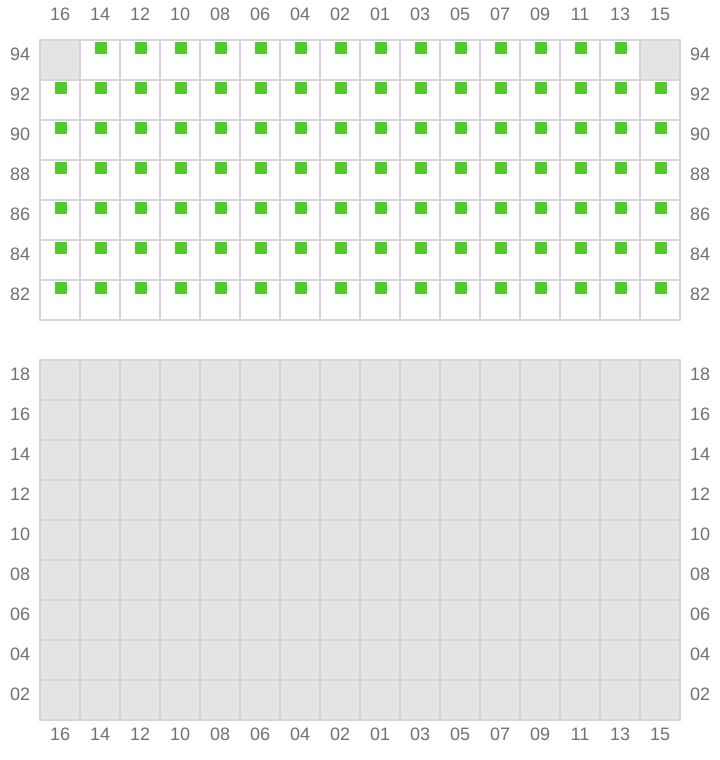

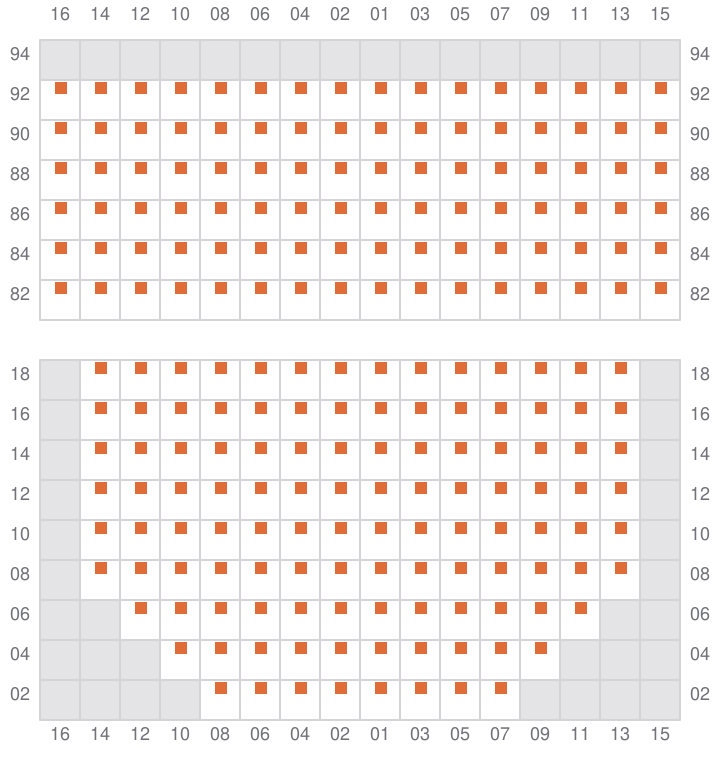

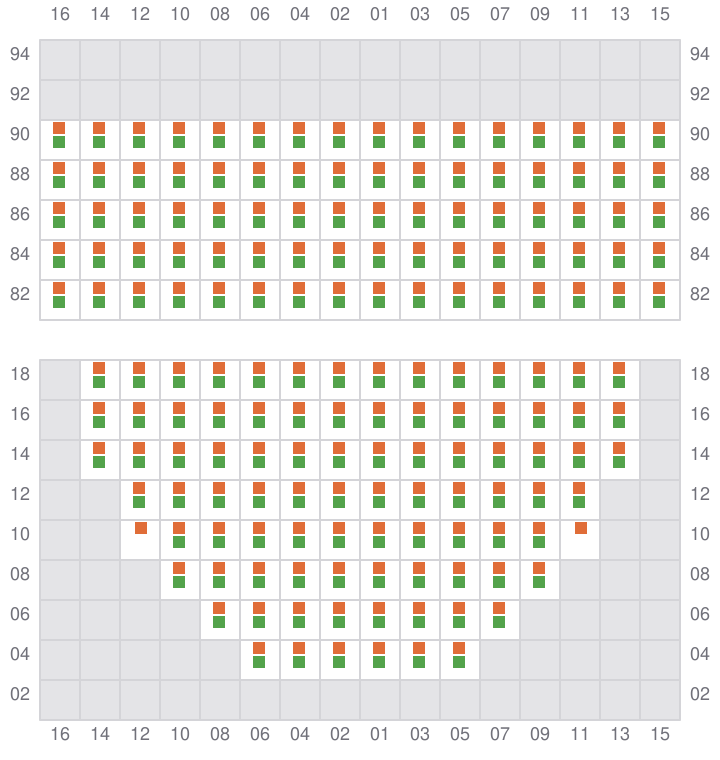

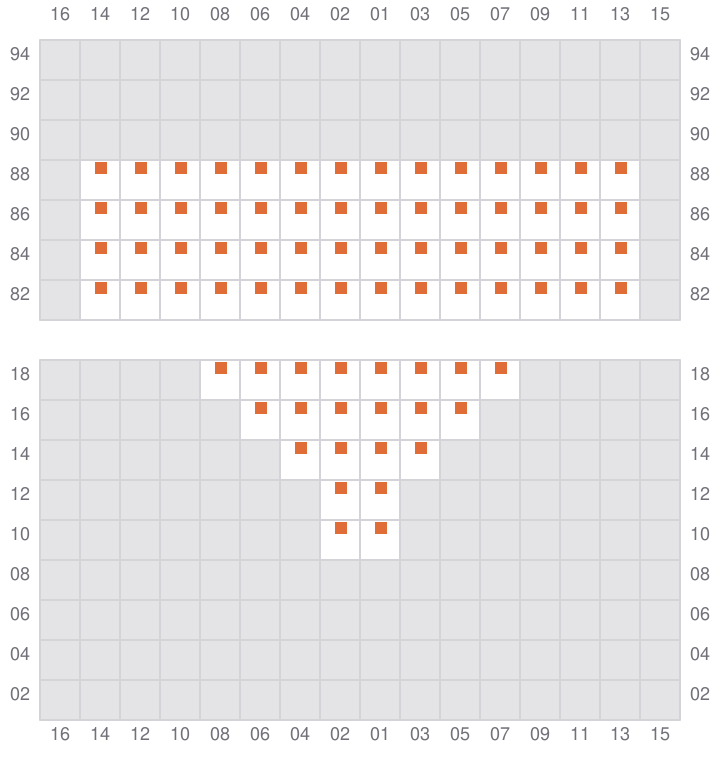

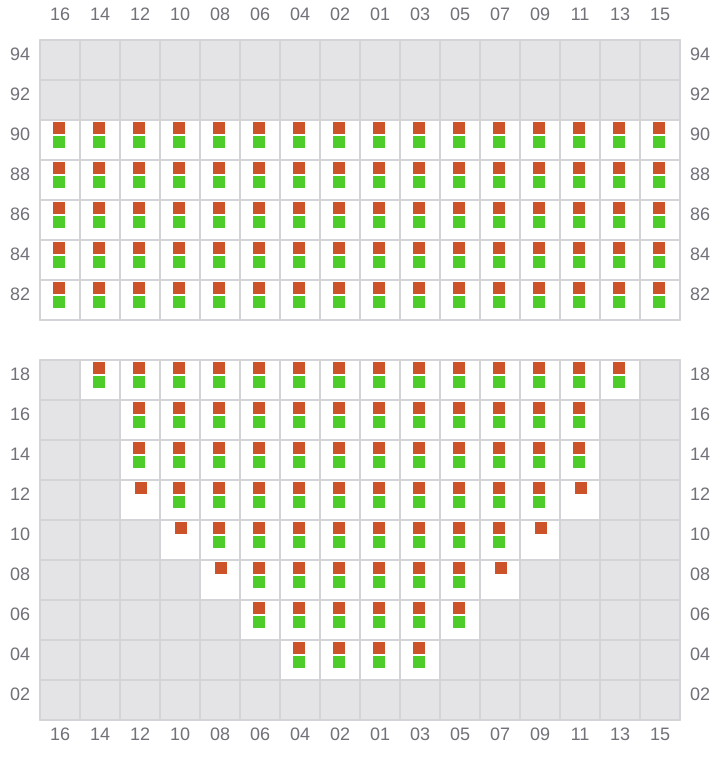

001
003
- →
005 (004)
- ←
007
- →

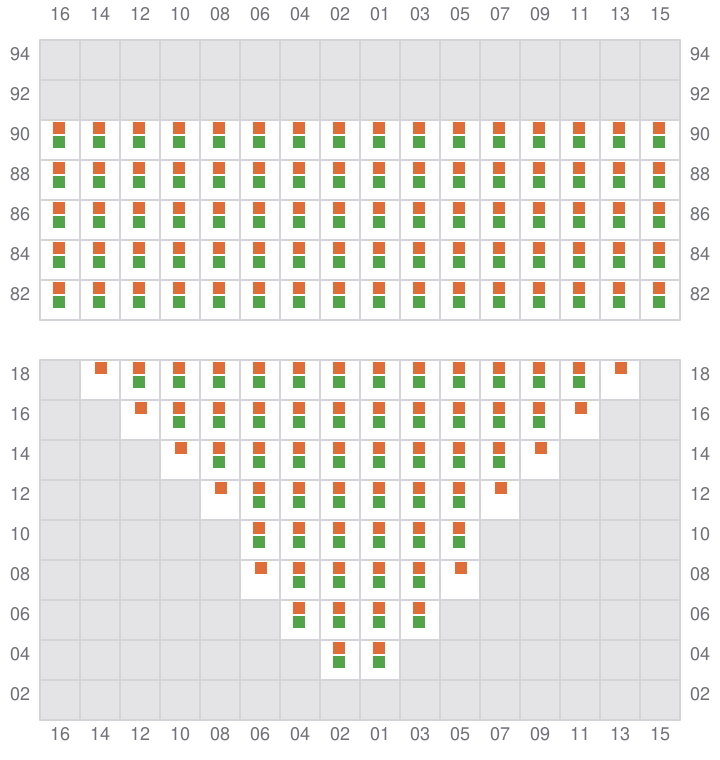

009 (008)
- ←
011
- →
013 (012)
- ←

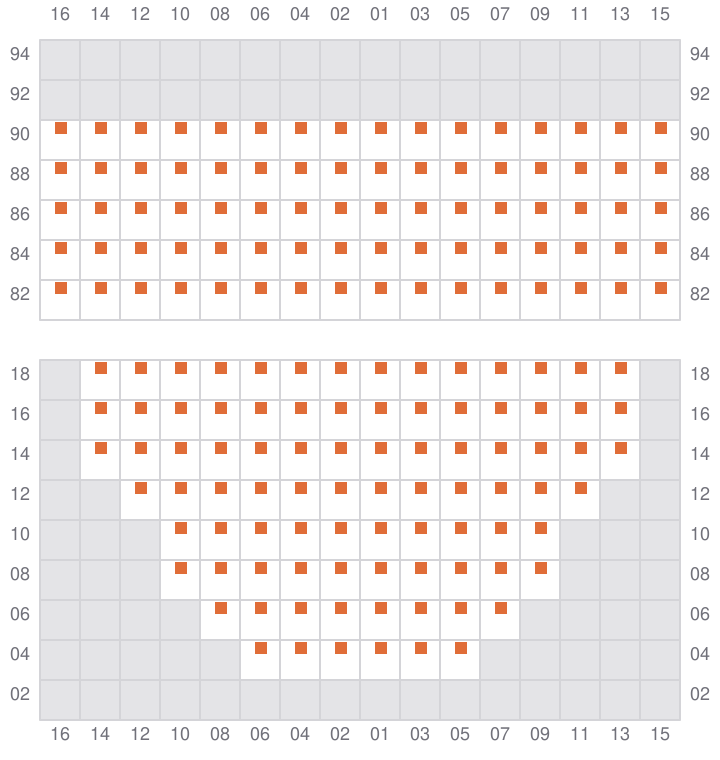

015
- →
017 (016)
- ←
019
- →
021 (020)
- ←

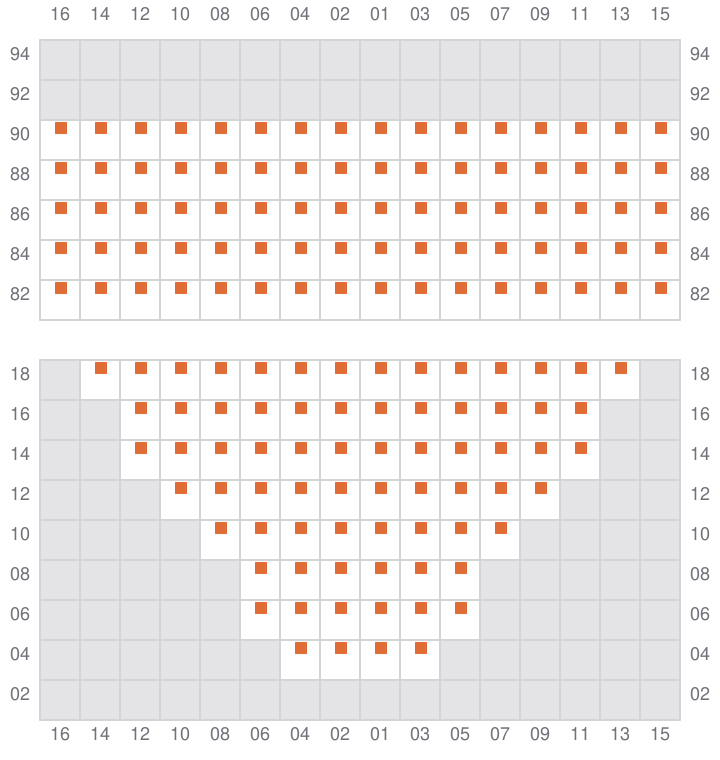

023
- →

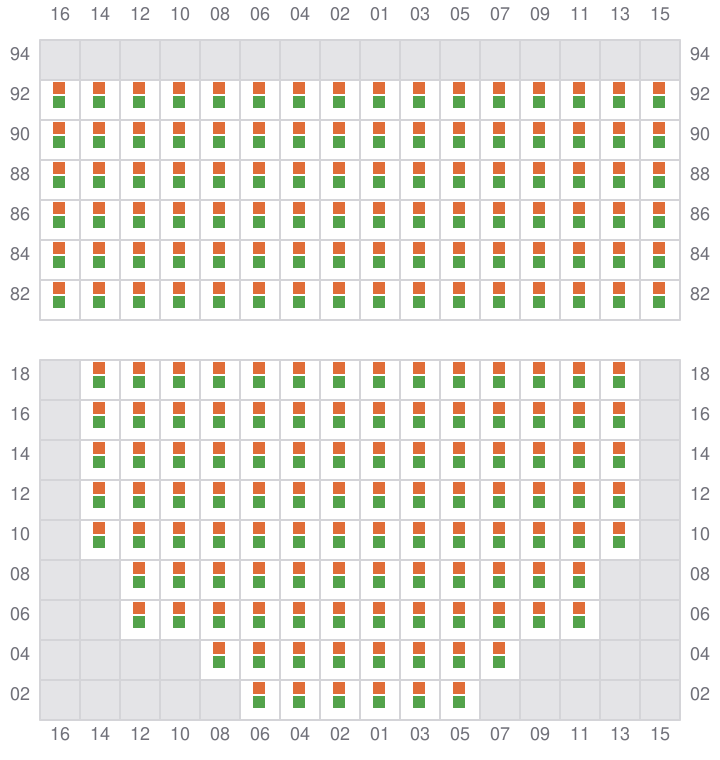

025 (024)
- ←
027
- →
029 (028)
- ←

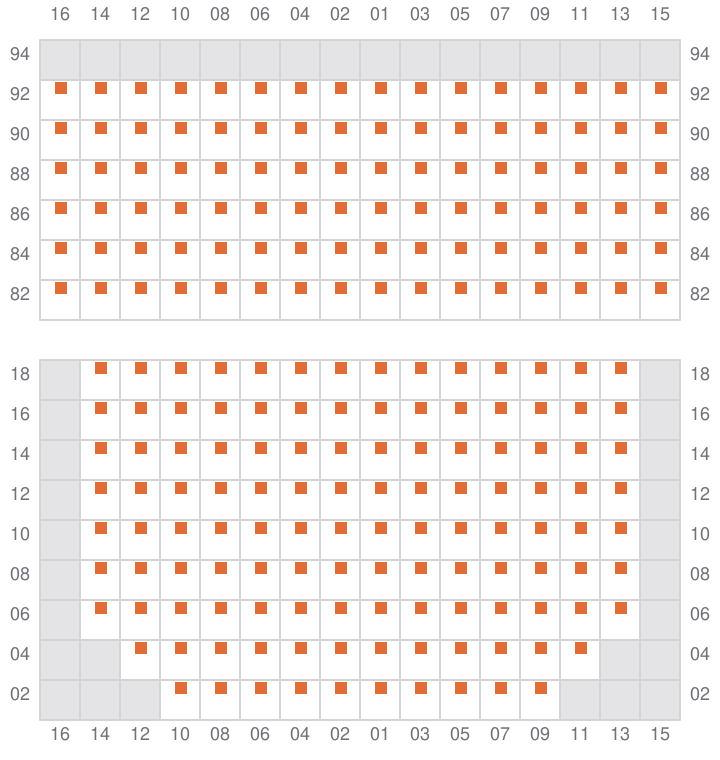

031
- →
033 (032)
- ←
035
- →
037 (036)
- ←
039
- →
041 (040)
- ←
043
- →

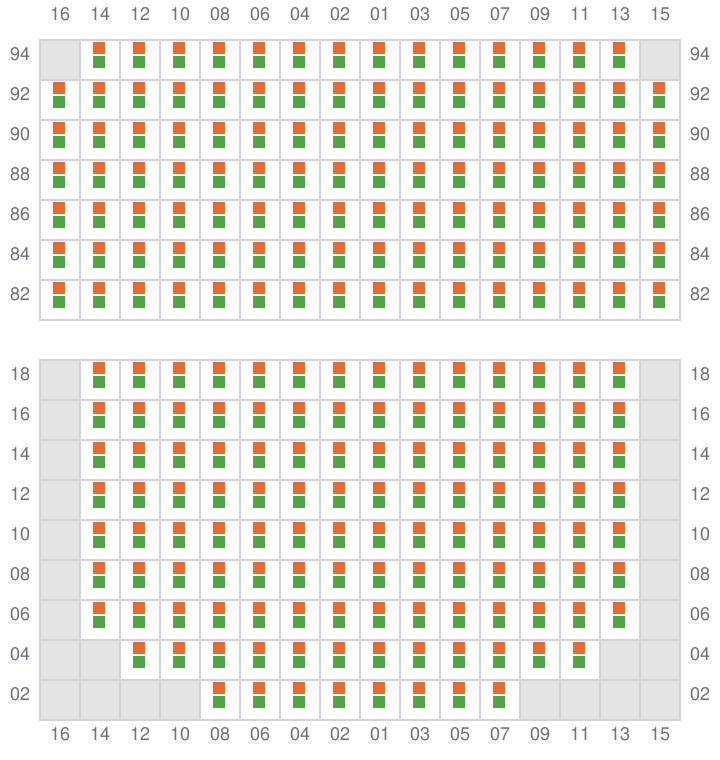

045 (044)
- ←
047
- →
049 (048)
- ←

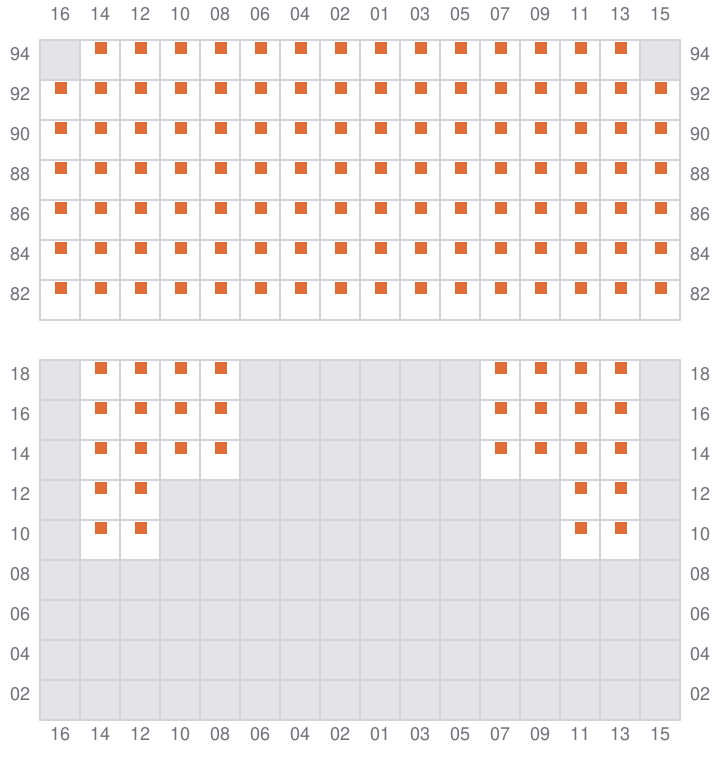

051
- →
053 (052)
- ←
055
- →
057 (056)
- ←
059
- →
061 (060)
- ←

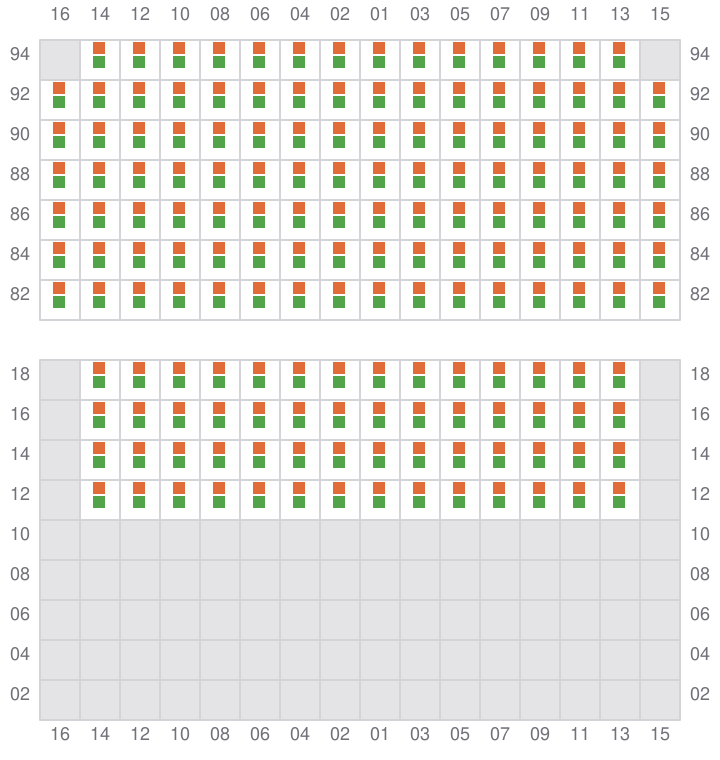

063
065 (064)
- ← / ?
