TIANJIN BRIDGE
9282962 | V7IG8 | 9282962 by ********* Last update: Thu Jun 20 2024

General Info

Ship Name:TIANJIN BRIDGE
IMO Code:9282962
Call Sign:V7IG8
Line Operator:9282962
Class Name for Sister Ships:OOCL
Year Built:2004
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):283.20
LOA (Length Overall):294.10
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:071
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:16
Min Below ISO Tier:02
Total TEU:5,069

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

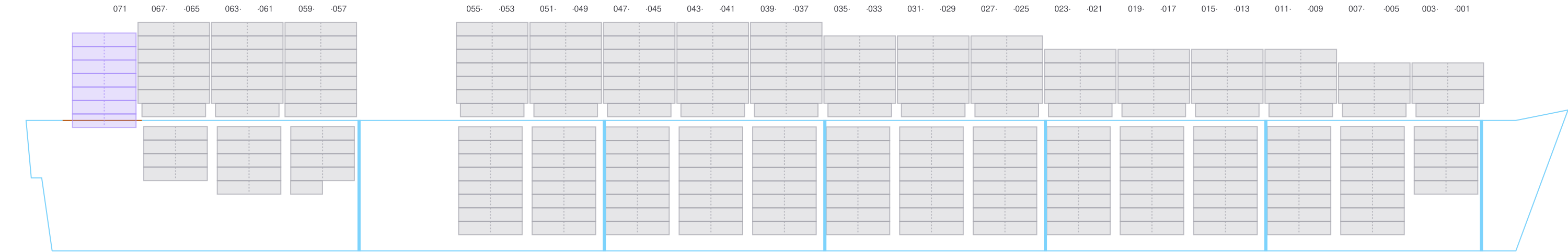

Side View

Side view of TIANJIN BRIDGE

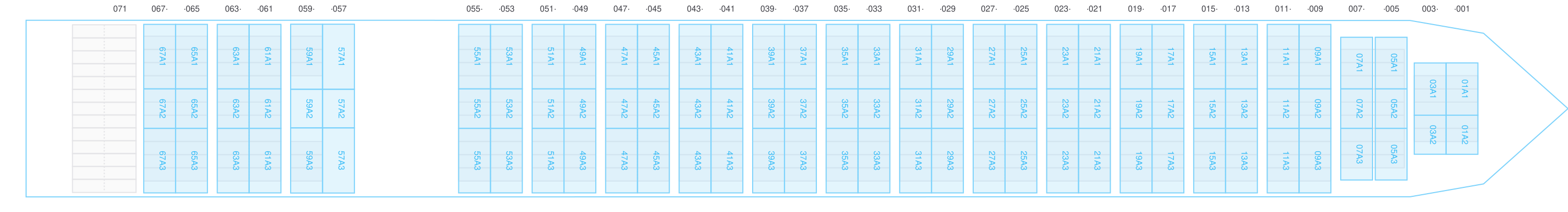

Hatch-Covers View

Deck view of TIANJIN BRIDGE

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001

  • →
  • ? / →

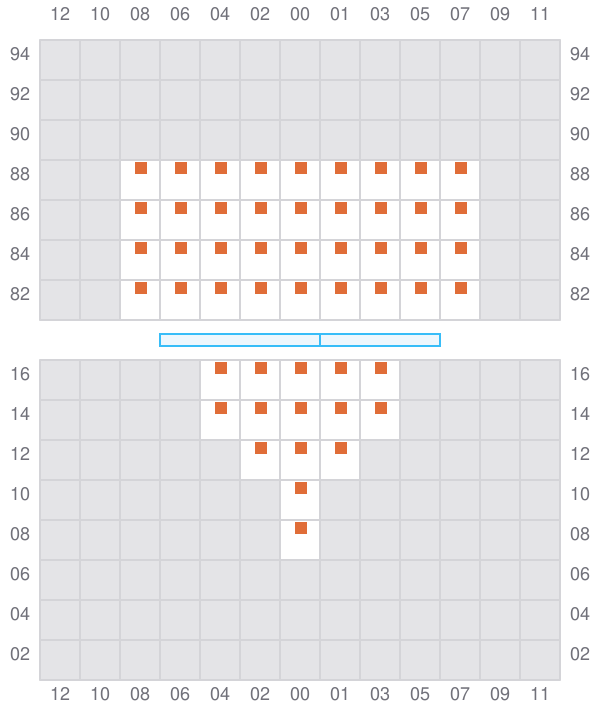

Bay 001 view and slots of TIANJIN BRIDGE

003 (002)

  • ←
  • → / ?
  • → / ?

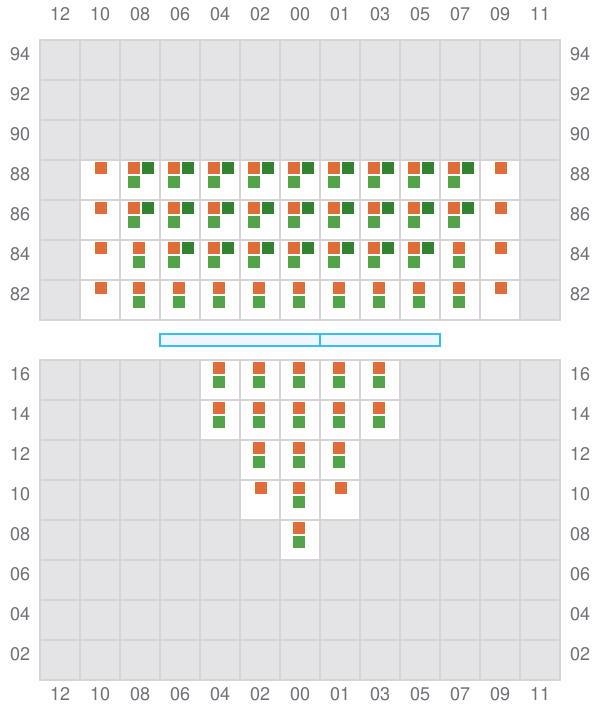

Bay 003 view and slots of TIANJIN BRIDGE

005

  • →
  • ? / →

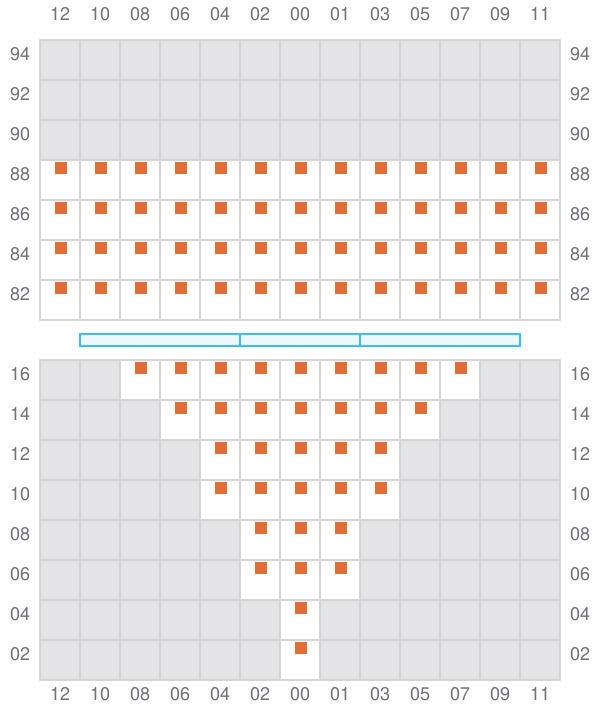

Bay 005 view and slots of TIANJIN BRIDGE

007 (006)

  • ←
  • → / ?
  • → / ?

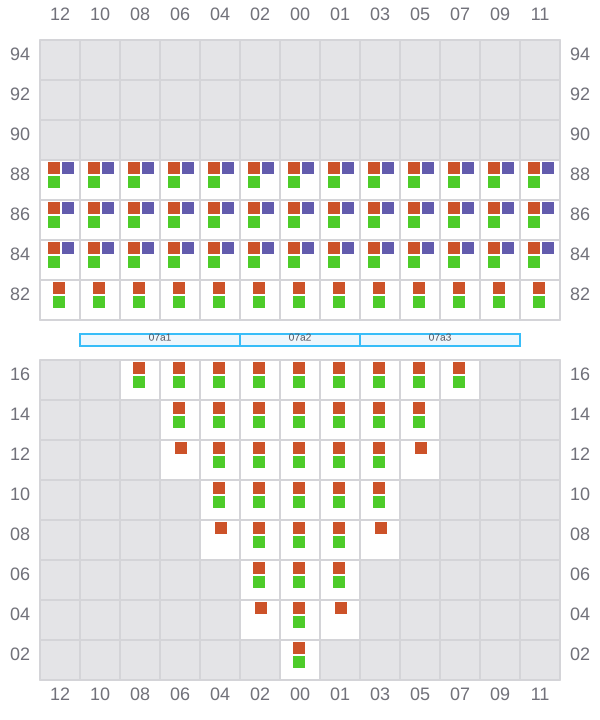

Bay 007 view and slots of TIANJIN BRIDGE

009

  • →
  • ? / →

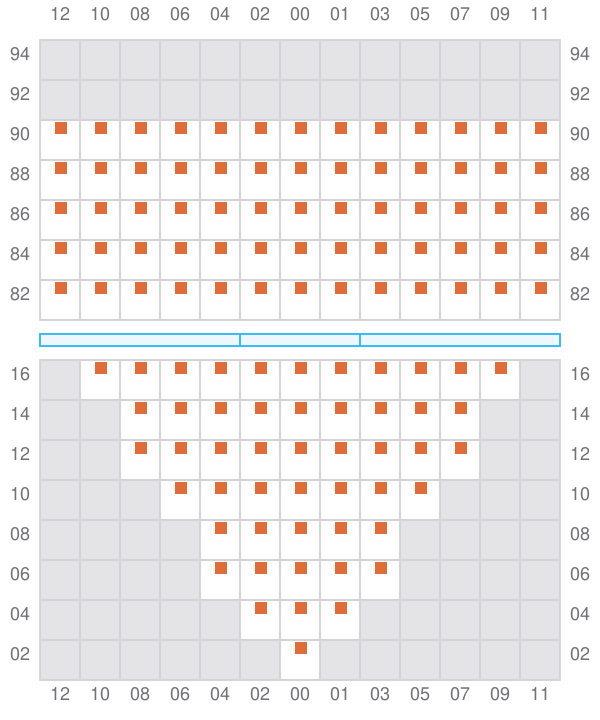

Bay 009 view and slots of TIANJIN BRIDGE

011 (010)

  • ←
  • → / ?
  • → / ?
Bay 011 view and slots of TIANJIN BRIDGE

013

  • →
  • ? / →
Bay 013 view and slots of TIANJIN BRIDGE

015 (014)

  • ←
  • → / ?
  • → / ?

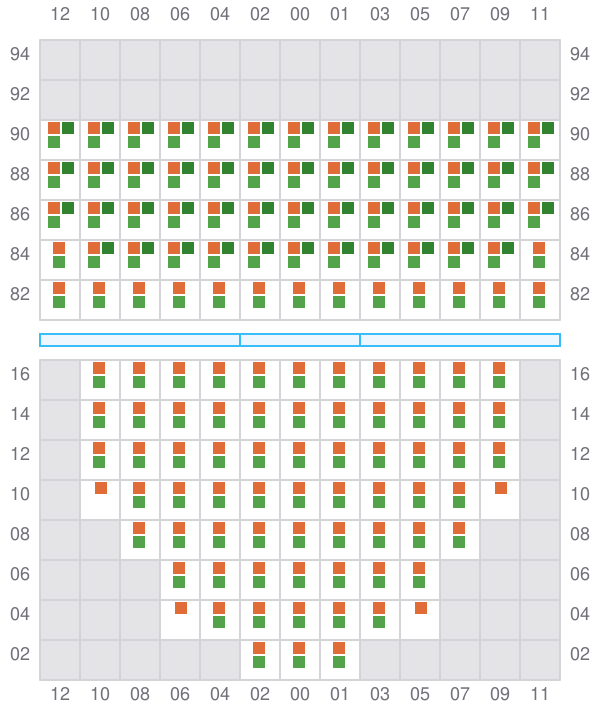

Bay 015 view and slots of TIANJIN BRIDGE

017

  • →
  • ? / →

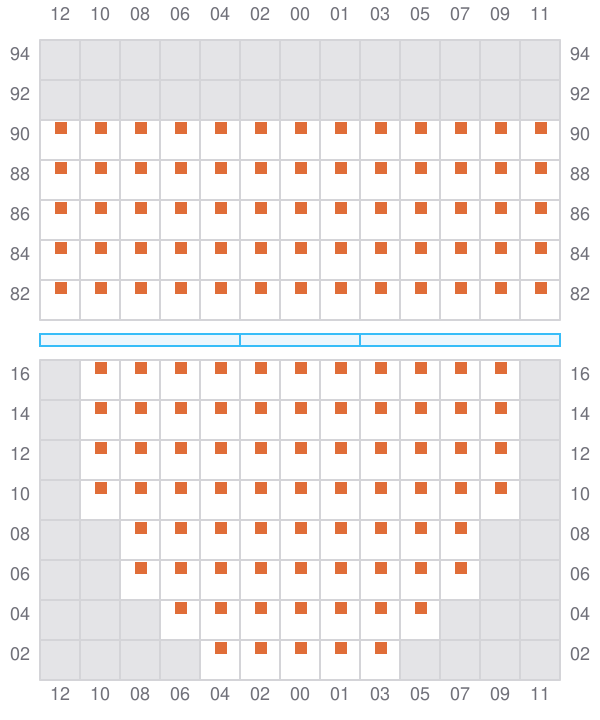

Bay 017 view and slots of TIANJIN BRIDGE

019 (018)

  • ←
  • → / ?
  • → / ?
Bay 019 view and slots of TIANJIN BRIDGE

021

  • →
  • ? / →

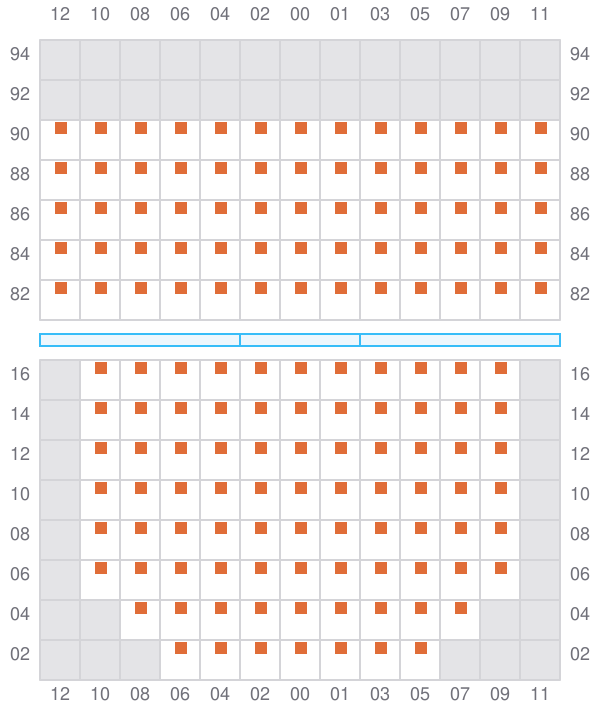

Bay 021 view and slots of TIANJIN BRIDGE

023 (022)

  • ←
  • → / ?
  • → / ?

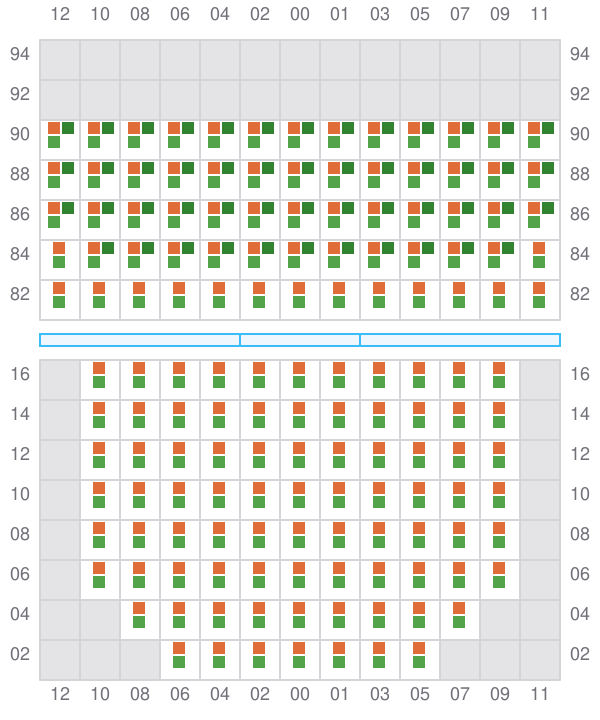

Bay 023 view and slots of TIANJIN BRIDGE

025

  • →
  • ? / →

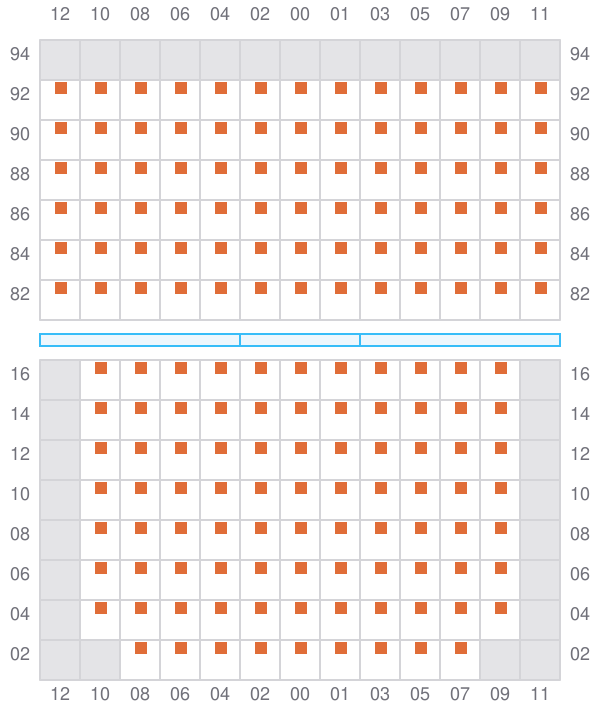

Bay 025 view and slots of TIANJIN BRIDGE

027 (026)

  • ←
  • →
  • →
Bay 027 view and slots of TIANJIN BRIDGE

029

  • →
  • ? / →
Bay 029 view and slots of TIANJIN BRIDGE

031 (030)

  • ←
  • →
  • →

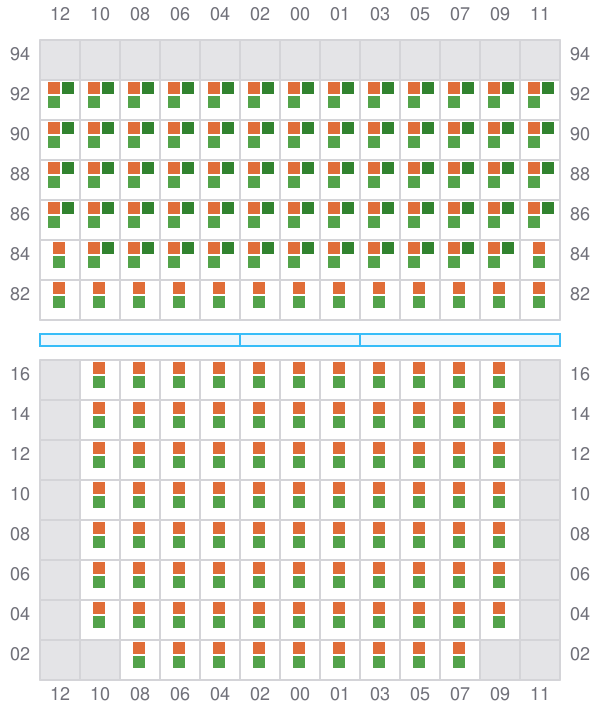

Bay 031 view and slots of TIANJIN BRIDGE

033

  • →
  • ? / →
Bay 033 view and slots of TIANJIN BRIDGE

035 (034)

  • ←
  • → / ?
  • →
Bay 035 view and slots of TIANJIN BRIDGE

037

  • →
  • ? / →
Bay 037 view and slots of TIANJIN BRIDGE

039 (038)

  • ←
  • →
  • → / ?
Bay 039 view and slots of TIANJIN BRIDGE

041

  • →
  • ? / →
Bay 041 view and slots of TIANJIN BRIDGE

043 (042)

  • ←
  • →
  • → / ?
Bay 043 view and slots of TIANJIN BRIDGE

045

  • →
  • ? / →

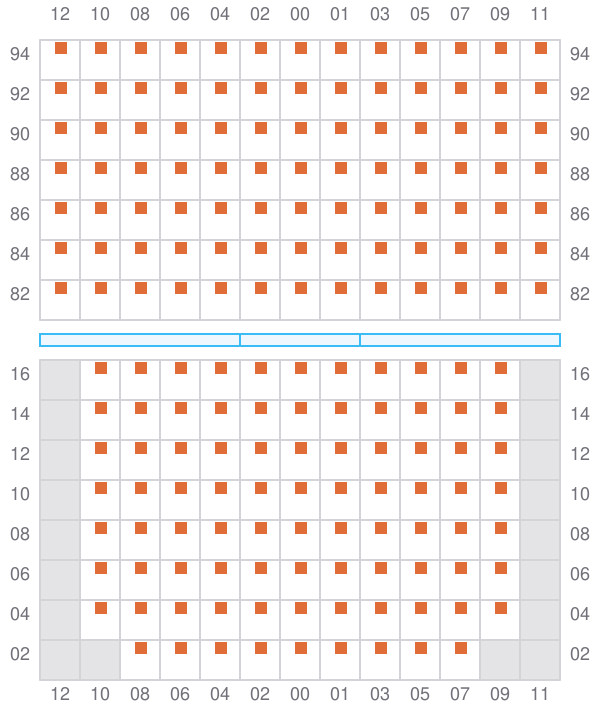

Bay 045 view and slots of TIANJIN BRIDGE

047 (046)

  • ←
  • → / ?
  • → / ?

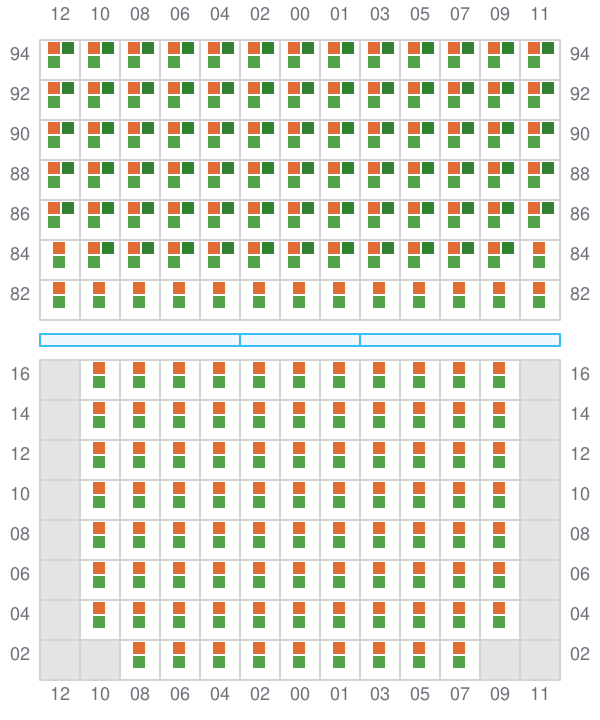

Bay 047 view and slots of TIANJIN BRIDGE

049

  • →
  • ? / →
Bay 049 view and slots of TIANJIN BRIDGE

051 (050)

  • ←
  • → / ?
  • → / ?
Bay 051 view and slots of TIANJIN BRIDGE

053

  • →
  • ? / →

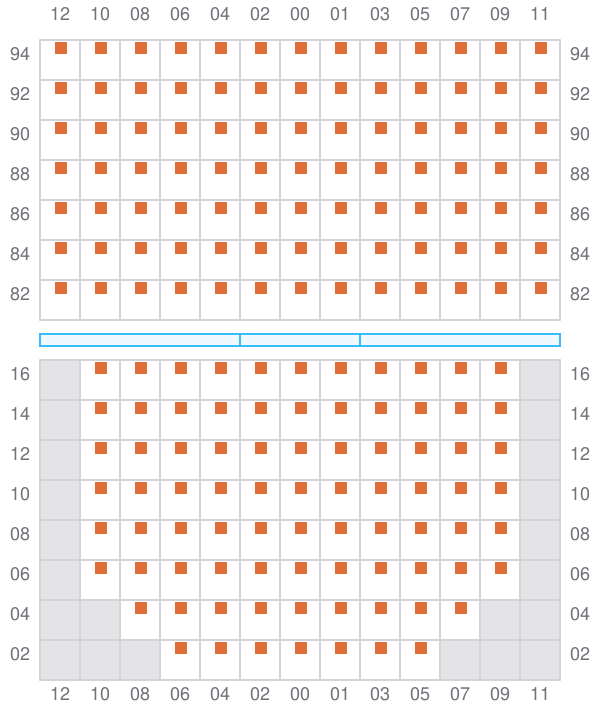

Bay 053 view and slots of TIANJIN BRIDGE

055 (054)

  • ←
  • →
  • →

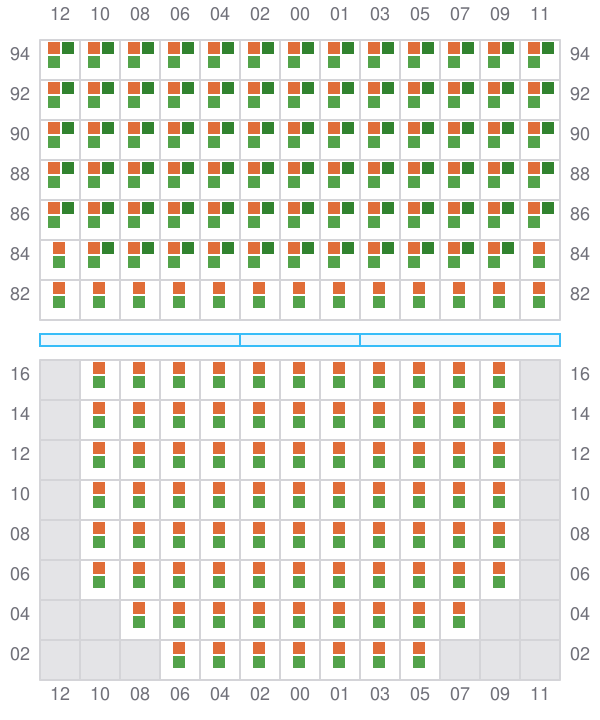

Bay 055 view and slots of TIANJIN BRIDGE

057

  • →
  • ← / ?
  • ? / →

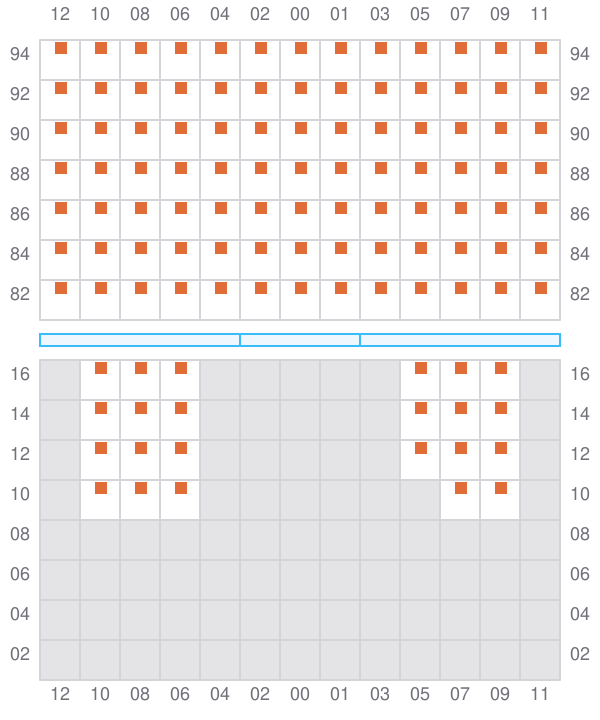

Bay 057 view and slots of TIANJIN BRIDGE

059 (058)

  • ←
  • ← / ?
  • ? / →

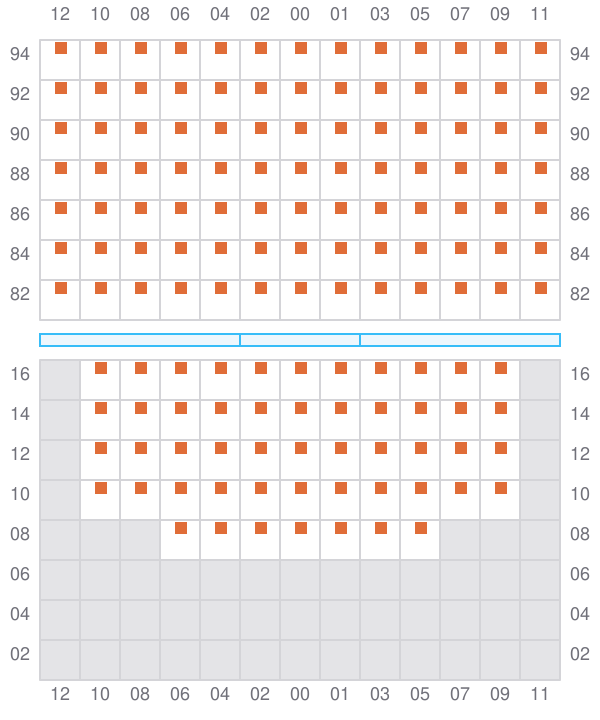

Bay 059 view and slots of TIANJIN BRIDGE

061

  • →
  • ← / ?
  • ? / →
Bay 061 view and slots of TIANJIN BRIDGE

063 (062)

  • ←
  • ← / ?
  • ? / →
Bay 063 view and slots of TIANJIN BRIDGE

065

  • →
  • ← / ?
  • ? / →

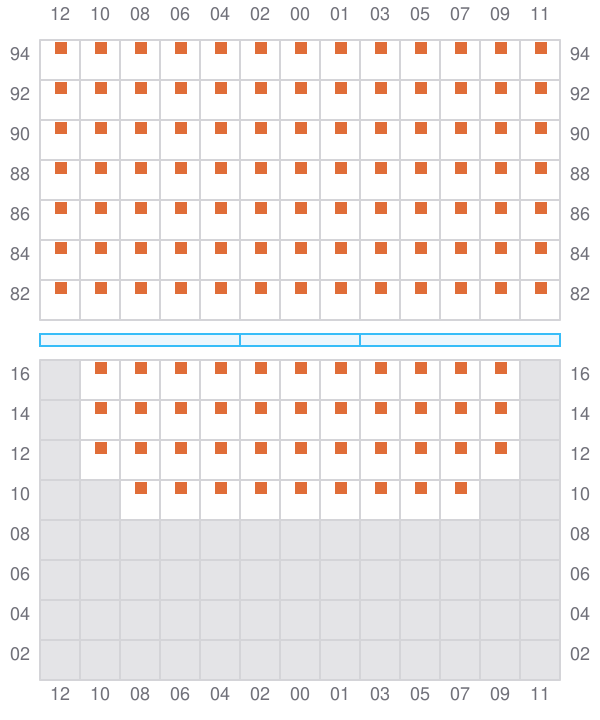

Bay 065 view and slots of TIANJIN BRIDGE

067 (066)

  • ←
  • ← / ?

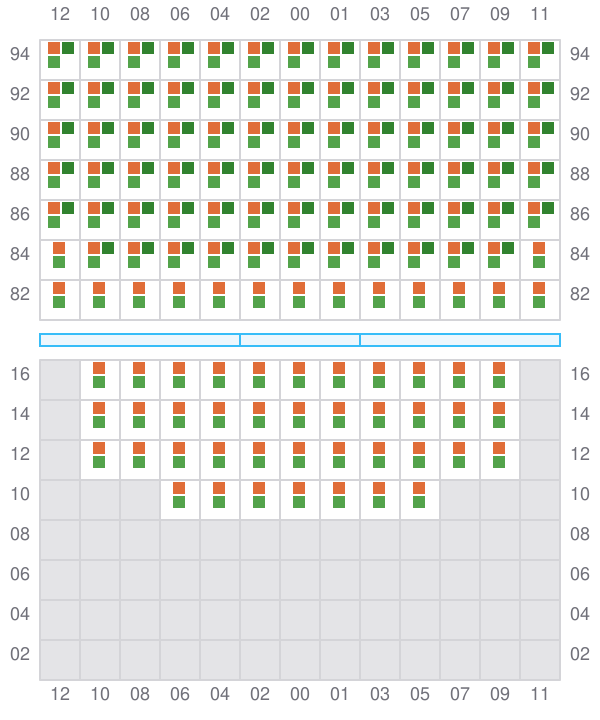

Bay 067 view and slots of TIANJIN BRIDGE

069

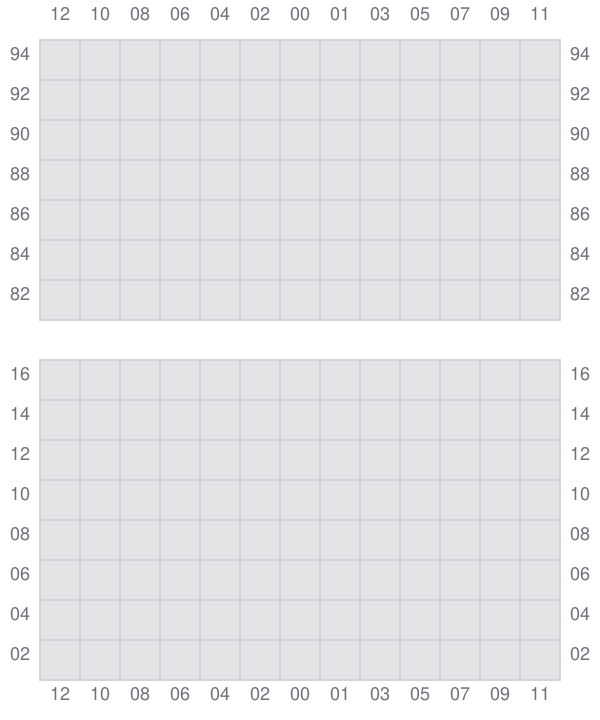

Bay 069 view and slots of TIANJIN BRIDGE

071

  • ← / ?
  • → / ?

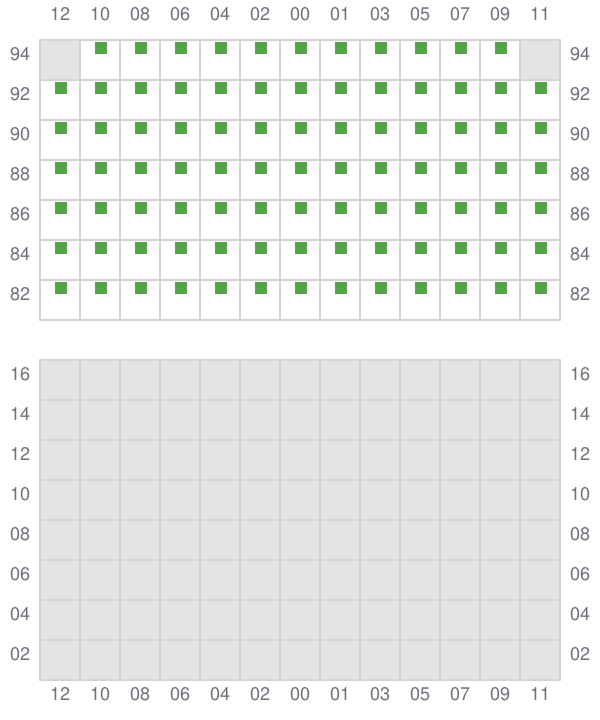

Bay 071 view and slots of TIANJIN BRIDGE
