TIGER LONGKOU
9913547 | VRUJ9 | CUL by ******************** Last update: Wed Jun 25 2025
General Info
Ship Name:TIGER LONGKOU
IMO Code:9913547
Call Sign:VRUJ9
Line Operator:CUL
Class Name for Sister Ships:CUTL
Year Built:2022
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):189.30
LOA (Length Overall):192.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:043
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:92
Min Above ISO Tier:82
Max Below ISO Tier:-
Min Below ISO Tier:-
Total TEU:1,598
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%
Side View
Hatch-Covers View

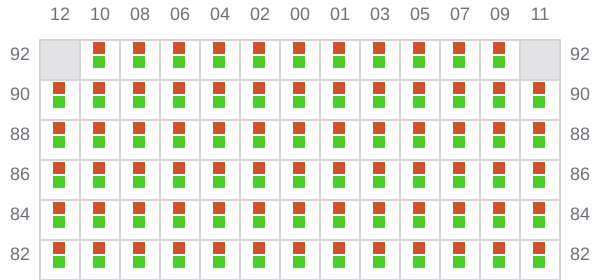

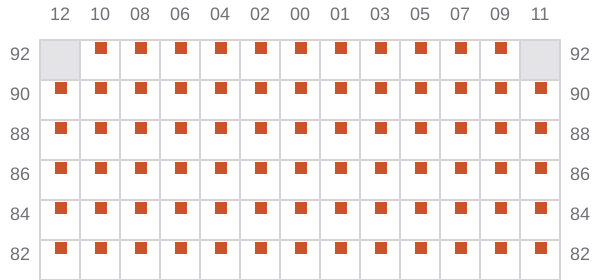

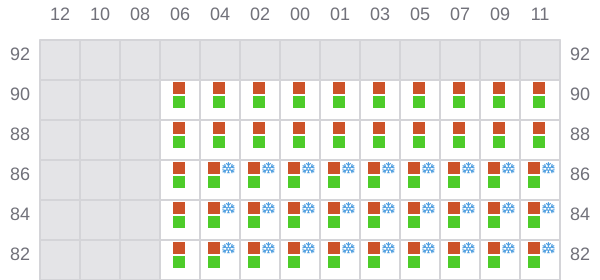

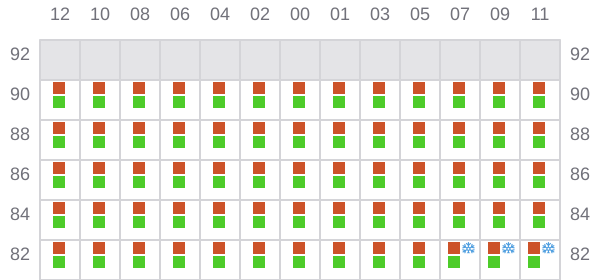

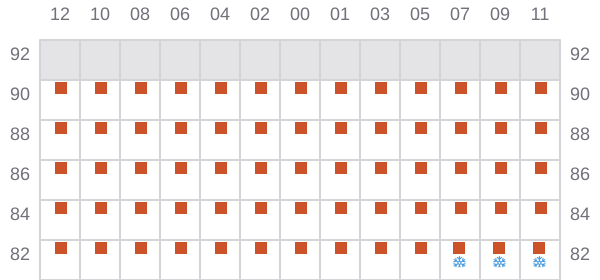

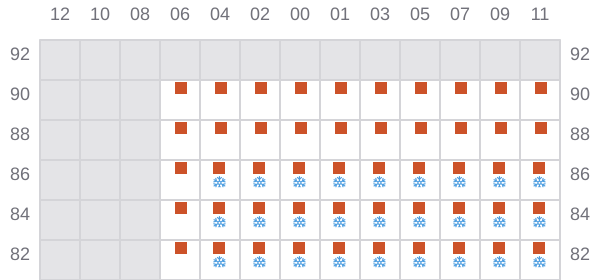

ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot ×
001
- → /
- ✓ /
003 (002)
- ← /
- ✓ /
005
- → /
- ✓ /
007 (006)
- ← /
- ✓ /
009
- → /
- ✓ /
011 (010)
- ← /
- ✓ /
013
- → /
- ✓ /
015 (014)
- ← /
- ✓ /
017
- → /
- ✓ /
019 (018)
- ← /
- ✓ /
021
- → /
- ✓ /
023 (022)
- ← /
- ✓ /
025
- → /
- ✓ /
027 (026)
- ← /
- ✓ /
029
- → /
- ✓ /
031 (030)
- ← /
- ✓ /
033
- → /
- ✓ /
035 (034)
- ← /
- ✓ /
037
- → /
- ✓ /
039 (038)
- ← /
- ✓ /
041
- → /
- ✓ /
043 (042)
- ← /
- ✓ /
