TIMON
9415844 | A8TH7 | 9415844 by ********* Last update: Mon Mar 25 2024
General Info
Ship Name:TIMON
IMO Code:9415844
Call Sign:A8TH7
Line Operator:9415844
Class Name for Sister Ships:61E
Year Built:2009
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:069
Max ISO Row:16
Center Line Row:No
Max Above ISO Tier:96
Min Above ISO Tier:82
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:7,001
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

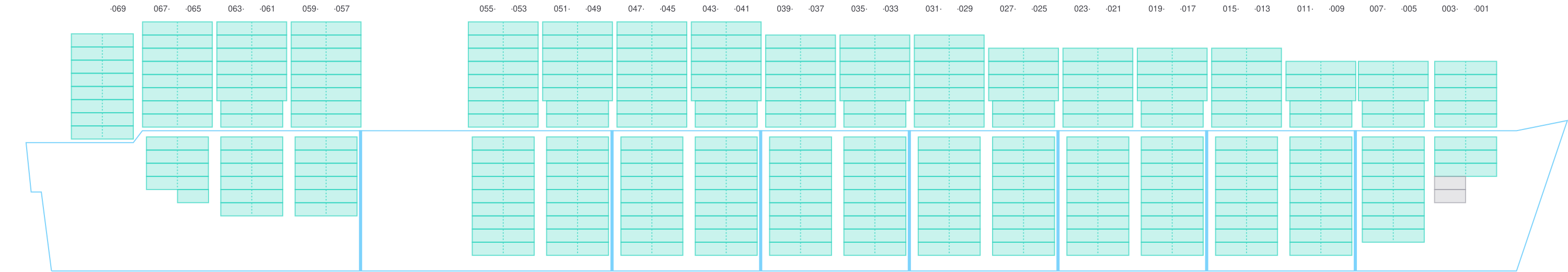

Side View
Hatch-Covers View

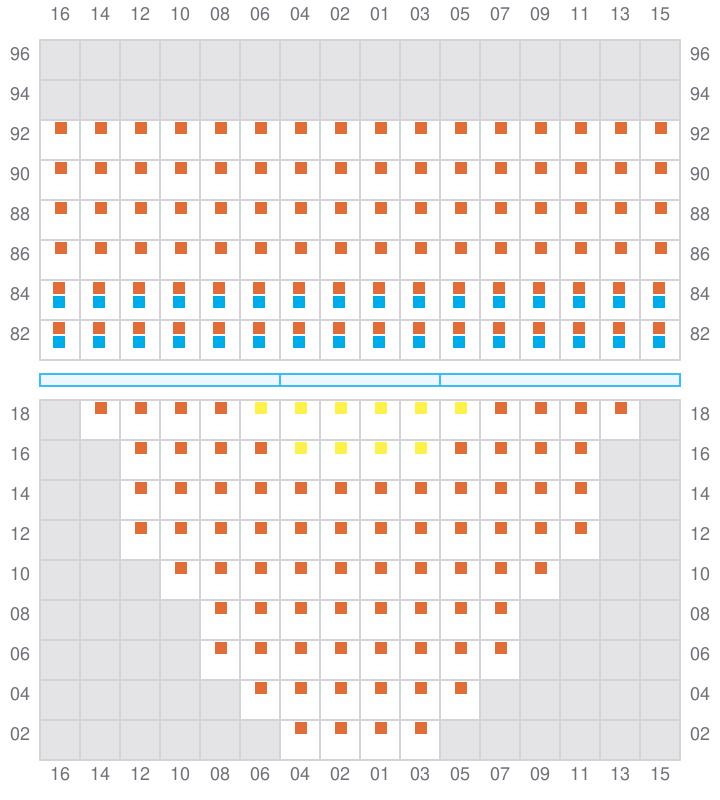

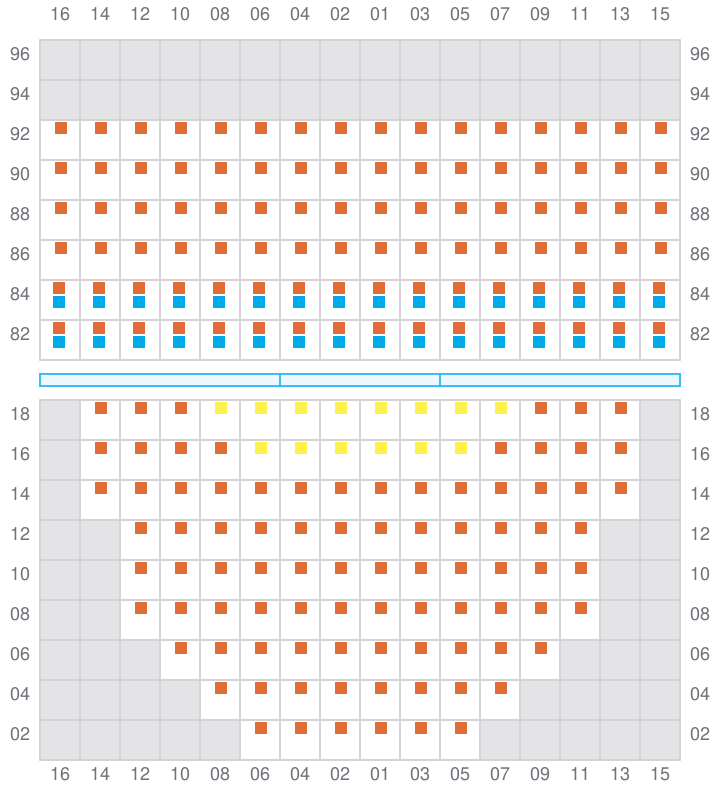

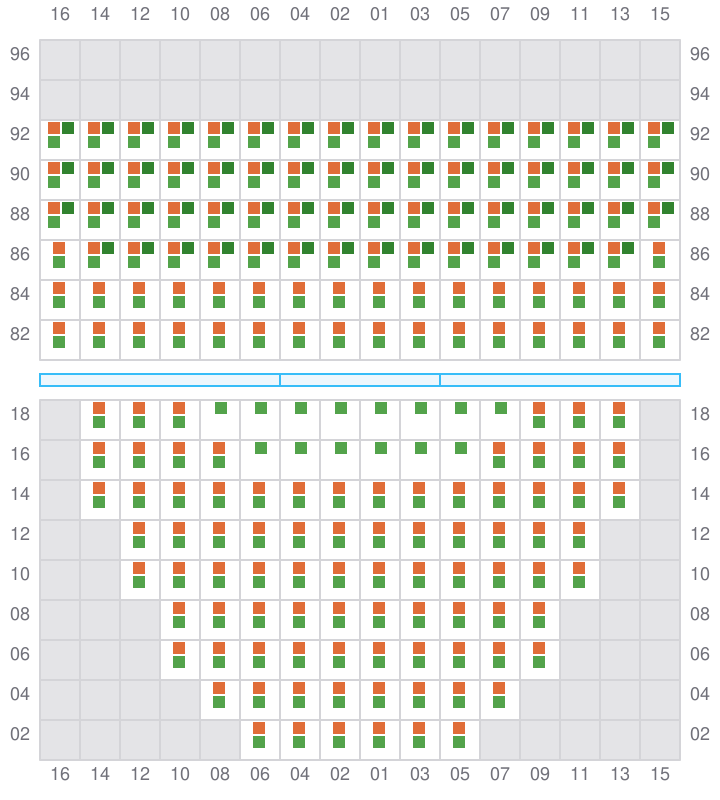

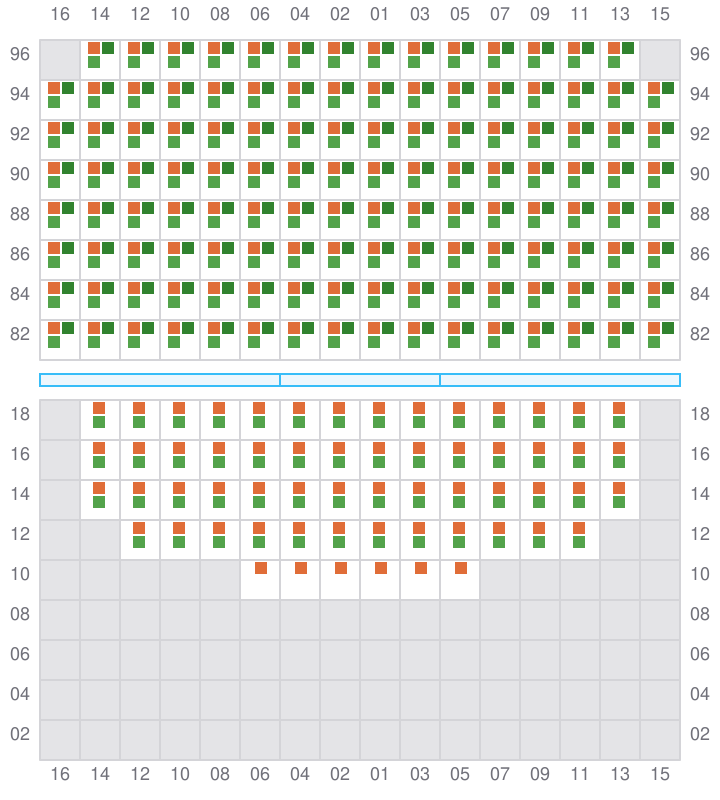

ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot
001 (002)
- →
- → / ?
003
- ←
- → / ?

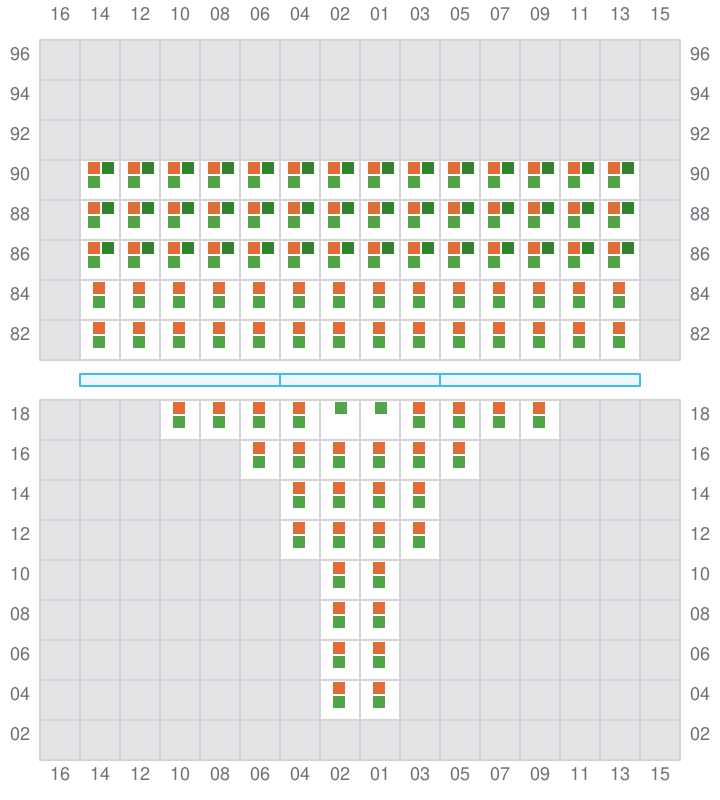

005 (006)
- →
- → / ?

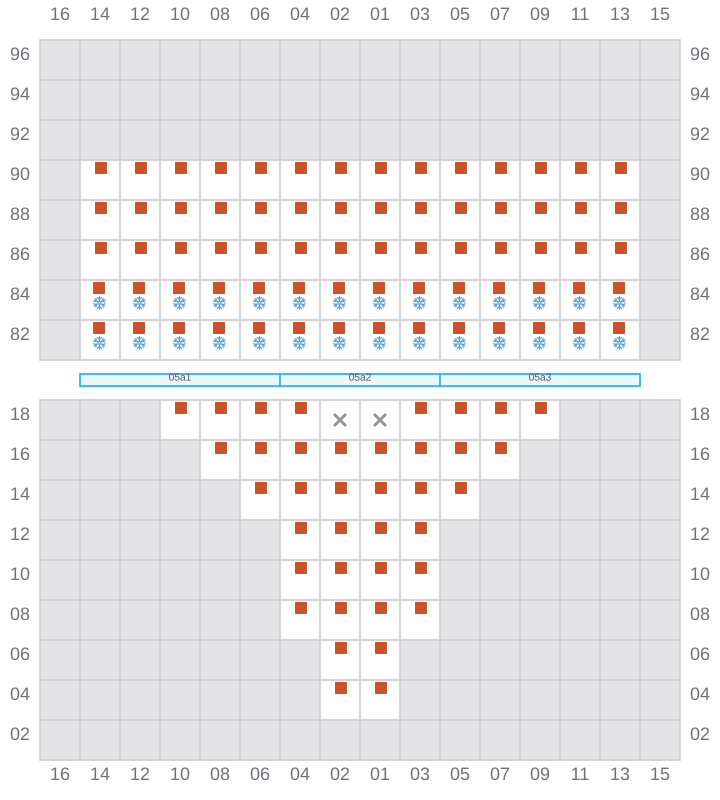

007
- ←
- ← / ?
009 (010)
- →
- → / ?
011
- ←
- → / ?
013 (014)
- →
- → / ?
015
- ←
- → / ?
017 (018)
- →
- → / ?
019
- ←
- → / ?

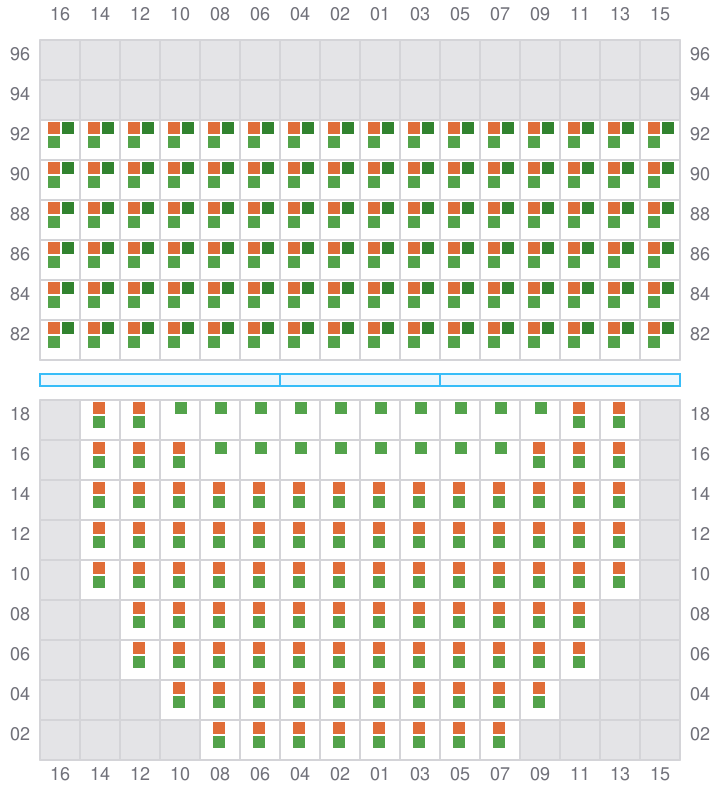

021 (022)
- →
- → / ?
023
- ←
- → / ?
025 (026)
- →
- → / ?
027
- ←
- → / ?
029 (030)
- →
- → / ?
031
- ←
- → / ?

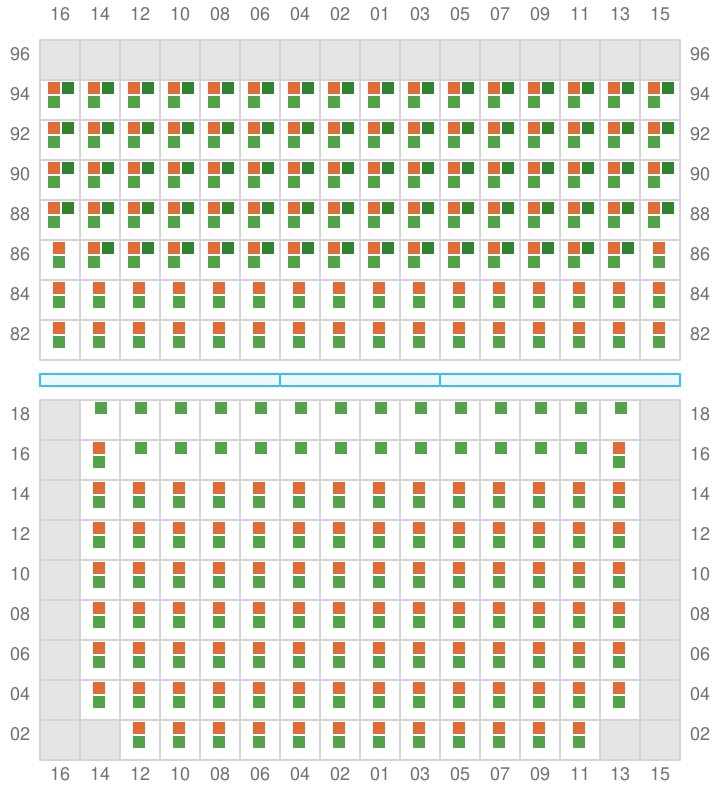

033 (034)
- →
- → / ?

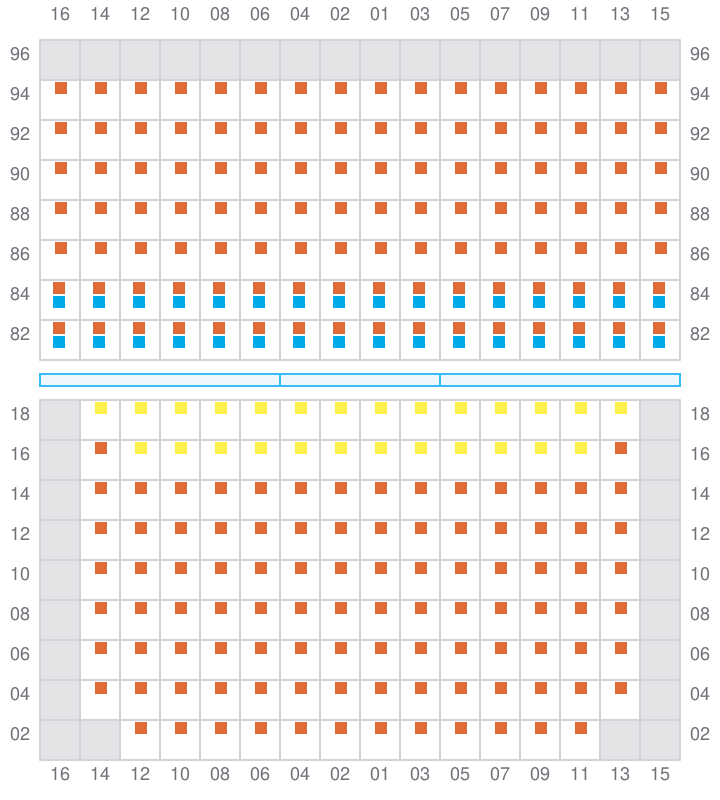

035
- ←
- → / ?
037 (038)
- →
- → / ?
039
- ←
- → / ?

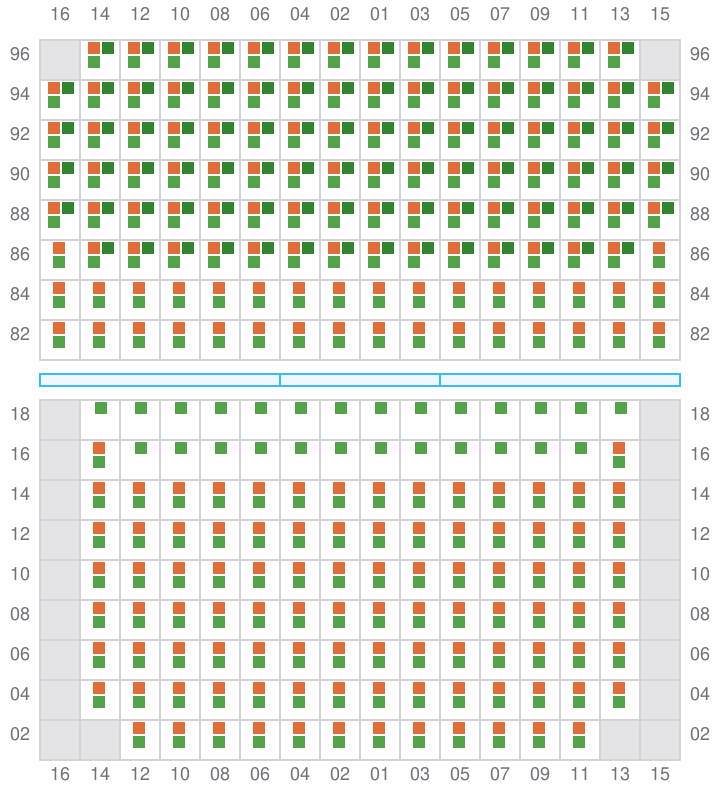

041 (042)
- →
- → / ?

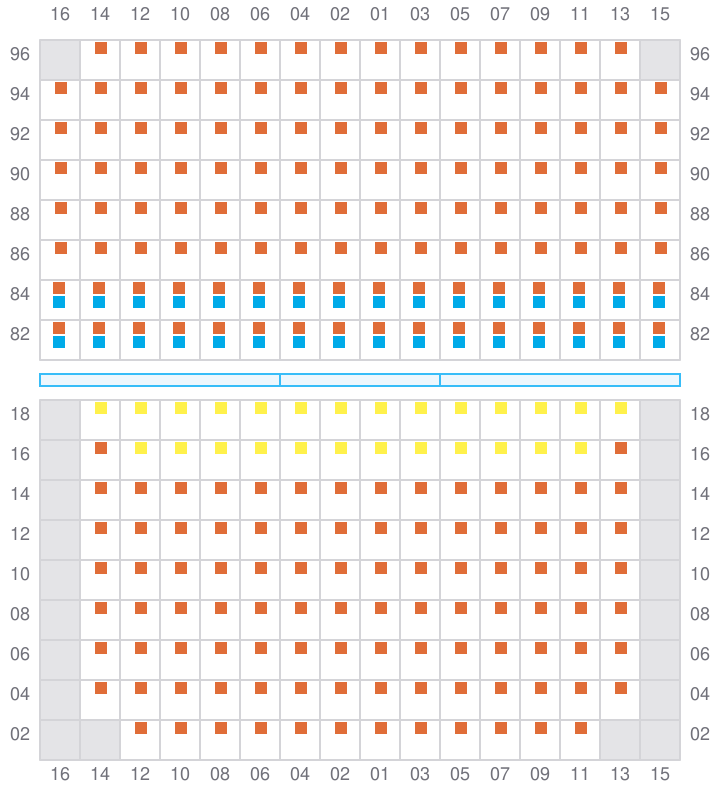

043
- ←
- → / ?
045 (046)
- →
- → / ?
047
- ←
- → / ?

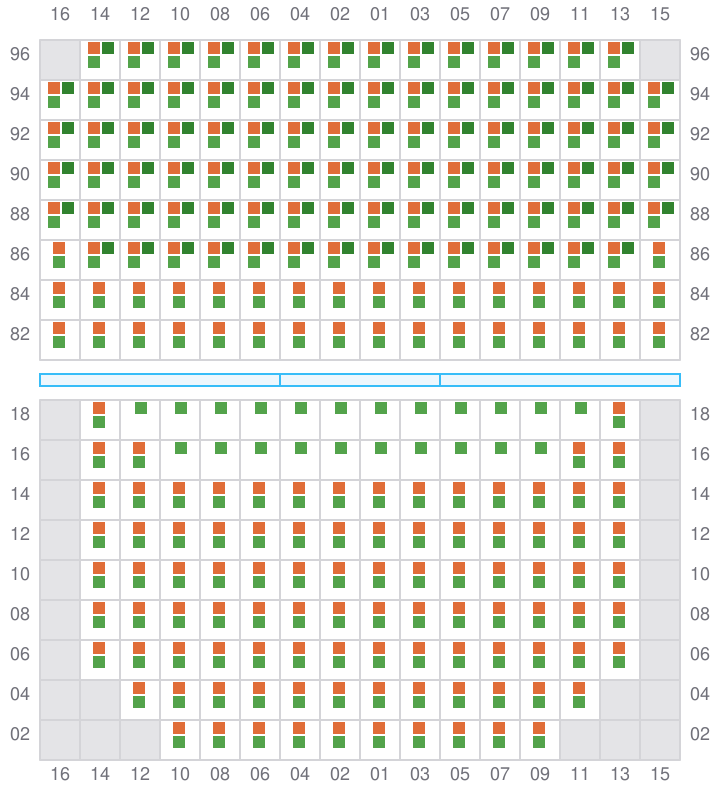

049 (050)
- →
- → / ?

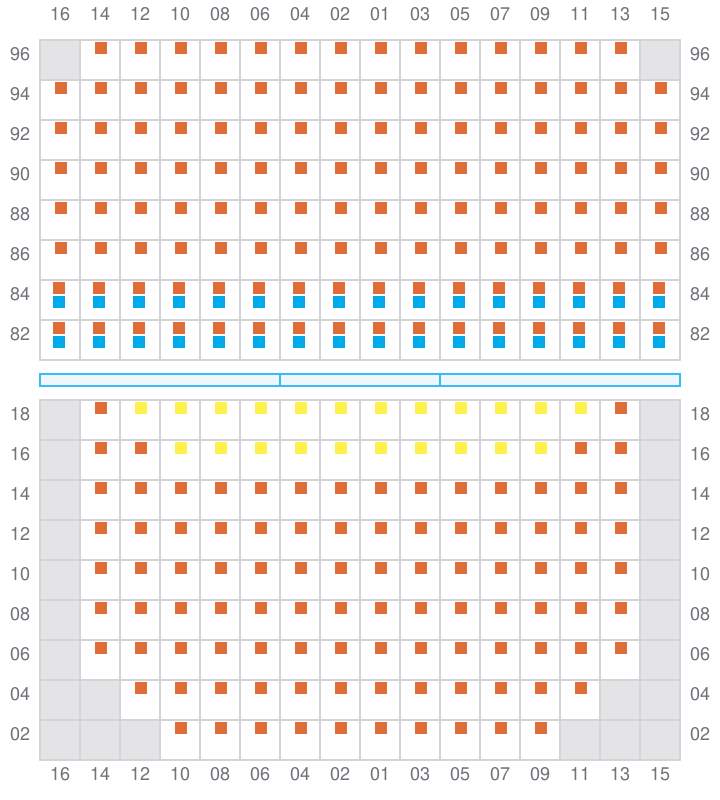

051
- ←
- → / ?

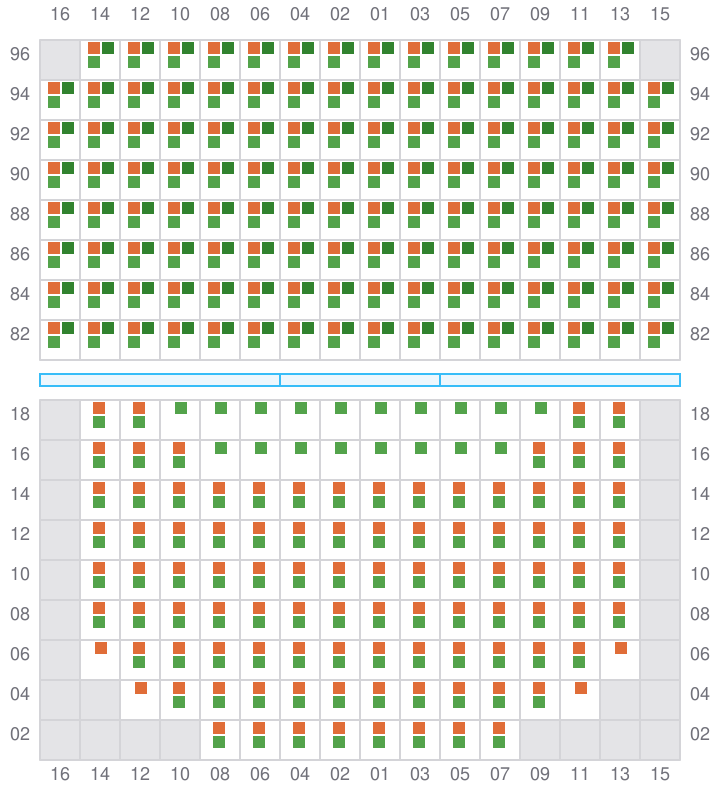

053 (054)
- →
- → / ?
055
- ←
- → / ?

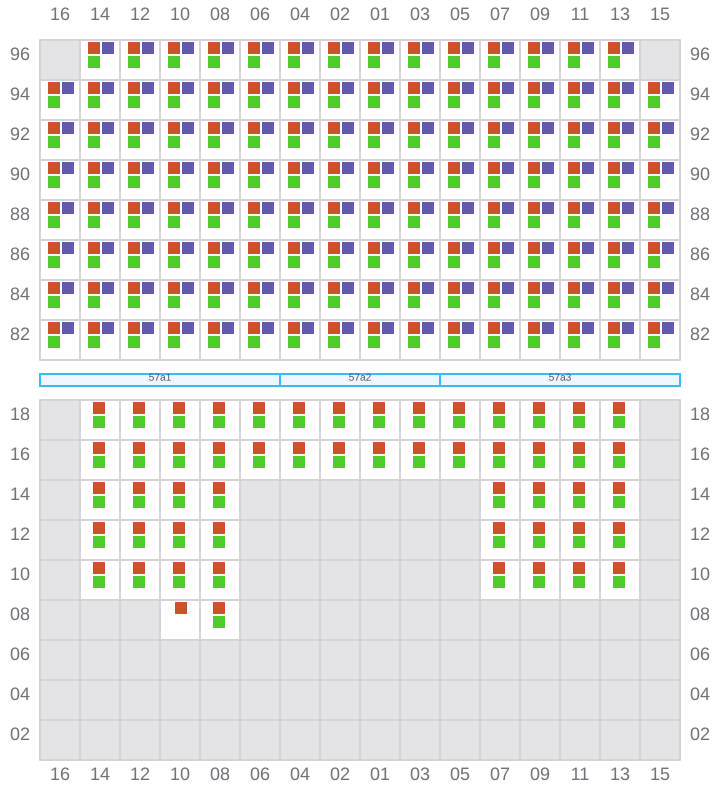

057 (058)
- →
- → / ?
059
- ←
- → / ?

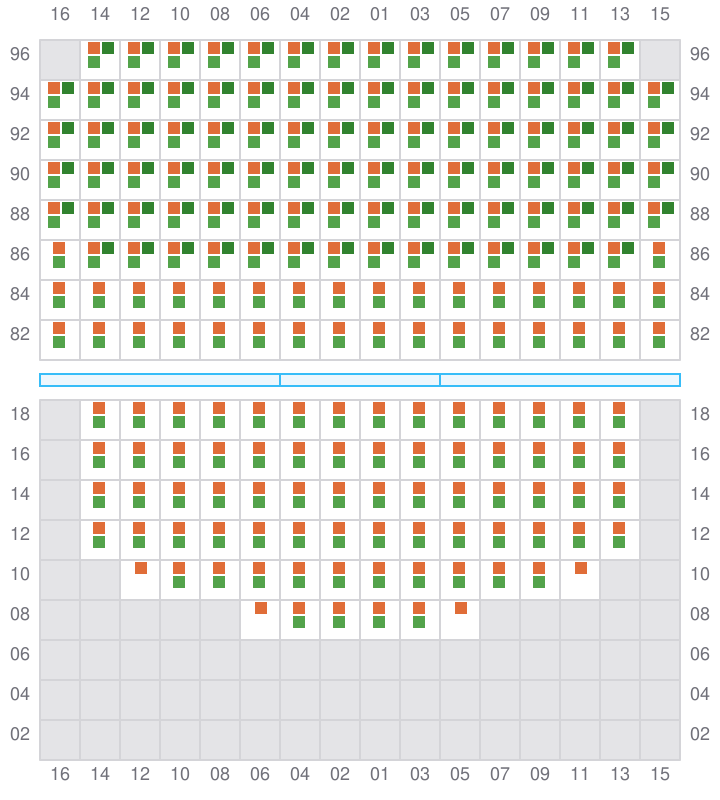

061 (062)
- →
- → / ?

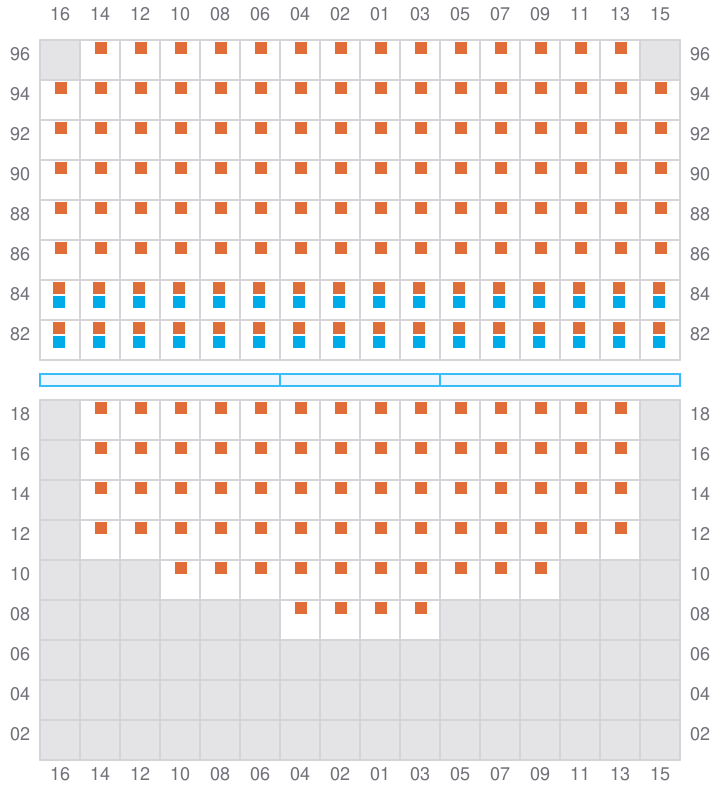

063
- ←
- → / ?
065 (066)
- →
- → / ?

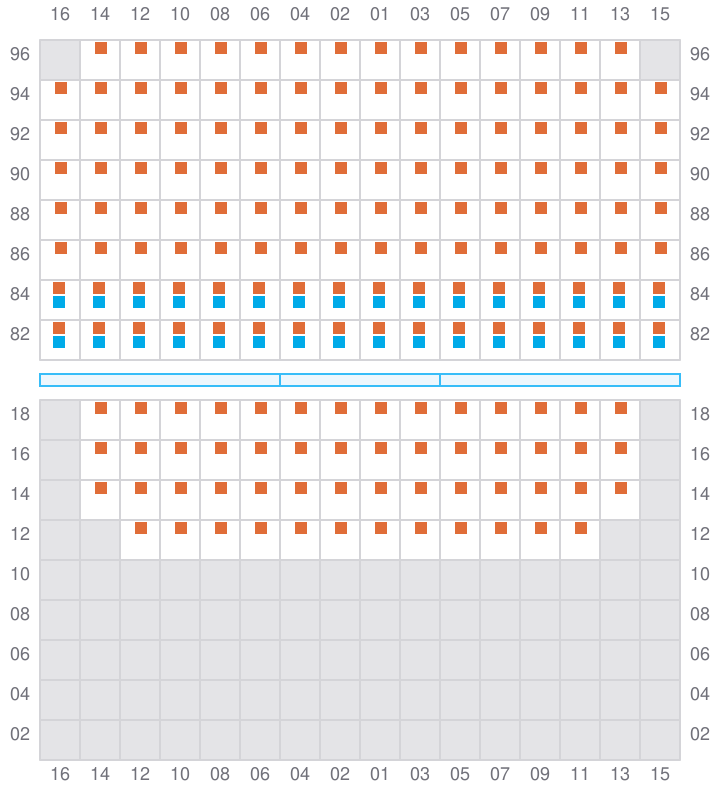

067
- ←
- → / ?

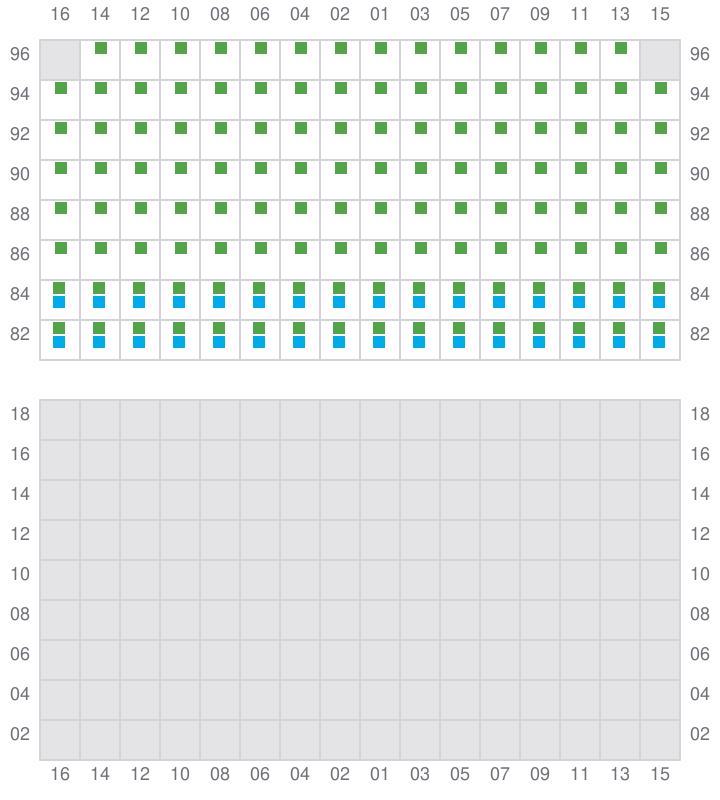

069 (070)
- → / ?
- ← / ?
