TIRUA
9612882 | D5AD8 | 9612882 by ********* Last update: Thu Mar 28 2024
General Info
Ship Name:TIRUA
IMO Code:9612882
Call Sign:D5AD8
Line Operator:9612882
Class Name for Sister Ships:80E
Year Built:2012
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:069
Max ISO Row:18
Center Line Row:No
Max Above ISO Tier:96
Min Above ISO Tier:80
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:8,000
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%
Side View
Hatch-Covers View

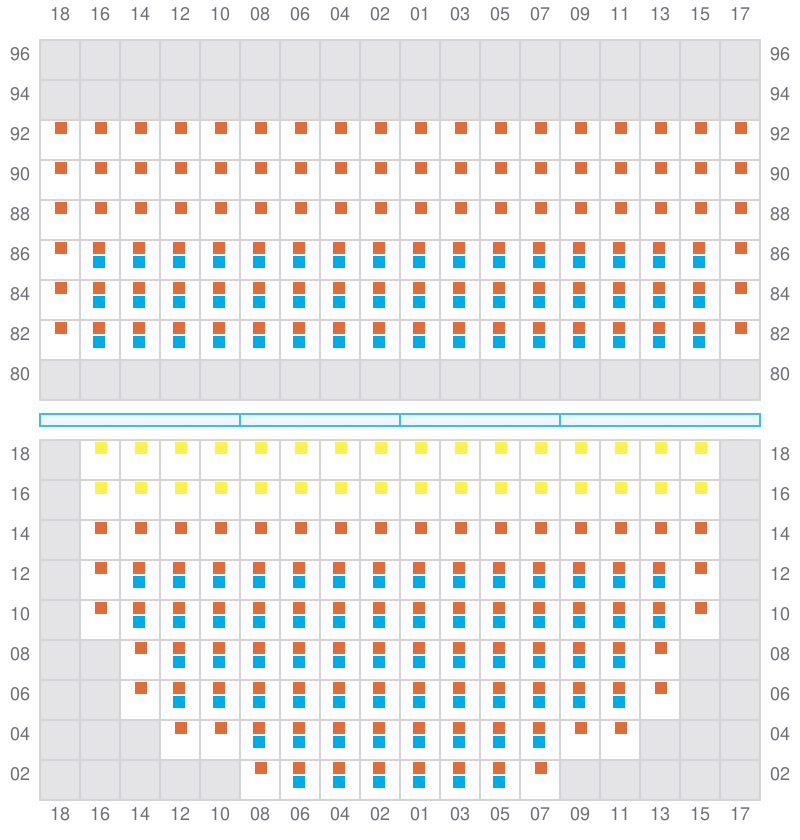

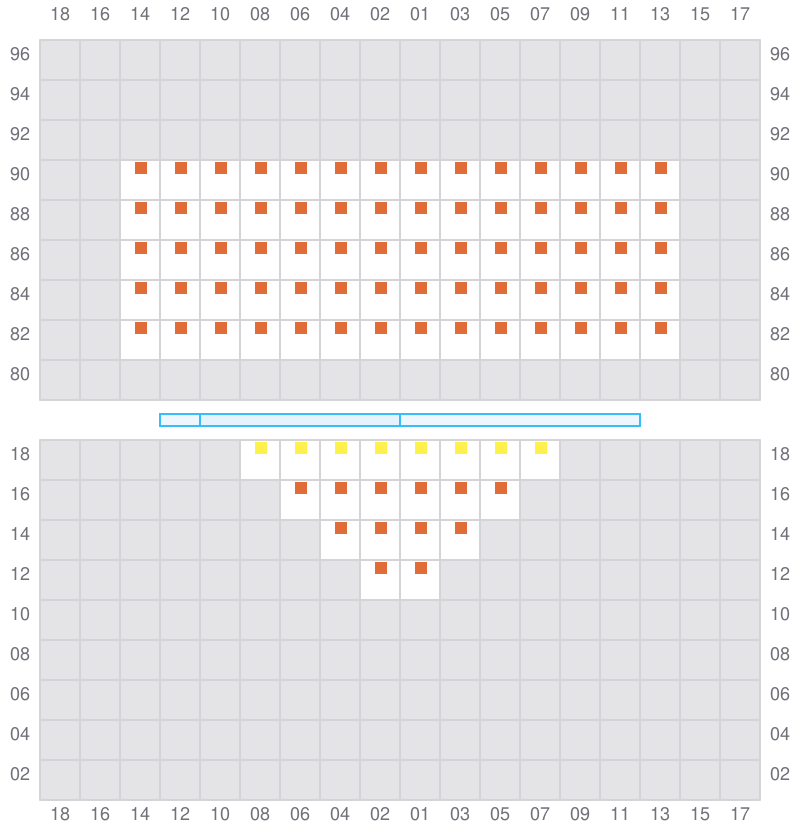

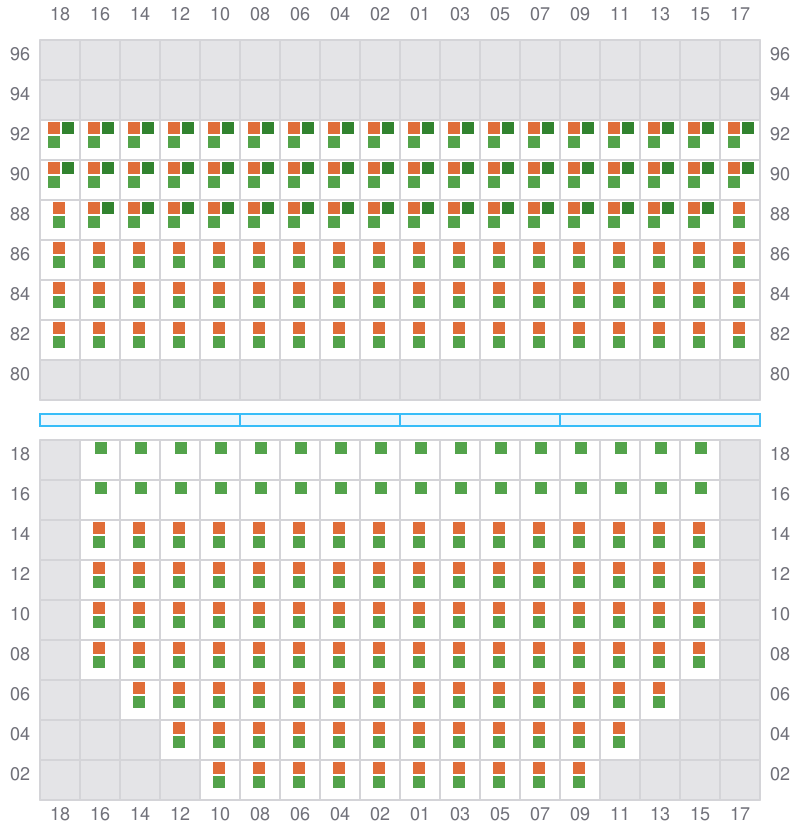

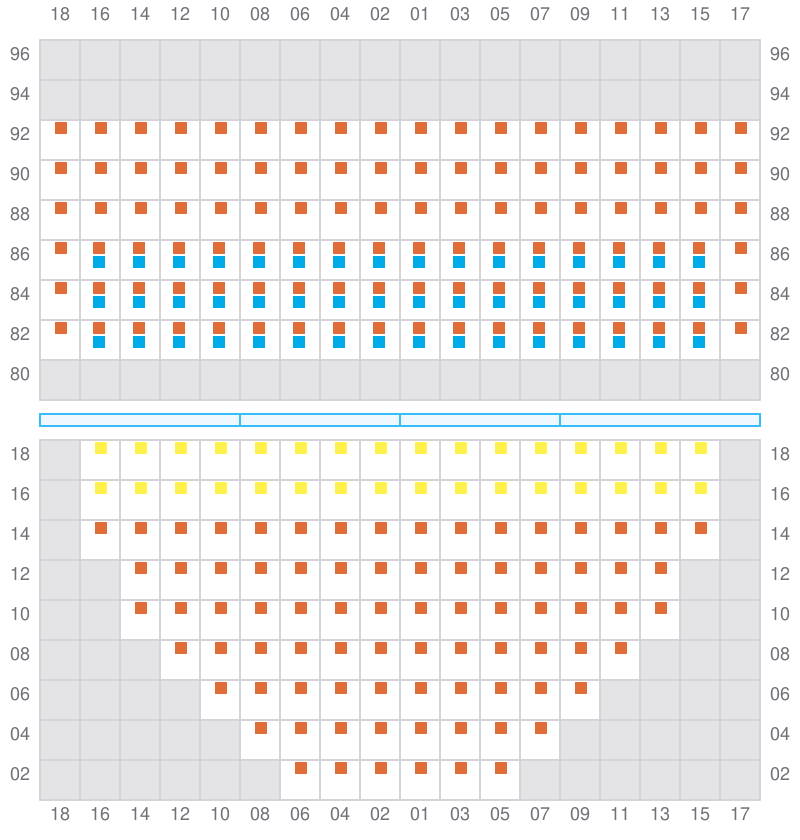

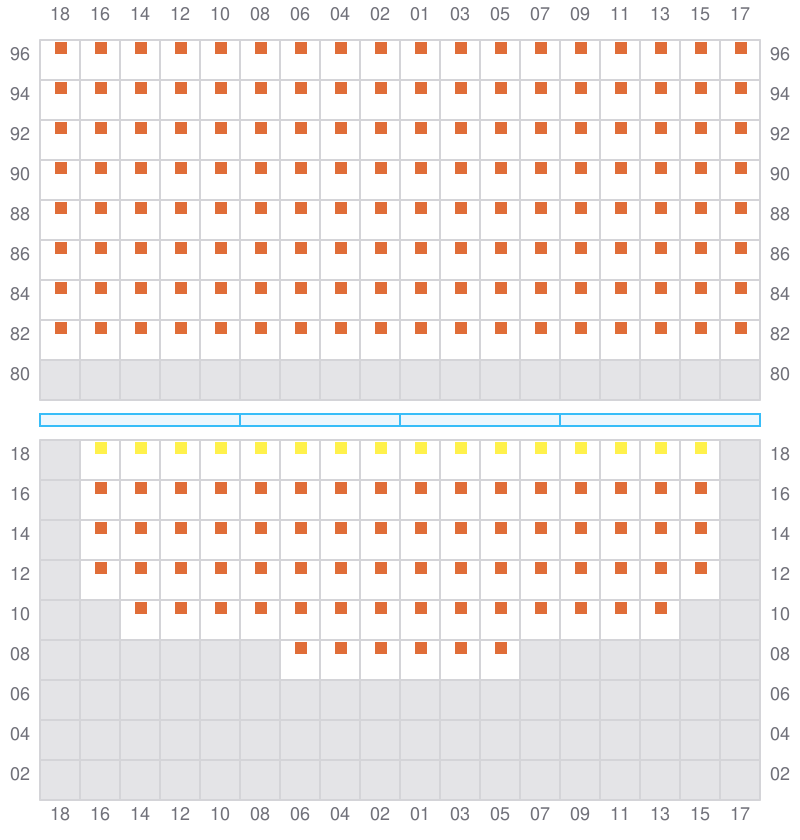

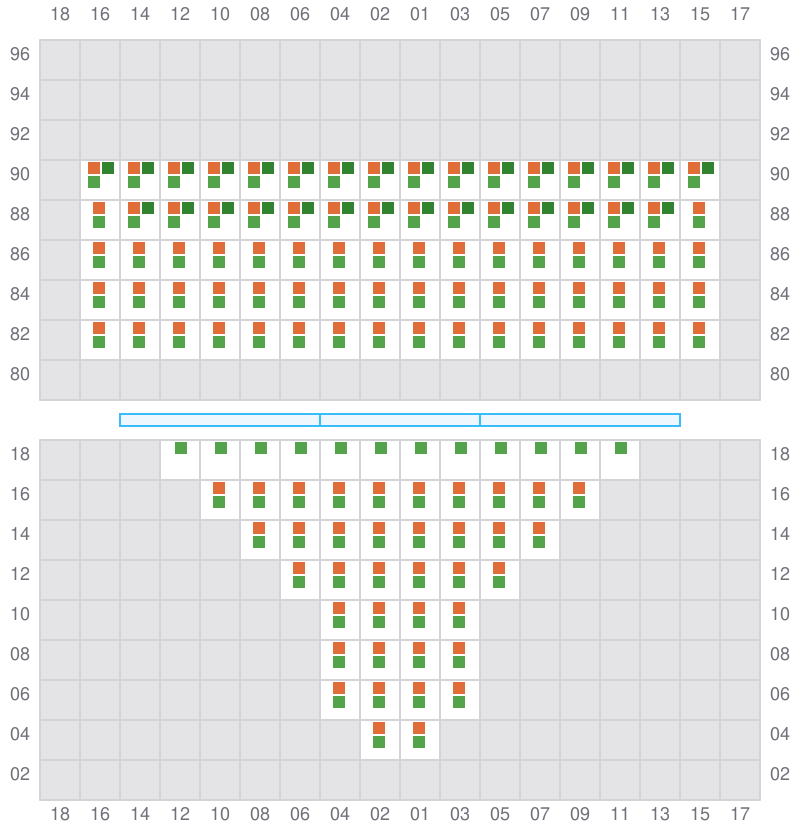

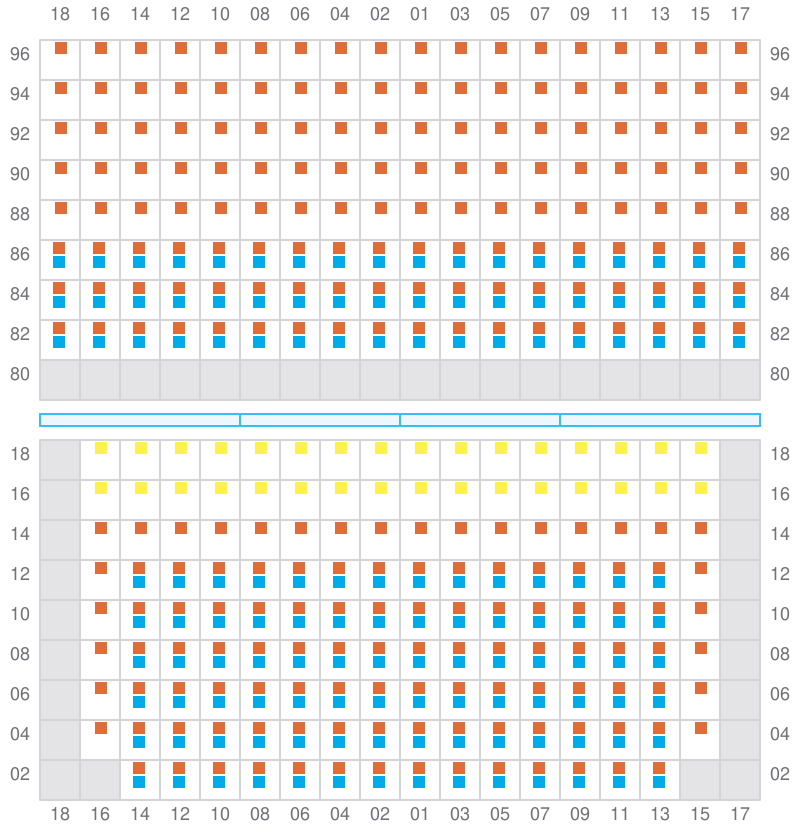

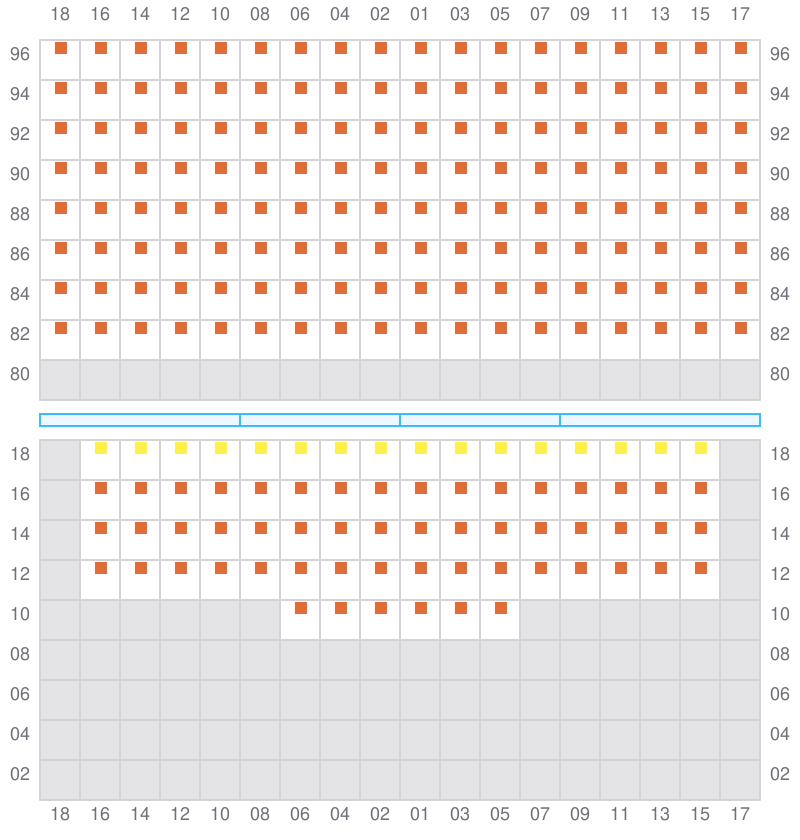

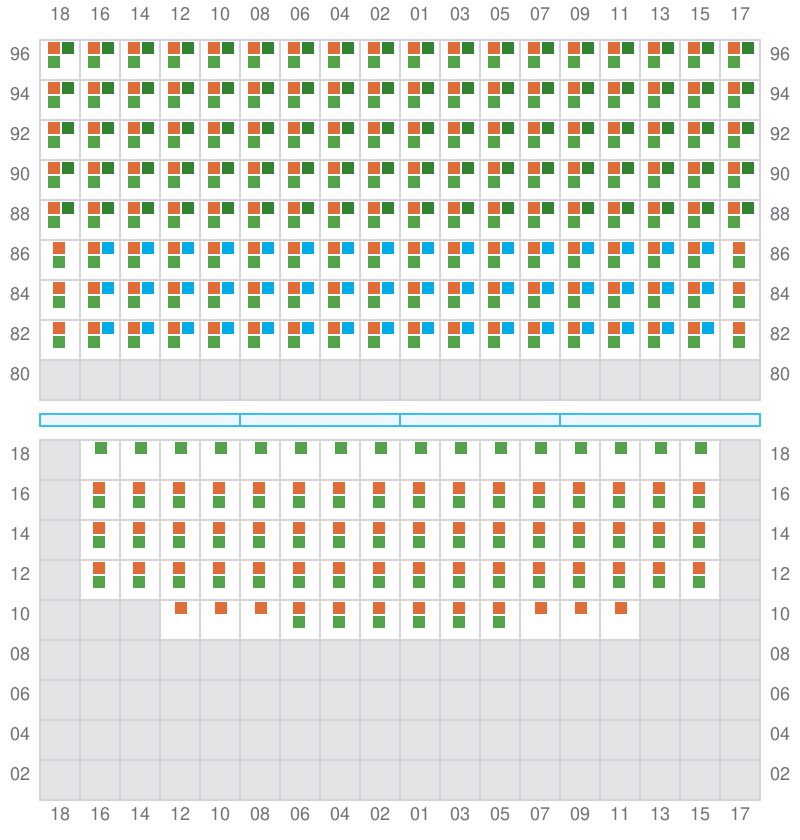

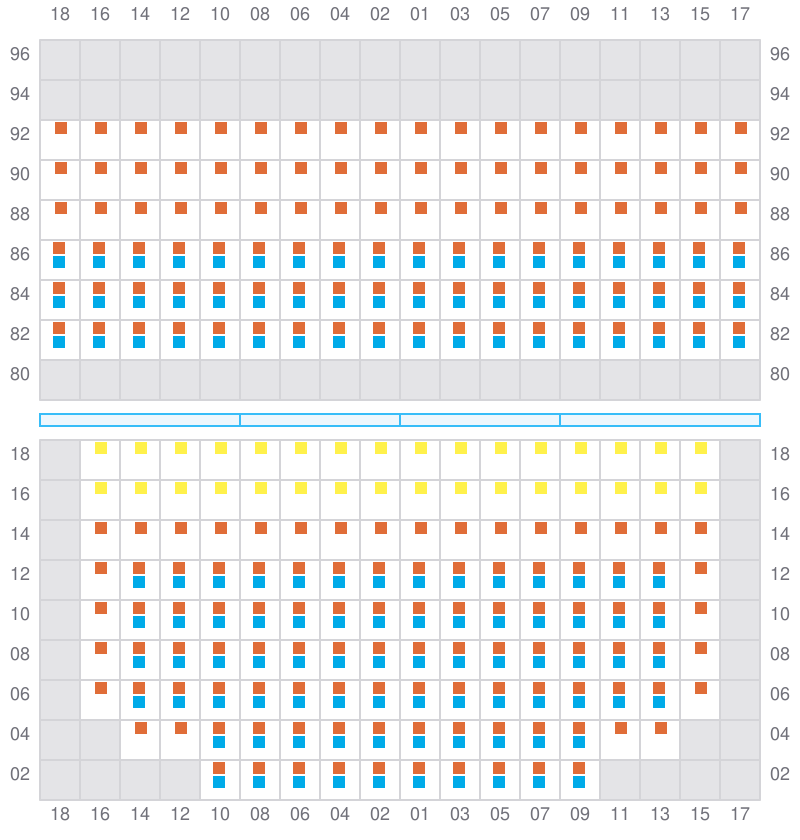

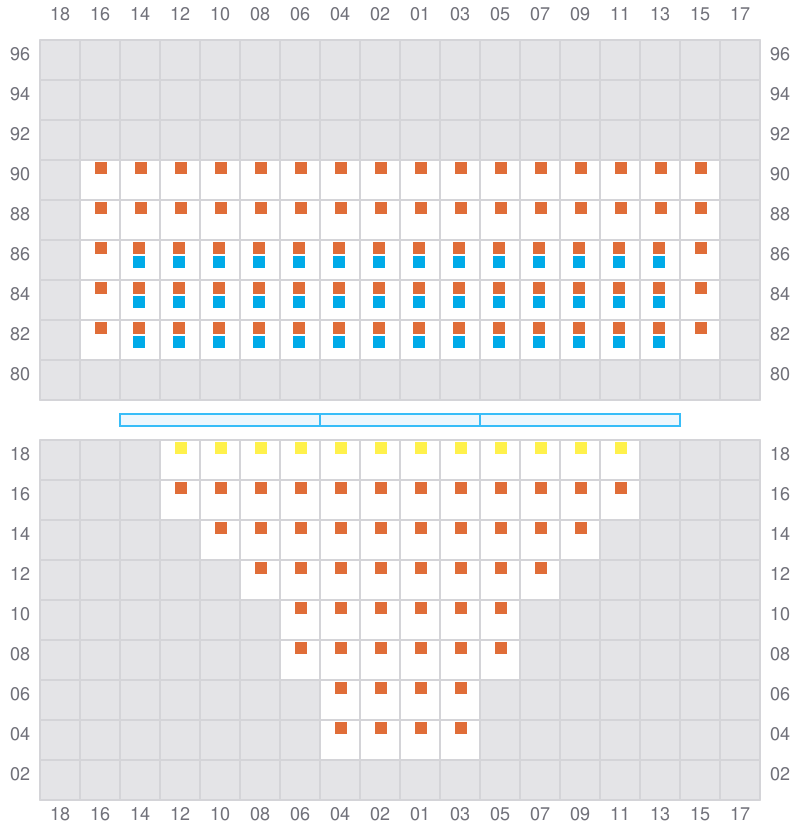

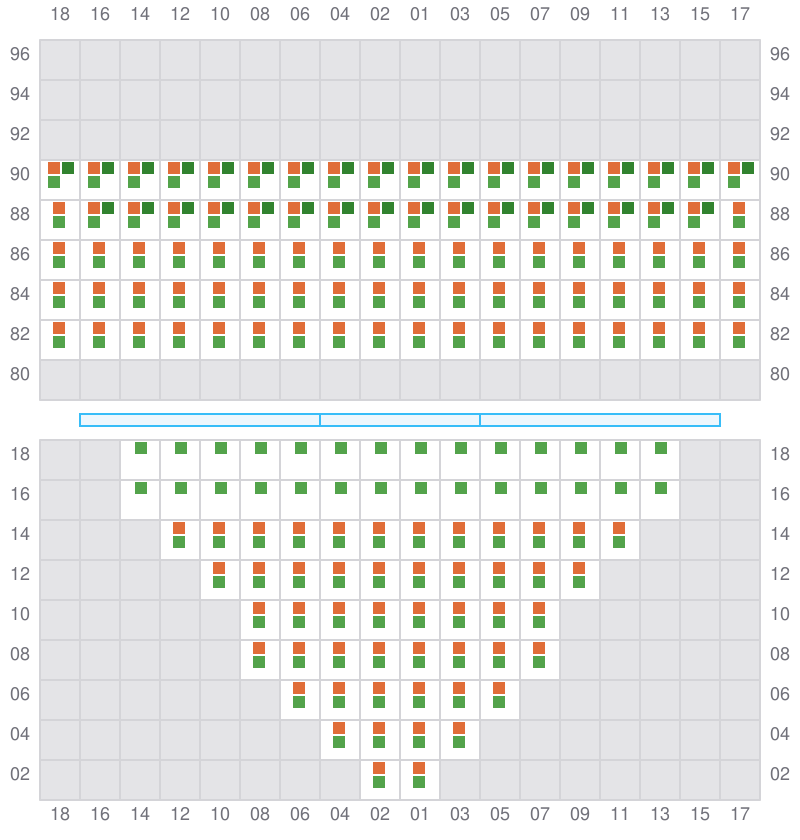

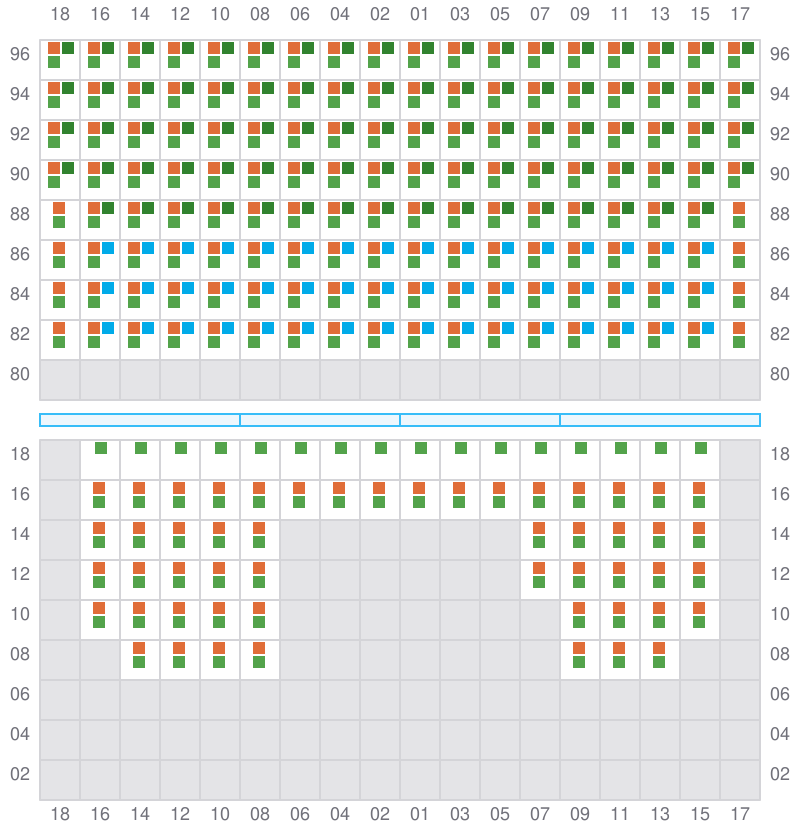

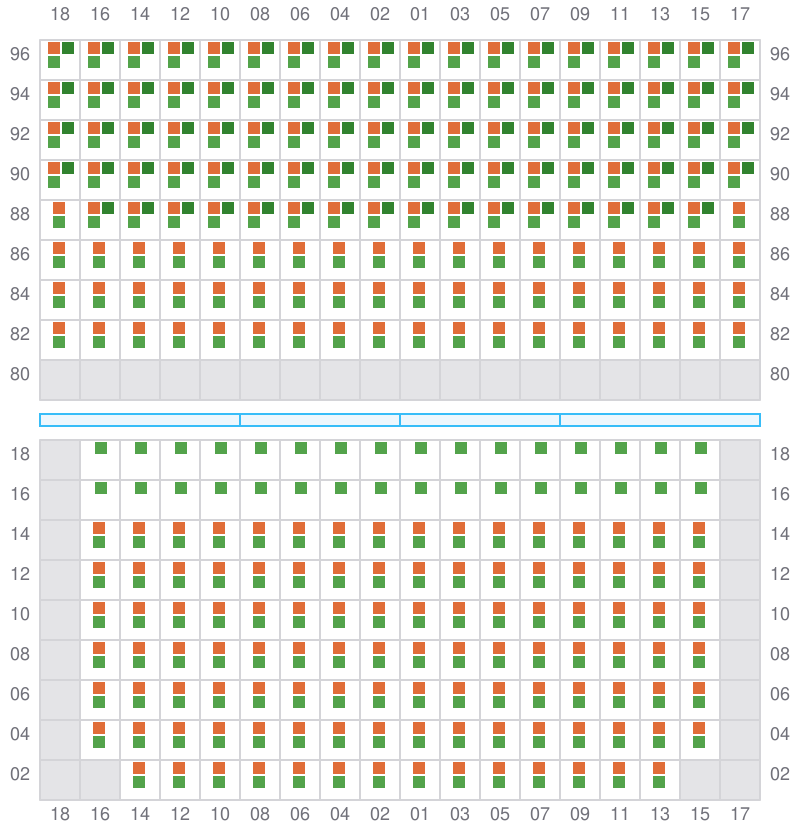

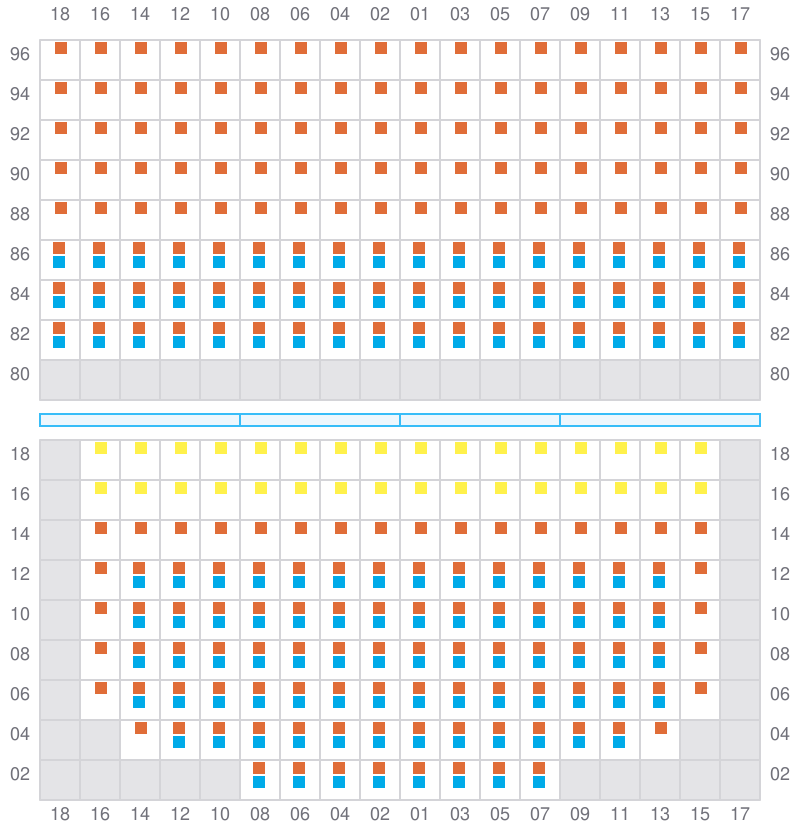

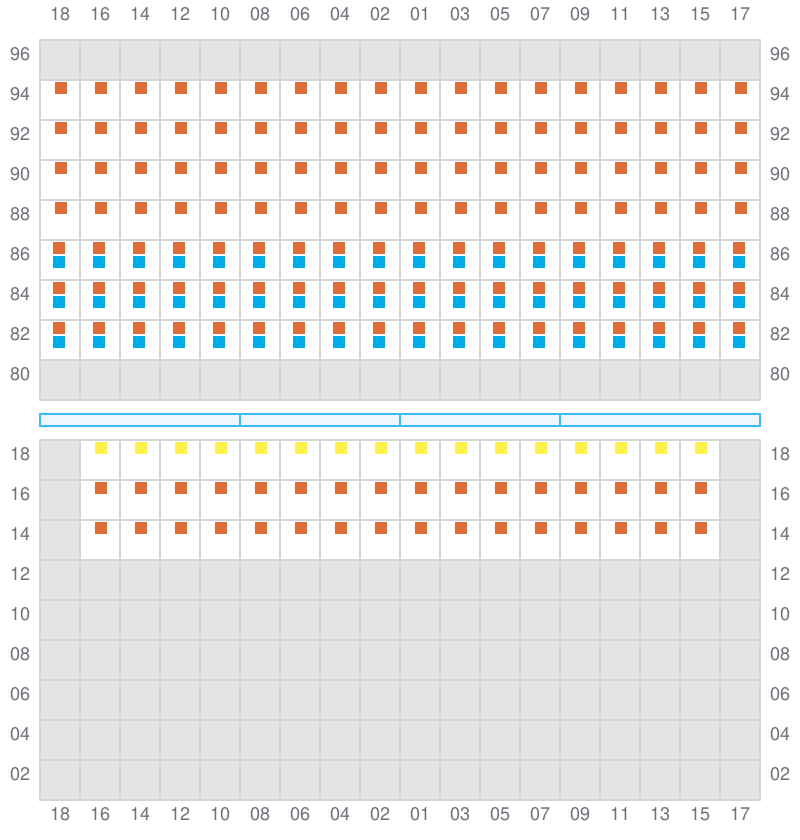

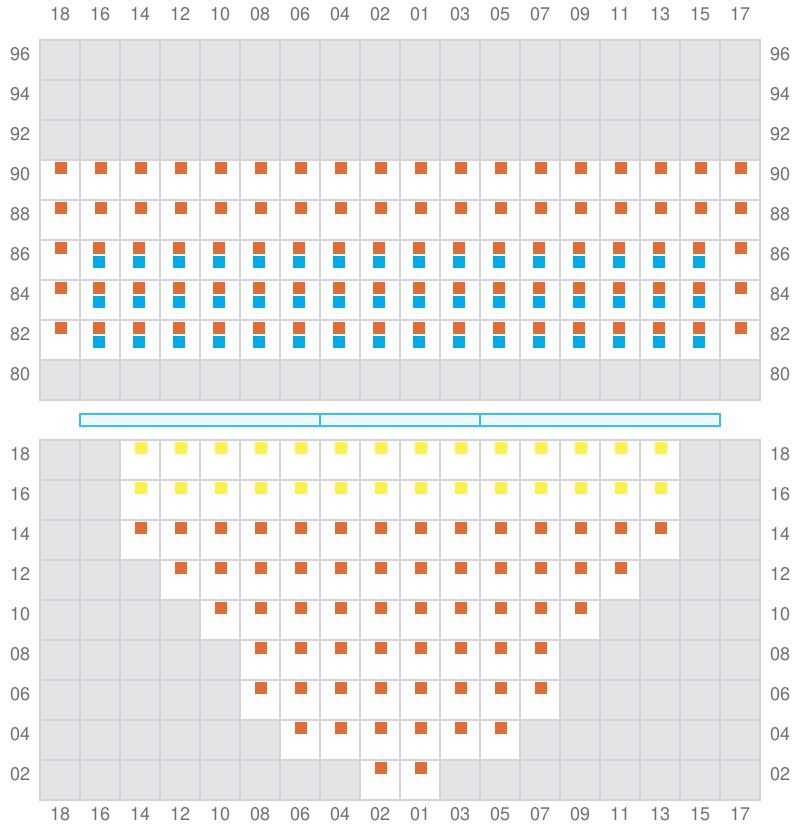

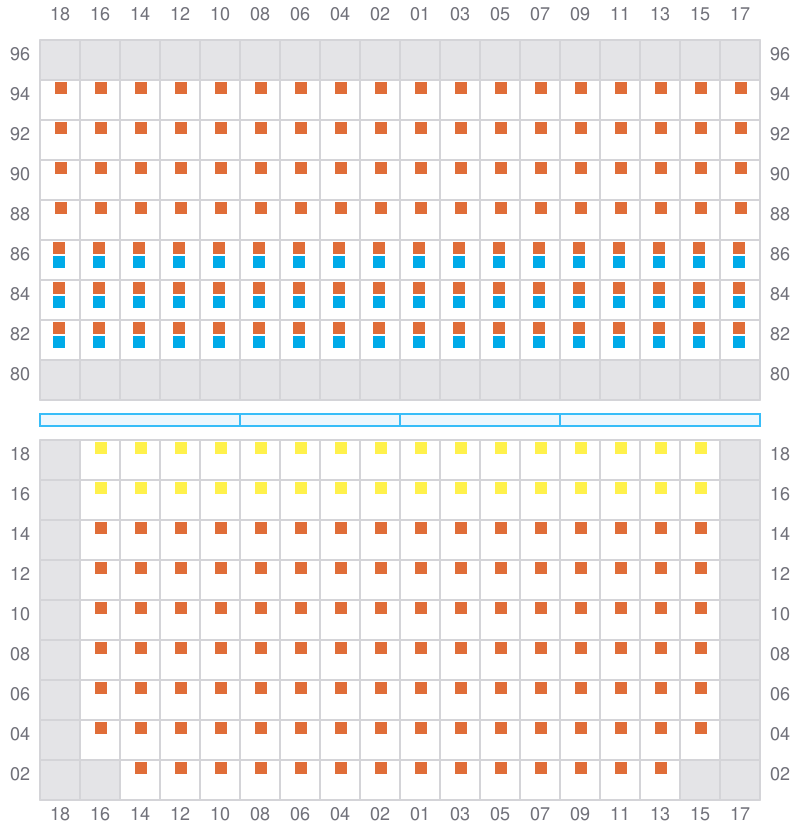

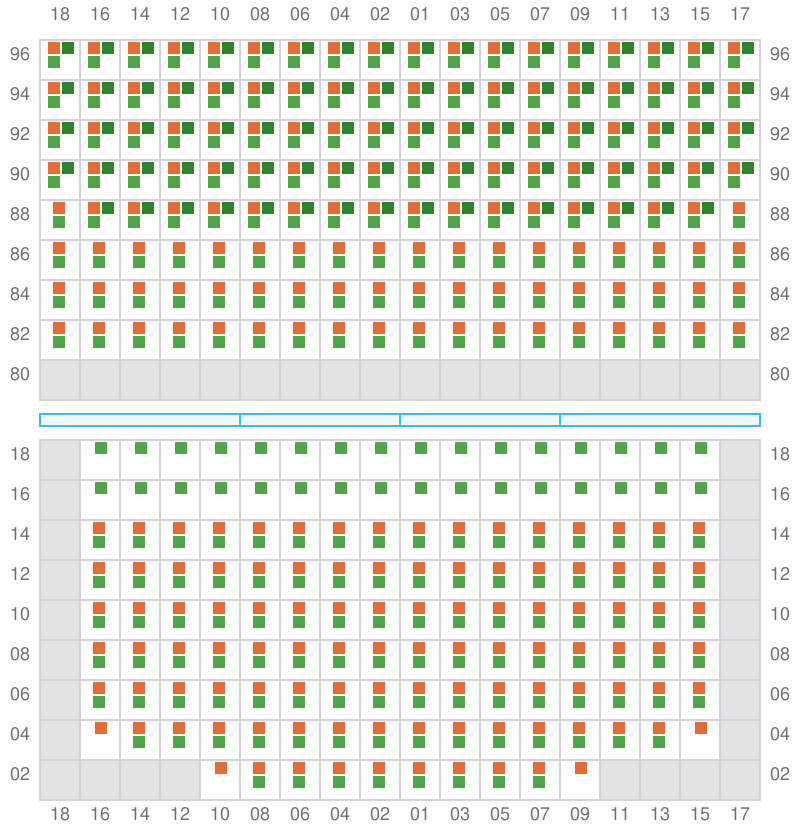

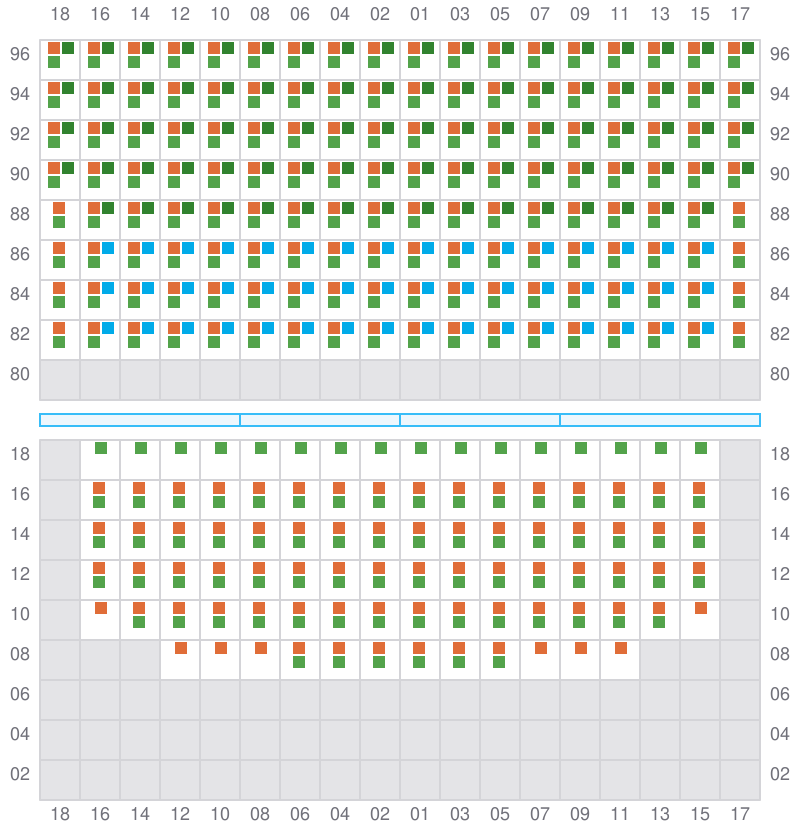

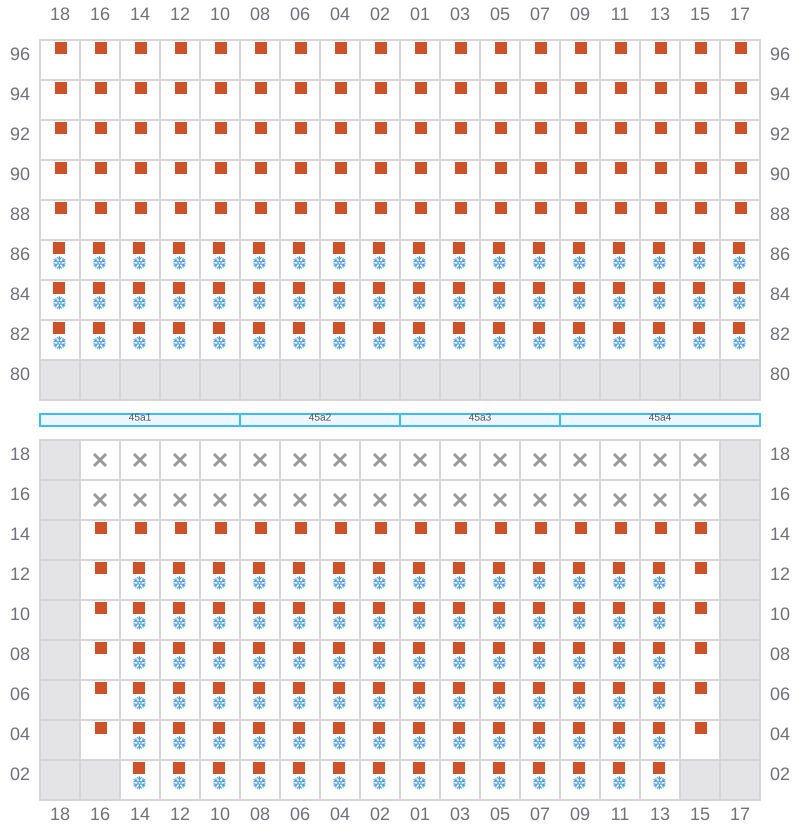

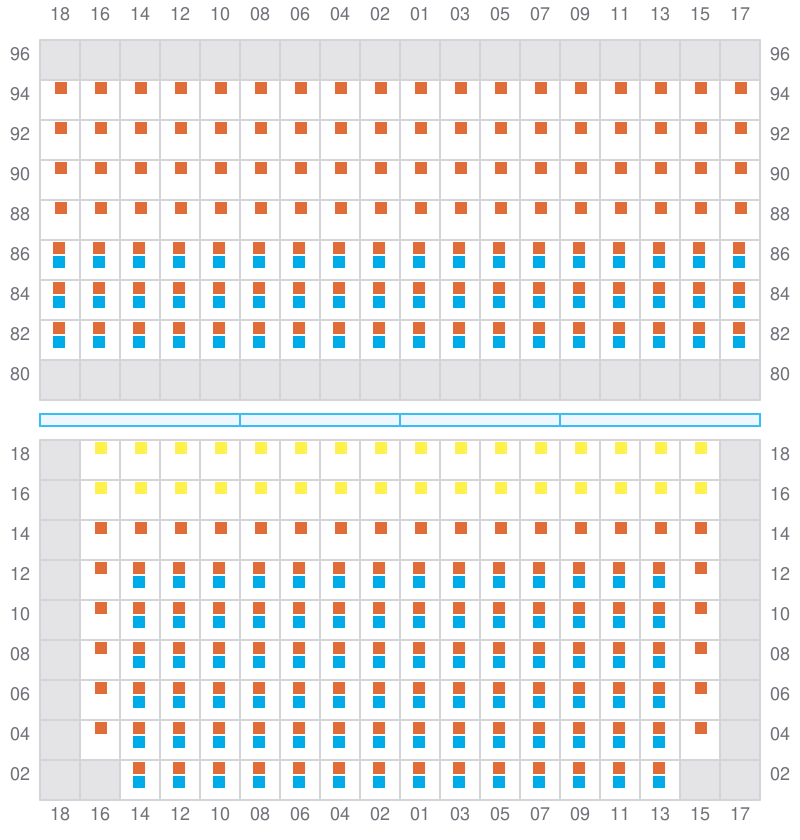

ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

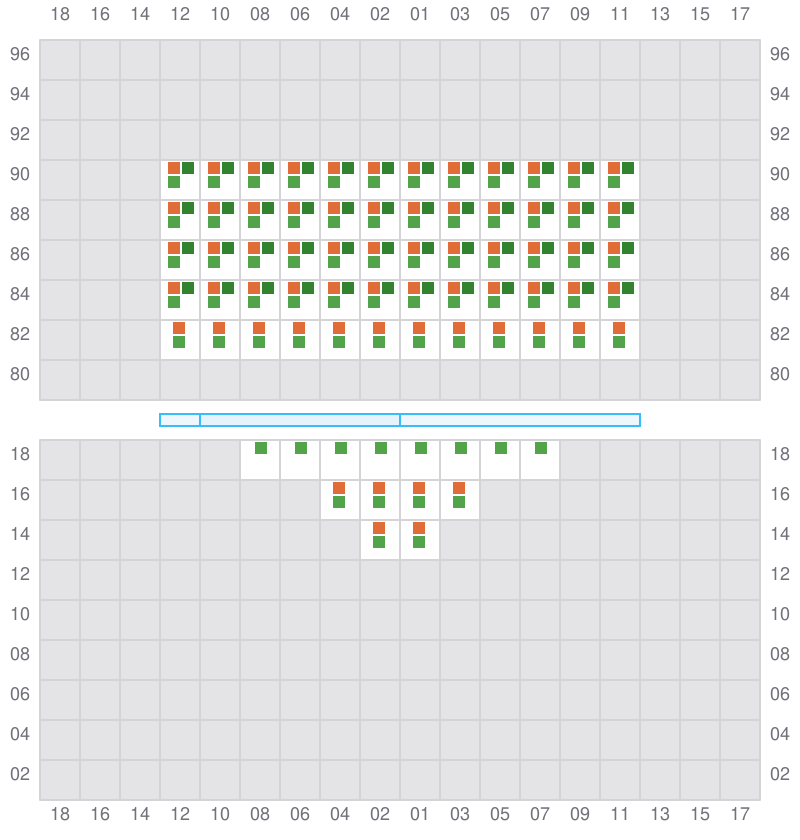

001 (002)
- →
- ← / ?
003
- ←
- → / ?
005 (006)
- →
- ← / ?
007
- ←
- → / ?
009 (010)
- →
- ← / ?
011
- ←
- → / ?

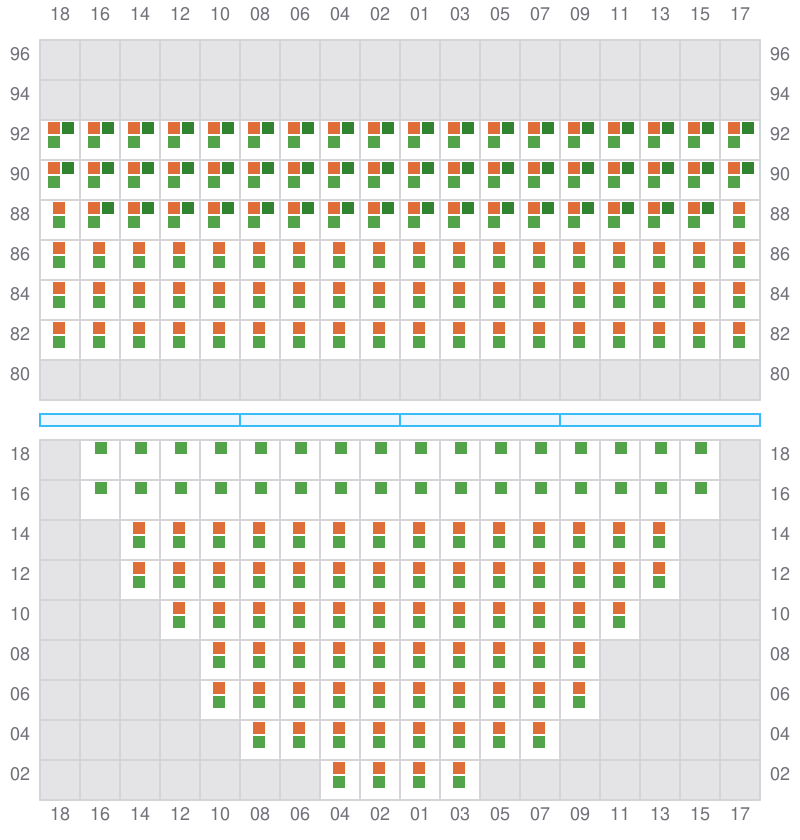

013 (014)
- →
- ← / ?
015
- ←
- → / ?
017 (018)
- →
- ← / ?
019
- ←
- →
021 (022)
- →
- ← / ?
023
- ←
- →

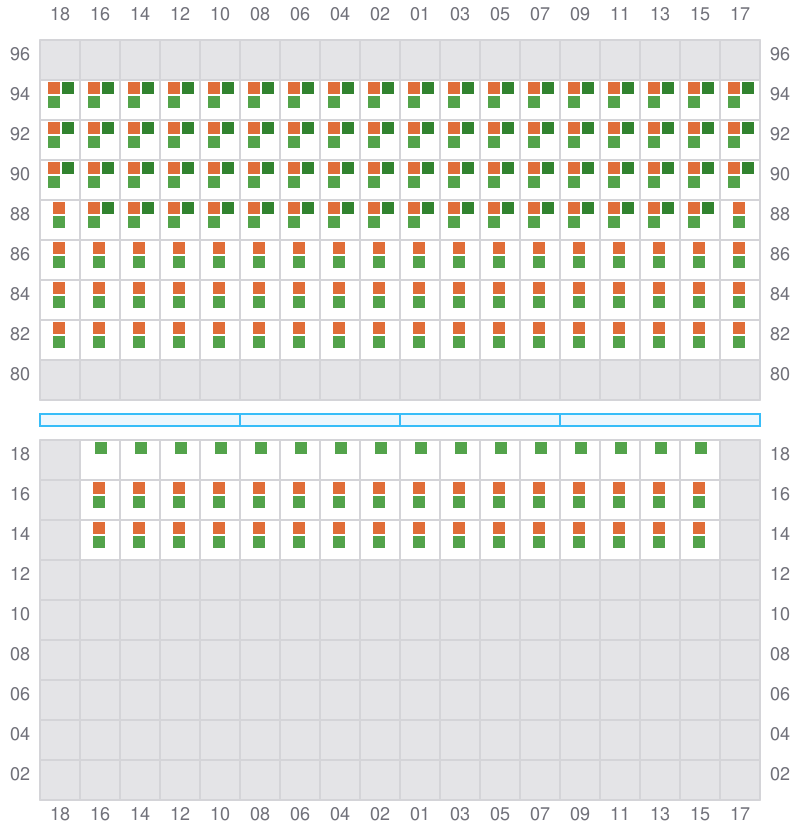

025 (026)
- →
- ← / ?
027
- ←
- → / ?

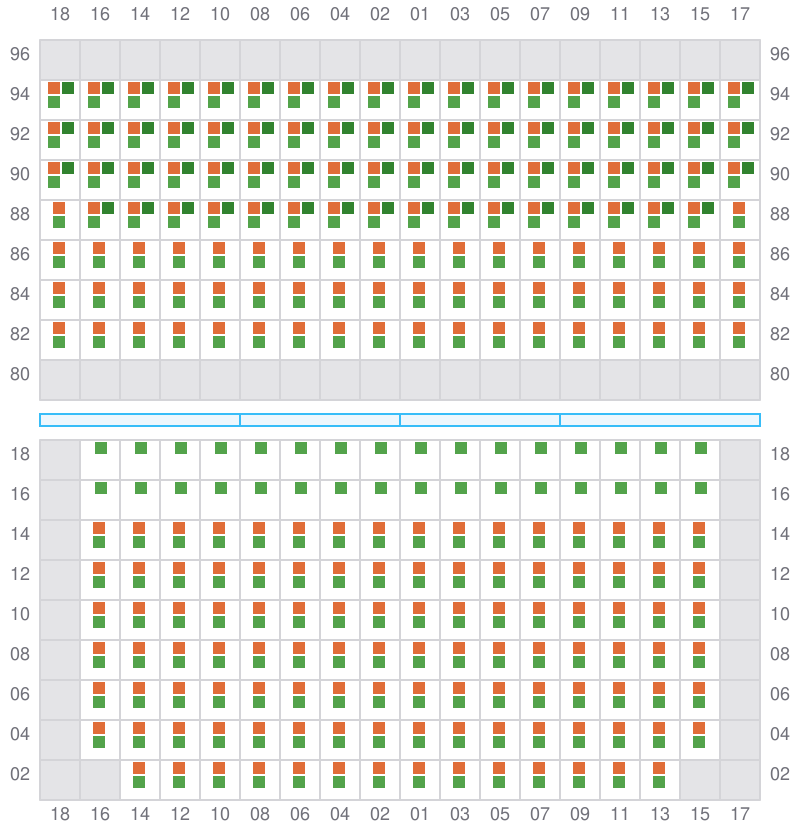

029 (030)
- →
- ← / ?
031
- ←
- → / ?
033 (034)
- →
- ← / ?
035
- ←
- →
037 (038)
- →
- ← / ?
039
- ←
- →
041 (042)
- →
- ← / ?
043
- ←
- →
045 (046)
- →
- ← / ?
047
- ←
- →

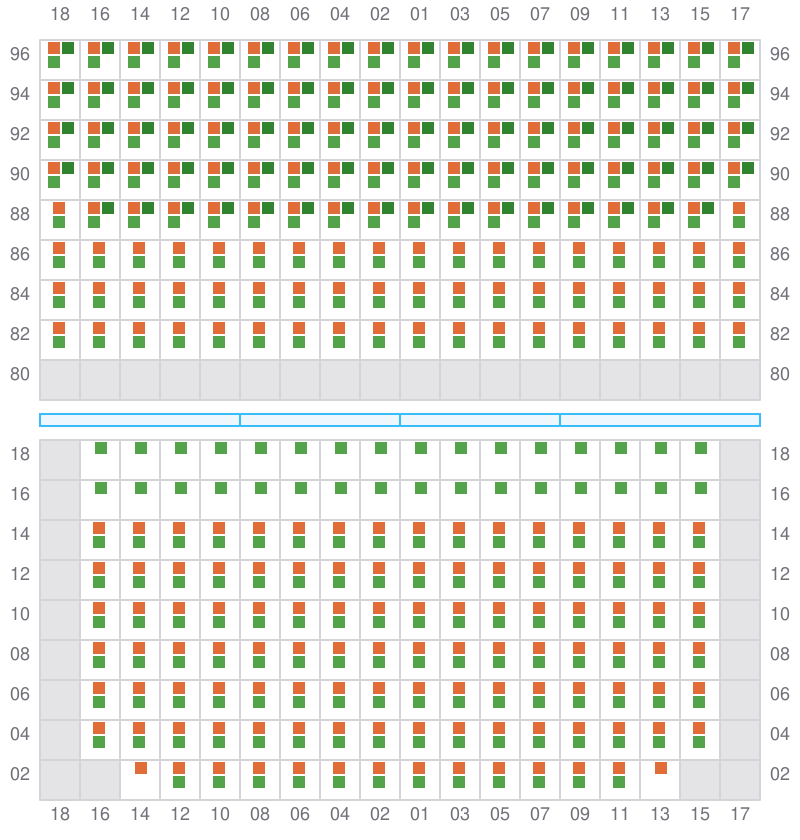

049 (050)
- →
- ← / ?
051
- ←
- →
053 (054)
- →
- ← / ?
055
- ←
- →
057 (058)
- →
- ← / ?

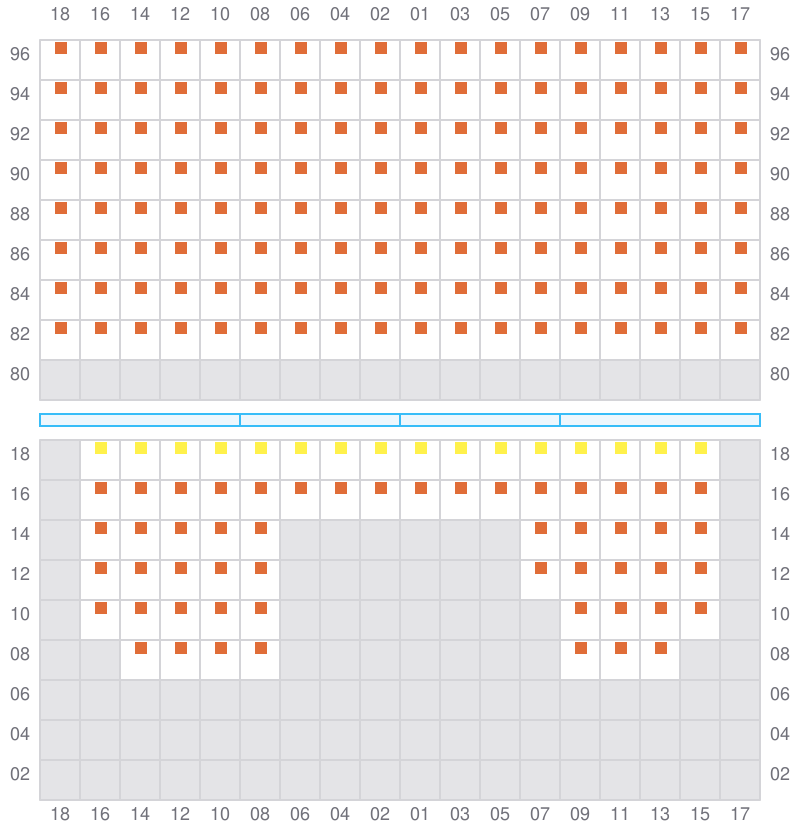

059
- ←
061 (062)
- →
- ← / ?
063
- ←
065 (066)
- →
- ← / ?
067
- ←

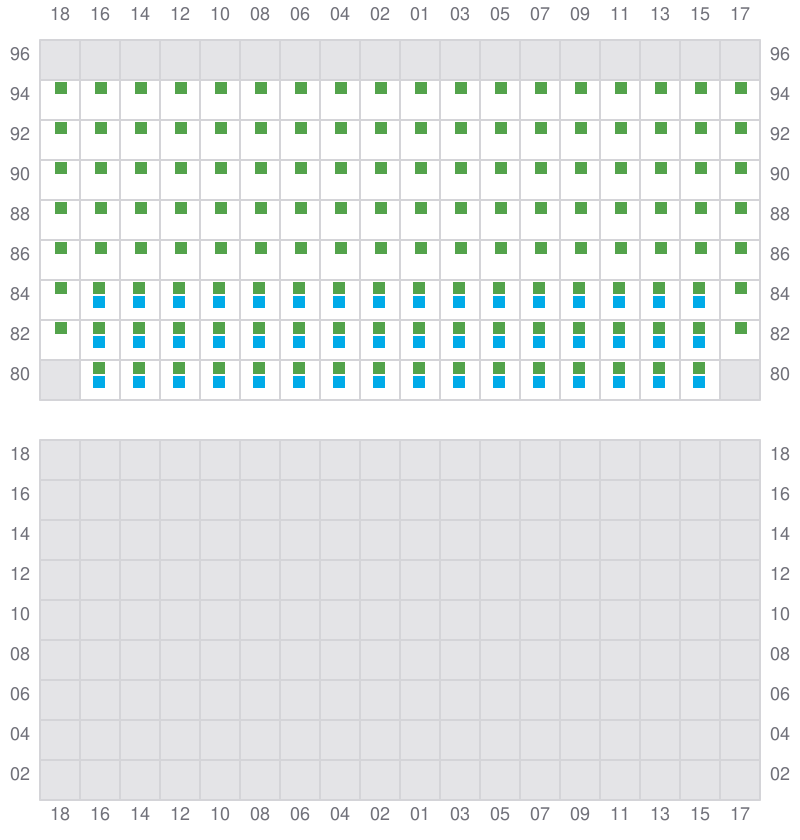

069 (070)
- → / ?
- ← / ?
