TITAN
9728928 | 9HA4287 | EIS by ************************** Last update: Fri Jun 09 2023
General Info
Ship Name:TITAN
IMO Code:9728928
Call Sign:9HA4287
Line Operator:EIS
Class Name for Sister Ships:TIT
Year Built:2016
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:
Also Known As...:-
Size Summary
ISO Bays:085
Max ISO Row:20
Center Line Row:No
Max Above ISO Tier:98
Min Above ISO Tier:76
Max Below ISO Tier:22
Min Below ISO Tier:02
Total TEU:14,438
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

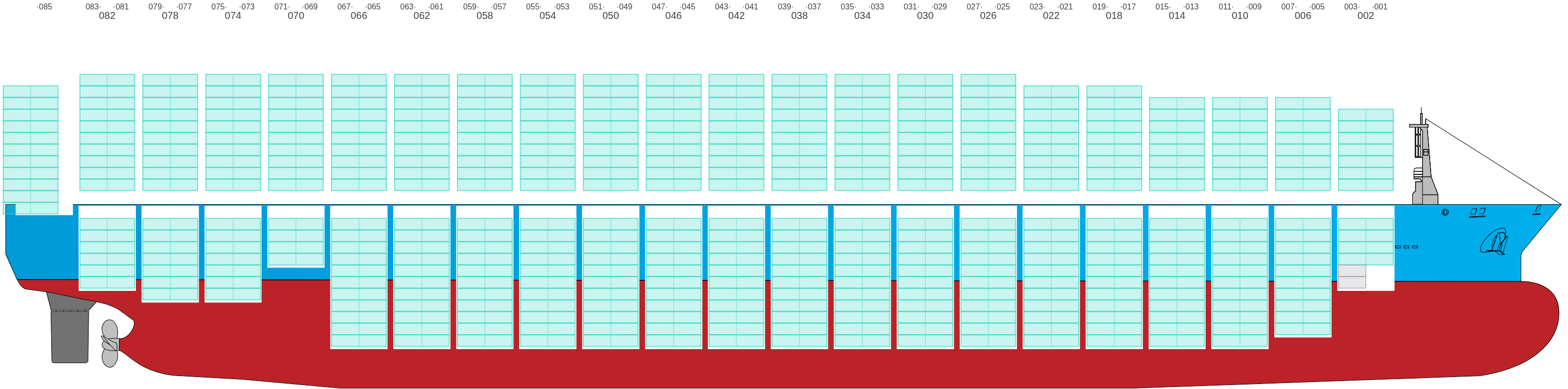

Side View
Hatch-Covers View
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot
001 (002)
- →

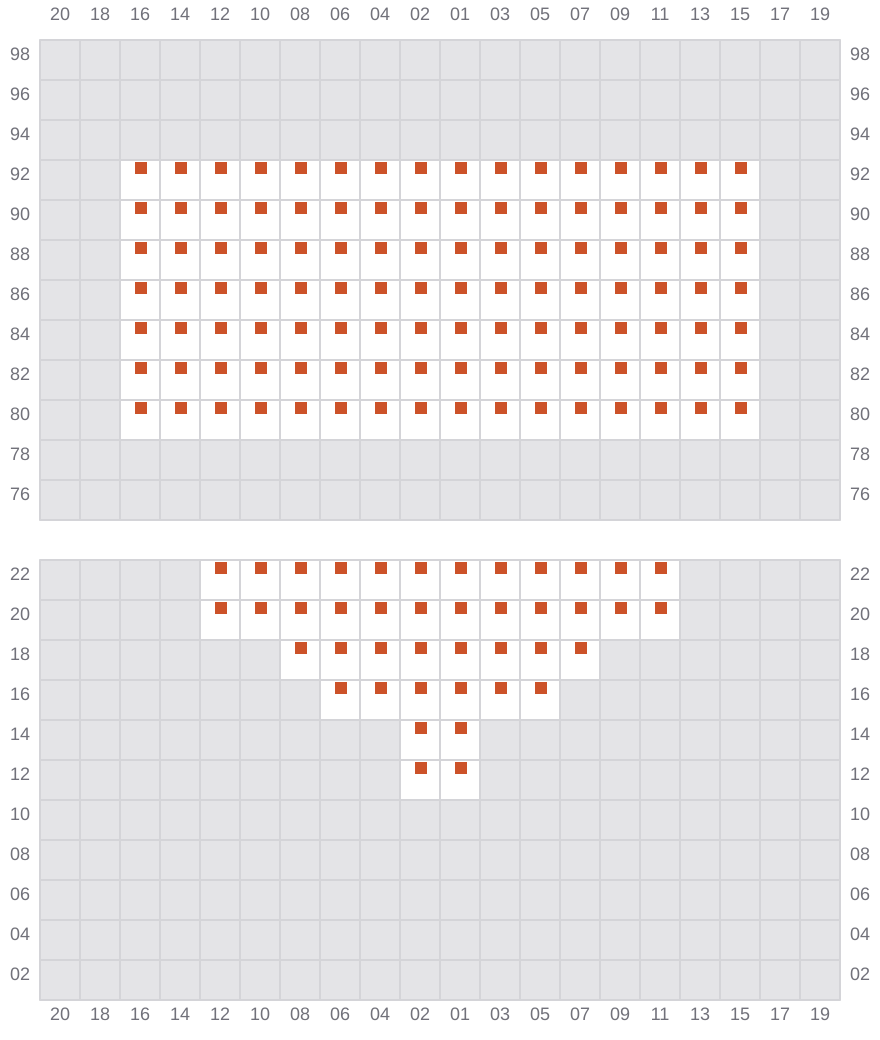

003
- ←

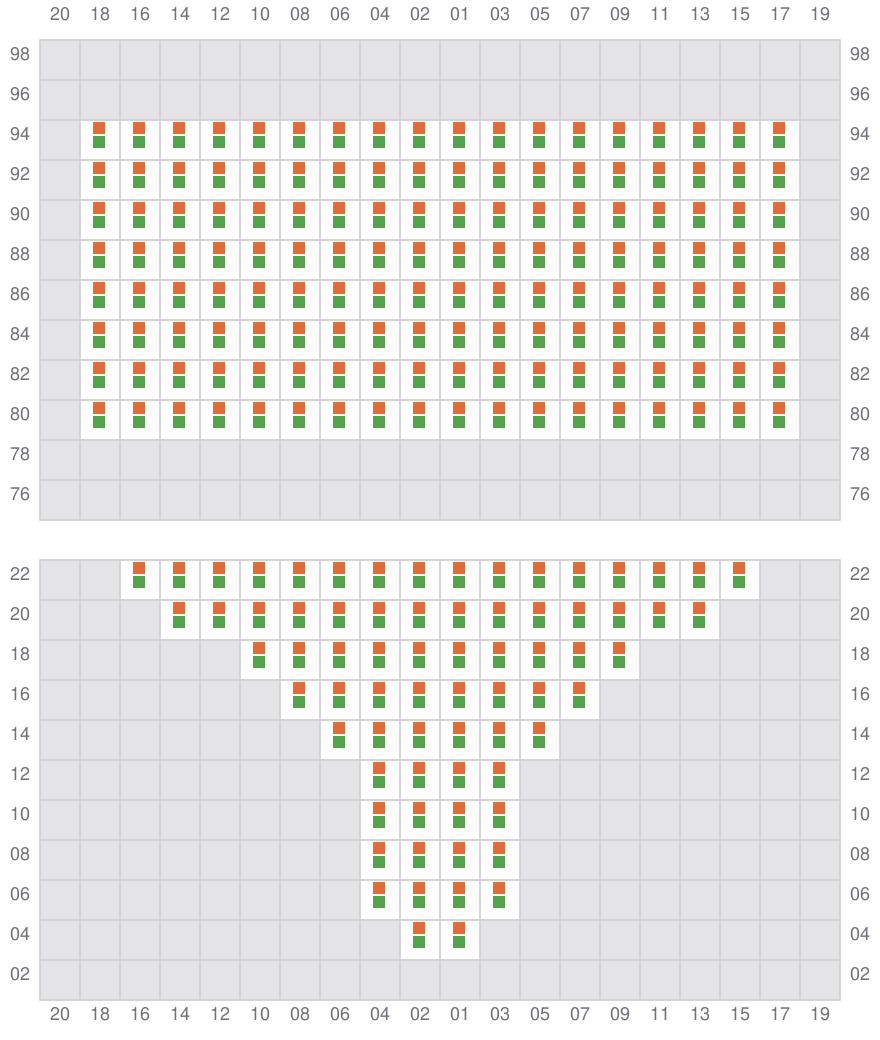

005 (006)
- →

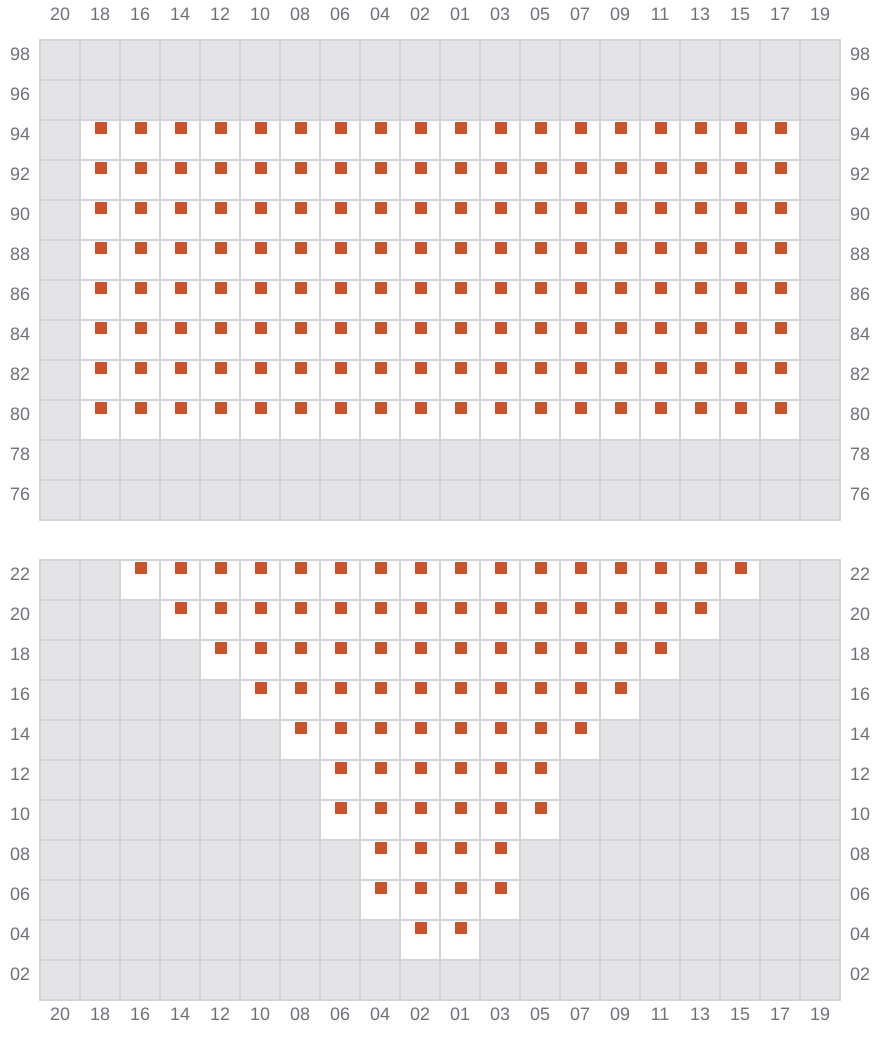

007
- ←
009 (010)
- →

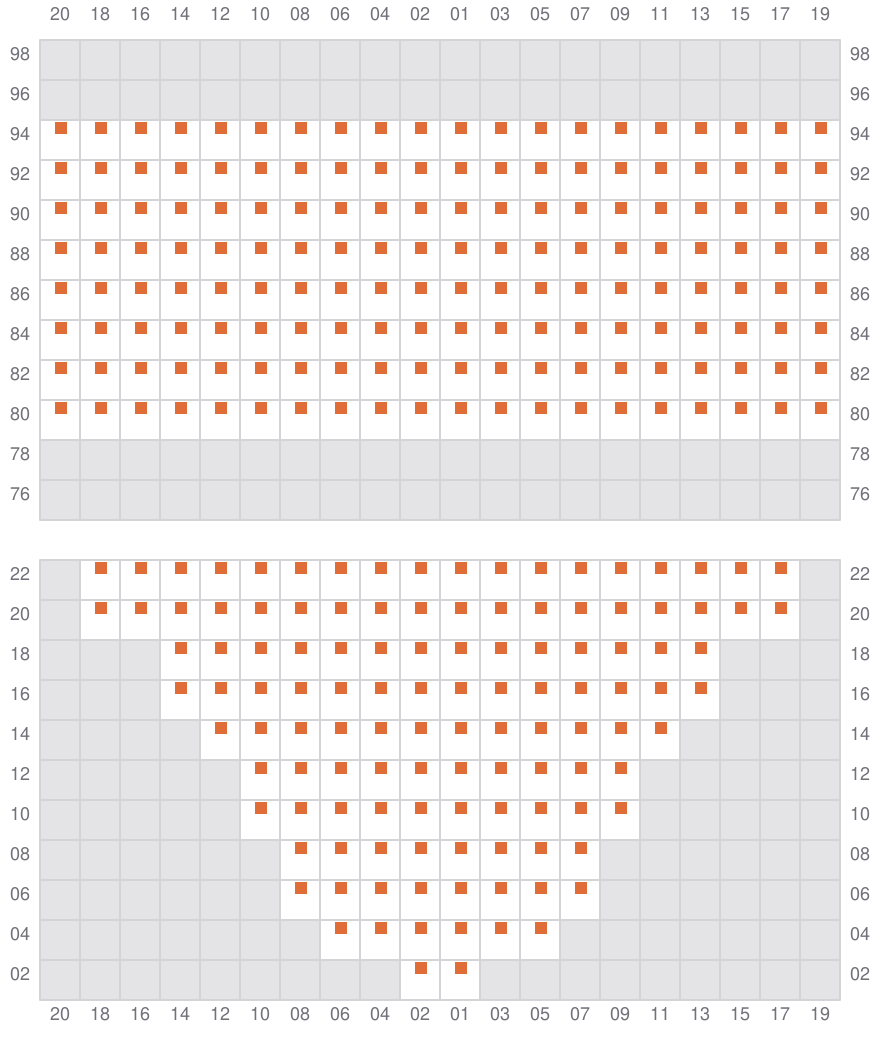

011
- ←
013 (014)
- →

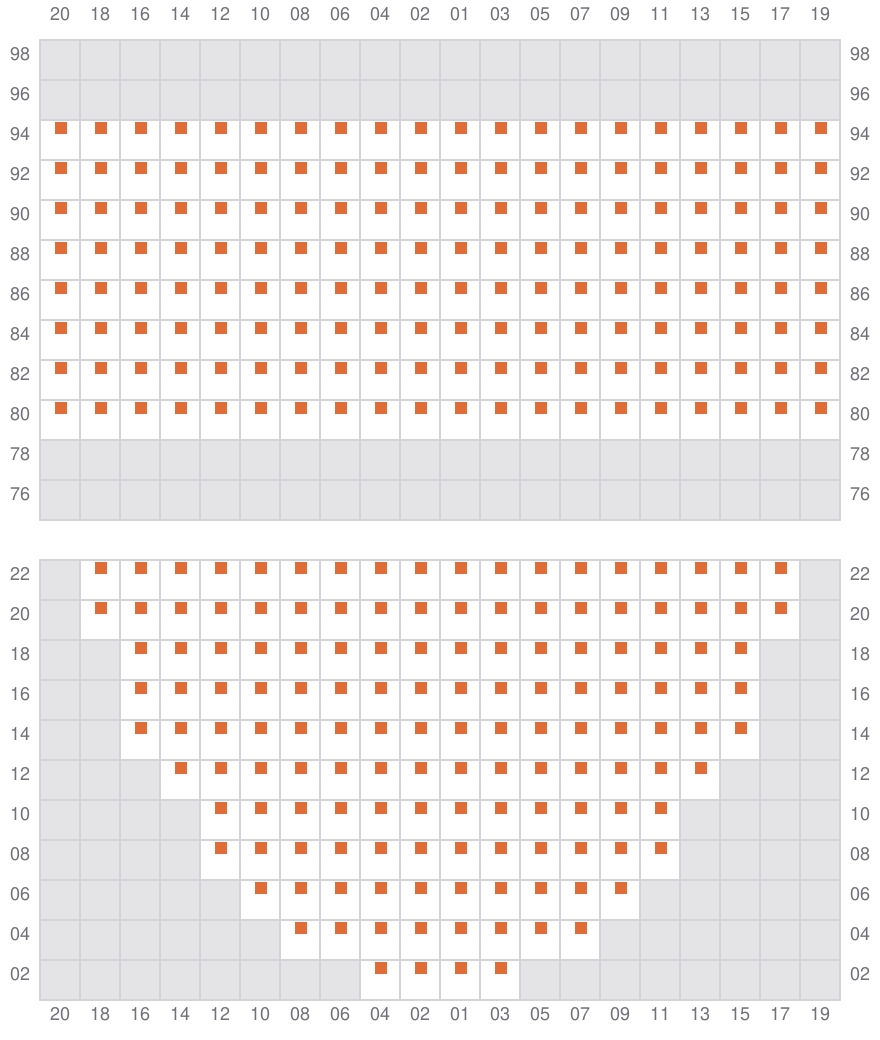

015
- ←
017 (018)
- →

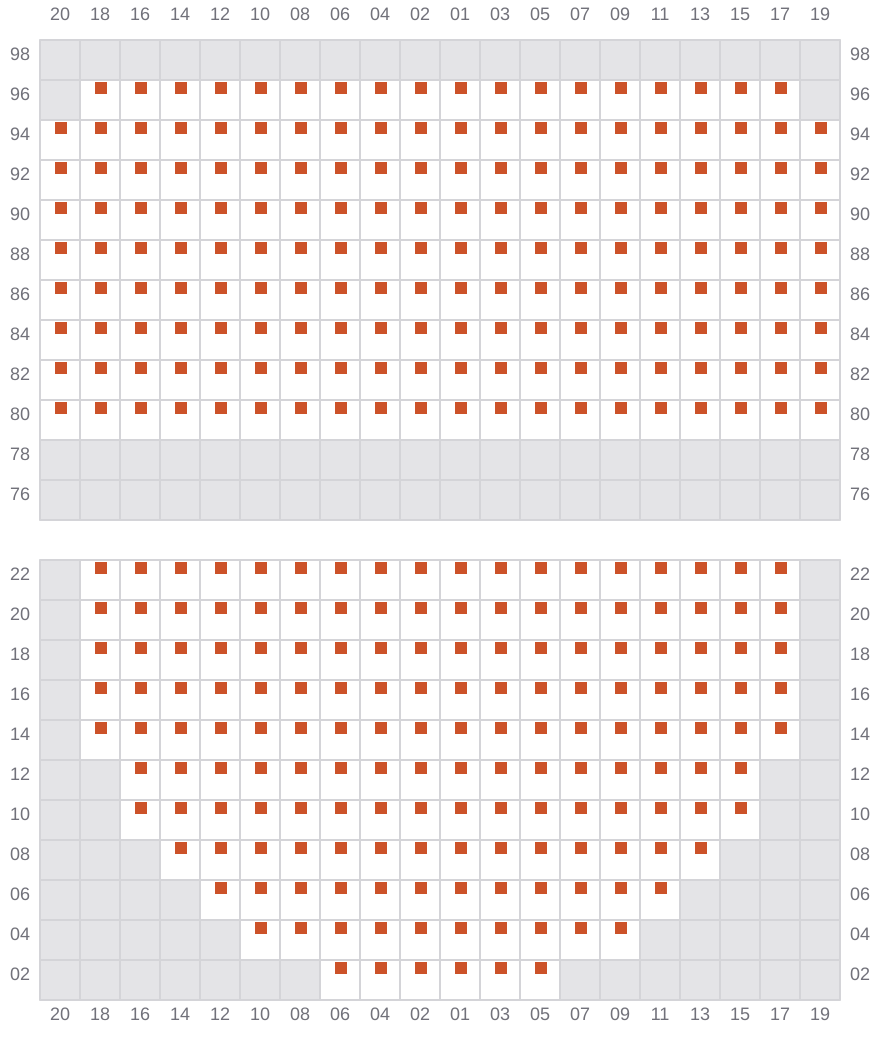

019
- ←

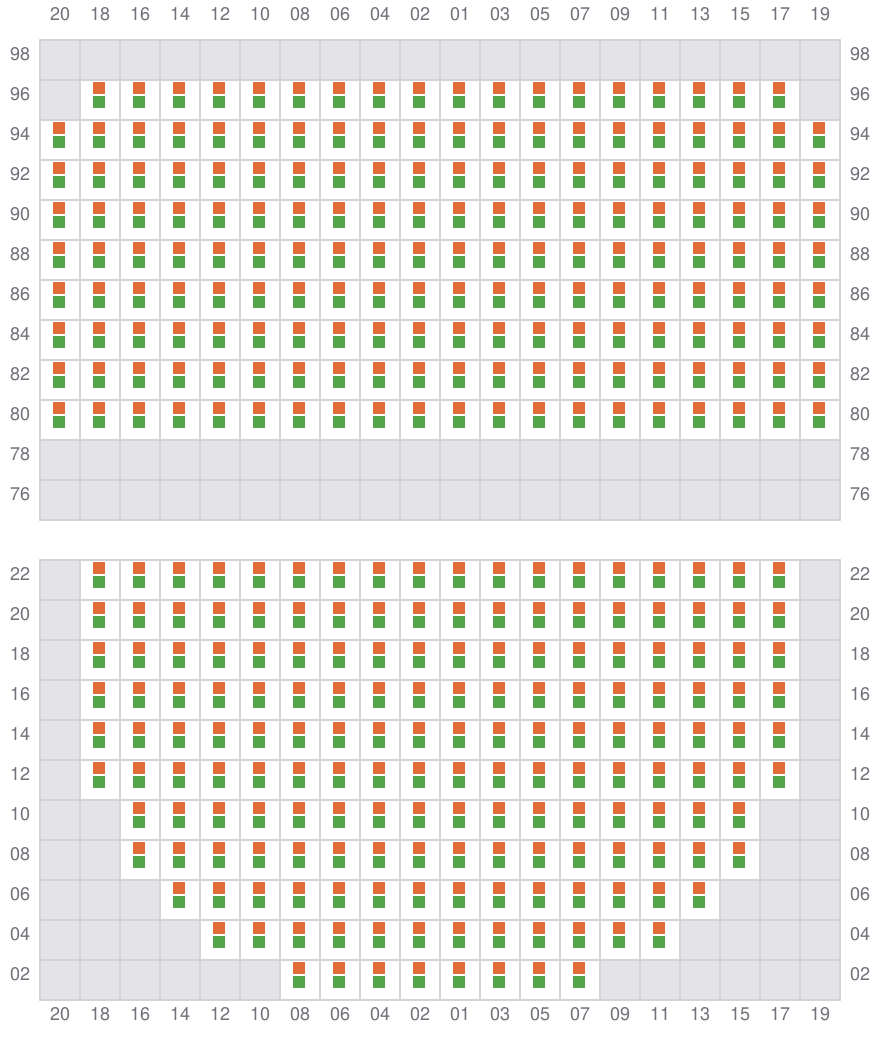

021 (022)
- →

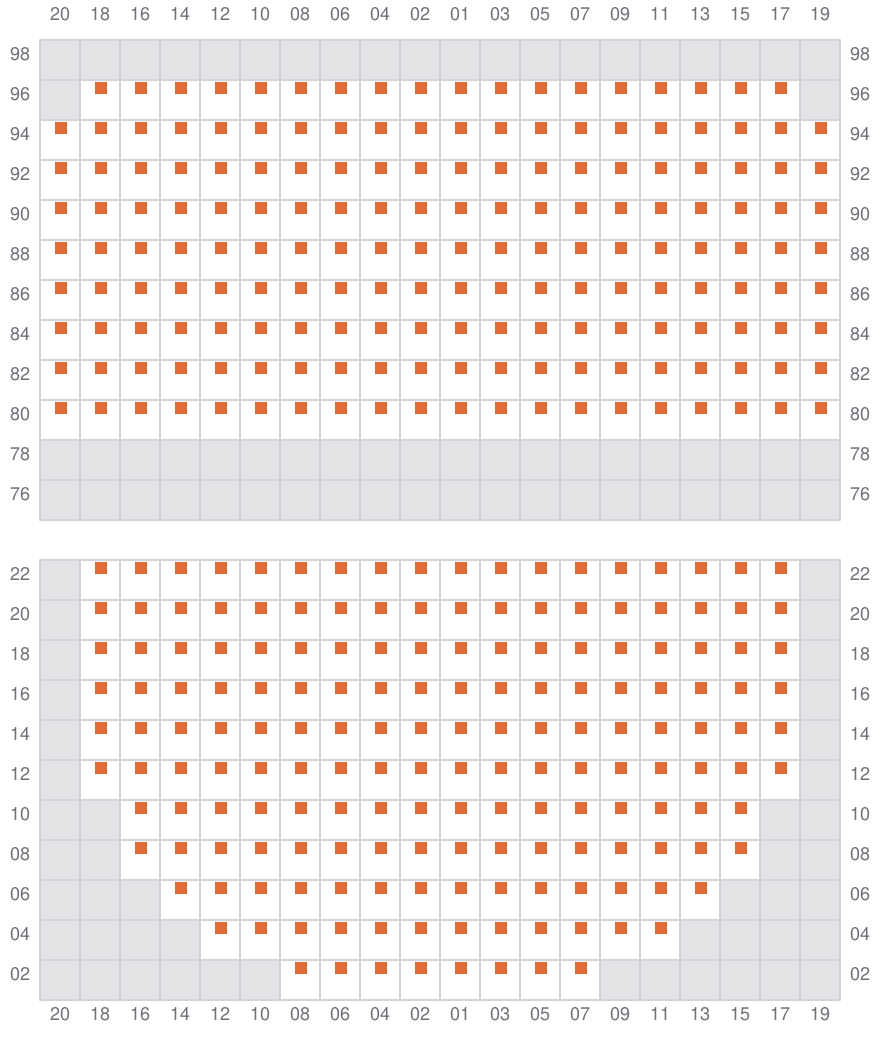

023
- ←
025 (026)
- →

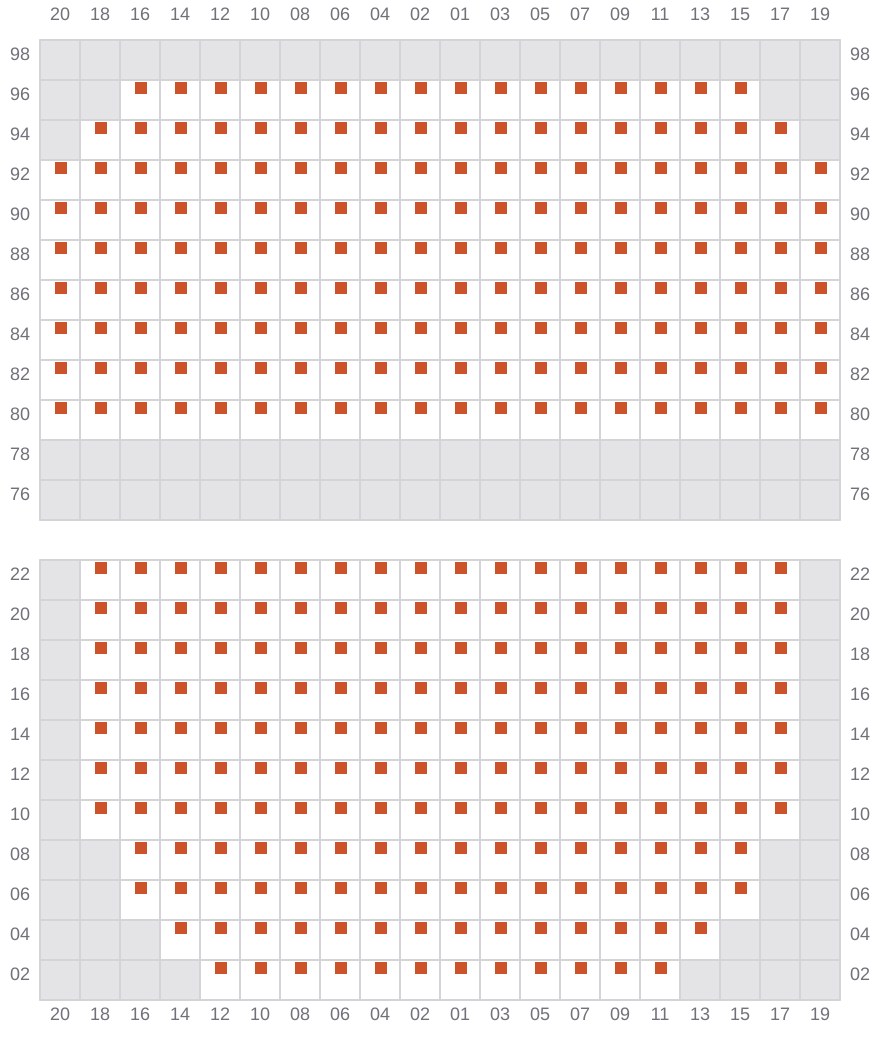

027
- ←

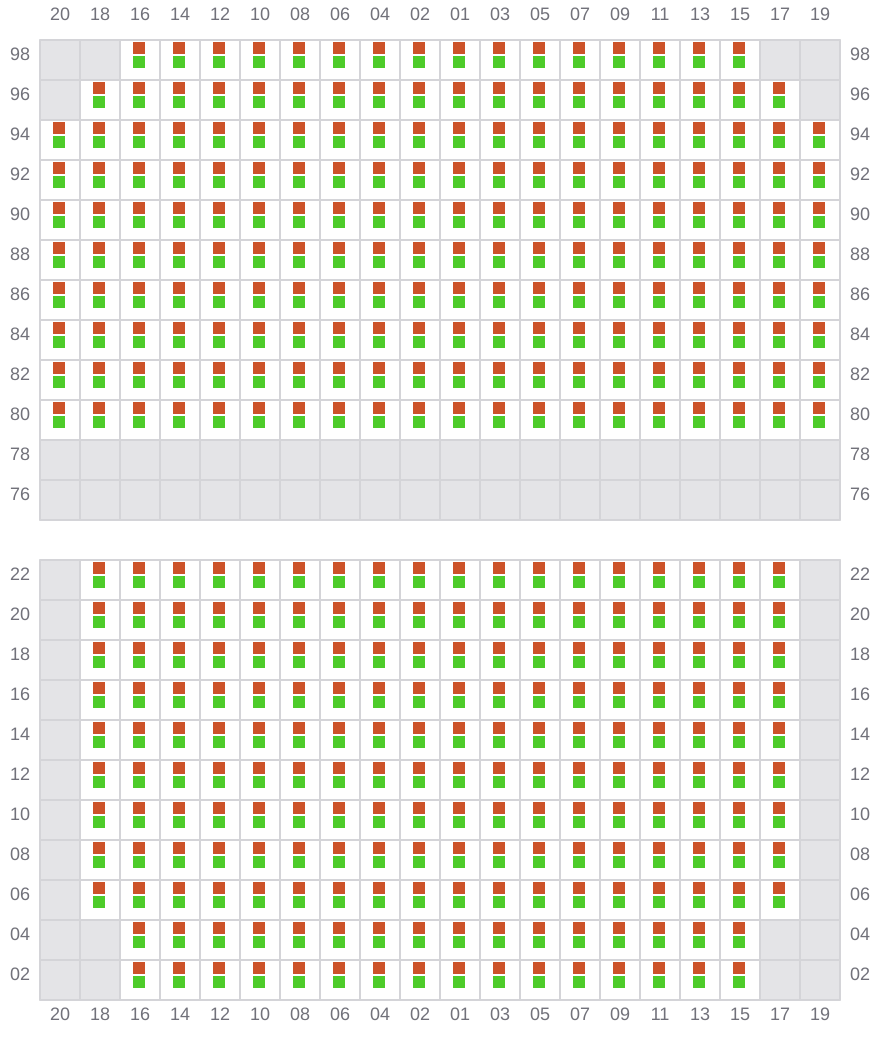

029 (030)
- →

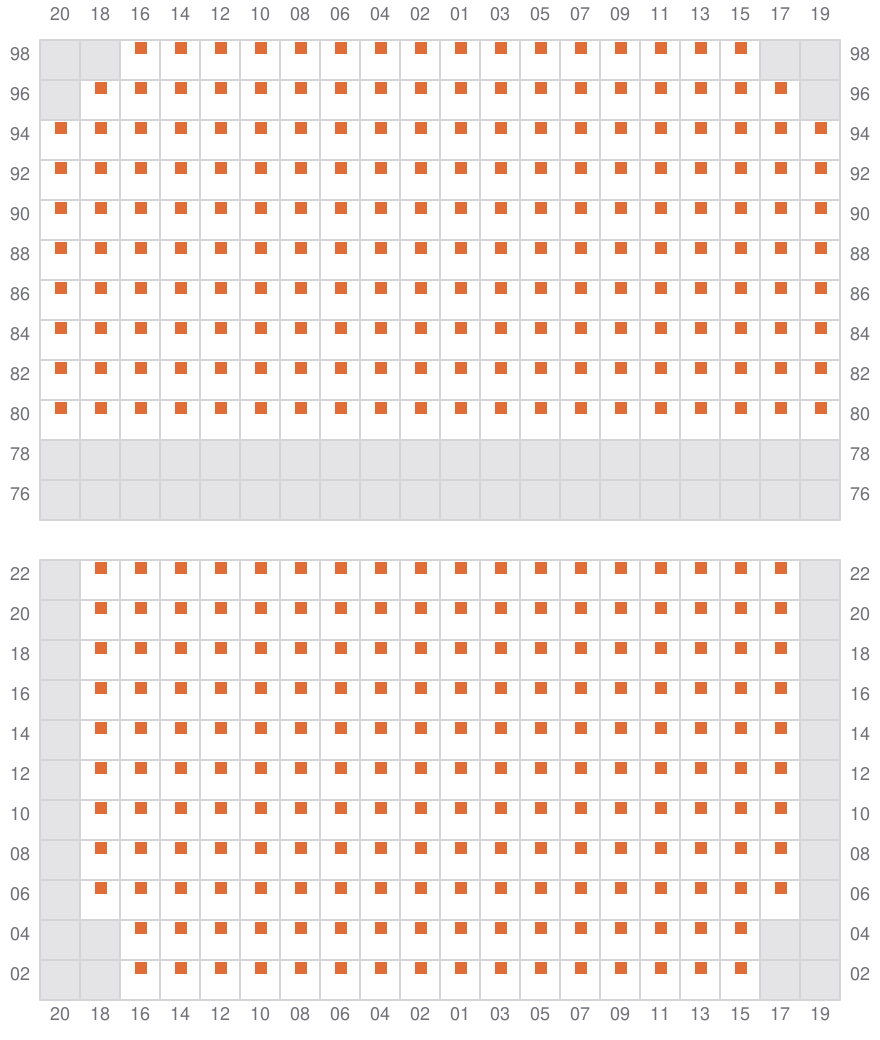

031
- ←

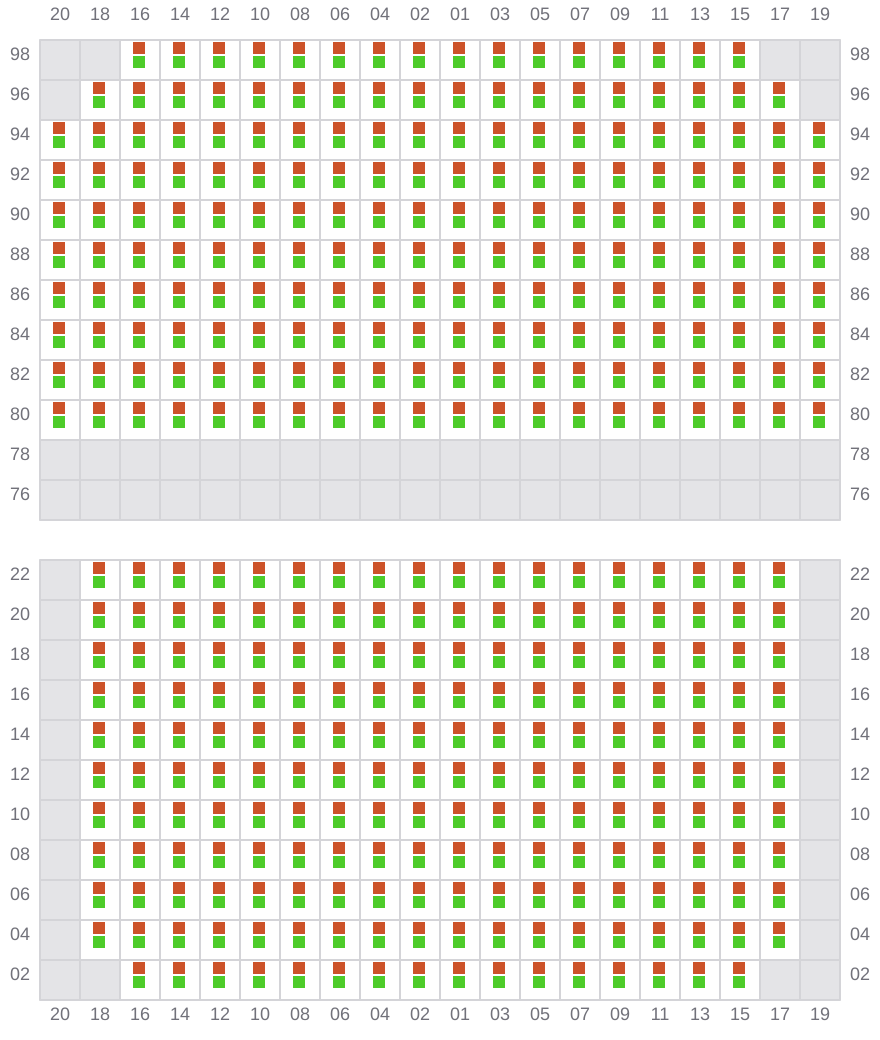

033 (034)
- →

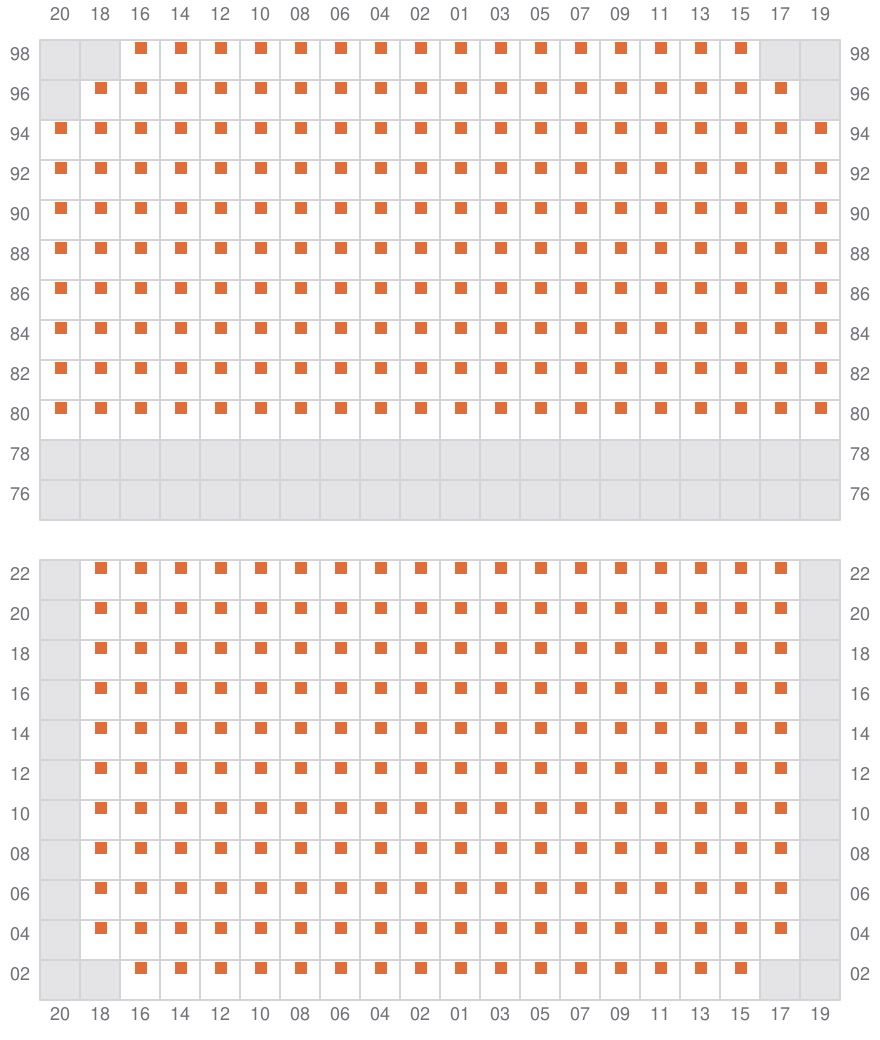

035
- ←

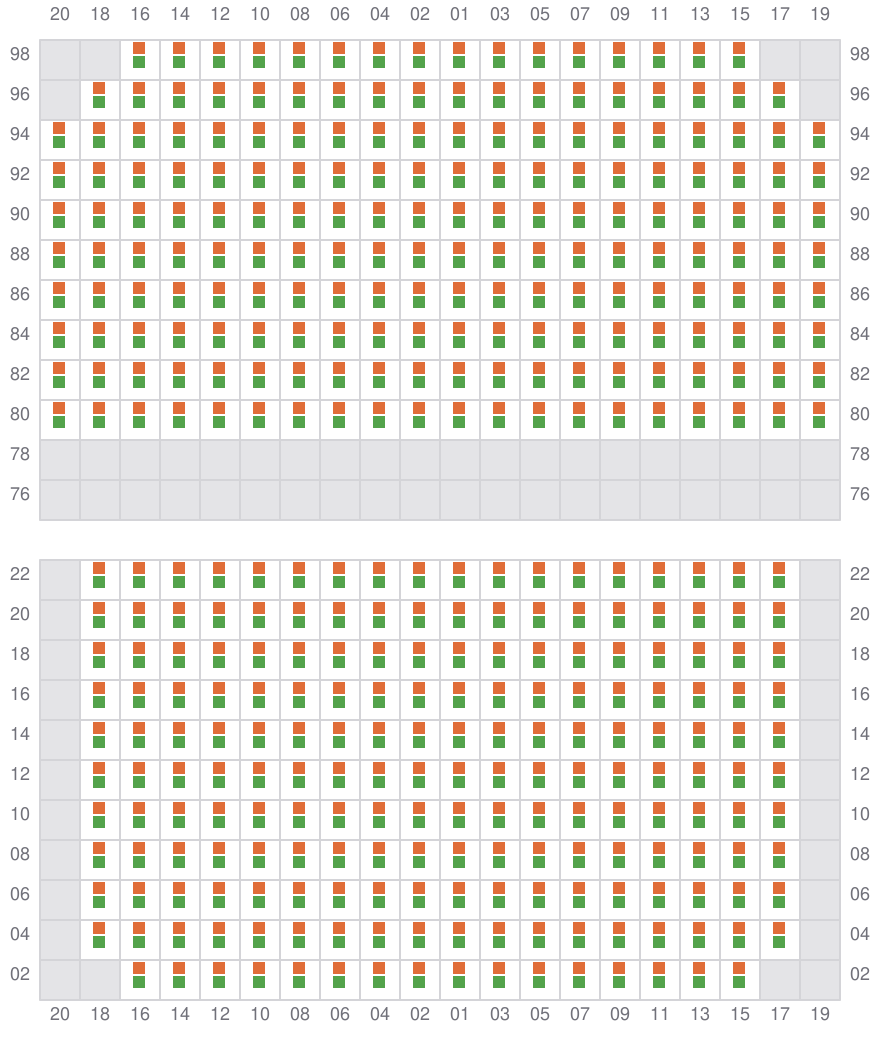

037 (038)
- →
039
- ←
041 (042)
- →
043
- ←
045 (046)
- →
047
- ←
049 (050)
- →
051
- ←
053 (054)
- →

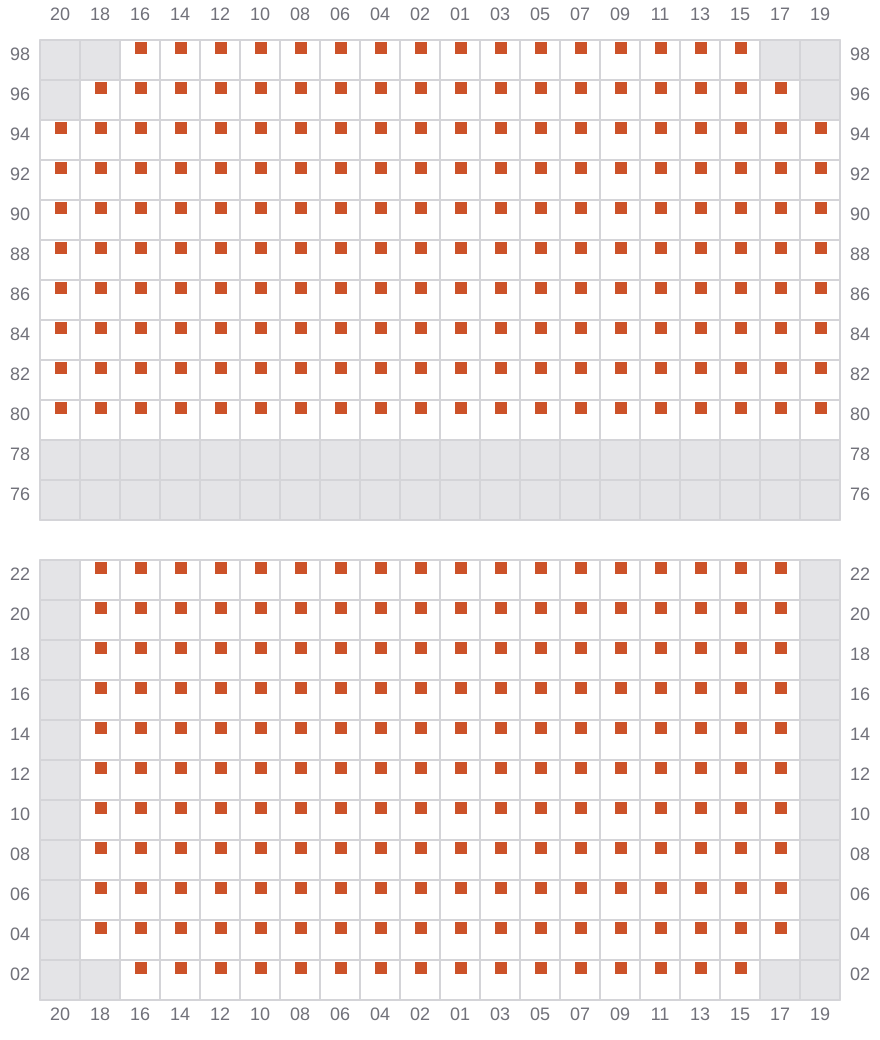

055
- ←

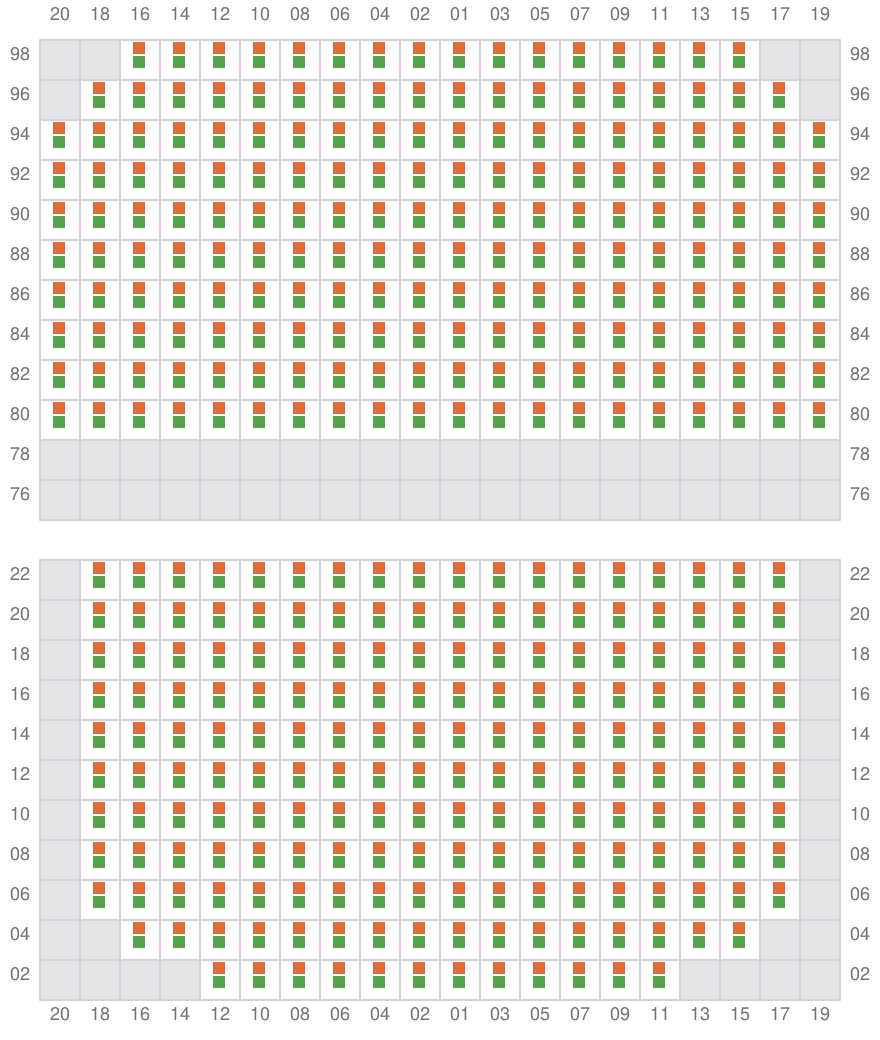

057 (058)
- →
059
- ←

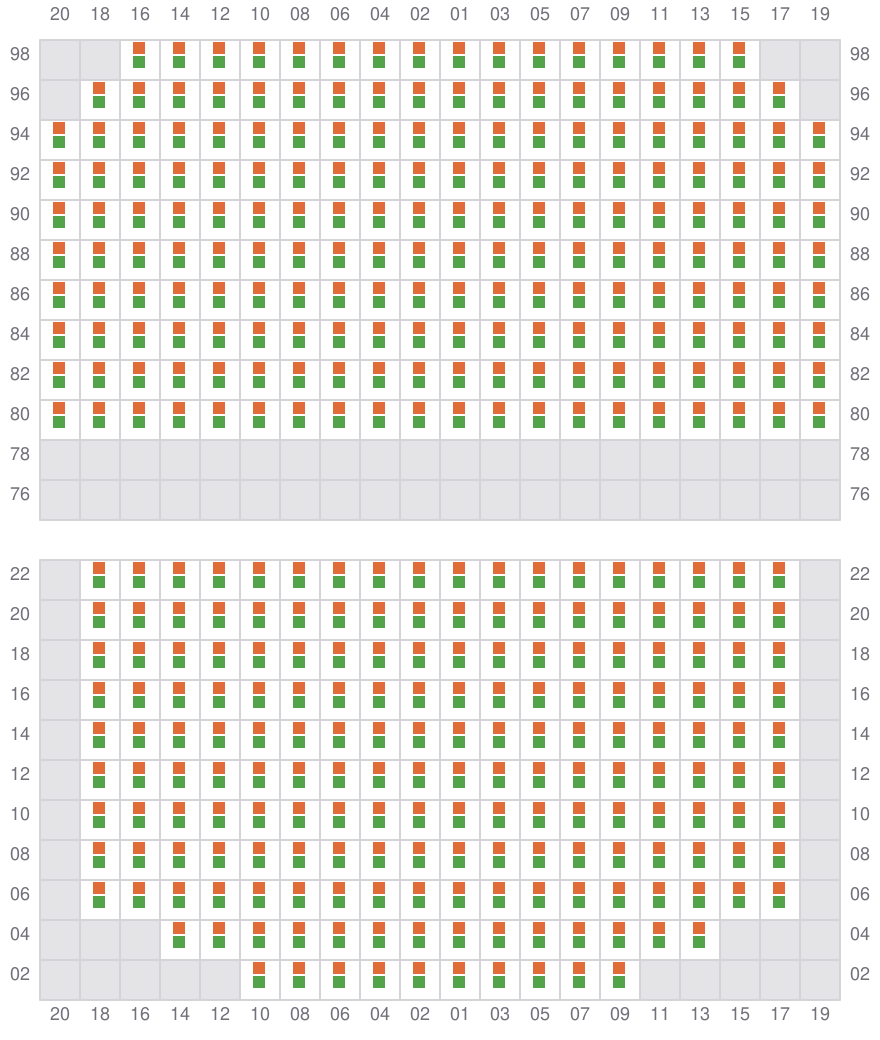

061 (062)
- →

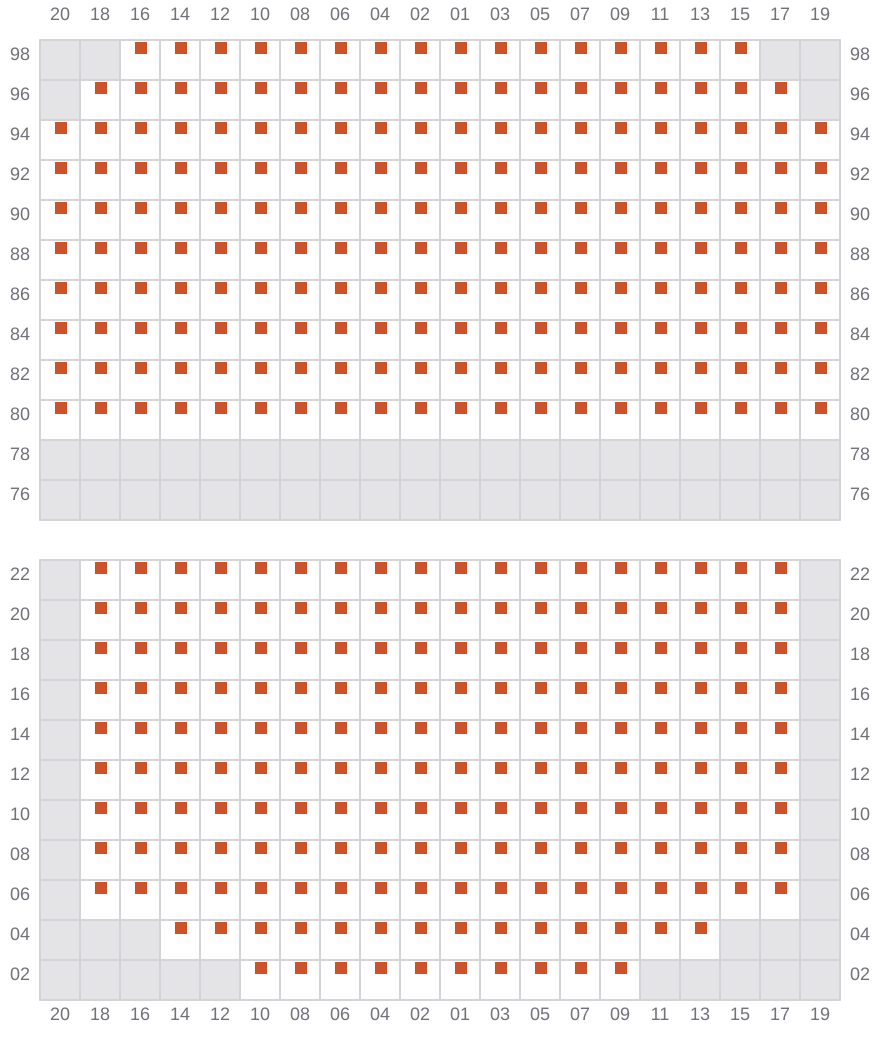

063
- ←

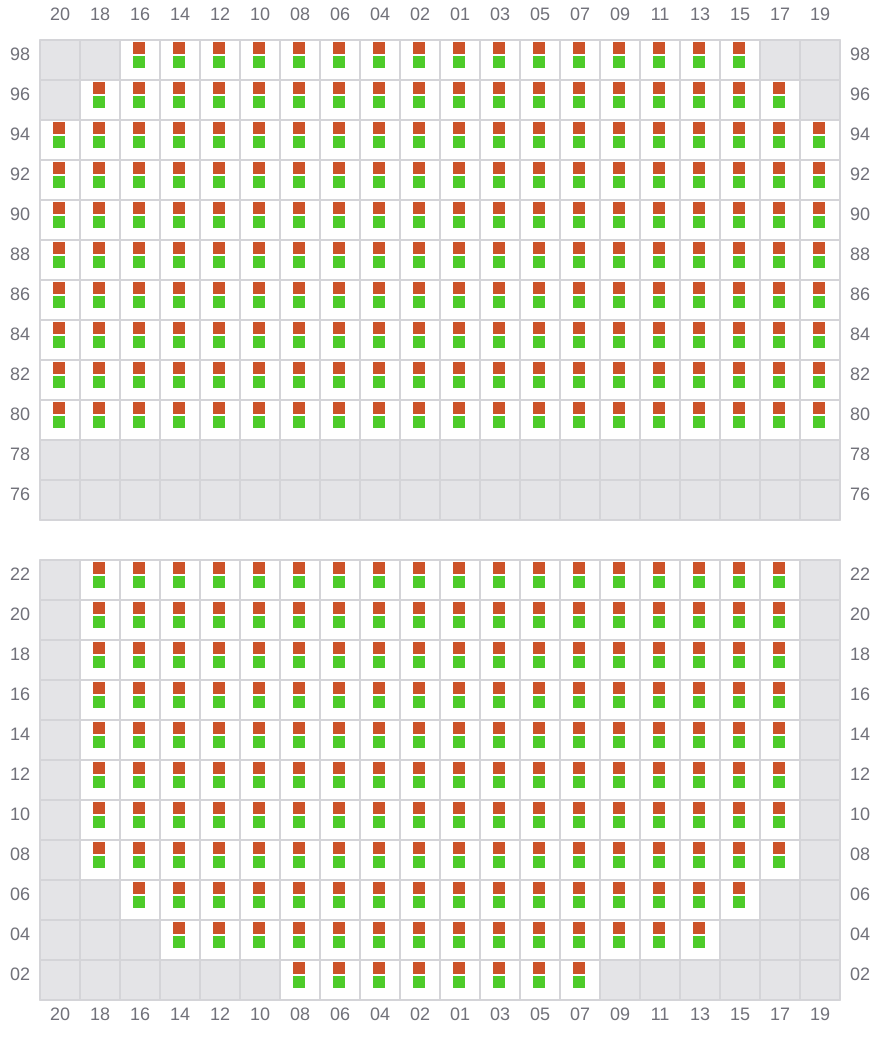

065 (066)
- →

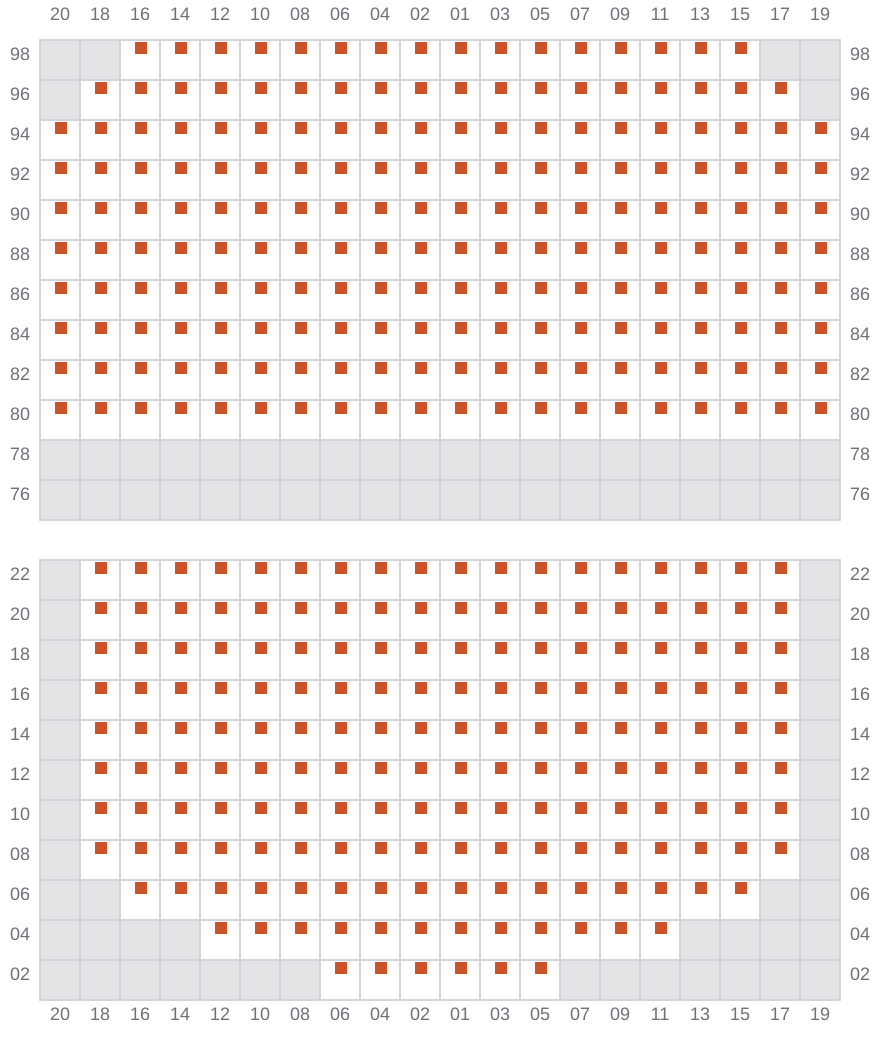

067
- ←

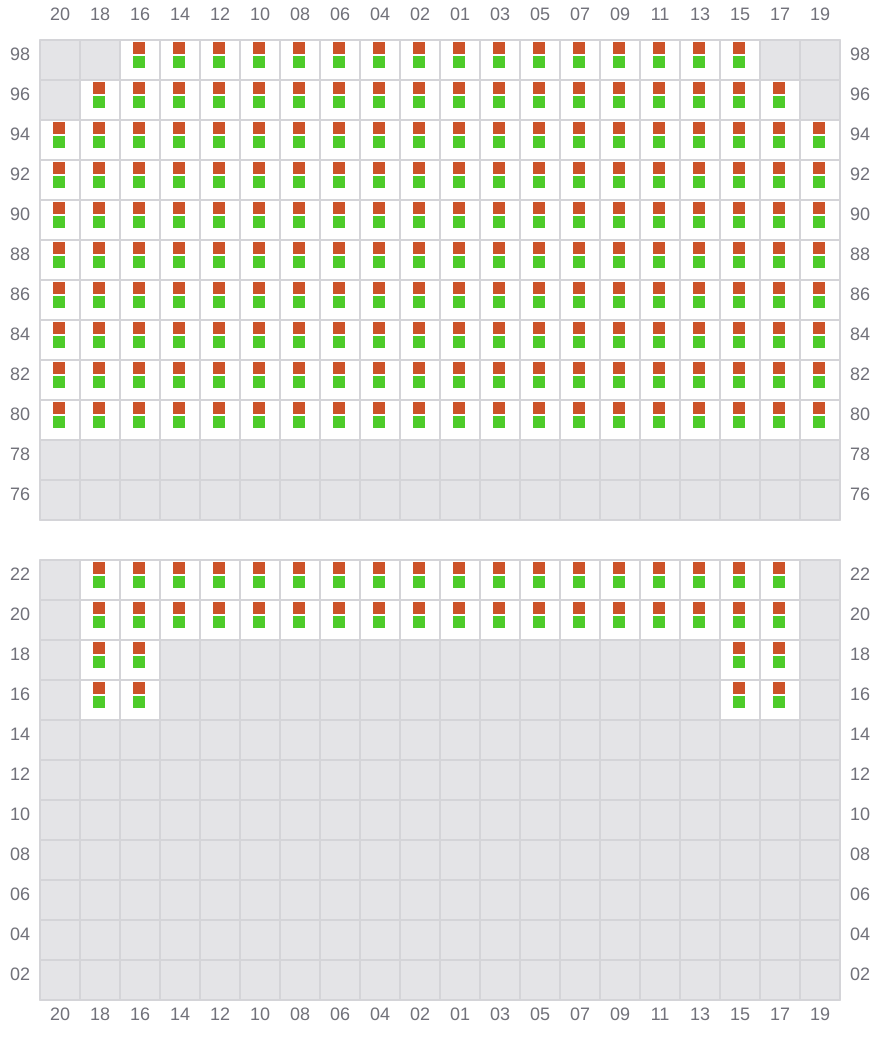

069 (070)
- →
071
- ←

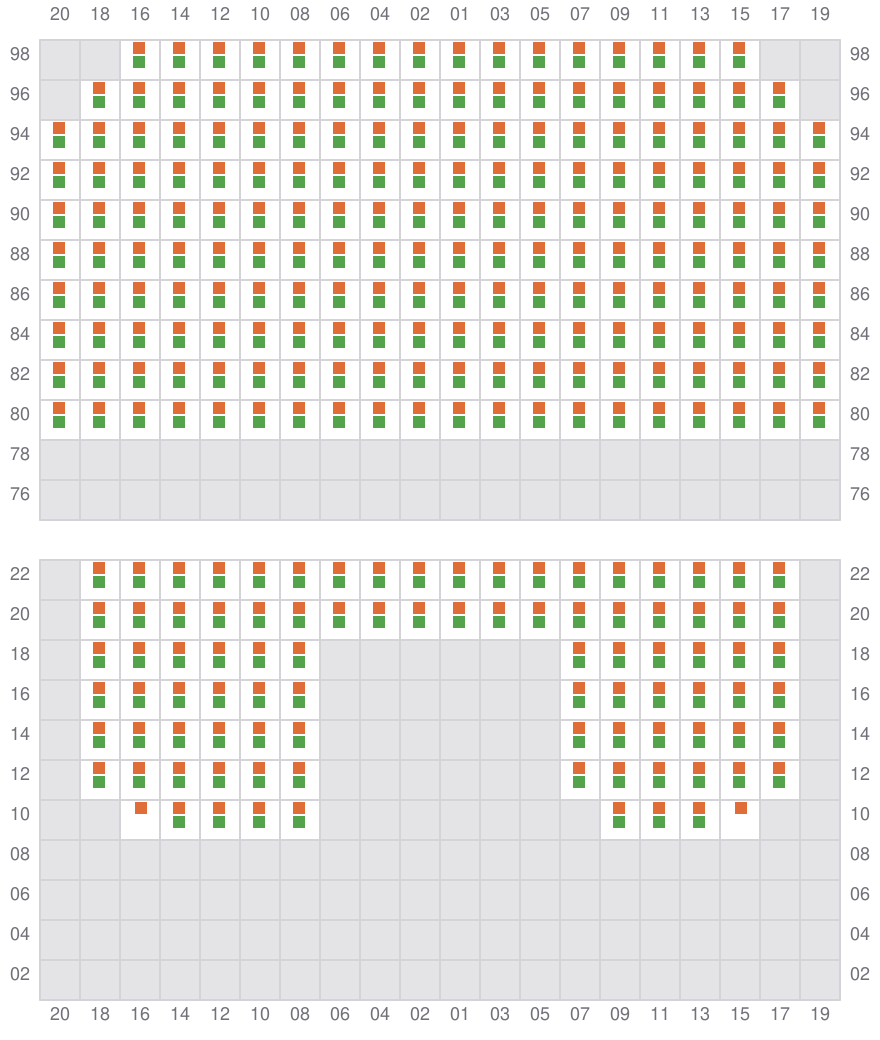

073 (074)
- →

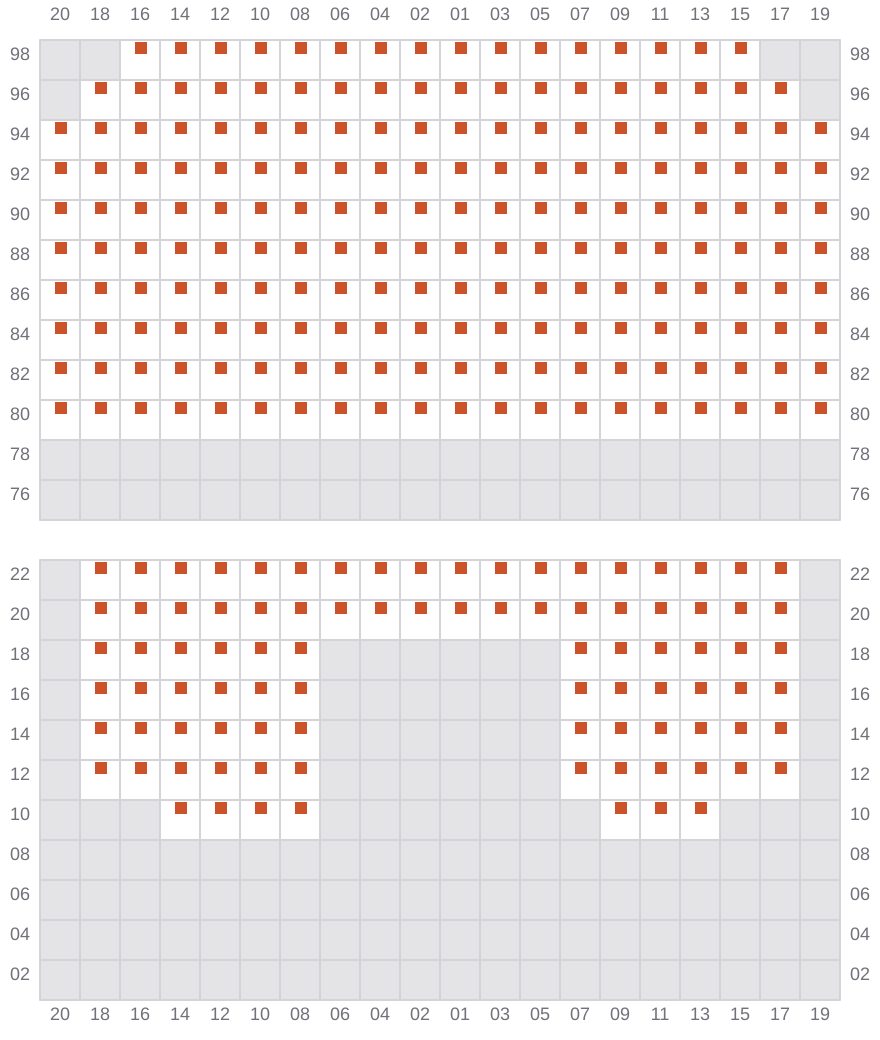

075
- ←
077 (078)
- →

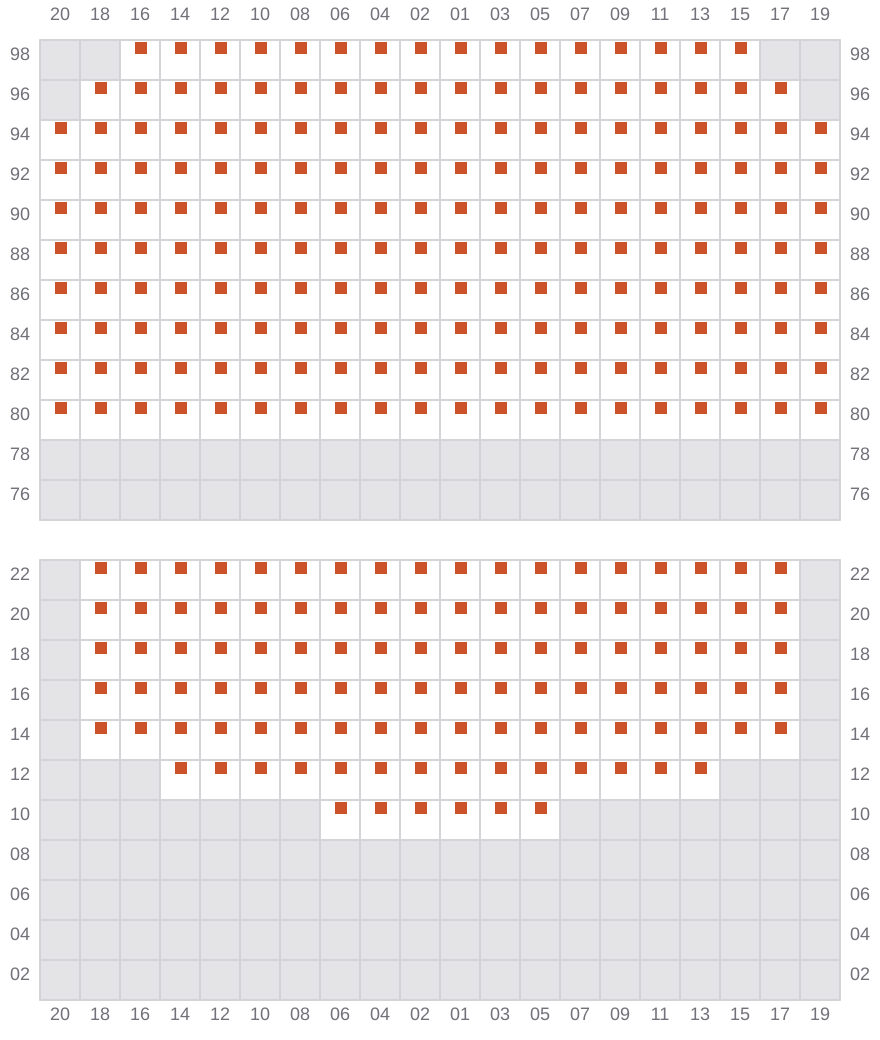

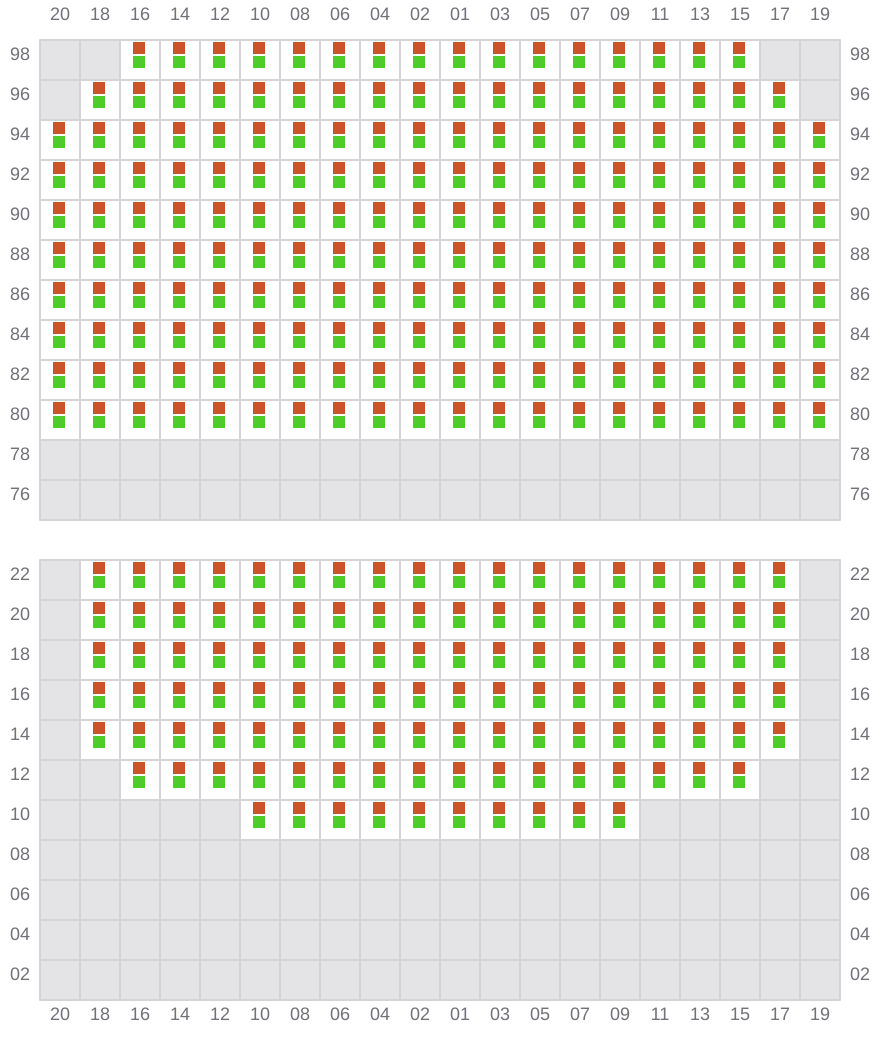

079
- ←

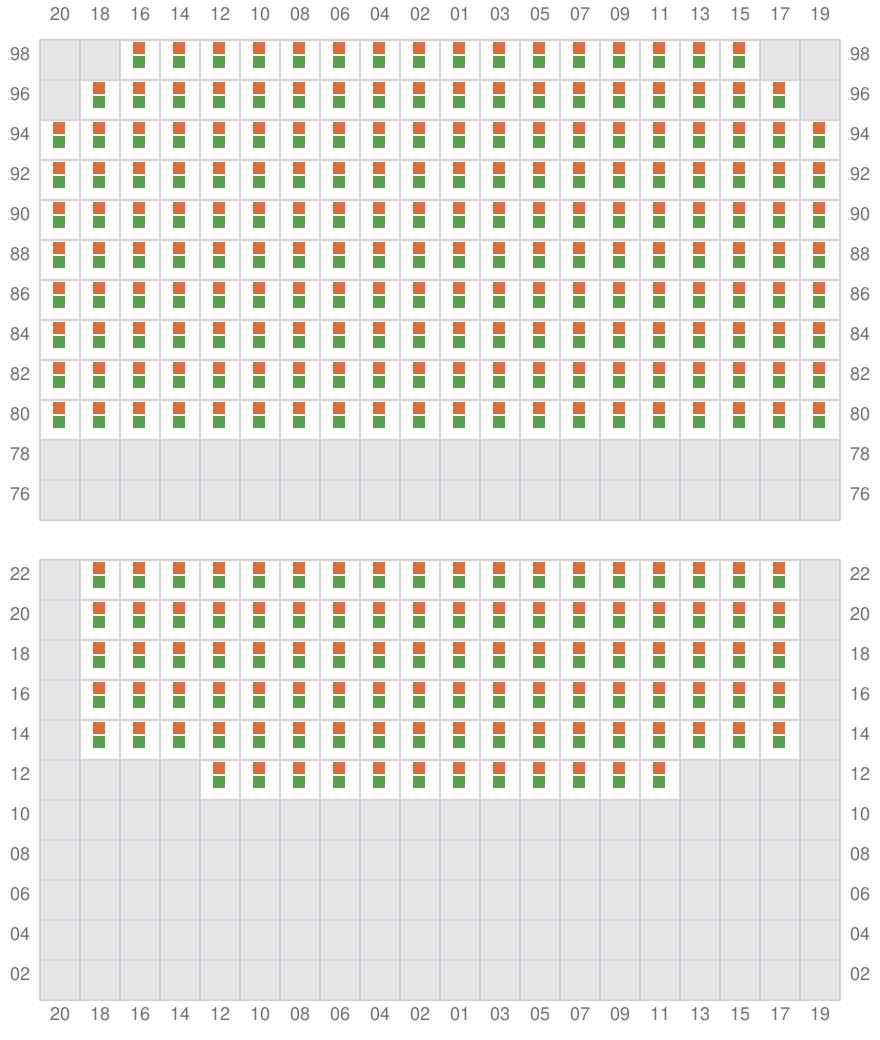

081 (082)
- →

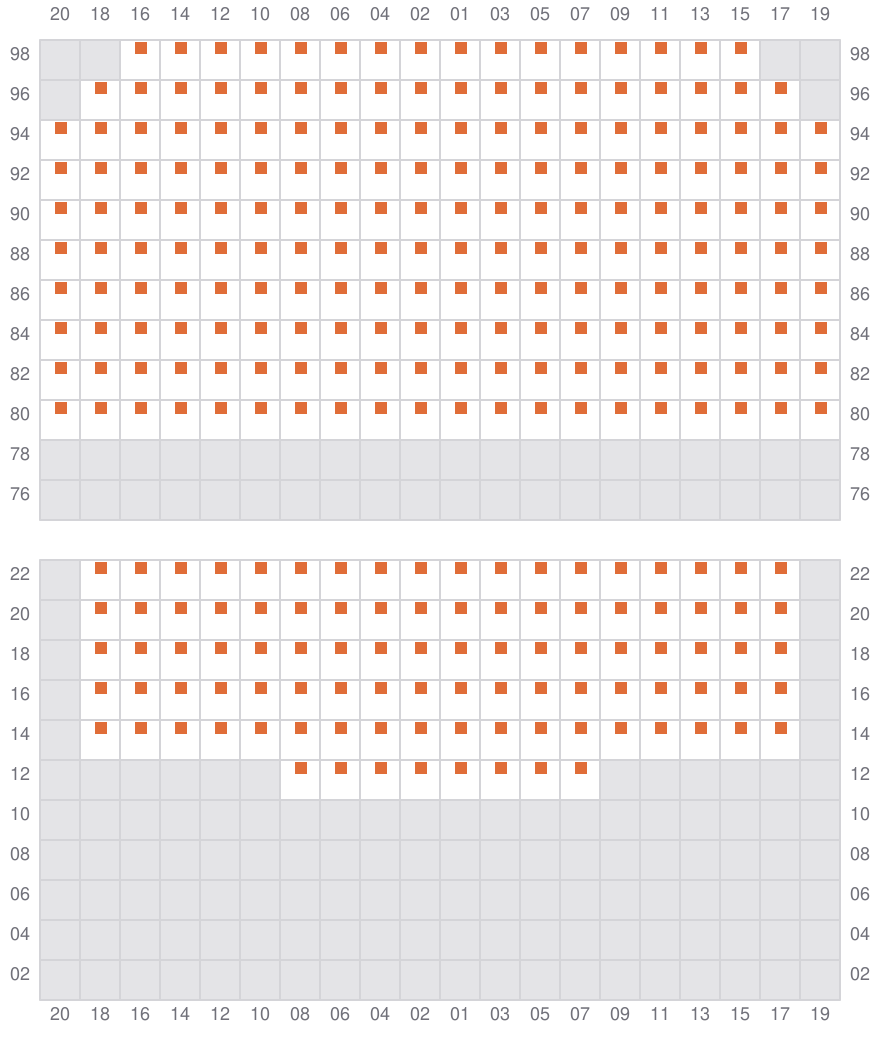

083
- ←
085 (086)
- → / ?
