TOKYO BAY
9629380 | D5EG8 | HLC by ******** Last update: Mon Jun 10 2024
General Info
Ship Name:TOKYO BAY
IMO Code:9629380
Call Sign:D5EG8
Line Operator:HLC
Class Name for Sister Ships:TOBA
Year Built:2013
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:063
Max ISO Row:16
Center Line Row:Yes
Max Above ISO Tier:98
Min Above ISO Tier:82
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:6,622
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

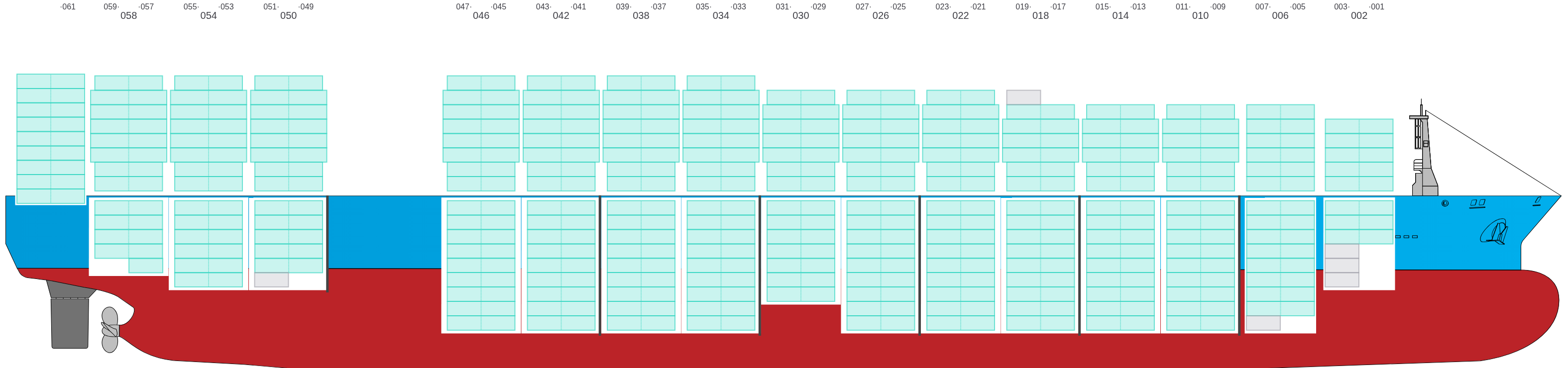

Side View
Hatch-Covers View
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

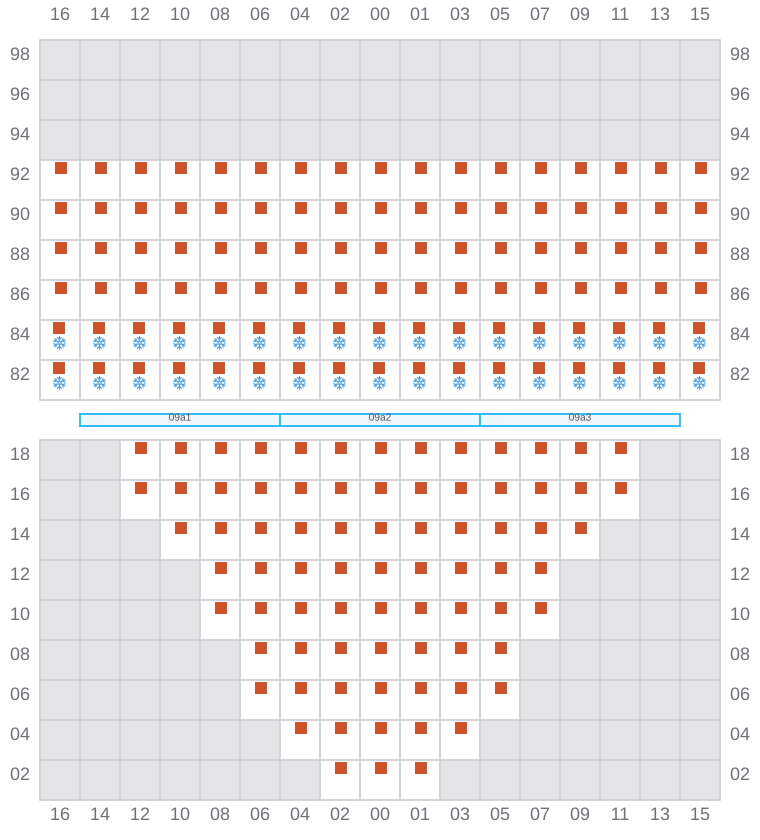

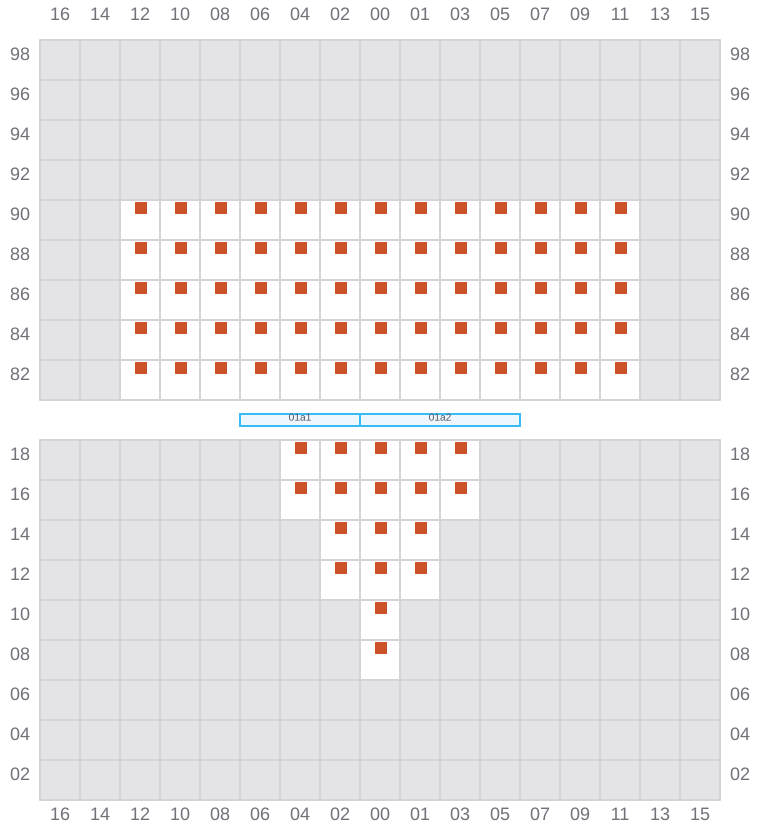

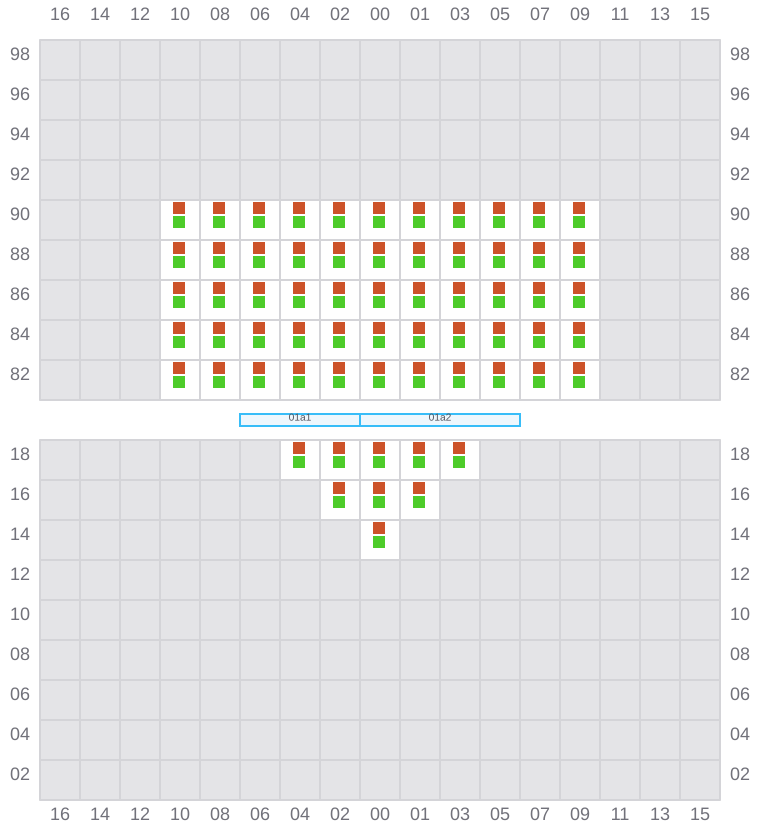

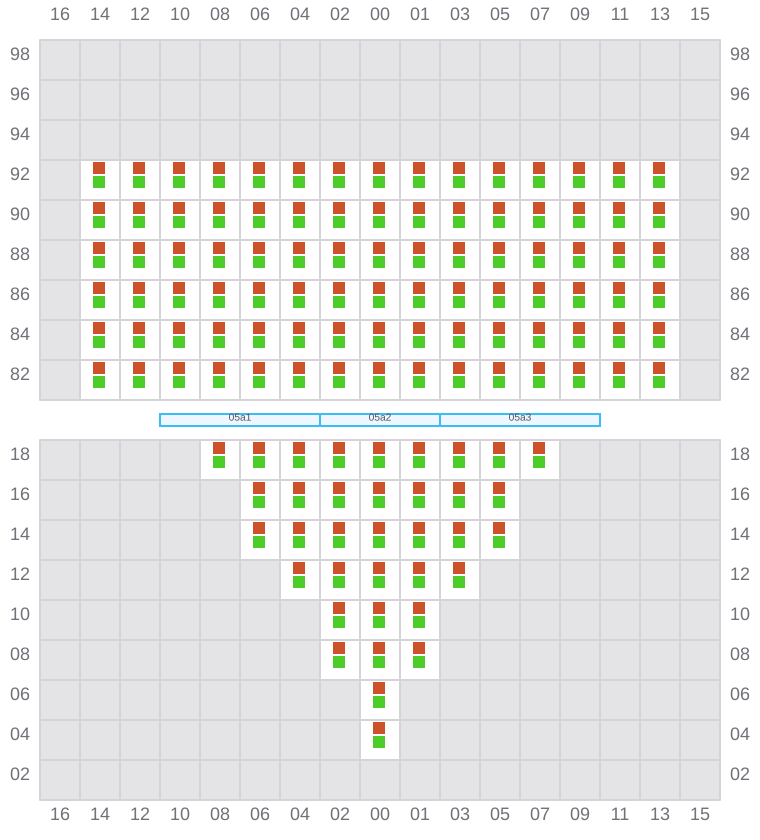

001 (002)
- →
- →
003
- ←
- →

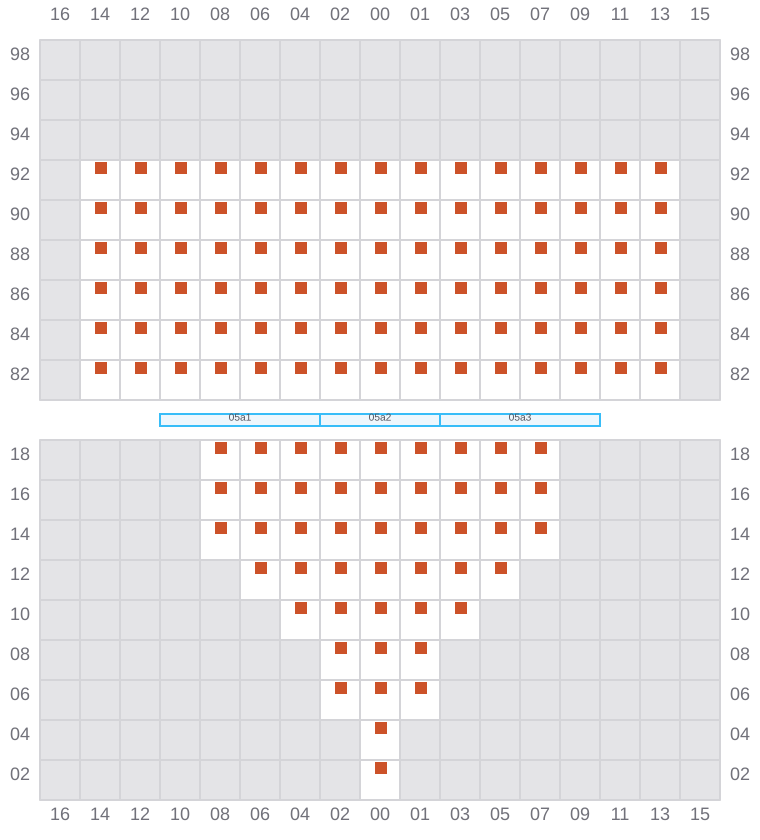

005 (006)
- →
- →
007
- ←
- →

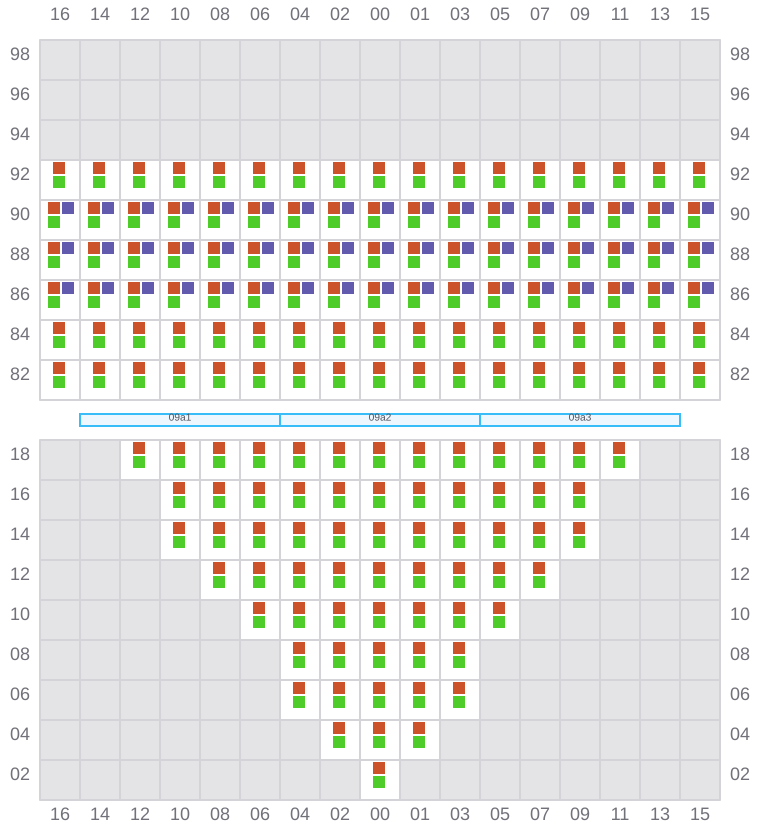

009 (010)
- →
- →
011
- ←
- → / ?
- →

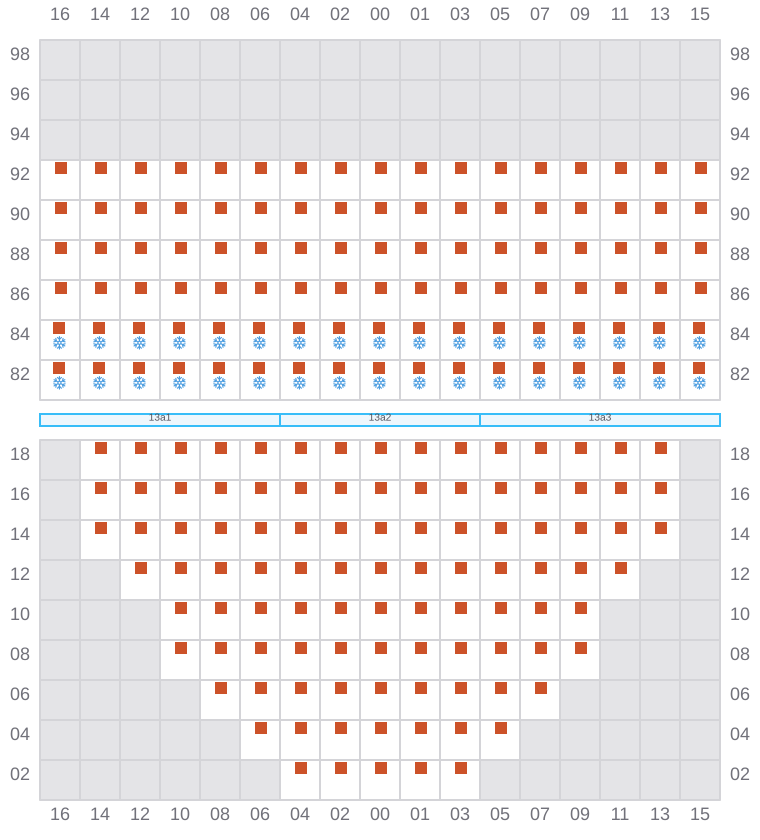

013 (014)
- →
- →
015
- ←
- → / ?
- →

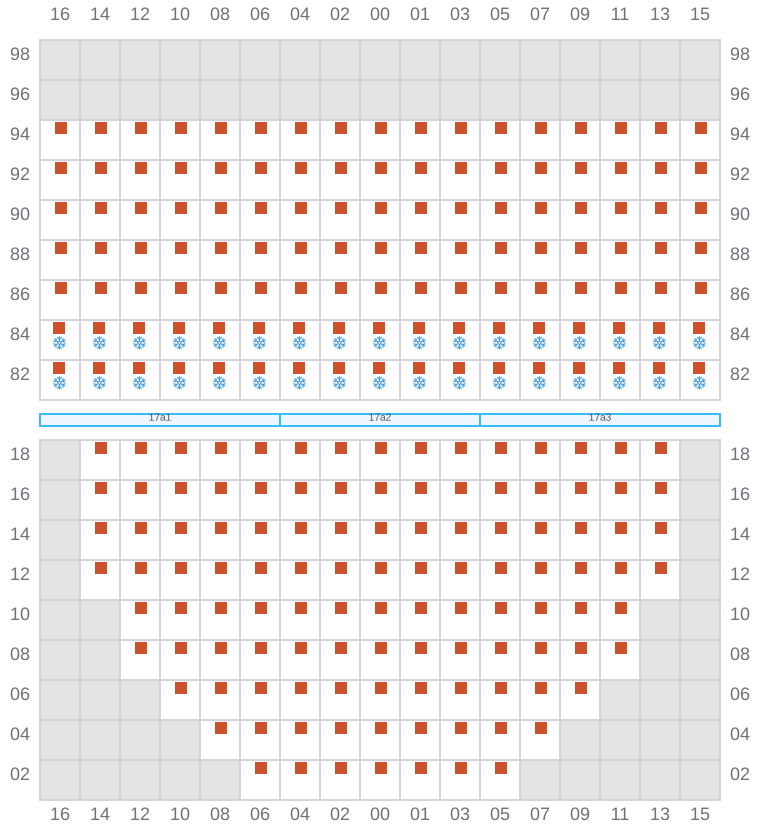

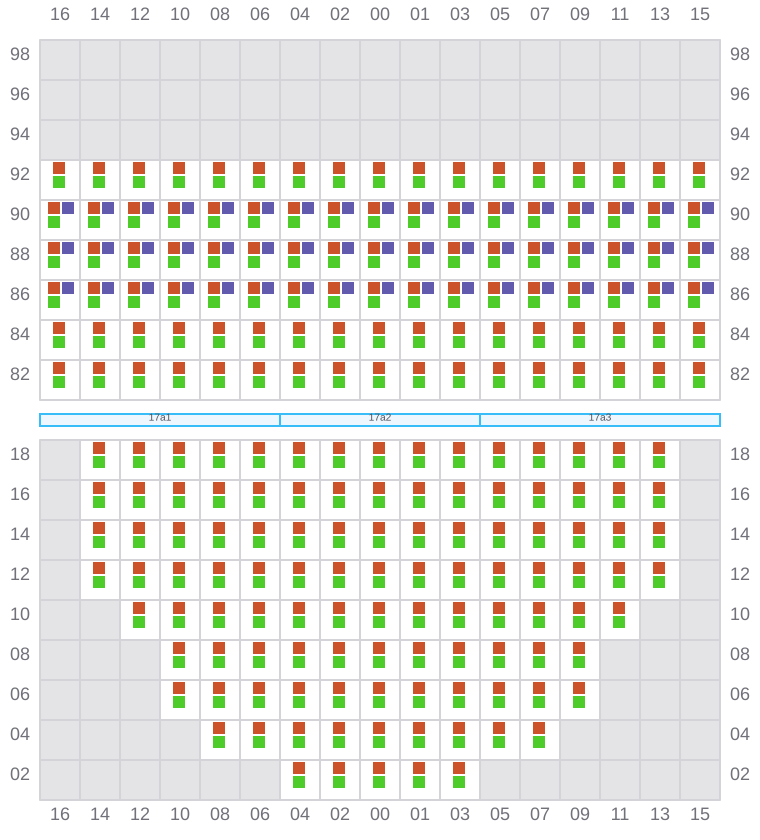

017 (018)
- →
- →
019
- ←
- → / ?
- →

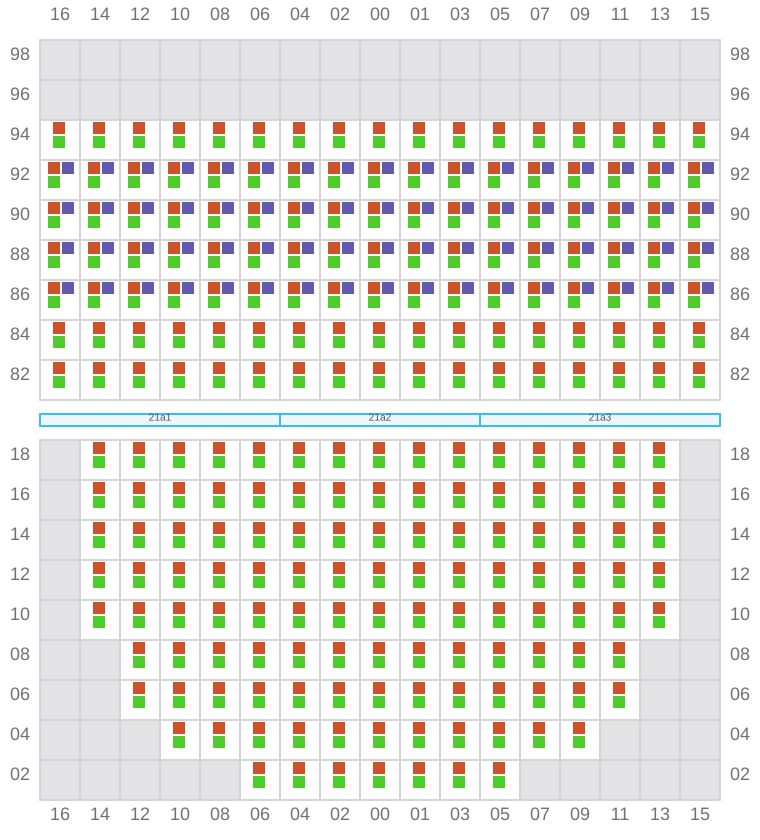

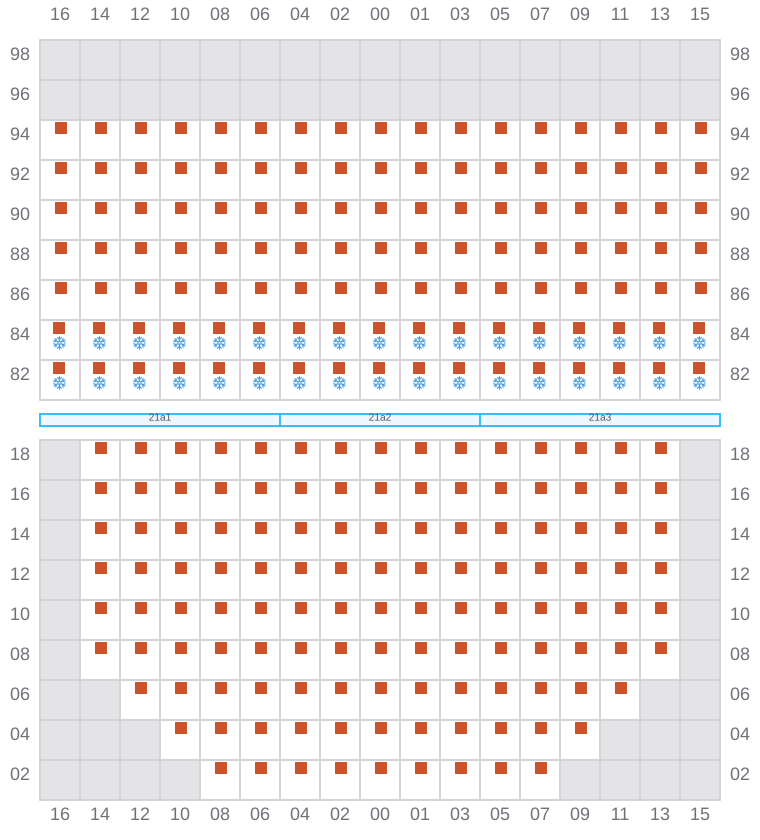

021 (022)
- →
- →
023
- ←
- → / ?
- →

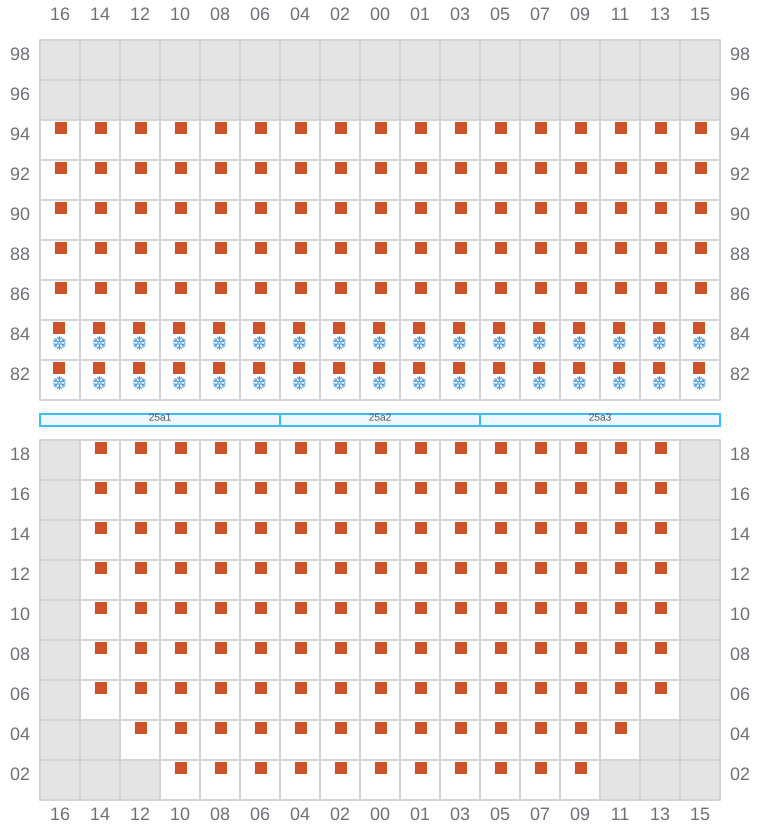

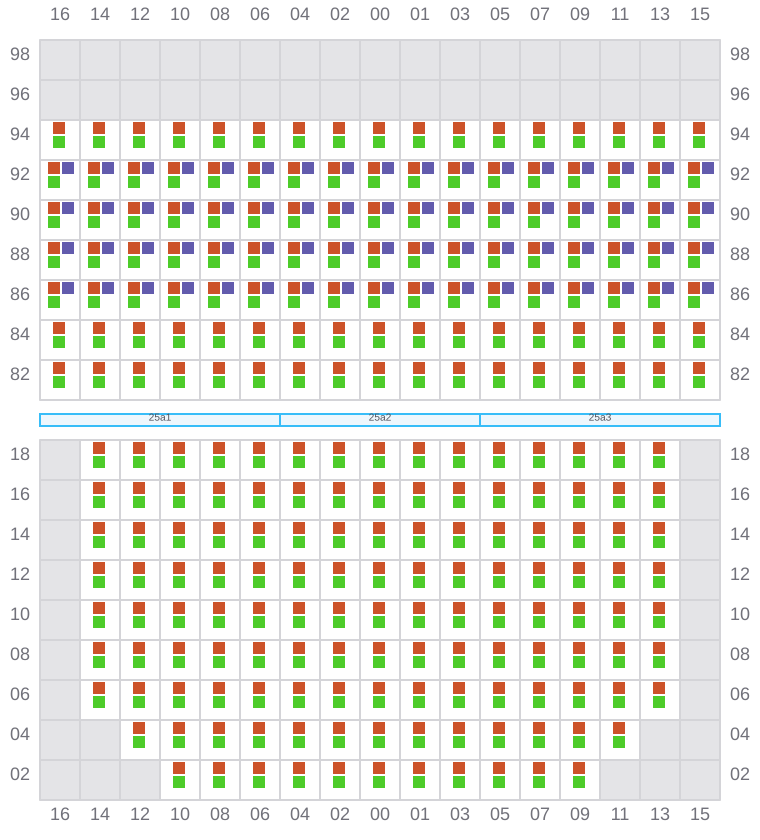

025 (026)
- →
- →
027
- ←
- → / ?
- →

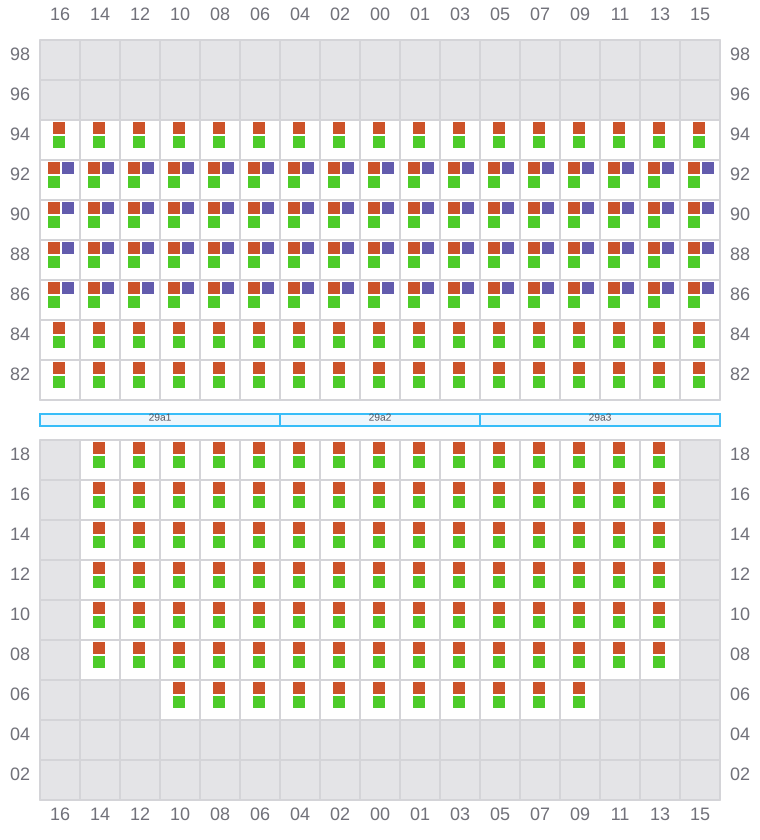

029 (030)
- →
- →
031
- ←
- → / ?
- →

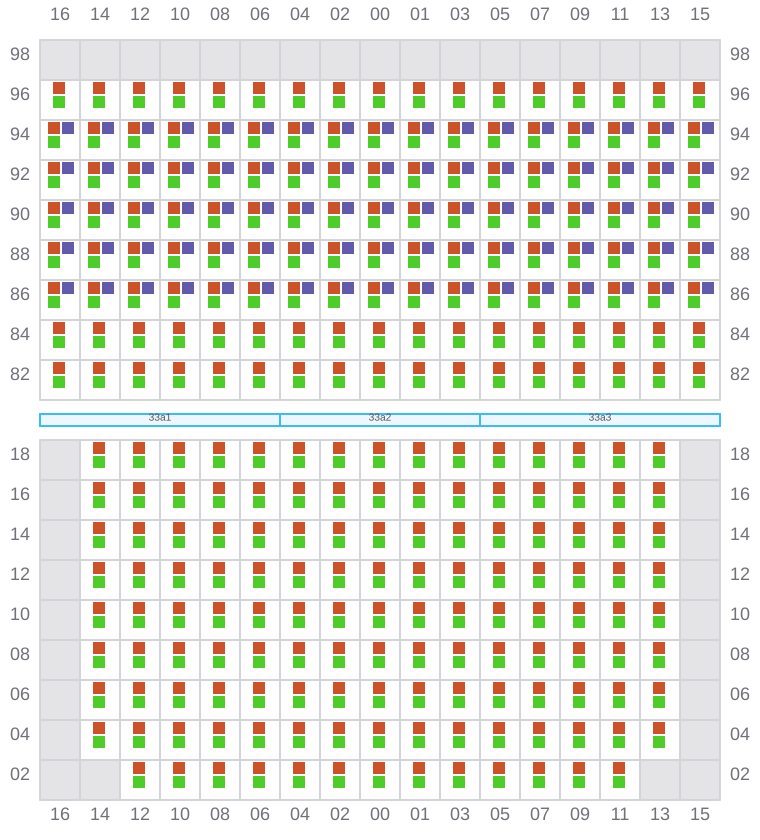

033 (034)
- →
- →

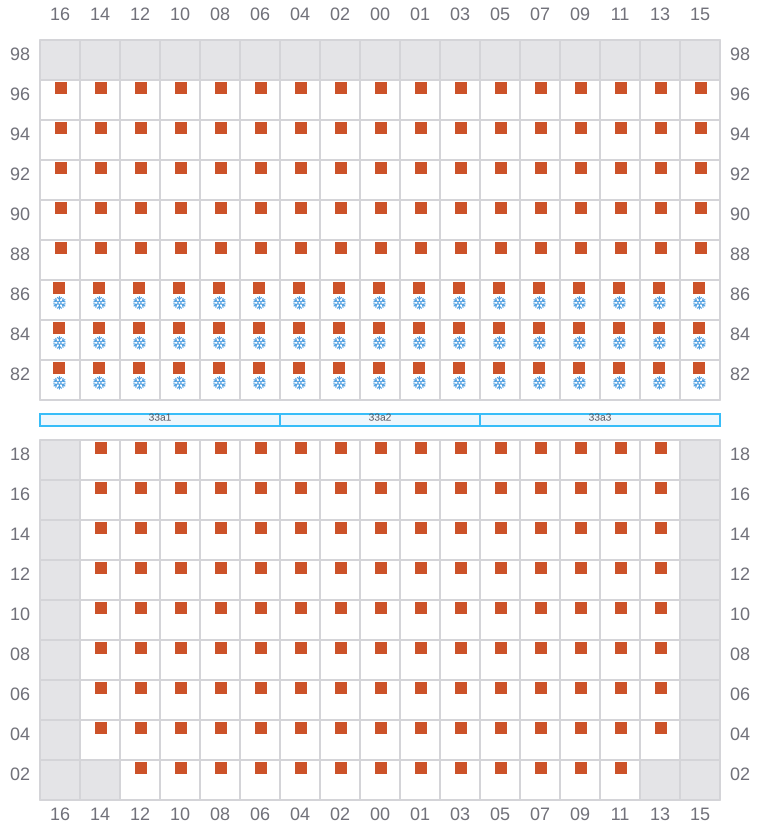

035
- ←
- → / ?
- →

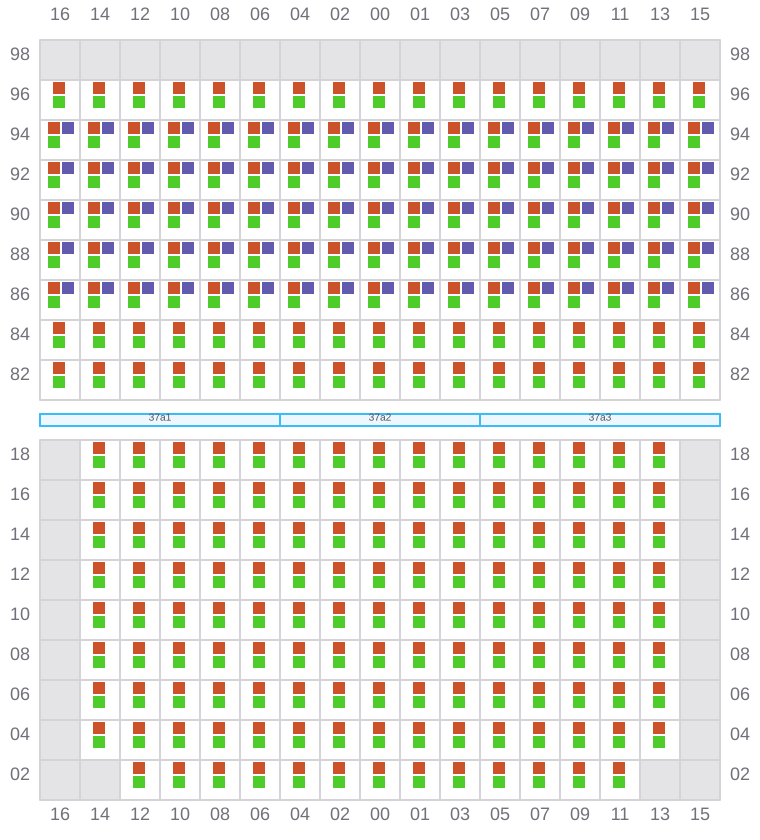

037 (038)
- →
- →
039
- ←
- → / ?
- →

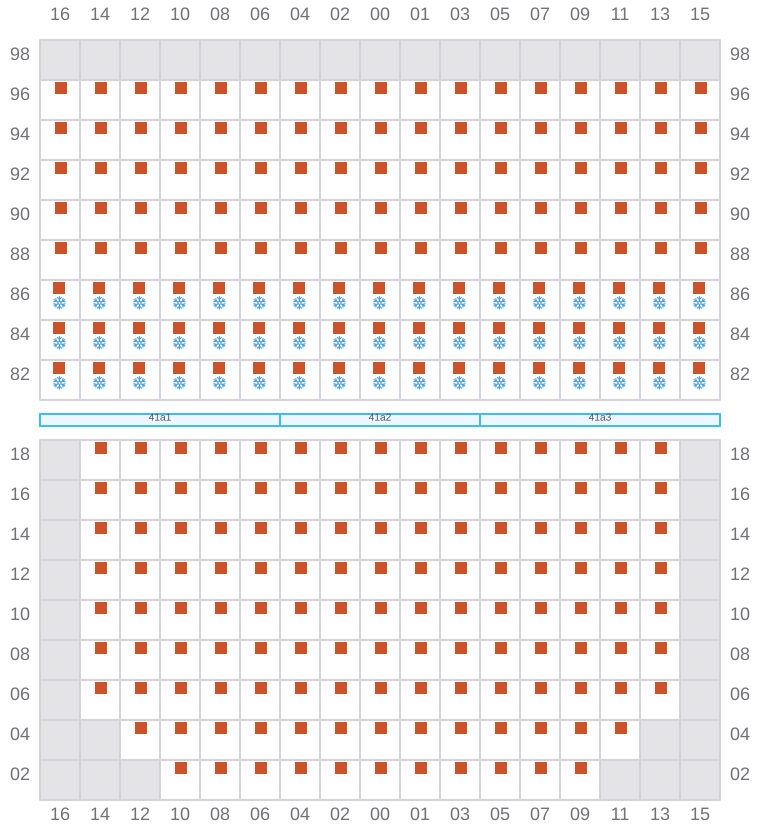

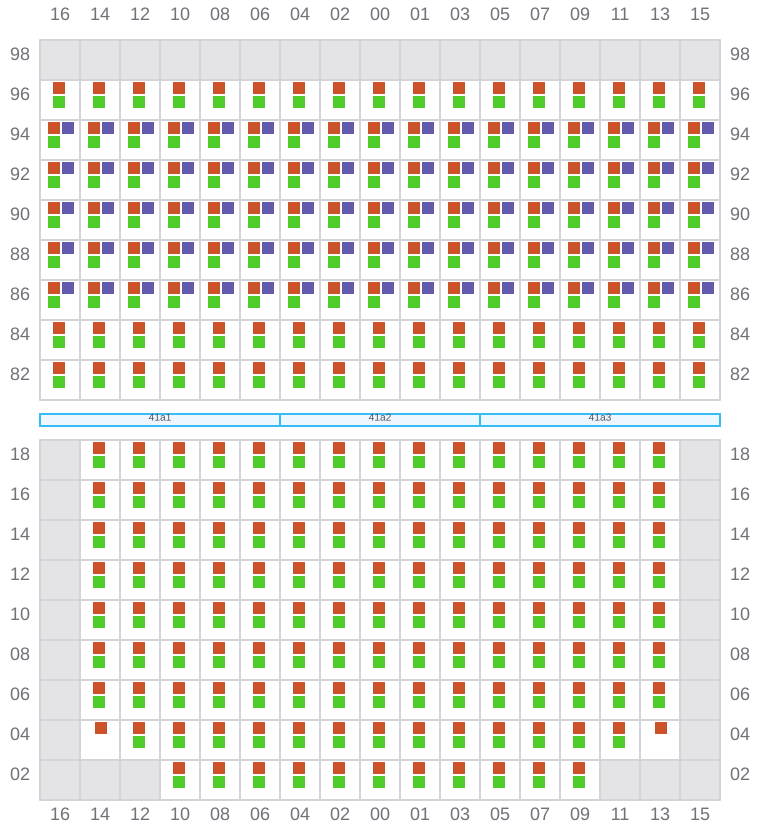

041 (042)
- →
- →
043
- ←
- → / ?
- →

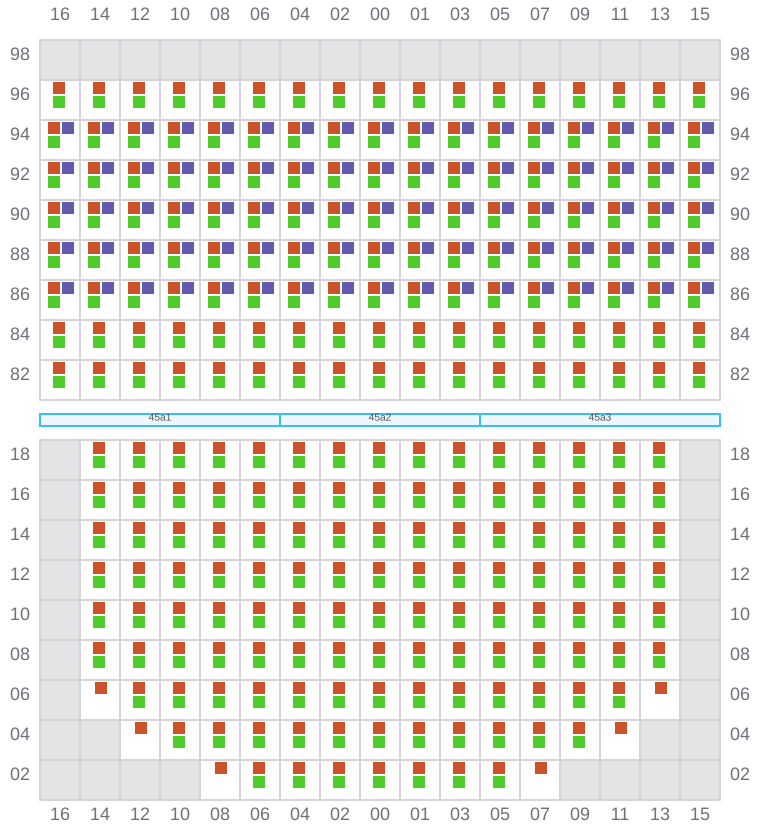

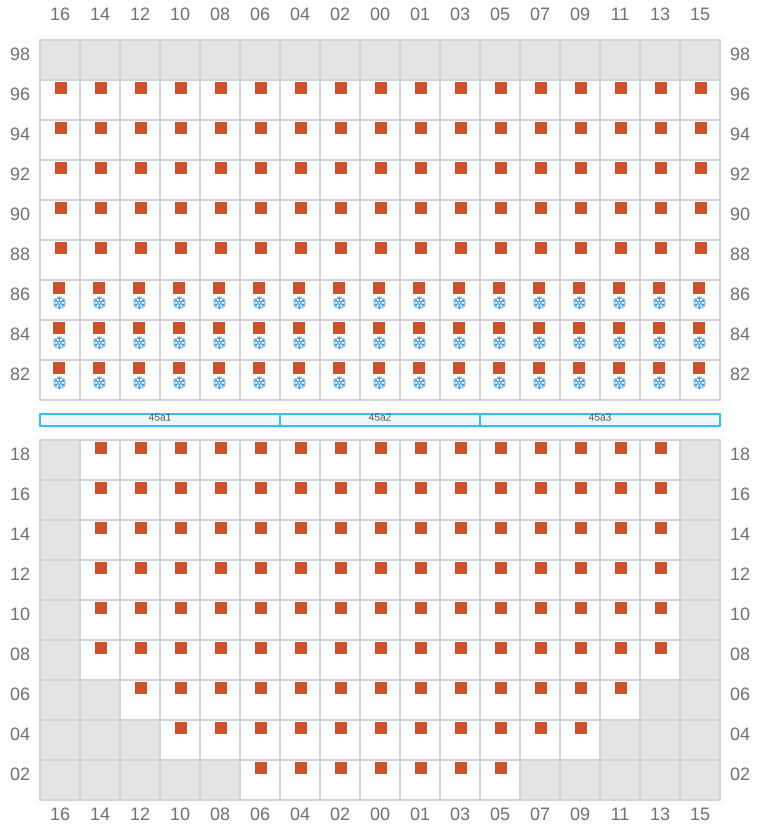

045 (046)
- →
- →
047
- ←
- → / ?
- →

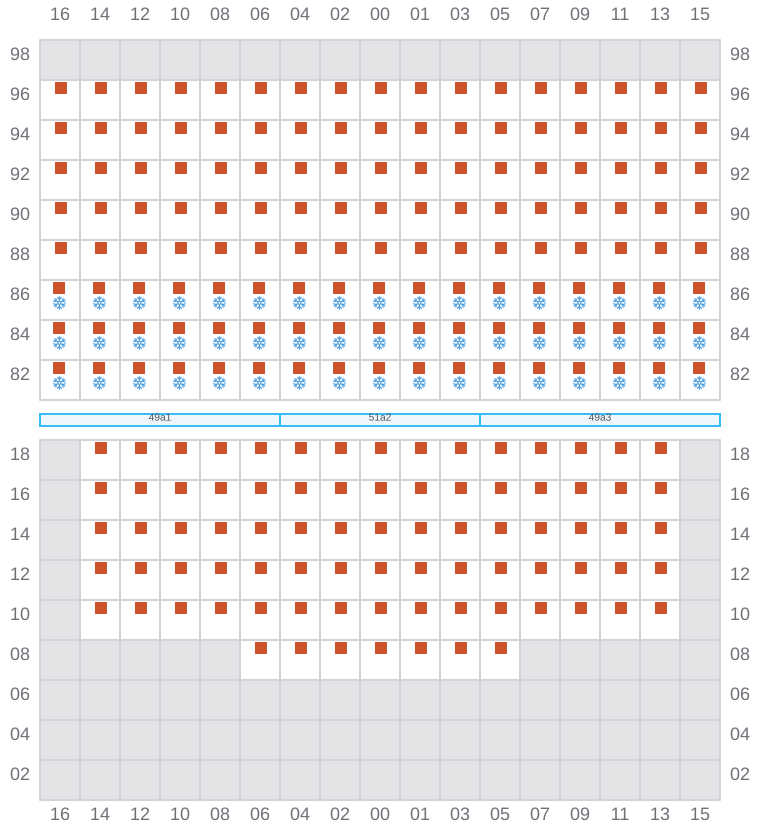

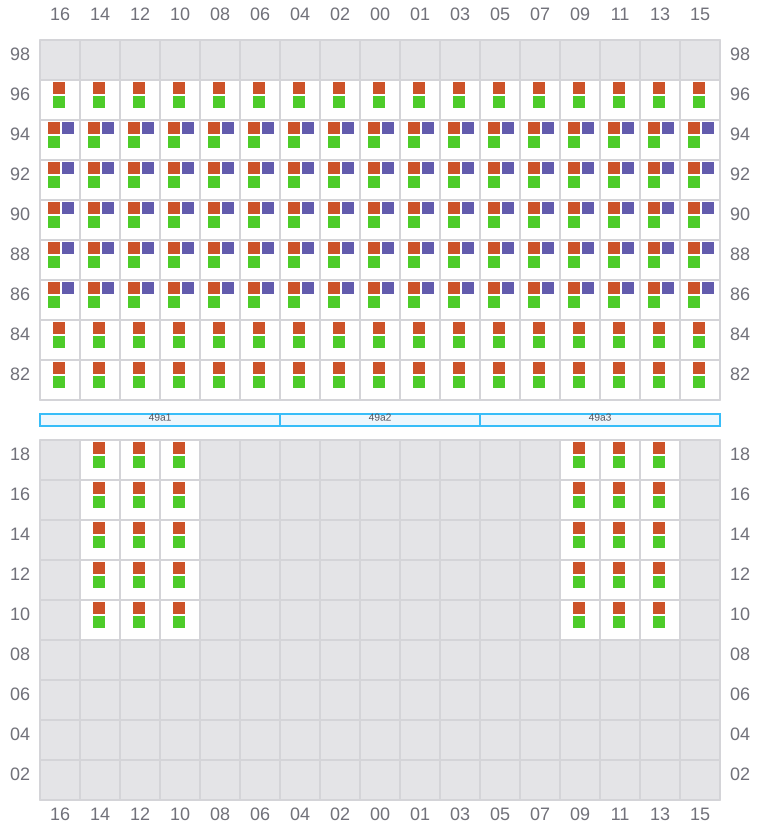

049 (050)
- →
- →
051
- ←
- → / ?
- →

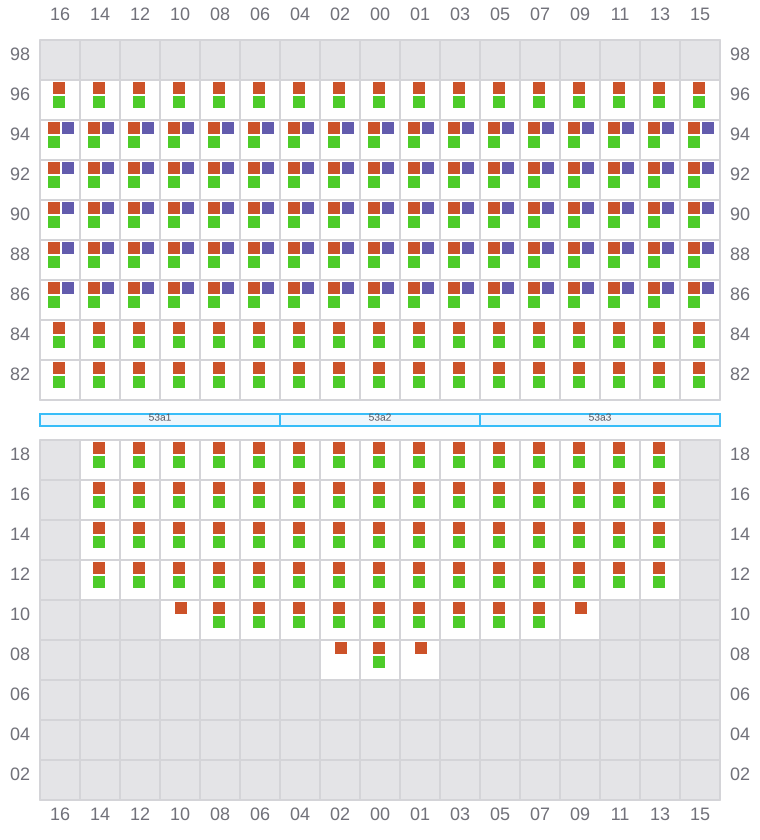

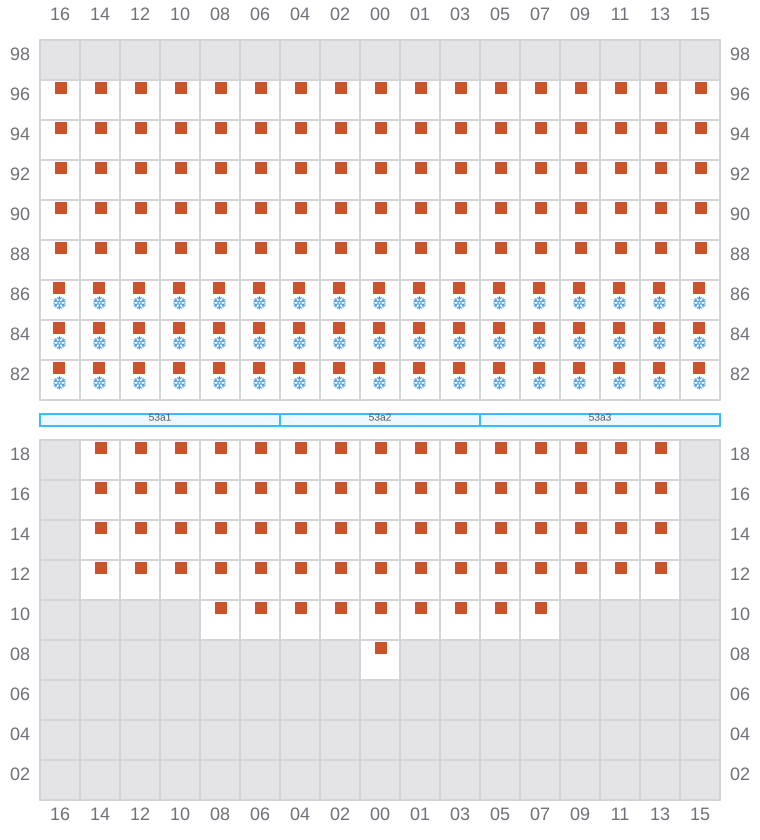

053 (054)
- →
- →
055
- ←
- → / ?
- →

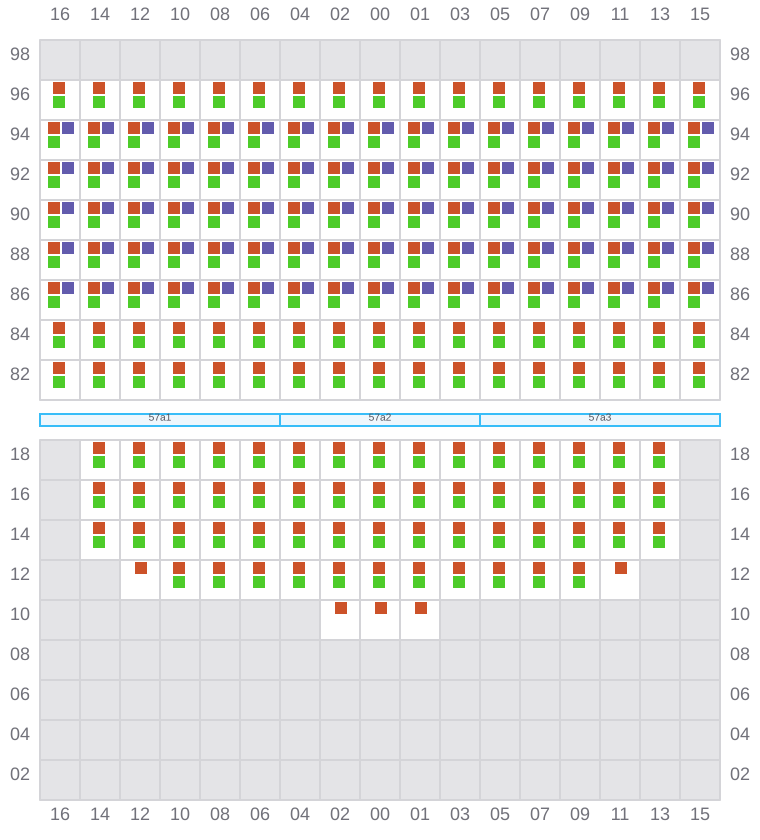

057 (058)
- →
- →
059
- ←
- → / ?
- →

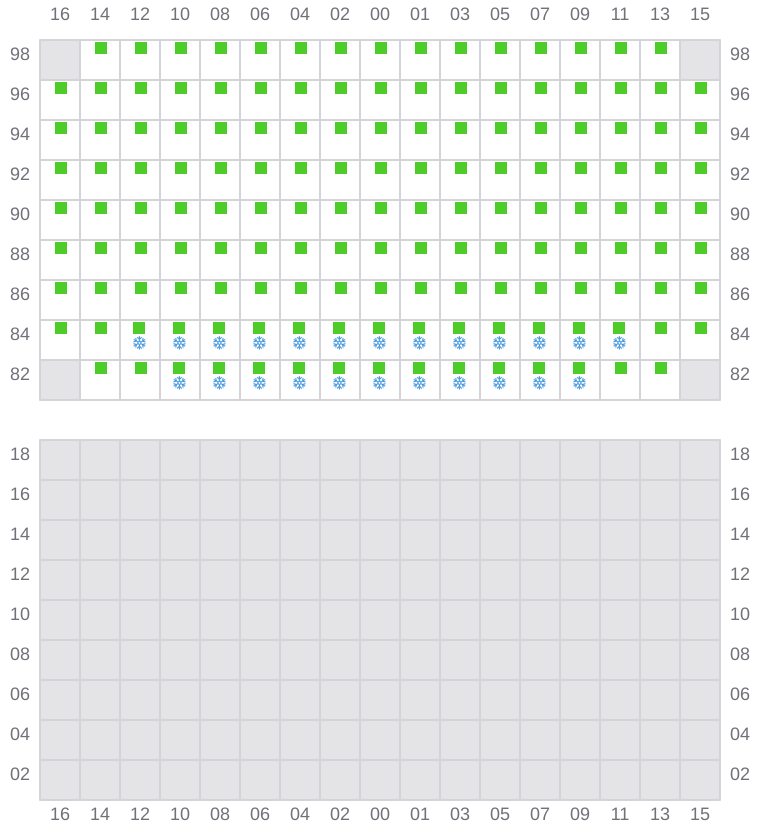

061 (062)
- → / ?
- ← / ?

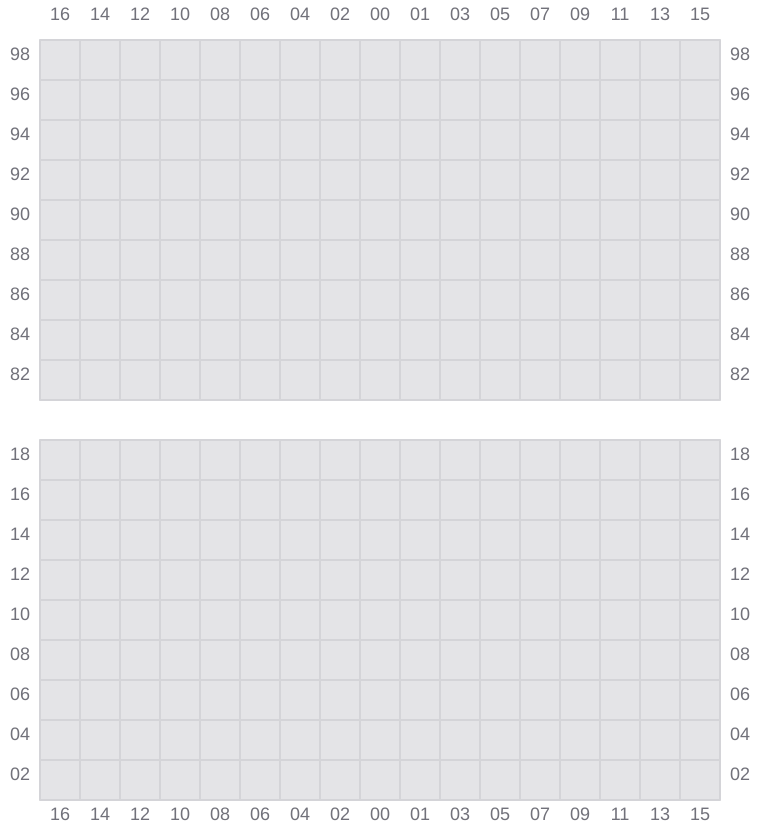

063
- ←
