TOKYO TRIUMPH
9737474 | 9V3477 | EIS by ************************** Last update: Fri Jun 09 2023

General Info

Ship Name:TOKYO TRIUMPH
IMO Code:9737474
Call Sign:9V3477
Line Operator:EIS
Class Name for Sister Ships:TKP
Year Built:2017
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:
Also Known As...:-

Size Summary

ISO Bays:087
Max ISO Row:20
Center Line Row:No
Max Above ISO Tier:98
Min Above ISO Tier:80
Max Below ISO Tier:22
Min Below ISO Tier:02
Total TEU:13,672

Centers of Gravity

LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

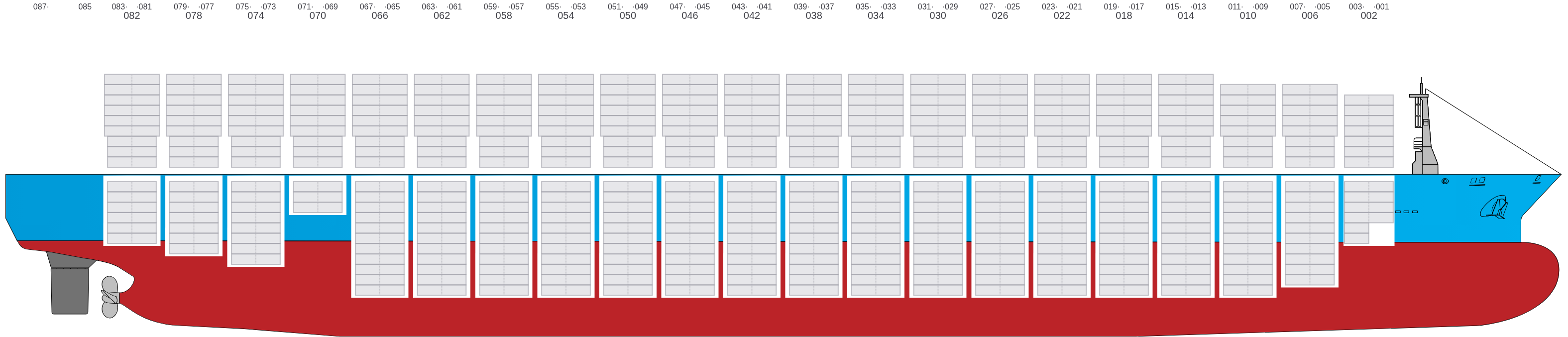

Side View

Side view of TOKYO TRIUMPH

Hatch-Covers View

Deck view of TOKYO TRIUMPH

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001

  • →

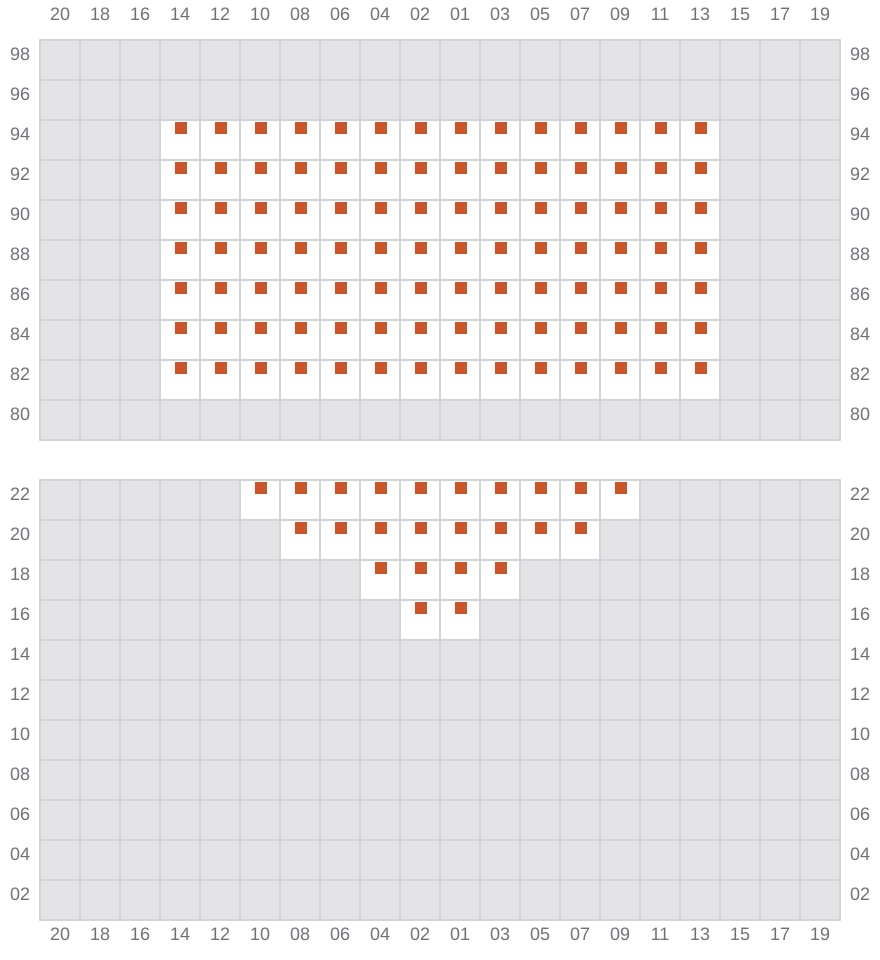

Bay 001 view and slots of TOKYO TRIUMPH

003 (002)

  • ←

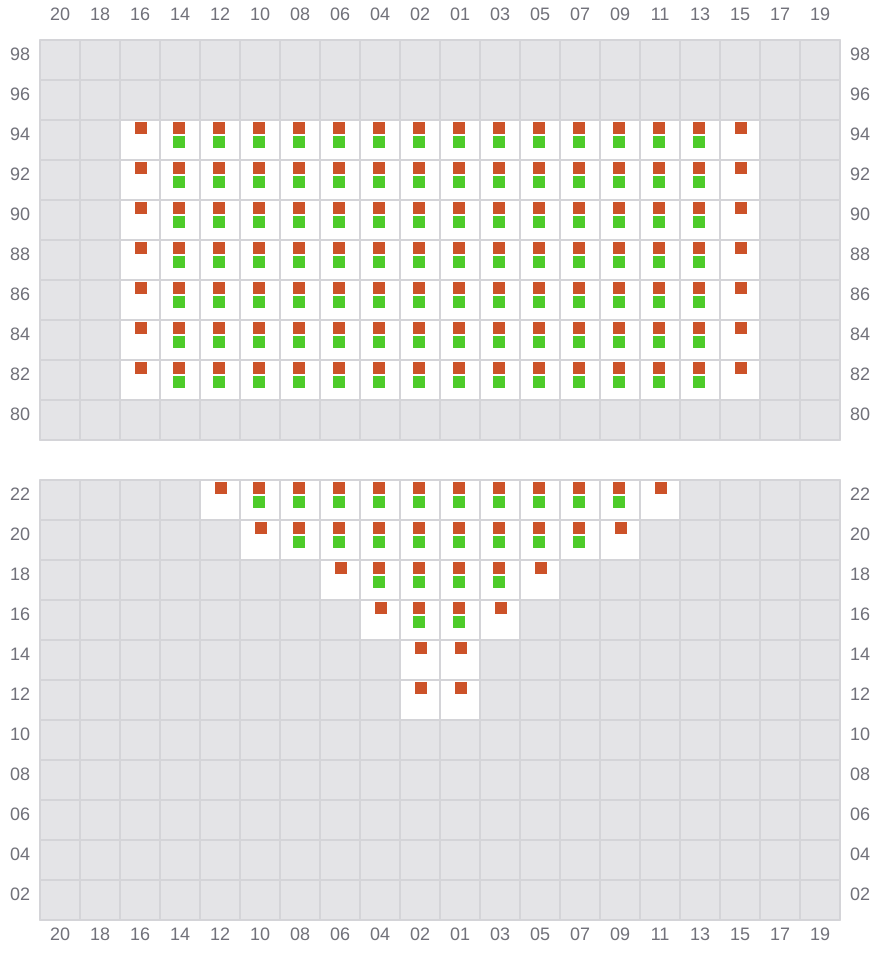

Bay 003 view and slots of TOKYO TRIUMPH

005

  • →

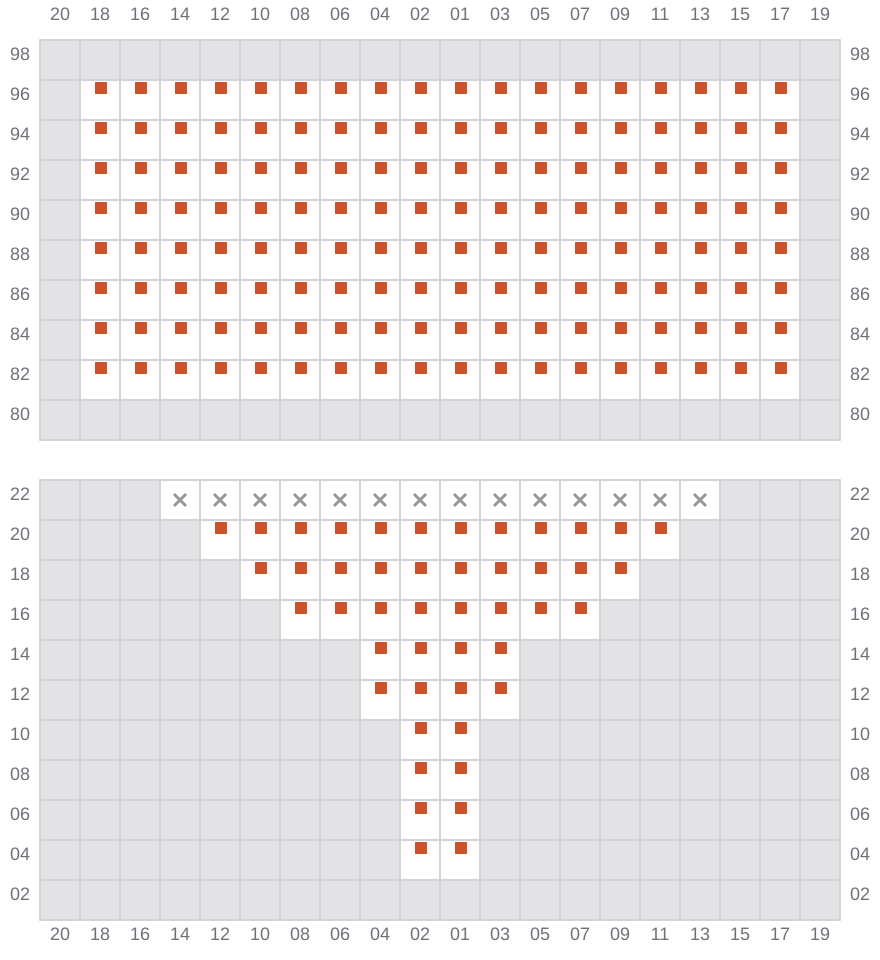

Bay 005 view and slots of TOKYO TRIUMPH

007 (006)

  • ←

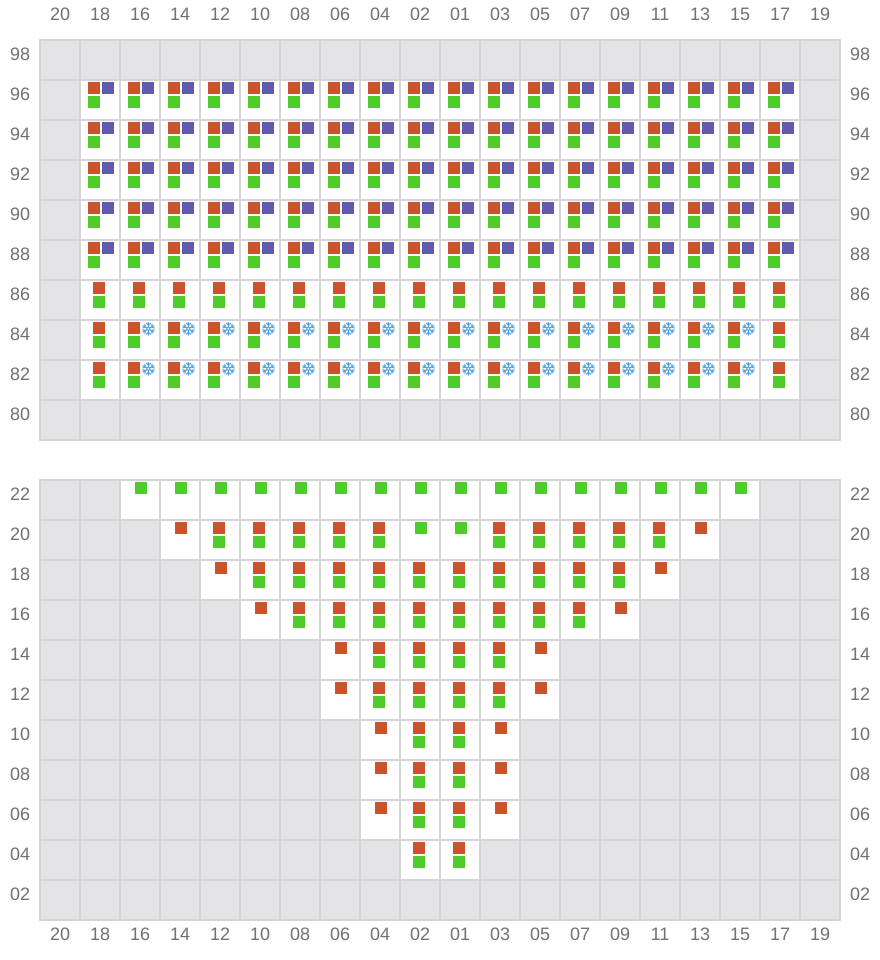

Bay 007 view and slots of TOKYO TRIUMPH

009

  • →

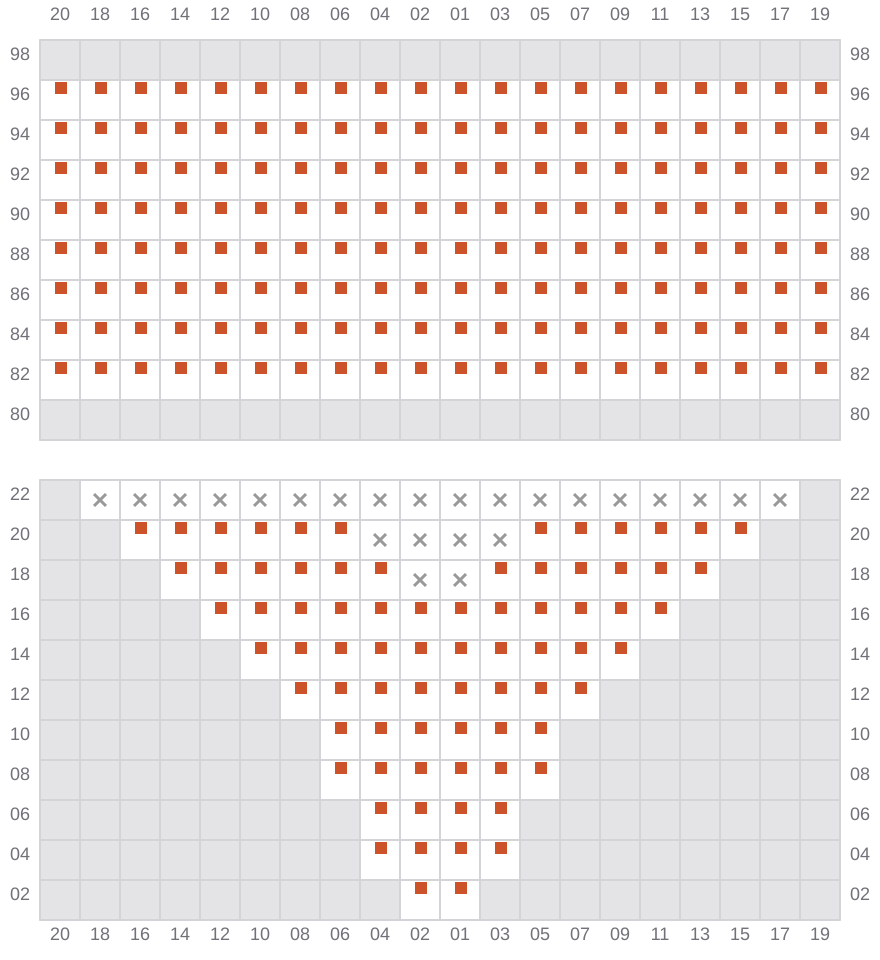

Bay 009 view and slots of TOKYO TRIUMPH

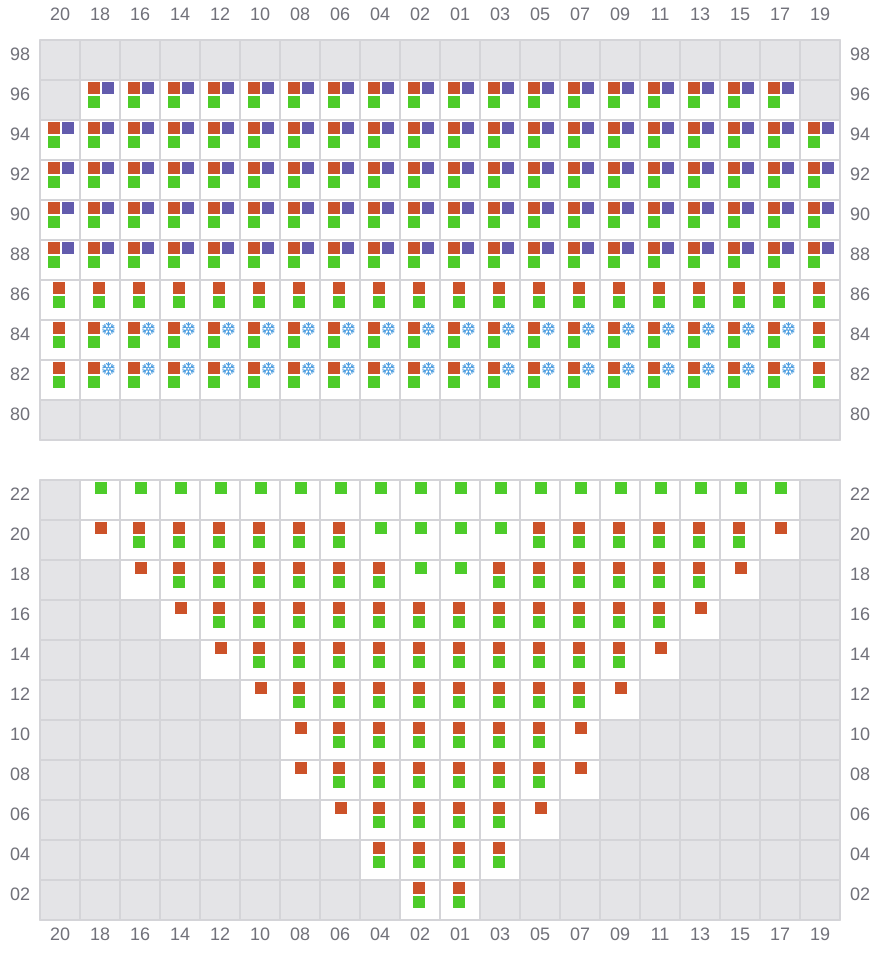

011 (010)

  • ←
Bay 011 view and slots of TOKYO TRIUMPH

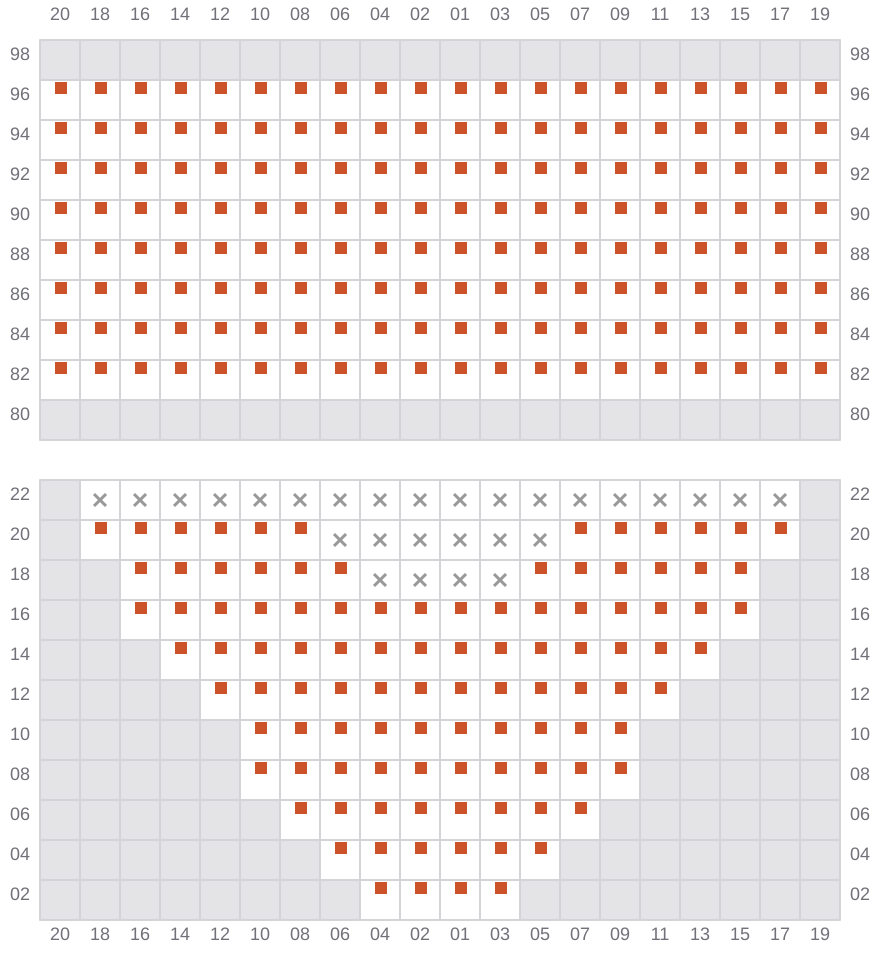

013

  • →
Bay 013 view and slots of TOKYO TRIUMPH

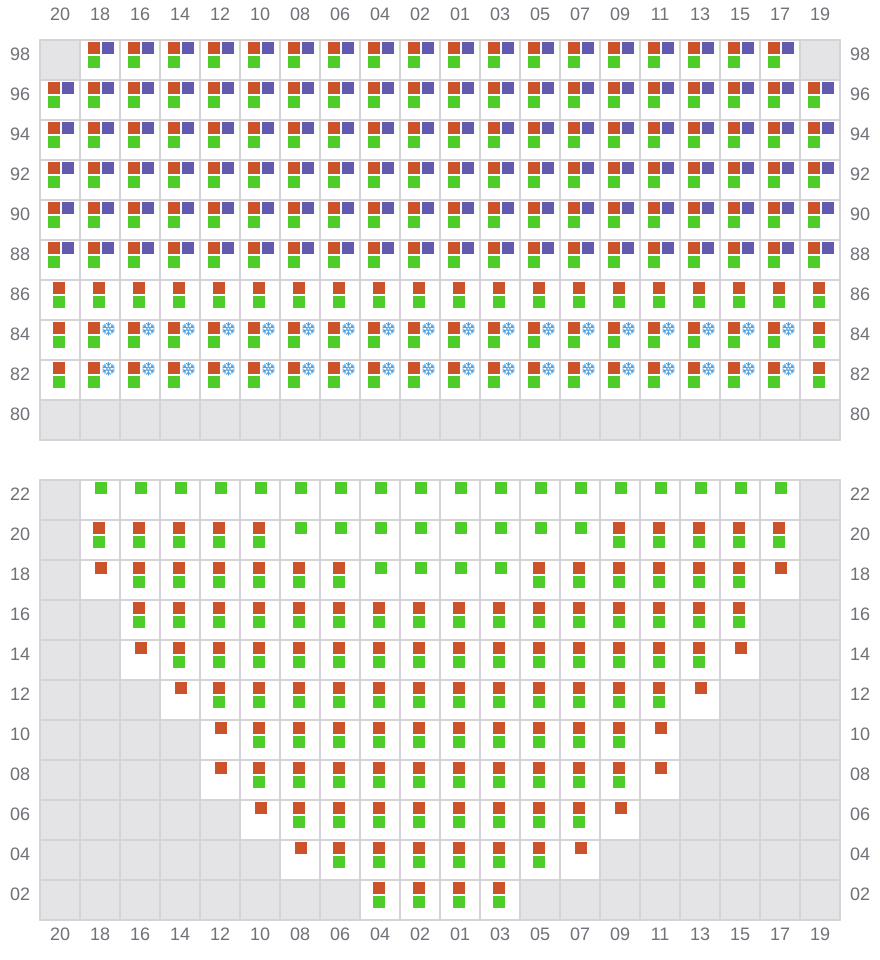

015 (014)

  • ←
Bay 015 view and slots of TOKYO TRIUMPH

017

  • →

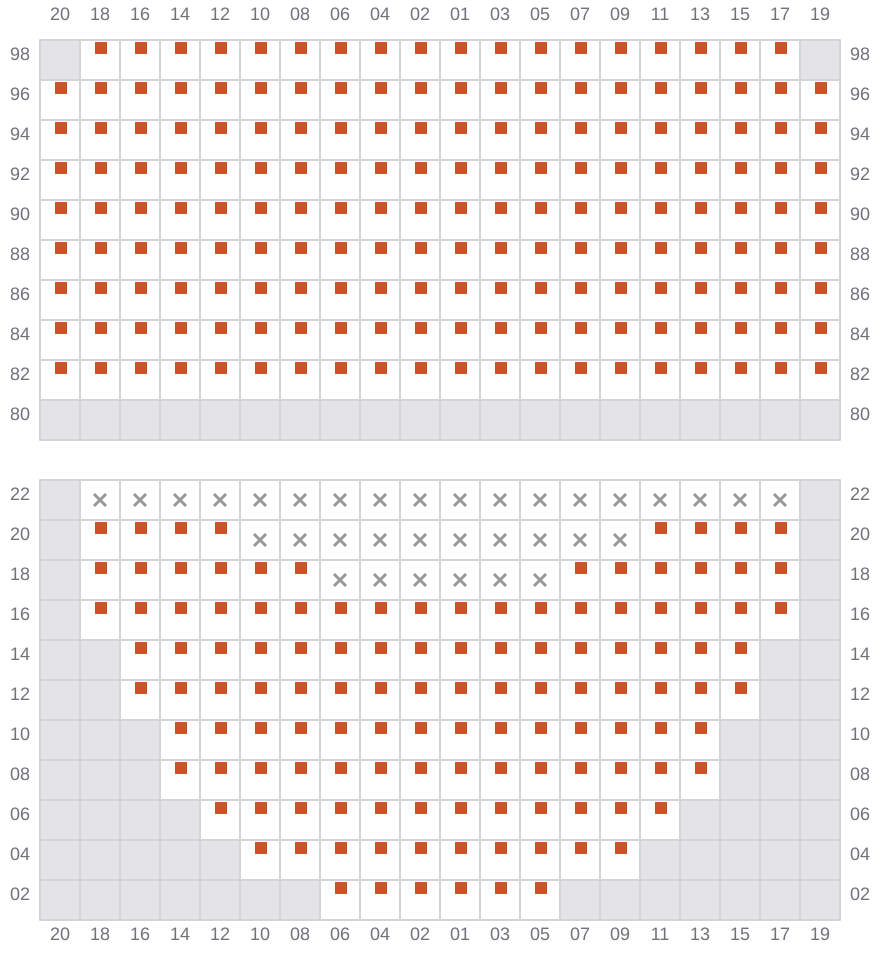

Bay 017 view and slots of TOKYO TRIUMPH

019 (018)

  • ←

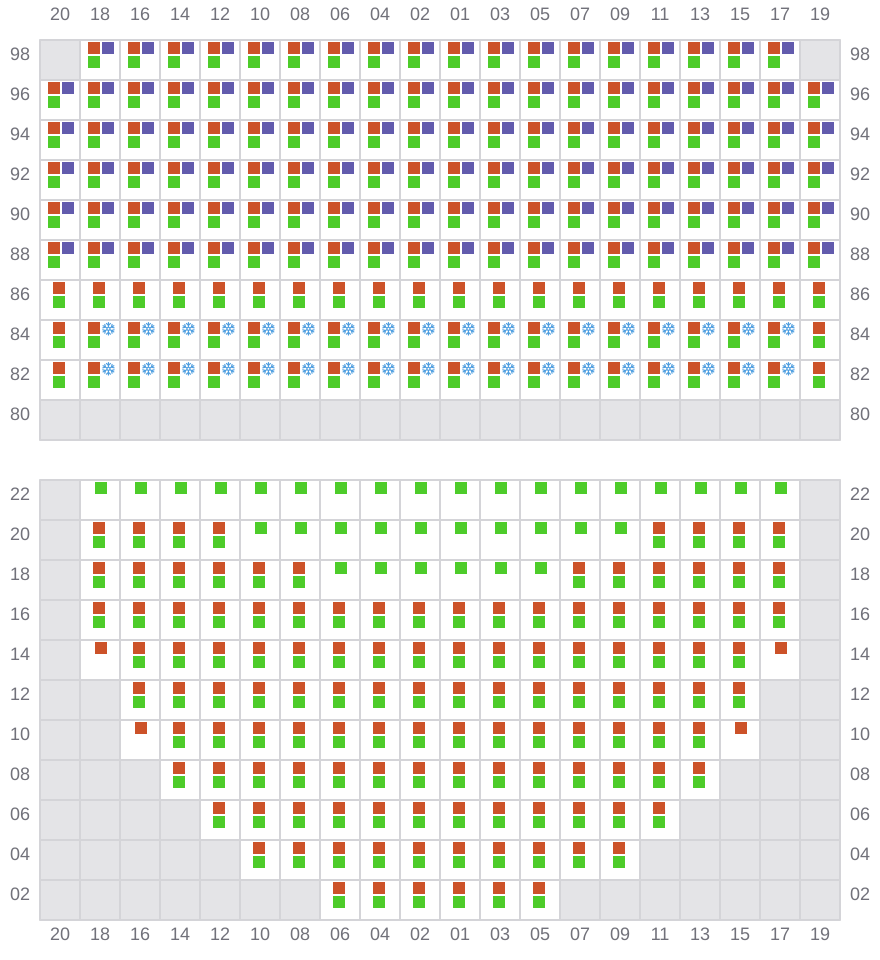

Bay 019 view and slots of TOKYO TRIUMPH

021

  • →

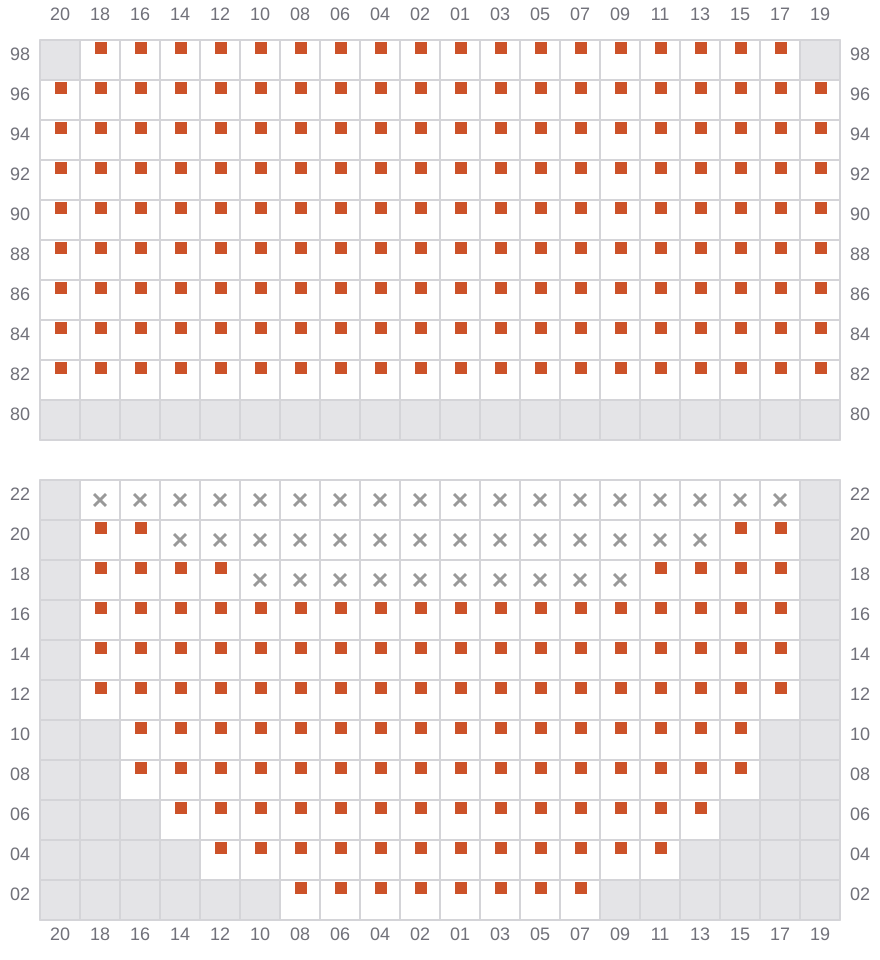

Bay 021 view and slots of TOKYO TRIUMPH

023 (022)

  • ←

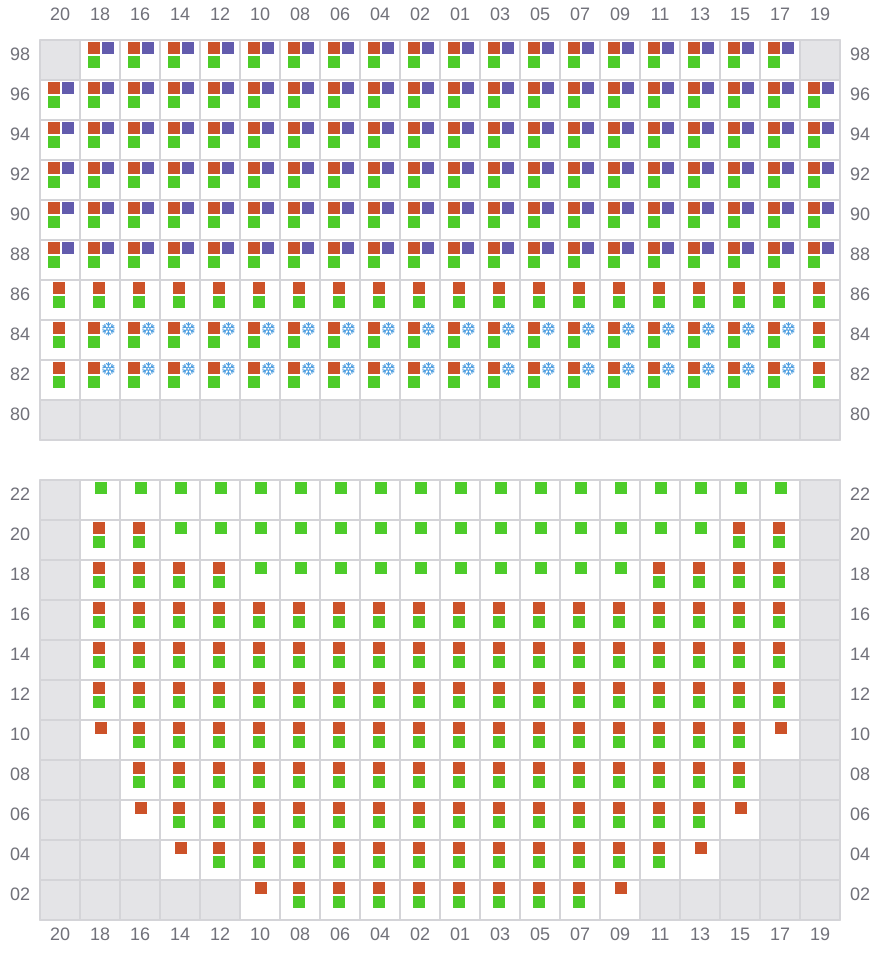

Bay 023 view and slots of TOKYO TRIUMPH

025

  • →

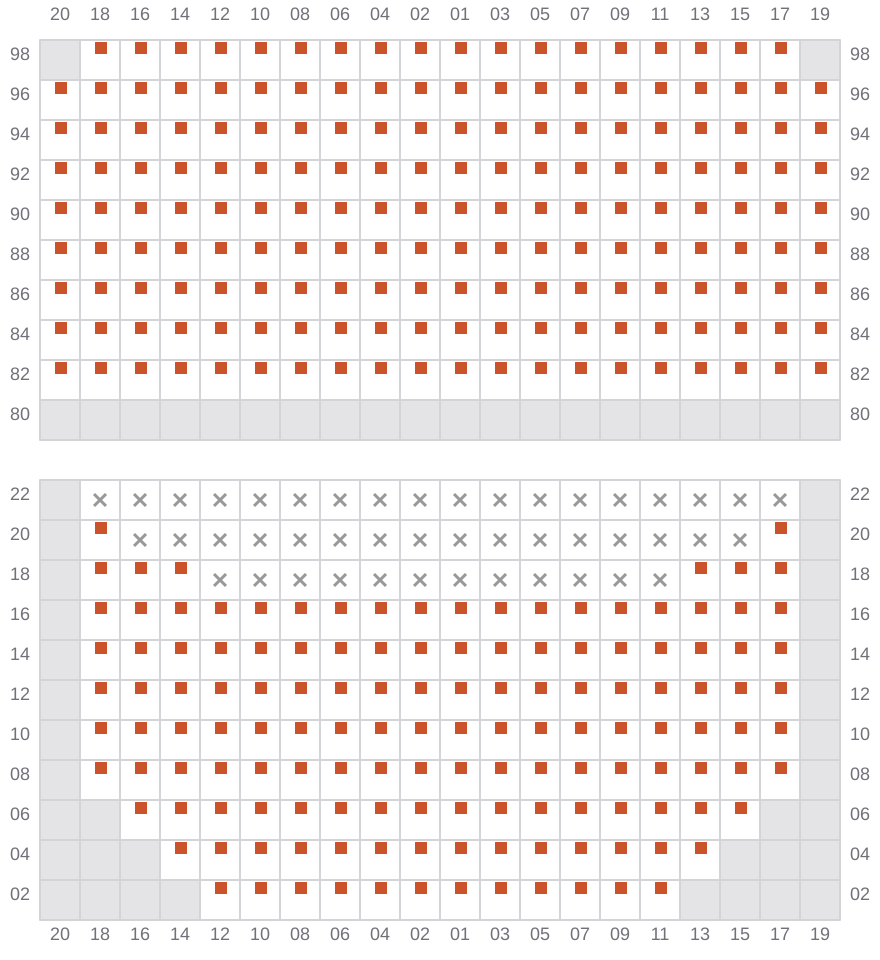

Bay 025 view and slots of TOKYO TRIUMPH

027 (026)

  • ←

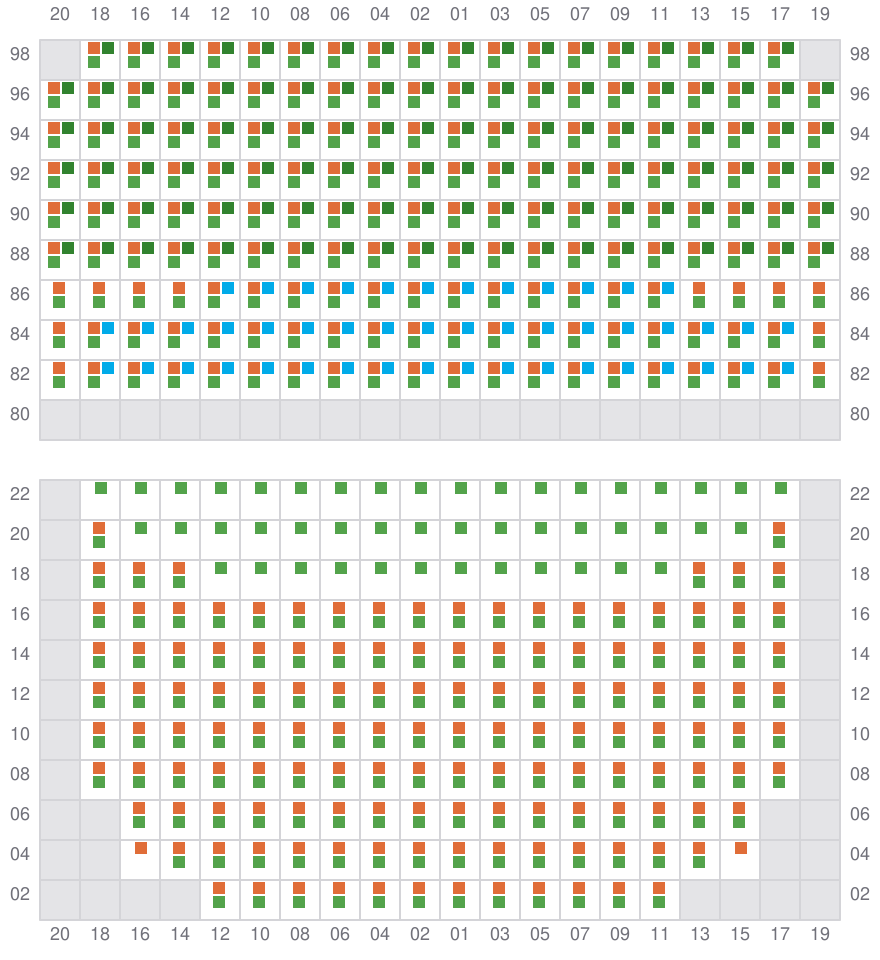

Bay 027 view and slots of TOKYO TRIUMPH

029

  • →

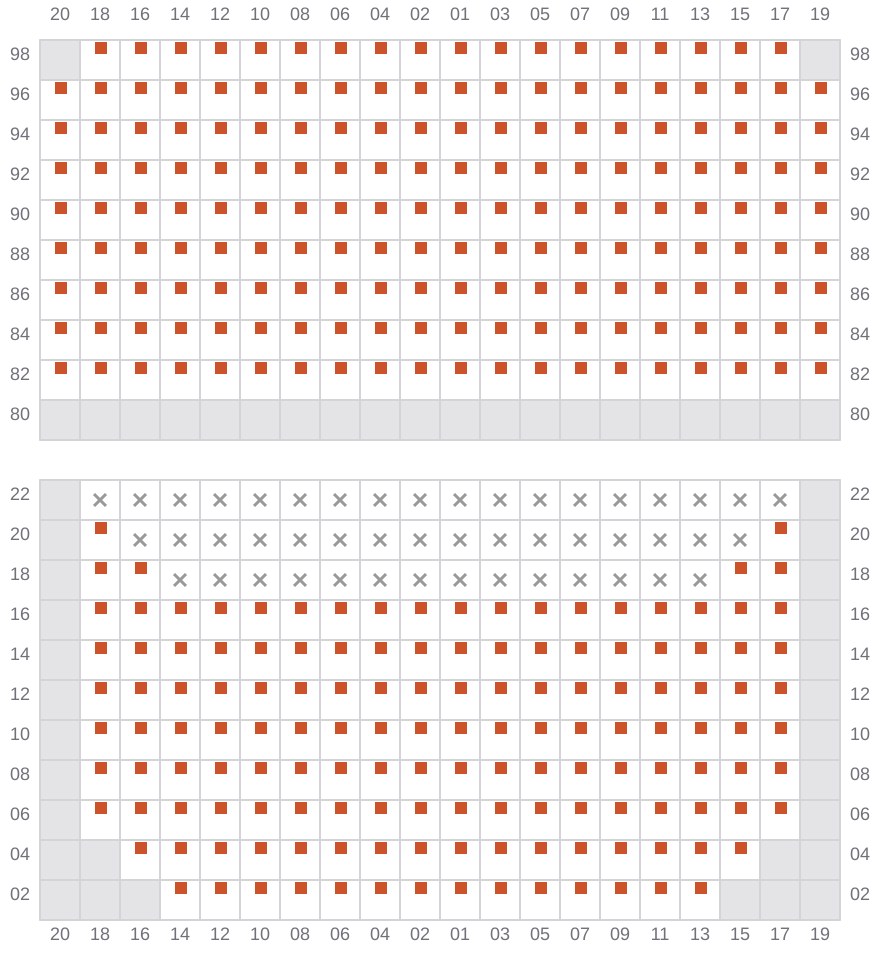

Bay 029 view and slots of TOKYO TRIUMPH

031 (030)

  • ←

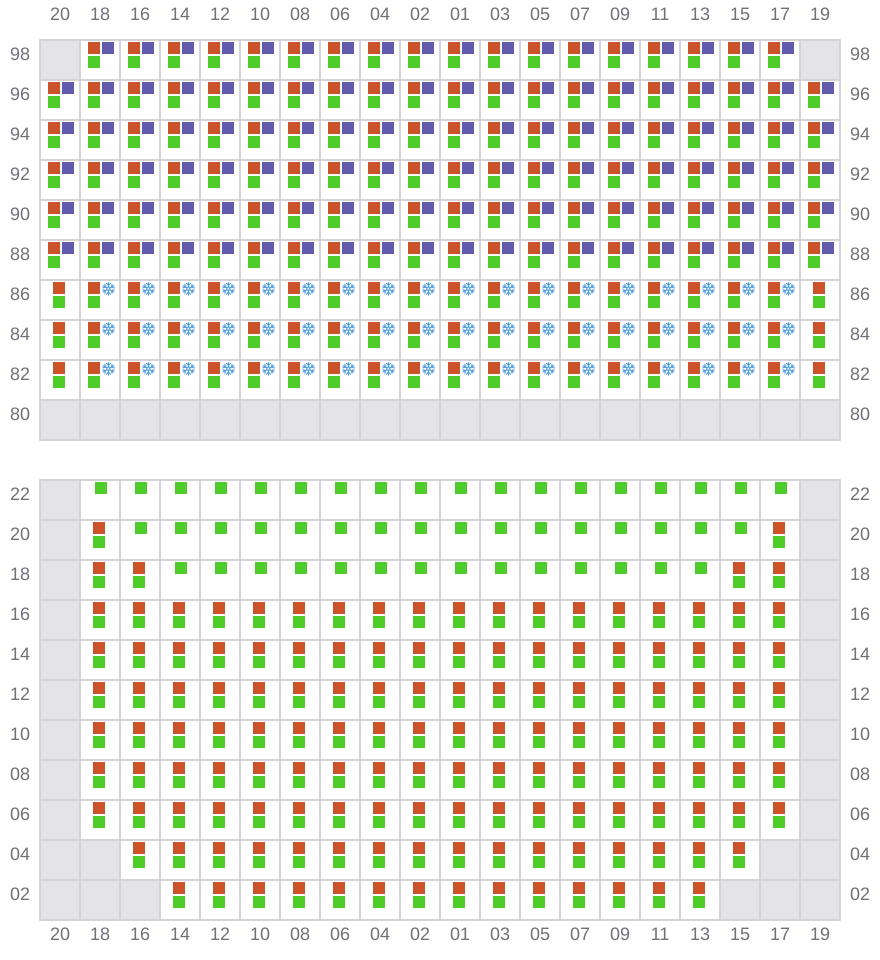

Bay 031 view and slots of TOKYO TRIUMPH

033

  • →
Bay 033 view and slots of TOKYO TRIUMPH

035 (034)

  • ←
Bay 035 view and slots of TOKYO TRIUMPH

037

  • →
Bay 037 view and slots of TOKYO TRIUMPH

039 (038)

  • ←
Bay 039 view and slots of TOKYO TRIUMPH

041

  • →
Bay 041 view and slots of TOKYO TRIUMPH

043 (042)

  • ←

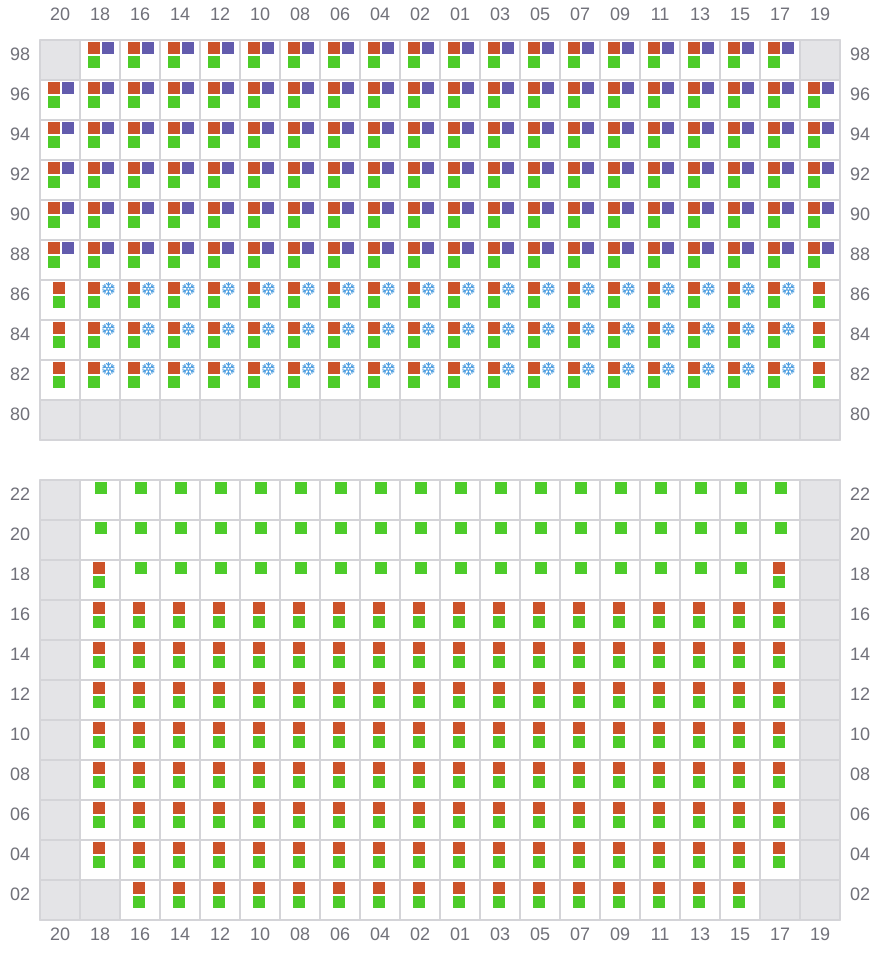

Bay 043 view and slots of TOKYO TRIUMPH

045

  • →
Bay 045 view and slots of TOKYO TRIUMPH

047 (046)

  • ←
Bay 047 view and slots of TOKYO TRIUMPH

049

  • →
Bay 049 view and slots of TOKYO TRIUMPH

051 (050)

  • ←
Bay 051 view and slots of TOKYO TRIUMPH

053

  • →
Bay 053 view and slots of TOKYO TRIUMPH

055 (054)

  • ←

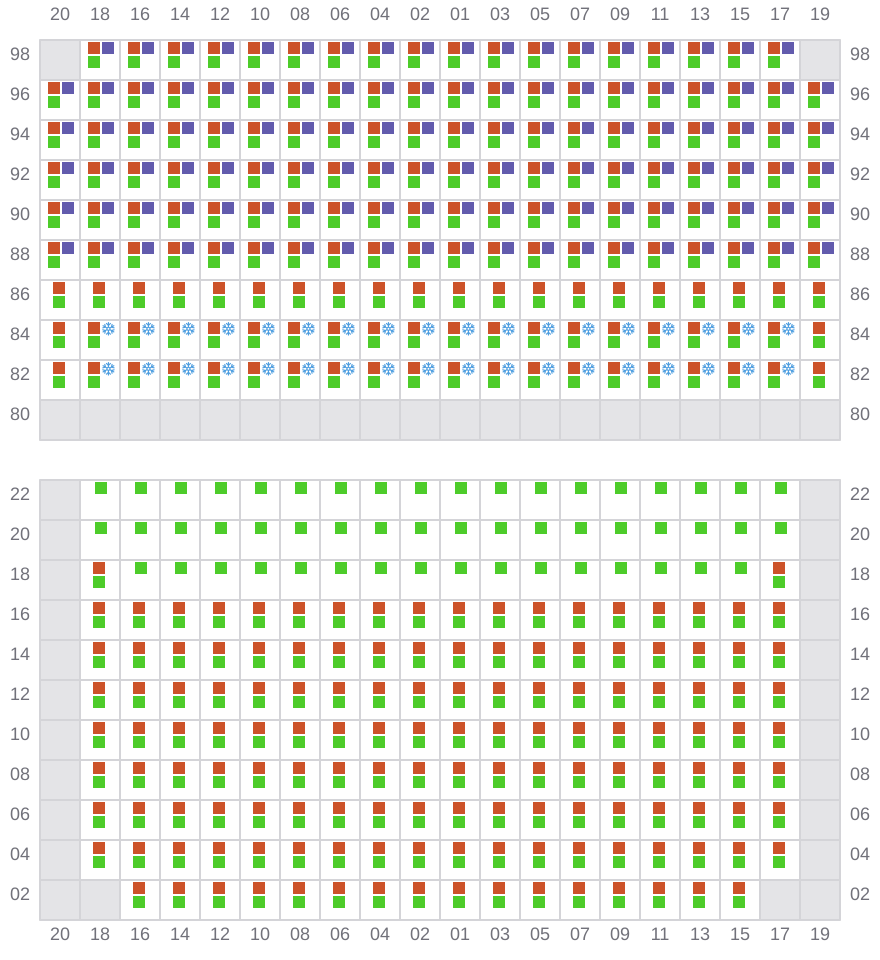

Bay 055 view and slots of TOKYO TRIUMPH

057

  • →

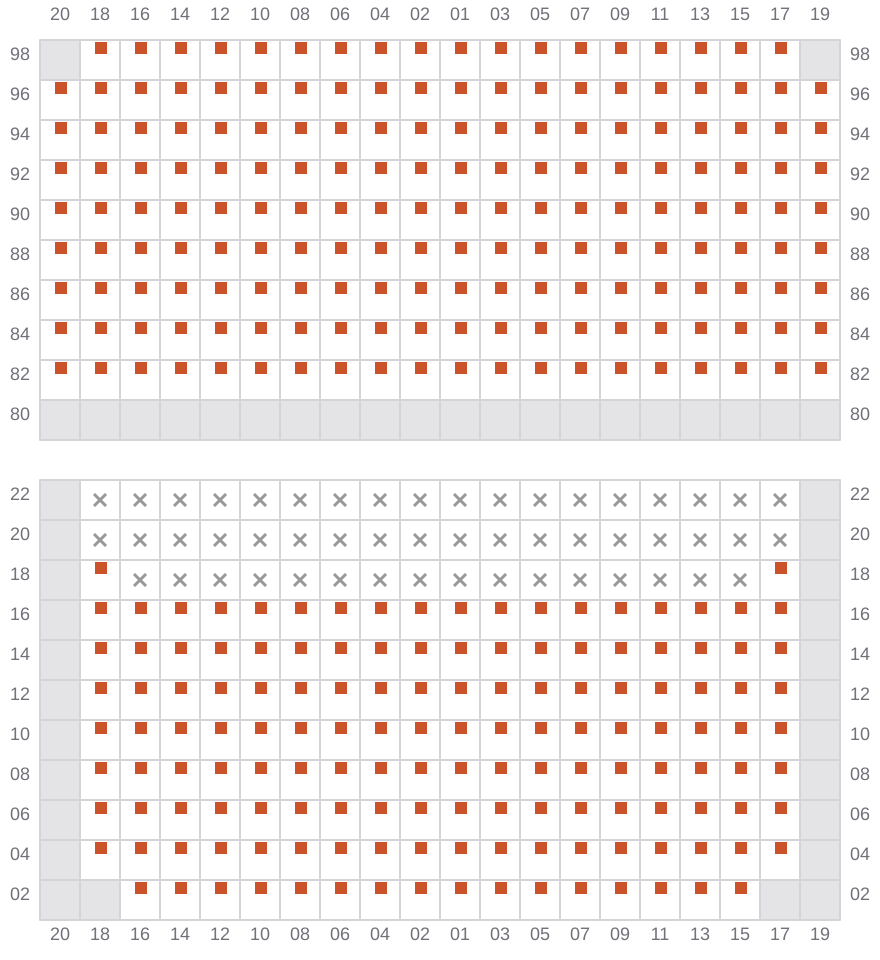

Bay 057 view and slots of TOKYO TRIUMPH

059 (058)

  • ←

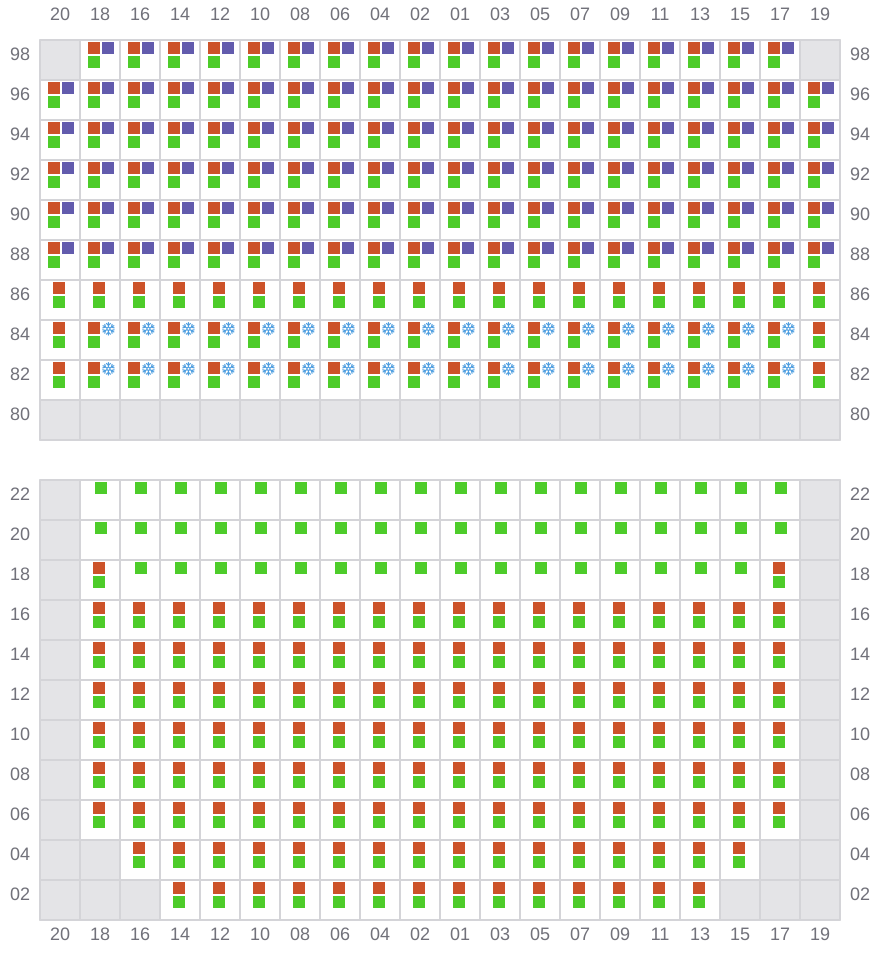

Bay 059 view and slots of TOKYO TRIUMPH

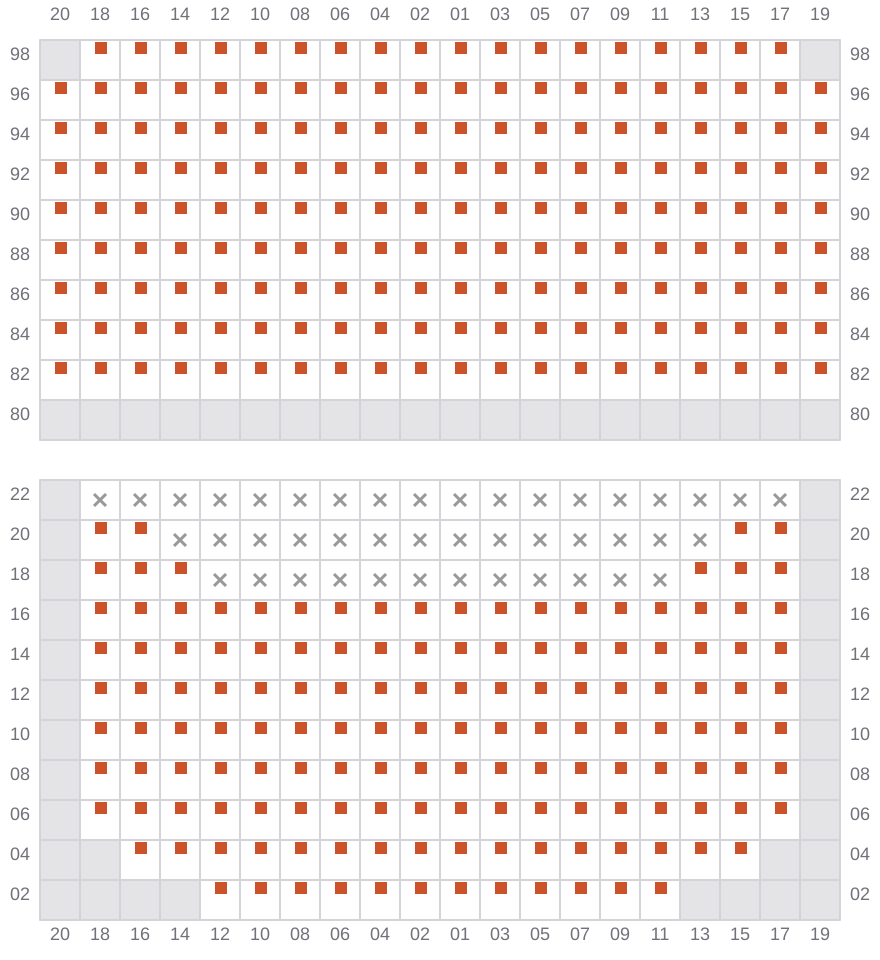

061

  • →
Bay 061 view and slots of TOKYO TRIUMPH

063 (062)

  • ←

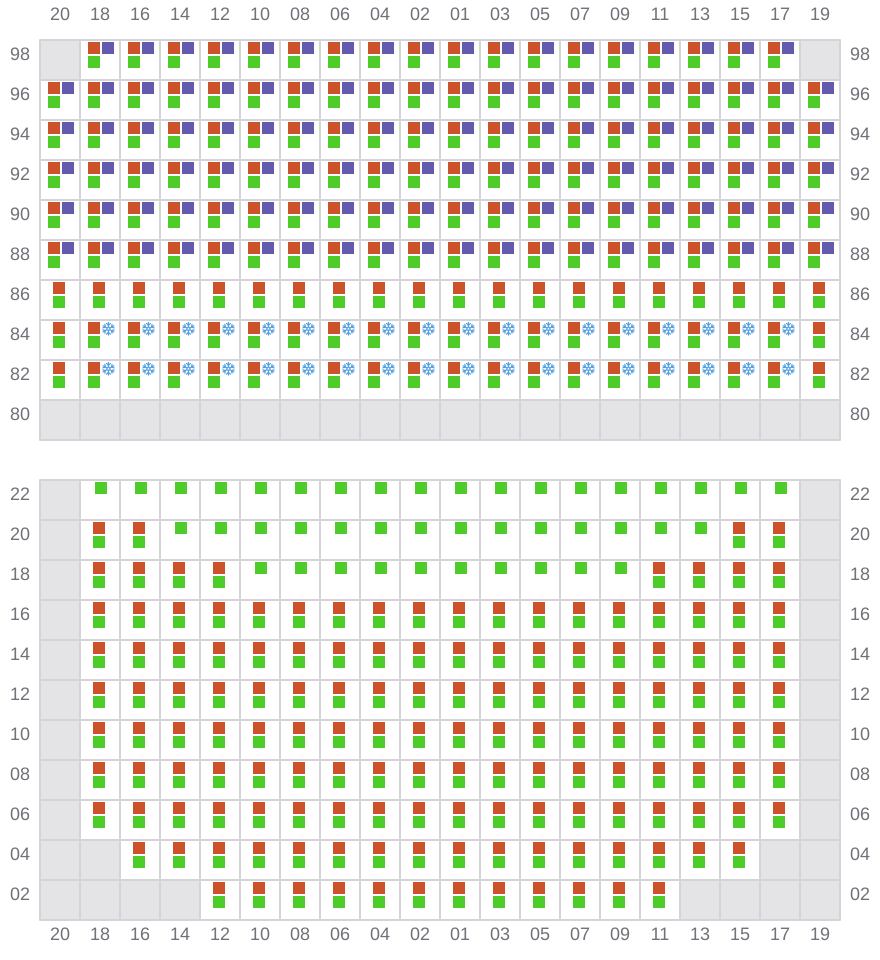

Bay 063 view and slots of TOKYO TRIUMPH

065

  • →

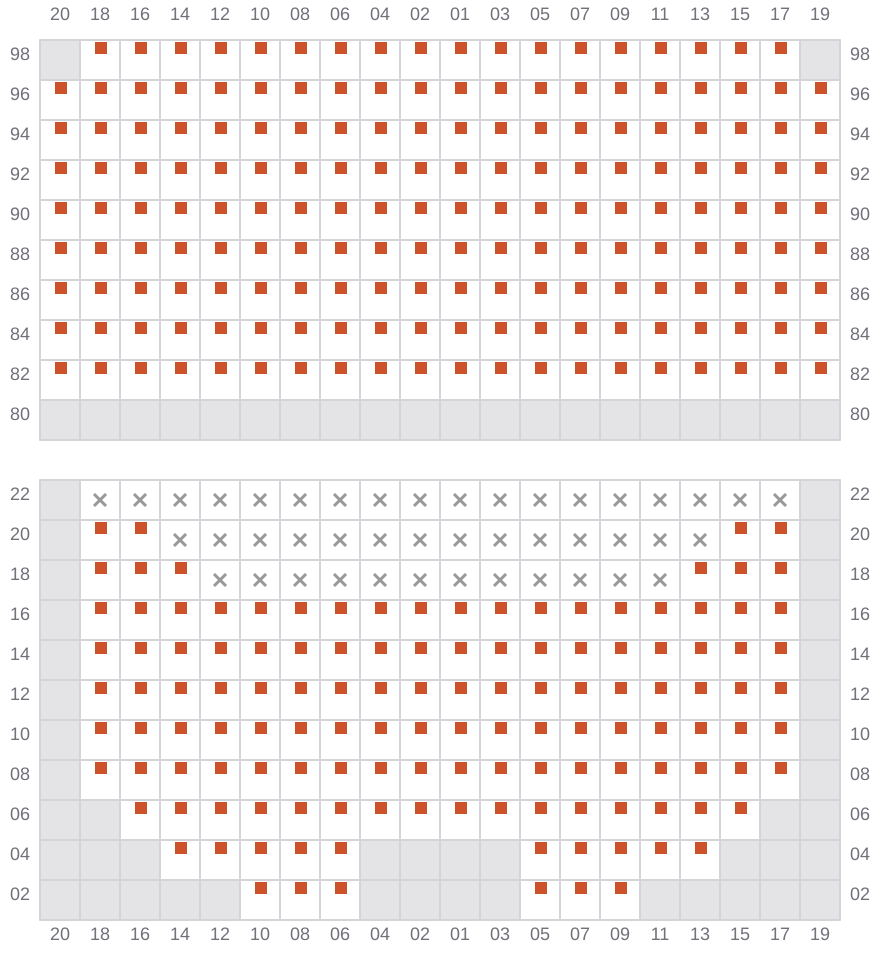

Bay 065 view and slots of TOKYO TRIUMPH

067 (066)

  • ←

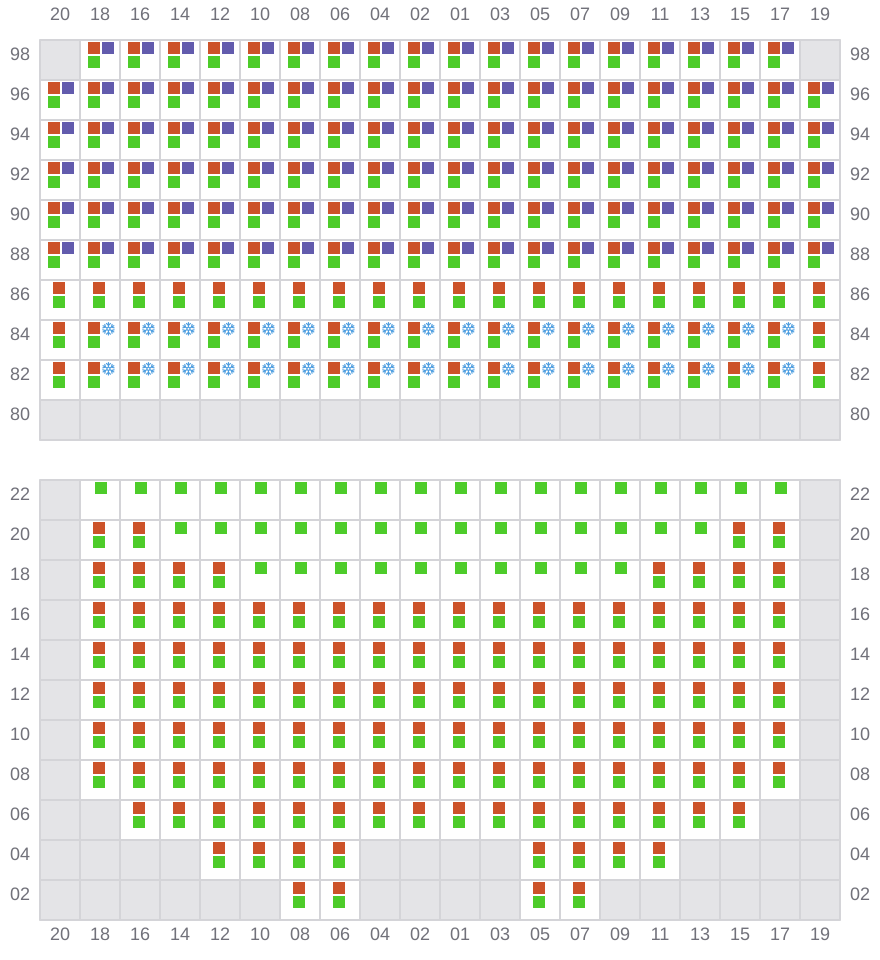

Bay 067 view and slots of TOKYO TRIUMPH

069

  • →
Bay 069 view and slots of TOKYO TRIUMPH

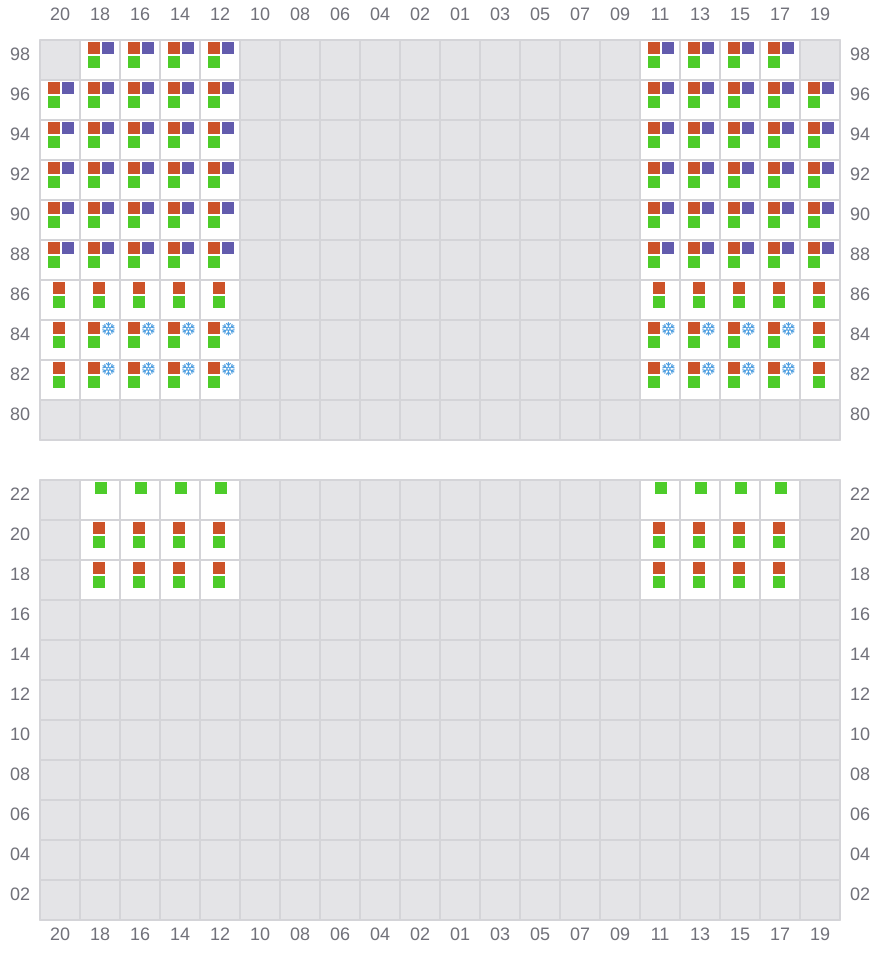

071 (070)

  • ←
Bay 071 view and slots of TOKYO TRIUMPH

073

  • →

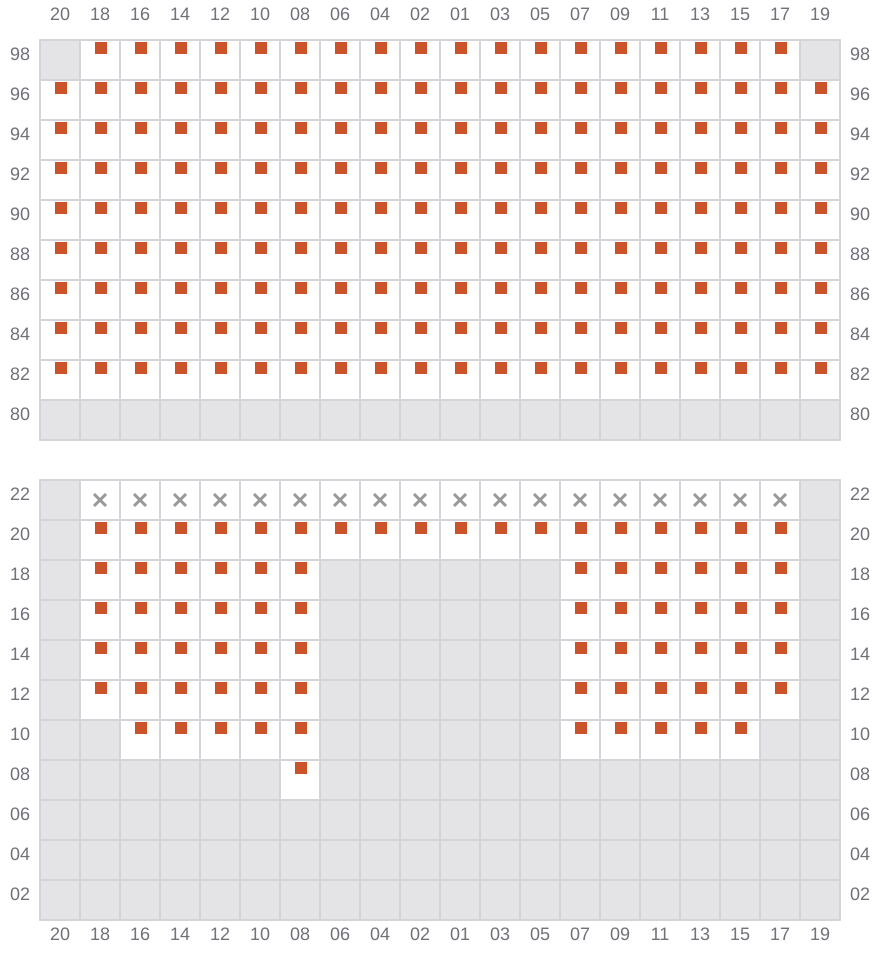

Bay 073 view and slots of TOKYO TRIUMPH

075 (074)

  • ←

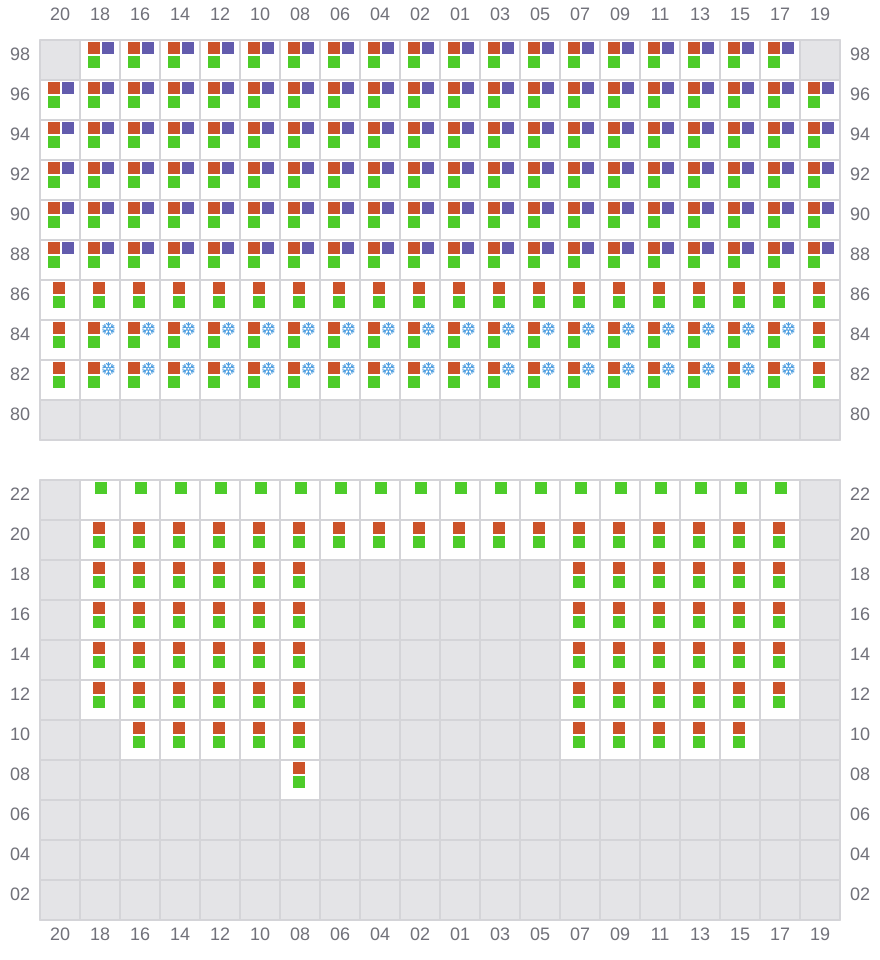

Bay 075 view and slots of TOKYO TRIUMPH

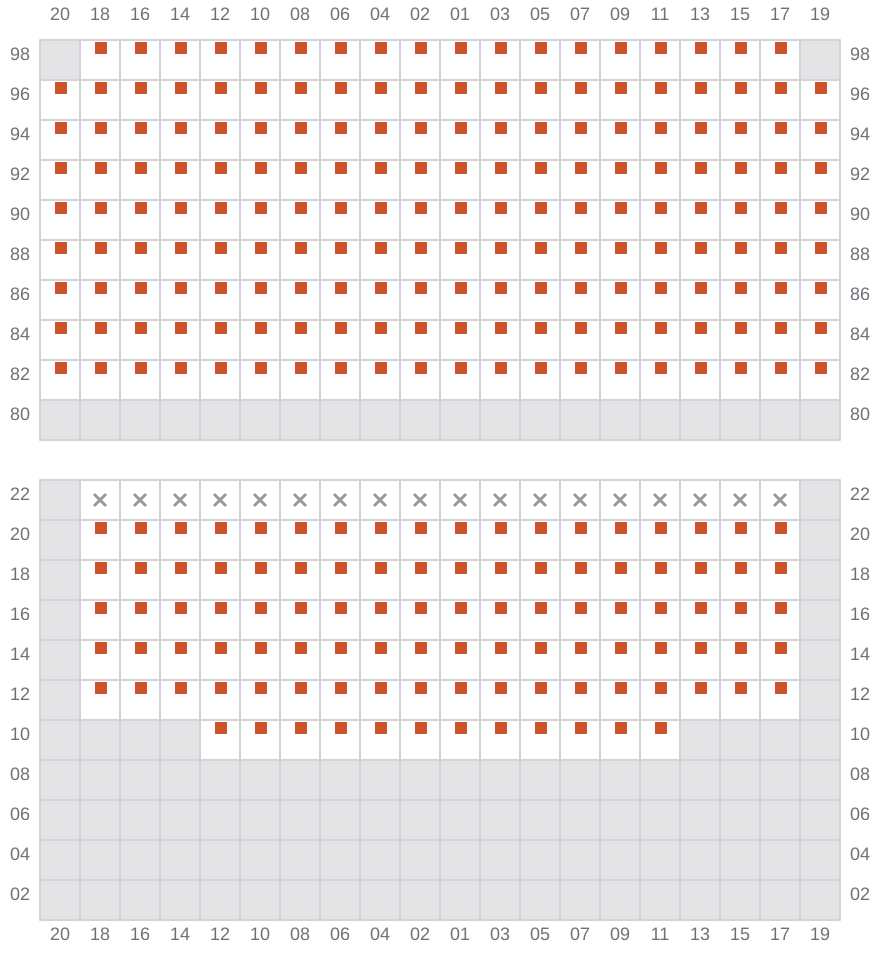

077

  • →
Bay 077 view and slots of TOKYO TRIUMPH

079 (078)

  • ←

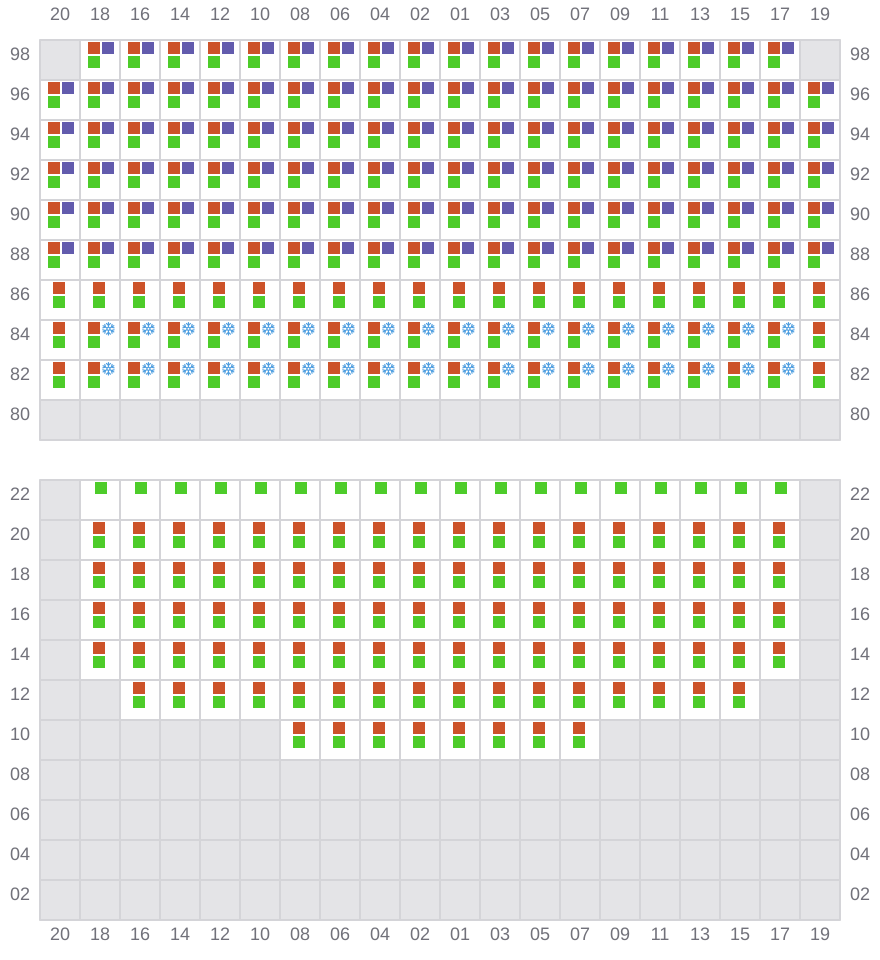

Bay 079 view and slots of TOKYO TRIUMPH

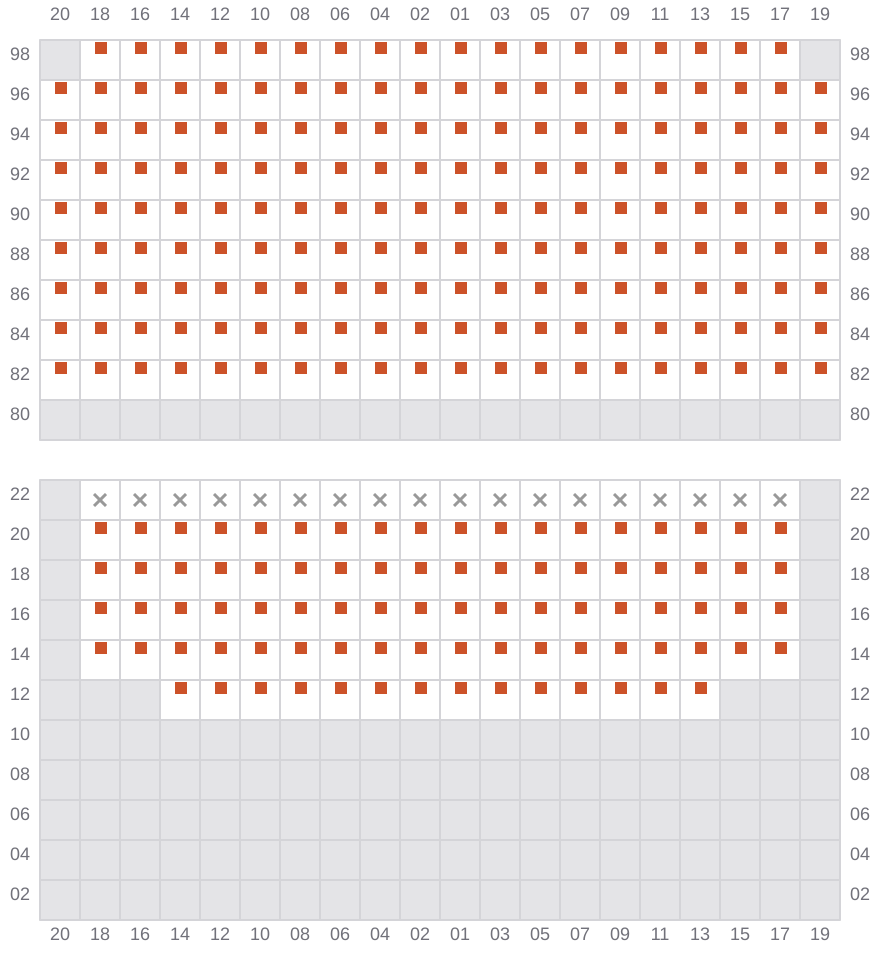

081

  • →
Bay 081 view and slots of TOKYO TRIUMPH

083 (082)

  • ←
Bay 083 view and slots of TOKYO TRIUMPH

085

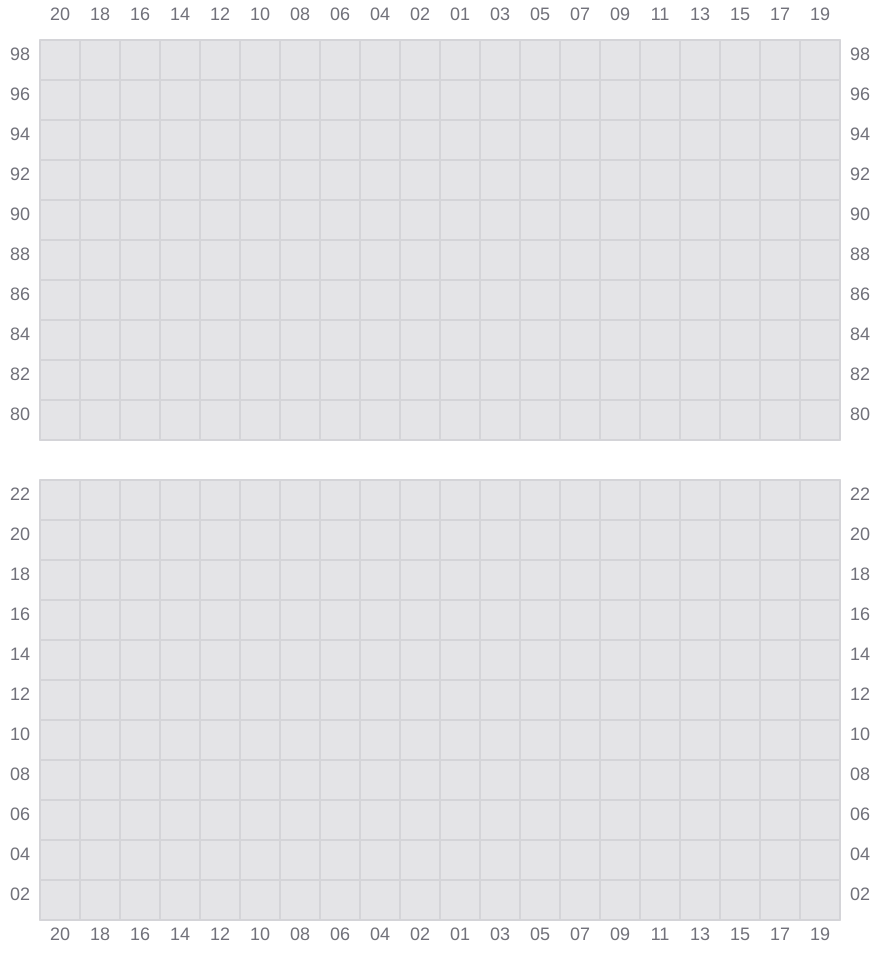

Bay 085 view and slots of TOKYO TRIUMPH

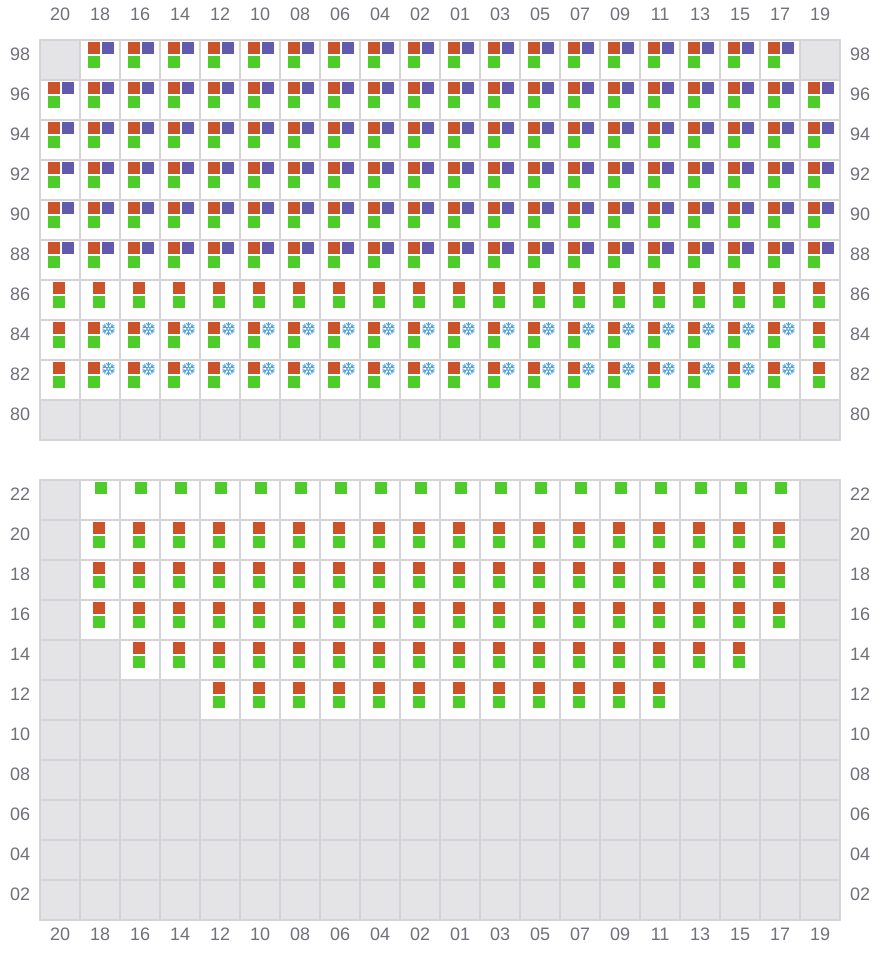

087 (086)

  • ← / ?

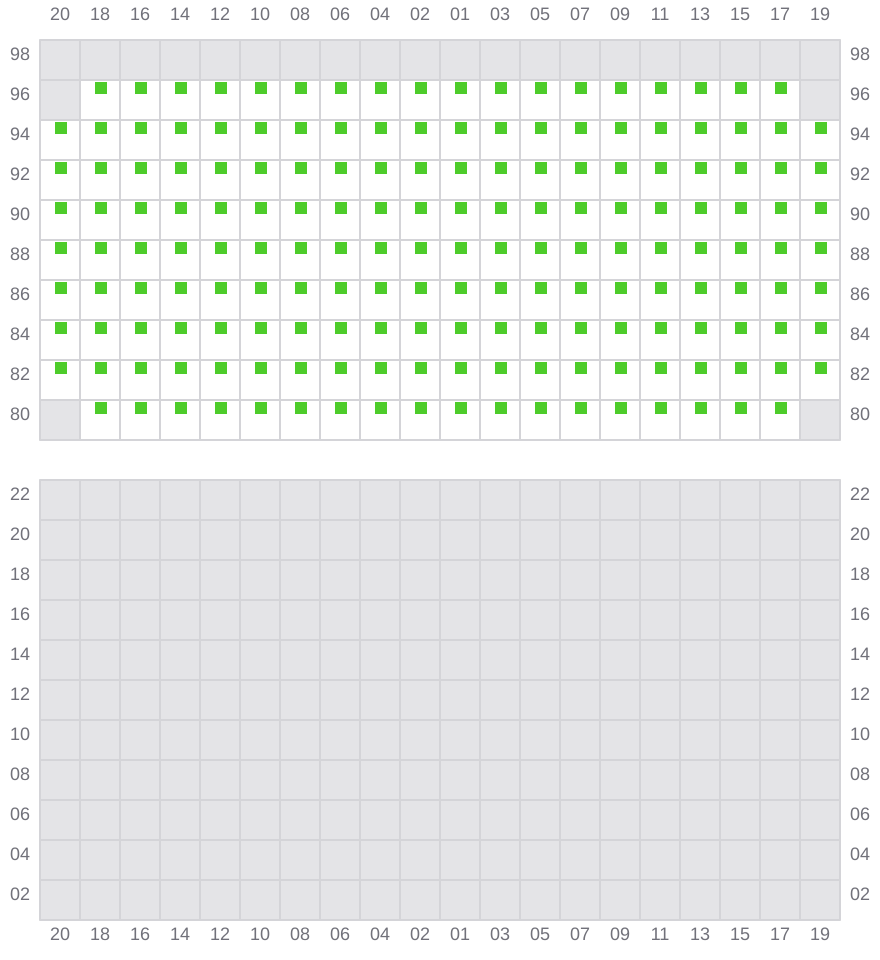

Bay 087 view and slots of TOKYO TRIUMPH
