TOLEDO TRIUMPH
9737486 | 3EIU7 | EIS by ************************** Last update: Fri Jun 09 2023

General Info

Ship Name:TOLEDO TRIUMPH
IMO Code:9737486
Call Sign:3EIU7
Line Operator:EIS
Class Name for Sister Ships:TOP
Year Built:2017
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:
Also Known As...:-

Size Summary

ISO Bays:087
Max ISO Row:20
Center Line Row:No
Max Above ISO Tier:98
Min Above ISO Tier:80
Max Below ISO Tier:22
Min Below ISO Tier:02
Total TEU:13,672

Centers of Gravity

LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

Side View

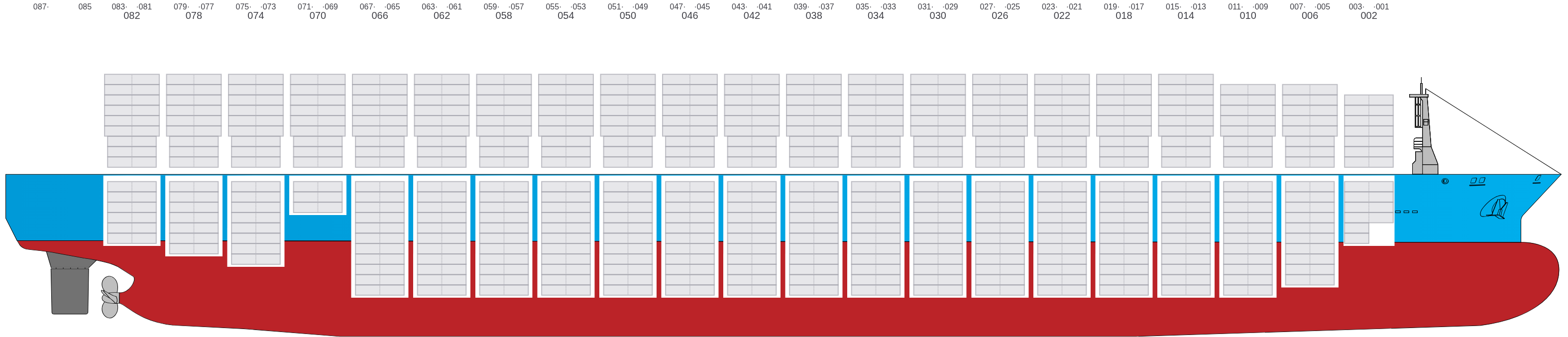

Side view of TOLEDO TRIUMPH

Hatch-Covers View

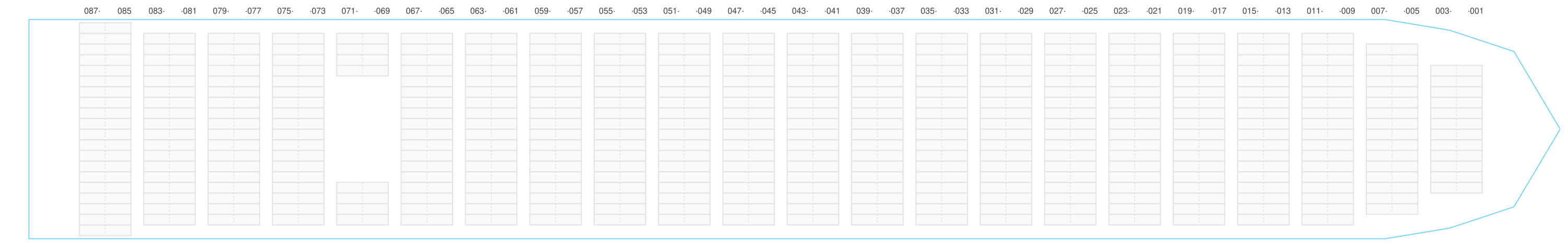

Deck view of TOLEDO TRIUMPH

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001

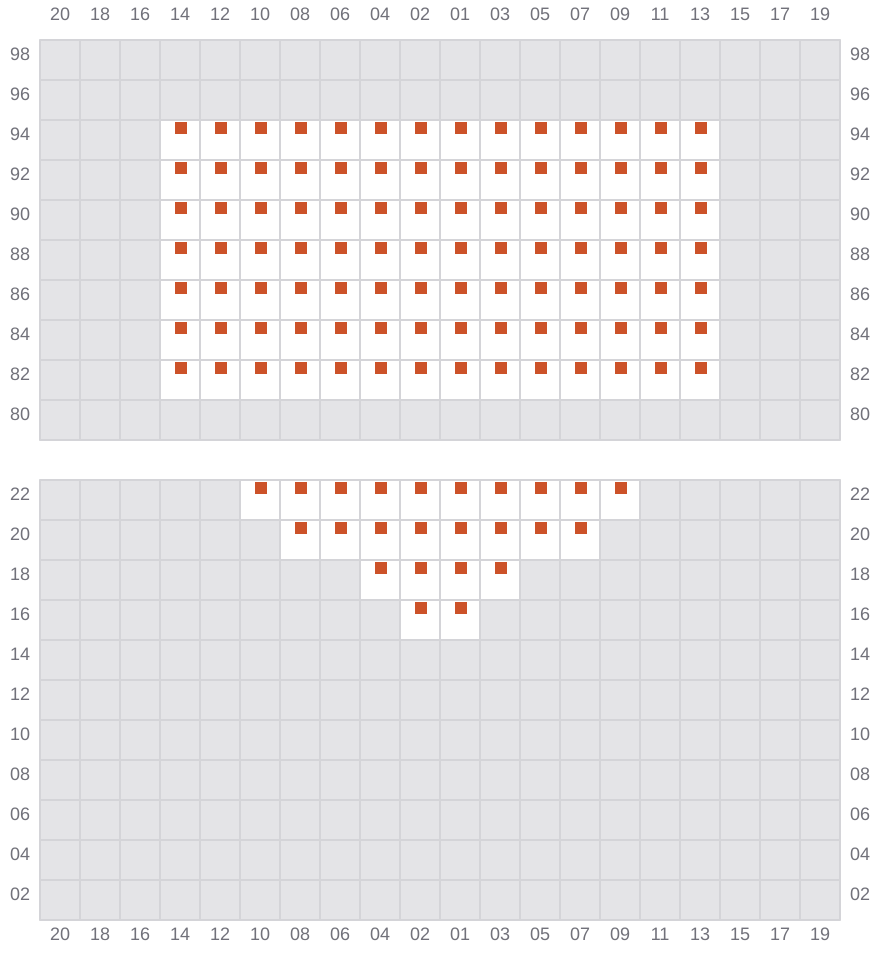

Bay 001 view and slots of TOLEDO TRIUMPH

003 (002)

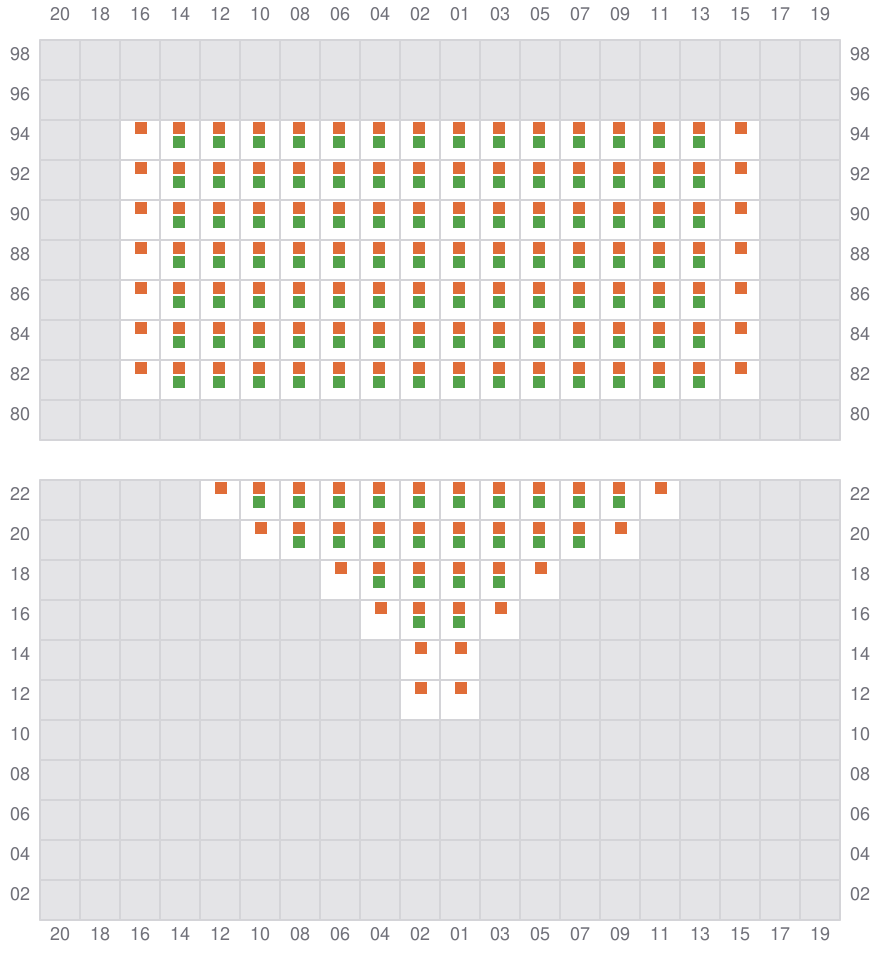

Bay 003 view and slots of TOLEDO TRIUMPH

005

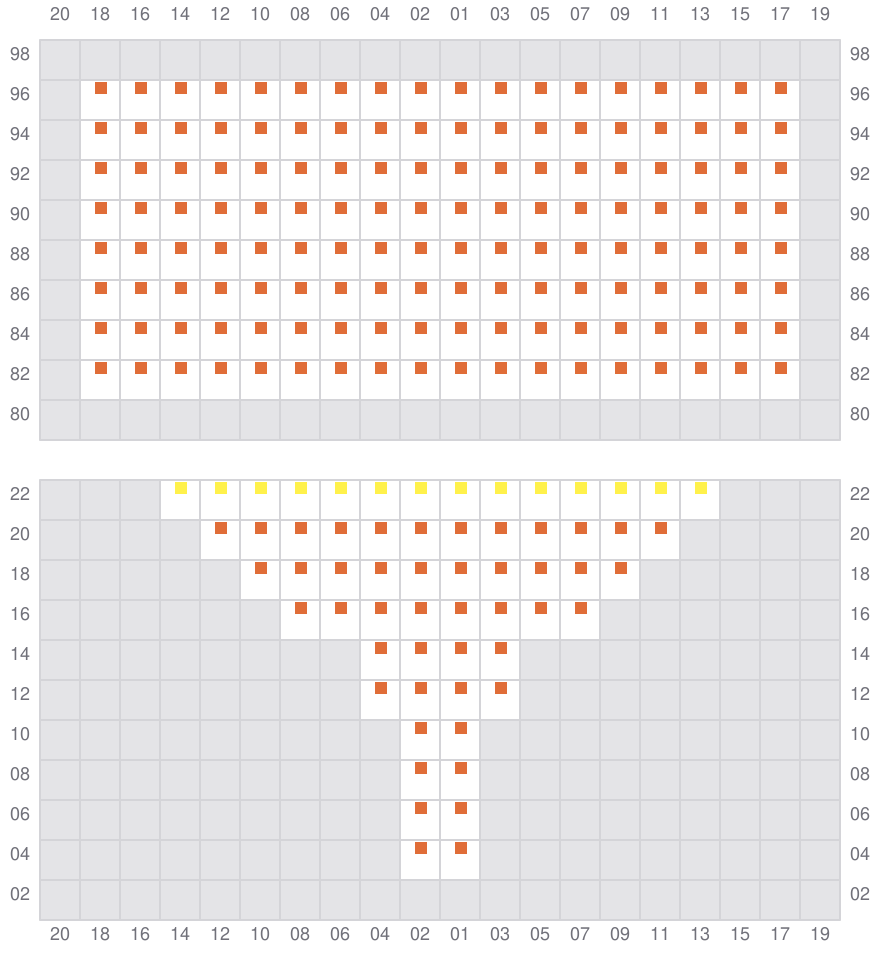

Bay 005 view and slots of TOLEDO TRIUMPH

007 (006)

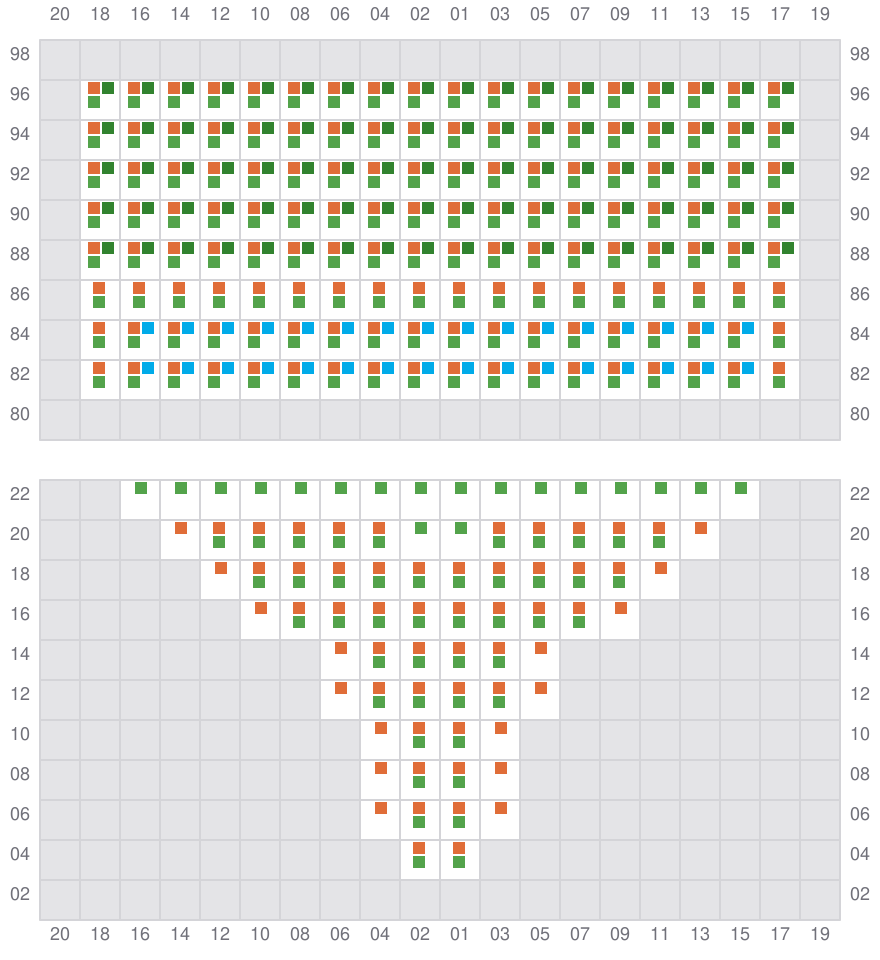

Bay 007 view and slots of TOLEDO TRIUMPH

009

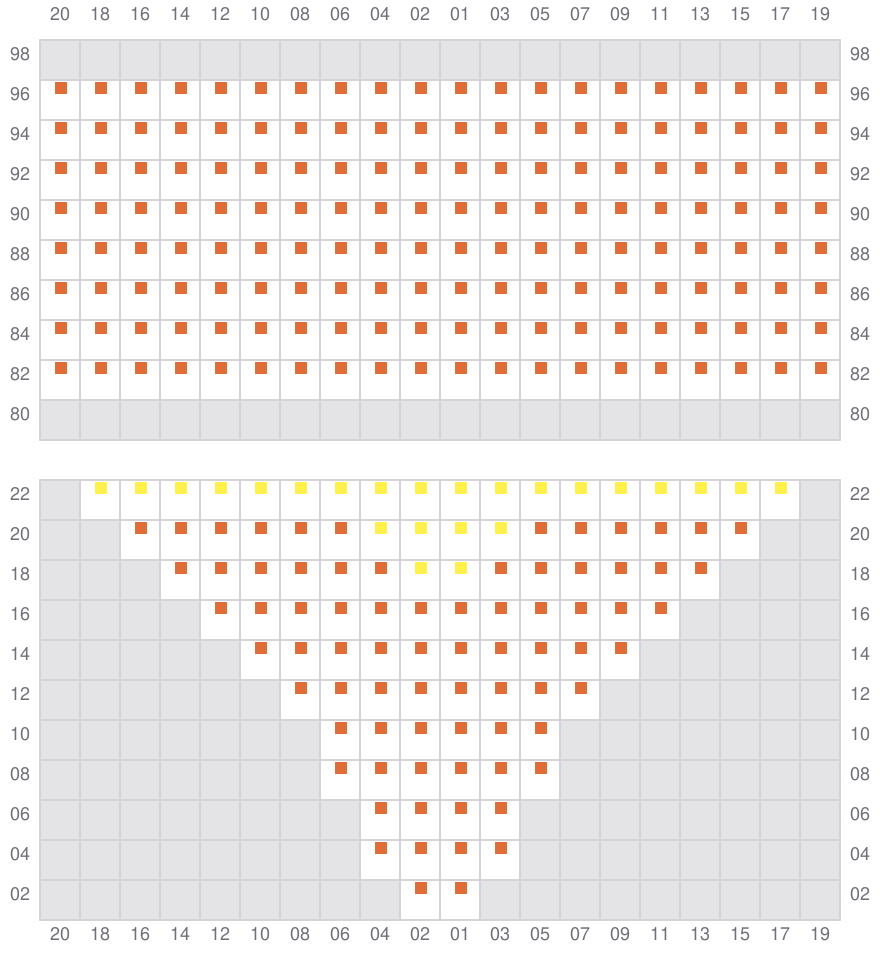

Bay 009 view and slots of TOLEDO TRIUMPH

011 (010)

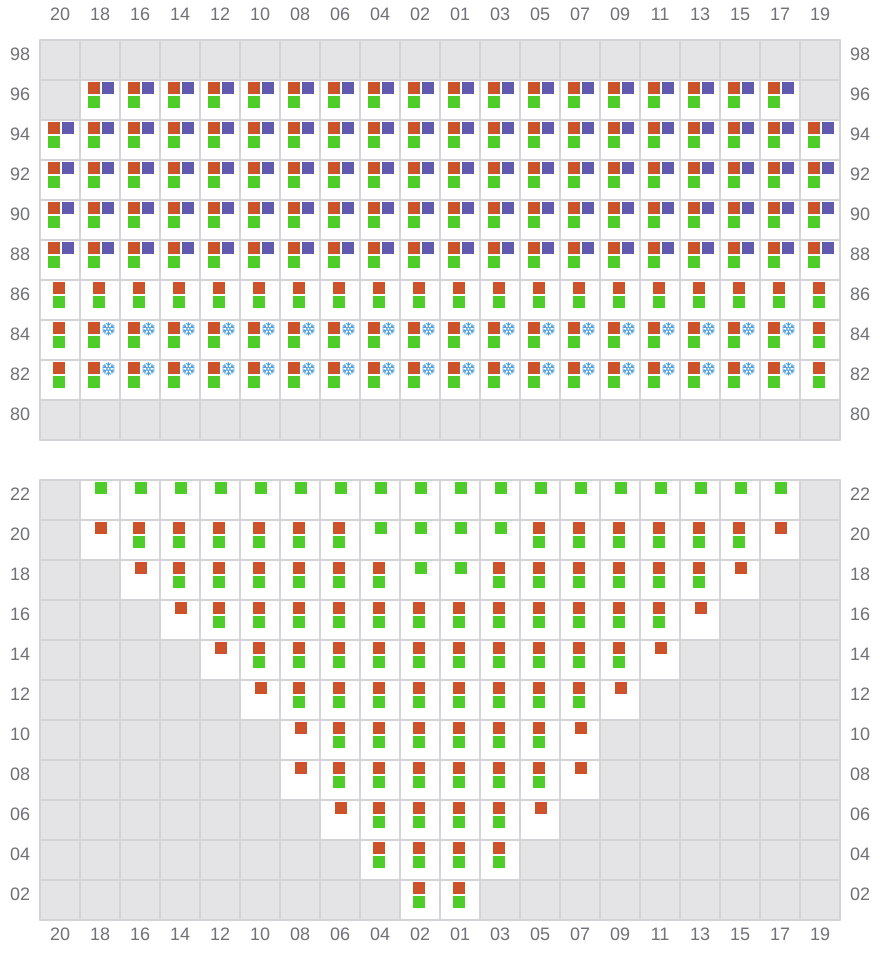

Bay 011 view and slots of TOLEDO TRIUMPH

013

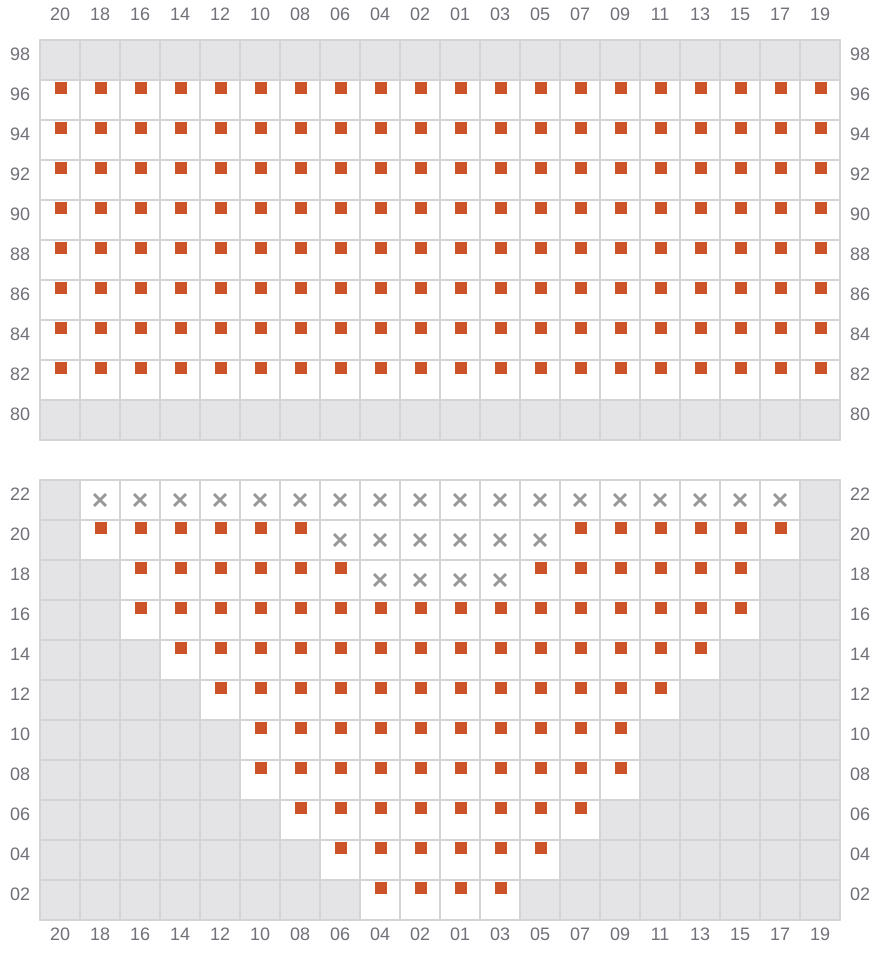

Bay 013 view and slots of TOLEDO TRIUMPH

015 (014)

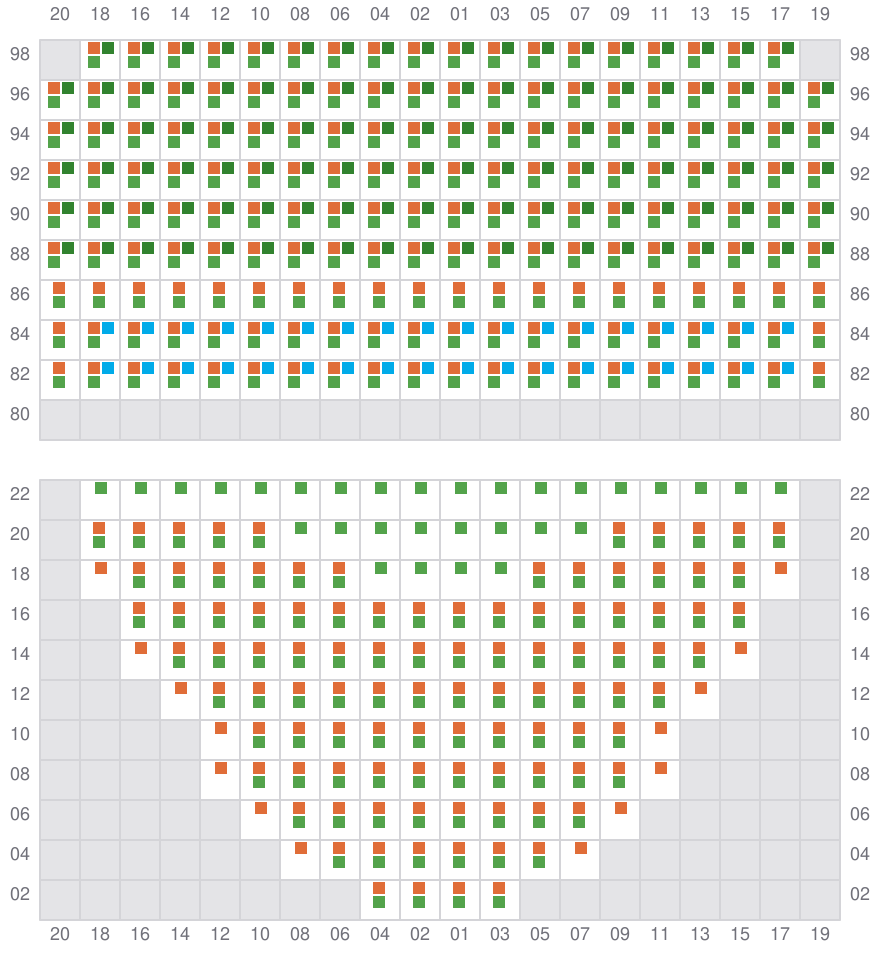

Bay 015 view and slots of TOLEDO TRIUMPH

017

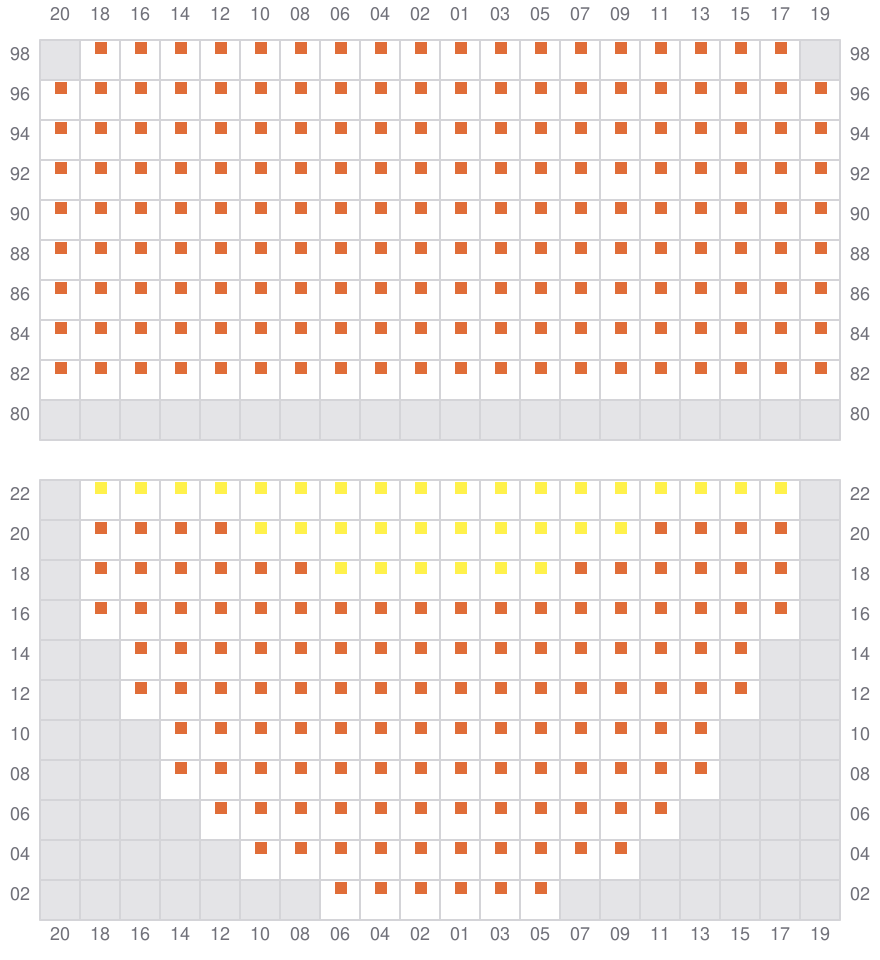

Bay 017 view and slots of TOLEDO TRIUMPH

019 (018)

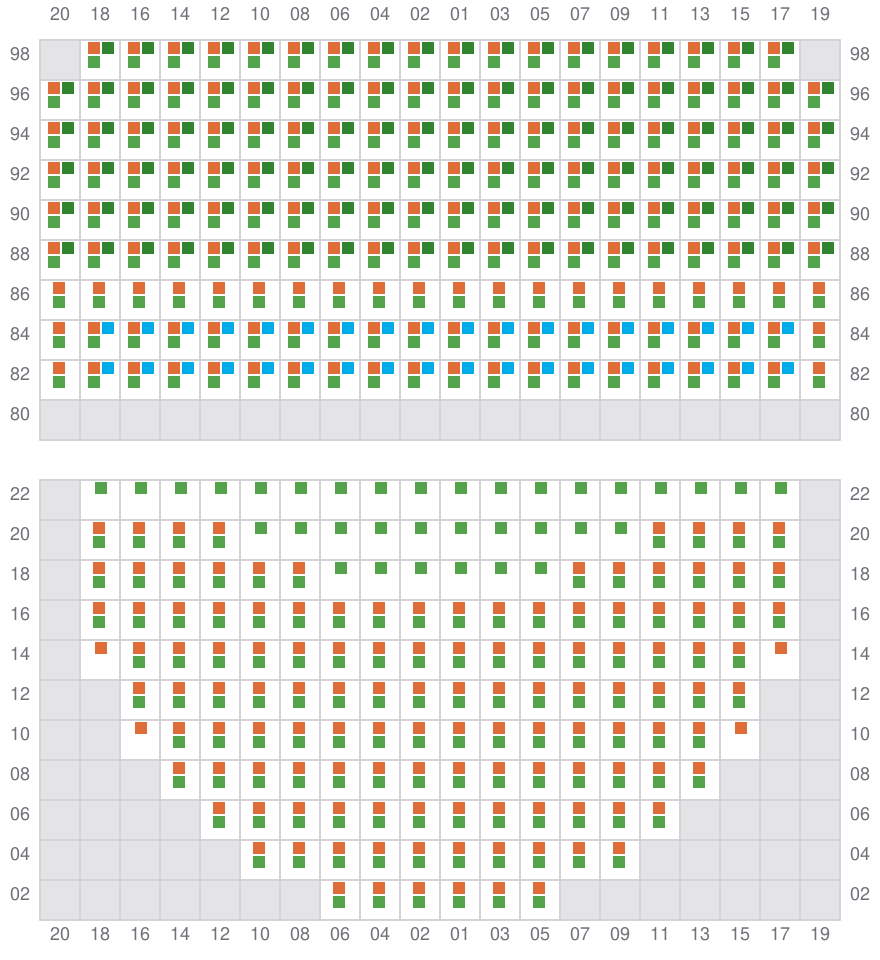

Bay 019 view and slots of TOLEDO TRIUMPH

021

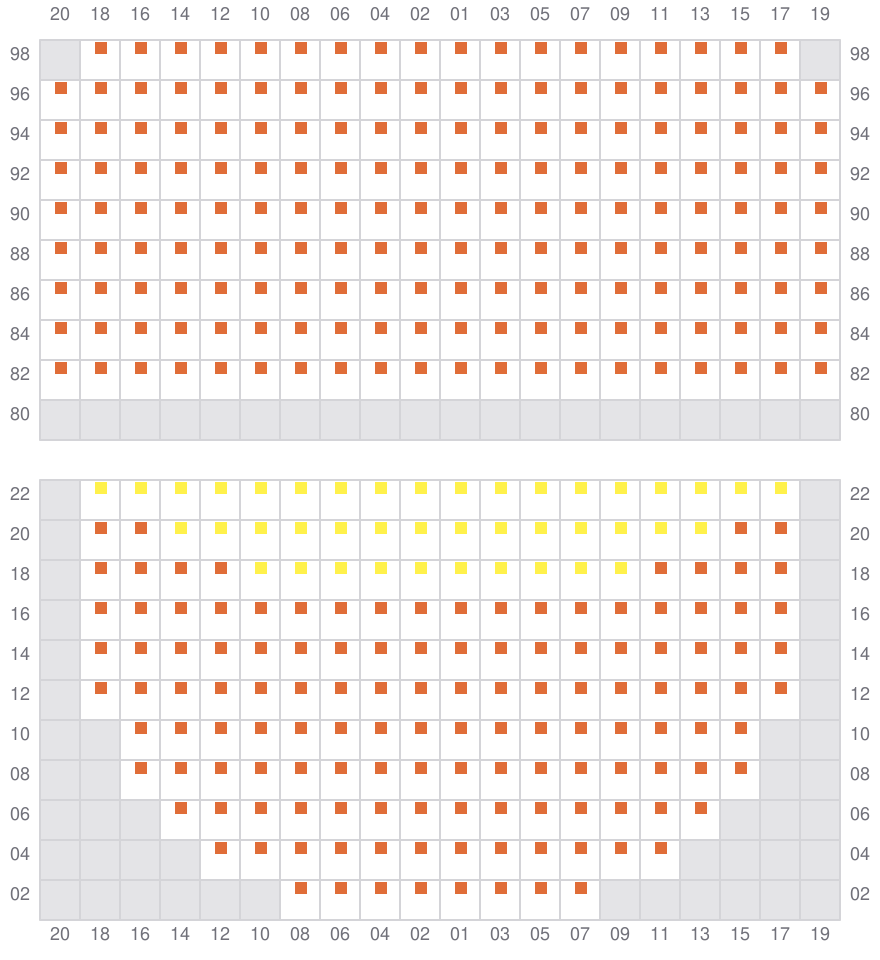

Bay 021 view and slots of TOLEDO TRIUMPH

023 (022)

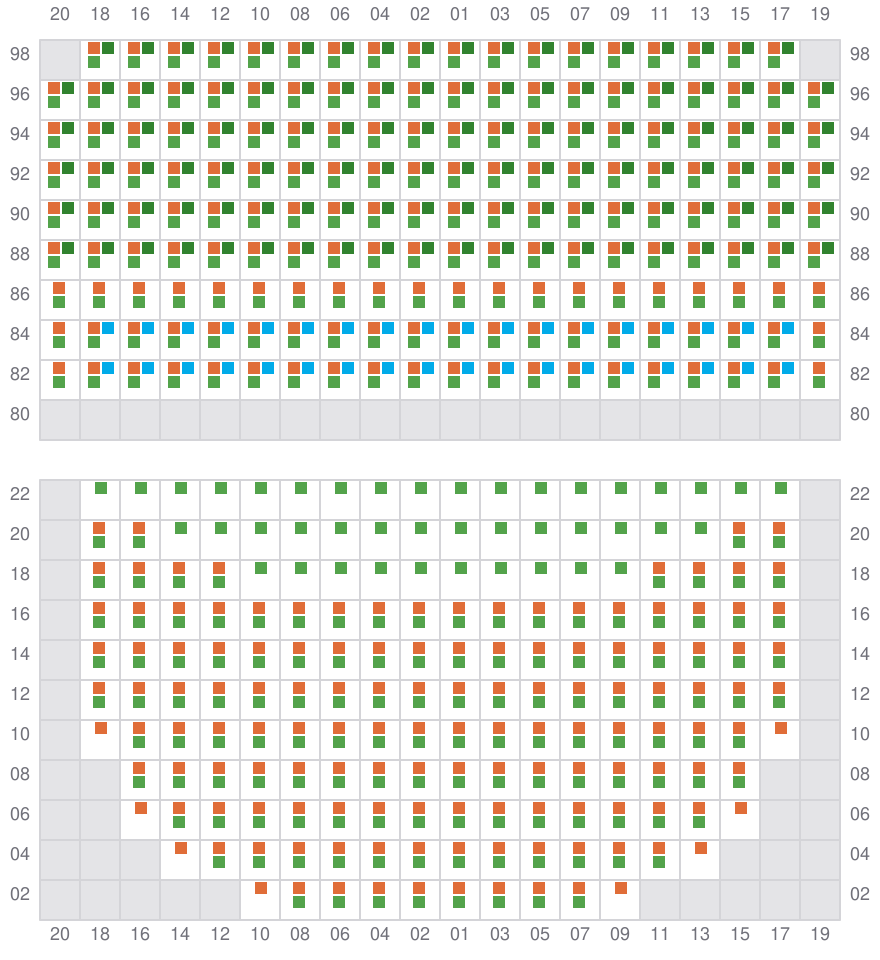

Bay 023 view and slots of TOLEDO TRIUMPH

025

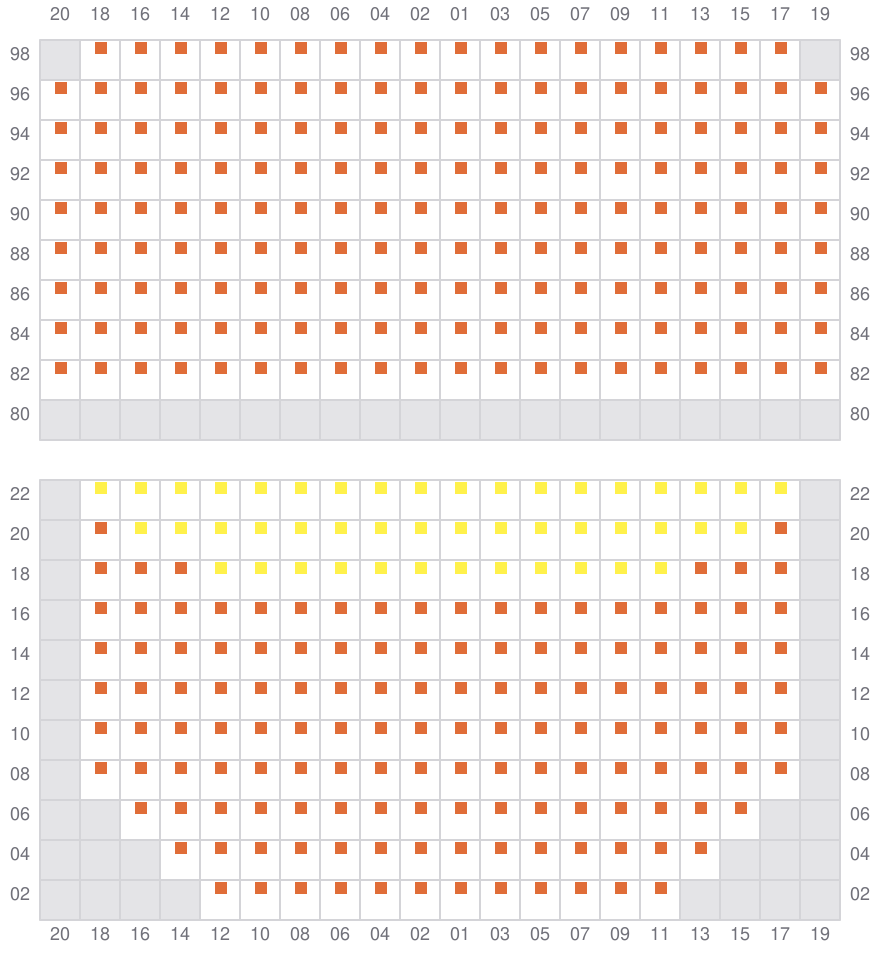

Bay 025 view and slots of TOLEDO TRIUMPH

027 (026)

Bay 027 view and slots of TOLEDO TRIUMPH

029

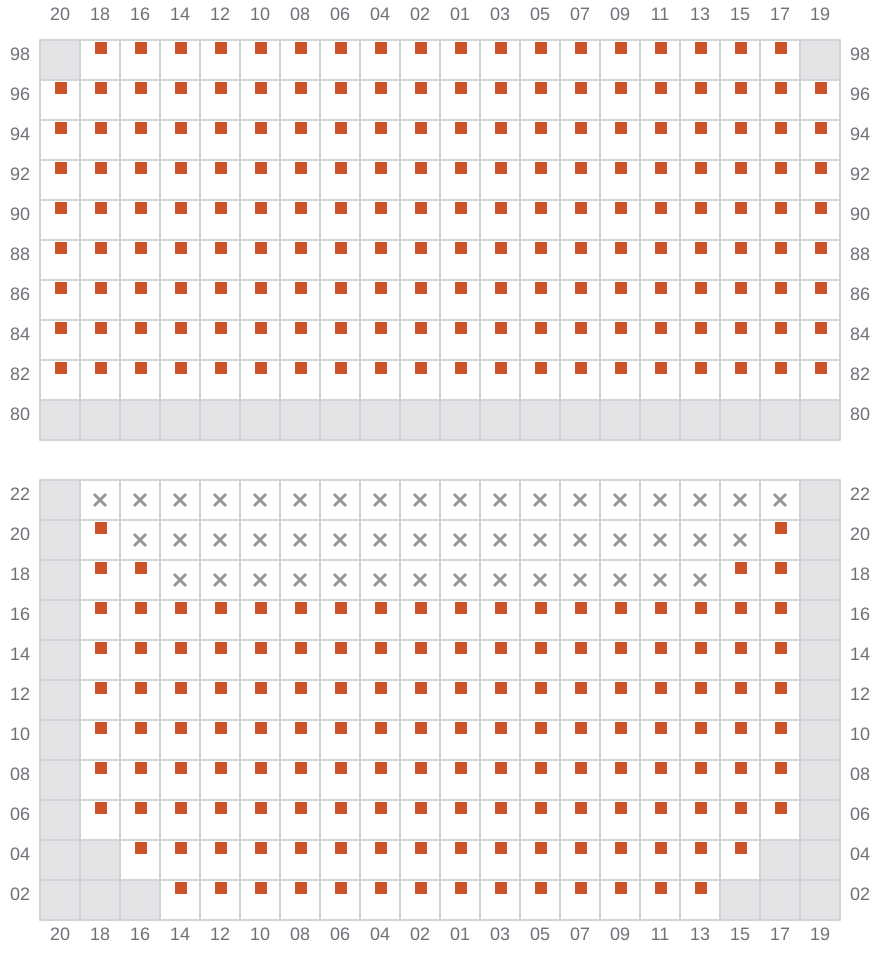

Bay 029 view and slots of TOLEDO TRIUMPH

031 (030)

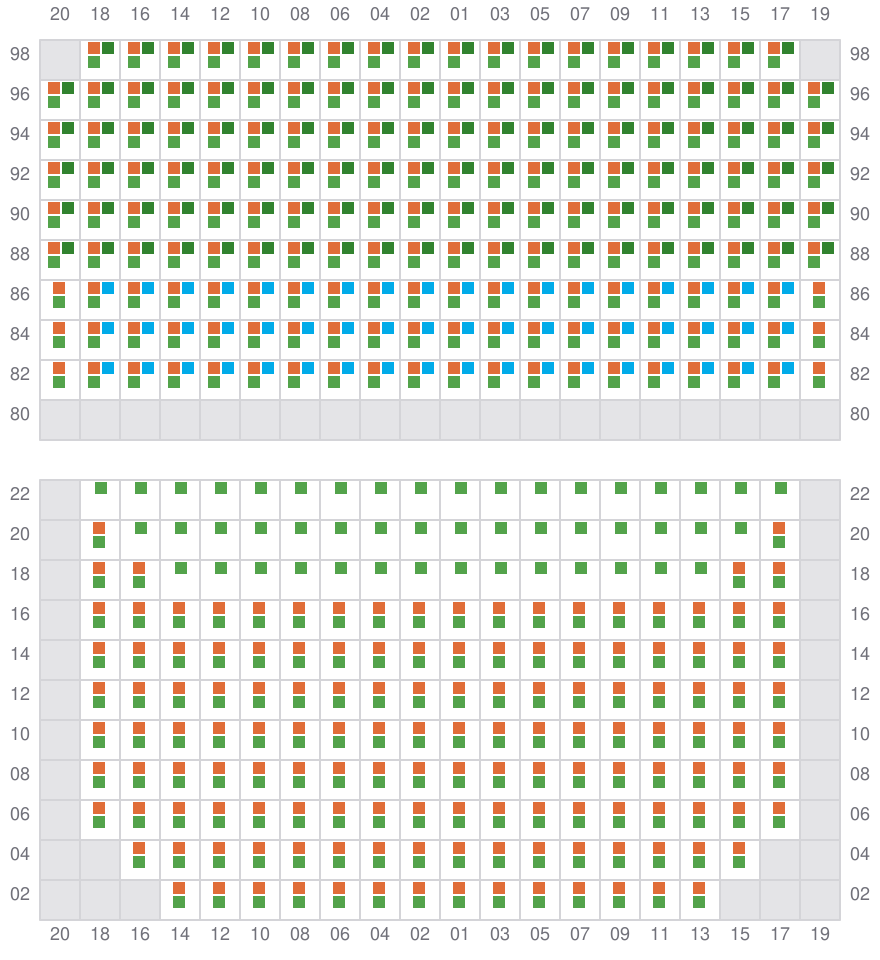

Bay 031 view and slots of TOLEDO TRIUMPH

033

Bay 033 view and slots of TOLEDO TRIUMPH

035 (034)

Bay 035 view and slots of TOLEDO TRIUMPH

037

Bay 037 view and slots of TOLEDO TRIUMPH

039 (038)

Bay 039 view and slots of TOLEDO TRIUMPH

041

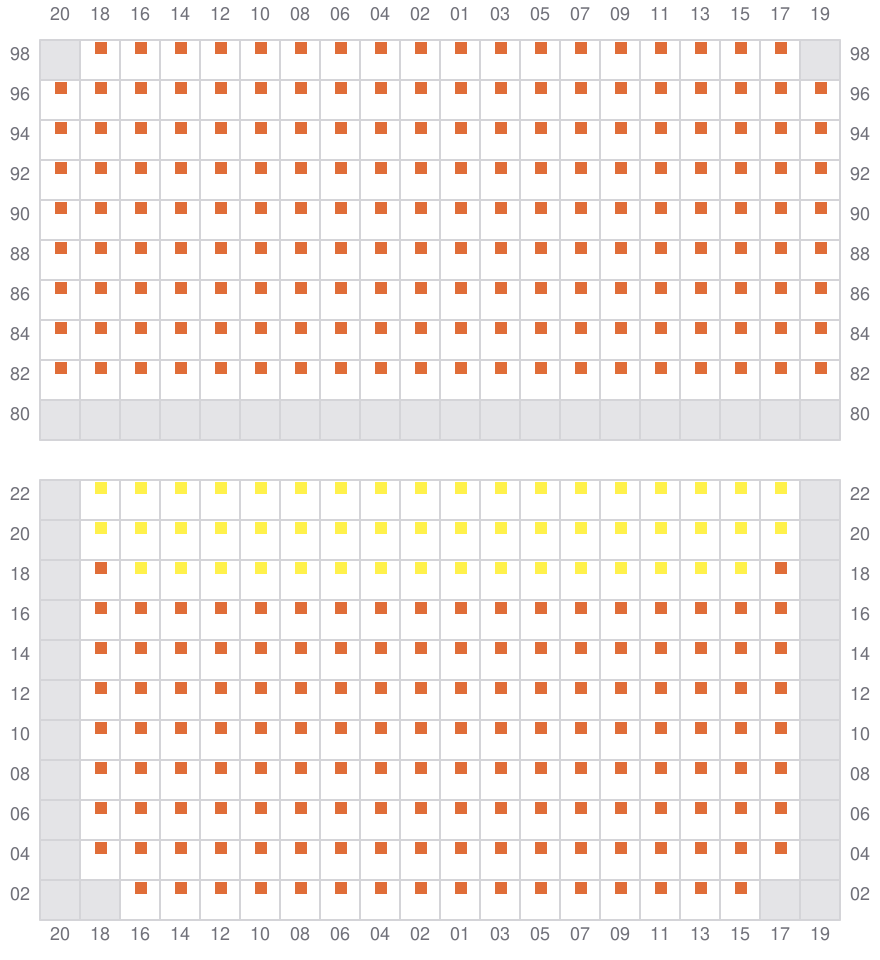

Bay 041 view and slots of TOLEDO TRIUMPH

043 (042)

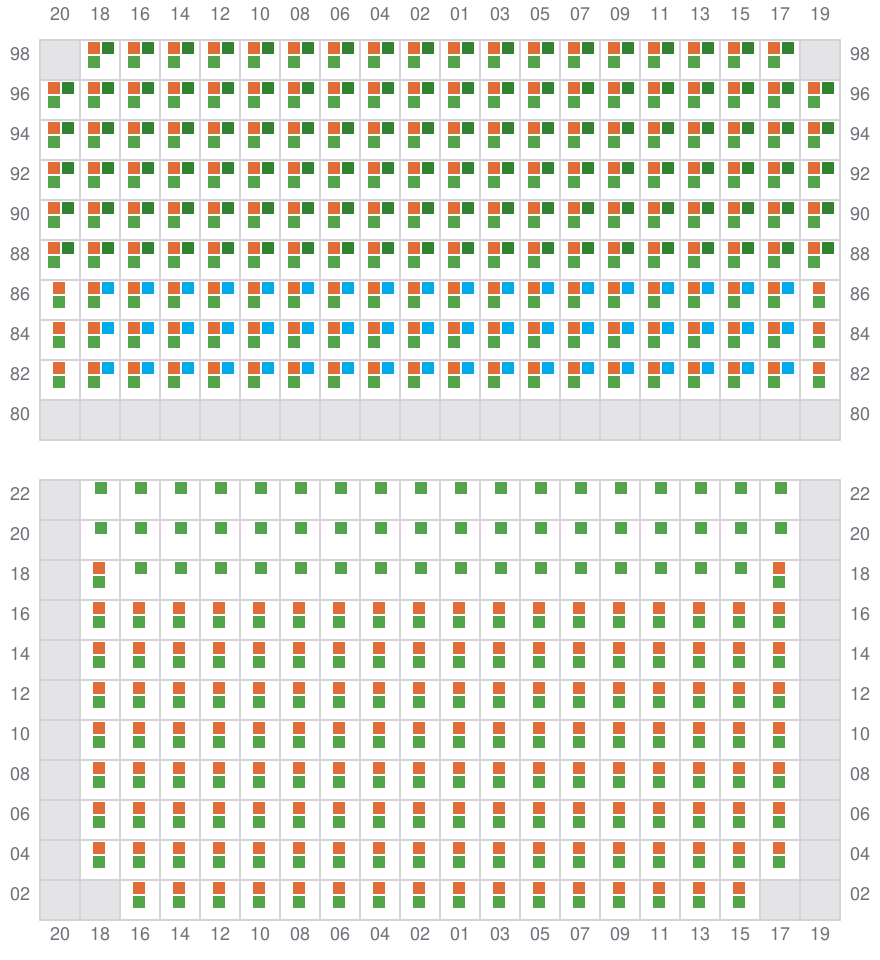

Bay 043 view and slots of TOLEDO TRIUMPH

045

Bay 045 view and slots of TOLEDO TRIUMPH

047 (046)

Bay 047 view and slots of TOLEDO TRIUMPH

049

Bay 049 view and slots of TOLEDO TRIUMPH

051 (050)

Bay 051 view and slots of TOLEDO TRIUMPH

053

Bay 053 view and slots of TOLEDO TRIUMPH

055 (054)

Bay 055 view and slots of TOLEDO TRIUMPH

057

Bay 057 view and slots of TOLEDO TRIUMPH

059 (058)

Bay 059 view and slots of TOLEDO TRIUMPH

061

Bay 061 view and slots of TOLEDO TRIUMPH

063 (062)

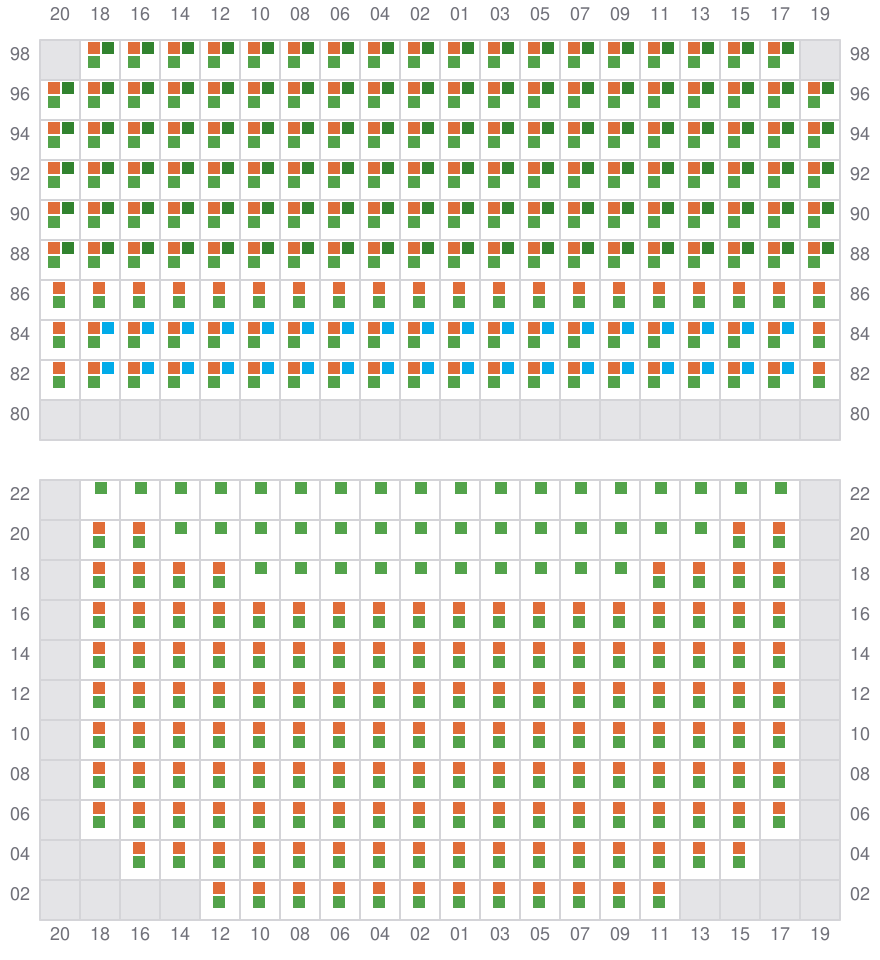

Bay 063 view and slots of TOLEDO TRIUMPH

065

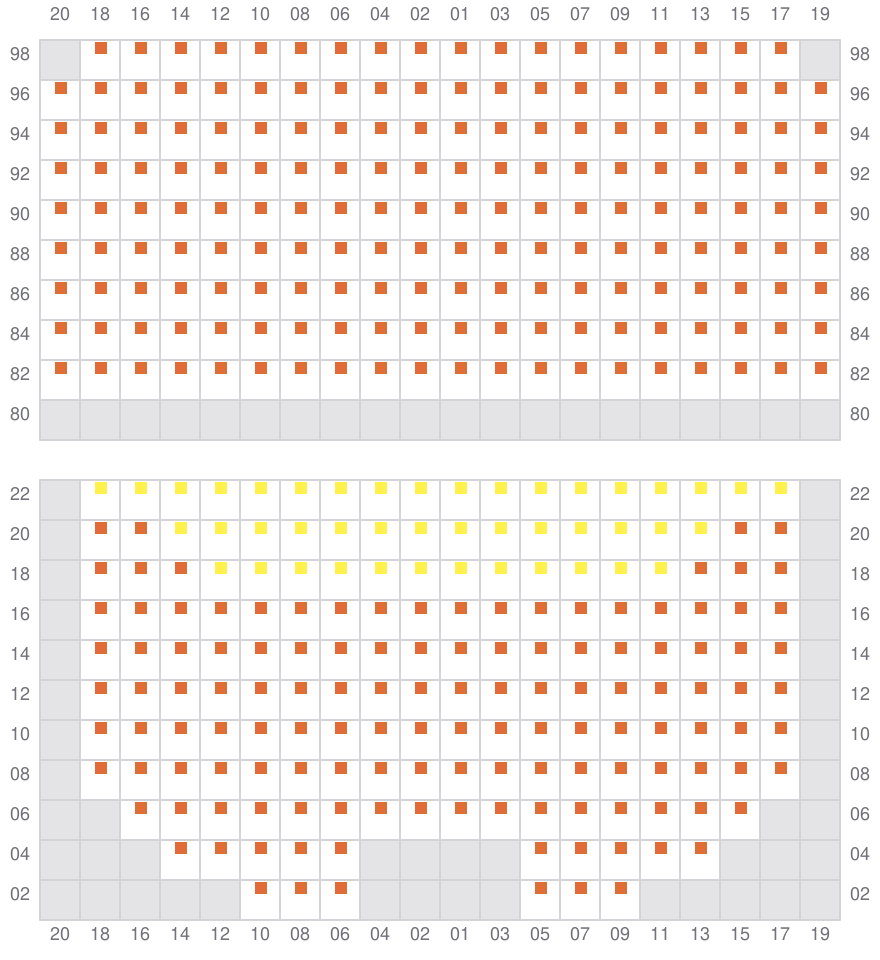

Bay 065 view and slots of TOLEDO TRIUMPH

067 (066)

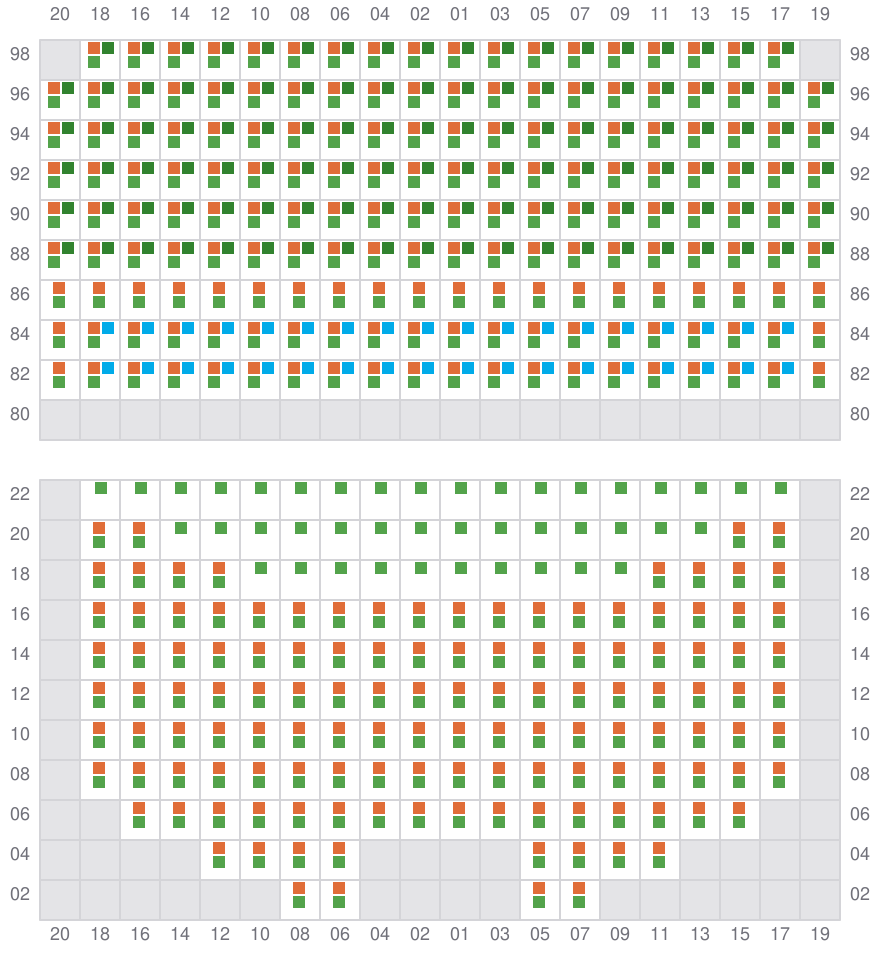

Bay 067 view and slots of TOLEDO TRIUMPH

069

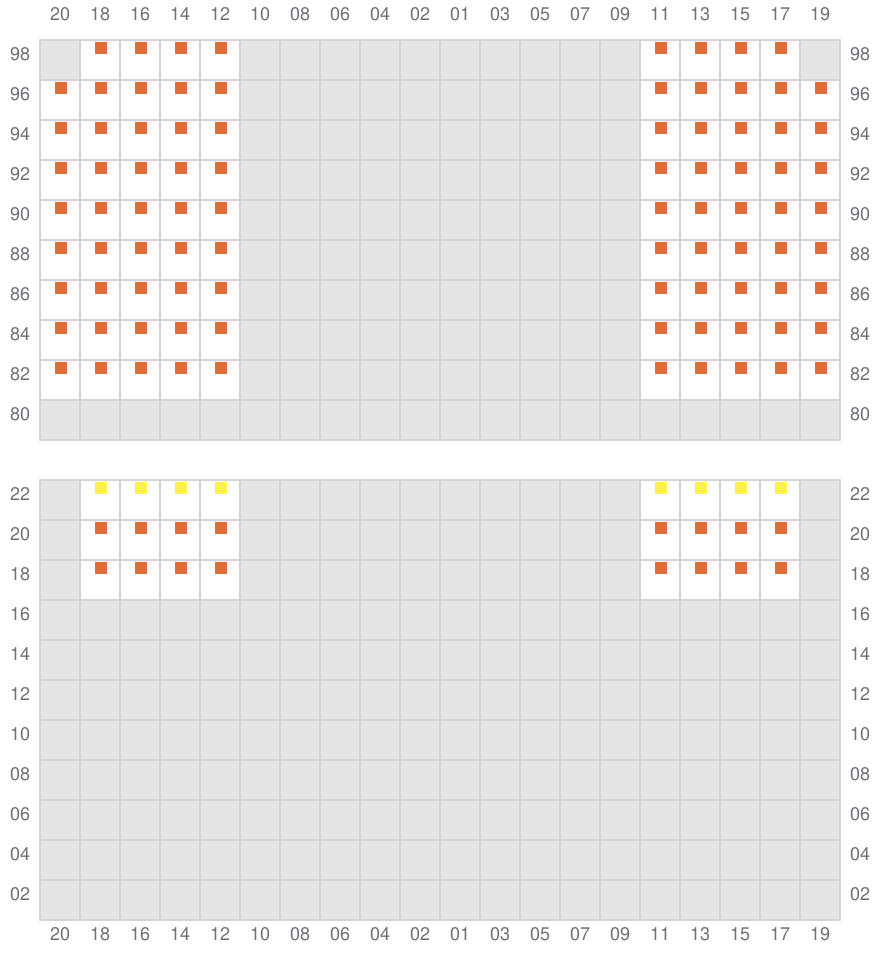

Bay 069 view and slots of TOLEDO TRIUMPH

071 (070)

Bay 071 view and slots of TOLEDO TRIUMPH

073

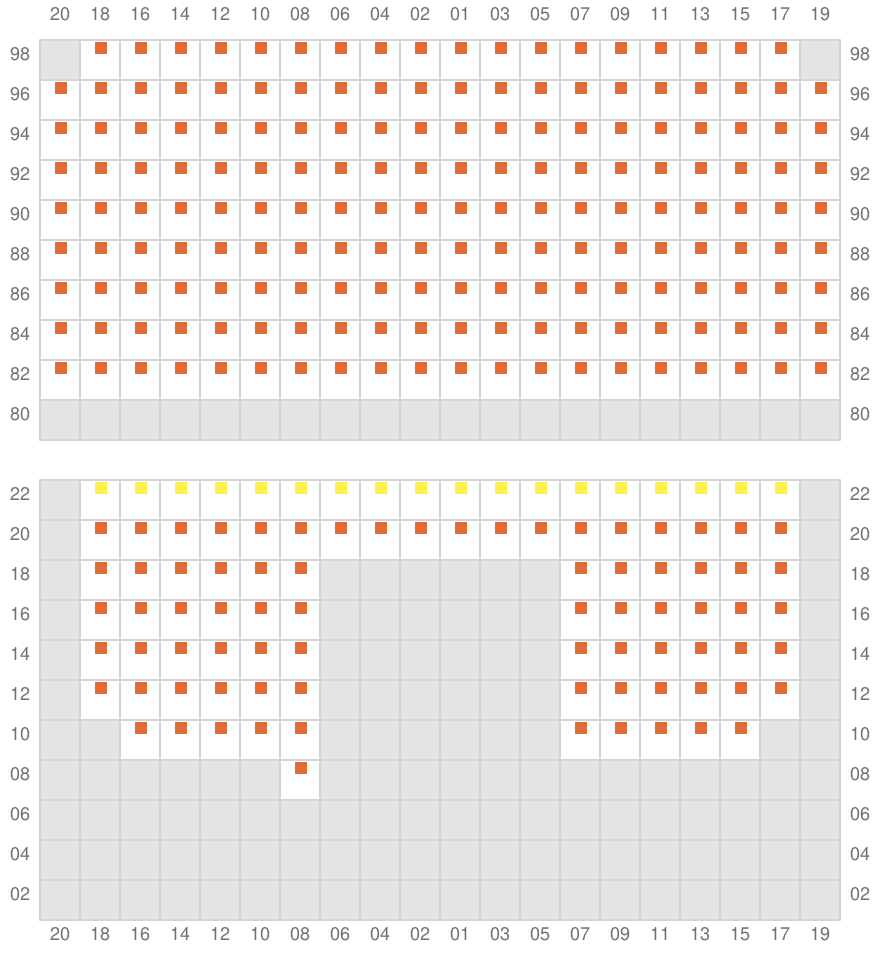

Bay 073 view and slots of TOLEDO TRIUMPH

075 (074)

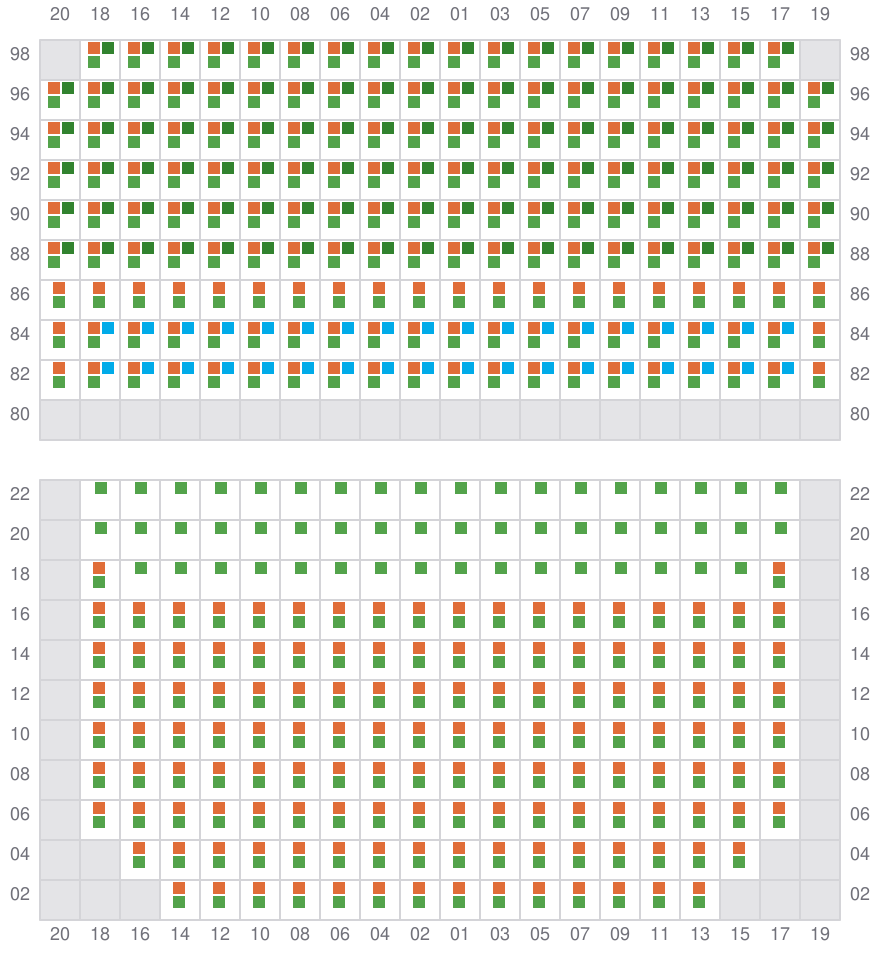

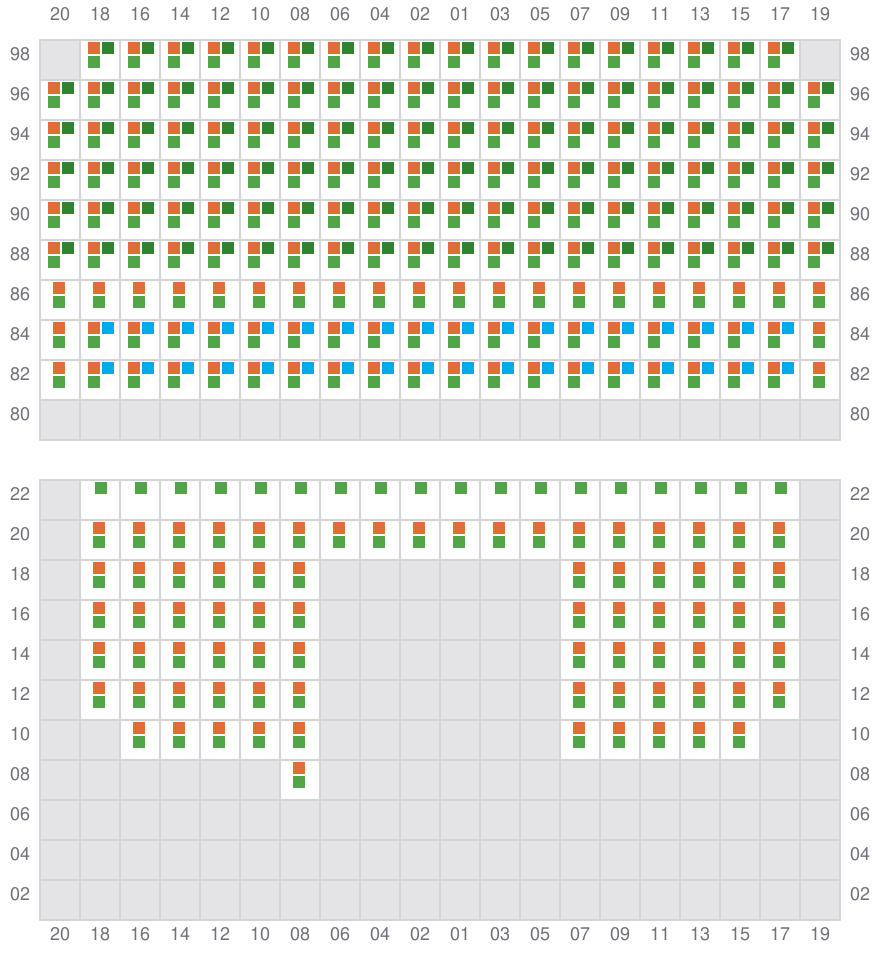

Bay 075 view and slots of TOLEDO TRIUMPH

077

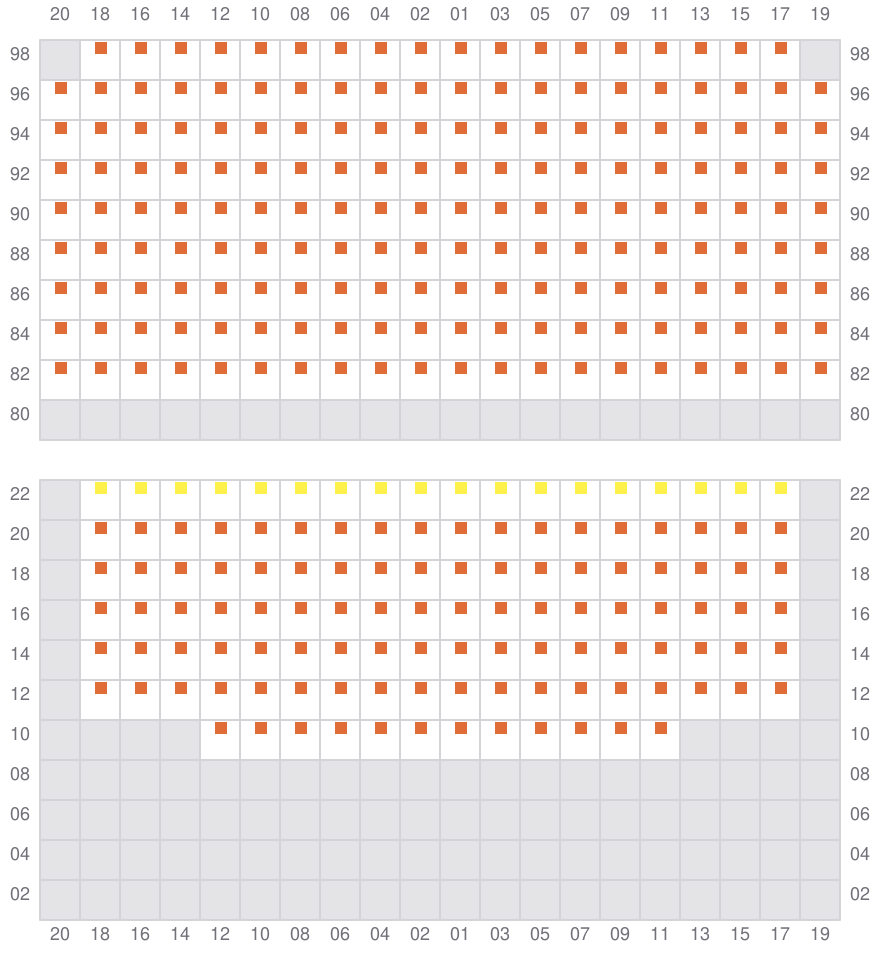

Bay 077 view and slots of TOLEDO TRIUMPH

079 (078)

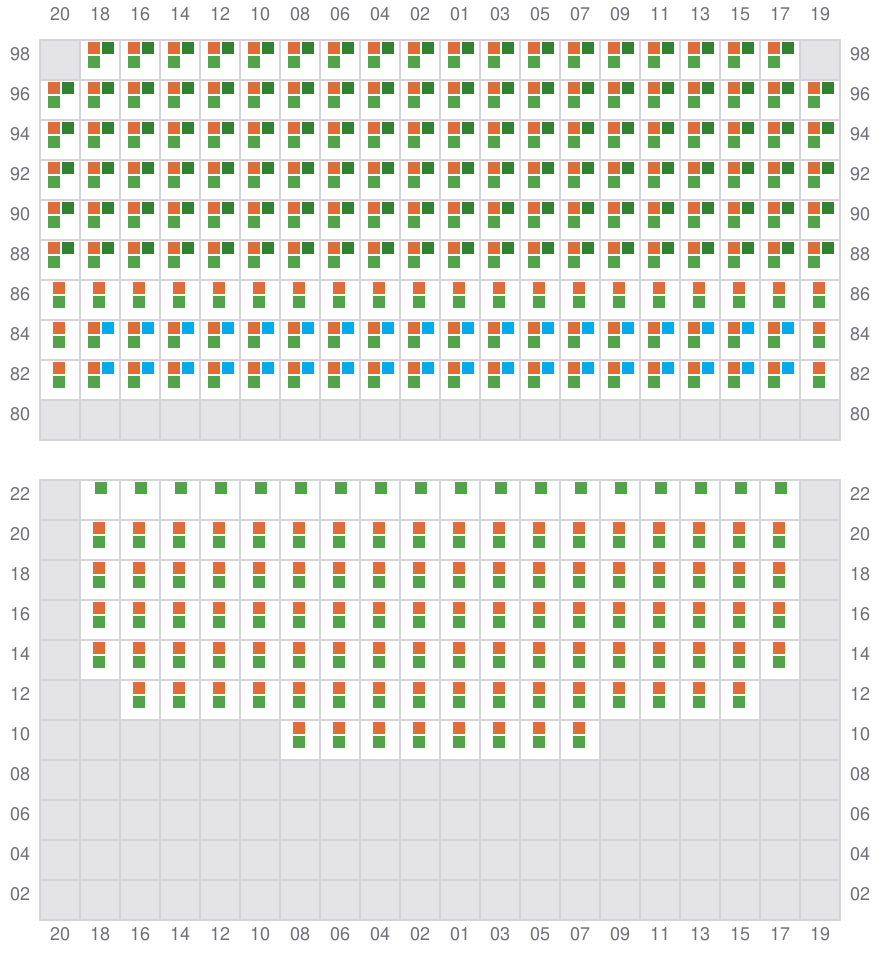

Bay 079 view and slots of TOLEDO TRIUMPH

081

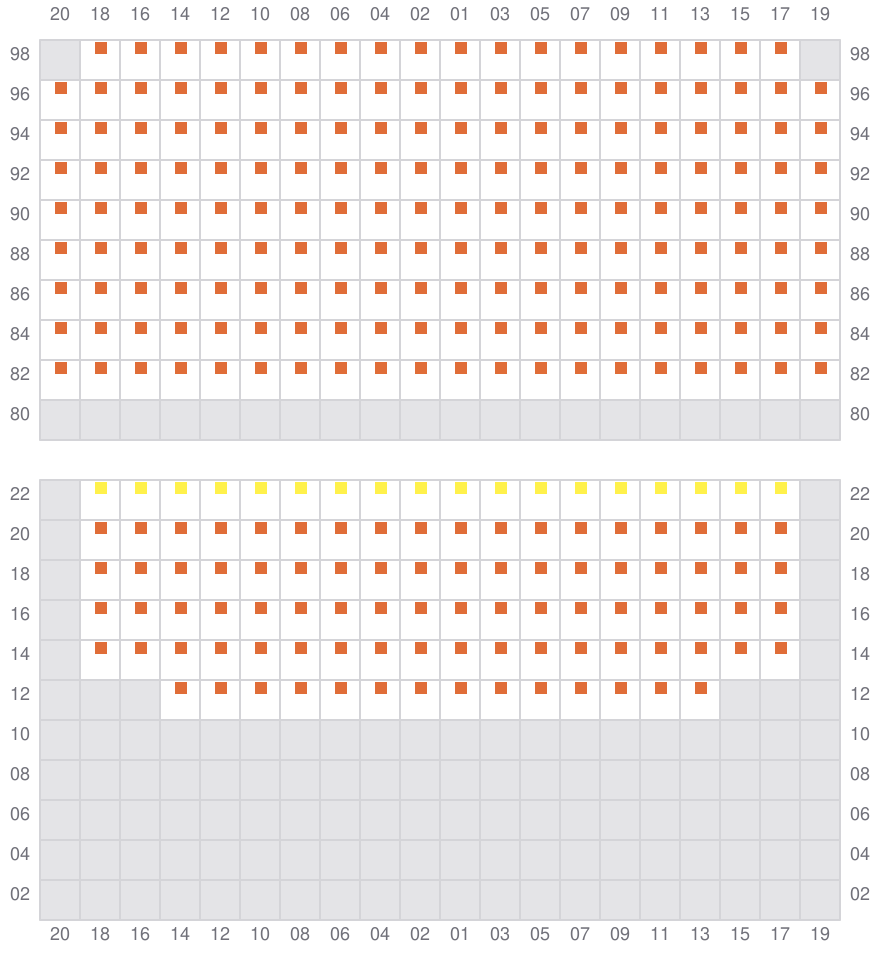

Bay 081 view and slots of TOLEDO TRIUMPH

083 (082)

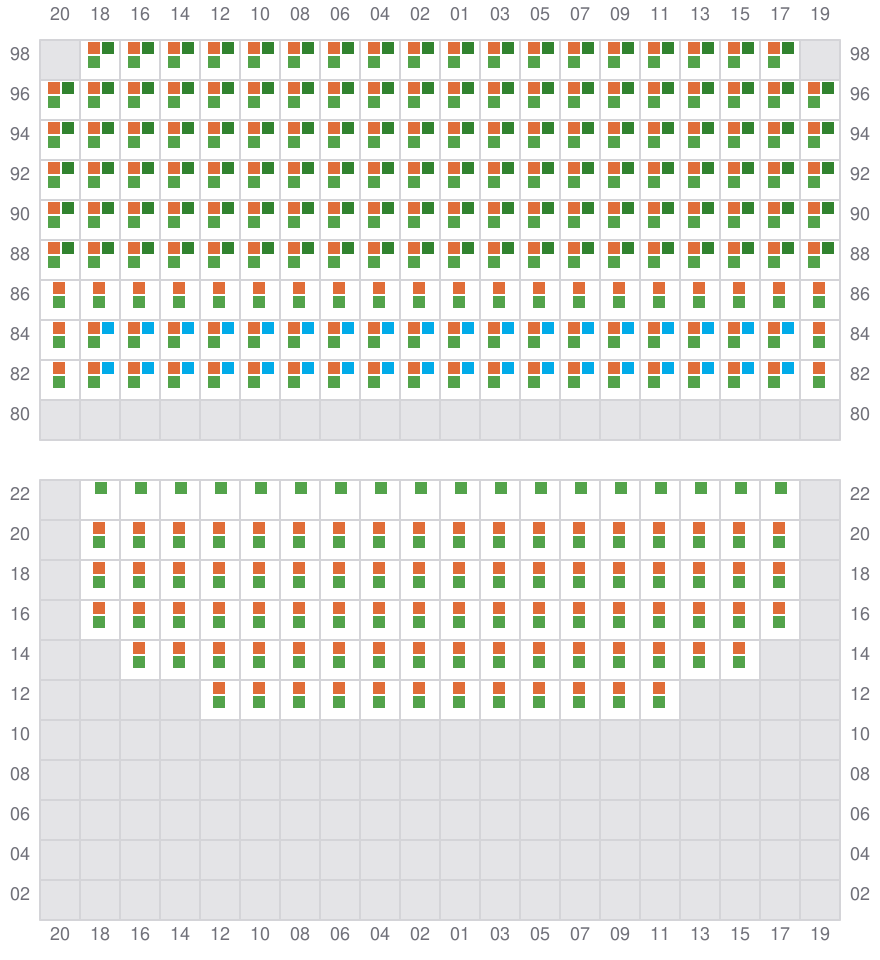

Bay 083 view and slots of TOLEDO TRIUMPH

085

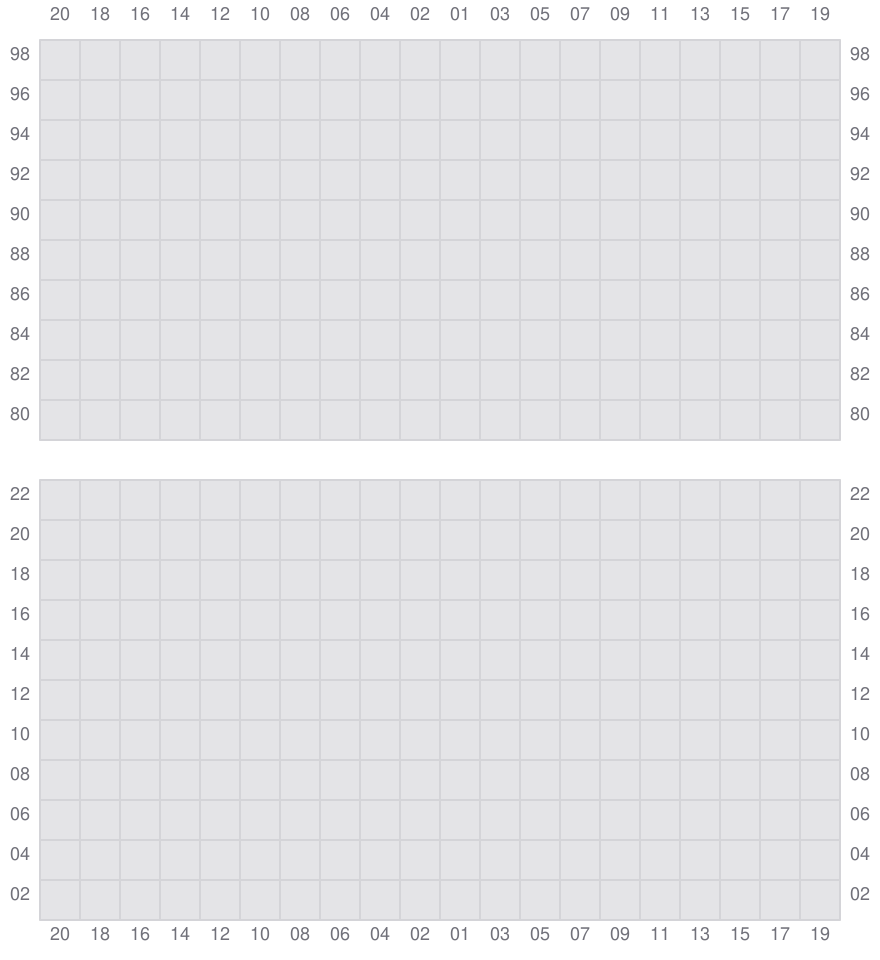

Bay 085 view and slots of TOLEDO TRIUMPH

087 (086)

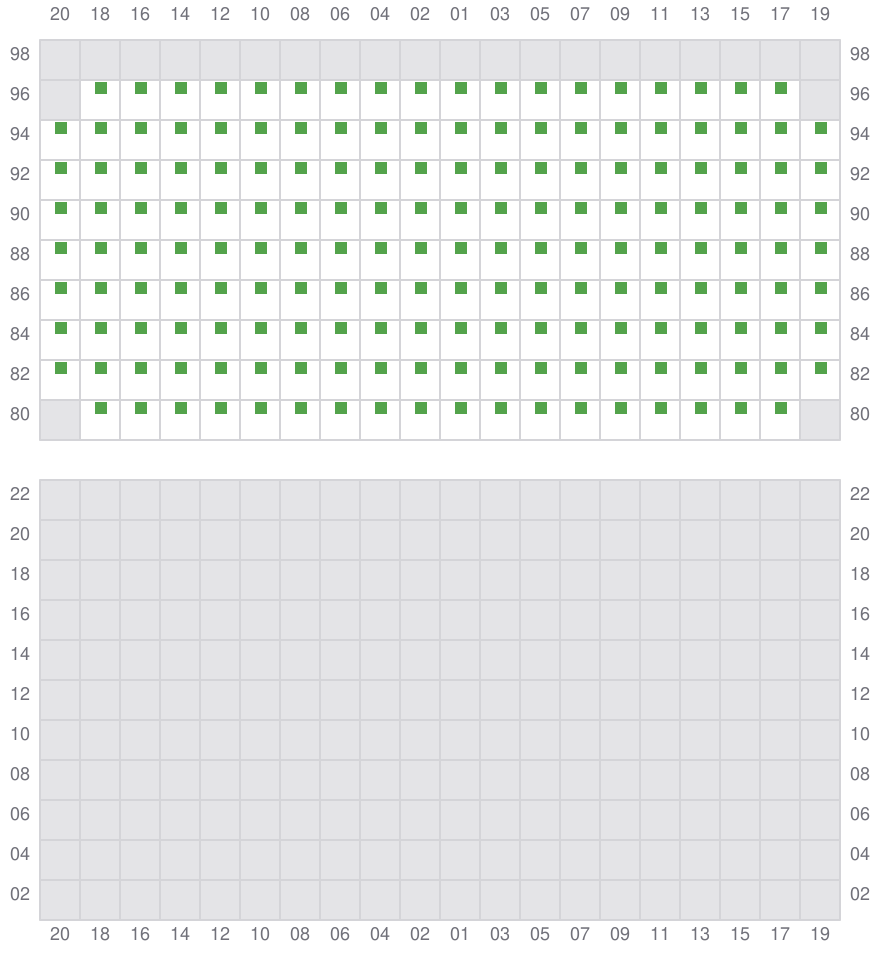

Bay 087 view and slots of TOLEDO TRIUMPH
