TONGALA
9278105 | A8OK3 | 9278105 by ********* Last update: Thu May 16 2024
General Info
Ship Name:TONGALA
IMO Code:9278105
Call Sign:A8OK3
Line Operator:9278105
Class Name for Sister Ships:MAERSK DEVA
Year Built:2004
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:061
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:80
Max Below ISO Tier:16
Min Below ISO Tier:02
Total TEU:4,253
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

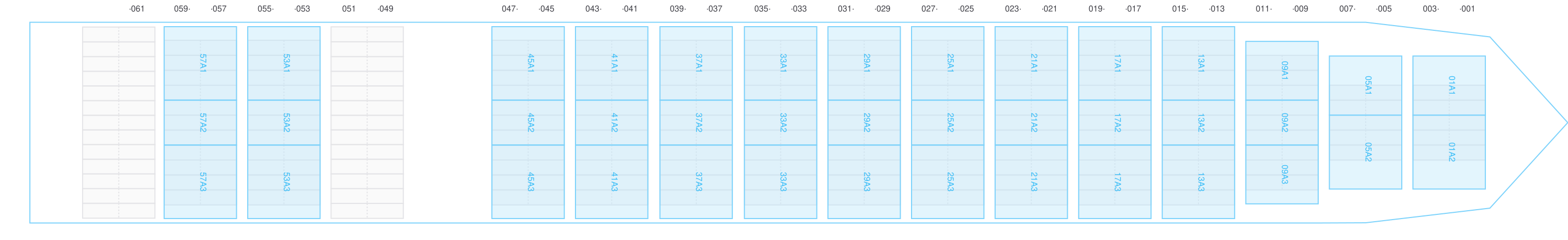

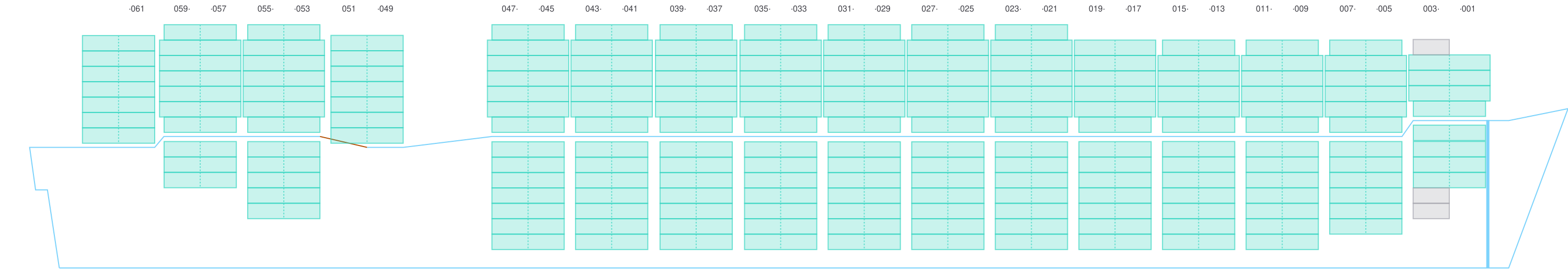

Side View
Hatch-Covers View

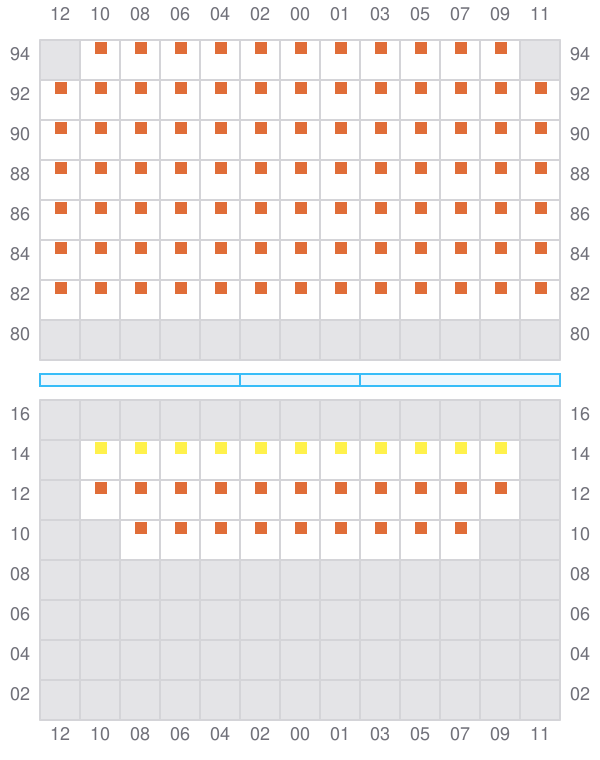

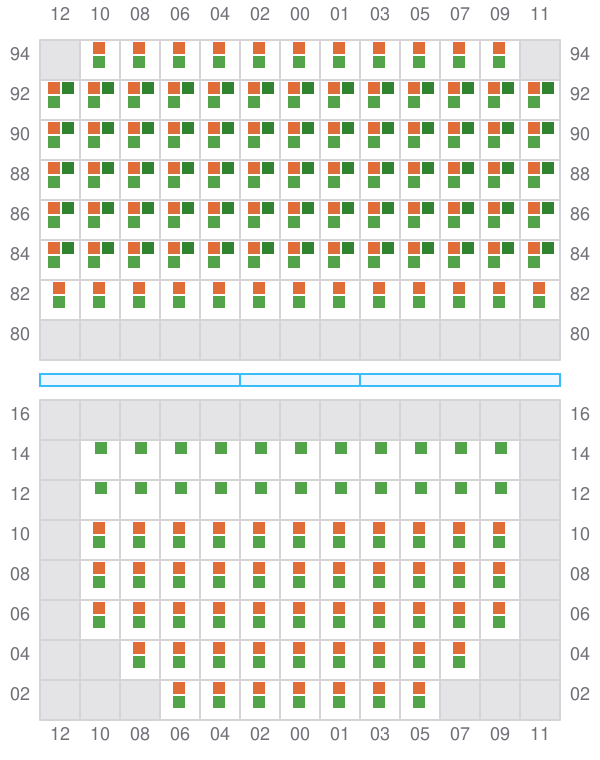

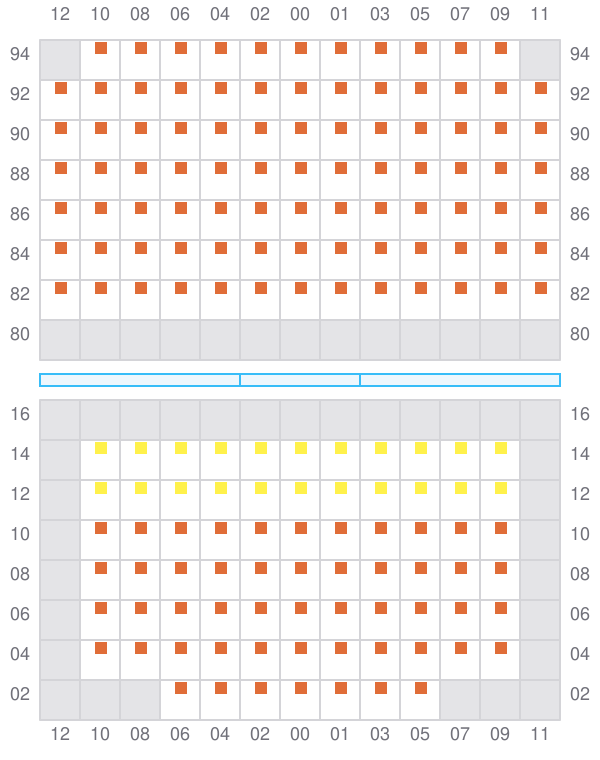

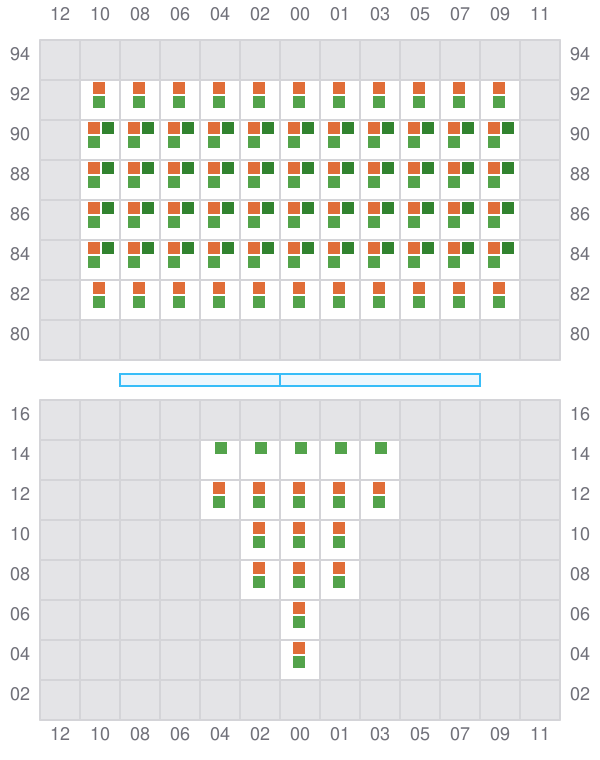

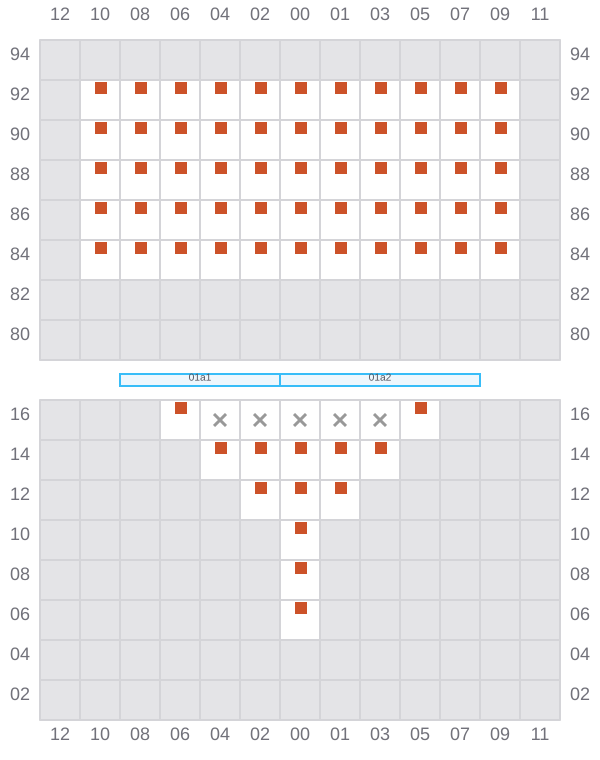

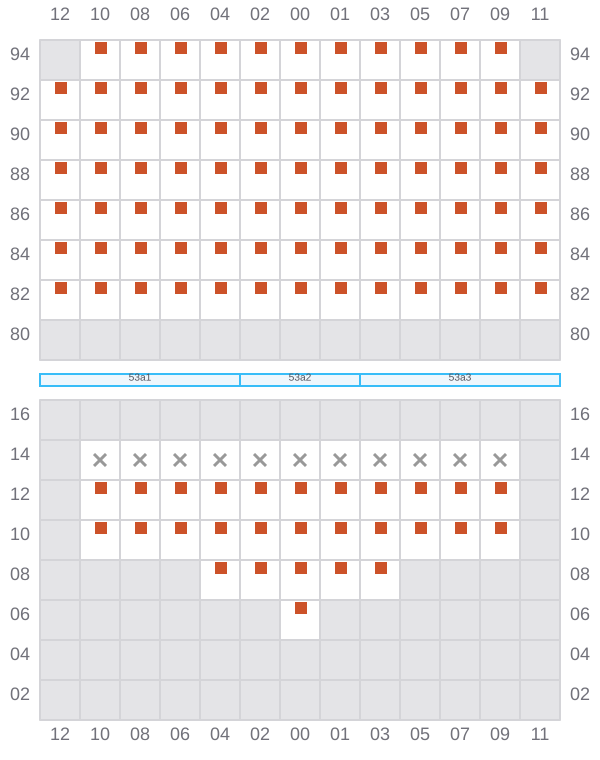

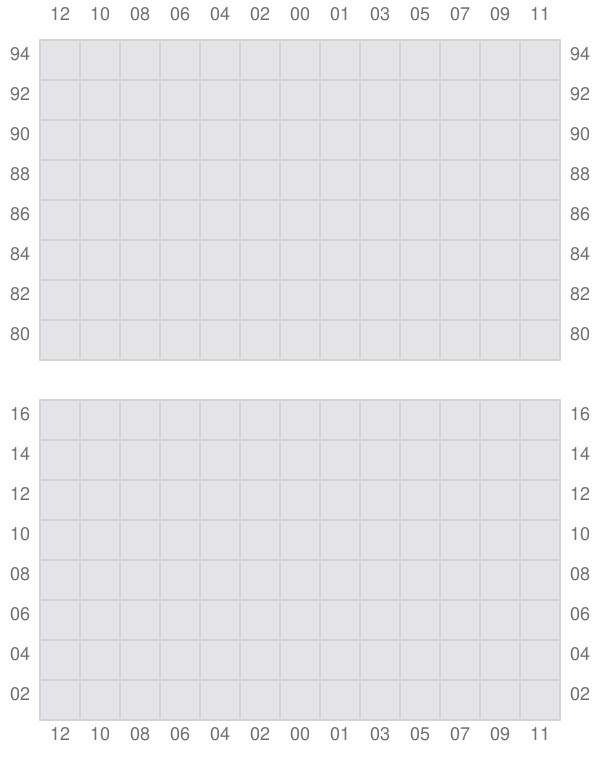

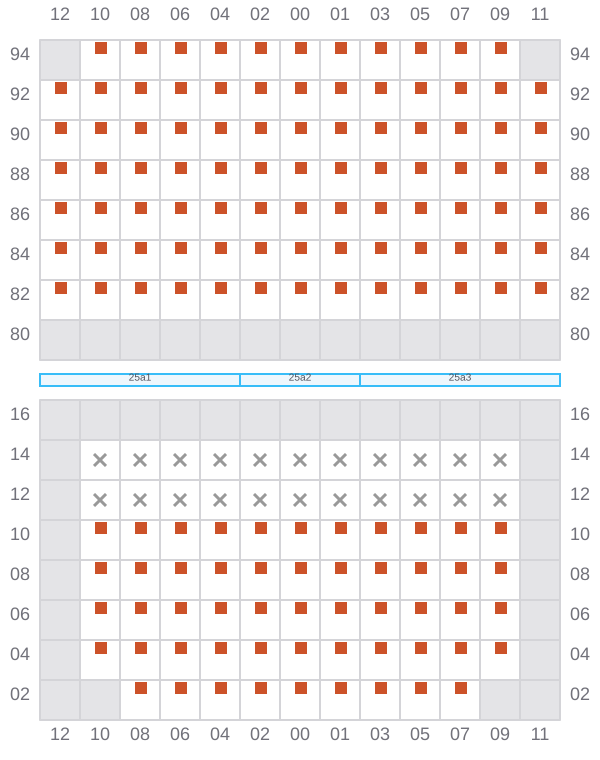

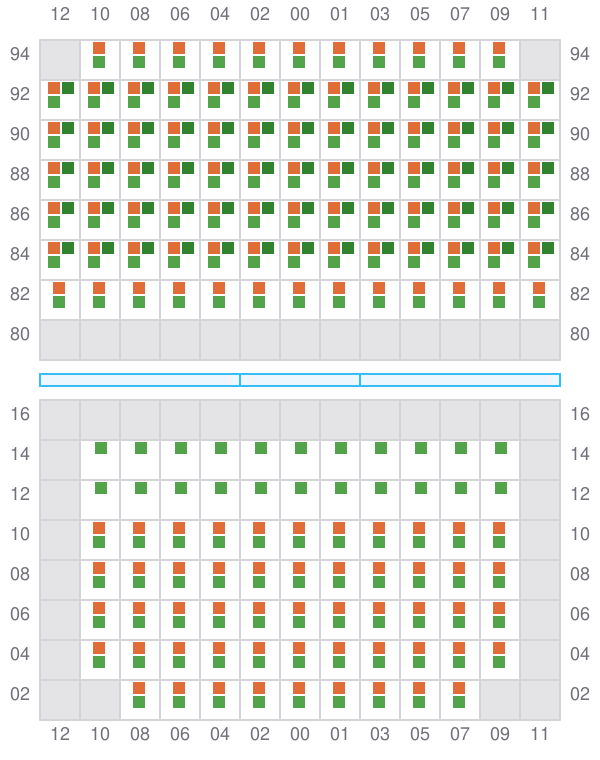

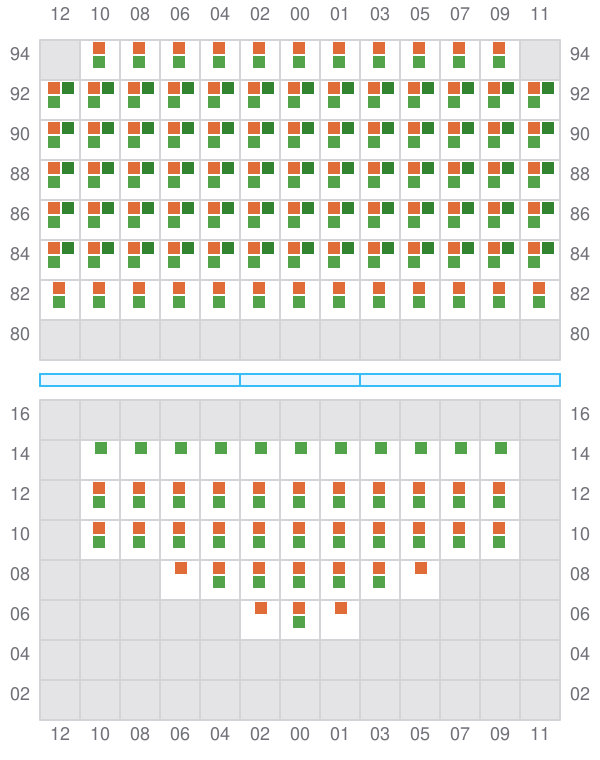

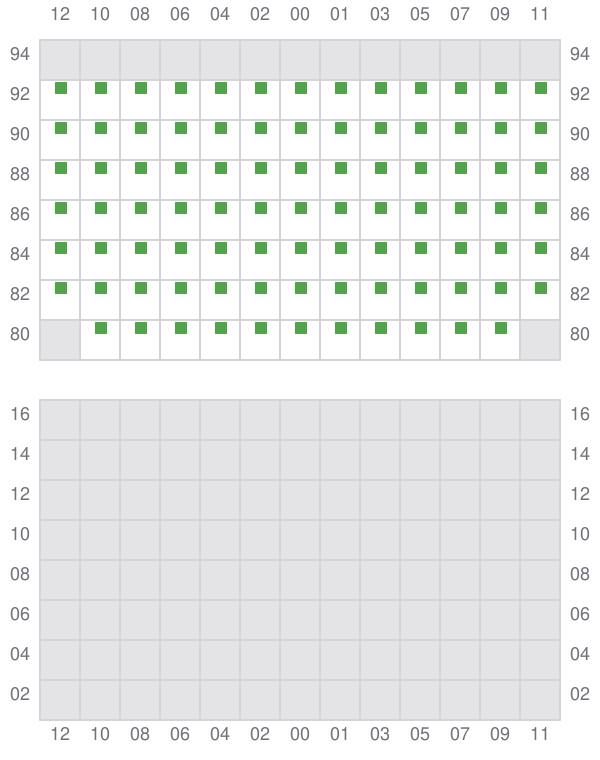

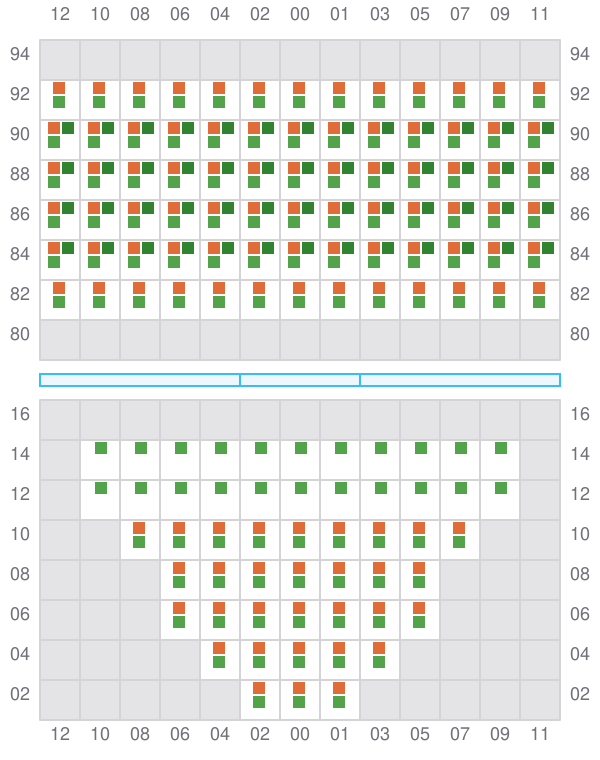

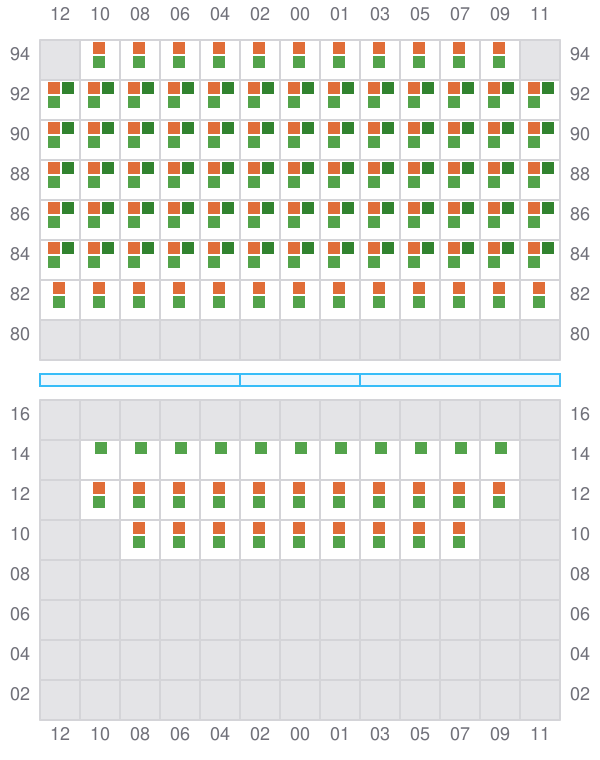

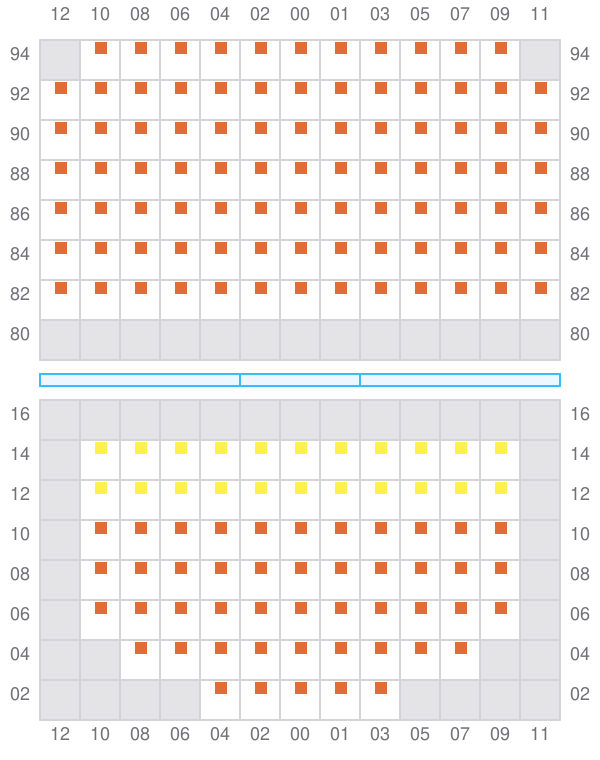

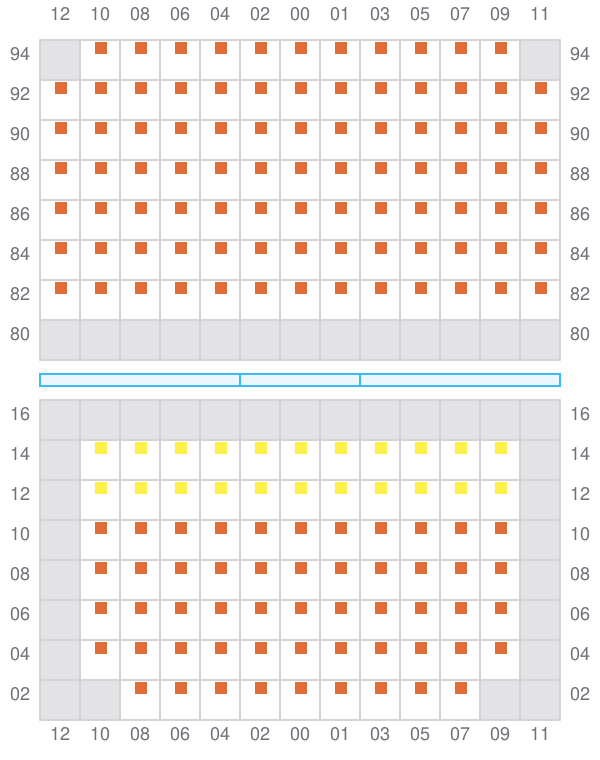

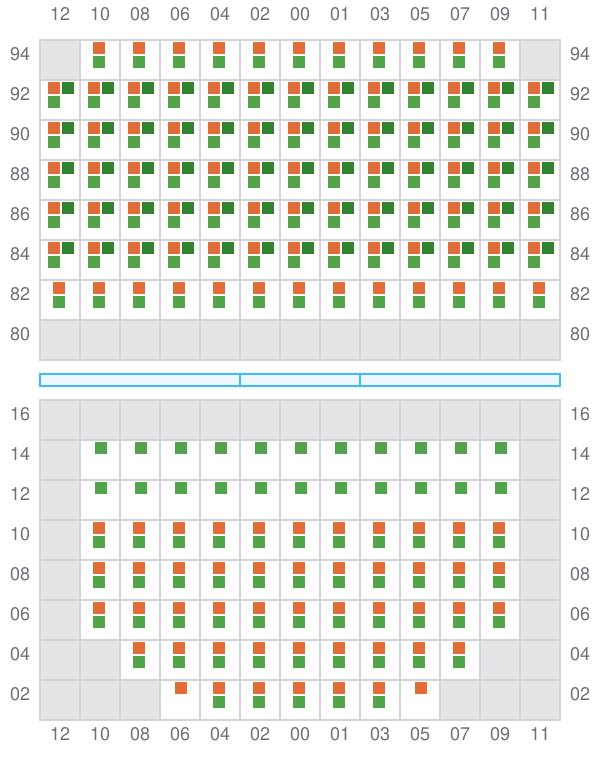

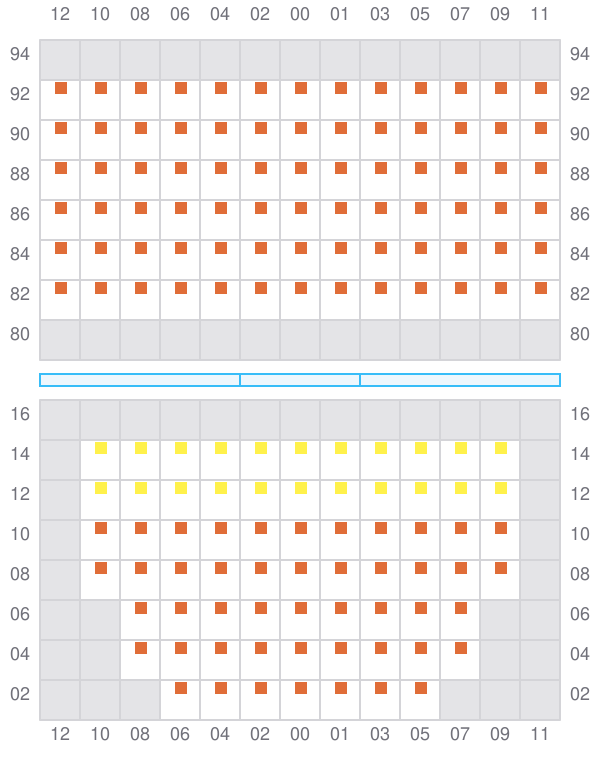

ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

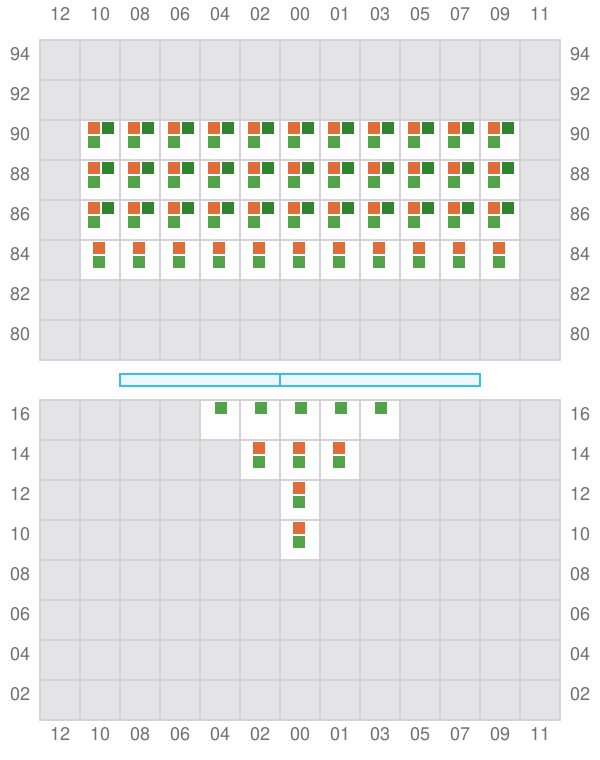

001 (002)
- →
003
- ←
005 (006)
- →

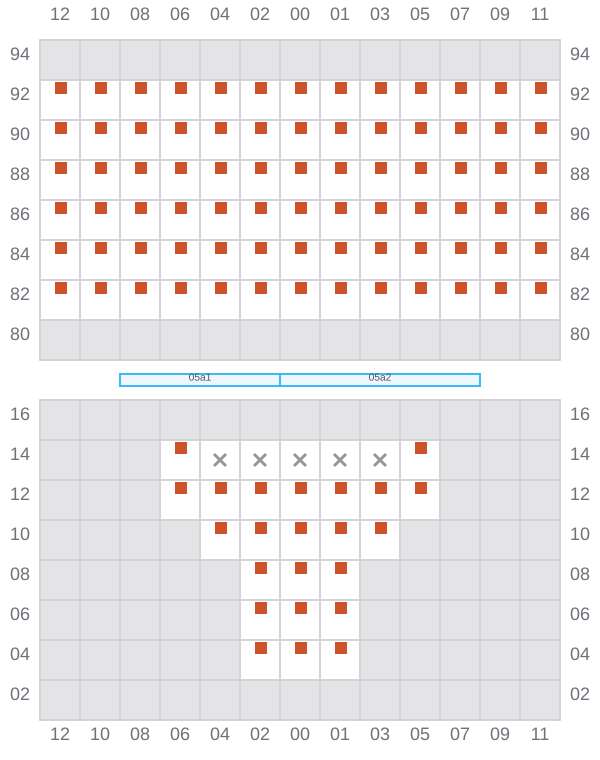

007
- ←
- → / ?

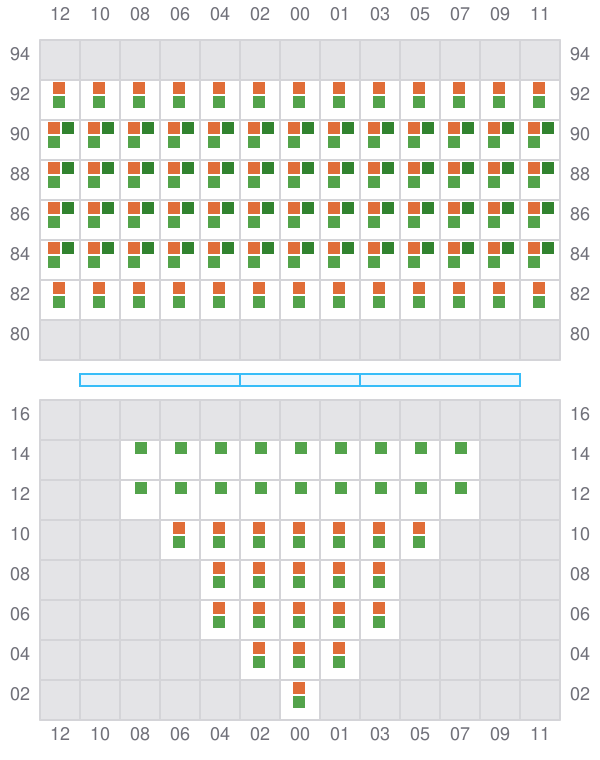

009 (010)
- →

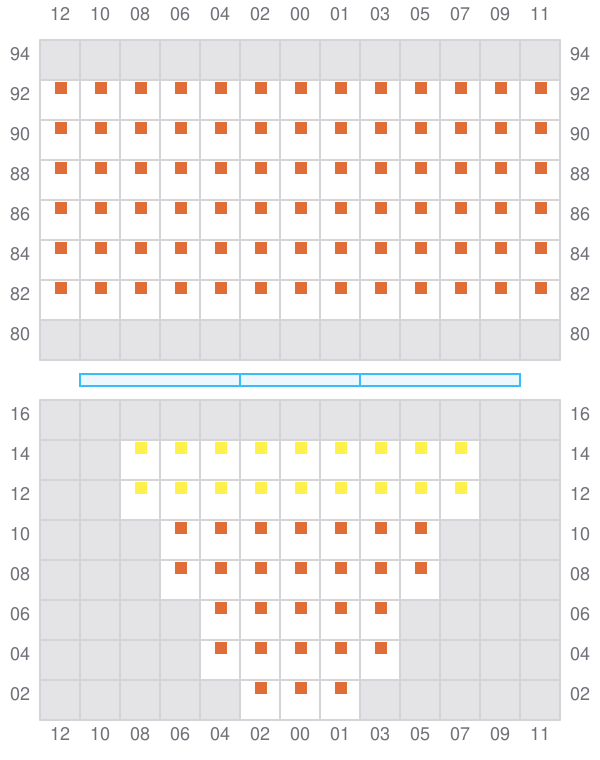

011
- ←
- → / ?
013 (014)
- →

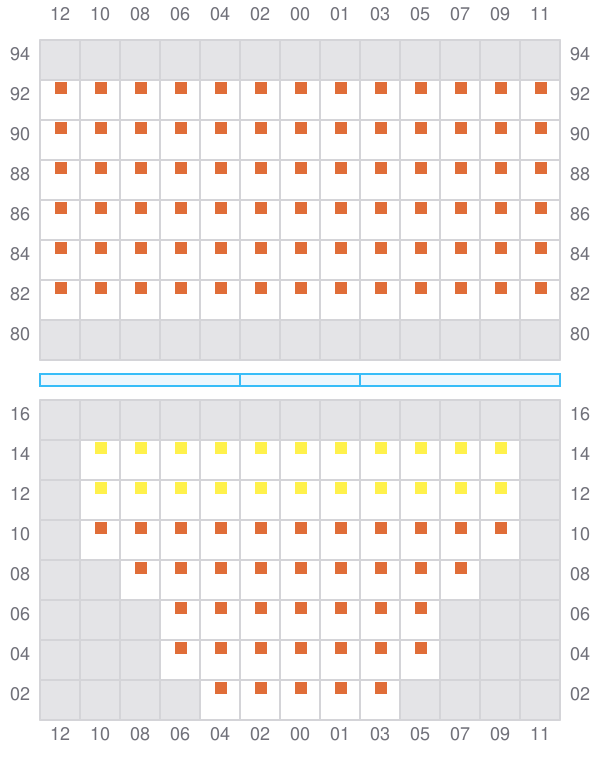

015
- ←
- → / ?

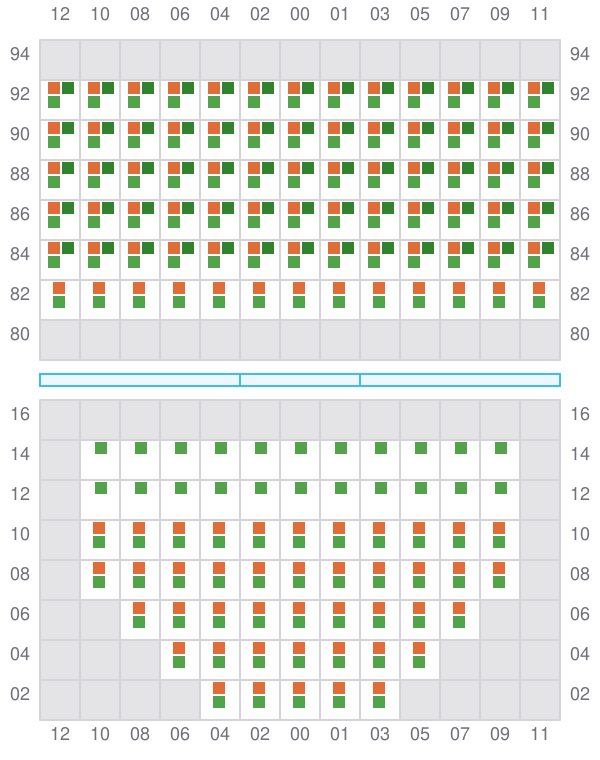

017 (018)
- →
019
- ←
- → / ?
021 (022)
- →
023
- ←
025 (026)
- →
027
- ←
- → / ?
029 (030)
- →
031
- ←
033 (034)
- →
035
- ←
- ? / →
037 (038)
- →
039
- ←
- →
041 (042)
- →
043
- ←
045 (046)
- →
047
- ←
- → / ?
049 (050)
- → / ?
- ← / ?
051
053 (054)
- →
- ← / ?
055
- ←
057 (058)
- →
- ← / ?

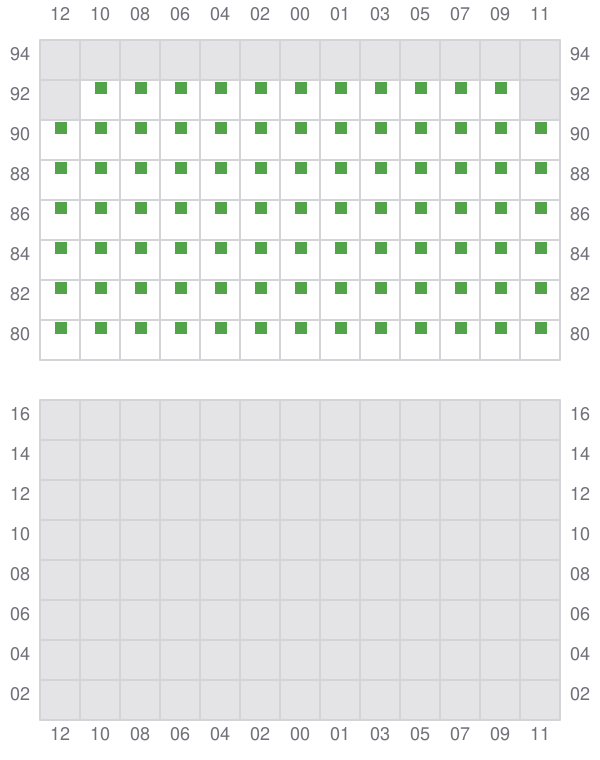

059
- ←
061 (062)
- → / ?
- ← / ?
