TRADER
9437189 | VRSG5 | 9437189 by ********* Last update: Mon Mar 25 2024
General Info
Ship Name:TRADER
IMO Code:9437189
Call Sign:VRSG5
Line Operator:9437189
Class Name for Sister Ships:54B
Year Built:2008
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:031
Max ISO Row:10
Center Line Row:No
Max Above ISO Tier:92
Min Above ISO Tier:80
Max Below ISO Tier:10
Min Below ISO Tier:02
Total TEU:1,292
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

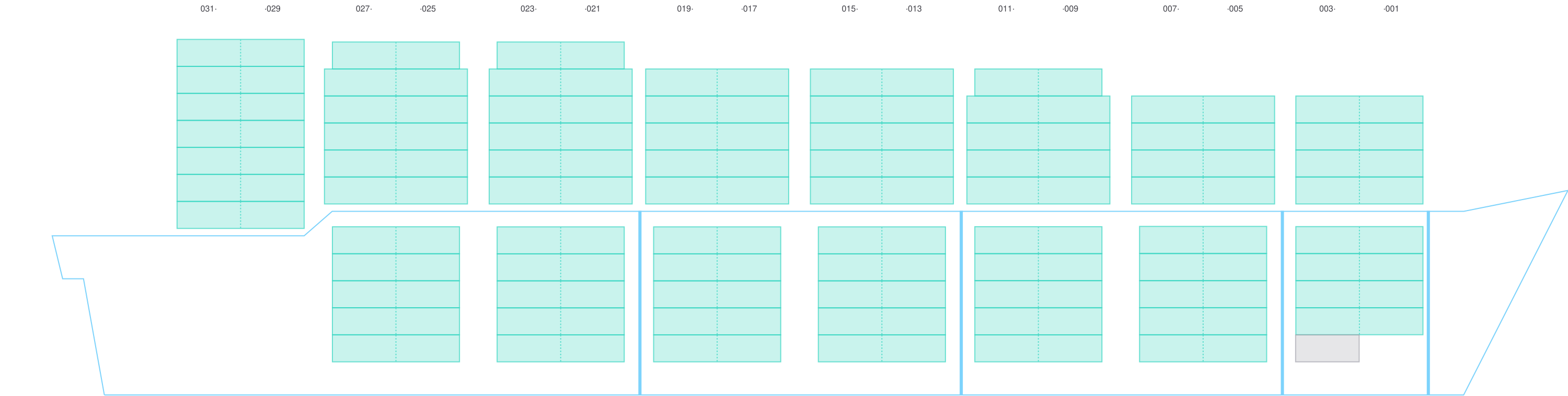

Side View

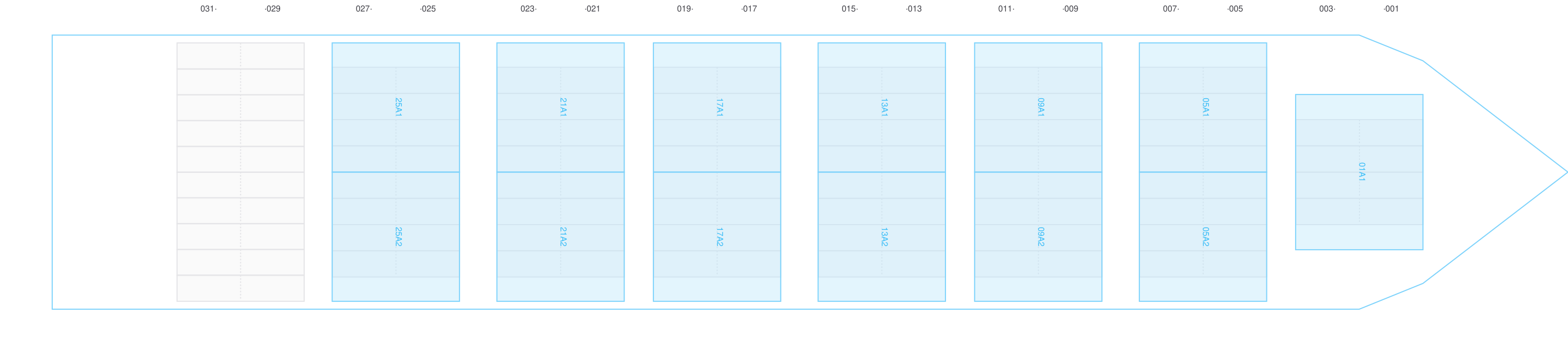

Hatch-Covers View

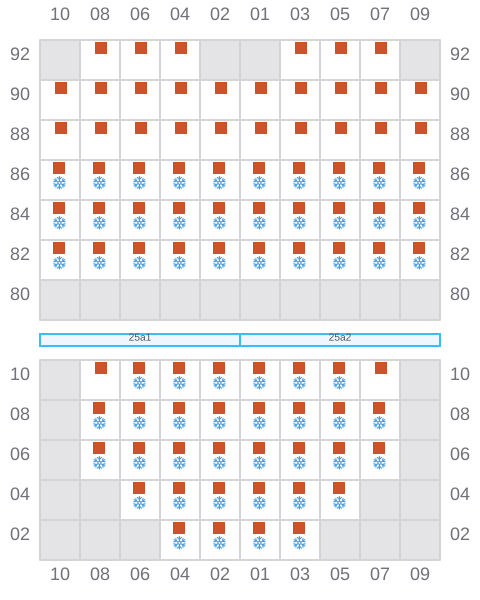

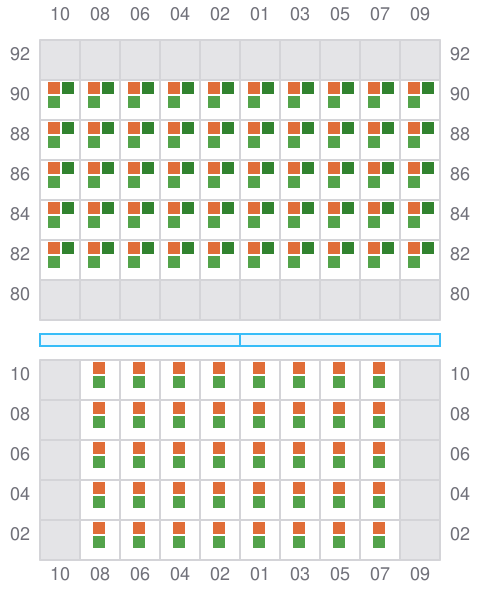

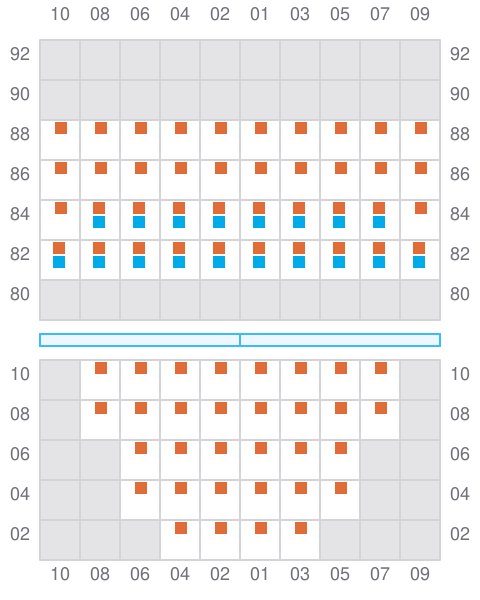

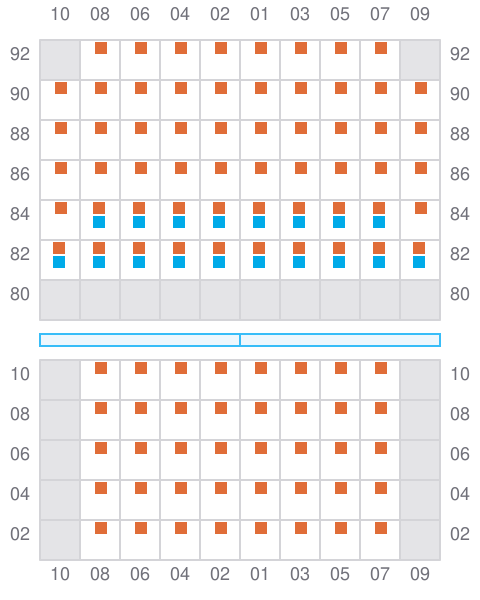

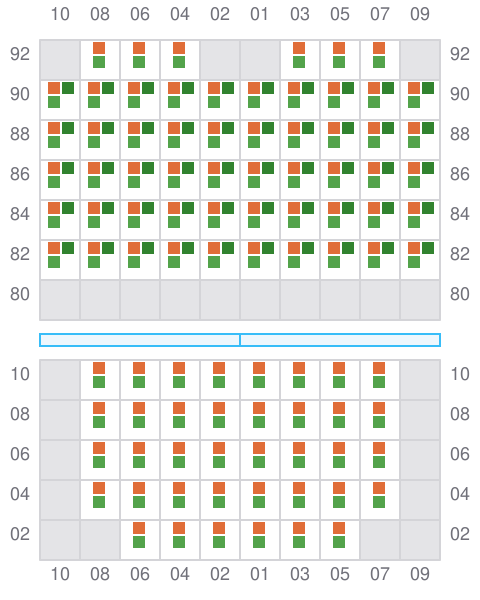

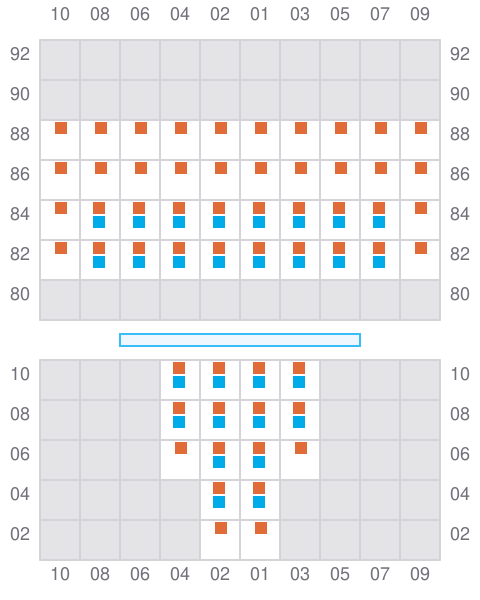

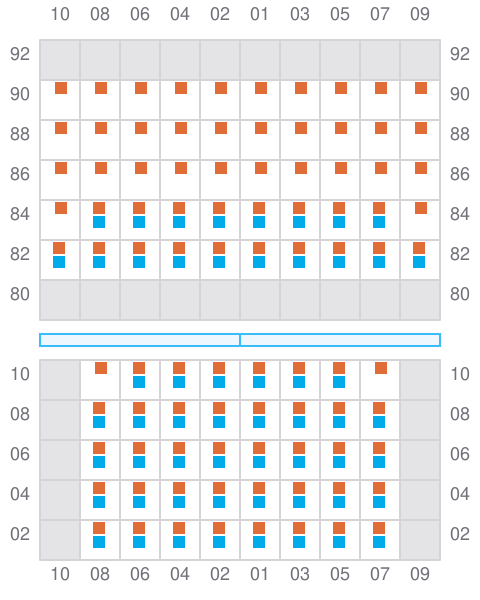

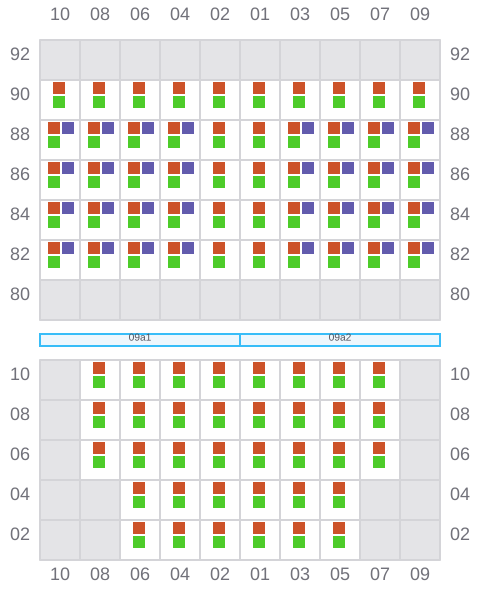

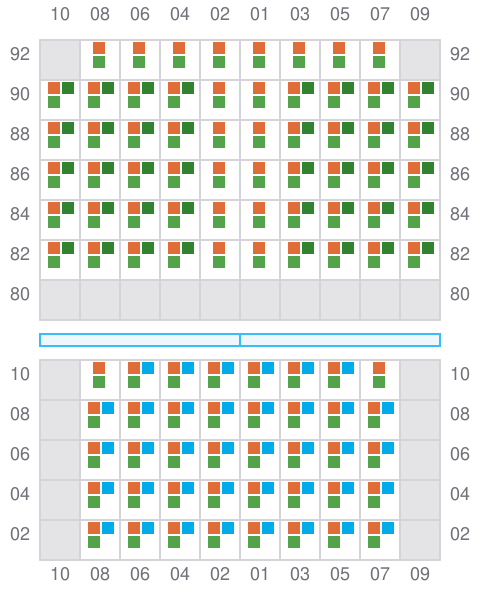

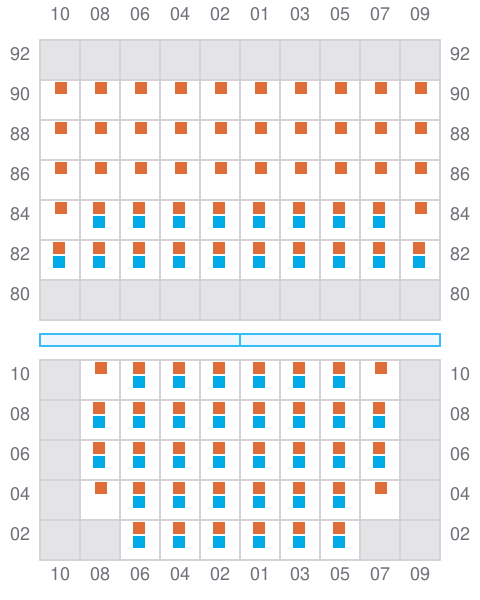

ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot
001 (002)
- →
003
- ←
- →
005 (006)
- →
- ? / ←
007
- ←
- → / ?
009 (010)
- →
011
- ←
- →
013 (014)
- →
- ? / ←
015
- ←
- → / ?
017 (018)
- →
019
- ←
- →
021 (022)
- →
- ? / ←
023
- ←
- → / ?
025 (026)
- →
027
- ←
- →
029 (030)
- → / ?
- → / ?
031
- ← / ?
- → / ?
