TRAIGUEN
9627904 | D5EP4 | MSC by ************************** Last update: Fri Jun 16 2023
General Info
Ship Name:TRAIGUEN
IMO Code:9627904
Call Sign:D5EP4
Line Operator:MSC
Class Name for Sister Ships:CVT
Year Built:2013
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:
Also Known As...:-
Size Summary
ISO Bays:069
Max ISO Row:18
Center Line Row:Yes
Max Above ISO Tier:98
Min Above ISO Tier:78
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:8,628
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

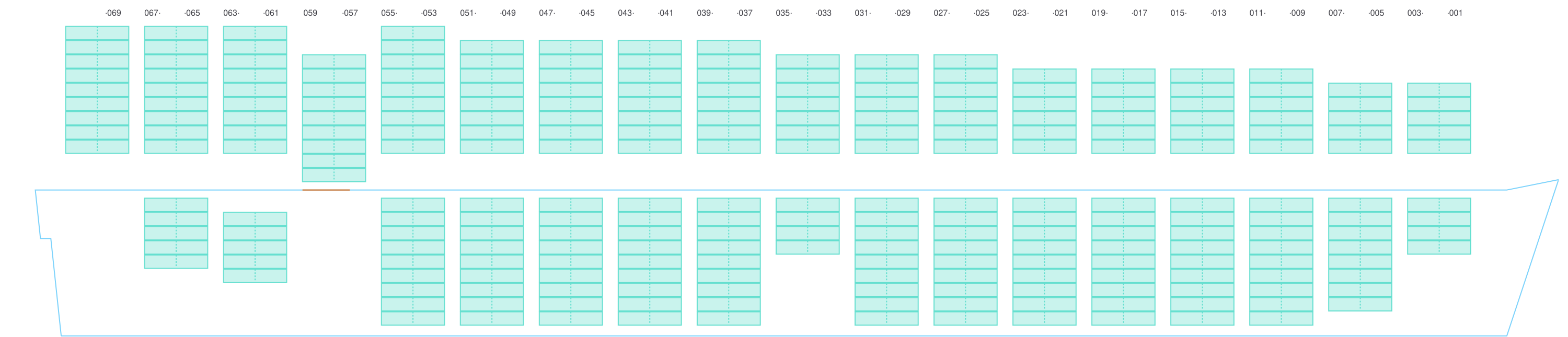

Side View

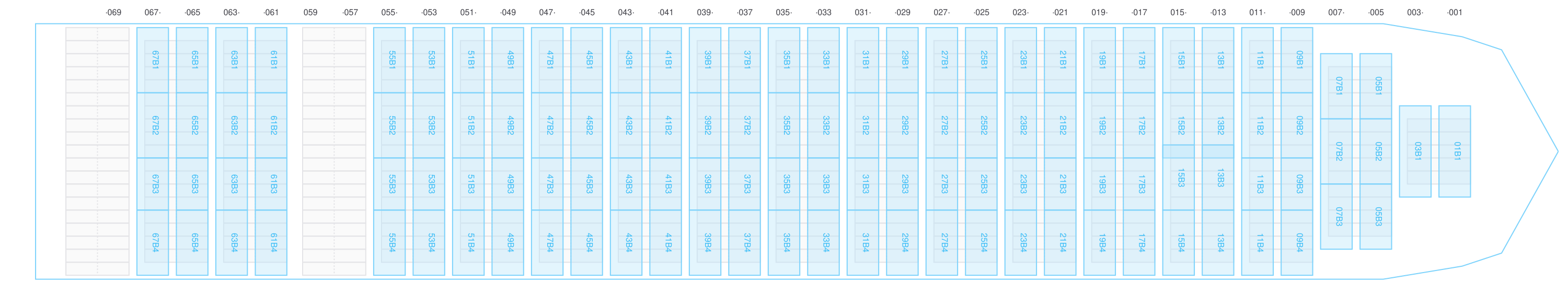

Hatch-Covers View

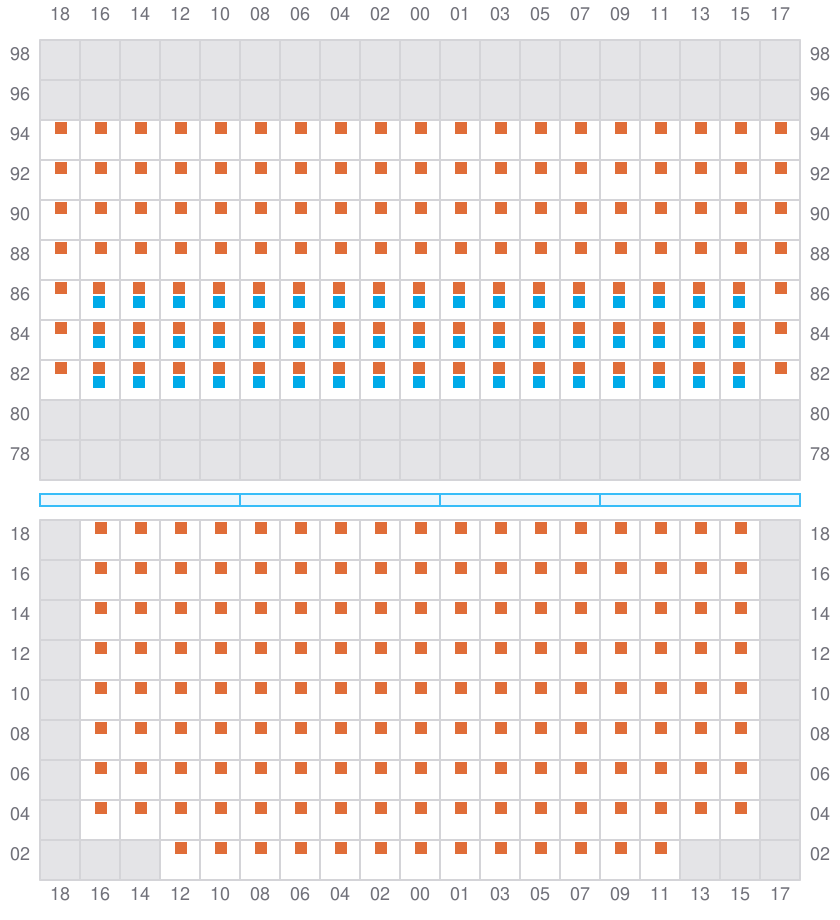

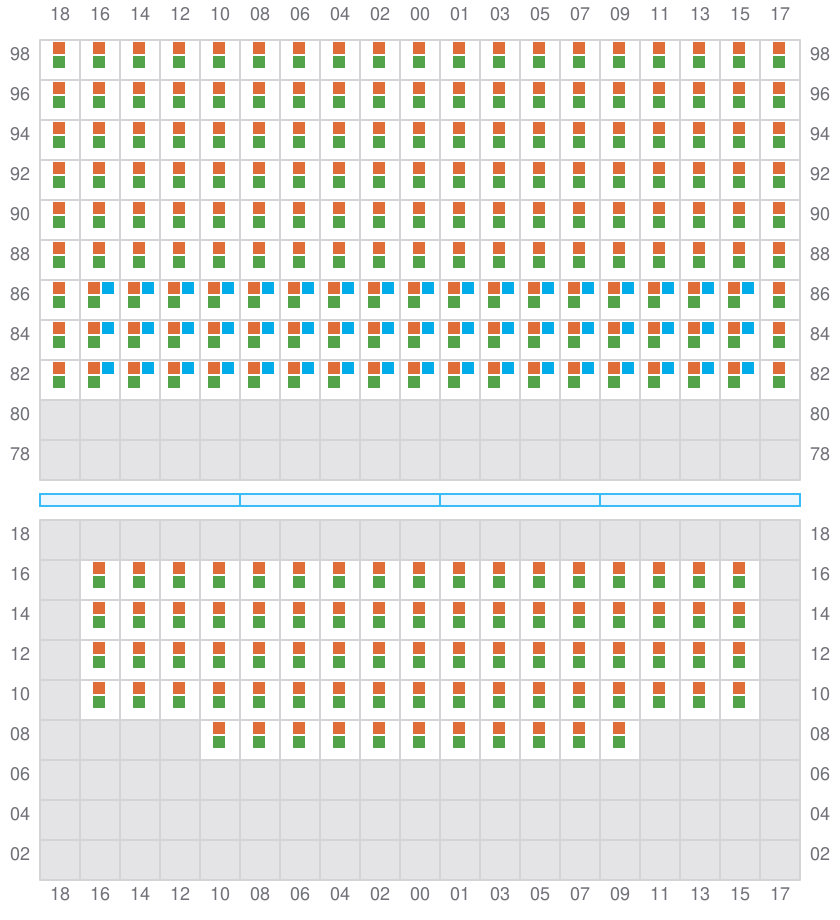

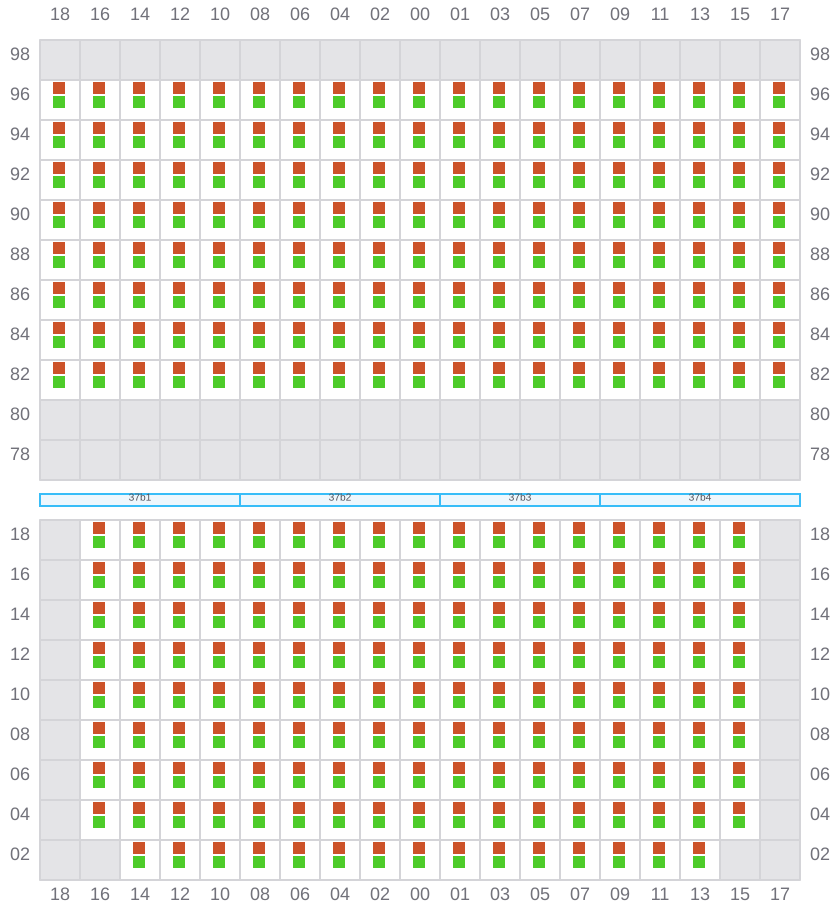

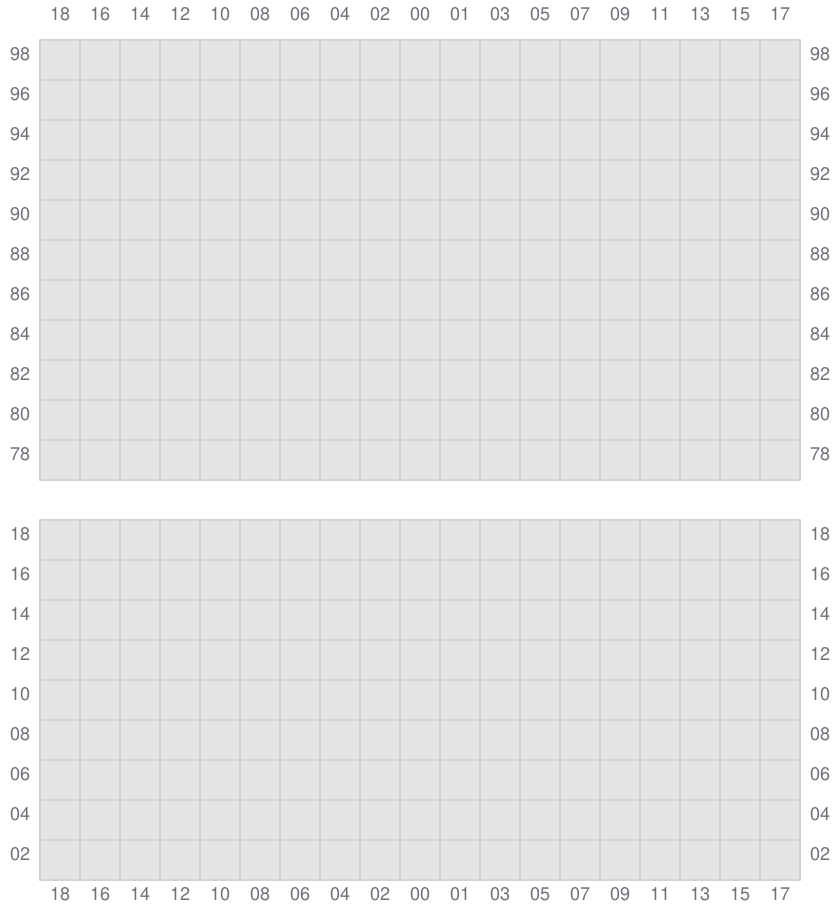

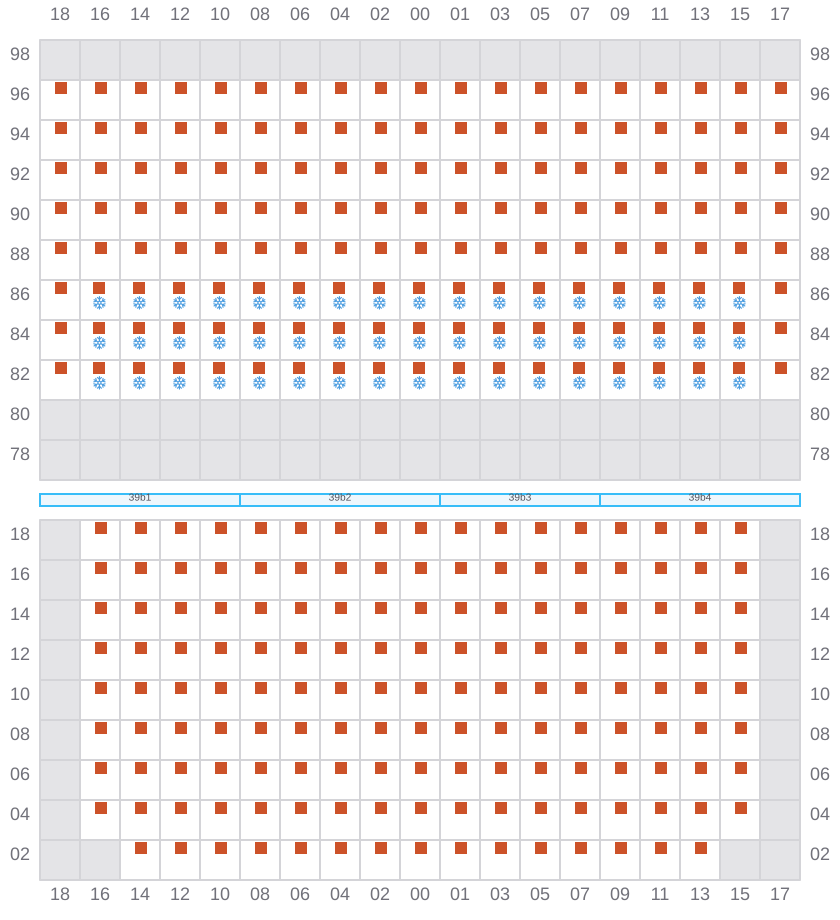

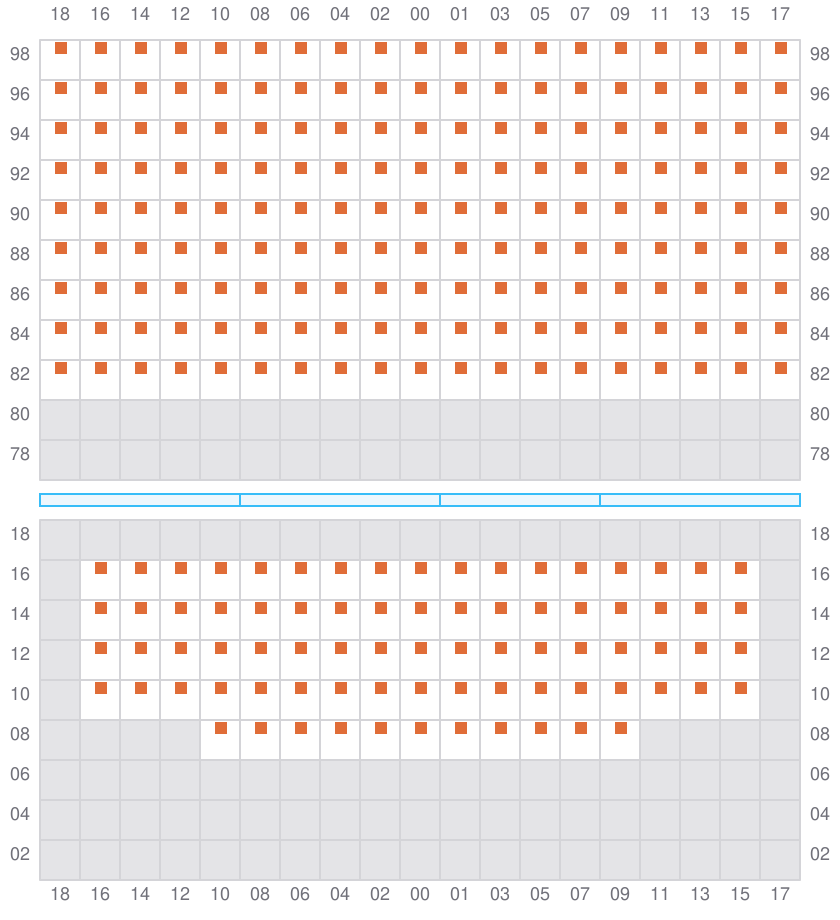

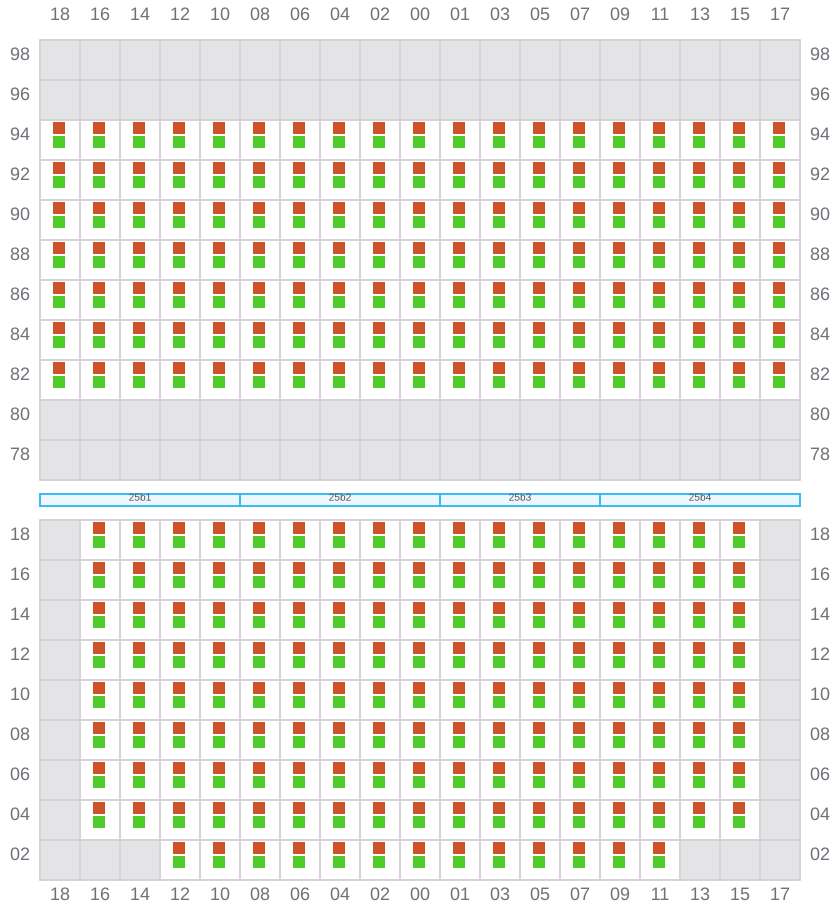

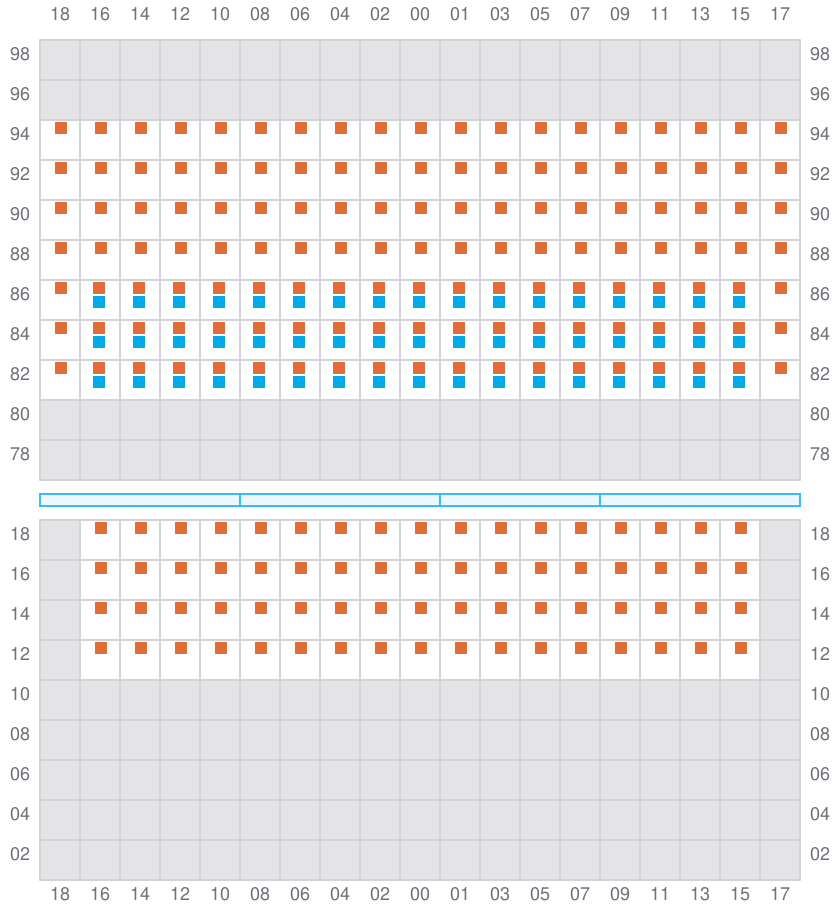

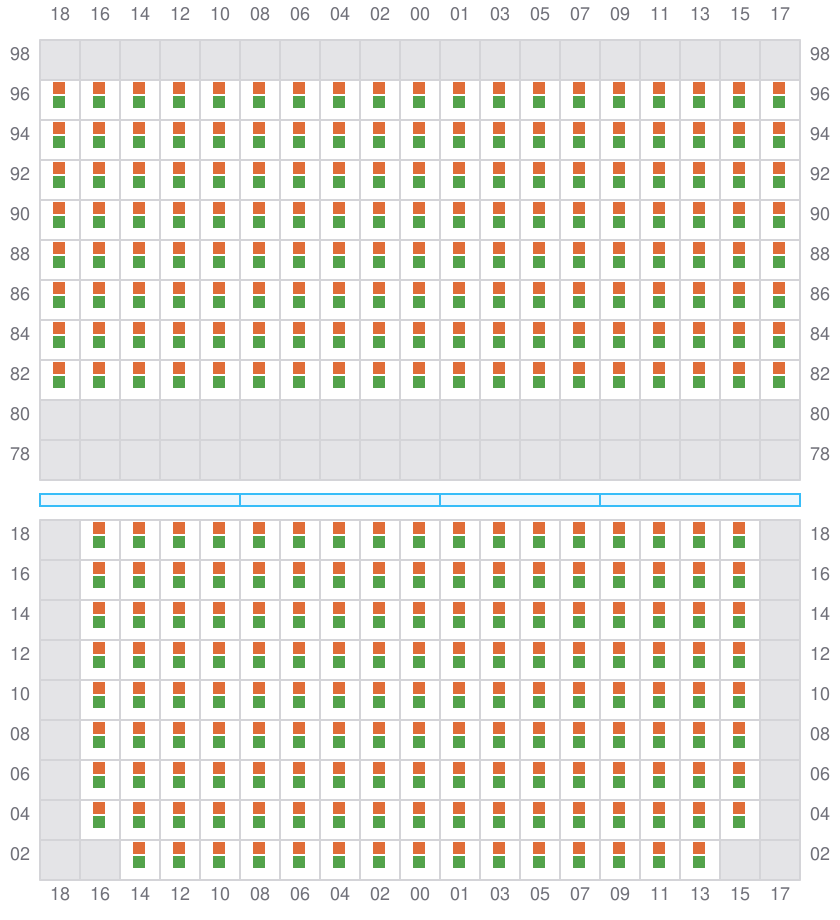

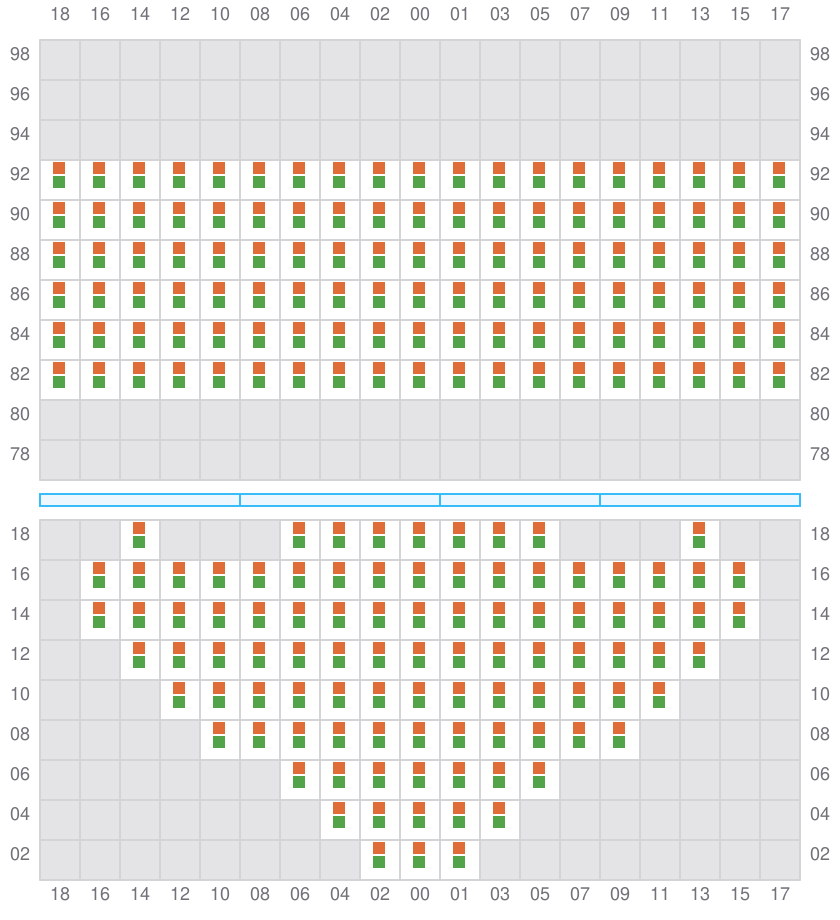

ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot
001 (002)
- →

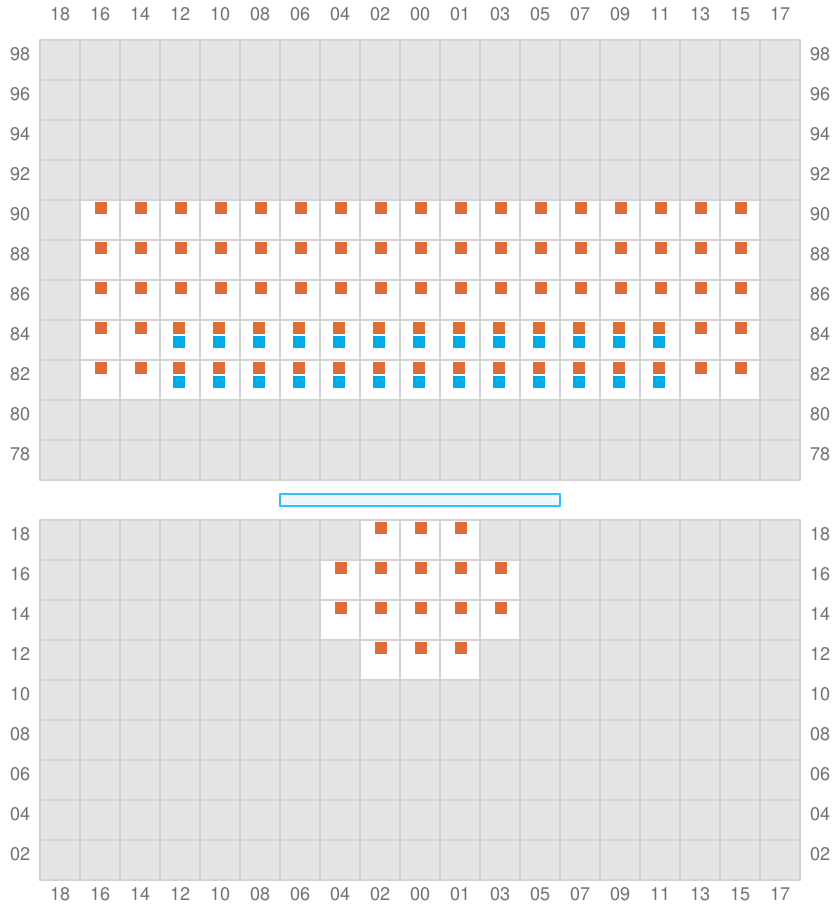

003
- ←
- → / ?

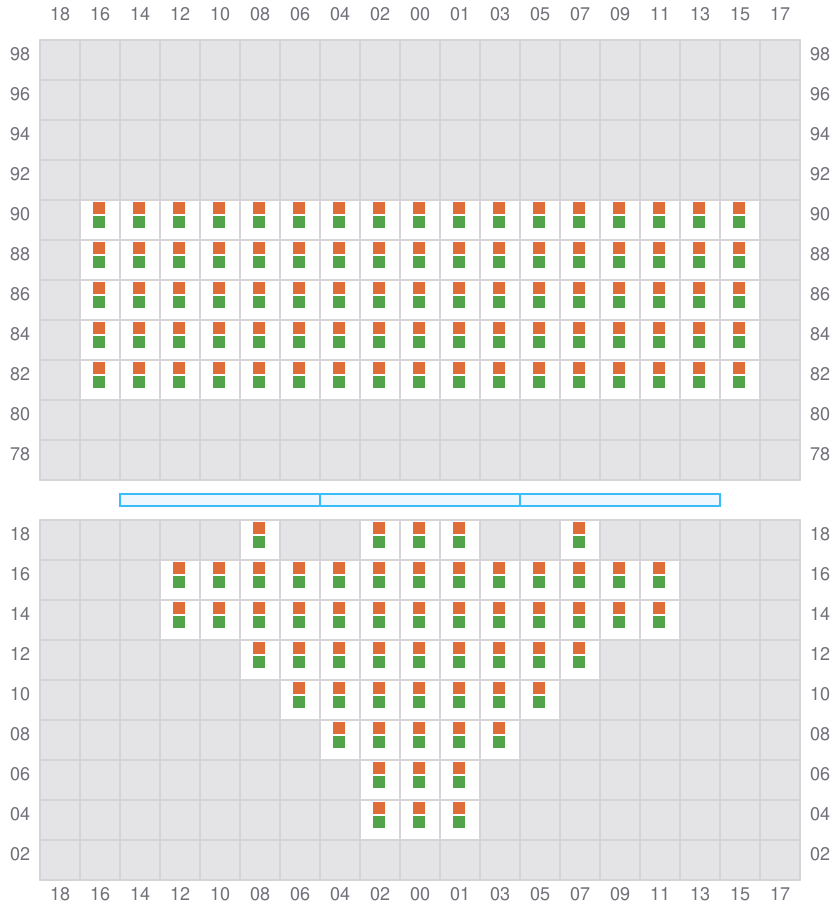

005 (006)
- →

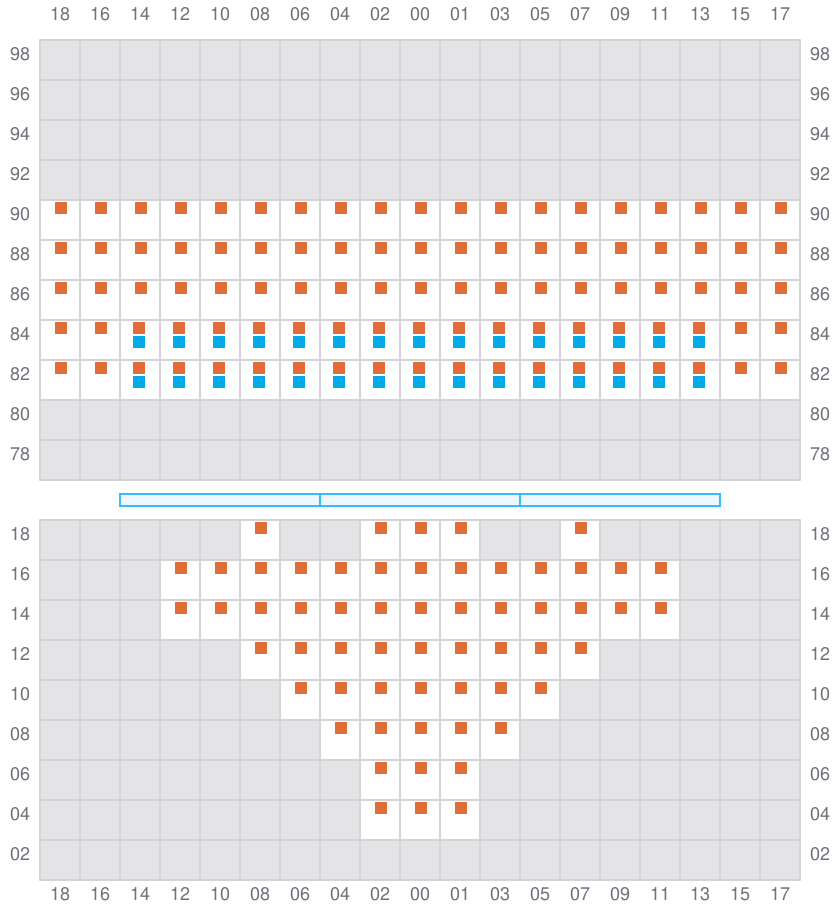

007
- ←
- → / ?
009 (010)
- →
011
- ←
- → / ?
013 (014)
- →
015
- ←
- → / ?
017 (018)
- →
019
- ←
- → / ?
021 (022)
- →
023
- ←
- → / ?
025 (026)
- →
027
- ←
- → / ?

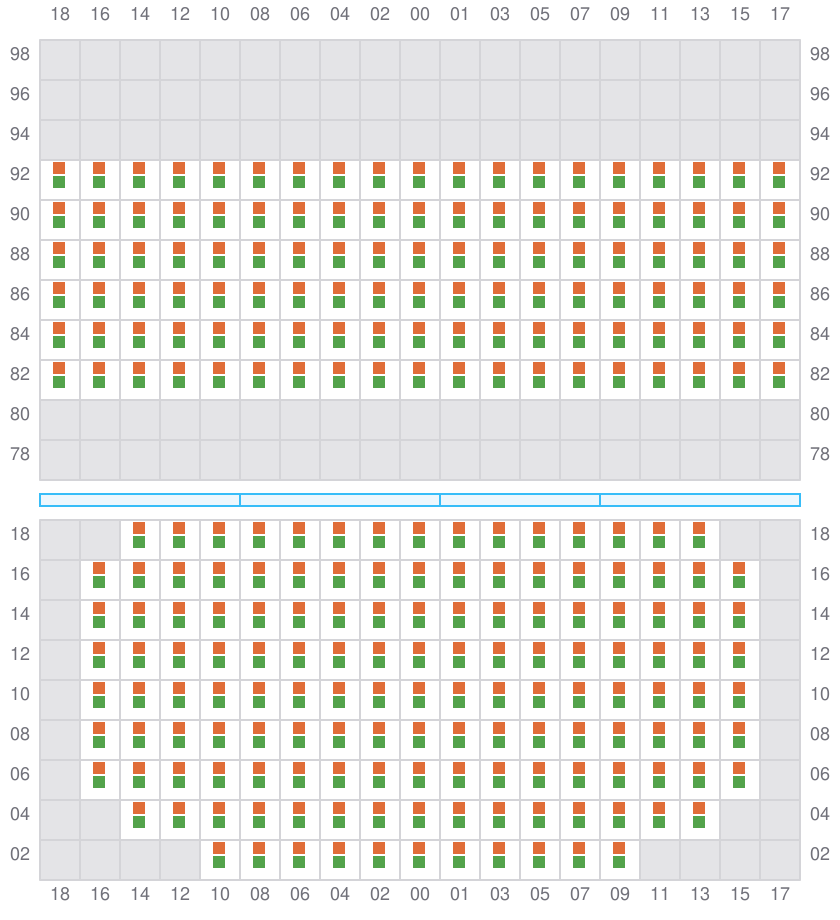

029 (030)
- →

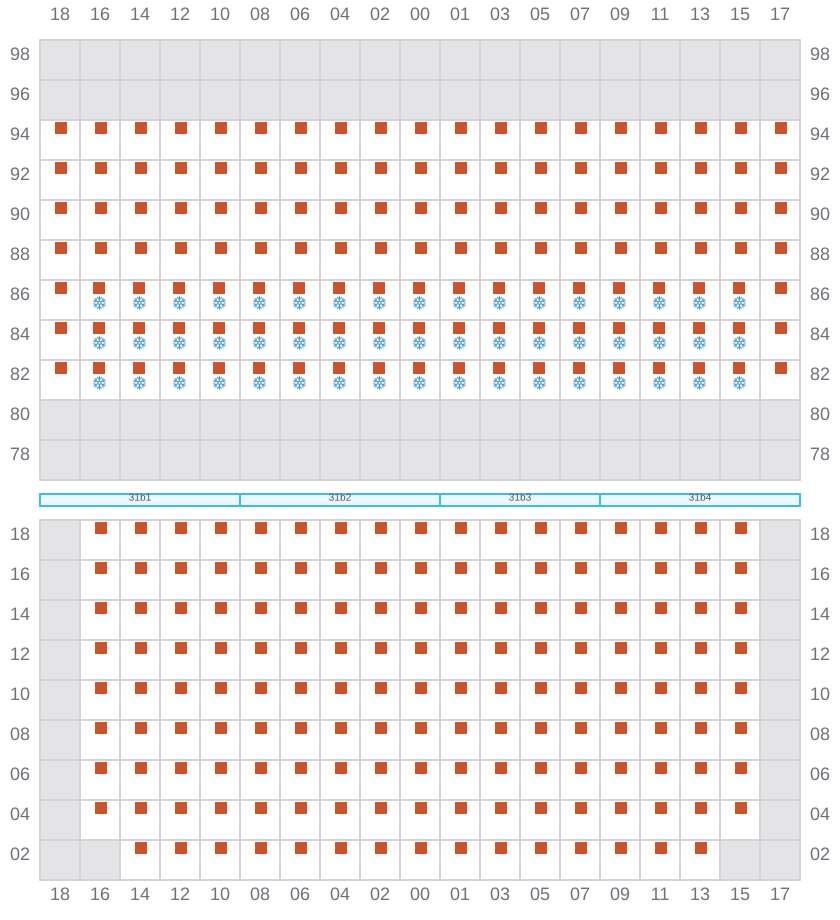

031
- ←
- → / ?

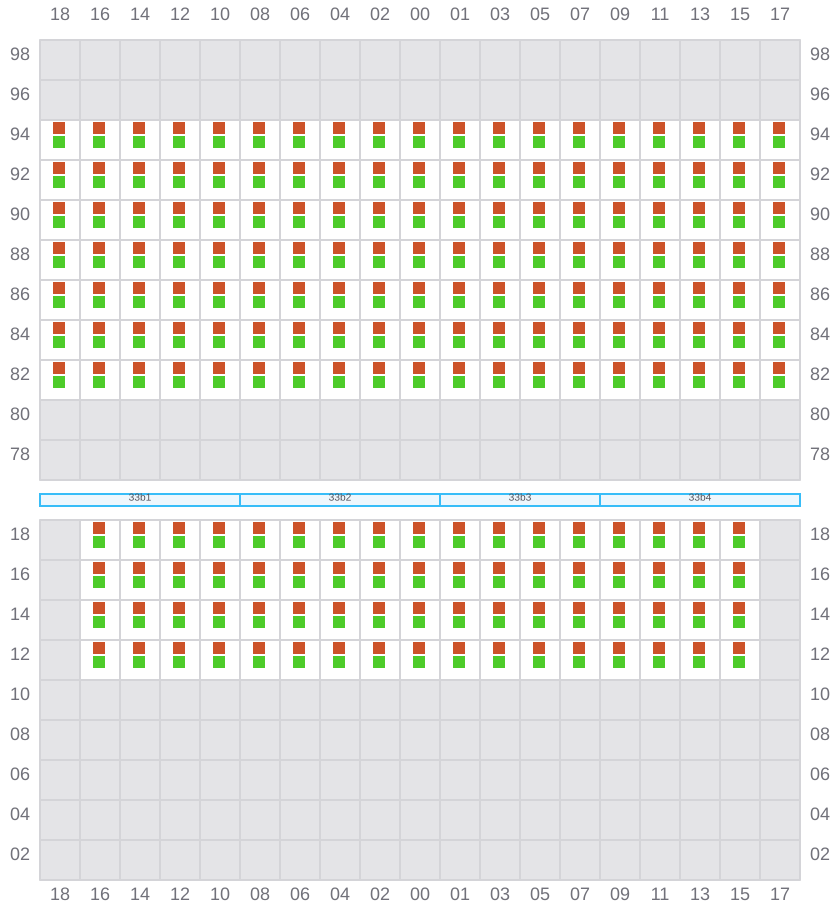

033 (034)
- →
035
- ←
- → / ?
037 (038)
- →
039
- ←
- → / ?
041 (042)
- →
043
- ←
- → / ?
045 (046)
- →
047
- ←
- → / ?
049 (050)
- →
051
- ←
- →
053 (054)
- →
055
- ←
- → / ?
057 (058)
- → / ?
- ← / ?
059
061 (062)
- →
- ← / ?
063
- ←
065 (066)
- →
- ← / ?
067
- ←

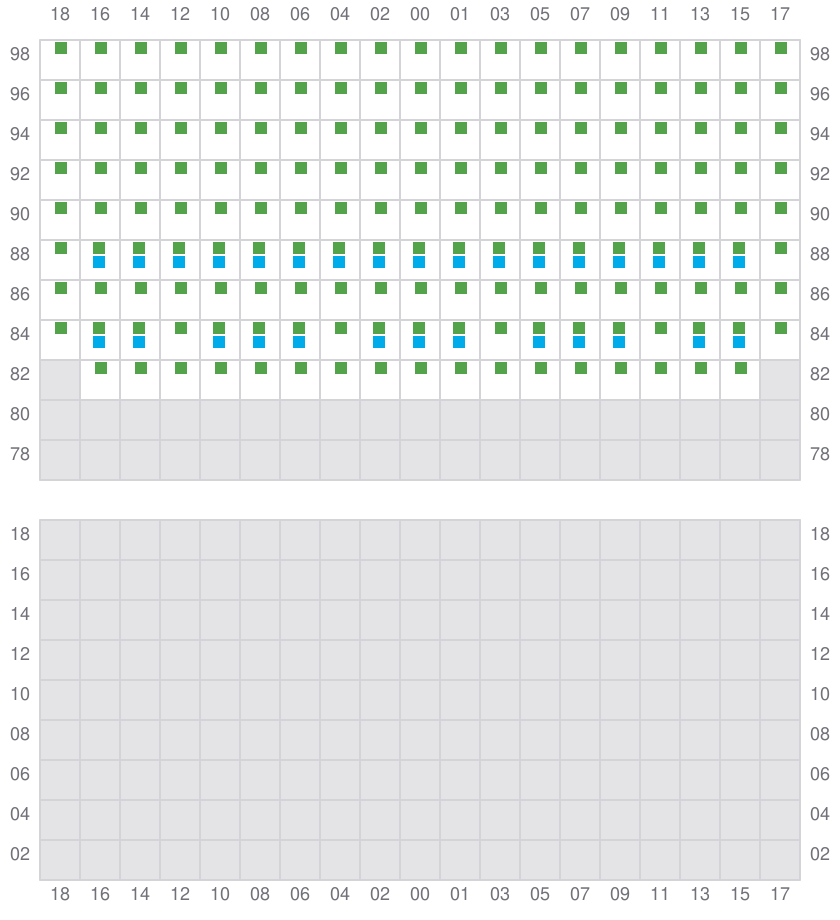

069 (070)
- → / ?
- ← / ?
