TRANSIMEX SUN
9522776 | XVLI9 | TRANSCO by ************************************** Last update: Fri Jan 24 2025
General Info
Ship Name:TRANSIMEX SUN
IMO Code:9522776
Call Sign:XVLI9
Line Operator:TRANSCO
Class Name for Sister Ships:N/A
Year Built:2009
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):147.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:031
Max ISO Row:10
Center Line Row:Yes
Max Above ISO Tier:88
Min Above ISO Tier:80
Max Below ISO Tier:10
Min Below ISO Tier:00
Total TEU:1,062
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

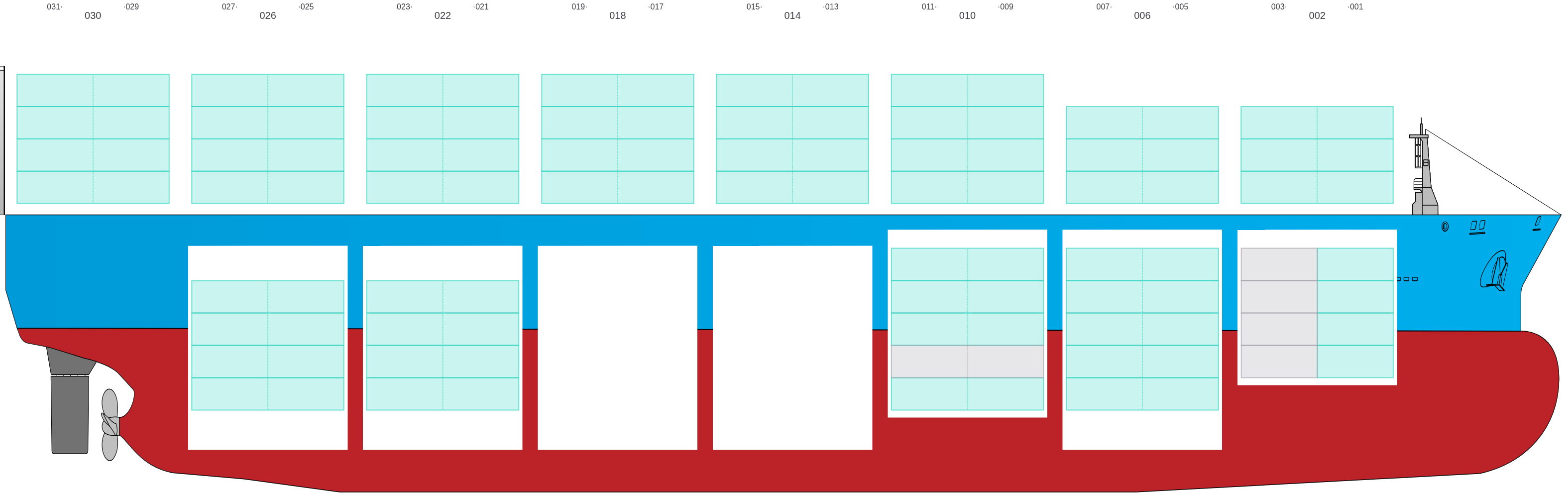

Side View

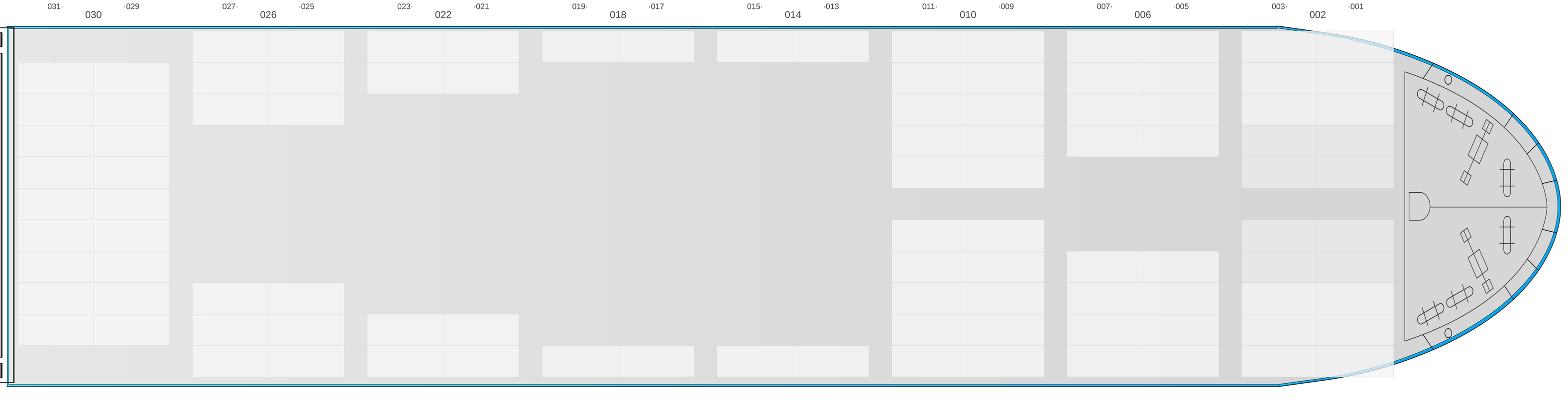

Hatch-Covers View
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

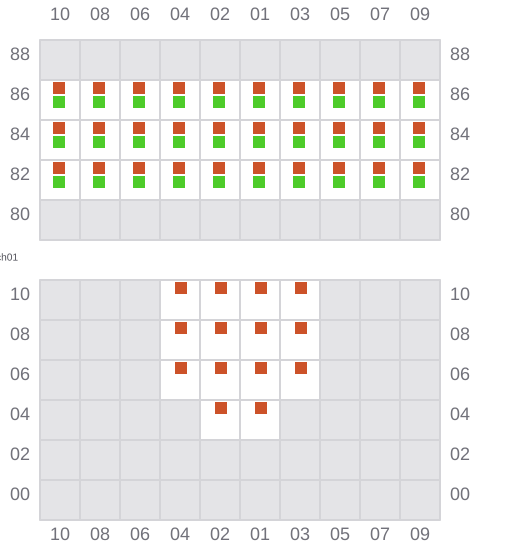

001 (002)
- →
- ✓

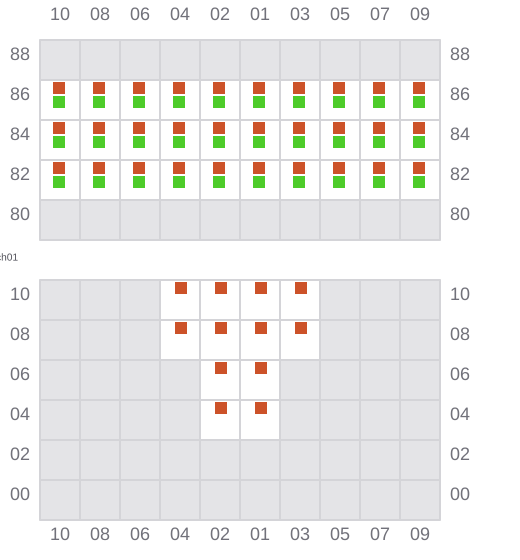

003 (002)
- ←
- ✓

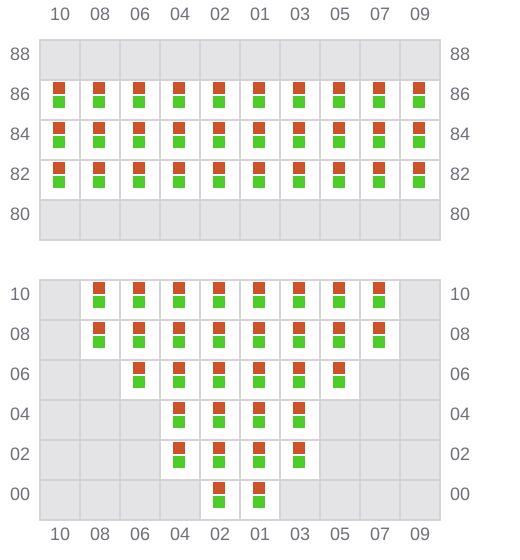

005 (006)
- →
- ✓
007 (006)
- ←
- ✓
009 (010)
- →
- ✓
011 (010)
- ←
- ✓
013 (014)
- →
- ✓
015 (014)
- ←
- ✓
017 (018)
- →
- ✓
019 (018)
- ←
- ✓

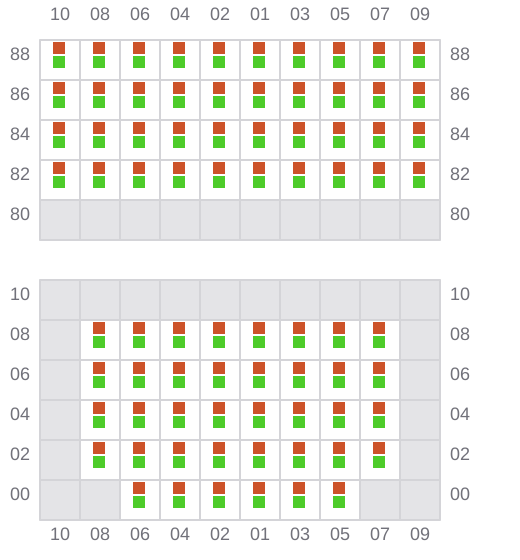

021 (022)
- →
- ✓
023 (022)
- ←
- ✓
025 (026)
- →
- ✓
027 (026)
- ←
- ✓

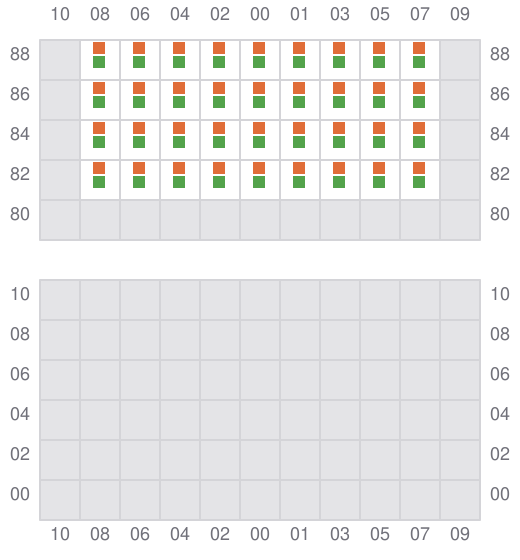

029 (030)
- →
- ? / ?
- ? / ?
- ✓
031 (030)
- ←
- ? / ?
- ? / ?
- ✓
