TS DALIAN
9348857 | V7A5115 | 9348857 by ********* Last update: Tue Jul 23 2024

General Info

Ship Name:TS DALIAN
IMO Code:9348857
Call Sign:V7A5115
Line Operator:9348857
Class Name for Sister Ships:CSAV
Year Built:2007
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:069
Max ISO Row:18
Center Line Row:No
Max Above ISO Tier:96
Min Above ISO Tier:80
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:8,004

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

Side View

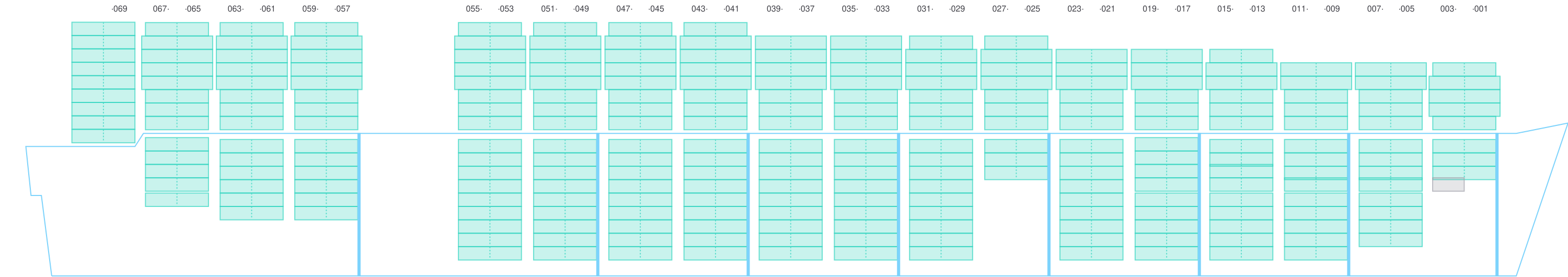

Side view of TS DALIAN

Hatch-Covers View

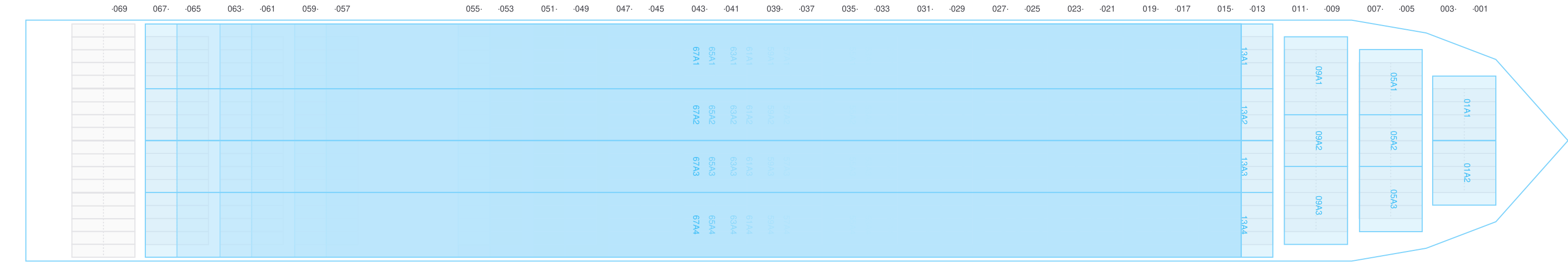

Deck view of TS DALIAN

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001 (002)

  • →

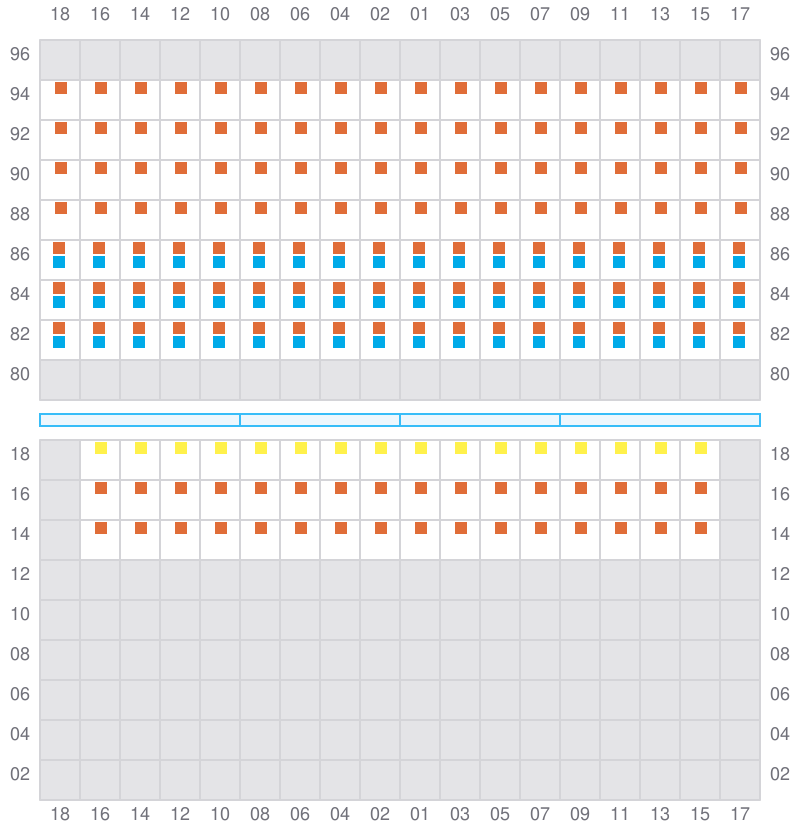

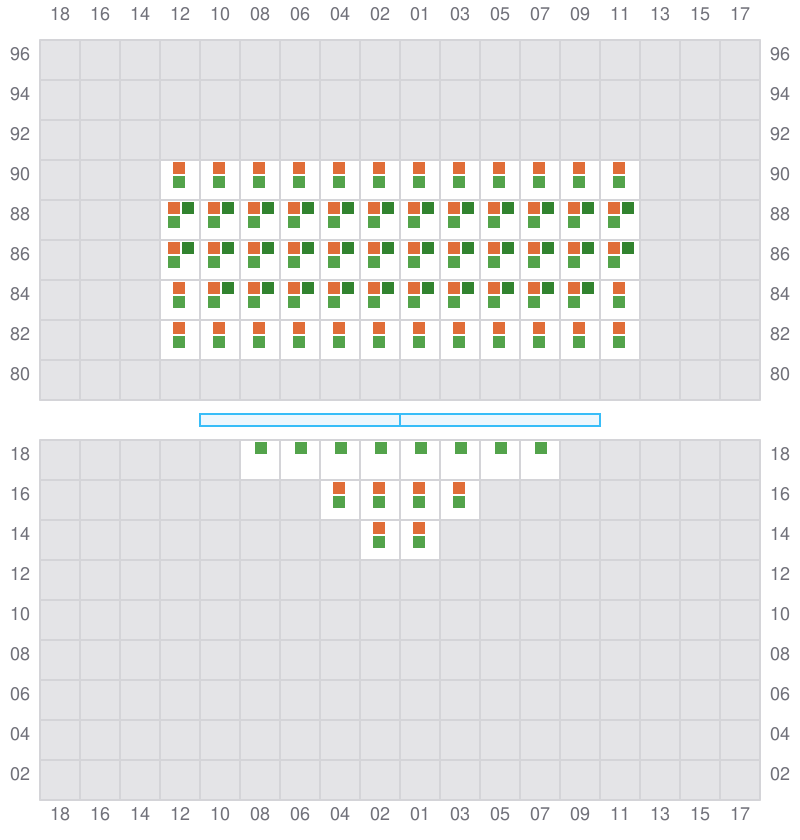

Bay 001 view and slots of TS DALIAN

003

  • ←

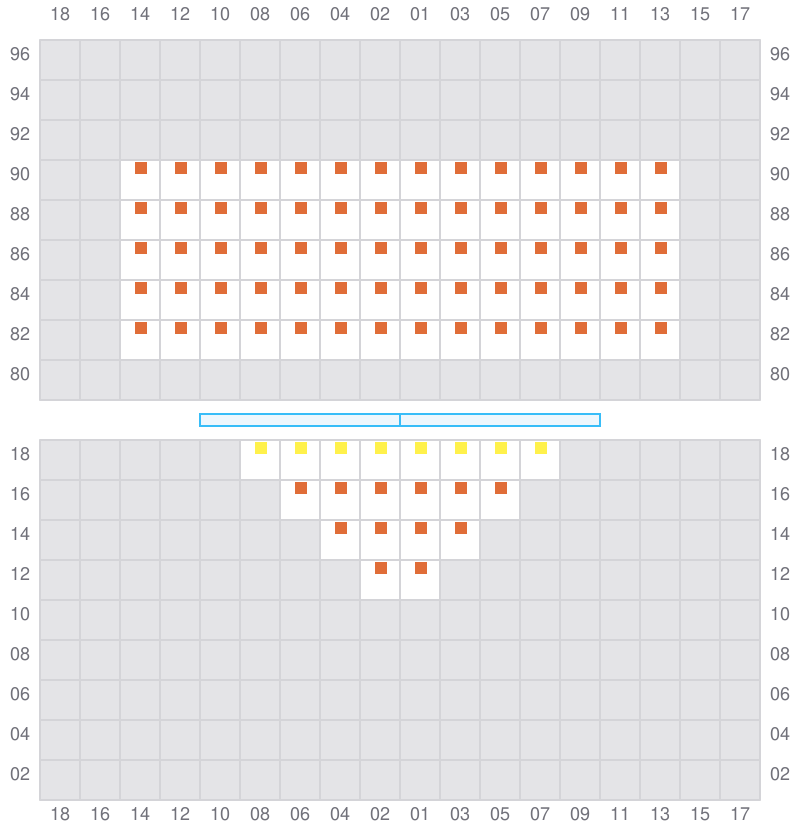

Bay 003 view and slots of TS DALIAN

005 (006)

  • →

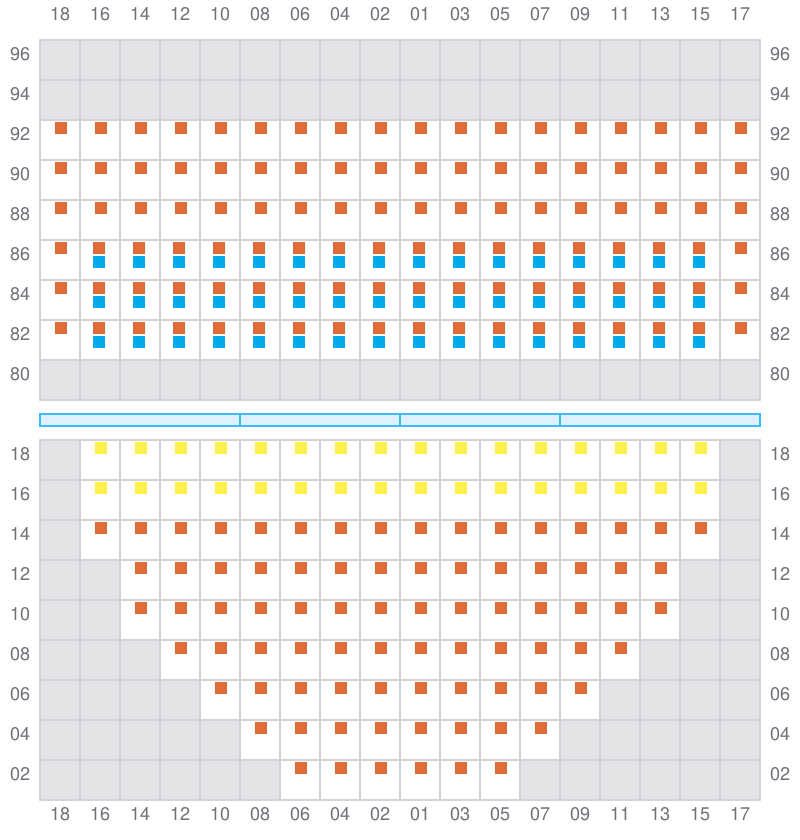

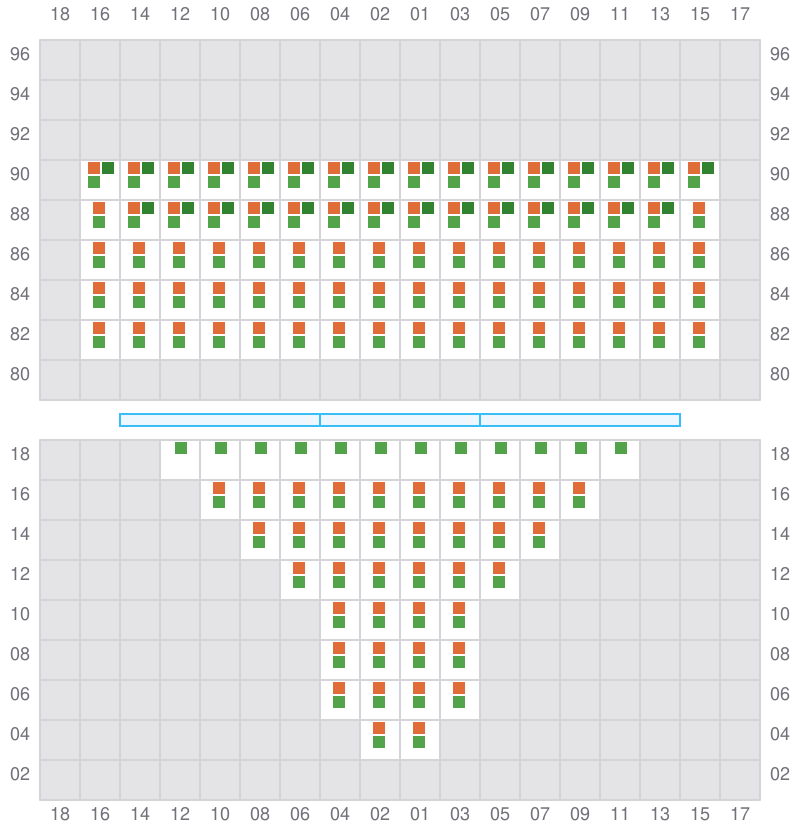

Bay 005 view and slots of TS DALIAN

007

  • ←
  • → / ?

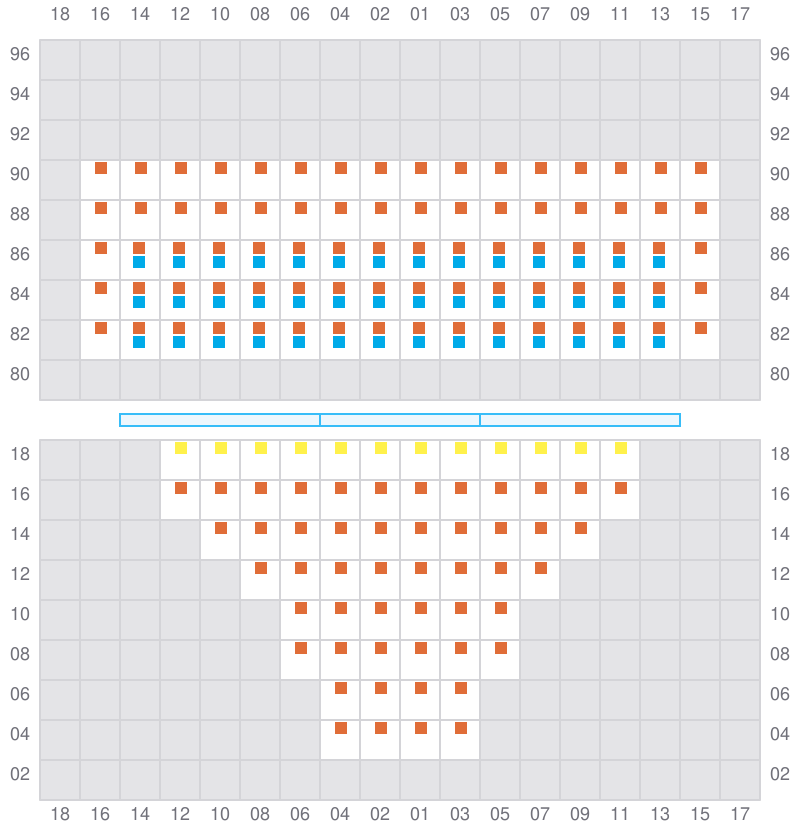

Bay 007 view and slots of TS DALIAN

009 (010)

  • →

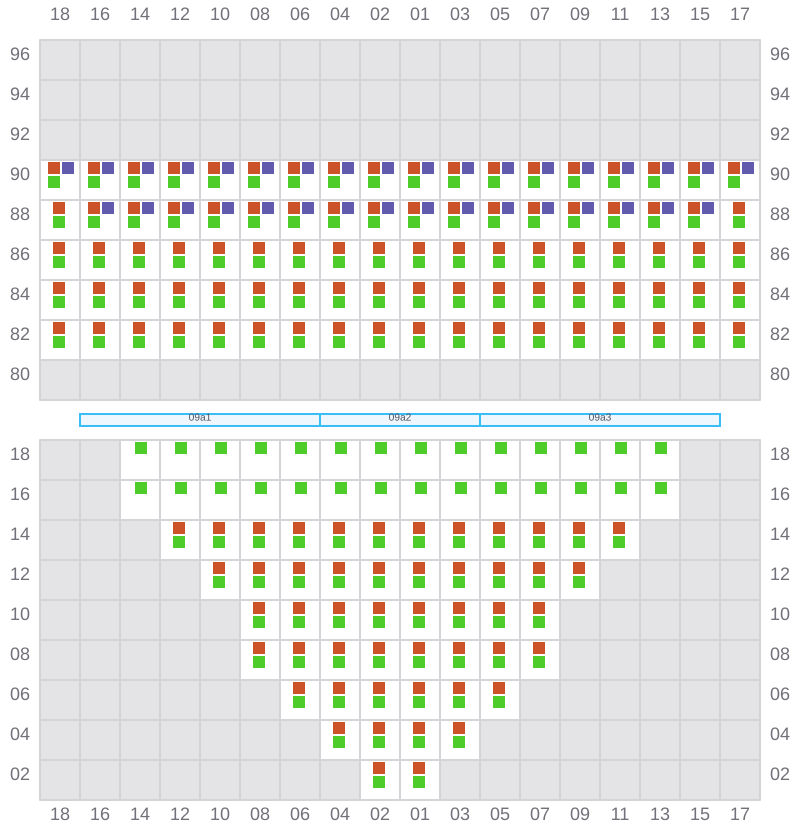

Bay 009 view and slots of TS DALIAN

011

  • ←
  • → / ?

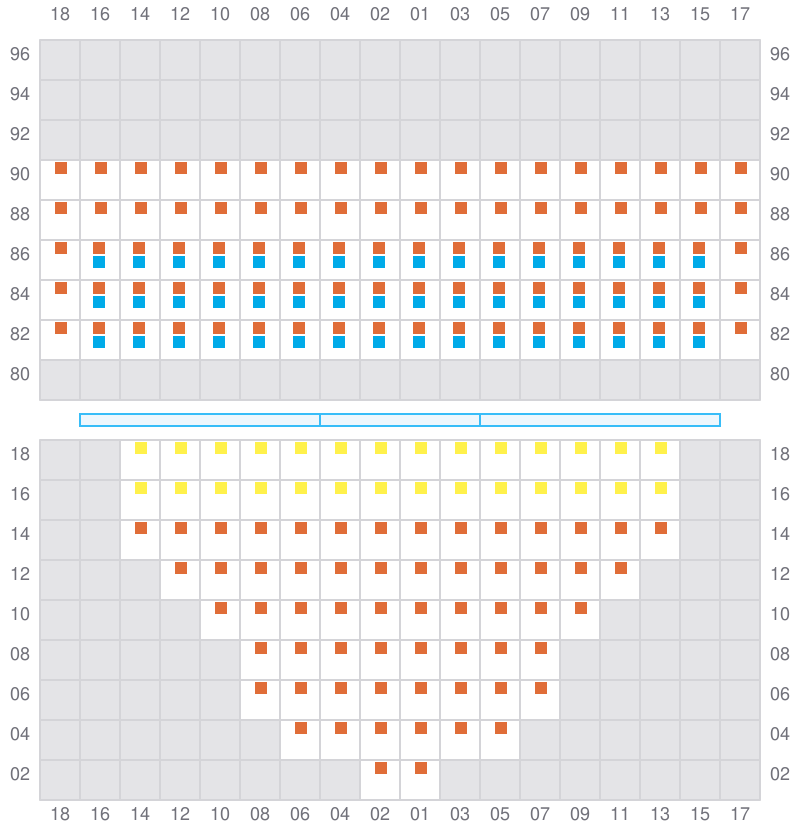

Bay 011 view and slots of TS DALIAN

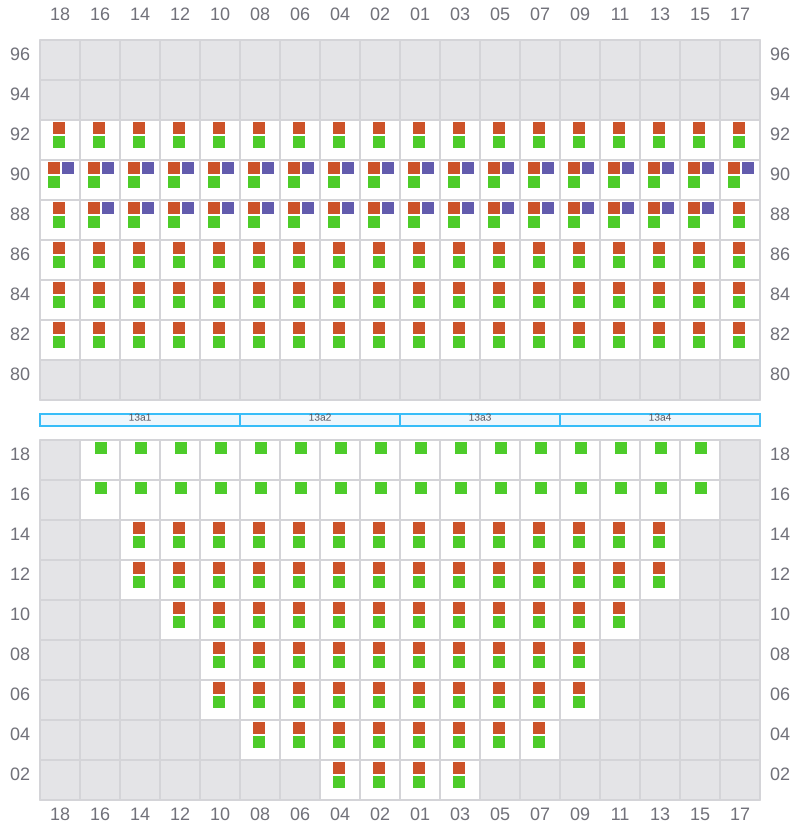

013 (014)

  • →
Bay 013 view and slots of TS DALIAN

015

  • ←
  • → / ?
Bay 015 view and slots of TS DALIAN

017 (018)

  • →

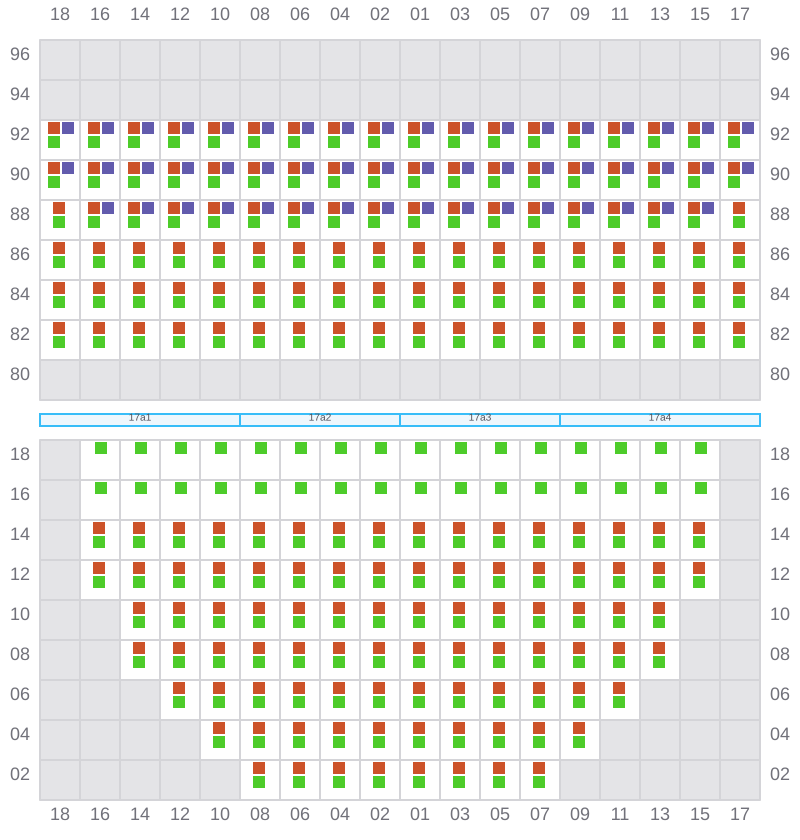

Bay 017 view and slots of TS DALIAN

019

  • ←
  • →

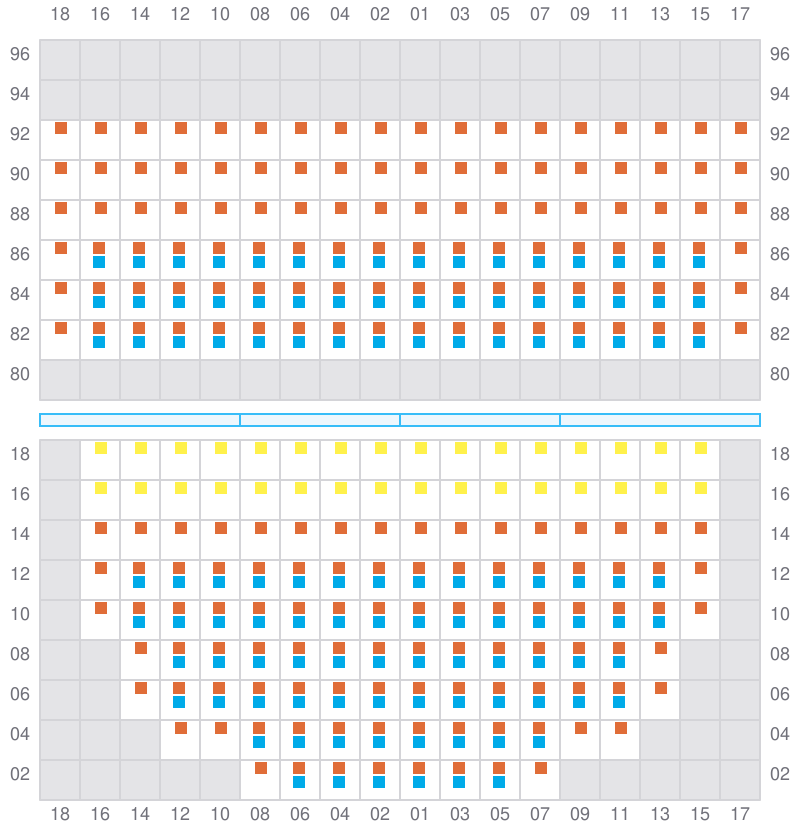

Bay 019 view and slots of TS DALIAN

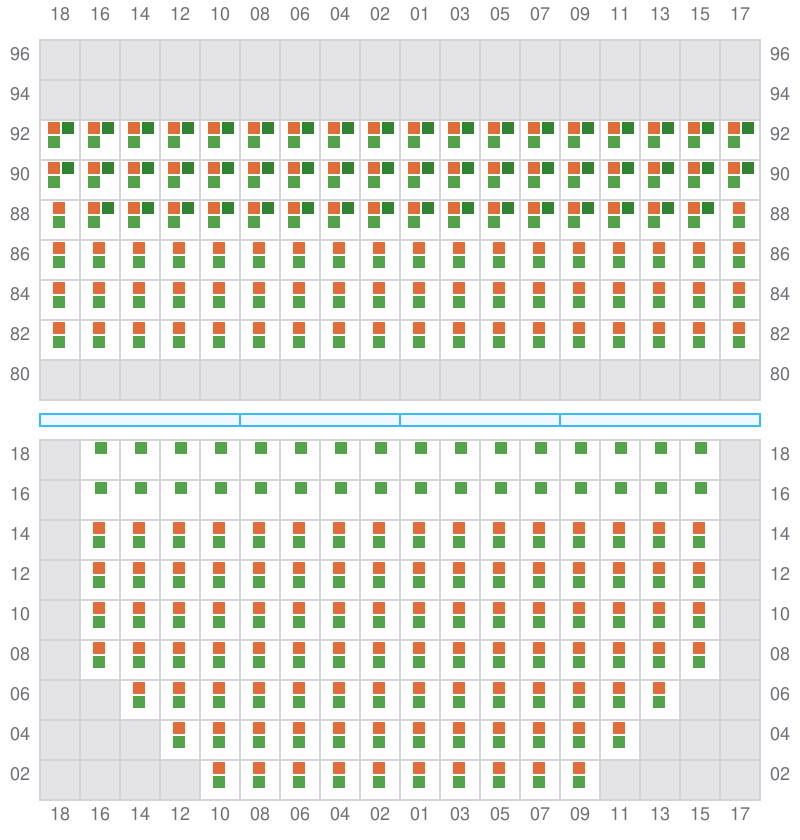

021 (022)

  • →
Bay 021 view and slots of TS DALIAN

023

  • ←
  • →

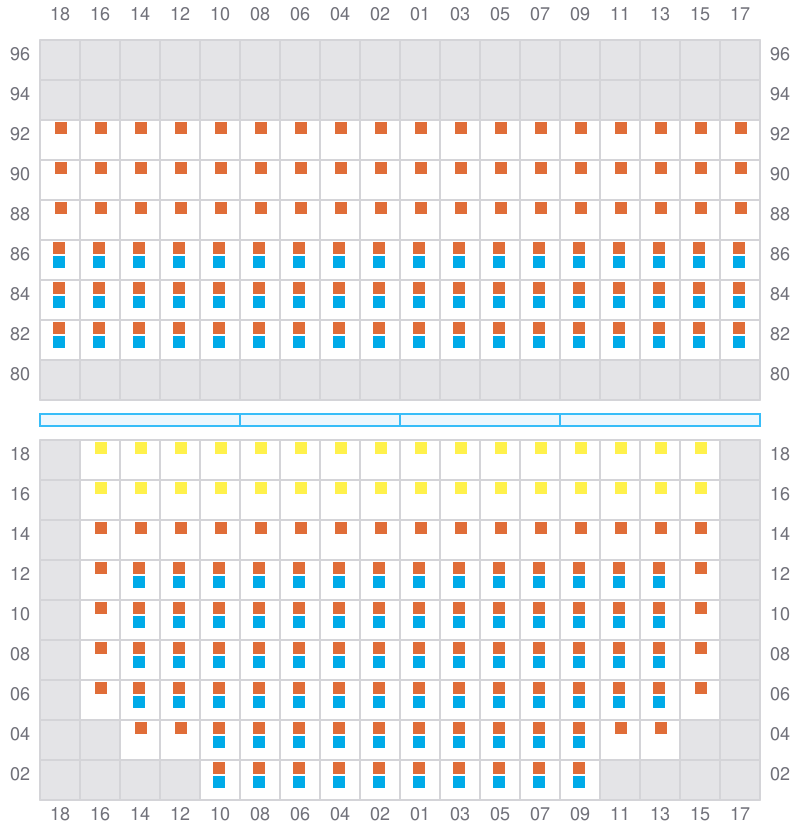

Bay 023 view and slots of TS DALIAN

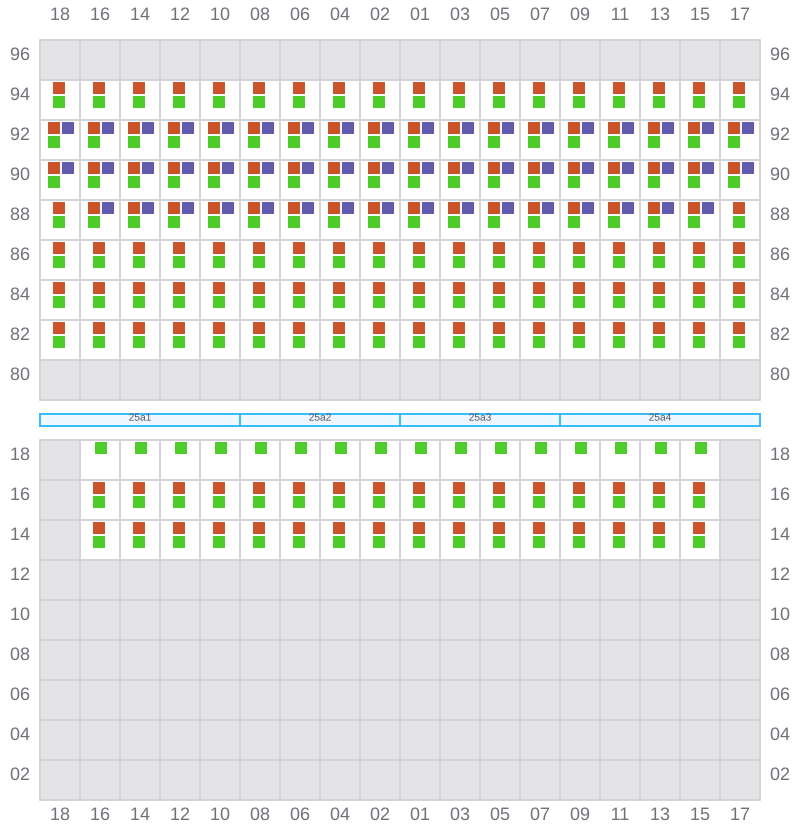

025 (026)

  • →
Bay 025 view and slots of TS DALIAN

027

  • ←
  • → / ?
Bay 027 view and slots of TS DALIAN

029 (030)

  • →

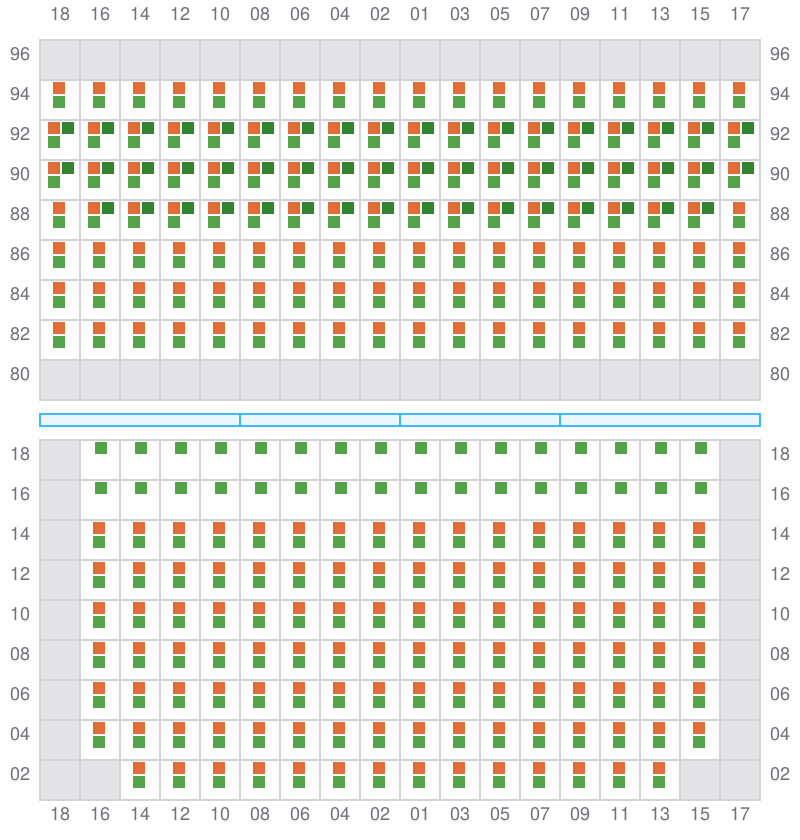

Bay 029 view and slots of TS DALIAN

031

  • ←
  • → / ?

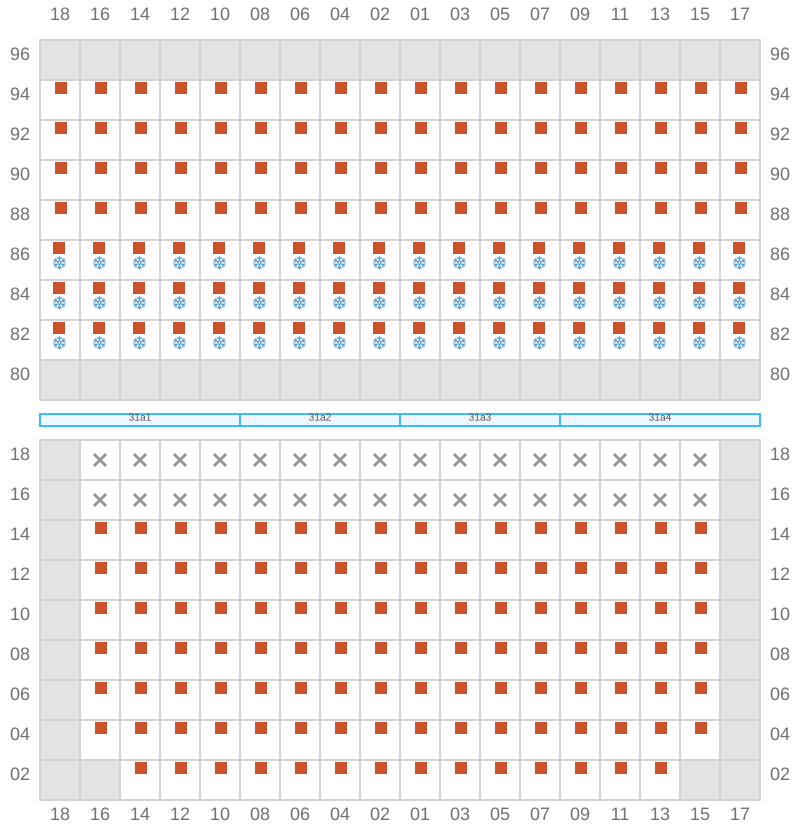

Bay 031 view and slots of TS DALIAN

033 (034)

  • →

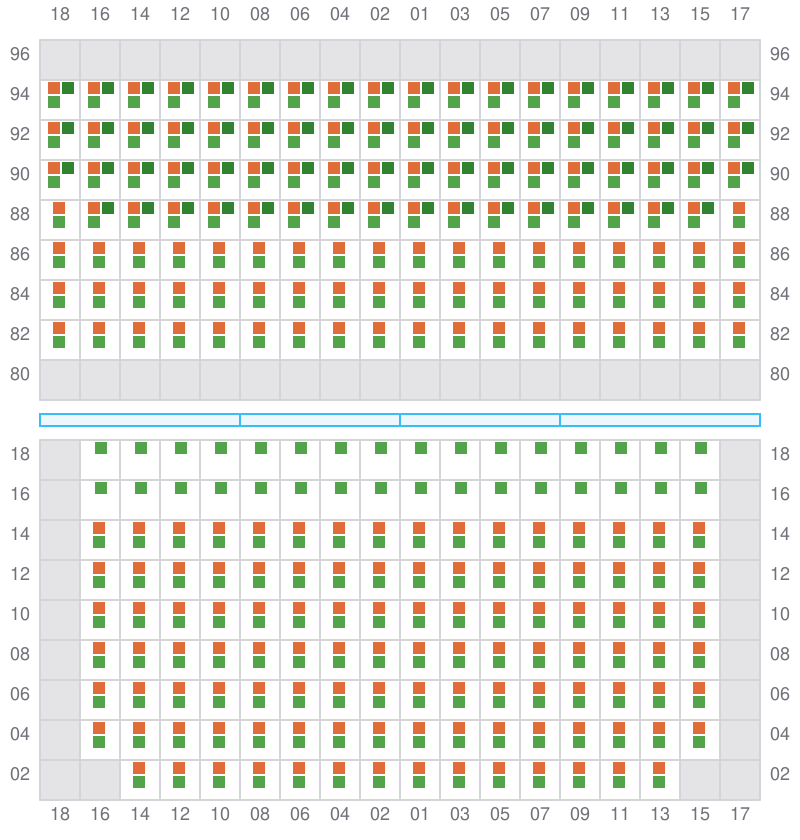

Bay 033 view and slots of TS DALIAN

035

  • ←
  • →
Bay 035 view and slots of TS DALIAN

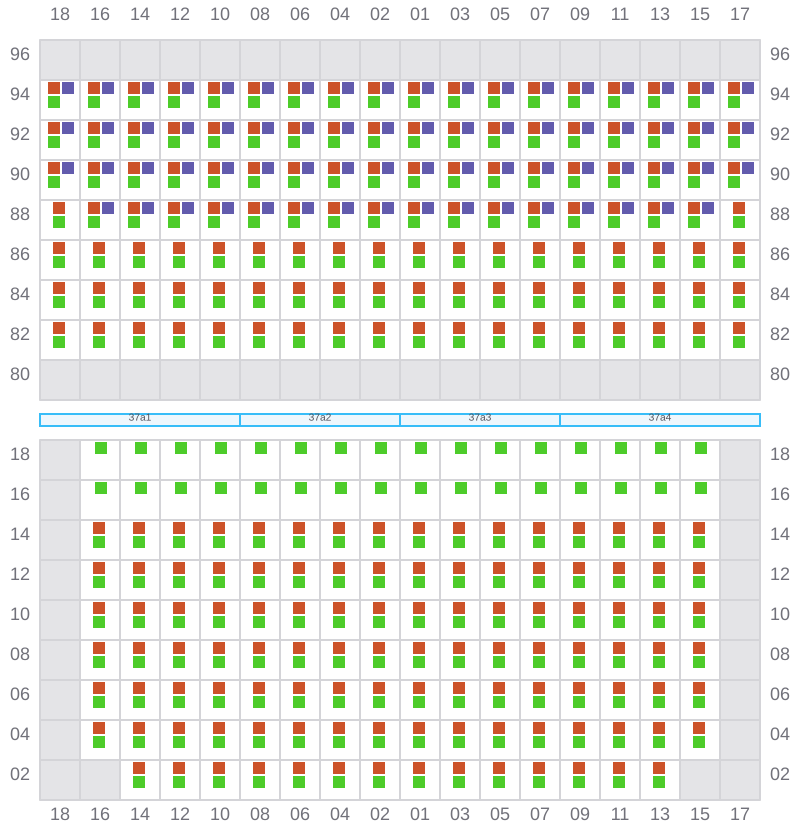

037 (038)

  • →
Bay 037 view and slots of TS DALIAN

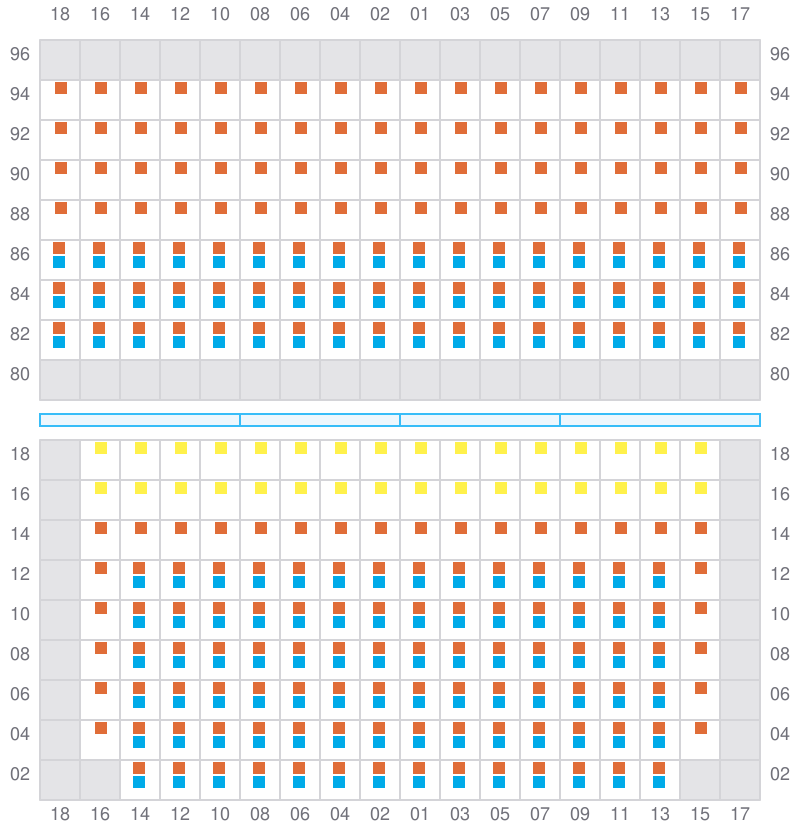

039

  • ←
  • →
Bay 039 view and slots of TS DALIAN

041 (042)

  • →
Bay 041 view and slots of TS DALIAN

043

  • ←
  • →

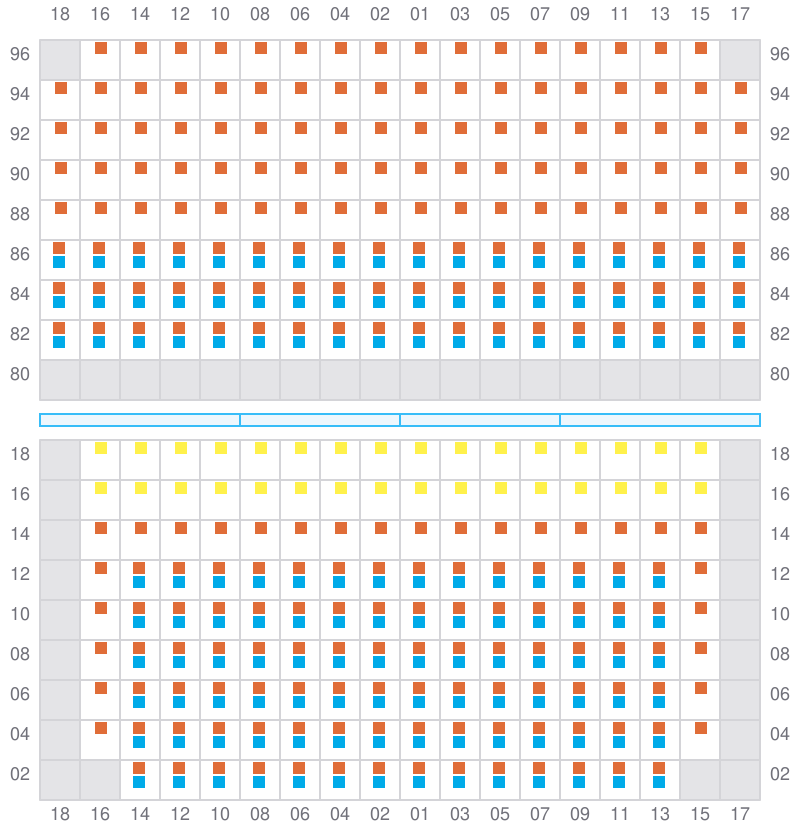

Bay 043 view and slots of TS DALIAN

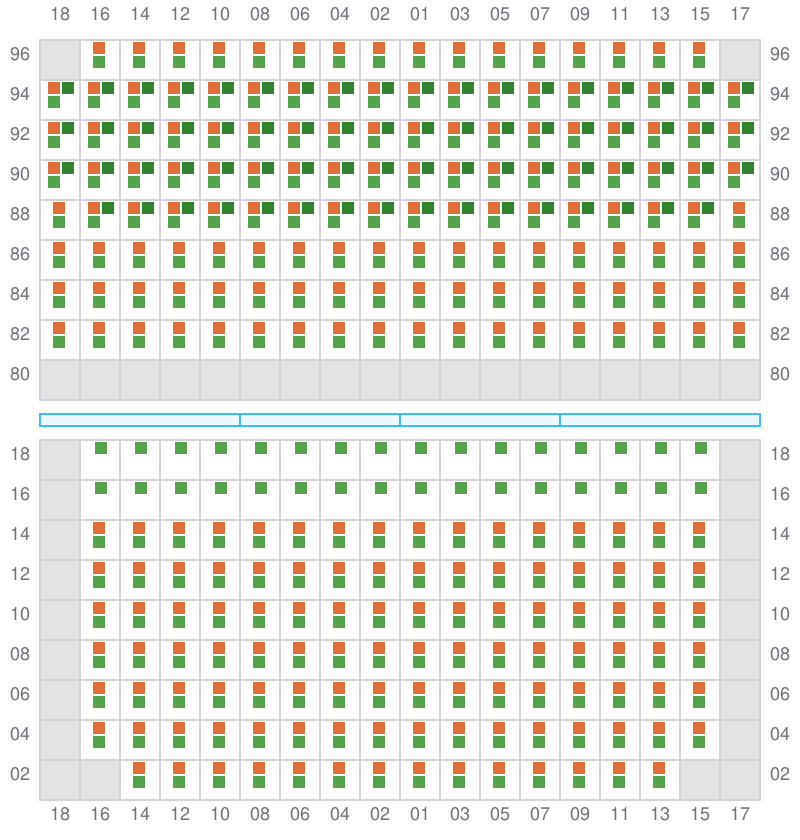

045 (046)

  • →
Bay 045 view and slots of TS DALIAN

047

  • ←
  • →
Bay 047 view and slots of TS DALIAN

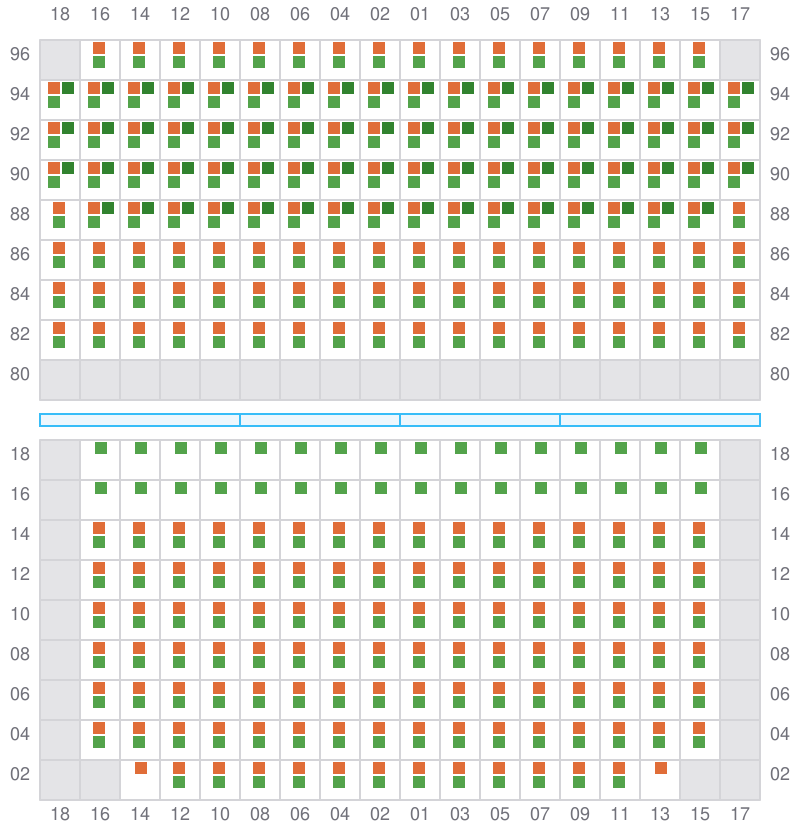

049 (050)

  • →
Bay 049 view and slots of TS DALIAN

051

  • ←
  • →
Bay 051 view and slots of TS DALIAN

053 (054)

  • →

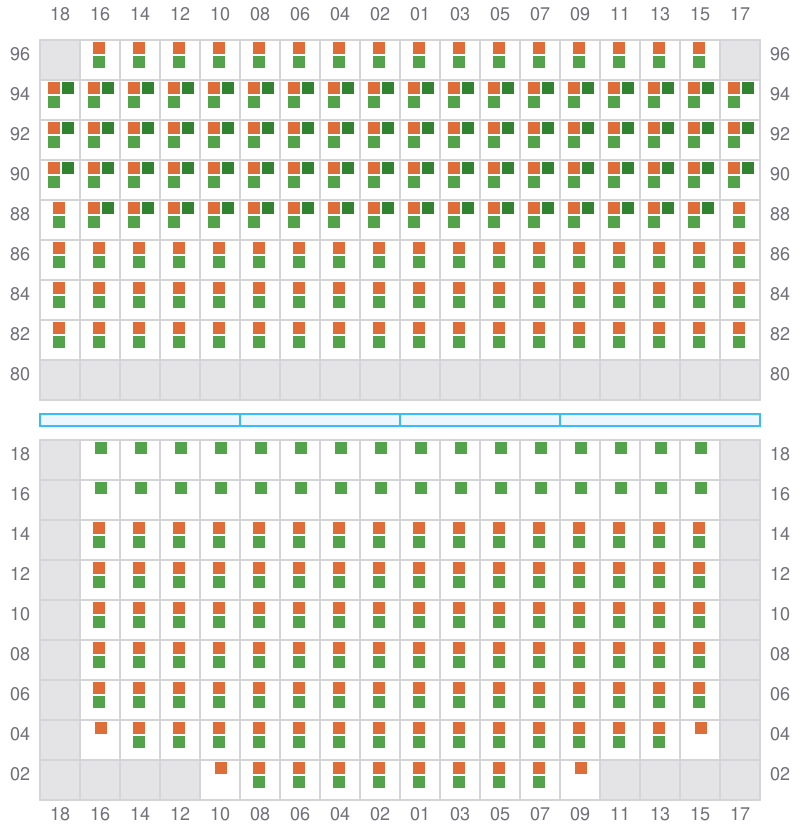

Bay 053 view and slots of TS DALIAN

055

  • ←
  • →

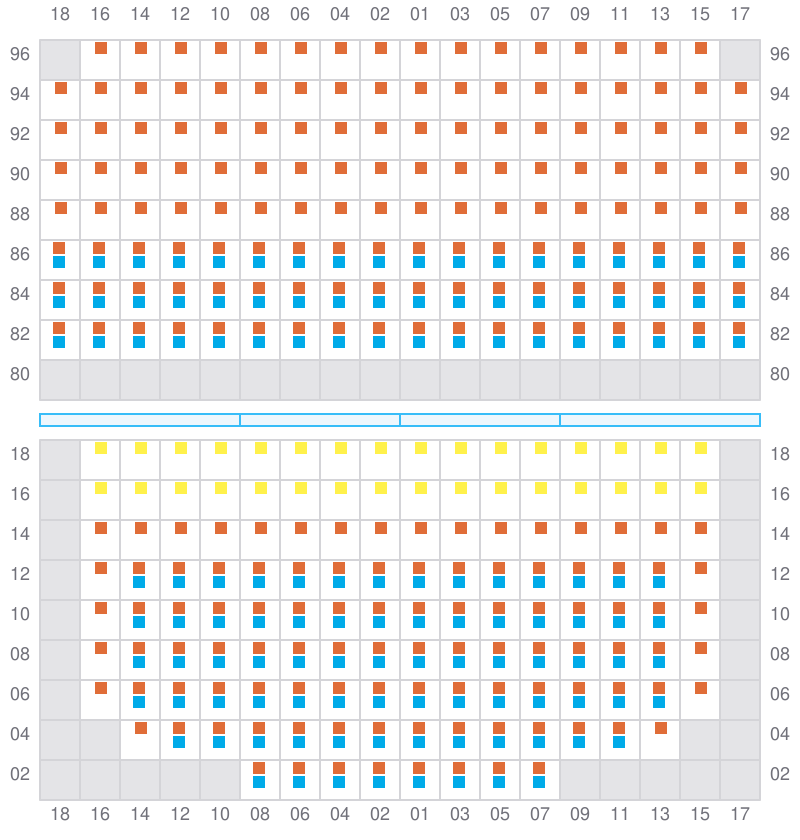

Bay 055 view and slots of TS DALIAN

057 (058)

  • →
  • ← / ?

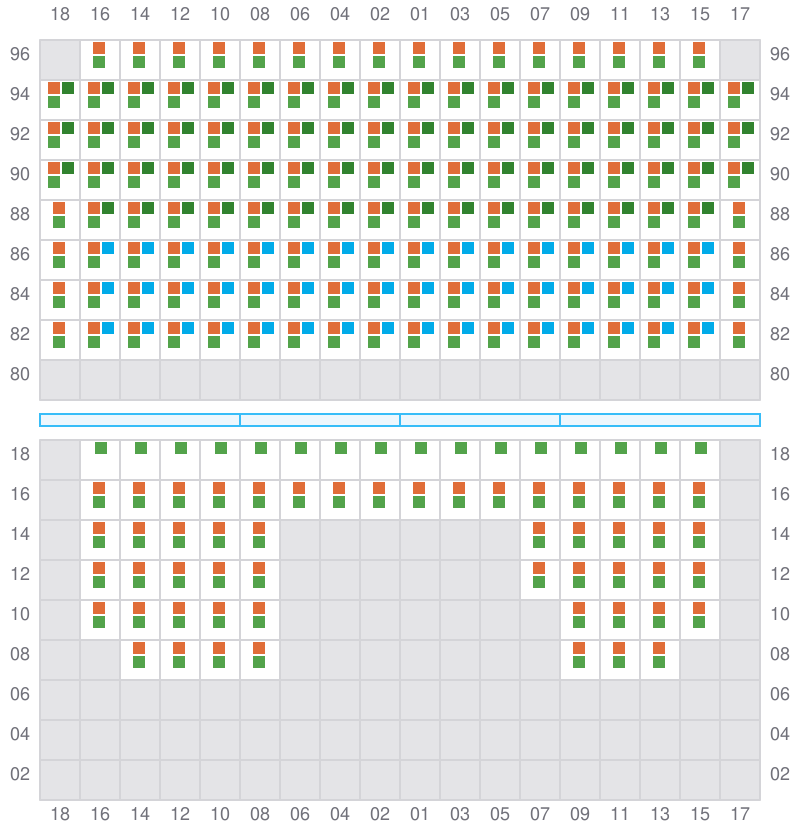

Bay 057 view and slots of TS DALIAN

059

  • ←

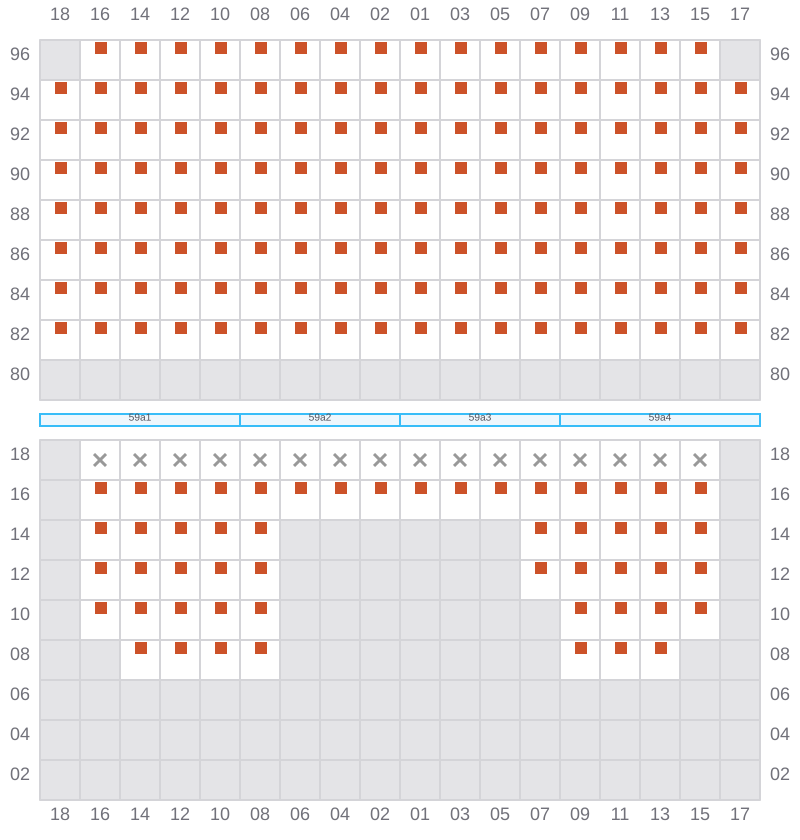

Bay 059 view and slots of TS DALIAN

061 (062)

  • →
  • ← / ?

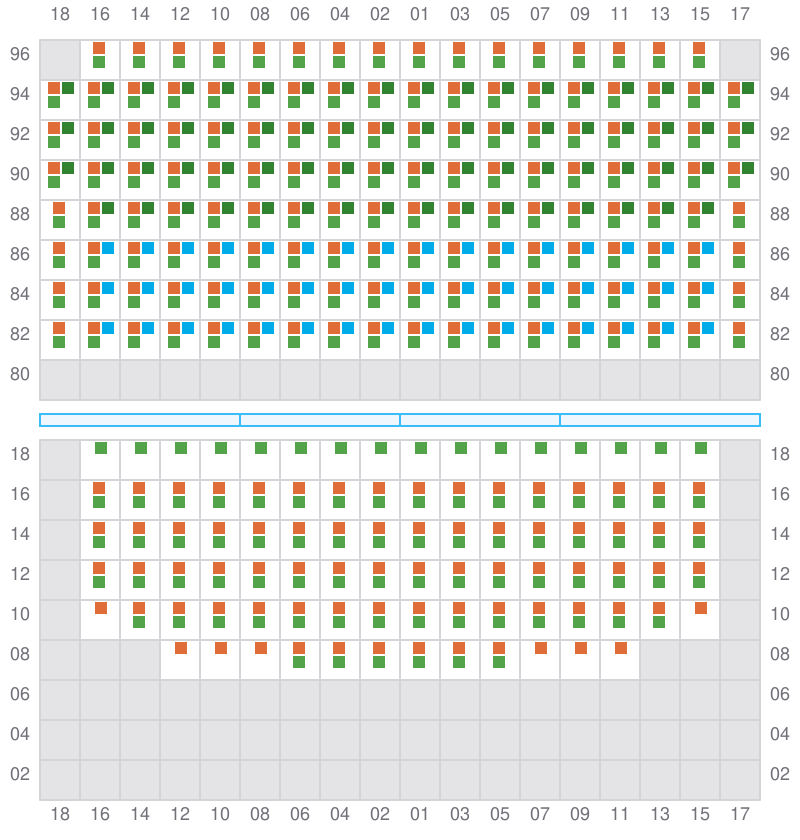

Bay 061 view and slots of TS DALIAN

063

  • ←

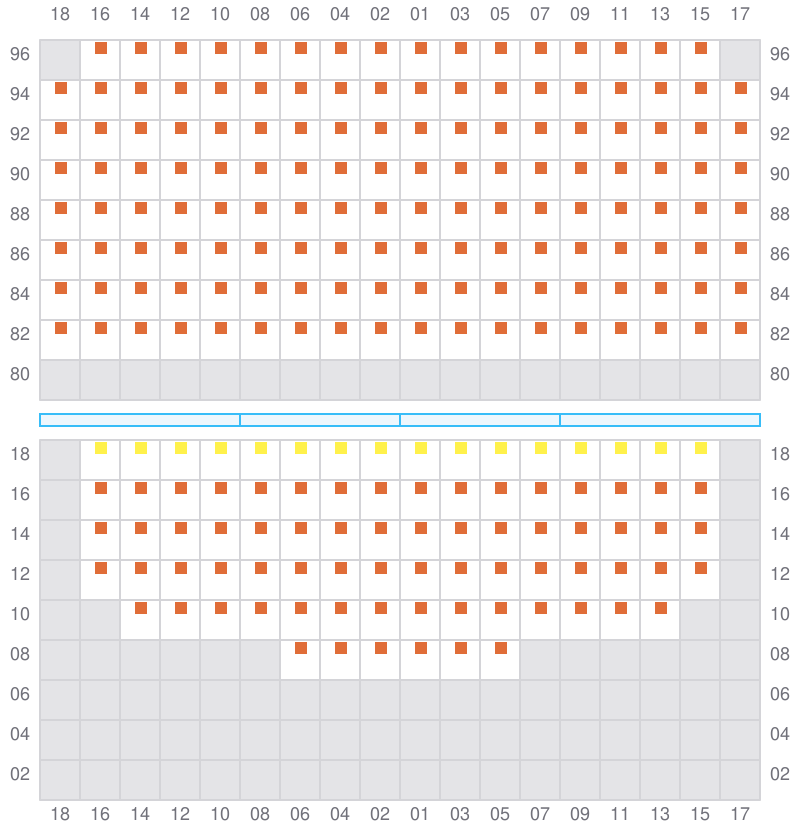

Bay 063 view and slots of TS DALIAN

065 (066)

  • →
  • ← / ?

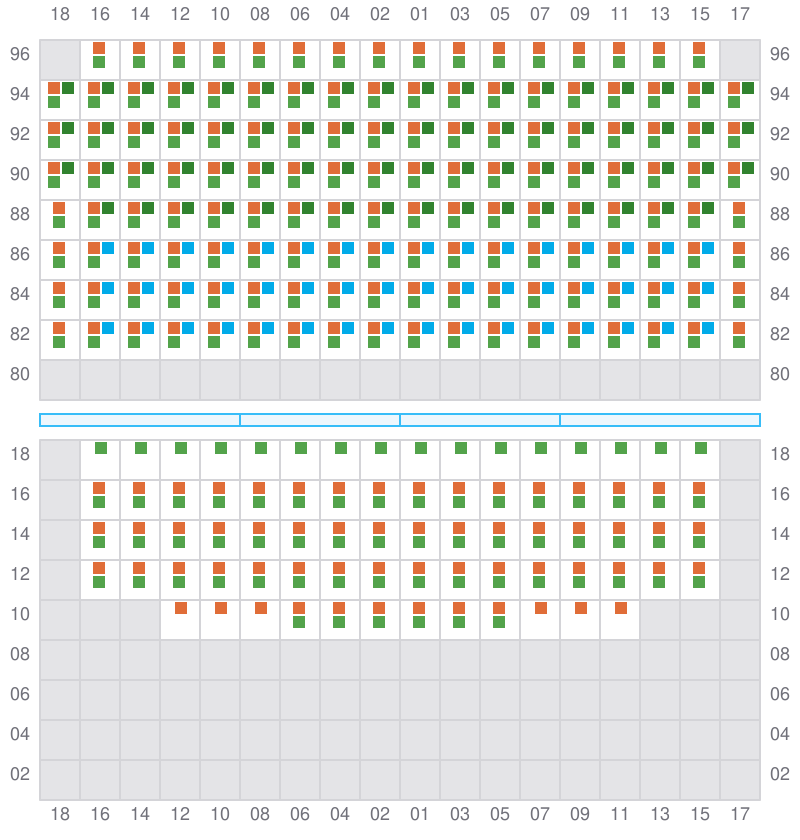

Bay 065 view and slots of TS DALIAN

067

  • ←

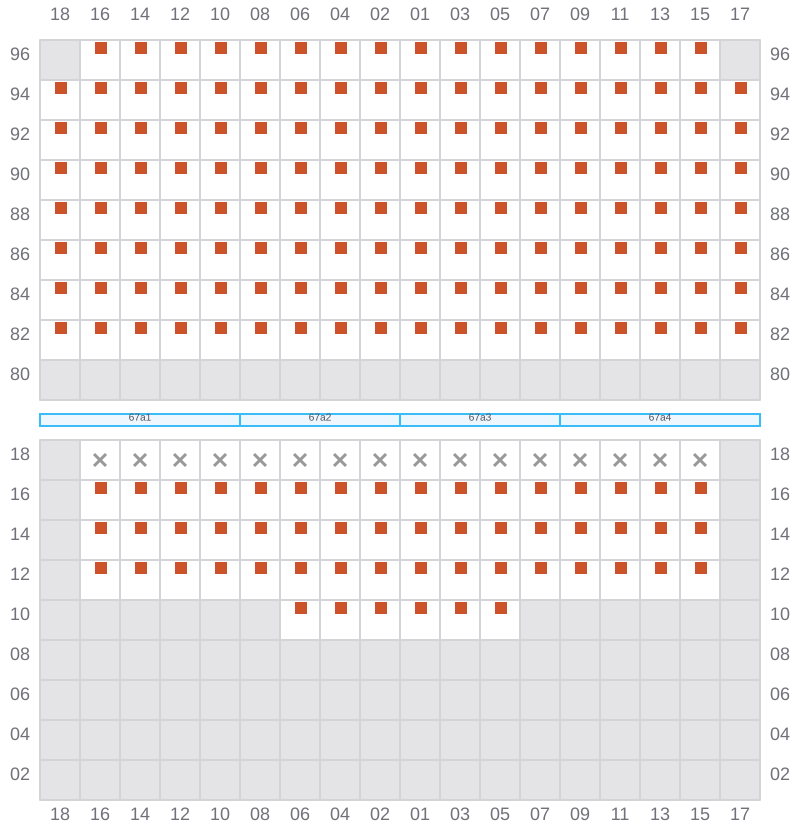

Bay 067 view and slots of TS DALIAN

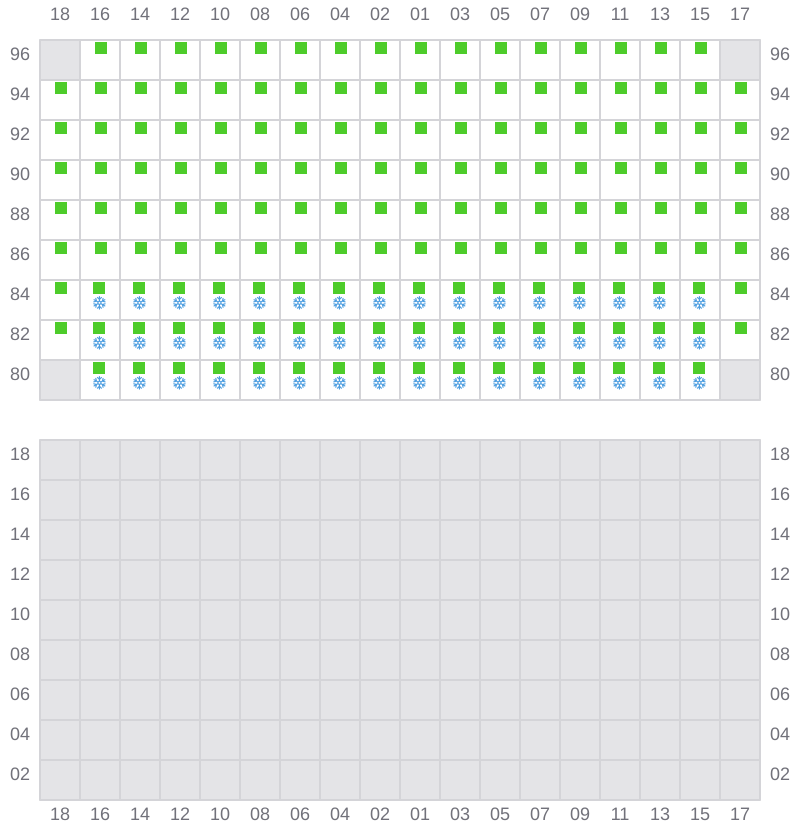

069 (070)

  • → / ?
  • ← / ?
Bay 069 view and slots of TS DALIAN
