TS KWANGYANG
9757541 | V7A4842 | TSL by ******************** Last update: Mon Feb 17 2025

General Info

Ship Name:TS KWANGYANG

IMO Code:9757541

Call Sign:V7A4842

Line Operator:TSL

Class Name for Sister Ships:KWYA

Year Built:2018

Position Format:Bay, Row, Tier

Allowed Containers:20, 40, 45

LPP (LBP):159.58

LOA (Length Overall):169.99

Stern to AFT PP:-

Features Informed:Standard

Also Known As...:-

Size Summary

ISO Bays:035

Max ISO Row:10

Center Line Row:Yes

Max Above ISO Tier:94

Min Above ISO Tier:80

Max Below ISO Tier:10

Min Below ISO Tier:02

Total TEU:1,752

Centers of Gravity

LCG Values:Estimated

LCG Data:0%

VCG Values:Estimated

VCG Data:0%

TCG Values:Estimated

TCG Data:0%

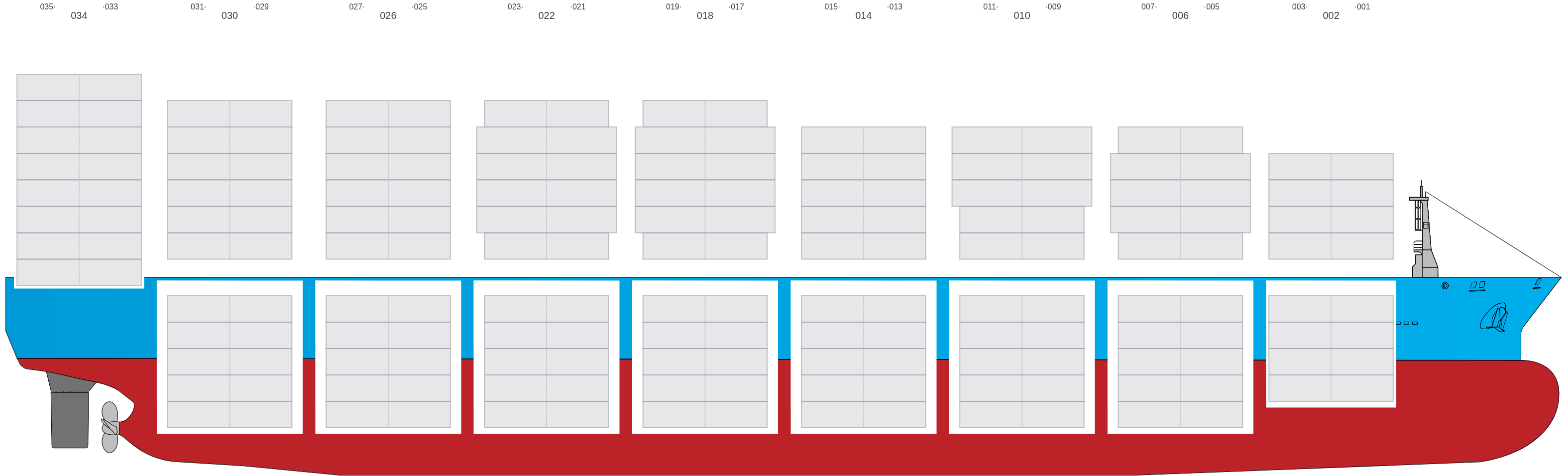

Side View

Side view of TS KWANGYANG

Hatch-Covers View

Deck view of TS KWANGYANG

ISO Bays

Legend

20'
40'
45'
Reefer
Restricted slot ×

001

→
✓

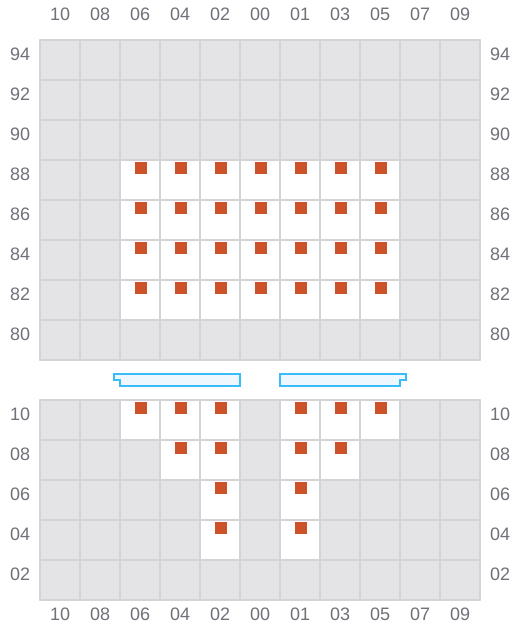

Bay 001 view and slots of TS KWANGYANG

003 (002)

←
✓

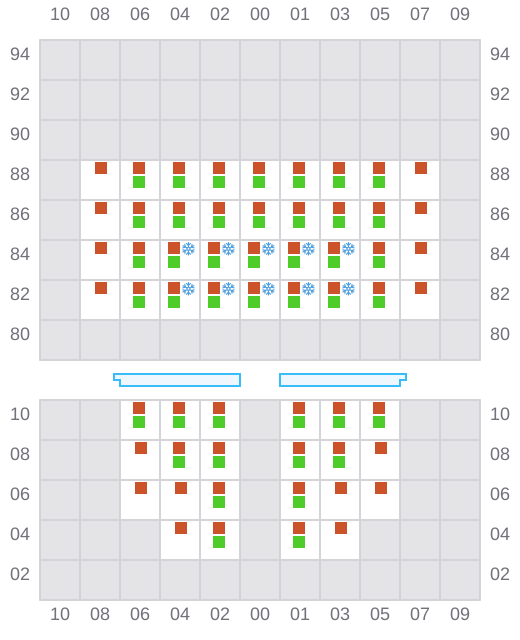

Bay 003 view and slots of TS KWANGYANG

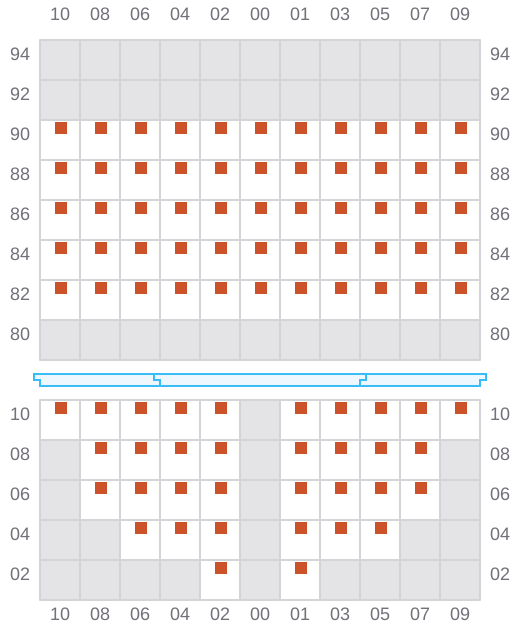

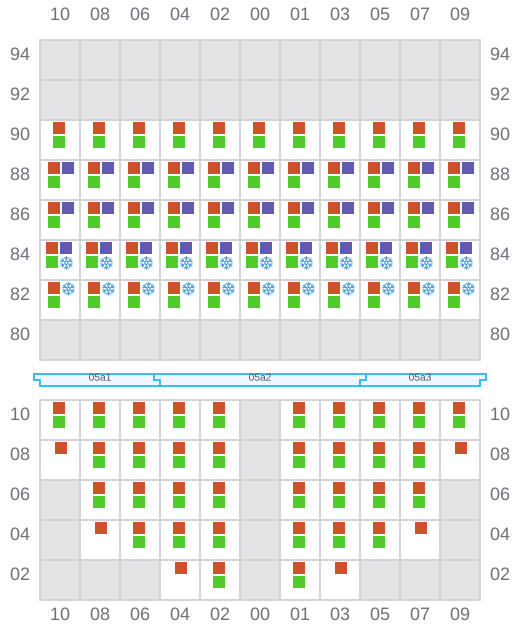

005

→
✓

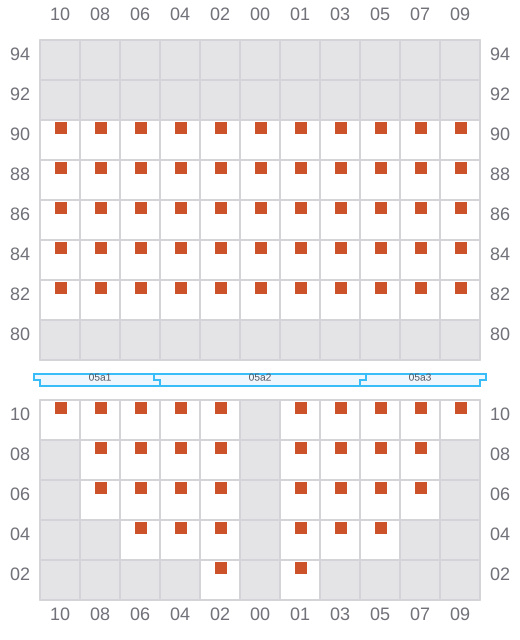

Bay 005 view and slots of TS KWANGYANG

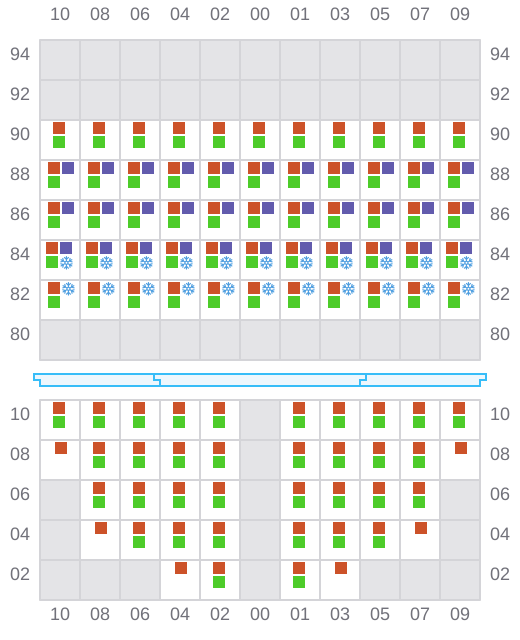

007 (006)

←
✓

Bay 007 view and slots of TS KWANGYANG

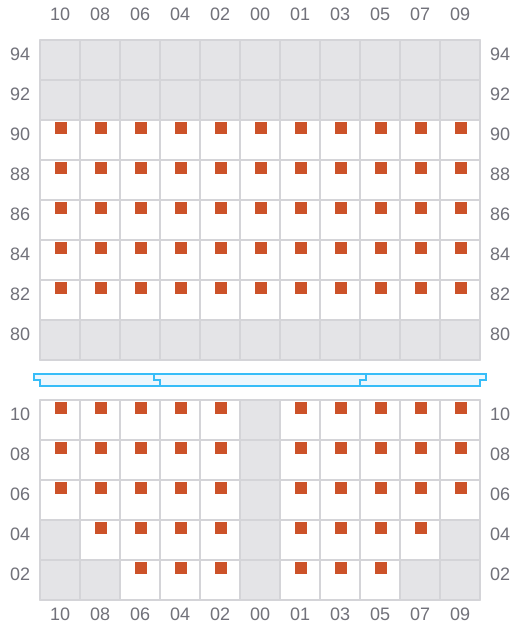

009

→
✓

Bay 009 view and slots of TS KWANGYANG

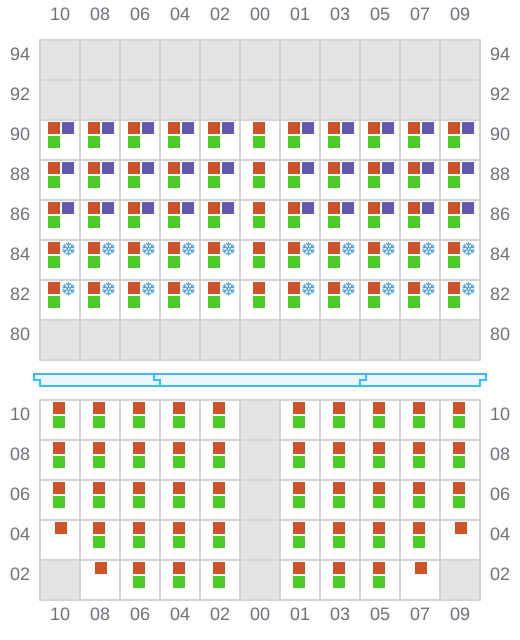

011 (010)

←
✓

Bay 011 view and slots of TS KWANGYANG

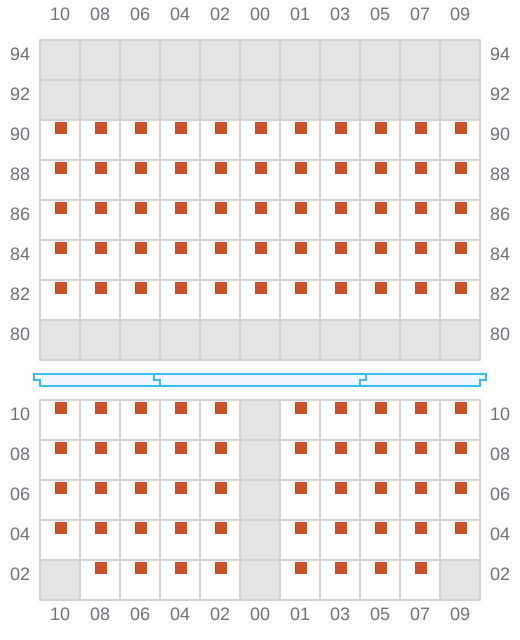

013

→
✓

Bay 013 view and slots of TS KWANGYANG

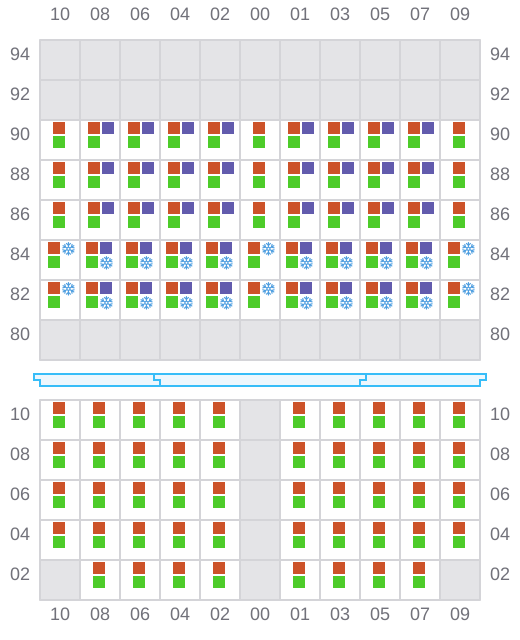

015 (014)

←
✓

Bay 015 view and slots of TS KWANGYANG

017

→
✓

Bay 017 view and slots of TS KWANGYANG

019 (018)

←
✓

Bay 019 view and slots of TS KWANGYANG

021

→
✓

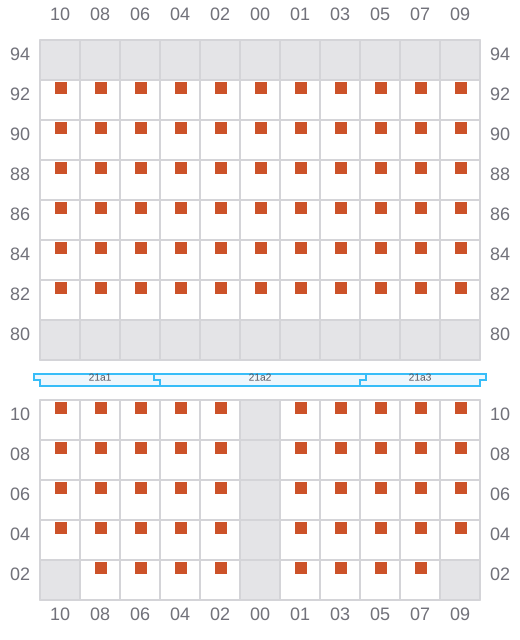

Bay 021 view and slots of TS KWANGYANG

023 (022)

←
✓

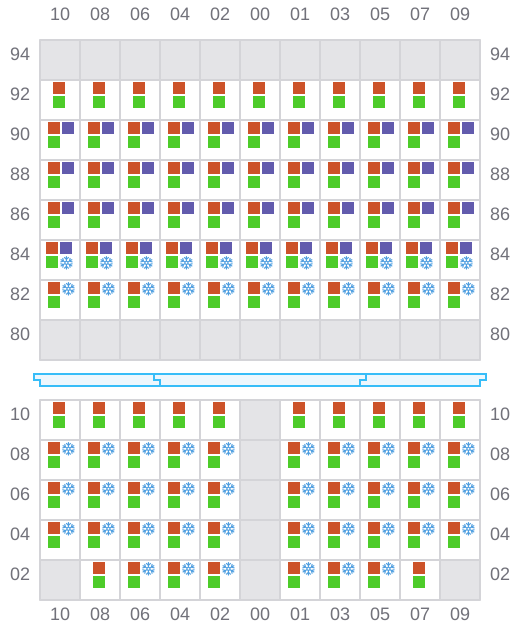

Bay 023 view and slots of TS KWANGYANG

025

→
✓

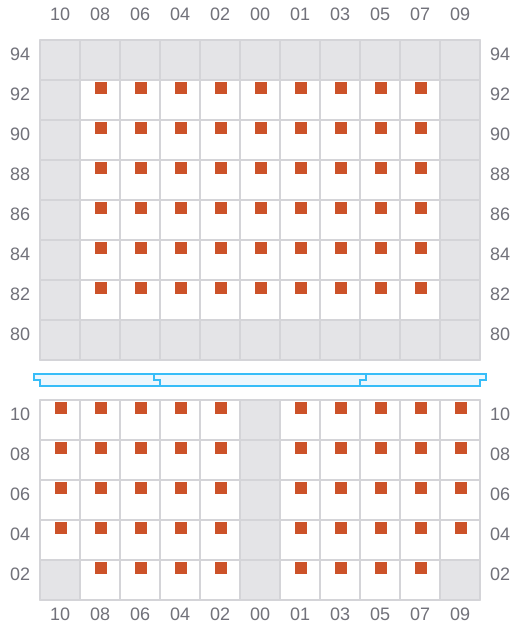

Bay 025 view and slots of TS KWANGYANG

027 (026)

←
✓

Bay 027 view and slots of TS KWANGYANG

029

→
✓

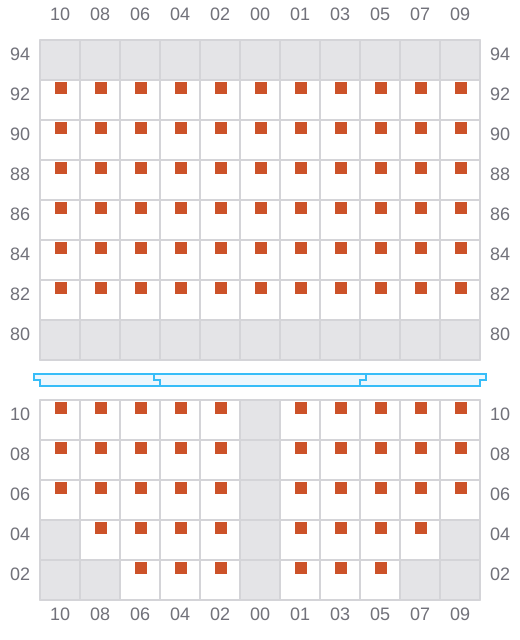

Bay 029 view and slots of TS KWANGYANG

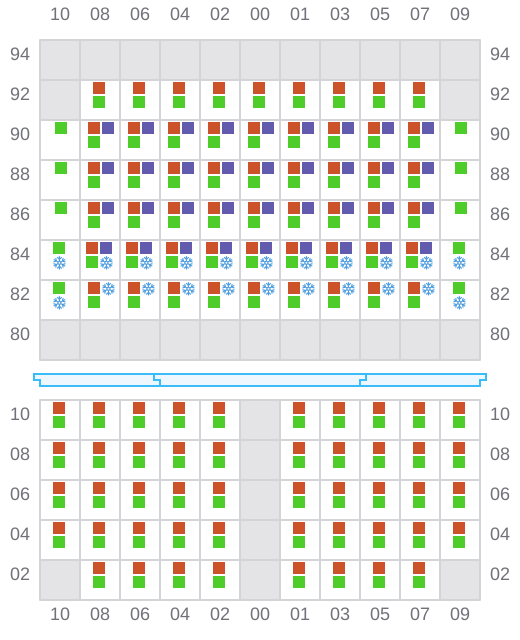

031 (030)

←
✓

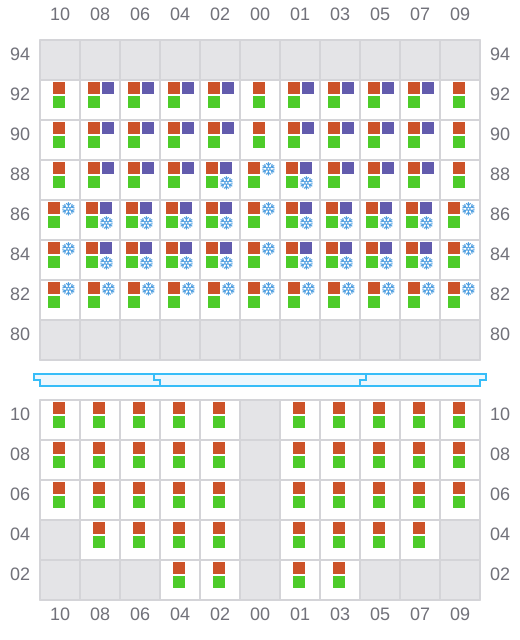

Bay 031 view and slots of TS KWANGYANG

033

→
✓

Bay 033 view and slots of TS KWANGYANG

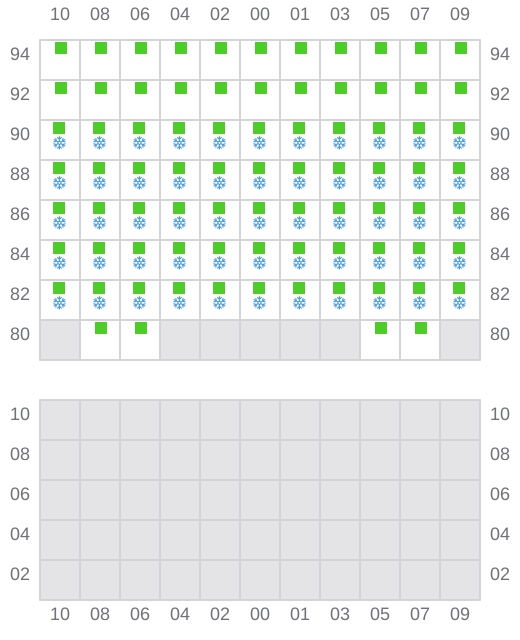

035 (034)

←
^? / _?
^? / _?
✓

Bay 035 view and slots of TS KWANGYANG
