TS TOKYO
9784245 | V7DU4 | TSL by ******************** Last update: Thu May 01 2025

General Info

Ship Name:TS TOKYO
IMO Code:9784245
Call Sign:V7DU4
Line Operator:TSL
Class Name for Sister Ships:TYOC
Year Built:2017
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):169.20
LOA (Length Overall):171.99
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:039
Max ISO Row:10
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:10
Min Below ISO Tier:02
Total TEU:1,808

Centers of Gravity

LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

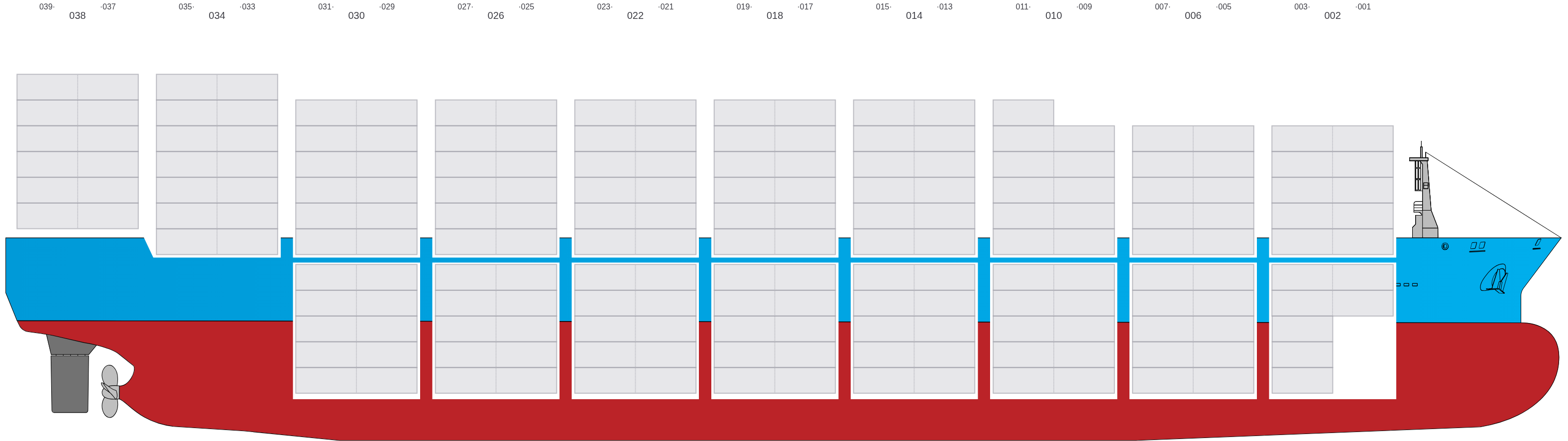

Side View

Side view of TS TOKYO

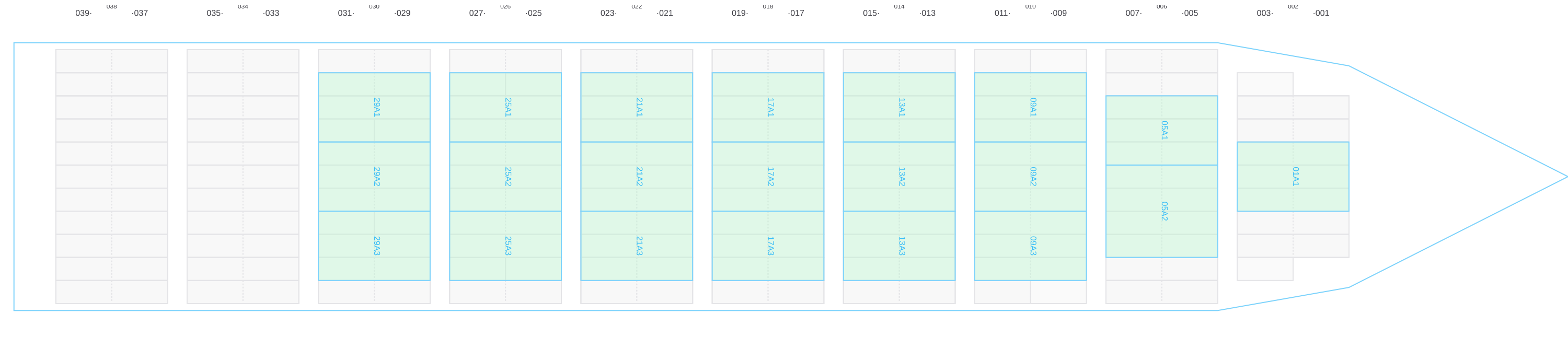

Hatch-Covers View

Deck view of TS TOKYO

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot ×

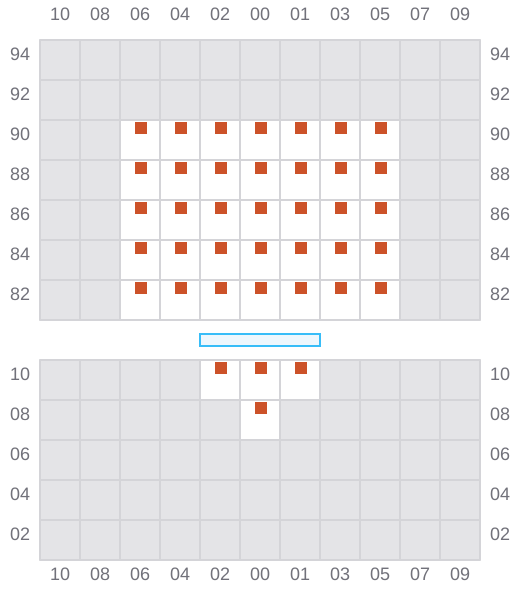

001

  • →
Bay 001 view and slots of TS TOKYO

003 (002)

  • ←

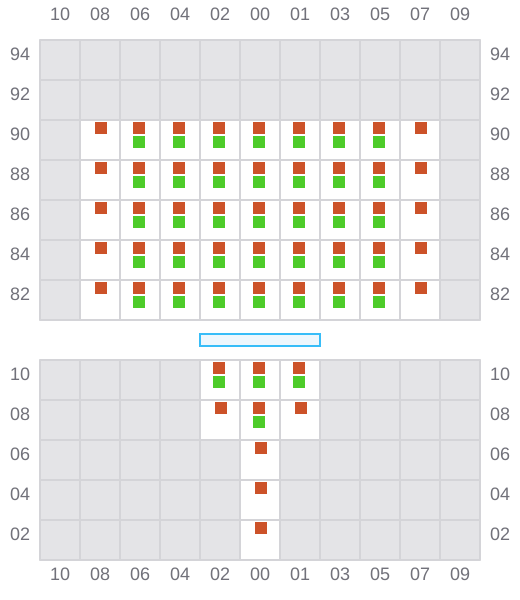

Bay 003 view and slots of TS TOKYO

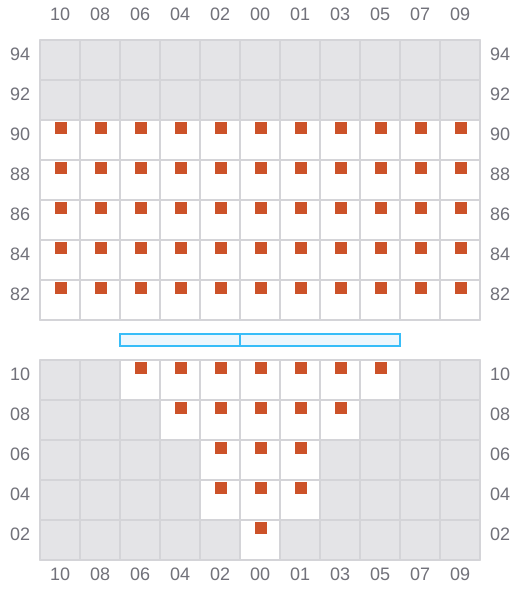

005

  • →

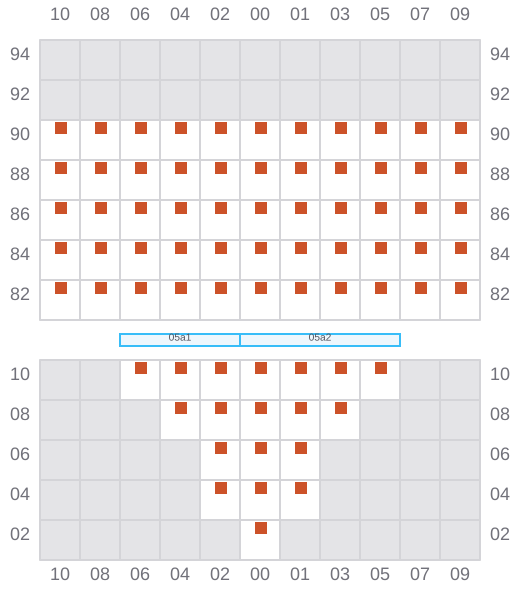

Bay 005 view and slots of TS TOKYO

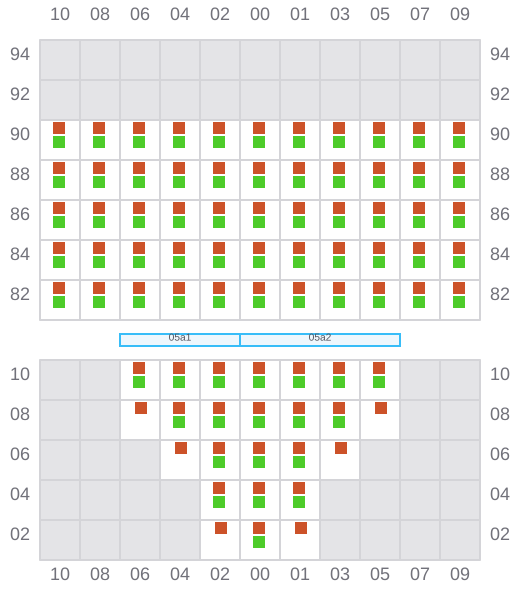

007 (006)

  • ←
Bay 007 view and slots of TS TOKYO

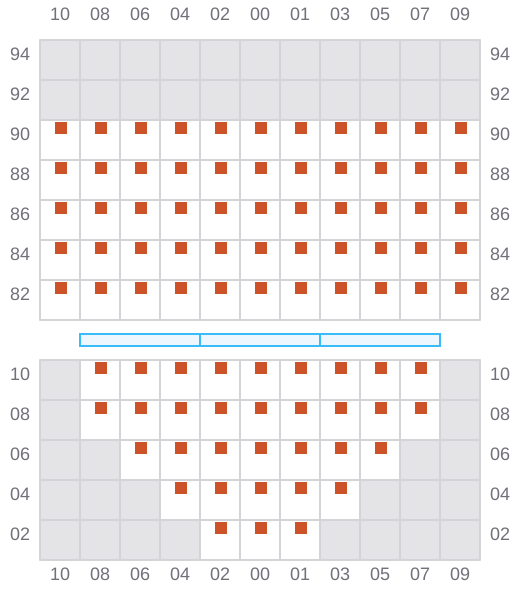

009

  • →
Bay 009 view and slots of TS TOKYO

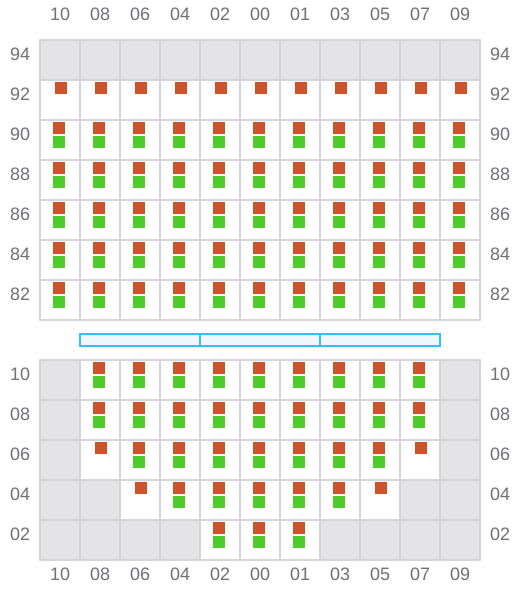

011 (010)

  • ←
Bay 011 view and slots of TS TOKYO

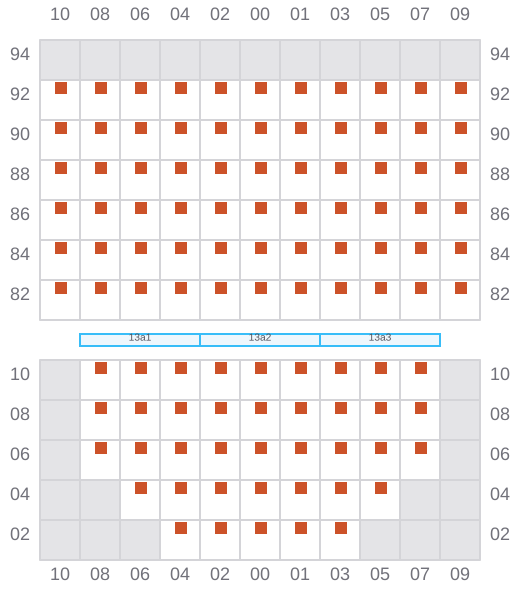

013

  • →

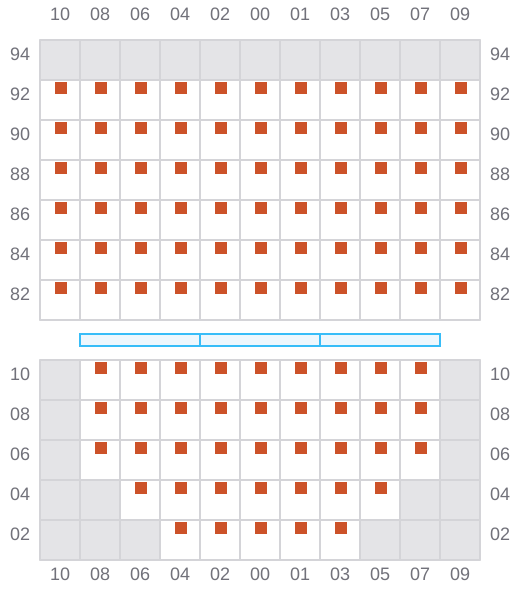

Bay 013 view and slots of TS TOKYO

015 (014)

  • ←

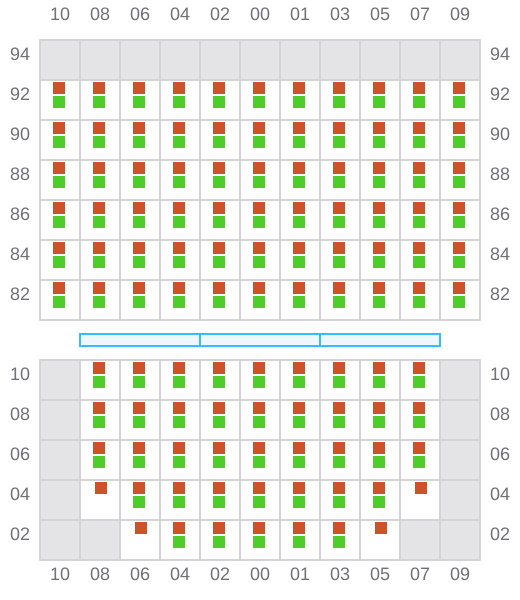

Bay 015 view and slots of TS TOKYO

017

  • →

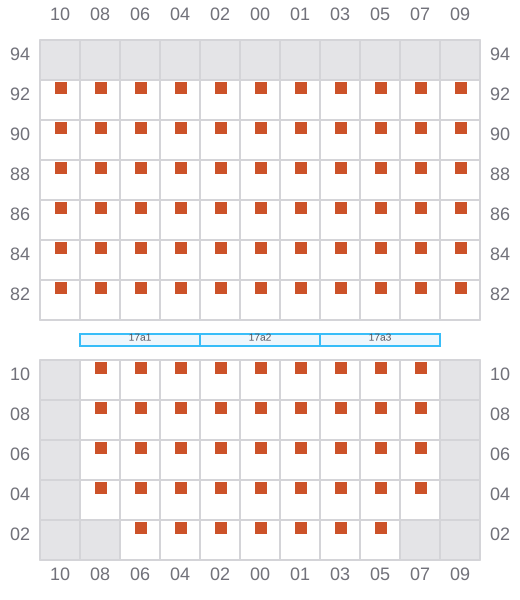

Bay 017 view and slots of TS TOKYO

019 (018)

  • ←

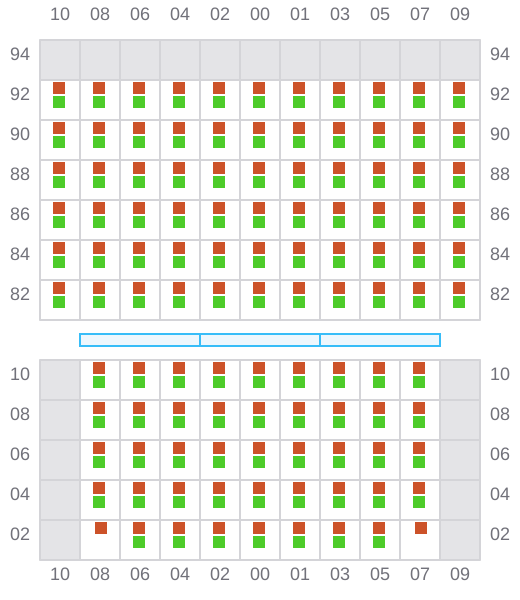

Bay 019 view and slots of TS TOKYO

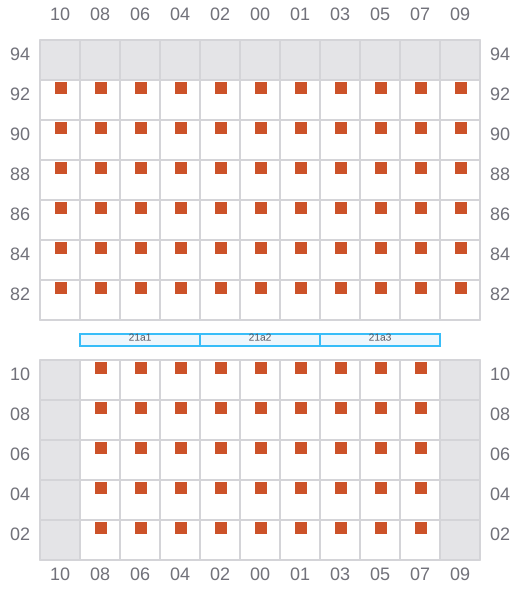

021

  • →
Bay 021 view and slots of TS TOKYO

023 (022)

  • ←

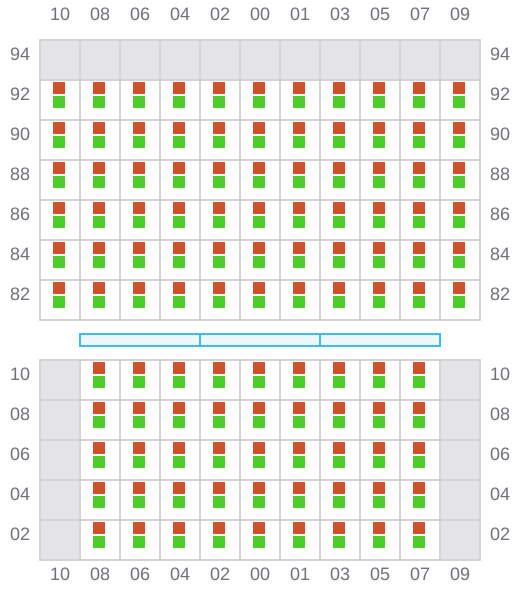

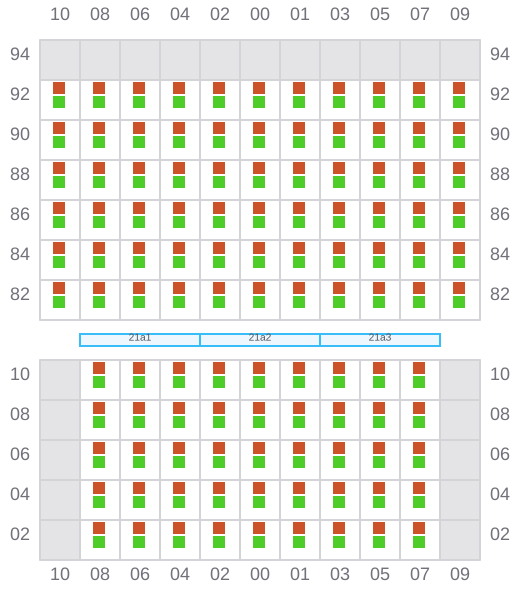

Bay 023 view and slots of TS TOKYO

025

  • →

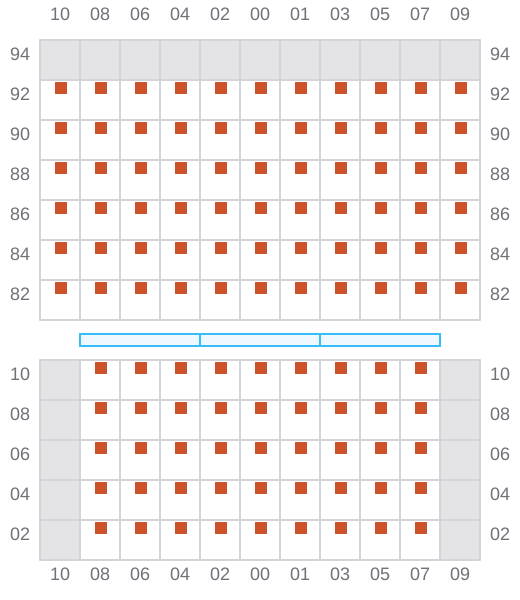

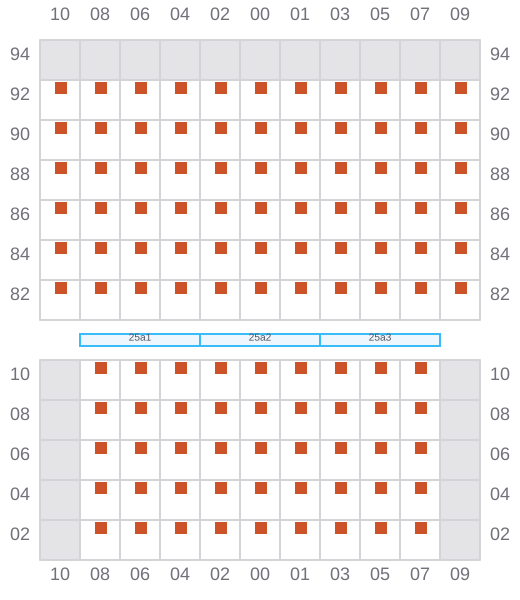

Bay 025 view and slots of TS TOKYO

027 (026)

  • ←

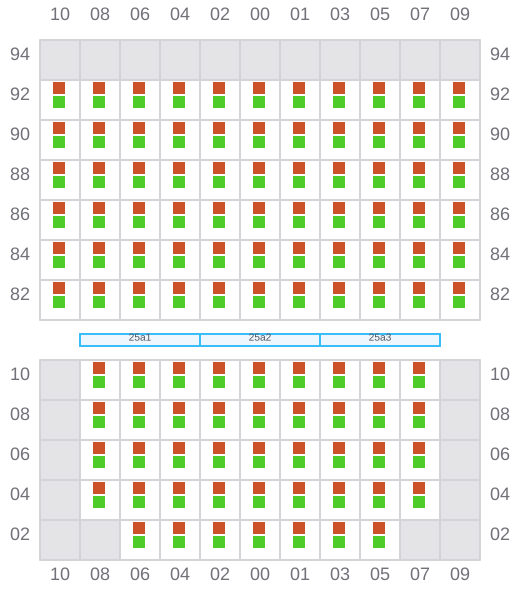

Bay 027 view and slots of TS TOKYO

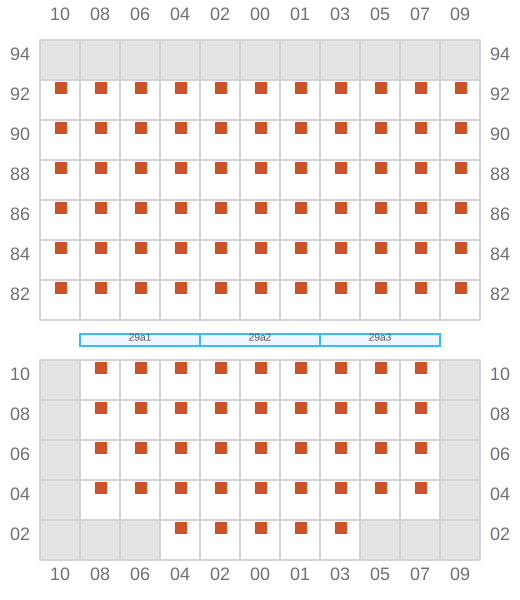

029

  • →
Bay 029 view and slots of TS TOKYO

031 (030)

  • ←
Bay 031 view and slots of TS TOKYO

033

  • →

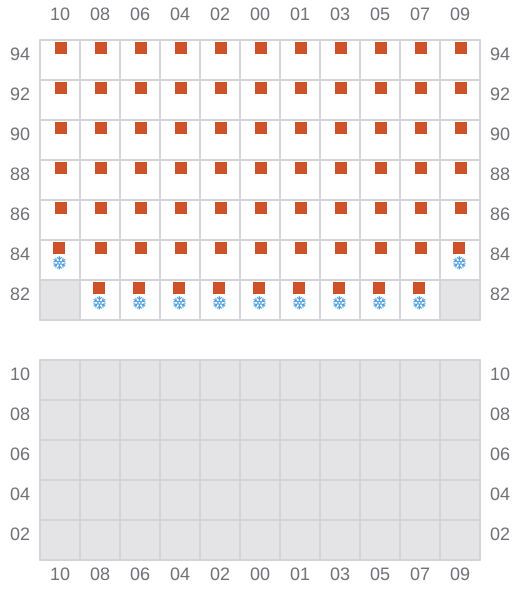

Bay 033 view and slots of TS TOKYO

035 (034)

  • ←
Bay 035 view and slots of TS TOKYO

037

  • →

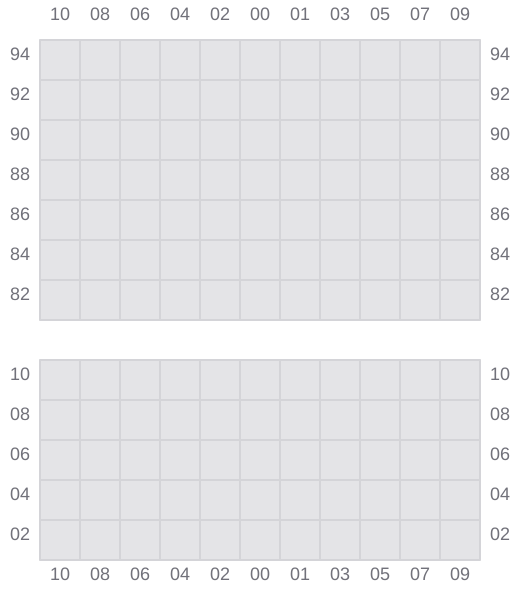

Bay 037 view and slots of TS TOKYO

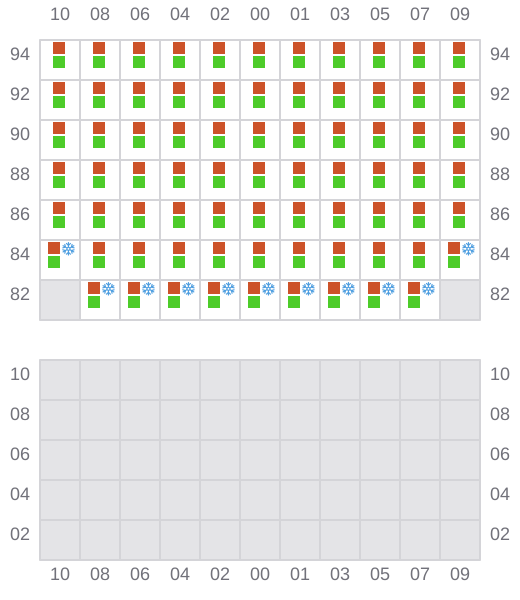

039 (038)

  • ←

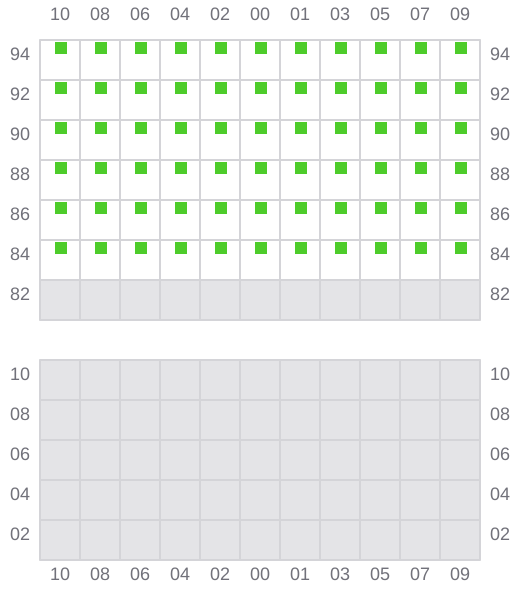

Bay 039 view and slots of TS TOKYO
