TSC DORADO
9301495 | 5LVH4 | TSC DORADO LLC by ************************** Last update: Thu Nov 27 2025

General Info

Ship Name:TSC DORADO
IMO Code:9301495
Call Sign:5LVH4
Line Operator:TSC DORADO LLC
Class Name for Sister Ships:TSD
Year Built:2006
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):334.07
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:079
Max ISO Row:16
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:80
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:8,198

Centers of Gravity

LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

Side View

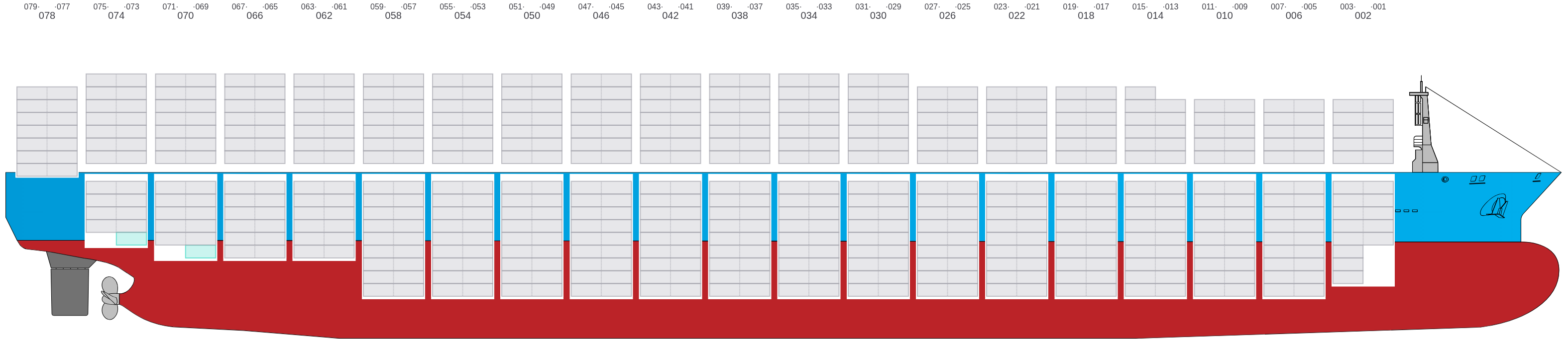

Side view of TSC DORADO

Hatch-Covers View

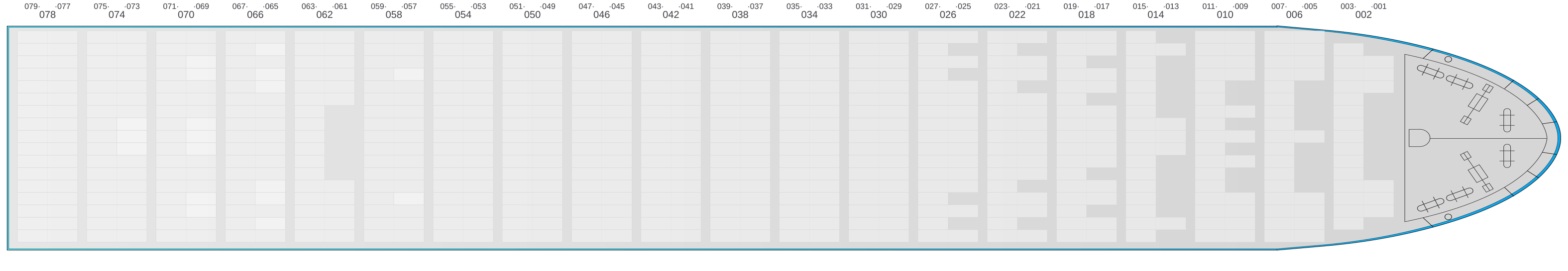

Deck view of TSC DORADO

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot ×

001

  • →
  • ✓

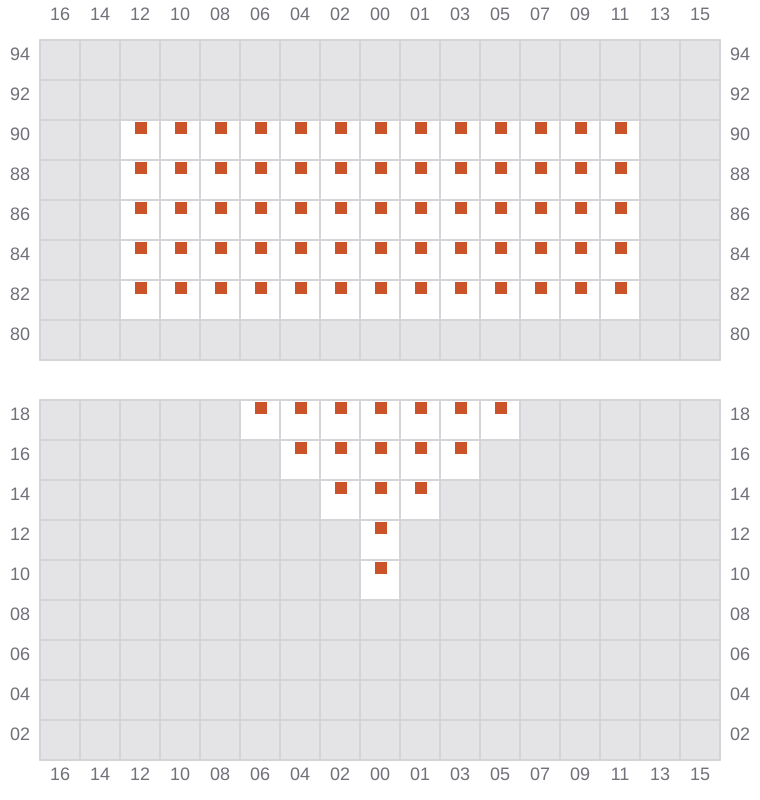

Bay 001 view and slots of TSC DORADO

003 (002)

  • ←
  • ✓

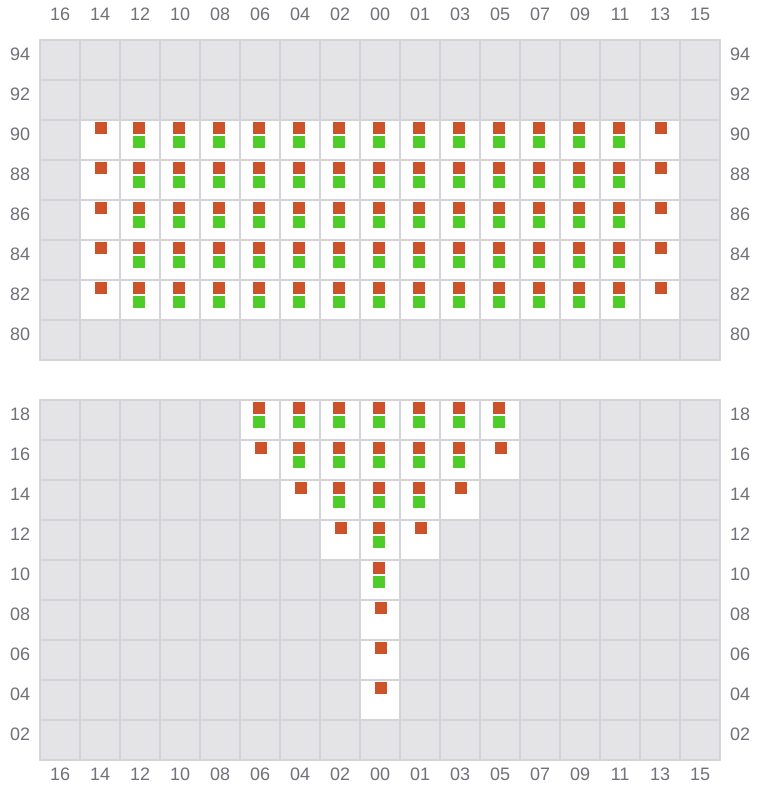

Bay 003 view and slots of TSC DORADO

005

  • →
  • ✓

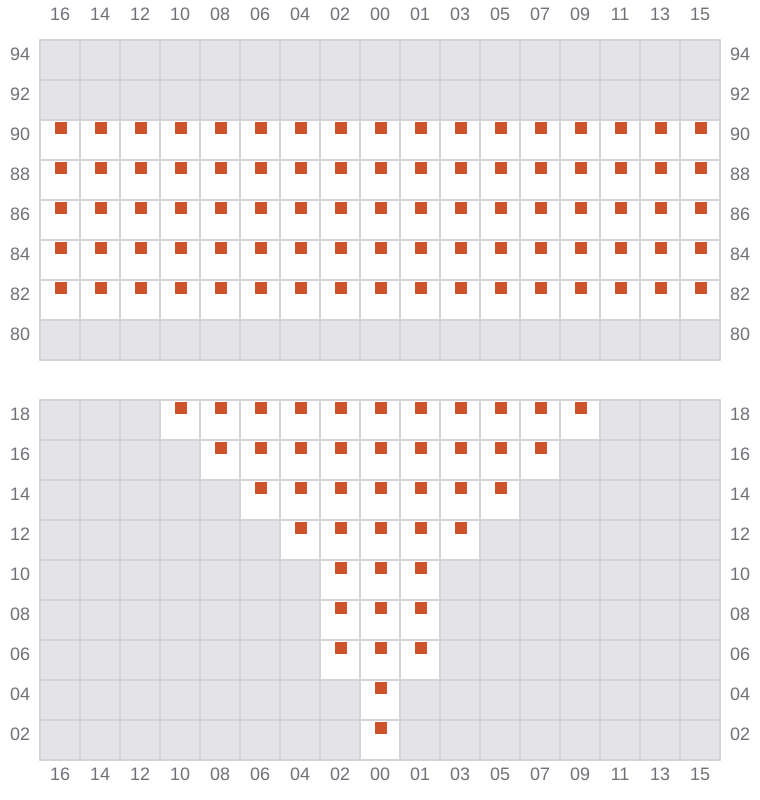

Bay 005 view and slots of TSC DORADO

007 (006)

  • ←
  • ✓

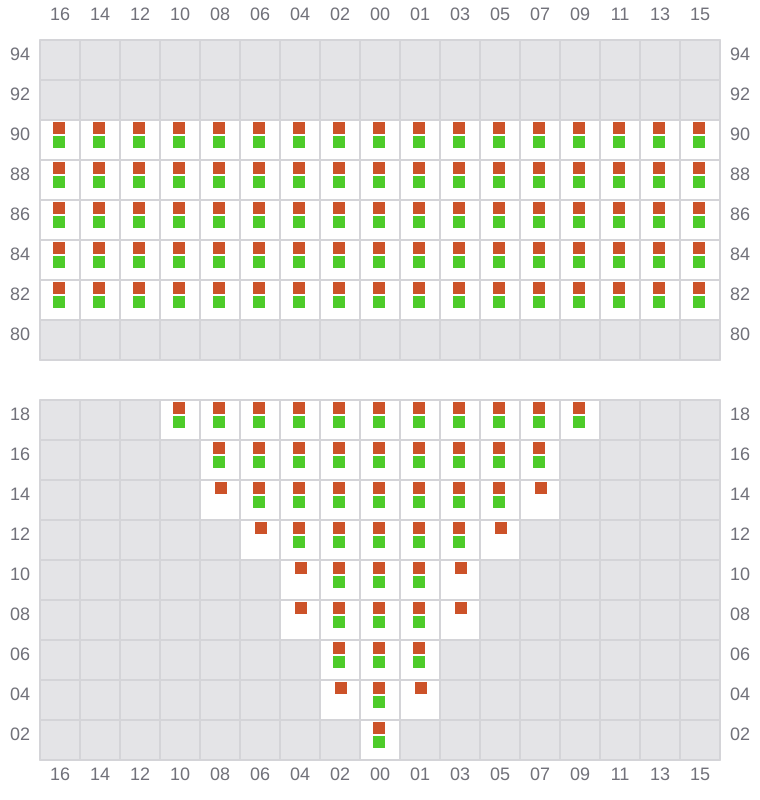

Bay 007 view and slots of TSC DORADO

009

  • →
  • ✓

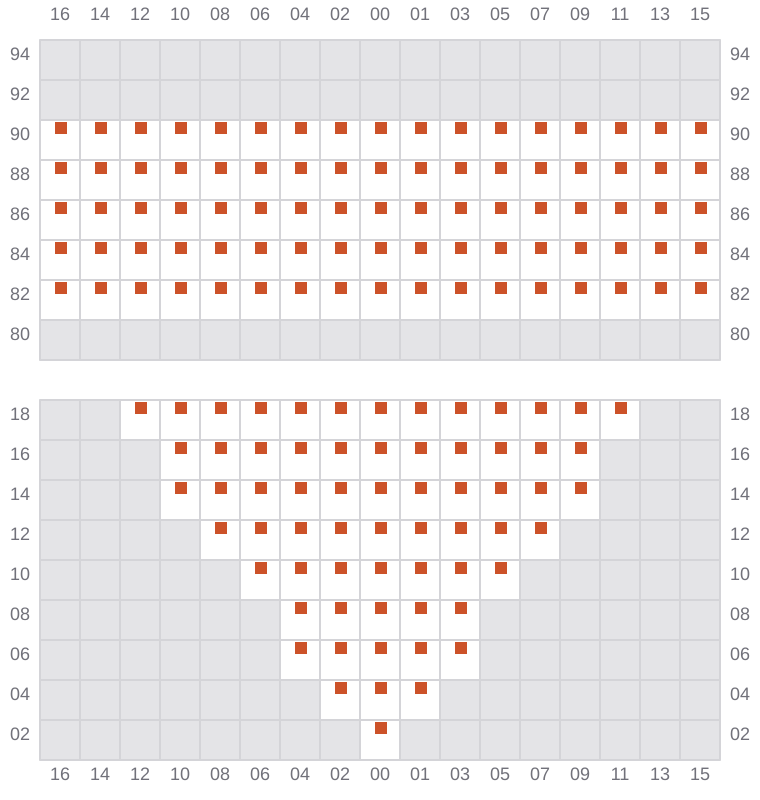

Bay 009 view and slots of TSC DORADO

011 (010)

  • ←
  • ✓

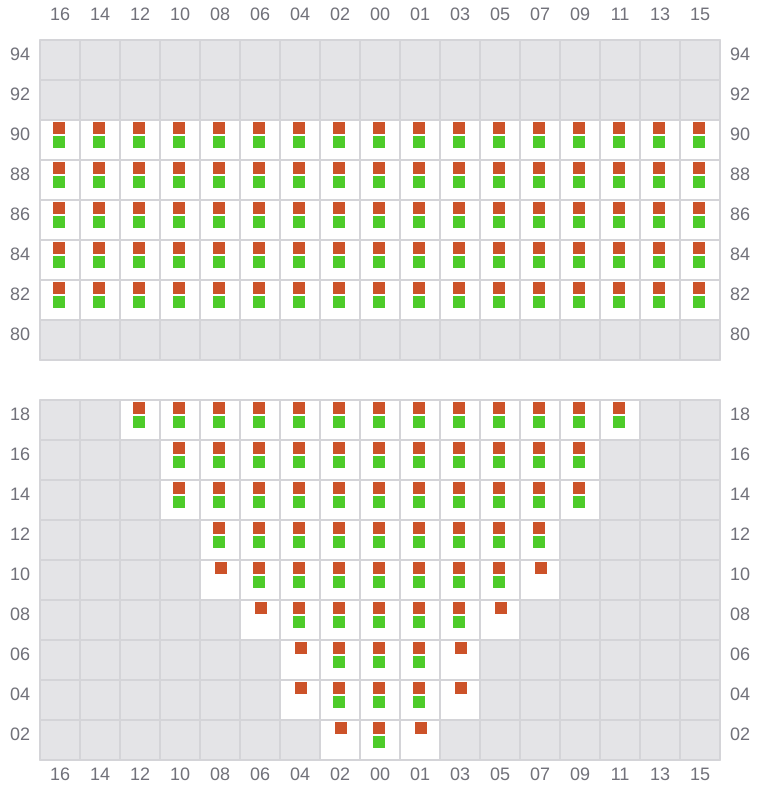

Bay 011 view and slots of TSC DORADO

013

  • →
  • ✓

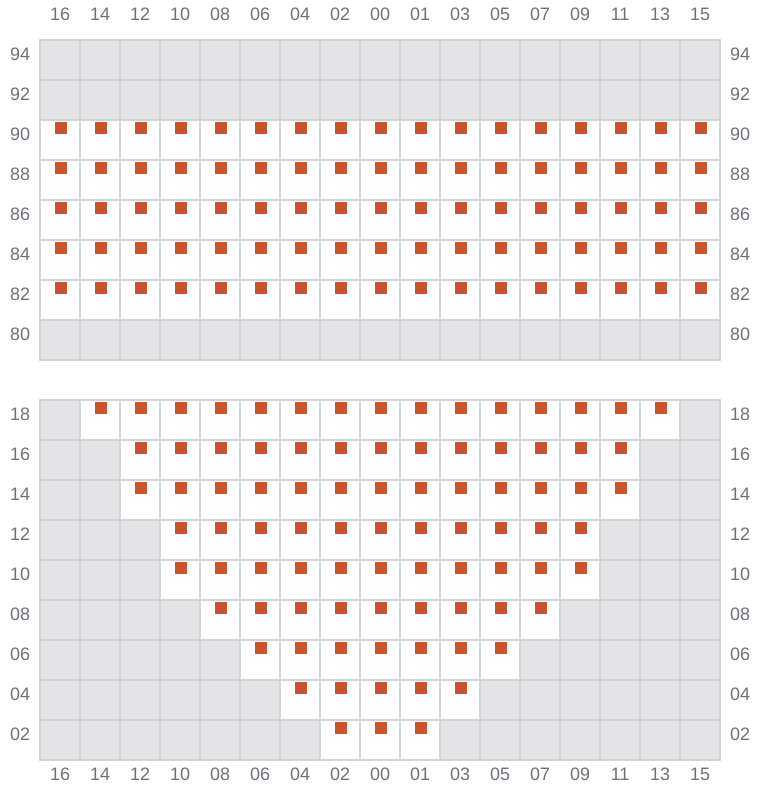

Bay 013 view and slots of TSC DORADO

015 (014)

  • ←
  • ✓

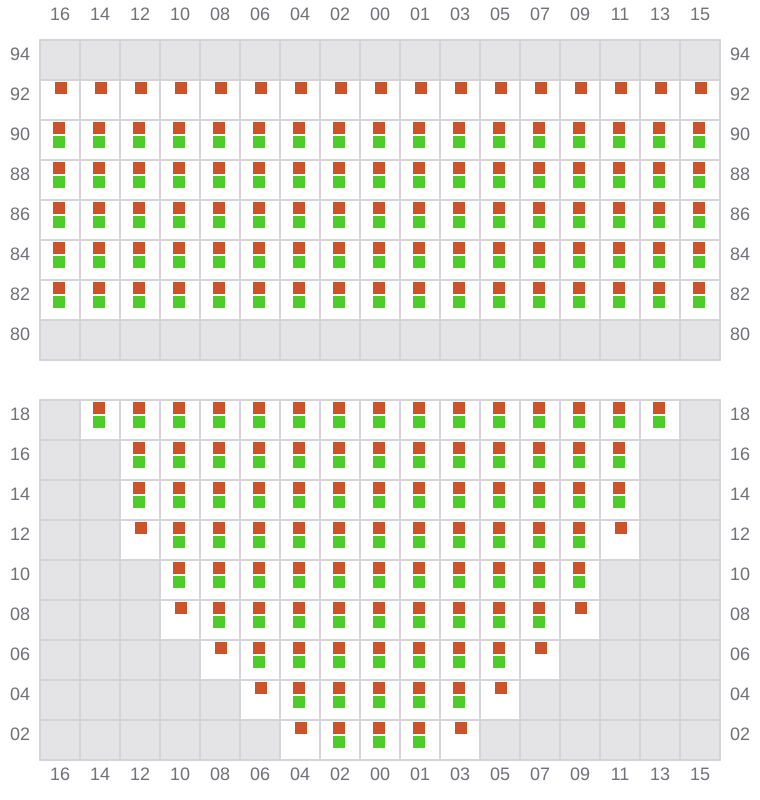

Bay 015 view and slots of TSC DORADO

017

  • →
  • ✓

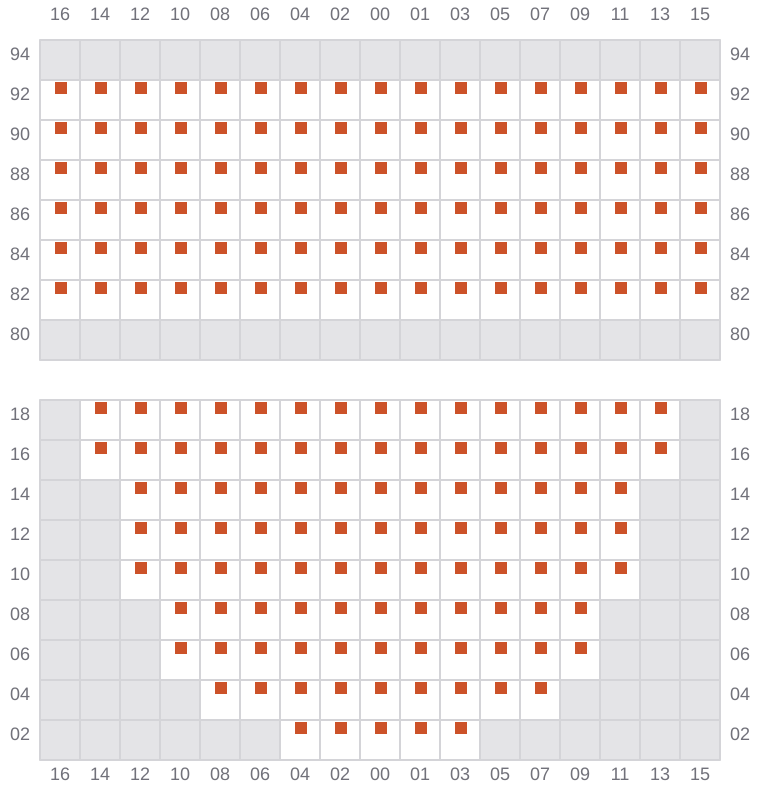

Bay 017 view and slots of TSC DORADO

019 (018)

  • ←
  • ✓

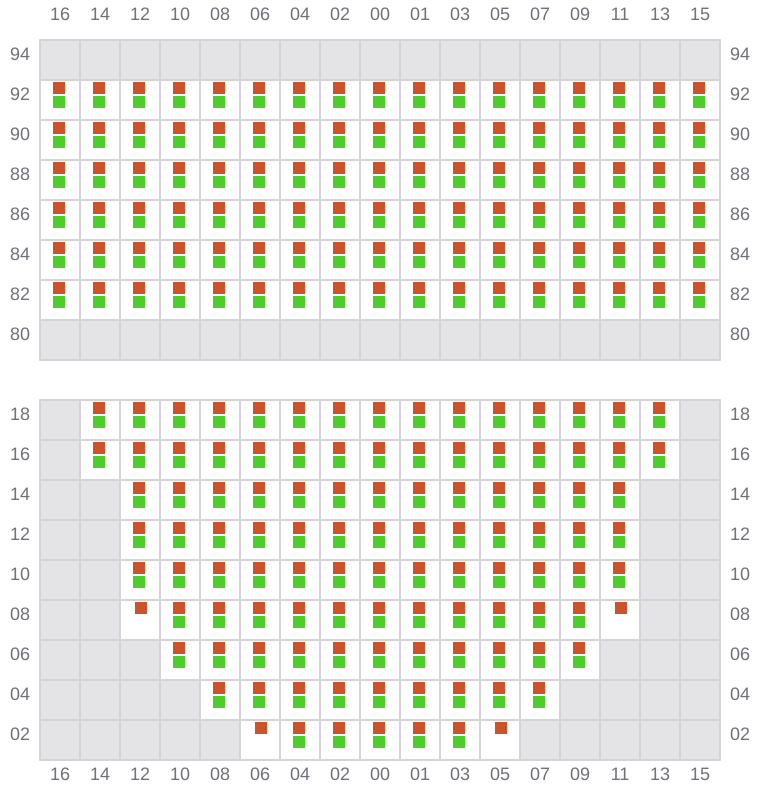

Bay 019 view and slots of TSC DORADO

021

  • →
  • ✓

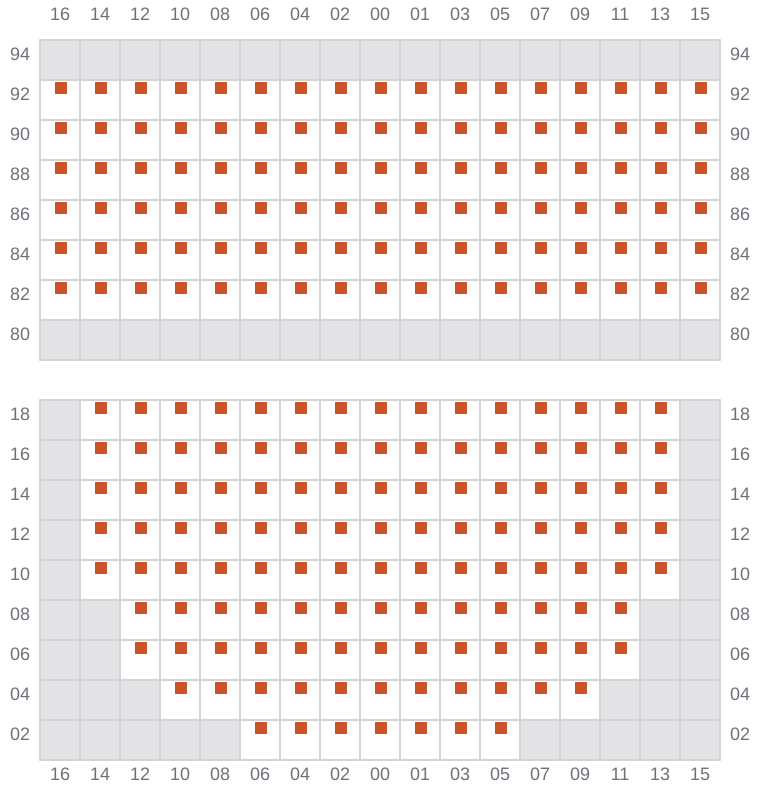

Bay 021 view and slots of TSC DORADO

023 (022)

  • ←
  • ✓

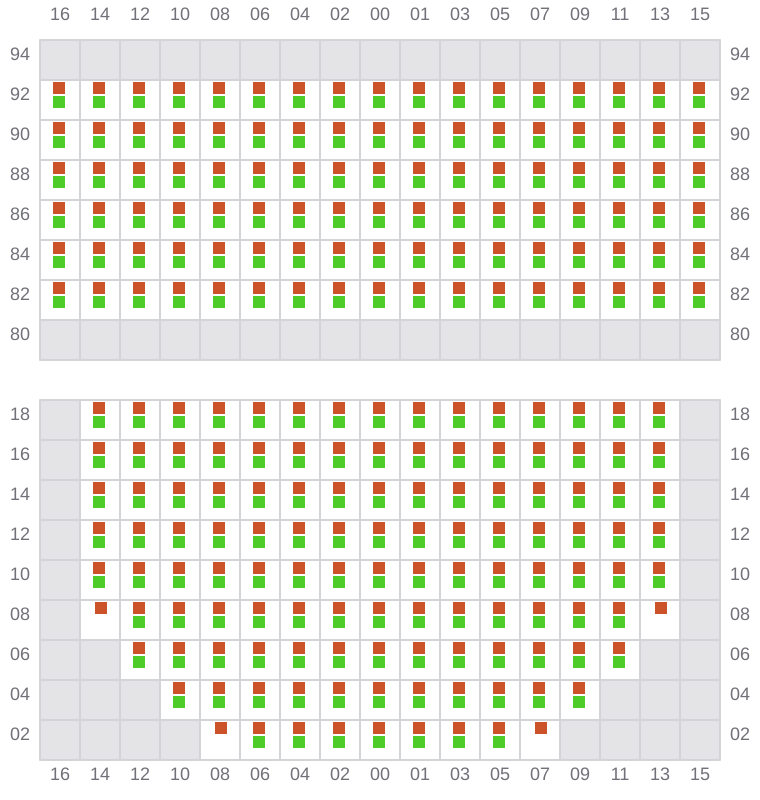

Bay 023 view and slots of TSC DORADO

025

  • →
  • ✓

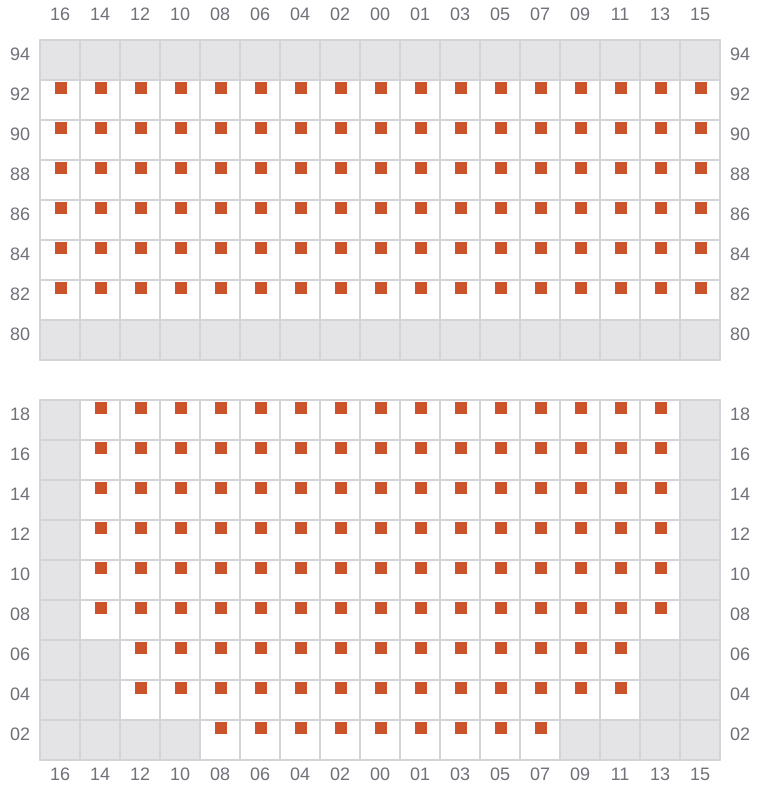

Bay 025 view and slots of TSC DORADO

027 (026)

  • ←
  • ✓

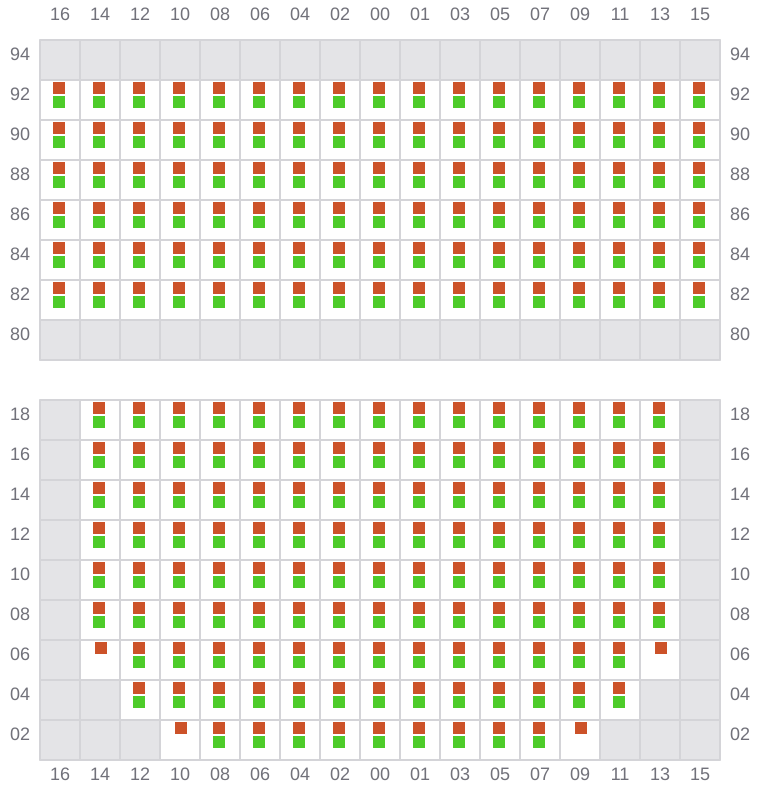

Bay 027 view and slots of TSC DORADO

029

  • →
  • ✓
Bay 029 view and slots of TSC DORADO

031 (030)

  • ←
  • ✓

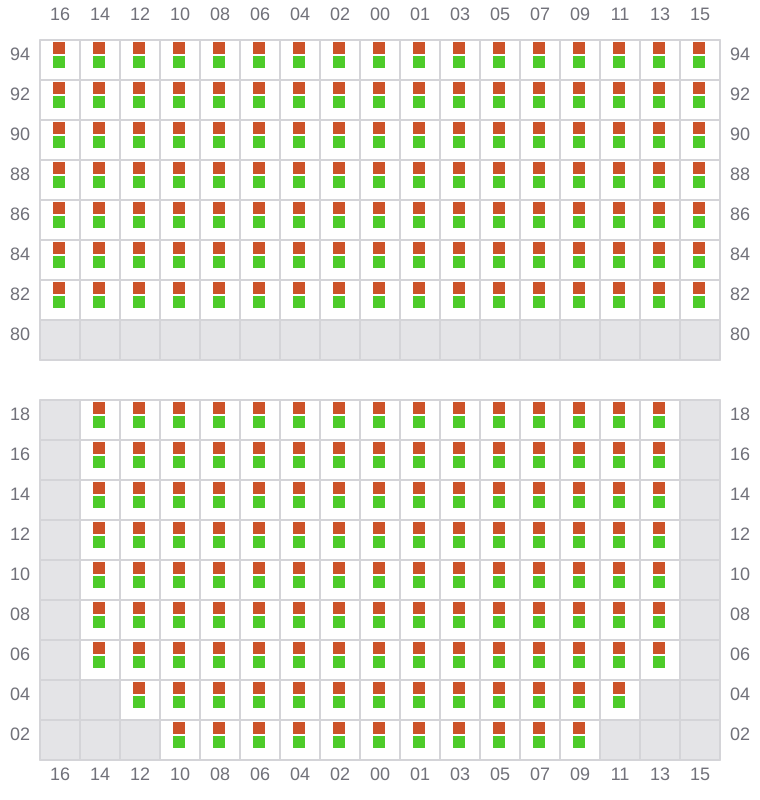

Bay 031 view and slots of TSC DORADO

033

  • →
  • ✓
Bay 033 view and slots of TSC DORADO

035 (034)

  • ←
  • ✓
Bay 035 view and slots of TSC DORADO

037

  • →
  • ✓
Bay 037 view and slots of TSC DORADO

039 (038)

  • ←
  • ✓

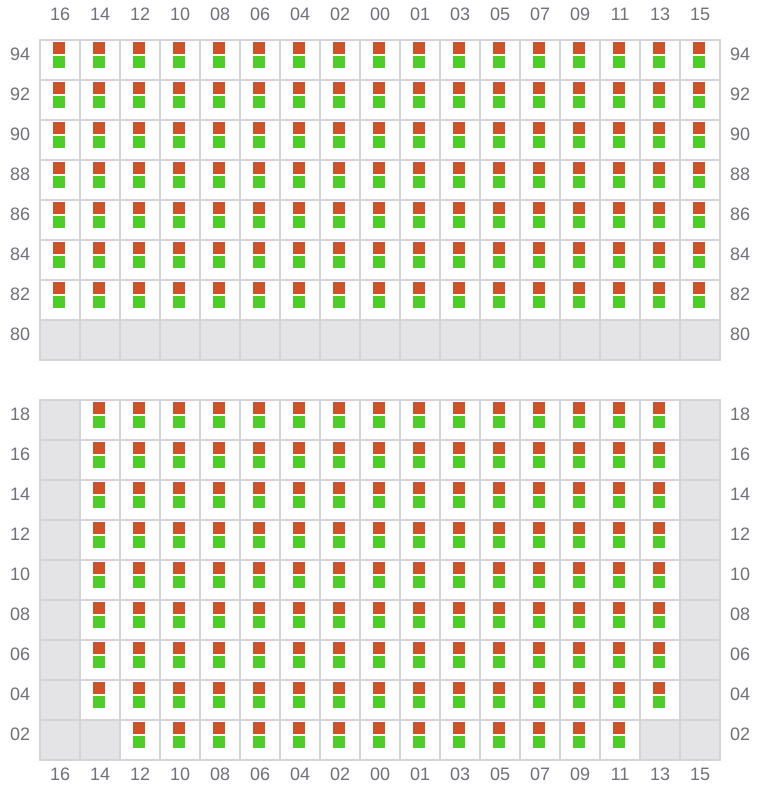

Bay 039 view and slots of TSC DORADO

041

  • →
  • ✓
Bay 041 view and slots of TSC DORADO

043 (042)

  • ←
  • ✓
Bay 043 view and slots of TSC DORADO

045

  • →
  • ✓
Bay 045 view and slots of TSC DORADO

047 (046)

  • ←
  • ✓
Bay 047 view and slots of TSC DORADO

049

  • →
  • ✓

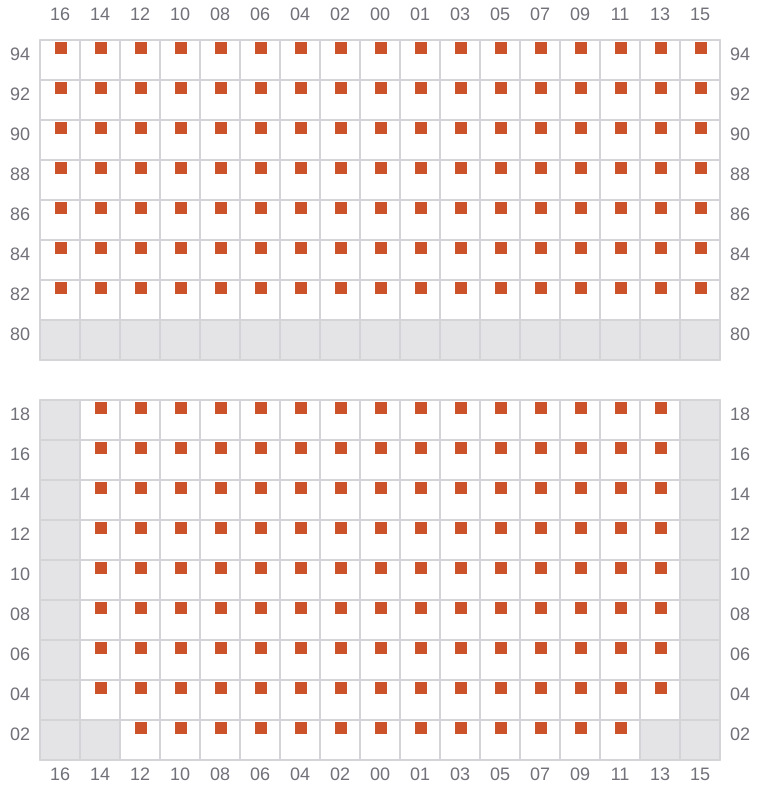

Bay 049 view and slots of TSC DORADO

051 (050)

  • ←
  • ✓
Bay 051 view and slots of TSC DORADO

053

  • →
  • ✓
Bay 053 view and slots of TSC DORADO

055 (054)

  • ←
  • ✓

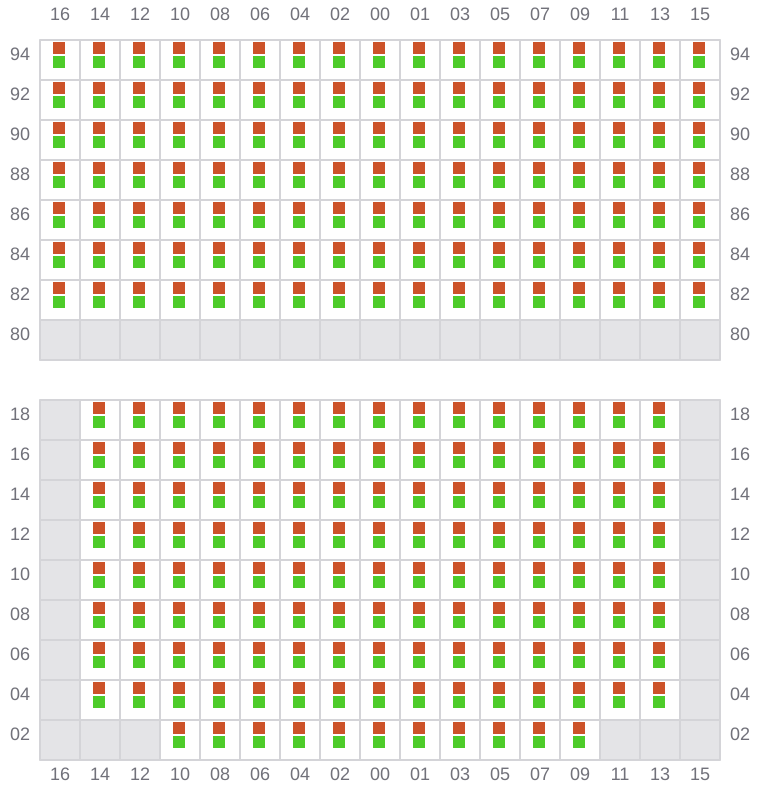

Bay 055 view and slots of TSC DORADO

057

  • →
  • ✓

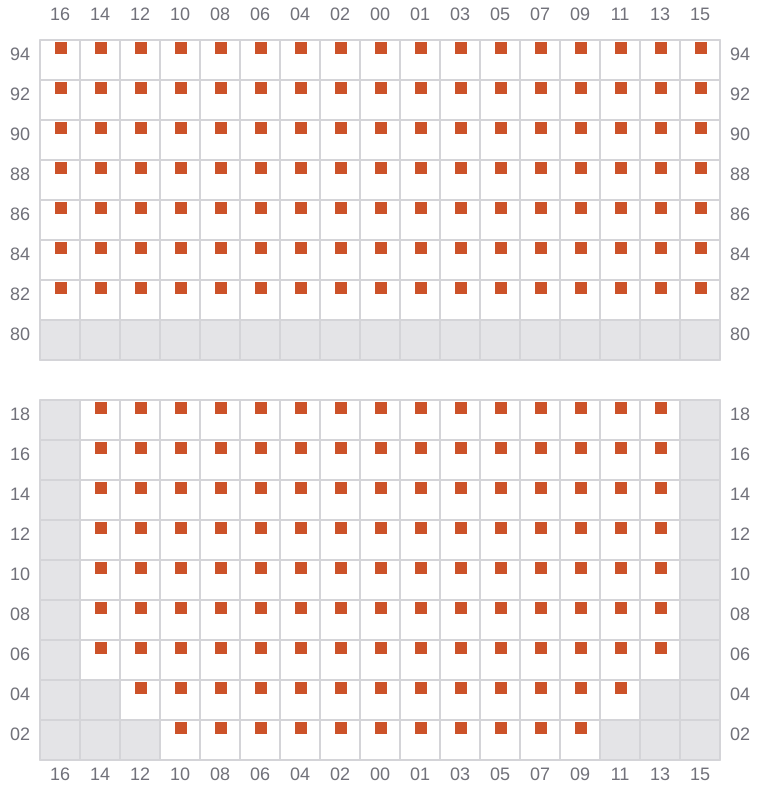

Bay 057 view and slots of TSC DORADO

059 (058)

  • ←
  • ✓

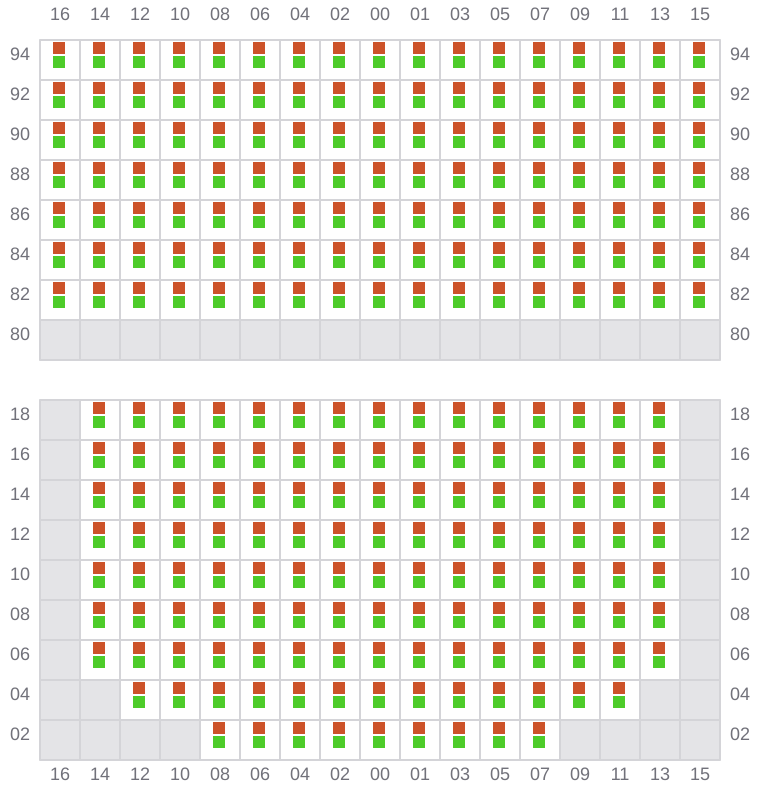

Bay 059 view and slots of TSC DORADO

061

  • →
  • ✓

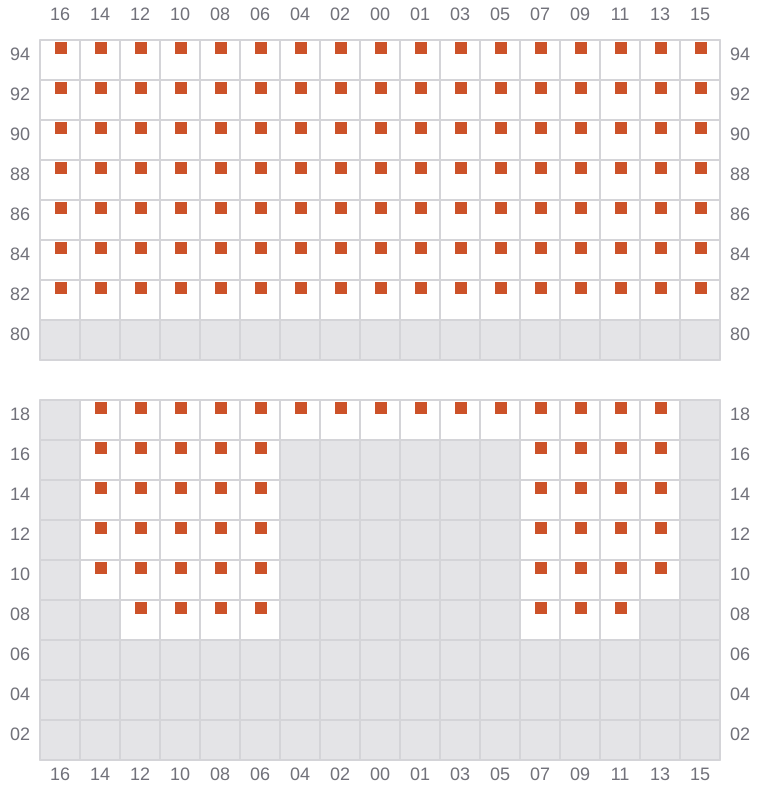

Bay 061 view and slots of TSC DORADO

063 (062)

  • ←
  • ✓

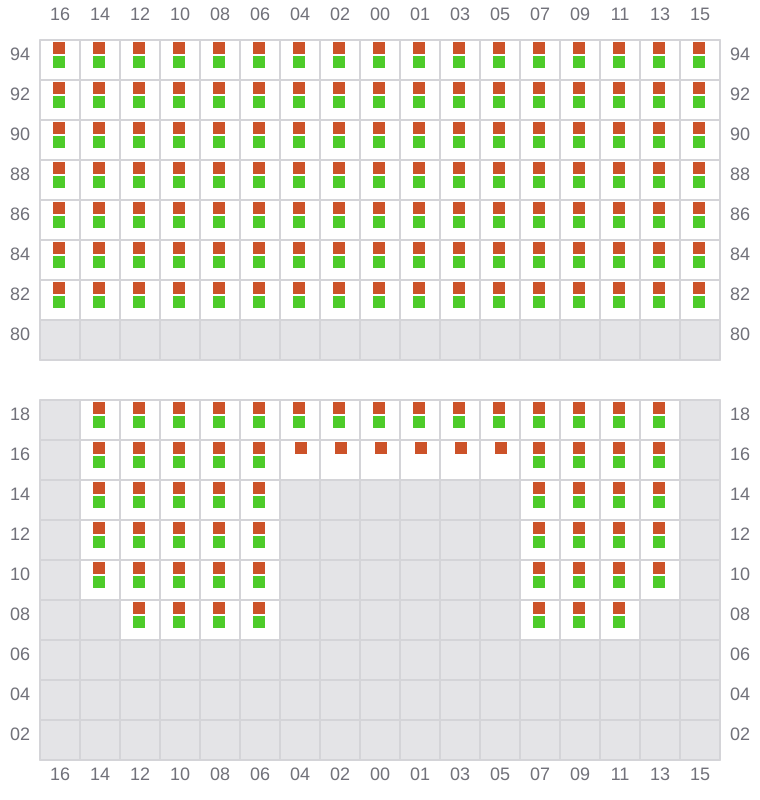

Bay 063 view and slots of TSC DORADO

065

  • →
  • ✓

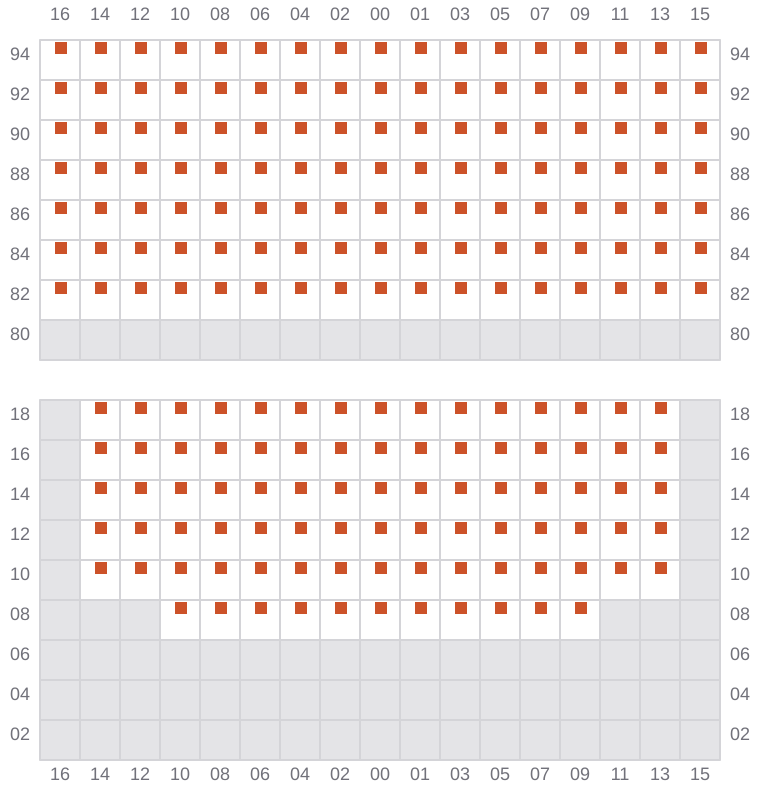

Bay 065 view and slots of TSC DORADO

067 (066)

  • ←
  • ✓

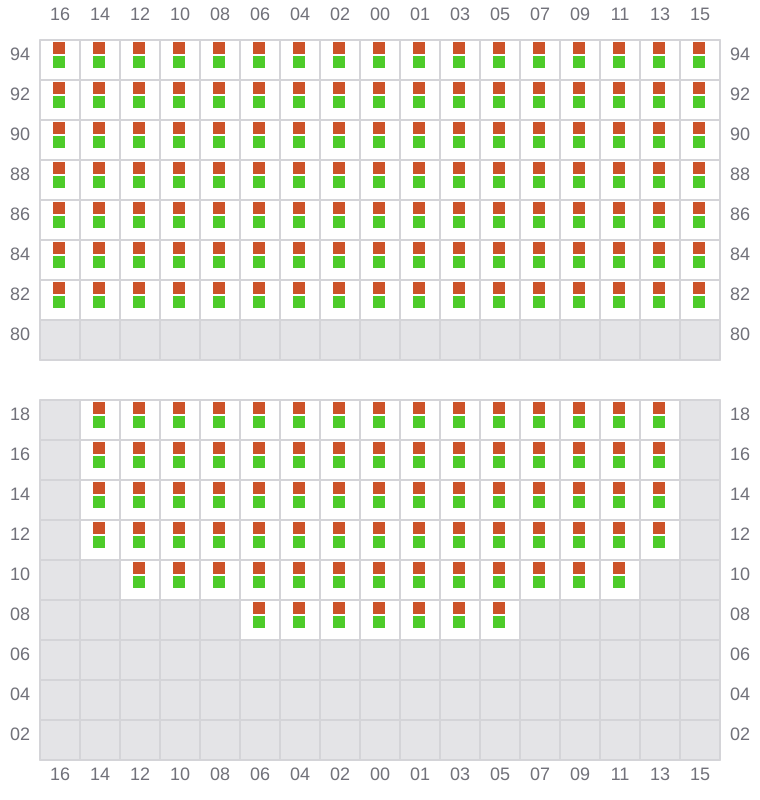

Bay 067 view and slots of TSC DORADO

069

  • →
  • ✓

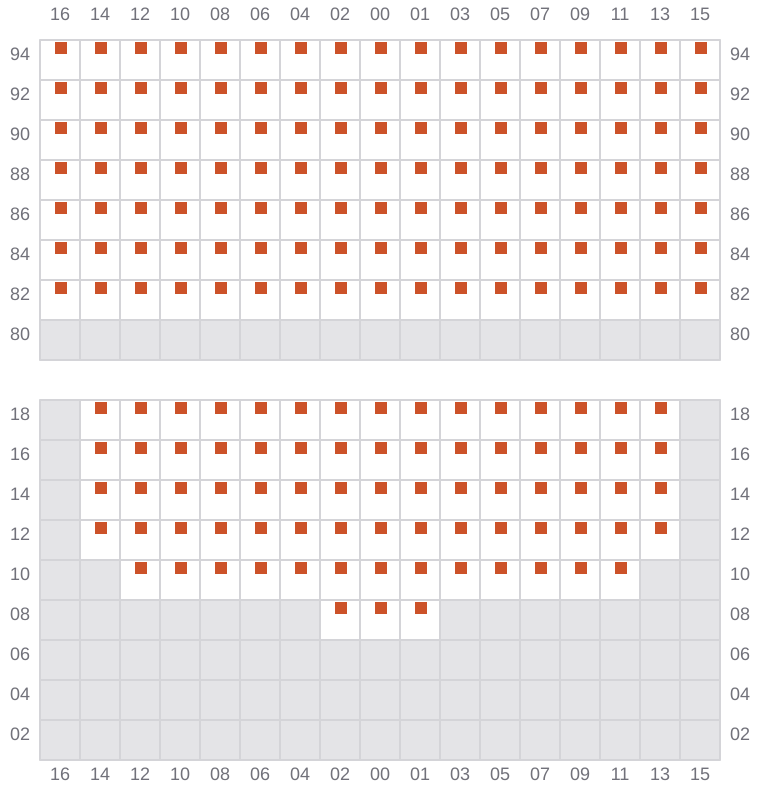

Bay 069 view and slots of TSC DORADO

071 (070)

  • ←
  • ✓

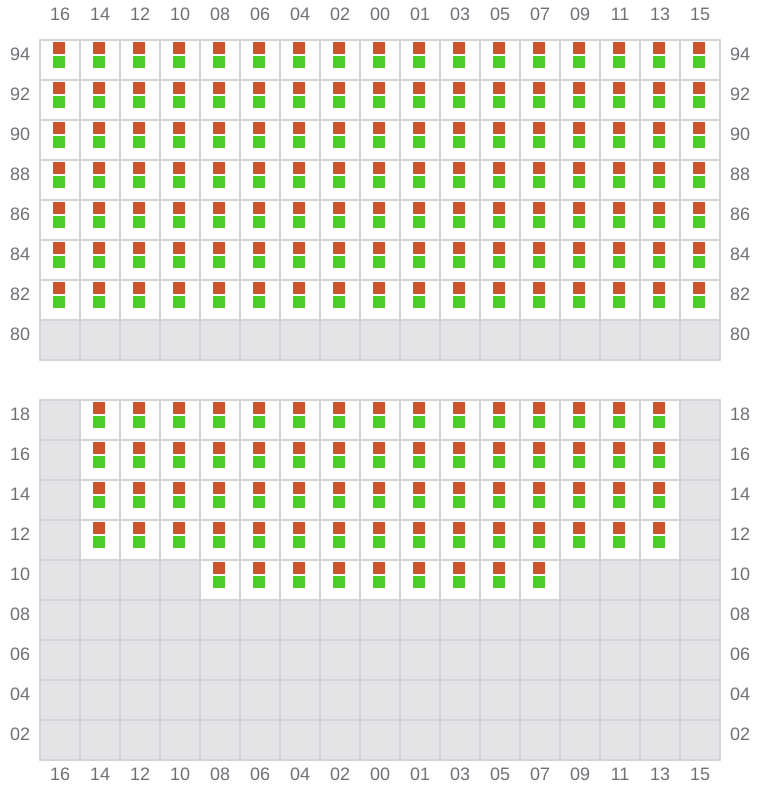

Bay 071 view and slots of TSC DORADO

073

  • →
  • ✓

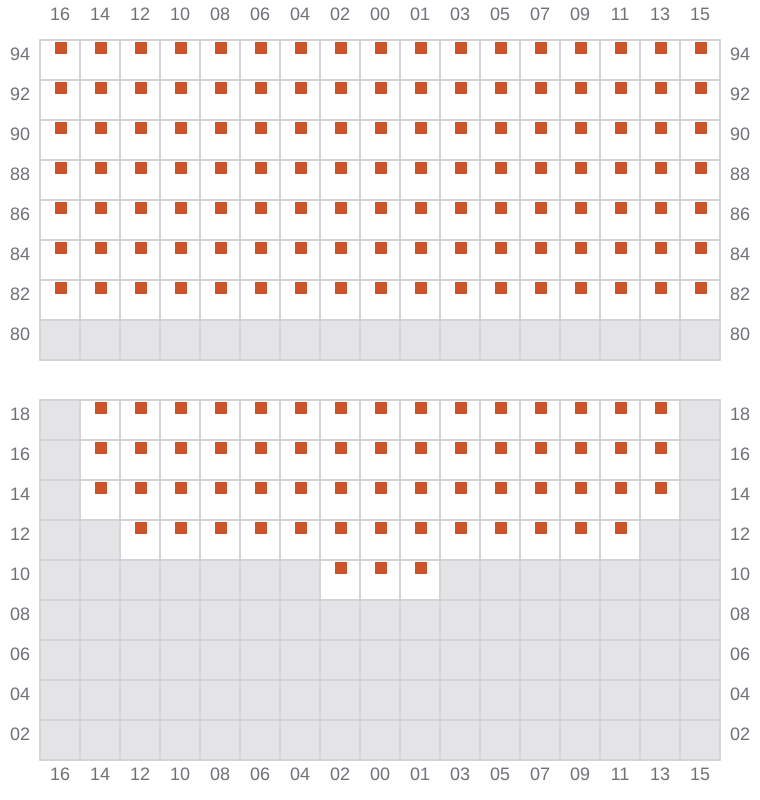

Bay 073 view and slots of TSC DORADO

075 (074)

  • ←
  • ✓
Bay 075 view and slots of TSC DORADO

077

  • →
  • ✓

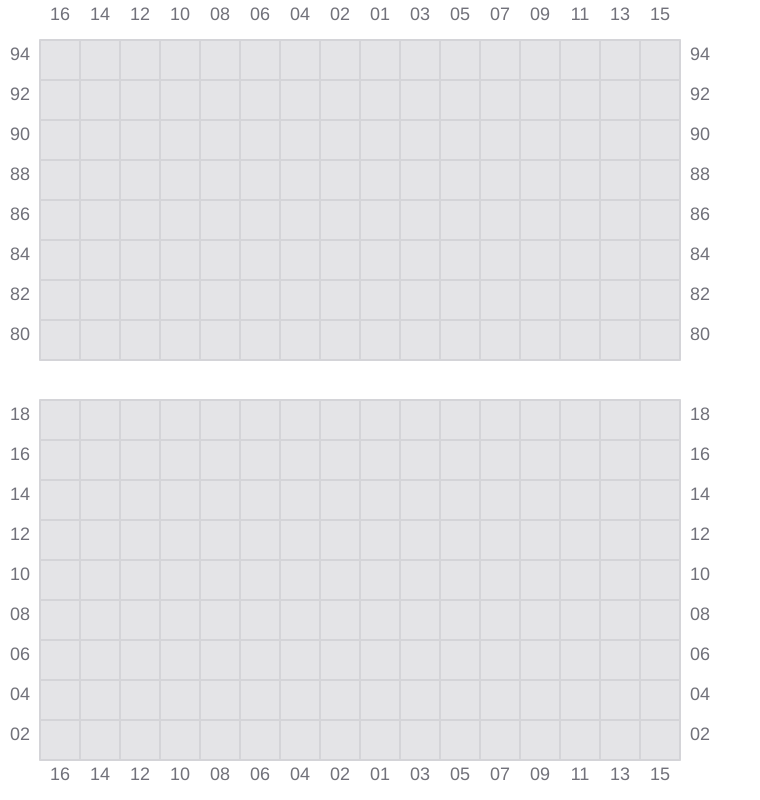

Bay 077 view and slots of TSC DORADO

079 (078)

  • ←
  • ? / ?
  • ? / ?
  • ✓

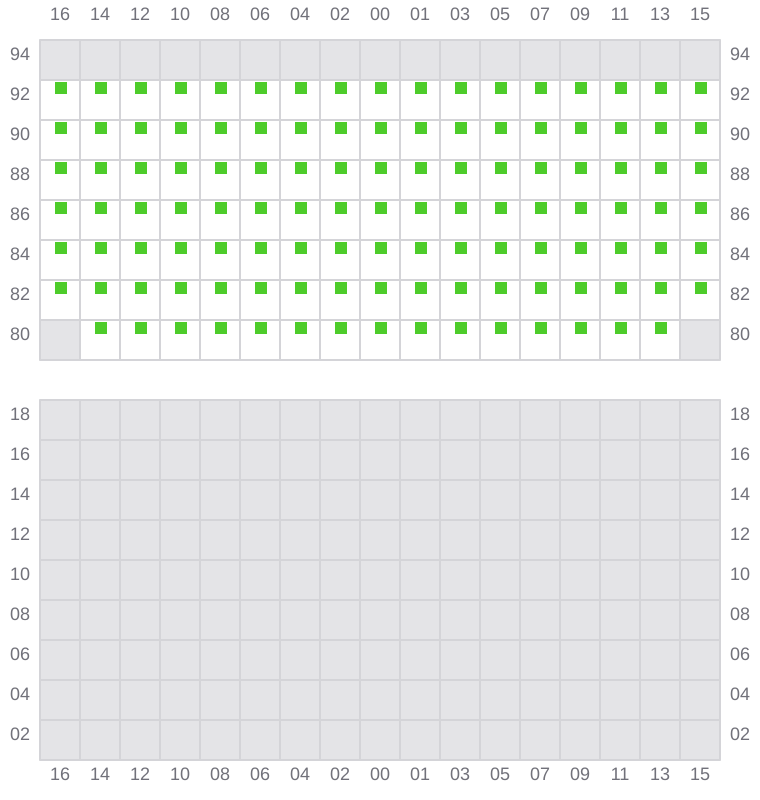

Bay 079 view and slots of TSC DORADO
