TUBUL
9447873 | A8VP8 | 9447873 by ********* Last update: Wed Mar 27 2024
General Info
Ship Name:TUBUL
IMO Code:9447873
Call Sign:A8VP8
Line Operator:9447873
Class Name for Sister Ships:75E
Year Built:2011
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:069
Max ISO Row:18
Center Line Row:No
Max Above ISO Tier:96
Min Above ISO Tier:80
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:8,000
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

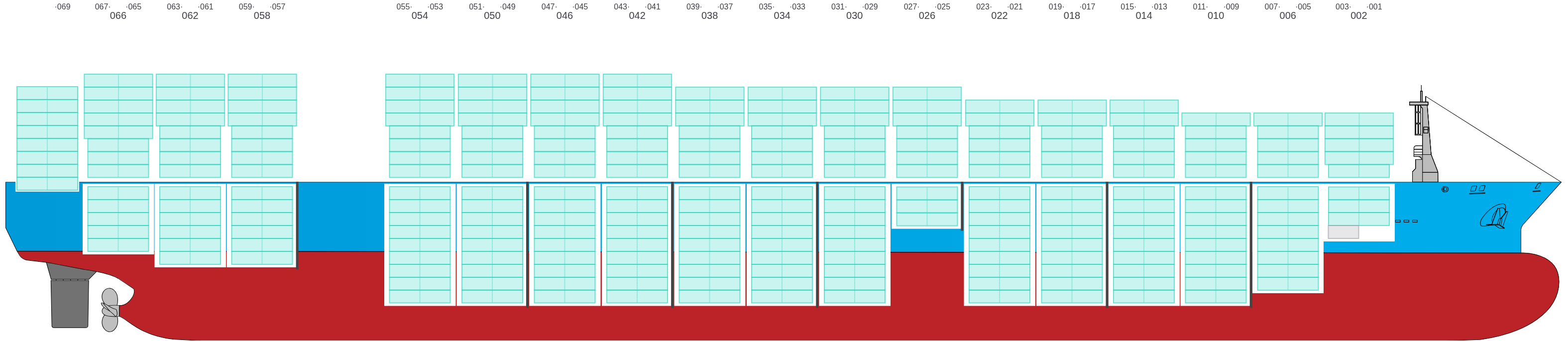

Side View
Hatch-Covers View

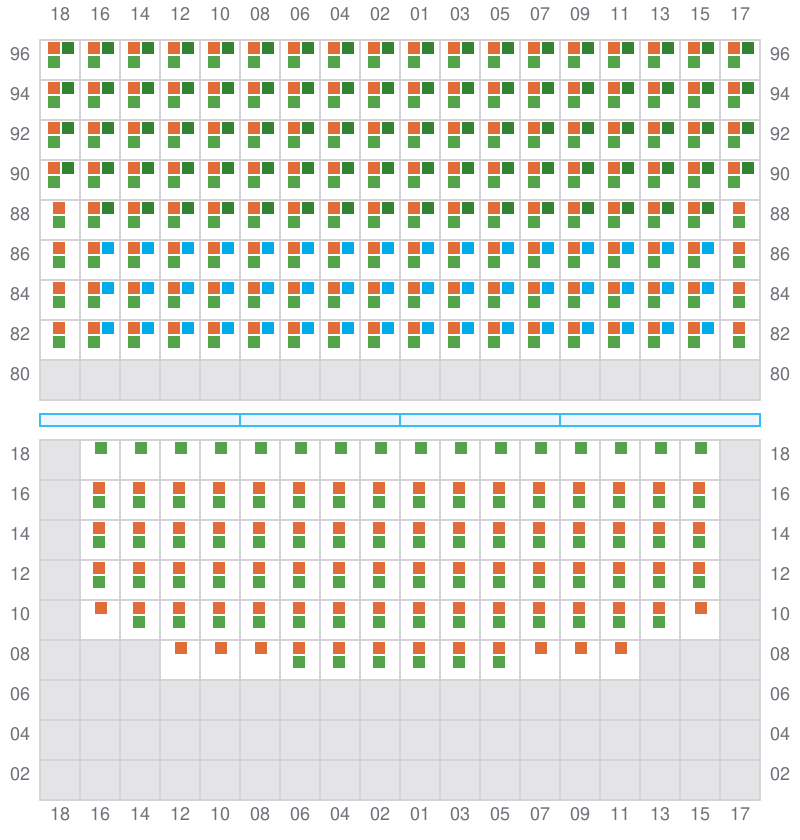

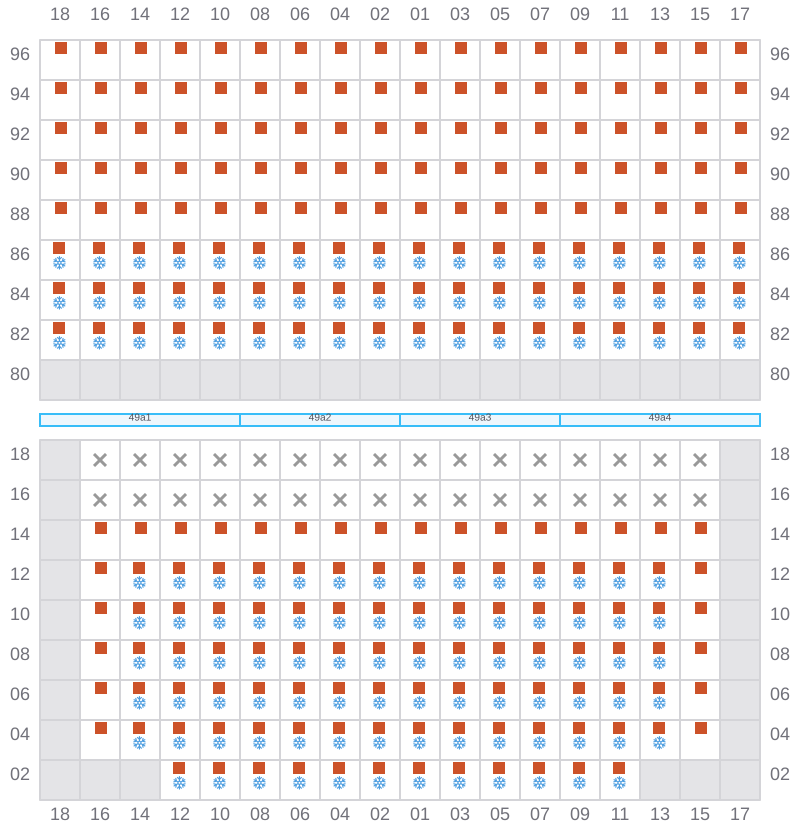

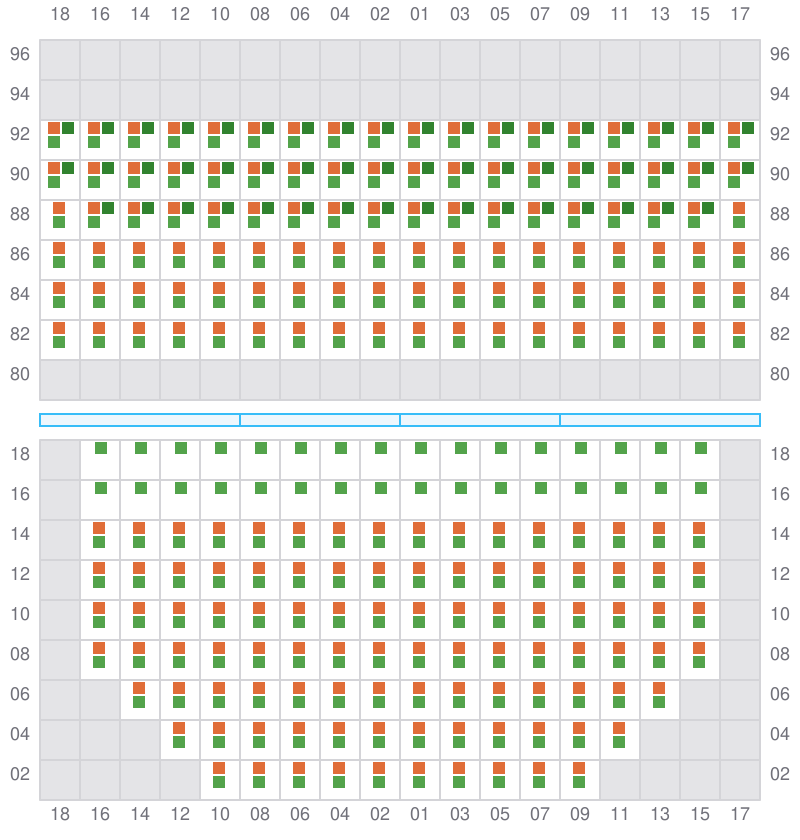

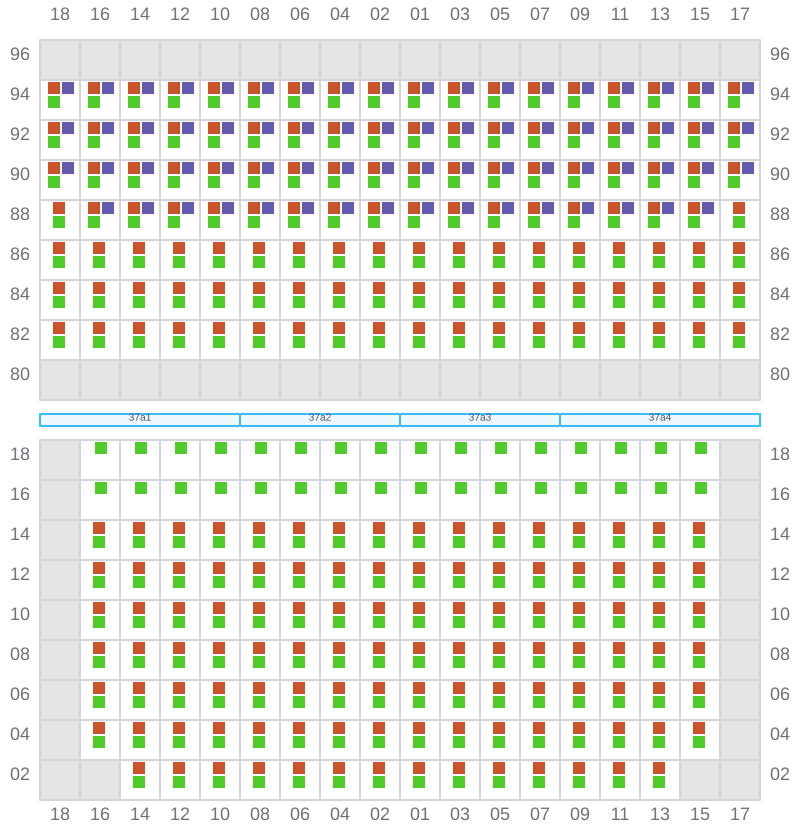

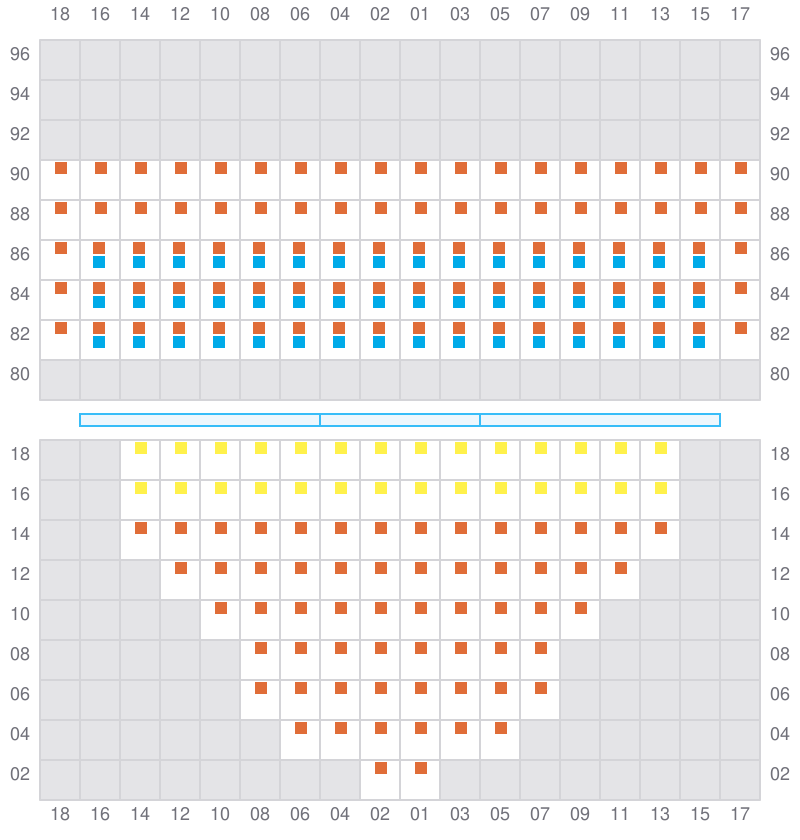

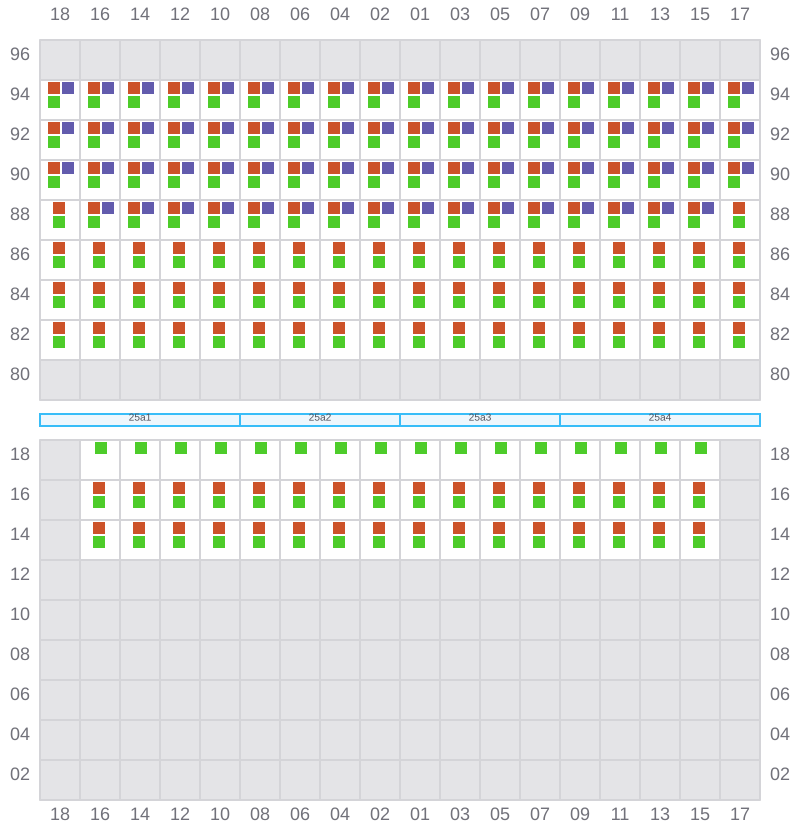

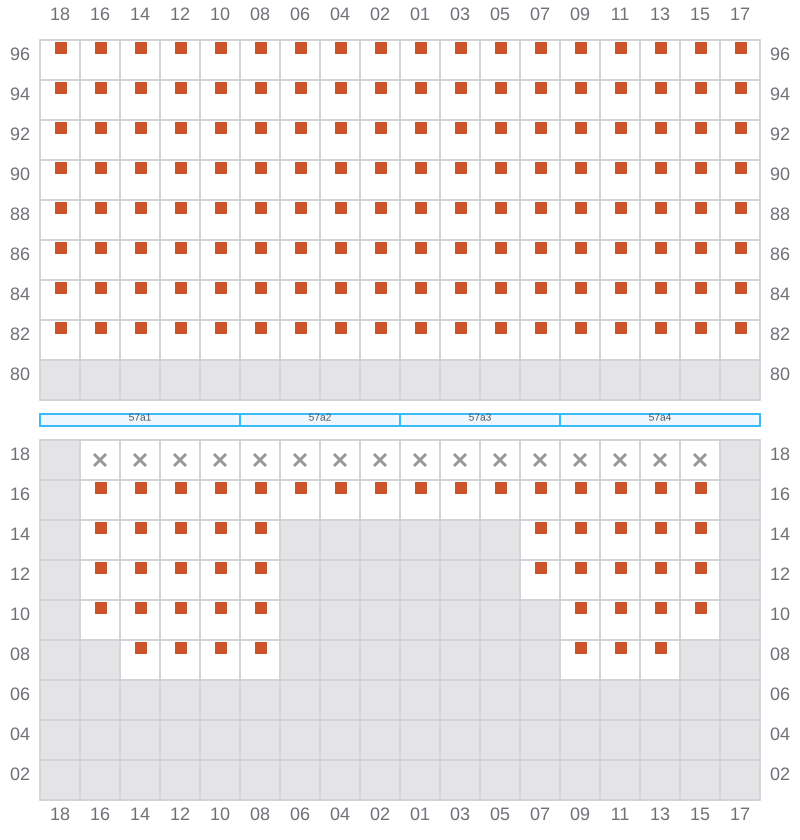

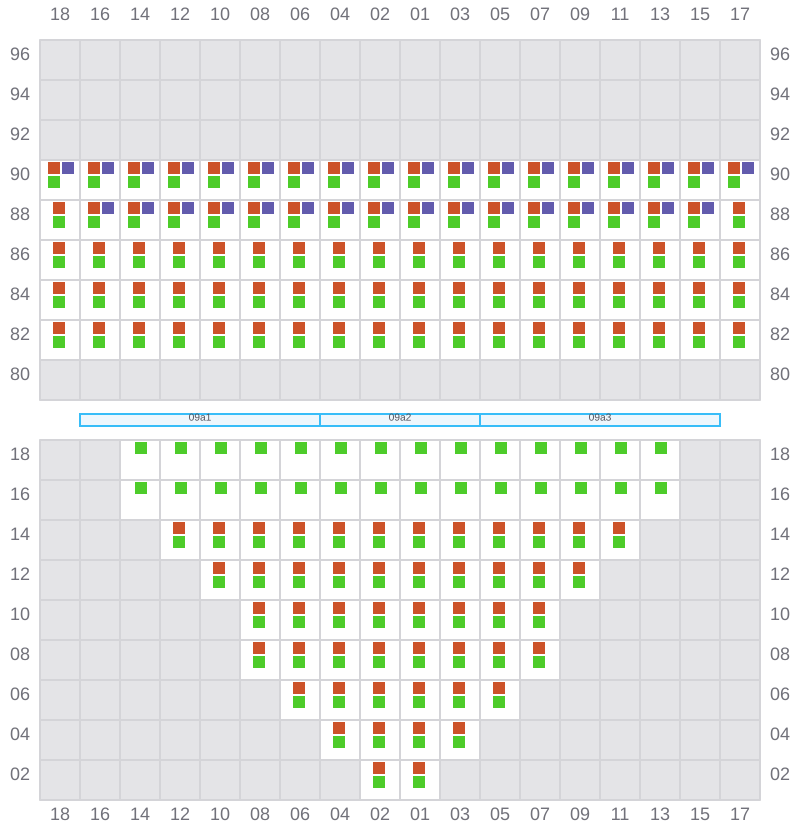

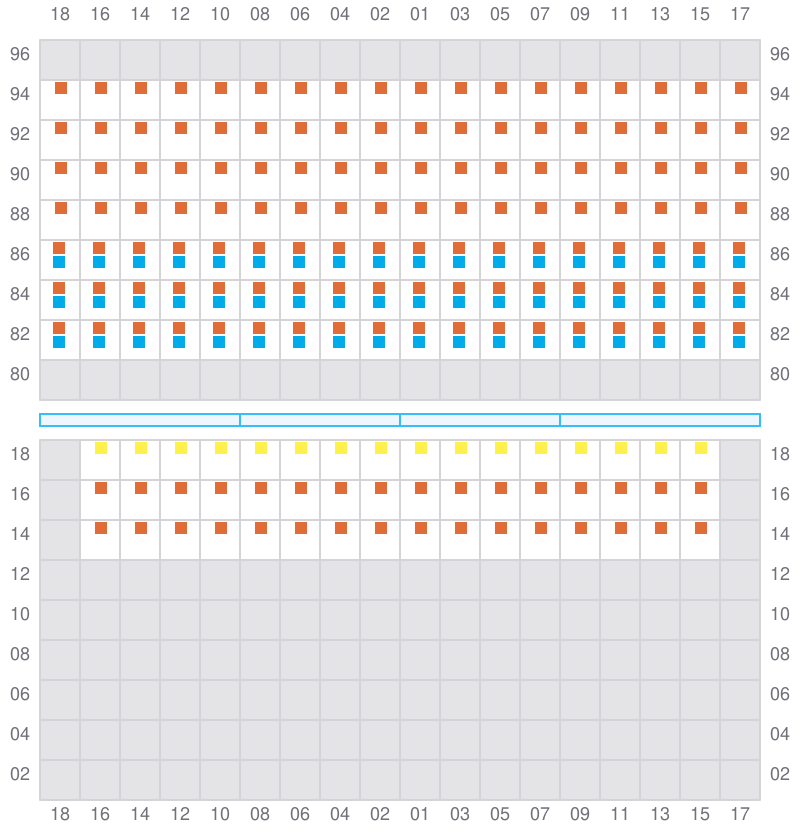

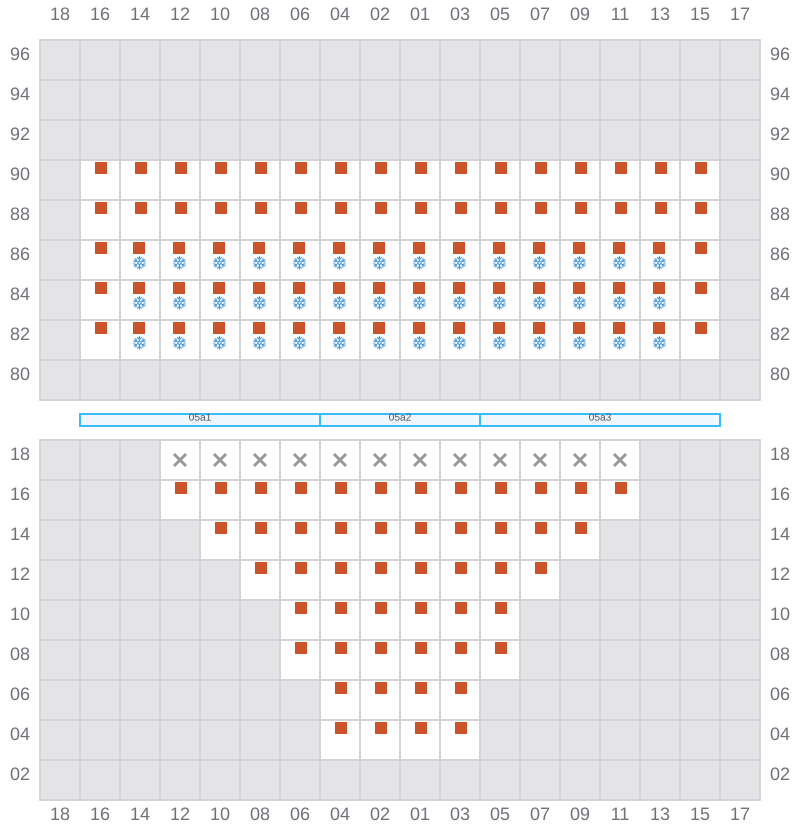

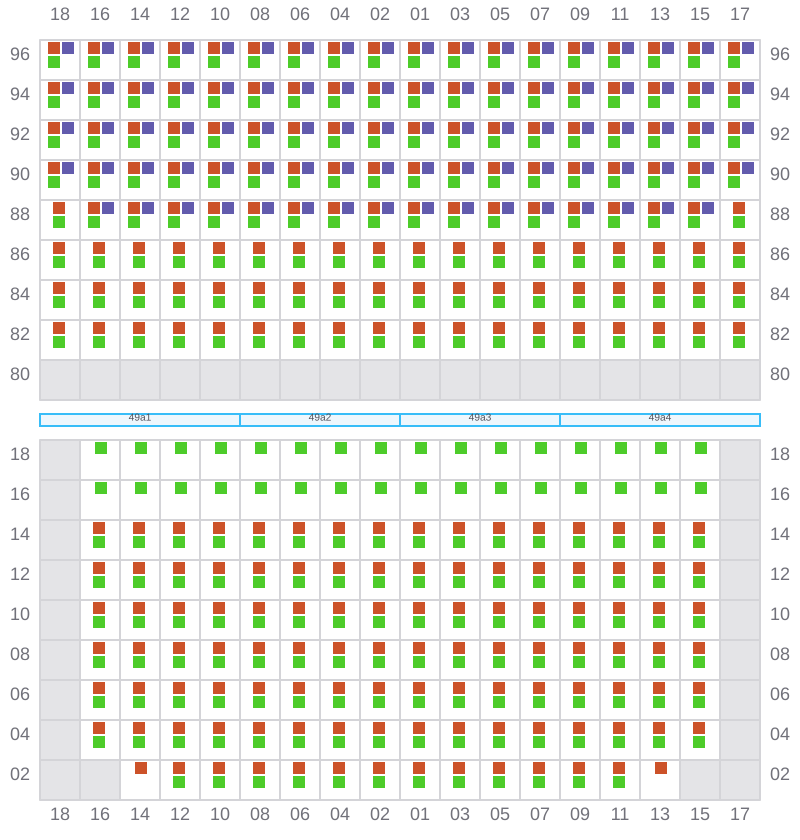

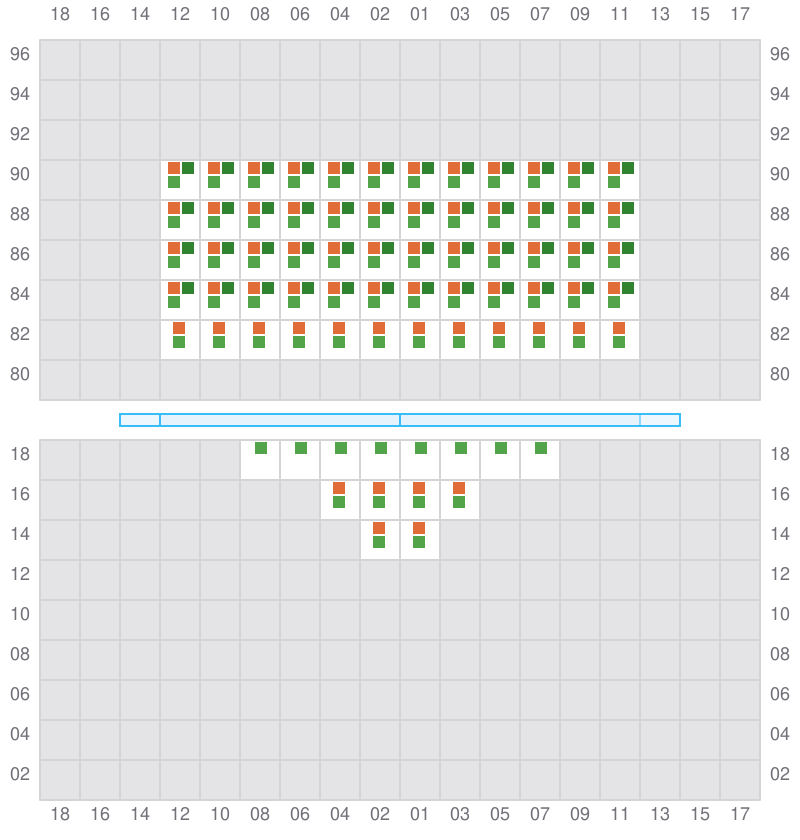

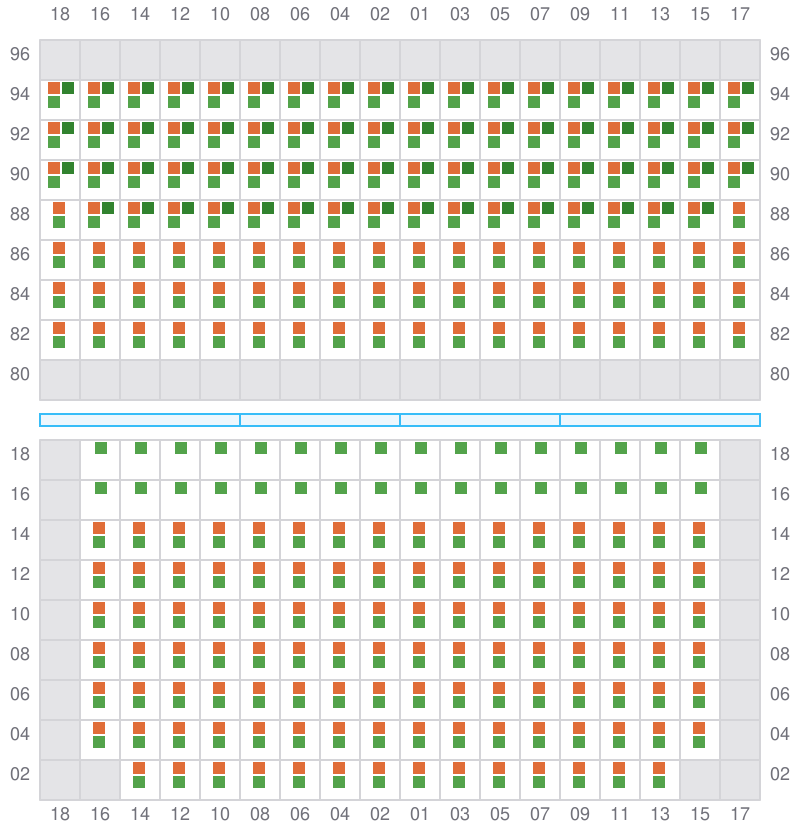

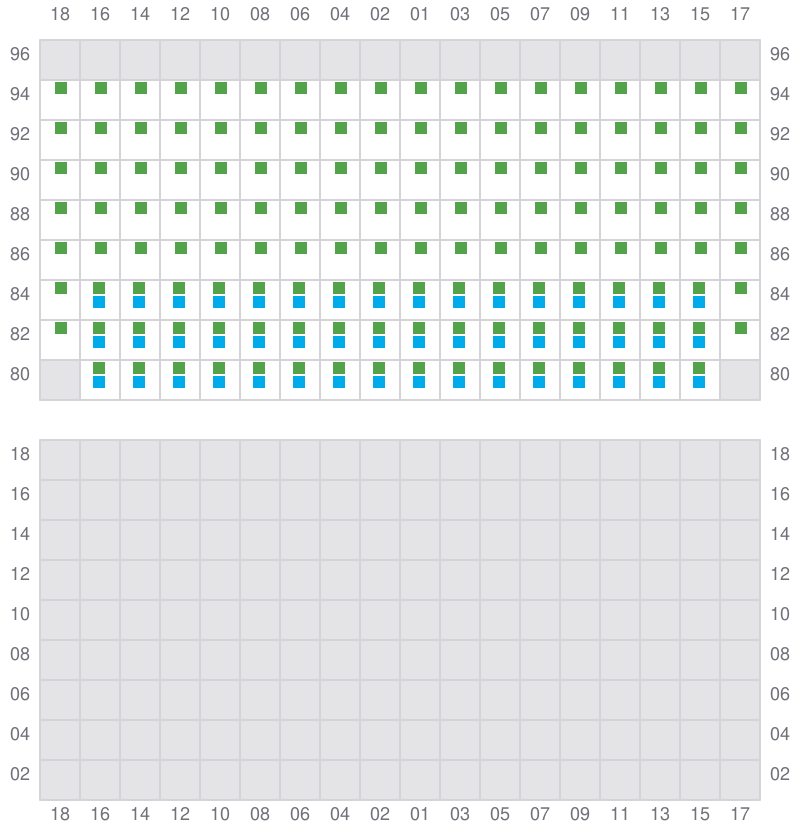

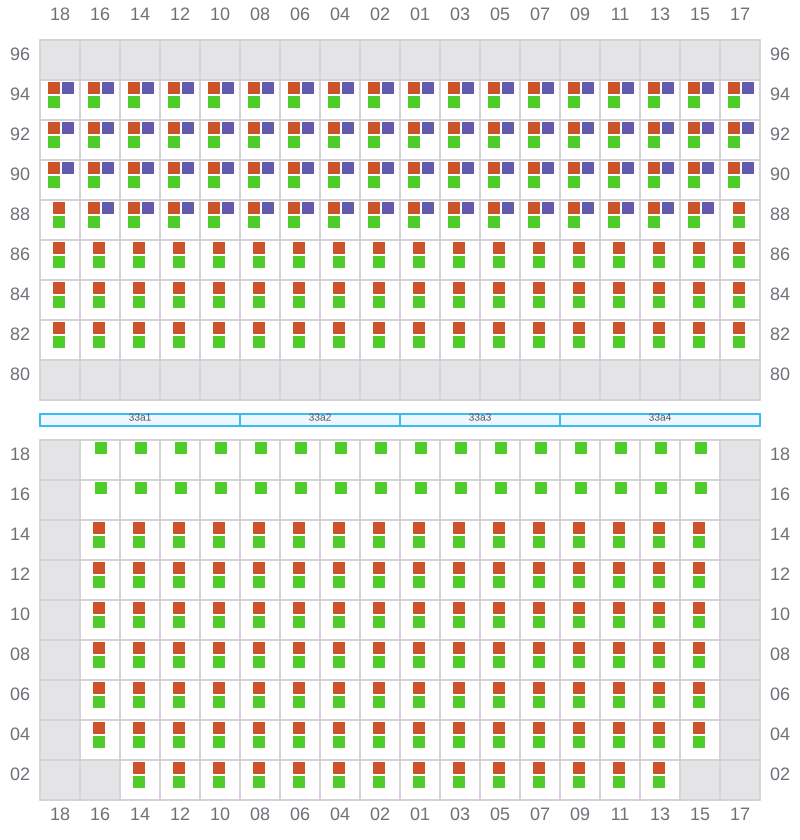

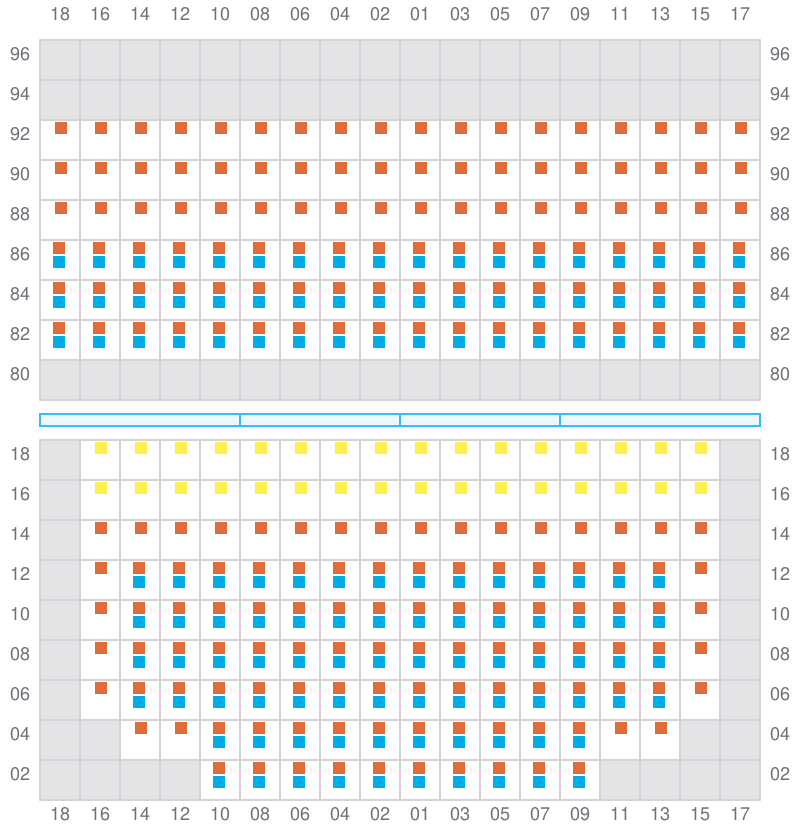

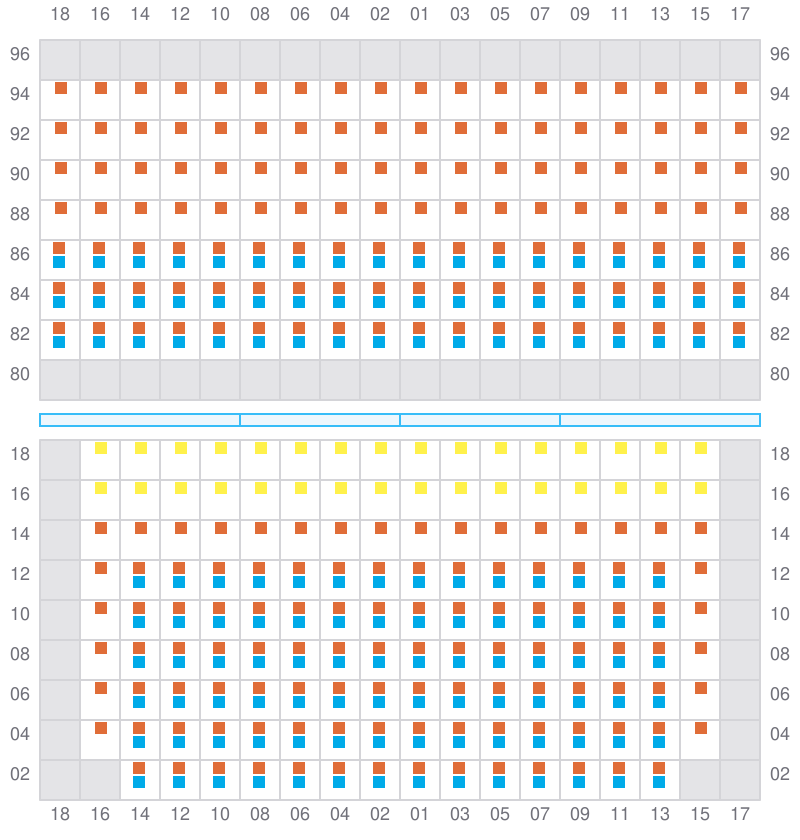

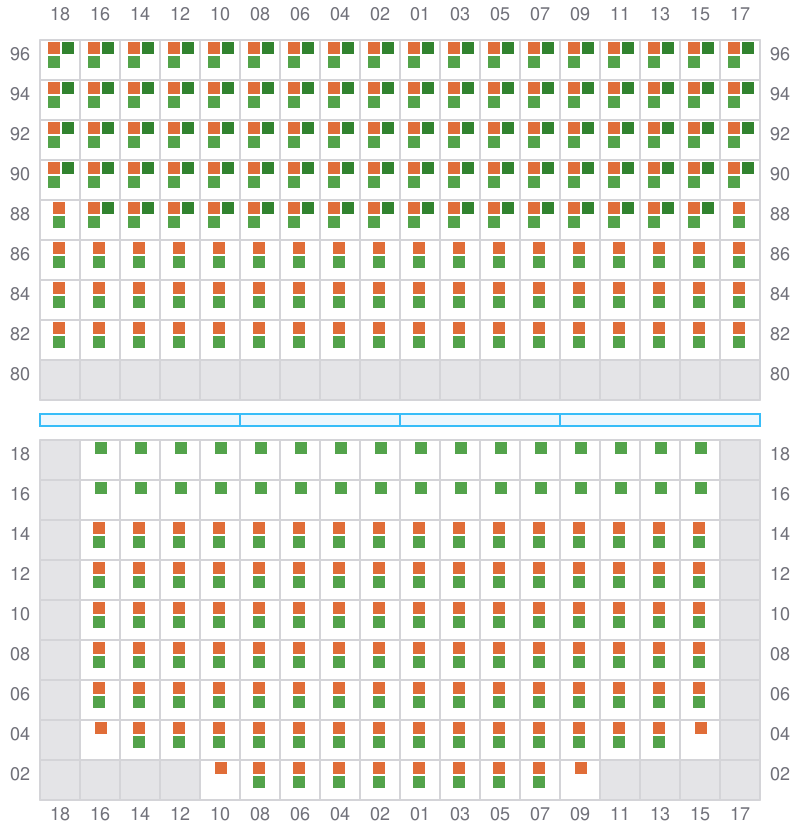

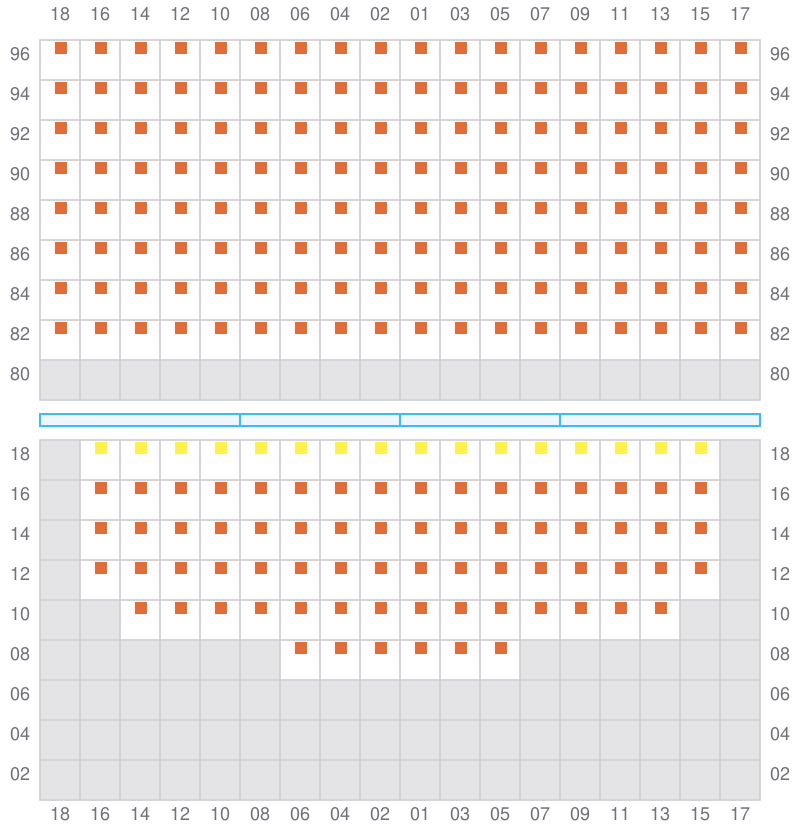

ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot
001 (002)
- →
- ← / ?
003
- ←
- → / ?

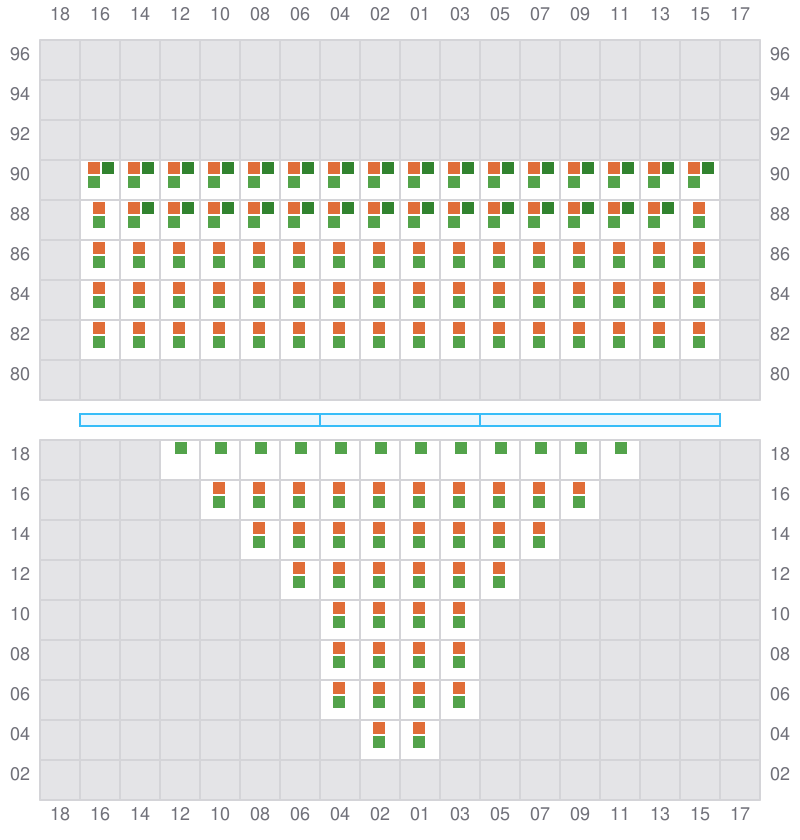

005 (006)
- →
- ← / ?
007
- ←
- → / ?
009 (010)
- →
- ← / ?
011
- ←
- → / ?

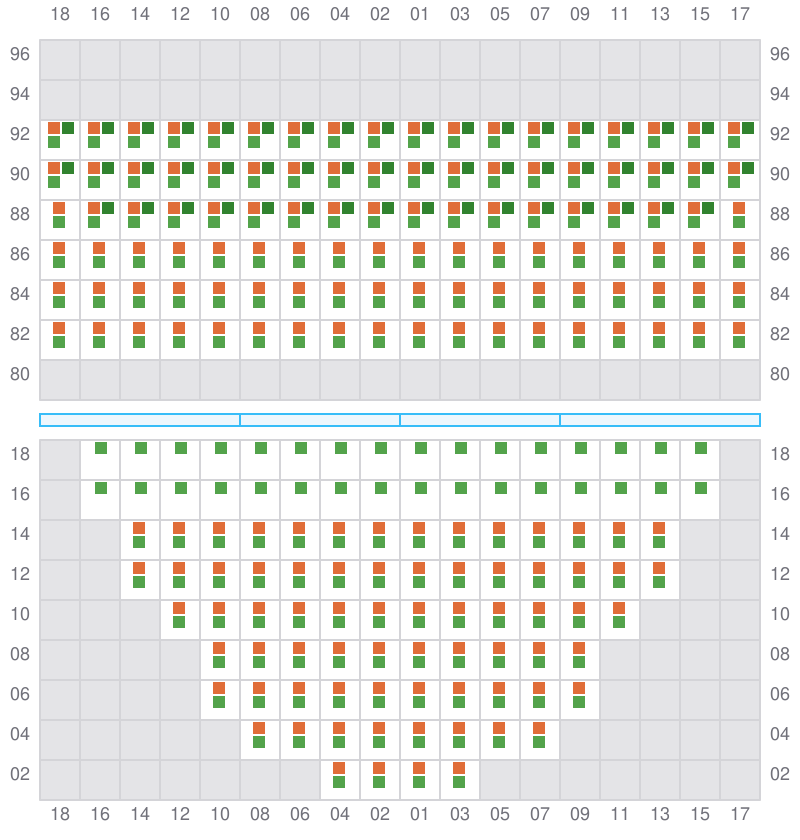

013 (014)
- →
- ← / ?
015
- ←
- → / ?
017 (018)
- →
- ← / ?

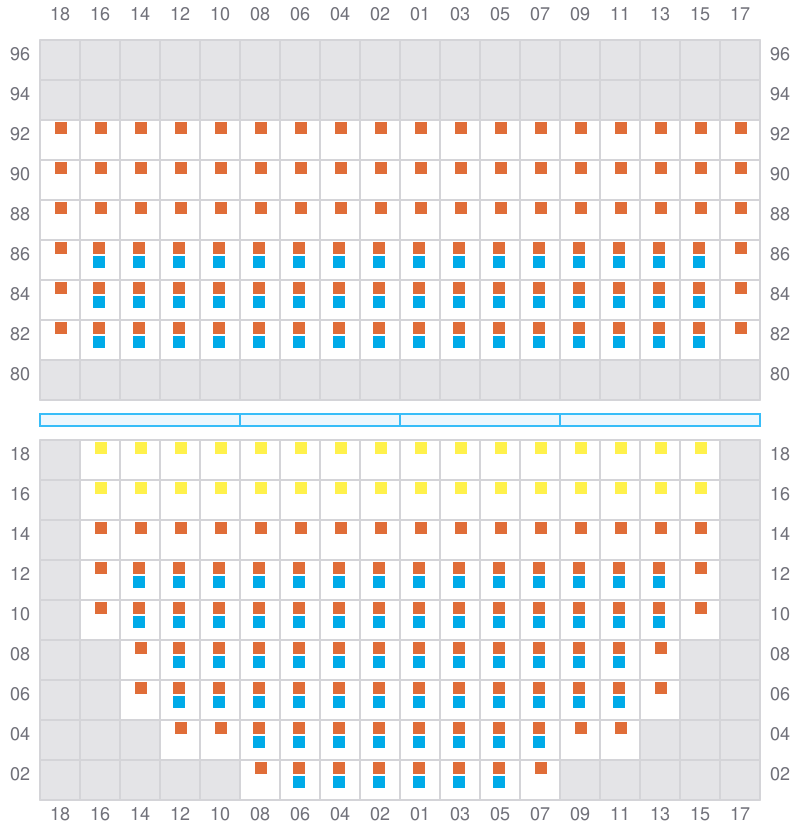

019
- ←
- →
021 (022)
- →
- ← / ?
023
- ←
- →
025 (026)
- →
- ← / ?
027
- ←
- → / ?
029 (030)
- →
- ← / ?

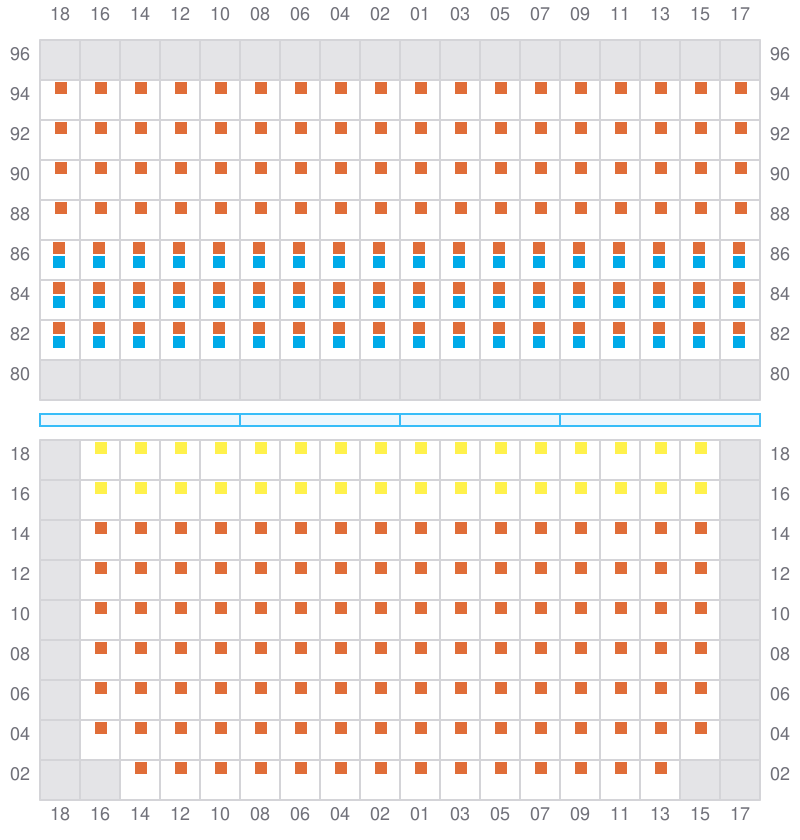

031
- ←
- → / ?
033 (034)
- →
- ← / ?
035
- ←
- →
037 (038)
- →
- ← / ?
039
- ←
- →

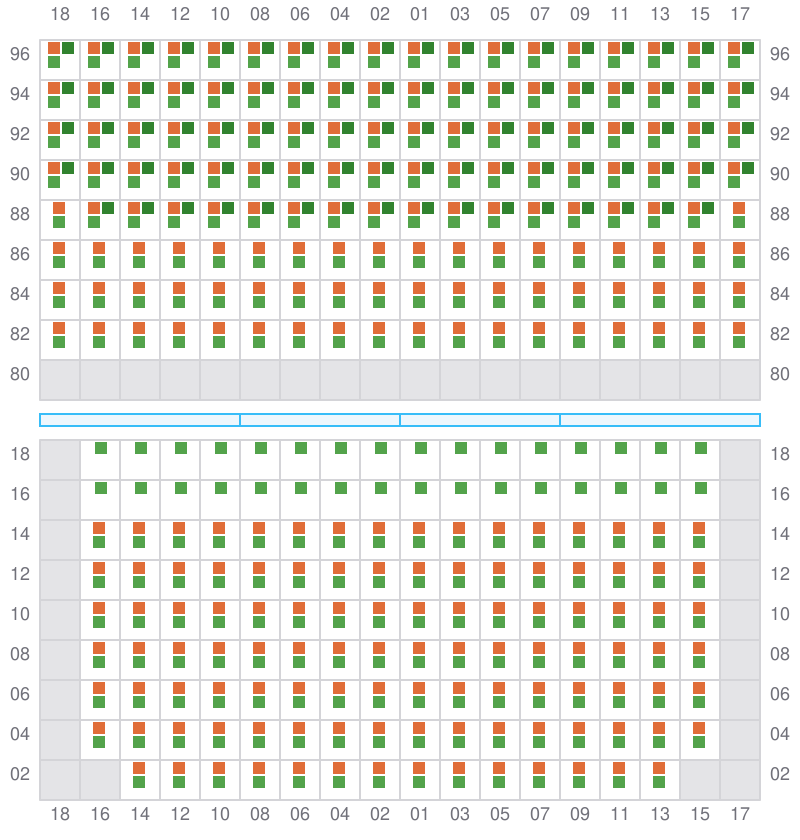

041 (042)
- →
- ← / ?
043
- ←
- →
045 (046)
- →
- ← / ?
047
- ←
- →
049 (050)
- →
- ← / ?
051
- ←
- →
053 (054)
- →
- ← / ?

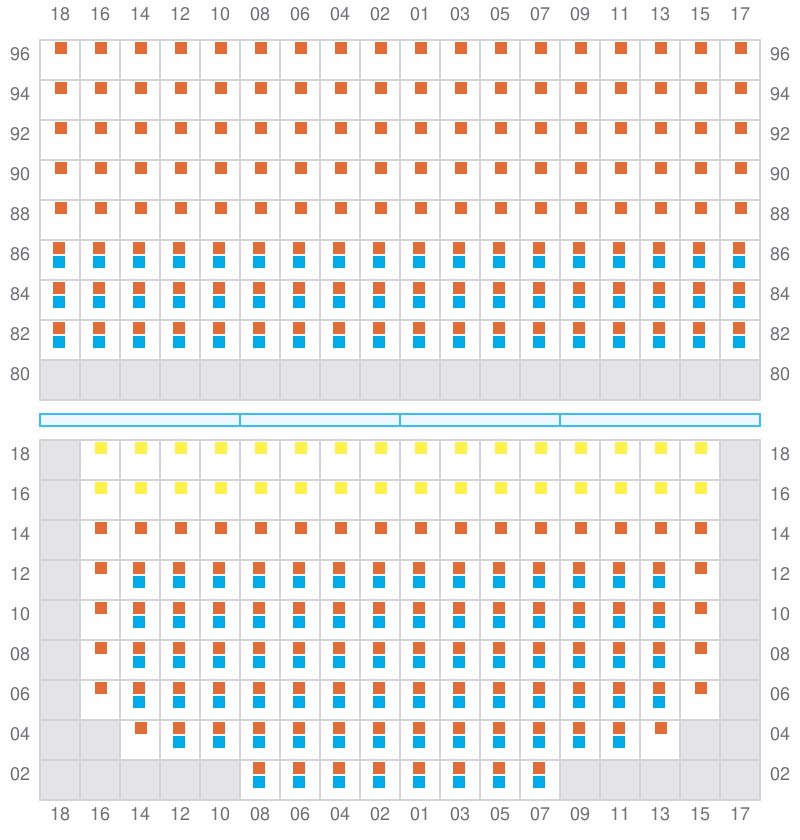

055
- ←
- →
057 (058)
- →
- ← / ?
059
- ←
061 (062)
- →
- ← / ?
063
- ←

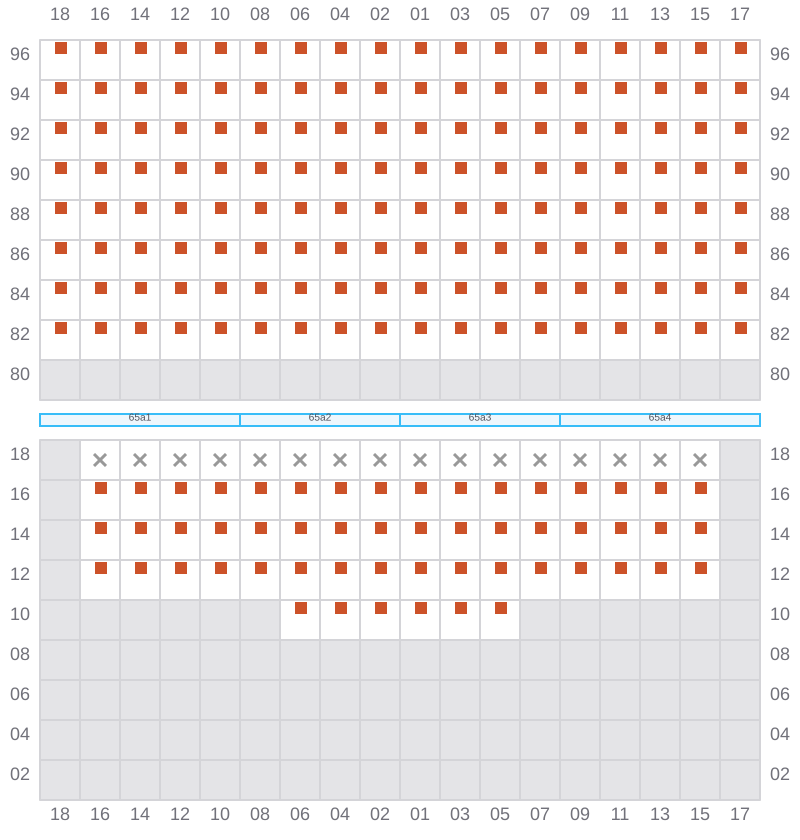

065 (066)
- →
- ← / ?
067
- ←
069 (070)
- → / ?
- ← / ?
