TUN AZIZAN
9169873 | 9MOD | 9169873 by ********* Last update: Fri Mar 08 2024
General Info
Ship Name:TUN AZIZAN
IMO Code:9169873
Call Sign:9MOD
Line Operator:9169873
Class Name for Sister Ships:41A
Year Built:1999
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:023
Max ISO Row:08
Center Line Row:No
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:08
Min Below ISO Tier:02
Total TEU:652
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%
Side View
Hatch-Covers View

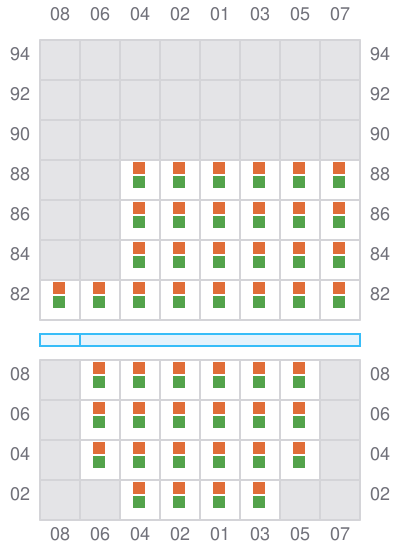

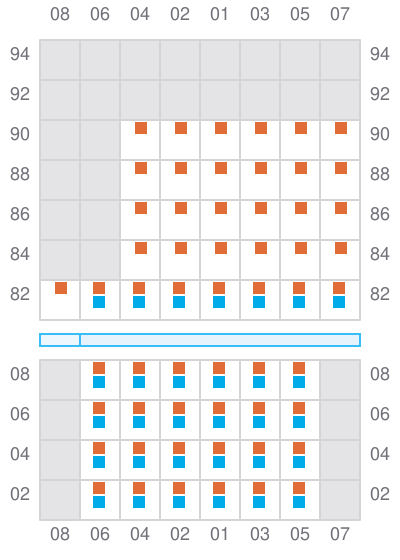

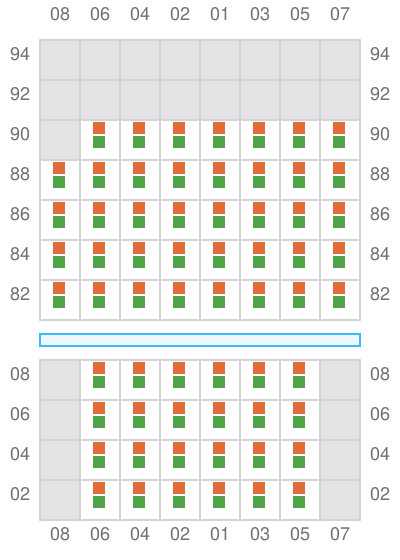

ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

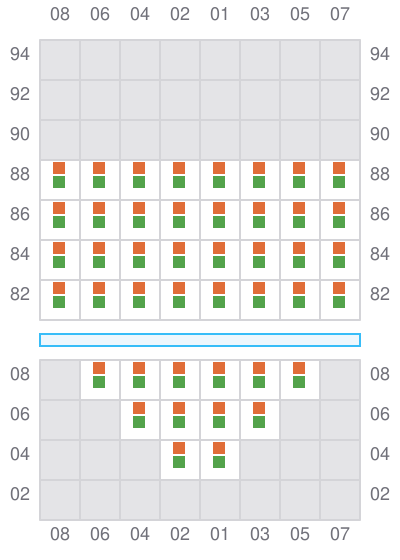

001 (002)
- →

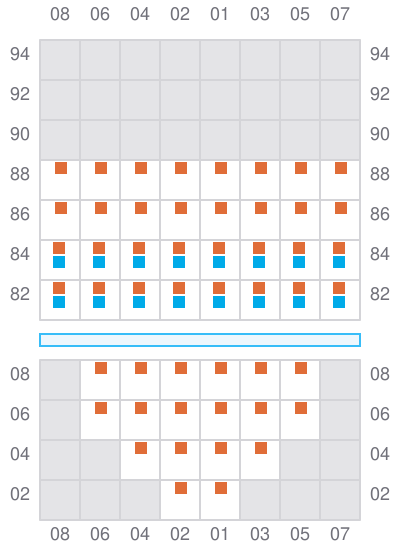

003
- ←
- → / ?
005 (006)
- →

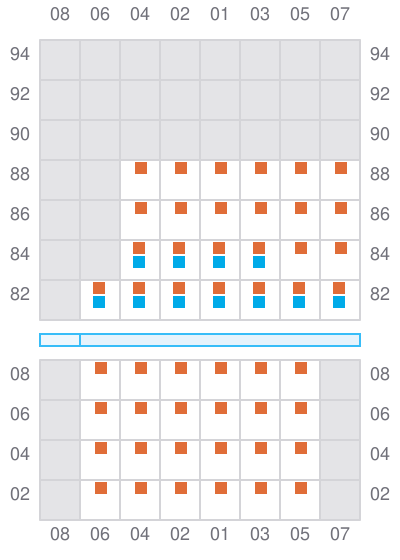

007
- ←
- → / ?
009 (010)
- →

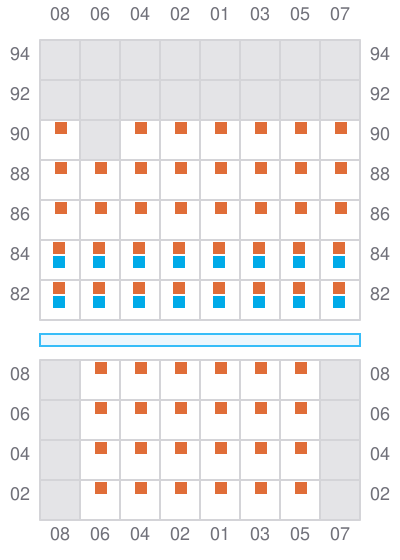

011
- ←
- → / ?
013 (014)
- →

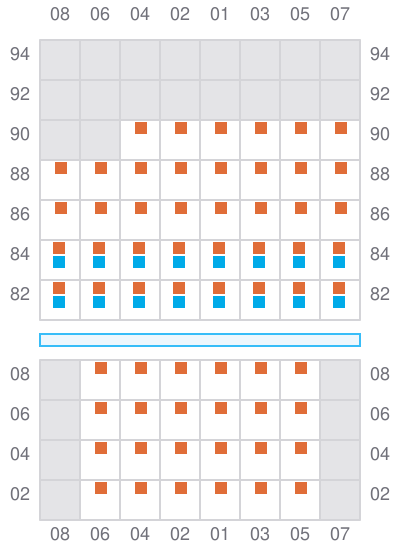

015
- ←
- → / ?
017 (018)
- →
019
- ←
- →

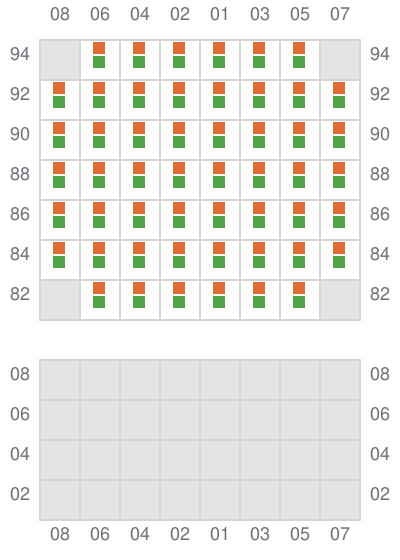

021 (022)
- → / ?

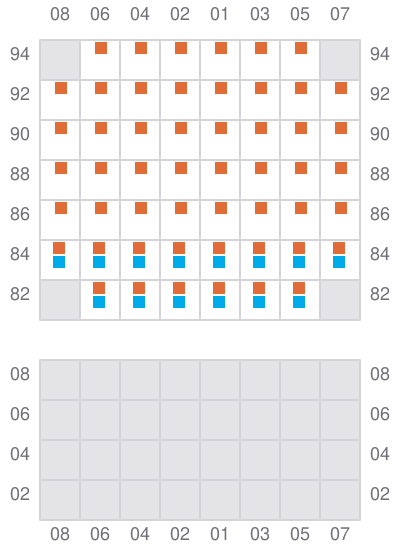

023
- ← / ?
- → / ?
