TURKON EGYPT
9308182 | TCA3529 | MAE by ********* Last update: Wed Jul 31 2024

General Info

Ship Name:TURKON EGYPT
IMO Code:9308182
Call Sign:TCA3529
Line Operator:MAE
Class Name for Sister Ships:MAE
Year Built:2007
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:045
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:2,982

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

Side View

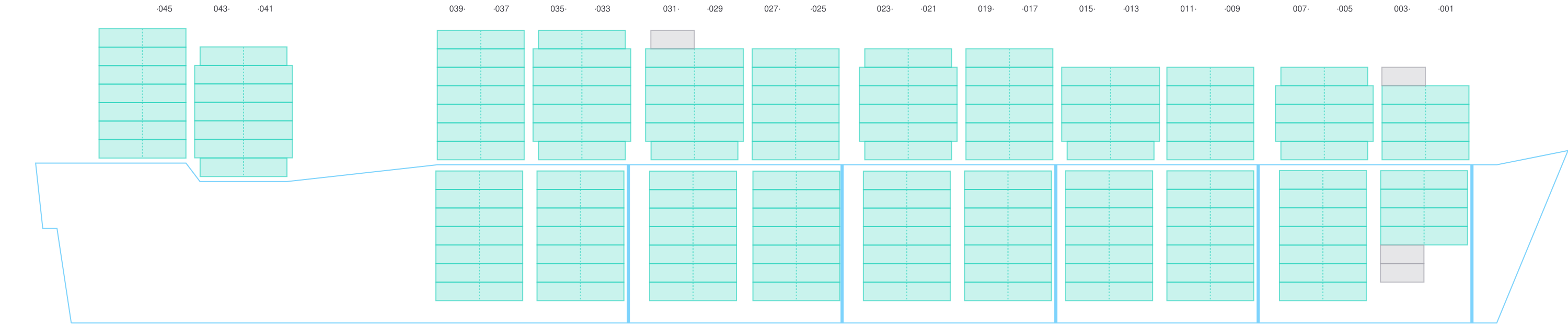

Side view of TURKON EGYPT

Hatch-Covers View

Deck view of TURKON EGYPT

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001 (002)

  • →

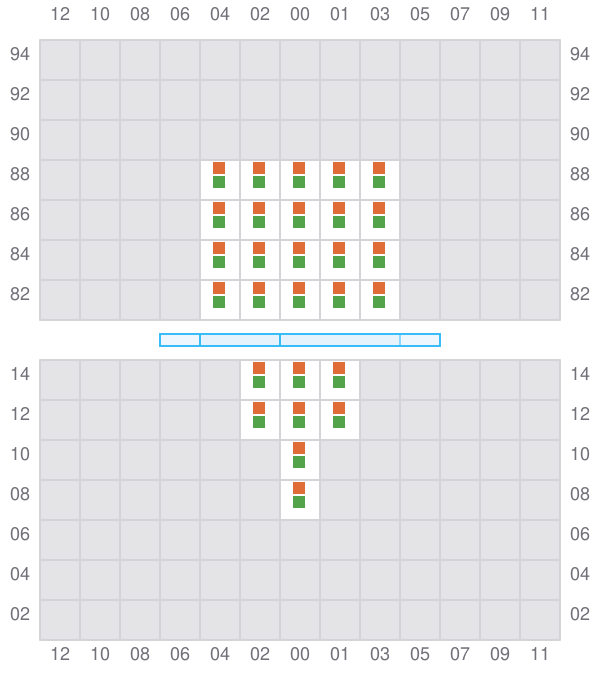

Bay 001 view and slots of TURKON EGYPT

003

  • ←
  • → / ?

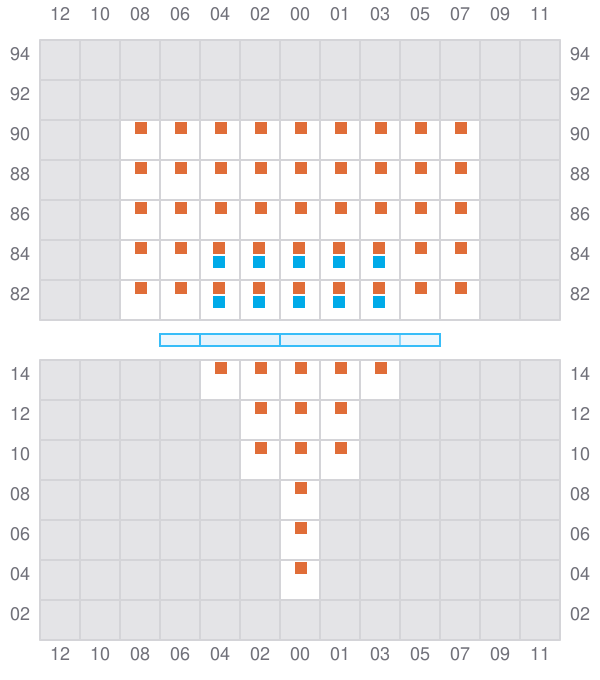

Bay 003 view and slots of TURKON EGYPT

005 (006)

  • →
  • ← / ?

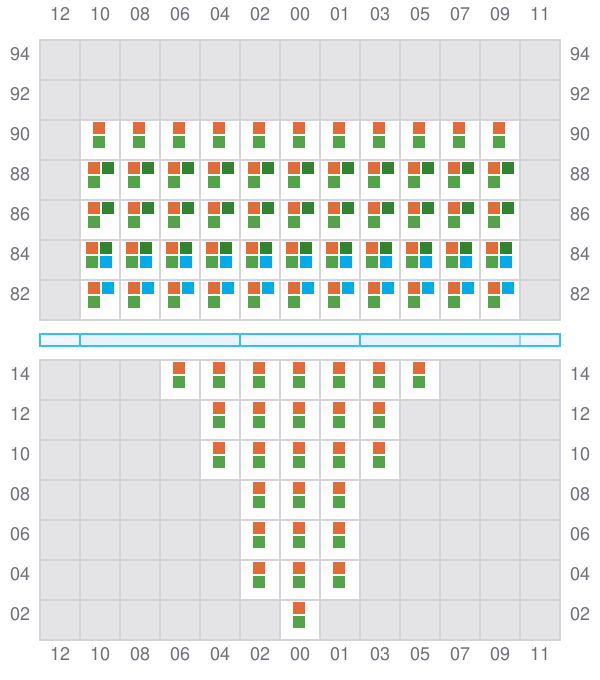

Bay 005 view and slots of TURKON EGYPT

007

  • ←
  • → / ?

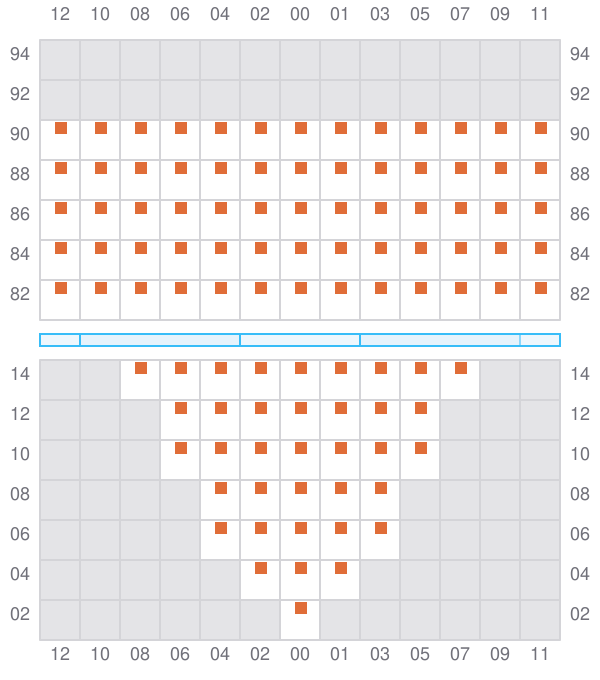

Bay 007 view and slots of TURKON EGYPT

009 (010)

  • →

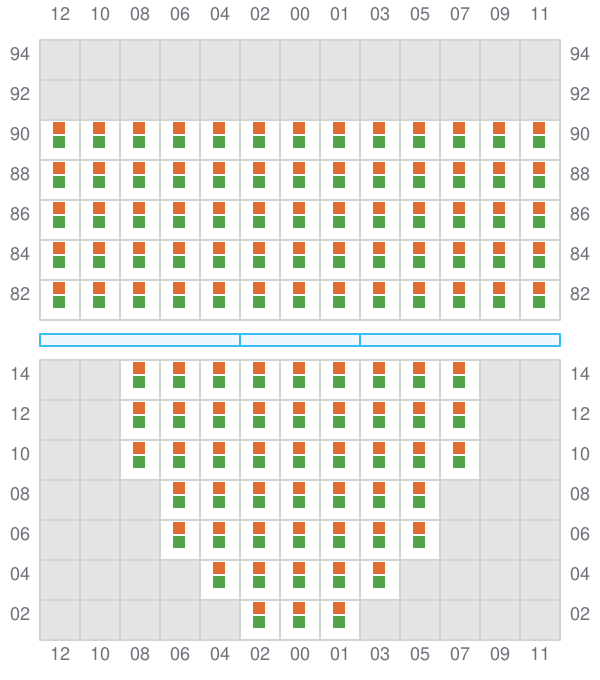

Bay 009 view and slots of TURKON EGYPT

011

  • ←
  • → / ?

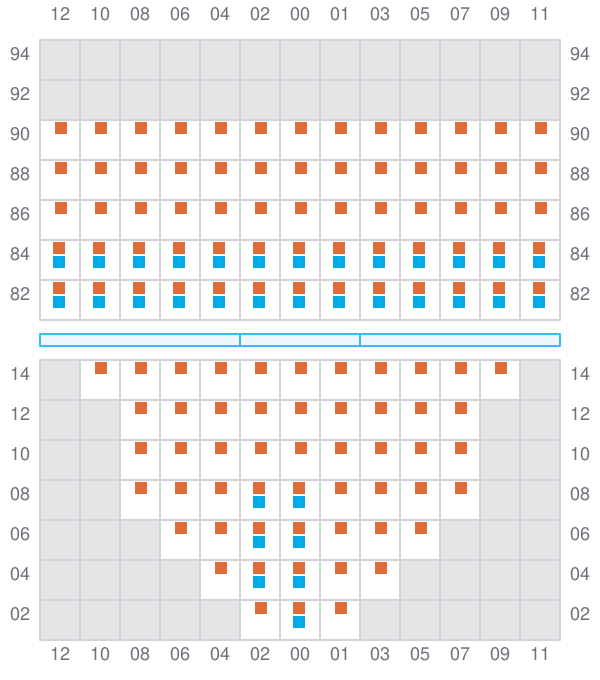

Bay 011 view and slots of TURKON EGYPT

013 (014)

  • →
Bay 013 view and slots of TURKON EGYPT

015

  • ←
  • →

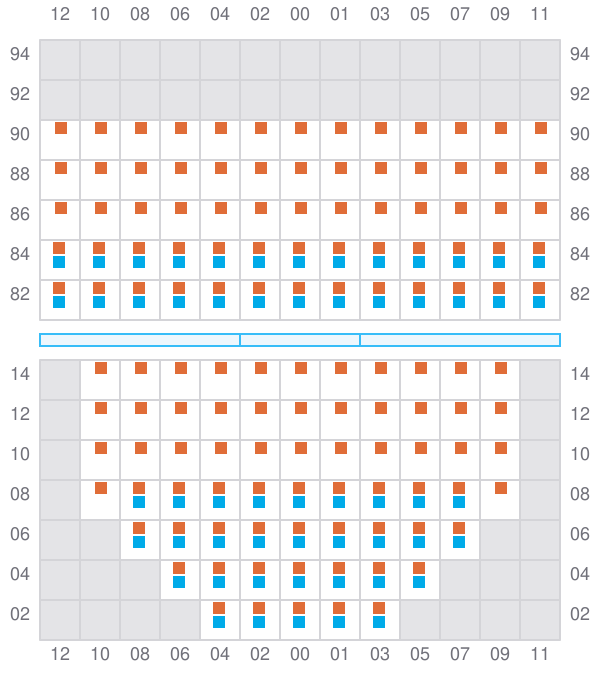

Bay 015 view and slots of TURKON EGYPT

017 (018)

  • →
Bay 017 view and slots of TURKON EGYPT

019

  • ←
  • →
Bay 019 view and slots of TURKON EGYPT

021 (022)

  • →
  • ← / ?

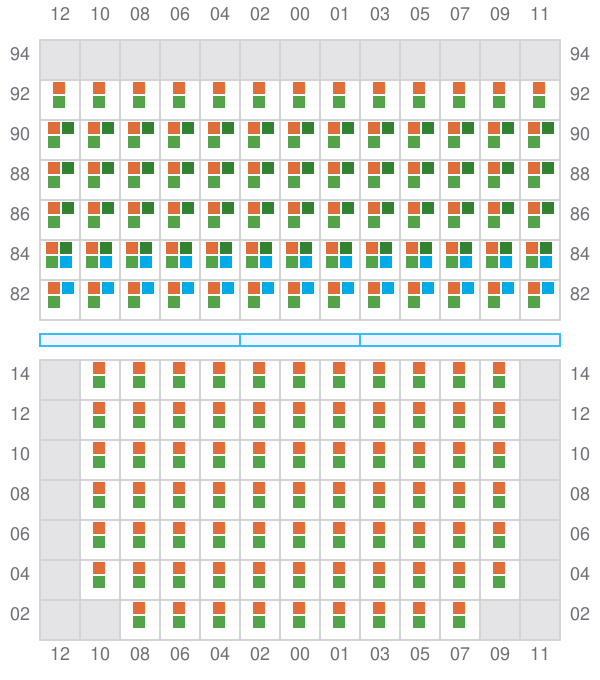

Bay 021 view and slots of TURKON EGYPT

023

  • ←
  • →

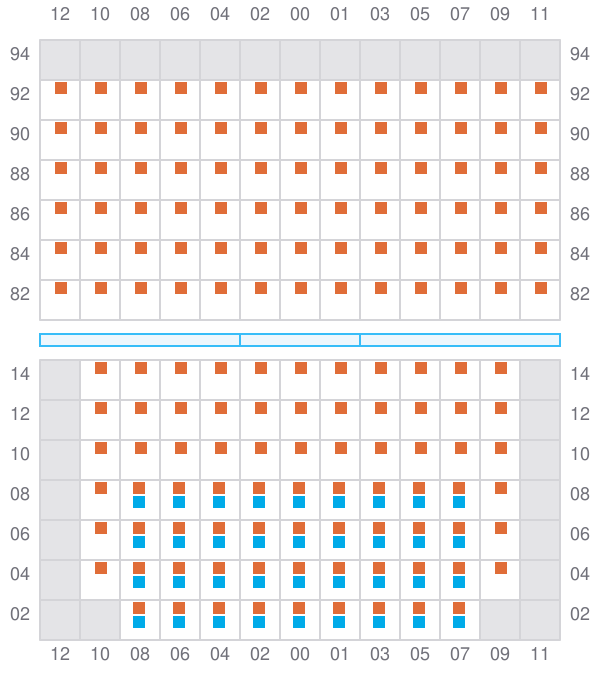

Bay 023 view and slots of TURKON EGYPT

025 (026)

  • →

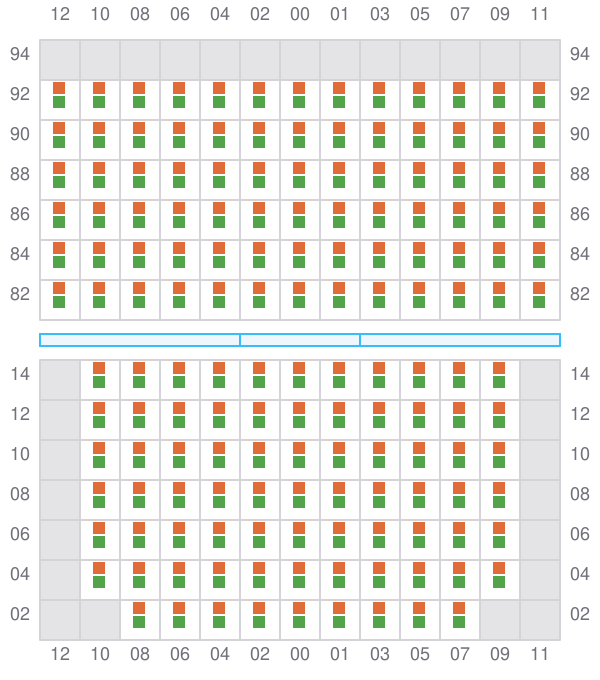

Bay 025 view and slots of TURKON EGYPT

027

  • ←
  • →

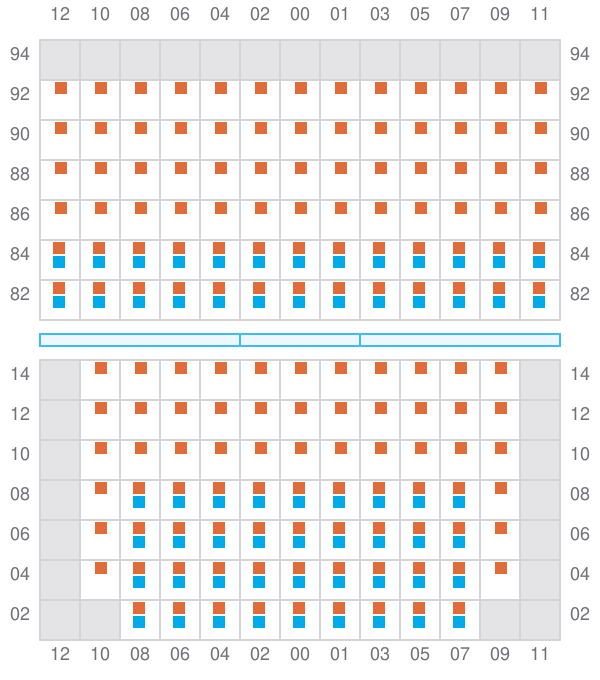

Bay 027 view and slots of TURKON EGYPT

029 (030)

  • →
  • ← / ?

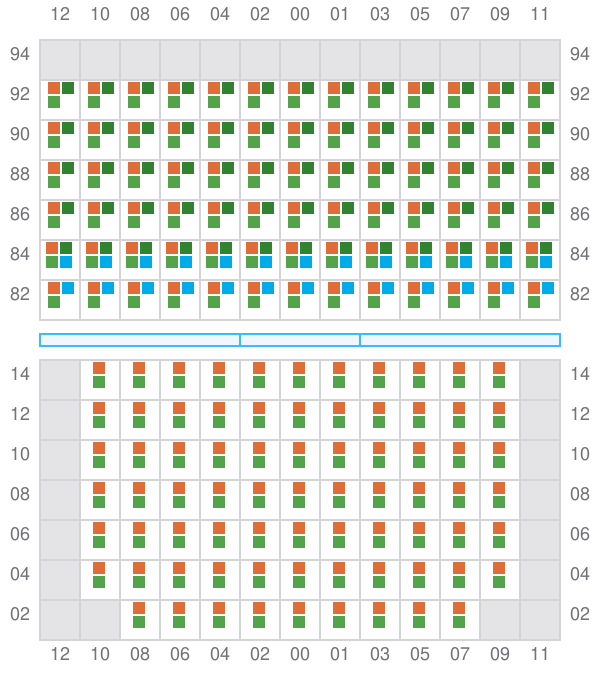

Bay 029 view and slots of TURKON EGYPT

031

  • ←
  • →

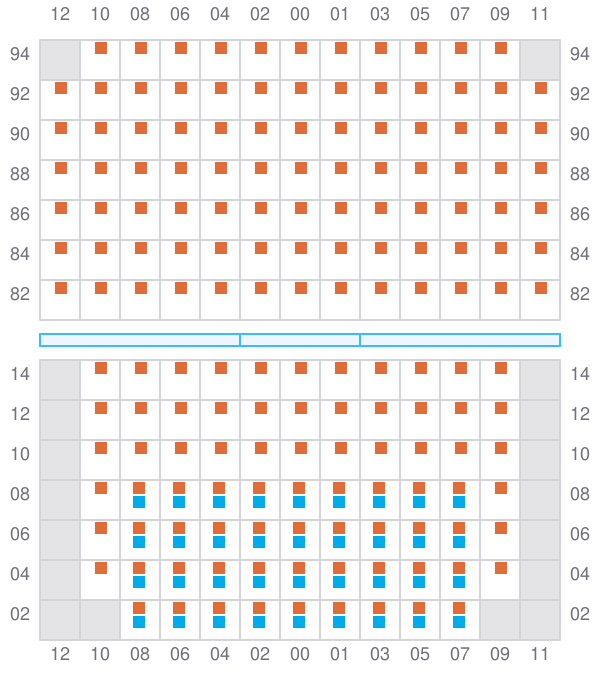

Bay 031 view and slots of TURKON EGYPT

033 (034)

  • →

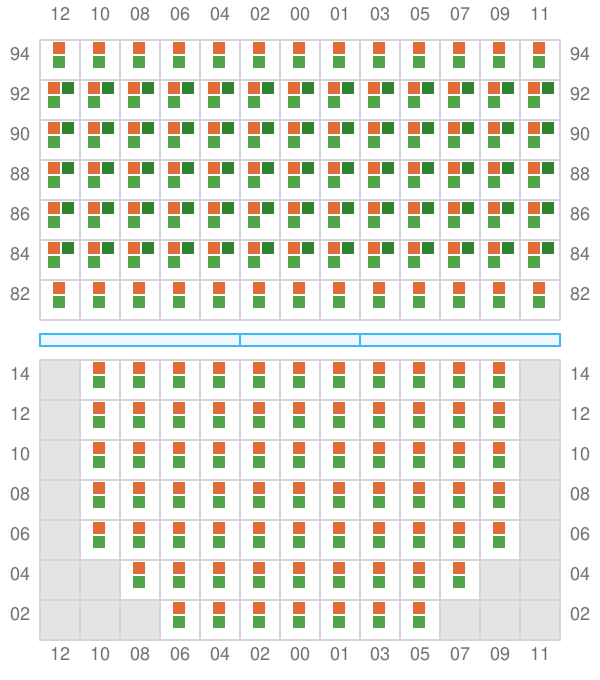

Bay 033 view and slots of TURKON EGYPT

035

  • ←
  • →

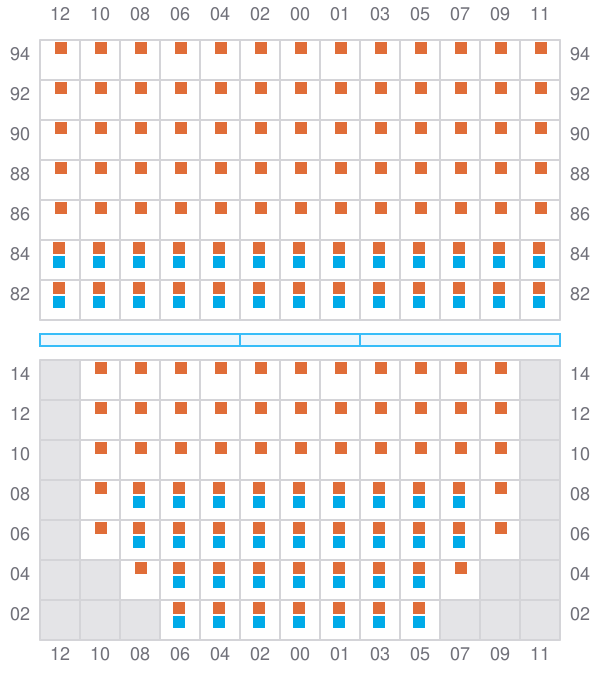

Bay 035 view and slots of TURKON EGYPT

037 (038)

  • →

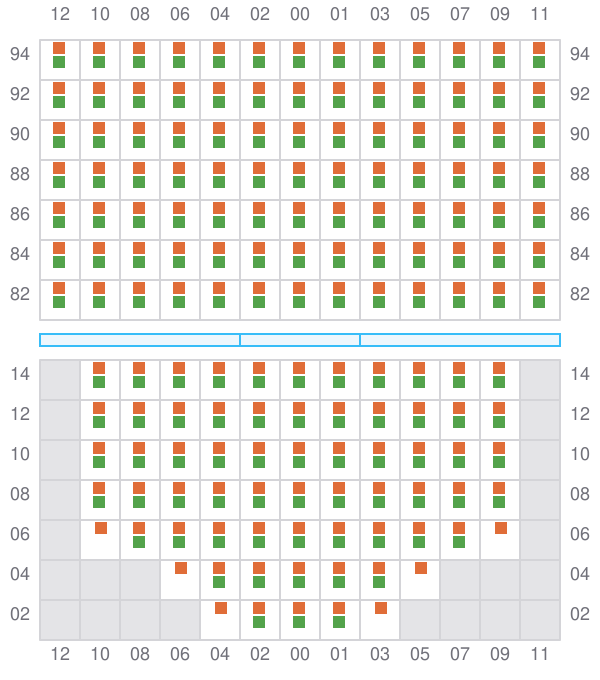

Bay 037 view and slots of TURKON EGYPT

039

  • ←
  • →

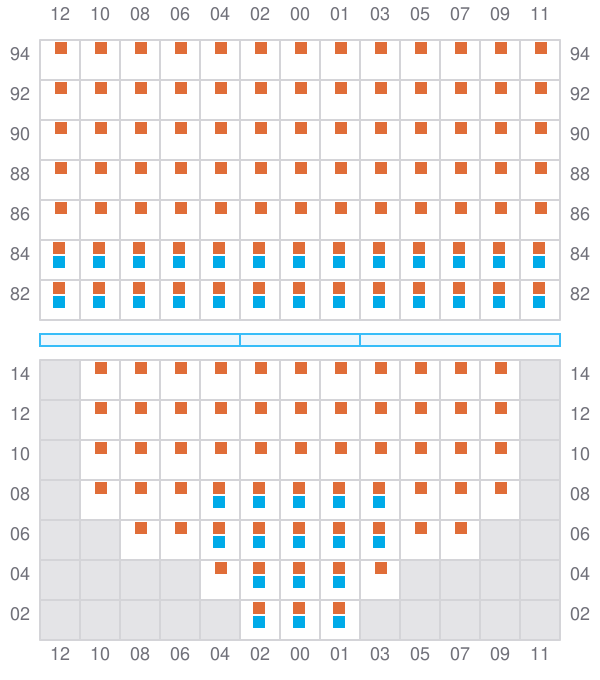

Bay 039 view and slots of TURKON EGYPT

041 (042)

  • → / ?

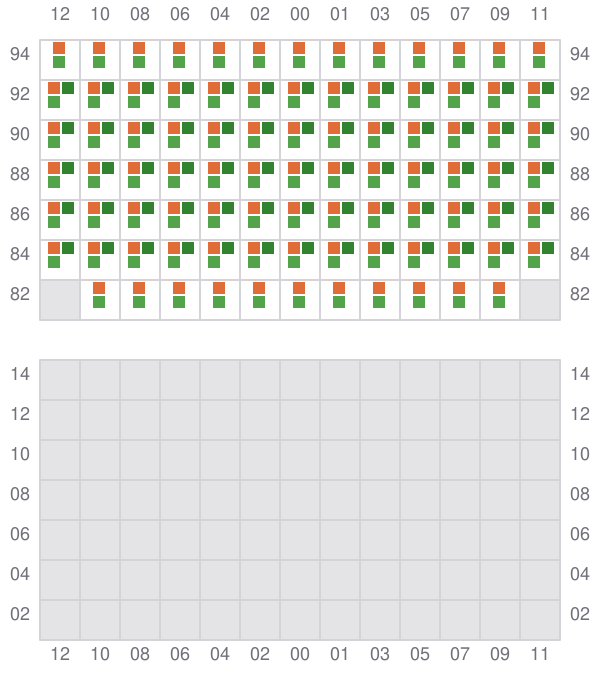

Bay 041 view and slots of TURKON EGYPT

043

  • ← / ?
  • → / ?

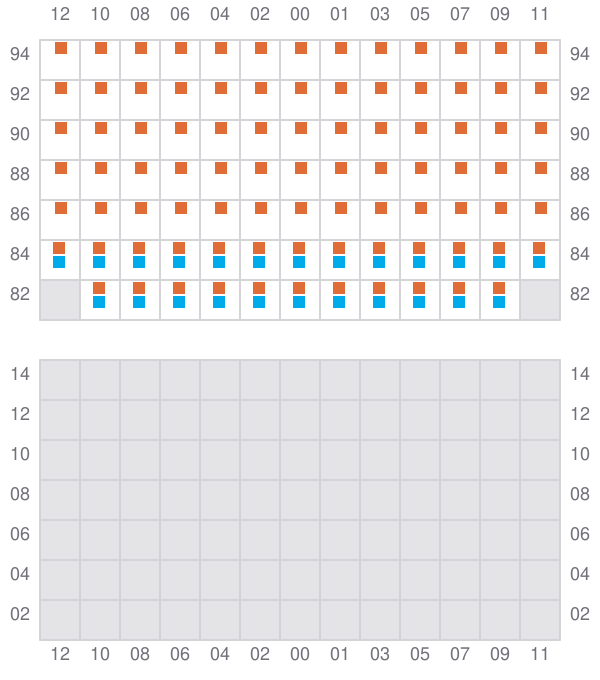

Bay 043 view and slots of TURKON EGYPT

045 (046)

  • → / ?
  • ← / ?

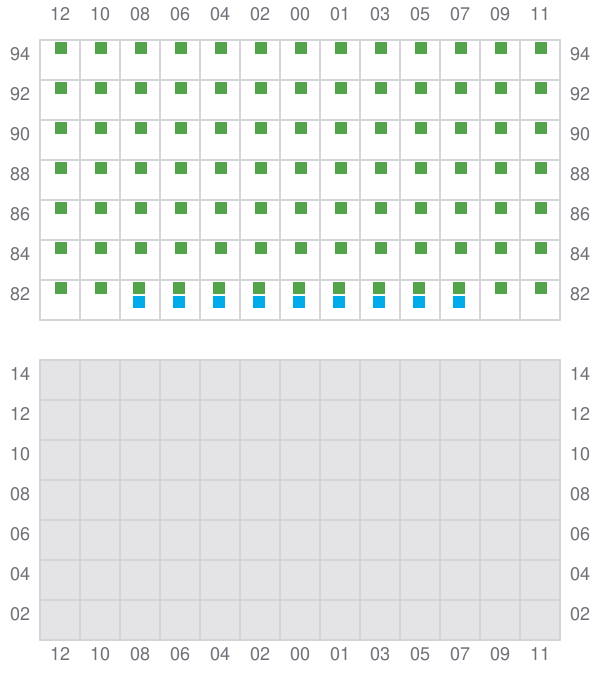

Bay 045 view and slots of TURKON EGYPT
