TYNDALL
9627928 | D5FN8 | 9627928 by ********* Last update: Thu May 09 2024
General Info
Ship Name:TYNDALL
IMO Code:9627928
Call Sign:D5FN8
Line Operator:9627928
Class Name for Sister Ships:CSAV_TYNDALL
Year Built:2014
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:069
Max ISO Row:18
Center Line Row:Yes
Max Above ISO Tier:98
Min Above ISO Tier:78
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:8,704
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

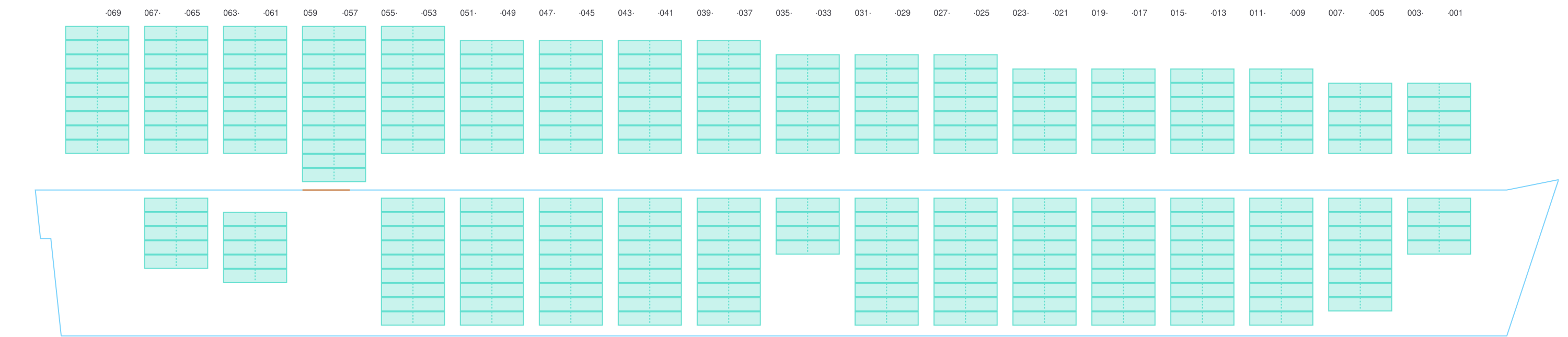

Side View

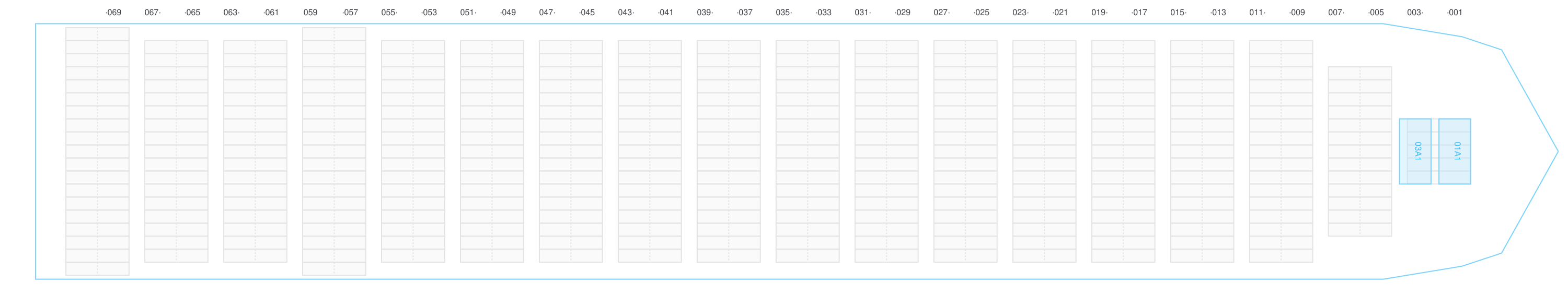

Hatch-Covers View

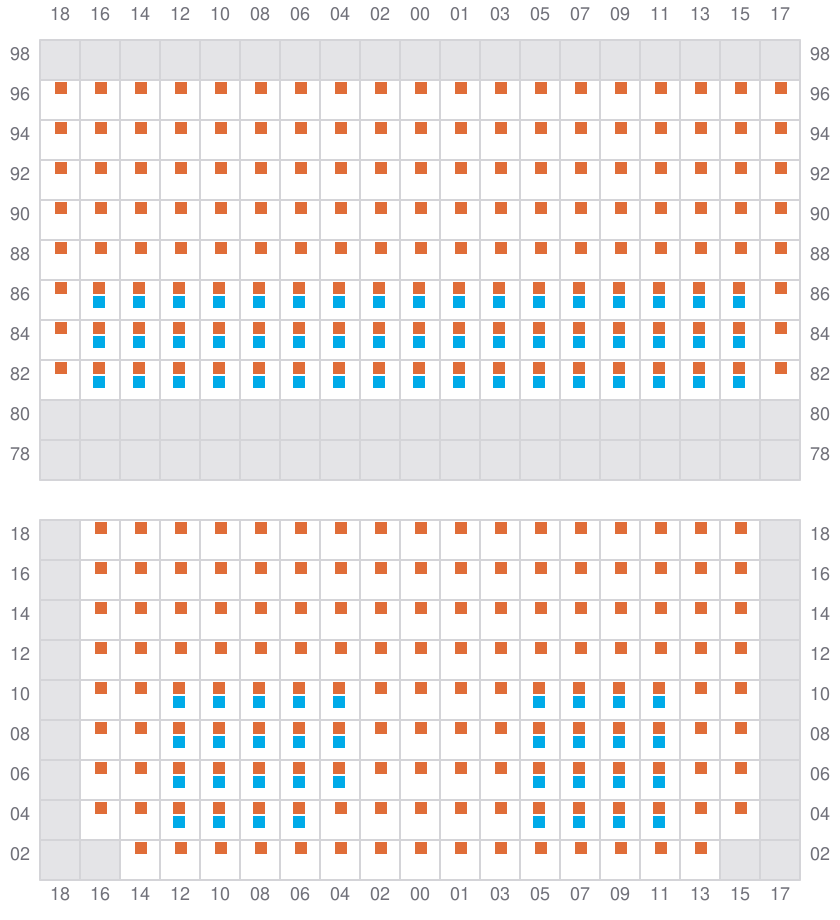

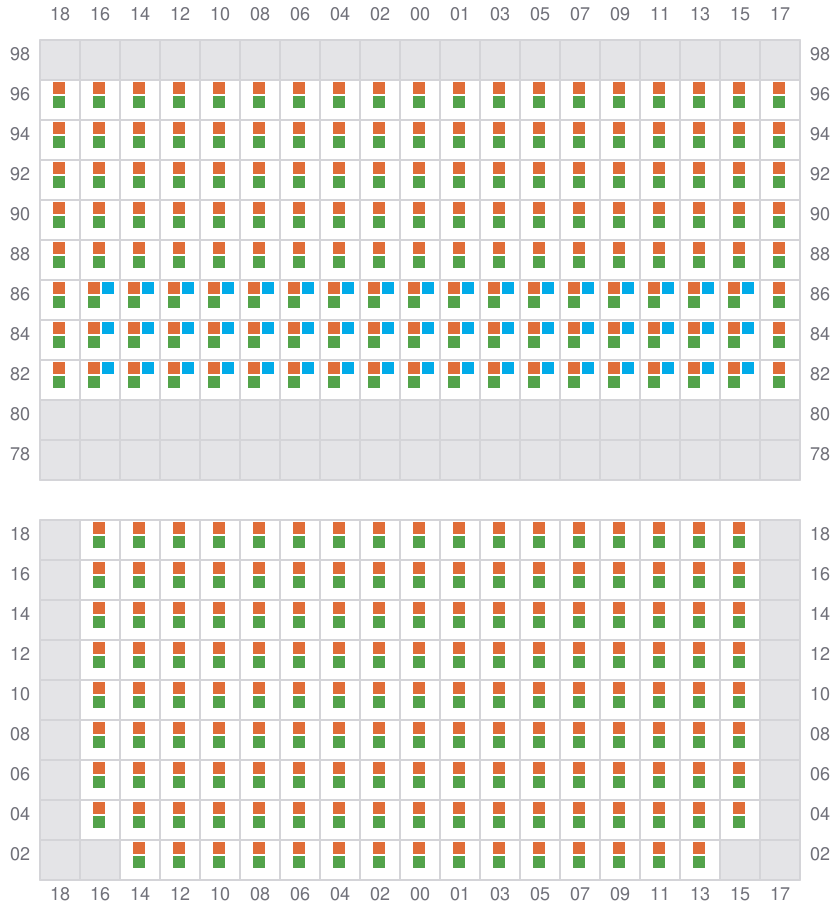

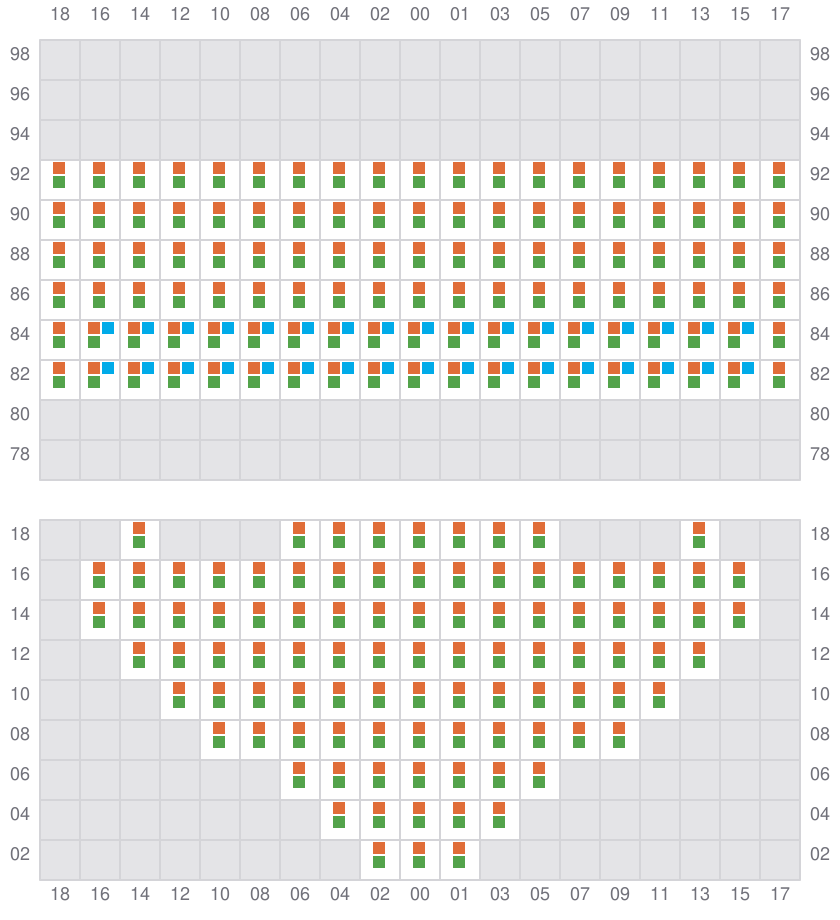

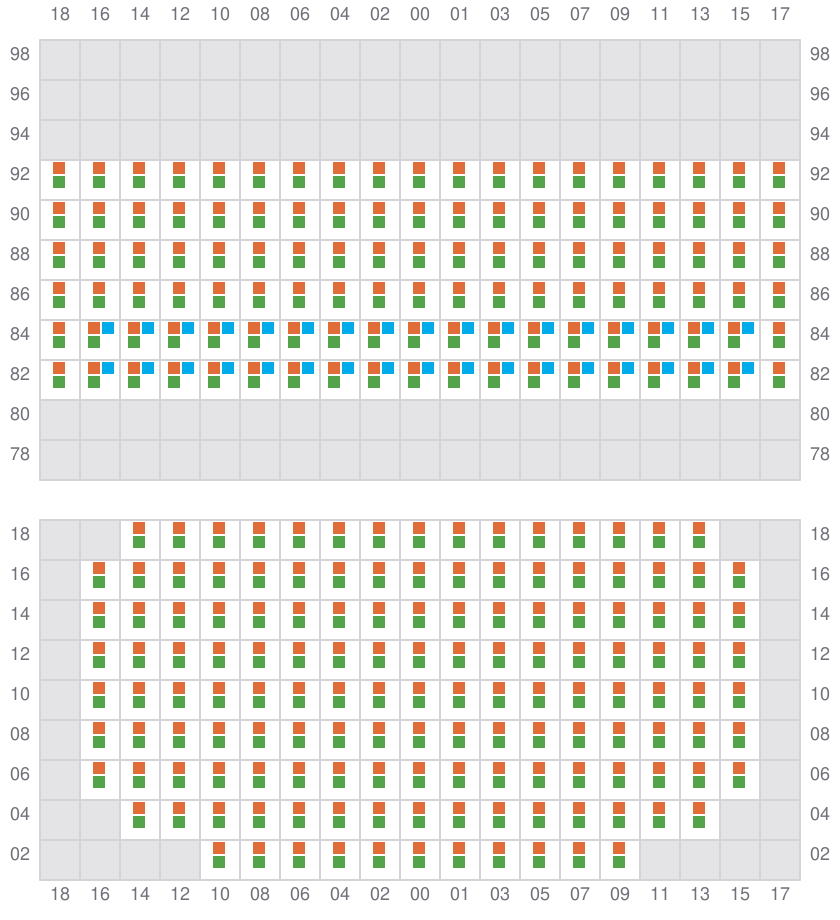

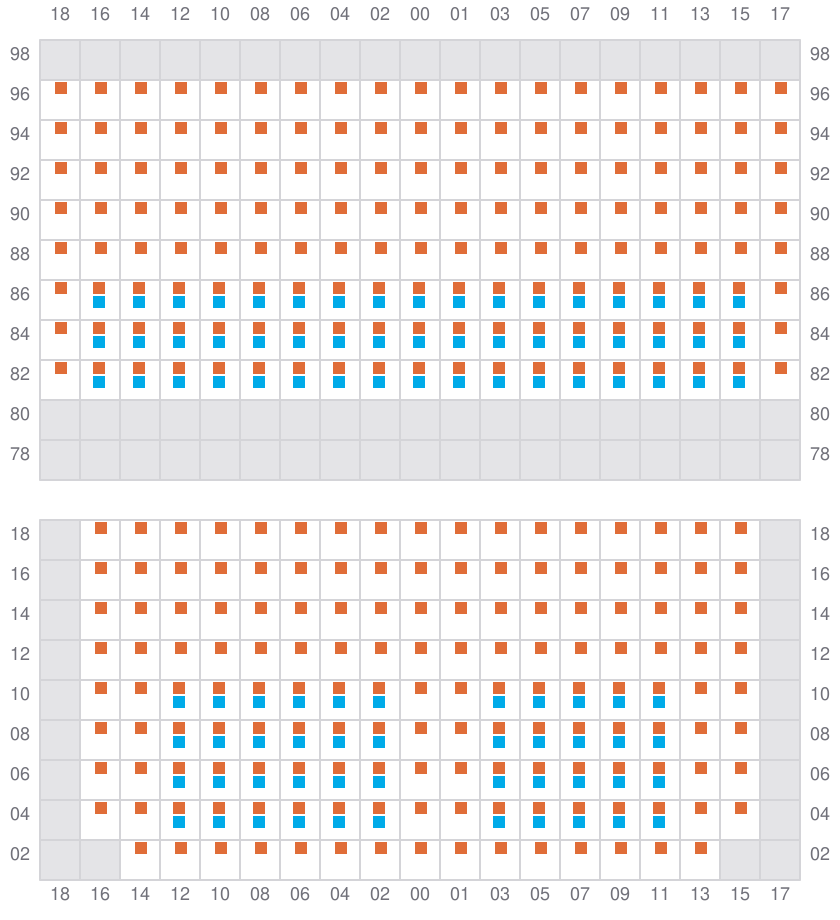

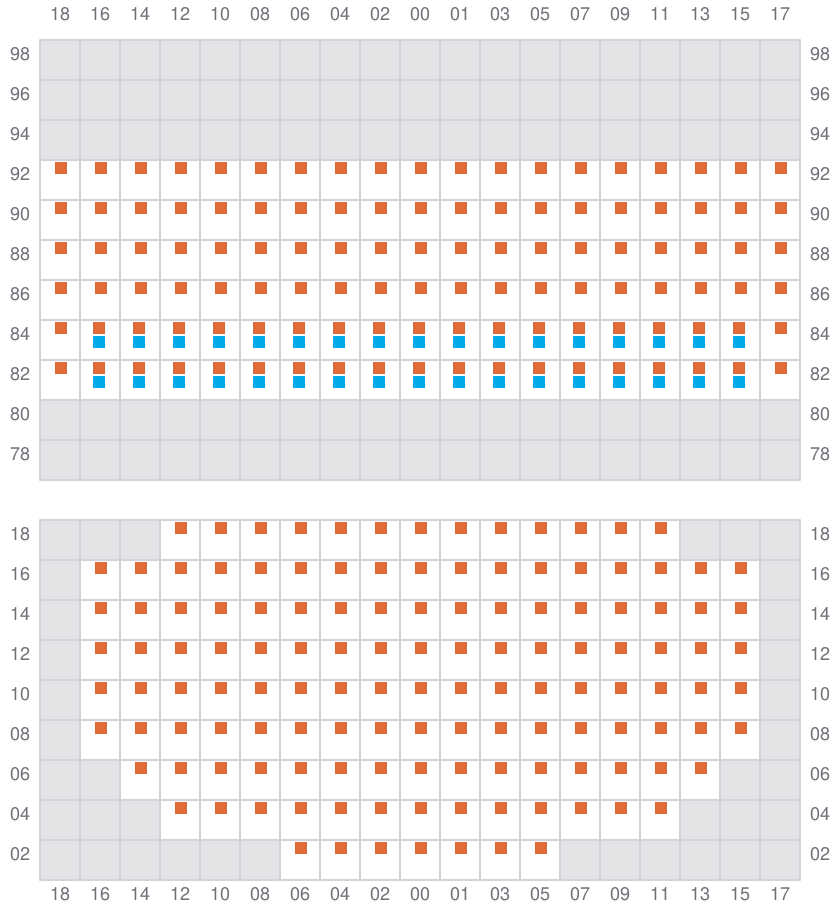

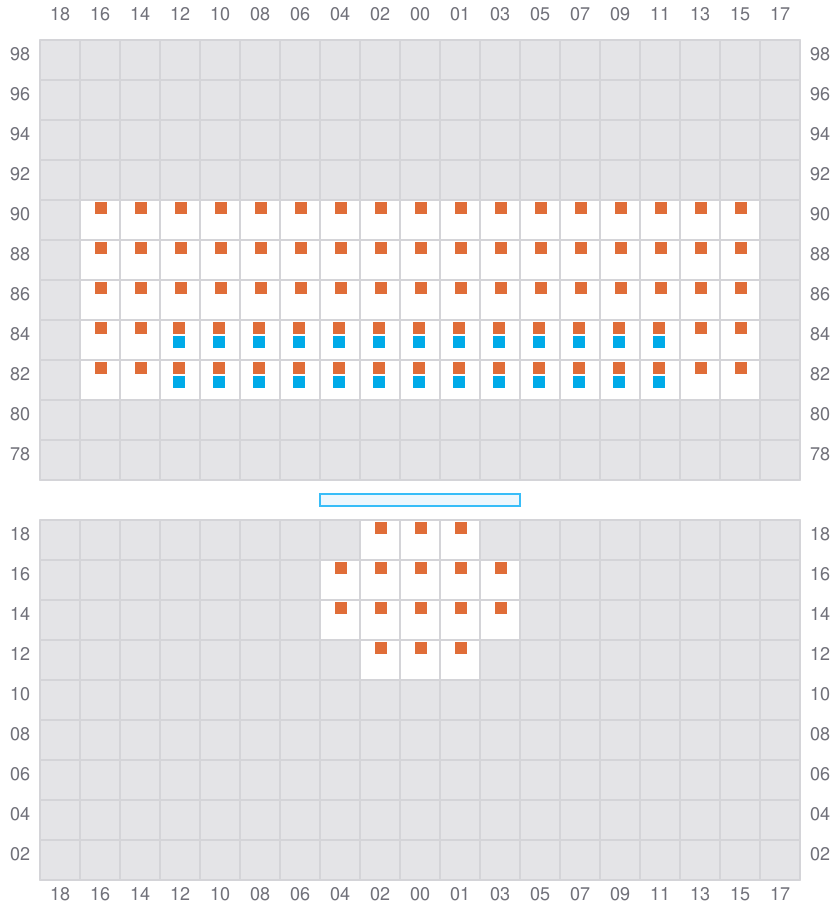

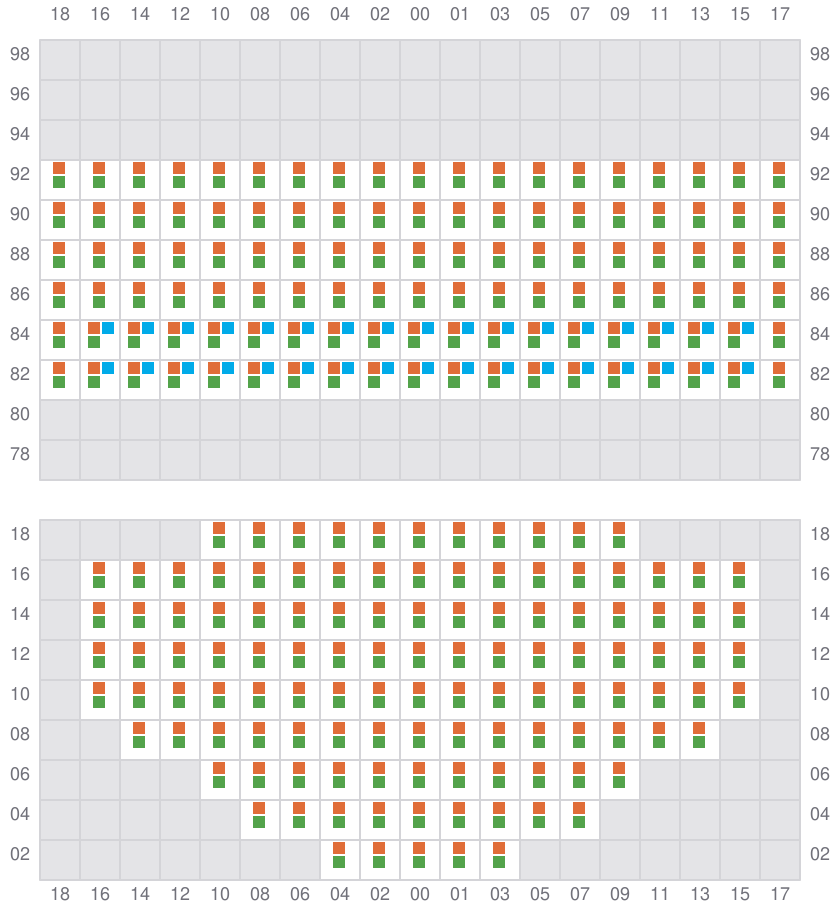

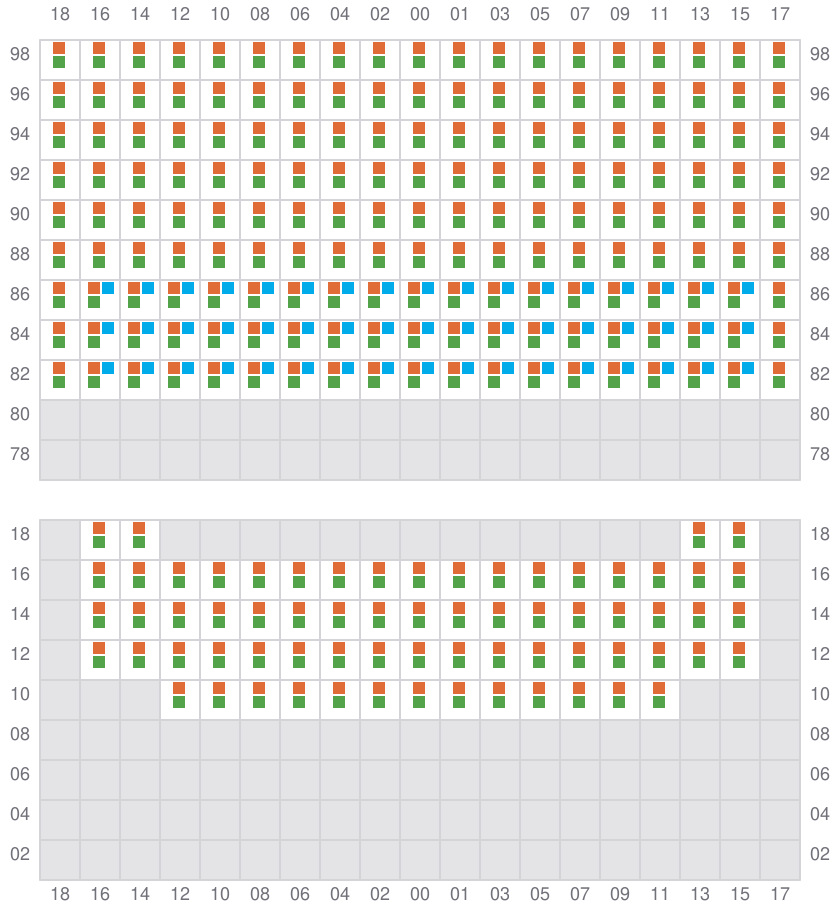

ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

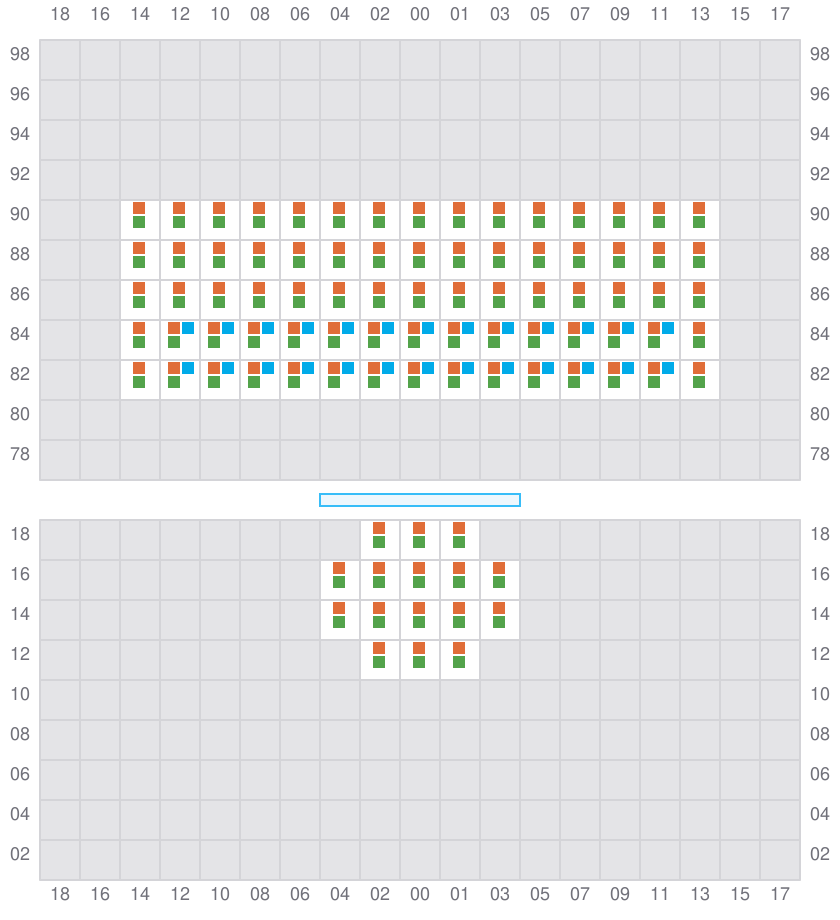

001 (002)
- →
- →
003
- ←

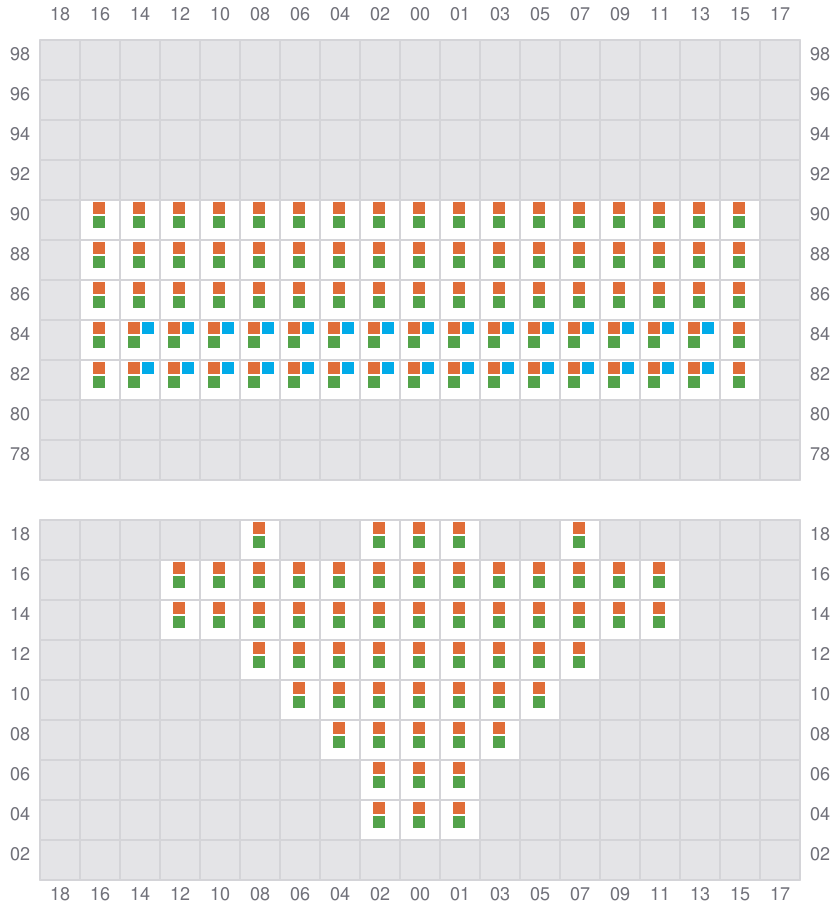

005 (006)
- →

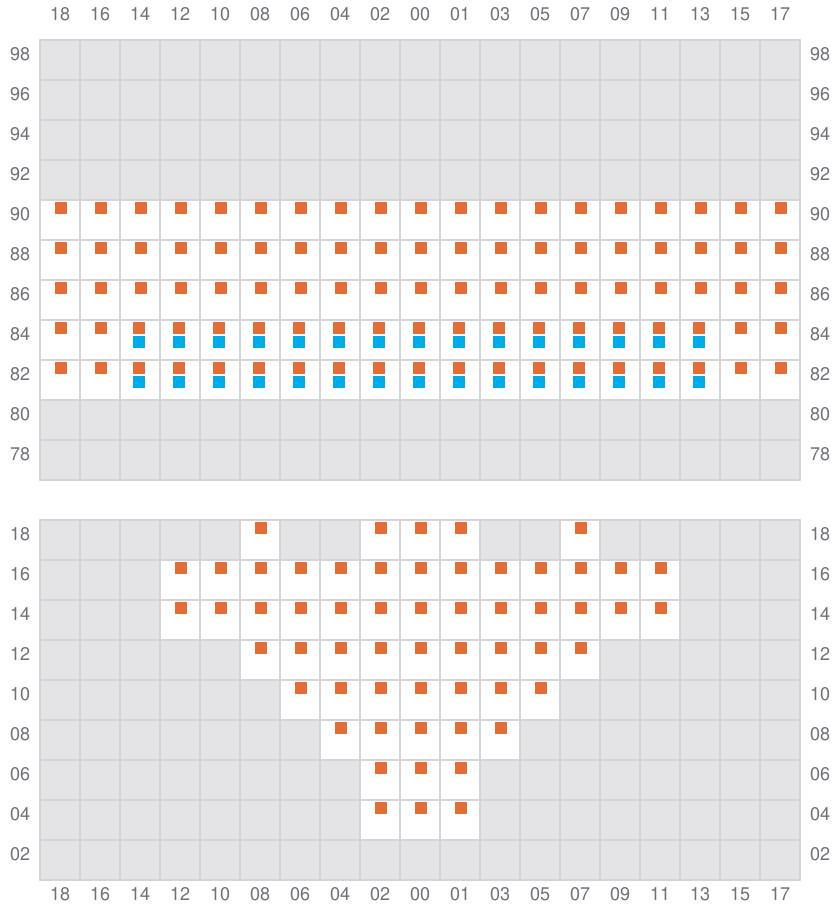

007
- ←
009 (010)
- →

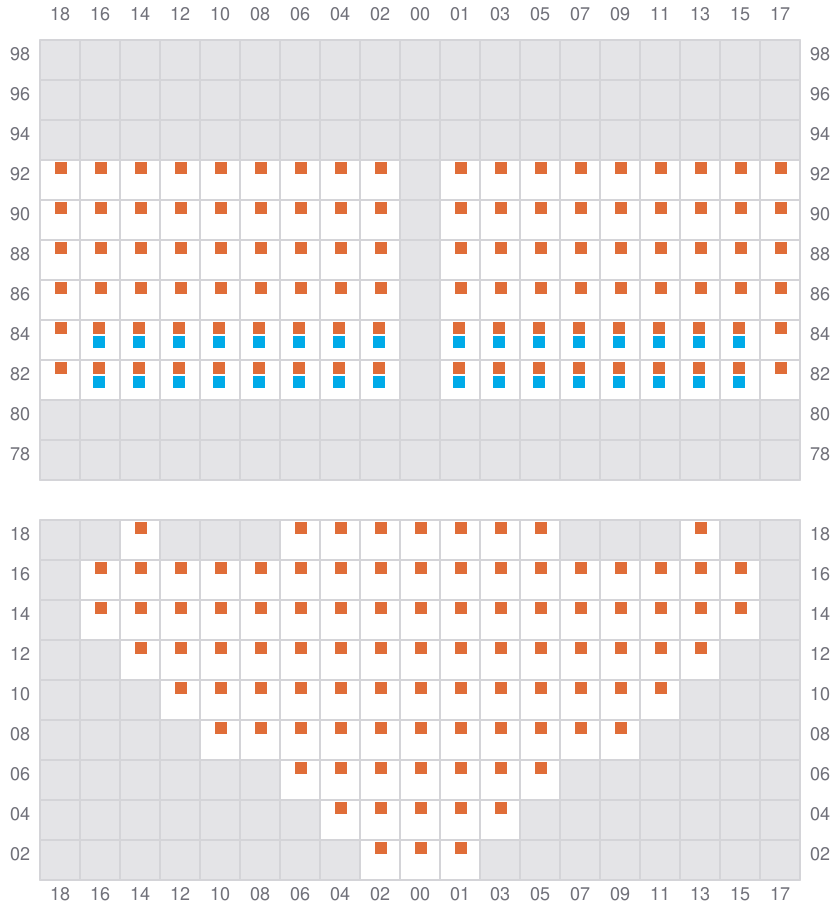

011
- ←
013 (014)
- →

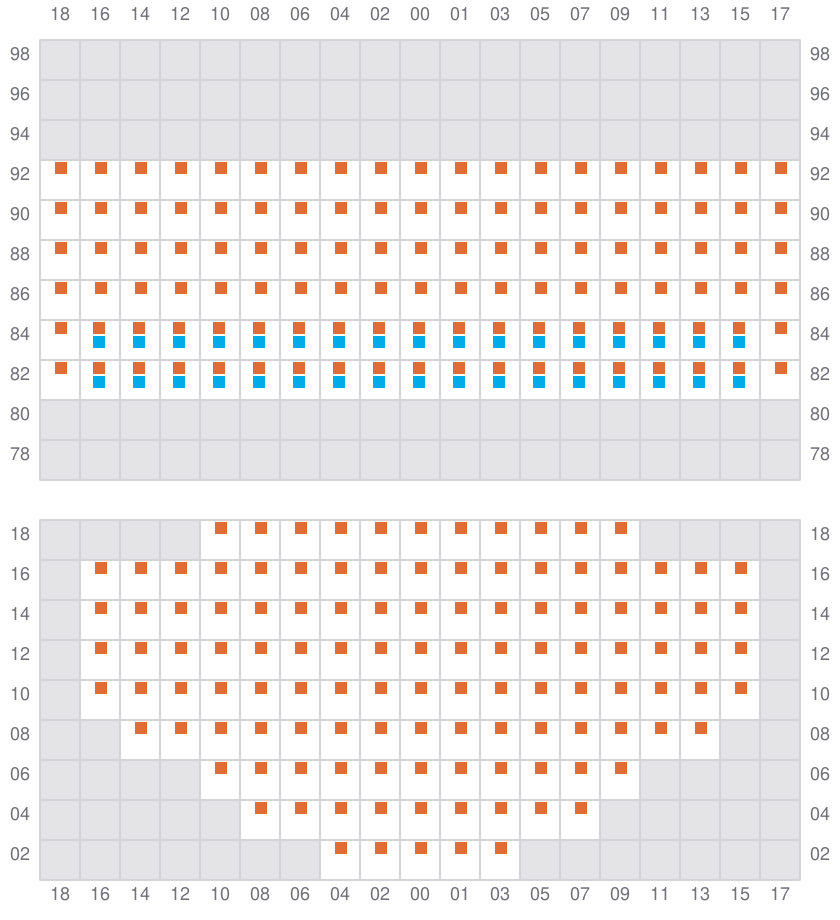

015
- ←
017 (018)
- →
019
- ←
021 (022)
- →

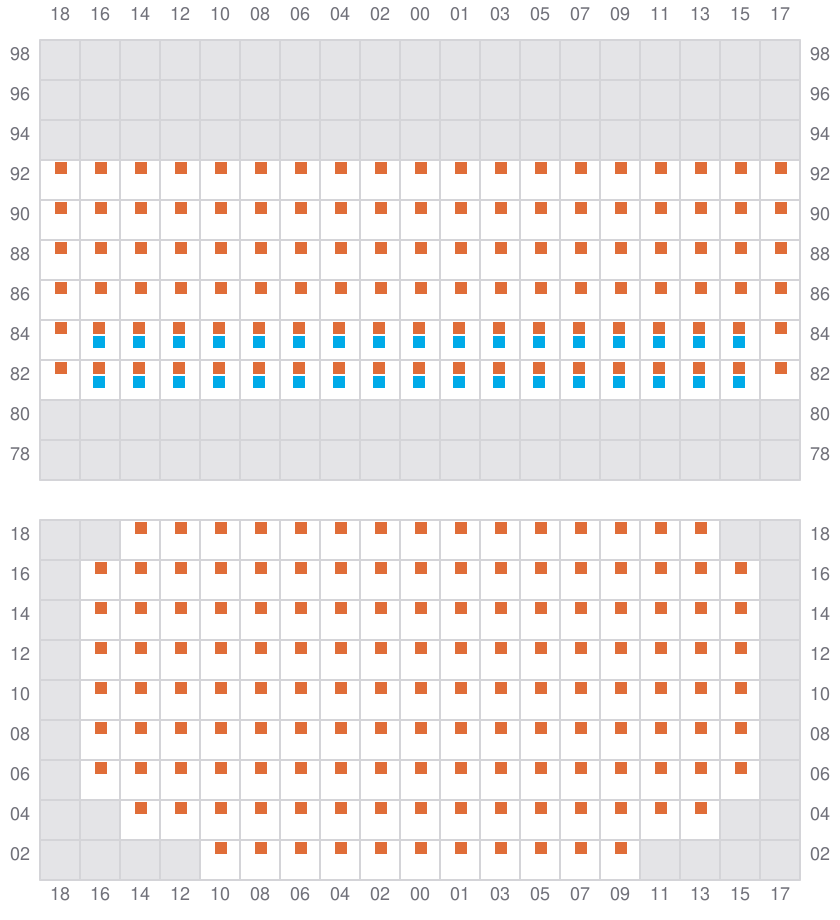

023
- ←

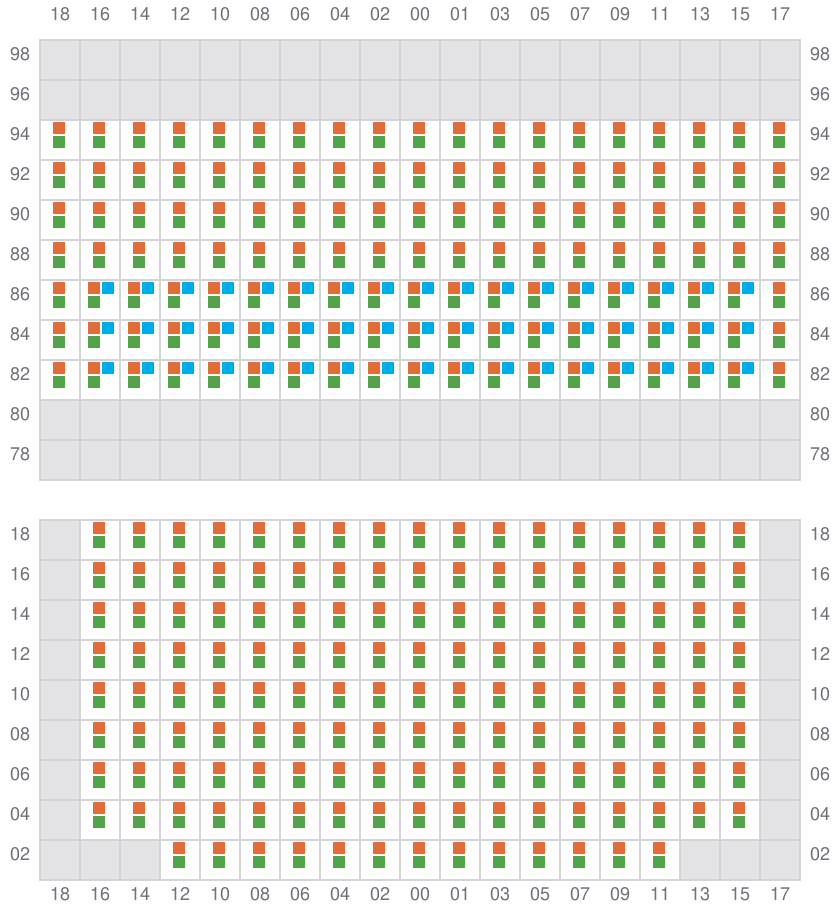

025 (026)
- →

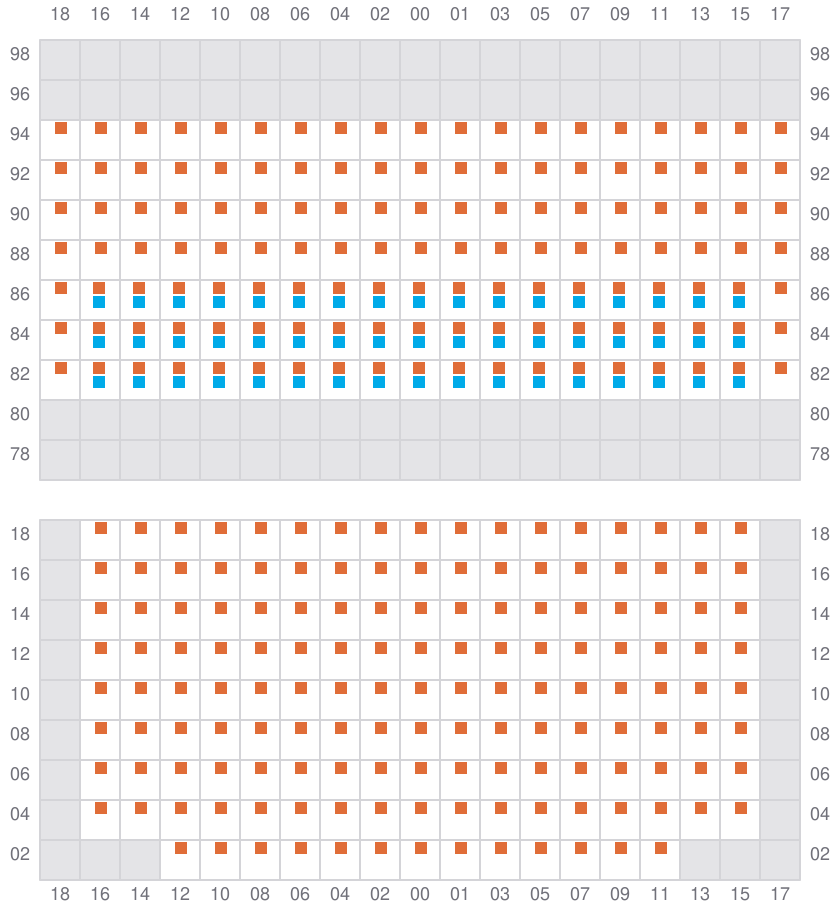

027
- ←

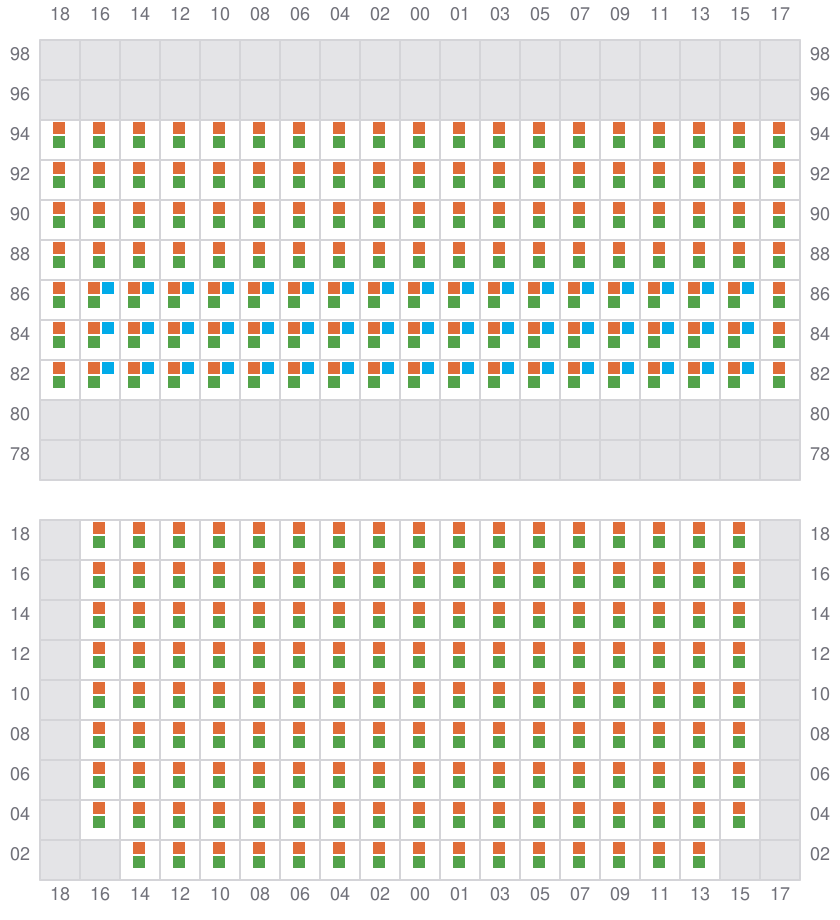

029 (030)
- →

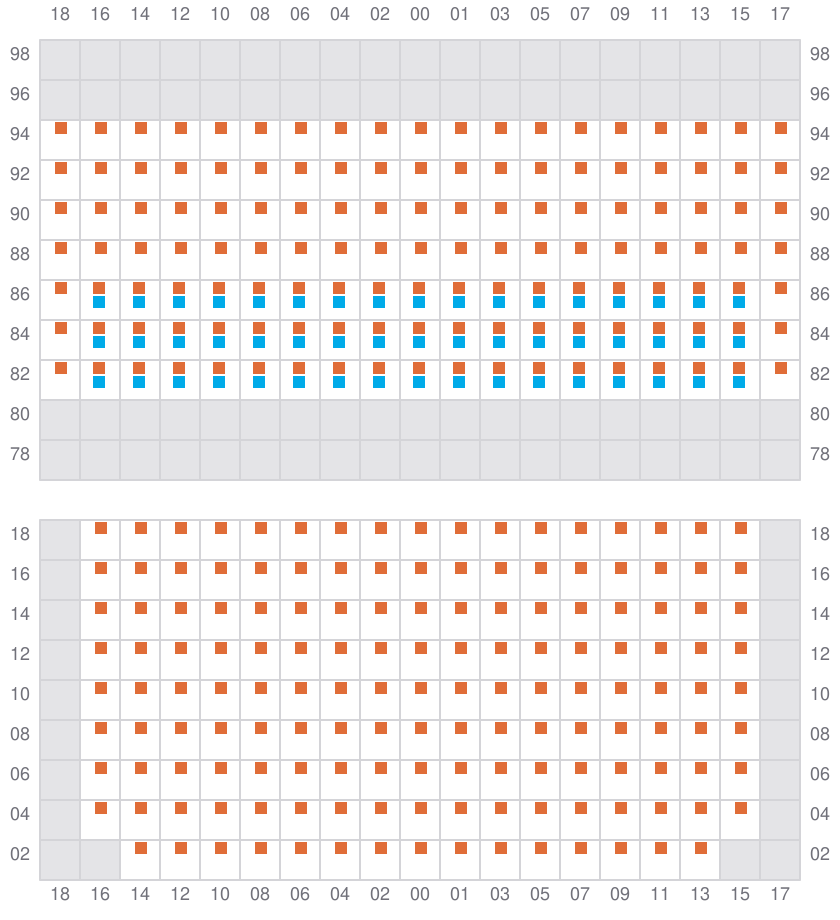

031
- ←

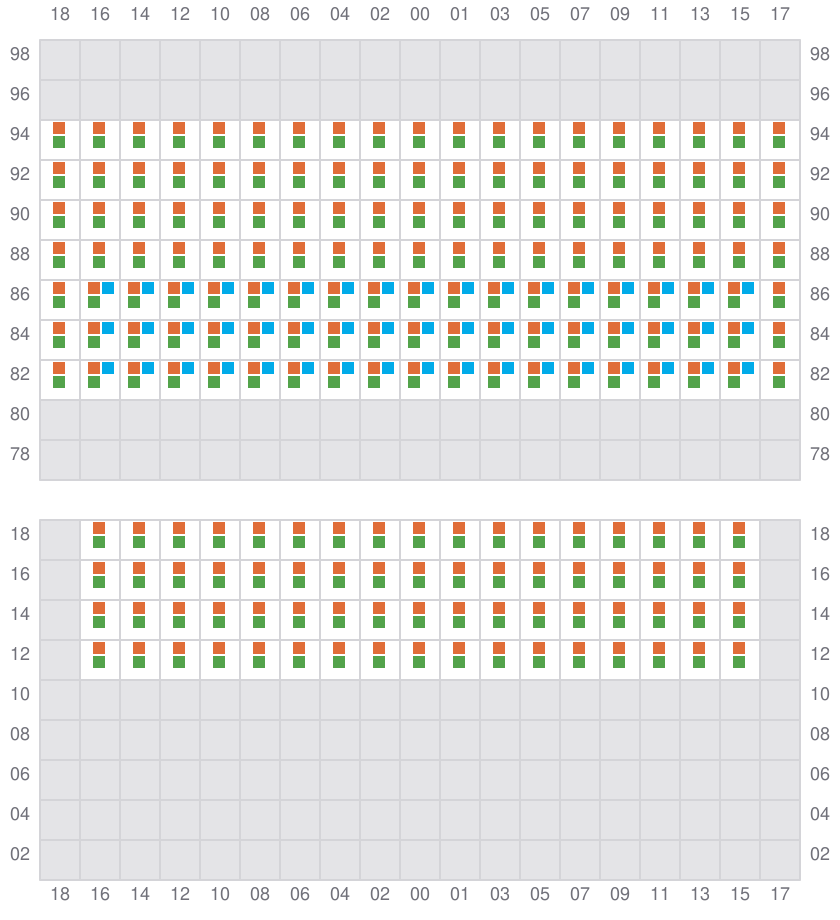

033 (034)
- →

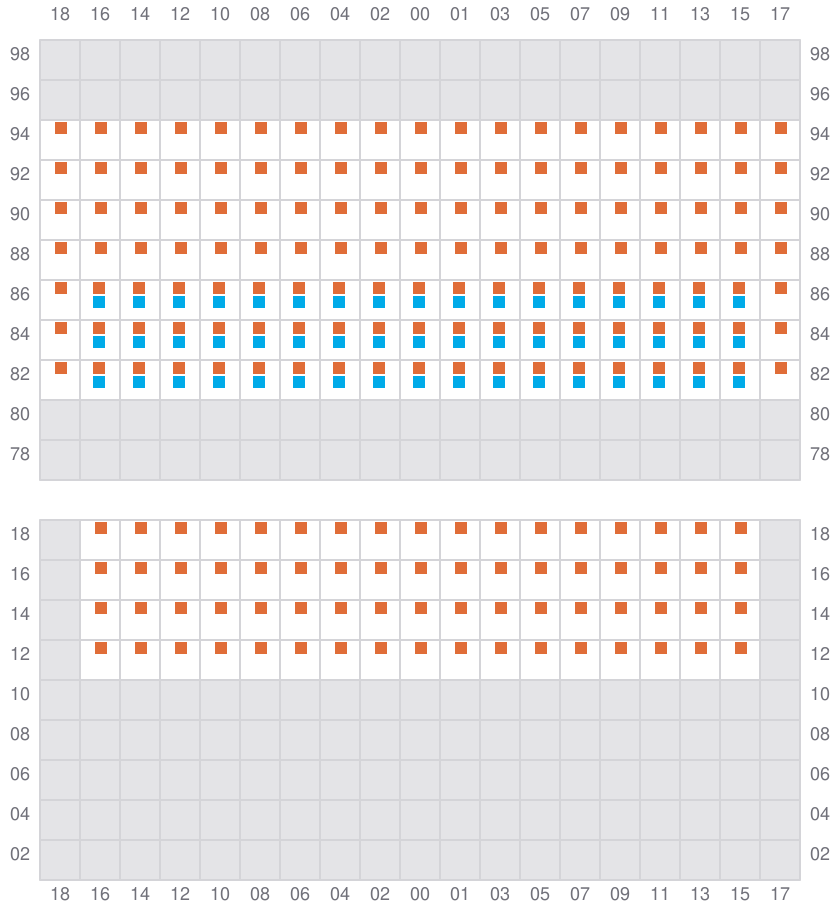

035
- ←
037 (038)
- →

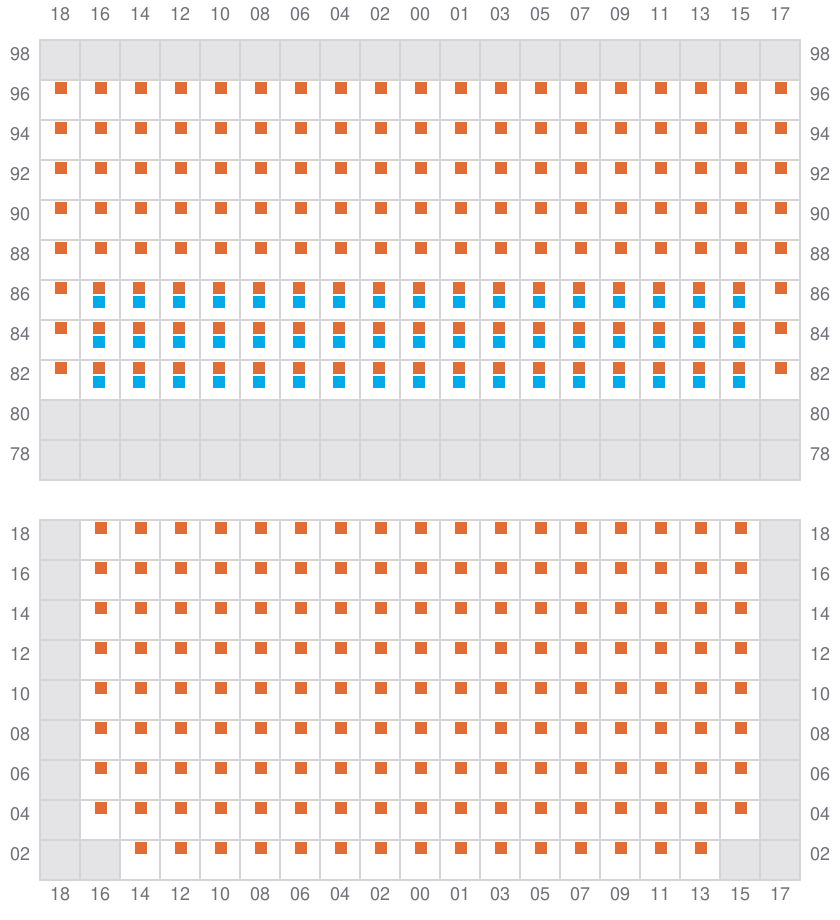

039
- ←
041 (042)
- →
043
- ←

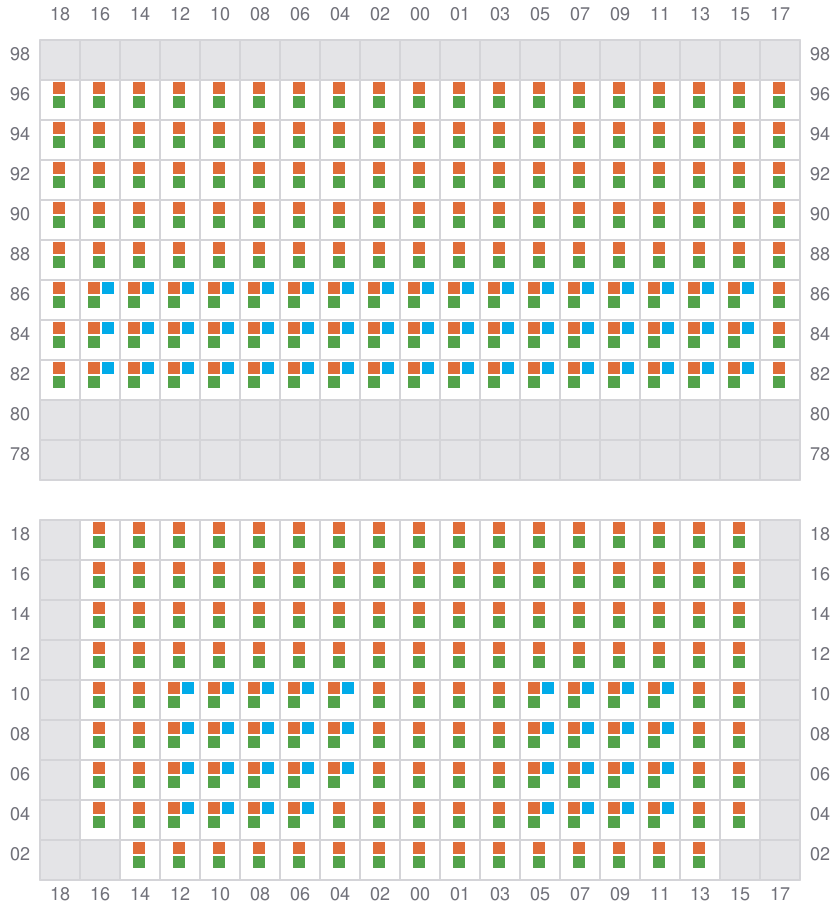

045 (046)
- →
047
- ←

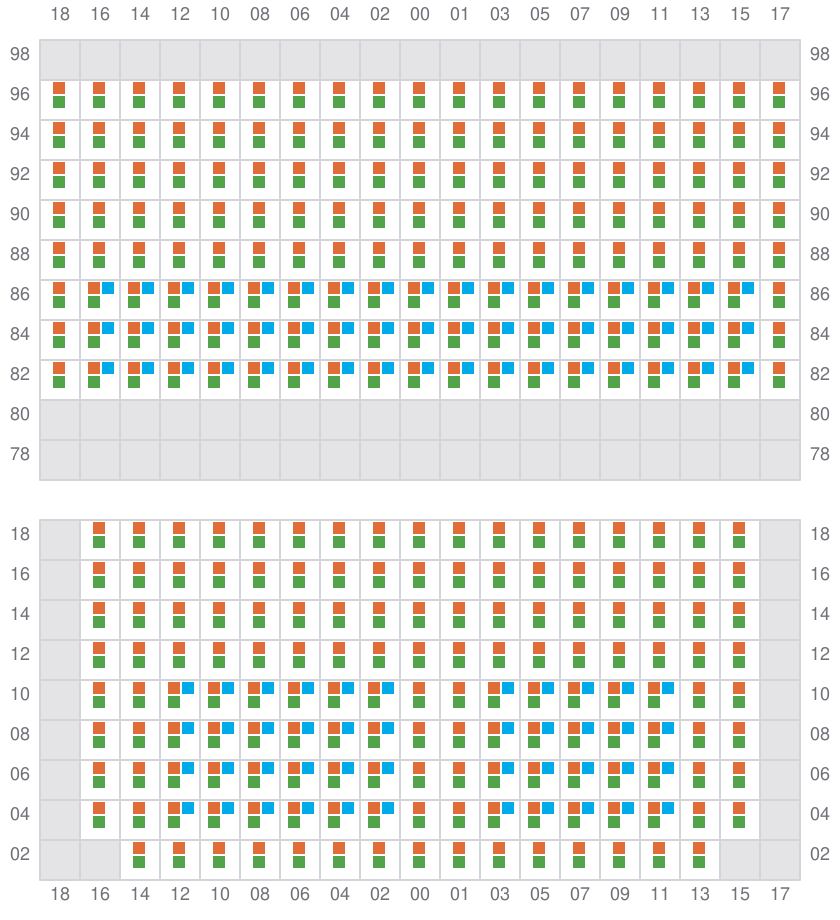

049 (050)
- →
051
- ←

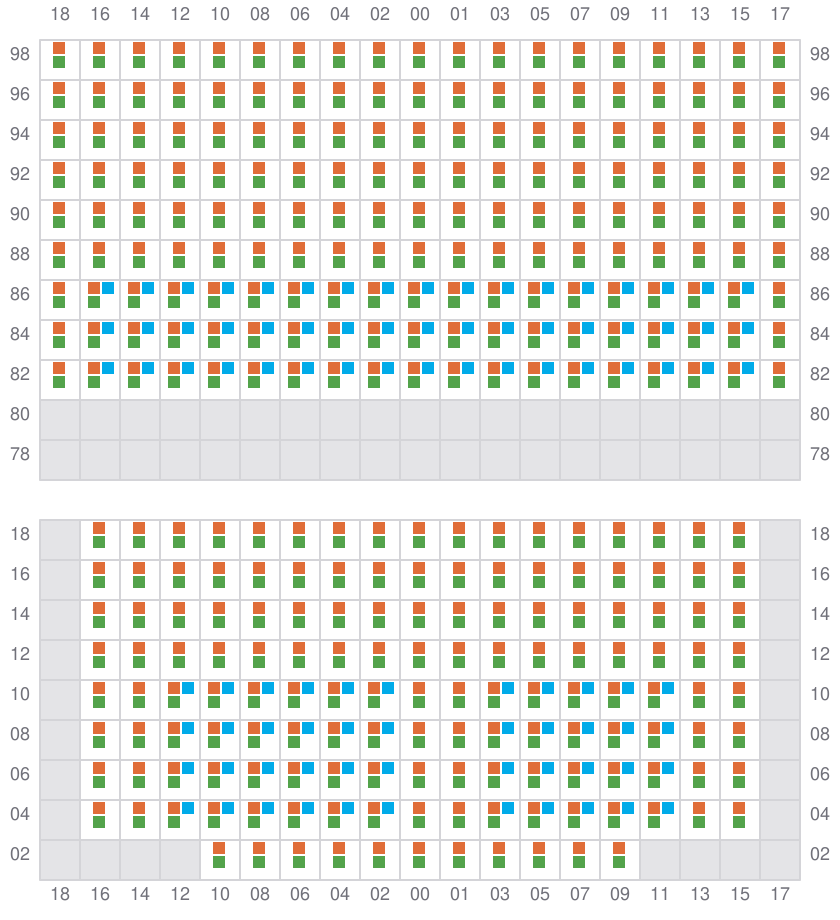

053 (054)
- →

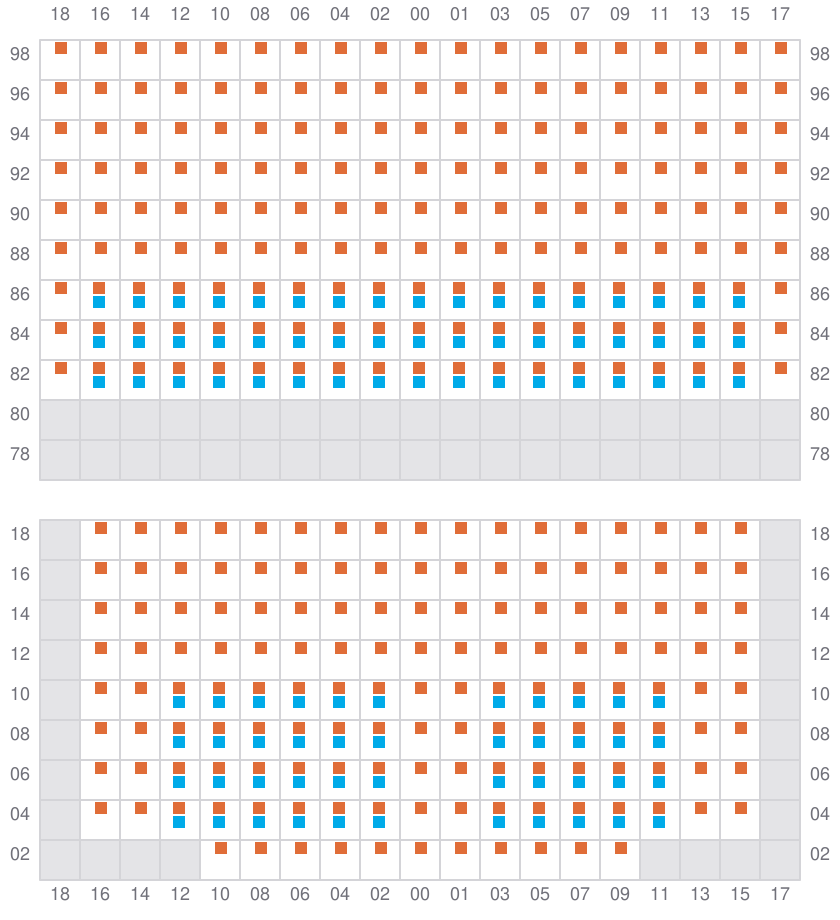

055
- ←

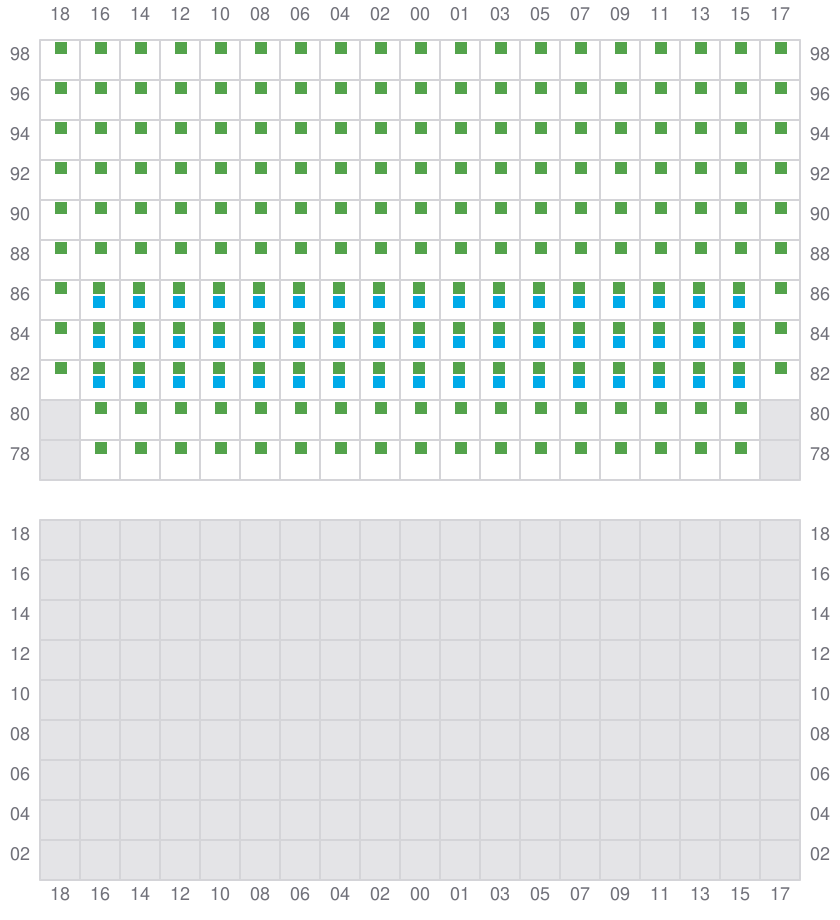

057 (058)
- → / ?

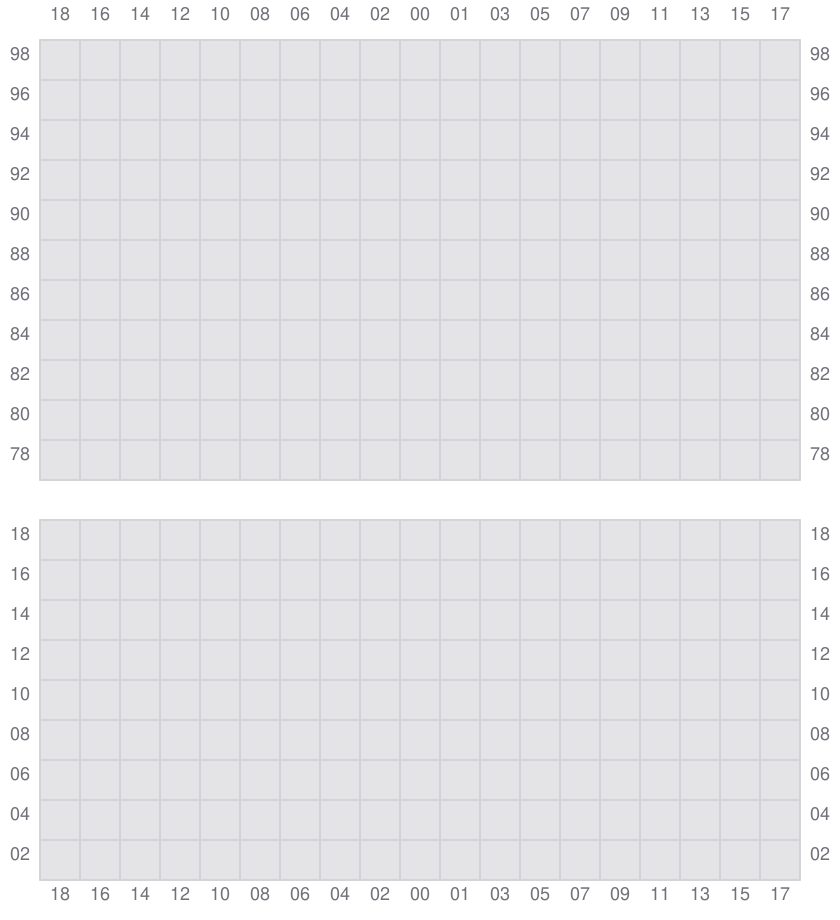

059

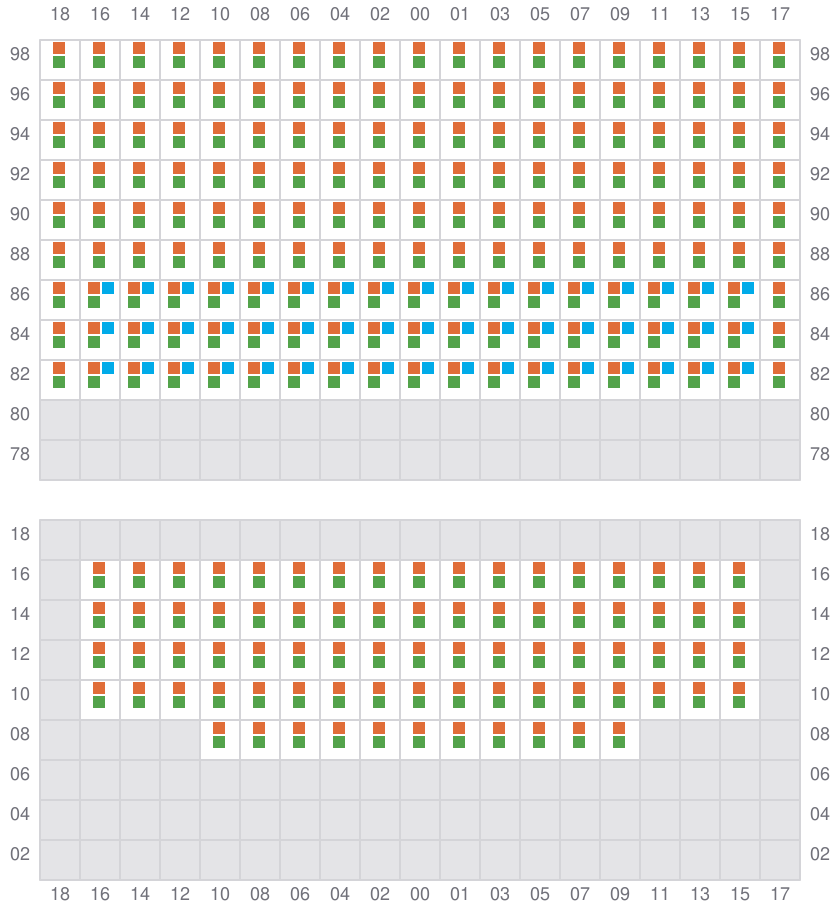

061 (062)
- →

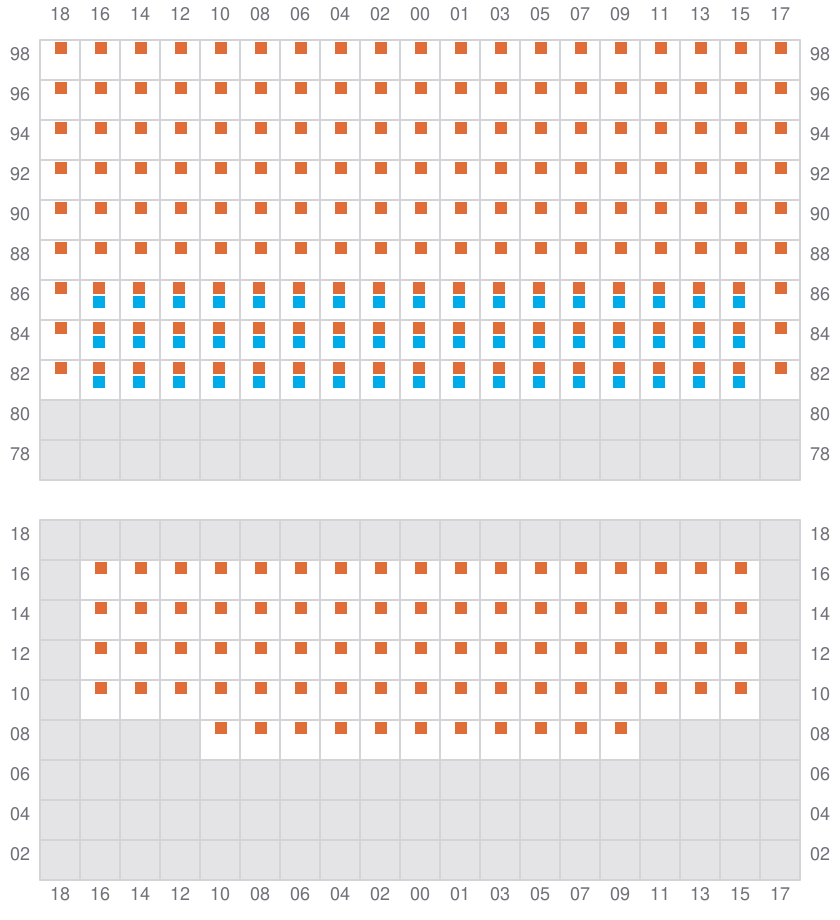

063
- ←
065 (066)
- →

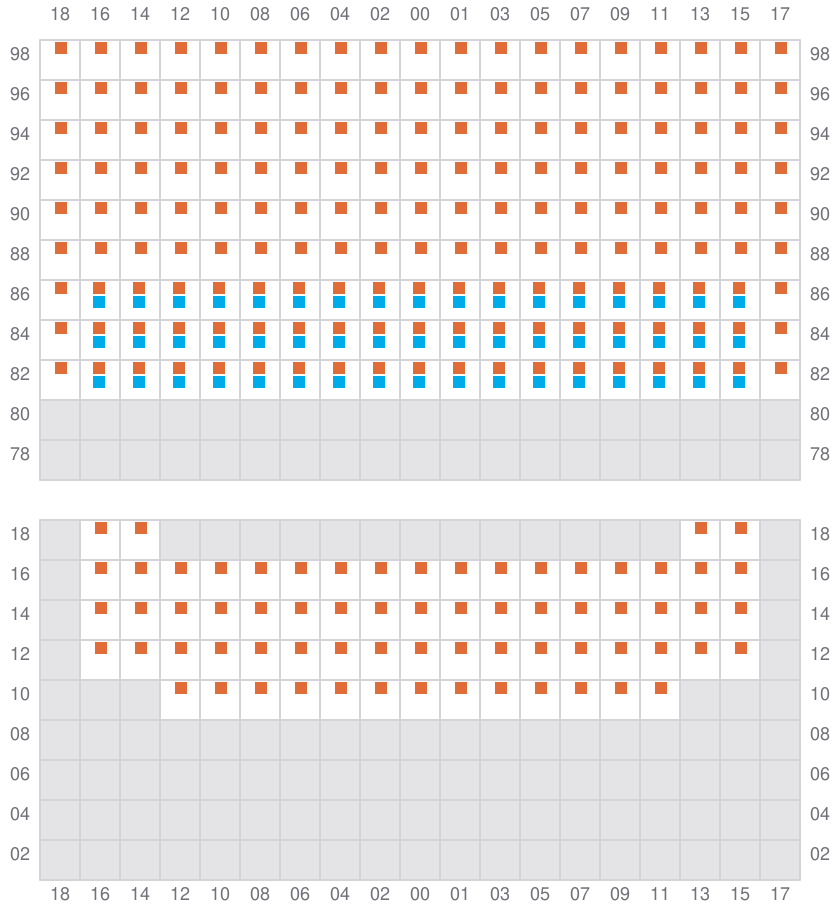

067
- ←

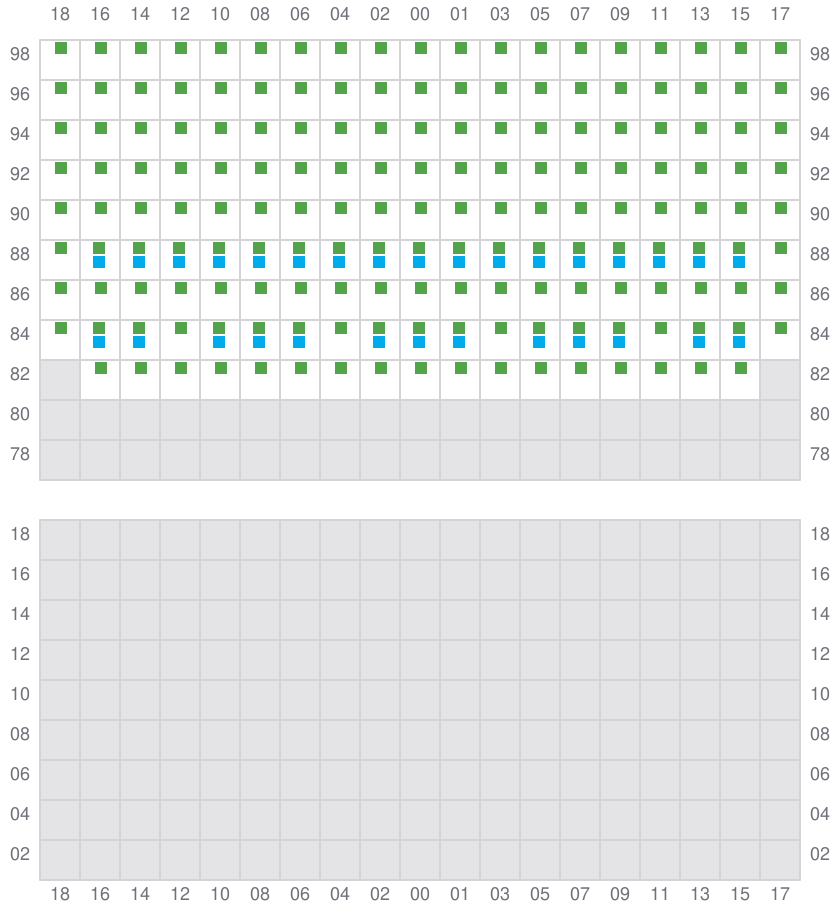

069 (070)
- → / ?
