VARAMO
9395044 | C4SQ2 | YML by ******************** Last update: Wed Apr 30 2025
General Info
Ship Name:VARAMO
IMO Code:9395044
Call Sign:C4SQ2
Line Operator:YML
Class Name for Sister Ships:VRMO
Year Built:2007
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):155.08
LOA (Length Overall):166.15
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:031
Max ISO Row:10
Center Line Row:No
Max Above ISO Tier:92
Min Above ISO Tier:80
Max Below ISO Tier:10
Min Below ISO Tier:02
Total TEU:1,288
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%
Side View
Hatch-Covers View
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot ×

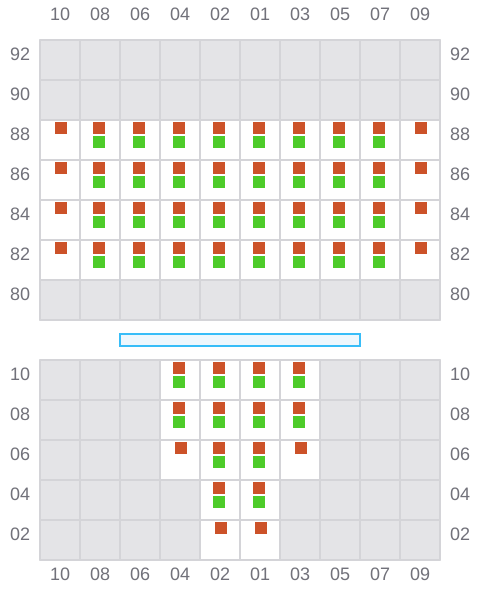

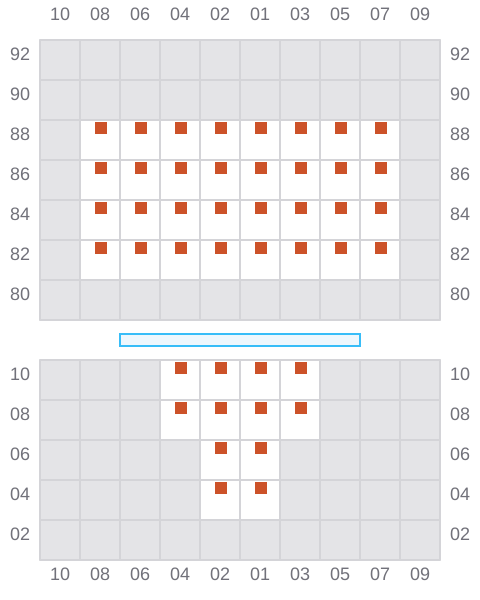

001
- →
003 (002)
- ←

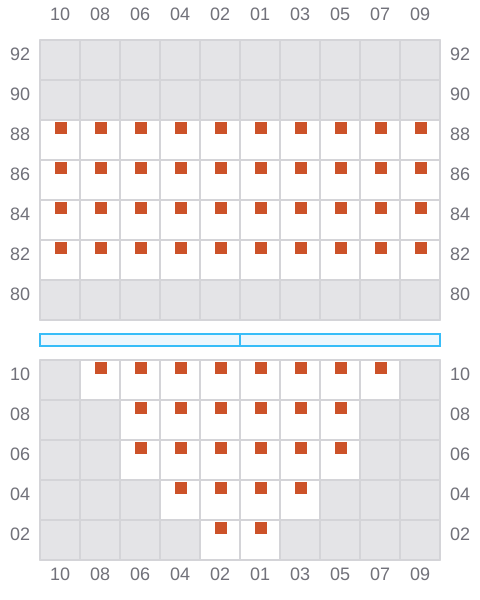

005
- →

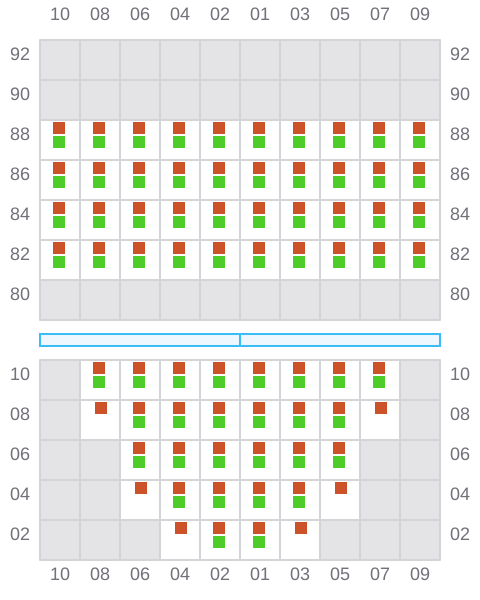

007 (006)
- ←

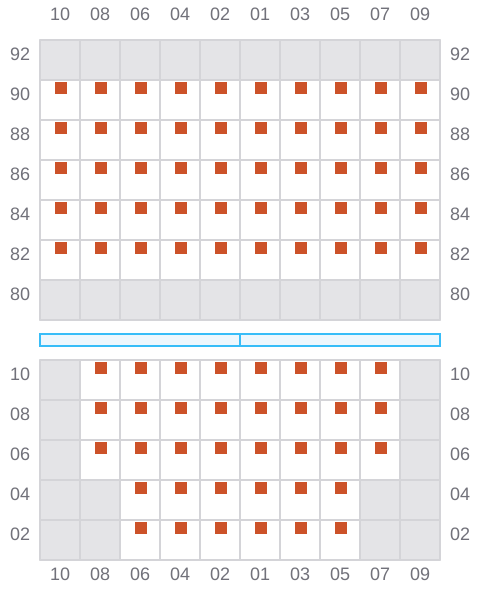

009
- →

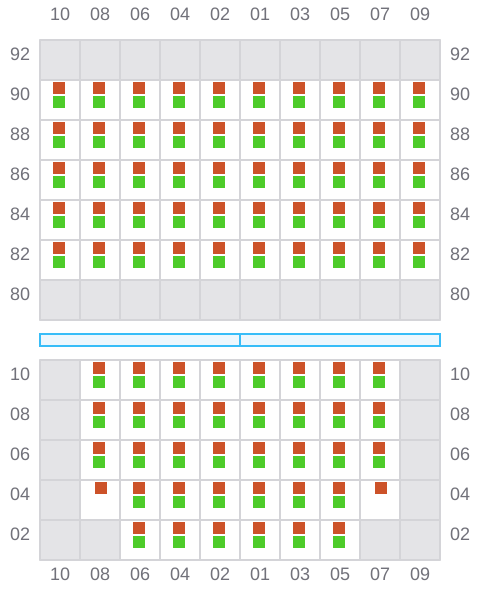

011 (010)
- ←

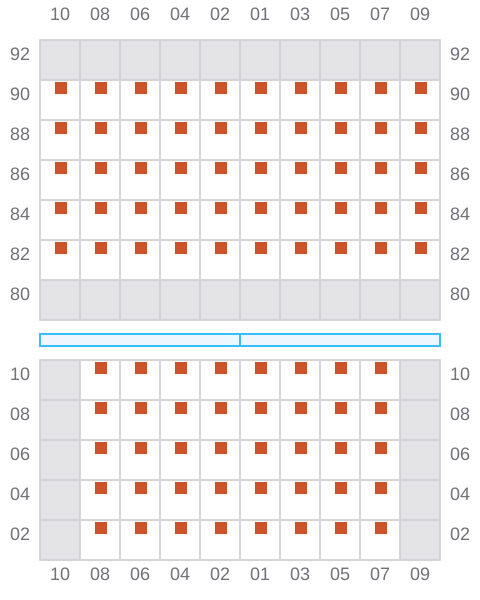

013
- →

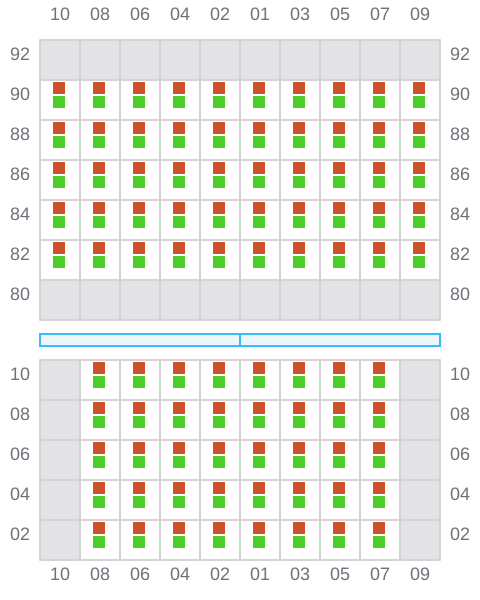

015 (014)
- ←
017
- →
019 (018)
- ←

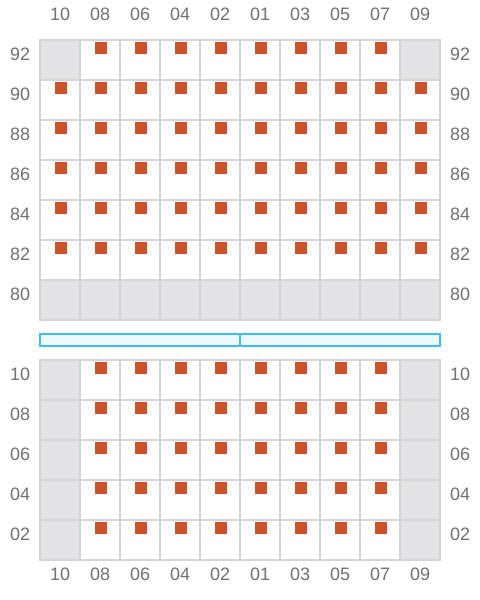

021
- →
023 (022)
- ←

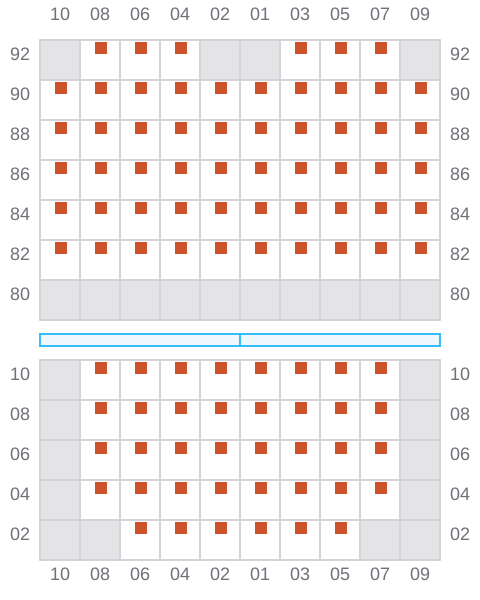

025
- →

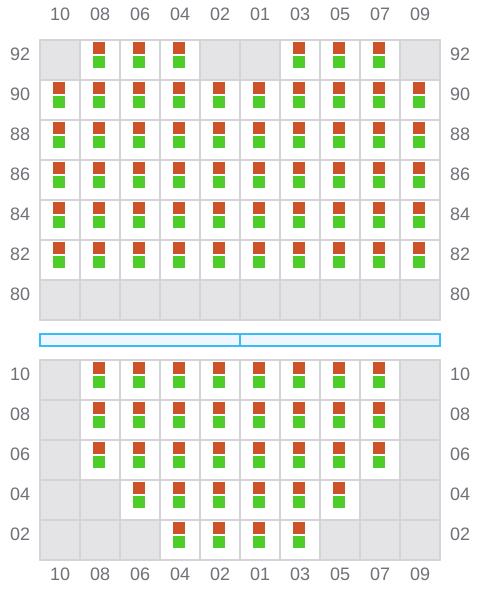

027 (026)
- ←

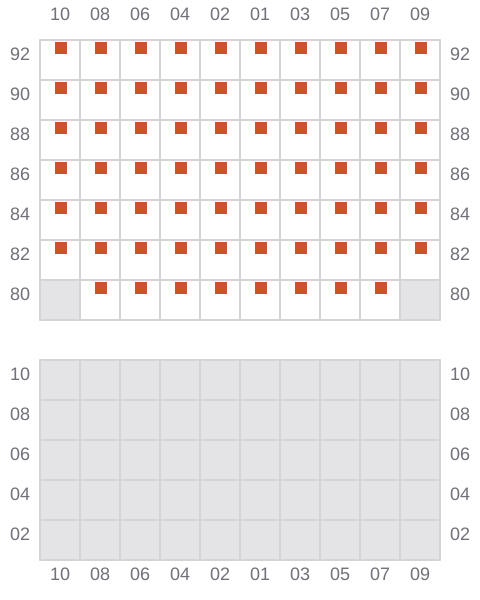

029
- → / ?

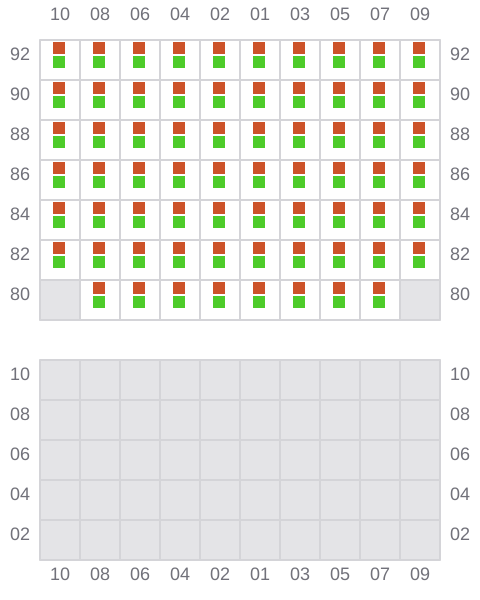

031 (030)
- ← / ?
