VELIKA EXPRESS
9243162 | 5LBM2 | HAP by ************************** Last update: Sun Jun 11 2023
General Info
Ship Name:VELIKA EXPRESS
IMO Code:9243162
Call Sign:5LBM2
Line Operator:HAP
Class Name for Sister Ships:VEX
Year Built:2002
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:
Also Known As (old names):-
Size Summary
ISO Bays:053
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:92
Min Above ISO Tier:82
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:3,239
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

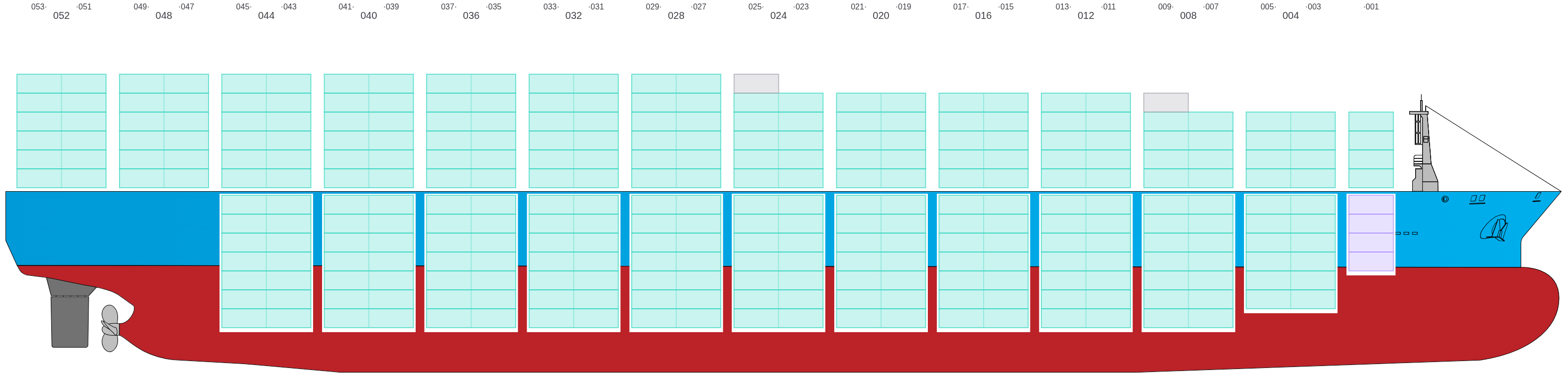

Side View
Hatch-Covers View

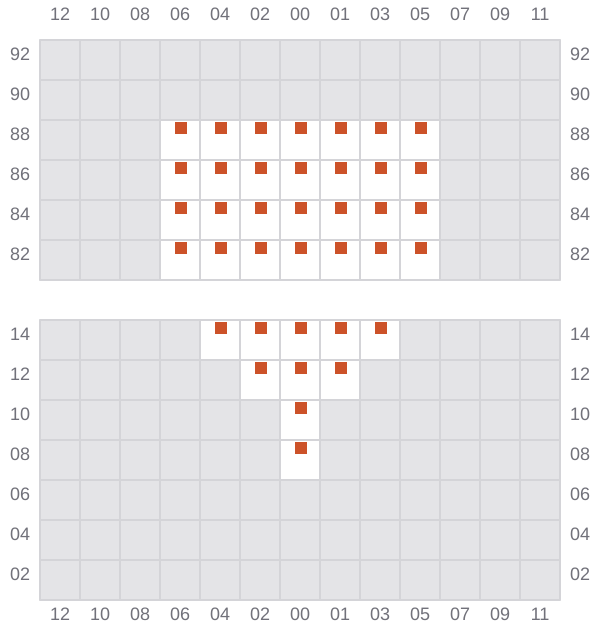

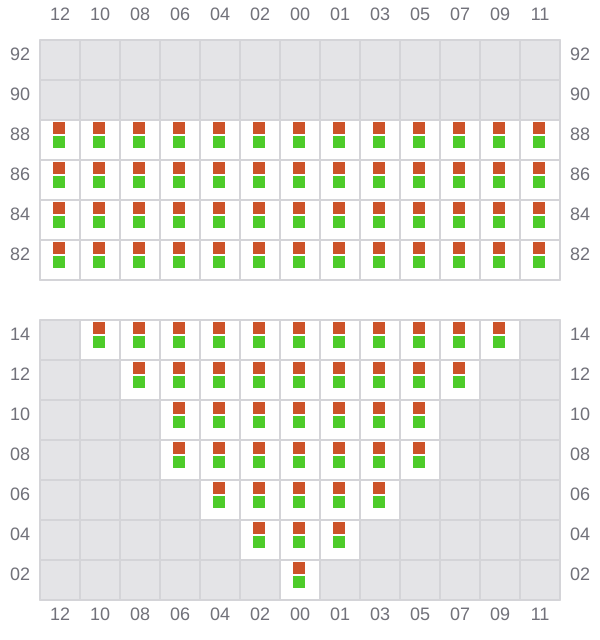

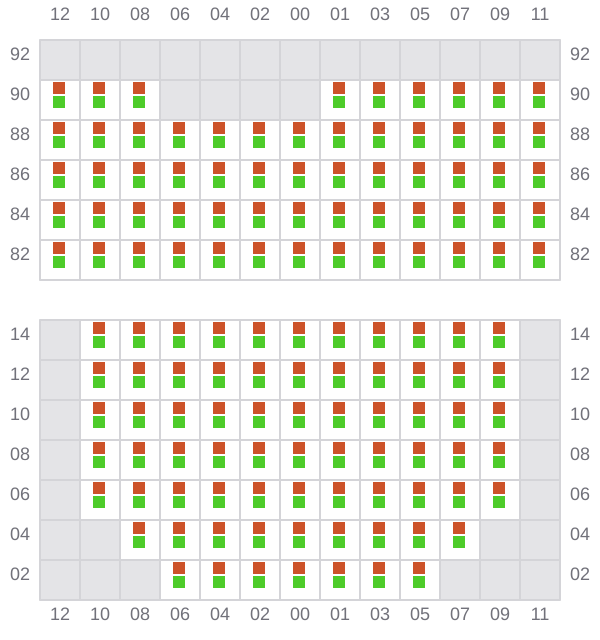

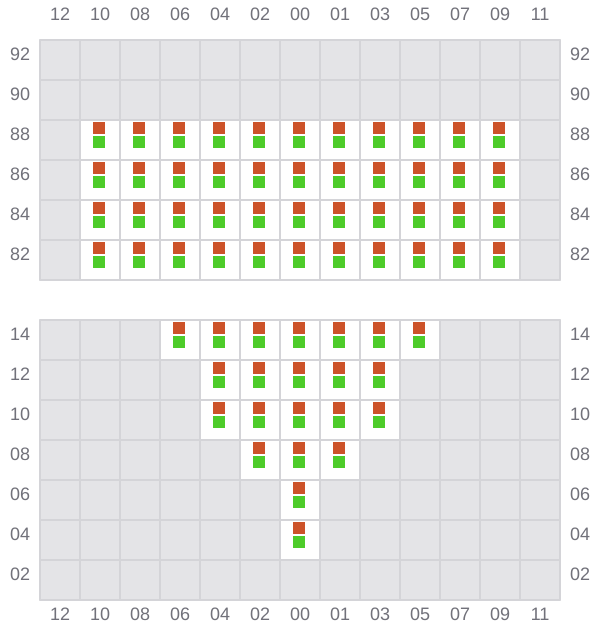

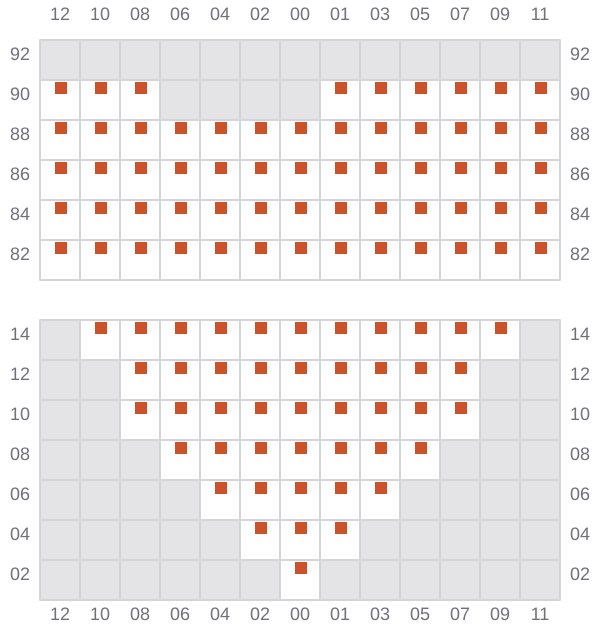

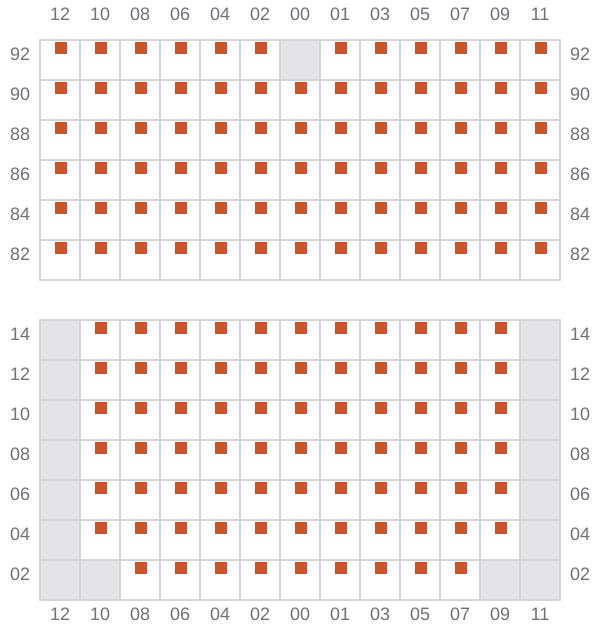

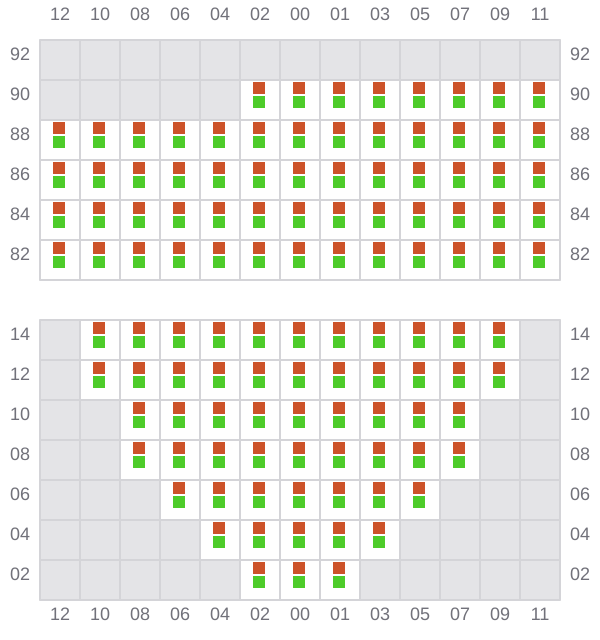

ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot
001
- → / ?
003 (004)
- →
- → / ?

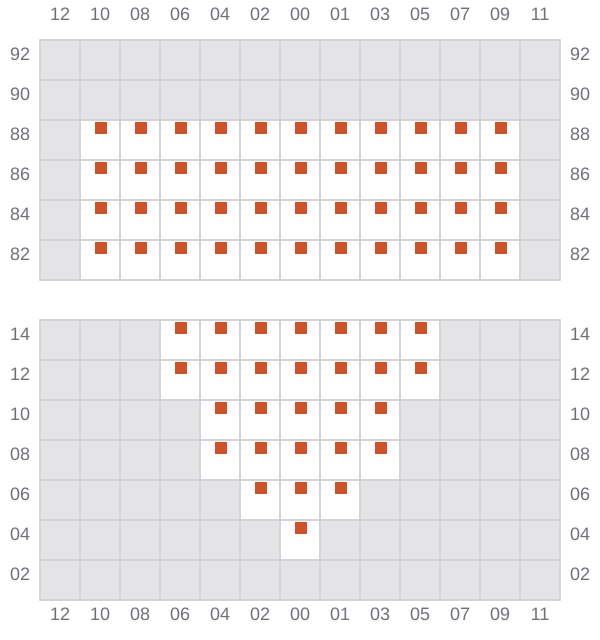

005
- ←
- ← / ?
007 (008)
- →
009
- ←
011 (012)
- →

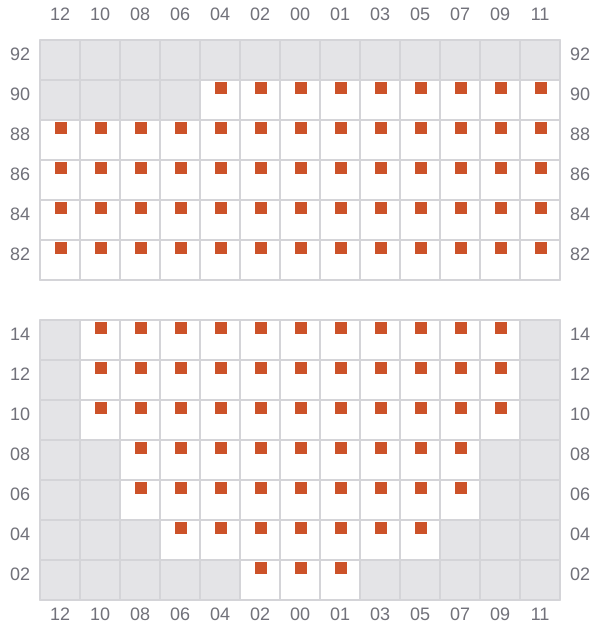

013
- ←
015 (016)
- →

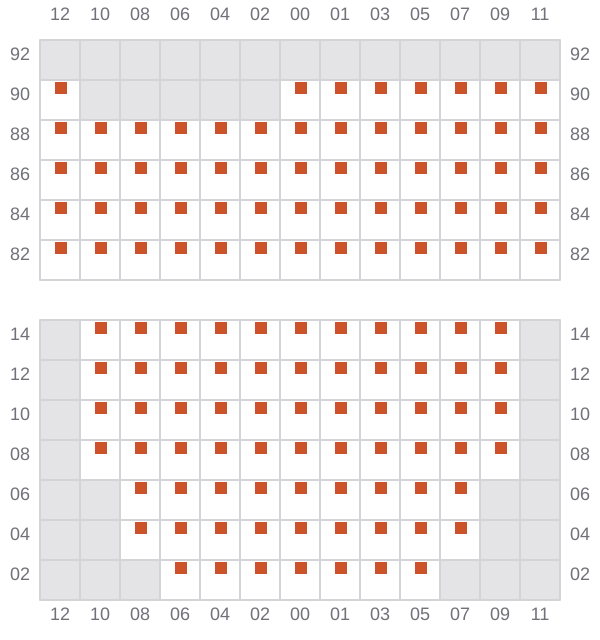

017
- ←
019 (020)
- →

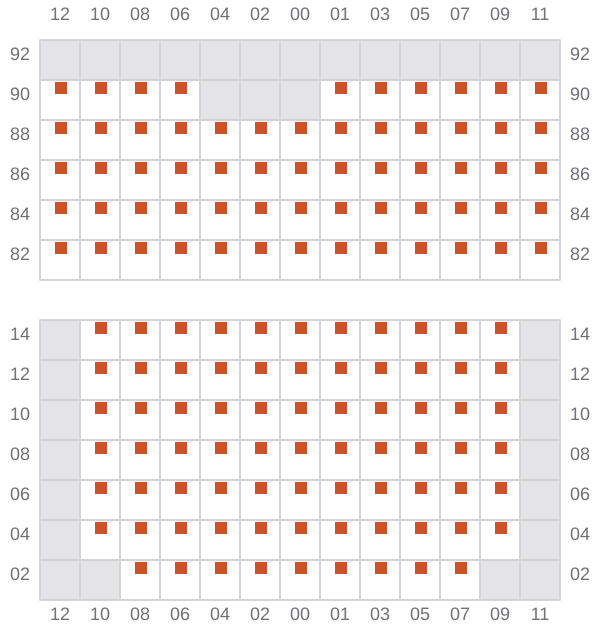

021
- ←

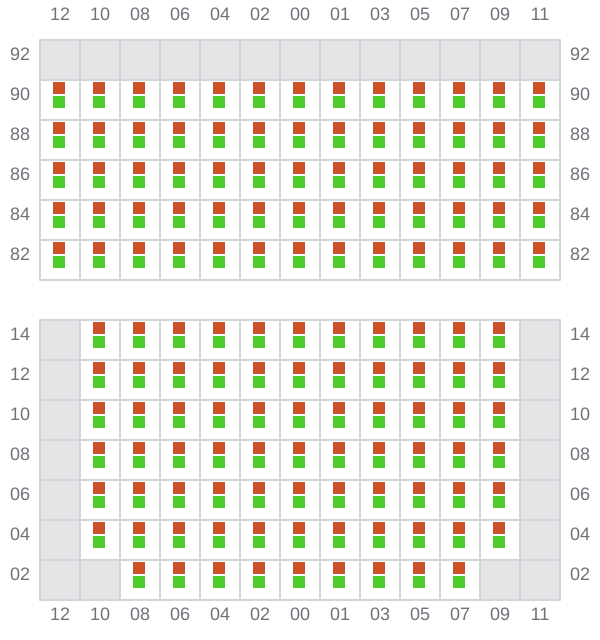

023 (024)
- →

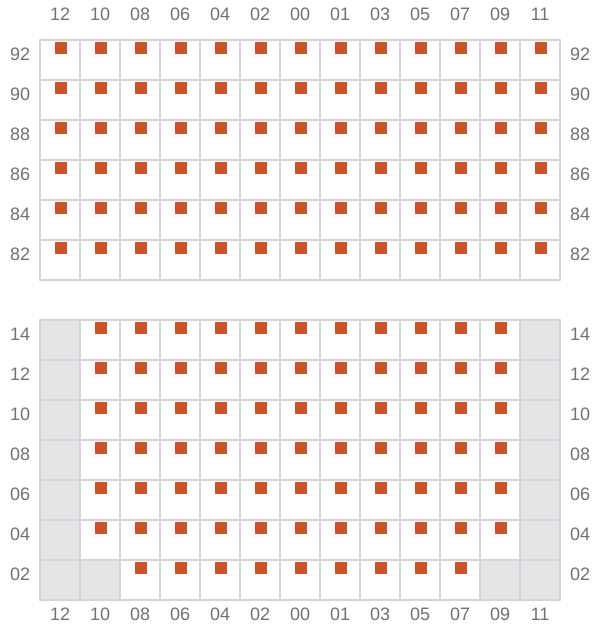

025
- ←
027 (028)
- →

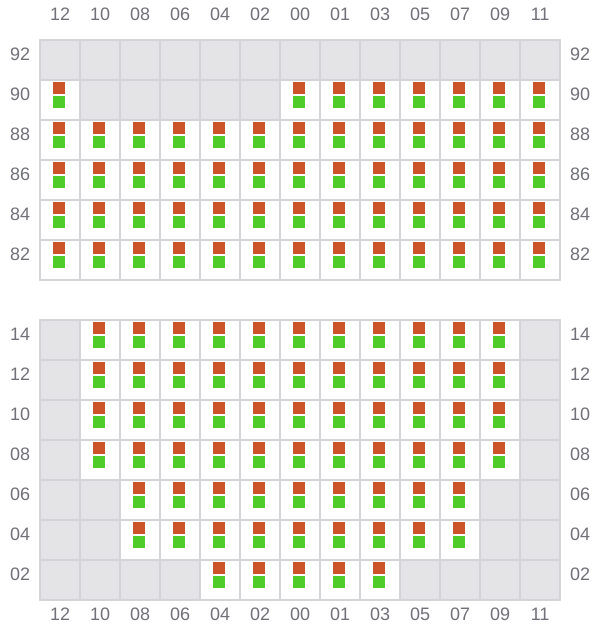

029
- ←
031 (032)
- →
033
- ←

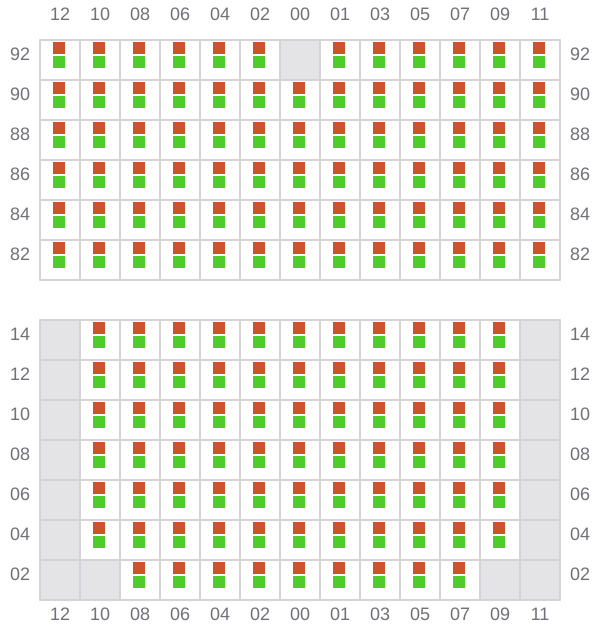

035 (036)
- →
037
- ←

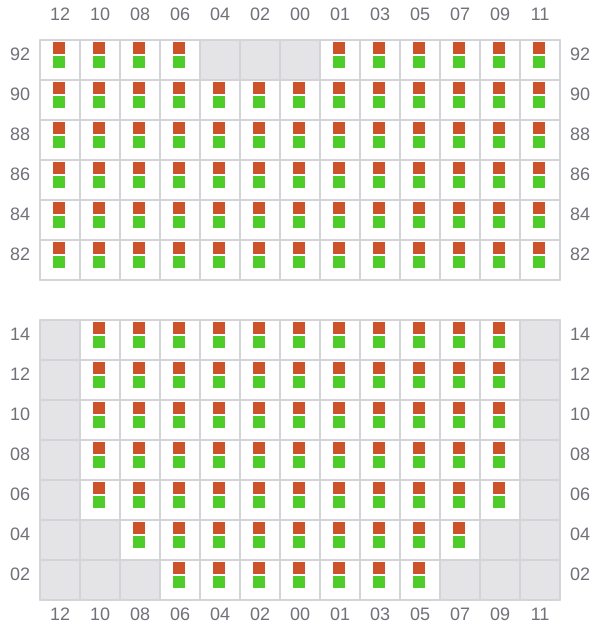

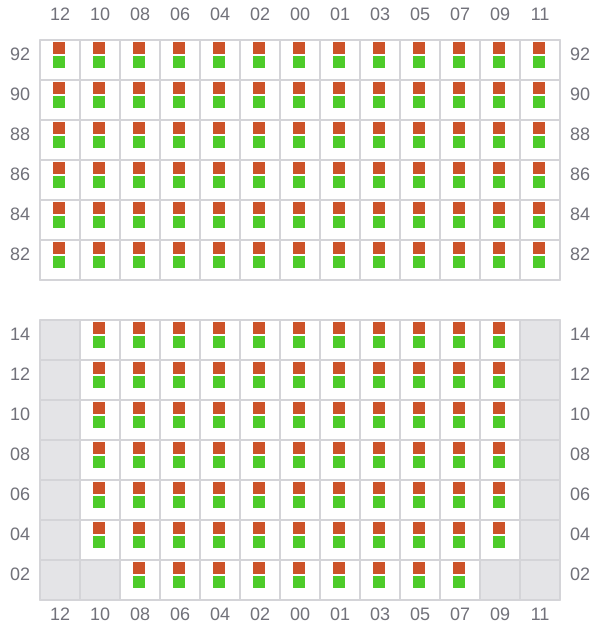

039 (040)
- →

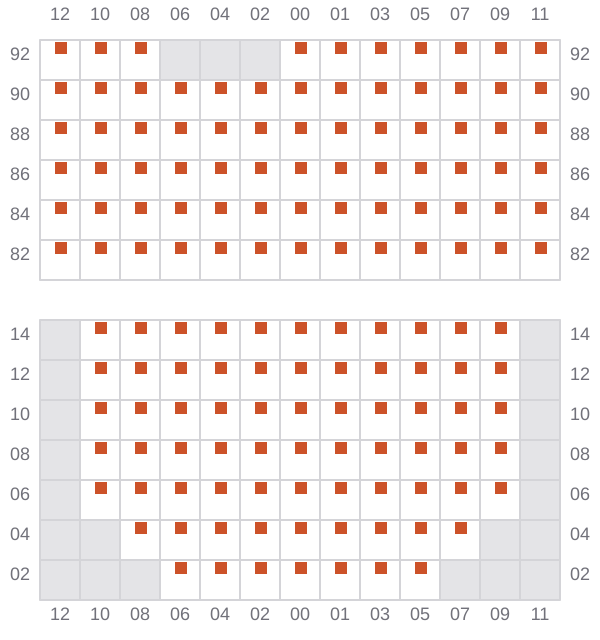

041
- ←

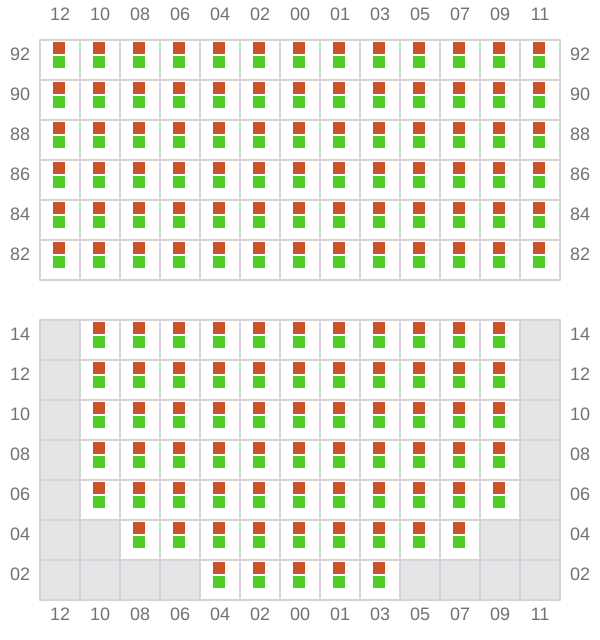

043 (044)
- →

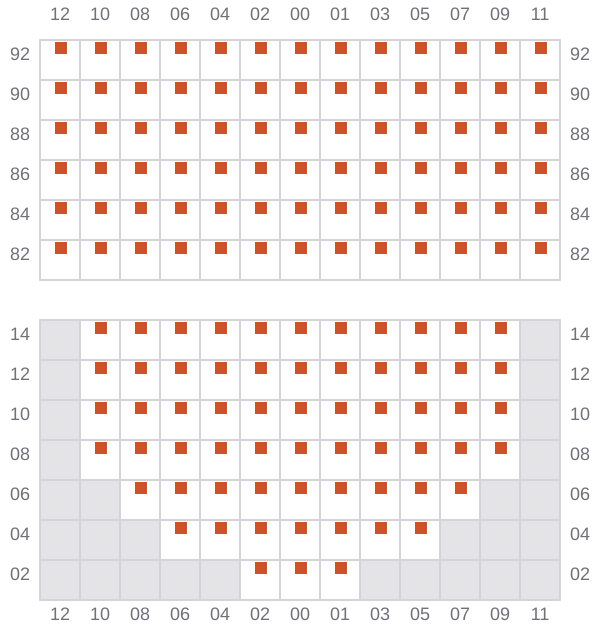

045
- ←
047 (048)
- → / ?
049
- ← / ?

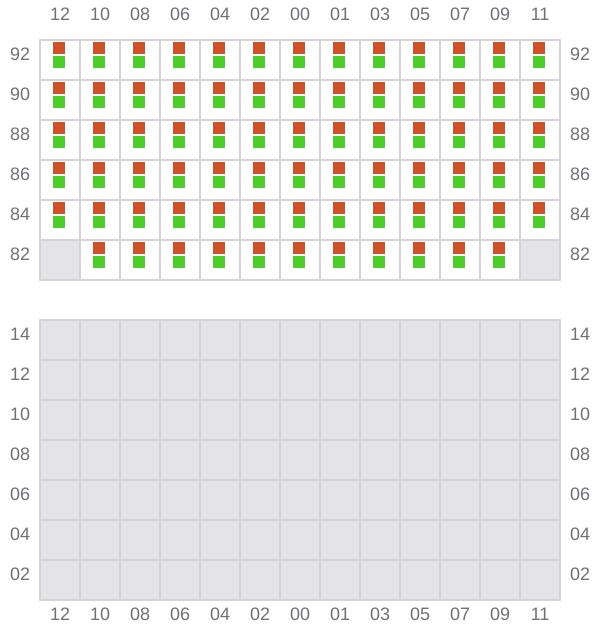

051 (052)
- → / ?

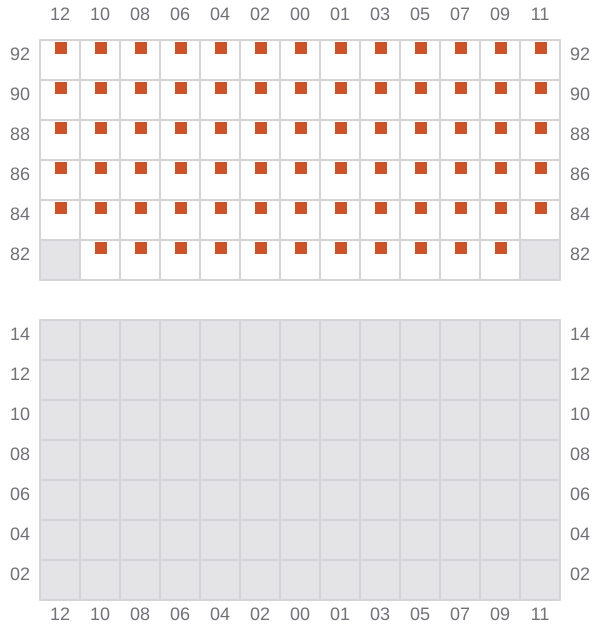

053
- ← / ?
