VENETIA
9400203 | CQGH | CMA by *********************** Last update: Tue Jan 28 2025

General Info

Ship Name:VENETIA

IMO Code:9400203

Call Sign:CQGH

Line Operator:CMA

Class Name for Sister Ships:CVTA

Year Built:2010

Position Format:Bay, Row, Tier

Allowed Containers:20, 40, 45

LPP (LBP):0.00

LOA (Length Overall):0.00

Stern to AFT PP:-

Features Informed:Standard

Also Known As...:-

40' Bays Location:-

Size Summary

ISO Bays:059

Max ISO Row:12

Center Line Row:Yes

Max Above ISO Tier:94

Min Above ISO Tier:82

Max Below ISO Tier:14

Min Below ISO Tier:02

Total TEU:4,178

Centers of Gravity

LCG Values:Known

LCG Data:100%

VCG Values:Known

VCG Data:100%

TCG Values:Known

TCG Data:100%

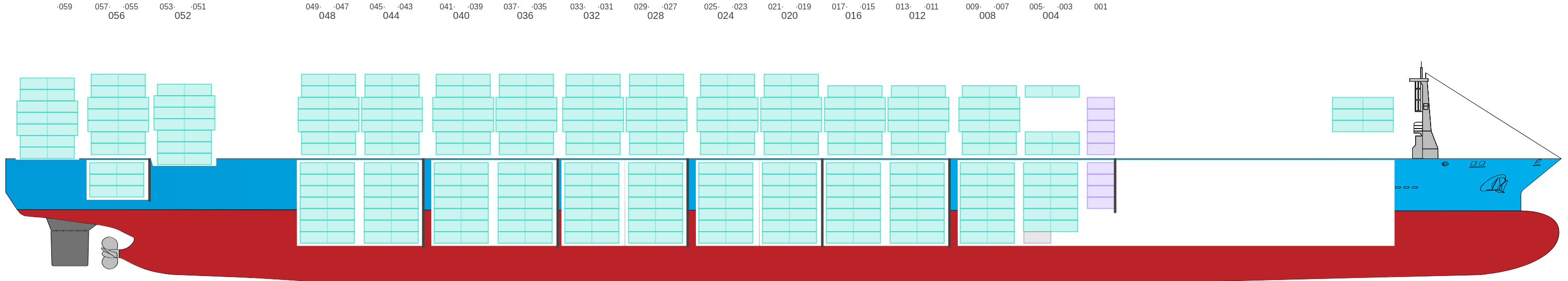

Side View

Side view of VENETIA

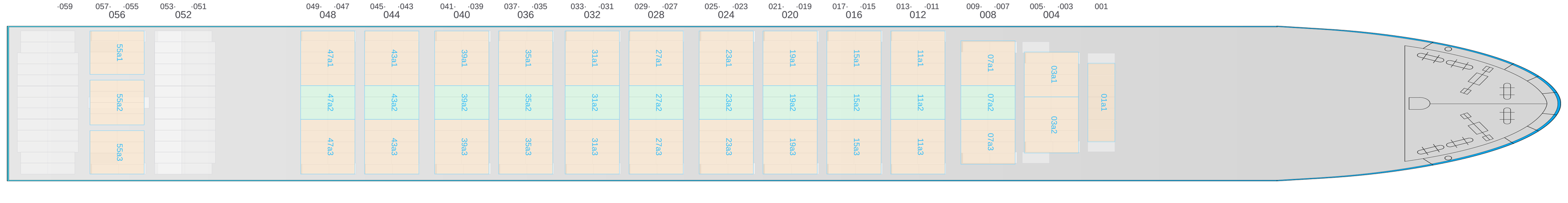

Hatch-Covers View

Deck view of VENETIA

ISO Bays

Legend

20'
40'
45'
Reefer
Restricted slot ×

001

→

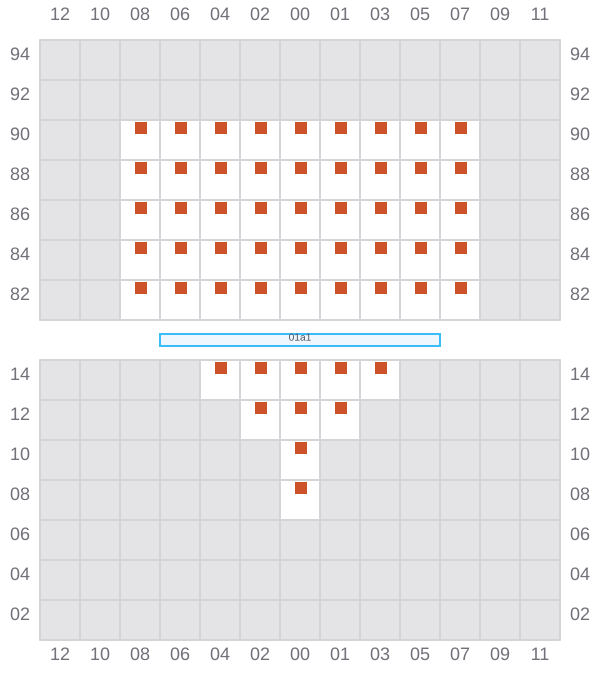

Bay 001 view and slots of VENETIA

003 (004)

→
→

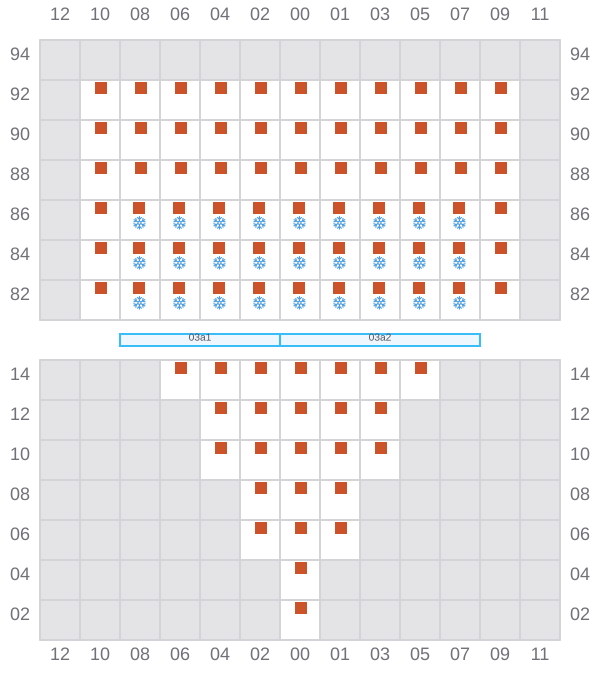

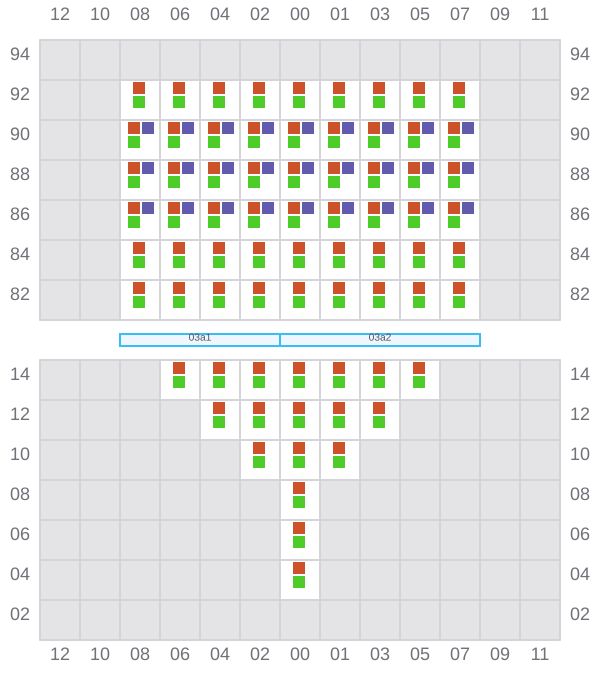

Bay 003 view and slots of VENETIA

005

←
^→ / _?
→

Bay 005 view and slots of VENETIA

007 (008)

→
→

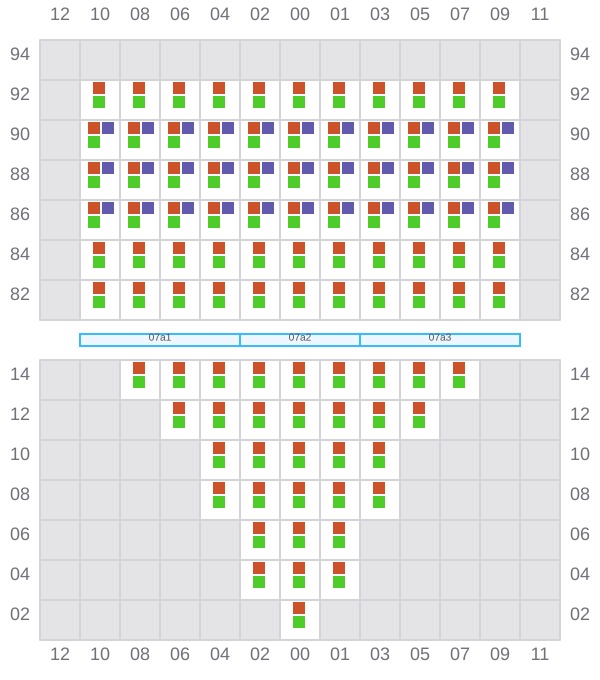

Bay 007 view and slots of VENETIA

009

←
^→ / _?
→

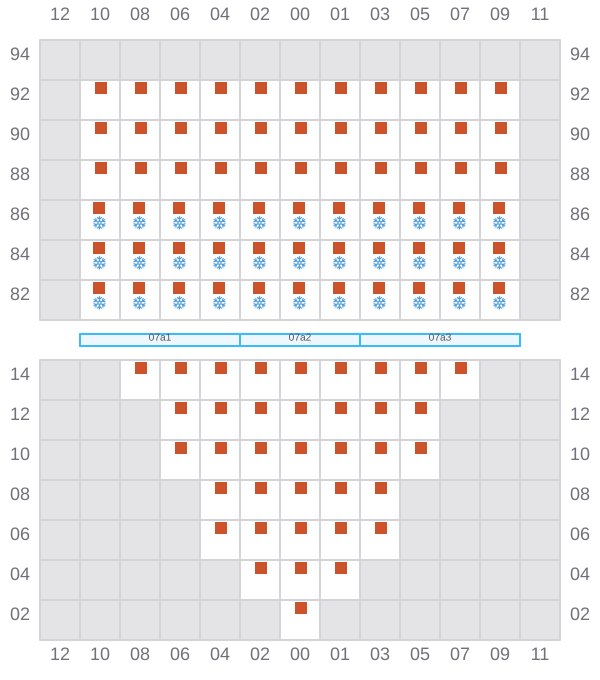

Bay 009 view and slots of VENETIA

011 (012)

→
→

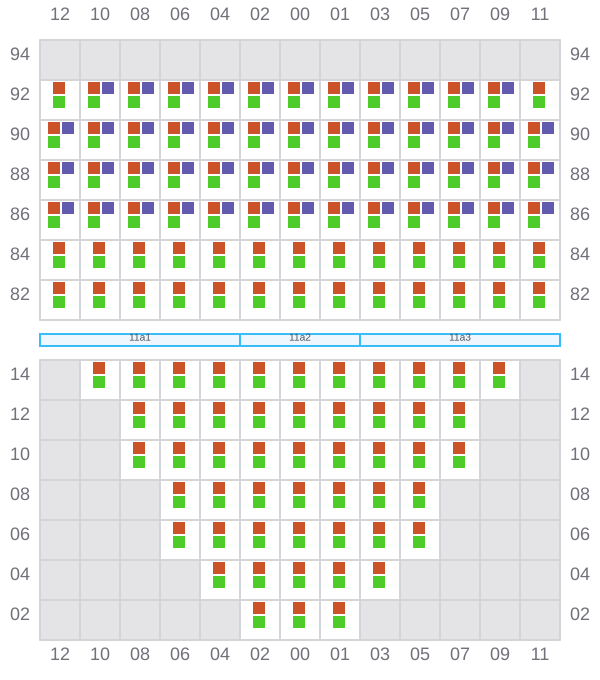

Bay 011 view and slots of VENETIA

013

←
→
→

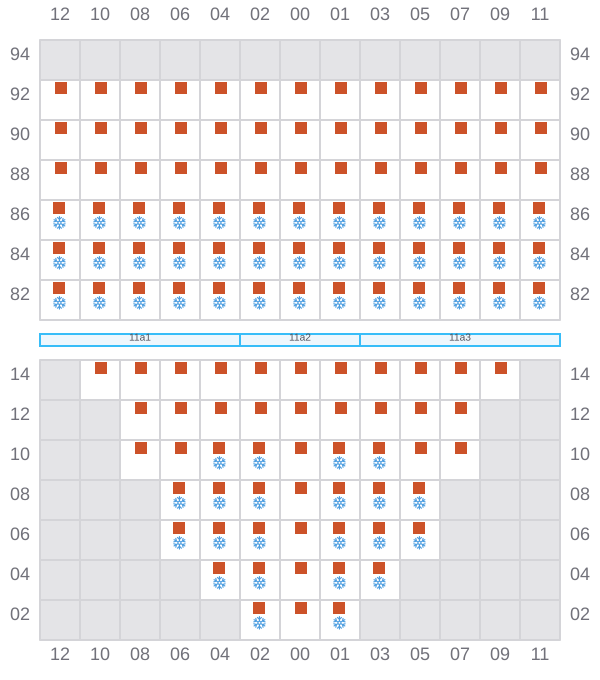

Bay 013 view and slots of VENETIA

015 (016)

→
→

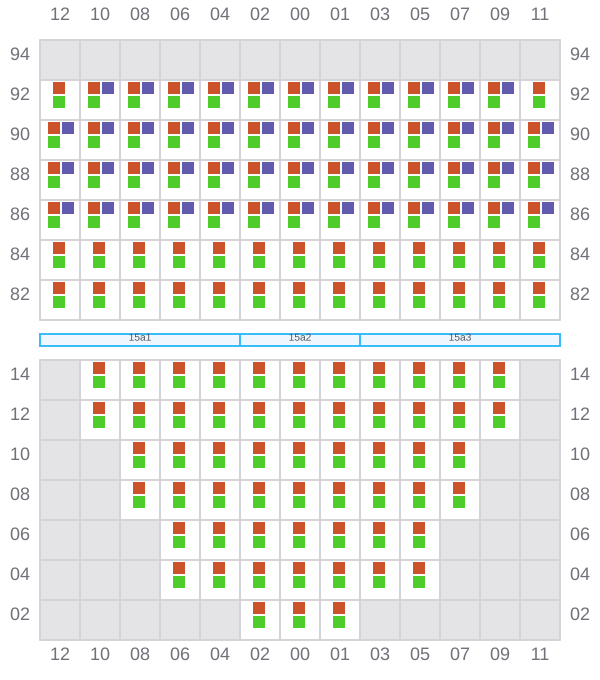

Bay 015 view and slots of VENETIA

017

←
→
→

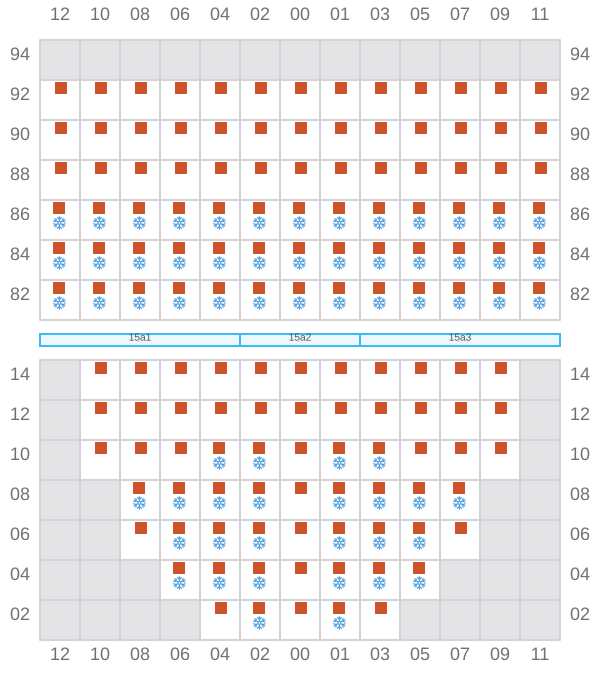

Bay 017 view and slots of VENETIA

019 (020)

→
→

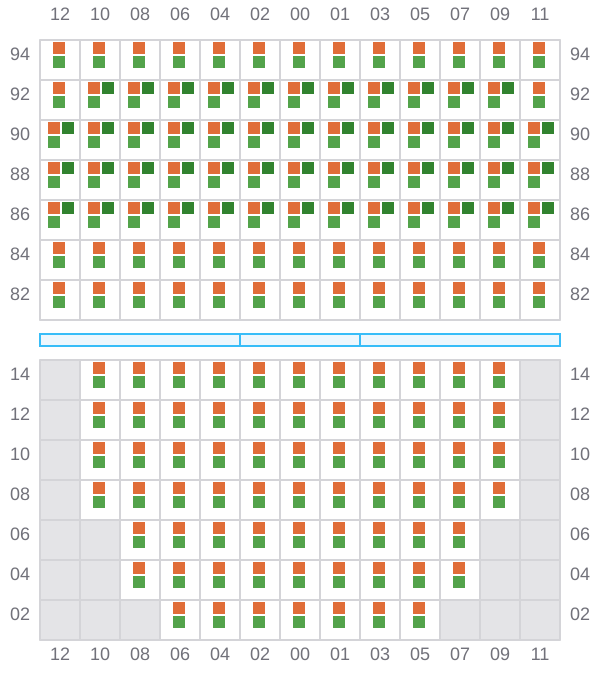

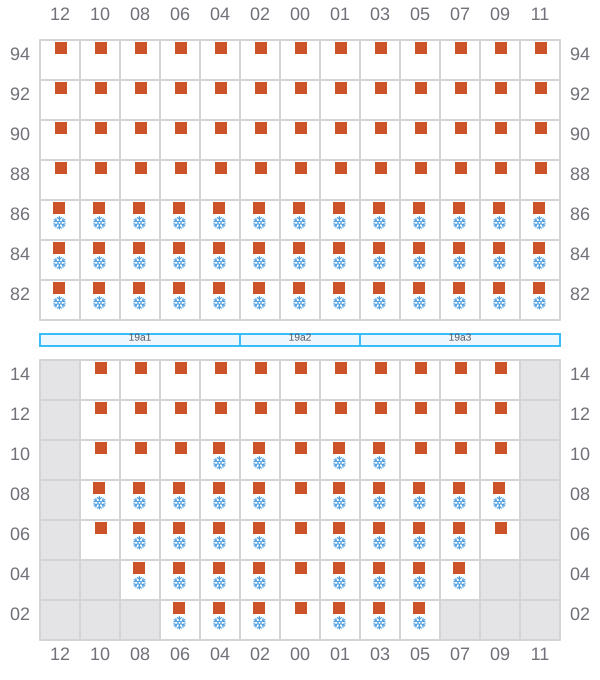

Bay 019 view and slots of VENETIA

021

←
→
→

Bay 021 view and slots of VENETIA

023 (024)

→
→

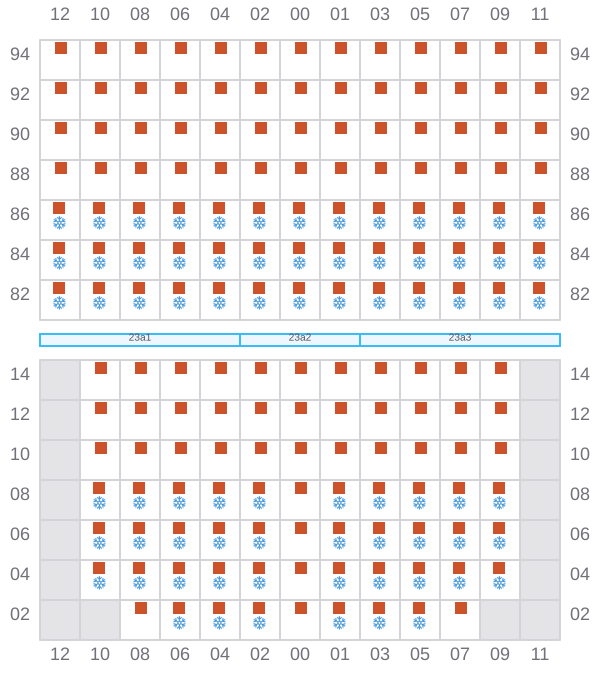

Bay 023 view and slots of VENETIA

025

←
→
→

Bay 025 view and slots of VENETIA

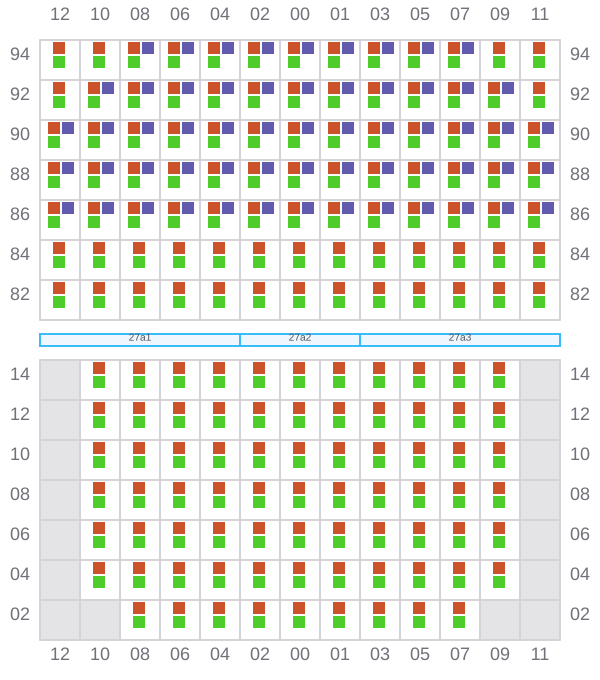

027 (028)

→
→

Bay 027 view and slots of VENETIA

029

←
→
→

Bay 029 view and slots of VENETIA

031 (032)

→
→

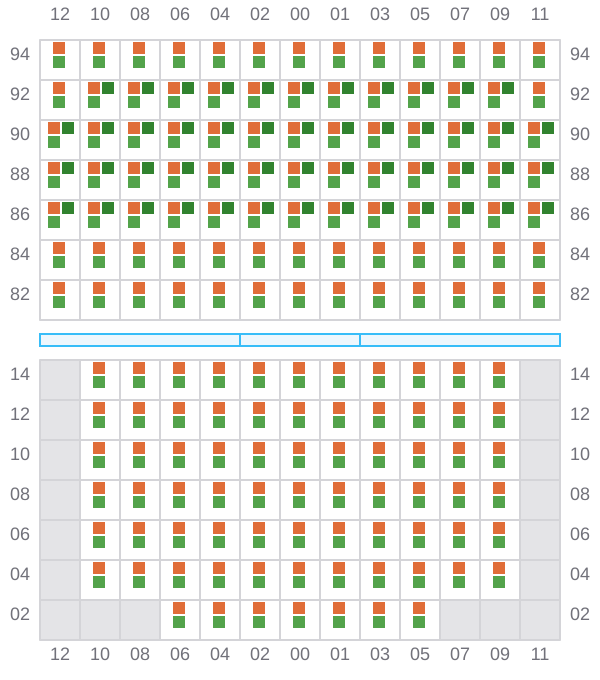

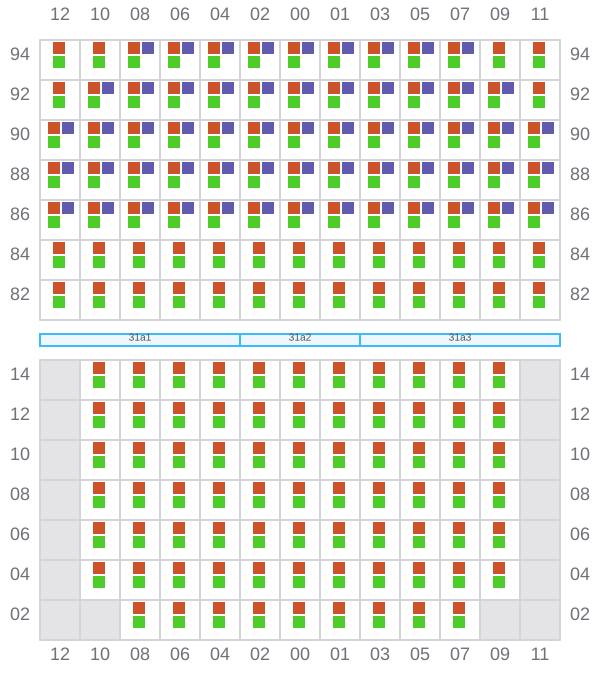

Bay 031 view and slots of VENETIA

033

←
→
→

Bay 033 view and slots of VENETIA

035 (036)

→
→

Bay 035 view and slots of VENETIA

037

←
→
→

Bay 037 view and slots of VENETIA

039 (040)

→
→

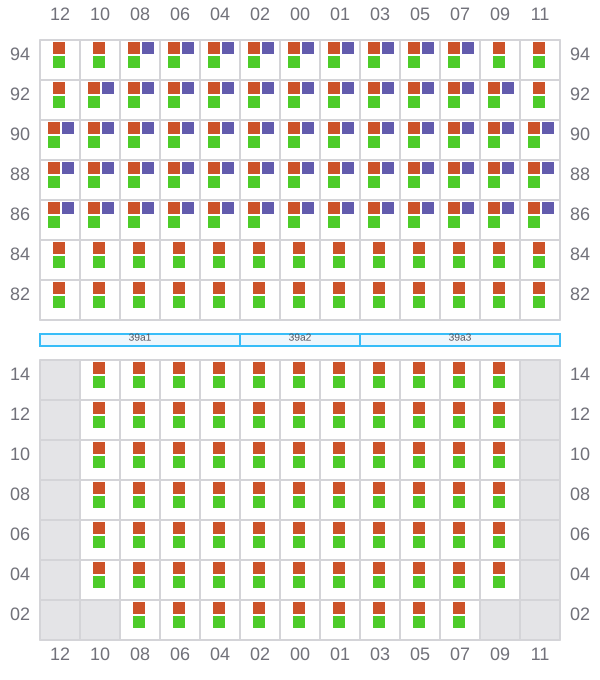

Bay 039 view and slots of VENETIA

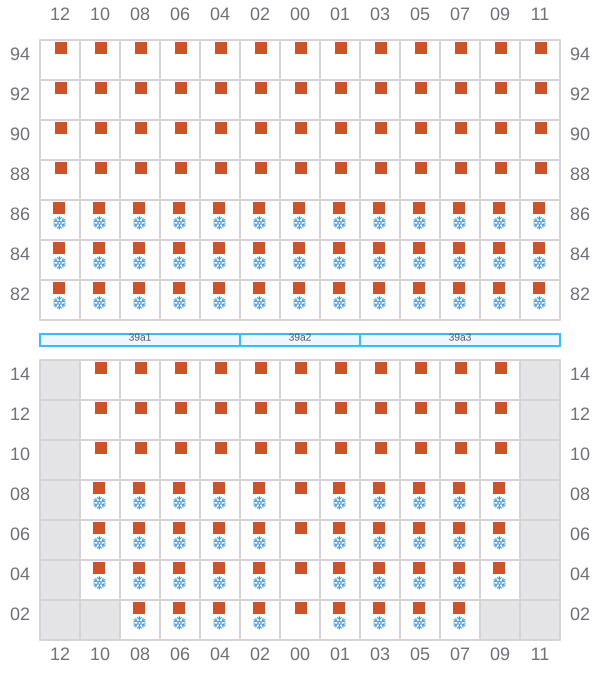

041

←
→
→

Bay 041 view and slots of VENETIA

043 (044)

→
→

Bay 043 view and slots of VENETIA

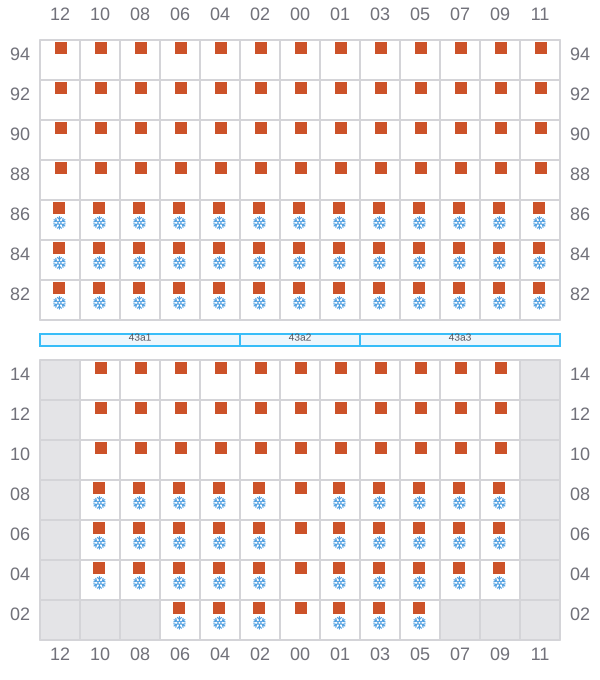

045

←
→
→

Bay 045 view and slots of VENETIA

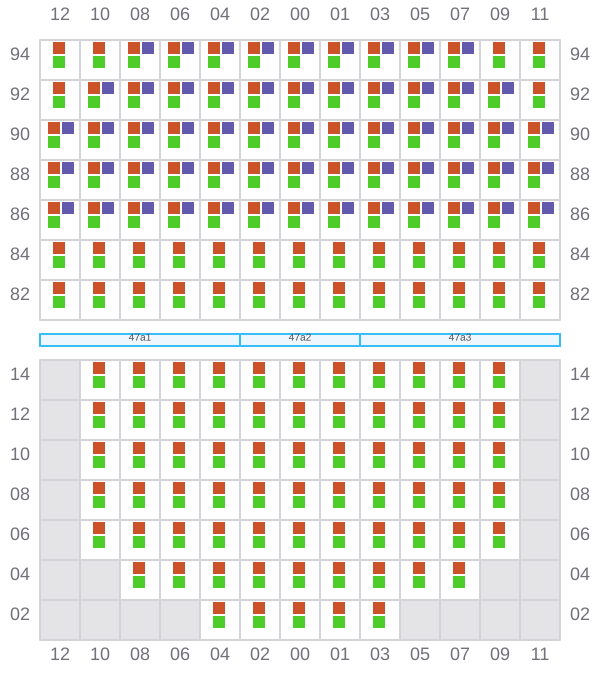

047 (048)

→
→

Bay 047 view and slots of VENETIA

049

←
→
→

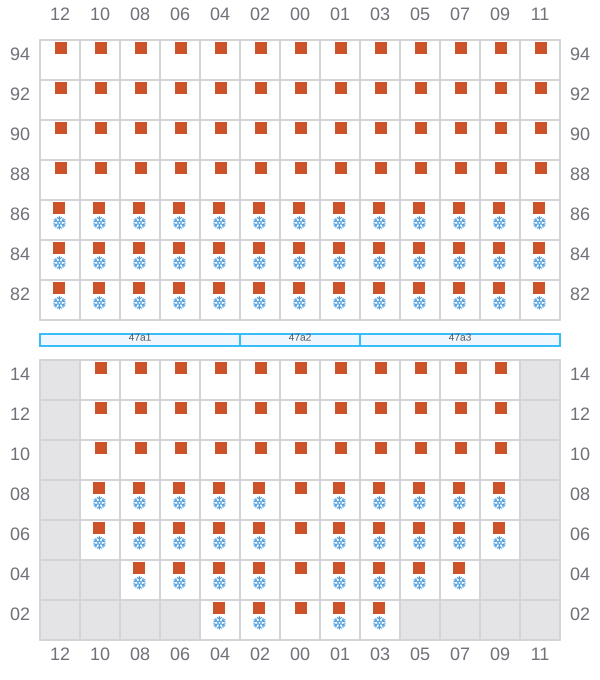

Bay 049 view and slots of VENETIA

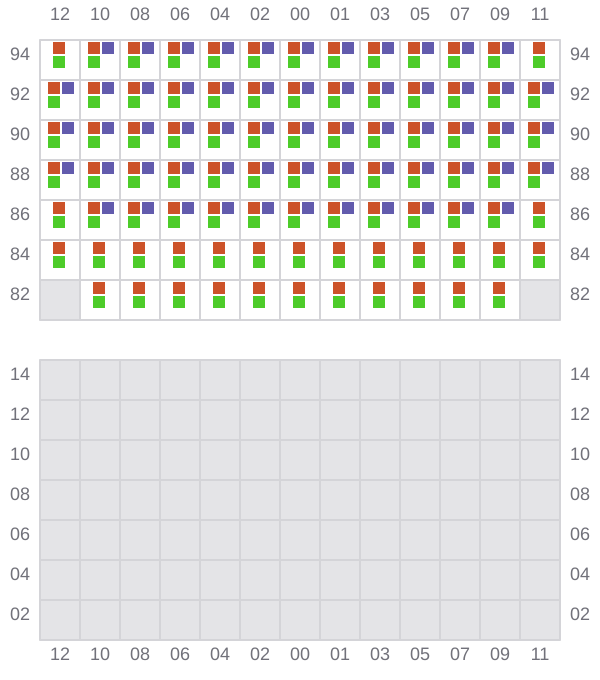

051 (052)

^→ / _?
^→ / _?

Bay 051 view and slots of VENETIA

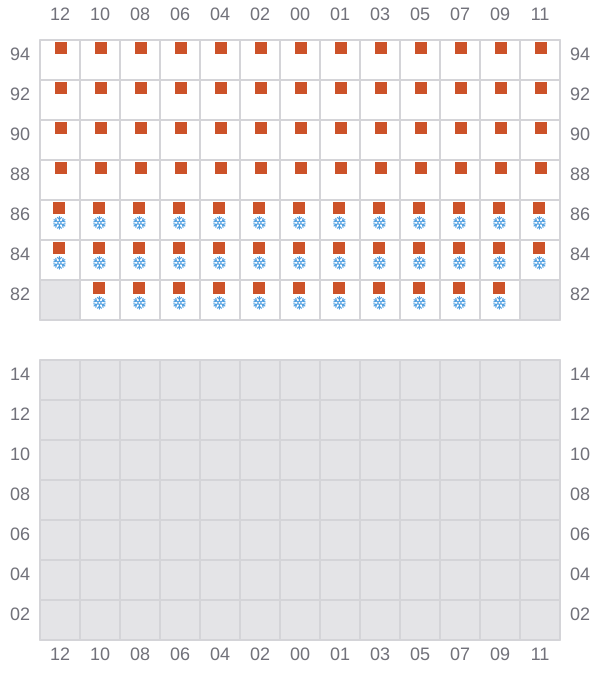

053

^← / _?
^→ / _?
^→ / _?

Bay 053 view and slots of VENETIA

055 (056)

→
→

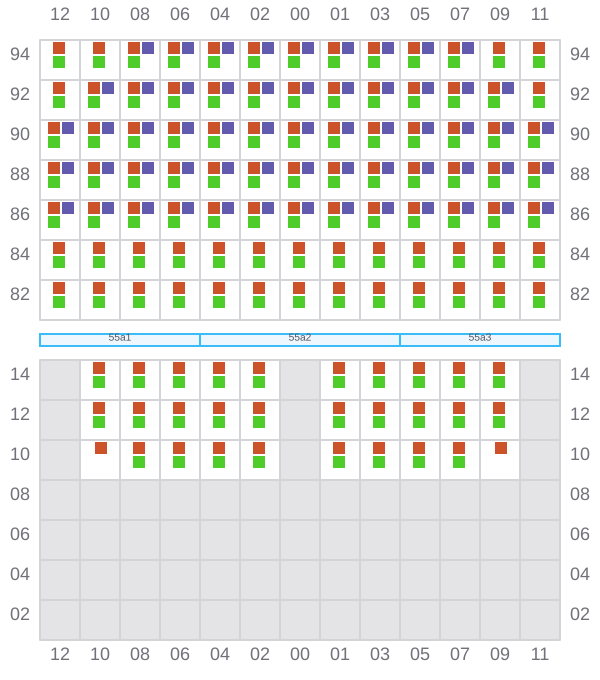

Bay 055 view and slots of VENETIA

057

←
^→ / _?
→

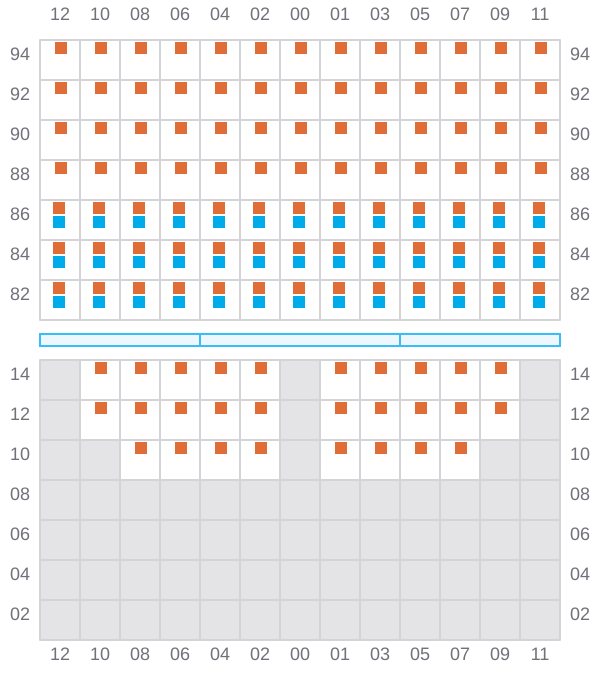

Bay 057 view and slots of VENETIA

059 (060)

^→ / _?
^→ / _?
^→ / _?

Bay 059 view and slots of VENETIA
