VENTO DI MAESTRALE
9985021 | 5LNO5 | HLC by *********************** Last update: Thu Jan 16 2025

General Info

Ship Name:VENTO DI MAESTRALE
IMO Code:9985021
Call Sign:5LNO5
Line Operator:HLC
Class Name for Sister Ships:KALC
Year Built:2024
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):169.00
LOA (Length Overall):171.90
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:037
Max ISO Row:10
Center Line Row:Yes
Max Above ISO Tier:92
Min Above ISO Tier:80
Max Below ISO Tier:10
Min Below ISO Tier:02
Total TEU:1,785

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

Side View

Side view of VENTO DI MAESTRALE

Hatch-Covers View

Deck view of VENTO DI MAESTRALE

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot ×

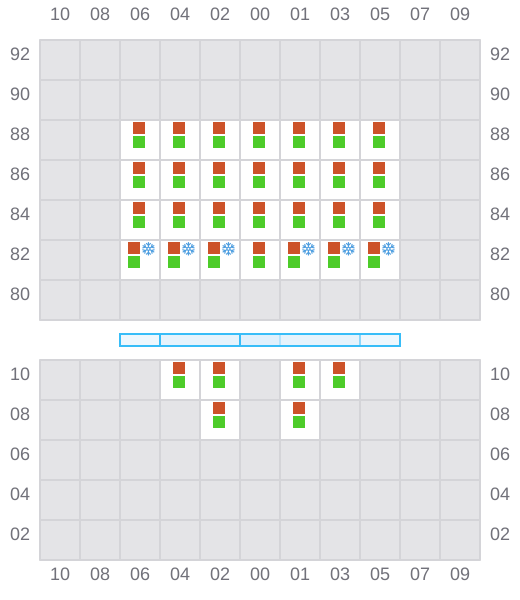

001 (002)

  • →
  • →
Bay 001 view and slots of VENTO DI MAESTRALE

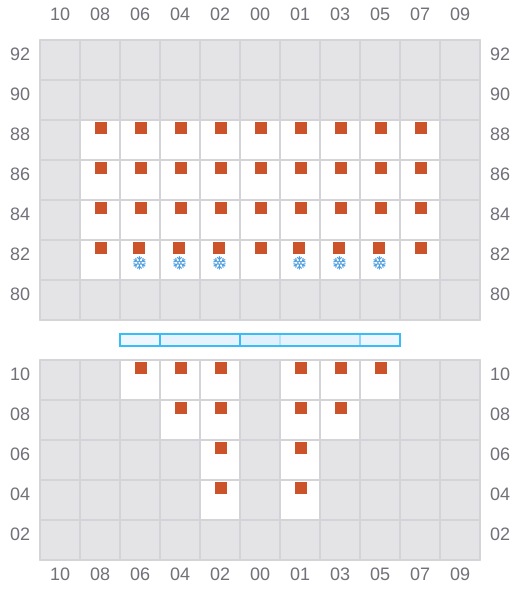

003

  • ←
  • →
Bay 003 view and slots of VENTO DI MAESTRALE

005 (006)

  • →
  • →

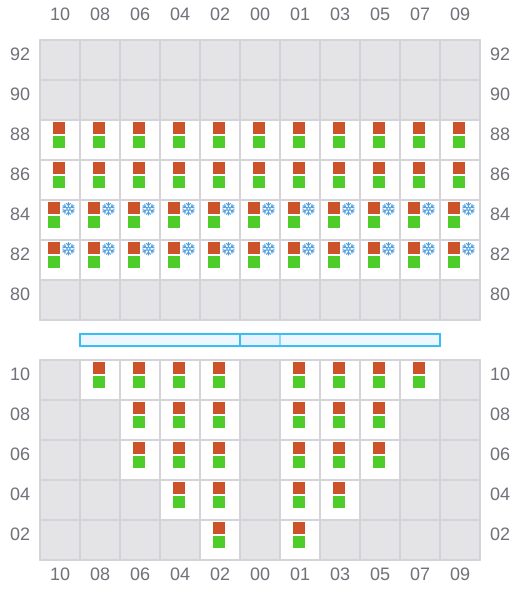

Bay 005 view and slots of VENTO DI MAESTRALE

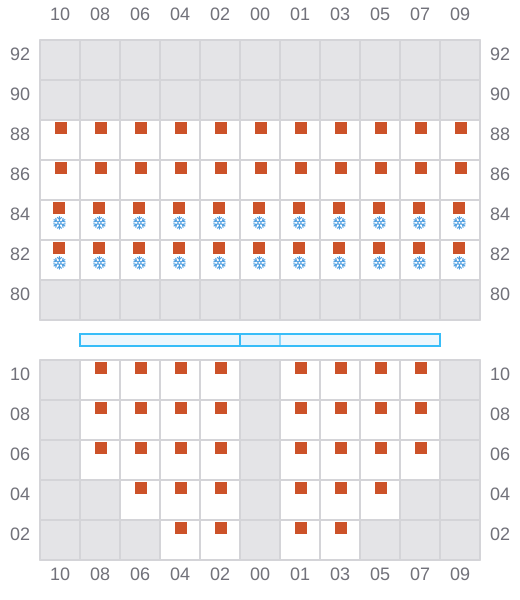

007

  • ←
  • →
Bay 007 view and slots of VENTO DI MAESTRALE

009 (010)

  • →
  • →

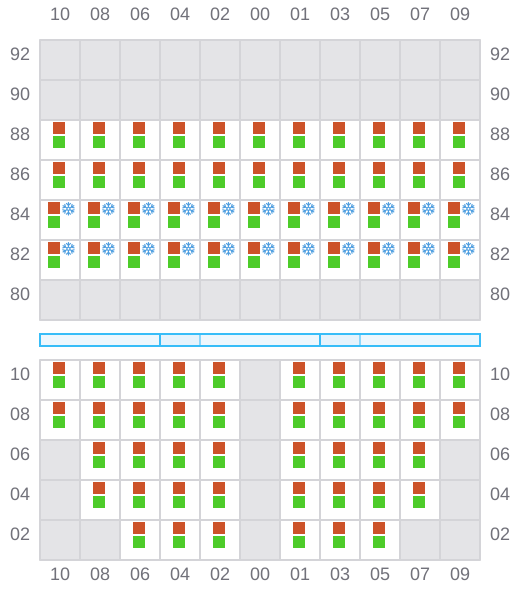

Bay 009 view and slots of VENTO DI MAESTRALE

011

  • ←
  • →

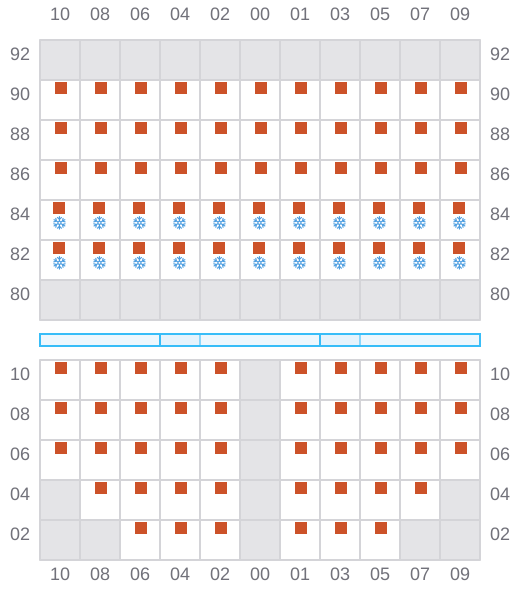

Bay 011 view and slots of VENTO DI MAESTRALE

013 (014)

  • →
  • →

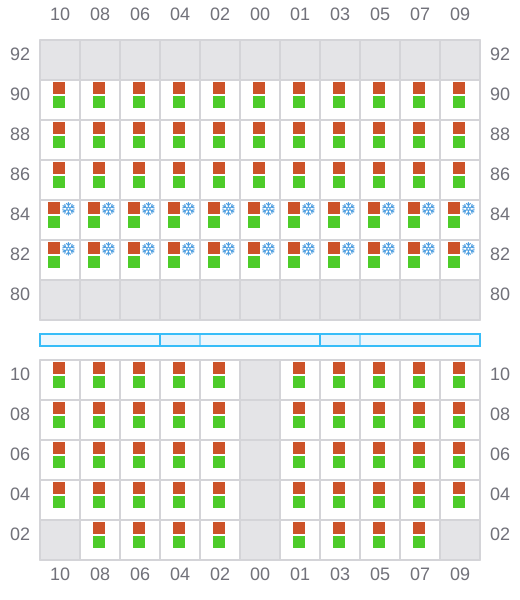

Bay 013 view and slots of VENTO DI MAESTRALE

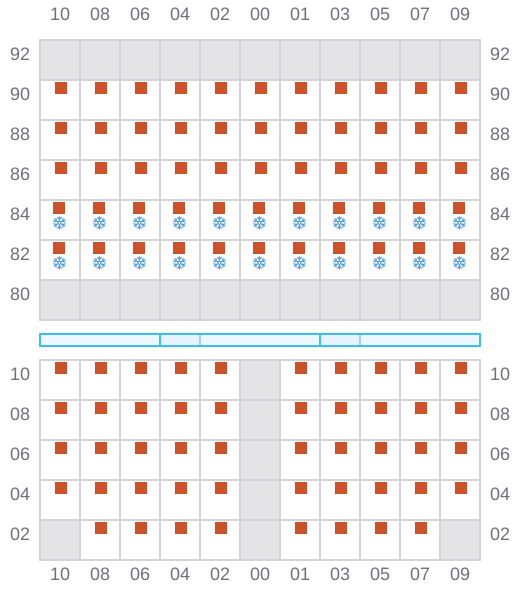

015

  • ←
  • →
Bay 015 view and slots of VENTO DI MAESTRALE

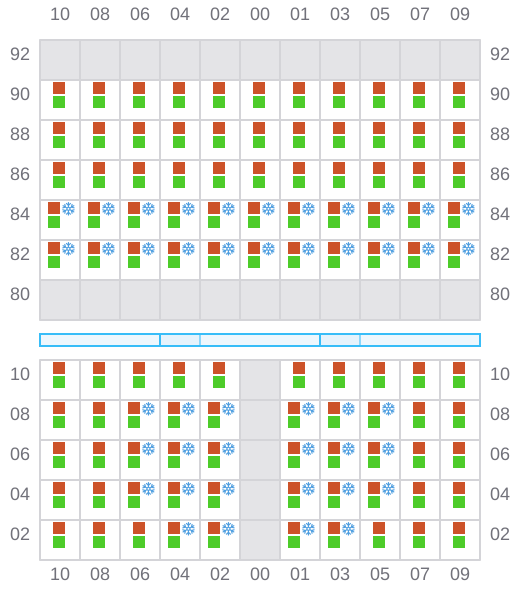

017 (018)

  • →
  • →
Bay 017 view and slots of VENTO DI MAESTRALE

019

  • ←
  • →

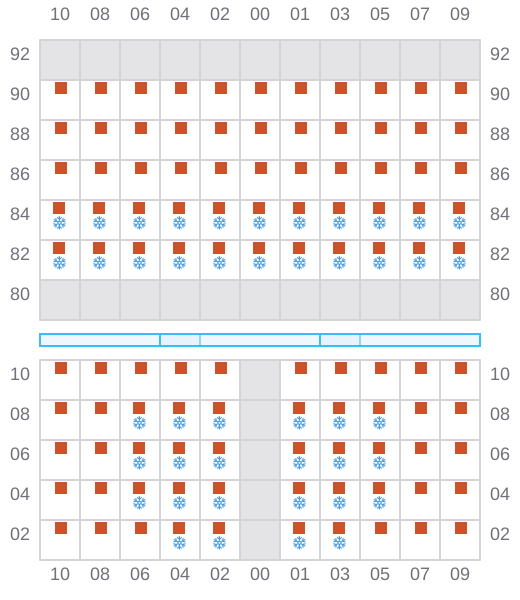

Bay 019 view and slots of VENTO DI MAESTRALE

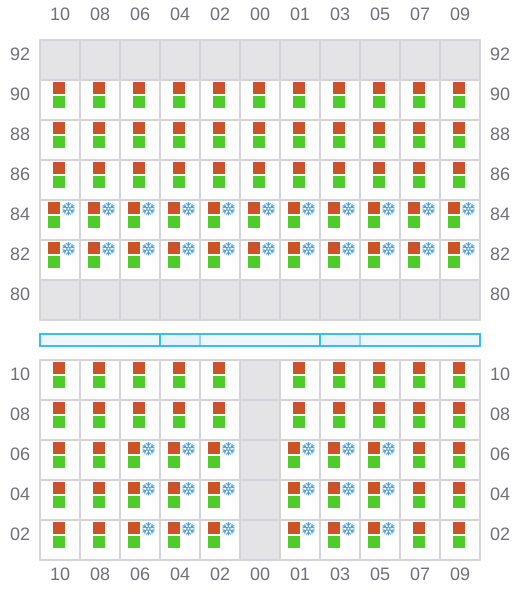

021 (022)

  • →
  • →
Bay 021 view and slots of VENTO DI MAESTRALE

023

  • ←
  • →

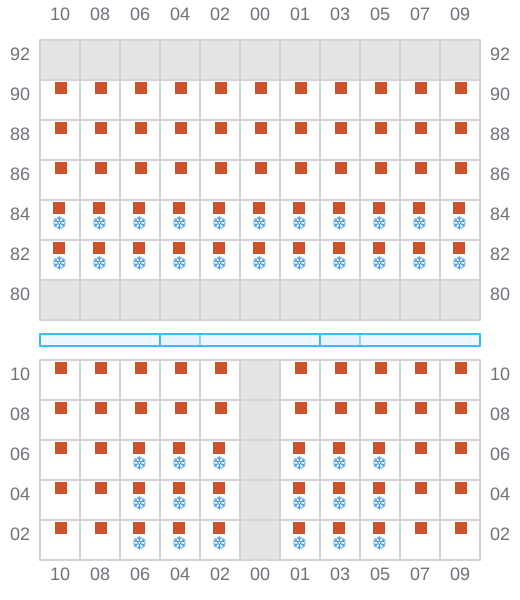

Bay 023 view and slots of VENTO DI MAESTRALE

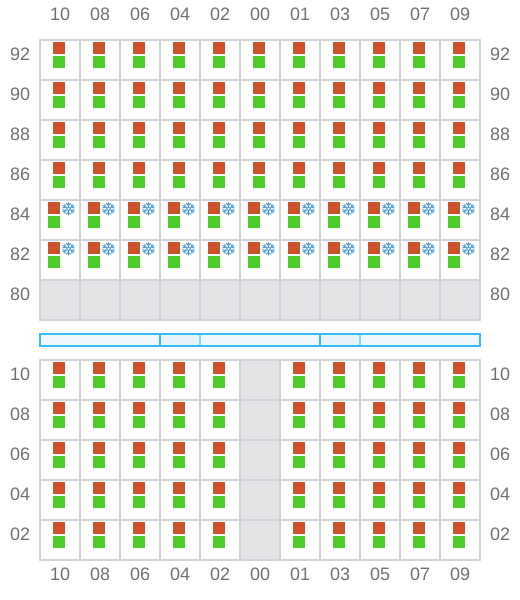

025 (026)

  • →
  • →
Bay 025 view and slots of VENTO DI MAESTRALE

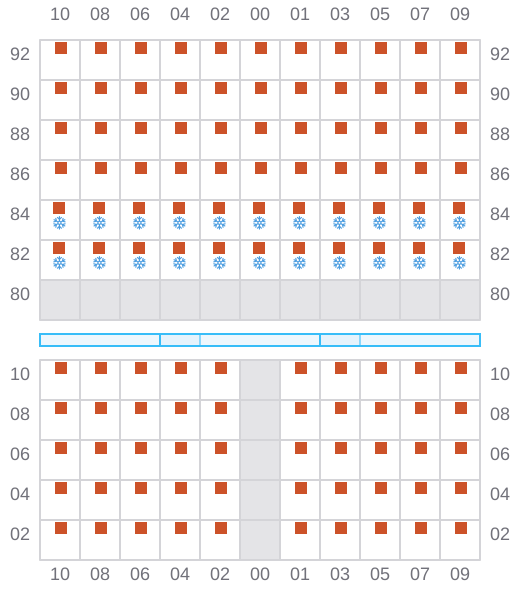

027

  • ←
  • →
Bay 027 view and slots of VENTO DI MAESTRALE

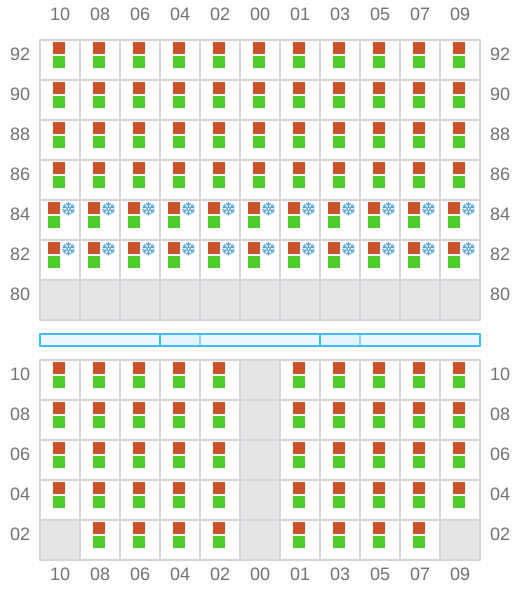

029 (030)

  • →
  • →
Bay 029 view and slots of VENTO DI MAESTRALE

031

  • ←
  • →

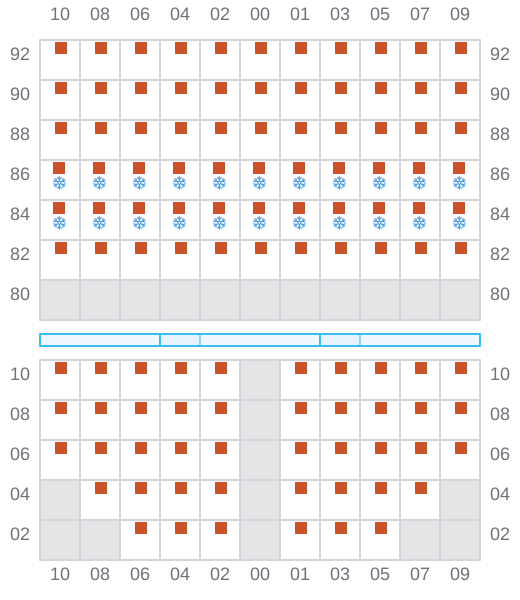

Bay 031 view and slots of VENTO DI MAESTRALE

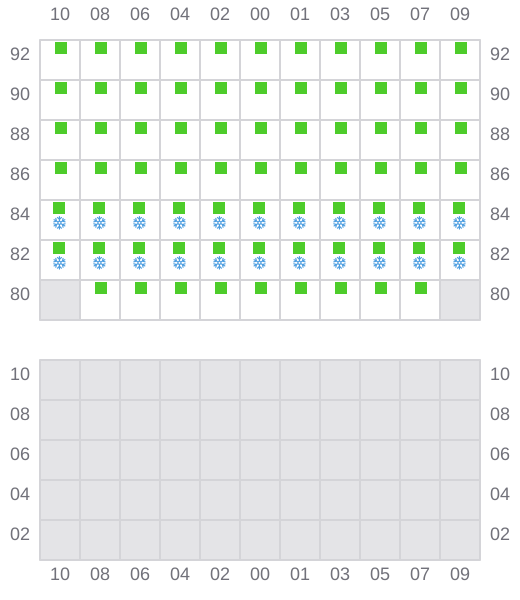

033 (034)

  • → / ?
  • → / ?
Bay 033 view and slots of VENTO DI MAESTRALE

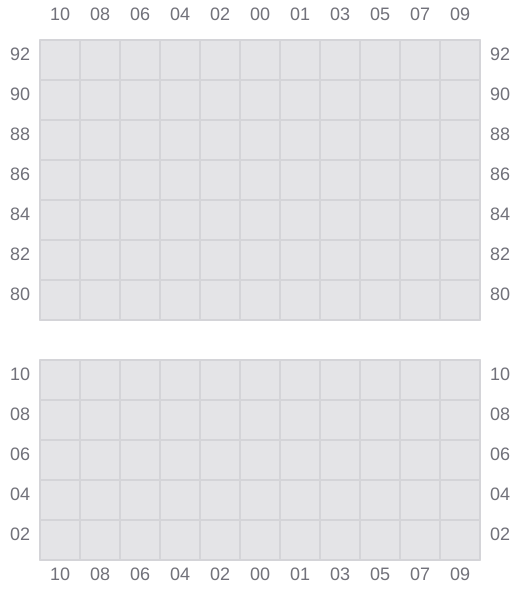

035

Bay 035 view and slots of VENTO DI MAESTRALE

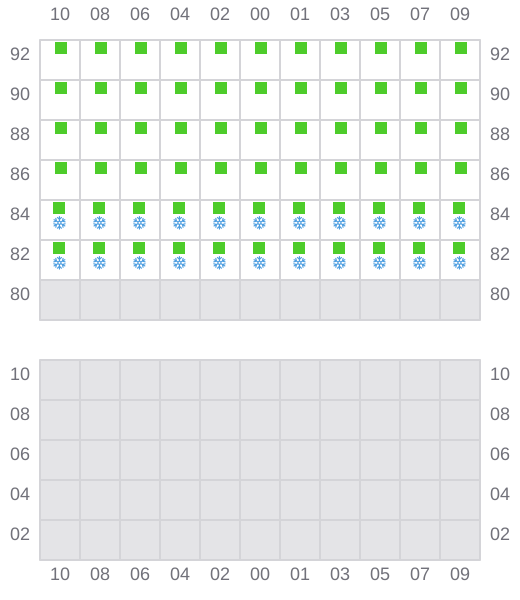

037 (038)

  • → / ?
  • → / ?
Bay 037 view and slots of VENTO DI MAESTRALE
