VIOLETTA
9344710 | CQAR8 | CMA by *********************** Last update: Mon Jan 27 2025
General Info
Ship Name:VIOLETTA
IMO Code:9344710
Call Sign:CQAR8
Line Operator:CMA
Class Name for Sister Ships:CVIO
Year Built:2007
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:037
Max ISO Row:10
Center Line Row:Yes
Max Above ISO Tier:96
Min Above ISO Tier:82
Max Below ISO Tier:12
Min Below ISO Tier:02
Total TEU:1,849
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%
Side View
Hatch-Covers View

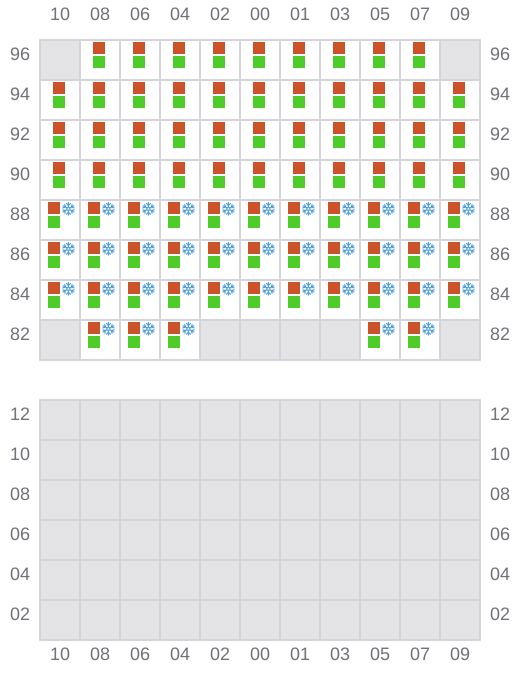

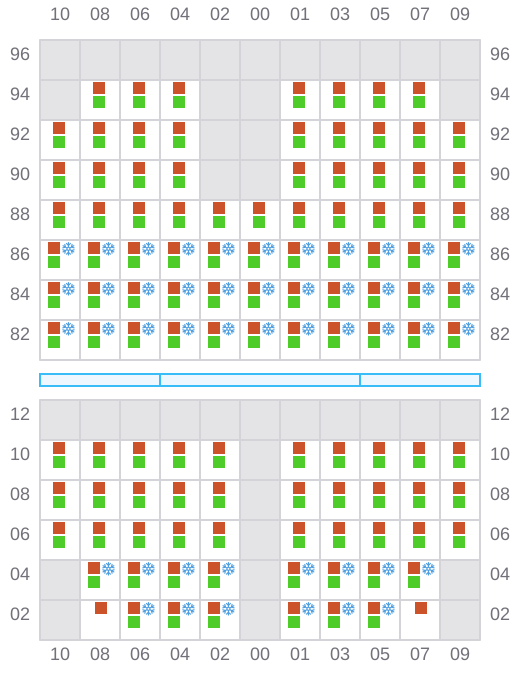

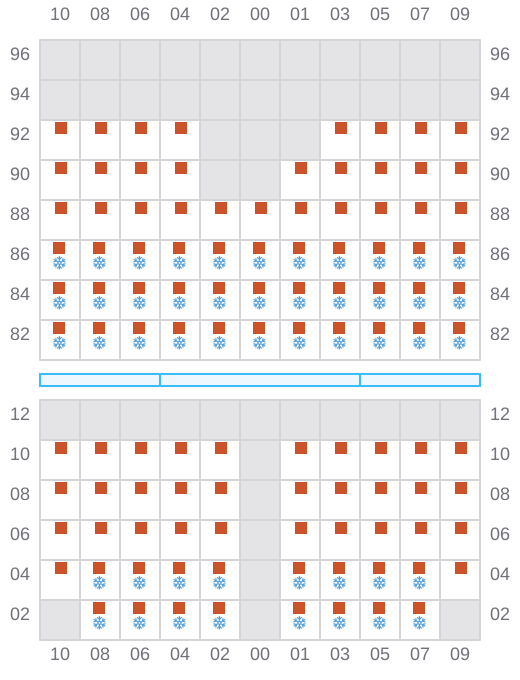

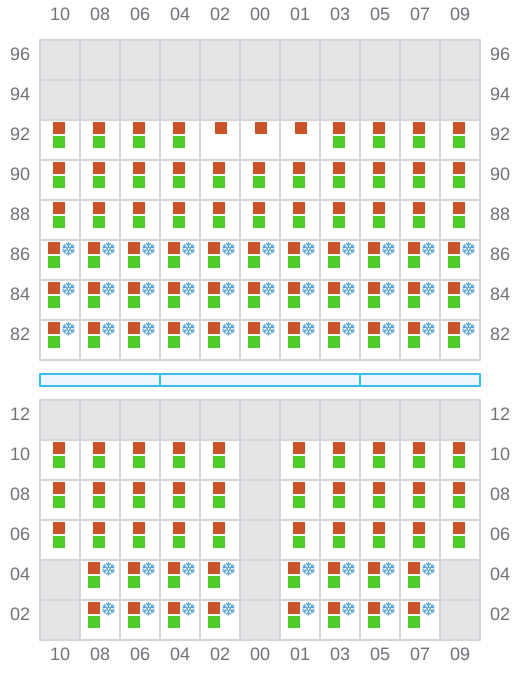

ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot ×

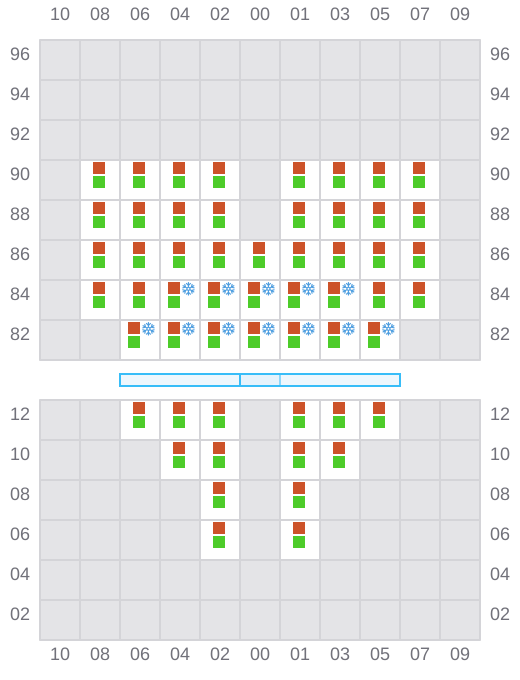

001 (002)
- →
- → / ?
- →
003
- ←
- → / ?
- →
005 (006)
- →
- → / ?
- →

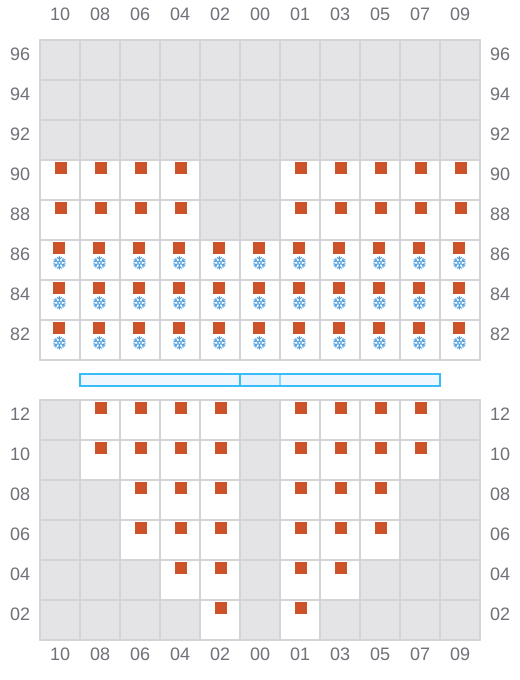

007
- ←
- → / ?
- →

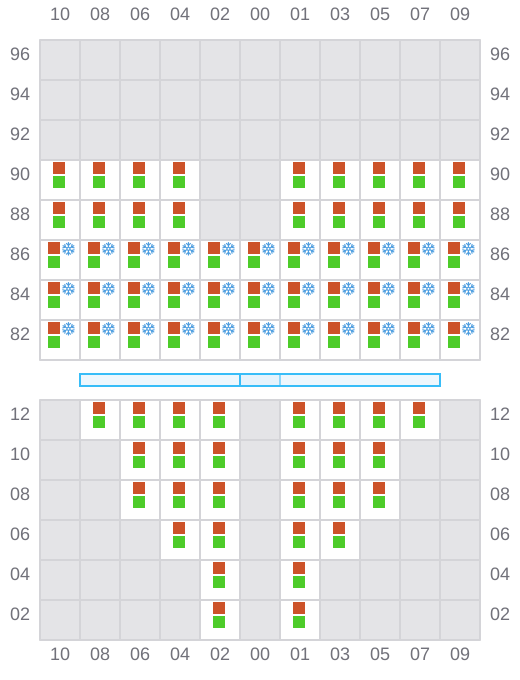

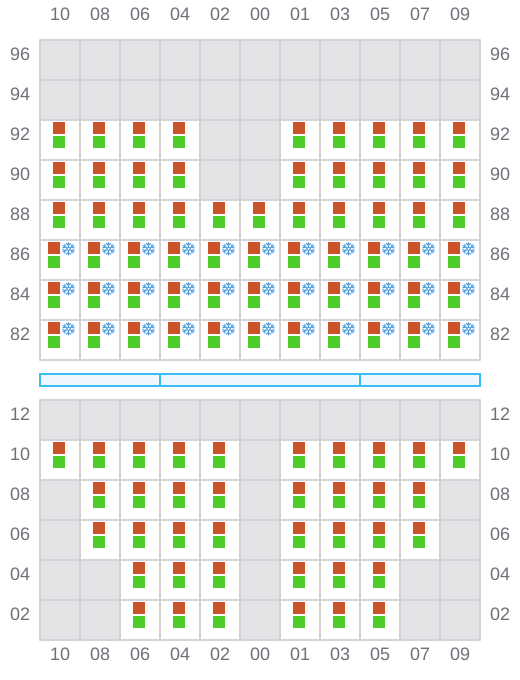

009 (010)
- →
- → / ?
- →
011
- ←
- → / ?
- →
013 (014)
- →
- →
015
- ←
- →
- →
017 (018)
- →
- → / ?
- →

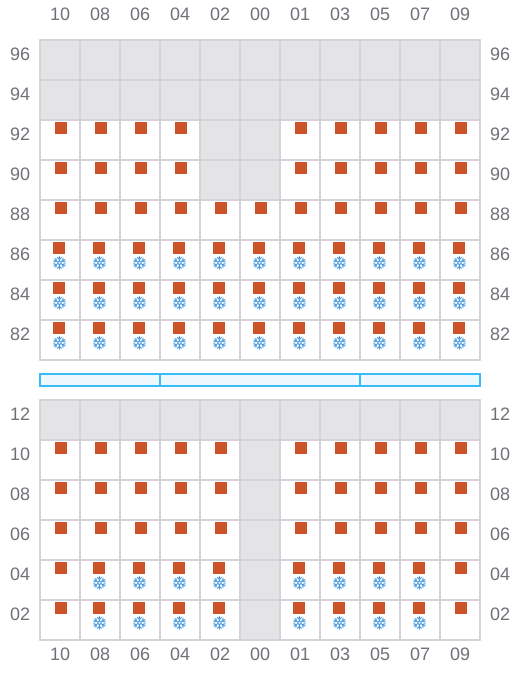

019
- ←
- →
- →

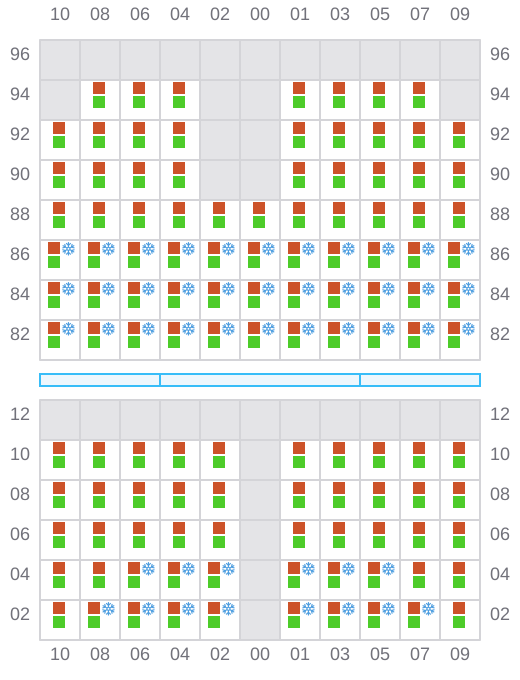

021 (022)
- →
- →
- →
023
- ←
- → / ?
- →
025 (026)
- →
- →
- →
027
- ←
- ? / →
- →
029 (030)
- →
- →
- →

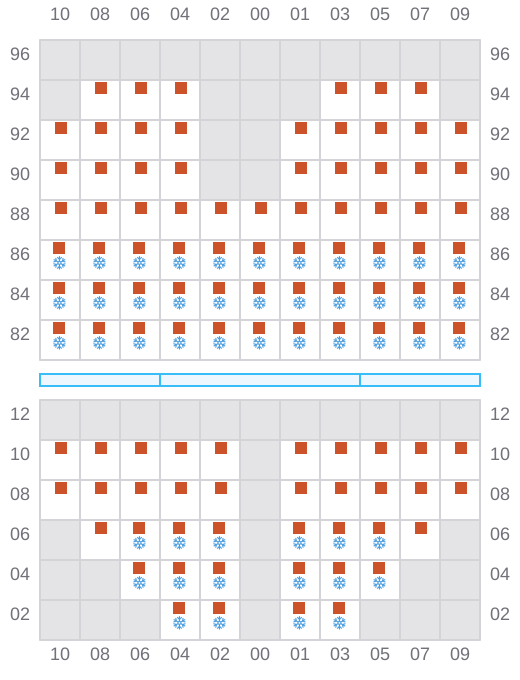

031
- ←
- →
- →
033
- → / ?
035 (036)
- → / ?
- → / ?
- → / ?
037
- ← / ?
- → / ?
- → / ?
