VLADIVOSTOK
9130145 | 9LU2672 | 9130145 by ********* Last update: Thu Aug 01 2024
General Info
Ship Name:VLADIVOSTOK
IMO Code:9130145
Call Sign:9LU2672
Line Operator:9130145
Class Name for Sister Ships:MCC
Year Built:1998
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):171.94
LOA (Length Overall):184.10
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:041
Max ISO Row:10
Center Line Row:Yes
Max Above ISO Tier:92
Min Above ISO Tier:80
Max Below ISO Tier:12
Min Below ISO Tier:02
Total TEU:1,726
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

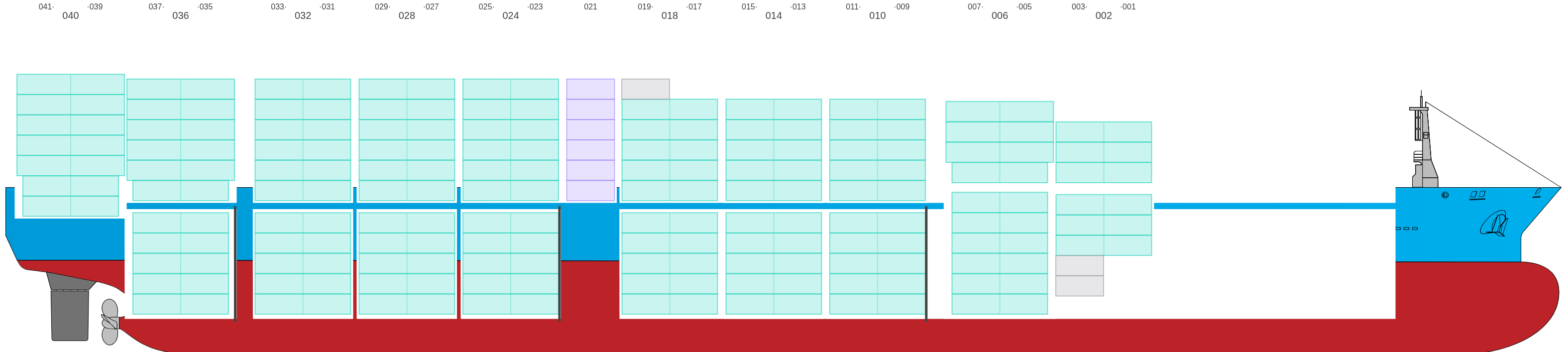

Side View

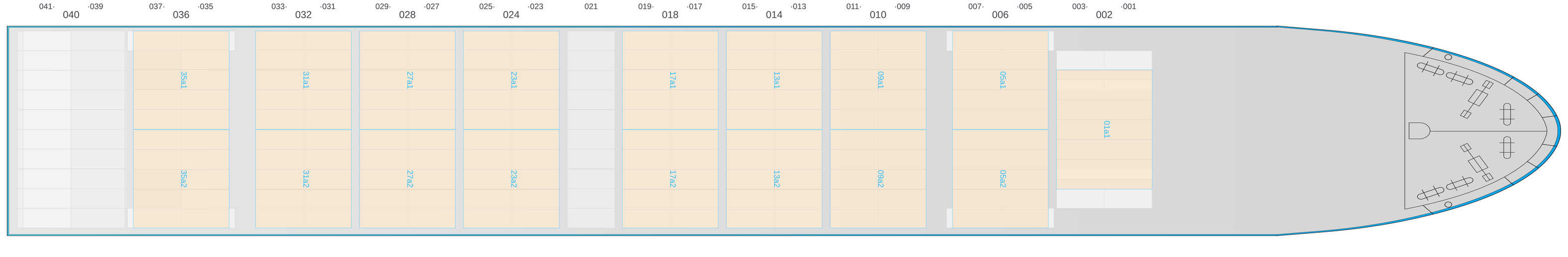

Hatch-Covers View
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot
001 (002)
- →

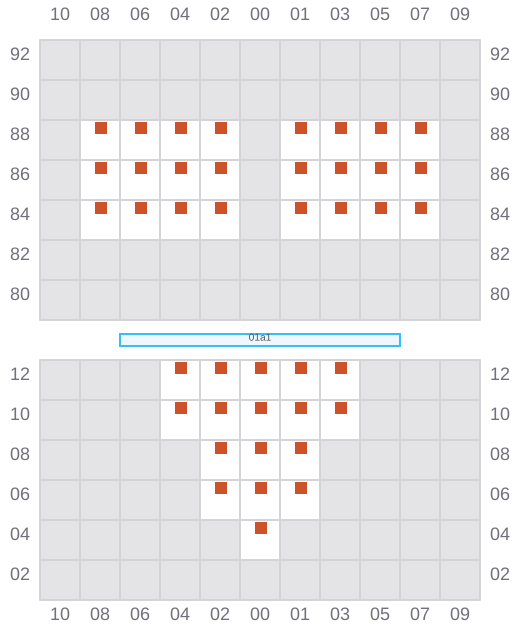

003
- ←
005 (006)
- →

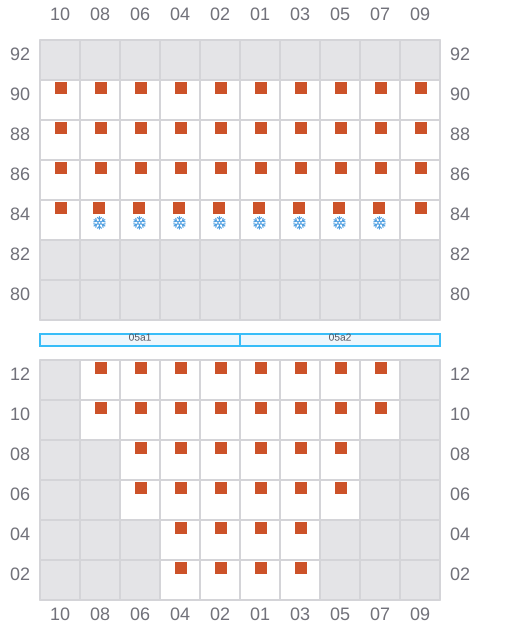

007
- ←
- → / ?

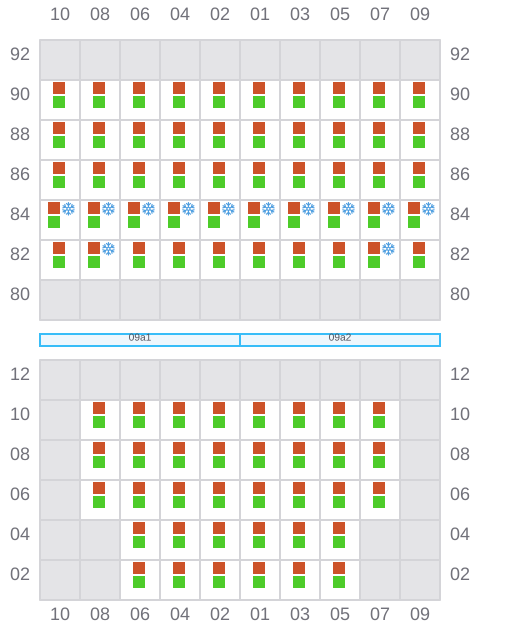

009 (010)
- →

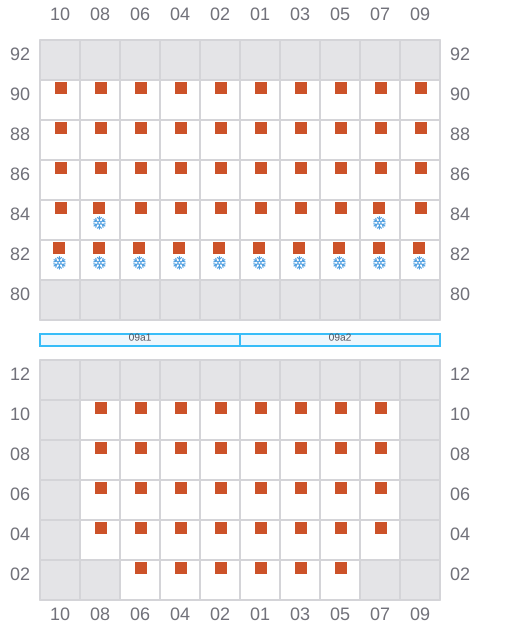

011
- ←
- → / ?
013 (014)
- →
- ← / ?

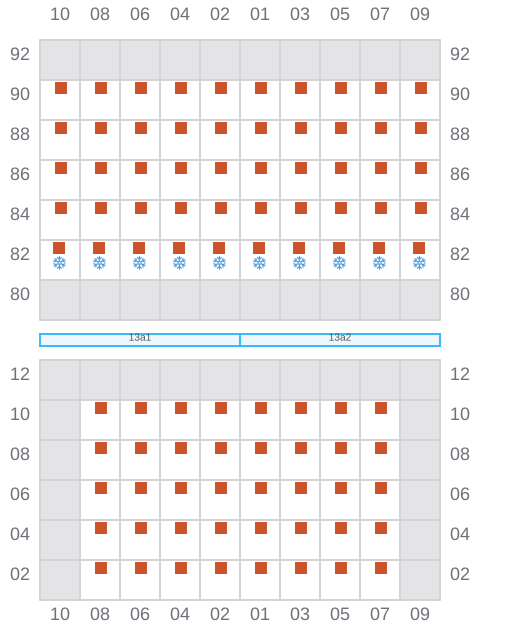

015
- ←
- → / ?
017 (018)
- →
- ← / ?
019
- ←
- → / ?

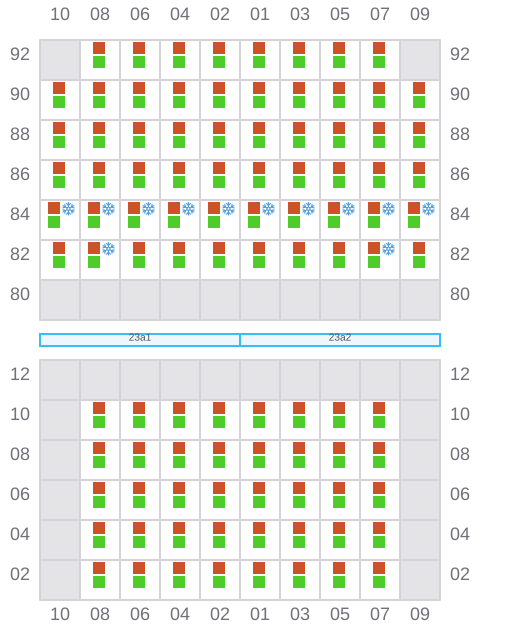

021
- → / ?
023 (024)
- →
- ← / ?
025
- ←
- → / ?
027 (028)
- →
- ← / ?

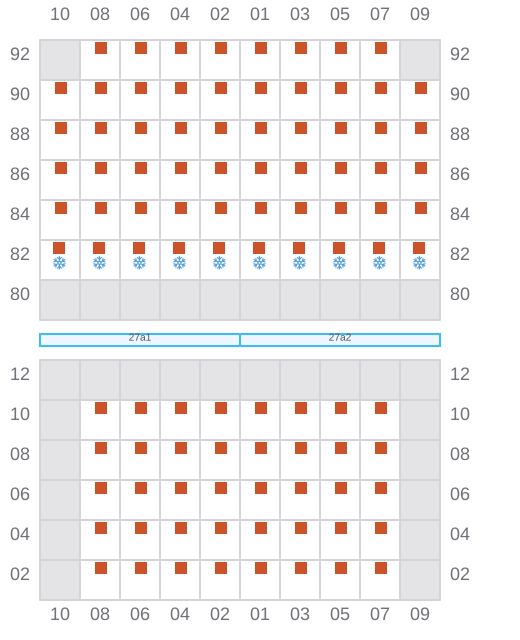

029
- ←
- → / ?
031 (032)
- →
- ← / ?
033
- ←
- → / ?

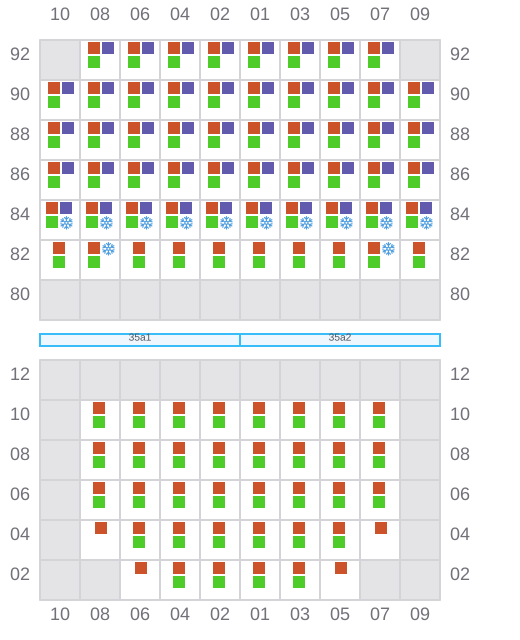

035 (036)
- →
- ← / ?

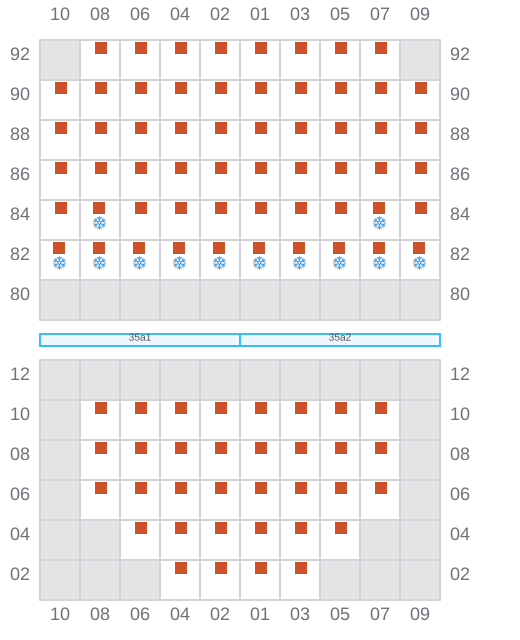

037
- ←
- → / ?

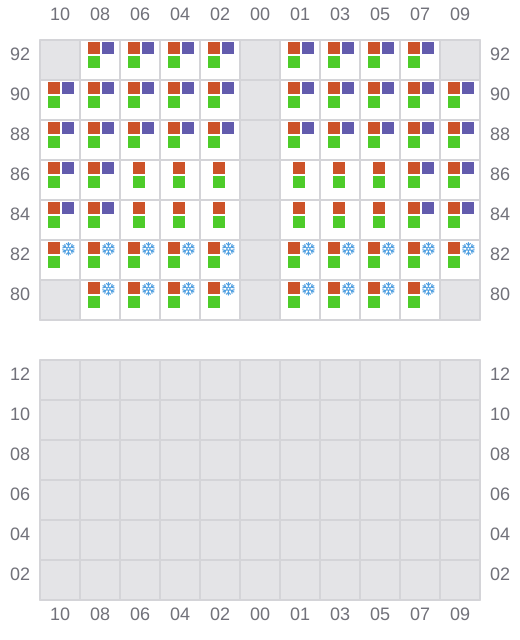

039 (040)
- → / ?
041
- ← / ?
- → / ?
