VULPECULA
9430789 | A8RW5 | CGM by *********************** Last update: Wed Jan 29 2025
General Info
Ship Name:VULPECULA
IMO Code:9430789
Call Sign:A8RW5
Line Operator:CGM
Class Name for Sister Ships:JVUL
Year Built:2010
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
40' Bays Location:-
Size Summary
ISO Bays:061
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:80
Max Below ISO Tier:16
Min Below ISO Tier:02
Total TEU:4,242
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

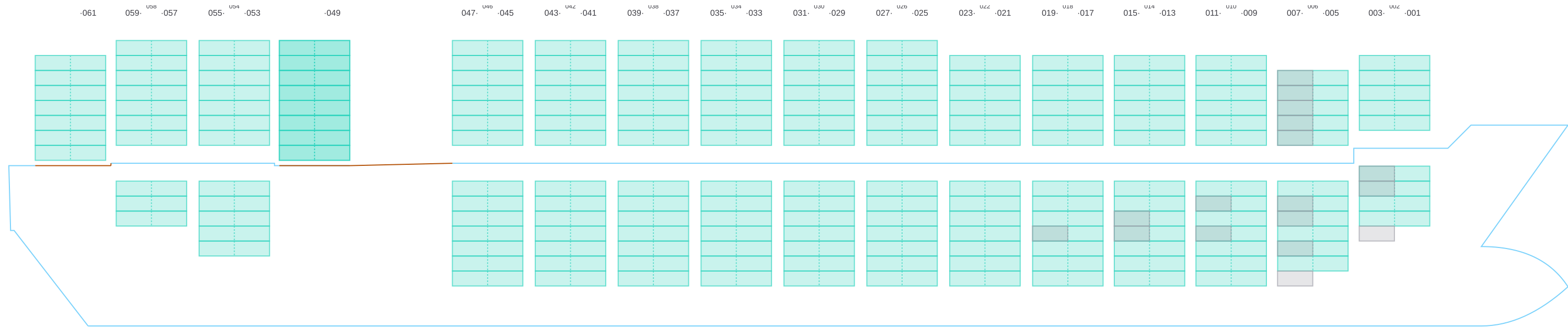

Side View
Hatch-Covers View

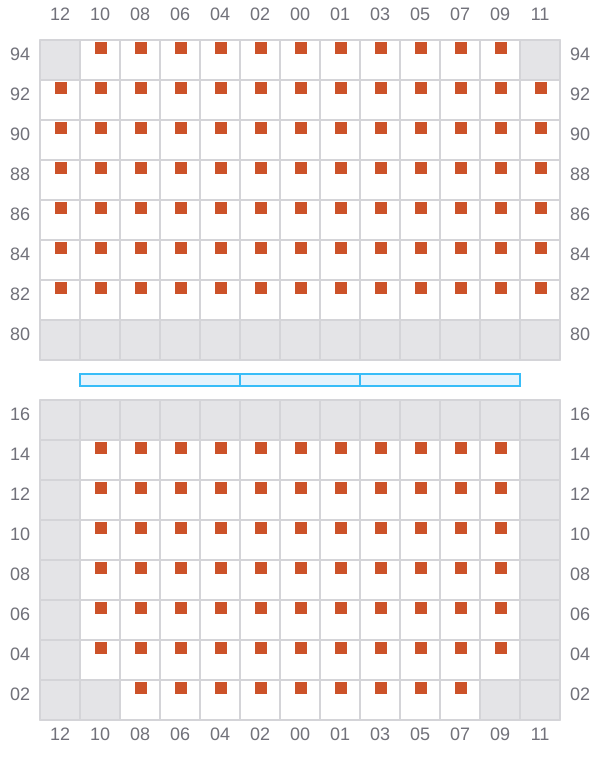

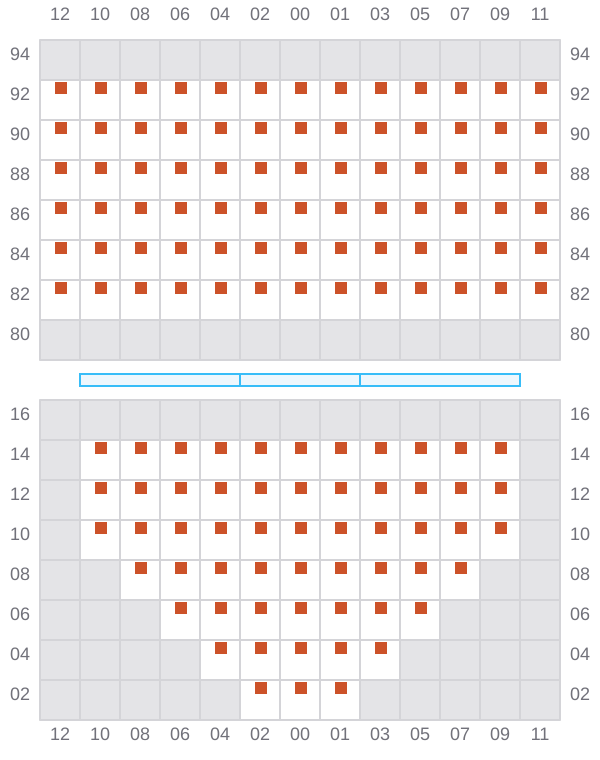

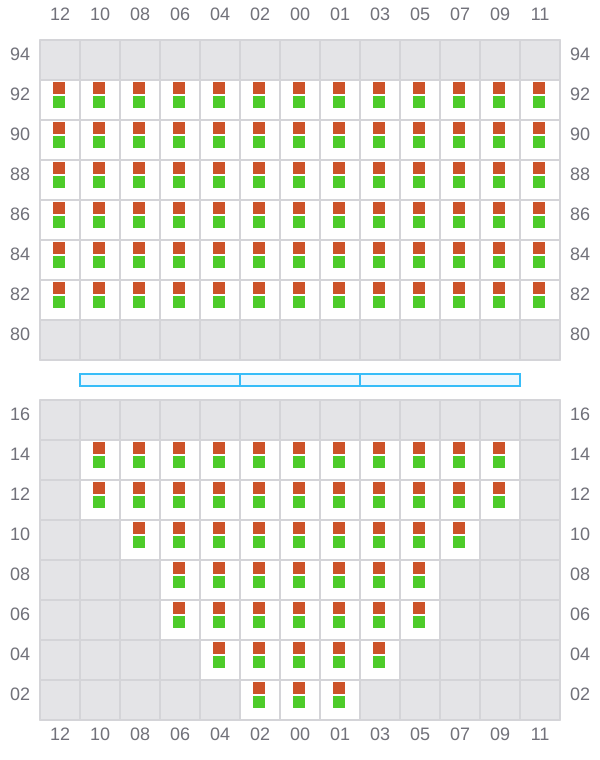

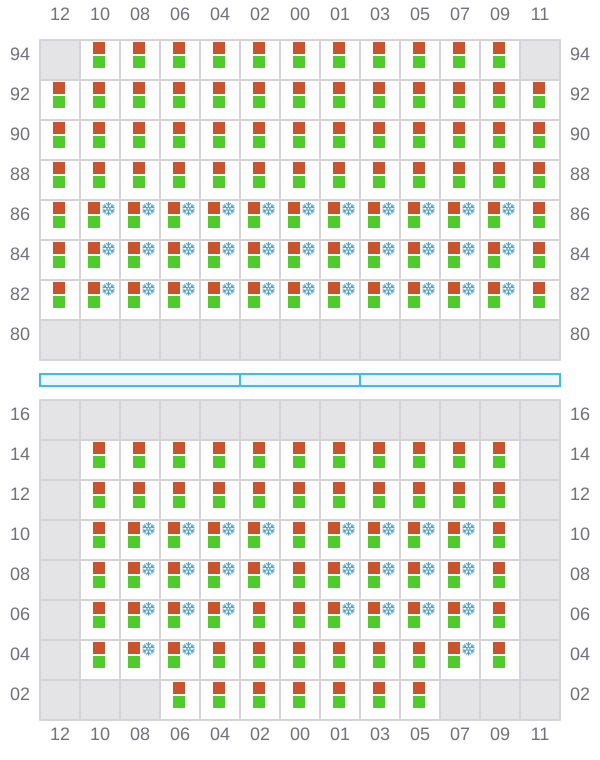

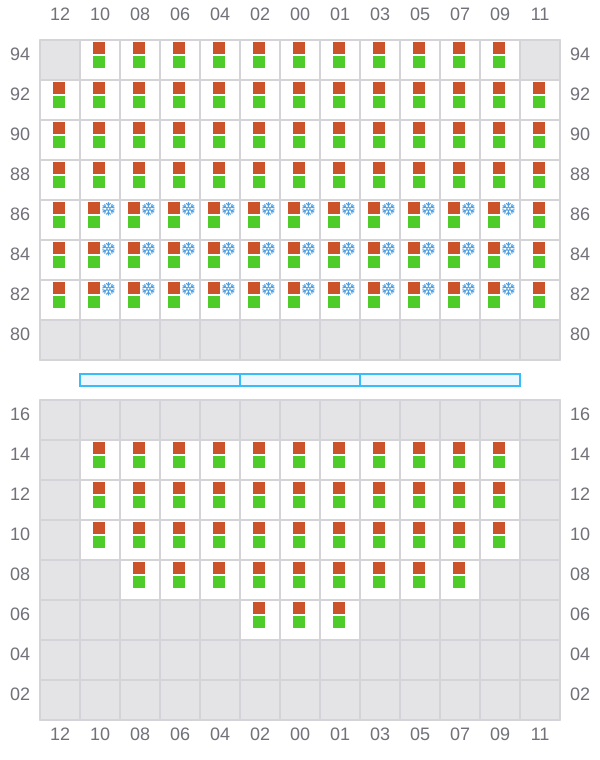

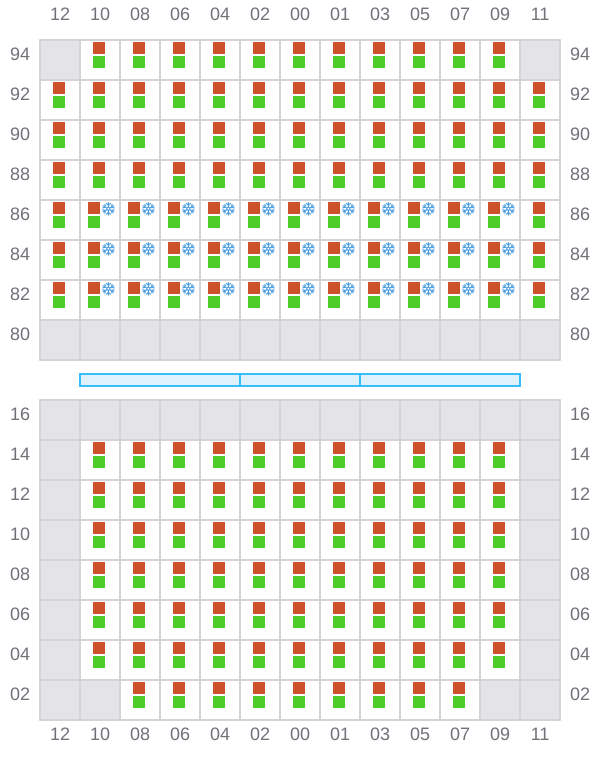

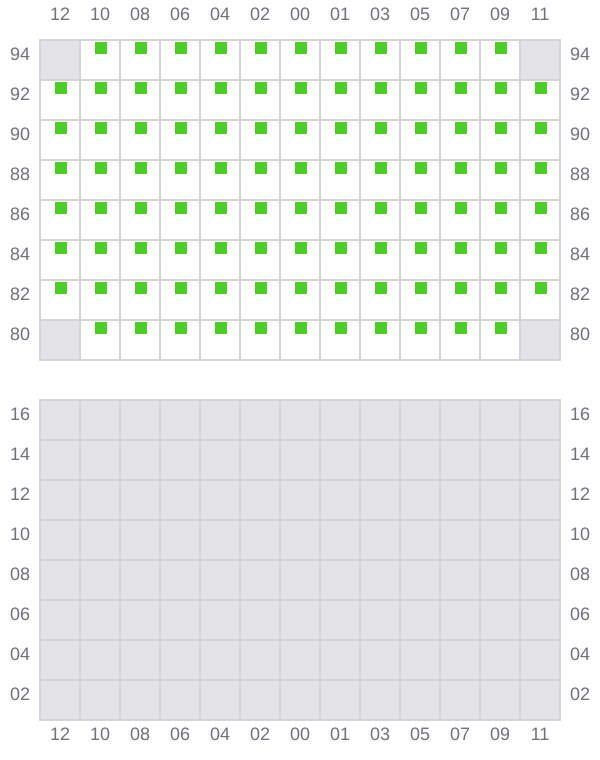

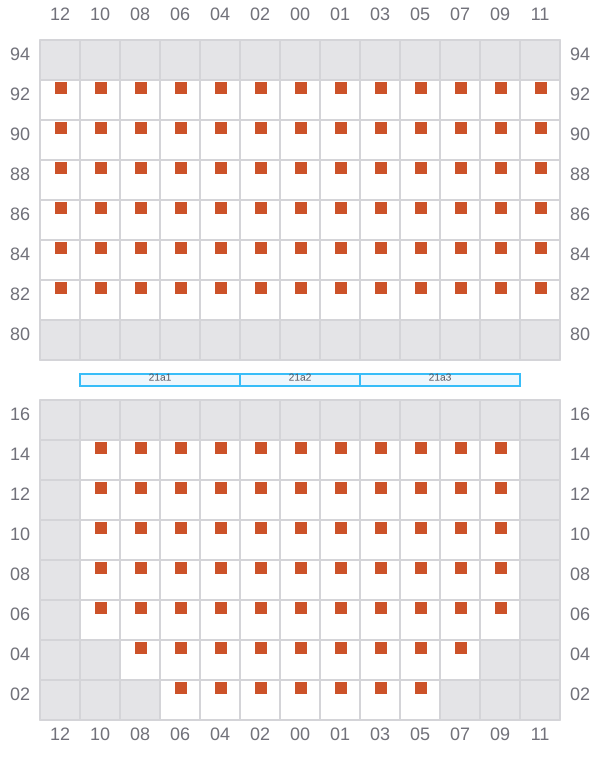

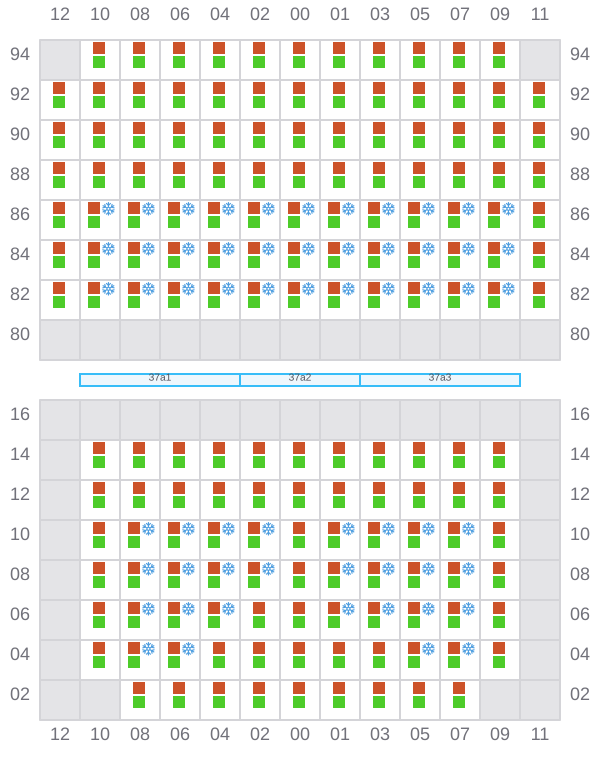

ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot ×

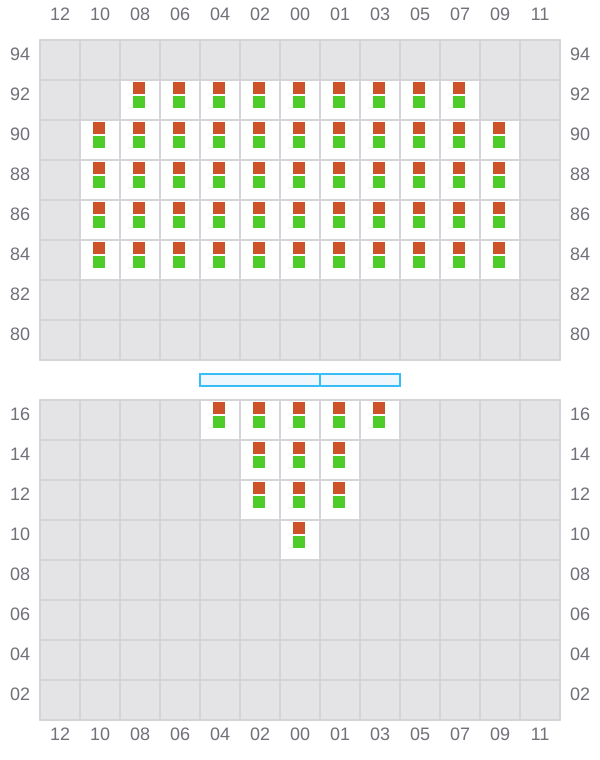

001 (002)
- →
- →

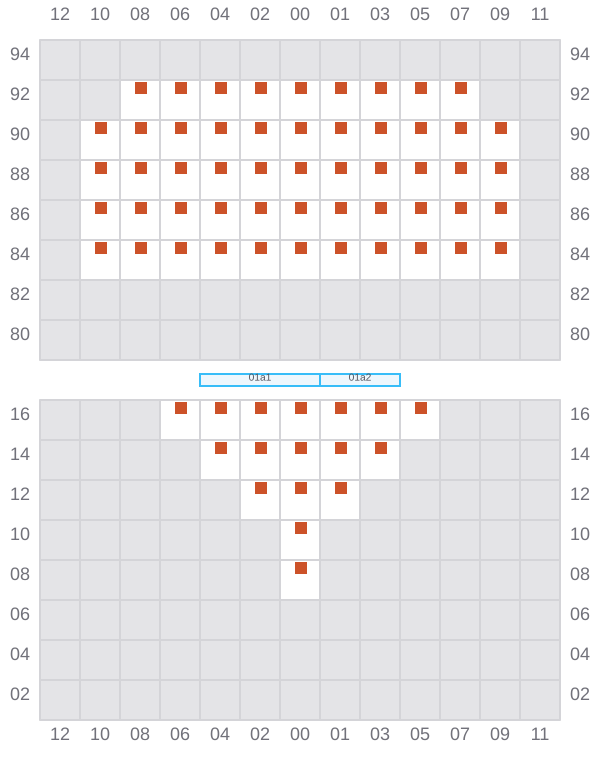

003
- ←
- →
005 (006)
- →
- →
007
- ←
- →

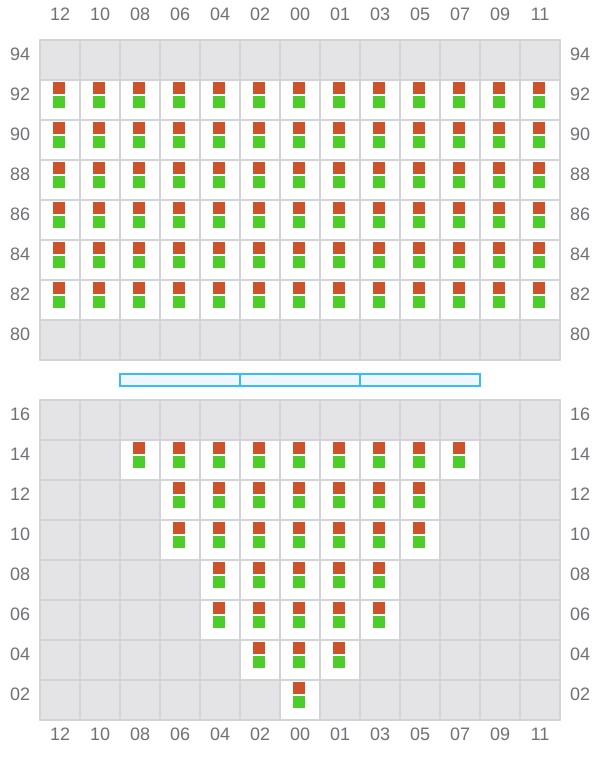

009 (010)
- →
- →

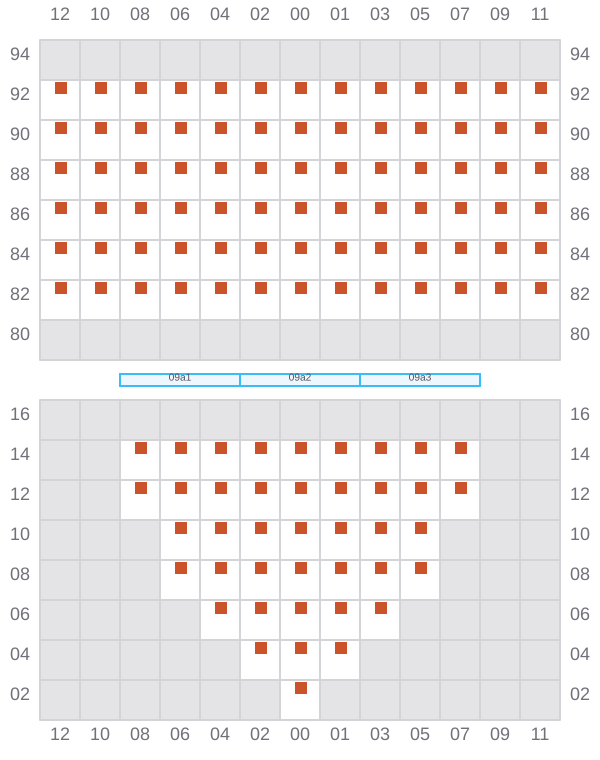

011
- ←
- →
013 (014)
- →
- →
015
- ←
- →

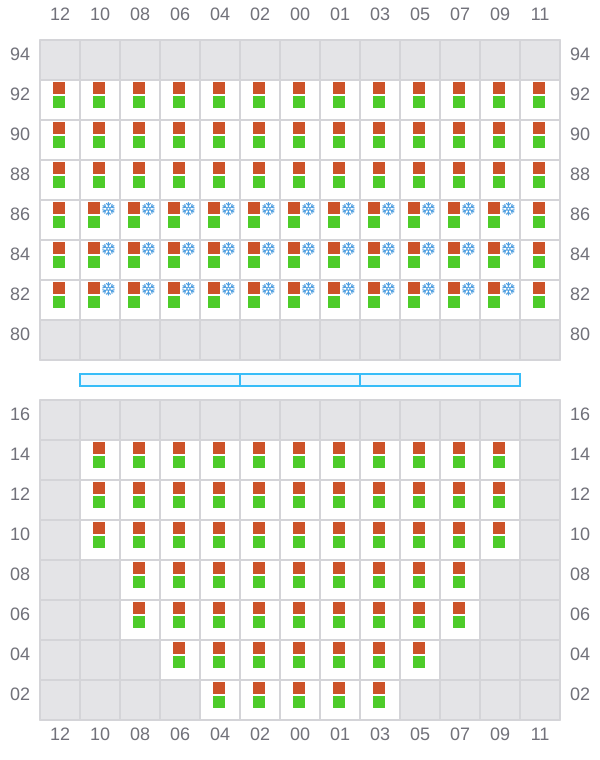

017 (018)
- →
- → / ?
- →
019
- ←
- →
021 (022)
- →
- → / ?
- →
023
- ←
- →
025 (026)
- →
- → / ?
- →
027
- ←
- →
029 (030)
- →
- → / ←
- →
031
- ←
- →
033 (034)
- →
- →
- →
035
- ←
- →
037 (038)
- →
- → / ←
- →
039
- ←
- →
041 (042)
- →
- →
- →
043
- ←
- →
045 (046)
- →
- → / ←
- →
047
- ←
- →
049 (050)
- → / ?
- → / ?
- → / ?
051
053 (054)
- →
- → / ?
- →

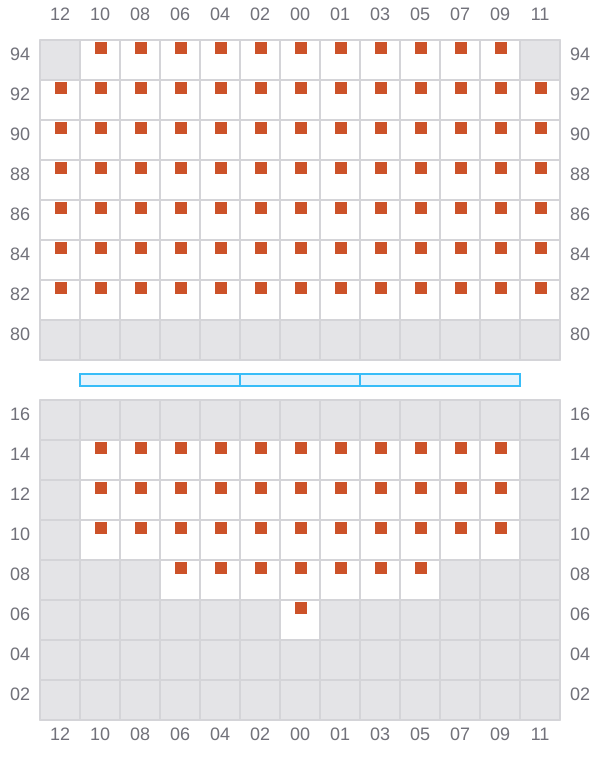

055
- ←
- →
057 (058)
- →
- → / ?
- →

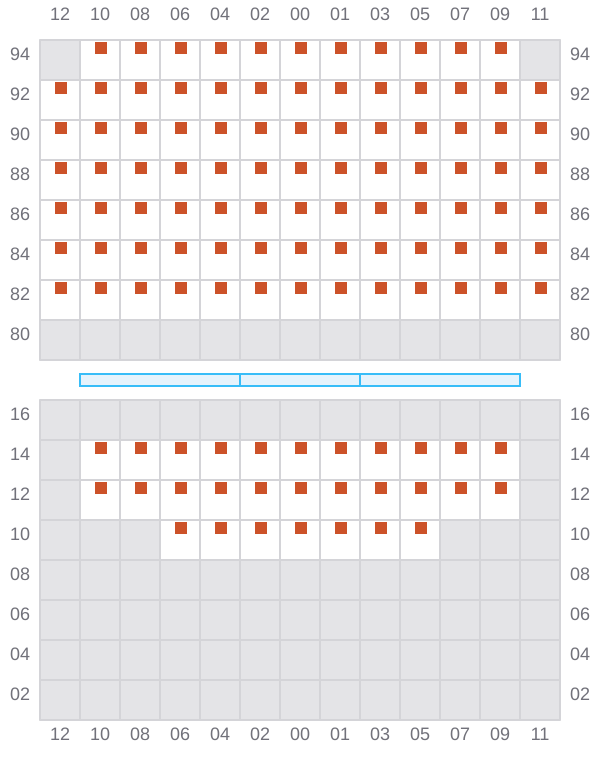

059
- ←
- →
061 (062)
- → / ?
- → / ?
- → / ?
