W KAMPALA
9215311 | V7A4350 | MSK by ************************** Last update: Thu Jun 29 2023
General Info
Ship Name:W KAMPALA
IMO Code:9215311
Call Sign:V7A4350
Line Operator:MSK
Class Name for Sister Ships:WKA
Year Built:2001
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):286.00
LOA (Length Overall):299.99
Stern to AFT PP:-
Features Informed:
Also Known As (old names):-
Size Summary
ISO Bays:069
Max ISO Row:16
Center Line Row:Yes
Max Above ISO Tier:96
Min Above ISO Tier:82
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:7,278
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

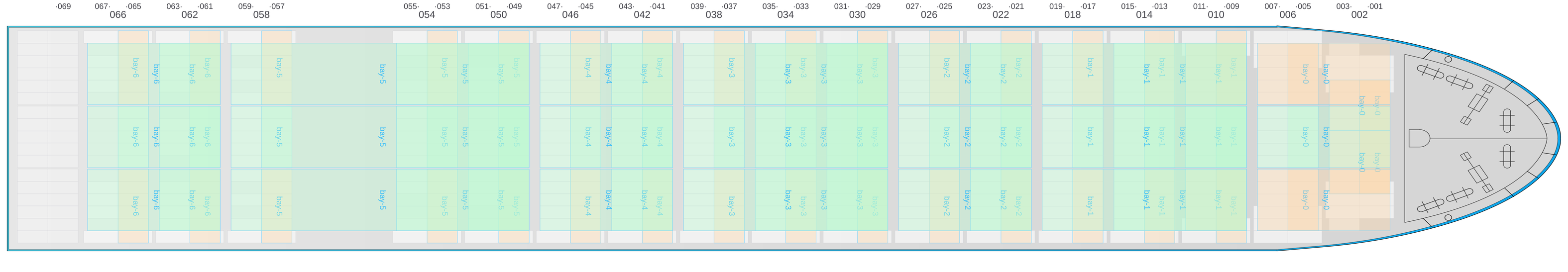

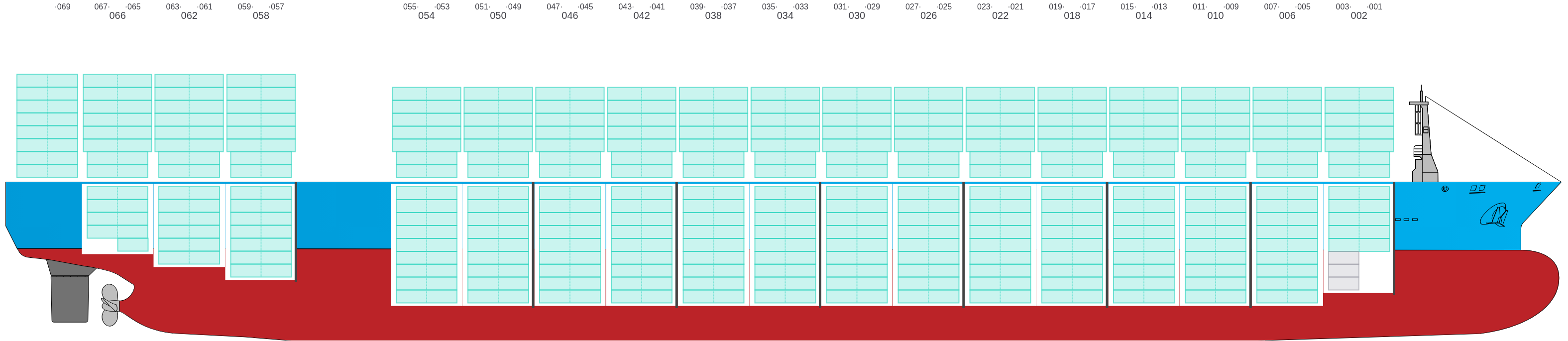

Side View
Hatch-Covers View

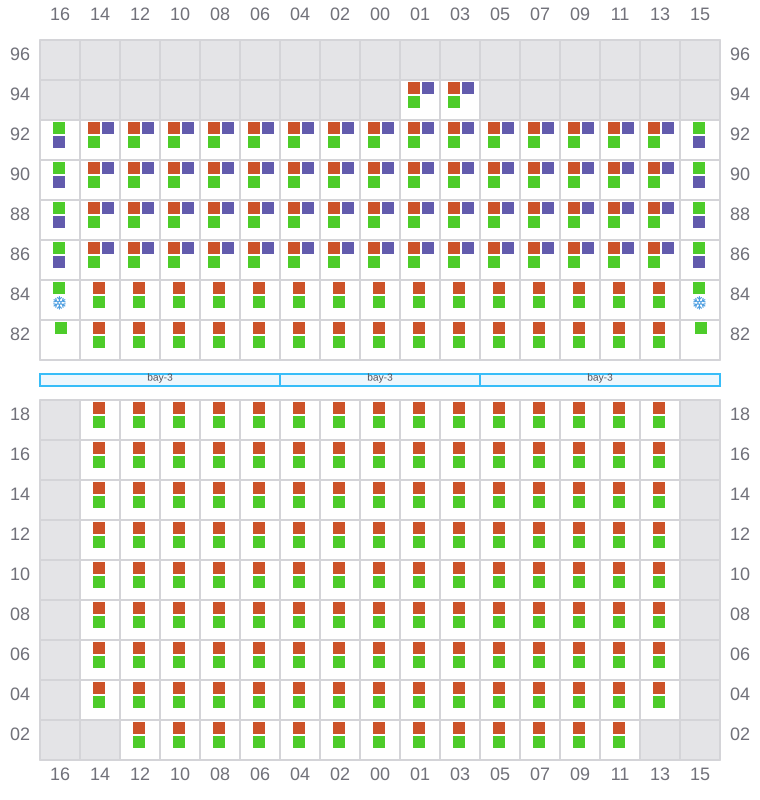

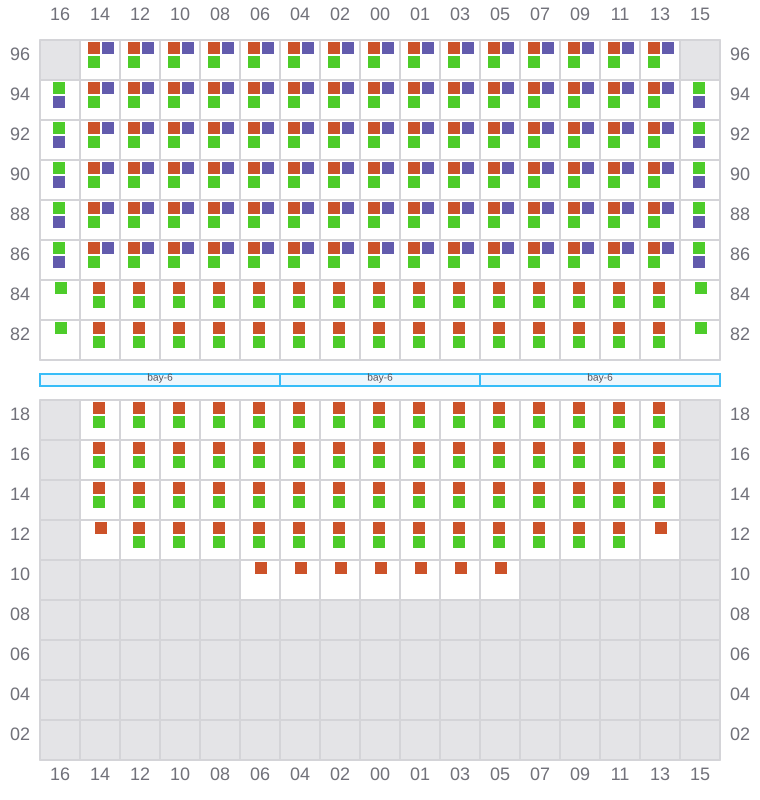

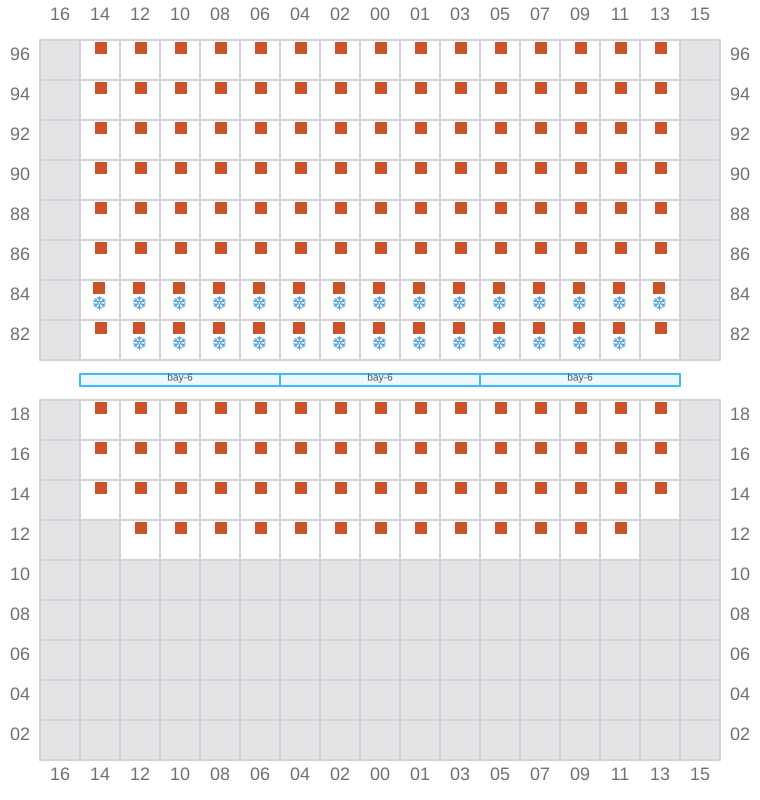

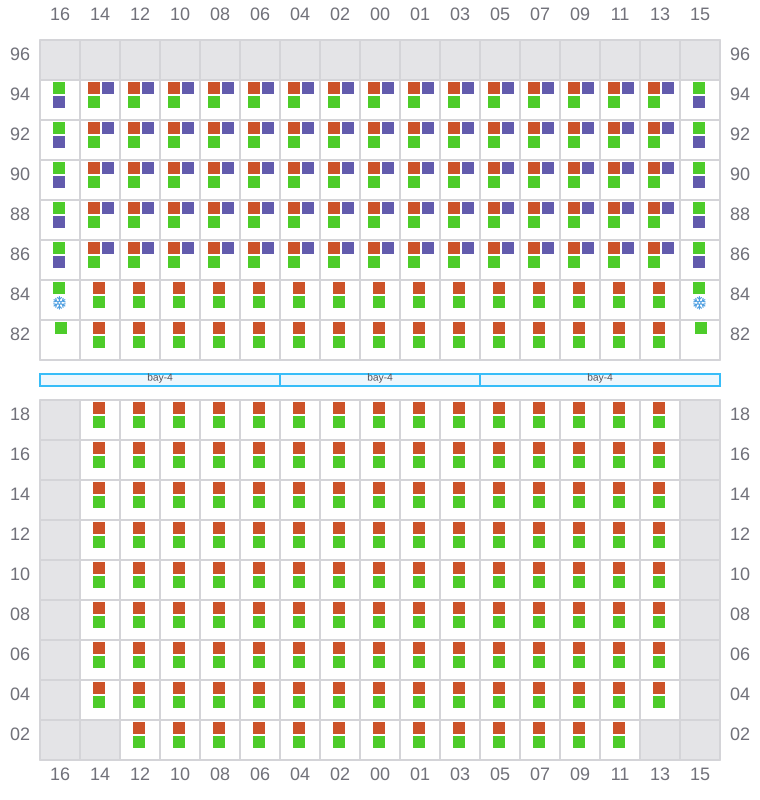

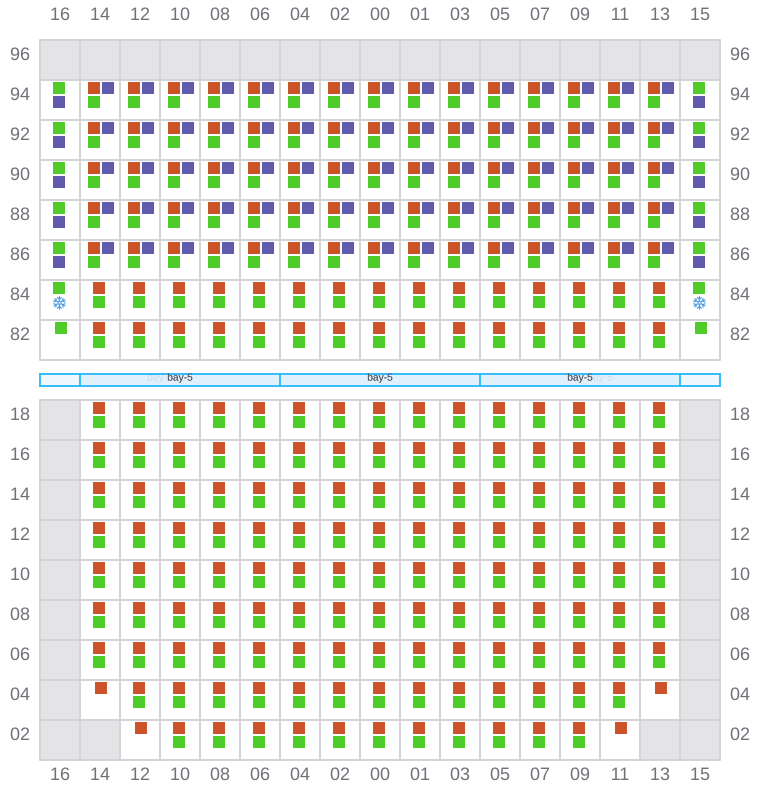

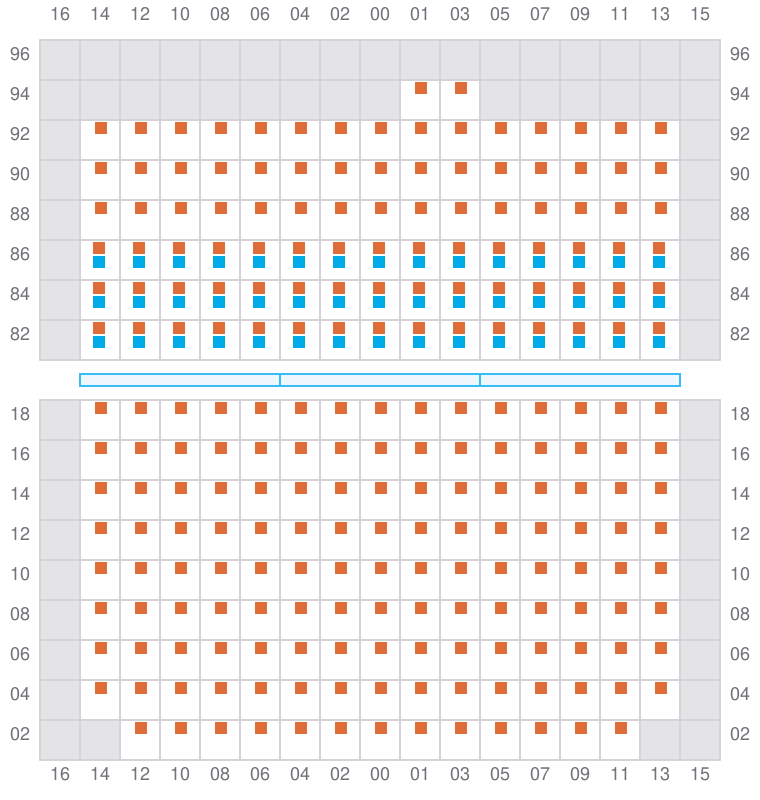

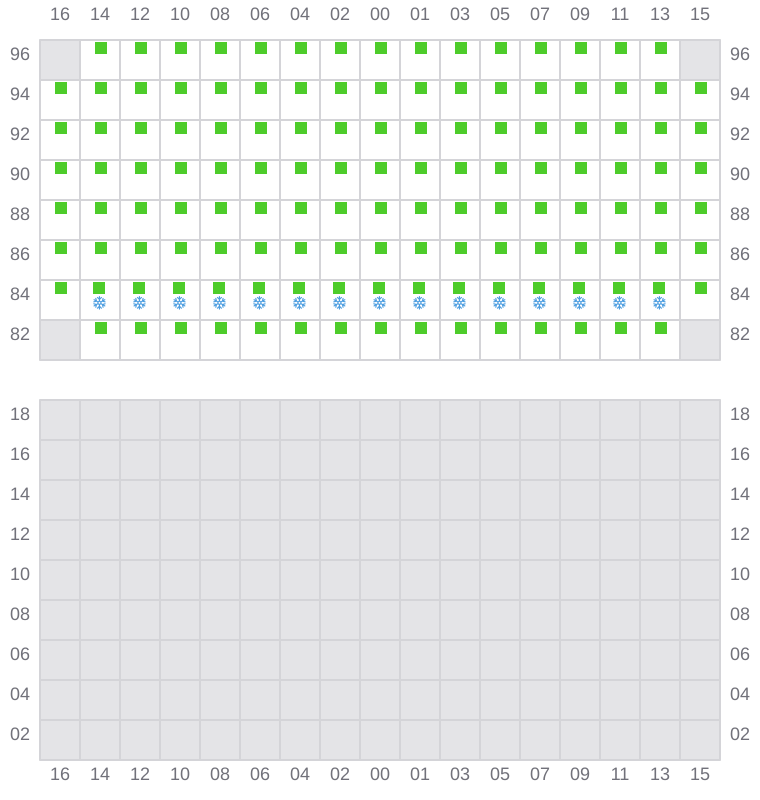

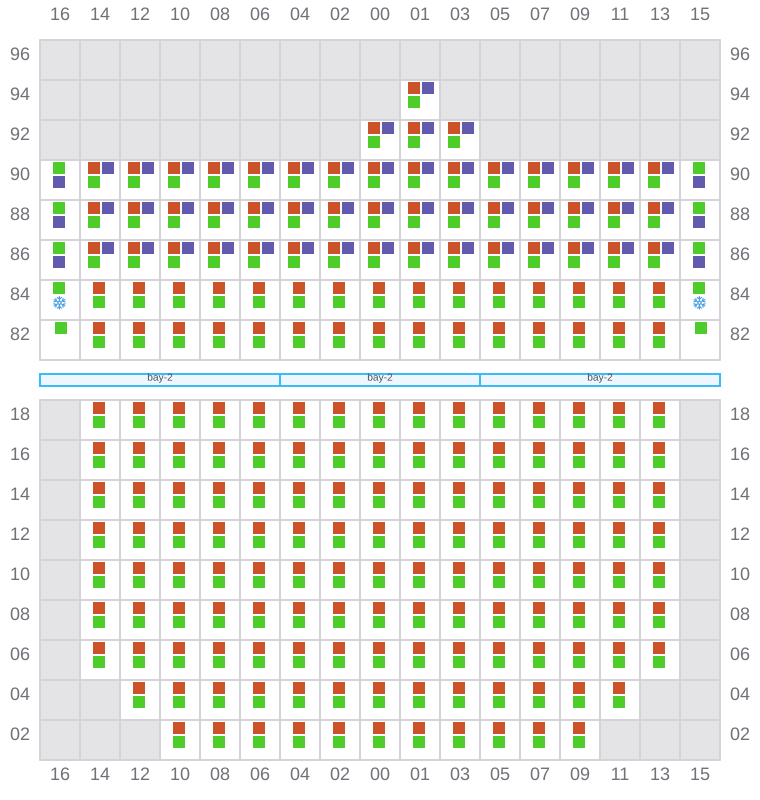

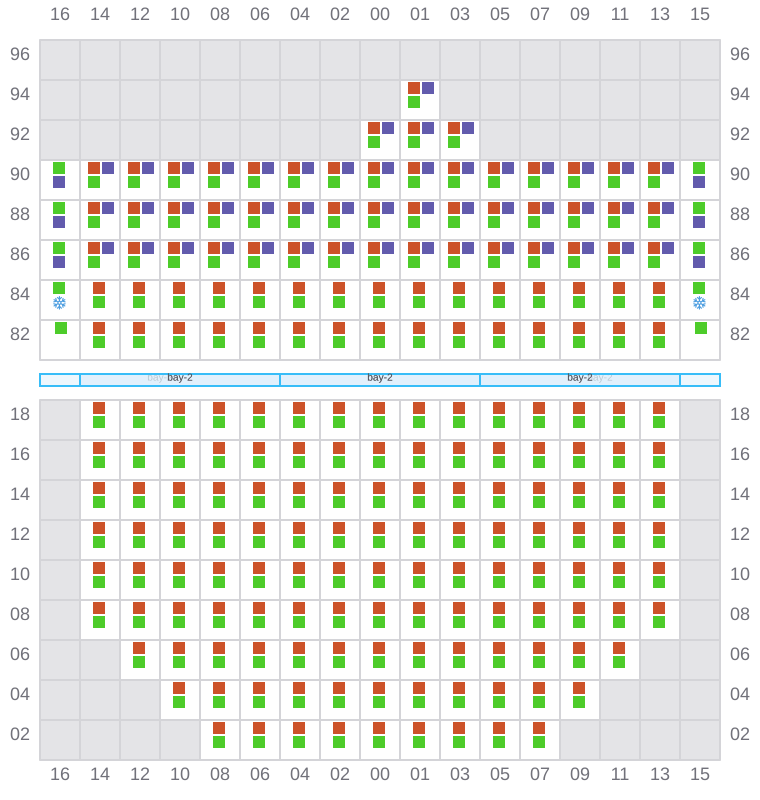

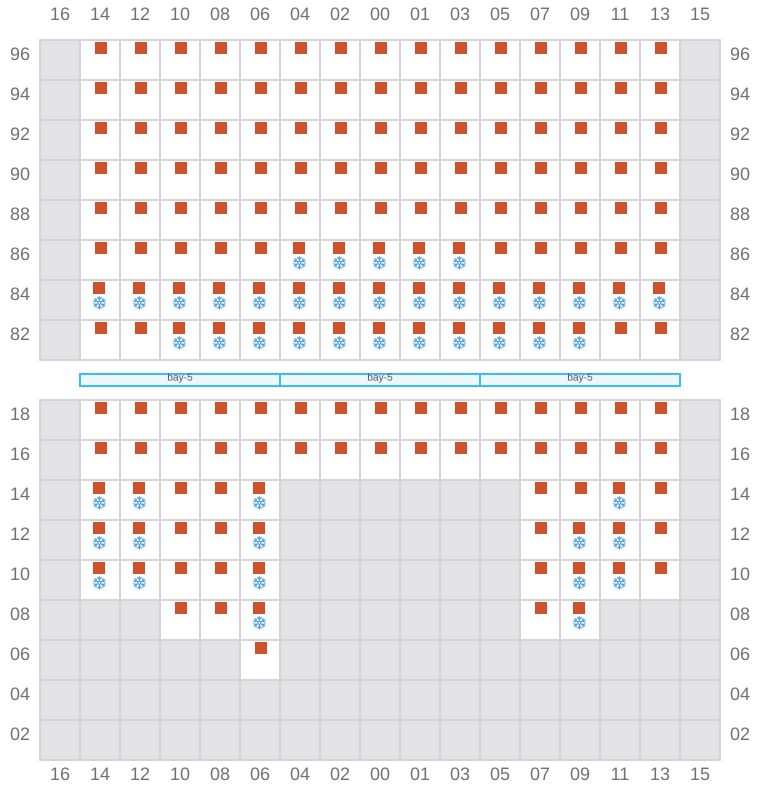

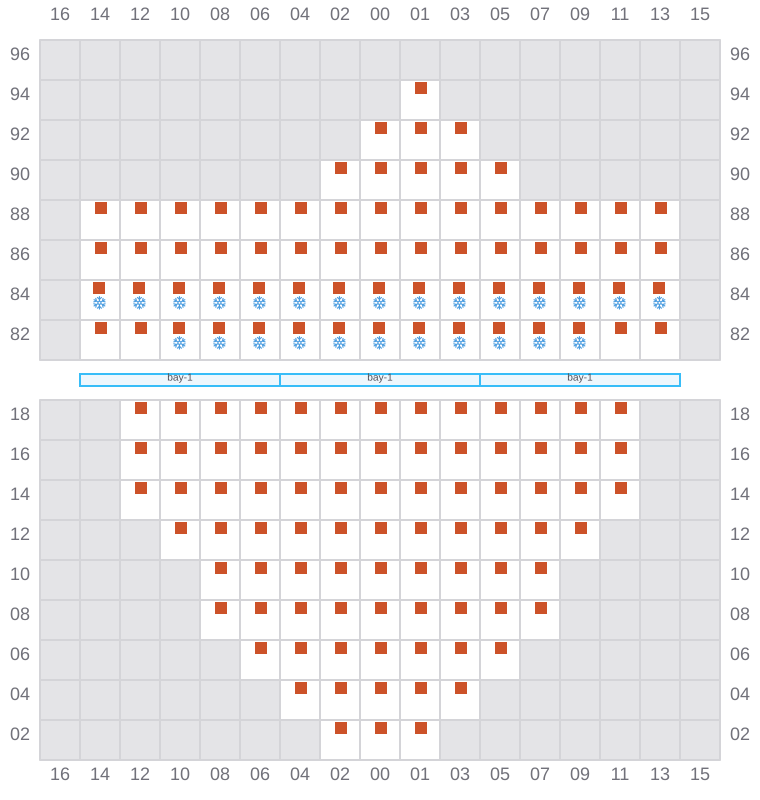

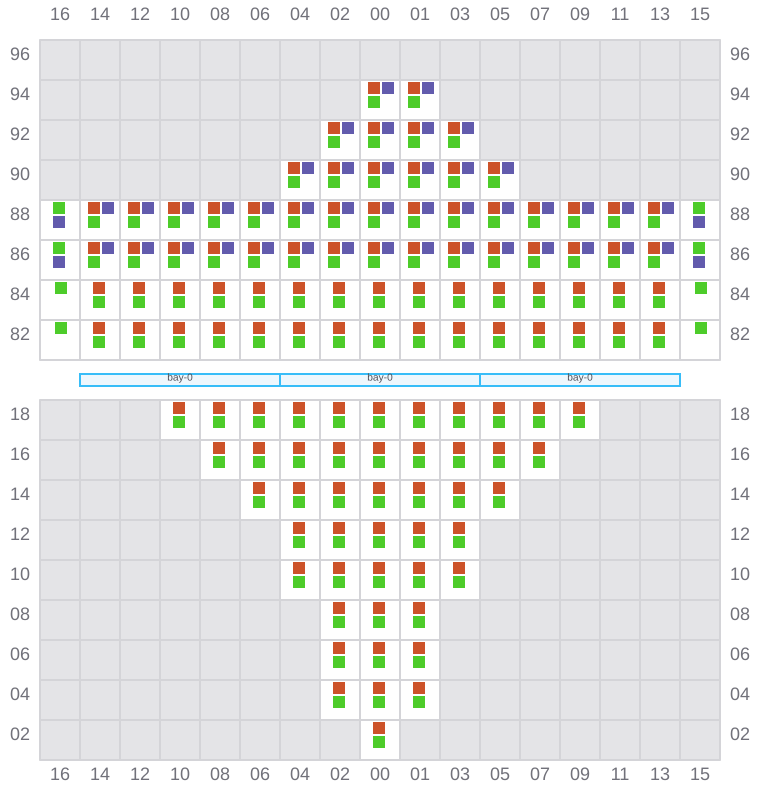

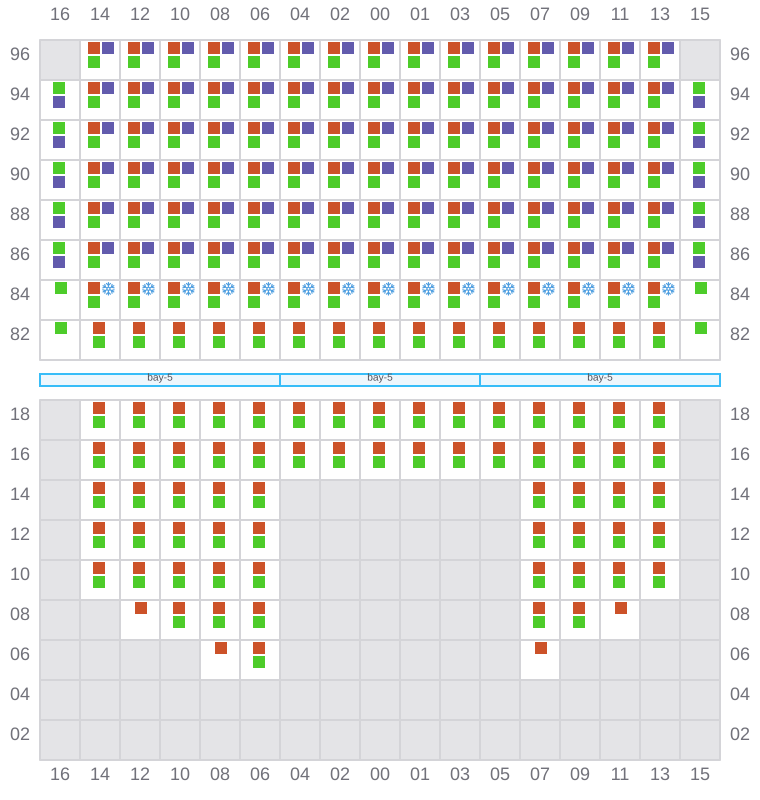

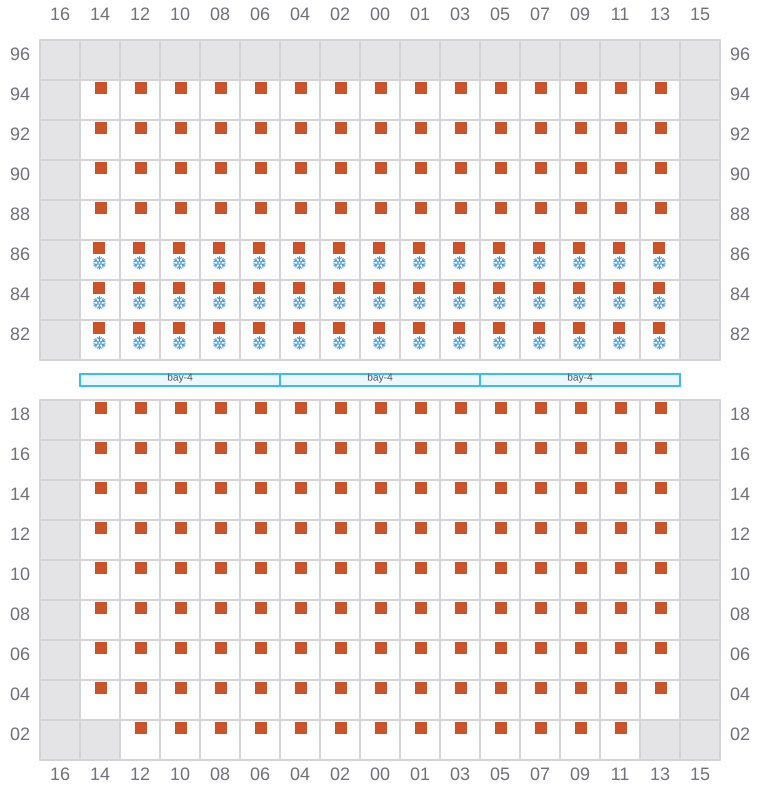

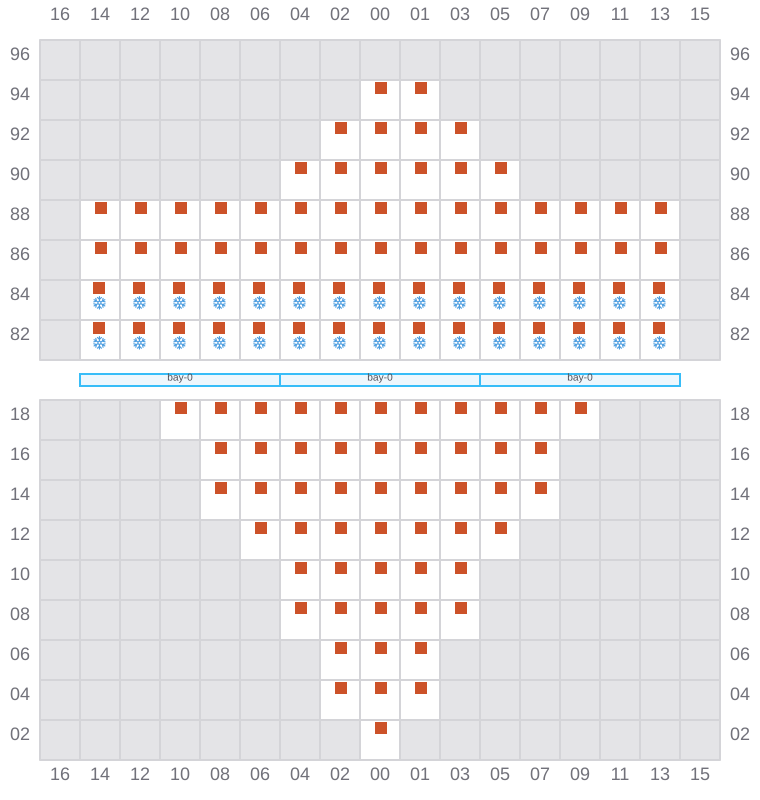

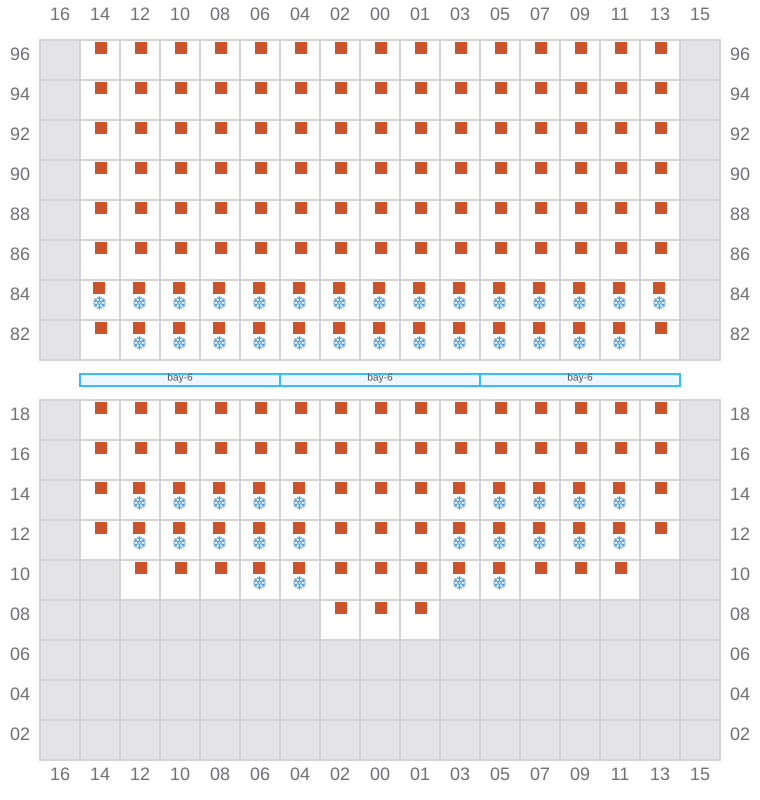

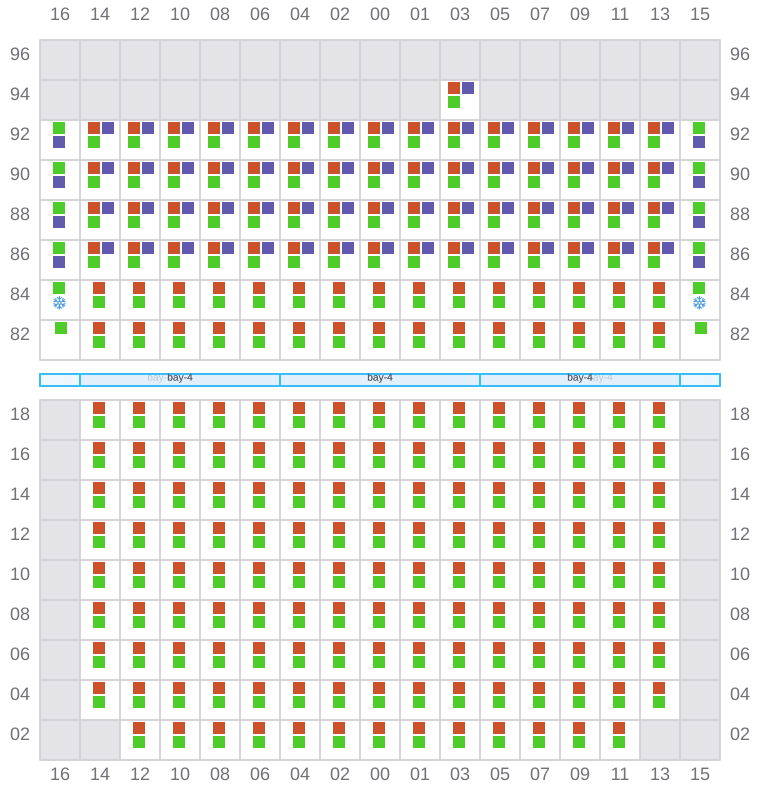

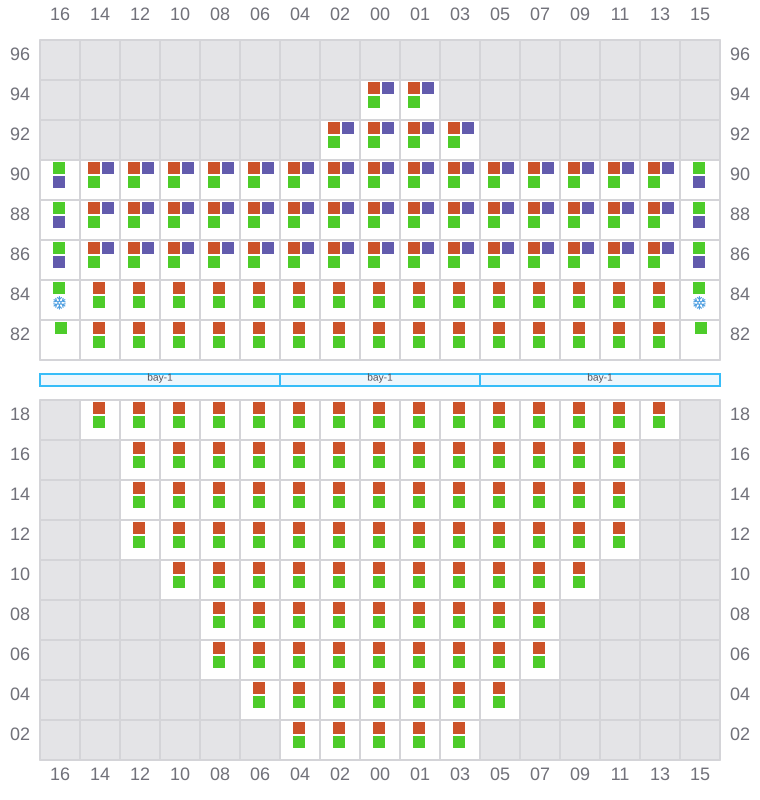

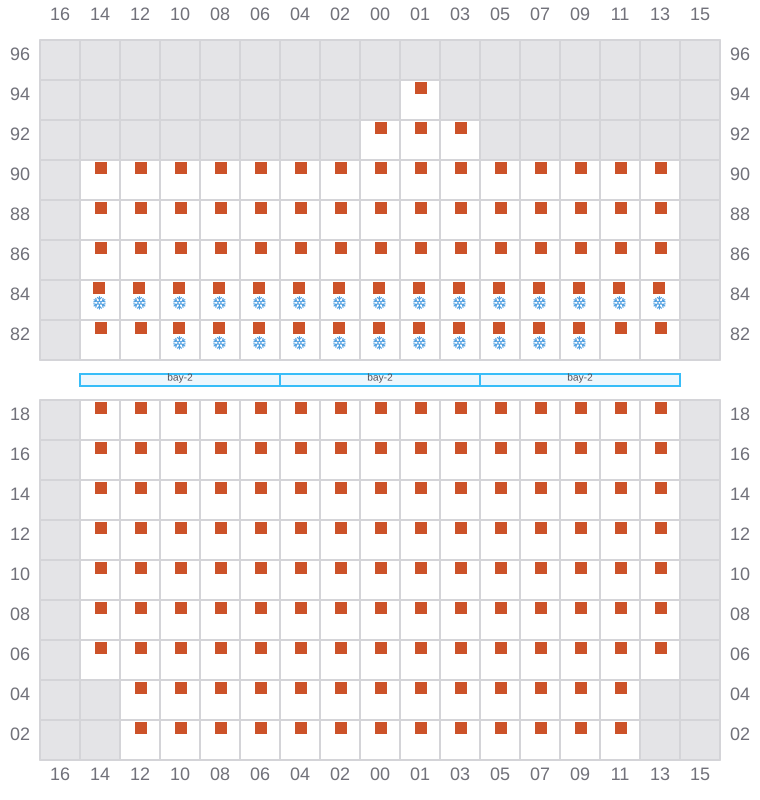

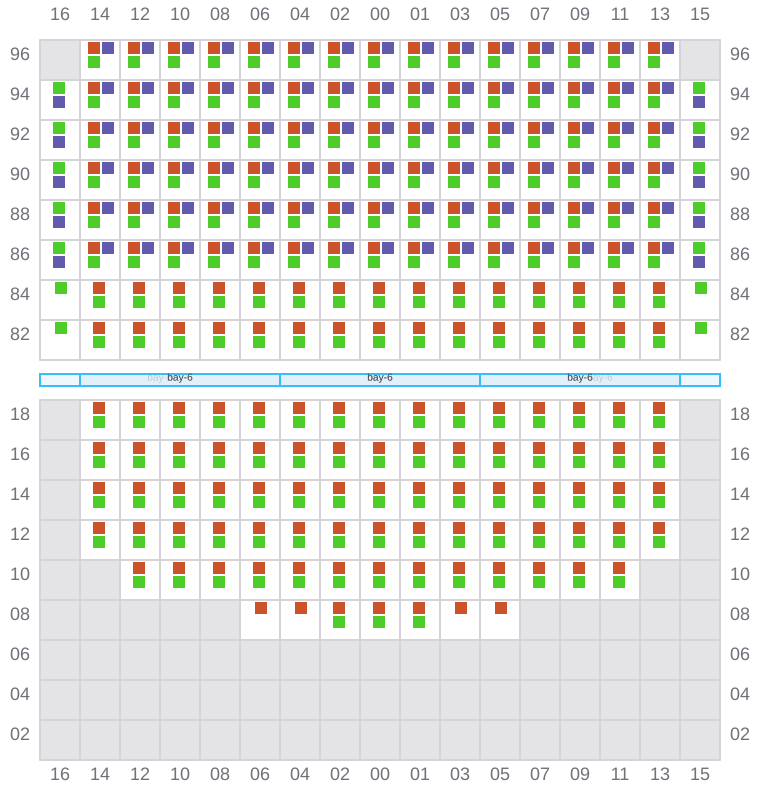

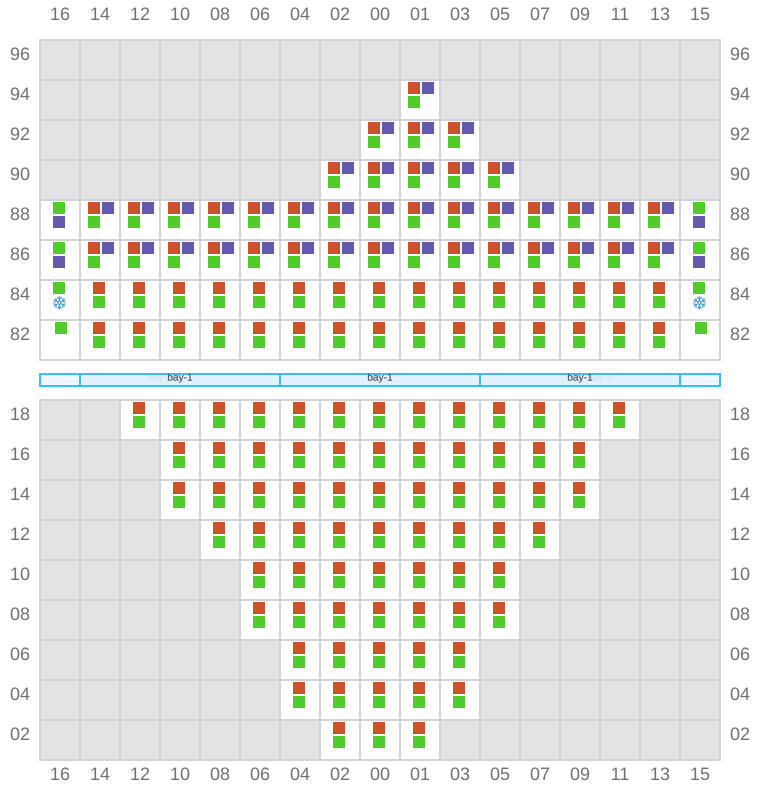

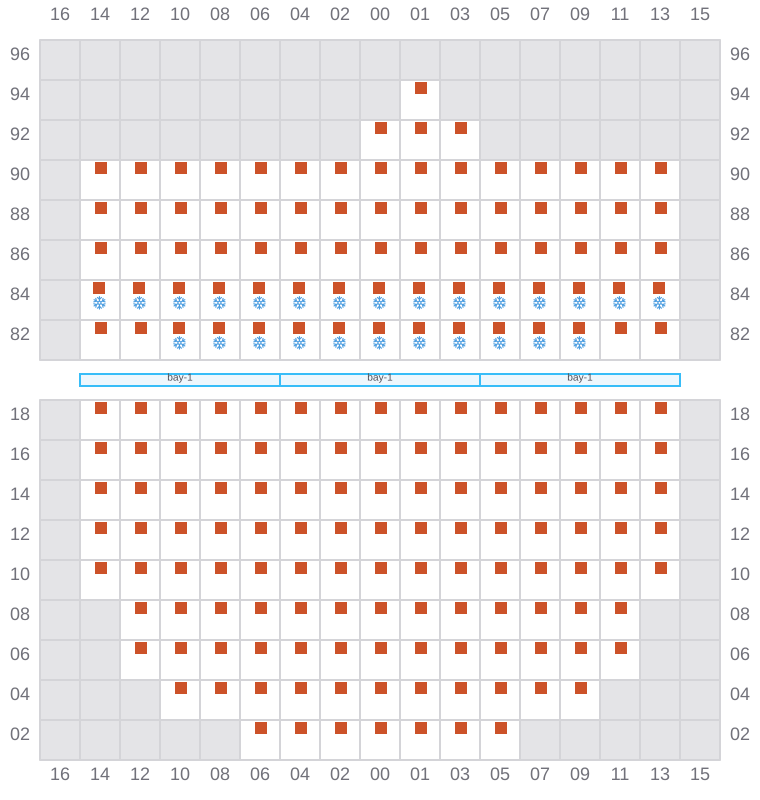

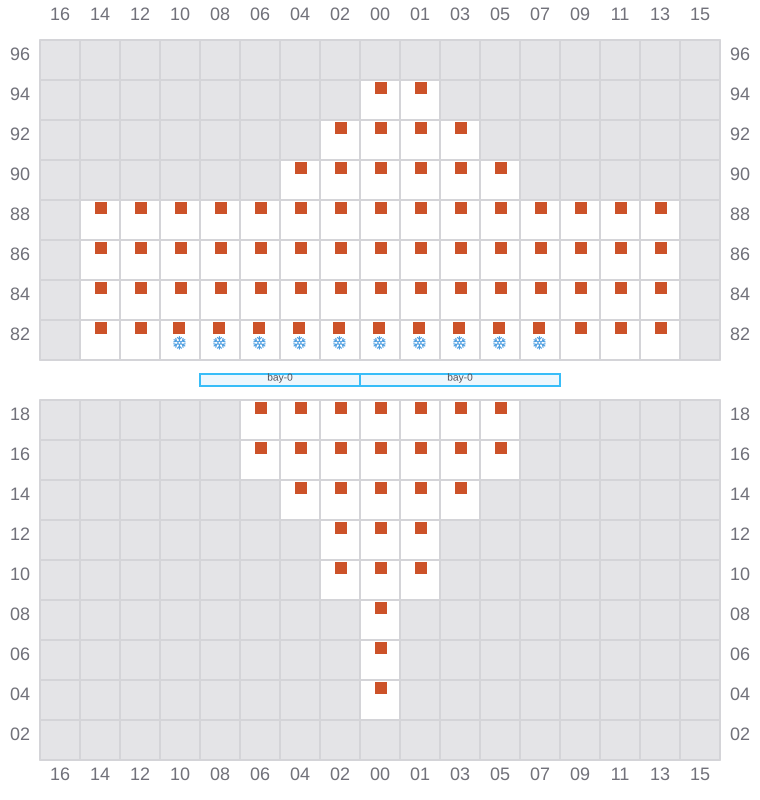

ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

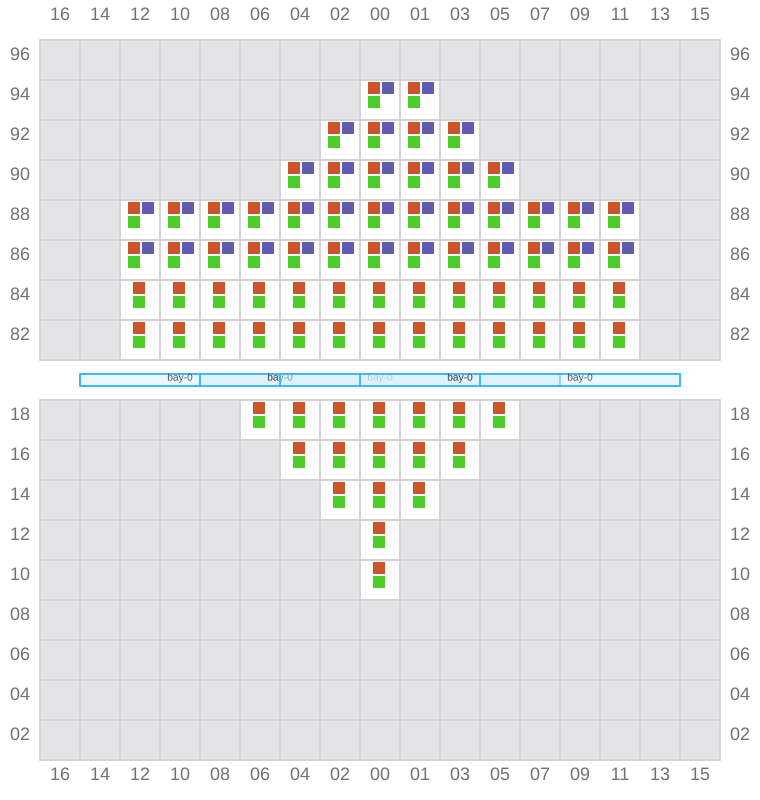

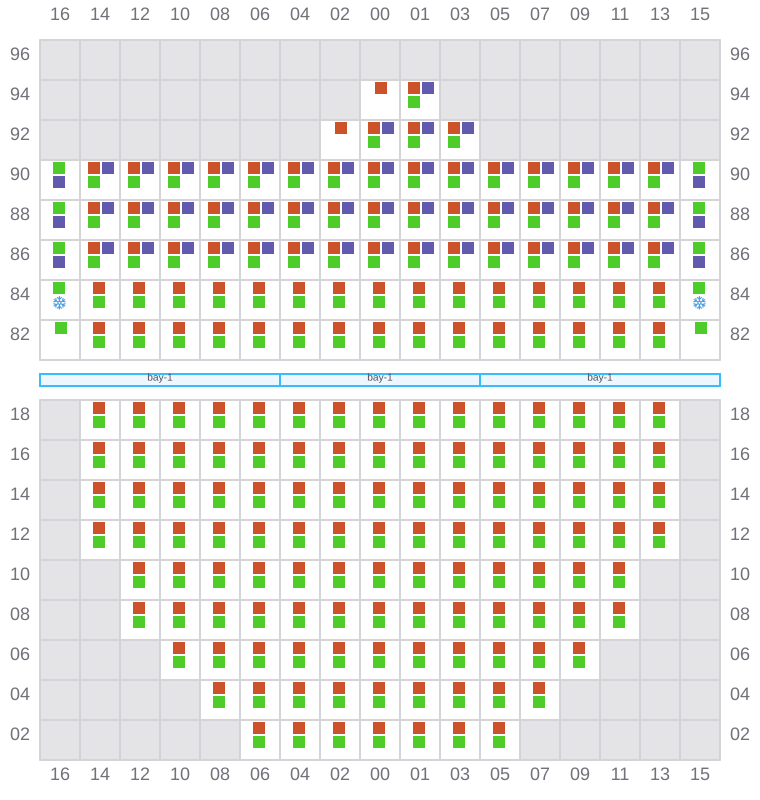

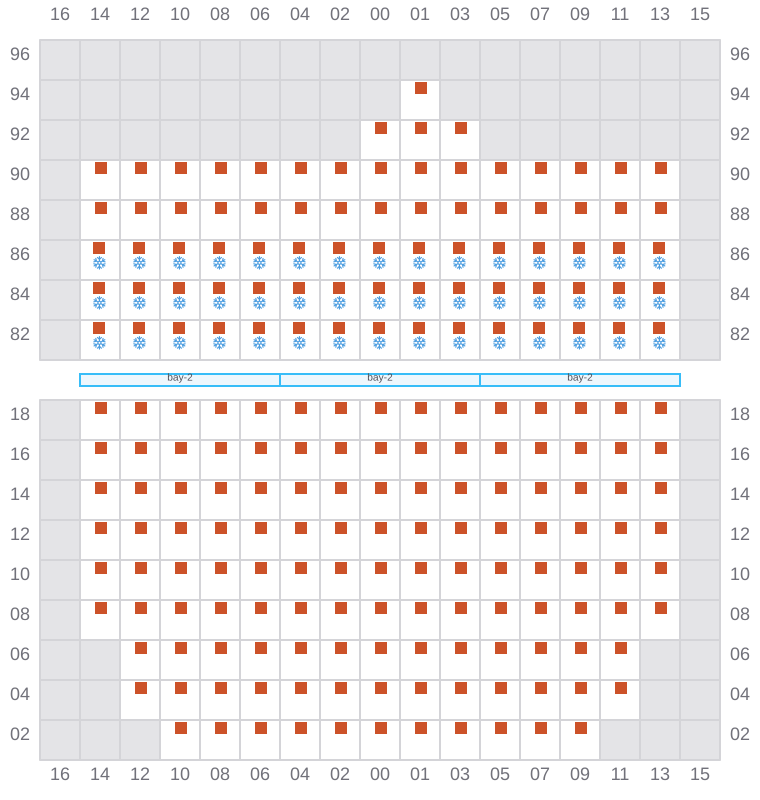

001 (002)
- →
003
- ←
- → / ?
005 (006)
- →
007
- ←
- → / ?
009 (010)
- →
- → / ?
011
- ←
- → / ?
013 (014)
- →
- → / ?

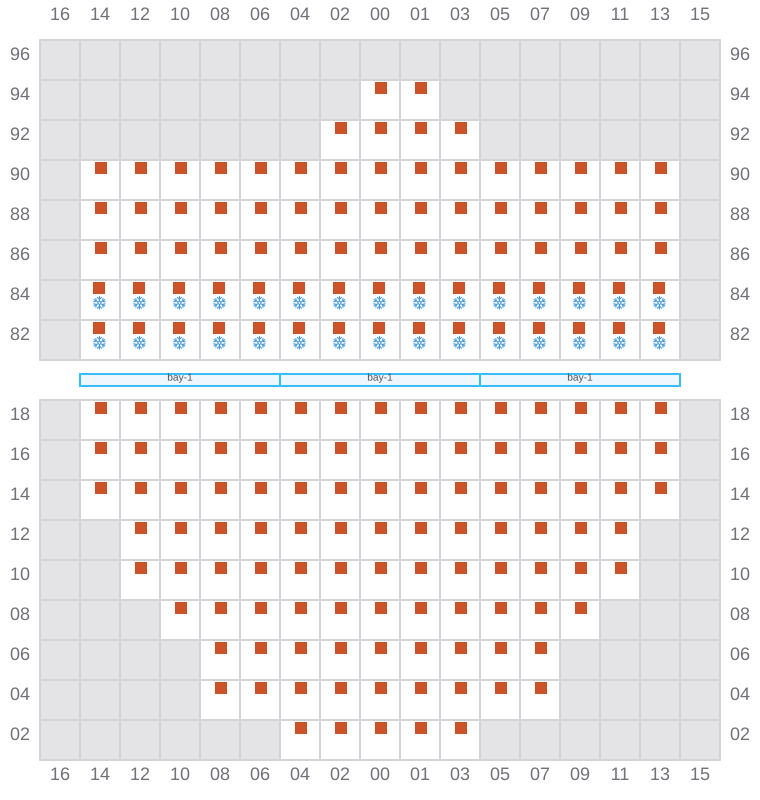

015
- ←
- → / ?
017 (018)
- →
- → / ?
019
- ←
- → / ?
021 (022)
- →
- → / ?
023
- ←
- → / ?
025 (026)
- →
- → / ?
027
- ←
- → / ?
029 (030)
- →
- → / ?
031
- ←
- → / ?
033 (034)
- →
- → / ?
035
- ←
- → / ?
037 (038)
- →
- → / ?
039
- ←
- → / ?
041 (042)
- →
- → / ?
043
- ←
- → / ?
045 (046)
- →
- → / ?
047
- ←
- → / ?
049 (050)
- →
- → / ?

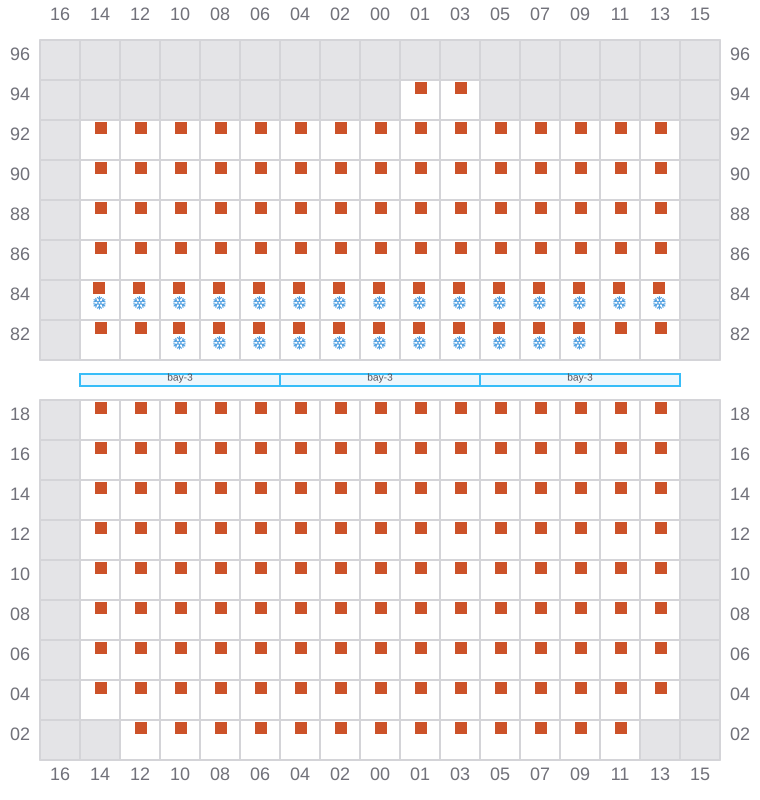

051
- ←
- →
053 (054)
- →
- → / ?
055
- ←
- →
057 (058)
- →
- ← / ?

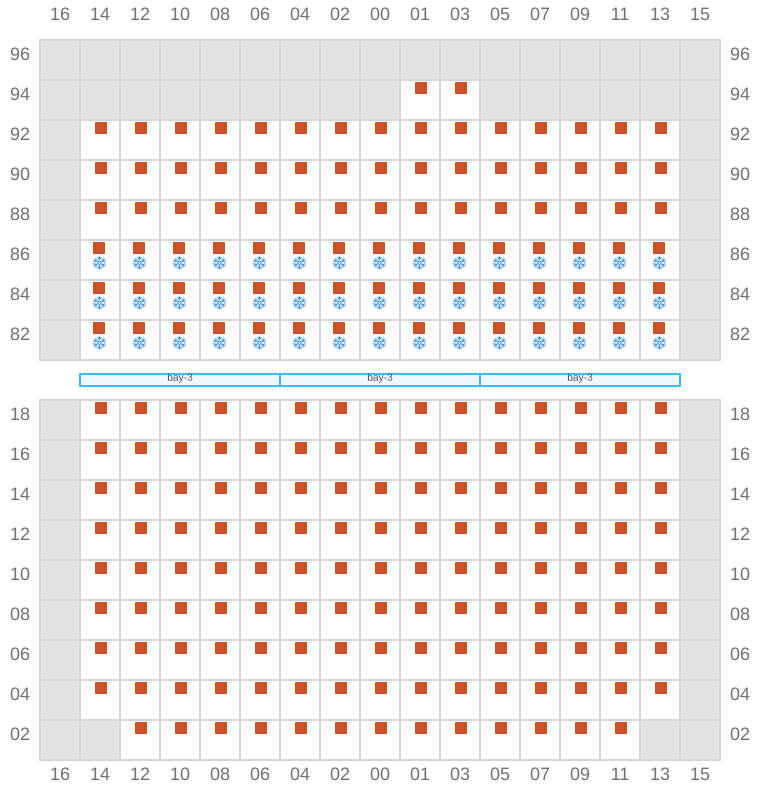

059
- ←
- →
061 (062)
- →

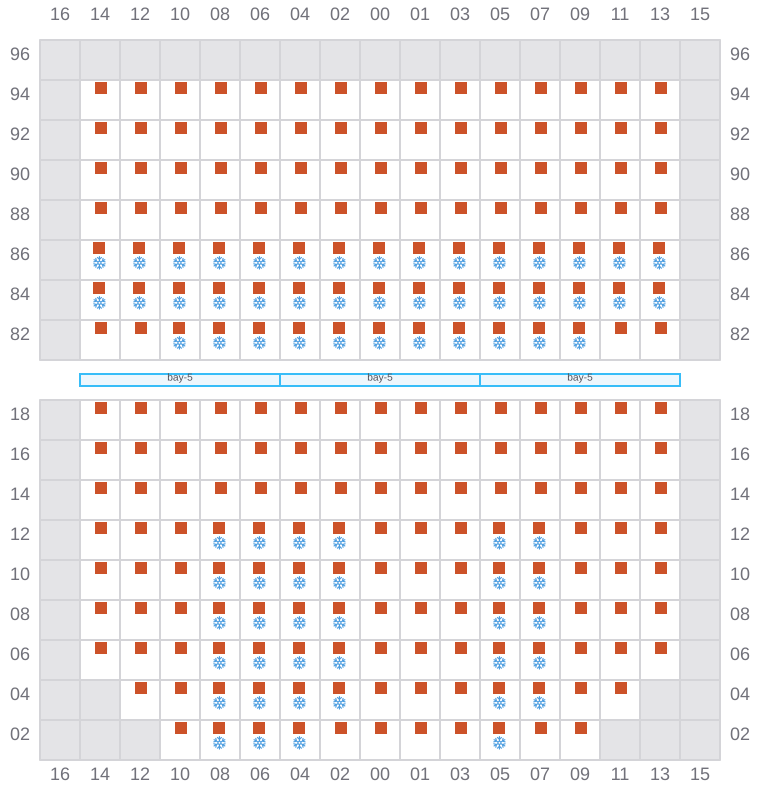

063
- ←
- →

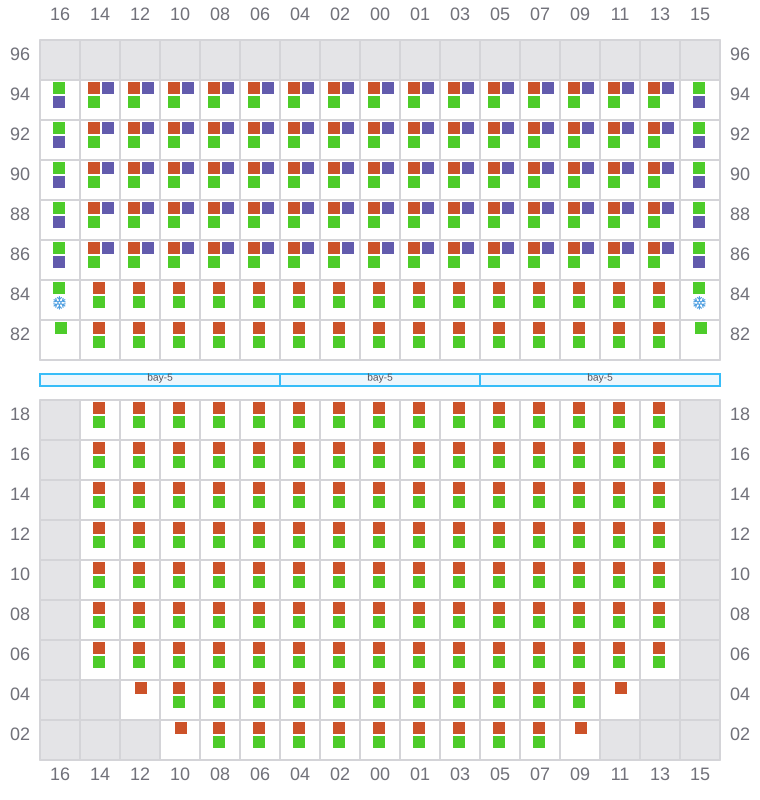

065 (066)
- →

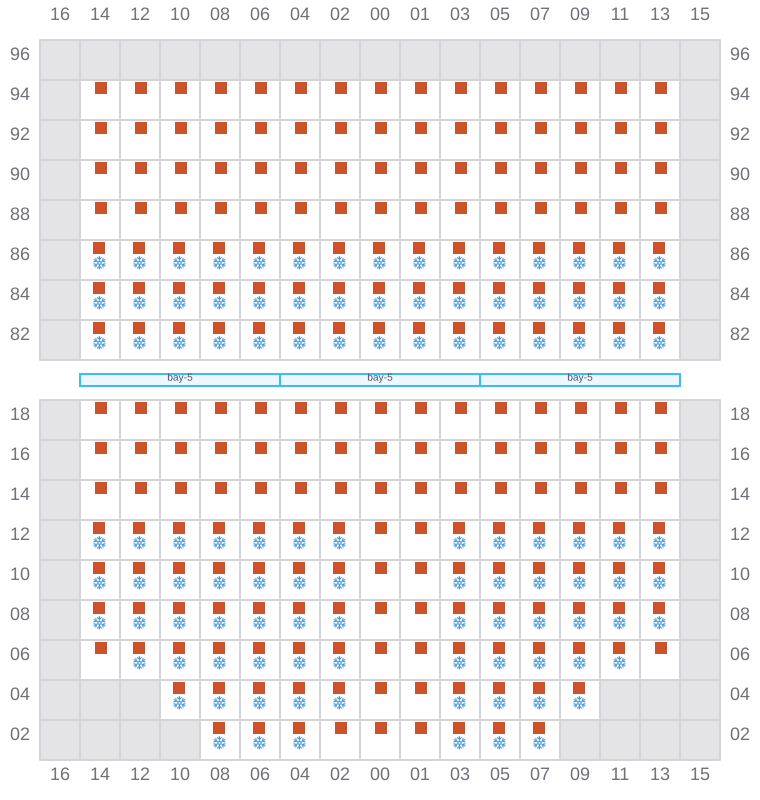

067
- ←
- → / ?
069 (070)
- → / ?
- → / ?
