WAN FU DA
9134505 | BVWM7 | CNI by ************* Last update: Sun Jun 04 2023

General Info

Ship Name:WAN FU DA
IMO Code:9134505
Call Sign:BVWM7
Line Operator:CNI
Class Name for Sister Ships:NRD
Year Built:1997
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:
Also Known As...:-

Size Summary

ISO Bays:053
Max ISO Row:10
Center Line Row:Yes
Max Above ISO Tier:90
Min Above ISO Tier:82
Max Below ISO Tier:12
Min Below ISO Tier:02
Total TEU:2,103

Centers of Gravity

LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

Side View

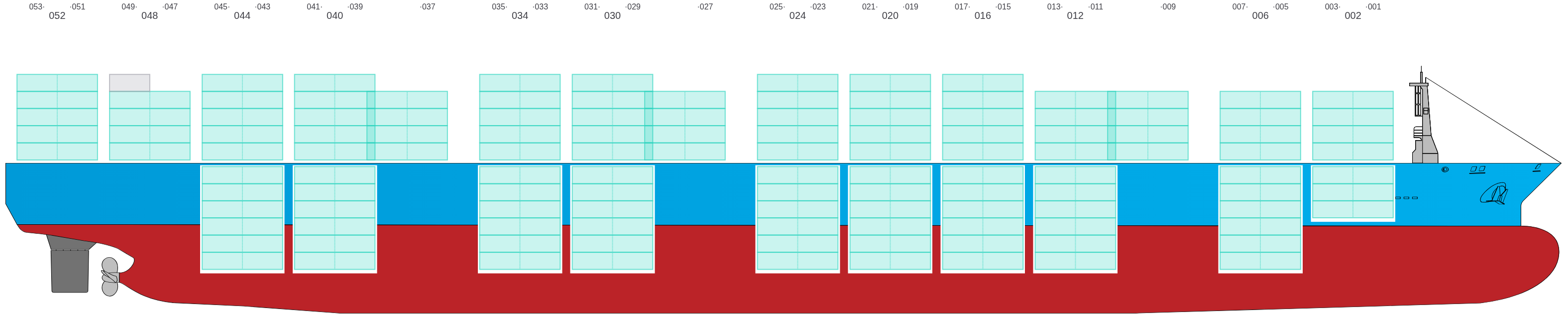

Side view of WAN FU DA

Hatch-Covers View

Deck view of WAN FU DA

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001 (002)

  • →

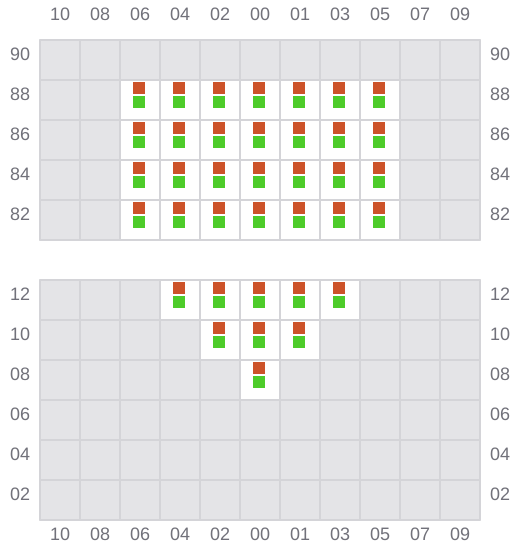

Bay 001 view and slots of WAN FU DA

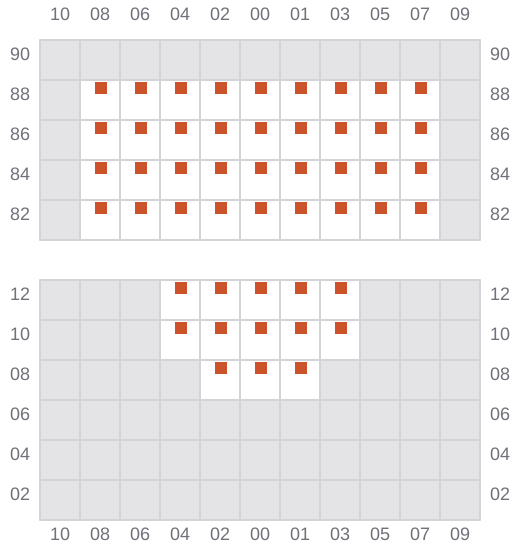

003

  • ←
Bay 003 view and slots of WAN FU DA

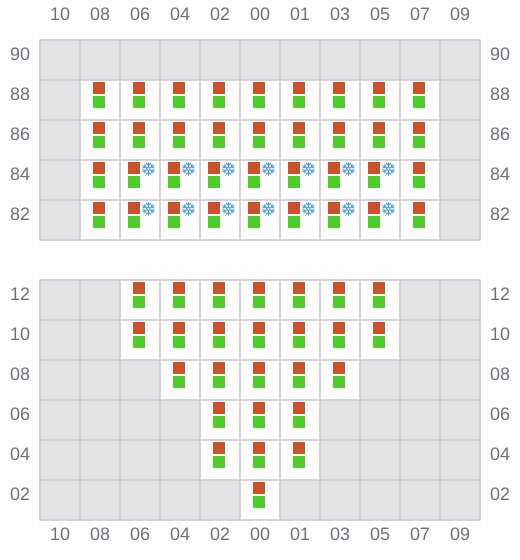

005 (006)

  • →
Bay 005 view and slots of WAN FU DA

007

  • ←

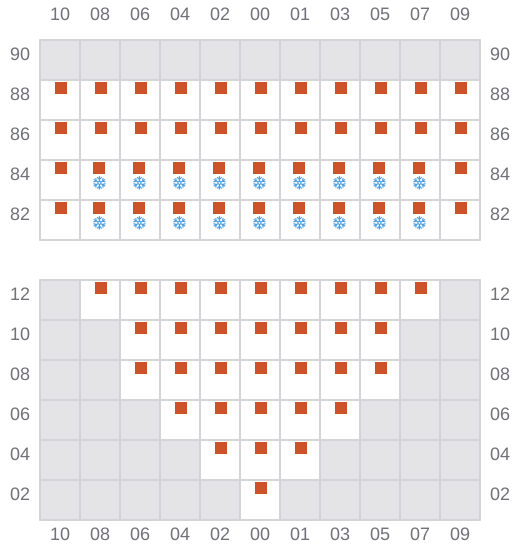

Bay 007 view and slots of WAN FU DA

009 (010)

  • → / ?

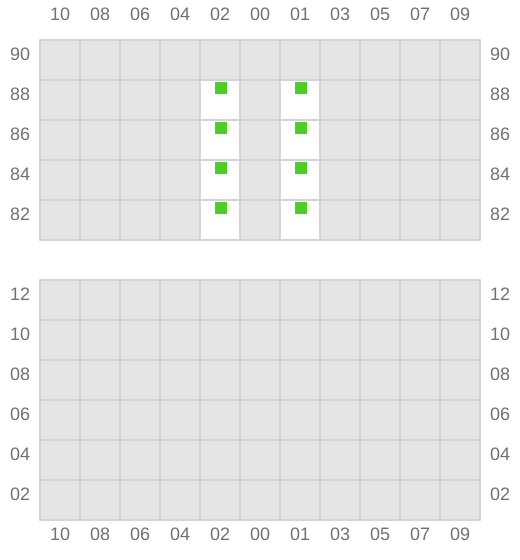

Bay 009 view and slots of WAN FU DA

011 (012)

  • →

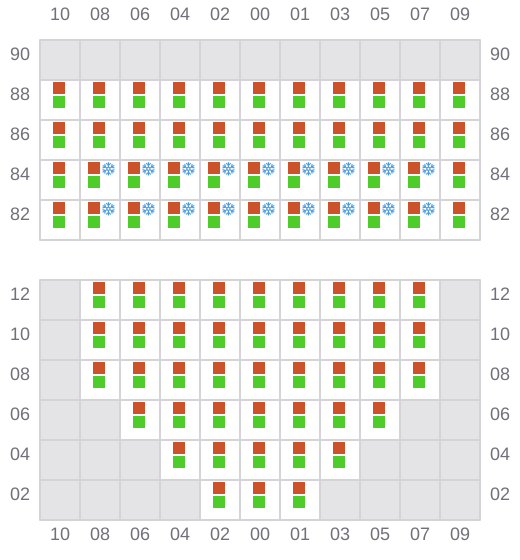

Bay 011 view and slots of WAN FU DA

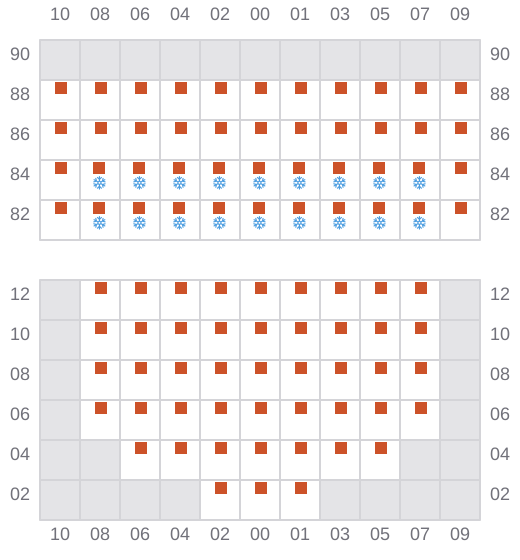

013

  • ←
Bay 013 view and slots of WAN FU DA

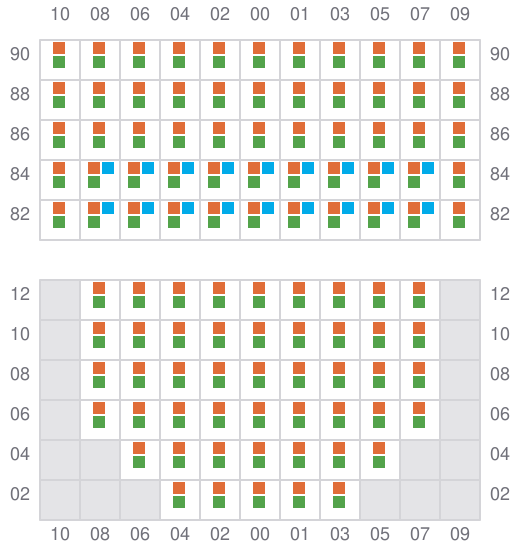

015 (016)

  • →
Bay 015 view and slots of WAN FU DA

017

  • ←
Bay 017 view and slots of WAN FU DA

019 (020)

  • →
Bay 019 view and slots of WAN FU DA

021

  • ←
Bay 021 view and slots of WAN FU DA

023 (024)

  • →
Bay 023 view and slots of WAN FU DA

025

  • ←

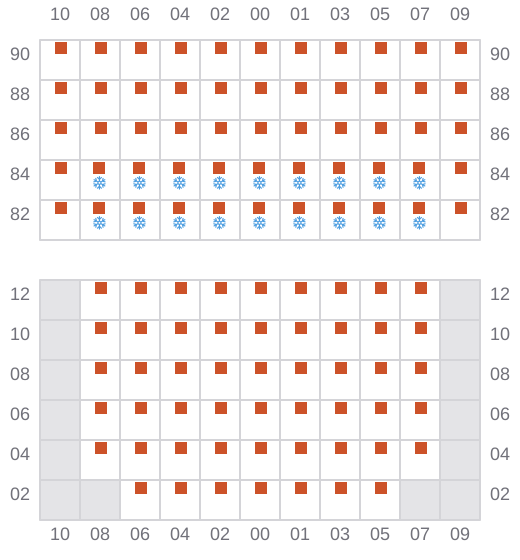

Bay 025 view and slots of WAN FU DA

027 (028)

  • → / ?
Bay 027 view and slots of WAN FU DA

029 (030)

  • →
Bay 029 view and slots of WAN FU DA

031

  • ←
Bay 031 view and slots of WAN FU DA

033 (034)

  • →

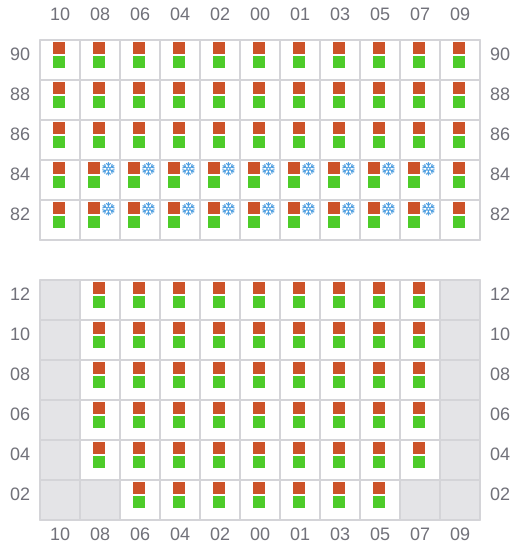

Bay 033 view and slots of WAN FU DA

035

  • ←
Bay 035 view and slots of WAN FU DA

037 (038)

  • → / ?
Bay 037 view and slots of WAN FU DA

039 (040)

  • →
Bay 039 view and slots of WAN FU DA

041

  • ←
Bay 041 view and slots of WAN FU DA

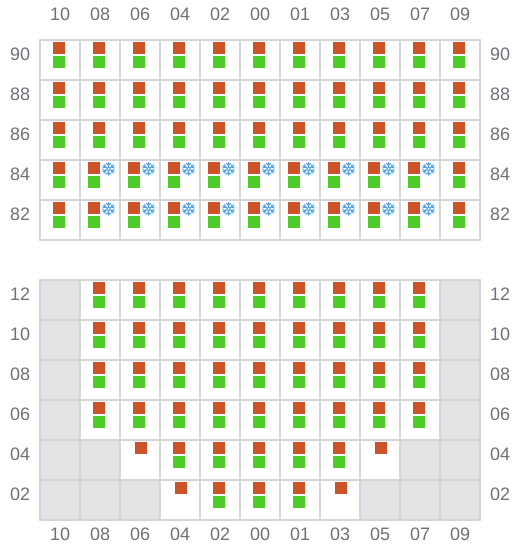

043 (044)

  • →
Bay 043 view and slots of WAN FU DA

045

  • ←
Bay 045 view and slots of WAN FU DA

047 (048)

  • → / ?
Bay 047 view and slots of WAN FU DA

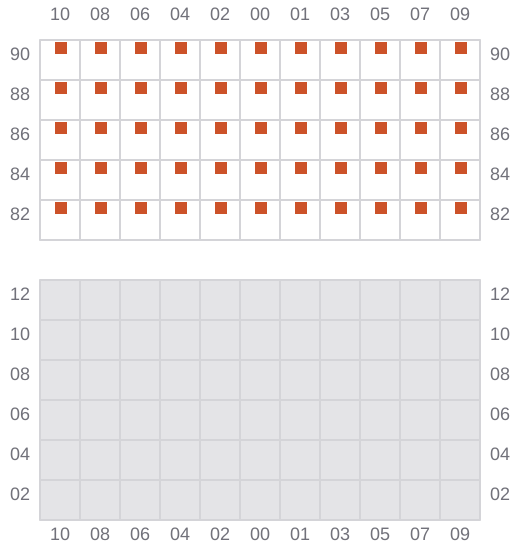

049

  • ← / ?
Bay 049 view and slots of WAN FU DA

051 (052)

  • → / ?

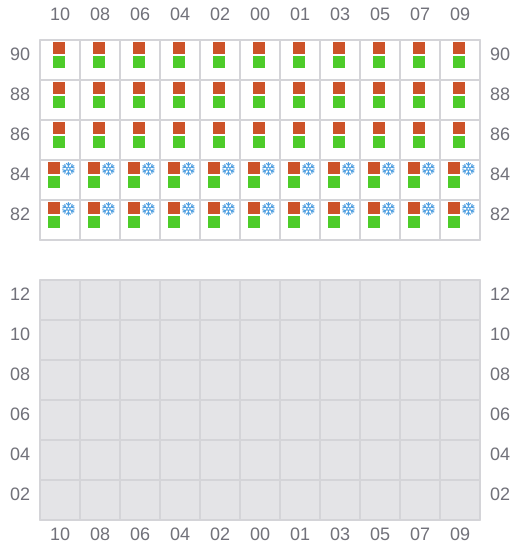

Bay 051 view and slots of WAN FU DA

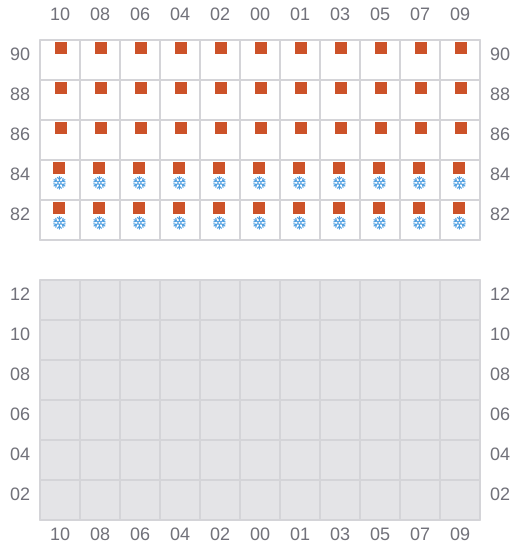

053

  • ← / ?
Bay 053 view and slots of WAN FU DA
