WAN HAI 172
9380269 | VRFF4 | 9380269 by ********* Last update: Fri May 03 2024

General Info

Ship Name:WAN HAI 172
IMO Code:9380269
Call Sign:VRFF4
Line Operator:9380269
Class Name for Sister Ships:WAN HAI 172
Year Built:2009
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-

Size Summary

ISO Bays:037
Max ISO Row:10
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:10
Min Below ISO Tier:02
Total TEU:1,819

Centers of Gravity

LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

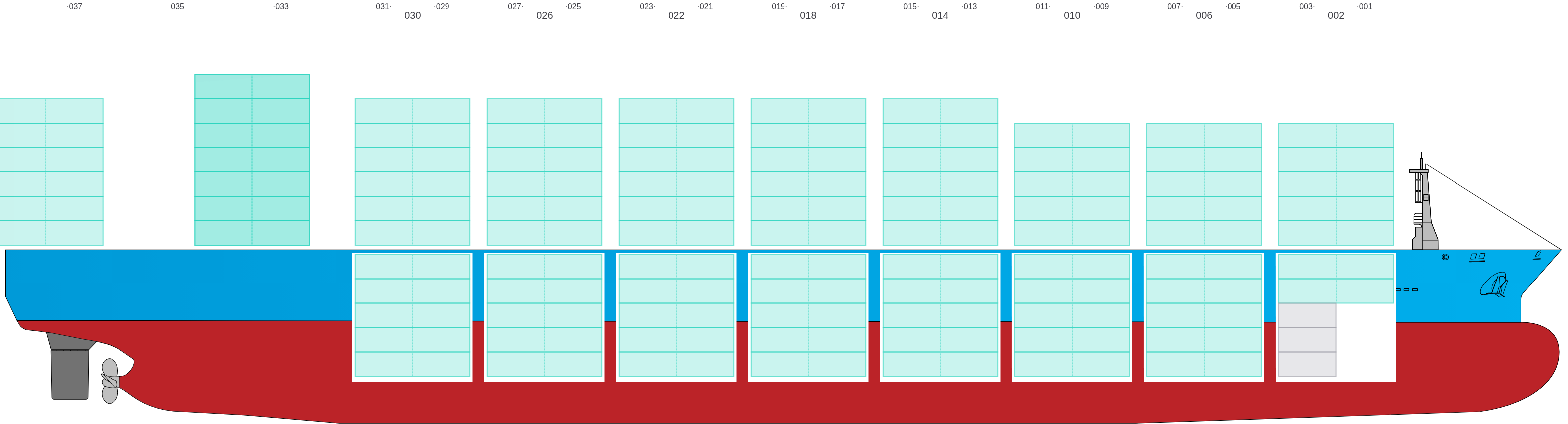

Side View

Side view of WAN HAI 172

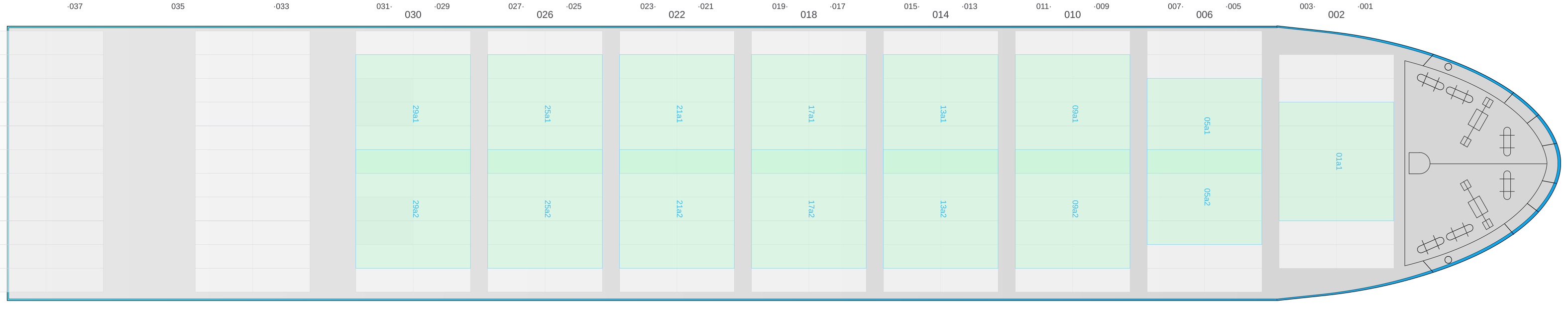

Hatch-Covers View

Deck view of WAN HAI 172

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001 (002)

  • →

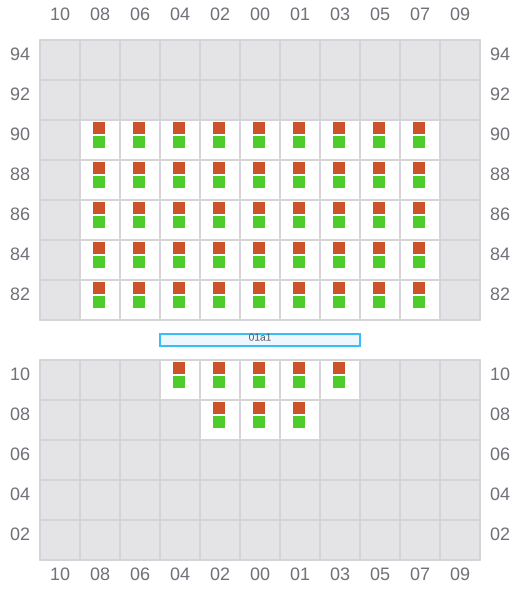

Bay 001 view and slots of WAN HAI 172

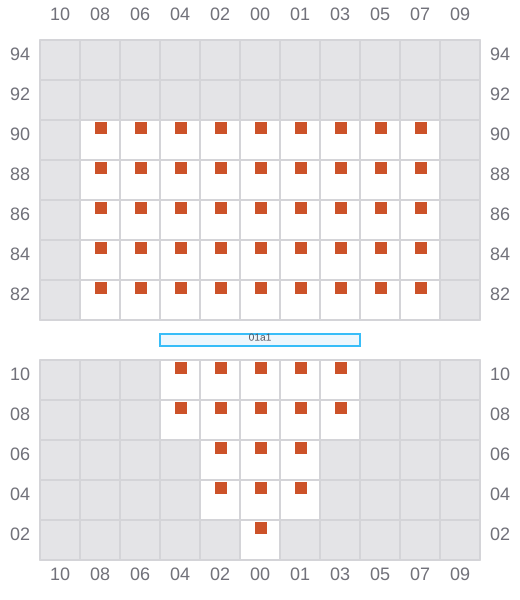

003

  • ←
Bay 003 view and slots of WAN HAI 172

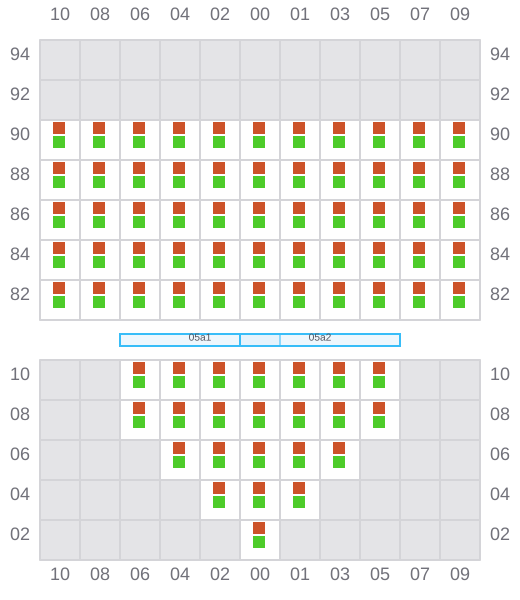

005 (006)

  • →
Bay 005 view and slots of WAN HAI 172

007

  • ←

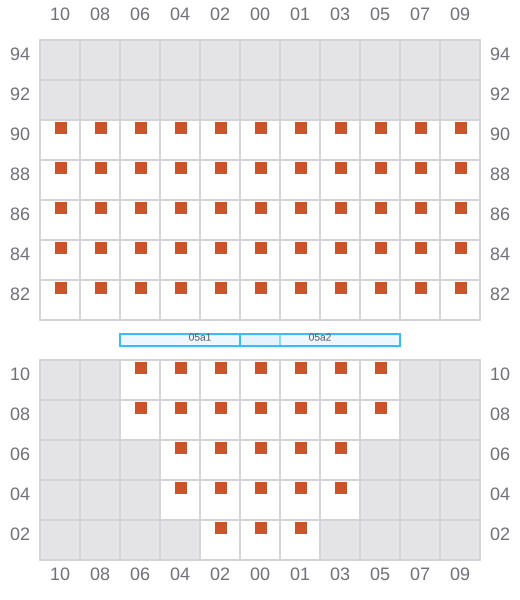

Bay 007 view and slots of WAN HAI 172

009 (010)

  • →

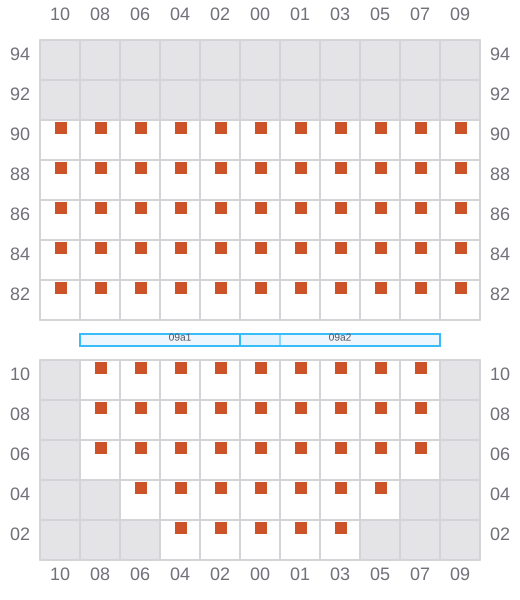

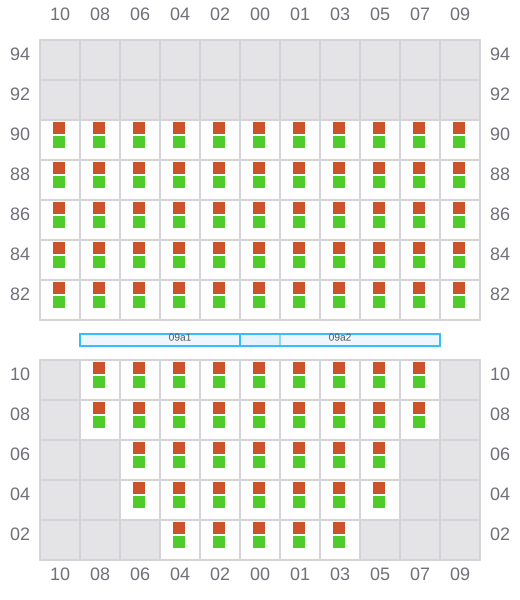

Bay 009 view and slots of WAN HAI 172

011

  • ←
Bay 011 view and slots of WAN HAI 172

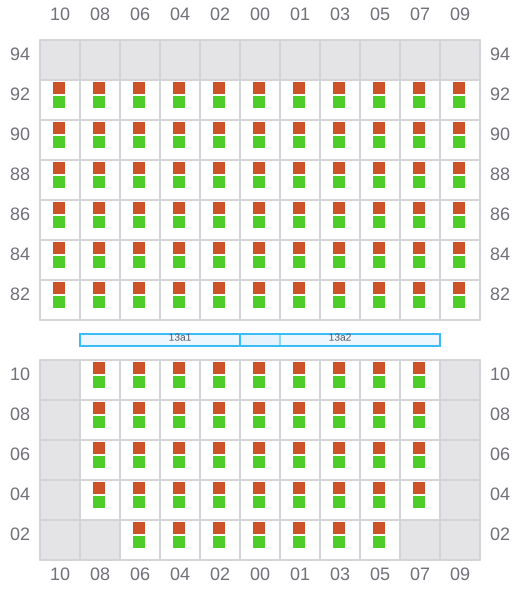

013 (014)

  • →

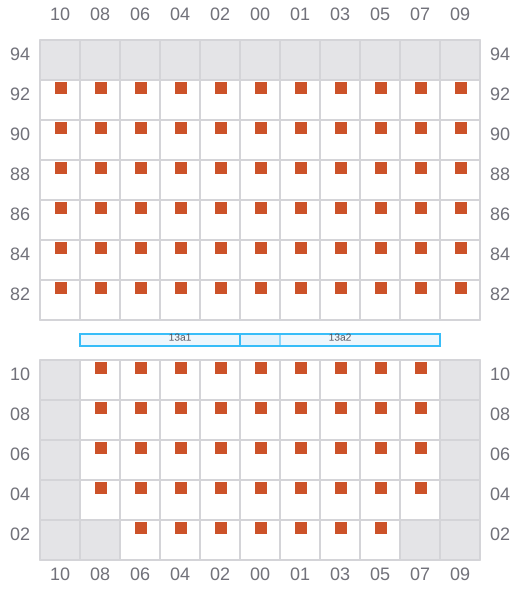

Bay 013 view and slots of WAN HAI 172

015

  • ←
Bay 015 view and slots of WAN HAI 172

017 (018)

  • →

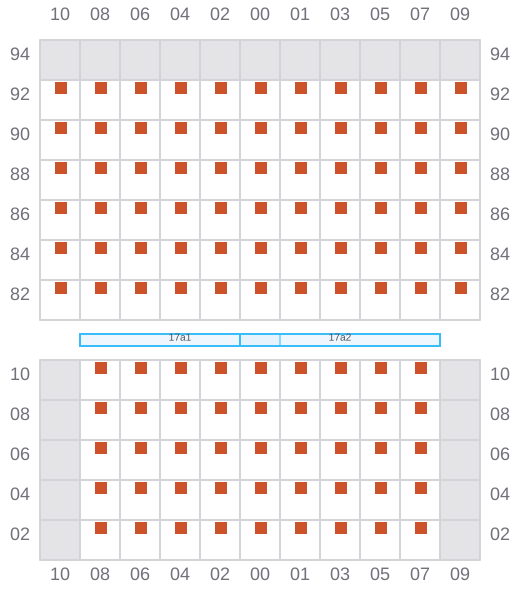

Bay 017 view and slots of WAN HAI 172

019

  • ←
Bay 019 view and slots of WAN HAI 172

021 (022)

  • →
Bay 021 view and slots of WAN HAI 172

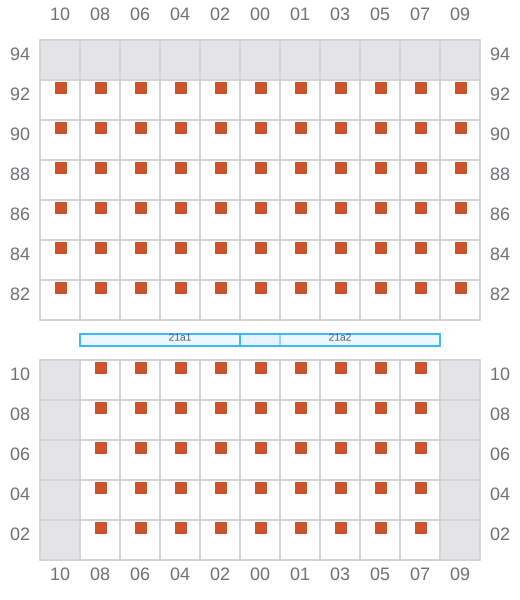

023

  • ←
Bay 023 view and slots of WAN HAI 172

025 (026)

  • →

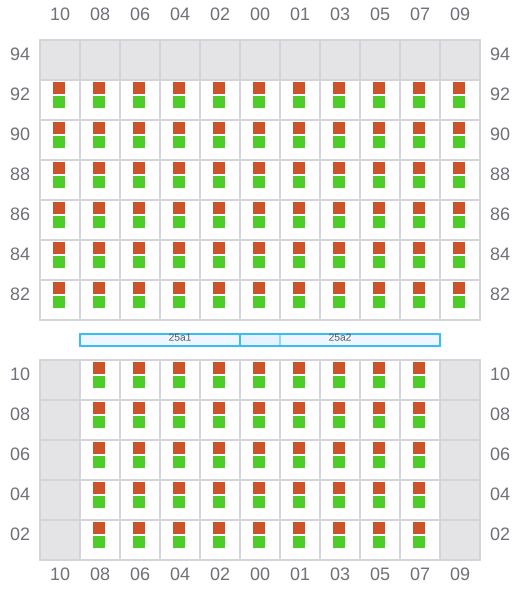

Bay 025 view and slots of WAN HAI 172

027

  • ←
Bay 027 view and slots of WAN HAI 172

029 (030)

  • →

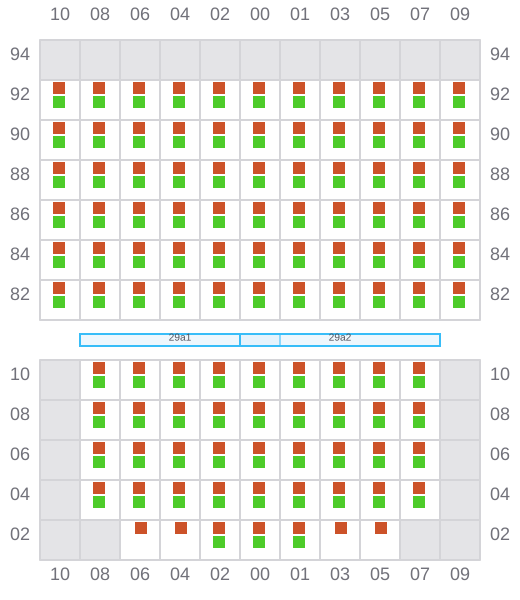

Bay 029 view and slots of WAN HAI 172

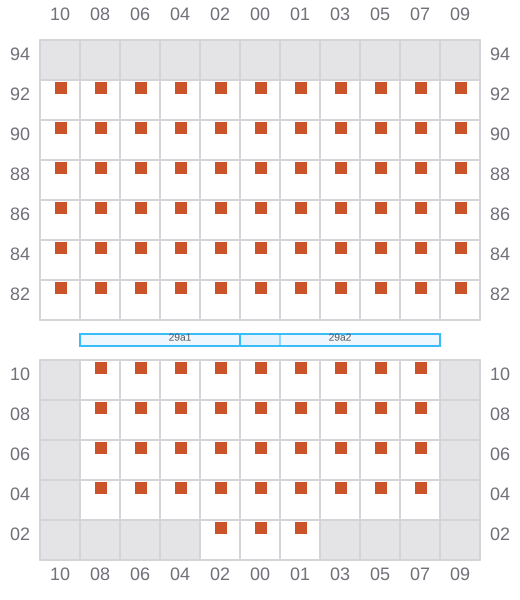

031

  • ←
Bay 031 view and slots of WAN HAI 172

033 (034)

  • → / ?

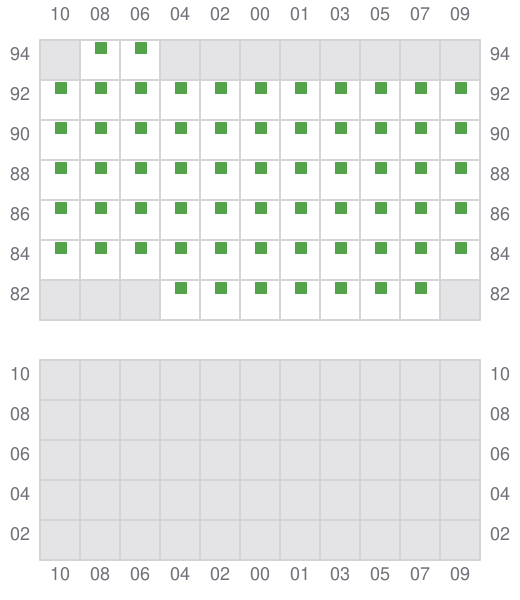

Bay 033 view and slots of WAN HAI 172

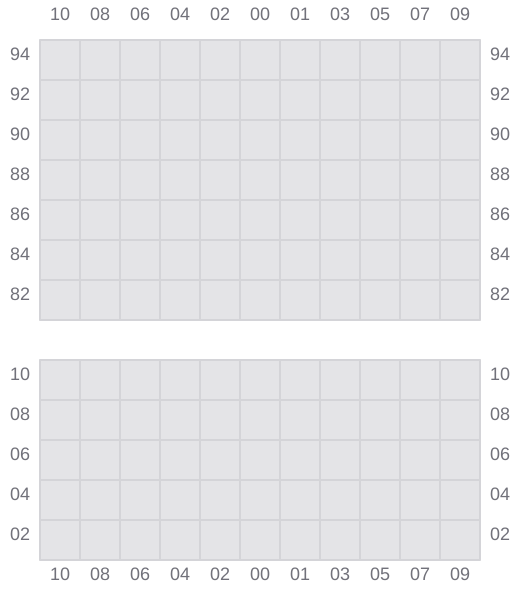

035

Bay 035 view and slots of WAN HAI 172

037 (038)

  • → / ?

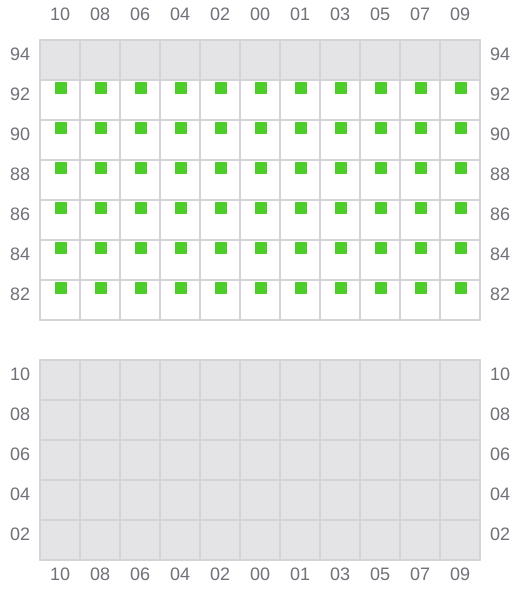

Bay 037 view and slots of WAN HAI 172
